NL47-7003TW-7PK - Home Automation Nanoleaf - Free user manual and instructions

Product Type	Smart Light Panel Kit (Triangles)
Model Number	NL47-7003TW-7PK
Number of Panels	7
Shape	Triangle
Power Supply Input	100-240V~50/60Hz
Power Supply Max Power	42W
Controller Supported Panels	Up to 500 panels
Connectivity	Wi-Fi 2.4GHz b/g/n, 2.4GHz proprietary, NFC
Frequency Ranges	2.4GHz Wi-Fi: 2412-2462 MHz; 2.4GHz Radio: 2402-2480 MHz; NFC: 13.56 MHz
Max RF Power	Wi-Fi < 20 dBm, Radio < 10 dBm, NFC 0 dBm
Mounting Method	Adhesive tape (included); optional screw mount sold separately
Suitable Surfaces	Clean, smooth, non-porous surfaces; not for textured, porous, popcorn, or ceiling surfaces
App Compatibility	Nanoleaf App (iOS and Android)
Color Output	RGBW, dimmable
Warranty	2-year limited warranty (complimentary replacement)
Regulatory Compliance	FCC Part 15, ICES-003, CE, RoHS
Indoor Use Only	Yes, not for outdoor or damp locations
Operating Temperature	Max ambient 40°C
Cleaning	Soft dry cloth; no liquids or sprays when powered
Country of Origin	Manufactured for NanoGrid Limited, Hong Kong

Frequently Asked Questions - NL47-7003TW-7PK Nanoleaf

How do I set up the Nanoleaf Shapes Triangles?

Download the Nanoleaf App from the App Store or Google Play. Follow the in-app instructions to create a layout, then mount panels using the included adhesive tape. Connect the controller and power supply to any panel in your setup.

How many panels can one controller support?

Each controller supports up to 500 panels. However, each standard power supply unit (PSU) supports up to 42W, so larger layouts may require additional PSUs. Use the PSU calculator at nanoleaf.me/myshapes.

Can I use these panels outdoors?

No. The Nanoleaf Shapes are designed for indoor use only. Using them outdoors, in damp or wet conditions, or in temperatures consistently above 40°C may cause damage and void the warranty.

How do I clean the panels?

Unplug the device from power before cleaning. Use a soft dry cloth to wipe the panels. Do not use liquid cleaners, sprays, or harsh chemicals.

What surfaces are suitable for mounting?

The adhesive tape works best on clean, smooth, non-porous surfaces. It is not suitable for textured, porous, popcorn, or ceiling surfaces, nor for brick walls or wallpaper.

What should I do if the adhesive tape won't hold?

Ensure the surface is clean and dry. If the tape still fails, consider using the optional screw mount kit sold separately. Nanoleaf also offers secure mounting accessories.

Can I connect multiple power supplies?

Yes, for layouts exceeding 42W, you can connect additional PSUs to support more panels. The controller can handle up to 500 panels with sufficient power.

How do I reset the device?

There is no physical reset button. To reset, turn the device off and on via the app or the power switch. If issues persist, contact Nanoleaf support at helpdesk.nanoleaf.me.

What is the warranty period?

Nanoleaf offers a 2-year limited warranty covering defective hardware. For full details and to register, visit nanoleaf.me/warranty.

Can I use third-party accessories or connectors?

Only use original Nanoleaf connectors and accessories. Using non-approved parts may void the warranty and create safety hazards. The power supply and controller are not replaceable with third-party parts.

USER MANUAL NL47-7003TW-7PK Nanoleaf

Smarter by Design

Nanoleaf Shapes

Triangles | Smarter Kit

Quick Start Guide

Download on the App Store

GET IT ON Google Play

User Manual & Warranty Registration

nanoleaf.me/myshapes

Important Installation Tips

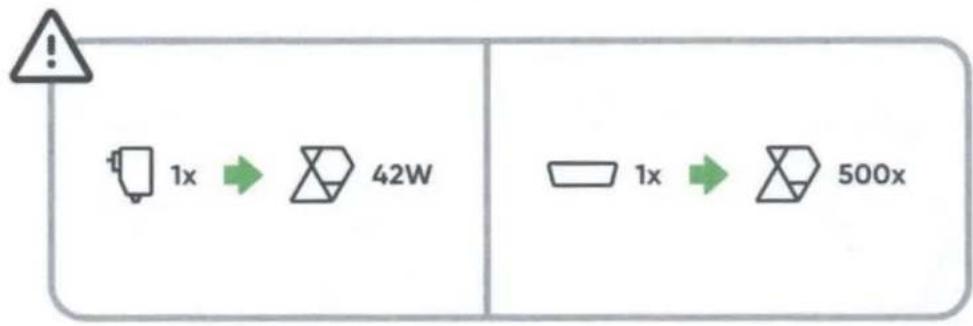

Make sure you have enough PSUs for your layout. NOTE: Each standard PSU supports up to 42W and each Controller supports up to 500 panels. Use our PSU calculator at nanoleaf.me/myshapes.

Before mounting your panels, clean your surface to be free of dust, moisture and oil.

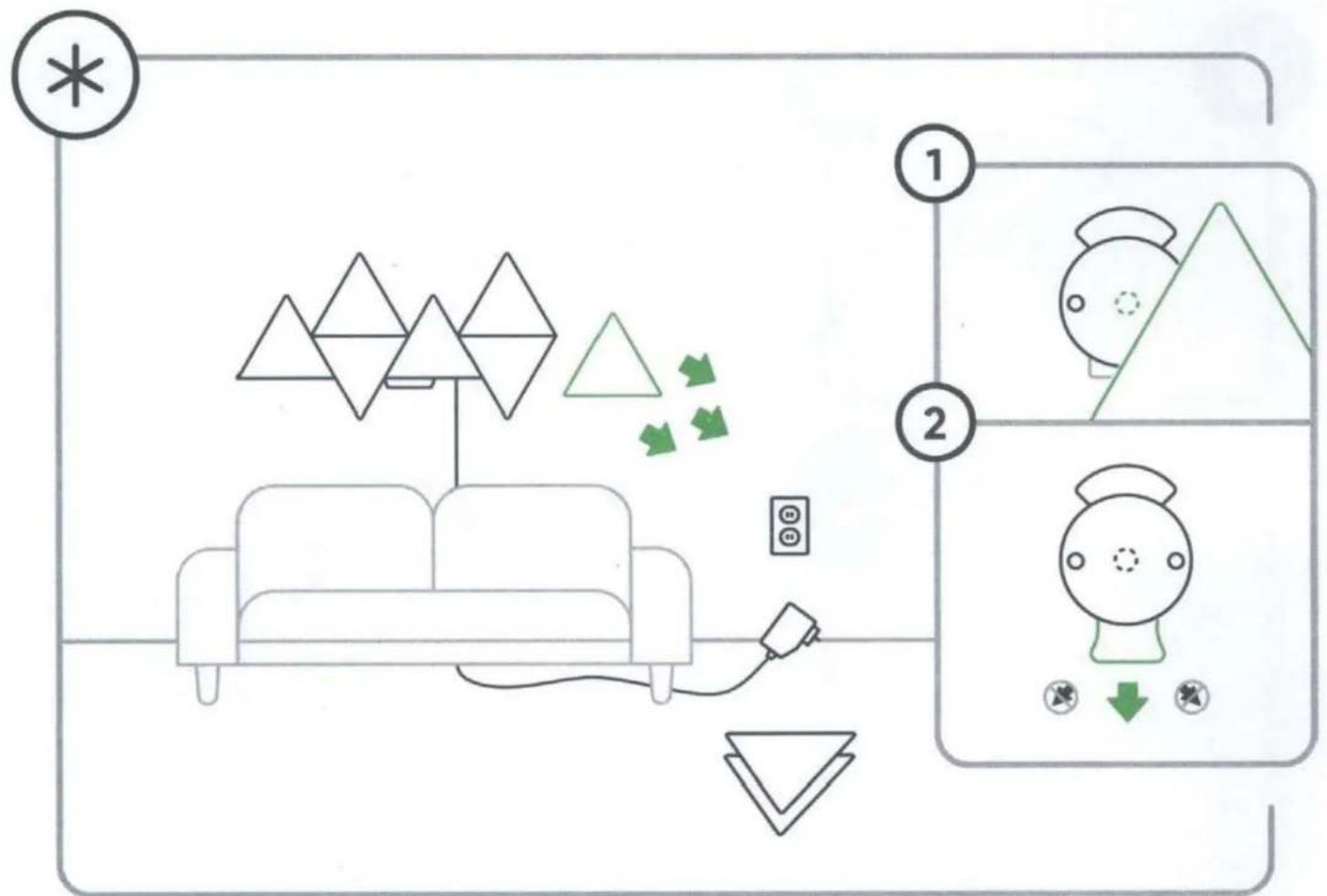

To mount, apply strong pressure in a circular motion to the center of the panel for 30 seconds.

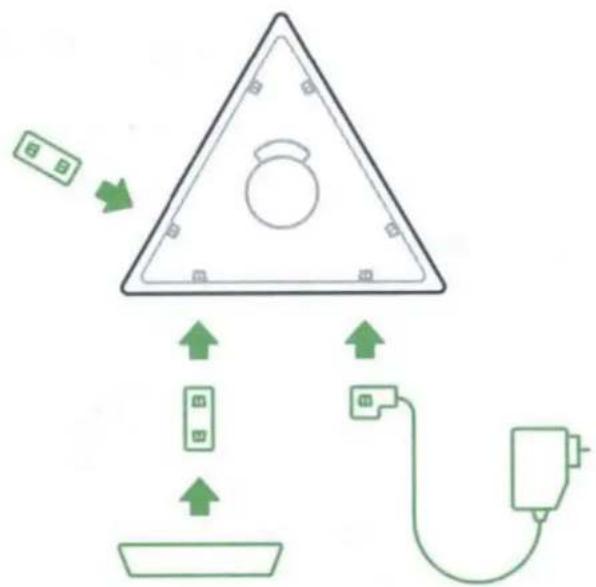

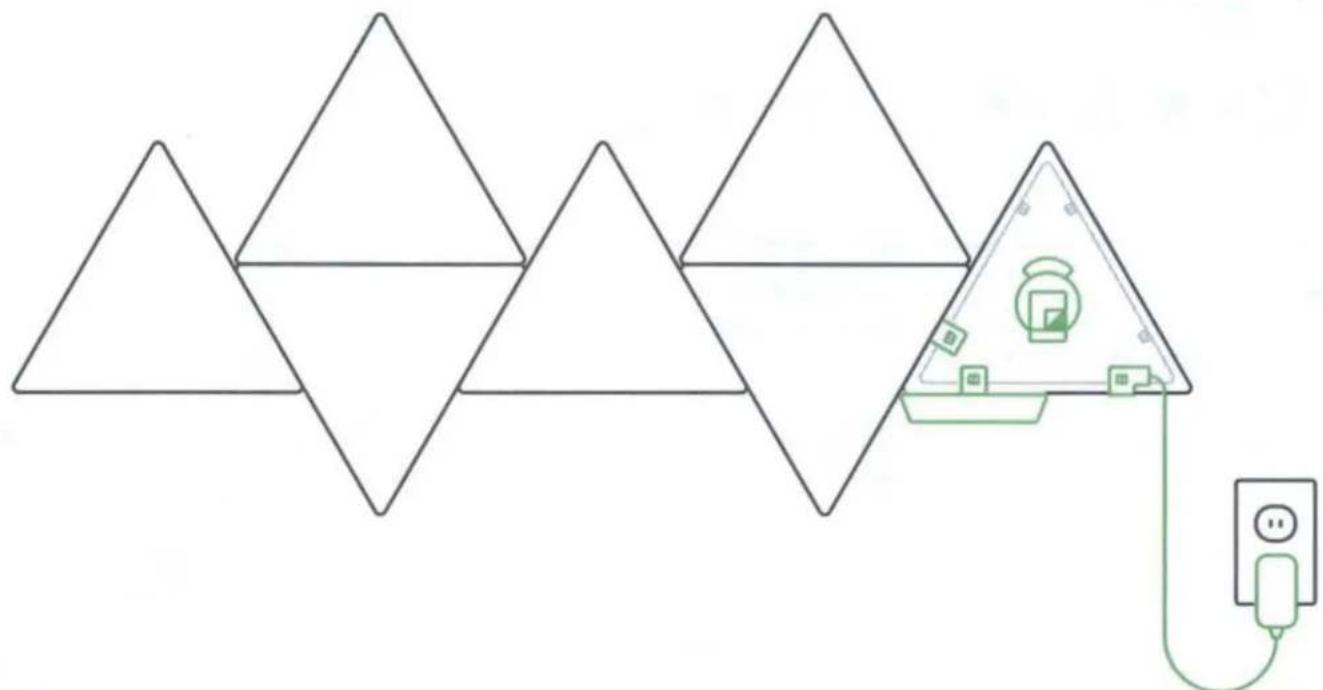

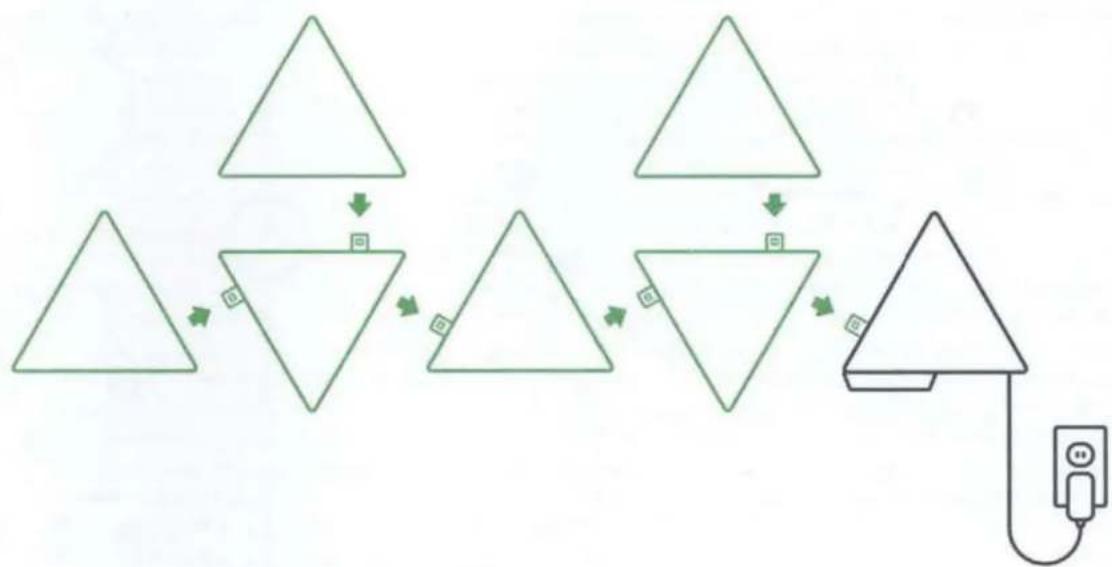

The Controller and Power Supply can be connected to any panel in your setup.

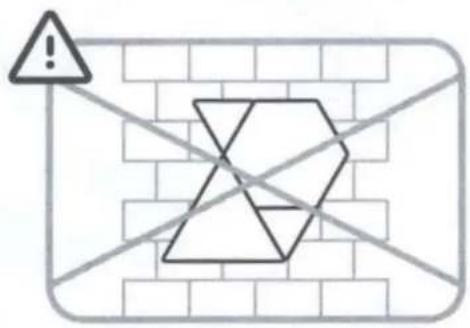

Tape is NOT suitable for textured, porous, popcorn and ceiling surfaces (ie. wallpaper or brick walls).

1

2

3

Simple line drawing of a bell icon with a green arrow inside and a diagonal arrow inside, no text or symbols present.

4

5

EN WARNINGS & CAUTIONS Please read this safety information carefully and keep this document for future reference. Help articles and customer support is always available at https://helpdesk.nanoleaf.me. This Nanoleaf® product is not designed, certified, nor intended for use in: enclosed locations that limit the flow of air and/or trap heat which contributes to an environment temperature over 40 degrees Celsius; emergency exits, emergency lighting, or other use cases involving critical systems for human safety; in conjunction with 3rd party devices that are not approved by Nanoleaf® for use with Nanoleaf® products; locations or use cases where there is a risk of electric shock; outdoor areas, regardless of weather conditions; wet or damp conditions; as a floor covering or floor tiling; excessively hot environments that are consistently above 40 degrees Celsius for extended periods of time (for example: near ovens, space heaters, clothing dryers); excessively humid areas; regions or countries other than that in which the product was intended for and certified for sale in. When using this Nanoleaf® products, do not open or disassemble the device, as this will void the warranty and make the product unsafe for use. While connected to the electrical supply of the building, line voltages will be present in the power supply, panels, linkers, so do not place any metallic or conductive objects near any exposed metal contacts on any component. Unplug the power supply unit from the power source before dismounting light panels. Do not allow small children to operate this device without adult supervision. This device contains small parts that may be a choking hazard to small children. Loose or dangling cords may cause an entanglement hazard to small children. Do not leave cords dangling or loose on the floor to help prevent accidents from tripping. Do not clean the device with liquid or sprays when it is connected to power. Clean the panels with a soft dry cloth, and do not use harsh cleaning agents. Do not step on any part of the device, as this will cause breakage. Do not submerge any part of the device in water, or expose any part of the device to water. Do not bend or flex the panels with the connector still attached, as this will cause breakage. Do not attach the panels together with any connector or device other than original equipment manufactured by Nanoleaf®. Do not puncture any part of the device with sharp objects, as this will cause the device to cease working as designed and may present a safety hazard. If adhesive tape is a component of this product, please note that it is not designed to be used with brick wall, wallpaper, uneven/textured surfaces, or highly porous surfaces. Do not use double-sided tape to attach any part of the device to a ceiling or surface greater than 90 degrees relative to the floor, as the device will eventually fall down-creating a safety hazard and risk of damage to the device. Optional secure screw mounting solutions for these use cases are available, sometimes through added accessories offered for purchase separately. Your warranty DOES NOT COVER damage caused by falling devices. The flexible cable and power supply cannot be replaced by another third party product. If the cable is damaged, the entire controller and power supply should only be replaced with original equipment manufactured by Nanoleaf®. Using any non-approved replacement component will void the warranty and may present a serious safety hazard. Nanoleaf® light panels are primarily intended for decorative use, with RGBW output function that can dim.

WI-FI/RF This equipment has been tested and found to comply with the limits of a Class B digital device, pursuant to part 15 of the FCC Rules and the Canadian ICES-003 Class B specifications. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which

can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio/TV technician or visit www.nanoleaf.me/support.

FREQUENCY RANGE

2.4GHz Wi-Fi: 2412-2462 MHz, Max RF e.i.r.p power < 20 dBm

2.4GHz Radio: 2402-2480 MHz, Max RF e.i.r.p power<10 dBm

NFC: 13.56MHz, Max RF e.i.r.p power 0 dBm

CE INFORMATION The external flexible cable or cord of this luminaire cannot be replaced; if the cord is damaged, the luminaire shall be destroyed. The light source contained in this luminaire shall only be replaced by the manufacturer or this service agent or a similar qualified person. NanoGrid Limited (Nanoleaf) hereby declares that this device is in compliance with the essential requirements and other relevant provisions of Directive 2014/53/EU. The declaration of conformity is available at www.nanoleaf.me/eudoc/.

WARRANTY INFORMATION This product is covered by a limited warranty from Nanoleaf®: a two-year complimentary replacement of defective hardware. For full details visit: nanoleaf.me/warranty.

Two speech bubble icons with question mark inside, no text or symbols present
