USER MANUAL GT-WKe-02-UK Ambiano

Spend a little Live a lot

AMBIANO

ELECTRONIC KETTLE

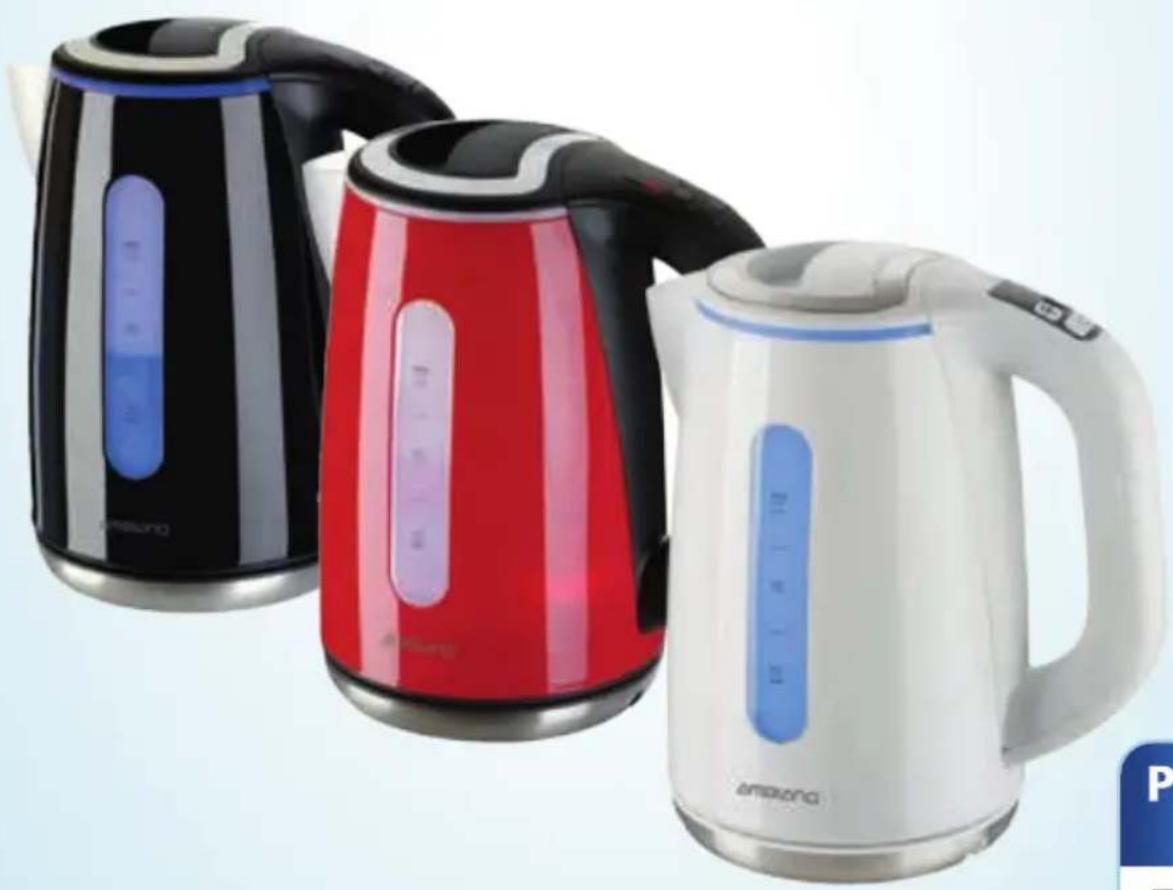

Three different types of kitchen wafes in black, red, and white, displayed against a plain background (no text or symbols visible on the devices themselves).

MANUAL DEVELOPED N. GERMANY hanse control my-hanseco ntr o1 cm User-friendly Manual ID: #05007

Product Info

www.aldi.co.uk
+VIDEO

QR codes take you where you want to go quickly and easily

Whether you require product information, spare parts or accessories, details on warranties or aftersales services, or if you want to watch a product demonstration video, our QR codes will take you there in no time at all.

What is a QR code?

A QR code (QR = Quick Response) is a type of matrix that can be read with a smartphone camera and that contains a link to a website or contact details, for example.

Advantage: You do not need to manually enter a website address or contact details.

This is how it works

To scan the QR code, all you need is a smartphone with QR code reader software and an internet connection.* This type of software can be downloaded for free from your app store.

Try it out now

Just scan the QR code with your smartphone and find out more about the Aldi product you have purchased.*

Your Aldi Service Portal

All details mentioned above can also be found in the Aldi Service Portal at www.aldi.co.uk.

Product Info www.aldi.co.uk + VIDEO

Contents

Overview ....4

Scope of delivery/device parts......6

General information....7

Reading and storing the user manual .....7

Explanation of symbols ......7

Safety 8

Proper use....8

Safety notes 8

First use....11

Checking the kettle and product contents......11

Setting up the kettle 11

Basic cleaning....12

Operation....12

Boiling water 13

Aborting the boiling process prematurely....14

Keeping water warm....14

Recommended water temperatures....16

Dry run protection 16

Cleaning and maintenance.... 16

Cleaning 17

Decalcification....18

Storage 18

Troubleshooting....19

Technical data 20

Declaration of conformity....20

Disposal....20

Disposing of the packaging 20

Disposing of old devices 20

Warranty Card....21

Warranty conditions....22

A 1 2 3 4 5 SET TEMP °C KEEP WARM 100 MAX 1.0L 1.0L 0.5L MIN 6 7 8 9 10 11 AMBIANO

Line drawing of a 3D object with internal grid structure, labeled 'B' and number '12' (no text or symbols on the object itself)

3D rendering of a mechanical component with a cylindrical base and labeled part '8' (no text or symbols beyond label)

Illustration of a modern kitchen keater with a glass lid and water level indicator (no text or symbols on the device itself)

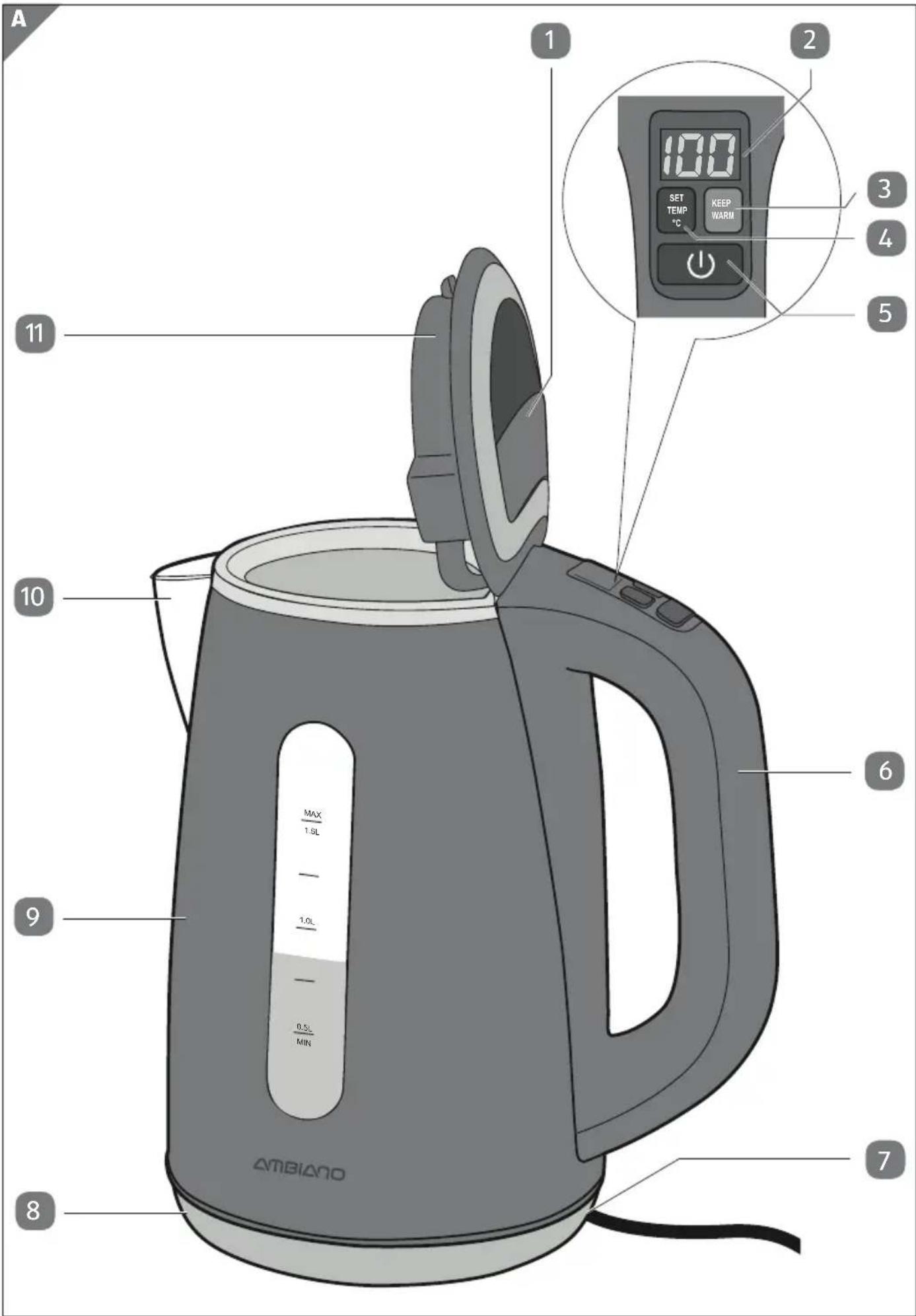

Scope of delivery/device parts

1 Lock button
2 Display
3 Keep warm button
4 Temperature button
5 On/Off switch
6 Handle
7 Recess for mains cord
8 Base
9 Water tank
10 Spout
11 Lid

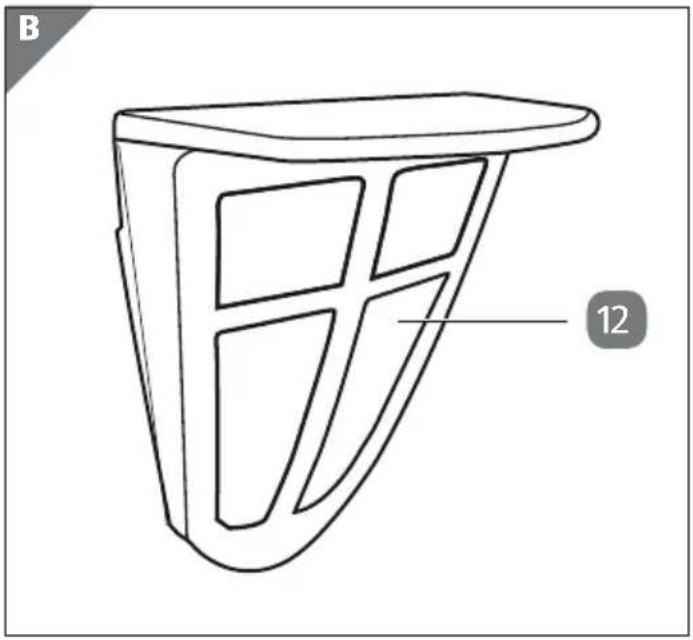

12 Filter insert

General information

Reading and storing the user manual

This user manual accompanies this electronic kettle. It contains important information on start-up and handling.

For improved readability, the electronic kettle will be referred to only as the "kettle" below.

Before using the kettle, read the user manual carefully. This particularly applies for the safety notes. Failure to heed this user manual may result in severe injury or damage to the kettle.

The user manual is based on the standards and rules in force in the European Union. When abroad, you must also observe country-specific guidelines and laws.

Store the user manual for future use. If you pass the kettle on to third parties, please be absolutely sure to include this user manual.

Explanation of symbols

The following symbols and signal words are used in this user manual, on the kettle or on the packaging.

WARNING!

This signal symbol/word designates a hazard with moderate degree of risk which may lead to death or severe injury if not avoided.

NOTICE!

This signal word warns against potential damages to property.

This symbol provides you with useful supplementary information on operation.

Declaration of conformity (see chapter “Declaration of conformity”): Products marked with this symbol meet all applicable Community regulations for the European Economic Area.

Safety

Proper use

The kettle is only designed for heating and boiling water. The kettle may not be filled with water containing carbon dioxide, milk and other liquids as it could be damaged as a result. The kettle is only intended for private use and is not suitable for commercial or household-like use

• in kitchens for employees or stores,
• offices and other commercial areas,
• in agricultural operations,
• by customers in hotels, motels or other residential facilities or
- in bed and breakfasts.

The kettle is designed for use in indoor areas; do not use it outdoors or in wet rooms.

Only use the kettle as described in this user manual. Any other use is deemed improper and may result in damage to property or even personal injury. The kettle is not a children's toy.

The manufacturer or vendor accepts no liability for damage caused by improper or incorrect use.

Safety notes

WARNING!

Risk of electric shock!

A faulty electrical installation or excessive mains voltage may result in an electric shock.

• Only connect the kettle if the mains voltage of the socket corresponds to the nameplate specification.
• Only connect the kettle to an easily accessible socket so that you can quickly disconnect the kettle from the mains in the event of a fault.
• Do not operate the kettle if it has fallen down, is visibly damaged or if the mains cord or mains plug is defective.
• If the mains connection line of the kettle is damaged, it must be replaced by the manufacturer, its customer service department or a similarly qualified person in order to prevent risks.

- Do not open the housing; instead, have a qualified professional perform the repairs. Contact a qualified workshop for this.

- Electrical and mechanical parts, which are essential for providing protection against sources of danger, are located in this kettle.

- The kettle may not be operated with an external timer, a twighlight switch or a separate telecontrol system.

- Do not use the kettle with an extension cord.

- Only use the kettle with the enclosed base.

- Always fill the kettle by opening the lid and pouring the water in from above. The water tank, the base or mains cord and plug may not in any case be immersed in water or in other liquids.

- Always make sure that no water penetrates the electric parts around the bottom of the water tank or the base.

- Do not use the kettle with wet hands.

- Never touch the mains plug with damp hands.

- Never pull the mains plug out of the socket by the mains cord; instead, always do so by taking hold of the mains plug.

- Never use the mains cord as a carrying handle.

- Do not kink the mains cord and do not lay it over sharp edges.

- Never store the kettle such that there is a risk of it falling into a tub or a basin.

- Never reach to retrieve the kettle if it has fallen in water. In such a case, immediately disconnect the mains plug.

- Make sure that children do not insert any objects in the kettle.

- Always pull the mains plug out of the socket:

- if you are not using the kettle,

- after each use,

- when cleaning it,

- in the event of a fault

• and in the event of a storm.

WARNING!

Danger for children and persons with impaired physical, sensory or mental capacities (e.g. partially disabled persons, older persons with reduced physical and mental capacities) or lack of experience and knowledge (e.g. older children).

• This kettle may be used by children ages eight and over as well as persons with impaired physical, sensory or mental capacities or those lacking experience and knowledge if they are supervised or have been instructed in how to safely use the kettle and have understood the risks associated with operating it.
• Children must not play with the kettle.
• Cleaning and user maintenance may only be performed by children eight years of age or older if they are supervised.
• Keep children under eight years of age away from the kettle and connector cable.
• Do not leave the kettle unattended while in operation.
• Do not let children play with the packaging wrapper. They may get caught in it when playing and suffocate.

NOTICE!

Risk of damage!

Improper handling of the kettle may result in damage to the kettle.

• Place the kettle on an easily accessible, level, dry, heat-resistant and sufficiently stable work surface. Do not place the kettle on the edge of the work surface.
• Set up the kettle so that the hot steam emitted during use can be dispelled easily.
• Avoid the build-up of heat by not placing the kettle directly up against a wall or under cupboards or similar.

• During use, make sure that the kettle's spout is not pointed towards sensitive surfaces or wallpapers as the steam that is emitted could damage them.

• Keep in mind that the device feet on the bottom of the base could be corroded or softened by the surfaces they are supported by or the cleaners used on them.
  If necessary, place an anti-slip underlay under the base.

• Keep the kettle and the mains cord and plug away from hot surfaces (e.g. stovetops, heating pipes etc.) and open fire.
• Never expose the kettle to high temperatures (heater etc.) or the effects of the weather (e.g. rain).
• Make sure that the mains cord is securely fitted in the cable opening on the base so that the base is secure.
• Stop using the kettle if the parts of the kettle are cracked, chipped, deformed or otherwise damaged.

First use

Checking the kettle and product contents

NOTICE!

Risk of damage!

If you are not cautious when opening the packaging with a sharp knife or other pointy object, you may quickly damage the kettle.

- Be careful when opening.

1. Take the kettle out of the packaging.
2. Check to make sure that the delivery is complete (see fig. A and B).
3. Check whether the kettle or the individual parts exhibit damage. If this is the case, do not use the kettle. Contact the manufacturer at the service address specified on the warranty card.

Setting up the kettle

1. Remove all protective films.
2. Unwind the mains cord from the cord wrap on the bottom of the base 8 (see fig. A).
3. Run the cord through the recess for the mains cord 7.
4. Place the base on a level and stable surface.
5. Place the water tank 9 on the base.
6. Connect the mains plug with a properly installed socket with earthing contact.

Basic cleaning

Clean the kettle before using it for the first time. To do so, proceed as follows:

1. Fill the water tank 9 up to the MAX mark with water and boil the water as described in the chapter "Boiling water" (see fig. A).
2. Then pour the water out for hygienic reasons.
3. Repeat the process twice.

Operation

WARNING!

Scalding and burn hazard!

The kettle gets hot during operation and emits hot steam posing a scalding and burn hazard! If the lid is not properly closed when the device is switched on, the kettle will not be able to switch off automatically and the hot water may boil over.

• Never touch the hot parts of the kettle.
• Only hold the kettle by the handle.
  Clearly advise other users of the risks!
• Keep away from any steam that is emitted.
• Please keep in mind that hot steam is also able to escape from the kettle after it turned it off!
• Always close the lid before you switch the kettle on. Make sure the lid audibly locks into place and is locked.
• Always keep the lid closed when pouring out the heated water.

WARNING!

Risk of injury and damage!

Heating up too much water in the kettle may cause hot water to be sprayed out of the water tank; if you do not heat up enough water, the kettle may overheat and be damaged as a result.

- When filling the water tank with water, make sure that the water level is always between MIN and MAX on the fill level indicator.

To facilitate the filling process, the lid can be locked in the open position.

• Push the opened lid back. The lid has now been locked in place.
• To close the lid, fold it back down.

The manufacturer recommends that you do not heat up stagnant water again.

- Pour it out or use it to water your plants once cooled off.

Boiling water

1. Depress the lock button 1 to open the lid 11 (see fig. A).
2. Fill the water tank 9 with the desired quantity of cold water.
3. Close the lid.

Make sure that the lid audibly locks into place.

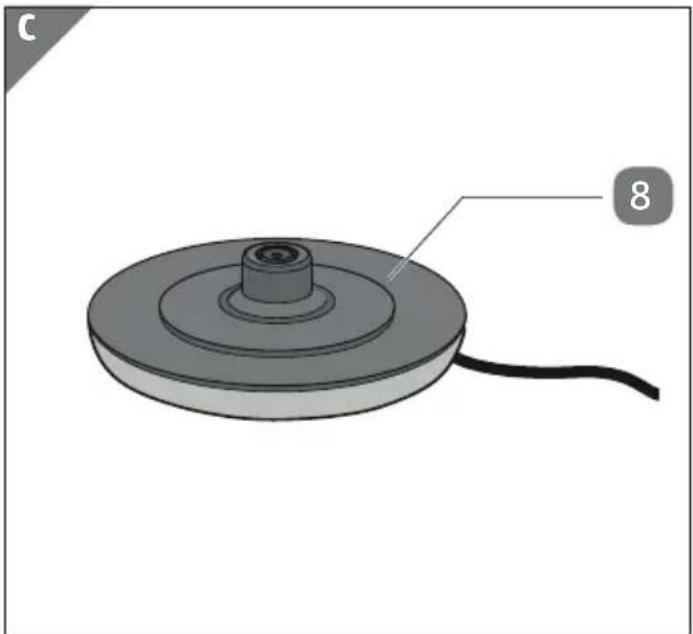

1. Place the water tank on the base 8 (see fig. A and C).
2. Connect the mains plug with a properly installed socket with earthing contact.

Heating water up to 100 °C

1. Push the On/Off switch 5 if you would like to heat the water up to 100 °C. Proceed with step 9 (see fig. A).

Heating water up to under 100 °C

1. Push the temperature button 4 a few times until the desired temperature appears on the display 2. You can select 100, 90, 80, 70, 60, 50 or 40 °C.
2. Push the On/Off switch to start the heating process.
3. The heating process will start.

The set temperature will blink on the display until it is reached. A signal tone will sound once the set temperature is reached. The kettle will automatically switch off. The temperature indicator will light up for approx. 2 minutes.

1. To interrupt the boiling process prematurely, push the On/Off switch 10 up.
2. Wait a moment until the water stops bubbling.
3. Take hold of the water tank by the handle 6 and lift it off the base.
4. Slowly pour the water out through the spout 10. Hold the lid 11 in a closed position while doing so.
5. Place the water tank back on the base.
6. Pull the mains plug once you are done using the kettle.

Aborting the boiling process prematurely

You can abort the boiling process at any time. This can be done in two ways:

• To abort the boiling process prematurely, push the On/Off switch 5 (see fig. A).
• If you lift the water tank 9 off of the base 8, the kettle will automatically switch off. All settings will be lost.

Keeping water warm

NOTICE!

Risk of damage!

Operating the kettle when it doesn't contain enough water can damage it.

- Only operate the kettle if the water tank has at least been filled with 0.5 l of water.

If you have set a keep warm temperature of 100 °C , the water will be kept at a temperature between 90 - 100 °C to prevent an excessive amount of steam from being produced.

If you set a keep warm temperature under 90 °C , the water will be kept at a temperature of no more than approx. 8 °C above or below the set temperature.

If you are unable to set the desired temperature, this is probably due to the fact that the water temperature in the water tank is higher than the temperature you would like to set.

If the boiling or keep warm process does not start within 10 seconds after setting the desired temperature by pushing the On/Off switch, the kettle will automatically switch off.

As soon as you lift the water tank off of the base, the kettle will automatically switch off and all settings are lost.

This kettle has a keep warm function. After it has boiled, you can keep water at a set temperature. You can keep the water warm at a temperature of 40, 50, 60, 70, 80 or 100 °C for approx. 30 minutes. Afterwards, the kettle will automatically switch off. You can configure the keep warm function before, during or after boiling.

Before boiling water

1. Connect the kettle and fill it with water as described in the chapter "Boiling water".
2. Push the keep warm button 3 (see fig. A).
3. Push the temperature button 4 repeatedly until the desired temperature appears on the display 2. You can select 100, 90, 80, 70, 60, 50 or 40 °C.
4. Push the On/Off switch 5 to start the heating process.

The water is heated to the set temperature and then kept warm.

The set temperature will blink on the display during the heating process. It will illuminate as usual while keeping the water at the set temperature. The keep warm button will be illuminated in red.

Three signal tones will sound after 30 minutes. The kettle will automatically switch off. All indicators will be cleared.

During the boiling process

1. Start the boiling process as described in the chapter "Boiling water".
2. During the heating process, push the keep warm button 3 (see fig. A).

The water is heated to the set temperature and then kept warm.

The set temperature will blink on the display 2 during the heating process. It will illuminate as usual while keeping the water at the set temperature. The keep warm button will be illuminated in red.

Three signal tones will sound after 30 minutes. The kettle will automatically switch off. All indicators will be cleared.

After boiling water

1. Start the boiling process as described in the chapter "Boiling water".
2. Push the keep warm button 3 directly after the heating process is complete and the signal tone has sounded (see fig. A).

The set temperature will appear on the display 2. The kettle will automatically select the temperature you previously heated the water to. The keep warm button will be illuminated in red.

Three signal tones will sound after 30 minutes. The kettle will automatically switch off. All indicators will be cleared.

Recommended water temperatures

60 °C 70 °C 80	°C 90 °C 100 °C
Japanese green teas (e.g. gyokuro bancha)	Green tea (e.g. sencha) White teas	Green tea (e.g. matcha, benifuuki) Oolong tea Pu-errh tea	Rooibos tea (red bush) Coffee	Black tea Herbal tea Fruit tea Packet soups

Dry run protection

To prevent damage to the kettle, the dry run protection of the kettle will automatically activate if there is no more liquid in the kettle. This function serves solely as a safety device and is not intended to increase operating convenience.

If run dry protection was triggered:

• Pull the mains plug out of the socket.
• Let the kettle cool off.

You can then continue to use the kettle as usual.

Cleaning and maintenance

WARNING!

Scalding and burn hazard!

The kettle gets hot during operation and emits hot steam!

• Let the kettle cool off completely each time before cleaning it.
• Keep yourself and other persons away from the hot steam that is emitted!
• Close the lid before you switch the kettle on!
• Never open the lid when pouring out hot water!

NOTICE!

Risk of damage!

The kettle could be damaged if it is not cleaned properly.

• Do not use any aggressive cleaners, brushes with metal or nylon bristles, as well as sharp or metallic cleaning utensils such as knives, hard scrapers and the like. They could damage the surfaces.
• Do not in any case place the water tank or the base in the dishwasher. The kettle would be destroyed as a result.
• Never immerse the kettle in water to clean it and do not use a steam cleaner to clean it. Otherwise, you could damage the kettle.

Cleaning

1. Disconnect the mains plug before cleaning.
2. Let the kettle cool off completely.
3. Wipe off the outside of the kettle with a damp cloth.
4. Depress the lock button 1 and open the lid 11 of the water tank 9 (see fig. A).
5. Remove the filter insert 12 that is installed in front of the spout 10.

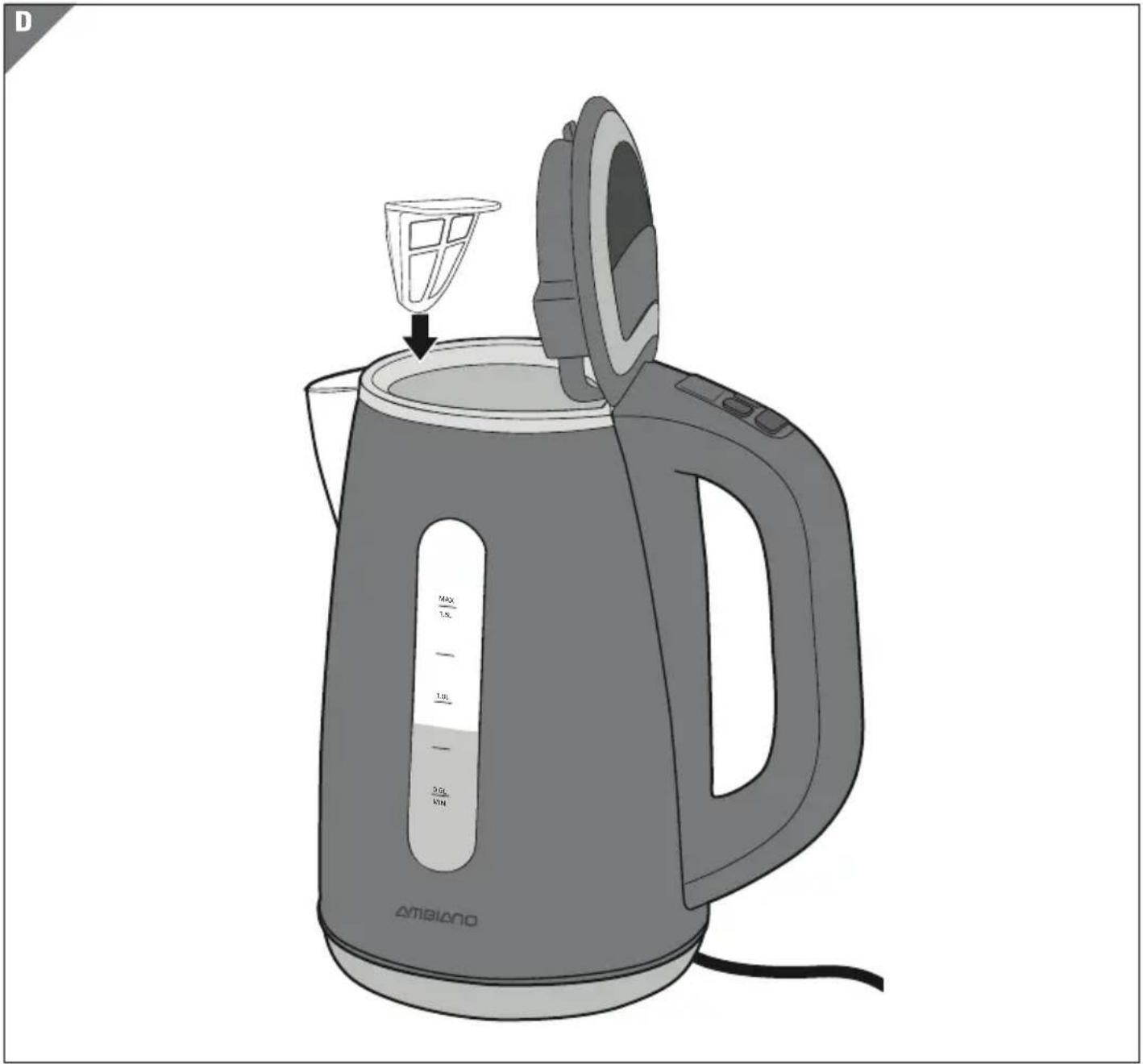

To do so, gently push the filter insert down, fold it off and take it out of the holder (see fig. B and fig. D).

1. Rinse the filter insert under running water or clean it with a damp cloth. If heavily soiled, soak it in a water-vinegar mixture (6 parts to 1) for a few hours and then rinse it thoroughly with clean water.
2. Put the filter insert back in place. To do so, first insert the bottom end of the filter insert and push it into place.

The filter insert must noticeably lock into place.

1. Use a dry cloth to clean the base 8 (see fig. A).

Decalcification

The manufacturer recommends that you decalcify the kettle on a regular basis as a heavily calcified kettle consumes more power. How often you decalcify the kettle depends on the hardness of the water used and the frequency of use.

- With normal use and soft water, you should decalcify the kettle every 3 months and once a month with hard water.

Contact the water utility that supplies your home with water for information on the water hardness.

- Decalcify the kettle no later than when the boiling process takes much longer than usual or thick calcification deposits have formed on the heating plate in the water tank.

Proceed as follows to decalcify the kettle:

1. Pour decalcifying liquid into the water tank 9. You can mix household vinegar with water in a ratio of 1:1 for this purpose or you can use a commercially available decalcifier. When using a decalcifier, observe the manufacturer information regarding use (see fig. A).
2. Boil the decalcifying liquid in the kettle.
3. Let the liquid take effect for about half an hour after being boiled.
4. If heavily calcified, boil the liquid a second time.
5. Then pour the liquid out.
6. Boil fresh tap water and pour it out after boiling.

The kettle has now been decalcified and you can continue using it as usual.

Storage

• Pull the mains plug out of the socket to completely disconnect the kettle from the mains when you are not using it.
• Store the kettle on a dry, level surface.

Troubleshooting

Fault Possible cause and solution
The kettle is not working.	Check the following:Is the plug in the socket?Insert the plug in the socket.Has the water tank been properly placed on the base?Place the water tank correctly on the base.Did the dry run protection trigger?see chapter “Dry run protection”.
Two signal tones will sound when pushing the On/Off switch.	The desired function is not possible.Make sure that the set temperature has not been reached or exceeded yet (e.g. from previous boiling).
The boiling process is taking a very long time.	Check whether the kettle has to be decalcified.Decalcify the kettle as described in the chapter “Decalcifying”.
When pouring out the contents, only a small amount of water comes out of the spout.	Check whether the filter insert in front of the spout is dirty.Clean the filter insert as described in the chapter “Cleaning”.
Spots form on the bottom of the water tank.	These are calcification deposits. They are not harmful, but should be removed regularly.Decalcify the kettle as described in the chapter “Decalcification”.
The kettle does not switch off although the water is boiling.	Switch the kettle off by moving the On/Off switch up.Let the kettle cool off.Check whether the lid is closed and has locked in place.
The temperature cannot be set while boiling/maintaining the temperature.	The water temperature may be higher than the set temperature.Let the water in the kettle cool off.Select a higher temperature.

Technical data

Model: GT-WKe-02-UK

Supply voltage: 220-240 V\~, 50/60 Hz

Output: 2500-3000 W

Protection class: I

Tank capacity: maximum 1.5 l

minimum 0.5 l

Article number: 93017

As our products undergo continual development and improvement, technical changes and changes to the product design are possible.

This user manual can also be downloaded as a PDF file from our homepage

www.gt-support.de.

Declaration of conformity

The product is guaranteed to conform with legally prescribed standards. For the complete declaration of conformity, visit the website www.gt-support.de.

Disposal

Disposing of the packaging

Dispose of the packaging separated into single type materials. Dispose of cardboard and carton as waste paper and foils via the recyclable material collection service.

Disposing of old devices

(Applicable in the European Union and other European states with systems for the separate collection of reusable waste materials)

Old devices must not be disposed of with household waste!

If the kettle can no longer be used, every user is required by law to dispose of old devices separately from their household waste,

e.g. at a collection point in his community/borough. This ensures that old devices are recycled in a professional manner and also rules out negative consequences for the environment. For this reason, electrical devices are marked with the above symbol.

AMBIANO

WARRANTY CARD

ELECTRONIC KETTLE

Your details:

Name ____

Address

E-mail ^1

Date of purchase* ____

* We recommend you keep the receipt with this warranty card.

^1 For status reports for repair

Location of purchase

Description of malfunction:

Illustration of a gray kettle with a handle and spout, no text or symbols present

If after contacting the manufacturer you are requested to return the faulty product please return the completed warranty card together with it.

Globaltronics Service Center

c/o Bridges Logistics

PO Box 1125

Bromley BR1 9TW

UK

AFTER SALES SUPPORT

GB 0800 / 328 6020

IRE 00800/44675888

[e-mail]

MODEL: GT-WKe-02-UK PRODUCT CODE: 93017

02/2016

Free hotline

P051000301

YEARS

WARRANTY

Warranty conditions

Dear Customer,

The ALDI warranty offers you extensive benefits:

Warranty period: 3 years from date of purchase.

Costs: Free repair/exchange. No transport costs.

Hotline: Free hotline

ADVICE: Please contact our service hotline by phone, e-mail or fax before sending in the device. This allows us to provide support in the event of possible operator errors.

In order to make a claim under the warranty, please send us:

• the faulty item together with the original purchase receipt and the completed warranty card.
• the product with all components included in the packaging.

The warranty does not cover damage caused by:

• Accident or unanticipated events (e.g. lightning, water, fire).
• Improper use or transport.
• Disregard of the safety and maintenance instructions.
• Other improper treatment or modification.

After the expiry of the warranty period, you still have the possibility to have your product repaired at your own expense. If the repair or the estimate of costs is not free of charge you will be informed accordingly in advance.

Great care has gone into the manufacture of this product and it should therefore provide you with years of good service when used properly. In the event of product failure within its intended use over the course of the first 3 years after date of purchase, we will remedy the problem as quickly as possible once it has been brought to our attention. In the unlikely event of such an occurrence, or if you require any information about the product, please contact us via our helpline support services, details of which are to be found both in this manual and on the product itself.

GBIRE

PRODUCED IN CHINA FOR:

visit us at www.aldi.com
