| Product Type | TV Antenna |
| Brand | TESLA |
| Model | TE-346 |
| Frequency Range | VHF 21–60, UHF 470–790 MHz |
| Gain | Approx. 12 dB |
| Impedance | 75 Ohm |
| Polarization | Horizontal |
| Mounting | Outdoor mast mount |
| Material | Aluminum, UV-resistant plastic |
| Dimensions (approx.) | 1000 × 200 × 100 mm |
| Weight (approx.) | 1.0 kg |
| Connector Type | F-type (female) |
| Weatherproof | Yes, designed for outdoor use |
| Installation | Refer to included manual for assembly and alignment |
| Maintenance | Clean with a damp cloth; avoid abrasive cleaners |
| Safety | Do not install near power lines; avoid use during thunderstorms |
| Spare Parts Availability | Contact TESLA support for replacement parts |
| Repairability | Not user-serviceable; seek professional repair |
| Application | DVB-T/T2 digital TV reception |
Frequently Asked Questions - TE‒346 TESLA
How do I install the TESLA TE-346 antenna?
Mount the antenna on a sturdy mast using the included clamps. Connect the coaxial cable to the F-type connector. For optimal reception, point the antenna towards the nearest TV transmitter. Refer to the manual for more details.
What frequencies does the antenna support?
The antenna supports VHF channels 21–60 (174–230 MHz) and UHF channels 21–60 (470–790 MHz).
Is the antenna weatherproof?
Yes, it is designed for outdoor use and withstands rain, snow, and UV exposure.
Can I use this antenna indoors?
It is designed for outdoor mounting. Indoor use may reduce performance significantly.
How do I clean the antenna?
Gently wipe with a damp cloth to remove dirt. Do not use harsh chemicals or abrasive materials.
What should I do if I get poor reception?
Check the antenna alignment, ensure the cable is properly connected, and verify that the transmitter is within range. Adjust angle or height if needed.
Does the antenna require power?
No, it is a passive antenna and does not need external power.
What type of cable should I use?
Use a 75 Ohm coaxial cable with F-type connectors, such as RG6, for best performance.
Is the antenna compatible with DVB-T2?
Yes, it supports DVB-T and DVB-T2 digital TV standards.
Where can I find spare parts?
Contact TESLA customer support for spare parts availability. Some parts may be ordered directly.
User questions about TE‒346 TESLA
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
No questions yet. Be the first to ask one.
Download the instructions for your TV Antenna in PDF format for free! Find your manual TE‒346 - TESLA and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. TE‒346 by TESLA.
USER MANUAL TE‒346 TESLA
VENKOVNÍ ANTÉNA TESLA TE-346
42 21–60 470–790 11–17


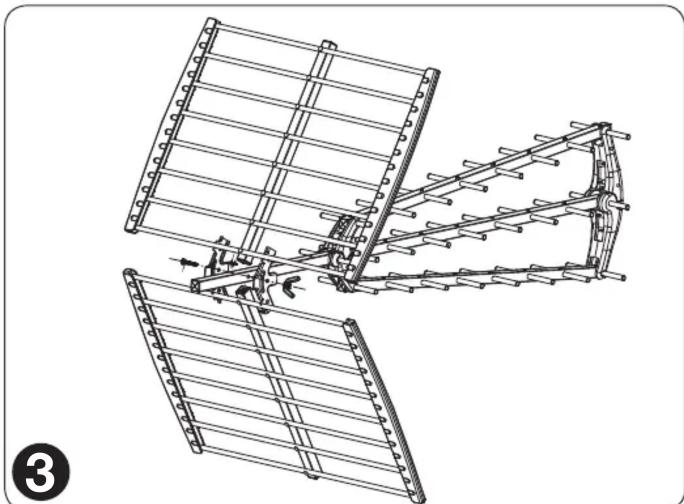

Technical line drawing of a satellite or antenna structure with extended wings and mounting base (no text or symbols)NÁVOD NA SESTAVENÍ


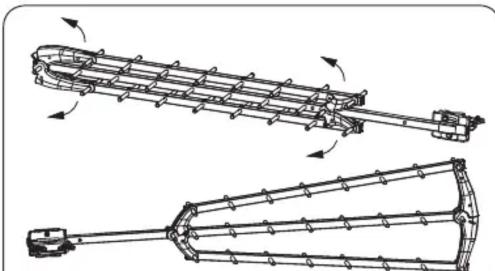

Technical line drawing of a mechanical device with two views showing internal components and directional arrows (no text or symbols)1


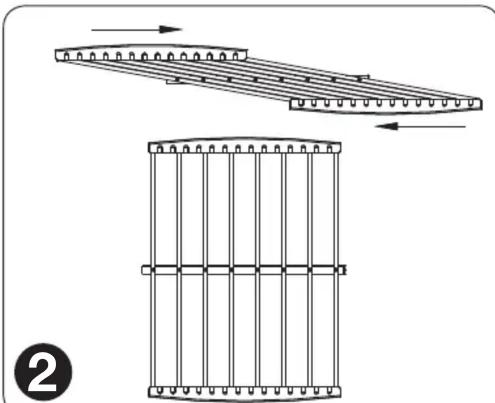

Technical line drawing of a mechanical assembly with two views, showing structural components and motion indicators (no text or symbols)


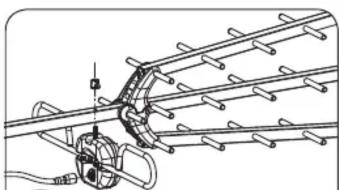

Technical line drawing of a mechanical assembly with no visible text or symbols4

