COLIBRÌ - Thermostat Fantini Cosmi - Free user manual and instructions

Product Type	Thermostat
Brand	Fantini Cosmi
Model	COLIBRÌ
Control Type	Mechanical with dial and switches
Comfort Temperature Range	10°C to 30°C
Switching Differential	< 0.7 K
Operating Temperature Limits	0°C to 50°C
Degree of Protection	IP30
Power Supply	24 VAC - 230 VAC
Contact Material	Ag999 on Cu (Silver on Copper)
ON-OFF Contact Rating	10(2) A, 250 VAC / 24 VAC
Switching Contact Rating	6(2) A, 250 VAC / 24 VAC
Dimensions (W x H x D)	84 x 84 x 36 mm
Mounting Hole Distance	60 mm
Approvals	CE
Installation	Wall mounting
Indicator Light	Available on selected models
Application	Heating control
Maintenance	Wipe with a dry, soft cloth. Do not use water or solvents.
Safety	IP30 protection, CE certified
Spare Parts and Repairability	Contact manufacturer or authorized service center for spare parts.

Frequently Asked Questions - COLIBRÌ Fantini Cosmi

What is the voltage requirement for the COLIBRÌ thermostat?

The thermostat accepts a power supply from 24 VAC to 230 VAC, making it versatile for various installations.

Can the COLIBRÌ thermostat be used for cooling?

No, the device is specifically designed for heating control only, as indicated in its technical specifications.

What does the indicator light on some models signify?

The indicator light typically shows that the thermostat is powered on or that the heating output is active. Refer to the specific model's manual for details.

How do I set the comfort temperature?

Rotate the dial to select your desired comfort temperature within the range of 10°C to 30°C (marked with a sun symbol).

What is the switching differential of the thermostat?

The switching differential is less than 0.7 K, meaning the thermostat will switch on or off with a small temperature change around the set point.

Is the thermostat compatible with 24 V systems?

Yes, the COLIBRÌ thermostat works with both 24 VAC and 230 VAC power supplies, as specified in the technical data.

What is the IP rating and can it be used in a bathroom?

The device has an IP30 rating, which provides protection against solid objects but not against water. It is not suitable for bathrooms or high-humidity areas.

How should I clean the thermostat?

Clean the thermostat with a dry, soft cloth. Do not use water, cleaning solvents, or abrasive materials, as they may damage the device.

What are the dimensions of the COLIBRÌ thermostat?

The dimensions are 84 mm x 84 mm x 36 mm (width x height x depth), with a mounting hole distance of 60 mm.

Does the thermostat come with a warranty?

Warranty information is typically provided by the manufacturer or retailer. For specific warranty details, please contact Fantini Cosmi or your point of purchase. Standard consumer electronics warranties often apply.

USER MANUAL COLIBRÌ Fantini Cosmi

DA PARETE WALL MOUNTING

Dati Tecnici Technical Data

Regolazione Temperatura Comfort (SOLE)
Comfort temperature control (Sun)	10 ÷ 30°C
Differenziale K
Differential K	<0.7K
Limiti di utilizzo (temperatura)
Operating temperature limits	0 ÷ 50°C
Grado di protezione
Degree of protection	IP30
Alimentazione
Power supply	24VAC - 230VAC
Contatti	Ag999 su Cu
Contacts	Ag999 on Cu
Portata contatti ON-OFF
Capacity on relay's contacts ON-OFF	10(2)A 250V / 24V ~
Portata contatti DEVIAZIONE
Capacity on relay's contacts SWITCHING	6(2)A 250V / 24V ~
Dimensioni
Dimensions	84 x 84 x 36 mm
Interasse di foratura
Distance between screw holes	60 mm
Omologhe
Approvals	CE

Mod.	Codice Code 65C	Caratteristiche - Features
		Selettori / Switches		Alm. / P.S.		Spia Indicator
		/	On/Off 230V~		24V~
31	.00201.00			●	●
32	.01331.00			●		●
33	.02331.00		●	●		●
34	.03331.00	●		●		●
42	.01321.00				●	●
43	.02321.00		●		●	●
44	.03321.00	●			●	●

Riscaldamento Heating

Close-up of a white industrial control dial with numeric markings (10, 15, 20, 25, 30) and a Colibri brand logo at the bottom right (no other text or symbols visible)


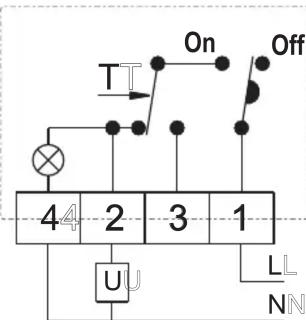

Mod. 33 - 43

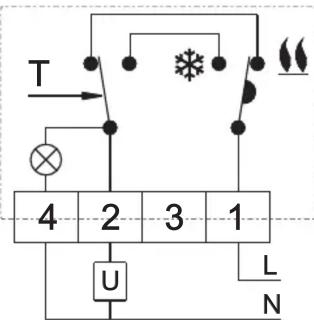

Mod. 34 - 44
