USER MANUAL SHT B360 SENCOR

Technical line drawing of a mechanical assembly with four arms and a separate mounting bracket (no text or symbols)

CZ	4-5
SK	6-7
HU	8-9
PL	10-11
EN	12-13
DE	14-15
IT	16-17
ES	18-19

FR	20-21
NL	22-23
RU	24-25
LT	26-27
HR/BS	28-29
SR/ME	30-31
EΛΛ	32-33

Technical line drawing of a mechanical assembly with mounting flanges and housing (no text or symbols)

A (1×)

A1 (4x)

A2 (8x)

A3 (8x)

B(3x)

C(3x)

D(4x)

E(4x)

F(4x)

G1(4x)

G2(7x) G3(4x)

H(4x)

1

Mechanical linkage diagram showing a lever system with a 3x multiplier and pivot point (no text or labels)

2

3

Two horizontal color swatches: black, gray, white, and yellow with a crosshair for selection (no text or symbols)

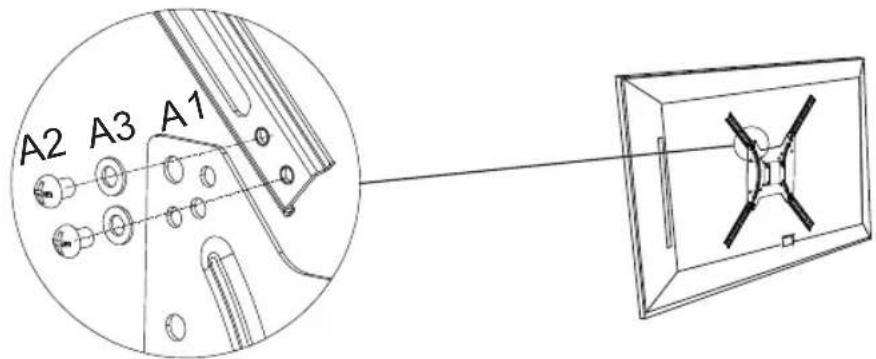

Installation of extension arms

5

Technical line drawing of a mechanical assembly with a rotating component and mounting bracket (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

3

CZ - OBECNÉ POKYNY PRO MONTÁŽ

DŮLEŽITÉ BEZPEČNOSTNÍ INFORMACE

Silhouette of a family watching TV on a sofa with a cat nearby (no text or symbols)

5-CZ

SK - VŠEOBECNÉ POKYNY NA MONTÁŽ

DÔLEŽITÉ BEZPEČNOSTNÉ INFORMÁCIE

Silhouette of a family watching TV on a sofa with a cat nearby (no text or symbols)

7 - SK

Silhouette of a family watching TV on a sofa with a cat nearby (no text or symbols)

9-HU

PL - OGÓLNE ZALECENIA DOTYCZĄCE MONTAŻU

WAŻNE INFORMACJE DOT. BEZPIECZEŃSTWA

Silhouette of a family watching TV on a sofa with a cat nearby (no text or symbols)

11 - PL

EN - GENERAL ASSEMBLY INSTRUCTIONS

IMPORTANT SAFETY INFORMATION

• Check the content of the package in parts list on page 2 and make sure that all parts are in order. Do not use damaged or faulty parts.
• Read all instructions before installing the equipment. When you are unsure about any part of the installation process, ask a professional technician for help.
• When tightening the screws, be careful to avoid stripping the thread.
• Do not install on a damp or otherwise damaged wall. The assembly material supplied in the package is designed to be mounted on a wall of bricks and concrete. For installation on walls made of other materials consult a professional.
  • Never install or use this product if there are signs of damage.
  • The edges of the equipment may cause injury if they are handled improperly.
• This device is not designed for assembly or handling by small children, or persons, who have not been specifically instructed unless supervised by a responsible person to ensure safety during handling or installation. Children should be supervised to ensure that they do not interfere with the equipment. Do not allow children to hang on the equipment or otherwise handle it. Otherwise, there is a danger of serious injury. Never insert your fingers or other objects into the mechanism of the equipment. It could cause personal injuries or property damage.
• The product contains small parts that can pose a choking hazard when inhaled or swallowed. Keep these parts out of reach of children!

Note: Specifications and design are subject to change due to improvements without notice.

LIST OF SUPPLIED PARTS

A Holder

B Screw ST6.3x55

C Plastic anchor φ10xφ6xL50

D Screw M4x14

E Screw M6x14

F Screw M8x20

G Washer D5/D6/D8

H Spacer D8xH5

INSTALLATION

This TVG mount must be securely fastened to a vertical wall. If not solidly installed, it could fall and cause injury or damage.

Installing the mount on the wall of solid brick or concrete wall or panel

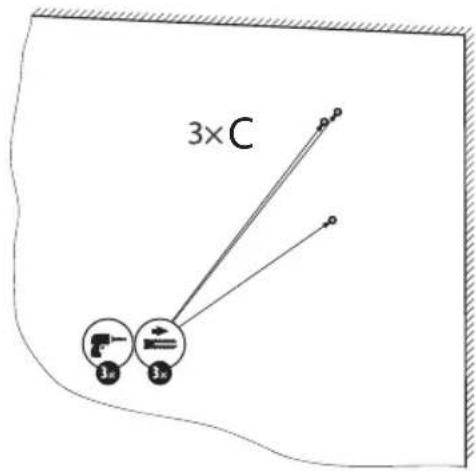

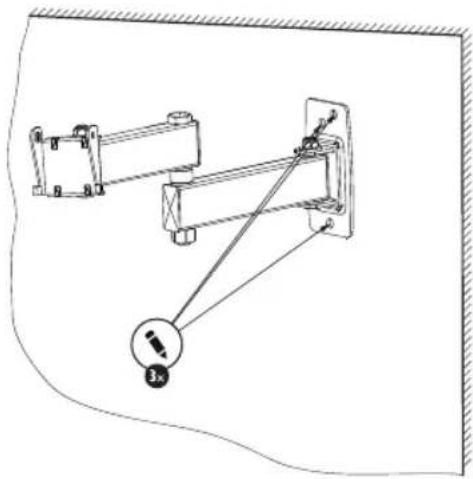

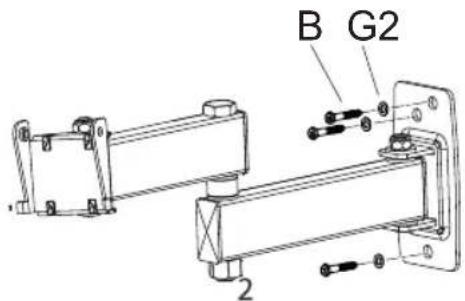

Mark the position of 3 holes on the wall for attaching the body of the holder. Use the holder A as a template (Fig. 1). Use masonry drill (10 mm) to pre-drill holes at least 9 cm deep and insert plastic anchor into each hole. C. Check that the plastic anchor is entirely inserted and even with the wall Fig. 2 ). Attach the body of the holder to the wall using three screws B and washers G as shown in Fig. 3.

Mounting of bracket on TV set

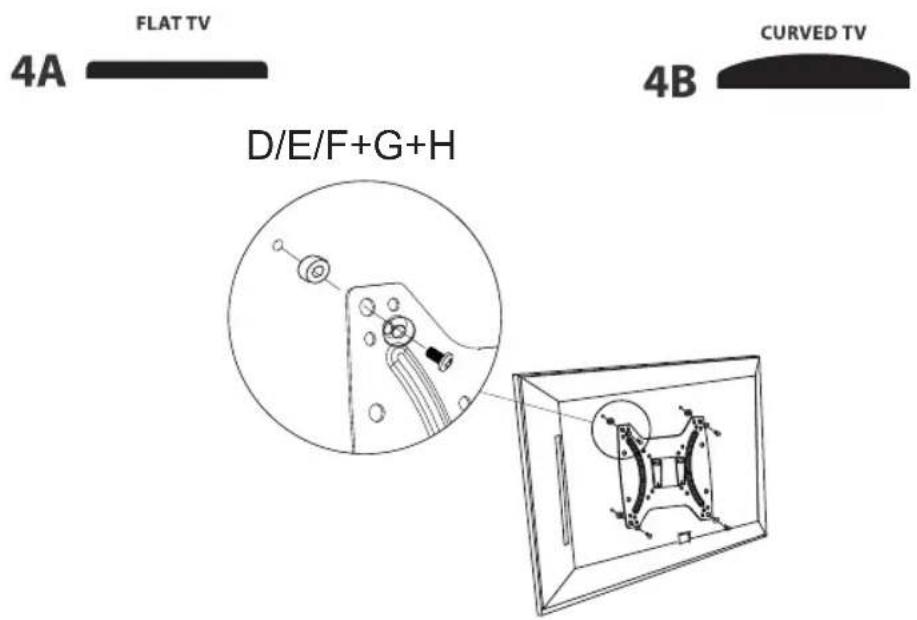

TV set with flat rear wall (Fig. 4A)

First, find screws suitable for using to mount the TV set (D/E/F): try to screw them manually in the holes at the back of the TV set. If you feel resistance stop screwing in immediately! Once you find the screw with the correct threat proceed according to the drawing 4A. Insert washer on the screw (G) according to the picture. Then screw the screw in the bracket and finally in the TV set. Make sure that the bracket is attached vertically.

TV set with curved rear wall (Fig. 4B)

First, find screws suitable for using to mount the TV set (D/E/F): try to screw them manually in the holes at the back of the TV set. If you feel resistance stop screwing in immediately! Once you find the screw with the

correct threat proceed according to the drawing 4B. Insert washer on the screw (G) and spacer(H) in order corresponding to the picture. Then screw the screw into the bracket B and finally in the TV set. Check that the brackets are attached vertically and are parallel.

Attaching the TV set to the holder

Warning: Handling some TV sets requires help of another person. The manufacturer is not liable for injury or damage to property caused by improper handling!

Insert the TV set with the bracket on the body of the holder and tighten the locking screw thoroughly (fig. 6).

Congratulations, the installation is done. We wish you a pleasant experience while watching TV mounted on the wall mount.

INSTRUCTIONS AND INFORMATION REGARDING THE DISPOSAL OF USED PACKAGING

Take the used packaging material to the municipal waste disposal.

PRODUCT DISPOSAL AFTER END OF LIFE

Dispose of equipment after the end of life in the designated municipal solid waste place

This product meets all the basic requirements of EU directives that apply to it.

Silhouette of a family watching a TV on a sofa with cats nearby (no text or symbols)

13 - EN

Silhouette of a family watching TV on a sofa with a cat nearby (no text or symbols)

15 - DE

Silhouette of a family watching TV on a sofa with a cat nearby (no text or symbols)

17 - IT

ES - INSTRUCCIONES GENERALES DE MONTAJE

Silhouette of a family watching TV on a sofa with a cat nearby (no text or symbols)

19 - ES

FR - INSTRUCTIONS GÉNÉRALES DE MONTAGE

INFORMATIONS DE SECURITE IMPORTANTES

Silhouette of a family watching TV on a sofa with a cat nearby (no text or symbols)

21-FR

Silhouette of a family watching TV on a sofa with a cat nearby (no text or symbols)

23 - NL

Silhouette of a family watching television on a sofa with animals in the background (no text or symbols)

25 - RU

LT - BENDROSIOS MONTAVIMO INSTRUKCIJOS

SVARBI SAUGOS INFORMACIJA

Silhouette of a family watching TV on a sofa with a cat nearby (no text or symbols)

27 - LT

HR/BS - OPĆENITE NAPOMENE ZA MONTAŽU

VAŽNE SIGURNOSNE INFORMACIJE

Silhouette of a family watching TV on a sofa with a cat nearby (no text or symbols)

29-HR/BS

SR/ME - OPŠTE NAPOMENE ZA MONTAŽU

VAŽNE SIGURNOSNE INFORMACIJE

• Proverite da li su svi delovi pakovanja na broju koristeći popis delova sa stranice 2 i proverite da li su svi delovi ispravni. Oštećene ili neispravne delove nemojte koristiti.
• Pre postavljanja ovog proizvoda pažljivo pročitajte sva uputstva. U slučaju da niste sigurni u bilo koji deo postupka instalacije, zatražite pomoć profesionalnog tehničara.
- Prilikom zatezanja zavrtanja povedite računa o tome da ne oštetite navoje.
- Nemojte postavljati na mokre ili na drugi način oštećene zidove. Pričvrsni pribor koji je isporučen uz proizvod prilagođen je za montažu na zidove od pune cigle i od betona. U slučaju ugradnje na zidove od drugih materijala, posavetujte se sa stručnjakom.
- Nikad nemojte ugraditi ni koristiti ovaj proizvod ako postoje znakovi oštećenja.
- Rubovi ovog uređaja mogu prouzrokovati ozbiljne povrede ako se sa njim ne rukuje stručno.
- Ovaj uređaj nije namenjen da njim rukuju ili da ga postavljaju deca ili osobe koje nisu obučene za to, osim kada su pod nadzorom odgovorne osobe koja im osigurava sigurnost pri montaži uređaja. Deca treba da budu pod nadzorom kako bi bilo sigurno da neće dirati uređaj. Nemojte dopustiti deci da se vešaju na uređaj ili deluju na njega na bilo koji drugi način. U protivnom može doći do ozbiljnih oštećenja. Nikad ne gurajte prste ili druge predmete u mehanizam proizvoda. To bi moglo prouzrokovati povrede ili oštećenja imovine.
• Proizvod sadrži male delove koji se mogu udahnuti ili progutati i stoga predstavljaju opasnost od gušenja. Te delove držite van dohvata dece!

Napomena: Zahvaljujući poboljšanjima koje možemo razviti, specifikacije i konstrukcija proizvoda podložni su promenama bez prethodne najave.

POPIS ISPORUČENIH DELOVA

A Nosač

B Zavrtanj ST6.3x55

C Tipla φ10xφ6xL50

D Zavrtanj M4x14

E Zavrtanj M6x14

F Zavrtanj M8x20

G Podloška D5/D6/D8

H Odstojnik D8xH5

INSTALACIJA

Ovaj držač TV uređaja mora biti sigurno pričvršćen na vertikalan zid. Ako proizvod ne bude dobro pričvršćen, mogao bi ispasti i dovesti do povrede ili štete.

Silhouette of a family watching TV on a sofa with a cat nearby (no text or symbols)

31 - SR/ME

Silhouette of a family watching TV on a sofa with a cat nearby (no text or symbols)

33 - EΛΛ

VESA

Co je to VESA?

Perhaps when selecting a suitable television mount you were surprised by the salesperson's question „A what type of VESA do you have?“... Information about VESA and the weight of the appliance constitutes the key parameters when selecting a television mount or stand.

The majority of today's modern television and monitor manufacturers already take into account that you may wish to mount the purchased appliance on a wall using a mount or to attach it to a stand. So already during production, they include threaded screw holes on the rear side. This is, of course, very practical. The catch is, however, that the location of these screw holes (their distance from each other) varies for individual types of appliances and this fact must be considered when selecting a mount or stand.

In order to know which mount to choose for your television, you need to know the VESA dimension of your TV (you may also encounter VESA STANDARD or VESA NORM). It describes the span, i.e. the vertical and horizontal distance between the screw holes on the rear side of the appliance – this determines the type of mount or stand that is suitable for your appliance.

When you find the VESA dimensions on the rating label of your TV: 400 × 300 mm means that the horizontal distance is 400 mm and the vertical distance is 300 mm. This means that you need to purchase a mount that supports VESA 400 × 300 .
