Brand	Allen & Heath
Model	RPS3
Product Type	Power Supply Unit
Input Voltage	100-240 V AC, 50/60 Hz
Output Voltage	+15 V / -15 V DC
Output Current	2 A per rail
Power Rating	60 W
Dimensions (W x D x H)	218 x 175 x 88 mm
Weight	2.5 kg
Cooling	Fan-assisted
Protection	Overload, short circuit, thermal
Connections	4-pin XLR (output), IEC inlet (input)
LED Indicators	Power on, overload
Operating Temperature	0°C to 40°C
Compatibility	Allen & Heath GL series, ML series, etc.
Regulatory Approvals	CE, UL, RoHS
Included Accessories	IEC power cord, user manual
Warranty	1 year limited warranty
Maintenance	Keep vents clear, clean with dry cloth
Repairability	Serviceable by qualified technician; spare parts available

Frequently Asked Questions - RPS3 ALLEN & HEATH

What devices are compatible with the Allen & Heath RPS3 power supply?

The RPS3 is designed for use with Allen & Heath mixing consoles such as the GL series, ML series, and other models that require a ±15 V DC supply.

What is the output voltage and current of the RPS3?

The RPS3 provides dual ±15 V DC outputs at 2 A per rail, totaling 60 W.

Does the RPS3 have overload protection?

Yes, the RPS3 features overload, short circuit, and thermal protection to ensure safe operation.

What is the input voltage range for the RPS3?

The RPS3 accepts an input voltage of 100-240 V AC at 50/60 Hz, making it suitable for worldwide use.

How do I clean and maintain the RPS3?

Keep the ventilation vents clear of dust. Clean the exterior with a soft dry cloth. Do not use solvents or liquids.

Is the RPS3 fan noisy?

The RPS3 has a fan-assisted cooling system; under normal load it operates quietly, but may spin faster under heavy load.

Can I repair the RPS3 myself?

Internal components are not user-serviceable. Repairs should be carried out by a qualified technician to maintain safety.

What are the dimensions of the RPS3?

The unit measures 218 x 175 x 88 mm (W x D x H) and weighs 2.5 kg.

Does the RPS3 come with a power cord?

Yes, an IEC power cord is included in the package.

What warranty does the RPS3 have?

The RPS3 comes with a 1-year limited warranty. Check with your dealer for warranty terms.

USER MANUAL RPS3 ALLEN & HEATH

IC1 TL783CKC IC2.3 UA723CKC OUTPUT CURRENT 3A CURRENT RICUUT CUBS1 LIMIT 1A D 8,11 LINK 01.2 M11001 63.0.8 Cave Fuses F1 TO-5A 50V 4×1M4002 D5 1M4002 783 1M4002 DG R1 1804 C4 47/43 R3 15K L5 0-1 Ov +45V IC2 OUT IC2.3 UA723CKC CUBELET-SAMPT SENSE INR INRUT MAX OUT INRUT REF V+ VOUT 24% DC FROM BRIDGE AC INPUT SHOWN ON DRAWING 679 + - 24% AC FROM BRIDGE 3 SECONDARY FUSE F3 VAT 4 IC2 UA72/3CM IC2 UA72/3CM IC2 UA72/3CM IC2 UA72/3CM IC2 UA72/3CM IC2 UA72/3CM IC2 UA72/3CM IC2 UA72/3CM IC2 UA72/3CM IC2 UA72/3CM IC2 UA72/3CM IC2 UA72/3CM

STANDARD NOTESALL DIMENSIONS IN MMDO NOT SCALE DRAWINGS

MATERIAL

TOLERANCESGENERALHOLE CENTRIESHOLE SIZES

40.28 mm40.15 mm40.10 mm

FINDS

NOTES

ALLEN&HEATH.RPS3

C7

10 M

SCALE

PSU.PCB.AGO175 Iss.2CCT.DIAGRAM

D#N##

###

###

###

UNLESS STATED OTHERWISE

①14-6-88

ISSUE 1

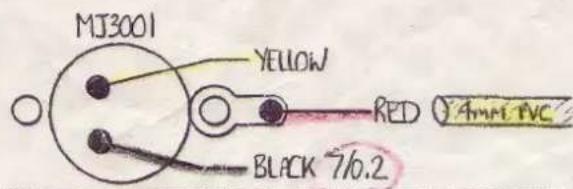

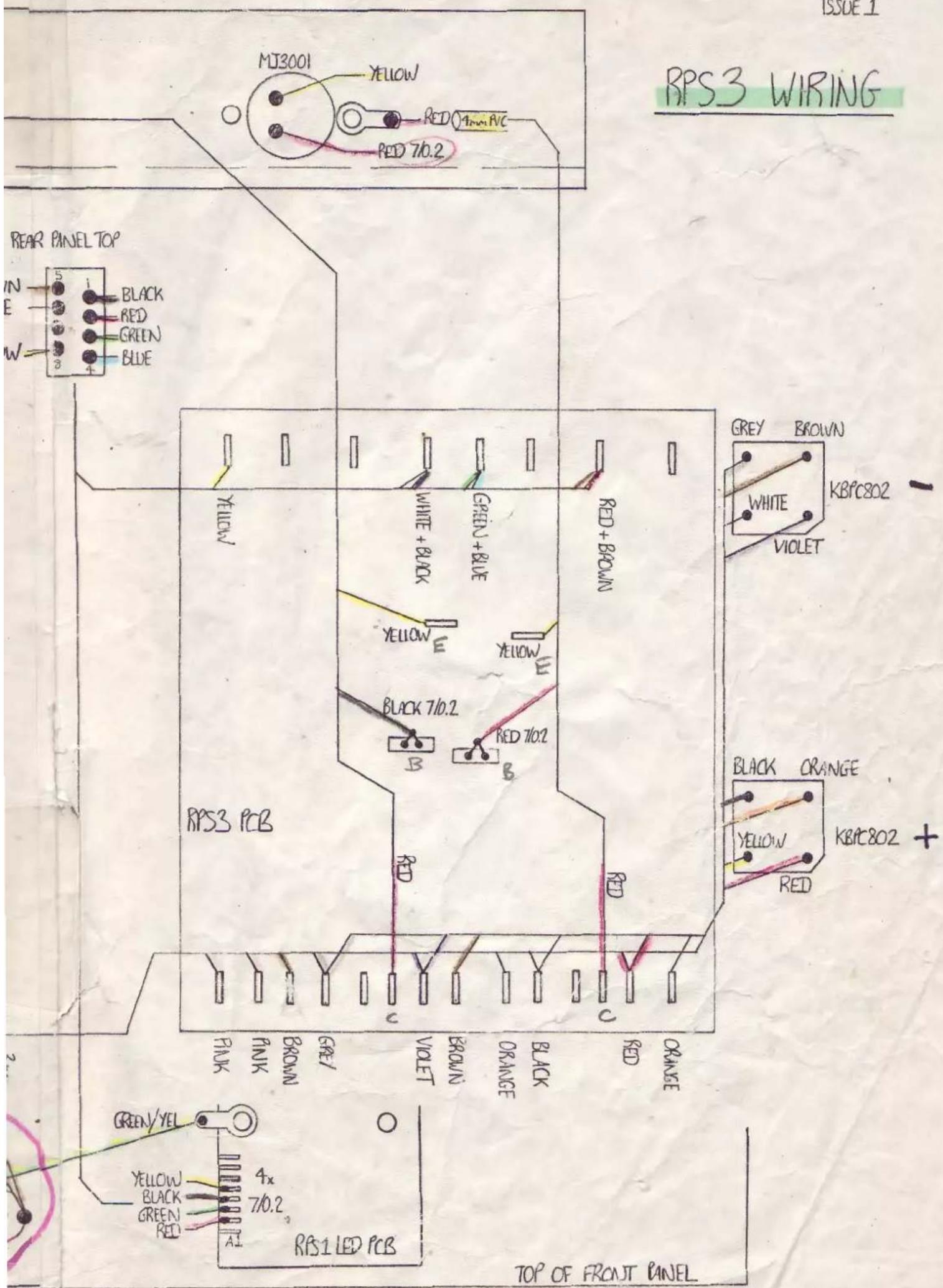

RPS3 WIRING REAR PANEL TOP IN E W BLACK RED GREEN BLUE M13001 YELLOW RED 70.2 RED 4mm A/C RED 70.2 YELLOW WHITE + BLACK GREEN + BLUE RED + BROWN YELLOW BLACK 7/0.2 B RED 7/0.2 B RED RPS3 PCB GREEN/YEL YELLOW BLACK GREEN RED 4x 7/0.2 RED LED PCB TOP OF FRONT PANEL GREY BROWN WHITE KBPC802 VIOLET BLACK ORANGE YELLOW KBPC802 + RED ORANGE

UNDERS:DE VIEW

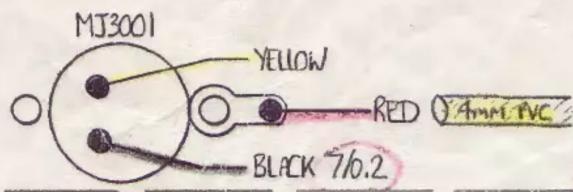

MJ3001 YELLOW RED AMM1 TVC BLACK 7/6.2

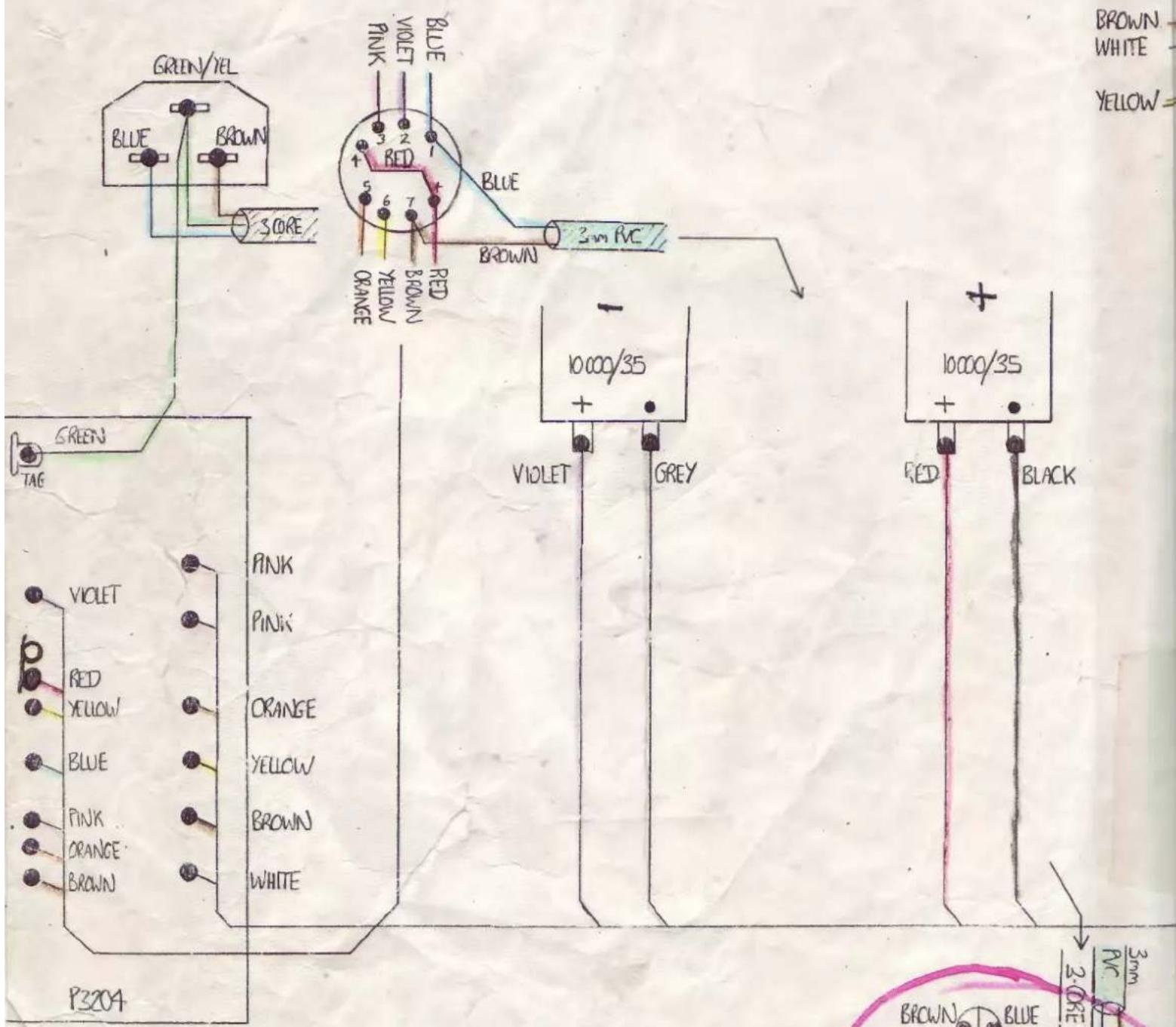

GREEN/YEL BLUE BROWN SCORE PINK VIOLET BLUE 3 2 1 RED 5 6 7 GREEN YELLOW RED BROWN 3 m RC GREEN TAG 1000/35 + VIOLET GREY 1000/35 + RED BLACK VIOLET RED WHITE PINK PINK ORANGE YELLOW BROWN PINK ORANGE BROWN P3204 BROWN BLUE AVC 3mm

$$ \boxed {=} \text { CRADP TERMINAL } \quad \bullet = \text { SOLDERED TERMINAL } $$

1. NEATLY FORM HARNESSES USING CABLE TIES.
2. CONNECTORS SHOWN SOLDERING VIEW.
3. WIRE IS 16/0.2 UNLESS SHOWN 7/0.2.
4. SLEEVE ALL CONNECTIONS WITH HIS, H2O OR HERA.

ON/OFF ACTION REV.

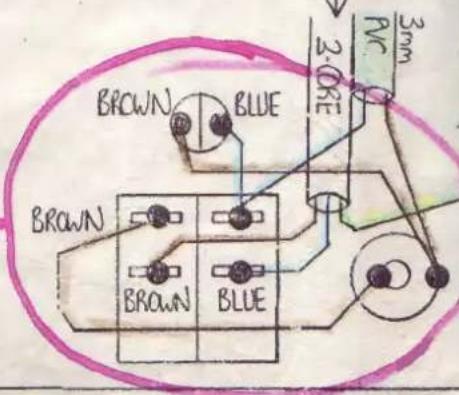

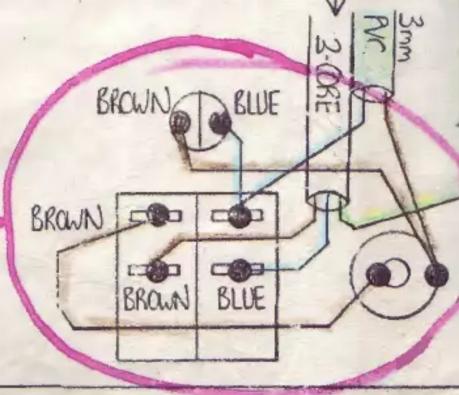

BROWN BLUE BROWN BROWN BLUE 2.0E 3mm
