Product Type	Portable Electric Hob (Cooker)
Model	3119 90010
Brand	Eta
Number of Cooking Zones	2
Cooking Zone Diameters	145 mm and 180 mm
Power Consumption (per ring)	1000 W (145 mm), 1500 W (180 mm)
Voltage	230 V (as per nameplate)
Weight	Approx. 5.2 kg
Protection Class	I
Control Type	Rotary knob (positions 0–6)
Indicator Light	Yes, indicates heating
Functions	Boiling, stewing, frying, keeping warm
Body Material	Enamel/Stainless steel
Cooking Surface Material	Metal ring (enameled)
Cleaning Instructions	Non-abrasive cleaners; oil rings for shine
Safety Features	Hot surface warning, do not immerse, automatic shut-off (through knob off)
Storage	Cool, dry place out of reach of children
Included Accessories	None (cookware not included)

Frequently Asked Questions - 3119 90010 Eta

What type of cookware should I use on this hob?

Use pots and pans with a flat, ground bottom of the same diameter as the ring (145 mm or 180 mm) or up to 2 cm larger. Uneven bottoms reduce heat transfer and increase cooking time.

How do I clean the hob?

Ensure the hob is cool and unplugged. Wipe the body with a cleaner recommended for enamel/stainless surfaces. For the rings, apply a drop of oil or fat to keep them clean and shiny. Never use abrasive or corrosive detergents.

What does the indicator light mean?

The indicator light (A3) turns on when the thermostat is heating the ring. It cycles on and off as the temperature is maintained.

Why does the hob make a cracking noise?

Occasional cracking sounds are normal and due to thermal expansion of materials. This is not a defect.

Can I leave the hob unattended while cooking?

No, the product must never be operated unattended. Always unplug it if you leave the room.

What should I do if the power cord is damaged?

If the power cord is damaged, it must be replaced by the manufacturer, its service agent, or a similarly qualified person to avoid hazard.

What are the power settings for different cooking tasks?

Settings: 1-2 for keeping warm, melting fat; 2-4 for simmering/stewing; 4-6 for frying; 6 for fast boiling. Adjust after reaching desired temperature.

Can I use the hob to heat the room?

No, never use the hob to heat rooms. It is only intended for cooking.

Is it safe for children to use?

Children aged 8+ can use it under supervision if instructed on safe use. Children must not play with it. Cleaning and maintenance must not be done by children under 8 without supervision.

How should I store the hob?

Make sure the hob is cool before storing. Keep it in a dry place, out of reach of children and incapacitated persons.

USER MANUAL 3119 90010 Eta

ETA3109

ETA3119

ETA3117

eta 3109 – jednovařič, eta 3117, 3119 – dvouvařič

NÁVOD K OBSLUZE

Dear customer, thank you for purchasing our product. Prior to putting this device into operation, please read these instructions for use carefully and be sure to store well these instructions along with the warranty card, receipt and, if possible, also the product packaging and its inner contents.

I. SAFETY PRECAUTIONS

• Before using the appliance for the first time, study this Manual and keep it for future reference. Consider these instructions to be a part of the appliance and pass them on to any other user of the device.
• Please observe the following elementary safety precautions whenever using the product.
• This product can be used by children at the age of 8 years and older and people with reduced physical or mental abilities or lack of experience and knowledge if they are supervised or if they were instructed regarding use of the appliance in a safe way and if they understand possible risks. Children must not play with the appliance. User cleaning and maintenance must not be performed by children if they are younger than 8 year and unsupervised. Children younger than 8 years must be kept out of reach of the appliance and its power cord.

- Never use the appliance if the power cord or power plug are damaged, if it is not functioning correctly or if it has fallen on the floor and been damaged or if it has fallen into water. In such cases take the appliance to a professional service centre to verify its safety and correct function.

- Do not operate through the external timer or remote control.

- If the power cord of the appliance is corrupted, it has to be replaced by the producer, its service technician or a similarly qualified person so as to prevent dangerous situations.

- Before replacing accessories or accessible parts, before assembly and disassembly, before cleaning or maintenance, turn off the appliance and disconnect it from the mains by pulling the power cord from the power socket!

- Always unplug the appliance from power supply if you leave it unattended and before assembly, disassembly or cleaning.

- The product must never be operated unattended.

- As the ring heats up immediately, never turn the hob on in advance.

WARNING: HOT SURFACE

- If you have a version with a lid, do not cover cooker, if are the hotplates warm!

- Never submerge the hob or any part of it in water.

- Never use the hob to heat rooms.

- Check whether the nameplate voltage specification is the same as the voltage in your mains.

- Do not insert the power plug into the electric power socket and do not pull it out of the electric power socket with wet hands or by pulling on the power cord!

- The product is intended for home use and similar (in shops, offices and similar workplaces, in hotels, motels and other residential environments, in facilities providing accommodation with breakfast). It is not intended for commercial use!

- Use the appliance in the work position only at places where the risk of tilting over is prevented and which is far enough from flammable objects (e.g. curtains, drapes, wood, etc.), heat sources (e.g. heater, electric/gas stove, etc.) and from wet surfaces (sinks, wash basins, etc.).

- When handling the hob, take care to avoid injury by burning.

- Check if the knob is in position 0 (or MIN) before each plugging in of the appliance. Always turn the regulation knob to 0 (or MIN.) position and unplug the appliance from the el. outlet by pulling the fork of the supply cord from the el. outlet after finishing work and before each maintenance.

- Do not put any objects on the contact ring.

- Do not use the ring for other purposes (e.g. for drying textile products, footwear, etc.) than those recommended by the producer.

- Do not place the ring on unstable, fragile and flammable surfaces (e.g. paper, glass, paper and plastic, varnished wooden plates and various fabrics/cloths).

- It is not allowed to modify the surface of the appliance in any way (e.g. using a self-adhesive wallpaper, foils, etc.)!

- The power cord must not be damaged with sharp or hot objects, open fire and it must not be sunk into water. Never put it on hot surfaces or do not let it hang over the edge of a table or work tables. Hitting, stumbling or pulling the power cord e.g. by children can result in tilting over or drawing the appliance down and serious injury!

- The hob is a portable appliance and it is fitted with a flex line with plug securing that both poles are disconnected from the mains.

- With regards to fire safety, the grill complies with EN 60 335-2-6. Within the intention of the standard, this appliance can be operated on a table or on a similar surface while safe distance must be maintained from flammable materials of at least 500 ~mm in the direction of the main heat radiation, i.e. above the plate, and at least 100 ~mm in the other directions.

- If you need to use an extension cord, it has to be uncorrupted and it has to comply with the valid standards.

- Check the condition of the power cord of the appliance regularly.

- Never use the appliance for any other purpose than that described in these instructions for use!

- The manufacturer is not responsible for damage caused by improper use of the appliance and the accessories (e.g. injury, burning, fire) and its guarantee for the appliance does not apply in situations when the safety warnings above are not complied with.

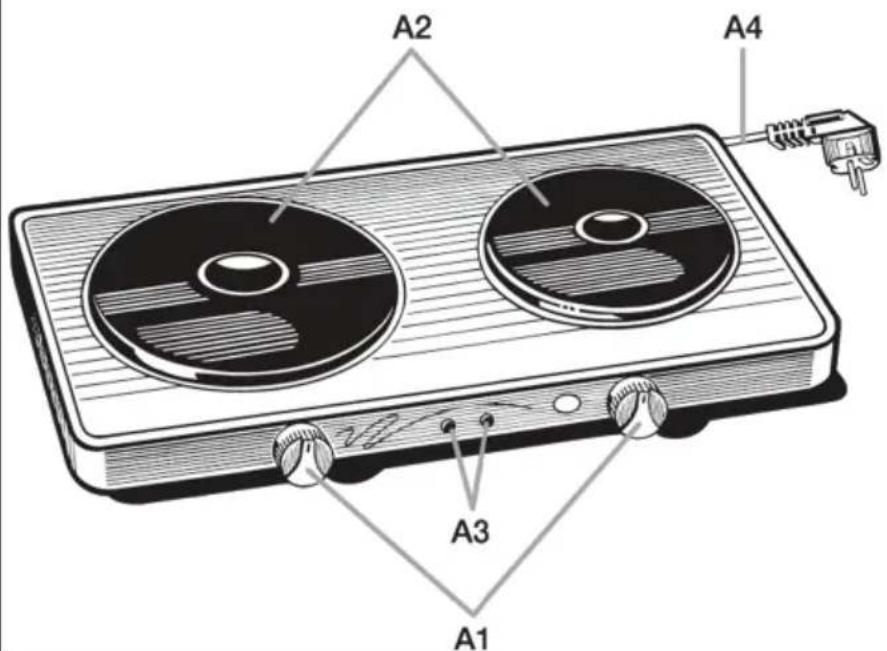

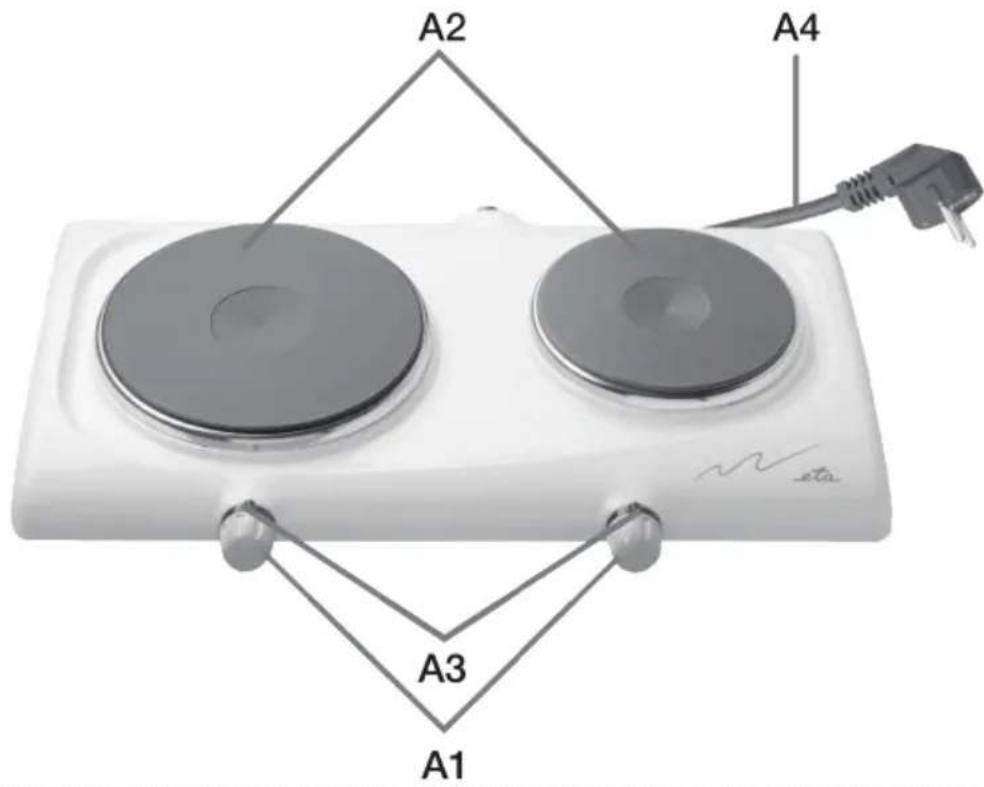

II. FEATURES OF THE DEVICE (pic. 1)

A1 – regulation knob A3 – indicator light

A2 – stove A4 – supply cord

III. PREPARATION

Remove all packaging material and remove the pan with accessories. Remove all adhesive foils, stickers or paper from the appliance. Before using the hob for the first time, set the control knob to step 3 and leave the hob with no pot on for 5 - 10 minutes. A small amount of smoke which can briefly develop is no indication of defect.

IV. INSTRUCTIONS FOR USE

Place the cooker on a suitable surface (see paragraph I. SAFETY PRECAUTIONS). Plug the fork of the supply cord A4 in the el. outlet. Turn the cooker on by turning the regulation knob A1 to the desired position. The turning on of the thermostat (heating of the stove A2) is indicated by the indicator light A3. The higher the number set on the regulation knob, the higher the temperature on the stove. In position 6, bring the contents to boil and then turn the regulation knob to a lower position; the boil will be maintained. The degree of the boil depends on the amounts and kind of the food being cooked and on the dishes used. Turn the regulation knob to 0 (or MIN.) and unplug the appliance from the outlet after finishing the cooking.

CAUTION

For cooking, use pots and pans with flat (ground) bottom of the same diameter as that of the ring or bigger by no more than 2 centimetres. Uneven pot bottom tends to compromise the transfer of heat from the ring into the pot, causing higher power demand and longer cooking times.

• We recommend using personal protective aids (e.g. kitchen glove) when handling.
• When using the grill, occasional characteristic sound (cracking) may be heard due to dilatation of materials. This is absolutely normal and the appliance is not subject to a complaint for this reason.
• Pets (e.g. exotic birds) can be sensitive to smells/odours produced during preparation of food. For this reason we recommend preparation of food in another room.

Regulation knob A1

Turn the regulation knob only between positions 0 (or MIN.) and 6. Trying to turn the regulation knob by force could cause its failure.

setting min (0)-OFF

setting 1 - 2 – keeping food warm, melting fat, defrosting food

setting 2 - 4 – keeping the food boiling, stewing

setting 4 - 6 – roasting, deep-fat frying

setting 6 – bringing the food to boiling fast

V. MAINTENANCE

Before starting any maintenance, never forget to turn OFF and unplug the appliance from the mains. Clean the hob only after it has cooled down sufficiently. Never use abrasive or corrosive detergents. Clean the hob body with cleaners recommended for enamelled/stainless surfaces. The rings can be kept clean and shiny even after long use if treated with a drop of oil or some fat. Clean the hob regularly every time after the hob was used. If the power cord is soiled, wipe it with a wet cloth. It is normal that the surface colour changes over the time. But the change does not alter the surface properties in any way and the appliance is not subject to a complaint for this reason!

Storage

Ensure ther ring is cold before storage. Store the ring at a safe and dry place, out of reach of children and incapacitated people.

VI. ENVIRONMENTAL CONSIDERATIONS

If the size of the appliance allows, all the parts contain marking of the materials used for production packaging, components and accessories as well as for recycling. The symbols on the product or in the accompanying documentation mean that the electrical or electronic product used must not be liquidated together with communal waste. To ensure the appropriate liquidation take the used appliance to a collection point where it will be accepted free of charge. Correct liquidation of the product helps to protect valuable natural resources and helps to prevent a potential negative impact on the environment and human health which can be the outcome of inappropriate liquidation of waste. More details can be obtained from your local authorities or the closest collection point. Inappropriate manipulation of such waste can result in a fine according to the national legislation

Any major maintenance or one requiring that any internal parts of the appliance are modified must be made only by a specialised repair shop.

Failure to observe the manufacturer's instructions can void the warranty.

VII. SPECIFICATIONS

Typ ETA 3109 ETA 3117 ETA 3119

Voltage (V) as per the appliance nameplate Power rating (W) as per the appliance nameplate Ring diameter (mm) 145 145/180 Approximate weight (kg) 2,6 5,2 Protection class of the appliance I.

In the basic design modification the hobs are designed for voltage 230 V and the following ring power ratings: ∅ 145 mm - 1000 W, ∅180 mm - 1500 W.

The product has received ES declaration of conformity according to Act as amended.

The product matches the requirements of the below statutory order as amended.

– Committee Regulation No. 2006/95/ES as amended, setting the technical requirements of the electrical appliance as low.
– Committee Regulation No. 2004/108/ES as amended, setting the technical requirements of products in terms of their electromagnetic compatibility

The manufacturer reserves the right to make minor modifications which have no effect for the product function.

HOT.

DO NOT COVER.

DO NOT IMMERSE IN WATER OR OTHER LIQUIDS.

TO AVOID DANGER OF SUFFOCATION, KEEP THIS PLASTIC BAG AWAY FROM BABIES AND CHILDREN. DO NOT USE THIS BAG IN CRIBS, BEDS, CARRIAGES OR PLAYPENS.

Elektromos főzőlap

∅ 145 mm = 1000 W, ∅80 mm = 1500 W.

Guarantee certificate is valid only for Czech Republic and Slovak Republic.
