| Product Type | Surge Protector Power Strip |
| Brand | Philips |
| Model | SPN7060WA |
| Input Voltage | 250V~ |
| Input AC Frequency | 50Hz |
| USB-C Output | 5.0V, 3.0A (15W) |
| USB-A Output | 5.0V, 4.0A (20W) |
| USB Module Efficiency (Average Active) | 85.0% |
| USB Module Efficiency (Low Load 10%) | 80.3% |
| USB Module No-Load Power Consumption | 0.15W |
| Protection Indicator | Yes, alerts on operating status |
| Power Blocker Protection | Yes, cuts off power during overwhelming surge |
| Surge Protection | Yes, protects against power surges and voltage spikes |
| Product Warranty | 2 years limited |
| Connected Equipment Warranty | Up to amount on packaging (varies) |
| Safety Requirements | Properly grounded outlet; do not use near water; do not disassemble |
| Care and Cleaning | Unplug before cleaning. Use a dry cloth. Do not use liquids. |
| Spare Parts and Repairability | No user-serviceable parts. Contact Philips support for repairs. |
| Recycling | Comply with WEEE directive. Do not dispose with household waste. |
| General Information | Brand Philips, model SPN7060WA, category surge protector. |
Frequently Asked Questions - SPN7060WA PHILIPS
User questions about SPN7060WA PHILIPS
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Bloc d'extension in PDF format for free! Find your manual SPN7060WA - PHILIPS and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. SPN7060WA by PHILIPS.
USER MANUAL SPN7060WA PHILIPS
Register your product and get support at
www.philips.com/support
Contents
1 Important safety instructions 2
Recycling the product 2
2 Your surge protector 2
Feature highlights 2
3 Get started 3
Connect the surge protector 3
Connect the surge protector to a TV/satellite/cable box 3
Conditions for damage claims 3
4 Limited warranty 4
Two years product limited warranty 4
Connected equipment warranty 4
1 Important safety instructions
This manual contains important information about the Philips power surge protectors. Read it carefully before you start the installation and setup.
Warning
- Warning
- Do not operate your surge protector near the rain or wet areas.
- Do not operate your surge protector if liquid of any kind is spilled onto or inside the unit.
- Do not disassemble or repair.
- Do not expose your surge protector to direct sunlight or place it near wall heaters, space heaters, or enclosed space prone to temperature increase.
- The Philips surge protector requires a properly grounded outlet for safety and to protect the connected equipment. If you are not sure whether your home's electrical wiring has proper grounding, consult a qualified electrician.
Recycling the product
Risk of electric shock or fire!
Your product is designed and manufactured with high quality materials and components, which can be recycled and reused. When you see the crossed-out wheel bin symbol attached to a product, it means the product is covered by the European Directive 2012/19/EU:
Never dispose of your product with other household waste. Please inform yourself about the local rules on the separate collection of electrical and electronic products. The correct disposal of your old product helps prevent potentially negative consequences on the environment and human health.
2 Your surge protector
Congratulations on your purchase and welcome to Philips! To fully benefit from the support that Philips offers, register your product at www.philips.com/welcome. For online help, go to www.philips.com/support.
Feature highlights
Your surge protection is equipped with any of the following features. Check the availability of these features on the package.
| Protection indicator: alerts you on the operating status of the surge protector. | |
| Power blocker protection: cuts off all power to AC outlets in the event of an electrical or power surge that overwhelms its protection. | |
| Surge Protection: protect connected equipment against power surge and voltage spike. |
For models with TV coaxial protection SPN7041, SPN7061, SPN7081
| →□ | Coaxi cable protection: provides maximum protection against surges present on standard coaxial. |
For models with USB function SPN7060, SPN7061
Input Voltage: 250V\~ Input AC frequency: 50Hz USB C Max Output: 5.0V =3.0A 15.0W USB A Max Output: 5.0V =4.0A 20.0W
Average active efficiency (USB module): 85.0% Efficiency at low load (10 %) (USB module): 80.3% No-load power consumption (USB module): 0.15W
3 Get started
This surge protector is designed to guard the connected equipment against electrical damage. Philips offers an entire line of surge protectors to safeguard your home electronics and computer systems.
Connect the surge protector
1 Plug the power cord into a properly grounded outlet.
2 Plug the component power cord into the surge protector.
Caution
- Do not use any extension cords, adapters, other grounding wire or electrical connections with your surge protector. Doing so will void all Philips warranties.

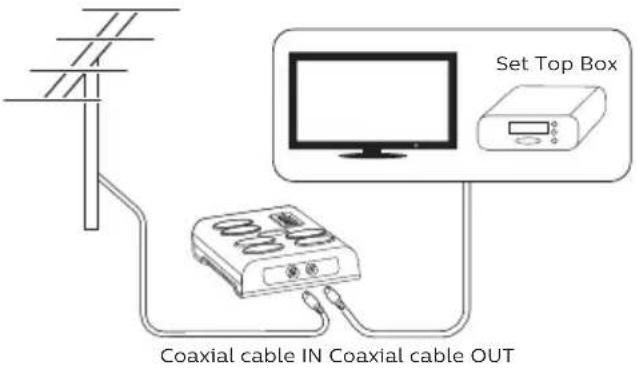

Connect the surge protector to a TV/satellite/cable box
Some Philips surge protector models come with coaxial cable surge protection. Instead of running a connection directly from your TV/VCR/DVD/satellite/cable box to the wall jack, pass the connection through the protected coaxial connections on your surge protector.
1 Connect your incoming cable/broadband line to the input coaxial connector on the surge protector.
2 Connect one end of a coaxial cable to the output coaxial connector on the surge protector, and the other end of to the input coaxial connector of the device.
Conditions for damage claims
- To claim damage under the connected equipment warranty as a result of coaxial line transients, ensure the equipment is properly connected to a Philips surge protector which offers coaxial line protection.
- If you fail to connect the coaxial cable protection, your connected equipment will not be covered by the connected equipment warranty. Most TV/VCR/DVD/satellite/cable box damage can be prevented if you connect coaxial cable protection carefully and properly.
Caution
• The coaxial feature of this product could be rendered inoperable if improperly installed.
4 Limited warranty
Philips, Inc. ("Philips") provides one or both of the following warranties (Surge Protector Limited Warranty and Connected Equipment Limited Warranty) to the original consumer of surge protectors sold under the Philips brand names. Provisions applicable to each warranty: These warranties apply only to natural purchasers of surge protectors for personal, family or household use, not to commercial, institutional or industrial purchasers. These warranties are valid only in Europe. THESE WARRANTIES ARE IN LIEU OF ALL OTHER EXPRESS WARRANTIES; AND ANY IMPLIED WARRANTIES, INCLUDING BUT NOT LIMITED TO THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A ARTICULAR PURPOSE, ARE LIMITED TO THE DURATION OF THIS WARRANTY. EXCEPT AS PROVIDED IN THE CONNECTED EQUIPMENT LIMITED WARRANTY (IF APPLICABLE), IN NO EVENT SHALL PHILIPS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, CONSEQUENTIAL OR MULTIPLE DAMAGES* ARISING OUT OF THE USE OF THE PHILIPS SURGE PROTECTOR. Philips warrants that this product shall be free from defects in material, workmanship and assembly, under normal use, in accordance with the specifications and warnings for the lesser of (i) two years from the date of your purchase of this product, or (ii) the date upon which this product has exceeded its capacity to protect against surges and spikes. The "Protection Working" indicator light will no longer be lit when this capacity is exceeded.
Two years product limited warranty
This warranty does not cover damages (a) as a result of an accident; (b) resulting from the use of parts not manufactured or sold by Philips; (c) or resulting from modification of the surge protector. After any repair or modification of the surge protector by a facility not authorized by Philips, any problems that arise will not be remedied under this warranty. These warranties extend only to the original purchaser of the product, and are not transferable. To exercise your rights under this warranty, you must provide proof of purchase in the form of an original sales receipt that shows the product name and the date of purchase.
Connected equipment warranty
Philips warrants to the original consumer that it will, at its sole option, repair or replace any equipment properly connected through a Philips surge protector to a properly wired AC power line with protective ground and telephone/coax lines, which is damaged by impulses from lightning, or other power transients, or by momentary (less than 1ms) voltage surges or spikes (an “Occurrence”) if (a) the surge protector did not protect the equipment (b) the surge protector shows clear signs of damage; and (c) the damage resulted from the Occurrence. This warranty does not cover (a) damages caused by acts of God, including flood, erosion, or earthquake, but excluding lightning on products with Power Blocker™ technology; (b) damages caused by a sustained low voltage situation, or a low voltage disturbance, including brownouts, sags, or power outages; (c) damages caused by war, vandalism, theft, normal use wear-and-tear, depletion, obsolescence,
abnormal care or uses, or abuse; (d) damage due to non-authorized program or system equipment modification or alteration; or (e) damage to equipment that was not directly connected to the surge protector at the time of the Occurrence. This Connected Equipment Warranty only cover during Product Warranty period. The “Protection Working” indicator light will no longer be lit when this capacity is exceeded. The capacity of the surge protector will be exceeded after an occurrence. This warranty is limited to losses that are not covered by a warranty from the manufacturer of the connected equipment, or by the consumer’s homeowners insurance or renter’s insurance policy. Consumer agrees to first seek coverage under any such warranty or policy, and not seek duplicate coverage from Philips. Consumer agrees to provide insurance information to Philips, at its request; and after a claims settlement, if applicable, Philips reserves the right to be subrogated under any existing warranty from the manufacturer of the connected equipment or under any existing insurance policies the claimant may have. This warranty is limited to surge protectors which indicate on the packaging an accompanying connected equipment warranty. After any repair or modification of the surge protector by a facility not authorized by Philips, any problems that arise will not be remedied under this warranty. Your Philips surge protector must be plugged into a properly grounded outlet. All connected equipment must be plugged directly into your surge protector. Using any extension cord, adapters, other grounding wires or electrical connections in conjunction with a Philips surge protector will void all Philips warranties. All wires leading into the equipment, including telephone and coaxial lines, must pass through an appropriate Philips surge protector.
To claim damage as a result of coaxial line transients, equipment must be properly connected to a Philips surge protector which offers coaxial line protection (see the user manual for installation instructions). If you fail to connect the coaxial cable protection properly, your connected equipment will not be covered by the Connected Equipment Warranty. The customer service department will provide the consumer with a Return
Authorization number (RA#). Philips will determine, at its sole discretion, whether consumer should send the damaged equipment and the surge protector to Philips, or to an independent repair facility. If Philips so requests, the consumer must, at his/her own expense, send the damaged equipment and the surge protector, along with a copy of the sales receipt, to the specified location, in secure packaging (to prevent further damage) with the RA# clearly displayed on the outside of the package, and with a full written description of the problem, including the consumer's name, address, and daytime phone enclosed. Philips also reserves the right to examine the site where the damage occurred. If Philips determines that the Connected Equipment Limited Warranty covers the damaged equipment, and that the equipment was damaged as a result of the surge protector which is covered under the Surge Protector Limited Warranty, Philips will either (a) authorize repair of the connected equipment, at a cost up to the maximum amount set forth on the packaging of the surge protector involved; (b) provide the consumer with an equivalent equipment replacement; or (c) reimburse the consumer for the present fair market value of the damaged connected equipment. If, applicable, the equipment will be returned from Philips to the consumer at Philips expense.
Specifications are subject to change without notice. 2021 © Philips and the Philips Shield Emblem are registered trademarks of Koninklijke Philips N.V. and are used under license. This product has been manufactured by and is sold under the responsibility of MMD Hong Kong Holding Limited or one of its affiliates, and MMD Hong Kong Holding Limited is the warrantor in relation to this product.
