Product Type	Universal Ultra Slim Flat Wall Mount
Brand	Peerless-AV
Model	SUF660P
Display Size Compatibility	40" to 80"
Maximum Weight Capacity	150 lb (68 kg)
Dimensions (W x H x D)	35.44" x 21.8" x 0.33" (900 x 554 x 8 mm)
Product Weight	7.1 lb (3.2 kg)
Profile Distance from Wall	0.33" (8 mm)
Mounting Pattern Compatibility	Up to 825 x 449 mm (32.48" W x 17.67" H)
Lateral Shift Adjustment	Up to 8" (203 mm) depending on display model
Mounting Surface Types	Wood studs, concrete, cinder block, or metal studs (metal stud accessory required)
Finish	Scratch resistant fused epoxy gloss black
Available Colors	Gloss Black
Construction Material	Cold rolled steel
Installation Hardware	Includes wall plate, universal display adaptors, mounting and display attachment hardware
Special Features	Ultra-thin design, industrial-strength Velcro® latching system, easy hook-on design, safety tabs
Display Depth Restriction	Designed exclusively for ultra-thin displays 2" (51 mm) deep or less
Ventilation Requirement	No additional clearance needed beyond 0.33" (8 mm); follow manufacturer's instructions
Certifications	cULus, RoHS
Country of Origin	USA
Package Contents	Wall plate, universal display adaptors, mounting and display attachment hardware
Package Dimensions (W x H x D)	37.06" x 2.375" x 6.313" (941 x 60 x 160 mm)

Frequently Asked Questions - SUF660P Peerless-AV

What is the maximum weight capacity of the Peerless-AV SUF660P mount?

The SUF660P has a maximum weight capacity of 150 lb (68 kg).

What display sizes are compatible with this mount?

This mount is designed for 40" to 80" ultra-thin displays with mounting patterns up to 825 x 449 mm.

Does the mount support lateral shift adjustment?

Yes, it offers lateral shift adjustment of up to 8" (203 mm) depending on the display model for perfect placement.

What wall types can the SUF660P be mounted on?

It can be mounted to wood studs, concrete, cinder block, or metal studs (requires optional metal stud accessory).

How close to the wall does the display sit?

The mount holds the display only 0.33" (8 mm) from the wall for a near-invisible application.

Is the mount compatible with VESA patterns?

Yes, it is universal and compatible with displays that have mounting patterns up to 825 x 449 mm.

What tools are required for installation?

Standard tools like a drill, level, socket wrench are typically required. All necessary mounting hardware is included.

Does the mount come with a warranty?

Peerless-AV products typically include a limited warranty. Check the included manual or contact customer support for details.

How do I clean the mount?

Wipe with a soft, damp cloth. Do not use abrasive cleaners or solvents that may damage the scratch-resistant finish.

Is the SUF660P compatible with curved or non-flat displays?

No, it is designed exclusively for ultra-thin displays with a flat mounting surface. The mounting holes must be on the furthest back surface.

USER MANUAL SUF660P Peerless-AV

Modern living room interior with large TV, white marble flooring, and a glass coffee table (no visible text or symbols)

FEATURES

■ Ultra-thin design holds display only 0.33" (8mm) from the wall for a near-invisible application
■ Universal mount compatible with ultra-thin displays with mounting patterns up to 825 x 449mm (32.48" W x 17.67" H)
■ Universal brackets easily hook onto wall plate for an easy installation
Industrial-strength Velcro® latching system secures display adaptors to wall plate in a single step, making installation fast and secure
■ Lateral shift adjustment of up to 8" (203mm) (depending on display model) for perfect display placement
■ Mounts to wood studs, concrete, cinder block or metal studs (metal stud accessory required)
■ Comes with fastener pack with all necessary display attachment hardware

* Designed exclusively for use with ultra-thin displays 2" (51mm) deep or less

c UL us

RoHS 2021H03G

MADE IN USA.

Universal Ultra Slim Flat Wall Mount

For 40" to 80" Ultra-thin Displays\*

One of the world's slimmest mounts at only 0.33" (8mm) thin, this near-invisible mount is the beauty that supports the modern style of the latest ultra-thin displays. Its all-steel, clean-line, high-gloss modeling features universal compatibility with virtually any ultra-thin display innovation. This unmatched solution delivers space-saving, ultra-sleek looks and brings the display ultra-close to the wall.

Display size: 40"-80" Max load: 150lb (68kg)

Close-up of a black metal bracket with a cutout, no visible text or symbols

Easy hook-on design

Close-up of a gray mechanical component with a flanged top edge and a rectangular base (no text or symbols visible)

Specially designed safety tabs for secure support

Patented. Design Patent No. D679,571. Utility Panent No. 8,154,885.

SUF660P: Universal Ultra Slim Flat Wall Mount for 40" to 80" Ultra-thin Displays

Product Specifications

DIMENSIONS (W x H x D) PRODUCT WEIGHT LOAD CAPACITY FINISH AVAILABLE COLORS
SUF660P	35.44" x 21.8" x .33"(900 x 554 x 8mm)	7.1lb (3.2kg) 150lb (68kg)	Scratch resistant fused epoxy	Gloss Black

Package Specifications

	PACKAGE SIZE (W x H x D)	PACKAGE SHIP WEIGHT	PACKAGE UPC CODE	PACKAGE CONTENTS	UNITS IN PACKAGE
SUF660P	37.06" x 2.375"x 6.313"(941 x 60 x 160mm)	7.8lb (3.6kg)	735029258377	Wall plate, universal display adaptors, mounting and display attachment hardware	1

Accessories

ACC615: Metal Stud Accessory Pack

NOTE: Display Compatibility Requirements

Designed exclusively for use with ultra-thin displays 2" (51mm) deep or less

All dimensions = inch (mm)

The display does not require any additional heat ventilation room than 0.33" (8mm). Please refer to the manufacturer's requirements for mounting your display on the wall.
The display must have a flat mounting surface, or the mounting holes need to be on the furthest back surface of the display.
■ Input/Output connection must be properly orientated to accommodate mounting 0.33" (8mm) from the wall.

WALL PLATE

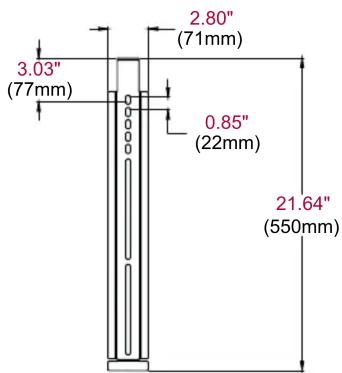

VERTICAL ADAPTER

ARCHITECTS SPECIFICATIONS

The Ultra-Thin Universal Flat Wall Mount shall be a Peerless-AV model SUF660P and shall be located where indicated on the plans.

It shall be constructed of cold rolled steel and feature scratch resistant gloss black fused epoxy finish.

Assembly and installation shall be done according to instructions provided

Peerless Industries, Inc. ■ 2300 White Oak Circle ■ Aurora, IL 60502 ■ [phone] ■ [phone] ■ Fax: [phone] ■ peerless-av.com

Visit peerless-av.com to see the complete line of AV solutions from Peerless-AV, including flat panel mounts, projector mounts, carts/stands, furniture, cables, screen cleaners and a full assortment of accessories.
