GRÅVAL - High chair IKEA - Free user manual and instructions

Product Type	High chair for babies and toddlers
Brand	IKEA
Model	GRÅVAL
Category	Children's Furniture
Recommended Age	From 6 months to 3 years
Maximum Load	15 kg (33 lb)
Product Weight	5.2 kg (11.5 lb)
Dimensions (HxWxD)	90 x 60 x 80 cm (35.4 x 23.6 x 31.5 in)
Seat Height	60 cm (23.6 in)
Safety Harness	5-point harness with adjustable straps and buckle
Tray	Removable and dishwasher-safe tray
Material	Polypropylene (PP) seat and tray; steel legs
Care Instructions	Wipe clean with a damp cloth; do not use abrasive cleaners
Assembly Required	Yes, simple assembly with included hex key

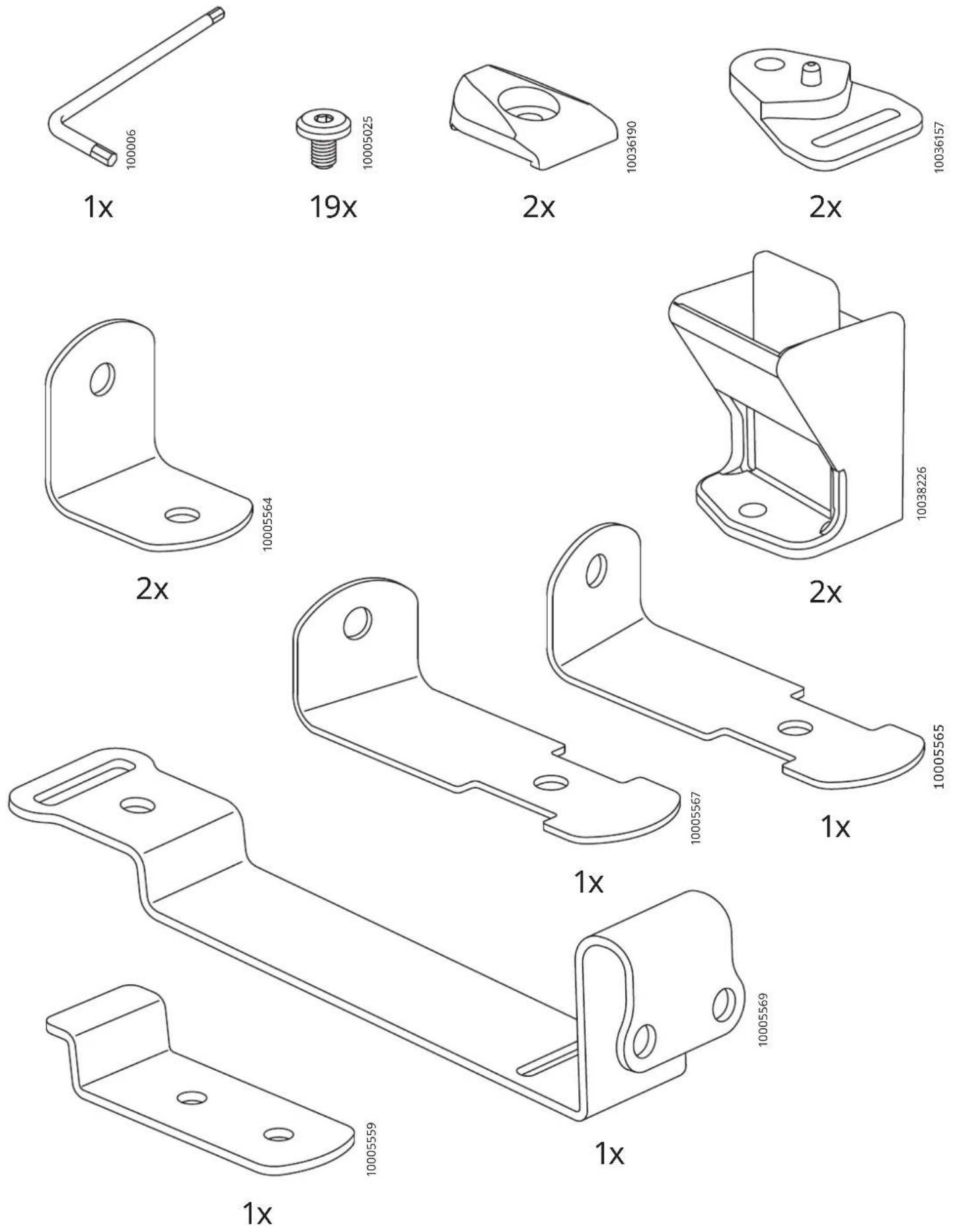

Number of Parts	8 components plus hardware
Tools Supplied	Hex key (Allen wrench) no. 4
Certification	EN 14988:2017 certified for safety
Country of Origin	Poland
Warranty	2 years (IKEA standard)
Additional Features	Anti-slip feet, rounded edges, easy to disassemble for storage

Frequently Asked Questions - GRÅVAL IKEA

How do I assemble the GRÅVAL high chair?

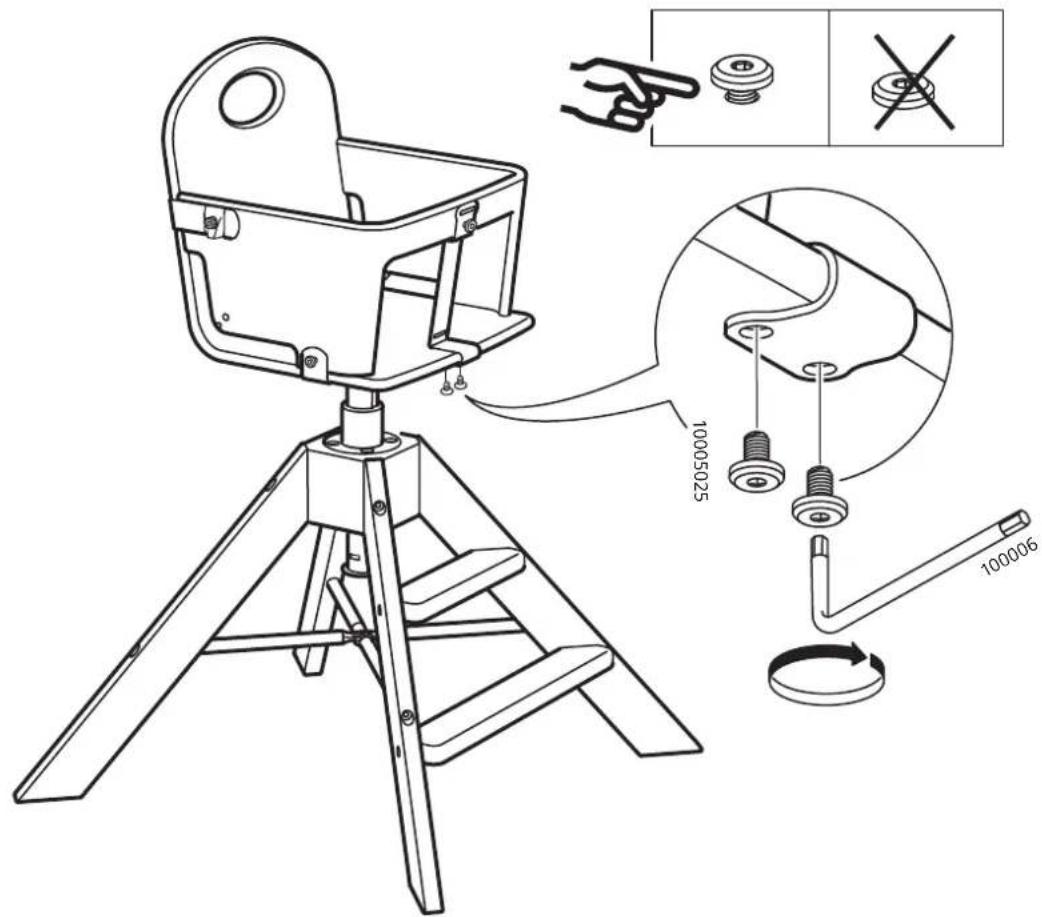

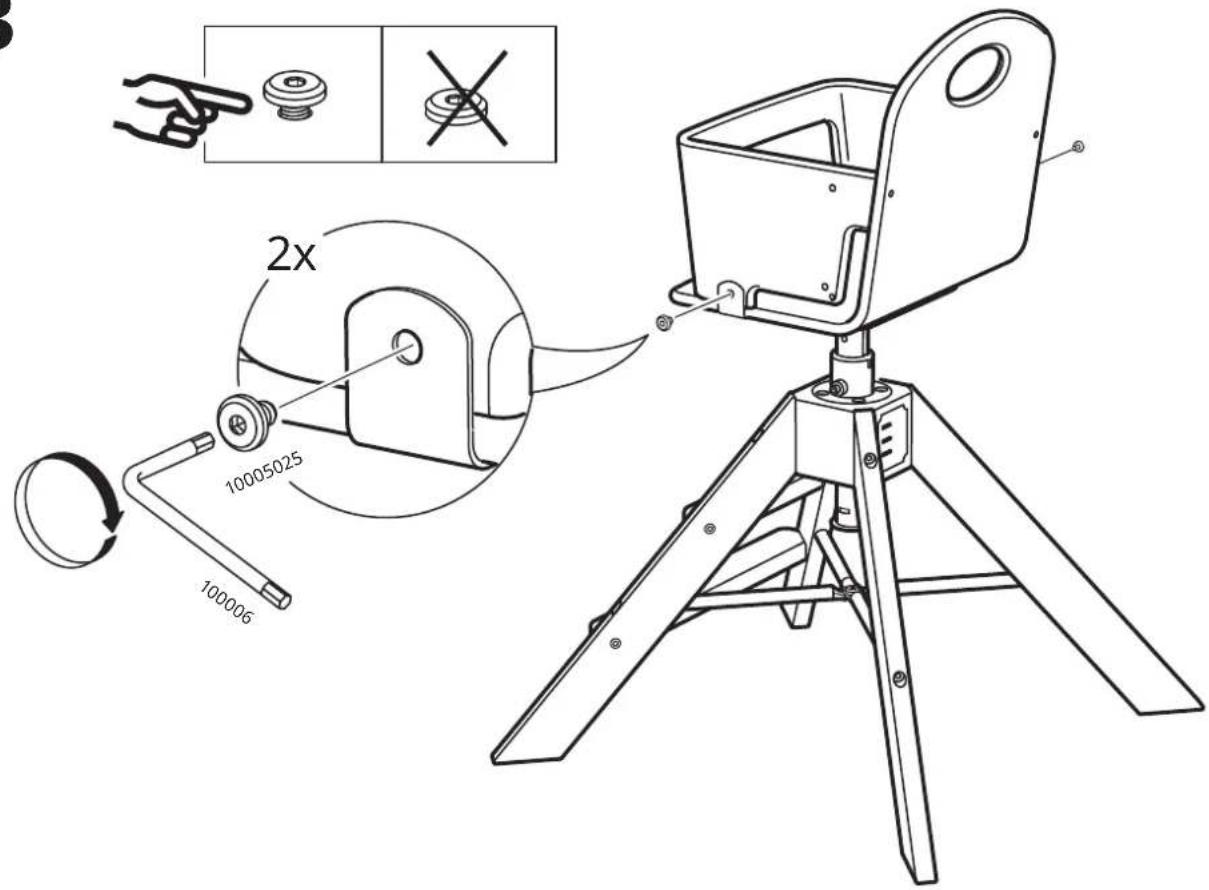

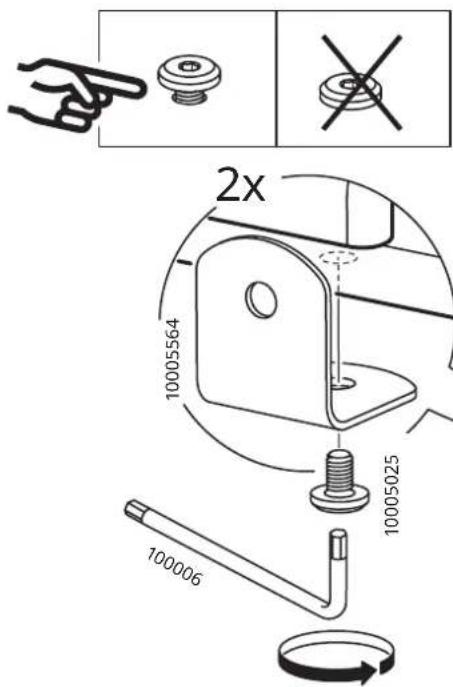

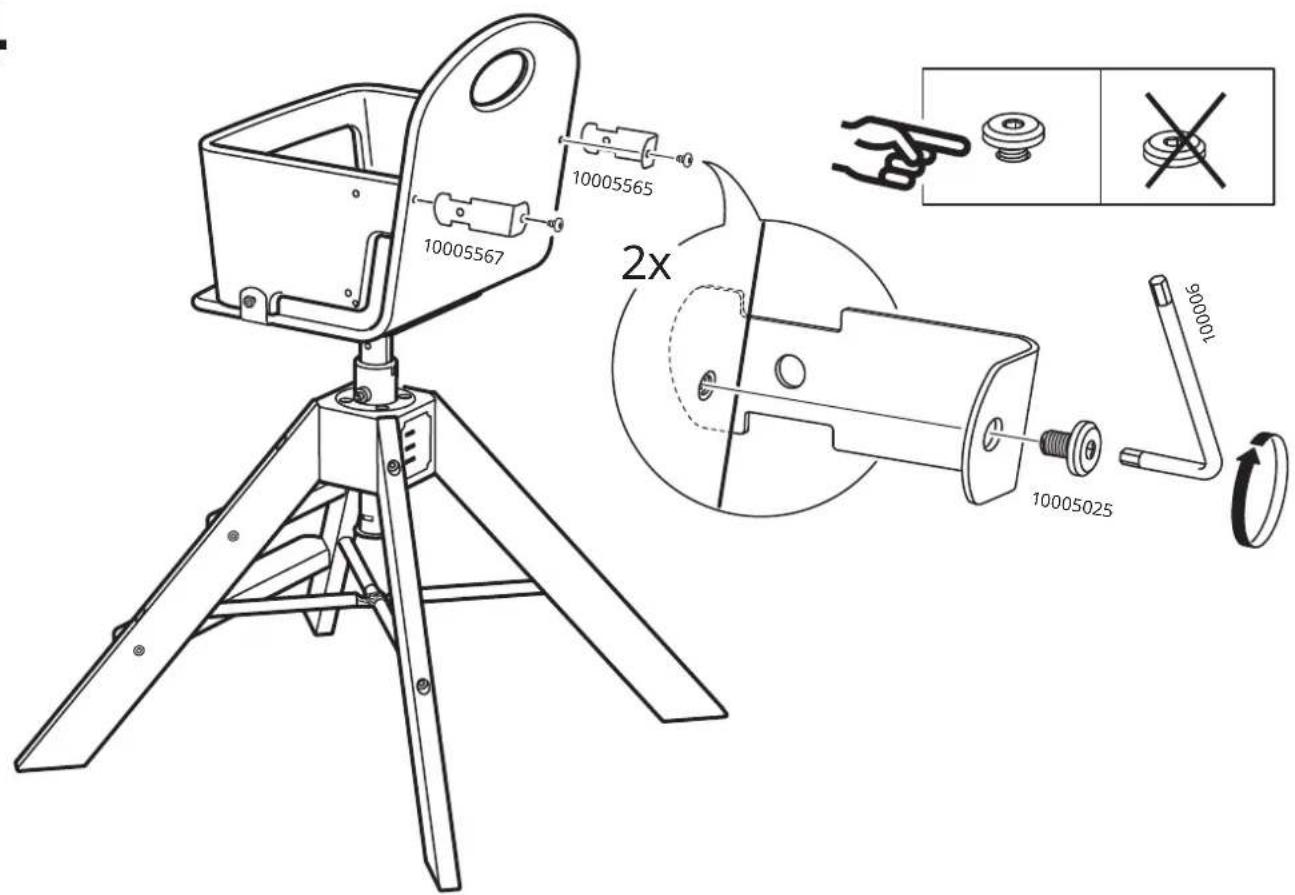

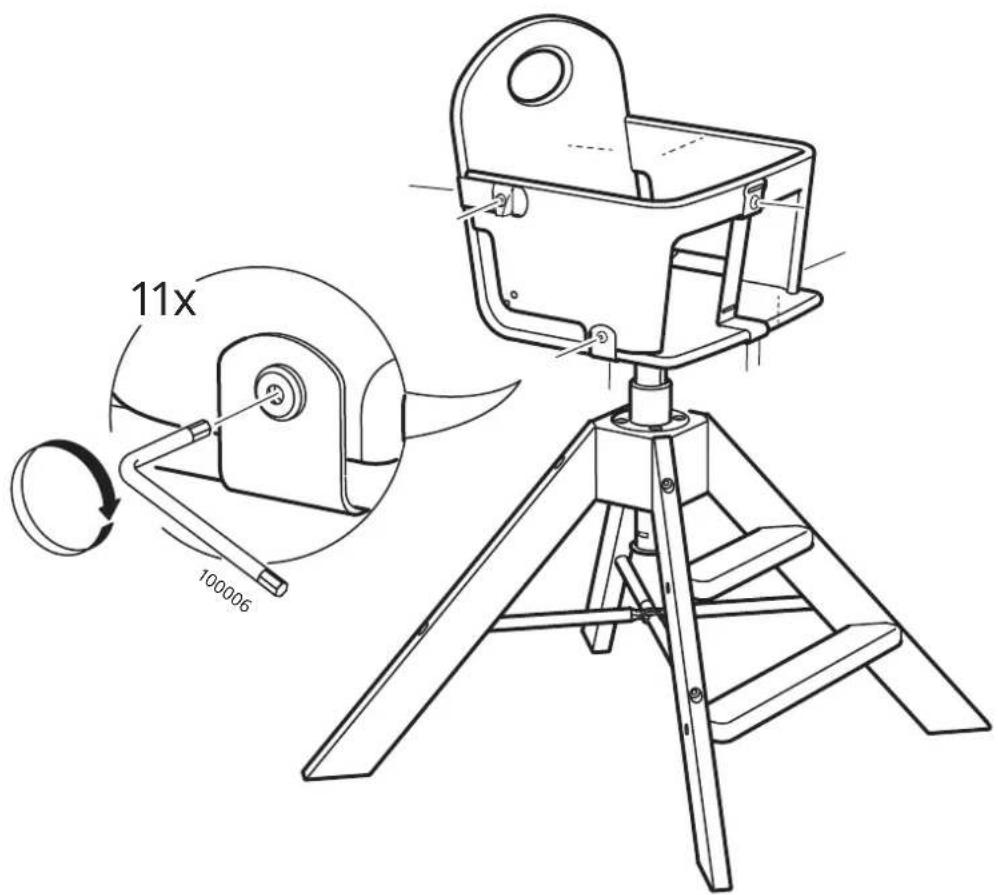

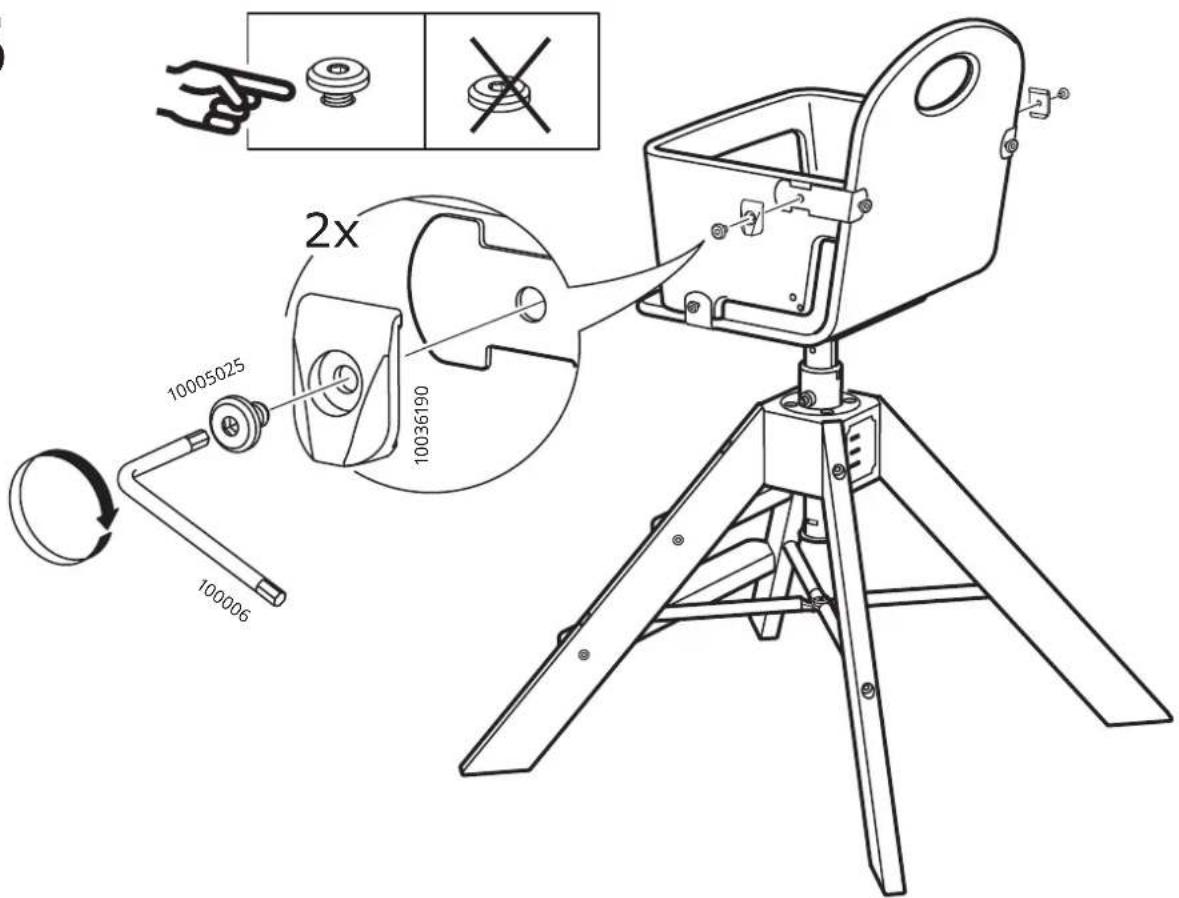

Assembly is straightforward. Follow the instruction step-by-step: attach the legs to the seat using the provided hex key, secure the backrest, then install the tray and safety belt. All hardware is included. Refer to the manual for detailed diagrams.

What is the weight limit for the high chair?

The maximum load is 15 kg (33 lb). Do not exceed this weight to ensure safety.

From what age can I use the GRÅVAL high chair?

It is suitable for children from 6 months up to about 3 years, or until the child reaches the weight limit. Always use the safety harness once the child can sit up.

How do I clean the high chair?

Wipe the seat and tray with a damp cloth and mild soap. The tray is dishwasher safe (top rack only). Avoid abrasive cleaners or scrubbing pads.

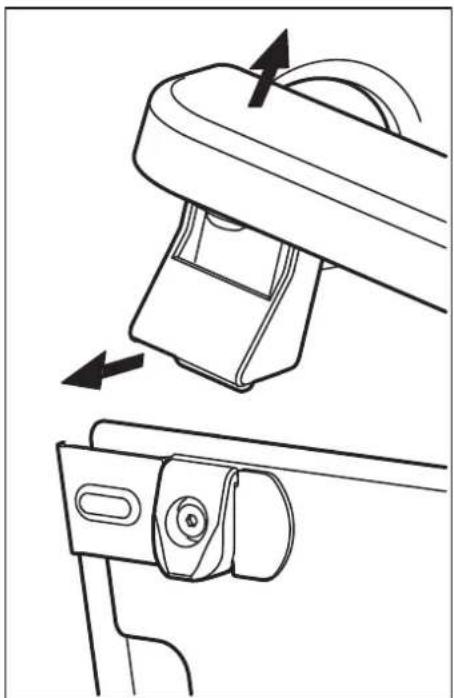

Can the tray be removed?

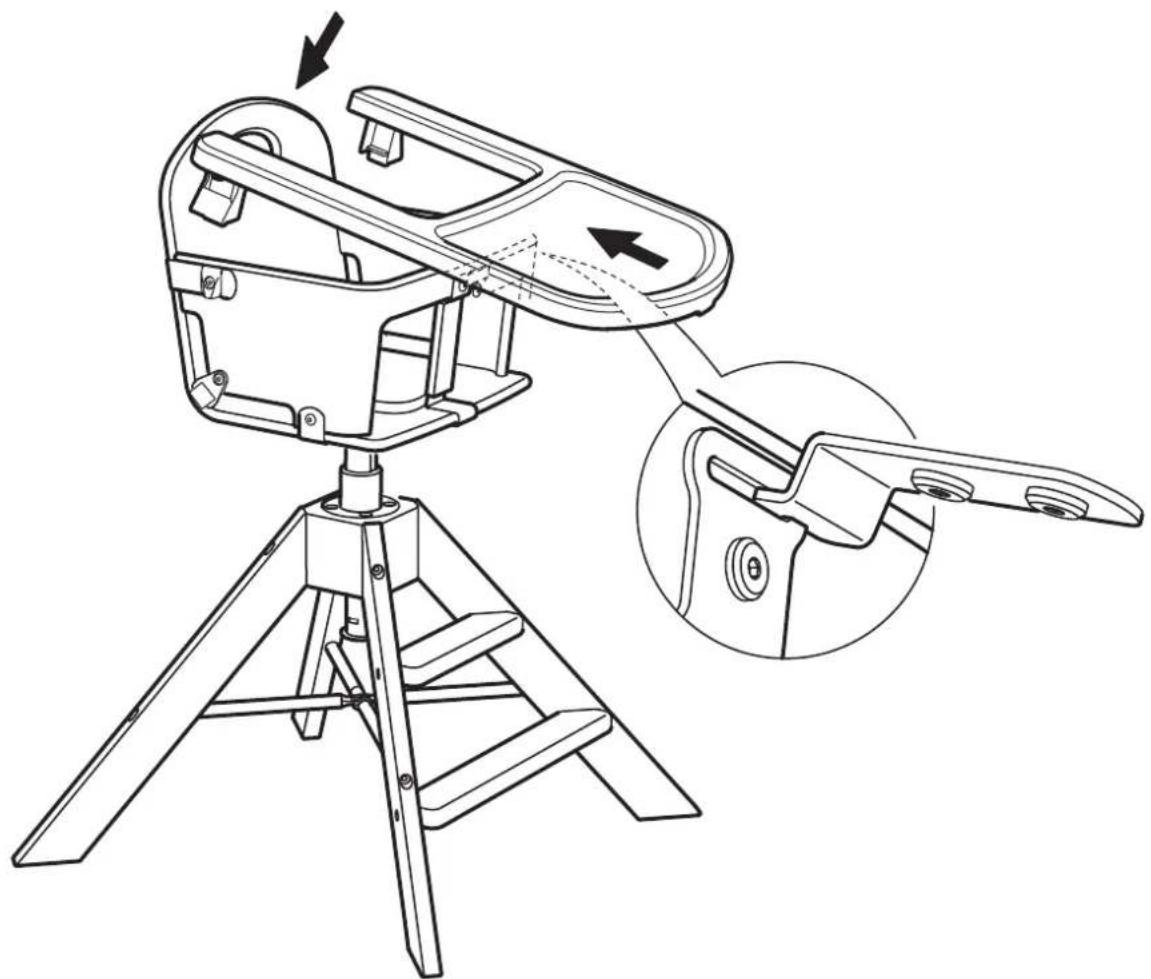

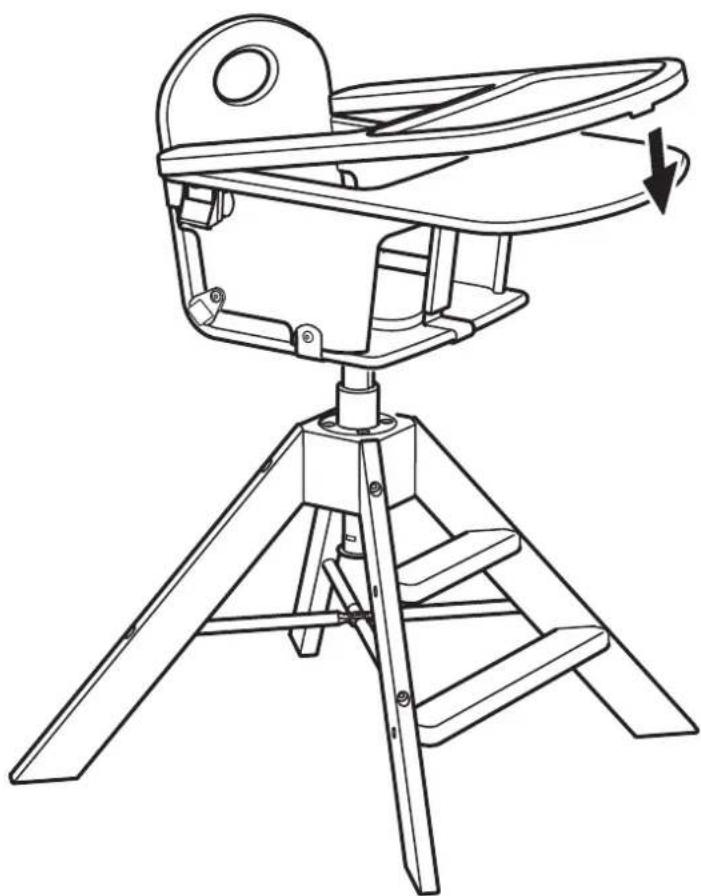

Yes, the tray is detachable for easy cleaning and feeding. It can also be adjusted to different positions or removed completely.

How do I adjust the safety harness?

The 5-point harness has adjustable straps. To tighten, pull the ends of the straps; to loosen, press the release button and lengthen the buckle. Ensure the harness is snug but not too tight.

Are replacement parts available?

Yes, IKEA sells spare parts. Contact IKEA customer service or visit the website for replacements like screws, straps, or trays. Quote the article number (e.g., 10005025).

Is the high chair foldable?

No, the GRÅVAL high chair is not foldable. However, it disassembles easily into a flat stack for storage.

What safety warnings should I follow?

Always use the safety harness when the child is seated. Never leave the child unattended. Ensure the chair is on a stable, level surface. Do not use if any part is damaged.

What materials is the high chair made of?

The seat and tray are polypropylene (PP) plastic, and the frame is steel with a powder-coated finish. All materials are BPA-free and safe for children.

USER MANUAL GRÅVAL IKEA

Line drawing of a baby stool with a roof-mounted stand and a backrest seat, no text or symbols present.

Simple line drawing of a bird perched on a box with two crossed lines, no text or symbols present.

Simple line drawing of a bird perched on a rectangular platform (no text or symbols)

Simple line drawing of a person with a hammer and book, thinking, next to a question mark (no text or symbols)

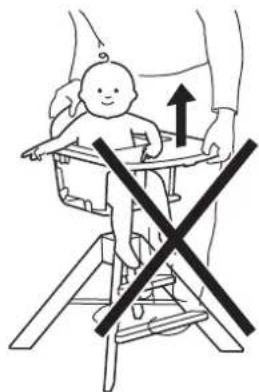

Illustration of a baby on a high chair with a hand holding the seat, crossed out by a black X (no text or symbols)

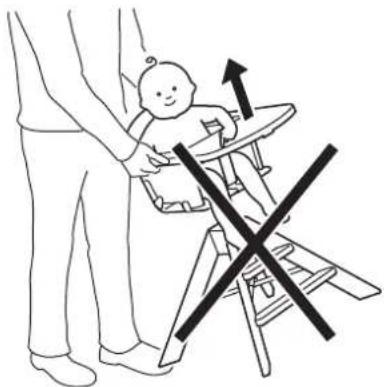

Illustration of a baby being assisted by an adult using a chair to lift a seat, with no text or symbols present.

1

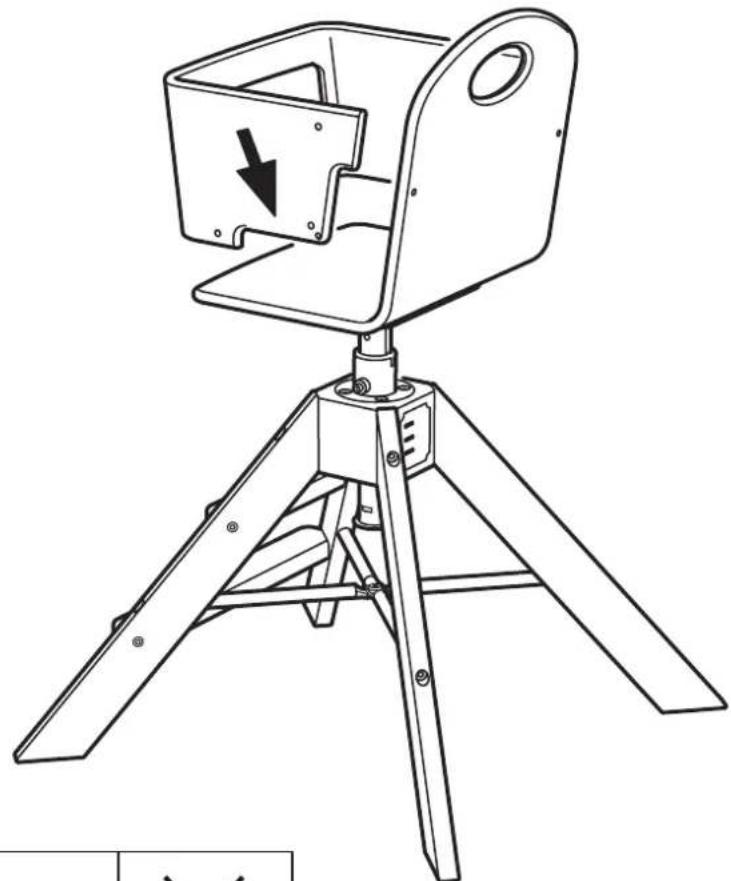

Line drawing of a tripod-mounted device with a black arrow indicating downward motion (no text or symbols)

2

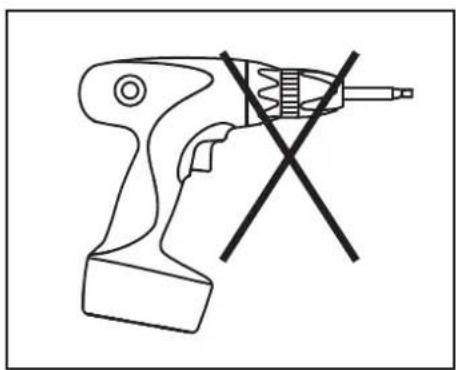

Line drawing of a soldering iron with a crossed tool (no text or symbols)

Line drawing of a tripod-mounted projector with mounting base and control panel (no text or symbols)

3

4

5

6

7

8

9

10

Line drawing of a vintage camera on a tripod, showing mechanical components and a hand holding a curved object (no text or symbols)

Illustration of a hand holding a cup with arrows indicating rotation (no text or symbols)

Three-panel illustration showing hands adjusting a cable clip in different states of assembly (no text or symbols present)

English

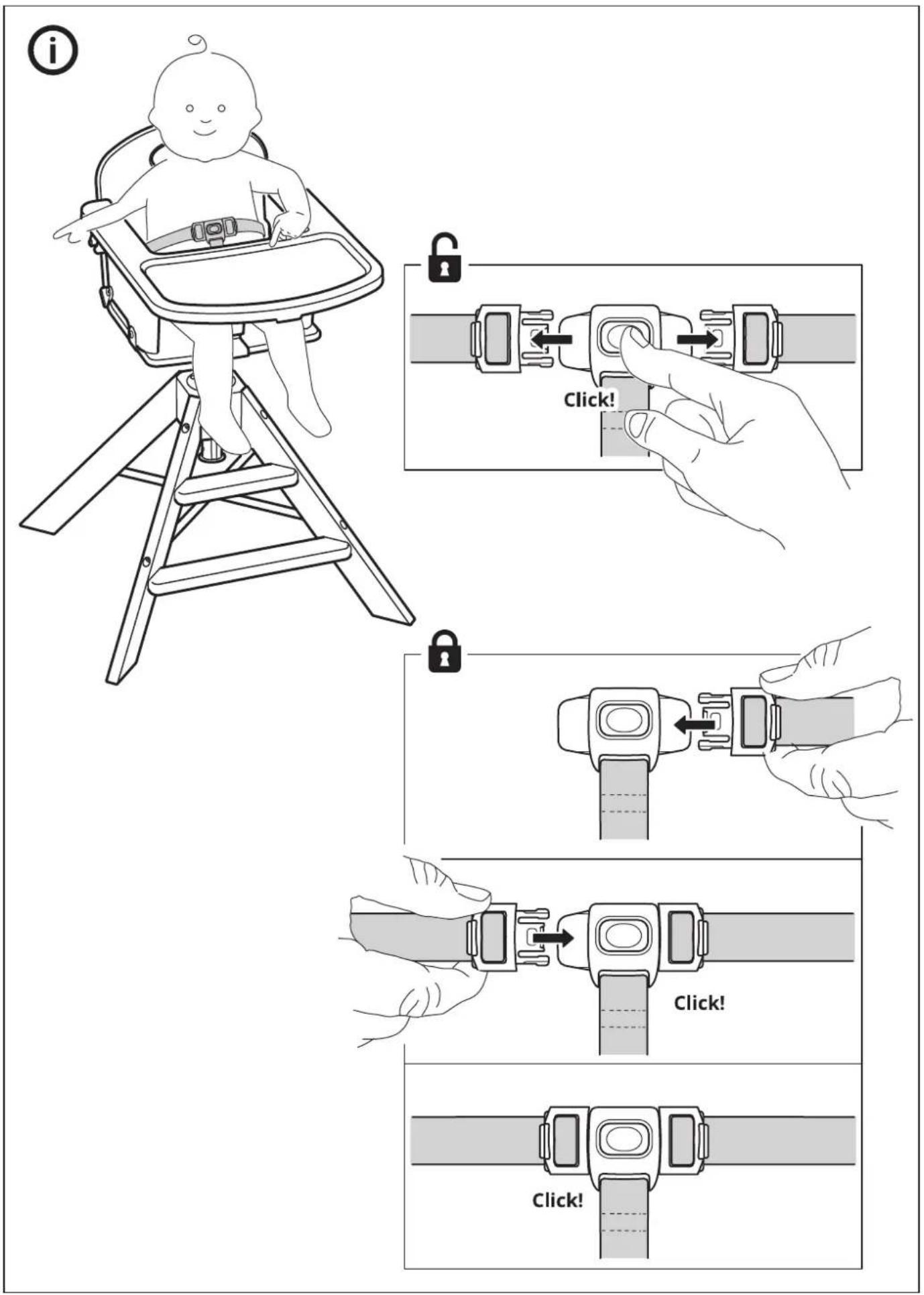

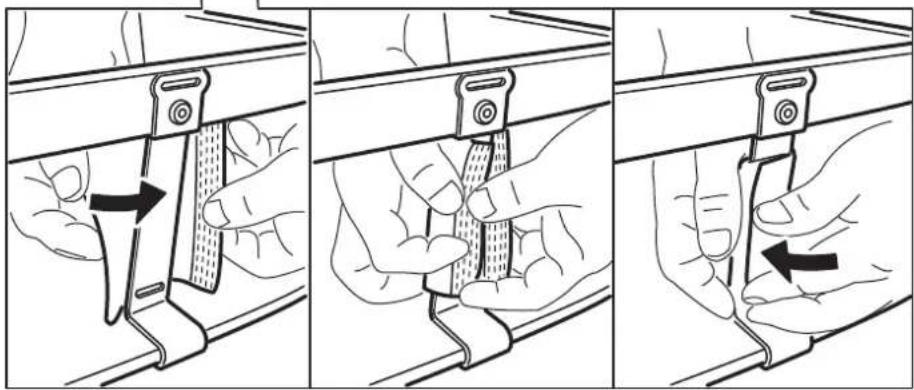

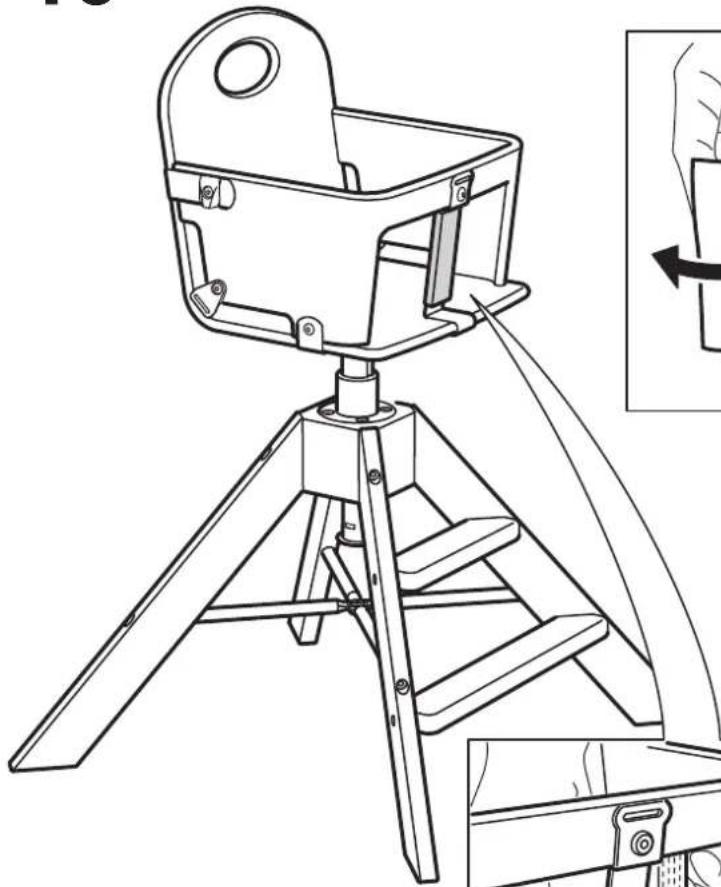

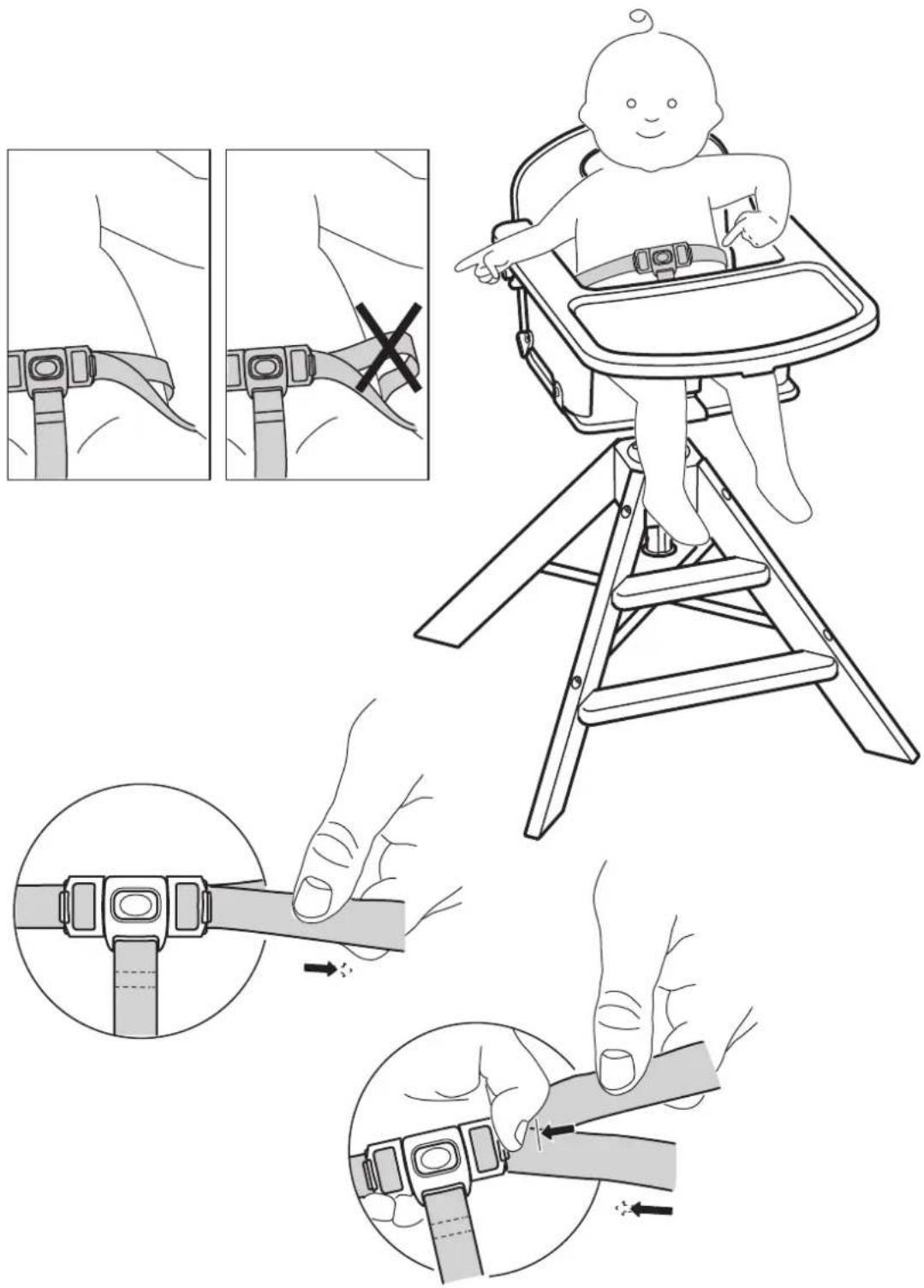

To attach, remove and adjust the safety belt:

1. Place the safety belt inside the pre-assembled highchair seat in a t-shape with the release button facing upwards. Check that the straps are not twisted.

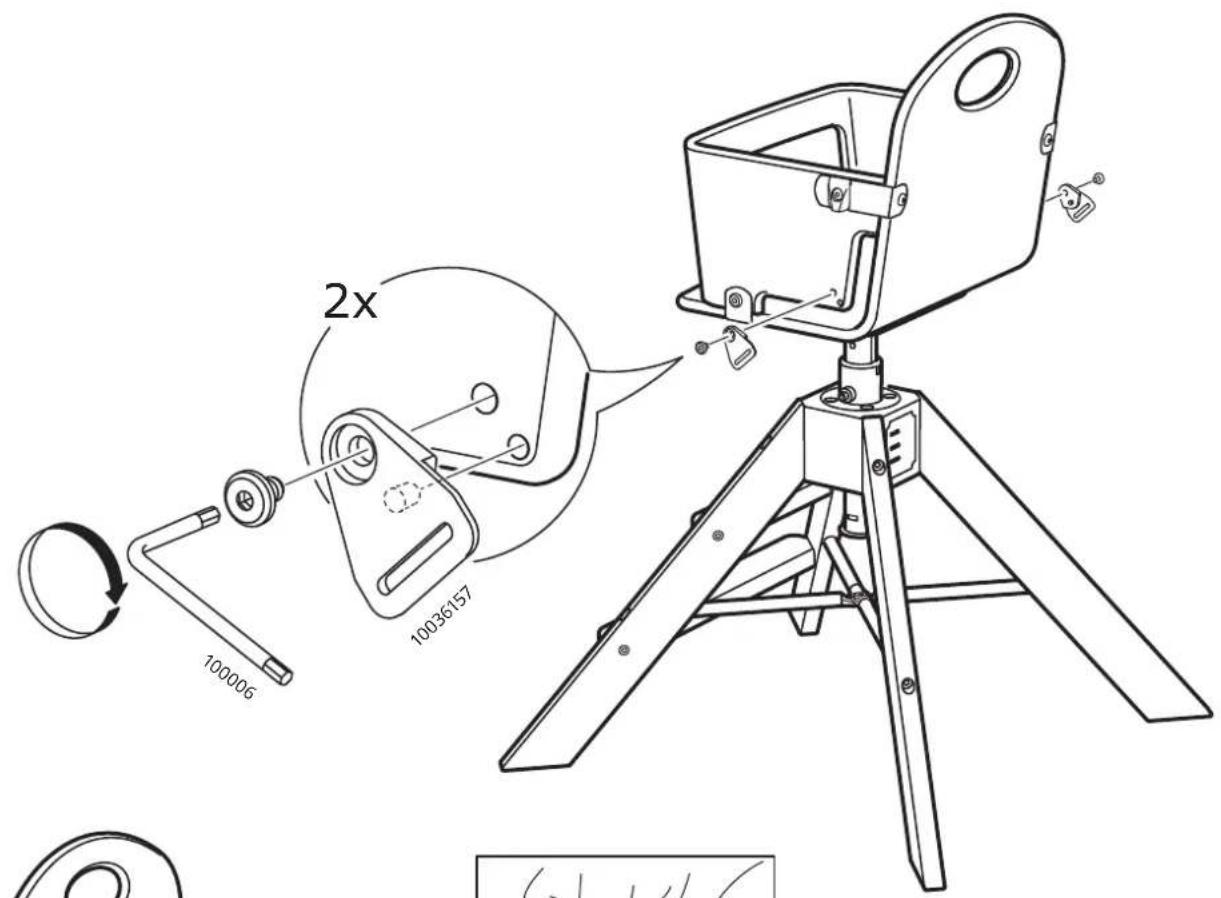

2. Take the end of one side strap and push it through the small opening in the bracket to the back corner of the highchair side, then take the end of the strap at the back of the bracket and fold into a t-shape to keep it in place.

3. To tighten the seat belt when the child is seated in the highchair, pull the end of the strap. You should be able to fit your fingers between the child and the safety belt without it being too tight or too loose.

4. To unlock the safety belt push the release button.

5. To make the strap leading up to the belt buckle longer, press the small button to the edge of the belt buckle and move the belt buckle along the strap to the preferred length. It is only possible to complete this step if the safety belt release button has been unlocked.

Warning: Always use the safety belt when the child is in the highchair. Do not leave the child in the highchair unattended.

Deutsch

12

13

14

Line drawing of a tripod-mounted device with an inset close-up showing the blade assembly (no text or symbols)

15

Line drawing of a baby boom lift with a curved arrow indicating rotation (no text or symbols)

i

Technical line drawing of a mechanical device with directional arrows indicating motion (no text or symbols)

Line drawing of a mechanical device with a tripod base and top frame, no text or symbols present

i
