| Product Type | Refrigerator-Freezer Combination |
| Brand | IKEA |
| Model | KÖLDGRADER |
| Height | 186.3 cm |
| Width | 59.5 cm |
| Depth | 65.0 cm |
| Weight | 72 kg |
| Power Supply | 220-240 V, 50 Hz |
| Energy Rating | E (EU 2019) |
| Annual Energy Consumption | 241 kWh/year |
| Refrigerator Capacity | 231 L |
| Freezer Capacity | 94 L |
| Noise Level | 42 dB(A) re 1 pW |
| Climate Class | SN-ST |
| Main Functions | Automatic defrost, reversible door, adjustable shelves, vegetable drawer |
| Care and Cleaning | Wipe with damp cloth, mild detergent; avoid abrasive cleaners |
| Safety Features | Child lock (freezer), overheating protection |
| Spare Parts Availability | Serviceable by IKEA; parts available for 10 years |
| Repairability Index | 7.5/10 |
| Warranty | 2 years (IKEA standard) |
| Installation Requirements | Ventilation gaps: 5 cm rear, 2 cm sides |
Frequently Asked Questions - KÖLDGRADER IKEA
How do I set the temperature on my KÖLDGRADER refrigerator?
Use the control panel inside the fridge. Press SET to cycle through temperature zones (fridge/freezer). Adjust with +/- buttons. Recommended settings: fridge +4°C, freezer -18°C.
What is the correct way to clean the KÖLDGRADER?
Unplug the appliance. Remove all food and shelves. Clean interior with a soft cloth and mild dish soap solution. Rinse with damp cloth and dry. Do not use abrasive cleaners or sharp objects.
Why is my KÖLDGRADER making unusual noises?
Normal operation includes sounds from compressor or fans. If loud, ensure appliance is level, not touching walls, and objects inside are stable. A gurgling noise is normal refrigerant flow.

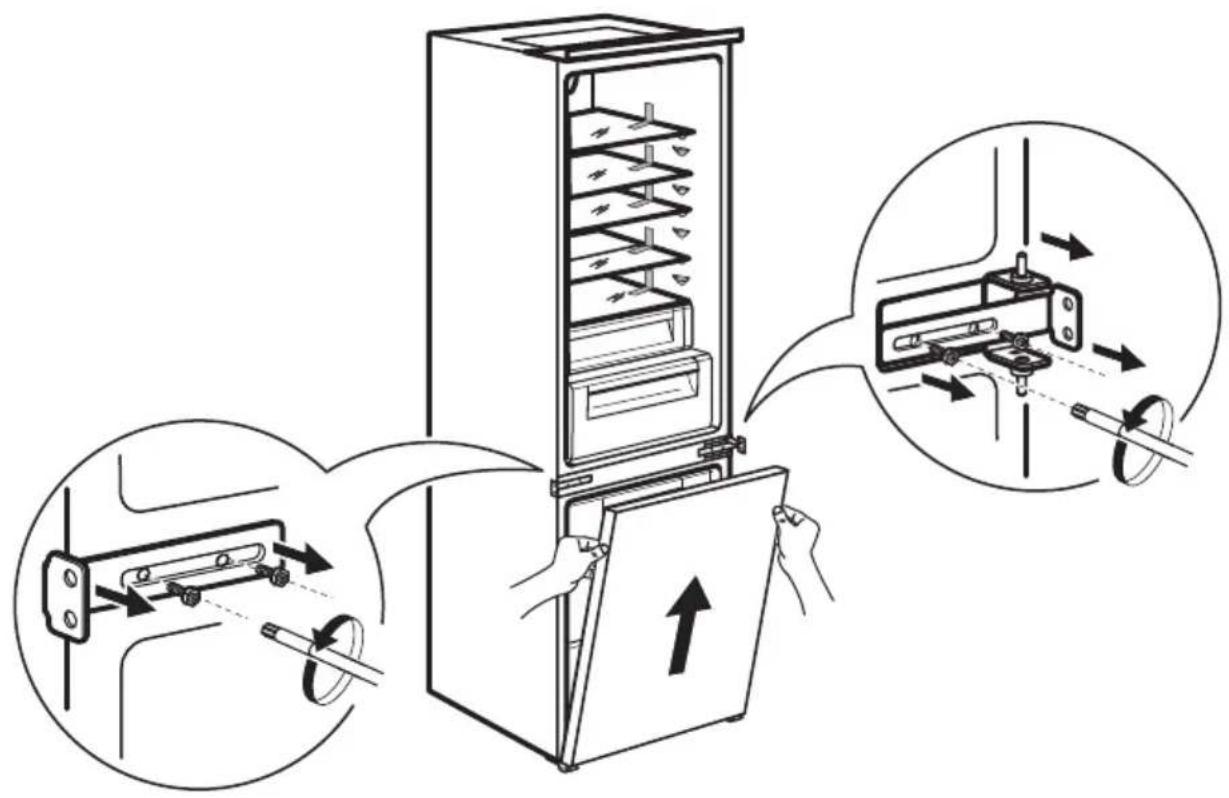

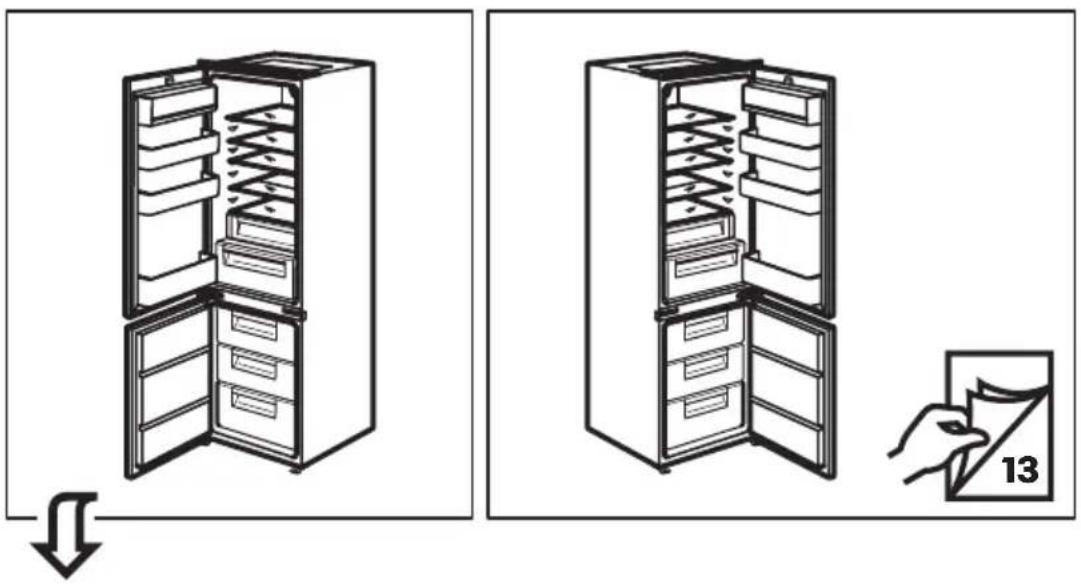

How do I change the door opening direction on KÖLDGRADER?
The door is reversible. Refer to page 12 of manual: remove top hinge cover, unscrew hinges, transfer hinges to opposite side, and realign door. Use the included plug caps for exposed holes.
What does the alarm sound mean?
An alarm indicates high temperature if door is left open or power failure. Press the ALARM RESET button to silence. Check food condition; if frozen food has thawed, do not refreeze.
How often should I defrost the freezer?
The KÖLDGRADER is auto-defrost in the fridge, but the freezer is manual. Defrost when ice is 5 mm thick. Remove food, unplug, leave door open, place towels to collect water. Clean and dry before restarting.
Can I install the KÖLDGRADER in a garage or unheated room?
Check climate class: SN-ST (10°C to 38°C). It operates in ambient temperatures 10°C – 38°C. Avoid freezing temperatures; water may freeze in the system. Not for outdoor use.
What is the correct way to store food for optimal freshness?
Wrap or cover all foods to prevent odor transfer. Keep raw meat on lower shelves. Use vegetable drawer for high humidity items. Do not overload shelves to allow air circulation.
How do I replace the interior light bulb?
Use a LED lamp of max 10W, type E14. Unplug appliance, remove lamp cover by twisting, replace bulb, reattach cover. If LED fails, contact IKEA service for replacement.
What should I do if the appliance stops cooling?
Check power supply and circuit breaker. Ensure temperature setting is correct. Clean condenser coils if dusty. If problem persists, contact IKEA after-sales support. Do not attempt to repair yourself.
User questions about KÖLDGRADER IKEA
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
No questions yet. Be the first to ask one.
Download the instructions for your Uncategorized in PDF format for free! Find your manual KÖLDGRADER - IKEA and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. KÖLDGRADER by IKEA.
USER MANUAL KÖLDGRADER IKEA
ENGLISH
Warning! Before proceeding with installation, read the safety information in the User Manual.
DEUTSCH
i


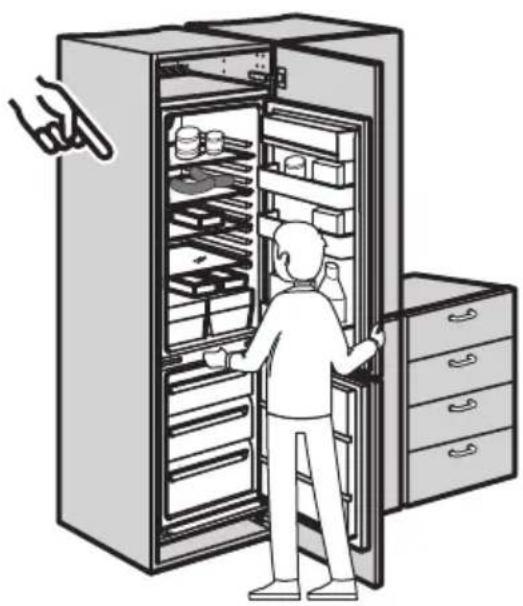

Illustration of a person opening a refrigerator with shelves and drawers (no text or symbols)

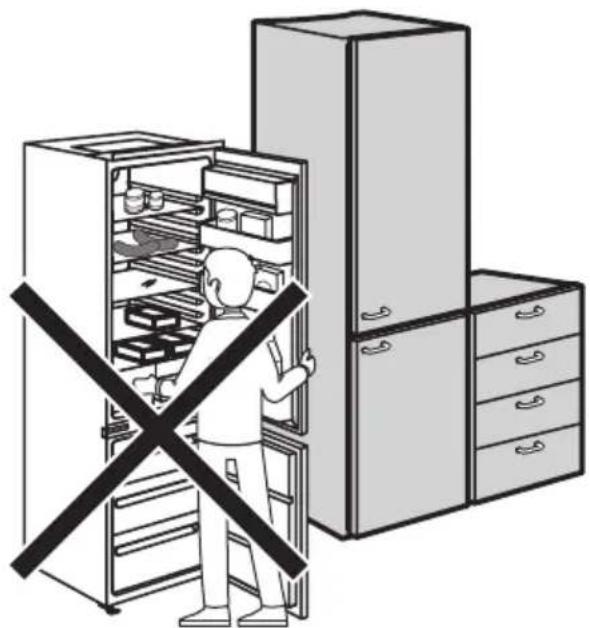

1
2
3
4
5
6

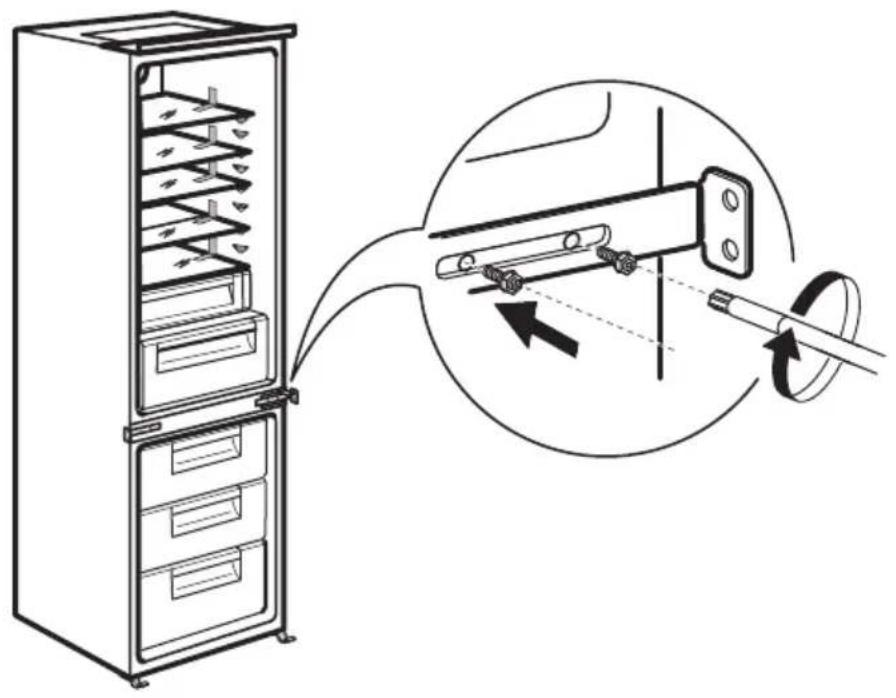

8

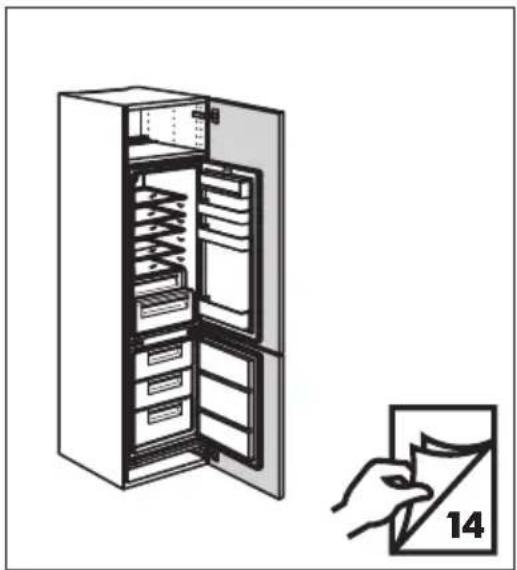

1
2
3
4
5
6
7
8
9
10
11
12
13
14
16
17

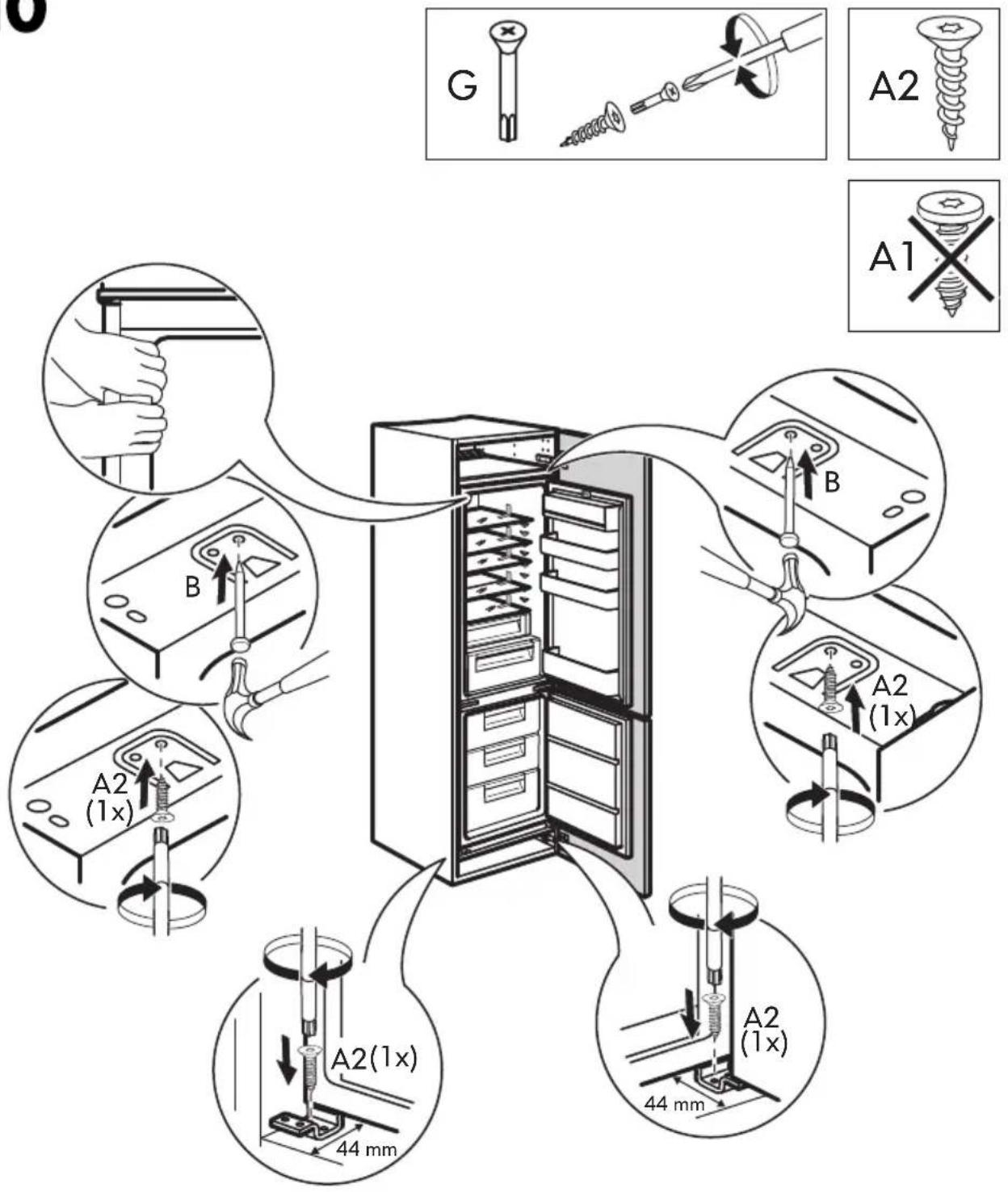

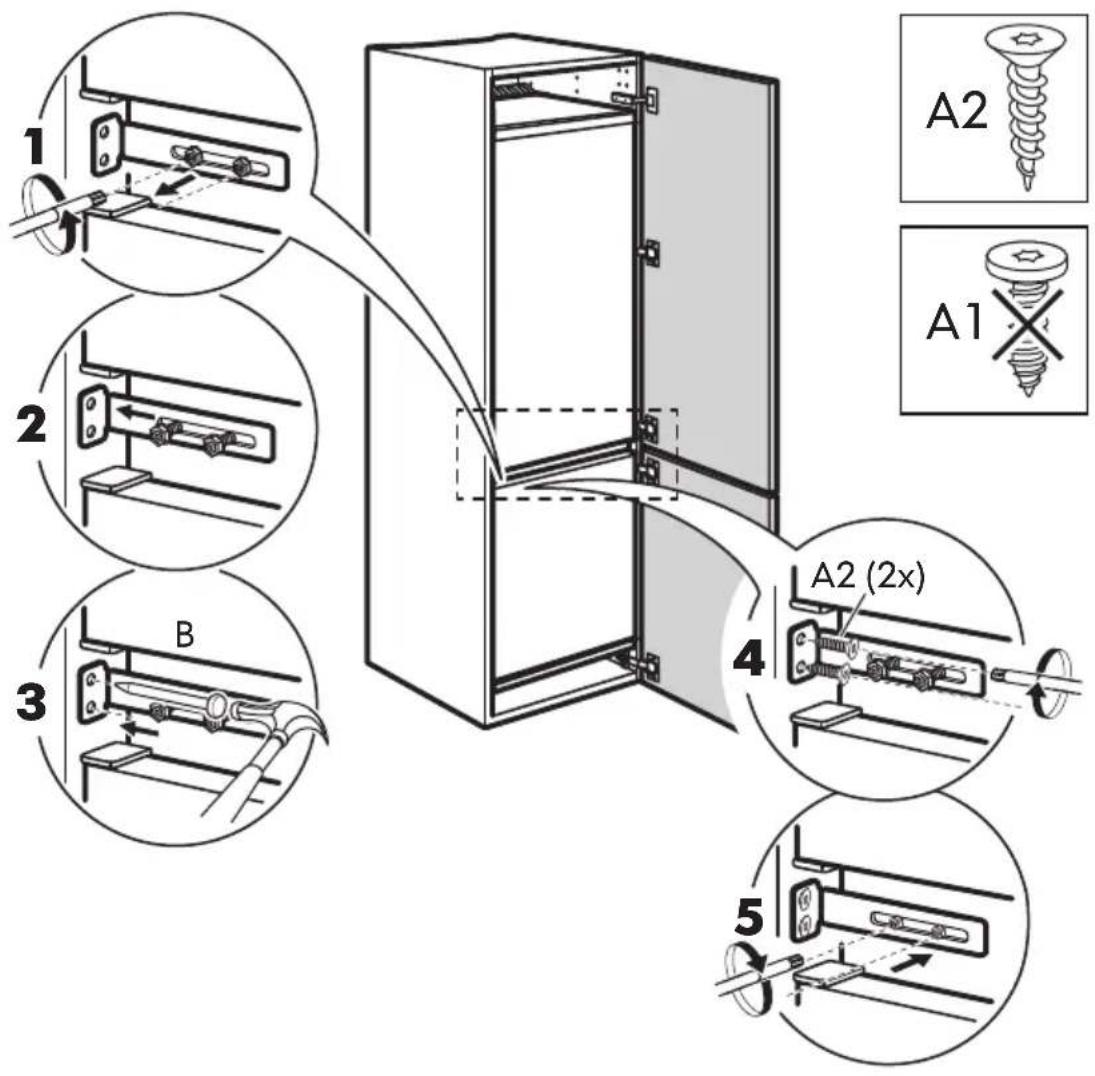

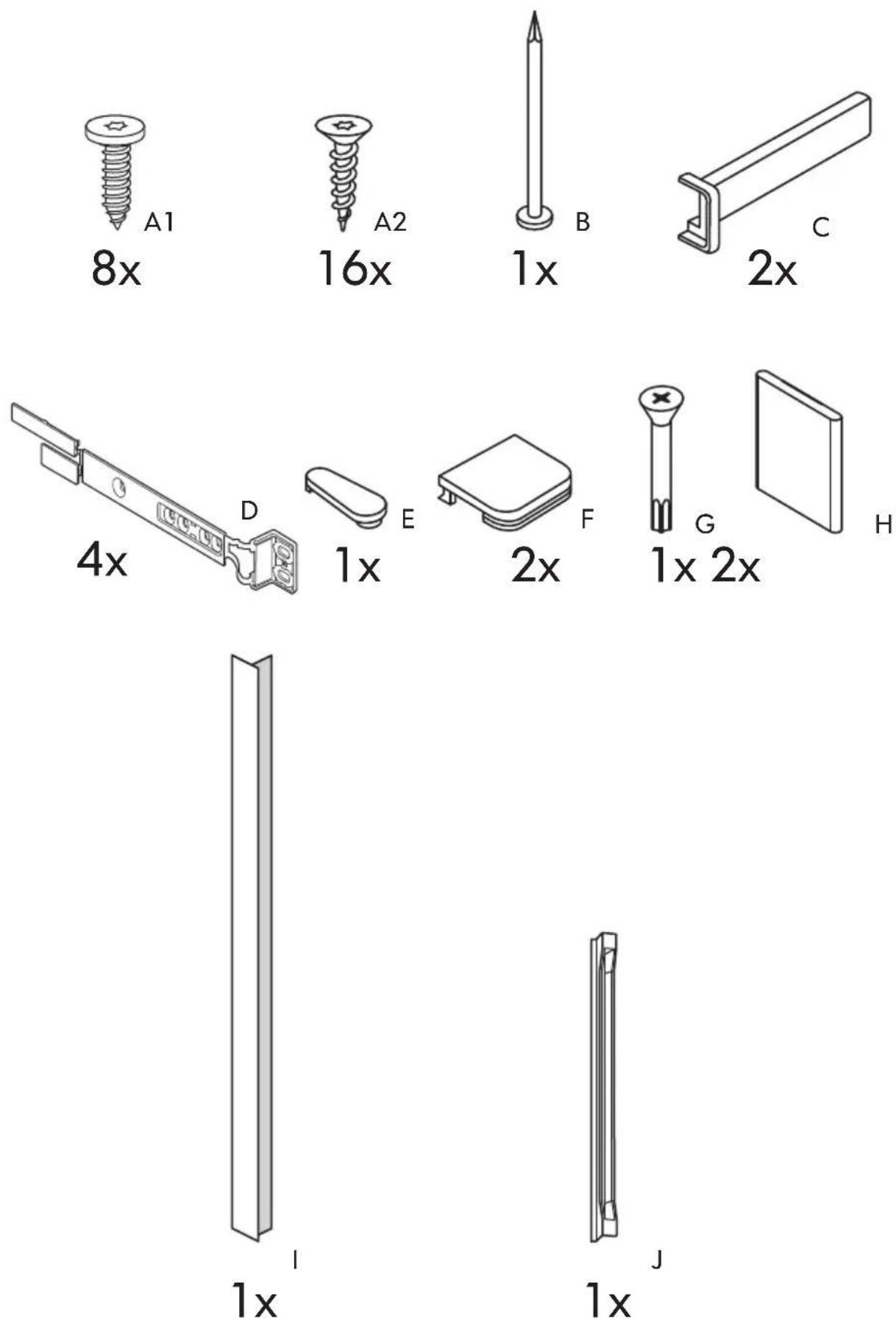

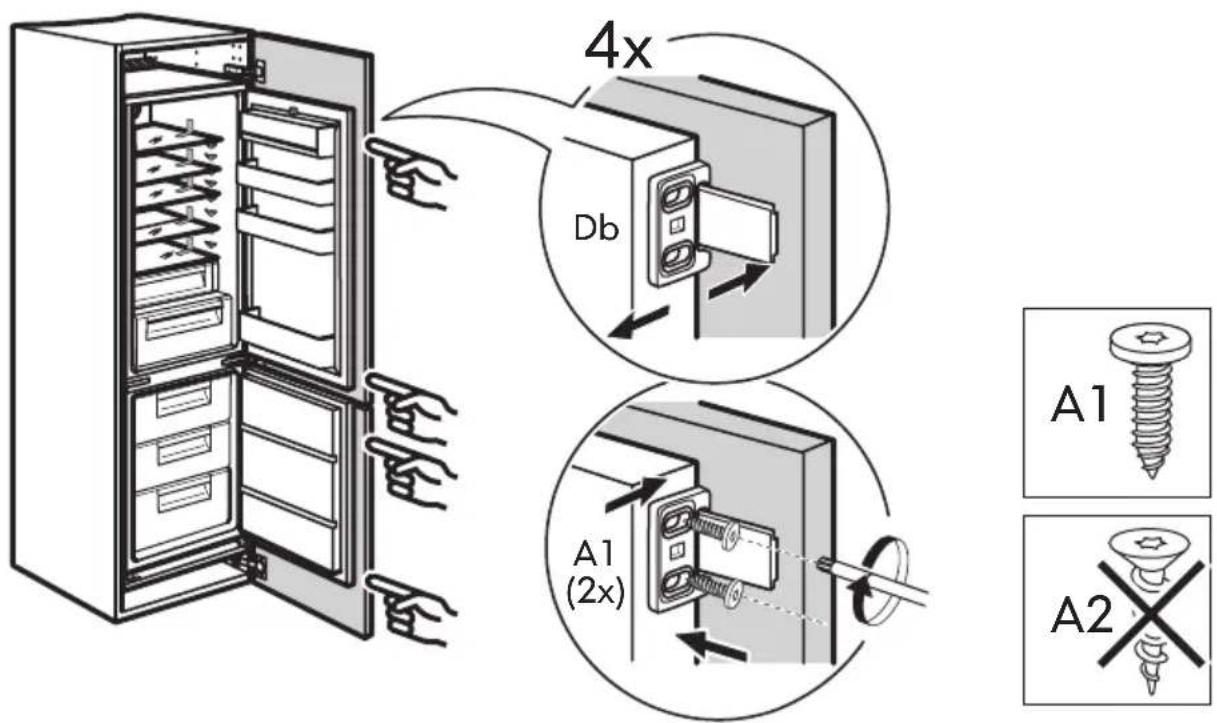

Line drawing of a screw with labeled section A2 (no text or symbols on the screw itself)

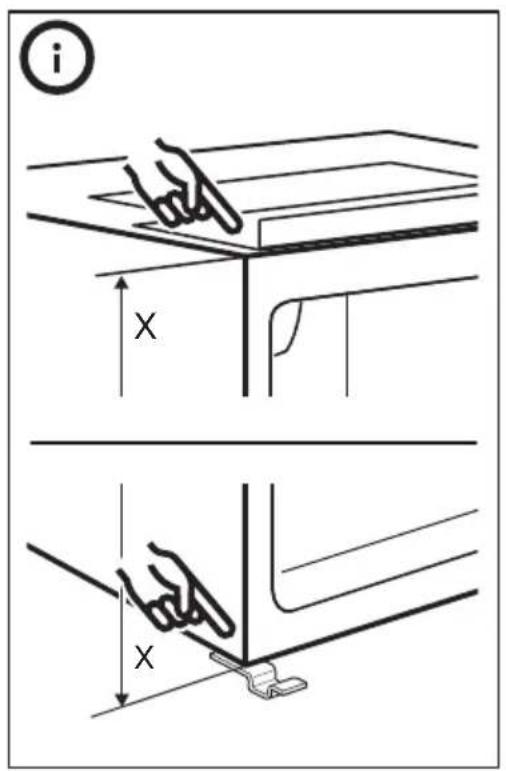

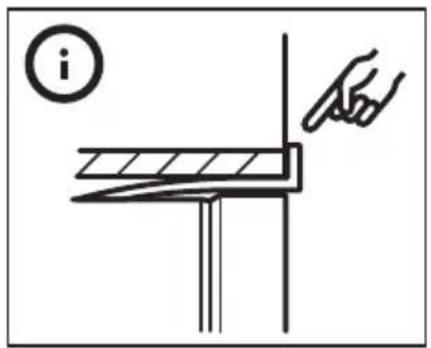

i MÄRSTA
18
19
20
21
22
26
