Introduction
Congratulations on the purchase of your Impact Beauty Dish. The Impact Beauty Dish is available in 16", 20", 22", and 27" versions. It features a neutral white reflector and mounts onto your strobe to reflect and diffuse light, creating a shadowless effect that offers greater contrast and texture than a softbox or an umbrella. Because beauty dishes produce a natural-looking catch light, they are ideal for fashion and portrait photography.
Note: The Beauty Dish requires the correct mounting adapter (sold separately) in order to mount onto your strobe.
Recommended Accessories
Additional accessories are available from Impact. Mount the Impact Beauty Dish to your strobe with an Impact Mounting Adapter. Attach an Impact Diffuser Sock to soften the light further, or an Impact Honeycomb Grid to change the intensity and shape of the light.
| Mounting Adapter Catalog Number | Compatibility |
| BDA-ALI | Paul C. Buff Alien Bee, Einstein, White Lightning, and Zeus; Balcar; Flashpoint |
| BDA-BRO-L | Broncolor Primo, Pulso, and Flashman |
| BDA-BRO-S | Broncolor Impact; Hasselblad Vista; Visatec |
| BDA-COM | Comet; Dynalite SH and AH |
| BDA-ELI | Elinchrom; Impact EX; Calumet Genesis; Interfit EX |
| BDA-EXC | SP Systems Excalibur |
| BDA-HEN | Hensel |
| BDA-IMP | Impact; Bowens; Calumet Travelite; Cowboy; Interfit Stellar; JTL; Photoflex; Rime Lite; Westcott |
| BDA-MUL-L | Multiblitz Magnolite, Magnolux, Ministudio, Variolite, and Xenolux; Flashpoint II |
| BDA-MUL-S | Multiblitz Profilite, Profilux, and Minilite |
| BDA-NOR-A | Norman Allure |
| BDA-NOR-BPN | Norman LH |
| BDA-NOV | Novatron |
| BDA-PHO | Photogenic; Norman Monolight |
| BDA-PRO | Profoto |
| BDA-SPE | Speedotron Black, and Brown M11 |
| Honeycomb Grid Catalog Number | Diffuser Sock Catalog Number | Compatibility |
| BDG-16 | 9031630 | 16" BEAUTY DISH |
| BDG-20 | 9031660 | 20" BEAUTY DISH |
| BDG-22 | 9031650 | 22" BEAUTY DISH |
| BDG-27 | 9031670 | 27" BEAUTY DISH |
Setting Up Your Beauty Dish
In order to mount your Impact Beauty Dish, you will need to purchase and install the proper mounting adapter.


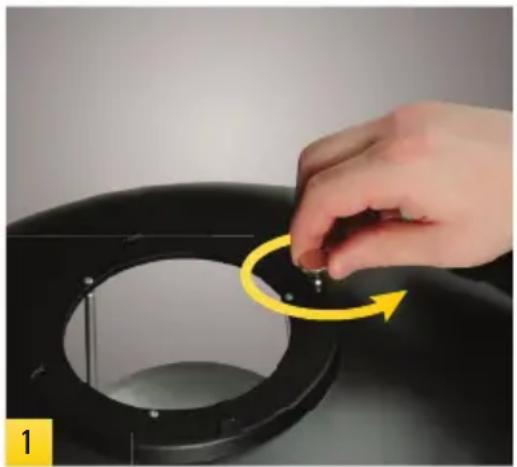

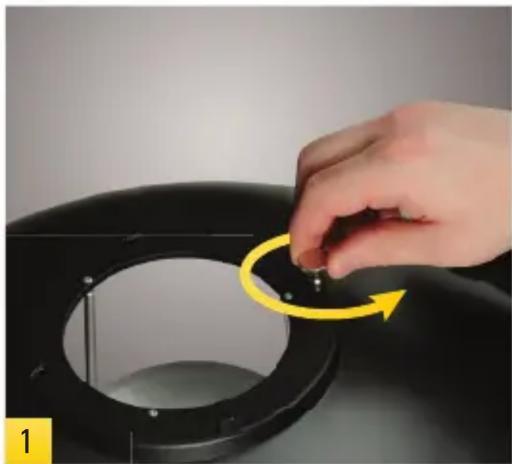

Hand placing a small object into a black circular component with a yellow curved arrow indicating rotation (no text or symbols visible)Remove the thumbscrew and washer by rotating the thumbscrew.


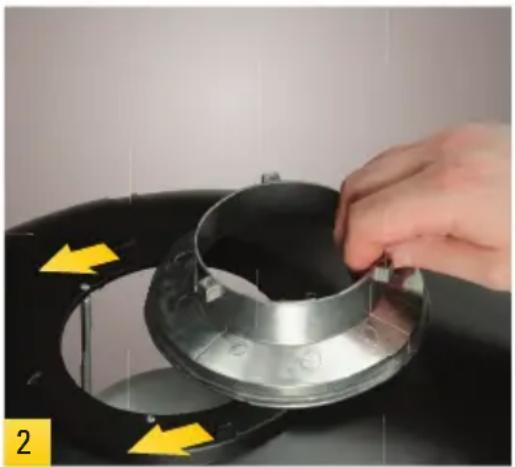

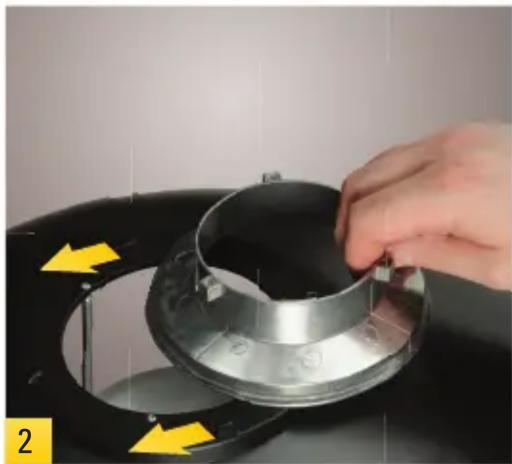

Close-up of a hand adjusting a metallic circular component on a black stove burner, with yellow arrows indicating direction (no text or symbols)Slide the mounting adapter into the brackets on the back of the beauty dish.


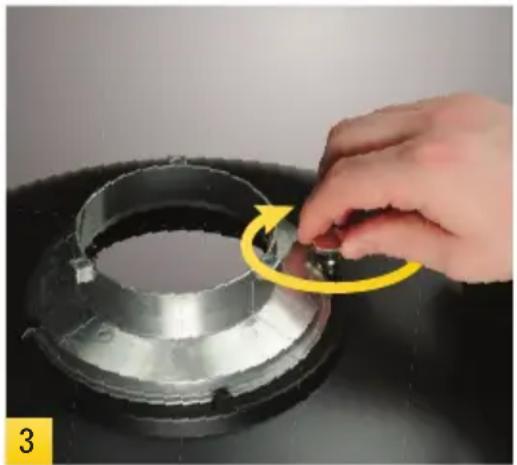

Hand turning a small component into a metallic cylindrical component on a stovetop (no text or symbols visible)Insert the thumbscrew and washer into the threaded hole and rotate clockwise to tighten.


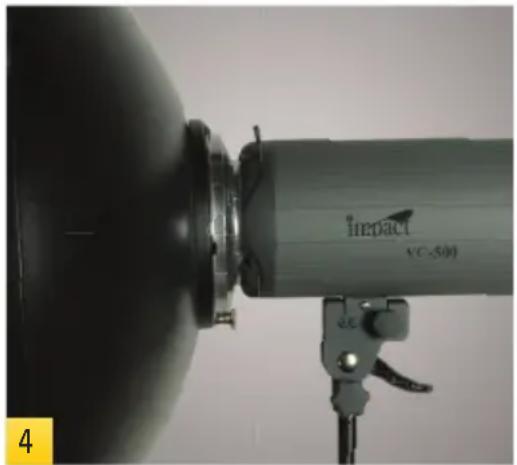

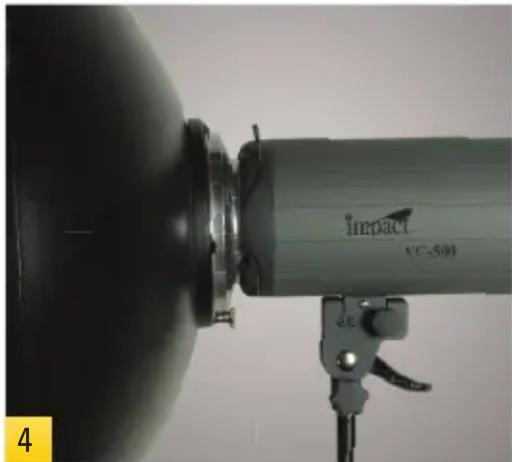

Close-up of a light bulb with 'Impact' label and 'VC-500' mark, mounted on a stand (no additional text or symbols visible)Mount the Impact Beauty Dish onto your strobe light.
Note: For instructions on how to mount your Impact Beauty Dish, refer to your strobe's instruction manual.
All photos are for illustrative purposes only. Flash units, lamps, and light stands are not included with the Impact Beauty Dish unless purchased as a kit.
