DIG11AU - Audio/video converter Blustream - Free user manual and instructions

Product Type	Digital Audio Converter
Brand	Blustream
Model	DIG11AU
Category	Audio/Video Converter
Input Connectors	1x SPDIF Optical, 1x Coaxial Digital
Output Connectors	1x SPDIF Optical, 1x Coaxial Digital
Supported Sample Rates	32 kHz, 44.1 kHz, 48 kHz, 96 kHz, 192 kHz
Bit Depth	Up to 24-bit
Output Mode	Simultaneous (both outputs active regardless of input)
Power Supply	5V/1A DC (included)
Power Consumption	5W
Casing Dimensions (W x H x D)	57mm x 47mm x 22mm
Dimensions including connectors (W x H x D)	57mm x 62mm x 22mm
Shipping Weight	0.3 kg
Operating Temperature	0°C to 40°C (32°F to 104°F)
Storage Temperature	-20°C to 60°C (-4°F to 140°F)
Plug and Play	Yes
Maintenance	Clean with soft dry cloth; do not use alcohol or solvents
Certifications	FCC Part 15 Class B, ICES-003
Surge Protection	Recommended (use surge protector)
Input Selection	Switch between Optical and Coaxial
Package Contents	DIG11AU unit, 5V/1A DC power supply, mounting kit

Frequently Asked Questions - DIG11AU Blustream

What does the Blustream DIG11AU do?

The DIG11AU is a digital audio converter that converts coaxial or optical (SPDIF) digital audio signals from one type to another, allowing you to connect devices with incompatible digital audio outputs.

Can I use both optical and coaxial outputs simultaneously?

Yes, the DIG11AU outputs both optical and coaxial digital audio simultaneously, regardless of which input type is selected.

What audio sample rates does it support?

It supports sample rates of 32 kHz, 44.1 kHz, 48 kHz, 96 kHz, and 192 kHz with up to 24-bit resolution.

What power supply is required?

The DIG11AU requires a 5V/1A DC power supply, which is included in the package.

How do I select the input source?

Use the Input Select switch on the front panel to toggle between the Optical and Coaxial digital inputs.

Is any software or driver installation needed?

No, the DIG11AU is plug-and-play, so no software or drivers are required.

How should I clean the device?

Clean the unit with a soft, dry cloth. Never use alcohol, paint thinner, or benzene.

What are the dimensions of the DIG11AU?

The casing dimensions are 57mm x 47mm x 22mm (W x H x D), and with connections it is 57mm x 62mm x 22mm.

Does it support 24-bit audio?

Yes, it supports up to 24-bit resolution across all supported sample rates.

What is included in the package?

The package includes the DIG11AU unit, a 5V/1A DC power supply, and a mounting kit.

USER MANUAL DIG11AU Blustream

DIG11AU

User Manual

Thank you for purchasing this product.

For optimum performance and safety, please read these instructions carefully before connecting, operating or adjusting this product. Please keep this manual for future reference.

Surge protection device recommended

This product contains sensitive electrical components that may be damaged by electrical spikes, surges, electric shock, lightning strikes, etc. Use of surge protection systems is highly recommended in order to protect and extend the life of your equipment.

Contents

Introduction 03

Features 03

Panel Descriptions 03

Specifications 04

Package Contents 04

Maintenance 04

Introduction

Our DIG11AU is designed to convert coaxial or optical digital audio signals from one signal type to another. The outputs are simultaneous so audio can be distributed to multiple locations. The DIG11AU supports 192kHz sample rates for enhanced sound reproduction. This provides the perfect cost effective solution when connecting a source with only optical audio outputs to a device that has only coaxial digital inputs or vice versa.

FEATURES:

• Converts digital audio formats

• Both optical and coaxial digital outputs work concurrently regardless of input type selected
  • Supports sample rates 32 kHz, 44.1 kHz, 48 kHz, 96 kHz and 192 kHz up to 24-bit resolution

• Plug-and-play

• Small compact size

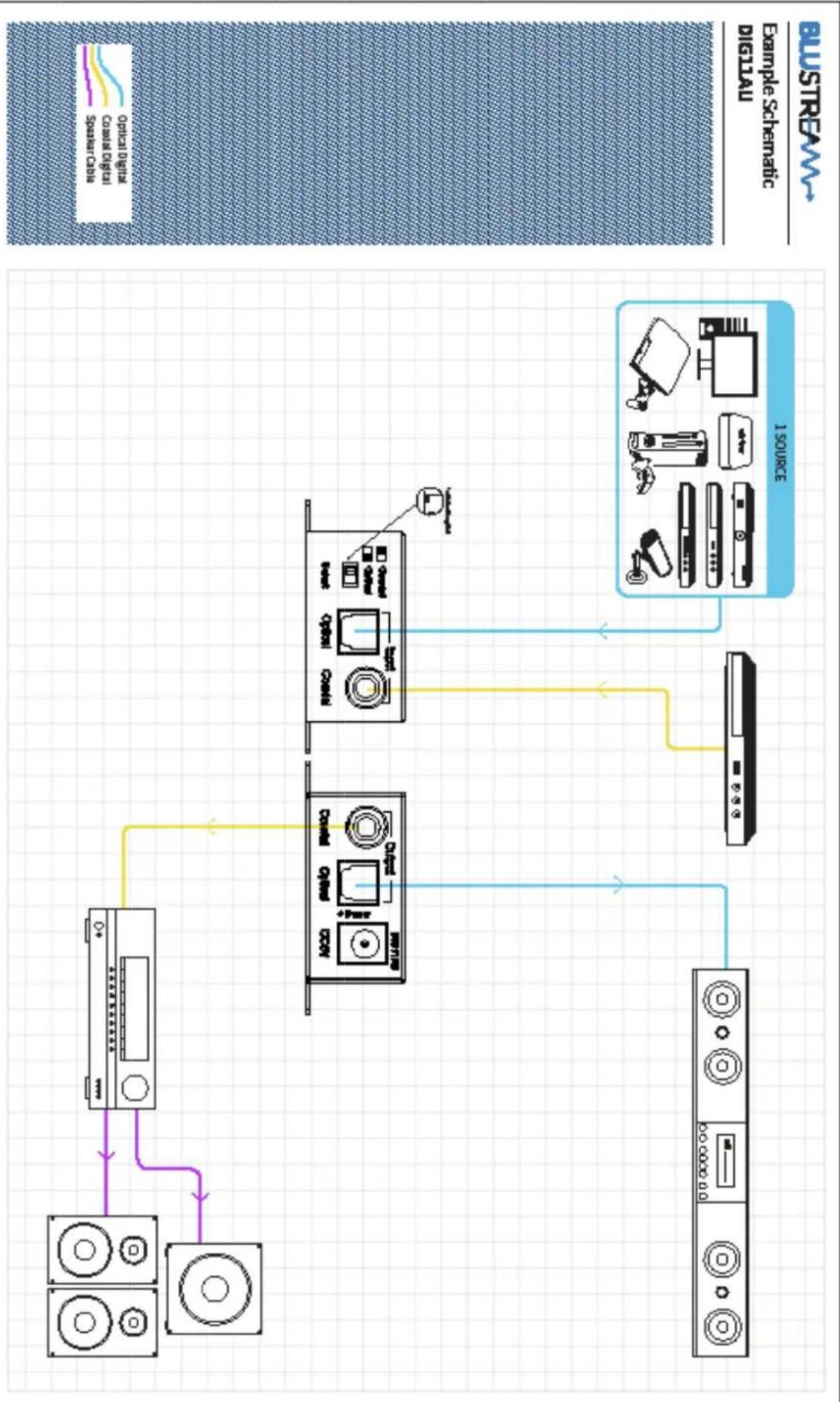

Front Panel Back Panel

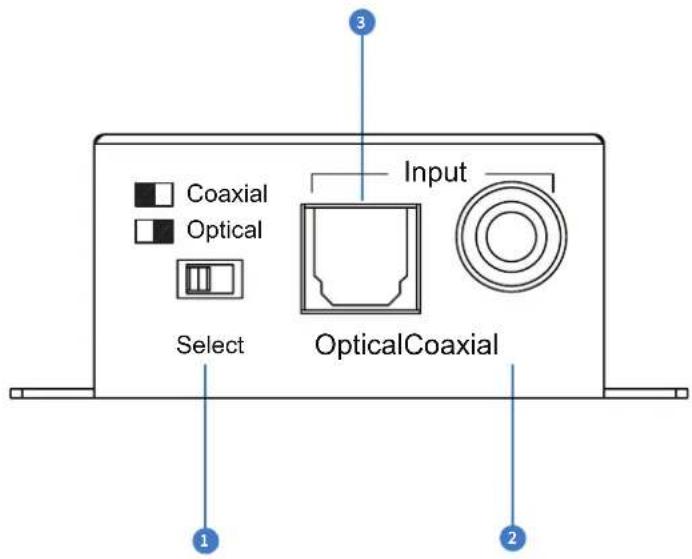

Audio input selector (switch between Optical and Coaxial digital inputs
2 Optical digital input
3 Coaxial digital input

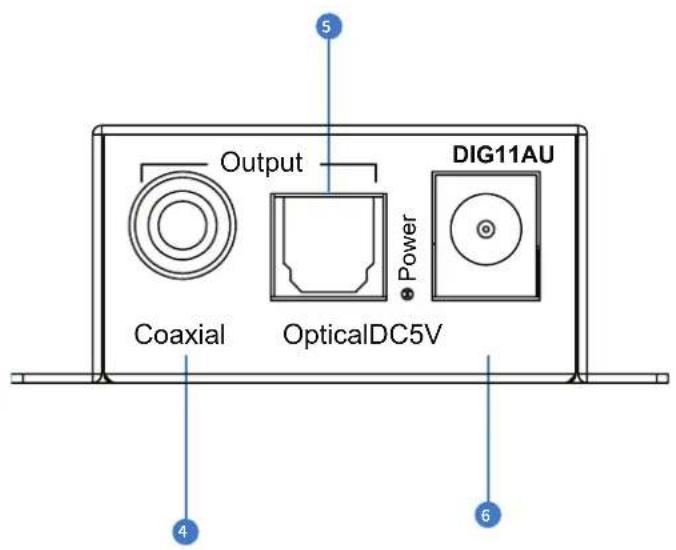

4 Coaxial digital output
5 Optical digital output
6 Power port – Use supplied 5v / 1amp DC adaptor

Specifications

Audio Input Connectors: 1x SPDIF Optical audio & 1x Coaxial digital

Output Connectors: 1x SPDIF Optical audio & 1x Coaxial digital

Casing Dimensions (W x H x D): 57mm x 47mm x 22mm

Dimensions including connections (W x H x D): 57mm x 62mm x 22mm

Shipping Weight: 0.3kg

Operating Temperature: 32°F to 104°F (0°C to 40°C)

Storage Temperature: -4°F to 140°F (-20°C to 60°C)

Power Supply: 5V/1A DC

Package Contents:

• 1 x DIG11AU
• 1 x 5V/1A DC power supply
• 1 x Mounting kit

Maintenance:

Clean this unit with a soft, dry cloth. Never use alcohol, paint thinner or benzene to clean this unit.

Certifications

FCC NOTICE

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

CAUTION - changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

CANADA, INDUSTRY CANADA (IC) NOTICES

This Class B digital apparatus complies with Canadian ICES-003.

Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device.

CORRECT DISPOSAL OF THIS PRODUCT

This marking indicates that this product should not be disposed with other household wastes. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmentally safe recycling.
