Product Type	Active 2-Way PA Speaker System
Brand	Behringer
Model	Eurolive B615D
Woofer Size	15" (380 mm)
Compression Driver	1.75" (44 mm) Titanium
Total Amplifier Power	1500 W (1200 W low + 300 W high)
Frequency Response	50 Hz – 18 kHz
Crossover Frequency	1.8 kHz
Maximum SPL	126 dB @ 1 m
Audio Inputs	XLR (servo-balanced), 1/4" TRS (servo-balanced)
Input Sensitivity	-70 dB to +14 dB
Input Impedance	20 kΩ (XLR), 25 kΩ (TRS)
Level Control	Input trim: -∞ to +30 dB
Equalizer	High: 12 kHz / ±15 dB; Low: 80 Hz / ±15 dB
Link Output	XLR connector
Limiter	Dynamic equalizer, processor-controlled
Power Supply	120 V~, 60 Hz (USA/Canada)
Power Consumption	600 W max
Dimensions (H x W x D)	732 x 470 x 426 mm (28.8 x 18.5 x 16.8 in)
Weight	26.2 kg (57.8 lbs)
Cabinet Material	Polypropylene (estimated)
Cooling	Convection (estimated)
Protection Features	Overload, thermal, and limiter circuits

Frequently Asked Questions - Eurolive B615D BEHRINGER

What is the power output of the B615D?

The B615D has a total amplifier power of 1500 watts, with 1200 W for the low-frequency range and 300 W for the high-frequency range.

What type of inputs does it have?

It features two input connectors: an XLR (servo-balanced) and a 1/4" TRS (servo-balanced) jack. Both can accept signals from -70 dB to +14 dB.

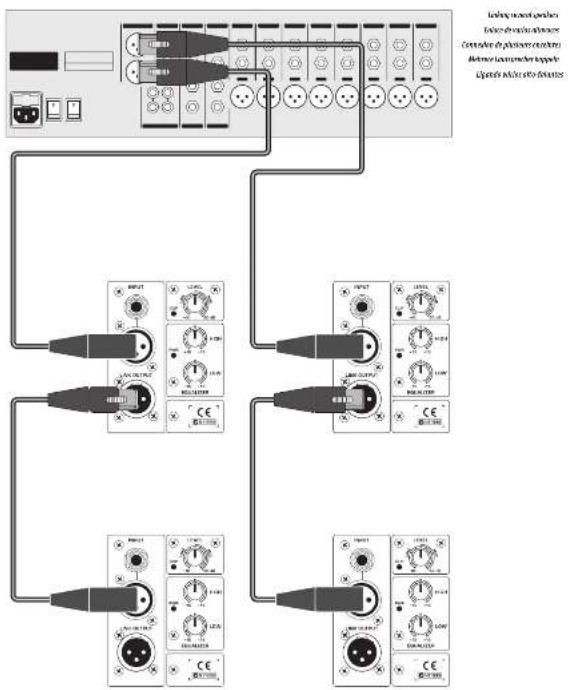

How do I connect multiple speakers?

Use the LINK OUTPUT (XLR) connector on the first speaker to send the input signal to another powered speaker. Connect the LINK OUTPUT to the INPUT of the next speaker using a balanced XLR cable.

What do the HIGH and LOW equalizer knobs do?

The HIGH equalizer controls frequencies at 12 kHz with a boost/cut of ±15 dB. The LOW equalizer controls frequencies at 80 Hz with a boost/cut of ±15 dB.

How can I avoid clipping?

Turn up the LEVEL knob gradually. If the CLIP LED flashes, reduce the LEVEL knob until the LED stops flashing. Also ensure the input signal is not too hot.

What are the dimensions and weight?

Dimensions: 732 x 470 x 426 mm (28.8 x 18.5 x 16.8 in). Weight: 26.2 kg (57.8 lbs).

Can I use it as a floor monitor?

Yes, the B615D can be placed on the floor as a wedge monitor. The cabinet is designed for both stand mounting and floor monitoring.

What is the maximum SPL?

The maximum sound pressure level is 126 dB SPL measured at 1 meter.

Does it have a built-in limiter?

Yes, it features a processor-controlled dynamic equalizer that acts as a limiter to protect the drivers from overload.

What is the frequency response?

The frequency response is 50 Hz to 18 kHz. The crossover frequency is 1.8 kHz.

USER MANUAL Eurolive B615D BEHRINGER

Top-down technical illustration of a speaker grille with no visible text or symbols

Quick Start Guide

(Check Out behringer.com for Full Manual)

EN

ES

FR

DE

PT

Black-and-white photo of a person in motion, possibly dancing or performing a martial arts pose (no text or symbols visible)

Close-up of a person wearing a hooded garment, viewed from the side (no visible text or symbols)

Person playing a CD with keyboard and audio equipment (no visible text or symbols)

Silhouetted audience at a concert stage with spotlights and a control panel (no visible text or symbols)

Crowd of people raising hands at a concert with spotlights (no visible text or symbols)

Black-and-white photo of a stage with dramatic lighting and spotlights, no visible text or symbols

Black-and-white photo of a singer performing on stage with raised hand, surrounded by smoke and silhouetted audience (no text or symbols visible)

EUROLIVE

B615D/B612D

Active 1500-Watt 2-Way PA Speaker System with

15"/12" Woofer and 1.75" Titanium Compression Driver

Terminals marked with this symbol carry electrical current of sufficient magnitude to constitute risk of electric shock. Use only high-quality professional speaker cables with 16" TS or twist-locking plugs pre-installed. All other installation or modification should be performed only by qualified personnel.

This symbol, wherever it appears, alerts you to the presence of uninsulated dangerous voltage inside the enclosure - voltage that may be sufficient to constitute a risk of shock.

This symbol, wherever it appears, alerts you to important operating and maintenance instructions in the accompanying literature. Please read the manual.

Caution To reduce the risk of electric shock, do not remove the top cover (or the rear section). No user serviceable parts inside. Refer servicing to qualified personnel.

Caution To reduce the risk of fire or electric shock, do not expose this appliance to rain and moisture. The apparatus shall not be exposed to dripping or splashing liquids and no objects hiled with liquids, such as vases, shall be placed on the apparatus.

Caution These service instructions are for use by qualified service personnel only. To reduce the risk of electric shock do not perform any servicing other than that contained in the operation instructions. Repairs have to be performed by qualified service personnel.

1. Read these instructions.
2. Keep these instructions.
3. Head all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with dry cloth.
7. Do not block any ventilation openings, install in accordance with the manufacturer's instructions.

8. Do not install near any heat sources such as radiators, heat registers, stores, or other apparatus (including smoothest heat produce heat.

9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding-type plug has two blades and a third grounding spring. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.

10. Protect the power cord from being walked on or pingled particularly at plugs, convenience receptacles, and the print where they cut from the apparatus.
11. Use only attachments/accessories specified by the manufacturer.

1. Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or said with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid

injury from tip-over

1. Unplug this apparatus during lightning storms or when unused for long periods of time.

2. Referral servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power supply card or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed in rain or moisture, does not operate normally, or has been dropped.

3. The apparatus shall be connected to a KWNS socket outlet with a protective carthing connection.

4. Where the MURS plug or an appliance coupler is used as the disconnect device, the disconnect device shall remain readily operable.

LEGAL DISCLAIMER

- TECHNICAL SPECIFICATIONS AND APPEARANCES ARE SUBJECT TO CHANGE WITHOUT NOTICE AND ACCURACY IS NOT GUARANTEED. DERRINGER, KLARK TERRICK MIDAS, BIGGERS, AND TURBSOUND ARE PART OF THE MUSIC GROUP (MUSIC GROUP.COM) ALL TRADEWARES ARE THE PROPERTY OF THEIR RESPSTIVE OWNERS. MUSIC GROUP ACCEPTS NO LIABILITY FOR ANY LOSS WHICH MAY BE SURFERED. BY ANY PERSON WHO BELIES EITHER WINOLLY OR IN PART UP ANY DESCRIPTION, PHOTOGRAPI OR STATEMENT CONTAINED HEREIN. COLORS AND SPECIFICATIONS MAY HAVE FROM ACTUAL PRODUCT. MUSIC GROUP PRODUCTS ARE SOLD THROUGH AUTHORIZED FULLILLERS AND RESSELLERS ONLY. FULLILLERS AND RESSELLERS ARE NOT AGENTS OF MUSIC GROUP AND HAVE ABSOLUTELY NO AUTHORITY

TO BIND MUSIC GROUP BY ANY EXPRESS OR IMPLIED UNDERTAKING OR REPRESENTATION. THIS MANUAL IS COPYRIGHTED. NO PART OF THIS MANUAL MAY BE REPRODUCTED OR TRANSMITTED IN ANY FORM OR BY ANY MEANS, ELECTRONIC OR MECHANICAL, INCLUDING PHOTOCOPYING AND RECORDING OF ANY KIND, FOR ANY PURPOSE, WITHOUT THE EXPRESS WRITTEN PERMISSION OF MUSIC GROUP IP LTD.

ALL RIGHTS RESERVED. © 2013 MUSIC Group IP Ltd. Trident Chambers, 'Wirkhams Cay, P.O. Box 146, Road Town, Tortola, British Virgin Islands

LIMITED WARRANTY

For the applicable warranty terms and conditions and additional information regarding MUSIC Group's Limited Warranty, please see complete details online at www.music-group.com/warranty.

RESERVADOS TODOS LOS DERECHOS. © 2013 MUSIC Group IP Ltd. Trident Chambers, Wickhams Cay, P.O. Box 146, Road Town, Tortola, British Virgin Islands

GARANTÍA

Conductors in the conductors in the conductors in the conductors in the conductors in the

EUROLIVE B615D/B612D Controls

Step 2: Controls
ES Paso 2: Controles
FR Etape 2 : Réglages
OF Schritt 2: Regler
PT Passo 2: Controlos

LOW EQUALIZER Cut or broad bass frequencies by ±15 dB

ECUALIZADOR - LOMI permite cortar o realizarlas bajas frecuertas en ±15 del.
ÉGALISEUR LOW ATENUE ou accretue les basses fréquences de 15 dB.
LOW EQUALIZER Bedämpft oder verständt die Höhe um ±15 dB.
LOW EQUALIZER Costa ou aumenta as frequências baixas em ±15 dB.

EUROLIVE B612D/B615D Getting started

Step 3: Getting started
15 Paso 3: Puesta en marcha
FR Etape 3 : Mise en oeuvre
Schritt 3: Erste Schritte
PT Passo 3: Primeiros Passos

1 Place the speaker(s) in desired locations, either on stands or as wedge monitors on the floor.

Coloque el recinto(s) acústico en la ubicación que quiera, sobre un soporte o como monitor de escenario (tipo cuña).
(m). Placez les enceintes ou vous le souhaitez — sur des pieds ou en position inclinée en retours de scène.
☐ Stellen Sie deryöle Laufsprecher an die gewünschte Position, entweder auf Ständer oder als Bühnenmonitor auf den Boden.
(1) Coloque o(s) alto-falante(s) no(s) lugar(es) desejado(s), tanto em suportes quanto como retorno no chão.

2 Make all necessary connections. DO NOT turn on the power yet.
necesarias. NO encienda todavía esta unidad.
Faites les connexions nécessaires.
ATTENDEZ avant de placer les enceintes sous tension.
(1) Stellen Sie alle notwendigen Kabelverbindungen her. Schalten Sie das Gerät noch NICHT ein.
(F) Faça todas as conexões necessárias. NÃO Ilgue a força ainda.

3 Tum on your audio source (mixer, microphone).

4 Tum on your speaker(s) by pressing the POWER SWITCH. The POWER LED will light up.

Encienda el recinto(s) acústico por medio del interruptor POWER. El piloto POWER se iluminará cuando lo haga.
(四) Placez les enceintes sous tension par
l'interrupteur POWER. La Led POWER s'allume alors.
☐ Schalten Sie Ihre Lautsprecher ein, indem Sie die POWER-TASTE drücken. Die POWER LED leuchtet.
① Ligue seu(s) alto-falante(s) pressionando o interruptor POWER SWITCH. O indicador de luz POWER LED acenderá.

5 Play your audio source or speak into your microphone at a normal to loud level.

6 Adjust the LEVEL knob to the desired volume level. If the CUP LED flashes, turn the LEVEL knob back down. If using multiple speakers, the LEVEL knob must be adjusted on each speaker.

7 (a) If necessary, adjust the HIGH and LOW EQUALIZER knobs on each speaker to boost or cut treble and bass

frequencies to taste.

(1) Si es necesario, ajuste los mandos del eucalizador HIGH y LOW en cada recinto acóstico para realizar o cortar los agudos y/o las bajas frecuencias de acuerdo a sus gustos.
(2) Si nécessaire, réglez l'égalisation HIGH et LOW EQUALIZER sur chaque enceinte pour accentuer les basses et hautes fréquences en fonction de la réponse souhaitée.
☒. Mit den HIGH und LOW EQUALIZER-Drehregtem können Sie nötigenfalls die Höhen und Risse verstärken oder bedämpfen.
Se necessário, ajuste os botões HIGH e LOW EQUALIZER em cada alto-falante para aumentar ou cortar as frequências altas e bairas de acordo com seu gosto.

16 LUCOLML 8615D/B012D

Quick Start Guide

EN Specifications

ES

B615D B612D

Amplifier Power Output
Low frequency range
Max. output power	1200 N°
High frequency range
Max. output power	300 W**
Speaker Size
Size	15" / 180 mm	12" / 300 mm
	175" / 44 mm	125" / 44 mm
Audio Inputs
XLR (serro-balanced)
Sensitivity	-70 dB to +14 dB
Input impedance	20 Hz
R2 TRS Jack (serro-balanced)
Sensitivity	-70 dB to +14 dB
Input impedance	25 Hz
Level control
Input trim	- to +30 dB
Max. input level	(22 dB)
Link
Connector	325 connector
Leubspeaker System Data
Frequency response	50 Hz to 18 kHz	60 Hz to 18 kHz
Crossover frequency	1.8 kHz	2.1 MHz
Sound pressure level	max. 126 dB SPL @ 1 m	max. 125 dB SPL @ 1 m
Limiter	Upocal
Dynamic equalizer	Processor-controlled
Equalizer
High	12 kHz / ±15 dB
Low	80 Hz / ±15 dB
Power Supply
Voltage (Fuses)
USA/Canada	120 V, 60 Hz (T 6.3 A H 250 V)
UK/Mauritius	245 V~, 50 Hz (T 3.15 A H 250 V)
Europe	230 V~, 50 Hz (T 3.15 A H 250 V)
Japan	100 V~, 50-60 Hz (T 6.3 A H 250 V)
Power consumption max. 600 Watts
Mains connection	Standard IEC repeatcle
Dimensions/Weight
Dimensions (H x W x D)	28.8 x 18.5 x 16.7	25.9 x 15.5 x 15.7*
	732 x 170 x 426 mm	658 x 294 x 304 mm
Weight	57.6 lbs / 76.2 kg	49 lbs / 22.2 kg

* Deposition of imizes and other protection costs

“With a long time and the second challenge”

Dados técnicos
PT

Other important information

Important Information

Informations Importantes

Responsible Party Name: MUSIC Group Services US Inc.

Address: 18912 North Creek Parkway,

Suite 200 Bothell, WA 98011,

USA

Phone/Fax No.: Phone: [phone]

Fax:[phone]

EUROLIVE B615D/B612D

complies with the FCC rules as mentioned in the following paragraph:

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the RCE Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna

• Increase the separation between the equipment and receiver

- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected

• Consult the dealer or an experienced radio/TV technician for help

This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions:

(1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Important information:

Changes or modifications to the equipment not expressly approved by MUSIC Group can void the user's authority to use the equipment.
