Product Type	DVD Player with USB/SD playback
Brand	ECG
Model	DVD 4516 USB/3in1
Dimensions (approx.)	430 x 35 x 220 mm (W x H x D)
Weight (approx.)	1.5 kg
Power Supply	AC 100-240V, 50/60 Hz
Power Consumption	<10 W (standby <1 W)
Disc Playback	DVD, DVD±R/RW, CD, CD-R/RW, MP3, JPEG
USB Playback	USB 2.0 port (FAT32, up to 32 GB)
Card Slot	SD/MS/MMC
Video Output	Composite (CVBS), component (YUV), SCART
Audio Output	Stereo RCA, coaxial digital
TV System	PAL / NTSC switchable
Progressive Scan	Yes
Remote Control	Included (battery type: 2x AAA)
Display	LED front panel
Maintenance	Clean with soft dry cloth; do not use liquids or solvents
Safety	Do not expose to moisture or heat; no user-serviceable parts inside
Spare Parts / Repairability	Remote control, power cord available from ECG service
Package Contents	DVD player, remote control, AV cable, user manual

Frequently Asked Questions - DVD 4516 USB/3in1 ECG

How do I connect the DVD player to my TV?

Use the included composite (yellow/white/red) or SCART cable. For better quality, use component (YUV) cables if your TV supports them. Insert the plugs into matching colored jacks on the player and TV.

Can I play USB flash drives?

Yes, insert a USB flash drive (FAT32, up to 32 GB) into the USB port. Use the remote to select USB mode and browse files.

What video formats does it support?

The player supports DVD video, CD video, and MPEG-4 (DivX) files from USB or disc. Check user manual for exact codecs.

Why is there no sound?

Ensure audio cables are securely connected and TV input is correct. Check if the mute function is active. Try a different audio cable or output (coaxial if available).

How do I switch between PAL and NTSC?

Press the 'N/P' button on the rear panel or remote to toggle between PAL and NTSC. Select the setting that matches your TV system.

Can I play DVDs from other regions?

This player is likely region-locked (usually Region 2 for Europe). To play other regions, you may need an unlocked player or a region-free disc.

The remote control doesn't work. What should I do?

Replace batteries (2x AAA) and ensure no obstructions between remote and player. Test the remote with a camera (look for IR flash). If still faulty, contact support.

How to clean the lens?

Use a lens cleaning disc (available in stores). Do not open the player or use liquids. Regular cleaning is not required unless playback issues occur.

What does '3in1' mean?

It indicates three playback sources: DVD/CD discs, USB flash drives, and memory cards (SD/MS/MMC).

Is the player compatible with HDMI?

No, this model does not have HDMI output. It uses analog outputs: composite, component, and SCART.

USER MANUAL DVD 4516 USB/3in1 ECG

ECG

DVD PŘEHRÁVAČ

DVD 4516 USB/3IN1

NÁVOD K OBSLUZE

ECG

DVD PREHRÁVAČ

DVD 4516 USB/3IN1

NÁVOD NA OBSLUHU

1. Mechanika CD/DVD
2. Displej
3. Slot pre karty SD/MS/MMC
4. USB konektor
5. Tlačidlo Otvorit/Zatvorit
6. Tlačidlo Prehrávanie/Pozastavenie
7. Tlačidlo Zastavenie
8. Tlačidlo Standby (Pohotovostný režim)

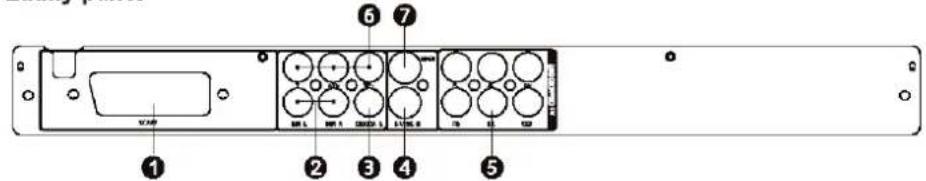

Zadný panel

N/P (Prepnutie TV normy PAL/NTSC)
