USER MANUAL AC Palermo 22K Wood's

OPERATING INSTRUCTIONS FOR:

AC Palermo 18K WAC1810G

AC Palermo 22K WAC2201G

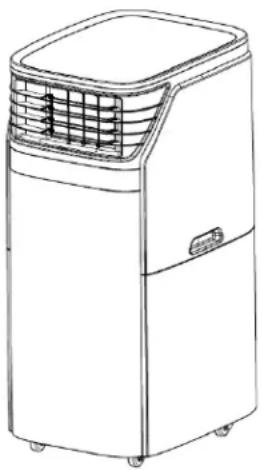

Line drawing of a portable air conditioner unit with ventilation grille and control panel (no text or symbols)

Visit woods.se for more information and updated instruction manuals.

For extended warranty register your product at warranty-woods.com

GB

Operating Instructions

PL

Instrukcja obsługi

SE

Bruksanvisning

RO

Manual utilizare

NO

Bruksanvisning

FI

Käyttöohjeet

DK

Visit our website to:

Get usage advice, updated brochures, troubleshoot and service information

Register your product for additional services: www.warranty-woods.com

CUSTOMER CARE AND SERVICE

Always use original spare parts.

When contacting our Authorised Service Centre,

ensure that you have the following data available:

Model number, receipt and serial number.

The refrigerant used in portable air conditioner is the environmentally friendly hydrocarbon R290. This refrigerant is odorless, and compared to the alternative refrigerant, the R290 is an ozone-free refrigerant.

Warning / Caution-Safety information.

General information and tips.

Environmental information.

Subject to change without notice.

CONTENTS: PAGE NO.

TABLE OF CONTENTS

OPERATING INSTRUCTIONS

English 12-19

Swedish 20-27

Norwegian 28-35

Danish 36-43

German 4451

French 52-59

Spanish 60-67

Dutch 68-75

Polish 76-83

Romanian 84.91

Finnish 92-99

Lithuanian 100-107

Latvian 108-115

Estonian 116-123

Greek 124-131

Icelandic 132-139

Italian 140-148

A.

1

2

(Optional)

3

4

Simple geometric diagram with a rectangle and a circle, no text or symbols present

5

6

7

FUNC TIMER SELL* SWIND POWER AUTO HI BNU LOW

B.

White outdoor air conditioner unit with a black and white panel, labeled 'Woods' (no other text or symbols visible)

C.

(1) (2) (3) (4) (5)

(7) (6) (8) (9) (10) (11)

D.

White industrial air purifier unit with ventilation grilles and a circular vent (no visible text or symbols)

E.

Front view of a white rectangular electronic device with control buttons and indicator lights (no text or symbols visible)

F

(5)

G.

Scanned product label with Chinese text and a circular diagram of a container with labeled items and prices.

Technical line drawing of a multi-tiered air purifier with internal grid structure and heat dissipation arrows (no text or symbols)

H.

Diagram illustrating the installation and cleaning process of an air conditioner, showing water spray, cleaning, and drying steps.

L.

I.

AUTO TEMP FUNC HI TIMER MID SLEEP LOW SWING POWER

J.

Use only 2 xAAA 1,5V batteries

K.

Diagram showing a curved pipe with internal parallel grooves and a circular component with rotational arrows indicating rotation (no text or symbols)

L.

Line drawing of an air conditioner unit with airflow direction indicated (no text or symbols)

Line drawing of a portable air conditioner unit with airflow direction indicated (no text or symbols)

Line drawing of a portable air conditioner unit connected to a wall-mounted panel (no text or symbols)

M.

Simple line drawing of a container with arrows indicating flow or movement, no text or symbols present.

Window width
min: 53cm
max: 150cm

Pure diagram of a rectangular container with internal flow arrows and a circular button, no text or symbols present.

Window height
min: 53cm
max: 150cm

N.

Line drawing of an air conditioner unit in a room with ventilation ducts and a wall-mounted panel (no text or symbols)

Line drawing of an indoor air conditioner unit with airflow path, no text or symbols present

O.

Line drawing of a portable electric heater with heat exchanger and ventilation grille (no text or symbols)

Line drawing of a front-mounted air conditioner unit with grating grille and cooling button (no text or symbols)

WOOD'S FOR CLEAN AND HEALTHY INDOOR AIR

The brand Wood's was born with the Wood's family over 65 years ago in the Canadian city of Guelph, Ontario. This is where Wood's began developing and manufacturing dehumidifiers in 1950. Since then Wood's has helped several hundred thousand households to prevent damages from mould damp, and to breathe cleaner air. Our portable air conditioners are suitable for use in most climates, where capacity is good even at different temperatures and humidity levels. They are used with good results in premises that become hot such as livingrooms, offices or bedrooms. The amount of hot air that the air conditioner removes depends on the temperature, humidity level and placement. External weather conditions may also affect the performance of the air conditioner.

Wood's air conditioners are safe in operation and intended for continuous use over many years.

HOW DOES THE AIR CONDITIONING UNIT WORK?

Low pressure gives cold air

The main element of the air conditioner is a coolant, which under low pressure is converted to gas. The process “creates cold”, which is transmitted inward, while keeping the warm air out.

A liquid coolant is passed through an expansion valve and into a pipe where the pressure is low.

The coolant evaporates and turns into a gas. The process absorbs heat from the surroundings and the pipe is cooled.

A fan blows the cold air into the room.

The gas is passed through a compressor, which increases the pressure and converts the gas into liquid.

In this process, heat is released, which is led to pipes on the opposite side and blown out by a fan.

A thermostat shuts off the unit when the indoor air is cold enough.

1. SECURITY WARNINGS

Warning sign depicting a flame symbol in yellow and black, indicating hazard or electrical hazard.

Flammable material. This appliance contains R290/Propane a flammable refrigerant.

Refer to this manual for safety information.

Read technical manual

Read operators manual.

SAFETY INFORMATION

Before the installation and use of the appliance, carefully read the supplied instructions. The manufacturer is not responsible if an incorrect installation and use causes injuries and damages. Always keep the instructions with the appliance for future reference.

Children and vulnerable people safety

WARNING

Risk of injury or permanent disability.

This appliance can be used by children aged 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

Do not let children play with the appliance.

Children of less than 3 years should be kept away unless continuously supervised.

Keep all packaging away from children.

Cleaning and user maintenance shall not be made by children without supervision.

General Safety

This appliance is intended to be used in household and similar applications such as: Family room, living room, staff kitchen areas in shops, offices and other working environments. The rating plate is located at the side or back of the Air Conditioner.

Keep ventilation openings clear of obstruction.

Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.

The appliance shall not be stored in a room with operating ignition sources (for example: open flames, an operating gas appliance or an operation electric heater. Do not pierce or burn.

Be aware that refrigerants may not contain an odour. Do not use water spray and steam to clean the appliance. Clean the appliance with a moist soft cloth. Only use neutral detergents. Do not use abrasive products, abrasive cleaning pads, solvents or metal objects.

If the supply cord is damaged, it must be replaced by the manufacturer, its Authorised

Service Centre or similarly qualified persons in order to avoid a hazard.

SAFETY INSTRUCTIONS

Installation WARNING

Only a qualified person must install this appliance.

Remove all the packaging.

Do not install or use a damaged appliance. The appliance shall be installed, operated and stored in a room with a floor area larger than 13 m ^2 (AC Palermo 18K) /25 m ^2 (AC Palermo 22K). Obey the installation instruction supplied with the appliance.

Always be careful when you move the appliance because it is heavy. Always wear safety gloves. Be aware that refrigerants may not contain an odour.

Make sure the air can circulate around the appliance.

Wait at least 4 hours before connecting the appliance to the power supply. This is to allow the oil to flow back in the compressor. Do not install the appliance close to radiators or other heat sources. Do not install the appliance where there is direct sunlight.

Electrical connection

WARNING

Risk of fire and electrical shock. The appliance must be connected to a grounded outlet.

Make sure that the electrical information on the rating plate matches with the power supply. If not, contact an electrician.

Always use a correctly installed shockproof socket.

Do not use multi-plug adapters and extension cables.

Make sure not to cause damage to the electrical components (e.g. mains plug, mains cable).

Contact the Authorised Service Centre or an electrician to change the electrical components.

The mains cable must stay below the level of the mains plug.

Connect the mains plug to the mains socket only at the end of the installation.

Make sure that there is access to the mains plug after the installation.

Do not pull the mains cable to disconnect the appliance. Always pull at the mains plug.

This unit needs at least 25 Amps of electricity to have its compressor operational. To avoid the household electricity block out, please do not use any extension cord for this unit.

Use

WARNING

Risk of injury, burns, electrical shock or fire.

Do not change the specification of this appliance.

Be careful not to cause damage to the refrigerant circuit. It contains propane (R290), a natural gas with a high level of environmental compatibility. This gas is flammable.

If damage occurs to the refrigerant circuit, make sure that there are no flames and sources of ignition in the room. Ventilate the room.

Do not put flammable products or

items that are wet with flammable products near or on the appliance. Operate this unit in an ambient of 35 degree centigrade or less.

Clean air filter periodically to enjoy the most efficient cooling.

When the unit is shut off, please wait at least 3.5 minutes before restarting this is to prevent the compressor from being damaged.

When turning on the unit, the fan will operate but the compressor will start up after the cooling alarm flashes for three minutes

The air-conditioner can be connected only to a supply with system impedance no more than 0.219Ω. In case necessary, please consult your supply authority for system impedance information.

Disposal

WARNING

Risk of injury.

Disconnect the appliance from the mains supply.

Cut off the mains cable and discard it.

The refrigerant circuit of this appliance is ozone-friendly.

Contact your municipal authority for information on how to discard the appliance correctly.

Do not cause damage to the part of the cooling unit that is near the heat exchanger.

SET UP AIR CONDITIONER FOR INSTALLATION

Transportation, marking and storage for units

1. Transport of equipment containing flammable refrigerants Compliance with the transport regulations
2. Marking of equipment using signs
   Compliance with local regulations
3. Disposal of equipment using flammable refrigerants Compliance with national regulations
4. Storage of equipment/appliances The storage of equipment should be in accordance with the manufacturer's instructions.
5. Storage of packed (unsold) equipment
   Storage package protection should be constructed such that mechanical damage to the equipment inside the package will not cause a leak of the refrigerant charge. The maximum number of pieces of equipment permitted to be stored together will be determined by local regulations.
6. The appliance shall be stored so as to prevent mechanical damage from occurring.
7. General work area All maintenance staff and others working in the local area shall be instructed on the nature of work being carried out. Work in confined spaces shall be avoided. The area around the workspace shall be sectioned off. Ensure that the conditions within the area have been made safe by control of flammable material.

2. Installation

Important

1. This air conditioner may be moved around indoor conveniently; keep the unit in upright position while moving it. The air-conditioner shall be placed at a flat surface. Do not install or operate this air-conditioner in a bathroom or other wet environment.
   Since a portable air conditioner is on wheels, it is easy to change positions. When the heat turns on, you just move your portable air conditioner into the room and can quickly get started cooling the space. Air conditioner must be operated in an enclosed area to be most effective. Close all doors, windows, and other outside openings to the room. The effectiveness of the Air Conditioner depends on the temperature and humidity level.

2. Place the air conditioner in a location that does not restrict airflow through the front of the unit.

3. An Air Conditioner operating in a room will have little or no effect in drying an adjacent enclosed storage area, such as a closet, unless there is adequate circulation of air in and out of the area. A portable Air Conditioner evacuates the heat from the unit with a ventilation hose through a window or exhaust air valve.

4. Extend the exhaust hose to a length of not more than 400 mm. The exhaust hose must be kept parallel and must not be bent up or down.

5. There should be a minimum of 50 cm distance between Air Conditioner and closest object. See picture for reference.

6. When this appliance starts to defrost, the word "DF" will be displayed on the LED

Line drawing of an air conditioner unit with dimensions labeled (≥500mm, ≤400mm), no text or symbols on the device itself.

Simple line drawing of a rectangular container with a grid pattern and a separate folded paper or sheet (no text or symbols)

Simple line drawing of a hand holding a container with a handle (no text or symbols)

PRODUCT DESCRIPTION

3. Product description

A

1. Exhaust hose
2. Window Connector
3. Window Kit
4. Plug
5. Batteries
6. Remote Controller
7. Connector for cool air outlet (optional)

B

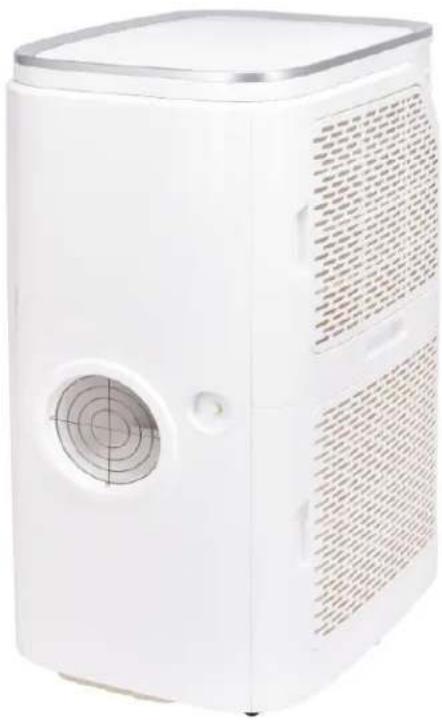

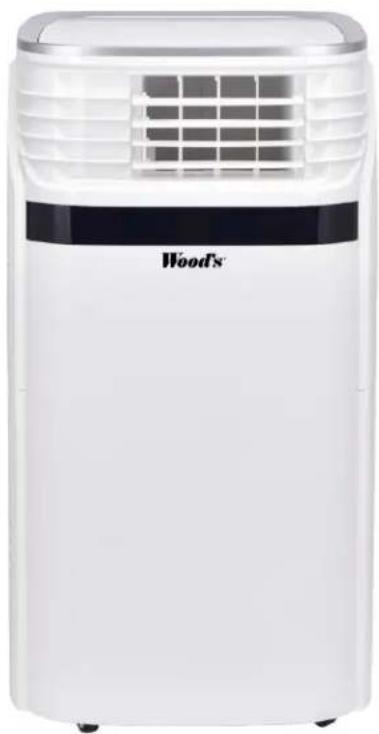

1. Product pictures

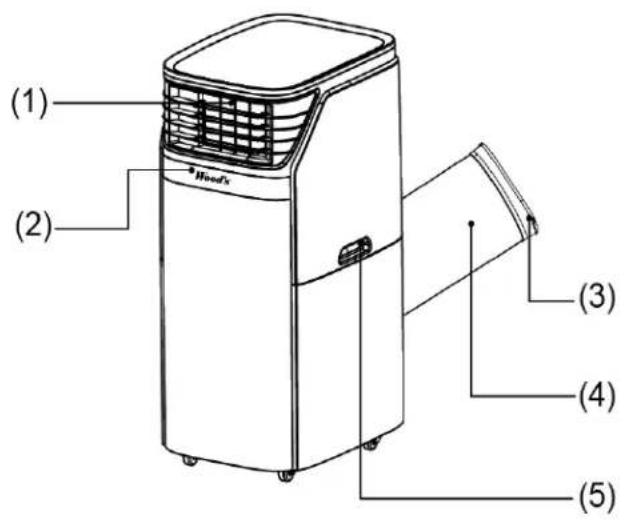

C

1. Cool air outlet
2. Control panel
3. Round adaptor(end)
4. Exhaust hose
5. Handle of right side
6. Hot air outlet
7. Upside drain hole
8. Cool air inlet grille
9. Handle of left side
10. Hot air inlet grille
11. Downside drain hole

D

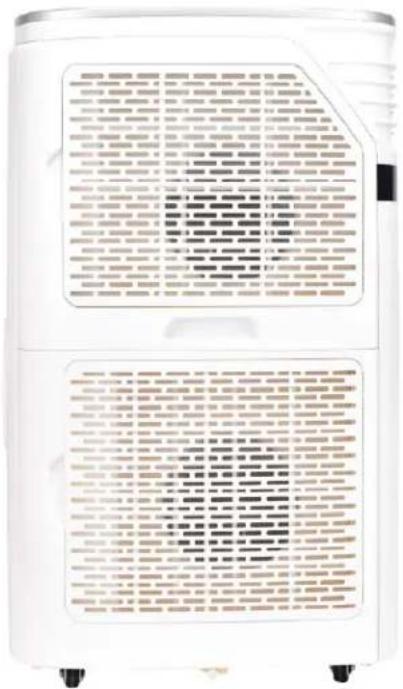

1. Product back pictures

E

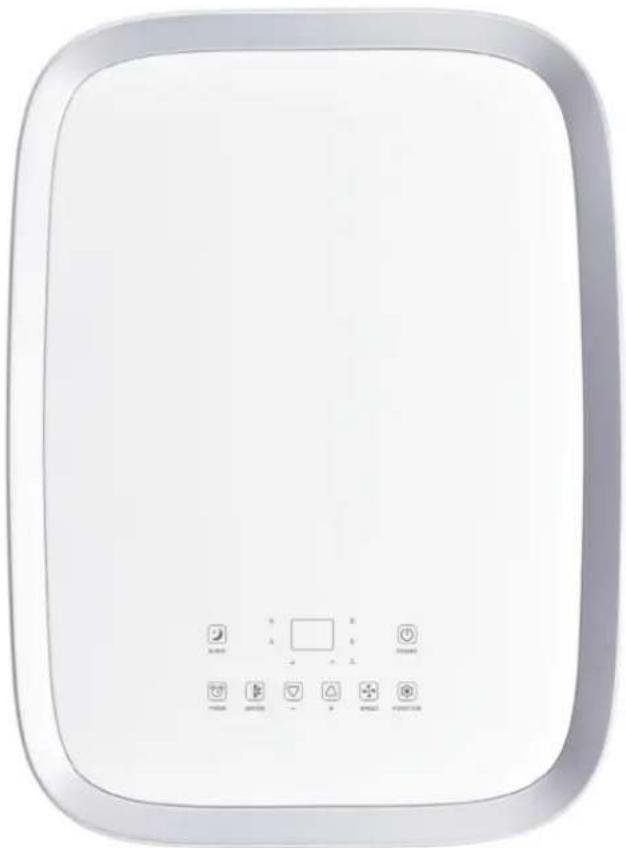

1. Product top picture

F

1. POWER KEY
2. FUNCTION
3. TEMPERATURE REGULATION KEY (UP)
4. TEMPERATURE REGULATION KEY (DOWN)
5. L.E.D. DISPLAY
6. SPEED
7. PROGRAMMABLE TIMER
8. SLEEP CONTROL FUNCTION

9. SWING

10. ALARM

G

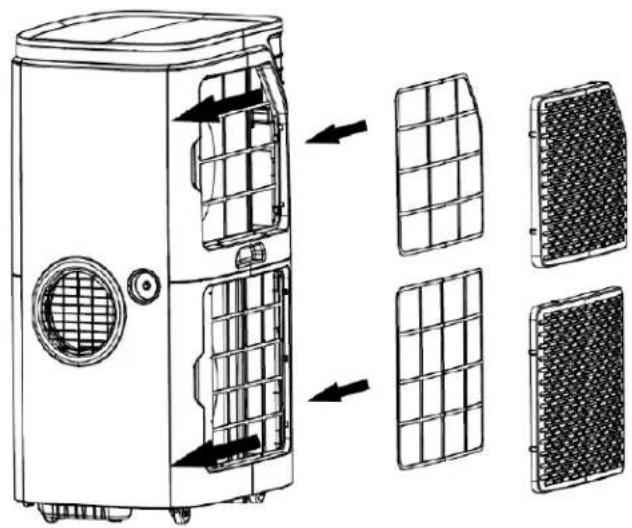

1. Picture of the filter removal

H

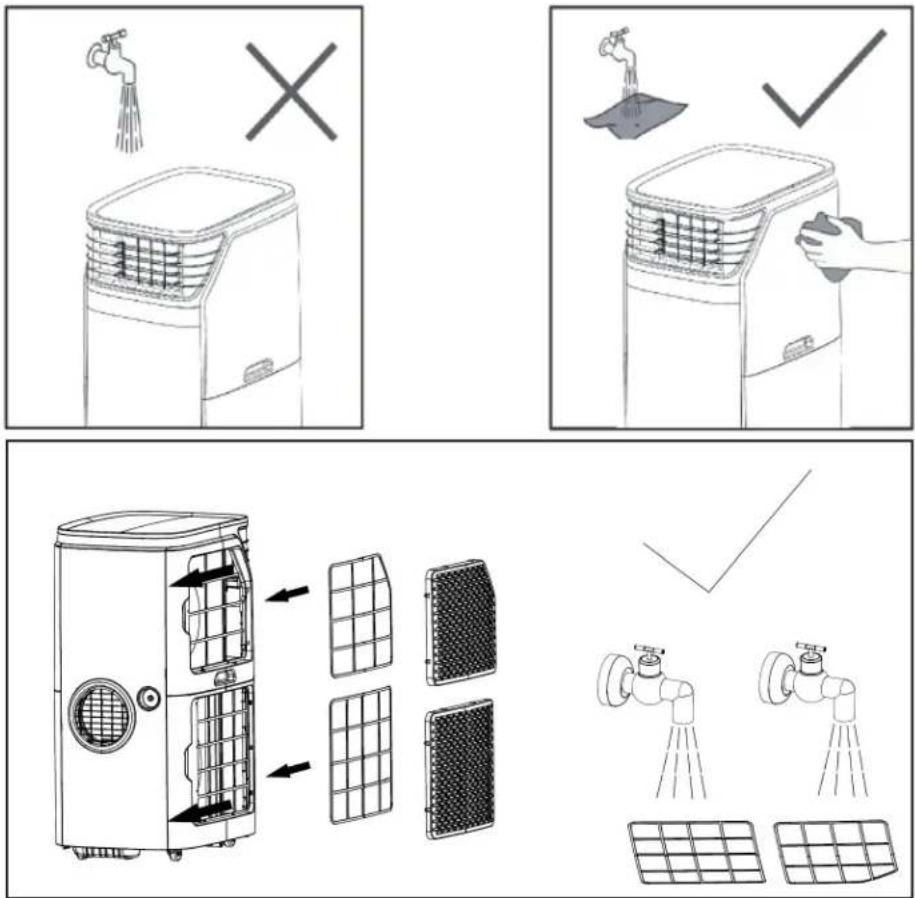

1. Schematic diagram of filter screen cleaning

|

1. POWER——On/Off switch
2. FUNC——Function "MODE" selector
3. TIMER——Hourly programming
4. AUTO——Automatic fan speed
5. HI——High fan speed
6. MID——Medium fan speed
7. LOW——Low fan speed
8. SLEEP——Night operation selector
9. TEMP.—Temperature selector
10. SWING——Swing

J

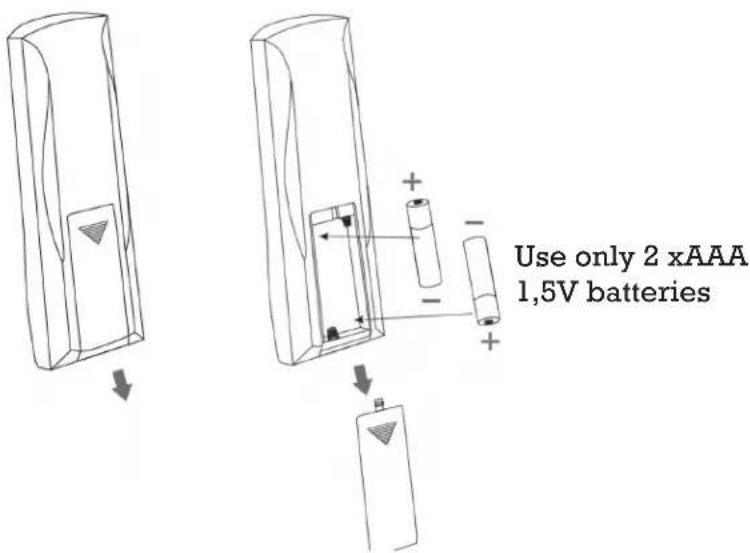

1. Remote control battery replacement. Use only 2 xAAA 1,5V batteries

K

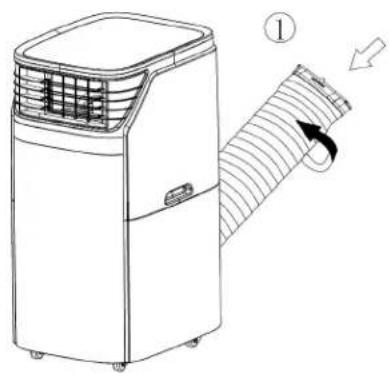

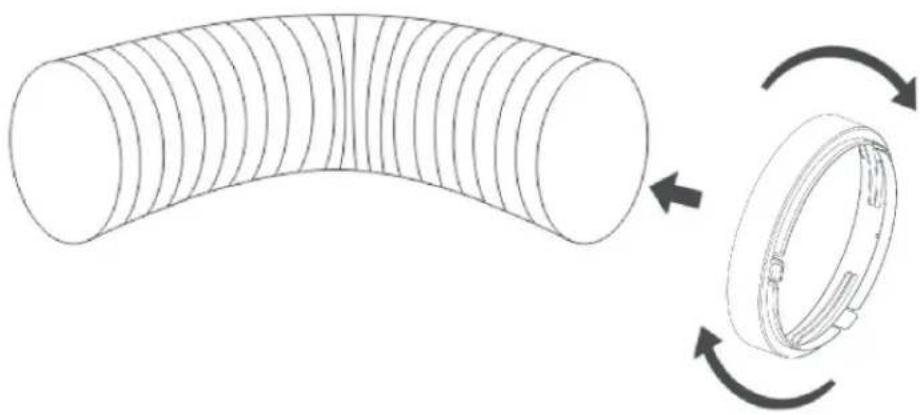

1. Twist the exhaust hose into the Hose Connector.

L

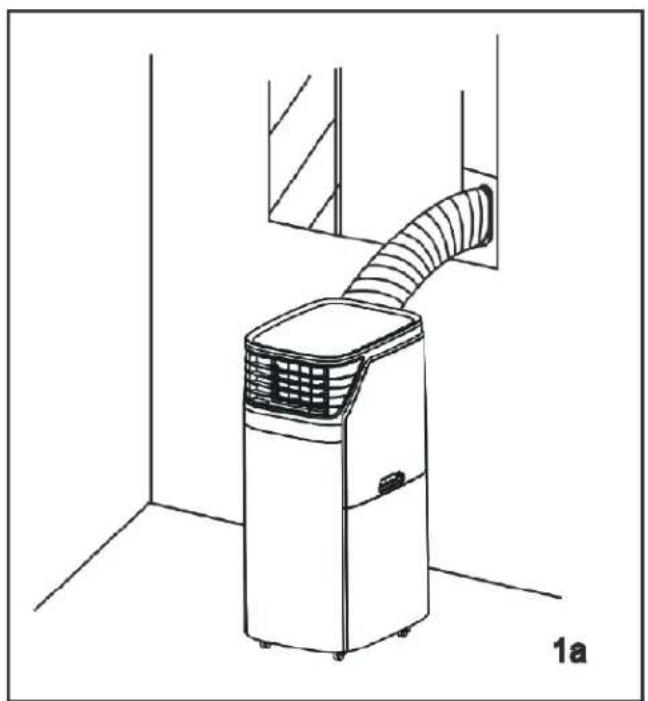

1. Introduction to Exhaust Hose Installation

M

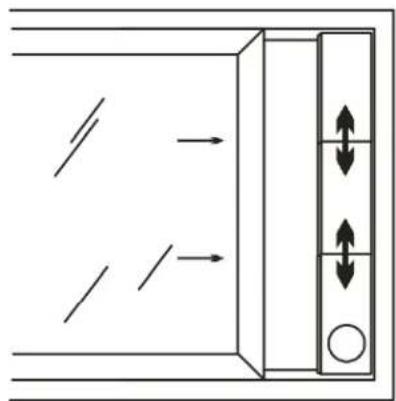

1. Window Slider Kit Installation

N

1. Insert plug for window set

O

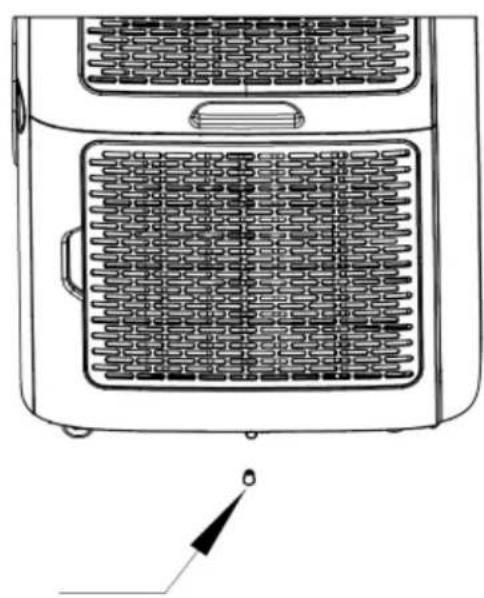

1. Picture of water outlet

FUNCTION OF THE OPERATION MODES AND INSTALLATION DESCRIPTIONS

A. Accessories

After unpacking, please check whether the above-mentioned accessories are included, and check their purposes in the installation introduction in this manual. The connector for cool air outlet is optional

B. Mobile air conditioner

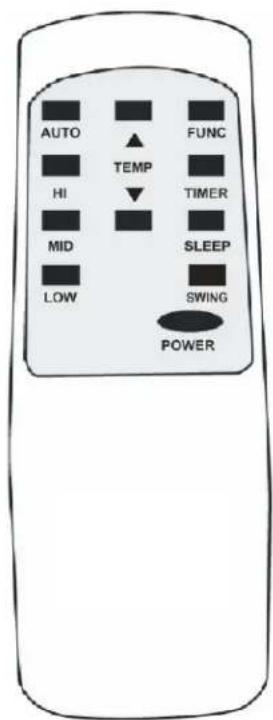

J. Appearance and Function of Remote Control.

Notes:- Do not drop the remote control.- Do not place the remote control in a location exposed to direct sunlight.

M. Operation Introduction

Before starting operations in this section:

1) Find a place where there is power supply nearby.

2) Install the exhaust hose, and adjust the window position well.

3) Connect drain hose well (only for using heating model);

4) Insert the power cord into an grounded AC220\~240V/50Hz socket;

5) Press the POWER button to turn on the air-conditioner.

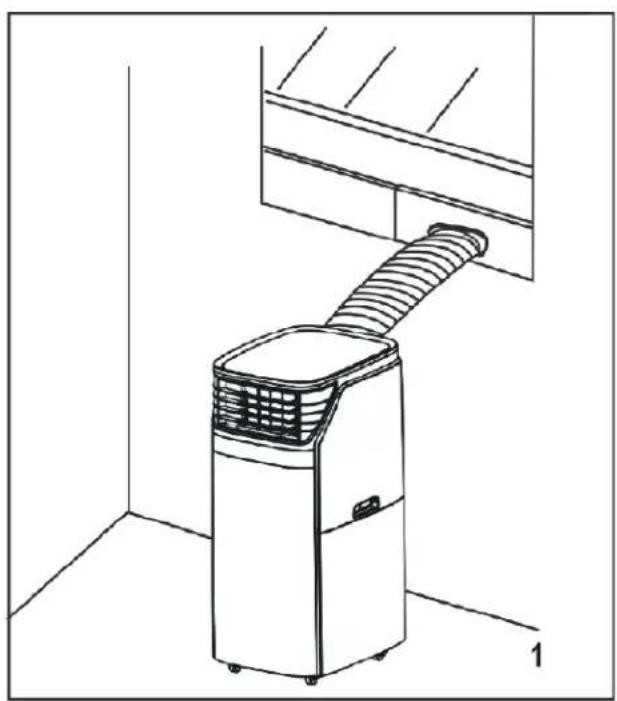

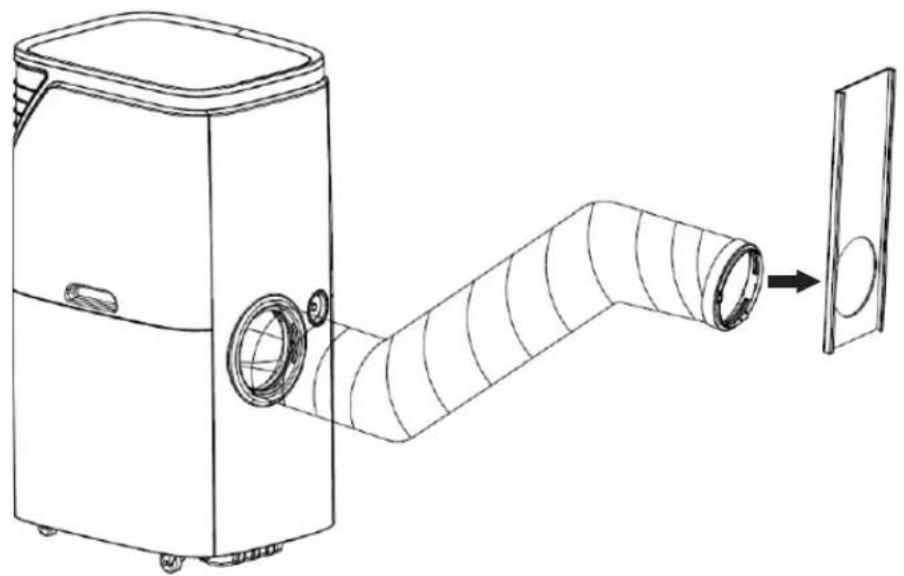

K&L. Introduction to Exhaust Hose Installation

A) Temporary installation

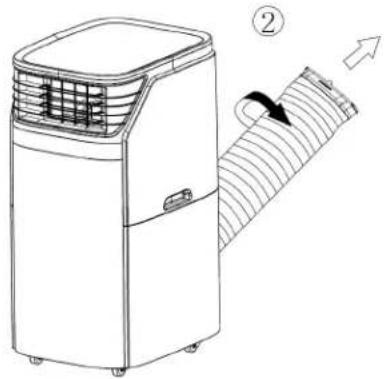

1. Twist the exhaust hose into the Hose Connector, and the outlet at back of the air conditioner

2. Put the other end of the exhaust hose to the near windowsill.

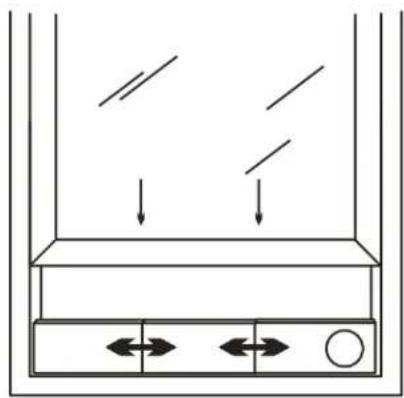

N. Window Slider Kit Installation

The installation manner of window slider kit is mostly in "horizontal" and "vertical". As shown Fig.5 and Fig.5a, check the min. and max. size of the window before the installation.

1. Install the window kit on the window;

2. Adjust the length of the window slider kit according to the window width or height, and fix it with the dowel;

3. Insert the Window Connector hose to the hole of the Window Kit.

O. Internal Tank Water Full Alarm Function

The inner water tank in the airconditioner has one water level safety switches, it controls water level. When water level reaches an anticipated height, the water full indicator lamp lights up. (when the water is full, please remove the rubber blockage at the bottom of unit, and all water will be drained outside.)

H. Maintenance Explanations

It is very important that the filter is cleaned regularly; otherwise the air conditioner might lose capacity and even be seriously damaged.

Declaration:

1) Before cleaning, be sure to disconnect the unit from any electric supply outlet;
2) Do not use gasoline or other chemicals to clean the unit;
3) Do not wash the unit directly;
4) If the conditioner is damaged, please contact the dealer or repair shop.

1. Air Filter

-If the air filter becomes clogged with dust/dirt, the air filter should be cleaned once every two weeks.

-Dismounting

Open the air inlet grille and take off air filter.

-Cleaning

Clean the air filter with neural detergent in lukewarm (40°C) and dry it up in the shade.

-Mounting

Putting the air filter into the inlet grille, replace the components as they were.

1. Clean the Air-conditioner Surface First clean the surface with a neutral detergent and wet cloth, and then wipe it with a dry cloth.

E. Before using

Check up whether the exhaust hose has been mounted properly.

Cautions for cooling and dehumidifying operations:

-When using functions on cooling and dehumidifying, keep an interval of at least 3 minutes between each POWER.

-Power supply meets the requirements.

-The socket is for AC use.

-Do not share one socket with other appliances.

-Power supply is

AC220-240V, 50Hz

When unplugged: All keys and indicator lights are not visible.

When plugged in: The indicator light of power key and timing key is half on for operation.

1. POWER KEY

Press to turn unit "ON" or "OFF"

1. FUNCTION

Press this key to select cooling, dehumidifying or fan.

1. TEMPERATURE REGULATION KEY (UP)

During cooling function: This key raises the preset temperature by 1^ C each time it is pressed and the maximum limit is 30^ C. During timing function: Increasing timing time, This key raises the time by 1 hour each time it is pressed and increasing cycle.

1. TEMPERATURE REGULATION KEY (DOWN)

During cooling function: This key lowers the preset temperature by 1^ C each time it is pressed and the minimum limit is 17^ C. During timing function: Decreasing timing time, This key lowers the time by 1 hour each time it is pressed and decreasing cycle.

FUNCTION OF THE OPERATION MODES AND INSTALLATION DESCRIPTIONS

5. L.E.D. DISPLAY

The display indicates the current setting temperature or the timer setting. When the set temperature or the timer is adjusted, the new setting is shown then the display returns the current set temperature.

※ The display is also used to show error codes should a fault occur, see ERROR CODES.

6. SPEED

Cooling: Press to select either LOW, MEDIUM, HIGH or AUTO fan speed. If "AUTO" is selected, "HIGH" or "MEDIUM" or "LOW" will be selected automatically according to the difference between setting temperature and ambient temperature.

Ambient temperature- Setting temperature >4°C: Machine is High fan speed. 2°C ≤ Ambient temperature-Setting temperatures ≤4°C: Machine is Middle fan speed. 0°C ≤ Ambient temperature-Setting temperature ≤ 2°C: Machine is Low fan speed.

Fan: Press to select either LOW, MEDIUM, HIGH or AUTO fan speed.

Note: In dehumidifying function, this key is invalid because the unit is defined to be low speed in dehumidifying mode.

7. PROGRAMMABLE TIMER

Programmable timer ON/OFF key.

TIMER-ON: The timer-on is used to turn on the unit automatically after the set time is over.

1) Press the "TIMER" key at stand-by status to set the time you desired.

2) Once the set hour has come to an end, the unit will turn on automatically.

3) Press the "POWER" key before time out, the setting time will be canceled and the unit will turn on.

4) You can set the function and fan speed while setting the timer.

TIMER-OFF: The timer-off is used to turn off the unit automatically after the setting time is over.

1) Press the "TIMER" key at operating status to set the time you desired.
2) Once the set hour has come to an end, the unit will turn off automatically.
3) Press the "POWER" key before the time out, the setting time will be canceled and the unit will turn off.

8. SLEEP CONTROL FUNCTION

1) While in cooling mode, press the SLEEP key to set the temperature. It increases

1^ C after an hour and at most increases 2^ C after 2 hours.

2) Press the SLEEP key again can cancel the setting.

9. SWING

Press this key to swing the blades on air outlet, and it will stop when this key is pressed again.

10. ALARM

When the water tank is full,"E4" will be displayed on the display panel. To resume operation, please remove the rubber cap of the drain hose to drain out the water firstly. The E4 warning will disappear after draining, and then you can restart the unit by pressing the POWER key.

Maintenance

Clean the

unit with a soft moist cloth. Do not use solvents or strong cleaners as this might damage the surface of the unit.

Service

If the Air Conditioner requires servicing, you must first contact your local retailer. Proof of purchase is required for all warranty claims.

Storage instructions

End of Season Storage

1) Screw off the drain cover and pull out the stopper to drain condensate water completely.

2) Keep unit running in fan mode for half day to dry inside of unit completely to prevent from going moldy.
3) Turn off the unit, pull out plug then wrap the power cord around the wire-winding pillar, insert the plug into the universal fixing hole at the back panel of the unit, install the water stopper and drain cover.
4) Remove the heat exhaust hose assembly, clean and keep it properly.
5) Pack the air-conditioner properly with soft plastic bag and put it in dry place with appropriate dust-proof measures, and keep the unit away from children.
6) Take out the batteries from the remote control and keep it properly.

Note:

Assure the unit is stored in a dry place. All accessories of the unit shall be protected
together properly
Power cord holder and universal socket can well protect the power cord. Intelligent, environmental-friendly and energy saving with self-evaporative cooling system.
24-hour Timer function, unique on/off reminding music.
3.5-minute delay re-starting protection to compressor and other multiple protection functions.

PROBLEM CAUSE REMEDY
Unit does not start when pressing on/off button	Water full indicator lamp blinks and water tank is full. Dump the water out of the water tank.
	Room temperature is higher than the setting temperature (Electric heating mode)	Reset the temperature
	Room temperature is lower than the setting temperature. (Cooling mode)	Reset the temperature
Not cool enough	The doors or windows are not closed. Make sure all the windows and doors are closed.
	There are heat sources inside the room. Remove the heat sources if possible
	Exhaust air hose is not connected or blocked. Connect or clean the exhaust air hose.
	Temperature setting is too high. Reset the temperature
	Air inlet is blocked. Clean the air inlet.
High noise level	The ground is not level or not flat enough Place the unit on a flat, level ground if possible
	The sound comes from the flowing of the refrigerant inside the air conditioner	It is normal.
If you are having trouble with your dehumidifier, please refer to below trouble shooting. If nothing of the below works, please contact your retailer for servicing of your Air Conditioner.

Error Codes CAUSE REMEDY
E1 Code	Electrical short on both temperature sensor and PCB Contact an electrician for repair
E2 Code Electrical short of temperature sensor copper tube and PCB wiring		Contact an electrician for repair
E4 Code	Indicates water tank full or bad contact with power plug	User needs to pull out the rubber stopper which is located at the bottom of the unit, to drain the water away.Or checking if the power plug is fit well

Guarantees

2 years consumer warranty against production faults. Please note that the warranty is only valid upon the production of the receipt. The warranty is only valid if the product is used in accordance with the instructions and security warnings expressed in this manual. The warranty does not cover any damages caused by improper handling of the product.

NOTE: The 2 years warranty only applies for consumers and not for commercial use of the unit.

NOTE!

Register at www.warranty-woods.com and read about how to get extended warranty. Please visit www.woods.se for more information.

Recommended limits for use

The best operating ambient temperature for cooling is 17-35 °C, Fuse Parameter: 5ET or SMT, 3.15A, 250Vac.

TECHNICAL DATA	Palermo 18K Palermo 22K
Cooling capacity 5,3KW 6,5KW
Power consumption 2,030KW 2,500KW
Air flow: 850m^3 / h 900m^3 / h
Energy class A A
Dehumidification 90 L / 24h 120 L / 24h
Temperature setting 17-30°C 17-30°C
Working temperature	16-31°C 16-31°C
EER	2,6	2,6
Refrigerant gas	R290/264g	R290/369g
Noise level in decibels	65dB	65dB
Weight	51 kg/57 kg	52 kg/58 kg
Dimensions in mm, L x Bx H	540x695x1140	540x695x1140

*Technical changes and improvements may occur. All values are approximate and may vary due to external circumstances such as temperature, ventilation and humidity.

*Used batteries must not be disposed of through household garbage, since they might contain toxic elements and heavy metals that can be harmful to the environment and human health. Return empty batteries to an appropriate recycling facility.

*This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your us device, please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmental safe recycling.

WOOD'S FÖR REN OCH HÄLSOSAM INOMHUSLUFT

Warning sign depicting a flame symbol in yellow and black, indicating hazard or electrical hazard.

FÖRBEREDA LUFTKONDITIONERINGEN FÖR INSTALLATION

Line drawing of an air conditioner unit with dimensions labeled (≥500mm, ≤400mm), no text or symbols present.

Simple line drawing of a rectangular container with a grid pattern and a separate folded paper or sheet (no text or symbols)

Simple line drawing of a hand holding a container with a handle (no text or symbols)

PRODUKTBESKRIVNING

Warning sign depicting a flame symbol in yellow and black, indicating hazard or electrical hazard.

Brennbart materiale.

Denne enheten inneholder R290/propan, et brennbart kuldemedium.

ne håndboken

inneholder

Line drawing of an air conditioner unit with a 500mm height label and a 400mm width measurement (no text or symbols on the device itself)

Simple line drawing of a rectangular container with internal grid pattern and a separate paper clip (no text or symbols)

Simple line drawing of a hand holding a container with a grid pattern (no text or symbols)

PRODUKTBESKRIVELSE

3. Produktbeskrivelse

A

Warning sign depicting a flame symbol in yellow and black, indicating hazard or electrical hazard.

Installation ADVARSEL

Line drawing of an air conditioner unit with dimensions labeled (≥500mm, ≤400mm), no text or symbols present.

Simple line drawing of a rectangular container with a grid pattern and a separate folded paper or sheet (no text or symbols)

Simple line drawing of a hand holding a container with a handle (no text or symbols)

PRODUKTBESKRIVELSE

DK

3. Produktbeskrivelse

A

Warning sign depicting a flame symbol in yellow and black, indicating hazard or electrical hazard.

Line drawing of an air conditioner unit with height annotations (≥500mm and ≤400mm) and a wall-mounted panel (no text or symbols on the device itself)

Simple line drawing of a container with a handle, no text or symbols present

PRODUKTBESCHREIBUNG

DE

Warning sign depicting a flame symbol in yellow and black, indicating hazard or electrical hazard.

Line drawing of an air conditioner unit with a wall-mounted tube and height annotation (no text or symbols on the device itself)

Simple line drawing of a rectangular object with internal grid pattern and a separate folded paper or bracket (no text or symbols)

Simple line drawing of a container with a handle and a small circular object at the bottom (no text or symbols)

DESCRIPTION DU PRODUIT

9. SWING (oscillation)

Warning sign depicting a flame symbol in yellow and black, indicating hazard or electrical hazard.

Line drawing of an air conditioner unit with height annotations (≥500mm and ≤400mm) and a wall-mounted rack (no text or symbols on the device itself)

Simple line drawing of a rectangular object with a grid pattern and a separate folded paper or bracket (no text or symbols)

Simple line drawing of a container with a handle and a small circular object (no text or symbols)

1. VEILIGHEIDSWAARSCHU-WINGEN

Warning sign depicting a flame symbol in yellow and black, indicating hazard or electrical hazard.

VEILIGHEIDSINSTRUCTIES Installatie WAARSCHUWING

Line drawing of an air conditioner unit with height annotations (no text or symbols on the device itself)

Simple line drawing of a rectangular object with internal grid pattern and a separate folded corner (no text or symbols)

Simple line drawing of a hand holding a container with a handle (no text or symbols)

PRODUCTBESCHRIJVING

NL

Warning sign depicting a flame symbol in yellow and black, indicating hazard or electrical hazard.

Line drawing of an air conditioner unit with height annotations (no text or symbols on the device itself)

Simple line drawing of a square container with internal grating and a separate paper clip (no text or symbols)

Simple line drawing of a container with a handle and a small circle symbol (no text or labels)

OPIS PRODUKTU

PL

3. Opis produktu

A

Warning sign depicting a flame symbol in yellow and black, indicating hazard or electrical hazard.

Line drawing of an air conditioner unit with height annotations (≥500mm and ≤400mm) and a wall-mounted panel (no text or symbols on the device itself)

Simple line drawing of a rectangular container with a side view showing a magnified view (no text or symbols)

Simple line drawing of a container with a handle and a small object, no text or symbols present.

IEREA PRODUSULUI

Warning sign depicting a flame symbol in yellow and black, indicating hazard or electrical hazard.

Line drawing of an air conditioner unit with height annotations (≥500mm and ≤400mm) and a wall-mounted panel (no text or symbols on the device itself)

Simple line drawing of a rectangular container with a grid pattern and a separate paper clip (no text or symbols)

Simple line drawing of a hand holding a container with a handle (no text or symbols)

TUOTTEEN KUVAUS

3. Tuotteen kuvaus

A

www.warranty-woods.com.

Warning sign depicting a flame symbol in yellow and black, indicating hazard or electrical hazard.

Line drawing of an air conditioner unit with height annotations (≥500mm and ≤400mm) and a wall-mounted panel (no text or symbols on the device itself)

Simple line drawing of a rectangular container with a grid pattern and a separate paper clip (no text or symbols)

Simple line drawing of a hand holding a container with a handle (no text or symbols)

PRODUKTO APRAŠYMAS

Warning sign depicting a flame symbol in yellow and black, indicating hazard or electrical hazard.

Line drawing of an air conditioner unit with height annotations (≥500mm and ≤400mm) and a wall-mounted panel (no text or symbols on the device itself)

Simple line drawing of a rectangular container with a grid pattern and a separate folded paper or sheet (no text or symbols)

Simple line drawing of a hand holding a container with a handle (no text or symbols)

IZSTRĀDĀJUMA APRAKSTS

3. Produkta apraksts

A

Warning sign depicting a flame symbol in yellow and black, indicating hazard or electrical hazard.

OHUTUSALASED JUHISED

Paigaldus HOIATUS

Line drawing of an air conditioner unit with height annotations (no text or symbols on the device itself)

Simple line drawing of a rectangular container with internal grating and a folded paper or sheet (no text or symbols)

Simple line drawing of a container with a handle and a small circle at the bottom (no text or symbols)

TOOTEKIRJELDUS

3. Toote kirjeldus

A

Warning sign with flame symbol and partial text indicating safety warning

Line drawing of an air conditioner unit with dimensions labeled (no text or symbols beyond measurement annotations)

Simple line drawing of a rectangular container with a grid pattern and a separate paper clip (no text or symbols)

Simple line drawing of a hand holding a container with a handle (no text or symbols)

ΠΕΡΙΓΡΑΦΗ ΠΡΟΪΟΝΤΟΣ

www.warranty-woods.com

Warning sign depicting a flame symbol in yellow and black, indicating hazard or electrical hazard.

Eldfim efni. Petta tæki inniheldur R290/própan sem er eldfimt kæliefni.

Line drawing of an air conditioner unit with height annotations (≥500mm and ≤400mm) and a wall-mounted panel (no text or symbols on the device itself)

Simple line drawing of a rectangular container with a grid pattern and a separate paper clip (no text or symbols)

Simple line drawing of a hand holding a container with a handle (no text or symbols)

VÖRULÝSING

3. Vörulýsing

A

Warning sign depicting a flame symbol in yellow and black, indicating hazard or electrical hazard.

Line drawing of an air conditioner unit with height annotations (≥500mm and ≤400mm) and a wall-mounted panel (no text or symbols on the device itself)

Simple line drawing of a rectangular container with a grid pattern and a separate paper clip (no text or symbols)

Simple line drawing of a hand holding a container with a handle (no text or symbols)

Wood's is marketed and distributed by:
