USER MANUAL COOLPIX P510 NIKON

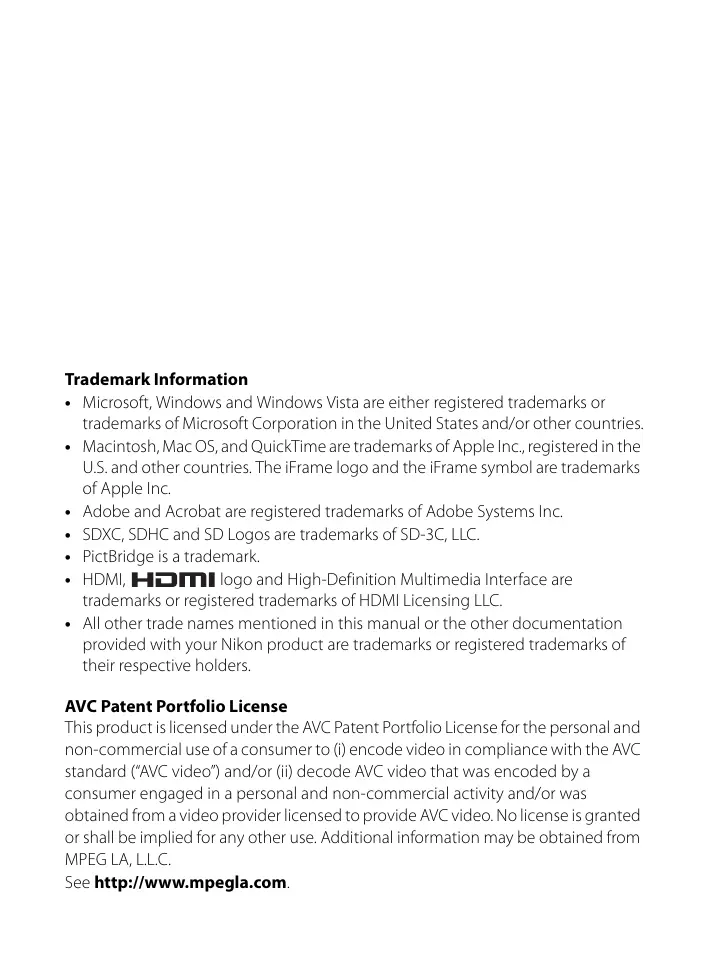

Trademark Information Microsoft, Windows and Windows Vista are either registered trademarks or trademarks of Microsoft Corporation in the United States and/or other countries. Macintosh, Mac OS, and QuickTime are trademarks of Apple Inc, registered in the US. and other countries, The iFrame logo and the iFrame symbol are trademarks of Apple Inc Adobe and Acrobat are registered trademarks of Adobe Systems Inc. SDXC, SDHC and SD Logos are trademarks of SD-3C, LLC. PictBridge is a trademark. HDMI, MDI logo and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC. All other trade names mentioned in this manual or the other documentation provided with your Nikon product are trademarks or registered trademarks of their respective holders. AVC Patent Portfolio License This product is licensed under the AVC Patent Portfolio License for the personal and non-commercial use of a consumer to (i) encode video in compliance with the AVC standard (‘AVC video”) and/or (ii) decode AVC video that was encoded by a consumer engaged in a personal and non-commercial activity and/or was obtained from a video provider licensed to provide AVC video. No license is granted or shall be implied for any other use. Additional information may be obtained from MPEG LA, LLC. See http:/www.mpegla.com.

Introduction Parts of the Camera and Basic Operations The Basics of Shooting and Playback Shooting Features Playback Features Recording and Playing Back Movies Using GPS General Camera Setup Reference Section Technical Notes and Index

Introduction Read This Thank you for purchasing the Nikon COOLPIX P510 digital camera Before using the camera, please read the information in “For Your Safety” (vi) and familiarize yourself with the information provided in this manual. After reading, please keep this manual handy and refer to it to enhance your enjoyment of your new camera. Confirming the Package Contents In the event that any items are missing, please contact the store where you purchased the camera. uorpnponu]

COOLPIX P510 Camera Strap Lens Cap LC Digital Camera {with cord) Charging AC Adapter USB Cable UC-ES Battery EN-E EH-69p* Audio Video Cable EG-CP16 ViewNX 2 Installer CD Reference Manual CD + Warranty A plug adapteris included ifthe camera was purchased in a country or region that requires 2 plug adapter. The shape of the plug adapter varies with the country or region of purchase. NOTE: À memory card is not included with the camera.

Read This First About This Manual If you want to start using the camera right away, see ‘The Basics of Shooting and Playback’ (117) To learn about the parts of the camera and basic operations, see “Parts of the Camera and Basic Operations’ (11) Other Information + Symbols and Conventions To make it easier to find the information you need, the following symbols and conventions are used in this manual: uorpnponul icon Description m This icon indicates cautions and information that should be read before using the camera This icon marks notes, information that should be read before using the camera These icons indicate other pages containing relevant information: D6R/E | de “Reference Section’, dt: Technical Notes and Index” SD, SDHC and SDXC memory cards are referred to as “memory cards” in this manual. The setting at the time of purchase is referred to as the “default setting." The names of menu items displayed in the camera monitor, and the names of buttons or messages displayed on à computer monitor appear in bold. In this manual, images are sometimes omitted from monitor and viewfinder display samples so that monitor indicators can be more clearly shown Illustrations and monitor content shown in this manual may differ from the actual product. äii

uorpnponu] Read This First Information and Precautions Life-Long Learning Nikon‘ “Life-Long Learni + For users in the USA: http/Mmwinikonusa.com + For users in Europe and Africa: htip//mwweurope-nikon.com/support/ le East: http//wmwnikon-asia + For users in Asia, Oceania, and the Mi mation, tips, answers to frequently nd photography. Additional ur area. Visit the site below for Visit these sites to keep up-to-date with the L duc asked questions (FAQS), and general advice on digital imagin, information may be available from the Nikon representative in y contact information: http/imaging.nikon.com/ Use Only Nikon Brand Electronic Accessories Nikon COOLPIX cameras are designed to the highest standards and include complex electronic circuiry. Only Nikon brand electronic accessories (including battery chargers, batteries, Charging AC Adapter and AC adapters) certified by Nikon speciically for use with this Nikon digital camera are engineered and proven to operate within the operational and safety requirements ofthis electronic circuitry THE USE OF NON-NIKON ELECTRONIC ACCESSORIES COULD DAMAGE THE CAMERA AND MAY VOID YOUR NIKON WARRANTY. The use ofthird-party rechargeable Li-ion batteries interfere with normal operati rupturing, or leaking. the Nikon holographic seal could ies overheating, igniting, For more information about Nikon brand accessories, contact a local authorized Nikon dealer. ic seal: Identifies this n authentic Nikon product Before Taking Important Pictures Before taking pictures on important occasions (such as at weddings or before taking a trip), take a test shot to ensure that the cameras functioning normall. Nikon wi not for damages or lost profits that may result from product malfu About the User's Manual No part of the documentation included with this product may be reproduced, transmitted, transcribed, stored in a retrieval system, or tai without Nikon's prior written permission. Nikon will not be held liable for any dam: Nikon reserves the right to change the specifications ofthe hardware and the documentation at any time and without prior notice While every effort was made to ensure that the information in the docum and complete, we would appreciate itwere you ta bring any errors or omissions to the attention ofthe Nikon representative in your area (address provided separatelÿ) om the use ofthis product n is accura

Read This First Notice Concerning Prohil Note that simply being in ofa scanner, digital camera or + items pro ion of Copying or Reproduction that was digitally copied or reproduced by means her device may be punishable by law ossession of mater Led by law from being copied or reproduced Do not copy or reproduce paper money, bonds, even if such copies or r oins, securities, government bonds or local goverment roductions are stamped “Sample. The copying or reproduction of circulated in a foreign country is prohibited. Unless the ing or reproduction of unused postag mps or post cards issued by the government is prohibited d by the government and of certfied documents The copying or reproduction of stamps stipulated by law is prohibited. + Cautions on certain copies and reproductions The govemment has issued cautions on copies or reproductions of securite: companies (shares, bill, checks, gift certificates, etc), commuter p. when à minimum of necessary copies are to be provided for bu: y not copy or reproduce passports issued by the govemment, licenses issued by public agencies and private groups, ID cards and tickets, such as passes and meal coupons d by private company. Alsc issu + Comply with copyright notices The copying or reproduction of copyrighted creative works such as woadeut prints, maps, drawings, movies, and photographs is govemed by copyright laws. Da not use this product for the purpose of making illegal copies or to infringe copyright laws. Disposing of Data Storage Devices Please note that deleting images or formatting dé built-in camera memory does not completely erase the original image dé sometimes be recovered from discarded storage devices using commercially available software, potentially resulting in the malicious use of personal image data. Ensuring the privacy of such data is the users responsibility Before discarding a data storage device or transferring ownership to another person, erase all data using commercial deletion mpletehy refill it with containing no private information (for example, pictures of empty sky. Be sure to also replace any pictures selected for the Select an image option in the Welcome screen setting (CL1108). Care should be taken to avoid injury or damage to property when physically destroying data stor devices. For the COOLPIX P510, the log data saved on the memory card is handled in the same way as other ory card using Create log -» Endlog -» Erase rage devices such as memory G

For Your Safety To prevent damage to your Nikon product or injury to yourself or to others, read the following safety precautions in their entirety before using this equipment. Keep these safety instructions where all those who use the product will read them: This icon marks warnings, information that should be read before using this Nikon product, to prevent possible injury. WARNINGS À Turn off in the event of malfunction Should you notice smoke or an unusual smell coming from the camera or Charging AC Adapter, unplug the Charging AC Adapter and remove the battery immediately, taking care to avoid burns. Continued operation could result in injury. After removing or disconnecting the power source, take the equipment to a Nikon-authorized service representative for inspection. À Do not disassemble Touching the internal parts ofthe camera or Charging AC Adapter could result in injury. Repairs should be performed only by qualified technicians. Should the camera or Charging AC Adapter break open asthe result ofa fallor other accident, take the product to a Nikon-authorized service representative for inspection, after unplugging the product and/or removing the battery. A Do not use the camera or Charging AC Adapter in the presence of flammable gas Using the camera in the presence of flammable gases such as propane and gasoline, as well as flammable sprays or dust could result in explosion or fire. À Handle the camera strap with care Never place the strap around the neck ofan infant or child. À Keep out of reach of children Do not keep the products within reach of children. Doing so may cause injury. Particular care should be taken to prevent infants from putting the battery or other small parts into their mouths. À Do not remain in contact with the camera, Charging AC Adapter, or AC adapter for extended periods while the devices are on or in use. Parts of the devices become hot Leaving the devices in direct contact with the skin for extended periods may result in low-temperature burns.

A Observe caution when handling the battery The battery may leak, overheat, or explode if improperly handled! Observe the following precautions when handling the battery for use in this product Before replacing the battery, turn the product off. If you are using the Charging AC Adapter/AC adapter, be sure it is unplugged Use only a Rechargeable Li-ion Battery EN-ELS (included). Charge the battery by inserting it into the camera and connecting the Charging AC Adapter. EH-69P (included). When inserting the battery, do not attempt to insert it upside down or backwards. Do not short or disassemble the battery or attempt to remove or break the battery insulation or casing, Do not expose the battery to flame or to excessive heat. Do not immerse in or expose to water. Replace the terminal cover when transporting the battery. Do not transport or store with metal objects such as necklaces or hairpins. The battery is prone to leakage when fully discharged. To avoid damage to the product, be sure to remove the battery when no charge remains. Discontinue use immediately should younotice any change in the battery, such as discoloration or deformation For Your Safety Ifliquid from the damaged battery comes in contact with clothing or skin, rinse immediately with plenty of water. Ifleaked battery fluid gets into your eyes, rinse them out immediately with clean running water and get medical treatment Do not attempt to charge batteries that are not rechargeable. A Observe the following precautions when handling the Charging AC Adapter +_ Keep dry. Failure to observe this precaution could result in fire or electric shock. + Dust on or near the metal parts of the plug should be removed with à dry cloth. Continued use could result in fire. +_ Do not handle the plug or go near the Charging AC Adapter during lightning storms. Failure to observe this precaution could result in electric shock. + Do not damage, modify, forcibly tug or bend the USB cable, place it under heavy objects, or expose it to heat or flames. Should the insulation be damaged and the wires become exposed, take it to a Nikon- authorized service representative for inspection. Failure to observe these precautions could result in fire or electric shock. Do not handle the plug or Charging AC Adapter with wet handks. Failure to observe this precaution could result in electric shock. uorpnponul vil

uorpnponu] viii For Your Safety Do not use with travel converters or adapters designed to convert from one voltage to another or with DC- to-AC inverters. Failure to observe this precaution could damage the product or cause overheating or fire. À Use appropriate cables When connecting cables to the input and output jacks, use only the cables provided or sold by Nikon for the purpose, to maintain compliance with product regulations. À Handle moving parts with care Be careful that your fingers or other objects are not pinched by the lens cover or other moving parts. A cD-ROMs The CD-ROMSs included with this device should notbe played backon audio CD equipment. Playing CD-ROMS on an audio CD player could cause hearing loss or damage the equipment. À Observe caution when using the flash Using the flash close to your subject's eyes could cause temporary visual impairment. Particular care should be observed if photographing infants, when the flash should be no less than 1m{(3ft4in.) from the subject. À Do not operate the flash with the flash window touching a person or object Failure to observe this precaution could result in burns or fire. A Avoid contact with liquid crystal Should the monitor break, care should be taken to avoid injury caused by broken glass and to prevent liquid crystal from the monitor touching the skin or entering the eyes or mouth À Turn the power off when using le an airplane or the hospital Turn the power off while inside the airplane during take off or landing. Also, before boarding an airplane, set the GPS tracking information recording function to OFF. Follow the instructions of the hospital when using while in à hospital. The electromagnetic waves emitted by this camera may disrupt the electronic systems of the airplane or the instruments of the hospital A 3D Images Do not continuously view 3D images recorded with this device for extended periods, whether on a television, monitor, or other display. In the case of children whose visual systems are still maturing, consult a pediatrician or ophthalmologist prior to use and follow their instructions. Prolonged viewing of 3D images may cause eye strain, nausea, or discomfort. Cease use should any of these symptoms occur and consult à physician if necessary.

INSTRUCTIONS For connection to a supply not in the USA, use an attachment plug adapter of the proper configuration for the power outlet if needed! The power supply unit is intended to be correctly orientated in a vertical or floor mount position. Federal Communications Commission (FCC) Radio Frequency Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 ofthe FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in à particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: +_Reorient or relocate the receiving antenna

Increase the separation between the equipment and receiver. Connect the equipment into an outlet on à circuit different from that to which the receiver is connected Consult the dealer or an experienced radio/television technician for help. Nikon COOLPIX P510 CAUTIONS Modifications The FCC requires the user to be notified that any changes or modifications made to this device that are not expressly approved by Nikon Corporation may void the user's authority to operate the equipment Interface Cables Use the interface cables sold or provided by Nikon for your equipment. Using other interface cables may exceed the limits of Class B Part 15 of the FCC rules.

uorpnponu] Notices Notice for Customers in the State of California WARNING Handling the cord on this product will expose you to lead, a chemical known to the State of California to cause birth defects or other reproductive harm. Wash hands after handling. Nikon Inc. 1300 Walt Whitman Road, Melville, New York 1747-3064 USA Tel: 631-547-4200 Notice for Customers in Canada CAUTION This Class B digital apparatus complies with Canadian ICES-003. ATTENTION Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada Notices for Customers in Europe CAUTIONS

RISK OF EXPLOSION IF BATTERY IS

REPLACED BY AN INCORRECT

INSTRUCTIONS. This symbol indicates that this productis to be collected separately The following apply only to users in European countries: This product is designated for separate collection at an appropriate collection point. Do not dispose of as household waste. For more information, contact the retailer or the local authorities in charge of waste management. This symbol on the battery to be collected separately. T The following apply only to users in European countries: this symbol or not, are designated for separate collection at an appropriate collection point. Do not dispose of as indicates that the battery is + All batteries, whether marked with household waste. For more information, contact the retailer or the local authorities in charge of waste management.

Table of Contents Introduction Read This First Confirming the Package Contents About This Manual ï Information and Precautions. iv For Your Safety. WARNINGS Notices .ix Parts of the Camera and Basic Operations 1 Parts of the Camera 2 The Camera Body 2 Controls Used in Shooting Mode 4 Controls Used in Playback Mode 5 Changing the Angle ofthe Monitor 6 Attaching the Camera Strap and Lens Cap The Monitor. Basic Operations. Switching Beween Shooting Mode and Playback Mode Using the Rotary Multi Sel Using Menus (the MENU Button) Switching the Information on the Monitor (DISP button) Switching the Monitor Display (1 button) Using the Viewfinder tor The Basics of Shooting and Playback... Preparation 1 Insert the Battery. Preparation 2 Charge the Battery... Preparation 3 Insert a Memory Card Internal Memory and Memory Cards. 23 Approved Memory Cards 3 Step 1 Turn the Camera On. Turning the Camera On and Off 25 Setting the Display Language, Date, and Time 2% Step 2 Select a Shooting Mod Available Shooting Modes. 29 Step 3 Frame a Pictur Using the Zoom. Step 4 Focus and Shoot Step 5 Play Back Images Changing How Images Are Displayed 35 Step 6 Delete Unwanted Image: uorpnponul

Table of Contents Shooting Features . (Auto) Mode. Changing @ (Auto) Mode Settings. Scene Mode (Shooting Suited to Scenes). Changing Scene Mode Settings. Characteristics of Each Scene Using Skin Softening Special Effects Mode (Applying Effects When Shooting) . Characteristics of Each Special Effect Changing Special Effects Mode Settings PS, À, M Modes (Setting the Exposure for Shooting) Changing PS, A. M Modes. Options Available in the Shooting Menu 60 U (User Setting Modes) Saving Settings in U Mode Features That Can Be Set Using the Multi Selector. Available Functions Using the Flash (Flash Modes) Using the Self-timer Smile Timer (Shooting Smiling Faces) Using Focus Mode Adjusting Brightness (Exposure Compensation) List ofthe Default Settings Changing the Image Quality and Image Size … Available Image Quality Available Image Size Features That Cannot Be Used Simultaneously The Control Range of the Shutter Speed (P, $, À, M Modes) 83 Focusing on Subject Using the Target Finding AF 84 Using Face Detection 85 Focus Lock. 86 Playback Features... Features Available in Playback Mode (Playback Menu) Connecting the Camera to a TV, Computer, or Printer. Using ViewNX 2. Installing ViewNX 2 9 Transferring Images to the Computer. 93 Viewing Images ga

Table of Contents Recording and Playing Back Movies. Recording Movies Changing Movie Ré Playing Back Movies Using GPS Starting GPS Data Recording Changing the GPS Settings (GPS Options Menu). General Camera Setup. The Setup Menu... Reference Section... Taking Pictures with Manual Focus . Using Easy Panorama (Shooting and Playing back) Taking Pictures with Easy Panorama. Viewing Easy Panorama (Scroll) Using Panorama Assist Using 3D Photography. P.S, À M Modes . P (Programmed auto), S ( A (Aperture-priority auto œe10 M (Manual) Mode. éme Playing and Deleting Images Captured Using Continuous Shooting Mode {Sequence) : Playing Images in a Sequence. œ613 Deleting Imagi Editing Still Images. Editing Features L# Quick Retouch: Enhancing Contrast and Saturation: Eh D-Lighting: Enhancing Brightness and Contrast Si Skin Softening: Softening Skin Tones Q Filter Effects: Applying Digital Filter Effects Fa Small Picture: Reducing the Size of an Image. rder: Adding à Black Border to Pictures 8 Crop: Creating a Cropped Copy. Connecting the Camera to a TV (Viewing Images on a TV) Connecting the Camera to a Printer (Direct Print). Connecting the Camera to à Printer. Printing Individual Images Printing Multiple Images. in à Sequenc uorpnponul

Time Zone and Date Monitor Settings. Print Date (Imprinting Date and Time on Pictures) Vibration Reduction Motion Detection AAF Assist Digital Zoom Assign Side Zoom Control uorpnponul Format Memory/Format Card Language. TV Settings Fn Button Charge by Compu Toggle AV/TV Reset File Numbering Blink Warning Filmstrip Eye-Fi Upload Reverse Indicators Reset AI Firmware Version File and Folder Name: Optional Accessories Error Messages

Table of Contents Technical Notes and Index Caring for the Products. The Camera uorpnponu] Storage Troubleshooting . Specifications xvi

Parts of the Camera and Basic Operations This chapter describes the parts of the camera and also explains the main functions of each part and the basic camera operations. Parts of the Camera. The Camera Body Controls Used in Shooting Mode . Controls Used in Playback Mod: Changing the Angle of the Monitor Attaching the Camera Strap and Lens Cap The Monito Basic Operations. Switching Between Shooting Mode and Playback Mode Using the Rotary Multi Selector. Using Menus (the MENU Button) Switching the Information on the Monitor (DISP button) . Switching the Monitor Display [OI button) . Using the Viewfinder.… —æ if you want to start using the camera right away, see "The Basics of Shooting and Playback" (17). suoneiadO 1529 pue e1auue au Jo sed

suoneedO Ase8 pue eJaure> au Jo sued Parts of the Camera Controls Used in Shooting Mode Control Name Main Function ee] Mode dial … | Change the shooting mode. 28 Rotate toward T (Q) (telephoto zoom Zoom control |PSSHioN) to zoom in and rotae toward |, W (EM) (wide-angle position) to zoom out. Rotary multi | See “Using the Rotary Multi Selector for |, selector | more information. Serthe flexible program (during shooting | 57, Command dial | mode P) or shutter speed (during 59, shooting modes $ or M). 110 MENU (menu) burn” | Display and hide the menu E When pressed halfway (Le, if you stop pressing when you feel resistance slightly} Shutrer-_ | Set focus and exposure. 5 release button | When pressed all the way (Le, if you press the button all the way down: Release the shutrer. Fn(FUNO | Display the setting menu of pre-assigned 110 buxon | function. Playback n, bomon [Play backimages. mn Delete button | Delete the last image that was saved. 3 OCR MOVE | rt and stop movie recording % record) button

Parts of the Camera Control Name Main Function pal ID (monitor) buran 7 | Switch the monitor display 16 DISP (display) | Switch the information displayed onthe |. button | monitor. 4 T Side zoom _ | Use the function assigned with Assign | ;6 y w control | side zoom control Controls Used in Playback Mode Control Name Main Function ee] + Whenthe cameras tumedoff, press [25 Playback and'holdthis button to turn the camera button on in playback mode. +_ Return to shooting mode. 11 + Enlargetheimage when rotated toward | 35 T Qi: display image thumbnail or the Zoom control | calendar when rotated toward W (E3). + Adjustthe volume for voice memo and | 88, movie playback. 100 Rotary multi | See “Using the Rotary Multi Selector for |, selector | more information. a Command dia | Switch the magnification ofanenlarged | TS image. + Displayindividual images of a CSE sequence in full-frame. App |" Scollanimage recorded with easy œ63 selection É Euron… [* Play backmovies 100 + Switch from image thumbnail or m2 zoomed image display to ful-frame playback mode. MENU (menu) | Display and hide the menu El button suone:DdO iseg pue eDuIeD au JO sued

suoneedO Ase8 pue eJaure> au Jo sued Parts of the Camera Control Name Main Function ee] Delete button | Delete images. 36 L Shutter- 7 release button Return to shooting mode. - OCT movie ” record) button ID (monitor) onto) | Sivitch the monitor display. 16 DISP (display) | Switch the information displayed onthe |, button | monitor. Display the shooting location ofan image FnFUNQ | during log recording (latitude, longitude, | aa 7; button | and current location ofthe movement being tracked for creating à log) Changing the Angle of the Monitor The angle ofthe monitor can be lowered down to 82° or raised upward to 90°. This is convenient when taking pictures with the camera held at high or low positions. TZ Notes on Monitor + Do not apply excessive force when changing the angle ofthe monitor. + The monitor cannot be moved horizontally. + Putthe monitor back in the original position when using in normal situations.

Parts ofthe Camera Attaching the Camera Strap and Lens Cap Attach the lens cap to the strap, and then attach the strap to the camera. Attach the strap at two places. DZ Lens Cap + Remove the lens cap before you shoot a picture. + Attimes when you are not shooting pictures such as when the power is off, or while you are carrying the camera, attach the lens cap to the camera to protect the lens. + Do not attach other than the lens cap to the lens. suone:DdO iseg pue eDuIeD au JO sued

suoneedO Ase8 pue eJaure> au Jo sued Parts of the Camera The Monitor +_The information that is displayed on the monitor during shooting and playback changes depending on the cameras settings and state of use. Press the DISP (display) button to hide or show the information on the monitor (115). Shooting Mode m0 ml

Switching Between Shooting Mode and Playback Mode The camera has two modes of operation: Shooting mode, which is used for taking pictures, and playback mode, which is used for viewing pictures. Press the De] (playback) button to switch between shooting mode and playback mode. + While using playback mode, you can also switch to shooting mode by pressing the shutter-release button or the @ (Æ movie-record) button. Shooting mode Playback mode ISUS2ÉIS 1580 = EE dE suone:DdO iseg pue eDuIeD au JO sued + Rotate the mode dial and align an icon to the mark to select different shooting modes (CL128, 29).

suonelado xseg pue esaue au Jo uEd Basic Operations Using the Rotary Multi Selector Operate by rotating the rotary multi selector, pressing up (À), down (W), left (€ or right (Be) on the rotary multi selector, or pressing the @ button. +_ The “rotary multi selector' is also referred to as the “multi selector” in this manual When Using Shoo: g Mode Rotate to set the aperture value*/Select an item Display & (flash mode) (C66) menu . Display the Display ©) (Self-timer/ —. _ expouure Smile timer) menu compensation) guide (65, 70) ne ° (C274 Apply selection Display $ (focus mode) menu (172) *_ The aperture value can be set in shooting mode À or M (CL159). items can be chosen while a menu is displayed When Using Playback Mode Select the previous EEE] = image !/Move the sms) displayed area when the image is Select the next image !/Move the displayed area magnified (CL135). Play back movies Coo? when the image is magnified (CL135). 1° Previous or next images can also be chosen by rotating the rotary multi selector. 2° When displaying image thumbnail or when the image is magnified, this button switches the camera to ful-frame playback mode. When Displaying Menus Select the item above” Selecttheitemon RER the right/Display sub-menu (apply — — ù El selection) Custom Picture Control = White balance un Metering Continuous Select the item on the left/Return display to the previous screen Select the item below* Apply selection *_ Items above or below can also be chosen by rotating the rotary multi selector.

Basic Operations Using Menus (the MENU Button) When the MENU button is pressed while the shooting screen or playback screen is displayed, the menu for the current mode is displayed. Once the menu is displayed, various settings can be changed. Shooting mode Playback mode FLE] se

suone:DdO iseg pue eDuIeD au JO sued Shooting menu Playback menu P tb Bt Displays the settings that can be changed Displays the settings available for the forthe current shooting mode (1128). playback mode. Depending on the current shooting mode, the tab icon that is displayed will be # tab: different Displays the GPS setup menu (105) items, L RES Displays movie recording settings. LES Displays the setup menu, where you can # tab: change general settings. Displays the GPS setup menu (105) items, Ÿ tb Displays the setup menu, where you can change general settings.

suoneedO Ase8 pue eJaure> au Jo sued Basic Operations Switching Between Tabs Image six Pure Control Custom Picture Control = Print date hit Baanc a Vibratk Meter (+) Motion detection AFassist Press the rotary multi Press the rotary multi The selected menu is selector to highlight selector À or Y toselecta displayed. the tab. tab, and press the @ button or be. Selecting Menu Items Picture Control Custom Picture Control Continueus Press the rotary multi Press A or Y toselectan When you finished selector A or Vtoselect itemandthenpressthe changingsettings, press an item, and then press @ button. the MENU (menu) button > orthe @ button. to exit the menu. Note on the Command Dial Operation When Menus are Displayed Rotating the command dial when menus are displayed allows you to change the setting values ofa selected item, There are some setting values that cannot be changed using the command dial. When the Menu Contains Two or More Pages The scroll bar is displayed to indicate the current page

Basic Operations Switching the Information on the Monitor (DISP button) To switch the information displayed on the monitor during shooting and playback, press the DISP (display) button For Shooting Display information Movie frame Information hidden Display the picture and'the Display the range of a Display the picture only. shooting information. movie in a frame. For Playback ONKON em Display photo information Display shooting Information hidden Display the picture taken and information Display only the taken the photo information ‘except for movies) picture. Display the histogram and shooting information”. + See (10 for more information on histogram and shooting information. Histogram and Framing Grid Displays for Shooting The display options for the monitor can be changed in Monitor settings in the setup menu (CH1108). À histogram and framing grid are available as the display options. suone:DdO iseg pue eDuIeD au JO sued

suonelado xseg pue esaue au Jo uEd Basic Operations Switching the Monitor Display ([D| button) Press the [OI (monitor) button to switch between the monitor and viewfinder. Switch to the one that suits the shooting conditions. Monitor Viewfnder Using the Viewfinder Use the viewfinder to frame pictures when bright light makes it difficult to see the display on the monitor. Press the [OI button to switch to the viewfinder. When the image in the viewfinder is difficult to see, adjust by rotating the diopter adjustment control while looking through the viewfinder +_ Take care not to scratch your eye with your fingertips or nails. IQ button Viewfinder

The Basics of Shooting and Playback Preparation Preparation 1 Insert the Battery Preparation 2 Charge the Battei Preparation 3 Insert a Memory Card. Shooting Step 1 Turn the Camera On. Setting the Display Language, Date, and Time (First Use Only) Step 2 Select a Shooting Modi Step 3 Frame a Picture. Step 4 Focus and Shoo!

xpeqéeld pue BUROOUS JO 51589 aUL. The Basics of Shooting and Playback Ÿ Open the battery-chamber/memory card slot cover. 2 insert the included EN-EL5 battery (rechargeable Li-ion == battery). + Use the battery to push the orange battery latch down in the ee direction indicated by the arrow (@), and fully insert the battery

When the battery is inserted Battery latch correctly, the battery latch will lock the battery in place. 2% inserting the Battery Correctiy Inserting the battery upside down or backwards could damage the camera. Be sure to check that the battery is in the correct orientation: 3 Close the battery-chamber/memory card slot cover. + Charge the battery before the first use or when the battery is running low (120). + While the battery-chamber/memory card slot cover is open, the camera cannot be turned on. Additionally, the battery inserted in the camera cannot be charged.

Preparation 1 Insert the Battery Removing the Battery Turn the camera off (125) and be sure that the power- on lamp and the monitor have turned off before opening the battery-chamber/memory card slot cover. To eject the battery, open the battery-chamber/ memory card slot cover and push the orange battery latch in the direction shown (D). Then, remove the battery straight (®) 2 High Temperature Caution The camera, battery, and memory card may be hot immediately after using the camera. Observe caution when removing the battery or memory card. P% Notes on Battery + Be sure to read and follow the warnings of “For Your Safety" (HV) thoroughly before using the battery. + Be sure to read and followthe warnings for The Battery” (d53) before using the battery. xpeqéeld pue BUROOUS Jo 521588 aUL

T Prepare the included Charging AC Adapter EH-69P. Ifa plug adapter” is included with your camera, attach the plug adapter to the plug on the Charging AC Adapter. Push the plug adapter firmiy untilitis securely held in place. Once the two are connected, attempting to forcibly remove the plug adapter could damage the product. *_ The shape of the plug adapter varies according to the country or region in which the camera was purchased. The Charging AC Adapter comes with the plug adapter attached in Argentina and Korea. 2 Make sure the battery is inserted in the camera, and then connect the camera to the Charging AC Adapter in order of (1) to (3). + Keep the camera turned off. + When connecting the cable, be sure that the plug is properly oriented. Do not use force when connecting the cable to the camera. When disconnecting the cable, do not pull the plug at an angle. + Close the battery-chamber/memory card slot cover. Charge lamp Electrical outlet

USB Cable UC-E6 (included) + When charging starts, the charge lamp flashes slowly in green + About four hours and 30 minutes are required to charge a fully exhausted battery. + When the battery has been completely charged, the charge lamp turns off. + See ‘Understanding the Charge Lamp” (E1121) for more information: 3 Disconnect the Charging AC Adapter from the electrical outlet and then disconnect the USB cable. + When the camera is connected to an electrical outlet with the Charging AC Adapter, the camera cannot be turned on.

Preparation 2 Charge the Battery Understanding the Charge Lamp Status Description Flashes slowly (green) |The battery is charging. The battery is not changing. When charging is complete, the Of charge lamp flashing slowly in green stops and is turned off. + The ambient temperature is not suited to charging. Charge the battery indoors with an ambient temperature of 5°C to 35°C (°F to 95°F). Flashes quickly (green) |.+ The USB cable or Charging AC Adapter is not properly connected, or there is à problem with the battery. Disconnect the USB cable or unplug the Charging AC Adapter and correctly connect it again, or change the battery. P% Notes on Charging AC Adapter + Besure to read and follow the warnings of “For Your Safety" (FE) thoroughly befare using the Charging AC Adapter. + Be sure to read thoroughiy and follow the warnings for “Charging AC Adapter” (4) before use. TZ charging Using Computer or Battery Charger + You can also charge the Rechargeable Li-ion Battery EN-ELS by connecting the camera to a computer (90, 110). + The EN-ELS can be charged without using the camera by using the Battery Charger MH-61 (available separately; 66100). AC Power Source + You can take pictures and play back images while using the AC Adapter EH-62A (available separately, 66100) to power the camera from an electrical outlet + Do not, under any circumstances, use another make or model of AC adapter other than EH-62A. Fallure to observe this precaution could result in overheating or damage to the camera. peqhela pue BuROOUS Jo 521528 auL

xpeqéeld pue BUROOUS JO 51589 aUL. T Confirm that the power-on lamp and the monitor are turned off and open the battery- chamber/memory card slot cover. TE +_ Be sure to turn off the camera before opening the cover. Xe (En) 2 insert the memory card. + Slide the memory card untilit clicks into place. 2% inserting the Memory Card Correctiy Insertingthe memory card upside down or backwards could damage the came orthe memary card, Be sure to confirm that the memory card is in the correct orientation Memory card slot 3 Close the battery-chamber/memory card slot cover. TZ Formatting a Memory Card + The fist time you insert a memory card that has been used in another device into this camera, be sure to format it with this camera. + All data stored on a memory card'is permanently deleted when the card is formatted. Be sure to make copies of any data you wish to keep before formatting the memory card + To format a memory card, insert the memory card into the camera, press the MENU button and select Format card from the setup menu ((L]108) L% Note on Memory Cards Refer ta the documentation included with the memory card, as well as ‘The Memory Cards” (25) in Caring far the Products”

Preparation 3 Insert a Memory Card Removing Memory Cards Before opening the battery-chamber/memory card slot cover, turn the camera off and confirm that the power- on lamp and the monitor are off. Press the memory card in lightiy with your finger (D) to partially eject it, and then pull it out straight (2). 2 High Temperature Caution The camera, battery, and memory card may be hot immediately after using the camera, Observe caution when removing the battery or memory card Internal Memory and Memory Cards Camera data, including images and movies, can be saved in either the camera's internal memory (approximately 90 MB) or on a memory card. To use the camera's internal memory for shooting or playback, first remove the memory card. Approved Memory Cards The following Secure Digital (SD) memory cards have been tested and approved for use in this camera. + When recording a movie onto a memory card, a memory card with an SD speed class of Class 6 or higher is recommended. If the transfer speed of the card is slow, the movie recording may end unexpectediy. SD memory cards SDHC memory cards? | SDXC memory cards? SanDisk 2GB 4GB,8 GB, 16GB, 32G8 |64G8 TOSHIBA 2GB 4GB,8GB, 16GB, 32G8 [64G8 4 GB, 8 GB, 12 GB, Panasonic |2GB 16 68 32 GB 48 GB, 64 G8 Lexar - 4 GB,BGB, 16 GB, 32G8 | 64 GB, 128 GB 1 Before using a card reader or similar device, check that the device supports 2 GB cards.

2. SDHC-compliant Before using a card reader or similar device, checkthatthe GS

device supports SDHC. En

3. SDXC-compliant. Before using à card reader or similar device, checkthatthe

device supports SDXC. XC + Contact the manufacturer for details on the above cards. peqhela pue BuROOUS Jo 521528 auL

xpeqéeld pue BUROOUS JO 51589 aUL. T Remove the lens cap and press the power switch to turn on the camera. + Hyou are turning the camera on for the first time, see “Setting the Display Language, Date, and Time” (1126) The lens extends, and the monitor is turned on. 2 Check the battery level and number of exposures remaining. Battery level indicator Number of exposures remaining Battery Level Display Description a Battery level high = Battery level low. Prepare to charge or replace the battery.

Battery exhausted. | C2nN0 take pictures. Charge or replace the battery Number of Exposures Remaining The number of exposures remaining is displayed + When a memory card is not inserted, [M is displayed and pictures are recorded to the internal memory (approx. 90 MB) +_ The number of pictures that can be stored depends on the remaining capacity of the internal memory or memory card, the image quality, and the image size (177) +_ The number of exposures remaining shown in the illustration differs from the actual value. EA monitor Display Press the DISP button to switch between showing and hiding the photo information or shooting 24 information that is displayed on the monitor CIS).

Step 1 Turn the Camera On Turning the Camera On and Off +_ When the camera is tumed on, the power-on lamp (green) lights and the monitor is turned on (the power-on lamp turns off when the monitor is turned on). +_ To turn off the camera, press the power switch. Both the monitor and the power-on lamp are turned off. + To turn on the camera in playback mode, press and hold the [1 (playback) button. At this time, the lens does not extend. Power Saving Function (Auto Off) H no operations are performed for a while, the monitor will turn off, the camera will enter standby mode, and the power-on lamp will flash. If no operations are performed for another three minutes, the camera will turn off automatically. To turn on the monitor again in standby mode, perform either one ofthe following operations. + Press the power switch, shutter-release button, [#] button, or @ CA movie-record) button. + Rotate the mode dial. Flashes No operations performed. No operations performed. Camera enters Camera turns off. standby mode. + The time that elapses before the camera enters standby mode can be changed using the Auto off setting in the setup menu (CL 108). + By default, the camera enters standby mode in about one minute when you are using shooting mode or playback mode. + lfyou are using the optional AC Adapter EH-62A, the camera enters standby mode after 30 minutes. This setting cannot be changed xpeqéeld pue BUROOUS Jo 521588 aUL

Step 1 Turn the Camera On Setting the Display Language, Date, and Time Dialogs for language selection and camera clock setting are displayed the first time the camera is turned on. À Press the multi selector À or W to choose the desired language and press the @ button. Language Español

Multi selector 2 Press A or Y to choose Yes and press the ® button. set date and time?

3 Press Cork to select your home time zone (Time zone), and press the @ button. + See "Daylight Saving Time” (21127) for more information. 4 Press A or Y to choose the date display order and press the @ button or Bb.

um Day/Month Year 5 Press A, Y, or to set date and time, and press the @ button. Choose an item: Press B or € (selected in the following order. D (daÿ) + M (month) —» Y (year) + hour > minute), The item can also be chosen by rotating the multi selector. Setthe contents: Press À or W. Date and time can also be set by rotating the command dial Confirm the settings: Select the minute field and press the @ button or B>-

Step 1 Turn the Camera On 6 Press A or Y to choose Yes and pressthe © peer button. Es + Afterfinishing the setting, the lens extendé slightiy and the shooting screen is displayed. Daylight Saving Time If daylight saving time is in effect, press the multi selector À to enable the daylight saving time function while setting the region in step 3. S is displayed at the top of the monitor. Press Y to disable the daylight saving time function. Changing the Language Setting and the Date and Time Setting You can change these settings using the Language and Time zone and date settings in Ÿ setup menu (0108). In the Time zone setting of Time zone and date in Ÿ setup menu, when the daylight saving time function is enabled, the camera's clock is set fonvard by ane hour, and when disabled, set back by one hour. When the »} travel destination is set, the camera automatically calculates the time difference between the travel destination and the 1 home time zone, and saves images using the date and time of the travel destination. Iyou exit without setting the date and time, Jflashes when the shooting screen is displayed. Use the Time zone and date setting in the setup menu (CL108) to set the date and time: The Clock Battery + The cameras clock is powered by a backup battery that is separate from the cameras main battery. The backup battery charges after about ten hours of charging when the main battery is inserted inta the camera or when the camera is connected to an optional AC adapter, and can store the set date and time for several days. Ithe cameras backup battery becomes exhausted, the date and time setting screen is displayed when the camera is tumed on. Set the date and time again. See step 2 of "Setting the Display Language, Date, and Time” (1126) for more information. xpeqhela pue BuRoOUS jo S)ISeg auL Imprinting the Shooting Date in Printed Images Setthe date and time before shooting + You can imprint the shooting date in images as they are captured by setting Print date in the setup menu (CL)108) I you want the shooting date to be printed without using the Print date setting, print using the ViewNX 2 software (CD91)

Rotate the mode dial to select the shooting mode. + The following describes how to take pictures in (auto) mode as an example. Rotate the mode dial to @. + The camera switches to É (auto) mode and the shooting mode icon changes Co] Shooting mode icon [F3 ®

Step 2 Select a Shooting Mode Available Shooting Modes P,S, A, M mode (1157) U User settings mode Choose these modes for 63 greater control over Setting combinations that shutter speed and are frequentiy used for aperture value. Shooting can be saved. The Settings in the shooting saved settings can be menu (CLI60) are available immediately retrieved for shooting simply by rotating to suit the shooting HQE AUMEAT

conditions and the type of shot you want 10 capture. EFFECTS Special effects mode ([LI55) Effects can be applied to pictures during shooting Nine different effects are available @ (auto) mode ([T40) Shoot easily with basic camera operations without going into detailed settings Scene mode (41) When one of the scene modes is selected, pictures are captured using settings that are optimized for the selected scene. SCENE (Scene): Choose the desired scene from 16 different scene types using the scene menu, and the cameras settings are automatically optimized for the selected scene. In scene auto selector mode, the camera automatically selects the optimum scene mode for simpler shooting, + To select a scene, first rotate the mode dial to SCENE and press the MENU button Select the desired scene by pressing the multi selector À or Ÿ, and then press the @ button. {Night landscape): Captures the atmosphere of night landscapes. lai (Landscape): Use this mode for vivid landscapes and cityscapes. Œ (Backlighting}: The flash fires when there is backlight to prevent the subject from being hidden in shadow, or use the HDR function to shoot when there are very bright areas and very dark areas in the same frame. Note on the Flash When the flash is lowered, the flash setting is fixed at off and ® is displayed at the top ofthe monitor. In situations were a flash is needed, such as in dark locations or when the subject is backlit, be sure to raise the flash (66). BA Features That Are Available in Shooting Mode + The functions of the multi selector À (4), Y (#9, € (Ÿ) or D (EM) can be set. See “Features That Can Be Set Using the Muit Selector (CLI65) for more information. + Press the MENU button to display the menu for the selected shooting mode. See "Shooting Features’ (0139) for more information about the settings available in the menu for the current shooting mode. peqhela pue BuROOUS Jo 521528 auL

À Readythe camera. + Keep your fingers, haïr, strap and other objects away from the lens, flash, AF-assist iluminator and microphone. 2 Framethe picture. + Point the camera at the subject 10 Sensitivity 10 (150 sensitivity, 8) may be displayed on the shooting screen. When [SO is displayed, the 150 sensitivity is automatically raised Viewfinder Use the viewinderto frame pictures (CLN6) when bright light makes it dificult to see the display on the monitor. Using a Tripod + Inthe following situations, use of a tripod is recommended to avoid the effects of camera shake: = When shooting in a dark location or with the flash mode (66) set to ® (of = When shooting in the telephoto zoom position + To take a picture with the camera attached to a tripod, set Vibration reduction in the setup menu (0108) to off.

Step 3 Frame a Picture Using the Zoom Zoomout Zoomin Rotate the zoom control to activate the optical zoom. To zoom in so that the subject fills a larger area of the frame, rotate toward T (telephoto zoom position) To zoom out so that the area visible increases in the frame, rotate toward W (wide-angle position). Rotating the zoom control all the way in either direction adjusts the zoom quickly, while rotating the control partially adjusts the zoom slowly (except during movie recording) Azoom indicator is displayed at the top ofthe monitor when the zoom control is rotated. The zoom can also be operated by rotating the side zoom zoom zoom control (013) toward T or W. The function ofthe side zoom control can be set in the Assign side zoom control in the setup menu (11108). al Zoom When the camera is already at the maximum optical zoom position, rotating the zoom control toward T (telephoto zoom position) triggers the digital zoom Digital zoom can magnify the subject up to about 2x beyond the maximum magnification of the optical zoom. xpeqéeld pue BUROOUS Jo 521588 aUL

Ce BE & W! a Maximum optical zoom Digital zoom enabled +_ The focus will be at the center of the frame and the focus area will not be displayed when the digital zoom is in effect. Digital Zoom and Interpolation Unlike the aptical zoom, the digital zoom uses a digital imaging process known as interpolation to magnify images, resulting in slight deterioration of image quality depending on the image size (178) and digital zoom magnification. 4% indicates the zoom position where interpolation is applied when shooting stil pictures. When the 200m is increased beyond the dû position, interpolation is initiated and the zoom indicator also turns yellow. 2% moves to the right as the image size becomes smaller, allowing you to confirm the zoom position that can be used to capture still images without image degradation before shooting at the current image size seting

When the image size is small +_ Digital zoom can be disabled from the Digital zoom option in the setup menu (1108) More Information + See “Zoom memory” (162) for more Information. + See “Startup zoom position" (CL162) for more Information. 31

xpeqéeld pue BUROOUS JO 51589 aUL. Press the shutter-release button halfway, i.e, press the button slightly until you feel resistance. + When you press the shutrer-release button halfway, the camera sets the focus and exposure (shutter speed and aperture value) Focus and exposure remain locked while the shutrer-release button is pressed halfway. When the camera detects the main subject, it focuses on that subject. When the subject is in focus, the focus areas (up to 12 areas) light in green: Shutter Aperture speed value The camera has nine focus areas, and ifit does not detect the main subject it automatically selects the focus areas containing the subject closest to the camera. When the subject is in focus, the focus areas that are in focus (up to nine areas) light in green. E]

When the digital zoom is in effect, the camera focuses on the subject at the center of the screen, and the focus area is not displayed. When the subject is in focus, the focus indicator (CI8) lights in green. + When the shutrer-release button is pressed halfway and the focus area or focus indicator flashes in red, the subject is out of focus. Change the composition and press the shutter-release button halfway again. Press the shutter-release button all the way, ie. press the button the rest of the way down. ÿ + The shutter is released and the picture is recorded. + Ifyou press the shutter-release button with too much Li force, the camera may shake, causing images to be blurred. Press the button gently.

Step 4 Focus and Shoot L% Note on Recording Images and Saving Movies The indicator showing the number of exposures remaining or the indicator showing the maximum movie length flashes while images are being recorded or while a movie is being saved. Do not open the battery-chamber/memory card slot cover or remove the battery or memory card while an indicator is flashing. Doing this could result in loss of data, or in damage ta the camera or the memory card. DZ autotocus Autofocus may not perform as expected in the following situations. In some rare cases, the subject may not be in focus despite the fact that the focus area or focus indicator lights in green. Subject is very dark Objects of sharply differing brightness are included in the scene (e.g. the sun behind the subject makes that subject appear very dark} No contrast between the subject and surroundings (2.g. a portrait subject, wearing a white shirt, is Standing in front of a white wall) Several objects are at different distances from the camera (eg, an animal inside a cage) Subjects with repeating patterns (window blindé, buildings with multiple roues of similarly shaped windows, etc) Subject is moving rapidiy In these situations, try pressing the shutter-release button halfway to refocus several times, or focus on another subject and use focus lock (CLI86). When using focus lock, be sure that the distance between the camera and the subject with which focus was locked is the same as that for the actual subject The camera can also focus using manual focus ((N72, 662). TZ The Subject Is Too Close to the Camera Ithe camera does not focus, try shooting with $ (macro close-up) (73) in the focus mode, or Close-up (149) scene mode. AF-assist Illuminator In dark places, the AF-assist lluminator (CL109) may light when the shutter-release button is pressed halfway. To Make Sure You Do Not Miss a Shot I you are concerned that you might miss a shot, press the shutter-release button allthe way without first pressing it halfway. More Information See “Focusing on Subject” (CLI84) for more information xpeqéeld pue BUROOUS Jo 521588 aUL

À Press the[#] (playback) button. + When you switch from shooting mode to playback mode, the last image saved will be displayed in full-frame playback mode. TE] (playback) button Multi selector 2 Use the multi selector to view previous or next images. To view previous images. À or 4 To view next images: W or D Images can also be selected by rotating the multi selector. To play back images that are saved in the internal memory, remove the memory card. [is displayed in brackets, before “Current image number/total number ofimages” on the playback screen, xpeqéeld pue BUROOUS JO 51589 aUL. Current image number/ Total number of images To return to shooting mode, press the [E] button again, or press the shutter-release button, or @ CT movie-record) button. Viewing Pictures + Press the [OI button to switch between using the monitor and viewinder display (RLN6). + Press the DISP button to switch between showing and hiding the photo information or shooting information that is displayed on the monitor (CLI15) Pictures taken using face detection (1185) or pet detection (11152) will be rotated automatically when displayed in fullframe playback mode according to the orientation of the face. The orientation of an image can be changed using Rotate image in the playback menu (CLIS) + When pictures taken with the continuous shooting feature are displayed, each series of images is treated as a group, and only the group “key picture” is displayed (see “Sequence display options” C1189) for more information}. While the key picture of a sequence is displayed in full-frame playback mode, press the @ button to display each image in the sequence individuall. To return to key picture only display, press the multi selector À. Images may be displayed at low resolution immediately after switching ta the previous or next 34 image.

Changing How Images Are Displayed When using playback mode, you can change how images are displayed by rotating the zoom control toward W (E)/T (Q) Playback Zoom

Image is displayed in full- frame playback mode. Image is zoomed in. Step 5 Play Back Images Display position guide To adjust the zoom ratio, rotate the zoom control toward W (Æ)/T (@) or rotate the command dial. The zoom increases up to about 10X. To view a different area of the image, press the multi selector À, #, € or Be. Pictures taken using face detection (LL85) or pet detection (152) are enlarged at the center of the face that was detected during shooting. If the camera detected multiple faces when the image was captured, use À, W, €, and to display a different face. Change the zoom ratio and press À, W, or D to zoom in on an area of the image where there are no faces. file by pressing the MENU button (8822). Thumbnail Playback, Calendar Display TROIE 1e a

Ful-frame playback toward W (Œ)T (Q) Image thumbnail display mode (4,9, 16 and 72 images per screen) You can crop the image and save the displayed area of the image as a separate Press the @ button to return to full-frame playback mode. Calendar display You can view several images on one screen, making it easy to find the image you want. You can NES the number of images displayed by rotating the zoom control Rotate the multi selector or press À, Y, € or B to select an image and then press the @ button to display that image in full-frame playback mode. switch to calendar display. When 72 images are displayed, rotate the zoom control toward W (Es) to While using calendar display mode, rotate the multi selector or press À, W, € orB to select a date and then press the @ button to display the first image captured on that day. Heqheld pue BUROOUS Jo 521588 SU

xpeqéeld pue BUROOUS JO 51589 aUL. À Press the f button to delete the image currently displayed on the monitor. 2 Press the multi selector À or Y to select the desired deletion method and press the @ button. + Current image: Only the current image is deleted Ifthe key picture of a sequence is selected, all images in the sequence are deleted. Erase selected images: Multiple images can be selected and deleted See “Operating the Erase Selected Images Screen” (1137) for more information. + Allimages: Al images are deleted To exit without deleting, press the MENU button. 3 Press A or Y to select Yes and press the @® button. + Deleted images cannot be recovered + To cancel, press À or Y to select No and press the @ button: P% Notes on Deletion + Deleted images cannot be recovered. Transfer important images to a computer before deleting them. + Protected images cannot be deleted ([L88) Deleting Images in a Sequence + When images are taken with continuous shooting, each series ofimages is treated as a group {pictures in a sequence) and only the groups “key picture” is displayed in the default setting (6613) + When you press the ff button during key picture playback all images in the key picture's sequence can be deleted (6% 14) + To delete each picture in a sequence, before pressing the ff button, press the @ button to display each image in the sequence individuall. Deleting the Last Image Captured While in Shooting Mode

36. When using shooting mode, press the @ button to delete the last image that was saved.

Step 6 Delete Unwanted Images Operating the Erase Selected Images Screen T Press the multiselector or to select an image to be deleted, and then press À to display $Z. + To cancel the selection, press W to remove SZ +_Rotate the zoom control (131) toward T (@ to switch back to ful-frame playback or W(Æ) to display thumbnails 2 Add % to all images that you want to delete and then press the @® button to apply the selection. +_A confirmation dialog is displayed. Follow the instructions displayed on the monitor. Heqheld pue BUROOUS Jo 521588 SU

© Shooting Features This chapter describes each ofthe camera's shooting modes and the features that are available when using shooting mode. By referring to this information, you will learn how to select different shooting modes and adjust settings according to the shooting conditions and the kind of images you want to capture saimeo Sunoous

Shooting Features Shoot easily with basic camera operations without going into detailed settings. The camera selects the focus area for autofocus in accordance with the composition or subject. When the camera detects the main subject, it focuses on that subject (Target finding AF). The camera has nine focus areas, and if it does not detect the main subject, it automatically selects the focus areas containing the subject closest to the camera. See “Using the Target Finding AF” (0184) for more information. Changing À (Auto) Mode Settings + See ‘Features That Can Be Set Using the Multi Selector” (CLI65) for more information on flash mode (66), self-timer (169), smile timer (270), focus mode (172) and exposure compensation (1174) +. Functions that can be set using the MENU button: The image quality and image size can be set (O7?) saimeo Bunoous Features That Cannot Be Used Simultaneously 40 This feature may not be used in combination with certain features (L80)

When one of the following scenes is selected using the mode dial or the scene menu, images are captured using settings that are optimized for the selected scene EM Night landscape ([2142), [sf Landscape (C1143), Backlighting (2144) Rotate the mode dial to ÆB, (@$ or FE] and take pictures. SCENE (Scene) Press the MENU button to display the scene menu and choose one ofthe following shooting scenes. #4 Scene auto selector (default setting) (45) [$B Close-up (1949) Æ Porrait (CLS) TT Food (50) &w &_Spors CO Museum (50) d Fi Night portrait (47) Æ Firewods show (1150) Ê M _Party/indoor (148) QU _ Black and white copy (50) A Æ Beach (T48) ET Panorame (51) £ ET Snow (48) #_ Pet portrait (LI52) ë Æ Sunset (T4) 3D_3D photography (1153) Dusk/dawn (148) jew a Description (Help Information) of Each Scene Select the desired scene from the scene menu and rotate the zoom control (C4) toward T (@) to view a description (help) of that scene. To return to the original screen, rotate the zoom control toward T (@) again More Information See “Note on the Command Dial Operation When Menus are Displayed” (CL114) for more information

Scene Mode (Shooting Suited to Scenes) Changing Scene Mode Settings + ‘Features That Can Be Set Using the Multi Selector” (65) vary with scene mode. See “List of the Default Settings’ (1175) for more information: +_ Functions that can be set using the MENU button: The image quality and image size can be set (177). Characteristics of Each Scene + Use of a tripod is recommended in scene modes with (Æ indicated. Set Vibration reduction in the setup menu (1108) to Off when using a tripod to stabilize the camera, For scene modes that use the flash, be sure to press the % (flash pop-up) button to raise the flash before shooting (66). EZ Night landscape Use this mode to capture the atmosphere of night landscapes. Press the MENU button to select Hand-held or Tripod in Night landscape Hand-held (default setting): This enables you to shoot with the minimum of camera shake and noise even when holding the camera by hand - The @ icon is displayed on the shooting screen. = When the shutter-release button is pressed all the way, pictures are shot continuously, and the camera combines these pictures to save a single picture. = Once the shutrer-release button is pressed all the way, hold the camera steady without moving it until a stil picture is displayed. After taking a picture, do not turn the camera off before the monitor switches to the shooting screen. The angle ofview (image area) seen in the saved image wi be narrower than that seen on the monitor at the time of shooting + Tripod: Select this mode when the camera is stabilized, such as with a tripod - The & icon is displayed on the shooting screen. - Vibration reduction (11108) is automatically set to Off regardiess of the applied option in the setup menu. Press the shutter-release button all the way to shoot a single picture at slow shutter speed. When the shutter-release button is pressed halfway, the focus area or focus indicator (C8) always lights in green:

Scene Mode (Shooting Suited to Scenes) Landscape Use this mode for vivid landscapes and cityscapes. Press the MENU button to select Noise reduction burst or Single shot in Landscape + Noise reduction burst: This enables you to shoot à sharp landscape with a minimum of noise. -_ The ÎR icon is displayed on the shooting screen. = When the shutrer-release button is pressed all the way, pictures are shot continuousy, and the camera combines these pictures to save a single picture. = Once the shutter-release button is pressed all the way, hold the camera steady without moving it until a stil picture is displayed. After taking a picture, do not turn the camera off before the monitor switches to the shooting screen. = The angle of view (image area) seen in the saved image will be narrower than that seen on the monitor at the time of shooting + Single shot (default setting): Records pictures with emphasized outlines and contrast. = When the shutrer-release button is pressed all the way, one frame is taken. + When the shutter-release button is pressed halfway, the focus area or focus indicator (CA8) always lights in green. soimeo 4 Sunoous

saimeo Bunoous Scene Mode (Shooting Suited to Scenes) # Backighting Use when lighe is coming from behind the subject, throwing features or details into shadow. Press the MENU button to set HDR (high dynamic range) compositing using the HDR setting, + When HDR is set to Off (default setting): The flash ires to prevent the backit subject from being hidden in shadow. = Shoot pictures with the flash raised! = The camera focuses at the center area of the frame. = Press the shutrer-release button all the way to shoot a single picture. When HDR is set 10 Level 1-Level 3. Use when taking pictures with very bright and dark areas in the same frame. Select Level 1 when there is less difference between bright and dark areas, and Level 3 when there is more difference between bright and dark areas. = The BDR icon is displayed on the shooting screen. = The camera focuses at the center area of the frame. = When the shutrer-release button is pressed all the way, the camera shoot pictures continuously and saves the following two images. = Non-HDR composite image = HDR composite image (loss of detail is reduced in highlights and shadows) = The second image saved is an HDR composite image. Fthere is only enough memory to save one image, an image processed by D-Lighting (88) at the time of shooting, in which dark areas of the image are corrected, is the only image saved. = Once the shutter-release button is pressed all the way, hold the camera steady without moving it until a stil picture is displayed. After taking a picture, do not turn the camera off before the monitor switches to the shooting screen. The angle of view (Le, the area visible in the frame) seen in the saved image will be narrower than that seen on the monitor at the time of shooting, = Depending on the shooting conditions, dark shadows may appear around bright subjects and bright areas may appear around dark subjects, You can compensate by lowering the level setting. Use of a tripod is recommended. Set Vibration reduction in the setup menu (A108) to Off when using a tripod to stabilize the camera

Scene Mode (Shooting Suited to Scenes) SCENE - # Scene auto selector When you frame a picture, the camera automatically selects the optimum scene for simpler shooting, EE Por, EM Landscape, Æïÿ: Night portrait, Night landscape, Close-up, FRE Backlighting, FX: Other scenes + When the camera automatically selects a scene mode, the shooting mode icon changes 0 that for the scene mode currently enabled The camera automatically selects the focus area for autofocus in accordance with the composition. The camera detects and focuses on faces (see “Using Face Detection" (85) for more information). Depending upon shooting conditions, the camera may not select the desired scene mode. Should this occur, switch to @ (auto) mode (CL128) or select the optimum scene mode for the subject manual. The digital zoom is not available. Notes on Selecting a Scene Mode Using Scene Auto Selector and Its Shooting Operation When the shooting made icon is EM or ÆB the camera performs the optimal operation for shooting a close-up picture of one ta tro persons. When the icon is Æ or Eÿ the camera performs the optimal operation far shooting a picture of three or mare persons or shooting a composition with a large background area. Ifthe camera switches to ÆRAÆ (Night portrait), the flash mode is fixed at red-eye reduction and the flash is used for capturing portraits (images are not captured continuously) just as when Tripod is selected when using Night portrait (CL]47). Ithe camera switches to ED (Night landscape), the camera shoots images continuously and combines and saves them as one image, just as when Hand-held is selected when using EM (Night landscape) (CL142). Ithe shooting mode icon is FA, the camera performs the optimal operation for shooting non. human subjects. Ifthe icon is FA, the camera performs the operation using face detection that is optimal for shooting human subjects. saimeo Sunoous

saimeo Bunoous Scene Mode (Shooting Suited to Scenes) SCENE > Z Portrait Use this mode for portraits + The camera detects and focuses on a face (see ‘Using Face Detection” (85) for more information). + After the skin softening feature makes facial skin tones softer, the camera records the image (54) + Ifno faces are detected, the camera focuses on the subject atthe center of the frame. +_ The digital zoom is not available. SCENE > % Sports Use this mode when shooting sporting events, The camera captures a series of stil images that allow you to clearly see detailed movements in a moving subject. +_ The camera focuses at the center area of the frame + To capture à series of images, hold down the shutter- release button all the way. Up to five pictures are shot at à rate of about seven frames per second (fps) (when image quality is set to > Normal and image size is set to Fx 4608x3456). The camera focuses the subject even when the shutter-release button is not pressed halfway. You may hear the sound of the camera focusing Focus, exposure, and hue are fixed at the values determined with the first shot in each series. The frame rate with continuous shooting may become slow depending upon the current image quality setting, image size setting, memory card used, or shooting condition.

Scene Mode (Shooting Suited to Scenes) SCENE > Æ Night portrait Use this mode for portraits taken at sunset or at night. Flash is used to illuminate the subject while maintaining the mood of the background. Select Hand-held or Tripod on the screen that is displayed Night portrait scene mode is selected + Hand-held -_ The É icon is displayed on the shooting screen. -_ For a scene with a dark background, when the shutter-release button is pressed all the way, pictures are shot continuousy. The camera combines these pictures to save à single picture. When shooting at the telephoto zoom position, the camera may not shoot pictures continuously even if a scene has a dark background Once the shutter-release button is pressed all the way, hold the camera steady without moving it until a still picture is displayed. After taking à picture, do not turn the camera off before the monitor switches to the shooting screen -_Ifthe subject moves while the camera is shooting continuous|y, the image may be distorted, overlapped or blurred. Tripod (default setting): Select this mode when the camera is stabilized, such as with à wipod. - The @ icon is displayed on the shooting screen. - Vibration reduction ([]108) is automatically set 10 Off regardiess of the applied option in the setup menu. = Press the shutter-release button all the way to shoot a single picture at slow shutter speeds. The camera detects and focuses on a face (see ‘Using Face Detection” (A85) for more information. After the skin softening feature makes facial skin tones softer, the camera records the image (54). If no faces are detected, the camera focuses on the subject at the center of the frame. Shoot pictures with the flash raised The digital zoom is not available. soimeo 4 Sunoous

saimeo Bunoous Scene Mode (Shooting Suited to Scenes) SCENE > Party/indoor Suitable for taking pictures in parties. Captures the effects of candlelight and other indoor background lighting + The camera focuses at the center area of the frame + When shooting in à dark location, hold the camera steachily 10 avoid the effects of camera shake. To take a picture with the camera attached 10 a tipod, set Vibration reduction in the setup menu (0108) to Off. SCENE > Æ Beach Captures the brightness of such subjects as beaches or sunlit expanses of water. +_ The camera focuses at the center area of the frame. SCENE -> EH] Snow Captures the brightness of sunli snow. + The camera focuses at the center area of the frame. SCENE -> i Sunset @ Preserves the deep hues seen in sunsets and sunrises. + When the shutter-release button is pressed halfway, the focus area or focus indicator (C[8) always lights in green. SCENE -> ii Dusk/dawn @ Preserves the colors seen in the weak natural light before sunrise or after sunset. + When the shutter-release button is pressed halfway, the focus area or focus indicator (C[8) always lights in green.

SCENE %f Close-up Use this mode to photograph flowers, insects, and other small objects at close range. Select Noise reduction burst or Single shot on the screen that is displayed when $ Close-up scene mode is selected Scene Mode (Shooting Suited to Scenes) Noise reduction burst: This setting enables you to shoot à sharp picture with à minimum of noise. -_ The ÎR icon is displayed on the shooting screen. = When the shutrer-release button is pressed al the way, pictures are shot continuousy, and the camera combines these pictures to save a single picture. = Once the shutter-release button is pressed all the way, hold the camera steady without moving it until a stil picture is displayed. After taking a picture, do not turn the camera off before the monitor switches to the shooting screen. Ifthe subject moves or there is significant camera shake during continuous shooting, the image may be distorted, overlapped, or blurredl = The angle of view (image area) seen in the saved image will be narrower than that seen on the monitor at the time of shooting Single shot (default setting): Records pictures with emphasized outlines and contrast. = When the shutrer-release button is pressed all the way, one frame is taken. The focus mode (72) setting is changed to $ (macro close-up) and the camera automatically zooms to the closest position to the subject where the camera can shoot. You can move the focus area that the camera focuses on. Press the @ button and then rotate the multi selector or press À, Ÿ, 4 or B to move the focus area, To adjust the following settings, press the @ button to temporarily cancel focus area selection, and then adjust each setting - Flash mode (when Single shot is selectec) = Selftimer = Exposure compensation The camera focuses on the subject even when the shutter-release button is not pressed halfway. You may hear the sound of the camera focusing soimeo 4 Sunoous

Scene Mode (Shooting Suited to Scenes) SCENE -> f| Food Use this mode when taking pictures of food + _The focus mode (172) setting is changed to $ (macro close-upl and the camera automatically zooms to the closest position to the subject where the camera can shoot. You can adjust the hue by pressing the multi selector À or

V. The hue adjustment setting is saved in the cameras

memory even after the camera is turned off. You can move the focus area that the camera focuses on. . E Press the @ button and then rotate the multi selector or LE o 60 press À, Y, € or to move the focus area. To adjust the following settings, press the @ button to temporarily cancel t 1 focus area selection, and then adjust each setting) a - Hue Buts vbs = Selftimer COR RTT = Exposure compensation +_ The camera focuses on the subject even when the shutter-release button is not pressed halfway. You may hear the sound of the camera focusing SCENE > if Museum Use indoors where flash photography is prohibited (for example, in museurms and art galleries) or in other settings in which you do not want to use the flash +_ The camera focuses at the center area of the frame. The camera captures up to ten images while the shutter- release button is pressed al the way, and the sharpest image in the series is automatically selected and saved (BSS (Best Shot Selector) (A6 1) saimeo Bunoous SCENE > # Fireworks show @ Slow shutter speeds are used to capture the expanding burst of light from fireworks. +_ The camera focuses at infinity. + When the shutter-release button is pressed halfway, the focus indicator ((L8) always lights in green. SCENE + [ Black and white copy Provides clear images of text or drawings on a white board or in print +_ The camera focuses at the center area of the frame. + When shooting nearby object, shoot with Ÿ (macro close- up) in the focus mode (72).

Scene Mode (Shooting Suited to Scenes) SCENE > [1 Panorama Use this mode for shooting panorama pictures On the screen that is displayed when F1 Panorama scene mode is selected, select Easy panorama or [I] Panorama assist. + Easy panorama (default setting): Shoots panorama pictures that can be played back on the camera by moving the camera in the direction you want to create à panorama picture. = Shooting range can be selected from Normal (180°) (default setting) or Wide (360 = Press the shutter-release button all the way and release it, then move the camera slowiy in the horizontal direction, Shooting ends automatically when the selected shooting range has been captured! When shooting starts, the camera focuses on the subject at the center area of the frame -_ The zoom is fixed at the wide-angle position: = Display the picture recorded with easy panorama in ful-frame playback mode and press the @ button. The camera displays the short side of the picture filing the entire screen and scrolls the picture automatically See "Taking Pictures with Easy Panorama” (863). + Panorama assist Use this mode when shooting a series of pictures that can later be joined on a computer to form a single panorama. = Press the multi selector À, Ÿ, or B to select the direction in which pictures are to be joined and press the @ button. = After shooting the first picture, shoot the necessary number of pictures while confirming the seams. To finish shooting, press the @ button. - Transfer taken pictures to à computer and use the Panorama Maker 6 software (CL192,

67) 10 join thern in a single panorama. See ‘Using Panorama Assist' (8266) for more

information L% Note on Printing Panorama Pictures When printing panorama pictures, full view may not be printed depending on the printer settings. Additionally, printing may not be available depending on the printer. For more information, see your printers manual or contact a digital photo lab. soimeo 4 Sunoous

Scene Mode (Shooting Suited to Scenes) SCENE -> 4 Pet portrait Use this mode for shooting pictures of dogs or cats. + Select Single or Continuous on the screen that is displayed when # Pet portrait scene mode is selected. = Single: One picture is captured at a time. = Continuous (default setting): When the camera focuses on the detected face in Pet portrait auto release (default setting) mode, three pictures are shot continuously (frame rate with continuous shooting: approximately three frames per second when image quality is set to Normal and image size is set 10 [64 4608x3456). Ifpet portrait auto release is not used, approximately fe pictures can be shot one after the other atthe maximum rate of about three frames per second while the shutter- release button is fully held down (when image quality is set to Normal and image size is set to Eu 4608x3456) +_ The camera detects and focuses on the face of a dog or cat. In the default setting, when the subject is in focus, the shutter is released automatically (Pet portrait auto release) + Up to five pet faces are detected simultaneously. When the camera detects more than one face, the camera focuses on the face displayed the largest in the monitor. +_lfa pets face is not detected, press the shutter-release button halfway to focus on the subject at the center of the frame. + Press the multi selector 4 (Ÿ)) to change the pet portrait auto release settings. - Pet portrait auto release (ciefault setting): When the camera focuses on the detected face, the shutter is released automatically. When Pet portrait auto release is set, the ÆÂ icon is displayed on the shooting screen. = OFF: Press the shutter-release button to release the shutter. + Inthe following situations, Pet portrait auto release is automatically switched 10 OFF. = When à continuous shooting series with pet portrait auto release is repeated five times = When remaining capacity of the internal memory or memory card is low To continue shooting with pet portrait auto release, press the multi selector 4 (Ÿ)) to set again. +_ The digital zoom is not available. + Under some shooting conditions such as pet-to-camera distance, speed of moving pets, direction in which the pets are facing, and brightness of the faces, the camera may be unable 10 detect a dog or cat, or a border is displayed around something other than a dog or cat. TZ viewing Pictures Taken Using Pet Detection + During playback the camera automatically rotates images according to the orientation ofthe pet's face detected at the time of shooting (except for pictures taken with continuous shooting). + When zooming in on an image displayed in full-frame playback mode by ratating the zoom control toward T (@), the image is enlarged at the center of a pets face detected during shooting (0035) (except far pictures taken with continuous shooting).

Scene Mode (Shooting Suited to Scenes) SCENE + 3D 3D photography Use this mode for taking 3D pictures viewable in three dimensions on à 3D-compatible TV or monitor. The camera takes one picture for each eye to simulate a three-dimensional image. Pictures taken in this mode are saved with Normal as the image quality and 5% 1920x1080 as the image size. + After taking the first picture by pressing the shutter-release button, move the camera horizontallÿ to the right so that the subject is aligned with the guide on the monitor. The camera takes the second picture automatically. The focus area that the camera focuses on can be moved to areas other than at the center of the frame. To move the focus area, press the @ button before taking the first picture, and then rotate the multi selector or press À, Ÿ, 4 or. To adjust the following settings, press the @ button to cancel the status in which the focus area can be selected, and then perform each setting. - Focus mode (AF (Autofocus) or @ (Macro close-up)) -_ Exposure compensation The telephoto 00m position is restricted to an angle of view equivalent to that of about 135 mm lens in 35mm [135] format. The angle of view (Le, the area visible in the frame) seen in the saved picture will be narrower than that seen on the monitor at the time of shooting. The camera cannot record 3D movies. The two captured images are saved as à 3D picture (MPO file) consisting of the left and right eye images. The first image (the left eye image) is also saved as à JPEG file. See “Using 3D Photography" (888) for more information. P% Note on 3D Photography The camera may be unable to take a second picture or save pictures taken, depending on a variety of factors, for example, shooting à moving subject or à scene with low light or low cantrast conditions. TZ viewing 3D Photography + 3D pictures cannot be played back in 3D on the camera monitor. Only the left eye image is displayed during playback. To view 3D pictures in 3D, a 3D-compatible TV or monitor is required. 3D pictures can be played backin 3D by connecting the camera to a 3D-compatible TV or monitor using a 3D-compatible HDMI cable (1190). When cannecting the camera using an HDMI cable, set the following far the TV settings in the setup menu (108) HDMI Auto (default setting) or 1080i HDMI 3D output. On (default setting) When the camera is connected using an HDMI cable for playback, it may take a while to switch the display between 3D pictures and non-3D pictures. The images played back in 3D cannot be enlarged + See the documentation included with yaur TV or monitor to perform settings of the TV ar monitor. P% Note on Viewing 3D Pictures When viewing 3D pictures on à 3D-compatible TV or monitor far an extended period of time, you may experience discomfort such as eye strain or nausea. Carefully read the documentation included with your TV or monitar to ensure proper use. soimeo 4 Sunoous

Scene Mode (Shooting Suited to Scenes) Using Skin Softening In the following shooting modes, the camera detects up to three human faces when the shutter is released, and processes the image to make facial skin tones softer before saving the image. + Scene auto selector (45), Portrait ((L46) or Night portrait (147) in scene mode Skin softening can also be applied to saved images (188). L% Notes on Skin Softening + Itmay take more time to save images + Under some shooting conditions, the desired skin softening results may not be achieved, and skin softening may be applied to areas of the image where there are no faces.

The effect can be applied to pictures during shooting. One of the nine special effects is selected to shoot. To select an effect, press the MENU button to display the special effects menu: +_ The camera focuses at the center area of the frame. Gi image qualny wi

Characteristics of Each Special Effect Option Description Soft (default setting) Soften the image by adding a slight blur to the overall image. Nostalgic sepia Add a sepia tone and reduces the contrast to simulate the qualities ofan old photograph High-contrast Create a black-and-white photograph with a clear contrast. monochrome High key Give the overall image a bright tone. Low key Give the overall image a dark tone

Special Effects Mode (Applying Effects When Shooting) Option Description Create a black and white image in which only the specified color remains. + When Selective color is set, select a color that you want to retain from the slider by rotating the multi selector or e3 pressing À or W. To adjust the following settings, press the @ Dim Selective color button to temporarily cancel color selection, and then adjust | each setting, Slider -_ Flash mode (066) - Self-timer (69) -_ Focus mode (072) -_ Exposure compensation (174) To return to the color selection screen, press the @ button again. Painting Create images with the ambience of paintings. saimeo Bunoous Create monotone (black and white) pictures by intentionally taking pictures with high ISO sensitivity. This setting is effective High ISO Marochrome when shooting subjects in low lighting conditions. + The pictures taken may contain noise (randomiy-spaced bright pixels fog or lines) Silhouette Create a silhouette photograph of a subject with a bright background. TZ special Effects Mode Settings When Movie options (CL199) is set to Ha HS 120 fps (640x480) Soft, Nostalgic sepia or Painting cannot be selected More Information See “Note on the Command Dial Operation When Menus are Displayed” (CL114) for more information Changing Special Effects Mode Settings + ‘Features That Can Be Set Using the Multi Selector” (65) vary with special effects. See “List of the Default Settings” (1175) for more information. +_ Functions that can be set using the MENU button: The image quality and image size can be set (O7?) Features That Cannot Be Used Simultaneously 56 This feature may not be used in combination with certain features (CL180)

Pictures can be shot with greater control by setting the shooting menu (160) iterns in addition to setting the shutter speed or aperture value manually according to shooting conditions and requirements. The focus area for autofocus differs depending on the setting of AF area mode that can be selected in the PS, A or M tab after pressing the MENU button The camera has nine focus areas, and when AF area mode is set to Auto (default setting), it automatically selects the focus areas containing the subject closest to the camera. When the subject is in focus, the focus areas that are in focus (up to nine areas) light in green. The procedure for shooting pictures at the desired brightness (exposure) by adjusting the shutter speed or aperture value is called “determine exposure". The sense of dynamism and amount of background defocus in pictures to be shot vary depending on the combinations of shutter speed and aperture value even if the exposure is the same (158). Rotate the command dial or multi selector to set the shutter speed and aperture value. Command dial Multi selector

Aperture Shutter speed Value Exposure mode Shutter speed (183) Aperture value (158) Programmed auto (59) Automatically adjusted (flexible program is enabled by the command dial). Shutter-priority Adjusted by the command dial Automatically adjusted. Aperture-priority

S auto([ti59) A auto([i59) Automatically adjusted Adjusted by the multi selector. M Manual (1159) Adjusted by the command dial Adjusted by the multi selector. The setting method of the flexible program, shutter speed, and aperture value can be changed using the Toggle Av/Tv selection in the setup menu (11108).

P.S, A. M Modes (Setting the Exposure for Shooting) Adjusting the Shutter Speed Faster 1/1000 s Adjusting the Aperture Value Larger aperture Smaller aperture (Small number (Large f-number) 3 #83 Aperture and Zoom The aperture value (fnumber) indicates the lens brighiness. Large apertures (expressed by smal Ænumbers) let mare light into the camera, and small apertures (large f-numbers) let less light. The aperture value of this camera zoom lens can be changed depending on the zoom position. The largest aperture at the wide-angle position is f/3 and that at the telephoto zoom position is f/5.9. U (User Setting) Mode Even when the mode dial is set to U (User settings) mode, you can shoot in P (Programmed auto), S (Ghutter-priority auto), À (Aperture-priority auto) or M (Manual) The setting combinations (User settings) that are frequentiy used for shooting can be saved in U (CLI64)

PS, À. M Modes (Setting the Exposure for Shooting) P (Programmed auto) (8610) Use for automatic control of the exposure by the camera. Different combinations of shutter speed and aperture value can be selected without changing the exposure by rotating the command dial during shooting (flexible program’). While flexible program is in effect, a flexible program mark (K) is displayed next to the mode indicator (P) in the upper left of the monitor. To cancel flexible program, rotate the command dial until the flexible program mark OK) is no longer displayed. Selecting another shooting mode, or tuming off the camera, also cancels flexible program S (Shutter-priority auto) (6010) Use to shoot fast moving subjects with a fast shutter speed, or use to emphasize the movements of a moving subject with a slow shutter speed. + The shutter speed can be adjusted by rotating the command dial. A (Aperture-priority auto) (6610) Use to blur the background or bring both the foreground and background into focus + The aperture value can be adjusted by rotating the multi selector. M (Manual) (6611) Use to control the exposure according to shooting requirements. When adjusting the aperture value or shutter speed, the degree of deviation from the exposure value measured by the camera is displayed in the exposure indicator. The degree of deviation in the exposure indicator is displayed in EVS (-2 to +2 EV in increments of 1/3 EV). The shutter speed can be adjusted by rotating the command dial and the aperture value can be adjusted by rotating the multi selector. Exposure indicator soimeo 4 Sunoous

saimeo Bunoous P,S, A, M Modes (Setting the Exposure for Shooting) Changing P,S, À, M Modes See "Features That Can Be Set Using the Multi Selector” (165) for more information on flash mode (A166), self-timer (1169)/smile timer (170), focus mode (172) and exposure compensation (1174) See “Options Available in the Shooting Menu (below) for more information on functions that can be set using the MENU button Options Available in the Shooting Menu Inthe P, S, A, M mode, the following option settings can be changed [ Pure Control te balance sing

SelectP, S, À, M mode > MENU button > P, S, À, M tab (113) Option Description pa] Set the image quality to be recorded (compression ratio) (277). The default setting of image quality is Normal Image quality This setting is also applied to other shooting modes 77 {except for shooting mode U or scene mode Easy panorama or 3D photography) Set the image size to be recorded (CL178). The default setting is 84 4608x3456. This setting is also applied to 78

Image size other shooting modes (except for shooting mode U or scene mode Easy panorama or 3D photography) Picture Control ! | Change the settings for image recording according to the (COOLPIX Picture | shooting scene or your preferences, The default setingis | 6633 Control) Standard Custom Picture | Allow you to store the customized settings basedin Control COOLPIX Picture Control, which can set picture editing | #37 {COOLPIX Custom _ | options for recording images according to the shooting Picture Control) | scene or your preferences.

PS, À. M Modes (Setting the Exposure for Shooting) Option Description a] White balance ! Adjust colors in the image closer ta the colors as they appear to the eye. Although Auto (normal) (default setting) can be used under most types of lighting, you can apply the white balance setting suited to the sky 3e conditions or light source to achieve better results ifthe default setting results are unsatisfactory. «The preset value for preset manual applies commonly to P,S. A.M.U shooting modes Metering ! Select the method that the camera uses 10 measure the brightness of the subject. The camera adjusts the exposure, which is a combination of shutter speed and | 6640 aperture value, based on the brightness measurement. The default setting is Matrix Continuous ! Serthe mode used for taking a series of pictures + The default setting is Single (Le. only one picture is captured at a time) When Continuous H, Continuous L, Pre-shooting cache, or BSS ((L)50) is set, the pictures are shot continuously while the shutter-release button is fully held down. If Continuous H: 120 fps, Continuous H: 60 fps,or | 6641 Multi-shot 16 is set, the specified number of pictures are shot continuously when the shutter-release buttons full held down IFthe Intl timer shooting is set, the pictures are shot continuousiy at the set interval of 30 $, 1 min, 5 min, or 10 min when the shutter-release button is fully held down once. ISO sensitivity ! Higher IS sensitivity allows you to take pictures of darker subjects, Additionall, even with subjects of similar brightness, pictures can be taken at faster shutrer speeds, and blurring caused by camera shake and subject movement can be reduced. When ISO sensitivity is set to | 6645 Auto (default setting), the camera sets the ISO sensitivity automatically. + In M (manual) mode, 150 sensitivi is fixed at ISO 100 if Auto or Fixed range auto is selected Exposure bracketing The exposure (brightness) can be changed automatically | onu during continuous shooting. The default setting is Off. AF area mode ! Set how the camera determines the focus area using the autofocus to Face priority, Auto (default setting), er Manual, Center, Subject tracking or Target finding AF. soimeo 4 Sunoous

P,S, A, M Modes (Setting the Exposure for Shooting) Option Description Autofocus mode When Single AF (default setting) is selected, the camera focuses only while the shutter-release button is pressed halfway. When Full-time AF is selected, the camera focuses even when the shutter-release button is not pressed halfway. You may hear the sound of the camera focusing,

Flash exp. comp. Adjust the flash output. Use this option when the flash is 00 bright or too dark. The default setting is 0.0.

Noise reduction filter Ser the strength of the noise reduction function that is normally performed when recording the picture. The default setting is Normal.

Active D-Lighting Prevent loss of contrast details in highlights and shadows when shooting images. The default setting is Off. Save user settings The current settings are stored in mode dial U (163). Reset user settings The settings saved to mode dial U are reset. Zoom memory When the zoom control is operated when set to On, the camera changes in steps ta the focal length (equivalent to 35mm [135] format of angle of view) of the zoom lens that is set in advance + Select On and press the @ button to display the screen for focal length selection. Press the @ button to switch the On [Z1/Off setting, then press the multi selector Be 10 apply the selection

Startup zoom position When the camera is turned on, the zoom position moves to the focal length (equivalent to 35mm [135] format of angle of view) of the zoom lens that is set in advance. The default setting is 24 mm.

1 The setting menu can also be displayed by pressing the F1 (FUNC) button during shooting Select the Fn button function in the setup menu (11108), and then assign a setting menu to be displayed when the Fn (FUNC) button is pressed 2° This function cannot be set when using U mode. BA more Information See “Note on the Command Dial Operation When Menus are Displayed” ([L114) for more information. BA Features That Cannot Be Used Simultaneously This feature may not be used in combination with certain features (C[80)

Setting combinations that are frequently used for shooting (User settings) can be saved in U. Shooting is possible in P (Programmed auto), S (Shutter-priority auto), À (Aperture-priority auto) or M (Manual). Rotate the mode dial to U to retrieve the settings saved in Save user settings. See "Saving Settings in U Mode” (64) for more information. +_ Frame the subject and shoot with these settings, or change the settings as required. +_ The setting combinations that are retrieved when the mode dial is rotated to U can be changed as many times as you want in Save user settings. The following settings can be stored in U. General setup + Shooting mode P, $, A or M (57) + Zoom position (1131) + Focus mode (072 Shooting menu Monitor display (1167? Flash mode (66) Exposure compensation (174) saimeo Sunoous + Image quality (CA77) + Image size (CA78) + Picture Control (160) + White balance (161) + Metering (61) + Continuous (161) +150 sensitivity (61) + Exposure bracketing (A61) + AF area mode (61 + Autofocus mode (162) + Flash exp. comp. (162) + Noise reduction filter (162) + Active D-Lighting (O162) + Zoom memory (0162) Choose the standard shooting made. The current flexible program (when set to Pi) shutter speed {when set to $ or M) or aperture value (when set to À or M) settings will also be saved. Register which display to use for image view, the monitor or the viewfinder. The currently used display is saved as a monitor display setting. The current zoom position will also be saved. Startup zoom position (CLI2) cannot be set The current focus distance will also be saved when set to MF (manual focus). The preset value for preset manual applies commonb to P, $, À, M and U shooting modes. The current focus area position is saved when AF area mode is set 10 Manual

U (User Setting Modes) Saving Settings in U Mode 1 Rotate the mode dial to the desired exposure mode. + RoutetoP,S, AorM + Settings can be saved even if rotated to U (the defaut settings of shooting mode P are saved when the camera is first purchased). 2 Change to a frequently used combination of shooting settings. + See (63 for more information about the saved settings. 3 Press the NEW button. +_ The shooting menu is displayed. 4 Use the multi selector to select Save user settings, and press the @ button. + Done screen is displayed, and the current settings are saved Startup zoom postion 24 L% ciock Battery Ifthe internal clock battery (27) is exhausted, the settings saved in U will be reset. Writing down any important setting is recommended Resetting for User Settings IfReset user settings is selected, the settings that are saved in the user settings are reset as follows: + Shooting mode: P (Programmed auto) +_ Zoom position: maximum wide-angle position + Flash mode: SAIT (auto) + Focus mode: AF (autofocus) + Exposure compensation: 0.0 + Shooting menu: Same as the default setting for each item

Press the multi selector À (#), €(O)), ($), or (D) while shooting to operate the following functions. Ÿ Self-timer (1169) Smile timer (CL170) # Flash mode (166) Éd Exposure compensation (CL174)

LAL72 Available Functions Available functions differ according to the shooting mode as follows. + See “List of the Default Settings” (175) for more information on the default settings in each shooting mode. Function a SEE | errors | P.SAMU %_ Flash mode (66) v ! v … Self-timer (CL169) L'4 v v ® Smile timer (1170) v 1 v % Focus mode ([1172) v v v a pour compensation | 4, v v 1 The setting varies with scene mode or special effects. See “List of the Default Settings” (75) for more information.

2. When the shooting mode is M. exposure compensation cannot be used

Features That Can Be Set Using the Multi Selector Using the Flash (Flash Modes) You can shoot pictures with a flash by raising the flash. You can set a flash mode that suits the shooting conditions.

Press the % (flash pop-up) button to raise the flash. + When the flash is lowered, the flash mode is fixed at ® (off). Press A (% flash mode) on the multi selector. Use the multi selector to select the desired mode and press the @ button. + See ‘Available Flash Modes” (67) for more information +_Ifthe @ button is not pressed within a few seconds, the selection will be canceled + When SAMI (auto) is applied, EABD is only displayed for a few seconds even if monitor indicators ([115) are tumed on. 4 Frame the subject and take a picture. +_ The flash lamp indicates the status of the flash when the shutter-release button is pressed halfway. - On: The flash willfire when you press the shutrer-release button al the way. = Flashing: The flash is charging. The camera cannot take pictures. - Of Theflashwillnotfirewhen a pictureis taken. +_Ifthe battery is low, the monitor will be turned off while the flash is charging,

Features That Can Be Set Using the Multi Selector TZ Lowering the Flash When not using the flash, gentiy push to lower the flash until it clicks shut Effective Range of the Flash The flash has a range of about 0.5 to 8.0 m (1 ft 8 in. to 26 ft) for wide-angle position, and about

1.5 t0 45 m (5 ft to 14 F0) for telephoto zoom position {when ISO sensitivity is set to Auto)

Available Flash Modes gum Auto Flash fes automatically when lighting is dim. #© Auto with red-eye reduction Best choice for portraits. Reduces red-eye effect caused by flash in portraits (A68) © of Flash does not fie. + Use of a tipod is recommended to avoid the effects of camera shake when shooting in a dark location. % Filflash The flash fires when a picture is taken, regardless of how bright the subject is. Use to “fil Giluminate) shadows and backit subjects. #a Slowsync Fill flash is combined with a slow shutrer speed. Suitable for portraits of human subjects shot at night or under dim light. Flash illuminates main subject; slow shutter speeds are used to capture background % Rear-curtainsyne Fill flash fres just before the shutter closes, creating the effect of a stream of light behind moving subjects. soimeo 4 Sunoous

Features That Can Be Set Using the Multi Selector Flash Mode Setting + The setting varies with shooting mode. See “Available Functions” (CL65) and “List ofthe Default Settings” (C5) for more information. + This feature may not be used in combination with certain features. See “Features That Cannot Be Used Simultaneoush” (80). + The changed flash mode setting applied in the following situations is saved in the cameras memory even after the camera is turned off. When shooting mode P, $, À or Mis used When $® (auto with red-eye reduction) is selected in Êÿ {auto} mode Auto with Red-eye Reduction This camera uses advanced red-eye reduction (‘In-Camera Red-Eye Fix"). Ithe camera detects “red-eye” when a picture is taken, Nikon’ own In-Camera Red-Eye Fix processes the image before it is recorded Note the following when taking pictures: + The time required to save the picture increases slightiy. + Advanced red-eye reduction may not produce the desired results in some situations. + In extremely rare instances, areas not subject to red-eye may be affected by advanced red-eye reduction processing. In these cases, choose another mode and try again. saimeo Bunoous

Features That Can Be Set Using the Multi Selector Using the Self-timer The self-timer is suitable for taking group pictures and reducing the vibration when the shutter-release button is pressed. When using the self-timer, use of a tripod is recommended. Set Vibration reduction in the setup menu (11108) to Off when using a tripod to stabilize the camera. À Press 4 (ÿ) self-timer) on the multi selector. 2 Use the multi selector to select Ÿ)10s (or Ÿ2s) and press the @ button. + Ÿ10s (ten seconds): suitable for group pictures. + Ÿ2s (two seconds): suitable for preventing camera shake. + When the shooting mode is set to Pet portrait in Saimer scene mode, (pet portrait auto release) is displayed (52). The self-timer Ÿ)10s and Ÿ)2s are not available. +_ The mode selected for the self-timer is displayed + Ifthe @ button is not pressed within a few seconds, the selection will be canceled 3 Frame the picture and press the shutter-release button halfway. + Set the focus and exposure. 4 Press the shutter-release button all the way. y +_ The selftimer starts, and the number of seconds remaining before the shutter is released is displayed. The self-timer lamp flashes while the timer is counting down. 3 © About ane second before the shutter is released, the lamp stops flashing and remains lit When the shutter is released, the self-timer turns OFF To stop the timer before a picture is taken, press the shutter-release button again. soumes 4 Bunoous

Features That Can Be Set Using the Multi Selector Smile Timer (Shooting Smiling Faces) When this mode is selected, the camera detects smiling faces and automatically releases the shutter even if you don't press the shutter-release button +_ This function can be used when the shooting mode is Ê (auto), P,S, A. M.U, scene mode Portrait or Night portrait. À Press 4 (ÿ) self-timer) on the multi selector. + Change any flash mode, exposure, or shooting menu settings before pressing the Ÿ) button. 2 Use the multi selector to choose À (Smile = timer), and press the @ button. +_Ifthe @ button is not pressed within a few seconds, the selection will be canceled OFF

Frame the picture and wait for the subject to smile without pressing the shutter-release button. + When the camera detects a face, a yellow double border (focus area) is displayed around that face. When the camera has focused on that face, the double border will turn green for à moment and focus is locked + Up to three faces are detected. When more than one face is detected, the face closest 10 the center of the frame is framed by a double border and the others by single borders +_Ifthe camera detects that the face framed by the double border is smiling, the shutter is automatically released + Each time the shutter is released, automatic shooting using face detection and smile detection is repeated. saimeo Bunoous Æ Finish shooting. + To cancel smile detection and finish shooting, return to step 1 and select OFF.

Features That Can Be Set Using the Multi Selector P% Notes on Smile Timer + The digital zoom is not available. + Under some shooting conditions, faces and smiling faces may not be detected properiy. + See “Using Face Detection" (85) for more information. + The smile timer cannot be used simultaneously with certain shaoting modes. See “Available Functions” (65) and “List of the Default Settings” (075) for more information. + This feature may not be used in combination with certain features. See “Features That Cannot Be Used Simultaneously" (180) for more information. Auto Off in Smile Timer Mode When using the smile timer, the auto off function (C1)109) is activated and the camera turns off when either ofthe situations indicated below persists and no other operations are performed. + The camera does not detect any faces. + The camera detected a face, but cannot detect a smile. When the Self-timer Lamp Flashes When the camera detects a face, the self-timer lamp flashes. The lamp quickiy flashes immediately after the shutteris released Releasing the Shutter Manually The shutter can also be released by pressing the shutter-release button. If no faces are detected, the camera focuses on the subject at the center ofthe frame. More Information See ‘Autofocus” ((0133) for more information. saimeo Sunoous

Features That Can Be Set Using the Multi Selector Using Focus Mode Choose a focus mode according to the desired scene. À Press w (# focus mode) on the multi selector. 2 Use the multi selector to choose the desired focus mode and press the @ button. + See “Available Focus Modes’ (173) for more information +_Ifthe @ button is not pressed within a few seconds, the selection will be canceled + When AF (autofocus) is applied, F is only displayed for a few seconds even if monitor indicators (P15) are turned on.

Features That Can Be Set Using the Multi Selector Available Focus Modes AF Autofocus The camera automatically adjusts the focus according to the distance to the subject. Use when the distance from the subject to the lens is 50 cm (1 ft 8 in) or more, or

1.5 m (5 f0 or more at the maximum telephoto zoom position.

Macro close-up Use for close-ups of lowers or small objects. Hour close you can be to the subject while shooting depends on the zoom position. When the zoom position is set to a position where & and the zoom indicator light in green, the camera can focus on subjects as close as 10 cm (4 in.) Atthe wide-angle zoom position from à, the camera can focus on subjects as close as 1 cm (04 in) from the lens. A Infinity Use when shooting distant scenes through window glass or when shooting landscapes. The camera automatically adjusts the focus near infinity. +_ The camera may not be able to focus on nearby objects. + _Theflash mode is set to © (off, MF Manualfocus The focus can be adjusted for any subject that is a distance of 1 cm (04 in) to infinity from the lens (662). The closest distance at which the camera can focus varies depending on the zoom position. + This function can be used when the shooting mode is P, $, A, MU, special effects mode or scene mode Sports. L% Note on Shooting with the Flash When shooting with $ (macro close-up) or MF (manual focus), the flash may be unable to light the entire subject at distances of less than 50 cm (1 ft 8 in). Focus Mode Setting The setting varies with the shooting mode. See ‘Available Functions” (CLI65) and “List ofthe Defautt Settings” (1175) for more information This feature may not be used in combination with certain features. See “Features That Cannot Be Used Simultaneoushy" (CLI80) for more information. For shooting modes P, $, À and M, the changed focus mode setting is saved in the cameras memory even after the camera is turned off. Macro Close-up When using PS, A. M or U mode if Autofocus mode in the shooting menu (60) is set to F1 ime AF, the camera will adjust focus even ifthe shutter-release button is not pressed halfiway. When using other shooting modes, Full-time AF is turned on automatically when macro close-upis tumed on. You may hear the sound of the camera focusing, saimeo Sunoous

Features That Can Be Set Using the Multi Selector Adjusting Brightness (Exposure Compensation) By adjusting exposure compensation when taking pictures, you can adjust overall image brightness.

exposure compensation) on the multi selector. 2 Press the multi selector À or Y to select a compensation value. + To make the image brighter, apply positive (+) exposure compensation, + To make the image darker, apply negative (-) exposure compensation, Histogram Exposure compensation value 3 Pressthe ® button. 2 Hfthe @ burton is not pressed within a few seconds, the selection is set and the seting menu disappears + Even when the shutrer-release button is pressed without pressing the @ button, a picture can be shot using the selected compensation value. When an exposure compensation value ather than 0.0 is applied, the value is displayed with the FE icon on the monitor 4 Press the shutter-release button to take a ra] = picture. #5 2 To tumm off exposure compensation, return to step 1, change the value to 0.0. _. ARE Lean

Features That Can Be Set Using the Multi Selector Exposure Compensation Value + The changed exposure compensation value applied in P, S or À mode is saved in the cameras memory even after the camera is tumed off. + When the shooting mode is the Fireworks show scene mode (1150) or M (Manual) (CLI59), the exposure compensation cannot be used Using the Histogram A histogram is a graph showing the distribution of tones in the image. Use as a guide when using exposure compensation and shooting without the flash + The horizontal axis correspond to pixel brightness, with dark tones to the left and bright tones to the right. The vertical axis shows the number of pixels. + increasing exposure compensation shift tone distribution to the right, and decreasing it shifts tone distribution to the left. t of the Default Settings The default settings in each shooting mode are described below. + Similar information about scene mode can be found on the next page. Shootingmode | Flashmode’ | Selftimer | Focus mode En (és) (CA69) (272) er Ce] (auto) sat OFF AF° 00 (40) EFFECTS (special effects) | ®* OFF AF 00 (Css) Er M san OFF A 50 (User settings) SAI0 OFF AF 00 (63) When the flash is lowered, the flash mode is fixed at ® (off 2 AF (autofocus), $ (macro close-up) or A (infinity) can be selected: 3 The flash is fixed at © (off) when in High ISO monochrome or Silhouette + The setting applied in shooting modes P, S, A or M is saved in the camera's memory even after the camera is turned off (except for self-timer). Features That Cannot Be Used Simultaneously This feature may not be used in combination with certain features (C[80) saimeo Sunoous

Features That Can Be Set Using the Multi Selector The default settings in scene mode are described below. ; Exposure eue | Gun | Gro | compensation © OFF À! 00 © OFF A! 00 %© OFF AF' 00

© OFF? AF' 00 © Ci AF° 00 4©° OFF? AF' 00 $©7 OFF AFT 00

© OFF À! 00 © OFF À! 00 © OFF CA 00 © OFF CA o0 io |e' OFF MF 00 & (so [©@' OFF A' 00 ao [© OFF AF° 00 nn [@"° OFF? APT 00 #Œs) [© CS AF° 00 353 |©' Ci AF° o0 The setting cannot be changed Flash is fixed at # (fl flash) when HDR is set to Off, and is fixed at ® (off) when HDR is set 0 other than Off. SAT (auto) or ® (of can be selected. When SAIT (auto) is selected, the camera automatically selects the flash mode appropriate for the scene it has selected Self-timer or smile timer can be set. AF (autofocus) or MF (manual focus) can be selected: The setting cannot be changed. Fill flash fires for red-eye reduction: May switch to slow sync with red-eye reduction flash mode. AF (autofocus) or $ (macro close-up) can be selected. Flash is fixed at © (off) when using Noise reduction burst 19The setting cannot be changed when using Easy panorama. The setting cannot be changed when using Easy panorama. AF (autofocus), $ (macro close-up) or A (infini can be selected when using Panorama assist 12 The self-timer is not available. Pet portrait auto release (RA52) can be set to on or off.

The image quality (compression ratio) and image size can be selected for recording Available Image Quality Display the shooting screen > MENU button (CL113) > Shooting menu -> Image quality Lower compression ratios result in higher quality pictures, but also larger file sizes, limiting the number of pictures that can be recorded. Option Description Finer image quality than Normal, suitable for enlargement or Fine high-quality prints. Compression ratio of about 1:4 Normal (default | Normal image quality, suitable for most applications. NORM setting) Compression ratio of about 1:8 Basic image quality is lower than with Normal, suitable for BASIC Basic pictures attached to e-mails or used on web pages. Compression ratio of about 1:16 saimeo Sunoous Image Quality Setting + The setting for image quality is shawn by an icon displayed on the monitor during shooting and playback (CL8 to 10). + The image quality can be changed by selecting Image quality and rotating the command dial when menus are displayed. + The setting is also applied to ather shooting modes (except for shooting mode Ù or scene mode Easy panorama or 3D photography) + This feature may not be used in combination with certain features. See “Features That Cannot Be Used Simultaneoushÿ" (0180 for more information. More Information + See “Number of Exposures Remaining” (179) for more information + See ‘File and Folder Names” (8698) for more information.

Changing the Image Quality and Image Size Available Image Size Display the shooting screen > MENU button (CL113) > Shooting menu -> Image size You can set the image size (amount of pixels) for pictures recorded. The larger the image, the larger the size at which it can be printed or displayed without becoming noticeably “grainy; limiting the number of pictures that can be recorded. Conversely, small image sizes are suitable for pictures attached to e-mails or used on web pages. However, printing small images in large print sizes results in the image turning "grainy” Options® Description jy 4608x3456 Record pictures with finer detail than those shot at 3 3264x2448 (default setting) | or [* 2272x1704. [5 3264x2448 Good balance between file size and quality; suitable in most [#_2272x1704 Situations. Smaller than /84 4608x3456, (É: 3264x2448 and É 1600x1200 L 2272x1704; for recording more pictures. Y 40x480 Record pictures suitable for display on a television with a screen aspect ratio of 43, or for e-mail attachment. F9 4608x2592 = Record pictures with the same aspect ratio (16:9) as wide screen TV. #4 1920x1080 Record pictures with the same aspect ratio (3:2) as those shot with ÉF 4608x3072 35mm [135] format film cameres. L' 3456x3456 Record square pictures.

• The total number of pixels captured, and the number of pixels captured horzontally and vertically. Example: /84 4608 x 3456 = 16 megapixels, 4608 x 3456 pixels Image Size Setting The setting for the image size is shouin by an icon displayed on the monitor during shooting and playback (CL8 to 10). + The image size can be changed by selecting Image size and rotating the command dial when menus are displayed The setting is also applied to other shooting modes (except for shooting mode U or scene mode Easy panorama or 3D photography) This feature may not be used in combination with certain features. See “Features That Cannot Be Used Simultaneoushy” (1180) for more information.

Changing the Image Quality and Image Size Number of Exposures Remaining The following table lists the approximate number of pictures that can be stored in the internal memory and on a 4 GB memory card, at each combination of Image size (C[]/8) and Image quality (1177) settings. Note that the number of exposures that can be stored differs depending on the composition of the image (due to JPEG compression). In addition, this number may differ depending on the make of memory card, even ifthe capacity ofthe memory card is the same. - Image | Intenalmemory | Memory card! Pintse fesse quality (20 MB) (4 GB) (min) 4608x3456 Fine 11 470 1x (default Normal 19 840 | 39x29/15x 11.5 setting) Basic 35 1480 Fine 22 930 LE 32642448 Normal 39 1,650 28x21/11xX8 Basic 68 2,870 Fine 44 1,880 [ét 2272x1704 Normal 79 3350! 19x14/75X56 Basic 135 5,740 Fine E 3650 [2 1600x1200 Normal 149 6,350 13x 10/53 x4 Basic 247 10,000 Fine 517 20,100 YA 640x480 Normal 812 30,100 Sx4/2x15 Basic 1,137 40,200 Fine 14 620 159 4608x2592 Normal 26 1,120 39x22/15x85 Basic 46 1,970 Fine 81 3,440 #4 1920x1080 Normal 142 6,030 16x9/6x35 Basic 237 10,000 Fine 12 530 É? 4608x3072 Normal 22 950 | 39x 26/15 x 10 Basic 39 1,670 Fine 14 620 Li! 3456x3456 Normal 26 1,120 [29x29/115x 11.5 Basic 46 1,970 1 Ifthe number of exposures remaining is 10,000 or mare, "9999" is displayed 2 The print size at an output resolution of 300 dpi Print sizes are calculated by dividing the number of pixels by the printer resolution (dpi) and muktiplying by 2.54 cm (1 in.) However, even with the same image size setting, images printed at higher resolutions print smaller than the size indicated, and those printed at lower resolutions print larger than the size indicated BA Printing Images of Size 1:1 Change the printer setting to “Border” when printing images with the size set to 1:1 The images may not be printed in 1:1 ratio depending on the printer. See the instruction manual of the printer or check with the authorized print dealer for further details. soimeo 4 Sunoous

Some shooting settings cannot be used in combination with other functions. Restrictedfunction] Setting Description Focus mode When À (Infinity) s selected for shooting, the flash C2r2 is not available. When Continuous H, Continuous L, Pre- Continuous shooting cache, Continuous H: 120 fps, Flash mode C1) Continuous H: 60 fps, BSS or Multi-shot 16 is selected for shooting, the flash is not available. Exposure The flash 15 not available. bracketing Cr) Seltimer/Smile | AF area mode | When Subject tracking is selected for shooting, timer C6) the self timer/smile timer are not available. AF area mode When Subject tracking is selected, MF (manual g rousmode | focus) is not available. El € When Pre-shooting cache or Multi-shot 165 5 Image quality en selected for shooting, Image quality is fixed at 5 Œ6n Normal È + When Multi-shot 16 is selected for shooting, ë Image size is fixed at [5% (2560x1920 pixels). + When Pre-shooting cache is selected for shooting, Image size is fixed at (A (2048x1536 i ; Continuous pixels mage size 61) + When Continuous H: 120 fps is selected for shooting, Image size is fixed at V4 (640x480 pixels) and when Continuous H: 60 fps is selected, Image size is fixed at LA (1280X060 pixels) When Pre-shooting cache, Continuous H: 120 Continuous fps, Continuous H: 60 fps or Multi-shot 16 is (an) selected for shooting, ISO sensitivity is fixed at Auto. … + When 10 sensitivity is set to Auto and Active ISO sensitivity D-Lighting is set 10 any mode other than Off, Active D-Lighting C6) the maximum value for ISO sensiivity is set to ISO 800. + When Active D-Lighting is set 10 any mode other than Off for shooting, 1600, 3200 or Hi 1 in ISO sensitivity is not available.

Features That Cannot Be Used Simultaneously Restictedfunction| Setting Description White balance [PEU Control [When Monochrome is selected for shooting, (60) White balance is fixed at Auto (normal). Active D-Lighting When using Active D-Lighting for shooting, Picture Control Contrast in manual adjustment cannot be ns adjusted Metering Active D-Lighting | Metering is reset to Matrix when Active D- (62) Lighting is set 1 any mode other than Off. Continuous/ Exposure bracketing Continuous CMs1}/Exposure bracketing C6) Continuous and Exposure bracketing are not available simultaneousy. Exposure bracketing is reset 10 Off when Continuous is set 10 any mode other than Single. The setting for Continuous is reset 10 Single when Exposure bracketing is set to any mode other than Off SelFtimer (C69)/Smile timer (270) Continuous or Exposure bracketing and self timer/smile timer are not available simultaneously. Picture Control (Co) Exposure bracketing cannot be used when Monochrome is selected for shooting Smile timer The camera takes a picture using face detection Caro) regardiess of the applied AF area mode option + When a setting other than Subject tracking is AF area mode selected and A (infinity) is selected as the focus Focus mode mode for shooting, the camera focuses at infinity C2) regardiess of the applied AF area mode option. + When set to MF (manual focus), the AF area mode cannot be set. Smile timer Autofocus mode option cannot be changed when Caro) shooting with the smile timer. Focus mode When the focus mode is set to AÀ (Infinity), the Autofocus mode | 7; focus mode operates using the Single AF setting, AF area mode | When AF area mode is set 10 Face priority, AF C1) area mode operates using the Single AF setting. Active D- KO senstviy | When1SO sensitivityis set to 1600, 3200 or Hi, Lighting (61) Active D-Lighting is not available Contnuous When Pre-shooting cache, Continuous H: 120 Print date Cas) fps or Continuous H: 60 fps is selected for shooting, print date is not available. soimeo 4 Sunoous

Features That Cannot Be Used Simultaneously Restictedfunction| Setting Description Shurter sound is disabled when Continuous H, Continuous Continuous L, Pre-shooting cache, Continuous Car) H:120 fps, Continuous H: 60 fps, BSS, or Multi- Sound settings shot 16 is selected in the shooting menu. Exposure Shutter sound is disabled bracketing Cr) Smile timer Blink warning does not take effect when using the (C270y smile timer, Continuous is set to à setting other Blinkwaming | CO7inuous than Single, or exposure bracketing is set. 9 |(si)/Exposure bracketing Cr) Smile timer The digital zoom cannot be used when shooting (Cr) with the smile timer. e Focus mode The digital zoom cannot be used when MF EI 72) {manual focus) is selected. É Digitalzoom Continuous The digital zoom cannot be used when Multi-shot T ig! Cas) 16 is selected for shooting. È AF area mode | The digital zoom cannot be used when shooting ê Ca) with Subject tracking. Zoom memory | The digital zoom cannot be used when Zoom C62) memory is set 10 On. P% Notes on Digital Zoom + The digital zoom cannot be used with certain shooting modes. + When the digital zoom is in effect selectable options for AF area mode or metering mode are 82 "sticted (0682)

Features That Cannot Be Used Simultaneously The Control Range of the Shutter Speed (P, S, À, M Modes) The control range of the shutter speed differs depending on the aperture value or the ISO sensitivity setting. Additionally, the control range changes in the following continuous shooting settings. Setting Control range Auto?, Fixed range auto? 1/4000° to 1 s (P,S, À mode) 1/4000% to 8 s (M mode) ISO 100

1/4000% to 4 s (P,S, À mode) 1/4000% to 8 s (M mode) 150 sensitivity (161)! [55200400 1/40007 1045 ISO 800 1/4000% to 25 ISO 1600 1/4000% to 1 5 ISO 3200, Hi 1 1/40007 to 1/25 Continuous H, Continuous L, BSS 1/40007 to 1/30 5 Pre-shooting cache, Continuous (CHI6) | {shot 1e 1/4000 to 1/30 s Continuous H: 120 fps 1/4000 to 1/125 s Continuous H:60 fps 1/4000 to 1/60 s T° TheISO sensitivity setting is restricted depending on the continuous shooting setting (80) 2 In M mode, the ISO sensitivity is fixed at ISO 100. 3° The maximum shutter speed value varies depending on the aperture value. The shutter speed becomes slower when the aperture value is smaller. When the aperture value is set to f/3 (largest aperture), the shutter speed can be set to maximum 1/2000 second. When the value is set to f/83, the shutter speed can be set 10 maximum 1/4000 second soimeo 4 Sunoous

The focus area or focus range for adjusting focus varies depending on the shooting mode and focus mode (1172) In P,S, À. M or U mode, an area can be set to adjust focus by selecting AF area mode (161) in the shooting menu: The camera may be unable to focus on the subjects for which autofocus does not perform as expected ((1133). If the camera does not focus, try pressing the shutter-release button halfway several times or try focus lock (186) or manual focus (862) Using the Target Finding AF When AF area mode in Ê (auto) mode or P, S, A, M or Ù mode is set to Target finding AF, the camera will adjust the focus during the following operations if you press the shutter-release button halfwary. + When the camera detects the main subject, it focuses on that subject. When the subject is in focus, the focus areas (up to twelve areas) that match up with the size of the subject will light in green. When detecting a human face, the camera focuses on it as à priority. The camera has nine focus areas, and if it does not detect the main subject, it automatically selects the focus areas containing the subject closest to the camera. When the subject is in focus, the focus areas that are in focus (up to nine areas) light in green. Focus area P% Notes on Target Finding AF + Depending on shooting conditions, the subject that the camera determines to be the main subject may vary. + The camera may not detect the main subject appropriately in the following situations: - When the image shown an the monitor is very dark or bright - When the main subject lacks cleary defined colors = When the shot is framed so that the main subject is on the edge of the manitor - When the main subject is composed of a repeating pattern - When White balance is set to Preset manual, Incandescent or FL 1 in Fluorescent - When Picture Control is set to Monochrome

Focusing on Subject Using Face Detection In the following shooting modes, the camera uses face detection to automatically focus on human faces. Ifthe camera detects more than one face, a double border is displayed around the face that the camera will focus on, and single borders are displayed around the other faces. Number of faces that ÉREES can be detected Focus area (double border) Face priority 5 selected for AF area mode (T1) in P,S, A, M or U mode Scene auto selector, Portrait, Night portrait scene mode

{Smile timer) (270) Upto3 Up to 12 | The face closest to the camera The face closest to the center of the frame + When using Face priority, ifyou press the shutter-release button halfway while no faces are detected or while framing a shot with no faces in it, the camera automatically selects the focus areas (up to nine) that contain the subject closest to the camera. + When Scene auto selector is selected, the focus area changes depending on which scene the camera selects. + Ifno faces are detected when the shutter-release button is pressed halfway in Port portrait scene mode, the camera wil focus an the subject at the center ofthe frame. + When 5 (smile timer) is selected, f you press the shutter-release button halfway while no faces are detected, the camera will focus on the subject at the center ofthe frame. it or Night TZ Notes on Face Detection + The camera‘ ability to detect faces depends on a variety of factors, including whether or not the subject is facing the camera, Additional, the camera may be unable to detect faces in the following situations: When faces are partially hidden by sunglasses or otherwise abstructed When faces take up too much or too litle of the frame + When the frame includes more than one face, the faces detected by the camera and the face on which the camera focuses depend upan a variety af factors, including the direction in which the subject is facing + In some rare cases, such as those described in “Autofocus” (133), the subject may not be in focus even though the double border turs green. Ifthe camera does not focus, try “Focus Lock" (CLI86) BA viewing Pictures Taken Using Face Detection + During playback the camera automaticall rotates images according to the orientation of the faces that were detected at the time of shooting (except for pictures taken using Continuous (CH) or Exposure bracketing (LLIS1)) + When zooming in on an image displayed in full-frame playback mode by ratating the zoom control toward T (@), the image is enlarged at the center of the face that was detected during shooting (1135) (except for pictures taken using Continuous (CLIS!) or Exposure bracketing Cr). soimeo 4 Sunoous

Focusing on Subject Focus Lock Use focus lock to focus on off-center subjects when center is selected for AF area mode. To focus on off-center subjects when AF area mode (61) is set to Center in P, S. A.M orU mode, use focus lock as described below T Position the subject at the center ofthe frame. 2 Press the shutter-release button halfway. = + Subjectis in focus and the focus arealightsin | 4} green. + Exposure is also locked 3 Continue holding down the shutter- release button halfway and recompose the picture. +_ Be sure to maintain the same distance between the camera and the subject. 4 Press the shutter-release button all the way to take the picture.

d Playback Features This chapter describes the features available when playing back images. seimeospegfela

Playback Features When viewing images in full-frame playback mode or thumbnail playback mode, you can configure the following functions by pressing the MENU button to display the menu, and then selecting the D] tab C3) Option Description ea] Create retouched copies in which contrast and saturation have been enhanced L# Quick retouch!"23 Create copies with enhanced brightness and contrast, ighting!.? F D-Lighting brightening dark portions of an image. When this feature is enabled, the camera detects faces fi Skin softening'2 | in pictures taken and creates à copy with softer facial | &818 skin tones, Apply a variety of effects using digital filter. The Q Filter effects! 3 available effects are Selective color, Cross screen, CAE) Fisheye, Miniature effect and Painting When using a printer to print images saved on the memory card, the print order function can be used to select which images are printed, and how many copies of each image are printed & Print order 655 saimeospegfera . Images saved in the intemal memory or on à memoi Bi Slide show 2 nd u card are played back in an automatic slide show. êes7 On Protect Frotect selected images and movies from accidental | psg Specify the orientation in which saved images are image24 £ Rotate image displayed in playback mode.

Create a small copy ofthe picture taken. This feature is useful for creating copies for display on Web pages or _ | 6620 e-mail attachments. F& Small picture! ? Use the camera's microphone to record voice memos 8 Voice memo? 5 and attach them to the picture taken. Playback and é61 deletion of voice memos can also be performed Copy images between the internal memory and a EH Copy memory card. This function can also be used to copy | 6662 movies Black border! > Create a new picture surrounded by a black border. | @s21

Features Available in Playback Mode (Playback Menu) Option Description “ . Display a sequence of images shot continuously as M Sequence display | id dual images, or display only the key picture ofa | 6863 options sequence. Change the key picture for the series of pictures that EE Choose key picture [21€ ShOt continuous} (Pictures in a sequence, 8613) | ess + When changing this setting, select the desired sequence before displaying the menu This function is used to edit the currently selected image and save it as à separate ile from the original file. Note, however, that the following pictures cannot be edited.

• Pictures taken using an aspect ratio of 169, 32, or 1:1 (except when using the black border editing function) + Pictures taken using Easy panorama 0: 3D photography Note also that there is à restriction on retouching edited images (8615, 816) Picture that has been extracted from à movie cannot be edited. This function cannot be used for pictures in the sequence when only the key picture is displayed. To use this function, press the @ button to display individual images before displaying the menu. The function cannot be applied to pictures taken in scene mode 3D photography. 5° A voice memo cannot be attached to a picture that was shot using Easy panorama See "Editing Still Images” (8615) and ‘The Playback Menu” (855) in the Reference Section for more information about each function. seimeospegfela

sameopegfeld You can enhance your enjoyment of images and movies by connecting the camera to a TV, computer, or printer. + Before connecting the camera to an external device, make sure the remaining battery level is sufficient and turn the camera off. For information about the connection methods and subsequent operations, refer to the documentation included with the device in addition to this document. USB/audio/video output connector Le HDMI mini connector (Type C) How to open the connector cover Insert the plug straight. Viewing images on a TV CE You can view the cameras images and movies on a TV. Connection method: Connect the video and audio plugs ofthe included Audio Video Cable EG-CP16 to the TV input jacks. Alternatively, =) | connect a commercial available HDMI cable (Type © to the TV HDMI input jack. Viewing and organizing images on a computer ni Ifyou transfer images to a computer, you can perform simple retouching and manage image data in addition to playing back images Connection method: Connect the camera ta the computer USB input jack with the included USB Cable UC-E6. +_ Before connecting to a computer, install ViewNX 2 on the computer using the included ViewNX 2 Installer CD. See CT193 for more information about using the ViewNX 2 Installer CD and transfering images to à computer. +_Ifany USB devices that draw the power from the computer are connected, disconnect them from the computer before you connect the camera to it. Connecting the camera and other USB-powered devices to the same computer simultaneously may cause à camera malfunction or excessive power supply from the computer, which could damage the camera or memory card Printing images without using a computer 025 If you connect the camera to a PictBridge-compatible printer, you can print images without using à computer Connection method: Connect the camera directly ta the printers USB input jack with the included USB Cable UC-E6.

ViewNX 2 is an all-in-one software package which enables you to transfer, view, edit and share images. Install ViewNX 2 using the ViewNX 2 Installer CD. Your Imaging Toolbox E ViewNX 27" Installing ViewNX 2 + An Internet connection is required. Compatible Operating Systems Windows + Windows 7 Home Basic/Home Premium/Professional/Enterprise/Ultimate (Service Pack 1) + Windows Vista Home Basic/Home Premium/Business/Enterprise/Ultimate (Service Pack 2) + Windows XP Home Edition/Professional (Service Pack 3) Macintosh + MacOSX (version 10.58, 10.68, 10.72) Refer to the Nikon website for the latest information on operating system compatibility. À Startthe computer and insert the ViewNX 2 Installer CD into the CD- ROM drive. + Mac OS: When the ViewNX 2 window is displayed, double-clickthe Welcome icon seimeospegfela

Using ViewNX 2 2 Select a language in the language selection dialog to open the installation window. + lfthe desired language is not available, click Region Selection to choose a different region and then choose the desired language (the Region Selection button is not available in the European release). + Click Next to display the installation window. 3 Startthe installer. + We recommend clicking Installation Guide in the installation window to check the installation help information and system requirements before installing ViewNX 2 + Click Typical Installation (Recommended) in the installation window. 4 Download the software. + When the Software Download screen is displayed, click I agree. Begin download. + Follow the on-screen instructions to install the software. 5 Exitthe installer when the installation completion screen is displayed. + Windows: Click Yes. + Mac OS: Click OK. The following software is installed + ViewNX 2 (consisting of the three modules below) Nikon Transfer 2: For transferring images to the computer = ViewNX 2: For viewing, editing, and printing transferred images = Nikon Movie Editor: For basic editing of transferred movies + Panorama Maker 6 (for creating a single panorama photo using a series of images shot in panorama assist scene mode) + QuickTime (Windows only) 6 Remove the ViewNX 2 Installer CD from the CD-ROM drive.

Using ViewNX 2 Transferring Images to the Computer T Choose how images will be copied to the computer. Choose one of the following methods: + Direct USB connection: Turn the camera off and ensure that the memory card is inserted in the camera, Connect the camera to the computer using the included USB Cable UC-F6. The camera automatically turns on. To transfer images that are saved in the camera's internal memory, remove the memory card from the camera before connecting it to the computer. + SD card slot If your computer is equipped with an SD card slot, the card can be inserted directly in the slot. + SD card reader Connect a card reader (available separately from third-party suppliers) to the computer and insert the memory card some pegfel Ifa message is displayed prompting you to choose a program, select Nikon Transfer 2. + When using Windows 7 Ifthe dialog shown at right is displayed, follow the steps below to select Nikon Transfer 2 1 Under Import pictures and videos, click Change program. À program selection dialog will be displayed select Import File using Nikon Transfer 2 and click OK. 2 Double-click Import Ifthe memory card contains a large number of images, it may take a wihile for Nikon Transfer 2 to start. Wait until Nikon Transfer 2 start. TZ connecting the USB Cable The connection may not be recognized the camera is connected io the computer aa USBhub.

saimeospegfera Using ViewNX 2 2 Transfer images to the computer. + Confirm that the name ofthe connected camera or removable disk displayed as the “Source” on the “Options” ile bar of Nikon Transfer 2 (D) + Click Start Transfer (2)

+_ At default settings, al the images on the memory card will be copied to the computer. 3 Terminate the connection. +_lfthe camera is connected to the computer, turn the camera off and then disconnect the USB cable. +_ If you are using a card reader or card slot, choose the appropriate option in the computer operating system to eject the removable disk corresponding to the memory card and then remove the card from the card reader or card slot. Viewing Images Start ViewNX 2. +_ Images are displayed in ViewNX 2 when transfer is complete. + Consulr online help for more information on using ViewNX 2 BA starting ViewNX 2 Manually dows: Double-click the ViewNX 2 shortcut on the desktop. + MacOS: Click the ViewNX 2 icon in the Dock.

Recording and Playing Back Movies You can record movies by simply pressing the @ CR movie-recorci) button. sanonDpeg Bukeld pue Bupao3ou

Recording and Playing Back Movies You can record movies by simply pressing the @ (A movie-record) button: Color tones, white balance, and other settings are the same as they are when taking still images. Î Turn on the camera and display the shooting Movie option screen. +_ The movie options icon indicates the type of movie recorded. The default setting is BEh HD 1080p% (1920x1080) (CL199). When recording movies, the angle of view (Le, the area visible in the frame) is narrower than that of still pictures. Press the DISP (display) button and display the movie frame (A1 5) to check the range of à movie Maximum movie length* in a frame before recording, *_ The maximum movie length shown in the illustration differs from the actual value. 2 Press the @ (@ movie-record) button to start movie recording. + The camera focuses on the subject at the center of the frame. Focus areas are not displayed during recording. When the multi selector B is pressed during movie recording, the exposure is locked. To unlock, press Be again. When recording with the movie options of the aspect ratio of 16:9 (e.9, Movie options is Rléÿ HD 1080p x (1920x1080)), monitor display changes to an aspect ratio of 16: (the movie is recorded in the range shown in the screen on the right). The approximate remaining movie length is displayed De on the monitor. [M is displayed while saving to the internal memory: + Recording stops automatically when the maximum movie length has been recorded sanonbpeg Bukeld pue Gupio>eu 3 Pressthe @ (# movie-record) button again to end recording. L% Note on Recording Images and Saving Movies The indicator showing the number of exposures remaining or the indicator showing the maximum movie length flashes while images are being recorded or while a movie is being saved. Do not open the battery-chamber/memory card slot cover or remove the battery or memory card while an indicator is flashing. Doing this could result in loss of data, or in damage to the camera or the QG Merov card

Recording Movies P% Notes on Movie Recording + When saving a movie onto a memory card, a memory card with an SD speed class of Class 6 or higher is recommended (123). ff the transfer speed of the card is slow, the movie recording may end unexpectediy. Using the digital zoom causes image quality to deteriorate. you start recording the movie without using digital zoom, and you keep rotating the zoom control toward T, the zoom stops at the maximum optical 00m ratio. Release the zoom control and rotate it again toward T to trigger digital zoom, When recording ends, digital zoom turns off. The sounds of z0m control operation, zoom, autofocus, vibration reduction or aperture control when the brightness changes may be recorded The fallowing phenamena may be seen on the monitor while recarding movies. These phenomena are saved in the recorded movies. Banding may accur in images under fluorescent, mercury-vapor, or sodium-vapor lighting Subjects that move quickly from one side of the frame to the ather, such as a moving train or car, may appear skewed The entire movie image may be skewred when the camera is panned Lighting ar other bright areas may leave residual images when the camera is moved [% Notes on the Camera Temperature + The camera may become warm when recording movies for an extended period oftime or when the camera is used in a hot area + When the temperature inside the camera becomes extremely high while recording a movie, recording automatically stops after 5 seconds. The remaining amount of recording time (4 5 s) is displayed on the monitor. The camera turns offin 5 seconds after movie recording automatically stops. Leave the camera off until the inside of the camera has cooled and then use it. BA Focusing for Movie Recording + When Autofocus mode (02199) in the movie menu is set to AF-S Single AF (default setting), the focus is locked when the @ PM movie-record) button is pressed to start movie recording. To adjust the focus using the autofocus again while recording movies, press the multi selector + When the focus mode (01172) is MF (manual focus), adjust the focus manually. The focus can be adjusted by pressing the multi selector À (Far) or W (Nean while recording movies. + Autofocus may not perform as expected (133). Should this occur, try MF (manual focus) or the following methods

1. Before recording, set Autofoeus mode in the movie menu to AF-S Single AF (default setting)

2. Position a different subject at the same distance in the middle of the screen. Press the

Recording Movies Maximum Movie Length Movie options (199) HE TV rs HD 1080p% (1920x1080) 3751 25 min HD 1080p (1920x1080) 575 40 min HD 720p (1280x720) 1min25s 1h iFrame 540 (960x540) 335! 25 min VGA (640x480) Amin11s 2h 50 min Al figures are approximate. The maximum movie length varies with the make of the memory card and the bitrate of the recorded movie. 1° The maximum movie length for a single movie is 25 seconds. 2° The maximum movie length for a single movie is 4 GB or 29 minutes, even when there is sufficient free space on the memory card. The maximum movie recording time for a single movie is displayed during recording, Functions Available in Movie Recording + The exposure compensation and White balance settings in shooting menu (260) are also applied with movie recording. When focus mode is set to $ (macro close-up), the camera can 200m to a position closer to the subject to record movies. Confirm settings before starting movie recording. ‘The self-timer (0169) can be used. Ifthe self-timer is set and the @ PM movie-record) button is pressed, the camera starts movie recording after ten or twa seconds, The flash does not fre. Press the MENU button before starting to record the movie to display the "M8 (movie) tab and select movie menu settings (1199) Recording HS (High Speed) Movies When Movie options in movie menu is set to JEkg HS 120 fps (640x480), lg HS 60 fps (1280x720), or li HS 15 fps (1920x1080), movies that can be played back in slow motion or fast motion can be recorded (6666) More Information See ‘File and Folder Names” (8898) for more information.

Recording Movies Changing Movie Recording Settings (Movie Menu) The following option settings can be changed. Display the shooting screen > MENU button -> % tab (113) Option Description ea] Select the type of movie recorded, The camera can record normal speed movies and high speed (HS) movies, which | sgs4 can be played back in slow motion or fast motion. The default setting is FE HD 1080p % (1920x1080) Select how the camera focuses when recording normal speed movies. Single AF (default setting) where the focus is locked when movie recording begins, or Full-time AF where the camera Autofocus mode | focuses continuousiy during movie recording can be selected. | 8668 When Full-time AF is selected, the sound of the camera focusing may be heard in recorded movies. you want to prevent the sound of the camera focusing from being recorded, select Single AF. Movie options sainoy »peg Buifela pue Buip10224 More Information See “Note on the Command Dial Operation When Menus are Displayed" (CL 14) for more information 99

À Press the[#] (playback) button to select playback mode. + _ Press the multi selector to select a movie. + Movies can be recognized by the movie options icon (Css) 2 Press the @ button to play back a movie. Adjusting the volume Press the zoom control T/W (F2) during playback Operations available during movie playback Rotate the multi selector to fast forward or rewindl Playback controls appear at the top of the monitor. Press the multi selector 4 or B to select an icon of playback control, then press the @ button to perform PNR Matter the following operations. To Use Description Rewind Æ |Rewindthe movie while the @ button is pressed down. Advance Œ {Advance the movie while the @ button is pressed down. The following operations can be performed with the playback controls at the top of the monitor while playback is paused. a Rewind the movie by one frame. Hold down the 6 button to rewind continuous|y.* a ‘Advance the movie by one frame. Hold down the 6 Pause ou button to advance continuously" Extract and save only the required parts ofthe movie (6631). ea [Eee etacred frame From à movie as à st picture (6632). D |rsume playback sanonbpeg Bukeld pue Gupio>eu End © |rReun toful-frame playback mode.

• The movie can also be advanced or rewound by one frame by rotating the multi selector. To delete a movie, use full-frame playback mode (1134) or thumbnail playback mode (1135) to select a movie and press the ff button (1136) L% Note on Movie Playback 100 Movies recorded with cameras other than COOLPIX P510 cannot be played back.

Using GPS The Global Positioning System (GPS) is a satellite-based navigation system using the electro-magnetic waves of a network of GPS satellites placed into orbit. This chapter describes how to record the position information on the image using GPS.

The camera's internal GPS receives signals from the GPS satellites and calculates its current time and position. Calculation of the position is known as positioning. The position information (latitude and longitude) can be recorded on the pictures to be shot. To start recording of the position information, set GPS options to Record GPS data. Press the HENU button > # (GPS setting) tab (CL114) & GPS options Set Time zone and date ([11108) correctly before using the GPS function. À Use the multi selector to select Record GPS data, and then press the @ button. Update 2 Select On and press the @® button. + Signals are received from the GPS satellite and positioning starts. + The default setting is Off. 3 Press the MENU button. +_ The camera returns to shooting screen: Sao Susn + Operate in an open-air area when starting to receive signals from GPS satellites.

Starting GPS Data Recording PZ Notes on GPS I takes a few minutes to obtain position information when posiianing is performed for the first time or in a situation where positioning cannot be performed for a long period oftime, or just after the battery is replaced IfRecord GPS data is set to On while a log is recorded using Create log (1105), GPS functions even when the camera is tumed of. Positions of the GPS satellites change constantiy. You may not be able to determine the position rit may take some time depending on your location and the time. To use the GPS feature, use the camera in an open-ai area with a few obstacles in the sky. Signal receiving will be smoother ifthe GPS antenna (D) is facing the sky. Ifthe camera needs to be turned off inside an airplane or hospital set the Record GPS data to + The following locations which block or reflet signals may result in failed or inaccurate positioning. = Inside buildings or at the basement of buildings + Between high-rise buildings + Under overpasses = Inside tunnels + Near high-voltage electrical power lines + Between clusters oftrees + Undenwater Using a mobile phone of 1.5 GHz band near this camera may disrupt positioning When carrying this camera around while positioning, do not place it in a metal bag. Positioning cannot be performed if the camera is covered with metal materials. When there is a significant difference in the signal from the GPS satellite, there could be a deviation of up to several hundred meters. Be aware of your surroundings when positioning + The date and time ofthe cameras internal clock at the time of shooting is recorded at the date andtime of recording indicators displayed on the camera during playback The time obtained by the position information and recorded on images will not be displayed on the camera Position information will be recorded on the first frame of pictures shot using continuous shooting mode. + Positional information cannot be recorded onto movies. + The geodetic system for this camera's GPS function uses the WGS 84 Word Geodetic System 1984) do Buisn

Starting GPS Data Recording L% Note on Pictures with Recorded Position Information An individual may be identified from st pictures that have been recorded with location information, Observe caution when you transfer st pictures recorded with location information, or GPS log files to a third party or upload them to a network such as the Intemet were the public can view them Be sure to read "Disposing of Data Storage Devices" (CDN). P% Notes on Using the Camera with GPS Function Overseas + Before taking the camera with GPS function overseas for travel, consult your travel agency or embassy ofthe country you are visiting to confirm whether there is any restriction on use. For example, you cannot record location information logs without permission from the government in China Set the Record GPS data of the GPS options menu to Off. + The GPS may not function properly in China and on the borders between China and neighbouring countries. GPS Reception Indicator GPS reception can be checked on the shooting screen. GPS reception + Hé: Signals are being received from four or more satellites and determine position. Position information is recorded on the image. 888: Signals are being received from three satellites and determine position. Position information is recorded on the image. (&: Signals are being received from the satellite, but positioning is not possible. The position information is not recorded on the image. E'Signals cannot be received from the satellite, and positioning is not possible. The position information is not recorded on the image. Pictures with Recorded Position Information The & icon is displayed during playback for images which have the position information recorded Co. Position information recorded on a picture can be checked on a map with ViewiNX 2 after transfering the image to a computer (91) The actual place of shooting may differ from the GPS information recorded on the image files due tathe accuracy ofthe position information obtained and a difference in the geodetic system used.

In GPS options menu, the following option settings can be changed. Press the MENU button > (GPS setting) tab (L114) Option Descrip GPS options Record GPS data: When set 10 On, signals are being received from the GPS satellite and positioning starts (102). The default setting is Off. Signals from the GPS satellite are used to set the date and time of the cameras internal clock (only when Record GPS data in GPS options of the GPS options menu is set to On) Update A-GPS file. A memory card is used 10 update the A-GPS (assist GPS) file. Using the latest A-GPS file can shorten the time needed for tracking the position information Create log The measured tracking information is recorded until à preset time set usingStart log has elapsed at the interval set for Log interval (only when Record GPS data in GPS options of the GPS options menu is set to On) + Select End log and save the recorded log data to à memory card. View log You can check or erase the log data stored in a memory card by selecting Create log and then selecting End log. + When you select a log data and press the @ button, the movement route is displayed + To erase log data, select a log data and press the butron. [na] ee71

ee73 You can display the shooting location of an image (latitude, longitude, and current location ofthe movement being tracked for creating a log) by pressing the Fn button while a picture taken during log recording is displayed in the full-frame playback mode after storing the log data in a memory card

General Camera Setup This chapter describes the various settings that can be adjusted in the Ÿ setup menu. +_ See “Using Menus (the MENU Button)" (113) for more information about using the camera's menus. + For further details about each setting, refer to "The Setup Menu in the Reference Section (8874). des exeuie jeiuag

General Camera Setup Press the MENU button > Ÿ (setup) tab (CL113) From the menu screen, select the Ÿ tab to display the setup menu, and then you can change the following settings. Option Description Select the image displayed as the welcome screen when the camera is tumed on, Select COOLPIX 10 Welcome screen display the COOLPIX logo. Select Select an image 10 | 6674 use a picture taken with the camera as the welcome screen, The default setting is None Set settings related to the camera's date and time. The Time zone setting allows you to specify the time zone where the camera is mainly used and whether or not daylight saving time is in effect. When the D travel os destination is set, the camera automatically calculates the time difference between the travel destination and the À home time zone, and saves images using the date and time of the travel destination: Time zone and date Set the image display after shooting, the screen Monitor settings brightness and whether or not to display a framing grid | 6678 or histograms on the monitor. des exoue> jeJua9 Imprintthe shooting date and time on pictures at the time of shooting. The default setting is Off. + Dates cannot be imprinted in the following situations. = When the scene mode is set 10 Easy panorama, | sas Panorama assist, 01 3D photography - When Pre-shooting cache, Continuous H: 120 fps or Continuous H: 60 fps is selected for Continuous (61) in the shooting menu = During movie recording Print date Reduce blurring caused by camera shake when shooting. The default setting is On. Vibration reduction | When using a tripod to stabilize the camera, setthis | 680 feature to Off to prevent this feature from malfunctioning,

The Setup Menu Option Description pa] Motion detection When the camera detects camera shake or subject movement at the time of shooting, it automatically increases ISO sensitivity and shutter speed to reduce bluring. The default setting is Auto. The indicator lights in green when the camera detects camera shake or subject movement and increases shutter speed! + When using certain shooting modes or settings, motion is not detected. In this case the & indicator is not displayed. AF assist When set to Auto (default setting), the AF-assist illuminator (133) lights when shooting in dark surroundings to help the camera focus. + The illuminator has a range of about 40 m (13 fo) at the maximum wide-angle position and about 2.1 m Gt 10 in at the maximum telephoto position + Even if Auto is selected, the AF-assist iluminator may not light depending on the position ofthe focus area or the scene mode that is selected Digital zoom When set 10 On (default setting), when the optical 00m is at the maximum telephoto zoom position, rotating the zoom control toward T (Q) triggers the: digital zoom (131). +_ The digital zoom cannot be used simultaneously in certain settings such as the shooting mode. Assign side zoom control Select the function to be performed during shooting when the side zoom control is rotated. When set 10 Zoom (default setting), the zoom control operation is enabled Sound settings Turn various camera sounds on and off In the default setting, beep sounds are on. +_ The operation sound is disabled in certain settings such as shooting mode. Auto off Set the amount of time that passes before the monitor is turned off to save power. The default setting is 1 min, Format memory/ Format card Format the internal memory (only when a memory card is not inserted) or the memory card (when à memory. cardiis inserted) + All data stored in the internal memory or on the memory card is deleted during formatting and cannot be restored. Be sure to transfer important images to a computer and save them before formatting. Language Change the cameras display language. des exeuie jeiuag

The Setup Menu Option Description TVsettings Adjust settings for connection to television + When the camera is connected to a television using an audio/video cable but no picture is displayed on the television, set Video mode to NTSC or PAL according to the type of signal compatible with the television. + HDMI settings can be set. Fn button Assign the frequently used shooting menu to the Fn {FUNC) button. The default setiing is Continuous Charge by computer When set to Auto (default seting), you can charge the cameras battery by connecting the camera to à computer (provided that the computer is able to supply power) + When charging by computer, it may take more time to charge the battery than when using the Charging AC Adapter EH-69P. Additionally, when charging by. computer and transfering images to the computer, ittakes more time to charge the battery. Toggle Av/Tv selection Switch the method for setting the flexible program, shutter speed or aperture value. When Do not toggle selection (default setting) is selected, use the command dial to set the flexible program or shutter speed and use the multi selector to serthe aperture value. When Toggle selection is selected, use the multi selector to set the flexible program or shutter speed and use the command dial to set the aperture value. +_ This option is enabled only when the shooting mode isP.S A MorU Reset file numbering When Yes is selected, the sequential numbering of file numbers is reset, Afrer resetting, a new folder is created and the file number for the next image taken starts from *0001." Blink warning When the camera detects that a human subject may have closed the eyes immediately after taking a picture using face detection while shooting with modes other than the smile timer (185), the Did someone blink? screen is displayed on the monitor to check the picture taken. The default setting is Off. Filmstrip When On is selected, thumbnals of previous and subsequent images are displayed at the bottom of the monitor when you rotate the multi selector quickly. while viewing an image in ful-frame playback mode (2234). The defaut setting is Off.

The Setup Menu Option Description pa] Set whether or not to enable the function for sending Eye-Fi upload images to a computer using a commercially available | 6693 Eye-Fi card. The default setting is Disable. ai Serthe +/- display direction of exposure indicator to be Reverseindicators sed when the shooting mode is M. 6094 Reset the camera's settings to their default values Reset al + Some ofthe settings such as Timezone and date | #90, and Language and user settings that were saved for mode dial U are not reset.

Firmware version Display the current camera firmware version. More Information See “Note on the Command Dial Operation When Menus are Displayed" (CL 14) for more information. des exeuie jeiuag

&6 Reference Section The Reference Section provides detailed information and hints for using the camera Shooting Taking Pictures with Manual Focus Using Easy Panorama (Shooting and Playing back) Using Panorama Assist Using 3D Photograph P,S, A M Modes... Playback Playing and Deleting Images Captured Using Continuous Shooting Mode (Sequence) 6613 Editing Still Images . 615 Connecting the Camera to a TV (Viewing Images on a TV) 6623 Connecting the Camera to a Printer (Direct Print) 6625 Editing Movies . 6631 Menu Shooting Menu (P, S, A or M Mode) The Playback Menu. The Movie Menu. GPS Setting Menu The Setup Men

Unes aDua12joy Available when the shooting mode is P, S, A. M.U, special effects mode or the Sports scene mode. À Press the multi selector Y (# focus mode). + Use the multi selector to choose MF {manual focus) and press the @ button. + MFisdisplayed onthe top ofthe monitor, and the center area of a picture is enlarged. 2 Adjust the focus. + Use the multi selectorto adjust the focus while viewing the image on the monitor. Press A to focus on far subjects. Press Y to focus on near subjects. Press the shutter-release button halfway to checkthe composition. Press the shutter-release button all the way to take the picture. 3 Pressthe @® button. +_ The set focus is locked. You can continue shooting with the locked focus. + To readjust the focus, press the @ button again to display the screen in step 2. +_ To change back to autofocus, return to step 1 and choose any setting other than MF. MF (Manual Focus) focus behind and in front of the subject. side zoom control instead of À or Y in step 2. The digitalzoom is not available.

In step 2, the figure displayed with the gauge at the right ofthe monitor indicates an approximate distance (m) at which the subject can be in focus when the gauge is near the center. The actual range at which the subject can be in focus varies depending on the aperture value and z00m position. To see whether the subject is in focus, check the subject on the monitor. Press the shutter-release button halfway to preview an approximate depth of field (the area in Set Assign side zoom control (6083) in the setup menu to Manual focus to focus by using the

Taking Pictures with Easy Panorama Rotate the mode dial to SCENE -> HENU button > [1] Panorama À Select 5 Easy panorama and press the ® button. 2 Select the shooting range from H}° Normal (180°) or XF Wide (360°), and press the @ button. +_ The image sizes (W/ x H) when the camera is held in landscape orientation are as follows - ES Normal (180°): 3200 x 560 when the camera is moved horizontally, 1024 x 3200 when the camera is moved vertically - EÛF Wide (360°): 6400 x 560 when the camera is moved horizontally, 1024 x 6400 when the camera is moved vertically + Forthe image sizes when the camera is held in “tall orientation, the combinations of the moving direction and W x H are the opposites of the above. 3 Frame the first portion of the panorama scene, and press the shutter-release button halfway to adjust the focus. +_ The zoom is fixed at the wide-angle position. +_ The framing guide is displayed on the monitor. +_ The camera focuses on the subject at the center ofthe frame. + Exposure compensation (CL174) can be adjusted +_Ifthe focus or exposure cannot be set forthe main subject, try the focus lock (CL186)

Unes aDua12joy Using Easy Panorama (Shooting and Playing back) 4 Press the shutter-release button all the way, and release it. +_ The D icons showing the panorama direction are displayed 5 Move the camera straight and slowly in one of the four directions to start shooting. + When the camera detects the panorama direction, the shooting starts +_ The guide showing the current shooting point is displayed + When the guide showing the shooting point reaches the end, the shooting ends, Guide Example of moving the camera + The user, without shifting position, moves the camera, from end to end oftthe quide, horizontally or vertically in an arc. + Ifabout 15 seconds (in SJ? Normal (180°)) or 30 seconds (in EADF Wide (360°)) pass from the start of the shooting, and before the quide showing the shooting point reaches the end, the shooting ends. L% Notes on Easy Panorama Shooting + The image area seen in the saved image will be narrower than that seen on the monitor at the time of shooting. + When the camera movement speed is too fast, there is a large amount of camera shake or there is little change in subject such as wall or in the dark, the shooting ends in an error. + Panorama pictures are not saved when the shooting stops before reaching half of the panorama range + When the shooting reaches more than half of the panorama range but finishes before the end point, the range that is not shot will be recorded as a gray area.

Using Easy Panorama (Shooting and Playing back) Viewing Easy Panorama (Scroll) Switch to playback mode (1134), display the picture recorded with easy panorama in full-frame playback mode and press the @ button. The camera displays the short side of the picture filling the entire screen and scrolls the displayed area automatically. + ESP or EF is displayed for pictures recorded with easy panorama +_ The picture is scrolled in the direction of the panorama shooting, +_ Rotate the multi selector to advance or rewind. Playback controls are displayed at the top of the monitor during playback When you choose a playback control with the multi selector Æ orB and press the @ button, the following operations can be performed

Use Description Rewind Æ Scolquicy backwhile the @ button is pressed

Advance Scrol quickly forward while the @ button is pressed The following operations can be performed with the playback controls at the top of the monitor while playback is paused. Pause e | |renind while the @ button is pressed* D |Scol while the @ button is pressed.* Π|festartthe automatic scroll End BD {Run toful-frame playback mode.

• Scroling can also be performed by rotating the multi selector. P% Note on Viewing Pictures Recorded with Easy Panorama Panorama pictures recorded with functions other than easy panorama of the COOLPIX PS10 may not be scrolled or zoomed on this camera

Unes aDua12joy Using a tripod makes the composition easier. When using a tripod to stabilize the camera, set Vibration reduction (8680) to Off in the setup menu: Rotate the mode dial to SCENE -> HENU button > [1] Panorama 1 Select D Panorama assist and press the ® button. +_ The D icon is displayed to show the direction in which pictures are joined. 2 Use the multi selector to choose the direction, and press the @ button. Select the direction in which pictures are joined in the complete panorama: right (D) left (Q), up (S) or down (57). The yellow icon (DD) moves to the selected direction, so press the @ button to select the direction. A white icon (D) is displayed in the selected direction. Apply flash mode (66), self-timer (69), focus mode (72) and exposure compensation (074) settings with this step, if necessary. +_ Press the @ button again to reselect the direction. 3 Frame the first portion ofthe panorama scene, and take the first picture. [2 + The camera focuses on the subject at the center ofthe frame. ’ Zi +_ 1/3 ofthe image will be displayed as ranslucent. 4 Shoot the next picture. + Match the outline ofthe next picture 50 that 1/3 ofthe frame overlaps the previous picture, and press the shutter-release button: + Repeat until you have taken the necessary number of pictures to complete the image.

Using Panorama Assist 5 Press the @ button when shooting is completed. 2 The camera return to step 2. TZ Notes on Panorama Assist + Set the flash mode, self-timer, focus mode and exposure compensation before releasing the shutter for the first picture. The settings cannot be changed after shooting the first picture. Pictures cannot be deleted, nor can z00m, Image quality (CL]/7), or Image size (1178) be adjusted after shooting the first picture. + The panorama series is terminated if the auto off function (8684) triggers the standby mode during shooting. To prevent this, setting a longer time for the auto off function is recommended. AE/AF-L (Exposure Lock) Indicator When using panorama assist mode, al pictures in the panorama have the same exposure, white balance, and focus as the first picture ofthe panorama When the first picture is shot, AEÆFL is displayed on the monitor to indicate that exposure, white balance, and focus are locked. Panorama Creation with Panorama Maker 6

Transfer pictures to a computer (1193) and use Panorama Maker 6 to join them in a single panorama. + Panorama Maker 6 can be installed on a computer using the included ViewNX 2 Installer CD non). + After installation is complete, follow the procedure described below to start Panorama Maker 6. Windows: Choose Start menu>All Programs>ArcSoft Panorama Maker 6>Panorama Maker 6. Mac OS X: Open Appli + For more information an using Panorama Maker 6, refer ta the on-screen instructions and help information contained in Panorama Maker 6. tions and double-click the Panorama Maker 6 icon. More Information See ‘File and Folder Names” (8898) for more information.

Unes aDua12joy The camera takes one picture for each eye to simulate a three-dimensional image on a 3D-compatible TV or monitor. Rotate the mode dial to SCENE MEN button > 3D 3D photography

Frame the subject. +_ The focus area that the camera focuses on can be moved to areas other than the center of the frame. To move the focus area, press the @ button before taking the first picture, and then rotate the multi selector or press À, W, or D To adjust the following settings, press the @ button to temporarily cancel focus area selection, and then adjust each setting. - Focus mode (AF (Autofocus) or & (macro close-up)) — Exposure compensation Press the shutter-release button to take the first picture. + The focus, exposure and white balance are locked after the first shot, [2 and REF is displayed on the monitor. Move the camera horizontally to the right until the translucent guide is aligned with the subject. + To cancel shooting, press the @ button. à LE] Wait for the camera to automatically release the shutter. +_ The camera automatically takes the second picture when it detects that the subject is aligned with the guide + Shooting is canceled ifthe subject is not aligned with the guide within ten seconds.

Using 3D Photography TZ Taking 3D Pictures Moving subjects are not suited to 3D photography. We recommend shooting still subjects. Pictures have a less pronounced 3D feel as the distance between the camera and background is increased. Pictures may have a less pronounced 3D feel when the subject is dark or when the second picture is not aligned precisely. Be careful of camera shake when shoating at the telephota zoom position. The telephoto zoom position is restricted to an angle of view equivalent to that of about 135 mm lens in 35mm [135] format. The angle of view (le. the area visible in the frame) seen in the saved picture will be narrower than that seen on the monitor at the time of shooting. Pictures taken under dim lighting may appear grainy with noise. Ifthe camera does not take the second picture and cancels the shooting even when you align the guide with the subject, try shooting with the shutter-release button. DZ Notes on + 3D pictures cannot be played back in 3D on the camera monitor. See “Viewing 3D Photography" (0053) for more information. + When viewing 3D pictures on a 3D-compatible TV or monitor for an extended period of time, you may experience discomfort such as eye strain or nausea, Carefully read the documentation included with your TV or monitor to ensure proper use. wing 3D Pictures

P (Programmed auto), S (Shutter-priority auto) or A (Aperture-priority auto) À Rotate the mode dial to P, S or A. 2 Rotate the command dial or multi selector to set the exposure. + In P mode, the flexible program (M59) can be set using the command dial. + In $ mode, the shurter speed can be setin a range from a maximum speed of 1/4000 to 4 seconds using the command dial + In À mode, the aperture value can be set in a range of 3 to 83 (wide-angle position) andf/5.9 10 8.3 (telephoto zoom position) using the multi selector. 3 Frame the subject and shoot. + Inthe default setting, the camera has nine focus areas, = and automatically selects the focus areas containing the à 2 subject closest to the camera. When the subject is in focus, the focus areas that are in focus (up to nine areas) 4 light in green (6647)

Unes aDua12joy P% Notes on Shooting + When z00ming is performed after the exposure is set, exposure cambinations or aperture value may be changed. + When the subject is too dark or too bright, it may not be possible to obtain the appropriate exposure. In such cases, the shutter speed indicator or aperture value indicator flashes when the shutter-release button is pressed halfway. Change the shutter speed setting or aperture value. When settings such as ISO sensitivity (8645) are changed, the appropriate exposure may be obtained. Shutter Speed The control range of the shutter speed differs depending on the aperture value or the ISO sensitivity setting (83). &610

M (Manual) Mode The user controls both the shutter speed and aperture value. P.S, A M Modes +_ The shutter speed can be set in a range from à maximum speed of 1/4000 to 8 seconds T Rotate the mode dial to M. 2 Rotate the command dial to set a shutter speed. + See (59 for more information on exposure indicator. 3 Rotate the multi selector to set an aperture value. + Repeat steps 2 to 3 to adjust shutter speed and aperture value settings until the desired exposure is achievedi 4 Focus and shoot. +_In the default setting, the camera has nine focus areas, and automatically selects the focus areas containing the subject closest to the camera, When the subject is in focus, the focus areas that are in focus (up to nine

P.S, A M Modes L% Note on Shooting When zooming is performed after the exposure is set, aperture value may be changed. P% Note on ISO Sensitivity When 150 sensitivity (6645) is set to Auto [default setting) or Fixed range auto, ISO sensitivity is fixed at ISO 100. Shutter Speed The control range of the shutter speed differs depending on the aperture value or the ISO sensitivity setting (CLI83). Unes aDua12joy

The images shot in the following continuous shooting mode are saved as a group (called a "sequence") each time you shoot + Continuous H, Continuous L, Pre-shooting cache, Continuous H: 120 fps or Continuous H: 60 fps in Continuous (8641) in the shooting menu + Sports (46) or Continuous in the Pet portrait ([L152) scene mode Playing Images in a Sequence In full-frame playback mode or thumbnail playback Sequence display mode (1135), the first image of a sequence is used as the “key picture”, ie, it is displayed to represent the images in the sequence. While the key picture of a sequence is displayed in full- frame playback mode, press the @ button to display each image in the sequence individually. To return to key picture only display, press the multi selector À. The following operations can be performed when each image in a sequence is displayed individually. + Select an image: Rotate the multi selector or press € or Be. + Zoomin: Rotate the zoom control toward T (Q) (1135).

[% Note on Sequence Pictures captured continuously with cameras other than COOLPIX P510 cannot be displayed as a sequence ZA sequence Display Options Select Sequence display options (863) in the playback menu to set all sequences to be displayed using their key pictures or to display them as individual images. the sequence is selected when Sequence display options is set to Individual icon is displayed on the monitor.

Playing and Deleting Images Captured Using Continuous Shooting Mode (Sequence) Changing Key Picture in Sequence A sequence‘s key picture can be changed using Choose key picture (8663) in the playback menu. À Playback Menu Options Available When Using Sequence When the MENU button is pressed during an image sequence playback, the following menu operations are available. + Quickretouch! 6617 + Dighting! — 617 + Skin softening! —+ 6618 + Filter effects! —+ 6619 + Print order? +655 + Slideshow + 0657 + Protect? 6058 + Rotate image! + 6060 + Small picture! — 6620 + Voice memo! — 6661 + Copy 6662 + Blackborder! —+ 6621 + Sequence display options 663 + Choosekeypicture — 063 1° Press the MENU button after displaying individual images. Settings can be applied to individual images. 2 When the HENU button is pressed during displaying only the key picture, the same settings can be applied to all images in that sequence. Press the MENU button after displaÿing individual images to apply settings to individual images. Deleting Images in a Sequence When Sequence display options (8663) is set to Key picture only in the playback menu, if the ff button is pressed and the deletion method is selected, the following images are deleted + When a sequence is displayed by its key picture only Current image: When the sequence is selected, all images in the sequence are deleted. Erase selected images: When the key picture is selected in the erase selected images screen (1137), all images in the sequence are deleted Allimages: Al! images including the sequence that is displayed are deleted. Ifthe key picture is selected and the @ button is pressed to display individual images in the sequence before pressing the fj button: The deletion methods change to the followings. Erase current picture: Delete the image that is © displayed -_ Erase selected images: Select multiple images in the sequence to delete in the erase selected images screen (137). Erase entire sequence: All images in the sequence, including the image that is displayed, are deleted. Unes aDua12joy

Editing Features Images can be easily edited with this camera using the functions below. Edited images are stored as separate files (6698) Editing function Application Quick retouch (817) | Easily create a copy with enhanced contrast and richer colors. Create a copy of the current picture with enhanced brightness D-Lighting (8617) and contrast, brightening dark portions of the picture. Skin softening (8618) | Make the facial skin tones softer. Apply a variety of effects using digital filter effects. The available Filter effects (6619) | effects are Selective color, Cross screen, Fisheye, Miniature effect and Painting Smal picture (20) | Cr 2 small copy of pictures suitable for uses such as e-mail atrachments. Add a black frame around the picture. Use when you want to Blackborder (8621) | id à black border to a picture. Crop a portion ofthe picture. Use to zoom in on a subject or Crop (6622) arrange à composition. L% Notes on Image Editing + The following pictures cannot be edited. - Pictures taken using an aspect ratio of 16, 3:2, or 1:1 (except when using the black border editing function) - Pictures taken using Easy panorama or 3D photography - Pictures taken with cameras other than COOLPIX PS10 + When no faces are detected in the picture, skin softening cannot be applied (6% 18). + fa copy created using the COOLPIX PS10 is viewed on a different digital camera, it may not be possible to display the picture propery or transfer it to à computer. + Editing functians are not available when there is not enough free space in the internal memory or on the memory card. + For a sequence displayed using the key picture only setting (813), perform one of the following operations before editing. - Press the @ button to display individual images, and then select an image in the sequence - Set Sequence display options (8062) 10 Individual pictures so that each image is displayed individually, and then select an image

Editing Still Images tions on Image Editing The following restrictions apply when editing pictures that were created by editing Editing functions used Editing functions to add Skin softening, Fiter effects, Small picture, Black border or Crop Quick retouch can be used D-Lighting Quick retouch and D-Lighting cannot be used in combination with each other. Quick retouch, D-Lighting, Filter effects, Small picture, Black Skin softening border or Crop can be used. Quick retouch, D-Lighting, Skin softening, Small picture, Black Fiiteneffects border or Crop can be used. Small picture No additional editing functions can be used! Black border Small picture can be used Crop Black border can be used! Copies created by editing cannot be edited again using the same editing function. To use an editing function together with small picture, use the other editing function first, and use small picture as the last editing function performed on that picture. Pictures that were taken using skin softening can be edited using skin softening. Picture that has been extracted from a movie cannot be edited using the quick retouch or skin softening function. Original Pictures and Edited Copies Copies created with editing functions are not deleted if the original pictures are deleted. The original pictures are not deleted if copies created with editing functions are deleted Edited copies are stored with the same shooting date and time as the original. Even ifthe pictures that are marked for Print order (6055) or Protect (858) are used for editing, these settings are not reflected on the edited copies. Unes aDua12joy é616

Editing Still Images L# Quick Retouch: Enhancing Contrast and Saturation Select a picture (21134) > MENU button (1113) > L$ Quick retouch Press the multi selector À or Y to choose the setting level, and press the @ button. +_ The original version is displayed on the left and the edited version is displayed on the right. + To cancel, press € Quick retouch + Quick retouched copies can be recognized by the F4 icon displayed in playback mode. Eh D-Lighting: Enhancing Brightness and Contrast Select a picture (1134) > MENU button (13) > Eh D-ighting Press the multi selector À or Y to choose the setting level, and press the @ button. +_ The original version is displayed on the left and the edited version is displayed on the right. + To cancel, press € D:Lightng Uoh29S aDUa19jou + D-Lighting copies can be recognized by the Bi icon displayed in playback mode. More Information See ‘File and Folder Names” (8898) for more information.

Editing Still Images F5 Skin Softening: Softening Skin Tones Select a picture (1134) > MENU button (CL113) > Fi Skin softening T Press the multi selector À or Y to choose the setting level, and press the @ button. +_ A confirmation screen is displayed, and the image is displayed zoomed in on the face edited by skin softening, + To cancel, press € Skin softening 2 Confirm the results. Up to 12 faces, in order of proximity to the center ofthe frame, can be enhanced When multiple faces are edited using skin softening, use the multi selector Æ or B to switch the face that is displayed To adjust the extent of skin softening, press the MENU button and return to step 1 To create a copy edited with skin softening, press the @ button. Copies created by editing with skin softening can be recognized by the BF icon displayed in playback mode. Unes aDua12joy L% Notes on Skin Softening + Depending on conditions such as the direction the subject is facing or the brightness of the face, the face may not be detected properiy, or the desired effect may not be achieved. + Ifno faces are detected in the image, a warning is displayed and the screen returns to the playback menu A More Information See ‘File and Folder Names” (6698) for more information.

Editing Still Images @ Filter Effects: Applying Digital Filter Effects Select a picture (1134) > MENU button (1113) > Q Filter effects Option Description Keep only the selected image color and make other colors Selective color bad andwhite Produce star-like rays of light that radiate outward from bright Cross screen objects such as sunlight reflections and city lights. Suitable for night scenes. Create images that look like they were shot with a fisheye lens. Fisheye Suitable for pictures shot in macro mode. Create images that look like close-up photos of a diorama: Miniature effect Suitable for pictures shot while looking down from a high location, with the main subject near the center of the frame. Painting Create images with the ambience of painting. T Press the multiselector À or Y to choose the filter effect type, and press the @ button. + When Cross screen Fisheye, Miniature effect or Painting is selected, proceed to step 3 2 Adjust the effect and press the @ button. + Selective color: Press À or Y to select the color to keep.

Editing Still Images 3 Confirm the result and press the @ button. + A news, edited copy is created + To cancel, press € + Copies created by editing with fier effects can be recognized by the © icon displayed in playback mode. Fa Small Picture: Reducing the Size of an Image Select a picture (2134) > MENU button (CL113) > Fm Small picture T Press the multi selector À or Y to choose the desired copy size, and press the @ button. + The available sizes are 640x480, 320x240 and 160x120. 160x120 Unes aDua12joy 2 Choose Yes and press the @® button. + Anew, smaller copy is created +_ Image quality is saved as Basic (compression ratio of about 1:16). + To cancel, choose No and press the @ button. + Copies created by editing with small picture editing function are displayed with a black frame. More Information See ‘File and Folder Names” (8898) for more information.

Editing Still Images Black Border: Adding a Black Border to Pictures Select a picture (C134) > MENU button (113) > À Press the multiselector À or Y tochoosethe rem _ desired frame thickness, and press the @ D button. en + Choose à frame thickness from Thin, Medium or Broad line. 2 Choose Yes and press the @® button. + A new copy with a black border is created. + To cancel, choose No and press the @ button. + Copies created by editing with black border editing function can be recognized by the FH icon displayed in playback mode. P% Notes on Black Border + À part ofthe picture equivalent to the thickness of the black border is cut off because the black border overlaps the picture. + When a picture with a black border is printed using a printers barderless print function, the black border may not be printed More Information See ‘File and Folder Names” (698) for more information.

Editing Still Images 8 Crop: Creating a Cropped Copy Create a copy containing only the portion visible on the monitor when II:S is displayed with playback zoom (1135) enabled. Cropped copies are stored as separate files. Ÿ Enlarge the picture for cropping (CL135). 2 Refine copy composition. + Rotate the zoom control toward T (Q) or W (3) to adjust the zoom ratio. + Press the multi selector À, Ÿ, € or B to scroll the picture until only the portion you want to copy is visible on the monitor. 3 Press the MENU button. 4 Use the multi selector to choose Yes, and press the @ button. + Anew cropped copy is created. + To cancel, choose No and press the @ button. Unes aDua12joy Image Size The narrower the cropping range, the smaller the size (amount of pixels) ofthe cropped picture copy. When the image size setting is resized to 320 x 240 or 160 x 120 by cropping, a black frame appears around the picture during playback and the É3 small picture icon is displayed on the left side ofthe monitor. Cropping the Picture in its Current “Tall” Orientation Use the Rotate image option (8660) to rotate the picture so that it is displayed in landscape orientation. After cropping the picture, rotate the cropped picture back to “tall” orientation. The picture displayed in “tall orientation can be cropped by zo0ming in on the picture until the black bars displayed on the both sides of the monitor disappear. The cropped picture is displayed in landscape orientation. BA more Information See ‘File and Folder Names” (6698) for more information.

Connect the camera to a television to play back pictures on the television. If your television is equipped with an HDMI connector, you can connect it to the camera with a commercially available HDMI cable to play back pictures. À Tumoffthe camera. 2 Connect the camera to the TV. When connecting using the included audio/video cable + Connect the yellow plug to the video-in jack on the TV, and the red and white plugs to the audio-in jack. Yellow White Red When connecting using a commercially available HDMI cable + Connect the plug to the HDMI input connector on the TV.

Connecting the Camera to a TV (Viewing Images on a TV) 3 Tune the television to the video channel. + See the instruction manual provided with your TV for details. 4° Hold down the [>] button to turn on the — r camera. MU | +_ The camera enters playback mode, and the recorded [ON | pictures are displayed on the TV. TE SEX + While the camera is connected to the TV, the monitor remains off. L% Notes on Connecting an HDMI Cable An HDMI cable is not included. Use a commercially available HDMI cable to connect the camera to a TV. The output terminal on this camera is à HDMI Mini Connector (Type C). When purchasing an HDMI cable, be sure that the device end ofthe cable is a HDMI Mini Connector. P% Notes on Connecting the Cable + When connecting the cable, be sure that the plug is oriented correctly. Da not force the plug into the camera. When disconnecting the cable, do not pull the plug at an angle. + Do not connect cables to the HDMI mini connector and USB/audio video connector simultaneously. LZ when Nothing Appears on the TV Make sure that TV settings (6086) in the setup menu is appropriate for your television. Unes aDua12joy Using the TV's Remote Control (HDMI Device Control) The remote control ofa TV that conforms to the HDMI-CEC standard can be used to operate the camera during playback Instead ofthe multi selector or zoom control, the remote control can be used for picture selection, playback/pause of movies, switching between full-frame playback and 4-picture thumbnail display, etc. + Set HDMI device control (8686) of TV settings to On (default setting) in the setup menu, and connect the camera to the TV with an HDMI cable. + Point the remote control at the TV to operate. + See your TV instruction manual or other related documentation to check whether your TV conforms to the HDMI-CEC standard.

Users of PictBridge-compatible (8:18) printers can connect the camera directly to the printer and print pictures without using a computer. The steps for printing are as follows. ( Take pictures ] Choose the pictures for printing using the print order option {Print order. 6655) ( Connect the camera to the printer (8626) ] Print multiple pictures (6028) ] Print individual pictures (8627) When printing is complete, turn the camera off and disconnect the USB cable P% Notes on Power Source « When connecting the camera to a printer, use a fully charged battery to prevent the camera from turning off unexpectedly. + Ifthe AC Adapter EH-62A (available separately) (66100) is used, COOLPIX P510 can be powered from an electrical outlet. Do not, under any circumstances, use an AC Adapter other than the EH- 62A Failure to observe this precaution could result in overheating or damage to the camera.

Printing Pictures In addition to printing pictures transferred to a computer and printing pictures with a direct camera- to-printer connection, the following options are also available for printing pictures recorded on the memory card! + Insert a memory card into a DPOF-compatible printer card slot. + Take a memory card to a digital photo lab. For printing using these methods, specify the pictures and the number of prints each using the Print order (855) option in the playback menu.

Connecting the Camera to a Printer (Direct Print) Connecting the Camera to a Printer À Tumoffthe camera. 2 Tumonthe printer. + Check the printer settings. 3 Connect the camera to the printer using the included USB cable. + Be sure that the plug is oriented correctiy. When disconnecting the cable, do not pull the plug at an angle. 4 The camera is automatically turned on. + When connected correct}, the PictBridge startup screen (D) is displayed on the camera monitor. Then the Print selection screen (()) is displayed. Unes aDua12joy TZ ifthe PictBridge Startup Screen Is Not Turn the camera off and disconnect the USB cable. Set the Charge by computer option (888) in the cameref setup menu to Off and reconnect the cable.

Connecting the Camera to a Printer (Direct Print) Printing Individual Images After connecting the camera to the printer correctly (8826), print pictures by following the procedure below T Use the multiselector to choose the picture to be printed, and press the @ button. +_Rotate the zoom control toward W (Æ3) to display 12 thumbnails, or toward T (@) to switch back to full- frame playback mode. 2 Choose Copies and press the @ button.

Start print 3 Choose the number of copies (up to nine) and press the @ button. 4 Choose Paper size and press the @ button. art print More Information See “Printing Images of Size 1:1° (0170) for more information.

Connecting the Camera to a Printer (Direct Print) 5 Choose the desired paper size and press the @ button. + To specify the paper size using the printer settings, choose Default in the paper size menu. 100% 150 mm Bxto Letter 6 Choose Start print and press the @ button. Bridge pires 7 Printing starts. + The monitor display returns to that shown in step 1 when printing is complete. + To cancel before al copies have been printed, press the @ button. Printing Æcancel Current print/total number of prints Printing Multiple Images After connecting the camera to the printer correctly (8826), print pictures by following the procedure below Unes aDua12joy 1 When the Print selection screen is displayed, press the MENU button. 2 Use the multi selector to choose Paper size, eee and press the @ button. PrNE Selection + To exit the print menu, press the MENU button. ë

Connecting the Camera to a Printer (Direct Print) Choose the desired paper size and press the @ button. + To specify the paper size using the printer settings, choose Default in the paper size menu 4x6 in. 8x10 in. Lenter Choose Print selection, Print all images or Printmenu DPOF printing and press the @ button. Print all images Print selection Choose the pictures (up to à maximum of 99) and number of copies (up to nine per picture) Press the multi selector or B 10 choose the pictures, and press À or Y to set the number of copies for each. Pictures selected for printing can be recognized by the check mark icon and the numeral indicating the number of copies to be printed. À check mark is not displayed with pictures for which no copies have been specified and these pictures are not printed! Rotate the zoom control toward T (@) to switch to full-frame playback mode, or W (Æ3) to switch to 12 thumbnail display. + Press the @ button when setting is complete. When the menu shown on the right is 5 displayed, choose Start print and press the @ button to start printing Donne Choose Cancel and press the @ button to return to the print menu

Unes aDua12joy Connecting the Camera to a Printer (Direct Print) Print all images All pictures stored in the internal memory or on the memory card are printed one per each. + When the menu shown on the right is displayed, choose Start print and press the @ button to start printing + Choose Cancel and press the @ button to return to the print menu DPOF printing Pictures for which a print order was created in Print order option (8655) can be printed. + When the menu shown on the right is displayed, choose Start print and press the @ button to start printing + Choose Cancel and press the @ button to return to the print menu +_ To view the current print order, choose View images and press the @ button. To print pictures, press the @ button again. 5 Printing starts. + The monitor display returns to that shown in step 2 when printing is complete. + To cancel before al copies have been printed, press the @ button. BA Paper Size Print all imag Los Printing Cancel Current print/total number of prints The camera supports the following paper sizes: Default (the default paper size for the current printer, 3.5x5 in. 5x7 in. 100x150 mm, 4x6 in. 8x1 supported by the current printer are displayed.

Letter, A3, and A4. Only sizes

Extracting Only the Desired Portions of the Movie The desired portions of a recorded movie can be saved as a separate file. T Play backthe movie to be edited and pause at the start point of the portion that is to be extracted (C[]100). 2 Use the multi selector € or B to choose [ummeme | onthe playback control, and press the button. +_ The movie editing screen is displayed. 3 Press A or Y to choose Æ (Choose start point) on the editing playback control. + Rotate the multi selector or press or B to adjust the start position + To cancel press À or W 10 choose € (Back) and press the @ button. 4 Press A or Y to choose :# (Choose end point). + Rotate the multi selector or press 4 or B to move the end point at the right end to the end position of the required section. To check the playback ofthe movie in the specified range before saving it, choose [7] (Preview) and press the @ button. During preview playback the volume can be adjusted with the zoom control T/W. Use the multi selector to fast forward or rewind. To stop the preview playback press the @ button again.

5 After finishing the settings, press A or Y to choose [‘] (Save) and press the @ button. 6 Choose Yes and press the @ button. + _The edited movie is saved. + To cancel the saving, choose No.

Editing Movies P% Notes on Editing Movies Use a fully charged battery to prevent the camera from tuming off during editing, When the battery level is Œl, movie editing is not possible. + Once a movie is created through editing, it cannot be used again for extracting a movie. To extract another range, select and edit the original movie. Because the edited movies are extracted in 1-second units, they may vary slightly from the set start point and end point. Sections shorter than two seconds cannot be extracted Editing functions are not available when there is not enough free space in the intemal memory or on the memory card. More Information See ‘File and Folder Names” (698) for more information. Saving a Frame from a Movie as a Still Picture A frame from a recorded movie can be extracted and saved as a still picture. + Pause a movie and display the frame to be extracted Œ00) Choose F#4 on the playback control with the multi selector € or and press the @ button. When the confirmation dialog is displayed, choose Yes and press the @ button to save. To cancel the saving, choose No: The still picture is saved with Normal as the image quality. The image size is determined by the type {image size) (8864) of the original movie. For example, a still picture saved from à movie recorded with EE HD 1080p % (1920x1080) is # (1920 x 1080 pixels). Unes aDua12joy

Image Quality and Image Size To set the image quality and image size, see “Changing the Image Quality and Image Size” (1177) Picture Control (COOLPIX Picture Control) > Picture Control Rotate the mode dial to P, S, À or M HENU button > P, S, À or M tab ([[113) Change the settings for image recording according to the shooting scene or your preferences. Sharpness, contrast and saturation can be adjusted in detail Types of COOLPIX Picture Control

Option Description DAS Standard processing for balanced results. Recommended for Sting) most situations. B Neutrl Minimal processing for natural results. Choose for pictures that will later be extensively processed or retouched. Pictures are enhanced for a vid, photoprint effect. Choose for B vid pictures that emphasize primary colors, such as blue, red, and green Æ Monochrome | k€ Monochrome photographs such sin black-andwhite or sepia B cuomt Change to the setting for Custom 1 in COOLPIX Custom Picture Control Custom 2° Change to the setting for Custom 2 in COOLPIX Custom Picture Control.

• Only displayed when the setting customized in Custom Picture Control (837) has been registered The icon for the current setting other than Standard is displayed on the monitor (C8) TZ Notes on COOLPIX Picture Control + The COOLPIX Picture Control feature of the COOLPIX P510 cannot be used with other makes of cameras, Capture NX, Capture NX 2 and ViewNX 2 Picture Control feature. + This feature may not be used in combination with certain features. See “Features That Cannot Be Used Simultaneously" (180) for more information.

Shooting Menu (P, S, À or M Mode) ure Controls: Quick Adjust and Manual Adjust COOLPIX Picture Control can be customized using Quick adjust, which allows for balanced adjustment of sharpness, contrast, saturation and other image editing components, or manual adjust, which allows for detailed adjusting of the components individually. À Use the multi selector to choose the type of COOLPIX Picture Control, and press the ® button. 2 Press A or Y to highlight the desired setting Em (8835) and press € or to choose a value. + Press the @ button to set the value. + When COOLPIX Picture Controls are modified from the default settings, an asterisk (*) is displayed after the options in the Picture Control Setting menu. +_ To change the values to the default setting, select Reset and press the @ button Unes aDua12joy View Grid of COOLPIX Picture Control When the zoom control is rotated toward T () while the screen in step 1 ofthe above procedure is displayed, the contrast and saturation are displayed using a grid. The vertical axis indicates the contrast level, and the horizontal axis indicates the saturation. Rotate the zoom control toward T (@) again to return to the previous screen The COOLPIX Picture Control grid displays the current and default settings in relation to the ather COOLPIX Picture Controls. + Rotate the multi selector to change to other COOLPIX Picture Controls. + Press the @ button to display the COOLPIX Picture Control Setting screen (step 2 above) + For Monochrome, the grid is displayed for contrast only. + The grid is also displayed when adjusting Contrast or Sati

n with manual adjustment

Shooting Menu (P, S, A or M Mode) Types of Quick Adjust and Manual Adjust Option Description Adjust the sharpness, contrast and saturation levels automatically. Five levels of adjustment are available from -2 to Quick adjust ! be Choose from options between -2 and +2 to reduce or emphasize the effect of the selected COOLPIX Picture Control The default setting is 0. Image sharpening Control how much outlines are sharpened during shooting Choose A (auto) to adjust sharpening automatically, or choose from seven levels of adjustment between 0 (no sharpening) and

The higher the number, the sharper the image, and the lower the number, the softer the image. The default setting is 3 for Standard or Monochrome, 2 for Neutral and 4 for Vivid Contrast Control the contrast. Choose A (auto) to adjust the contrast automatically according to the type of scene, or choose from seven levels of adjustment between -3 and +3. makes it into an image with a softer appearance, and + gives it à harder appearance. Choose lower values to prevent highlights in portrait subjects from being ‘washed out’ in direct sunlight, higher values to preserve detail in misty landscapes and other low-contrast subjects The default setting is 0. Saturation ? Control the vividness of colors. Choose À (auto) to adjust saturation automatically according to the type of scene, or seven levels of adjustment can be done by choosing from values between -3 and +3. Setting to the - side reduces the vividness, and setting to the + side increases the vividness. ‘The default setting is 0. Filter effects ? Simulate the effect of color flters on monochrome photographs Choose from OFF (the defauit setting), Y (yellow), © (orange), R {red}, and G (green) Y,O.R Enhance contrast. Can be used to tone down the brightness of the sky in landscape photographs. The contrast is strengthened in the order Y — OR. Soften skin tones. Suitable for portraits.

Shooting Menu (P, S, À or M Mode) Option Description Control the tint used in monochrome photographs from B&W {black-and-white, the default setting), Sepia, and Cyanotype {blue-tinted monochrome) Pressing the rotary multi selector Y when Sepia or Cyanotype is selected enables you to choose from seven levels of gradation Press € orB to adjust the saturation Toning À 1 Quick adjust is not available in Neutral, Monochrome, Custom 1 and Custom 2 The values set manually are disabled if quick adjust is used after manual setting.

2. Not displayed for Monochrome

Onty displayed for Monochrome L% Note on Image Sharpening The effects ofImage sharpening cannot be previewved on the monitor during shooting. Check the resus in playback mode Unes aDua12joy P% Note on Contrast When Active D-Lighting (6053) is set to settings other than Off, the MA marks displayed for Contrast and Contrast cannot be adjusted TZ contrast, Saturation and A (Auto) + Results for contrast and saturation vary with the exposure, and the position and size ofthe subject in the frame. + The setting for the COOLPIX Picture Control which has À (auto) selected for either Contrast or Saturation is displayed in green in the COOLPIX Picture Control grid Options that Can Be Adjusted in Custom 1 and Custom 2 The option ofthe original COOLPIX Picture Control can be adjusted if Custom 1 or Custom 2 is selected

Shooting Menu (P, S, A or M Mode) Custom Picture Control (COOLPIX Custom Picture Control) Rotate the mode dial to P, S, A or M > HENU button > P, S, A or M tab (113) + Custom Picture Control The picture editing options created by customizing COOLPIX Custom Picture Controls can be registered up to two options. The registered options can be displayed as Custom 1 and Custom 2 in COOLPIX Custom Picture Control Creating COOLPIX Custom Picture Controls À Use the multi selector to choose Edit and save, and press the @ button. Del 2 Choosethe original COOLPIX Picture Control (8634) to be edited, and press the @ button. 3 Press A or Y to highlight the desired setting and press € or to choose a value (6634). +_ The options are the same as those for adjusting the COOLPIX Picture Control. + Press the @ button to display the Save as screen +_ To change the values to the default setting, select Reset and press the @ button 4 Choose the registration destination and press the @ button. +_The COOLPIX Custom Picture Control is registered. + Custom 1 or Custom 2 can be selected from the Picture Control and Custom Picture Control selection screen after registration.

Custom 2 Deleting COOLPIX Custom Picture Controls Select Delete in step 1 of Creating COOLPIX Custom Picture Contrals” to delete a registered Custom Picture Control

Shooting Menu (P, S, À or M Mode) White Balance (Adjusting Hue) Rotate the mode dial to P, S, À or M HENU button > P, S, À or M tab ([[113) + White balance The color of light reflected from an object varies with the color of the light source. The human brain is able to adapt to changes in the color of the light source, with the result that white objects appear white whether seen in the shade, direct sunlight, or under incandescent lighting. Digital cameras can mimic this adjustment of the human eye by processing images according to the color of the light source. This is known as “white balance." For natural colors, select a white balance setting that matches the light source before shooting. Although the default setting, Auto (normal), can be used under most types of lighting, you can apply the white balance setting suited to a particular light source to achieve more accurate results. Option Description Auto (normal) | White balance is automatically adjusted to suit lighting AUTOT (default conditions. Best choice in most situations. setting) When set to Auto (warm lighting), the images are preserved — "| with warm colors ifthey are shot under an incandescent light AUTO2 Auto (warm | source. When using the flash, according to the brightness of the lighting) flash, the images are adjusted to suitable white balance. Useful when shooting under unusual lighting. See “Using Preset PE Presetmanual | for more information (6039) Daylight" White balance adjusted for direct sunlight. Incandescent* | Use under incandescent lighting Use under most types offluorescent lighting. Choose one ofFLT Fluorescent | ire fluorescent) FL2 (daylight winite/neutral fluorescent) and Unes aDua12joy ELTOFL3) | E13 (ayiight fluorescent, &@ Cludy Use when taking pictures under overcast skis. & Flash* Use with the flash.

• Fine adjustments in seven steps are available. Apply positive (+) to increase blue hue and negative (-) to increase red hue. The icon for the current setting other than Auto (normal) is displayed on the monitor (18) TZ Notes on White Balance + Atwhite-balance settings other than Auto (normal), Auto (warm lighting) or Flash, set the fiash mode to ® (off) (CDIé6). + This feature may not be used in combination with certain features. See ‘Features That Cannot Be Used Simultaneously" (C[180) far more information.

Shooting Menu (P, S, A or M Mode) Using Preset Manual Use when you want to make pictures taken under unusual lighting conditions (e.g., lamps with reddish-light) look as though they were shot in normal light. Use the procedure below to measure the white balance value under the lighting used during shooting, À Place a white or gray reference object under the lighting that will be used during shooting. 2 Display the shooting menu (CL160), use the multi selector to set White balance to PRE Preset manual, then press the @ button. +_ The lens extends to the zoom position for measurement. 3 Choose Measure. To apply the most recently measured white balance value, select Cancel and press the @ button. The most recently measured white balance value will be set without re-measuring the value. 4 Frame a white or gray reference object in the reference object frame.

Reference object frame 5 Press the ® button to measure the white balance value. +_ The shutter is released and the new white balance preset value is set (no picture is recorded). TZ Note on Preset Manual The camera cannot measure a white balance value for when the flash fires. When shooting with the fiash, set White balance to Auto (normal), Auto (warm lighting) or Flash

Shooting Menu (P, S, À or M Mode) Metering Rotate the mode dial to P, S, À or M HENU button > P, S, À or M tab ([[113) > Metering The process of measuring the brightness of the subject to determine the exposure is known as “metering” Use this option to choose how the camera meters exposure. Option Description The camera uses a wide area of the screen for metering, Matrix (default This metering mode provides the appropriate exposure for à setting) variety of shooting conditions, Recommended for typical shooting, The camera meters the entire frame but assigns greatest weight to the subject atthe center ofthe frame. The classic metering for Center-weighted | portraits; it preserves background details while leting lighting conditions at the center of the frame determine exposure. Can be used with focus lock ((186) to meter off-center subjects. The camera meters the area shown by the circle in the center of the frame. This can be used when the subject metering target is © spot lighter or darker than the background. Ensure that the subject is within the area shown by the circle when shooting. Can be used with focus lock (86) to meter off-center subjects. Unes aDua12joy P% Notes on Metering + When the digital zoom is in effect, Metering is set to Center-weighted or Spot. + This feature may not be used in combination with certain features. See ‘Features That Cannot Be Used Simultaneously" (80) for more information. Metering Area When Center-weighted or Spot is selected for Metering, the metering range guicie (CLIS) is displayed (except when digital zoom is used

Shooting Menu (P, S, A or M Mode) Continuous Shooting Rotate the mode dial to P, S, À or M HENU button > P, S, À or M tab ([[113) Continuous Change the settings for continuous shooting and BSS (Best Shot Selector). Option Description One picture is shot each time the shutter-release button is pressed. Single (default setting) Pictures are continuously shot at à rate of about seven frames per second while the shutter-release button is pressed all the way (when image quality is set to Normal and image size is set to Êx 4608x3456). Shooting ends when the shutter-release button is released, or five pictures have been taken continuously. Œ ContinuousH Up to about 30 pictures are continuously shot at a rate of about one frame per second while the shutter-release button is pressed all the way (when image quality is set 10 Normal and image size is set to (64 4608x3456). Œ ContinuousL Pre-shooting cache makes it easy to capture perfect moments, by saving images from before the shutrer- release button was pressed all the way. Pre-shooting cache shooting begins when the shutter-release button is pressed halfway, and shooting continues when the shutter-release button is pressed all the way (8643). + Frame rate: up to 15 fps + Number of frames: up to 20 frames (including up to 5 frames captured in the pre-shooting cache) Shooting ends when the shutter-release button is released or when the maximum number of frames has been shot The image quality is fixed at Normal and the image size is fixed at [84 (2048 x 1536 pixels). Each time the shutrer-release button is pressed all the way, 60 frames are captured at a speed of about 1/125 s or faster. The image size is fixed at 64 (640 x 480 pixels). Æ Pre-shooting cache

120 Continuous H: 120 fps Each time the shutrer-release button is pressed all the way, 60 frames are captured at à speed of about 1/60 s or faster. The image size is fixed at Lt (1280 x 960 pixels). 60 Continuous H:60 fps

Unes aDua12joy Shooting Menu (P, S, À or M Mode) Option Description BSS is recommended for shooting under low lighting without the flash, with the camera zoomed in, or in other situations in which camera shake is likely to blur pictures. Keep pressing the shutter-release button all the way, and up to ten pictures are shot and the camera automatically selects and saves only the sharpest picture in the series. BS$ BSS (Best Shot Selector) Each time the shutrer-release button is pressed all the way, the camera shoots 16 pictures at a rate of about 30 frames per second and arranges them in a single picture + Theimage qualityis fixed at Normal and the image size is fixed at [5* (2560 x 1920 pixels). + The digital zoom is not available. Muti-shot 16 The camera shoots stil pictures automatically at the 6 Intitimershooting | seciiedinterval (82643) The icon for the current setting other than Single is displayed on the monitor (CLI8). + Focus, exposure and white balance are fixed at the values determined with the fist shot in each series + The frame rate may become slowrer depending on the image quality, image size, memory card type or shooting conditions. + When ISO sensitivity (6045) is set to 3200 or Hi 1, the frame rate becomes slower. + This feature may not be used in combination with certain features. See “Features That Cannot Be Used Simultaneouslÿ” (CD80) for more information: PZ Note on Bss BSS is suited for shooting stationary subjects. BSS may not produce the desired results ifthe subject moves or the composition changes. P% Note on Multi-shot 16 Banding or variance in brightness or hue may occur in images that were captured under lighting that lashes quickly at high speeds, such as fluorescent, mercury-vapor, or sodium-vapor lighting. PZ Notes on Con + may take some time to save the images after shooting, The amount of time it takes to finish saving the captured images depends on the number ofimages, the write speed of the memory card, etc. + When ISO sensitivity increases, noise may appear in captured images. + Accurate exposure may not be achieved (images may be overexposed) in images captured on right sunny days. + Banding or variance in brightness or hue may oceur in images that were captured under lighting that flashes quickly, such as fluorescent, mercury-vapor, or sadium-vapor lighting

Shooting Menu (P, S, A or M Mode) Pre-shooting Cache When Pre-shooting cache is selected, shooting begins when the shutter-release button is pressed balfway for 0.5 seconds or longer, and images captured before the shutter-release button is pressed allthe way are saved along with images captured after the shutter-release button is pressed all the way. Up to five images can be saved in the pre-shooting cache. The current pre-shooting cache setting is indicated by an icon when shooting (18). The pre- shooting cache icon lights in green while the shutter-release button is pressed halfway. L Ÿ Press down halfway Press down fully Ÿ Ÿ Images saved by Images saved by pressing halfway pressing all the way + Hfthe number of exposures remaining is less than six, the pictures taken with the pre-shooting cache are not recorded. Before shooting, check that there are six or more exposures remaining. Interval Timer Shooting Uoh29S aDUa19jou Rotate the mode dial to P, S, À or M HENU button > P, S, À or M tab ([[113) Continuous Choose from 30 s, 1 min, 5 min or 10 min. T Use the multi selector to select @ Intvl timer shooting for the Continuous setting, and then press the @ button.

Shooting Menu (P, S, À or M Mode) 2 Choose the interval between each shot and press the @ button. +_The maximum amount of frames that can be taken during interval timer shooting differs according to the selected interval. - 305: 600 images - 1 min: 300 images = 5 min: 60 images - 10 min: 30 images 3 Press the MENU button. + _ The camera returns to shooting screen. Intvl timer shootin 4 Pressthe shutter-release button all the way to shoot the first picture and start interval timer ° o shooting. +_ The monitor is tumed off and the power-on lamp Es flashes between shots. dns +_ The monitor reactivates automatically immediately EE before the next picture is shot. 5 Press the shutter-release button all the way again to finish shooting. + Shooting finishes automatically ifthe internal memory or memory card becomes full, or when the number of shot frames reaches the upper limit. Unes aDua12joy L% Notes on Interval Timer Shooting + To prevent the camera from turning off unexpectedly during shooting, use a fully charged battery. +_Ifthe AC Adapter EH-62A (available separately) (86100) is used, COOLPIX P510 can be powered from an electrical outlet. Do not use any other make or model of AC adapter. Failure to observe this precaution could result in averheating or damage to the camera. + Do not rotate the mode dial to a different setting while performing interval timer shooting, BA more Information See ‘File and Folder Names” (8898) for more information.

Rotate the mode dial to P, S, À or M HENU button > P, S, À or M tab ([[113) 150 sensitivity. The higher the ISO sensitivity, the less light needed for taking pictures. The higher the ISO sensitivity, the darker the subject that can be shot. Additionally, even with subjects of similar brightness, pictures can be taken at faster shutter speeds, and blurring caused by camera shake and subject movement can be reduced + Setting the 150 sensitivity to a high level is effective when shooting dark subjects, not using the flash, shooting at the telephoto zoom position and Similar situations, but the pictures taken may be slightly grainy. Types of ISO Sensitivity Option Description + Auto (default setting}: The sensitivity is ISO 100 in bright places;in dark places the camera automatically raises the sensitivity to a maximum of ISO 1600. Fixed range auto: Choose the range in which the camera automatically adjusts 150 sensitivity from ISO 100-400 (default setting) and 1$0 100-800. The camera does not raise sensiivity beyond the maximum value in the selected range. Set the maximum value for 150 sensitivity to control “grain” that appears in images. 100, 200, 400, 800, 1600, 3200, Hi 1 (equivalent to SO 6400) ISO sensitivity is locked at the specified value. When the shooting mode is P or À and 1S0 sensitivity is set 10 Auto or Fixed range auto, the shutter speed at which the 150 sensitivity automatic control starts to function (1/125 to one second) can be set. Minimum The default setting is None. IFthe exposure is insufficient with the shutter speed | shutter speed that is set here, the ISO sensitivity is increased automatically to obtain the correct exposure. Ifthe exposure is still insufficient even after the ISO sensiivity is increased, the shutter speed slows down. ISO sensitivity

The icon for the current setting is displayed on the monitor during shooting Cas) + When Auto is selected, the SD icon is not displayed at ISO 100, but is displayed ifthe ISO sensitivity automatically increases to higher than 100 (1130) + When Fixed range auto is selected, the 1 icon and the maximum 150 sensitivity value are displayed P% Notes on ISO Sensitivity + In M (Manual) mode, 150 sensitivity is fixed at ISO 100 if Auto or Fixed range auto is selected + This feature may not be used in combination with certain features. See “Features That Cannot Be Used Simultaneously" (2180) for mare information.

Shooting Menu (P, S, À or M Mode) Exposure Bracketing Rotate the mode dial to P, S or À -> MENU button > P, S or A tab (113) + Exposure bracketing The exposure (brightness) can be changed automatically during continuous shooting. This is effective for shooting when it is difficult to adjust the picture brightness. Option Description Camera varies exposure by 0, -0.3, and +03 over next three shots. The 403 three shots are taken in sequence when the shutter-release button is pressed all the way. Camera varies exposure by 0, -0.7, and +0.7 over next three shots. The +07 three shots are taken in sequence when the shutter-release button is pressed all the way. Camera varies exposure by 0, -1.0, and +1.0 over next three shots. The #10 three shots are taken in sequence when the shutter-release button is pressed all the way. Off (default setting) Exposure bracketing is not performed. When exposure bracketing is enabled, the current setting is displayed during shooting (18). When Off is selected, an icon for the current setting is not displayed Unes aDua12joy L% Notes on Exposure Bracketing + Exposure bracketing is not available in M (Manual) mode. + When exposure compensation (CH174) and 40.3, 40.7 or 41.0 in Exposure br: simultaneously, the combined exposure compensation values are applied + This feature cannot be used simultaneously with certain features. See “Features That Cannot Be Used Simultaneoushy” (0180) for mare information.

Shooting Menu (P, S, A or M Mode) AF Area Mode Rotate the mode dial to P, S, À or M HENU button > P, S, À or M tab ([[113) + AF area mode You can set how the focus area is determined for autofocus. Option Description The camera automatically detects and focuses on a face (see “Using Face Detection” (85) for more information) Ifthe camera detects multiple faces, the camera focuses on the @ Face priority face closest to the camera When non-human subjects are photographed, or a subject with Focus area which no face can be detected is framed, AF area mode is set to Auto. The camera automatically selects the focus areas (up to nine) that contain the subject closest to the camera The camera automatically selects [pu the focus areas (up to nine) that contain the subject closest to the camera Press the shutter-release button halfway to activate the focus area. When the shutter-release button is pressed halfway, the focus area selected by the camera is displayed on the monitor (up to nine areas) Auto M (defaut setting) Focus areas

Unes aDua12joy Shooting Menu (P, S, À or M Mode) Option Description Choose manuallythe focus position from 99 areas in the screen, This option is suited to situations in which the intended subject is relatively still and not positioned at the center of the frame. Rotate the multi selector or press AY, or to move the focus Fi Manual area to where the subject is, and take a picture. + To adjust the following settings, and then adjust each setting. compensation To return to the focus area selection button again LP] [=] En 7

Focus area Selectable areas press the @ button to temporarily cancel focus area selection, -_ Flash mode, focus mode, self-timer or exposure screen, press the @ The camera focuses on the subject at the center ofthe frame. The focus area is always displayed atthe center ofthe frame. Œ] Center Focus area Subject tracking begins once you select à subject to be focused on, and the focus area will move and @ Subjecttracking [follow the subject. See “Using Subject Tracking” (8650) Le] e

Shooting Menu (P, S, A or M Mode) Option Description When the camera detects the main subject, it focuses on that ” subject See “Using the Target Finding AF° J Target finding AF | (184) for more information. F5 AF areas

T7 Notes on AF Area Mode + When the digital zoom is in effect, the camera focuses on the subject at the center ofthe frame regardess ofthe applied AF area mode option + In some rare cases of shooting subjects for which autofocus does not perform as expected (133), the subject may not be in focus. + This feature may not be used in combination with certain features. See “Features That Cannot Be Used Simultaneoushy” (180) for more information. + Hfthe camera does not focus on the desired subject when using a feature that selects and focuses on the subject, such as Target finding AF, set AF area mode to Manual or Center and align the focus area with the desired subject. You can also try using focus lock (CLI86).

Shooting Menu (P, S, À or M Mode) Using Subject Tracking Rotate the mode dial to P, S, À or M HENU button > P, S, À or M tab ([[113) + AF area mode Choose this mode to shoot moving subjects. Subject tracking begins once you select a subject to be focused on, and the focus area will move and follow the subject.

Rotate the multi selector to select # Subject tracking, and press the @ button. + Press the MENU button after changing the settings and return to the shooting screen. Frame the subject at the center of the border, and press the @ button. The subject is registered. When the camera is unable to focus on the subject, the border lights in red. Change the composition and try again. Once the subject is registered, ir is framed by a yellowr focus area display, and subject tracking begins. Press the @ button to cancel the registration of the subject. Ifthe camera loses sight of the subject, the focus area display disappears; register the subject again. Press the shutter-release button all the way to take the picture. +_ Ifthe camera focuses on the focus area when the shutrer-release button is pressed halfway, the focus area display lights in green and the focus is locked +_ Ifthe shutter-release button is pressed halfway while the focus area is not displayed, the camera focuses the subject at the center of the frame. ce pro je Aux 15] Manual F3 Target finding

Shooting Menu (P, S, A or M Mode) P% Notes on Subject Tracking The digitalzoom is not available. Set the zoom position, flash mode, focus mode, or menu settings before registering a subject. If any ofthese are changed after a subject is registered, the subject will be canceled. + During certain conditions, such as when the subject is moving quickly, wéhen there is a large amount of camera shake, or when there are multiple subjects that look alike, the camera may not be able to register or track a subject, or the camera may track a different subject. Additionally, the subject may not be tracked properly depending on factors such as the subjects size and brightness + In some rare cases of shooting subjects for which autofocus does not perform as expected (33), the subject may not be in focus despite the fact that the focus area lights in green. you cannot focus, change the AF area mode 10 Manual or Center and try shooting with focus lock (CLI86) by refocusing on another subject at the same distance. This feature may not be used in combination with certain features. See “Features That Cannot Be Used Simultaneoushy” (1180) for mare information. Autofocus Mode Rotate the mode dial to P, S, À or M HENU button > P, S, À or M tab ([[113) Autofocus mode Choose how the camera focuses. Option Description Single AF _ AF-S (default The camera focuses only when the shutter-release button is “ pressed halfway. setting) The camera focuses continuous} until the shutter-release button AF-F Fulltime AF | is pressed halfway. Use with moving subjects. À sound will be heard while the camera focuses

TZ Note on AF mode This feature may not be used in combination with certain features. See “Features That Cannot Be Used Simultaneausly” (180) for more information. Autofocus Mode for Movie Recording Autofocus mode for movie recording can be set with Autofocus mode (8068) in the movie menu.

Unes aDua12joy Shooting Menu (P, S, À or M Mode) Flash Exp. Comp. Flash exp. comp. Rotate the mode dial to P, S, À or M HENU button > P, S, À or M tab ([[113) Flash exp. comp. option is used to adjust the flash output. Use this option when the flash is too bright or too dark. Option Description 530420 The flash output is increased from +0. to +20 EV,in increments of 1/3 +0.3 10 +2. EV, to make the main subject of the frame appear brighter.

0.0 (default The flash outpur is not adjustecl

setting) “0310-20 The flash output is reduced from -0.3 to -2.0 EV, in increments of 1/3 0 EV, to prevent unwanted highlights or reflections. The icon for the current setting other than 0.0 is displayed on the monitor (18) Noise Reduction Filter + Noise reduction filter Rotate the mode dial to P, S, À or M > HENU button > P, S, À or M tab ([L113) Set the strength of the noise reduction function that is normally performed when recording the picture Option Description . Perform noise reduction at a level higher than the standard NR High strength. Nr Normal(default | noise reduction at the standard strength setting) Ce Perform noise reduction at a level lower than the standard strength Noise reduction filter setting can be confirmed on the monitor when recording a picture (8).

Shooting Menu (P, S, A or M Mode) Rotate the mode dial to P, S, À or M HENU button > P, S, À or M tab ([[113) > Active D-Lighting “Active D-Lighting” preserves details in highlights and shadows, creating photographs with natural contrast. The image taken reproduces the contrast effect that is seen with the naked eye. This is particularly effective for shooting scenes with high contrast, such as brightly lit outdoor scenery from a dark room or shaded subjects at a sunny seaside. Option Description Hi High BE Nomal Setthe level of the Active D-Lighting effect that is applied during Éa Low shooting, OFF Off(default seting) Active D-Lighting is not applied The icon for the current setting other than Off is displayed on the monitor (8). P% Notes on Active D-Lighting + Additional time is required to record images when shooting using Active D-Lighting. + The exposure is reduced in comparison to shooting with Active D-Lighting set to Off To ensure that the gradation is appropriate, adjustments ofthe highlighted areas, shadow areas and mid tones are made before recording, + This feature may not be used in combination with certain features. See “Features That Cannot Be Used Simultaneously" (180) for mare information. TZ active D-Lighting Versus D-Lighting The Active D-Lighting option in the shooting menu reduces exposure before shooting to optimize the dynamic range. The D-Lighting (66 17) option in the playback menu optimizes dynamic range in pictures taken.

Save User Settings/Reset User Settings See "Saving Settings in U Mode” (164) for more information about Save User Settings/Reset User Settings.

Shooting Menu (P, S, À or M Mode) Zoom Memory Rotate the mode dial to P, S, À or M HENU button > P, S, À or M tab ([[113) > Zoom memory Option Description When the zoom control is operated, the camera changes in steps to the focal length (equivalent to 35mm [135] format of angle of view) of the zoom lens that is set in advance. The following settings are available: 24 mm, 28 mm, 35 mm, 50 mm, 85 mm, 105 mm, 135 mm, 200 mm, 300 mm, 400 mm, 500 mm, 600 mm, 800 mm and 1000 mm. On + Choose the focal length with the multi selector, and then press the @ button to set the check box to On [#1] or Off. + Multiple focal lengths can be chosen +_ The default setting is On [A1 for all the check boxes. + To finish the setting, press the multi selector B>- + The zoom position set in the Startup zoom position is automatically set 10 On (1 Even ifzoom contrel is operated, the zoom position is not changed with each focal length. Off (default setting) [% Notes on Zoom Operation + The changed focal length is the closest to that before the operation. To change the zoom position to the next focal length level, release the zoom control and then operate it again + Set Zoom memory to Off when using the digital zoom. Startup Zoom Position Unes aDua12joy Rotate the mode dial to P, S, À or M HENU button > P, S, À or M tab ([[113) Startup zoom position When the camera is turned on, the zoom position moves to the focal length (equivalent to 35mm [135] format of angle of view) of the zoom lens that is set in advance. The following settings are available: 24 mm (default setting), 28 mm, 35 mm, 50 mm, 85 mm, 105 mm and 135 mm.

For more information about image editing functions; (Quick retouch, D- Lighting, Skin softening, Filter effects, Small picture and Black border), see “Editing Still Images” (8615) # Print Order (Creating a DPOF Print Order) Press the [#] button (Playback mode) > HENU button (CL113) æ 4 Print order If you choose to use one ofthe following methods to print pictures that are stored on a memory card, the pictures to print and the number of copies can be set in advance on the memory card +_ Printing with a DPOF-compatible (818) printer that is equipped with a card slot. + Ordering the prints to a digital photo lab that has a DPOF service. +_ Printing by connecting the camera to a PictBridge-compatible (8% 18) printer (8625). (When the memory card is removed from the camera, the print order can also be performed for the pictures stored on the internal memory) À Use the multi selector to choose Select images, and press the @ button. Delete print order 2 Choose the pictures (up to a maximum of 99) and number of copies (up to nine per picture). + Rotate the multi selector or press Æ or B to choose the pictures, and press À or Y to setthe number of copies for each + Pictures selected for printing can be recognized by the check mark icon and the numeral indicating the number of copies to be printed. If no copies have been specified for images, the selection is canceled +_Rotate the zoom control toward T (@) to switch to full frame playback mode, or W (ER to switch to 12 thumbnail display. + Press the @ button when setting is complete. Uoh29S aDUa19jou

The Playback Menu 3 Choose whether or not to also print shooting date and shooting information. + Choose Date and press the @ button to print the shooting date on all pictures in the print order. + Choose Info and press the @ button to print shooting information (shutter speed and aperture value) on all pictures in the print order. + Choose Done and press the @ button to complete the print order. Pictures with the print orders are recognized by the TE TER Er] icon displayed in playback mode. TS L% Notes on Printing Shooting Date and Shooting Information When the Date and Info options are enabled in the print order menu, shooting date and shooting information can be printed on pictures when a DPOF-compatible (2-18) printer which supports printing of shooting date and shooting information is used + Shooting information cannot be printed wéhen the camera is connected directly to a printer, via the included USB cable, for DPOF printing (62630) + Date and Info are reset each time the Print order menu is displayed + The date and time printed on the picture are the same as those set on the camera when the picture was taken, The date and time printed using this option are not affected if the camera's Time zone and date setting is changed from the setup menu after the pictures are taken. Unes aDua12joy Deleting All Print Orders In step 1 ofthe print order procedure (8655), choose Delete print order and press the @ button to delete the print orders for all pictures. Print Date The shooting date and time can be imprinted on pictures at the time of shooting by using Print date (070) in the setup menu. This information can be printed even from printers that do not support printing of the date and time. Only the date and time of print date on the pictures are printed, even if Print order is enabled with the date selected in the print order screen. More Information See “Printing Images of Size 1:1° (CL179) for more information.

Press the [#] button (Playback mode) > HENU button (CL113) > Slide show le Show View pictures stored in the internal memory or on a memory card in an automatic slide show. T Use the multi selector to choose Start, and press the @ button. To change the interval between pictures, choose Frame intvl, and press the @ button, and then select the desired interval time before choosing Start To repeat the slide show automatically, enable Loop D and press the @ button before choosing Start The check mark (8) is added to the loop option when enabled Frame intvi 2 Theslide show begins. + Press the multi selector B to display the next picture, or io display the previous picture. Press and hold B to fast forward, or € to rewind. To exit partway or pause, press the @ button. 3 Choose End or Restart. + Afterthe last frame is played back or during playback pause, the screen shown on the right is displayed Choose ÆB and press the @ button to return to step 1 Choose ÆS to play the slide show again.

P% Notes on Slide Shows + Only the fist frame of movies ((L100) included in slide shows is displayed. + For sequences (813) whose sequence display options are set to Key picture only, only the key picture is displayed. + Images captured using easy panorama are displayed full-frame when played in a slide show. They do not scroll + Slide shows play for a maximum of about 30 minutes, even when Loop is selected (6684).

Unes aDua12joy The Playback Menu On Protect Press the [#] button (Playback mode) > MENU button ([1113) & On Protect Protect selected pictures from accidental deletion. In the image selection screen, choose a picture and set or cancel protection. See "The Image Selection Screen" (8859) for more information Note, however, that formatting the camera‘ internal memory or the memory card (@885) permanentiy erases the protected files. Protected pictures are recognized by the @x icon in playback mode (110).

The Image Selection Screen The Playback Menu The image selection screen is displayed in the following menus. Only one image can be selected for some menu items, while for other menu items, multiple images can be selected. Functions for which only one image can be selected Functions forwhich multiple images can be selected + Playback menu: Rotate image (8660), Choose key picture (8863) + Setup menu: Select an image in Welcome screen + Playback menu: Select images in Print order (6655), Protect (858), Selected images in Copy (8662) + Erase selected images in Delete (CL136) (6674) Follow the procedure described below to select images.

Rotate the multi selector, or press € or to choose the desired image. LT 9 FENNES + Rotate the zoom control toward T (@) to switch to full- à frame playback mode, or W (Æ) to switch to 12 LS ES | Jia thumbnail display. À + For functions for which only one image is selected, proceed to step 3. Press À or Y to select ON or OFF (orthe number of copies). + When ON is selected, a check mark ($Z) is displayed with the image. Repeat steps 1 and 2 to select additional images.

Press the @ button to apply the image selection. + With selections such as Selected images, the confirmation dialog is displayed Follow the instructions on the screen

The Playback Menu fil Rotate Image | Press the [#] button (Playback mode) > HENU button (1113) -> ÉJ Rotate image Change the orientation of pictures played back in the cameras monitor after shooting, Still pictures can be rotated 90° clockwise or counterclockwise. Pictures that were recorded in the “tall” orientation can be rotated up to 180° in either direction. Select a picture in the picture selection screen (6s859) to display the rotate image screen. Rotate the multi selector, or press € or BR to rotate the picture 90°. Rotated 90° Rotated 90° counterclockwise clockwise Press the @ button to set the orientation displayed and save the orientation data with the picture. Unes aDua12joy L% Notes on Image Rotation + Images captured with cameras other than COOLPIX P510 cannot be rotated + Images captured using 3D photography cannot be rotated + While only the key picture of a sequence is displayed, images cannot be rotated. Apply the setting after displaying individual images (66 13, 6663).

The Playback Menu ® Voice Memo Press the [#] button (Playback mode) > Select a picture > MENU button (CL113) > $ Voice memo Use the camera microphone to record voice memos for pictures. + The recording screen is displayed for a picture without voice memo, while the voice memo playback screen is displayed for a picture with voice memo (a picture marked with [3 in full-frame playback mode), Recording Voice Memos + Voice memo can be recorded for up to about 20 seconds while the @ button is pressed. + Do not touch the microphone during recording. + During recording, F and [A flash on the monitor. + When recording ends, the voice memo playback screen is displayed Pictures for which voice memos have been recorded are indicated by Ein full-frame playback mode. + Press the @ button to play back a voice memo. To end playback, press the @ button again + Rotate the zoom control toward T or W during playback to adjust playback volume + Press the multi selector € before or after playing a voice memo to return to the playback menu. Press the MENU button to Deleting Voice Memos Press the ff button on the voice memo playback screen. Press the multi selector À or Y to select Yes and press the @ button to delete only the voice merno.

TZ Notes on Voice Memos + Whena picture with a voice memo attached is deleted, both the picture and its voice memo are deleted Voice memos cannot be recorded for a picture that already has a voice memo attached to it. The current voice memo must be deleted before a new voice memo can be recorded. Voice memos cannot be attached to pictures taken with cameras other than COOLPIX P510 Voice memos of the images with the Protect setting (6058) cannot be deleted Voice memos cannot be attached to pictures taken using easy panorama. More Information See ‘File and Folder Names” (8898) for more information.

Unes aDua12joy The Playback Menu EH Copy (Copy Between Internal Memory and Memory Card) | Press the [#] button (Playback mode) > HENU button (113) > E Copy Copy pictures between the internal memory and a memory card À Use the multiselector to select an option from the copy screen, and press the @ button. + Camera to card: Copy pictures from the internal memory to the memory card. + Card to camera: Copy pictures from the memory card to the internal memory. imera to card 2 Select a copy option and press the @ button. + Selected images: Copy pictures selected from the fecred image selection screen (6859). f a sequence for which RES only a key picture is displayed is selected (82613) all pictures in the displayed sequence are copied + Allimages: Copy all pictures. Ia picture in a sequence is selected, this option is not displayed. + Current sequence: This option is displayed when a picture in a sequence has been selected before displaying the playback menu. AI pictures in the current sequence are copied D Notes on Copying Pictures JPEG MOV, WAV. and MPO-format files can be copied. Files recarded in any ather format cannot be copied Voice memo (61) attached to pictures and Protect setting (8858) are also copied with the pictures. Pictures recorded with another make or model of camera or that have been modified on a computer cannot be copied. Print order settings(655) are not copied with the pictures. I Sequence display options (80623) is set to Key picture only and a picture inthe sequence is selected and the @ button is pressed to display individual pictures (@613),onty Card to camera image copy is available.

The Playback Menu Message: “Memory contains no images.” Ifthere are no pictures stored on the memory card when playbackmode is selected, the message, the Memory contains no images, is displayed. Press the MENU button and select Copy from the playback menu to copy the pictures stored in the camera internal memory ta the memory card More Information See ‘File and Folder Names” (8898) for more information. Ül Sequence Display Options Press the [#] button (Playback mode) > HENU button (C13) > Œi Sequence display options Choose the method used to display a series of pictures shot continuously (sequence, 8613) when viewing them in full-frame playback mode (134) or in thumbnail playback mode (2135). Settings are applied to all sequences, and the setting is saved in the camera's memory even if the camera is turned off. Option Description Individual pictures | Each picture in a sequence is displayed Key picture only | Return a sequence in which pictures are displayed individually to the (default setting) | key picture only display. Choose Key Picture

Press the [#] button (Playback mode) > Select the desired sequence > MENU button (113) > Œ Choose key picture When Sequence display options is set to Key picture only, the key picture displayed in full-frame playback mode (21134) or thumbnail playback mode (135) can be set for each sequence of pictures. + When changing this setting, before pressing MENU, first select the desired sequence using full-frame playback mode or thumbnail playback mode + When the key picture selection screen is displayed, select a picture. See ‘The Image Selection Screen” (859) for more information.

Movie Options Display the shooting screen > HENU button > *% (Movie) tab (13) -> Movie options You can choose the type of movie to shoot. The camera can record normal speed movies and HS (high speed) movies (8666), which can be played back in slow motion or fast motion. The larger the image size and bit rate, the higher the image quality; however, the file size also becomes larger Normal Speed Movies Option Description Hé HD 1080p% Movies with an aspect ratio of 16:9 are recorded {1920x1080) + Movie bitrate: 188 Mbps (default setting) + Frame rate: 30 frames per second Hüko HD 1080p (1920x1080) Movies with an aspect ratio of 16:9 are recorded. + Movie bitrate: 12.6 Mbps + Frame rate: 30 frames per second kg HD 720p (1280x720) Movies with an aspect ratio of 16:9 are recorded. + Movie bitrate: 84 Mbps + Frame rate: 30 frames per second 2%. iFrame 540 (960x540) Unes aDua12joy Movies with an aspect ratio of 16:9 are recorded. His one of the formats supported by Apple Inc. + Movie bitrate: 20.8 Mbps + Frame rate: 30 frames per second When using the cameras internal memory for recording, the movie recording may end unexpectedly depending on the composition of the image. Using à memory card (Class 6 or higher) is recommended when recording important movies, VGA (640x480) Movies with an aspect ratio of 43 are recorded + Movie bitrate: 2.9 Mbps + Frame rate: 30 frames per second More Information See ‘Maximum Movie Length” ([L198) for more information.

The Movie Menu HS Movies See “Recording Movies in Slow Motion and Fast Motion (HS Movie)" (8666) for more information Option Description /4-speed slow motion movies with an aspect ratio of 43 are recorded HS 120 fps (640x480) | + Max. movie length: 7 min 15 s (playback time: 29 min) + Movie bitrate: 2.8 Mbps + Frame rate: 120 frames per second 1/2-speed slow motion movies with an aspect ratio of 169 are recorded. : jo HS 60 fps (1280x720) | + Max. movie length: 14 min 30 s° (playback time: 29 min) + Movie bitrate: 83 Mbps + Frame rate: 60 frames per second 2x speed fast mation movies with an aspect ratio of 169 are recorded si HS 15 fps (1920x1080) | + Max. movie length: 29 min (playback time: 14 min 30 s) + Movie bitrate: 186 Mbps + Frame rate: 15 frames per second *_ The maximum movie length for a single movie is 30 seconds when itis saved in the internal memory. + The movie bitrate is the volume of movie data recorded per second. As à variable bitrate (VBR) system has been adopted, the movie bitrate varies automatically according to the subject so that more data is recorded per second for movies containing frequentlÿ moving subjects, thus increasing movie file size.

L% Note on HS Movie Recording and Special Effects Mode Setting Tr HS 120 fps (640x480) for Movie of ns cannot be selected when Soft, Nostalgic sepi or Painting is selected for the special effects shooting mode. Even if you select Em HS 120 fps (640x480) for other recording mode while Soft, Nostalgie sepia, or Painting is selected for the special effects shooting mode, Zi HS 60 fps (1280x720) is automatically selected for Movie options when the mode dial is rotated to EFFECTS.

Unes aDua12joy The Movie Menu Recording Movies in Slow Motion and Fast Motion (HS Movie) Display the shooting screen > HENU button > *% (Movie) tab (13) -> Movie options HS (high speed) movies can be recorded. Movies recorded using HS movie can be played back in slow motion at 1/4 or 1/2 of normal playback speed, or played back in fast motion at a speed two times faster than normal speed. À Use the multi selector to select HS movie (6665), and press the ® button. D TT D 10B0p (19201 + Press the MENU button after changing the settings and return to the shooting screen Én HS 120 fps (640180) H56 2 Pressthe @ (Æ movie-record) button to start HS movie options recording. 2 The monitoris tumed offfor a moment, and then the HS movie recording starts The camera focuses at the center ofthe frame. Focus areas are not displayed during recording When recording movies with (1280x720) or Ds HS 15 fps (1920x1080), monitor display changes to an aspect ratio of 16. The maximum movie length display indicates the maximum HS movie length 3 Pressthe @ (Æ movie-record) button to end recording.

The Movie Menu PZ Notes on HS Movie + The sound is not recorded. + Zoom position, focus, exposure and white balance are locked when the @ (8 movie-record) button is pressed to start recording. HS Movie Recorded movies are played back at about 30 frames per second ‘When Movie options (8664) in the movie menu is set to Em HS 120 fps (640x480) or HS 60 fps (1280x720), movies that can be played back in slow motion can be recorded. When set to Mi HS 15 fps (1920x1080), movies that can be played back in fast motion at a speed two times faster than normal speed can be recorded. Portions recorded at ME HS 120 fps (640x480): Movies are recorded for up to 7 minutes and 15 seconds at high speed, and are played back in slow motion at a speed four times slower than normal speed. Playback T min Slow motion playback {no sound) Portions recorded at Mis HS 15 fps (1920x1080): À movie of up to 29 minutes in length is recorded when shooting for the purpose of fast motion playback. Movies are played back two times faster than normal speed. Recording 2min

Unes aDua12joy The Movie Menu Autofocus Mode mode Display the shooting screen > HENU button > ’% (Movie) tab (CL113) > Autofocus Choose how the camera focuses when recording normal speed movies (6=864), Option Description AF-S Single AF | Lock on the focus when the @ PM movie-record) button is pressed (defauit | to start recording. Select this option when the distance between the setting) camera and the subject remains faily consistent. AF-F Full-time AF The camera focuses continuous|y during movie recording Suitable for shooting when the distance of between the camera and subject changes. The operation sound when the camera focuses may be recorded. Setting to Single AF is recommended ifthe sound is noticeable.

GPS Settings Press the NENU button > # (GPS setting) tab (1113) > GPS options Option Description Record GPS data When set to On, signals are being received from the GPS satellite, and positioning starts (1102). + The default setting is Off Synchronize Signals from the GPS satellite are used to set the date and time ofthe cameræs internal clock (only when Record GPS data in GPS options of the GPS setting menu is set to On). Check the positioning status before starting synchronize. Update A-GPS file Amemory card is used to update the A-GPS (assist GPS) file. Using the latest A-GPS file can sharten the time needed for tracking of the position information. See "Updating the A-GPS File” (8670) for more information. P% Notes on Synchronize + Date/time adjustment by Synchronize is set according to the time zone set in Time zone and date (126, 6675) ofthe setup menu. Check the time zone before setting Synchronize + The date/time set using Synchronize is not as accurate as radio clocks. Use Time zone and date in the setup menu to set the time ii is not accurate in Synchronize

Unes aDua12joy GPS Setting Menu Updating the A-GPS File Download the latest A-GPS file from the website below, and use it to update the file. http7/nikonimglib.com/agps2/index.html +_ The A-GPS file for COOLPIX P510 is only available from the website above. + To update the A-GPS file, set Record GPS data to Off. When On is selected, the A-GPS file cannot be updated. T Download the latest A-GPS file to the computer from the website. 2 Use a card reader or other device to copy the downloaded file to the "NCFL" folder of the memory card. + The"NCFL' folder is located directly under the memory card root directory. IFthe memory card does not have “NCFL" folder, create a new folder. Insert the memory card containing the copied file into the camera. Turn on the camera. Press the MENU button to display the GPS setting menu, and use the multi selector to select GPS options. O ui B w Select Update A-GPS file, and update the file. +_ About two minutes are needed to update the A-GPS file. L% Notes on Updating A-GPS File + The A-GPS ile is disabled when a position is determined for the fist time after the camera is purchased, The A-GPS file becomes active from the second operation for determining a location. + The validity period ofthe A-GPS file can be checked on the update screen. Ifthe validity period has expired, it is displayed in gray. + Once the validity period ofthe A-GPS file has expired, tracking ofthe position information will not become faster. Updating of the A-GPS file before using the GPS feature is recommended

GPS Setting Menu Create Log (Record the log of moving information) Press the HENU button > %# (GPS setting) tab (1113) Create log When log recording starts, the measured tracking information is recorded until a preset time has elapsed at the interval set for Log interval +_Itis not possible to use the log data by simply recording it. To use the data, select End log and save it in a memory card. À Use the multi selector to select Start log, and press the @ button. + Before selecting Start log, select Log interval and press the @ button to select the intervals of log recording. The default setting is 15 s. 2 Select the duration that the log will be recorded, and press the @ button. + Log recording starts. +_ The log data is recorded at the interval set for the Log interval until the preset time is reachedt. . is displayed on the screen during log recording Uoh29S aDUa19jou 3 When log recording is completed, select End a log in Create log in the GPS setting menu, Sartlog and press the @ button. Log anal

Unes aDua12joy GPS Setting Menu 4 Select Save log, and press the @ button. +_ The log data is saved to a memory card Erase log T7 Notes on Log Recording Ithe date and time are not set, the log cannot be recorded Use afully charged battery to prevent the camera from turning off during log recording. When the battery power becomes exhausted, loge recording ends. Log recording ends due to the operation below even when there is time remaining for log recording The USB cable is connected The battery-chamber/memory card slot cover is opened or closed. Record GPS data in GPS options is set to Off (same as when Reset all is performed) The setting of the internal clock (time zone or date and time) is changed. Itime for log recording still remains even when the camera is turned off, log recording is continuousy performed until the preset time has elapsed The log data is temporarily stored in the camera. New logs cannot be recorded ifthe log data remains in the camera. After recording log data, save it to a memory card + A maximum of 36 log data events can be recorded in one day. + A maximum of 100 log data events can be saved to a single memory card To Erase Log Data To erase the log data that is temporaril stored in the camera, select Erase log in step 4 + To erase the log data that is stored in the memory card, press the ff button in View log (6673)

GPS Setting Menu View Log Press the MENU button > # (GPS setting) tab ([[113) > View log Check or erase the log data stored in the memory card using Create log (8671). À Use the multi selector to select the log data to be displayed, and press the @ button. 2 Checkthe movement route. + To erase the displayed log data, press the ff button. To Erase Log Data Press the fj button in step 1 to select either function + Selected log: The selected log data is erased + Alllogs: All log data stored on the memory card is erased.

Pictures Recorded during Log Recording Your movement route and latitude longitude coordinates of the Shooting position recording location can be checked by pressing the Fn button n while a picture is displayed in the full-frame playback mode. Il Pressing the Fn button again switches the camera to full-rame playback mode. + When the pictures and log data are not stored on the same memory card, our movement faute cannot be displayed Latitude/Longitude Log Data Log data is NMEA format-compliant. However, display in any NMEA format-compliant software or on any NMEA format-compliant camera is not guaranteed

Welcome Screen Press the HENU button > Ÿ tab (1113) > Welcome screen Choose whether or not to display the welcome screen on the monitor when the camera is turned on. Option Description None default setting) Display the shooting or playback screen without displaying the welcome screen. COOLPIX Display the welcome screen before displaying the shooting or playback screen Select an image Select a picture taken to display as the welcome screen. Display the image selection screen, choose an image (8859), and press the @ button to register it + Because the selected image is stored in the camera, the image appears in the welcome screen even ifthe original image is deleted. The following pictures cannot be registered = Pictures taken with Image size (C[)78) of #$ 4608x2592, #8 1920x1080 , 7 4608x3072 or L'! 3456x3456 = Pictures reduced to 320 x 240 or smaller using small picture editing (6620) or crop (6822) = Pictures taken with easy panorama =_ Pictures taken using 3D photography Unes aDua12joy

The Setup Menu Time Zone and Date Press the HENU button > Ÿ tab (1113) > Time zone and date Option Description Date and time Serthe camera clock to the current date and time. Use the multi selector to set the date and time. + Choose an itern: Press Be or € (selected in the following order D (day) — M (month) — Y (year) — hour -+ minute) The item can also be chosen by rotating the multi selector. + Serthe contents: Press À or W. Date and time can also be set by rotating the command dial + Finish setting: Choose minute and press the @ button or Date and time Choose the order in which the day, month, and year are displayed Date format (Year/Month/Day, Month/Day/Year or Day/Month/Year) $ Home time zone can be specified and daylight saving can be enabled or disabled Time zone When 3 travel destination is registered, the time difference (6877) from the À home time zone is automatically calculated and the local date and time are recorded. Useful when traveling.

The Setup Menu Setting the Travel Destination Time Zone À Use the multi selector to choose Time zone, ne and date and press the @ button. TSTOS0TZ 1530 + The Time zone screen is displayed. BCE Date and time Date format 2 Choose }> Travel destination and press the @ button. +_ The date and time displayed on the monitor change according to the region currently selected 3 Pressk +_ The time zone selection screen is displayed 15/0520 Hometime zone 4 Press or to choose the travel destination Time difference (Time zone). 5 + The time difference between home and the travel Er. 4 destination is displayed: per ÿ v + When usingthe camerain an area where dayligh saving [Re 4 Unes aDua12joy time is in effect, turn on the daylight saving setting with A. When set to on, the & icon is displayed on the top ofthe monitor and the clock advances by one hour. To tum of, press W Press the @ button to register the travel destination time zone. New York While the travel destination time zone is selected, the Toronto, Lima 15/05/2012 1030 8 icon is displayed on the monitor when the cameras MEN 5 in shooting mode. Ê Home Time Zone + To switch to the home time zone, choose © Home time zone in step 2 and press the @ button. + To change the home time zone, choose # Home time zone in step 2 and perform the same procedure as for Travel destination to set the home time zone.

Unes aDua12joy The Setup Menu Monitor Settings Press the MENU button > Ÿ tab ([L113) Monitor settings Option Description On (default setting}: Picture is displayed on the monitor immediately Image review after shooting and the monitor display returns to shooting screen. Off. Picture is not displayed immediately after shooting, Choose from five settings to select the monitor brightness. The default setting is 3. View/hide framing _ | On: À boxed guide for framing is displayed grid Off (default setting): À boxed guide for framing is not displayed. Brightness On:Histograms are displayed in the shooting mode even when the exposure compensation is not being set (C9, 74). Off (default setting): Histograms are not displayed View/hide histograms P% Notes on View/hide Framing Grid Framing grid is not displayed in the following situations. + When tracking a subject (after a subject is registered) + When récording a movie + When the enlarged center ofthe picture is displayed in MF (manual focus) L% Notes on View/hide Histograms Histograms are not displayed in the following situations + When recording a movie + When the enlarged center ofthe picture is displayed in MF (manual focus) + When the flash mode, sel£timer or focus mode menu is displayed + When borders for face detection (85) are displayed + When the subject tracking is being activated in AF area mode

Press the HENU button > Ÿ tab (CL113) > Print date | t Date (Imprinting Date and Time on Pictures) The shooting date and time can be imprinted on pictures at the time of shooting. This information can be printed even from printers that do not support printing ofthe date and time (656) Option Description Date The date is imprinted on pictures. Date and time The date and time are imprinted on pictures OFF Off (default setting)_| The date and time are not imprinted on pictures The icon for the current setting other than Off is displayed on the monitor (CL8). TZ Notes on Print Date + Imprinted dates cannot be deleted from the image, nor can dates be imprinted after the picture has been taken + Dates cannot be imprinted in the following situations. When the scene mode is set to Easy panorama, Panorama assist or 3D photography When Pre-shooting cache Continuous H: 120 fps or Continuous H: 60 fps is selected for Continuous (8641) in the shooting menu During movie recording + Dates imprinted with an Image size (1178) setting of Yi 640x480 may be dificult to read. Set the image size to (2 1600x1200 or higher. + The date is recorded using the format selected in the setup menu's Time zone and date option (C5, 675).

Print Date and Print Order When printing from DPOF-compatible printers which support printing of shooting date and shooting information, the date and information can be printed on pictures without the date and time being imprinted on thern with Print date, using options in the Print order menu (6055)

The Setup Menu Vibration Reduction Press the HENU button > Ÿ tab (1113) Vibration reduction Option Description Compensate camera shake that commoniy occurs when shooting at the telephoto zoom position or slow shutter speed Camera shake is also compensated when recording movies as well as when shooting still images, The camera automatically @ detects the panning direction and only compensates for vibration {default setting) | caused by camera shake. When the camera is panned horizontal, for example, vibration reduction only reduces vertical shake.IFthe camera is panned vertical, vibration reduction only compensates for horizontal shake. OFF of Vibration Reduction is not enabled. + When using a tripod to stabilize the camera, set vibration reduction to Off. When On is selected, an icon for this setting is displayed on the monitor (18) Unes aDua12joy P% Notes on Vibration Reduction + Afterthe poweris turned on orthe camera enters shooting mode from playback made, wait until the display stabilizes before shooting + Due to the characteristics ofthe vibration reduction function, images displayed on the monitor immediately after shooting may appear blurry. + Vibration reduction may be unable to completely eliminate the effects of camera shake in some Situations + When the Night landscape or Night ports turned Off.

scene mode is set to Tripod, vibration reduction is

The Setup Menu Motion Detection Press the HENU button > Ÿ tab ([1113) > Motion detection Enable motion detection to reduce the effects of camera shake and subject movement when shooting still pictures. Option Description Ifthe camera detects the movement of the subject or camera shake, the ISO sensitivity is raised and the shutter speed is increased to reduce their effects. However, motion detection does not function in the following situations, + When the flash fires + Inthe following scene modes: EB (Night landscape), (Landscape), FE (Backlighting), Sports, Night portrait, Noise reduction burst in Close-up, Fireworks show, Easy panorama in Panorama, Pet portrait + When EFFECTS (special effects) is set to High ISO monochrome « When shooting mode is P, S, A, MorU OFF of Motion detection is not enabled x Auto (default setting) When Auto is selected, an icon for this setting is displayed on the monitor (C8). The motion detection icon lights in green when the camera detects any vibration and increases the shutter speed.

P% Notes on Motion Detection + Motion detection may be unable to completely reduce effects of camera shake and subject movement in sorné Satis + Motion detection may not function ifthe subject exhibits significant movement or is too dark. «The pictures taken may become grainy.

Unes aDua12joy The Setup Menu AF Assist Press the HENU button > Ÿ tab ([L113) æ AF assist Enable or disable the AF-assist illuminator that assists the autofocus when the lighting is dim. Option Description Auto (default setting) AF-assist iluminator lights automatically the lighting is dim. The illuminator has a range of about 4.0 m (13 f0 at the maximum wide-angle position and about 2.1 m (6 ft 1Oin) atthe maximum telephoto position: +_ Even if Auto is selected, the AF-assist illuminator does not light depending on the position of the focus area or the scene mode such as Museum ((2150) and Pet portrait (152).

AF-assist iluminator does not light, The camera may be unable to focus if lighting is dim. Digital Zoom Press the MENU button > Ÿ tab ([L113) > Digital zoom Enable or disable the digital zoom. Option Description On (default setting) When the camera is zoomed in to the maximum optical zoom position, rotating and holding the zoom control toward T (@) triggers the digital zoom (31). Off The digital zoom is not activated. + When the digital zoom is in effect, the camera focuses at the center ofthe frame. + The digital zoom cannot be used when Scene auto selector, Port Night portrait, Easy panorama in Panorama, Pet portrait or 3D photography is selected in scene mode + This feature may not be used in combination with certain features. See “Features That Cannot Be Used Simultaneoushy” (180) for more information. + When the digital zoom is in effect, Metering is set to Center-weighted or Spot.

The Setup Menu Assign Side Zoom Control Press the MENU button æ Ÿ tab (1113) Assign side zoom control Choose the function to be performed during shooting when the side zoom control is used. Option Description When shooting, use the side zoom control (E131) to adjust the z00m. Zoom (default setting) When the focus mode is set to MF (manual focus), use the side 00m control to focus (662). + Use the side zoom control in the direction of T to focus on distant subjects. + Use the side zoom control in the direction of W to focus on near subjects. Manual focus This is convenient when shooting at the telephoto position, wéhen it is more difficult to keep subjects in focus. Use the side Zoom control in the direction of W to zoom a specific increment from the current zoom position toward the W side, Use itin the direction of W again to move the zoom position further toward W side. Use it in the direction of T to return to the original zoom position, before the side zoom control was used + When using the digital zoom, use the side zoom control in the direction of W to move to the telephoto end of the optical z00m. +_Ifyou perform any operation other than the side zoom control, the zoom is not returned ta the zoom position before the operation +_Snap-back zoom is not available during movie recording, Snap-back zoom

Setting beep (beep sounds once when the settings are complete) Focus beep (beep sounds twice when the camera focuses on the subject) Error beep (beep sounds three times when an error is detected) Start-up sounds Shutter sound Choose whether to set the shutter sound to On (default setting) or Off. P% Notes on Sound Settings + In Pet portrait scene mode, even when On is set, the button sound and shutter sound are disabled. + Even when On is set, the shutter sound is disabled during movie recording, + This feature may not be used in combination with certain features. See “Features That Cannot Be Used Simultaneouslÿ” (CL80) for more information. Auto Off Press the MENU button > Ÿ tab (113) > Auto off If no operations are performed for a certain period while the camera is on, the monitor is turned off to save power and the camera enters standby mode (C[125). In this menu, set the time before the camera enters standby mode. Choose from 30 s, 1 min (default setting), 5 min and 30 min. Auto Off Setting + Inthe following situations, the time taken for the camera to enter standby mode is fixed. = When menus are displayed: three minutes (when auto off is set to 30 5 or 1 min) = During slideshow playback maximum of 30 minutes + When the AC Adapter EH-62A is connected: 30 minutes + The camera does not enter standby mode when transferring images using the Eye-Fi card (cl

The Setup Menu Format Memory/Format Card Press the MENU button > Ÿ tab ([L113) æ Format memory/Format card Format the internal memory or a memory card. Formatting permanently deletes all data in the internal memory or memory card. The deleted data cannot be recovered. Be sure to transfer important pictures to a computer before formatting. Formatting the Internal Memory To format the internal memory, remove the memory card from the camera. The Format memory option is displayed on the setup menu. Formatting Memory Cards When a memory cards inserted in the camera, the memory card can be formatted The Format card option is displayed on the setup menu. L% Formatting Internal Memory and Memory card + Do not turn off the camera or open the battery-chamber/memory card slot cover during formatting + The first time you insert a memory card that has been used in another device into this camera, be sure to format it with this camera. Language > Press the HENU button > Ÿ tab (13) > Language ê Choose one of 29 languages for displaying the camera menus and messages È Ceëtina [Czech Nederlands] Dutch Türkçe Turkish E Dansk Danish Norsk Norwegian | Ykpaïebka| Ukrainian Deutsch [German Polski Polish ee Arabic English [eRuIE portugués (8) | EreZiian mepx [omPifed gl setting) g Portuguese Chinese Traditional Español | Spanish Portuguës (PT) | Ponuguese matt | Ehanvkë | Greek Pyccxnñ [Russian ET] Japanese Français |French Romänä | Romanian #3 Korean Indonesia [Indonesian Suomi Finnish mins [Thaï Italiano [alian Svenska [Swedish ra Hindi Magyar [Hungarian Tiéng Viêt | Vietnamese

The Setup Menu TV Settings Press the MENU button > Ÿ tab ([L113) > TV settings Adjust the settings for connecting to a TV. Option Description Select the analog video output system from NTSC or PAL in Video mode accordance with your TV. Select a picture resolution for HDMI output from Auto (default HDMI setting), 480p, 720p, or 1080i. When Auto is set, the output resolution that is best suited to the connected TV is selected automatically from 480p, 720p or 1080i Select whether or not the camera receives signals from à TV when a TV that conforms to the HDMI-CEC standard is connected with an HDMI cable. When set to On (default setting), HDMI device control | the television remote control can be used to operate the camera during playback. See "Using the TV'5 Remote Control (HDMI Device Control" {6=24) for more information. Set the method used to output 3D pictures to HDMI devices. Select On (default setting) to three-dimensionally play back 3D pictures taken with this camera on a TV or monitor that is connected via HDML HDMI 3D output Unes aDua12joy HDMI and HDMI-CEC “HDMI is an abbreviation of High-Definition Multimedia Interface, which is one type of multimedia interface. “HDMI-CEC' is an abbreviation of HDMI-Consumer Electronics Control, which enables operations to be linked between compatible devices.

The Setup Menu Fn Button Press the HENU button > Ÿ tab (C[113) > Fn button Assign the frequently used shooting menu to the Fn (FUNO) button (12) + This can be used when P, S, À, M or U is chosen for shooting mode. Option Description Image size (178) Display the setting for image size. Picture Control (8633) | Display the setting for Picture Control White balance (6638) _| Display the setting for white balance. Metering (6640) Display the setting for metering Continuous (default setting) (641) ISO sensitivity (6645) _ | Display the setting for ISO sensitivity AF area mode (6647) _| Display the setting for AF area mode. Display the setting for continuous shooting,

Unes aDua12joy The Setup Menu Charge by Computer Press the MENU button æ Ÿ tab (1113) Charge by computer Select whether or not the battery inserted into the camera is charged when the camera is connected to a computer via the USB cable (190). Option Description When the camera is connected to a computer that is running, Auto (default setting) _ | the battery inserted into the camera is automatically charged using power supplied by the computer. The battery inserted into the camera is not charged when the

camera is connected to à computer. L% Notes on Connecting the Camera to a Printer + The battery cannot be charged with connection to a printer, even ifthe printer complies with the PictBridge standard. + Wen Auto is selected for Charge by computer, may be impossible to print images with direct connection ofthe camera to some printers. fthe PictBridge startup screen is not displayed on the monitor after the camera is connected to a printer and tumed on, turn the camera off and disconnect the USB cable. Set Charge by computer to Off and reconnect the camera to the. printer P% Notes on Charging with Connection to a Computer + The battery cannot be charged, nor can data be transferred, when the camera is connected to a computer before the cameras display language and date and time have been set (CL126).Ifthe camera's clock battery (27) has been exhausted, the date and time must be reset before the battery can be charged or images can be transferred with connection to a computer. In this case, use the Charging AC Adapter EH-69P (CL120) to charge the battery and then set the camera's date and time. Ifthe camera is turned off, charging will also stop. Ithe computer enters sleep mode while charging, charging will stop and the camera may be turned off When disconnecting the camera from the computer, tum the camera off and then disconnect the USB cable. It may take longer to charge the battery with connection to a computer than with charging using the Charging AC Adapter EH-69P. Charging time increases when images are transferred while the battery is charging. + When the camera is connected to a computer, an application installed on the computer, such as Nikon Transfer 2, may start. Ifthe camera was connected to the computer for the sole purpose of charging the battery, exit the application + The camera turns off automatically ifthere is no communication with the computer for 30 minutes after the battery has finished charging, + Depending upon computer specifications, settings, and power supply and allocation, it may be impossible to charge the battery using a computer connection while is inserted into the camera.

The Charge Lamp The Setup Menu The following chart explains charge lamp status when the camera is connected to a computer. Option Description Flashes slowly (green) Battery charging.

Battery not charging, Ifthe charge lamp changes from slow flashing (green) to off wéhile the power-on lamp is lt, charging is complete Flashes quickly (green) +_ The ambient temperature is not suited to charging. Charge the battery indoors with an ambient temperature of 5°C to 35°C (41°F to 95°F). The USB cable is not connected correctly, or the battery is fauly. Make sure the USB cable is connected correctly and replace the battery ifnecessary. The computer is in sleep mode and is not supplying power. Wake up the computer. The battery cannot be charged because the computer cannot supply power to the camera, due to the computer settings or its specifications

Unes aDua12joy The Setup Menu Toggle Av/Tv Selection Press the MENU button æ Ÿ tab (113) Toggle Av/Tv selection Switch the method for setting the flexible program, shutter speed or aperture value. + This feature can be used when shooting mode is set to P, S, A. M or U. Option Description Do not toggle selection | Use the command dial to set the flexible program or shutter (default setting) speed, and the multi selector to set the aperture value Togle selection Use the multi selector to set the flexible program or shutter 99 speed, and the command dial to set the aperture value. Reset File Numbering Press the MENU button æ Ÿ tab (113) Reset file numbering When Yes is selected, the sequential numbering of file numbers is reset (6898). After resetting, a new folder is created and the file number for the next picture taken starts from "0001." L% Note on Reset File Numbering Reset file numbering cannot be applied when the folder number reaches 999 and there are images in the folder. Insert a new memory card, or format the internal memory/memory card (685)

The Setup Menu Blink Warning Press the MENU button > Ÿ tab ([1113) > Blink warning Choose whether or not blinking eyes are detected when using face detection (85) in the following shooting modes. +_In the following scene modes: Scene auto selector (1145), Portrait (146) or Night portrait (when Tripod is selected) (147) + Shooting modes P, S, A, M.U (when Face priority (6647) is selected for AF area mode) Option Description The Did someone blink? screen is displayed on the monitor if the camera detects that a human subject may have closed the eyes immediately after taking a picture using face detection, The on face of the human subject that may have closed his/her eyes is framed by a yellow border. You can check the picture taken and determine ifyou need to take the picture again Off (default setting) | The camera does not detect biinks The Did someone blink? Screen To zoom in the face for which blinking was detected, rotate the zoom control toward T (@}. To return to full-frame playback mode, rotate the zoom control toward W (ES) When the camera detects that one or more human subjects have closed their eyes, press 4 or b during playback zoom to display other faces. Press the ff button to delete the picture taken, Press the @ button or the shutter-release button to return to shooting screen. Ifno operations are performed for a few seconds, the screen automatically returns to the shooting screen. L% Note on Blink Warning This feature may not be used in combination with certain features. See “Features That Cannot Be Used Simultaneausly” (180) for more information.

The Setup Menu Filmstrip Press the MENU button Ÿ tab (CL113) > Filmstrip | Allows you to select whether or not filmstrips are displayed when you rotate the multi selector quickly in full-frame playback mode (134). Option Description Image thumbnail is displayed at the bottom of the monitor when you rotate the multi selector quickly while viewing an image in ful-frame playback mode. You can view thumbnails of previous and subsequent images, and select an image. While the filmstrip is displayed, you can hide it by pressing the @ button. Off (default setting) | Disables the filmstrip.

Unes aDua12joy LD Note on Filmstrip Display In order to display the filmstrip, at least ten images must be saved in the camera‘ internal memory or on the memory card.

The Setup Menu Eye-Fi Upload Press the MENU button > Ÿ tab (CL113) > Eye-Fi upload Option Description Upload images created by the camera to a preselected Enable destination. Disable (default setting) Images will not be uploaded P% Notes on Eye-Fi Cards Note that images will not be uploaded if signal strength is insufficient even if Enable is selected. Select Disable where wireless devices are prohibited. Refer to the instruction manual of your Eye-Fi card for more information. In the event of malfunction, contact the card manufacturer. + The camera can be used to turn Eye-Fi cards on and of, but may not support other Eye-Fi functions. + The camera is not compatible with the endless memory function. When it is set on a computer, disable the function. the endless memory function is enabled, the number of pictures taken may not be displayed correctly. Eye-Fi cards are for use only in the country of purchase. Observe all local laws conceming wireless devices. Leaving the setting as Enable will result in the battery being depleted in a shorter period of time.

Eye-Fi Communication Indicator The communication status of the Eye-Fi card in the camera can be confirmed on the monitor (CL18). + : Eye-Fi upload is set to Disable. + lights}: Eye-Fi upload enabled; waiting to begin upload. + (flashes} Eye Fi upload enabled; uploading data + @: An error occurred. The camera cannot control the Eye-Fi card Supported Eye-Fi Cards As of November 2011, the following Eye-Fi cards can be used. Be sure that Eye-Fi card firmurare has been updated to the latest version. + Eye-Fi Connect X2 SDHC 4G8 + Eye-Fi Mobile X2 SDHC 8G8 + Eye-Fi Pro X2 SDHC 8GB

The Setup Menu Reverse Indicators Press the HENU button > Ÿ tab ([1113) > Reverse indicators Change the +/- display direction of the exposure indicator displayed when shooting mode is M. The + side of the indicators is set to the left and — side is set to the right in the default setting. Reset AII Press the HENU button > Ÿ tab ([[113) > Reset all When Reset is selected, the camera settings are restored to the default values. Unes aDua12joy Pop-up Menu Option Default value Flash mode (LL166) Auto Self-timer (LL169)/ OFF Smile timer (170) Focus mode (LL172) Autofocus Exposure compensation (L174) 00 Shooting in the Scene Mode Option Default value Scene menu (1141) Scene auto selector Night portrait (CL147) Tripod Close-up (49) Single shot Hue adjustment in Food mode (1150) Center Panorama (CL]51) Normal (180°) in Easy panorama Pet portrait (CL152) Pet portrait auto release: ON Continuous: Continuous Night Landscape Menu Option Default value Night landscape (2142) Hand-held

The Setup Menu Others Option Default value Paper size (6627, 6028) Default Frame intvl for Slide show (8657) 35 Sequence display options (8663) Key picture only Choosing Reset all also clears the current file number (6898) in the memory. After resetting, numbering continues from the lowest number available in the internal memory or the memory card. If Reset all is performed after all pictures are deleted from the internal memory or memory card (1136), the file numbers for the next pictures taken start from "0001." The following settings remain unaffected even if Reset all is performed - Shooting menu: Custom Picture Control registration (8837), preset manual data for White balance (6639) - Setup menu: Time zone and date (6/75), Language (6885) and Video mode (8686) in TV settings User settings that were saved for mode dial U are not reset to the default settings when Reset all is performed. To change these settings back to the default settings, use Reset user settings (8653). Firmware Version Press the HENU button > Ÿ tab (1113) > Firmware version Displays the current camera firmware version.

Pictures, movies and voice memos are assigned file names as follows. DSCNO0001.JPG Identifier Extension {not displayed on camera monitor (signifies the file type) Original still pictures (voice St pictures PC memo attachment DSCN Movies |tmor — EE Voice memos WAV mall copies (voice memo a — attachment included) SN EDpietures MPO Cropped copies (voice RSC File number (assigned automatically in memo attachment included) ascending order, starting with ‘0001") Pictures created with picture editing other than cropping and small picture and attached voice memos, FN movies created with movie editing A folder for storing files is automatically created using the following naming convention: ‘Folder number + NIKON” (eg, *100NIKON”). If there are 200 files in a folder, a new folder is created. (For example, the folder name following *100NIKON" becomes “101NIKON.") À new folder is also created when the file numbers in a folder reach 9999 or Reset file numbering (8690) is performed. The next file number is set automatically to "0001." If a folder contains no files, a new folder is not created even if Reset file numbering is performed Voice memo file names have the same identifier and file number as the picture to which the voice memo is attached In Panorama assist (666), a folder is created for each shooting session using the following naming convention: ‘Folder number + P_XXX" (e.g,"101P_001") Pictures are saved in sequence in file numbers starting from 0001 Each time a picture is taken in Interval timer shooting (8843), a folder named with the convention: ‘Folder number + INTVL' (e.g., 101INTVL) is created. Pictures are saved in sequence in file numbers starting from 0001 Unes aDua12joy

File and Folder Names + When image files or voice files are copied to or from the internal memory or memory card (8662), the file naming conventions are as follows: Selected images: Files copied using selected images are copied to the current folder (or to the folder used for subsequent pictures), where they are assigned file numbers in ascending order following the largest file number in memory. - Allimages Files copied using all images, along with their folder, are copied together. Folder numbers are assigned in ascending order, following the largest folder number on the destination medium. File names are not changed When the current folder is numbered 999, if there are 200 files in the folder or if a file is numbered 9999, no further pictures can be shot until the internal memory or memory card is formatted (8885), or a new memory card is inserted.

Rechargeable Rechargeable Li-ion Battery EN-EL51 battery Charging AC 12 Pan) Charging AC Adapter EH-69P Battery Charger MH-61 Battery charger | (Charging time when the battery is completely used up: Approx two hours) AC Adapter EH-62A (connect as shown) AC adapter Before closing the battery-chamber/memory card slot cover, fully insert the power connector cord into the slot in the battery chamber. If part of the cord runs out of the groove, the cover or cord may be damaged when the cover is closed USB cable USB Cable UC-E6' AudioWideo cable | Audio Video Cable EG-CP16! Lens cap Lens Cap LC-CP24! Hand strap Hand Strap AH-CPT Unes aDua12joy 1 included with the camera at the time of purchase. (See “Confirming the Package Contents” (ii) for more information.) 2 When using in other countries, use a commerciallÿ available plug adapter as necessary. For more information about plug adapters, consult your travel agency. See our websites or product catalogs for up-to-date information on accessories for the COOLPIX P510.

The following table lists the error messages and other warnings displayed on the monitor, as well as the solutions for dealing with them. Display Cause/Solution ea] Ciocknor set. (flashes) Set date and time. Lt Battery exhausted. [Battery exhausted 18,20 Charge or replace the battery. Battery temperature is high Turn off camera, and allow battery to cool down before resuming use. Five seconds after this message appears, the

ru temperature | onitor is tumed off and the power-on lamp, the AF/access [25 9 lemp and the flash lamp flash quicky. After the lamps flash for three minutes, the camera turns off automatically but you can Also press the power switch to turn it of manual. % iftun[inside ofthe camera has become hot The camera turns off Team win lomaticahy _ nes Leave the camera off until the inside of the camera has cooled 9 and then turn it on again. Œ Camera cannot focus. 2 Refocus. 32 (lashes red) Use focus lock 86 Please wait forthe —[eemera cannor perform other operations until recording cameratofinish [Complete - Farine Wait until message clears from display automatically when recording is complete. Memory card is write |Write-protect switch ofthe memory card sin lock position. | protected. Slide the write-protect switch to “write” position. Wte-protect switch of Eye-Fi card in lock position: L Slide the write-protect switch to “write” position. Not available iEye-Fi Error accessing Eye-hi card card is locked. + Use an approved card. 23 2 Check that the terminal is clean. 22 2 Confirm that memory card is correcty inserted. 22 This card cannot be _ [Error accessing memory card. used Use an approved card. 23 hs ardcannotbe [+ Check that the terminal is clean. 22 red 2 Confirm that memory card is correctiy inserted. 22

Error Messages Display Cause/Solution pa] Memory card has not been formatted for use in this camera. Card is not formatted. [AI data stored on the memory card is deleted when formatted. Format card? Ithere is any data on the card that you want to keep, select No,

Yes and backup the data to a computer before formatting the No memory card. To format the memory card, select Yes and press the @ button. Memory card Fu + Choose lower image quality or smaller image size. 77,78 Out of memory. + Delete pictures and movies. 36, 100 + Replace memory card. 22 + Remove memory card and use internal memory. 23 Error occurred while recording picture

Format the internal memory or memory card. Camera has run out offlle numbers. m image cannot be [Replace the memory card, or format the intemal memory [Ans saved memory card Picture cannot be used for welcome screen. o674 There is insuffcient space to save à Copy. m Delete pictures from destination. Unable to create panorama Cannot perform easy panorama shooting Unable to create [Easy panorama shooting may not be available in the following panorama. Pan the |situations. camera in one + When shooting has not finished after a certain period of time | #63 direction oniy. + When the camera movement speed is too fast & Dbrocec When the camera is not straight relative to the panorama & direction À panorama Panthe à camera more slowiy. £ When taking 3D pictures, the second shot could not be Ê successfully taken after the first shot. S + Tiy shooting again. After taking the first shot, move the os Failed to take second shot camera horizontally and frame the subject so that is aligned with the guide: In some shooting conditions, such as when the subject moves or the subject is dark or lowrin contrast, the second shot may not be taken

Display Cause/Solution pa] Falled to save the 3D pictures. + Tiy shooting again es Failed to save D |* Delete unnecessary pictures. A image + In some shooting conditions, such as when the subject ni moves or the subject is dark or low in contrast, the secand shot may not be taken or the 3D picture may not be saved. A voice memo cannot be attached ta this file. Sound file cannot be h + Voice memos cannot be attached to movies. _ savec + Select a picture taken with this camera. 661 ï be — [ennoreditselected picture. Image cann + Confirm the conditions that are required for editing, CIE modified + These options cannot be used with movies. _ Cannot record movie [Time out error will recording movie. m Choose memory card with faster write speed Cannorresetfile [NO more folders can be created ms Insert a new memory card, or format the internal memory/ numbering, CE memory card No pictures in the internal memory or memory card. + To view the pictures stored in the internal memory, remove _|22 Memory contains no | _ the memory card images. + To copy pictures from internal memory to a memory card, | 662 press the MENU button and select Copy from the playback menu File contains no File not created with COOLPIX P510. image data. File cannot be viewed on this camera hi fe comnotbe [View file using the computer or any other devices which was played back used to create or edit this fl. Allimages are hidden. |No images avallable for slide show. = This image cannot be [Picture is protected. ose deleted Disable protection. Travel destination in | Dectination in same time zone as home. o077 the current time zone. Mode dial is not in [Mode dial is between two modes. m the proper position. |Rotate the mode dial to select the desired mode. The flash is lowered when the scene mode 1 Night portrait or |47, Raise the flash. (Backlighting) with HDR set to Off 44, Press the % (flash pop-up) button to raise the flash. éé

Error Messages Display Cause/Solution œa] re ah tab cg a canular Press the $ (fash pop-up) button to raise the flash. The camera The flash is lowered. | il shoot normally with the flash lowered ifyou do not wish | 15" 65 fouse it Lens error occurred. Lens error Fur the camera off and then on again. the error persists, [25 contact retailer or Nikon-authorized service representative. Communications [Enor occurred during communication wth printer. x error Fur of camera and reconnect the USB cable. Error has occurred in cameras internal cieuity. System gro Turn off camera, remove and reinsert battery andtumon |, Y: camera. the error persists, contact retailer ar Nikn-authorized service representative. Could not obtain GPS [The camera clockis not set correct. data Change the location or time and determine the location again An GPS le that can be updated 1 not found in the memory. card Checkthe following items. No A-GPS fille found _ | Whetherthe memory card is inserted on card 2 Whether the A-GPS file is stored in the memory card n + Whether the A-GPS file saved in a memory card is more recent than the A-GPS flle saved in the camera + Whetherthe A-GPS fl is stil valid Unable to update À GPS fl, Update failed The A.GPS file may be corrupted. Download the ile from the |exe70 2 website once more. A A memory card notinserted. mn £ Insert a memory card. $ cannotuvetocar [29109 data events hate been aleady saved one dy. _ É T00 log data events have been already saved 5 Delete log data that is no longer required from a memory card |6673 or replace the memory card with a new one. Printer error: check printer status. Printer error Check printer After solving the problem, select Resume and press the @ button to resume printing.*

Printer error: check paper Specified sie of papers not loaded Load the specified size of paper, select Resume and press the @ button to resume printing.* Printer error: paper jam Paper has jammed in the printer. Remove the jammed paper, select Resume and press the @ button to resume printing." Printer error: out of paper No papers loaded in he printer. Load the specified size of paper, select Resume and press the @ button to resume printing.* Printer error: check ink Ink error Check ink, select Resume and press the @ button to resume printing Printer error: out of ink Ink cartridge is empty. Replace ink cartridge, select Resume and press the @ button to resume printing, Printer error file corrupt An error caused by the Image fle has occurred Select Cancel and press the @ button to cancel printing.

• See the instruction manual provided with your printer for further guidance and information

Ÿ: Technical Notes and Index

Caring for the Products. Charging AC Adapter The Memory Cards Caring for the Camera Troubleshooting Specifications... Supported Standards Index. Xepul pue S2ON [EAUUD2L

XEpUI pue S2JON [EAUUDEL Technical Notes and Index The Camera To ensure continued enjoyment of this Nikon product, observe the following precautions when using or storing the device. Be sure to read and follow the warnings of "For Your Safety" (Avi to Cviii) thoroughly before using the products. TZ Keep Dry The device will be damaged if immersed in water or subjected to high humidity. P% 00 Not Drop The product may malfunction if subjected to strong shock or vibration. TZ Handie the Lens and All Moving Parts with Care Do not apply force ta the lens, lens cover, monitor, memory card slot, or battery chamber. These parts are easily damaged. Applying force to the lens cover could result in camera malfunction or damage to the lens, Should the monitor break, care should be taken to avoid injury caused by broken glass and to prevent the liquid crystal from the display touching the skin or entering the eyes or mouth TZ Do Not Point the Lens at Strong Light Sources for Extended Periods Avoid painting the lens at the sun or other strong light sources for extended periods when using or Storing the camera. Intense light may cause deterioration of the image sensor, producing a white blur effect in photographs. TZ Keep away from Strong Magnetic Fields Do not use or store this device in the vicinity of equipment that generates strong electromagnetic radiation or magnetic fields. Strong static charge or the magnetic fields produced by equipment such as radio transmitters could interfere with the monitor, damage data saved on the memory card, or affect the products internal circuitry. L% avoid Sudden Changes in Temperature Sudden changes in temperature, such as when entering or leaving a heated building on a cold day, can cause condensation to form inside the device. To prevent condensation, place the device in à carrying case or a plastic bag before exposing it to sudden changes in temperature. L%Z turn the Product off Before Removing or Disconnecting the Power Source or the Memory Card Do not remove the battery while the product is on, or while images are being saved or deleted Forcibly cutting pawer in these circumstances could result in loss of data or in damage to product memory or internal circuit.

Caring for the Products P% Notes on the Monitor + Monitors and electronic viewfinders are constructed with extremely high precision, at least 99.90% of pixels are effective, with no more than 0.01% being missing or defective. Hence while these displays may contain pixels that are always li (white, red, blue, or green) or always off (black) this is not a malfunction and has no effect on images recorded with the device. + Images on the monitor may be difficult to see under bright lighting + The monitor is lit by an LED backlight. Should the monitor begin to dim orflicker, contact your Nikon-authorized service representative. The Battery Be sure to read and follow the warnings of "For Your Safety” (Clvi to Cv) thoroughly before using the battery. Check the battery level before using the camera and replace or charge the battery if necessary. Do not continue charging once the battery is fully charged as this will result in reduced battery performance. Whenever possible, carry a fully charged spare battery when taking pictures on important occasions. Do not use the battery at ambient temperatures below 0°C (32°F) or above 40°C (104*F). Charge the battery indoors with an ambient temperature of 5°C to 35°C (41°F to 95°F) before use. When the battery temperature is between 45°C and 60°C (113°F and 140°F), the chargeable capacity may decrease. The battery is not charged at ambient temperatures below 0°C (32°F) or above 60°C (140°F). Note that the battery may become hot during use; wait for the battery to cool before charging. Failure to observe these precautions could damage the battery, impair its performance, or prevent it from charging normally. On cold days, the capacity of batteries tends to decrease. Be sure that the battery is fully charged before heading outside to take pictures in cold weather. Keep spare batteries in a warm place and exchange as necessary. Once warmed, a cold battery may recover some ofits charge. Dirt on the battery terminals can prevent the camera from functioning. Should the battery terminals become dirty, wipe them off with a clean, dry cloth before use Xepul pue S2ON [EAUUD2L

XEpUI pue S2JON [EAUUDEL Caring for the Products Ifthe battery will not be used for some time, insert it in the camera and run it flat before removing it for storage. The battery should be stored in a cool location with an ambient temperature of 15°C to 25°C (59°F to 77°F). Do not store the battery in hot or extremely cold locations. Always remove the battery from the camera or battery charger when it is not being used. When inserted, minute amounts of current are drawn from the battery even when not in use. This may result in excessive draining ofthe battery and complete loss of function. Turning the camera on or off while the battery is exhausted can result in reduced battery life. When the battery level is low, be sure to charge the battery before using it. Recharge the battery at least once every six months and completely exhaust it before returning it to storage. After removing the battery from the camera or battery charger, attach the included terminal cover to the battery and store it in a cool place. A marked drop in the time a fully-charged battery retains its charge, when used at room temperature, indicates that the battery needs to be replaced. Purchase a new EN-ELS5 battery. Replace the battery when it no longer holds a charge. Used batteries are a valuable resource. Please recycle used batteries in accordance with local regulations. Charging AC Adapter +_ Be sure to read and follow the warnings of "For Your Safety" (vi to Ci) thoroughly before using the Charging AC Adapter. +_The Charging AC Adapter EH-69P is for use only with compatible devices. Do not use with another make or model of device +_ The EH-69P is compatible with AC 100-240 V, 50/60 Hz electrical outlets. When Using in other countries, use a plug adapter (commercially available) as necessary. For more information about plug adapters, consult your travel agency. Do not, under any circumstances, use another make or model of AC adapter other than Charging AC Adapter EH-69P or USB-AC adapter. Failure to observe this precaution could result in overheating or in damage to the camera.

Caring for the Products The Memory Cards Use only Secure Digital memory cards. See "Approved Memory Cards’ (C[123) Be sure to observe the precautions in the memory card documentation when you use the memory card Do not affix labels or stickers to the memory card. Do not format the memory card using a computer. When a memory card that has been used in another device is used for the first time, be sure to format it with this camera. When a new memory card is used, it is recommended to format it with this camera first. Formatting permanently deletes all data in the memory card. Be sure to transfer important pictures to a computer before formatting. Ifthe error message “Card is not formatted. Format card?" is displayed when you insert a memory card into this camera, the memory card must be formatted. If the memory card contains images you wish to keep, select No and save those images on your computer before formatting the memory card. To format the card, select Yes and press the @ button. Do not perform the following during formatting, while data is being written to or deleted from the memory card, or during data transfer to a computer. Failure to observe this precaution could result in loss of data or damage to the memory card - Open the battery-chamber/memory card slot cover to remove the battery or memory card. = Turn offthe camera -_ Disconnect the AC adapter Xepul pue S2ON [EAUUD2L

XEpUI pue S2JON [EAUUDEL Cleaning ‘Avoid touching glass parts with your ingers. Remove dust or lint with a blower ypically a small device with a rubber bulb attached to one end that is pumped to produce a stream of air out the other end. To remove fingerprints, oily substances, or other stains that cannot be removed with a blower, carefully wipe the lens with à dry soft cloth or eyewear cleaning cloth, using à spiral motion that starts at the center of the lens and working toward the edges. Do not wipe the lens forcibly or with a hard material. Failure to observe this precaution could result in damage or trouble. fthis fais, clean the lens using à cloth lightiy dampened with commercial lens cleaner. Lens/ viewfinder Remove dust or int with a blower. To remove fingerprints, oily substances or other stains, carefully wipe the monitor with a dry soft cloth or eyewear cleaning cloth. Do notwipe the monitor forcibly or with a hard material. Failure 10 observe this precaution could result in damage or trouble. Monitor Use a blower to remove dust, di, or sand, then wipe gently with à soft, dry cloth. After using the camera at the beach or other sandy or dusty Body | environment, wipe off any sand, dus, or salt with a dry cloth lightiy dampened with fresh water and dry thoroughly. Note that foreign matter inside the camera could cause damage not covered by the warranty. Do not use volatile organic solvents such as alcohol or thinner, chemical detergents, anticorrosive agents, or anti-fogging agents. Storage Remove the battery if the camera will not be used for an extended period. Do not Store the camera with naphtha or camphor moth balls, or in any of the following locations: + Next to equipment that produces strong electromagnetic fields, such as televisions or radios + Exposed to temperatures below —10°C (14°F) or above 50°C (122°F) +_ Places that are poorly ventilated or subject to humidity of over 60% To prevent mold or mildew, take the camera out of storage at least once a month. Turn the camera on and release the shutter a few times before putting the camera away again. Be sure to read and follow the warnings given in ‘The Battery” (&3) of "Caring for the Products” to store the battery.

If the camera fails to function as expected, check the list of common problems below before consulting your retailer or Nikon-authorized service representative. Refer to the page numbers in the right-most column for more information. + See “Error Messages" (68101) for more information. Power, Display, Settings Issues Problem Cause/Solution pa] The battery inseted inthe | Confirm all connections. 20 camera cannot be |. Close the battery-chamber/memory card slot cover. 22 charged Offis selected for Charge by computer in the setup menu. [110,668 When charging by connecting the camera to a computer, | 688 The battery cannot | | battery charging stops when the camera is turned off. be charged by | When charging by connecting the camera to a computer, [688 connecting the battery charging stops when the computer is suspended camera to a sleeping), and the camera may turn off. computer. Depending upon computer specifications, settings, and status, | charging the battery inserted in the camera may not be possible via computer connection. Battery is exhausted. Da The camera cannot be tumed on while connected to an 20 Camera cannot be | ectrical outiet via the Charging AC Adapter. turned on. +. Camera cannot be turned on ifthe battery-chamber/memory |22 card slot cover is open. + Battery is exhausted. pa *_ lfno operations are performed for a while, camera has turned A off automatically by auto off to save power. 25 5 The camera turns off ifthe Charging AC Adapter is connected Fi while the camera is on. 20 2 Camera turns off … | The camera turns off ifthe USB cable connecting the camera £ without warning. | to a computer or printer is disconnected. Reconnect the USB |00, 03, ë cable. 6626 5 Inside of the camera has become hot. Leave the camera off |- a until the inside of the camera has cooled. È Atlow temperatures, the camera and the battery may not 263 function normal.

XEpUI pue S2JON [EAUUDEL Troubleshooting Problem Cause/Solution El + Cameras off 3 + Battery is exhausted 24 + Standby mode for saving power: Press the power switch, Ds shutter-release button, De] button or @ (A movie-record) Monitor or button, or rotate the mode dial Vieninder is blank [* Monitor and viewfinder cannot be used simultaneousy. Press | 16 the [OI button to alternate between displays. + Camera and computer are connected via USB cable. 90,93 + Camera and TV are connected via audio/video cable or HDMI |90, 6623 cable. + Interval timer shooting in progress. CE) + Ambient ighting too bright: move to darker location oruse [16 Monitor is hard to | viewfinder see. + Adjust monitor brightness. 108, 6678 + Monitor is dirty. Clean monitor. d6 esentnder 15 |. Adjust diopter adjustment control. 16 You cannot switch the display in the following situations: Display does not _ | While recording or playing back movies 26, 100 switch to monitor | While recording or playing back voice memos es or viewfinder) - During interval timer shooting 61 when the (OI - While connected to a printer 90 button is pressed. + You cannot switch the display while displaying a certain error message. Date and time of recording are not correct. the camera clock has not been set ("Date not set” indicator flashes during shooting), still pictures have a time stamp of “00/00/0000 00:00; and movies are dated “01/01/12 00:00” Set the correct date and time using Time zone and date in the setup menu The camera clock is not as accurate as a normal clock, such as |108, watches. Check camera clock regularly against more accurate [6675 timepieces and reset as required No information [shooting and photo information may be hidden. Press the DISP displayed in 5 button until shooting data or photo information is displayed monitor Print date not L 26, 108, ce Time zone and date in the setup menu has not been set. Fe

Troubleshooting Problem Cause/Solution E] Date not appearing on +_ A shooting mode that does not support print date is selected. | 108, 6679 pictures even Another function that is set now is restricting the print date. |80 when Printdateis |: The date cannot be imprinted onto a movie. - enabled Screen for setting time zone and date is displayed ven cameras |Cockbareny& exhaustedallseings were restored other |,, tumed on. defaut values. Camera settings reset. Reset file Reset file numbering cannot be applied when the folder T0, numbering number reaches 999 and there are images in the folder. Change [6600 cannot be done. [the memory card, or format the internal memory/memory card. Monitor is turned _ [Battery temperature is high. Turn off camera, and allow battery to off and the power. |caol doun before resuming use. After the lamp flashes forthree |. on lamp flashs |minutes, the camera turns off automaticalh, but you can also quick. press the power switch ta turn i off manually When functions such as movie recording or sending images Camera using an Eve-Fi card are used for a long time, or when the camera |, temperature rises. is used in à location with a high ambient temperature, the camera temperature may rise. This is not a malfunction. @ Electronically Controlled Cameras In extremely rare instances, unusual characters may appear on the monitor and the camera may stop functioning. In most cases, this phenomenon is caused by a strong external static charge. Turn the camera off, remove and replace the battery, then turn the camera on again. Note that disconnecting the power source as described above may result in the loss of any data not recorded on the internal memory or memory card at the time the problem occurred. Data already recorded is not affected. In the event of continued malfunction, contact your retailer or Nikon-authorized service representative. Xepul pue S2ON [EAUUD2L

XEpUI pue S2JON [EAUUDEL Troubleshooting Shooting Issues Problem Cause/Solution Ea] Cannot set to a ogg mode. |Pisconnect the HDMI cable or USB cable 2623,

+ When camera is in playback mode, press the [#7] button, 54 shutter-release button or @ (A movie-record) button. + When menus are displayed, press the HENU button. 5 No picture can be |! à opt + Battery is exhausted 24 + When the scene mode is Night portrait or [El (Backighting) |47, 44, with HDR set to Off, rise the flash. 66 When flash lamp flashes, flash is charging. 66 Cannot take 30 — [In some shooting conditions, such as when the subject moves or HU the subject is dark ar lour in contrast, the second shot may not be | faken or the 3D picture may not be saved + Subjectis too close to the camera Try shooting with $ (macro [45, 49, close-up) in the focus mode, or Scene auto selector or m2 Close-up scene mode. + Theintended subject is one with which autofocus does not |33 Camera cannot perform well focus. + Set AF assist in the setup menu to Auto. 109, 6682 + Subject is not in focus area when shutter-release buttons |32,61 pressed halfwaÿ. + The focus made is set to MF (manual focus). 72 Turn camera off and then on again 25 Colored stripes may appear when shooting subjects with Colored tripes |"ePezting patterns (such as window blinds; his is not a pe |malunction one The colored stripes will not appear in captured images or - Moving recorded movies. However, when using Continuous H: 120 fps or HS 120 fps (640x480), the colored stripes may be seen in he captured images and recorded movies. + Use flash. 66 Pictures are Use vibration reduction or mation detection. 108, 109 blumed + Use BSS (Best Shot Selector). 61 Use a tripod to stabilize the camera (use with the sel-timer for |69 better results) Bright specks appearin pictures [Flash is reflecting off particles in air. Set the flash to ® (off) C2 shot using flash. &10

Troubleshooting Problem Cause/Solution Ea] + Flash is set to ® (off 67 Flash does not fie. |+_ À shooting mode where flash cannot fie is selected. 75 2 Another function that is set now is restricting the flash. 80 + Offis selected for Digital zoom in the setup menu 109 ne digital zoom 1 [* When Scene auto selector, Portrait, Night portrait Easy |46, 47,

9) panorama in Panorama, Pet portrait or 3D photography |51,53

not available. is selected in scene mode, the digital zoam cannot be used. + Other functions that restrict the use of digital zoom are set. |80 Imagesizenot | à her function that is set now is restricting Image size. 80 available. + Off is selected for Shutter sound under Sound settings in |109 the setup menu No sound when |: Sports, Museum or Pet portrait is selected in scene mode. |46, 50, 52 shutter is released. [+ Other functions that restrct the use ofthe shutter sound are [80 set 2 Do not block the speaker. 3 Fast Offis selected for AF assistin the setup menu. Even when Auto iluminator does … |is set, AF-assist illuminator may not light depending on the focus | 109 not light. area position or scene mode. Pictures appear ; el Lens is dirty. Clean lens. dé Colors are White balance does not match light source. 61,638 unnatural Ring-shaped or [When the subjectis backit or when shooting with an extremely rainbowr-colored _ |bright light source in the display, such as in sunlight, ing-shaped bands are seen on |or rainbow-colored bands may appear on the image. - the screen orthe _ [Change the position ofthe light source or remove it from the shot image. display, and try shooting again. AS the subject 5 dark, shutter speed 100 slow orISO senstüvity The image taken _ |is too high. becomes grainy.… [+ Use flash. 66 _ Specify a lower ISO sensitivity setting. 61, 645 Xepul pue S2ON [EAUUD2L

XEpUI pue S2JON [EAUUDEL Troubleshooting Problem Cause/Solution Ea] + Flash is set to ® (off). 67 Flash window is blocked. 30 a + Subject is beyond flash range 66 ictures are too en + Adjust exposure compensation 74 (underexposeg. | Rise the ISO sensthity 61, 645 + Subject is backlit. aise the flash, and setthe scene mode [44,66 GBacklighting) with HDR to Off or set the flash mode to Cl flash) PICIUrES are 100 bright Adjust exposure compensation. 74 Koverexposed) When $® (auto with red-eye reduction) or ‘fil flash with red-eye ress not affected ['eduction’ ofthe Night portrait scene mode is applied during shooting, In-Camera Red-Eye Fix may, in very rare cases, be byred-eye are also 47,67 ne applied ta areas not affected by red-eye. Set a flash made other than $® (auto with red-eye reduction), select a scene mode other than Night portrait, and resume shooting. Skin softening [2 S0ftening may not produce the desedresuts depending [54 ne ds | On shooting conditions . | nee + For pictures with four or more faces, try using Skin softening |88, in the playback menu CE Te may take more time to save Images in the following situations. + When the noise reduction function is in operation - + When flash is set to $® (auto with red-eye reduction) 67 + When taking pictures in the following scene modes. - Hand-held in ER (Night landscape) 42 Saving images - Noise reduction burst in [@ (Landscape) or Close-up 43,49 tre = HDR set to other than Off in FE] (Backlighting) 44 - Hand-held in Night portrait 47 - Easy panorama in Panorama si + Continuous in the shooting menu is set to Continuous H:_|61, 120 fps or Continuous H: 60 fps CU When using smile timer while shooting 70 + When using Active D-Lighting while shooting 62, 0653 Cannot ser or use Continuous or [Another function that is set now is restricting the Continuous |, setting or Exposure bracketing ur [Another function thatis set nowis resticting COOLPIX Picture |, Control control

Troubleshooting Playback Issues Problem Tause/solution Ca] F File was overwten orrenamed by computeroranother | File cannot be make or model of camera ne 2 File cannot be played back during interval timer shooting. |61 + Movies recorded with cameras other than COOLPIX PS10 [96 cannot be played back F Pictures shot continuousiy with cameres other than COOLPIX [= Cannox play a P510 cannot be played Lane pled aa sequence + Checkthe Sequence display options setting 89, 6663 F Playbackz00m cannot be used with movies, smal pictures,or | cropped copies of size 320 X 240 pixels or smaller. Cannotzoominon [+ Playback zoom may not be available for pictures taken with |- picture. cameras other than COOLPIX P510. *_3D pictures cannot be enlarged when the camerais CE connected via HDMI and they are played backin 30. Connor record gr [° Voice memos cannot be attachedto mous. 100 Stade |: Voice memos cannot be aached to piures mkenvith [88 play be cameras other than COOLPIX P510, and voice memos recorded by other cameras cannot be played back 5 À Confim the conditions thatare required for editing pictures or [o16 ictures and movies cannotbe |, Movies Sail ae 2 Pictures and movies taken with cameras other than COOLPIX | P510 cannot be edited + Video mode or HDMI not correctly setinthe TV settings |110. setup menu es Pictures are not |: Cables are connected to both the HDMImini connector and [90 displayed on US8/audio video connector. television. + Memory card contains no pictures. Replace memory card. [22 Remove memory card to play back pictures from internal memory. + Gamer tof 3 2 Battery is exhausted. Da Nikon Transfer 2 |: USB cable is not correctiy connected. 90 does not start [+ Camera is not recognized by the computer. _ wihen cameras [+ Confirm that the operating system used is compatible with [91 connectedtoa | thecamera computer. + Computer is not set to launch Nikon Transfer 2automaticaly [94 For more information on Nikon Transfer 2, refer to help information contained in View/NX 2 The PictBridge |\ith some PictBridge-compatible printers, the PictBridge startup Startup screen is Fedaned [screen may notbe displyedandi maybe impossible to print | 0, ere [mages when Auto & selected for the Charge by computer | eus is connected to a printer. option. Set the Charge by computer option to Off and reconnect the camera to the printer.

XEpUI pue S2JON [EAUUDEL Troubleshooting Problem Cause/Solution CA] Piaurestobe [+ Memory cardcontains no pictures. Replace memory card. [22 printed are not [+ Remove memory card to print pictures from internal memory. [23 displayed + Pictures taken by 3D photography cannot be printed os Paper size cannot be selected fiom the camera in the following c Situations, even far PictBridge compatible printers. Use the annot select printer ta select paper size. papersize With | The paper size selected using the camera is not compatible |6627, camera. with the printer. ee2s A printer that automatically sets the paper size is being used. |- Gps Problem Cause/Solution a] + The camera may not be able to identify the location insome [103 Unable to identify. | shooting environments. To use the GPS feature, use the the location orit | _ camera as much as possible in an operr-air area takes time to When positioning for the first time, when positioning was [103 identify the unable to be performed for about two hours, or after the location. battery was changed, it takes a feur minutes to obtain the positianing information Unable torccorg [° Wen & or Bis displayed on the shooting screen, the 102 position position information is not recorded. Befare shooting pictures, make sure that the camera is receiving a GPS signal at information on hotimages sufficient strength. + Positional information cannot be recorded onto movies. - Difference between the The acquired position information may deviate in some shooting actual shooting environment. When there is a significant difference in the 10 location and Signals from the GPS satellite, there could be a deviation of up to recorded position |several hundred meters. information + Checkthe following items. - = Whether the memory card is inserted - Whether the A-GPS file is stored in the memory card Unable to update | Whetherthe A-GPS file saved in a memory cardis more recent the A-GPS file than the A-GPS fille saved in the camera - Whether the A-GPS file is st valid The A-GPS file may be corrupted. Download the file from the [6670 website once more. Be sure that a memory card is inserted in the camera - Unable to save log | UP 19 36109 dta events can be recorded in à day pus data Up to 100 log data events can be stored on a single memory card. Delete log data that is no longer required from a memory card or replace the memory card with a new one.

Nikon COOLPIX P510 Digital Camera KR <orpec rl camera Effective pixels 1 6.1 million = — 1/23-in.type CMOS; approx. 16:79 milion total pixels 42% optical zoom, NIKKOR lens 4.3-180mm (angle of view equivalent to that of 24-1000 mm RE Faim sam TS ma à f/-number f/3-59 Construction 14 elements in 10 groups (4 ED lens elements) Digtalzoom Up to 2x {angle of view equivalent to that of approx. 2000 mm lens in 35mm [135] format) Mibrtionreguctionsw« Len: sit Contrast-detect AF + I: Approx 50 cm (1 ft 8 in) to ce, Focus range EM: Approx. 1.5 m (5 ft) 10 ce {from lens) + Macro close-up mode: Approx. 1 cm (04 in) (at a wide-angle Zoom position beyond 43) to << Focus-area selection |; 99 focus areas, subject tracking, target finding AF Electronic viewfinder, 0.5-cm (0.2-in) approx 201k-dot equivalent LCD with the diopter adjustment functior (4t0+4m) Frame coverage Approx. 100% horizontal and 100% vertical (compared to shooting mode) actual picture) Frame coverage Approx. 100% horizontal and 100% vertical (compared to {playback mode) actual picture) 7.5-cm (3-in), approx 921k-dot, wide viewing angle TFT LCD monitor with anti-reflection coating and 5-level brightness adjustment, titable approx. 82° downward, approx. 90° upward Frame coverage Approx. 100% horizontal and 100% vertical (compared to shooting mode) actual picture) Frame coverage Approx. 100% horizontal and 100% vertical (compared to playback mode) actual picture) Intermal memory (approx. 90 MB) SD/SDHC/SDXC memory card DCF, Exif 23, DPOF, and MPF compliant Still pictures: JPEG 3D pictures: MPO Sound files (voice memo}: WAV Movies: MOV (Video: H.264/MPEG-4 AVC, Audio: AAC stereo) Media File system File formats Face priority, auto (9-area automatic selection), center, manual

XEpUI pue S2JON [EAUUDEL Specifications + 16M 4608x3456 + 8M 3264x2448 + 4M 2272x1704 + 2M 1600x1200 + VGA 640x480 + 16912M 4608x2592 + 1692M 1920x1080 + 32 4608x3072 on 3456x3456 +_ 150 100, 200, 400, 800, 1600, 3200, Hi 1 (equivalent to 6400) + Auto (auto gain from ISO 100 to 1600) + Fixed range auto (150 100 to 400, 100 to 800) + Hi2 (equivalent to 12800) (High ISO monochrome in special effects mode) Metering 224segment matrix, centerweighted, spot Programmed auto exposure with flexible program, shutter priority auto, aperture-priority auto, manual, exposure bracketing, motion detection, exposure compensation (-2.0 to +20 EVin steps of 1/3 EV) Mechanical and CMOS electronic shutter Auto mode, scene mode, special effects mode « 1/4000"t015 +_1/4000 to 2 s (Tripod in Night landscape scene mode) + 45 (Fireworks show scene mode) PS. A and M modes + 1/4000" to 8 s (when ISO sensitivity is set to 100 in M mode: including when set to Auto or Fixed range auto) +_1/4000" to 4 s (when ISO sensitivity is fixed at 100, 200, or 400 in P, $, or À mode, and when ISO sensitivity is fixed at 200 or 400 in M mode) 1/4000" to 2 s (when ISO sensitivity is fixed at 800) 1/4000" to 1 s (ahen ISO sensitivityis fixed at 1600, and when set to Auto or Fixed range auto in P, $, or À mode) 1/4000° to 1/2 s (when ISO sensitivity is fixed at 3200 or Hi 1) 1/4000 to 1/125 s (Continuaus H: 120 fps) 1/4000 to 1/60 s (Continuous H: 60 fps) The aperture value is 83 Electronically-controlled 6-blade iris diaphragm Range 10 steps of 1/3 EV (W) (A, M mode) PSE Durations of 2 or 10 seconds can be selected Range (approx) IMI:05 to 80m (1 ft8in.to 26 ft) {SO sensitivity: Auto) … [J:1.5 104.5 m (5 frto 14f) Flash control TTL auto flash with monitor preflashes HrSpeed USB Data transfer protocol … MTP, PTP Exposure control MMides output Can be selected from NTSC and PAL IHDMIOUUEE Can be selected from Auto, 480p, 720p, and 1080ï

Specifications Audio/video output, digital /O (USB); HDMI Mini Connector (Type ©) (HDMI output) feet frequency 1575.42 MHz (C/A code), geodetic system Abel Brazilian Portuguese, Chinese (Simplified and Traditional), Czech, Danish, Dutch, English, Finnish, French, German, Greek, Hindi, Hungarian, ndonesian, lalian, Japanese, Korean, Norwegian, Polish, Portuguese, Romanian, Russian, Spanish, Swedish, Thaï, Turkish, Ukrainian, Vietnamese + One Rechargeable Li-ion Battery EN-ELS (included) + AC Adapter EH-62A (available separately) Approx 4 hours and 30 minutes (ahen using Charging AC Adapter EH-69P and when no charge remains) Sul pictures : Approx 240 shots Apps 1 h 10 min (HD 1080p % (1920x1080)) Temperature O°C to 40°C (32F to 104°F) Humidity 85% and below (no condensation) Unless otherwise stated, all figures are for a camera with a fully-charged Rechargeable Li-ion Battery EN-EL5 operated at an ambient temperature of 25°C (7°). Based on Camera and Imaging Products Association (CIPA) standards for measuring the life of camera batteries. Measured at 23 (2)°C (73 (+4)°F); 200m adjusted with each shot, flash fred with every other shot, image quality set 10 Normal, image size set to 4 4608x3456. Battery life may vary depending on shooting interval and length of time menus and images are displayed 2 When recording a single movie, the maximum recording time is 4 GB or 29 minutes, even when there is enough free space on the memory card

XEpUI pue S2JON [EAUUDEL Specifications Rechargeable Li-ion Battery EN-EL5 CE Rechargeable lithium-ion battery [Rated capat 0c 3 v. 1100 man Doperatingtemperaturem 0°c 10 40°C (32*F to 1047) Approx. 36 x 54 x 8 mm (1.4 x 2.1 X 03 in) (excluding projections) Weight Approx. 30 g (1.1 oz) (excluding terminal cover) Charging AC Adapter EH-69P Re 1 C 100-240 , 50/60 Hz, 0.068-0042 À [Rated upon 2< : 0v.550 m4 Doperatingtemperaturem 0°c 10 40°C (32*F to 1047) Approx. 55 x 22 x 54 mm (22 x 0.9 x 2.2 in) (excluding plug adapter) For Argentina: Approx. 55 x 59 x 63 mm (2.2 x 24 X 2.5 in) For Korea: Approx. 55 x 59 x 66.5 mm (22 x 24 x 27 in) Approx. 55 g (20 02) (excluding plug adapter) For Argentina and Korea: Approx. 80 g (29 02) TZ Specifications + Nikon will not be held liable for any errors this manual may contain. + The appearance ofthis product and its specifications are subject to change without notice. Supported Standards + DCF: Design Rule for Camera File System is a standard widely used in the digital camera industry to ensure compatibility among different makes of camera. DPOF: Digital Print Order Format is an industry-wide standard that allows pictures to be printed at a digital photo lab or with a household printer from print orders stored on the memory card. Exif version 2.3: This camera supports Exif (Exchangeable Image File Format for Digital Still Cameras) version 23, a standard that allows information stored with photographs to be used for optimal color reproduction when images are output from Exif-compliant printers. See the instruction manual of the printer for further details. PictBridge: A standard developed cooperatively by the digital camera and printer industries, allowing photographs to be output directly to a printer without connecting the camera to a computer. &18

Lens cap 7 Liion rechargeable battery 18, 66100 Lithium-ion type battery 20, 66100

Nikon No reproduction in any form of this manual, in whole or in part (except for brief quotation in critical articles or reviews), may be made without written authorization from NIKON CORPORATION.
