USER MANUAL 32LC5 LG

LCD TV | PLASMA TV OWNER'S MANUAL

LCD TV MODELS PLASMA TV MODELS

26LC4 26LC5 42PC5*

32LC4 32LC5 50PC5*

37LC4 37LC5 50PB6*

42LC4 42LC5 42PC3*

26LB7 32LB7 50PC3*

60PC4*

Please read this manual carefully before operating your set.

Retain it for future reference.

Record model number and serial number of the set. See the label attached on the back cover and quote this information to your dealer when you require service.

ACCESSIONS

Ensure that the following accessories are included with your TV. If an accessory is missing, please contact the dealer where you purchased the product.

Owner's Manual

Power Cord

Polishing Cloth

(This feature is not available for all models.)

Polish the screen with the cloth.

Remote Control

Batteries

Slightly wipe stained spot on the exterior only with the cleansing cloths for the product exterior if there is stain or fingerprint on surface of the exterior.

Do not wipe roughly when removing stain. Please be cautious of that excessive power may cause scratch or discoloration.

Plasma TV models

2-Wall brackets

2-eye-bolts

(This feature is not available for all models.)

50PB6*, only

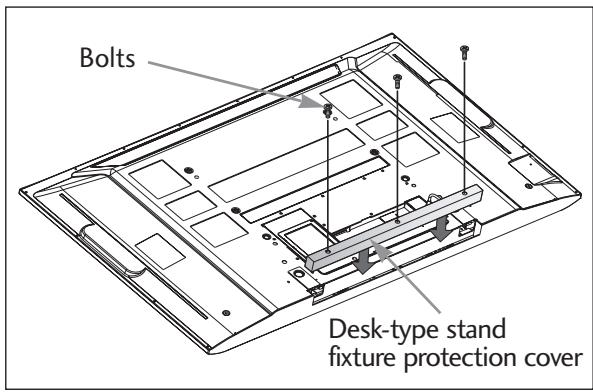

One desk-type stand fixture protection cover Refer to p.20

3-bolts Refer to p.20

LCD TV models

(This feature is not available for all models.)

2-TV Brackets
2- Wall Brackets

2-bolts

Twister Holder Arrange the wires with the twister holder.

or
Cable Management

26^ ，32"，37"only

4-bolts for stand assembly Refer to p. 12

26/32LB7*only

1-screw for stand fixing Refer to p. 14

ACCESSIONS 1

PREPARATION

Front Panel Controls 4

Back Panel Information 7

Stand installation 11

Attaching the TV to a wall 13

Attaching the TV to a desk 14

Back Cover for Wire Arrangement 15

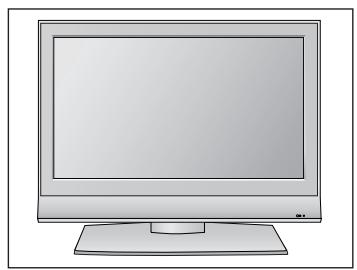

Desktop Pedestal Installation 19

Wall Mount: Horizontal installation 20

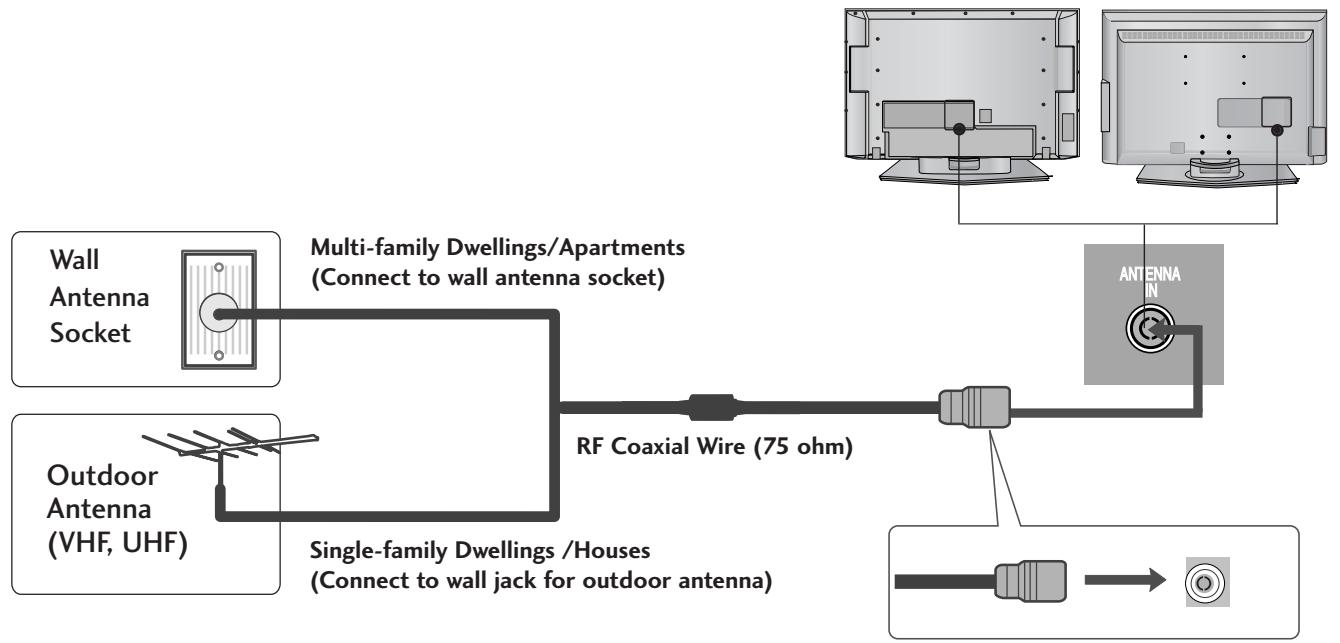

Antenna Connection 21

EXTERNAL EQUIPMENT SETUP

HD Receiver Setup 22

DVD Setup 25

Insertion of CI module 28

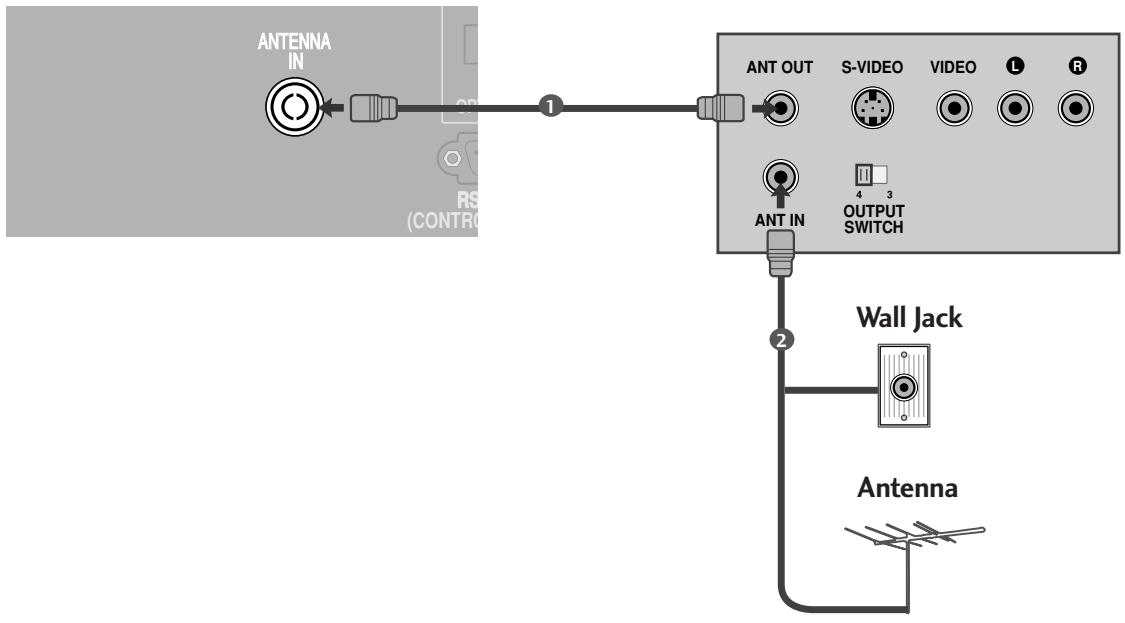

VCR Setup 29

Digital Audio Out Setup 31

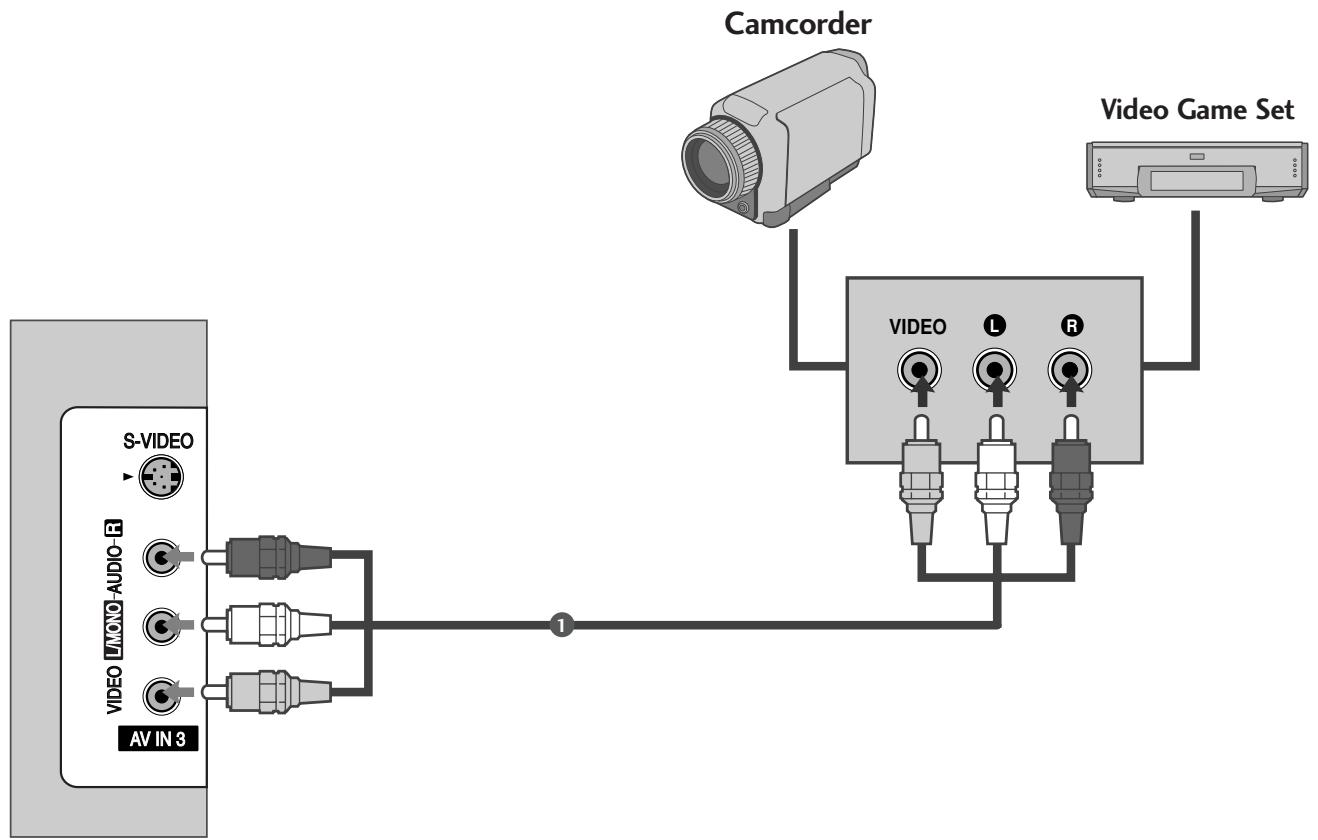

Other A/V Source Setup 32

PC Setup 33

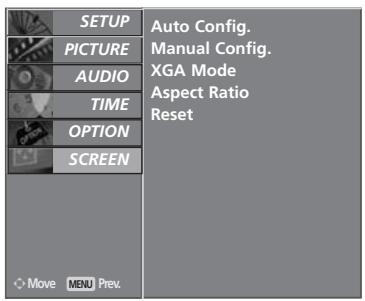

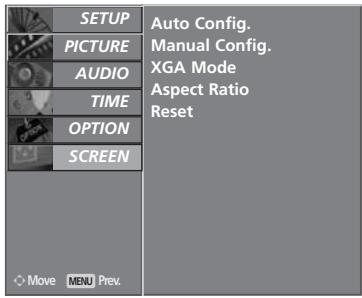

• Screen Setup for PC Mode 36

WATCHING TV / PROGRAMME CONTROL

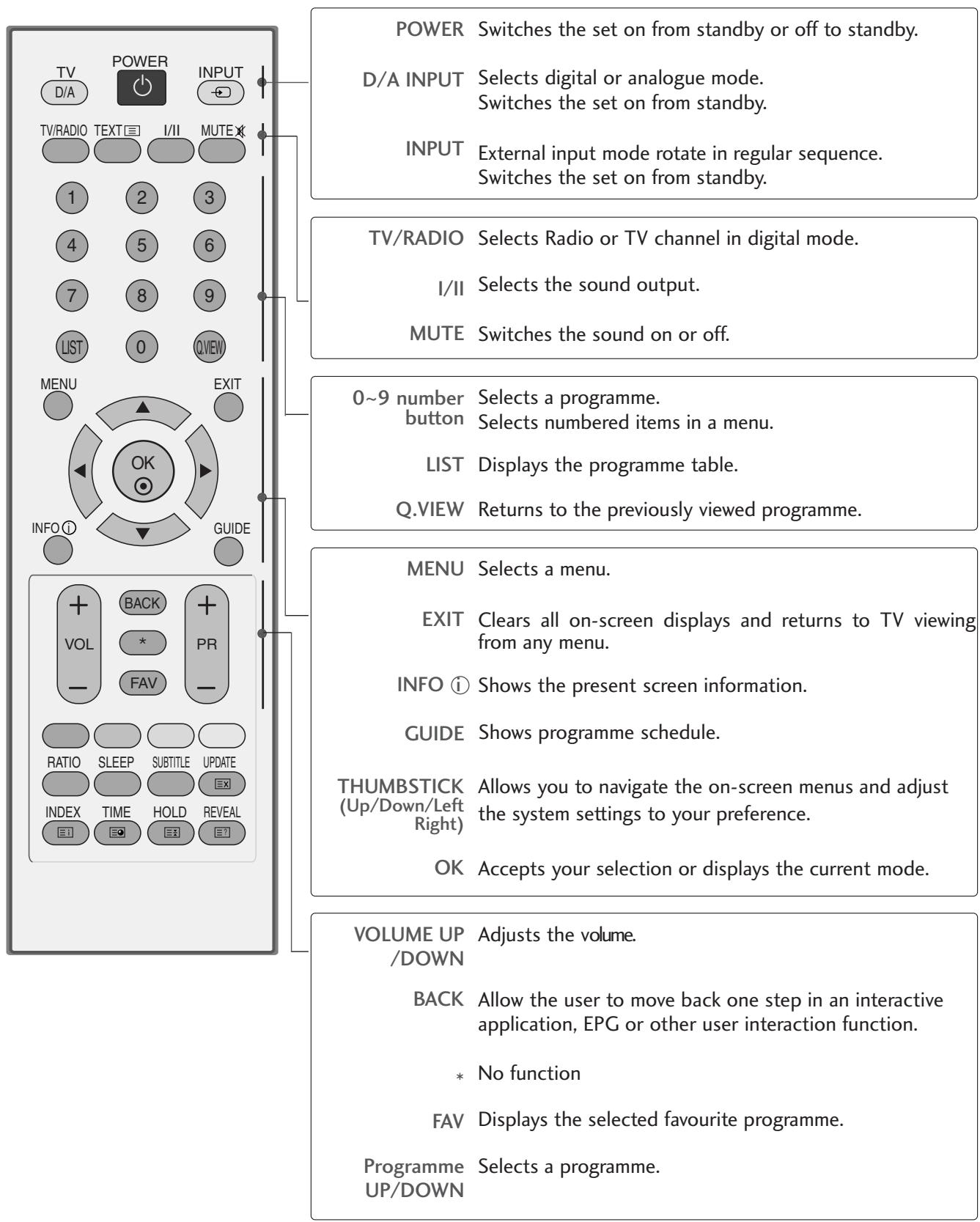

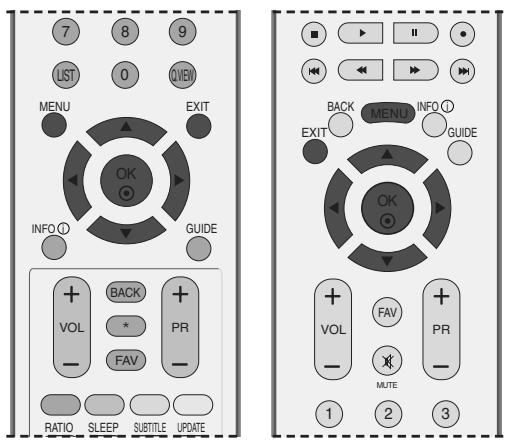

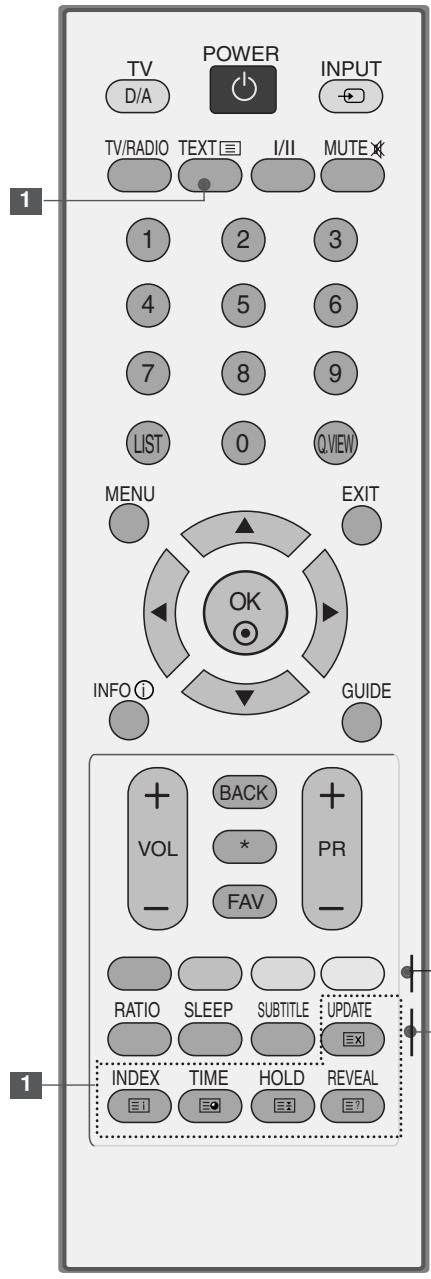

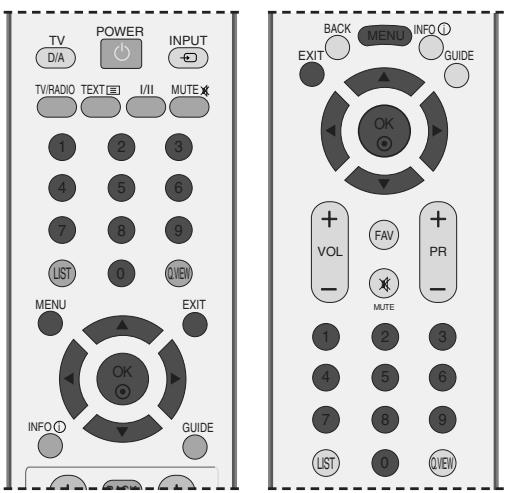

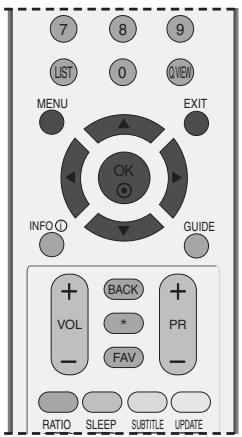

Remote Control Key Functions 40

Turning on the TV 44

Programme Selection 45

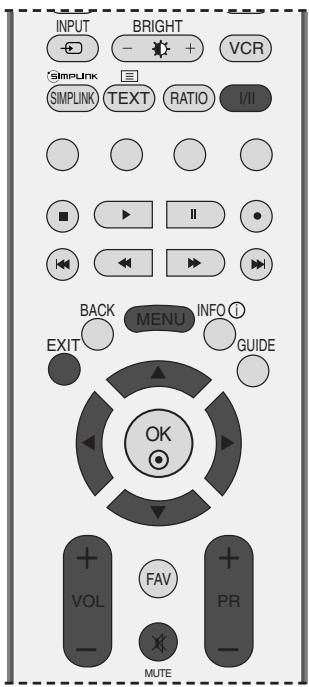

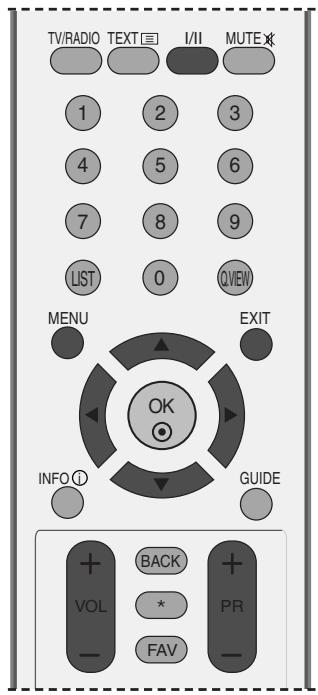

Volume Adjustment 45

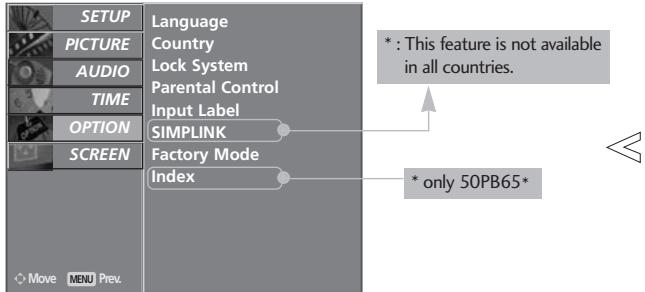

On-Screen Menus Selection and Adjustment 46

AutoProgrammeTuning(InDigitalMode) 47

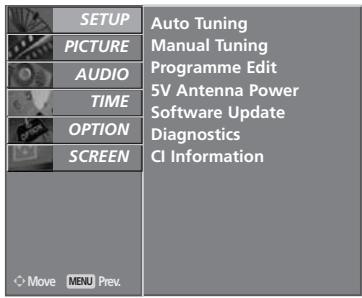

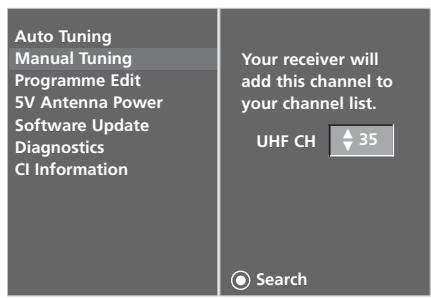

ManualProgrammeTuning(InDigitalMode)....48

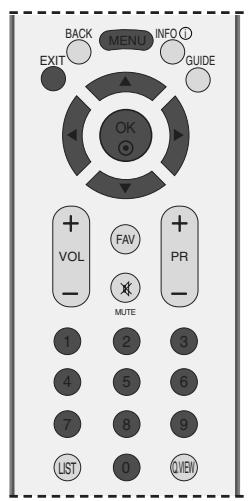

Programme Edit (In Digital Mode) 49

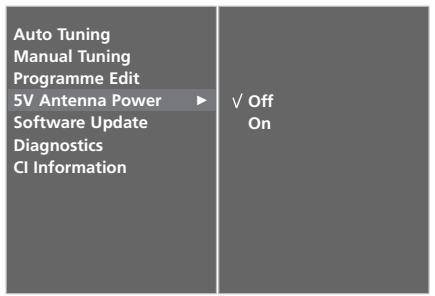

5V antenna Power (In Digital Mode only) 51

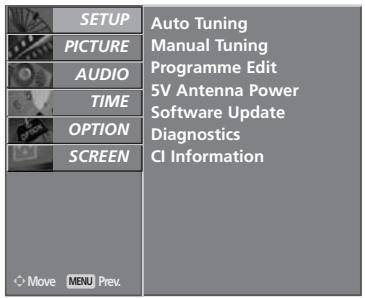

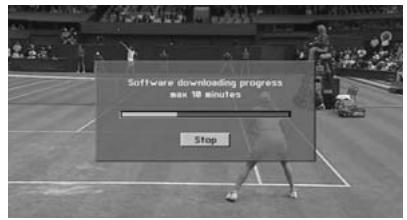

Software Update (In Digital Mode only) 52

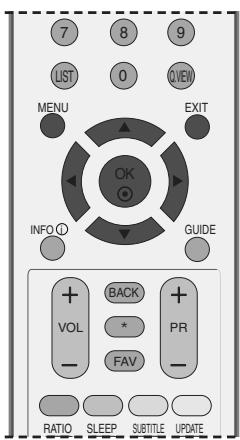

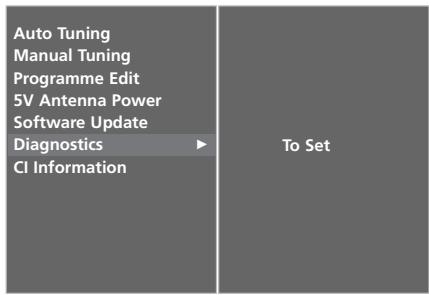

Diagnostics (In Digital Mode only) 53

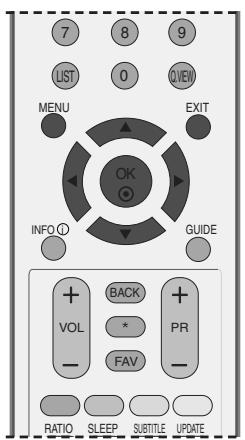

CI Information (In Digital Mode only) 54

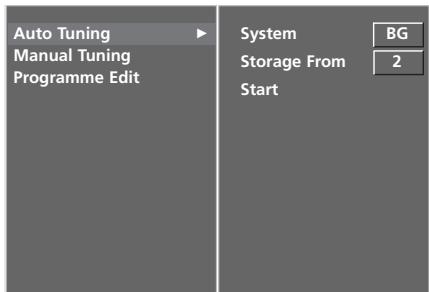

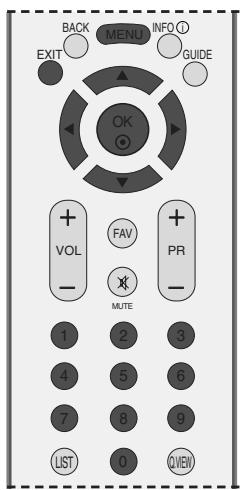

AutoProgrammeTuning(InAnalogueMode) 55

ManualProgrammeTuning(InAnalogueMode) 56

Fine Tuning (In Analogue Mode) 57

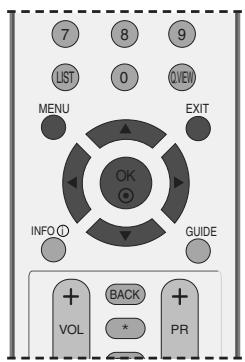

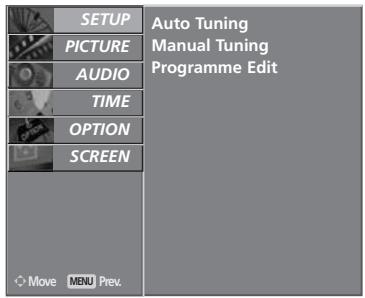

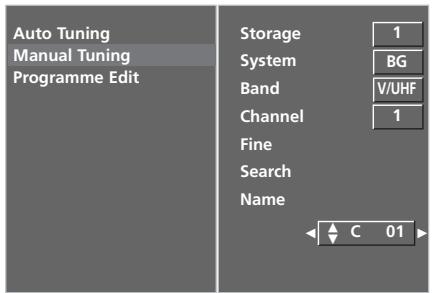

Assigning a Station Name (In Analogue Mode) 57

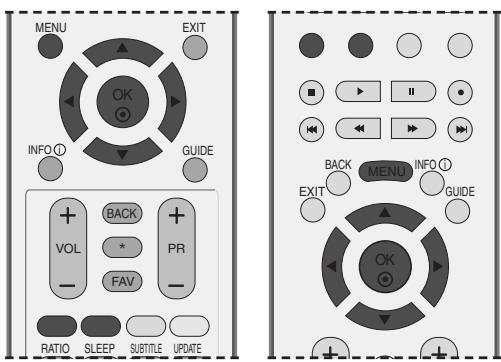

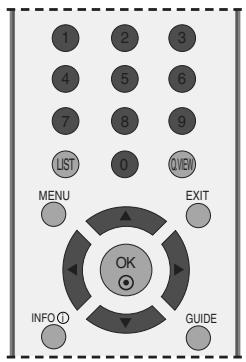

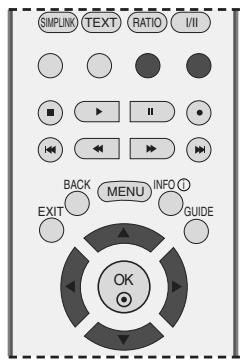

Programme Edit (In Analogue Mode) 58

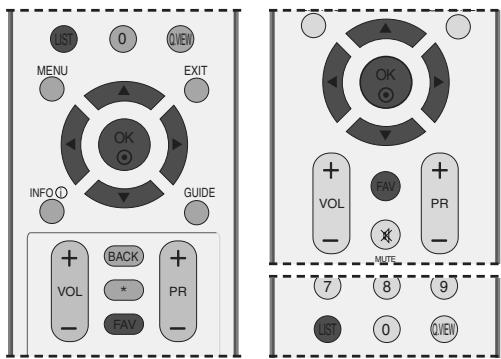

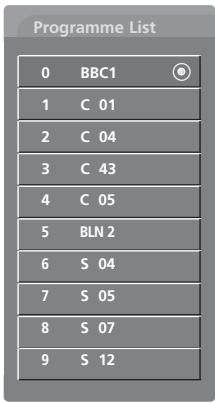

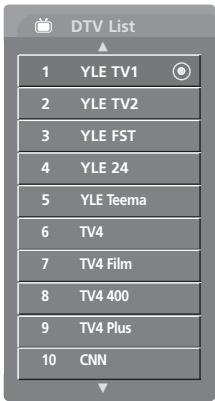

Calling the Programme Table 60

Input Source Selection 61

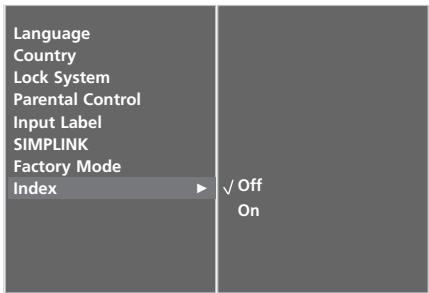

Index 61

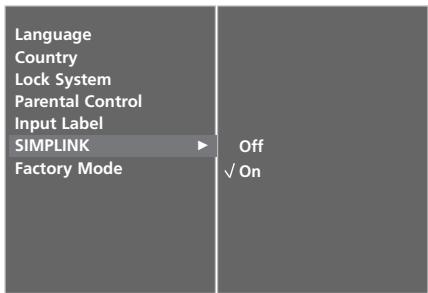

SIMPLINK Function 62

EPG (ELECTRONIC PROGRAMME GUIDE) (IN DIGITAL MODE)

Switch on/off EPG 64

Selectprogramme 64

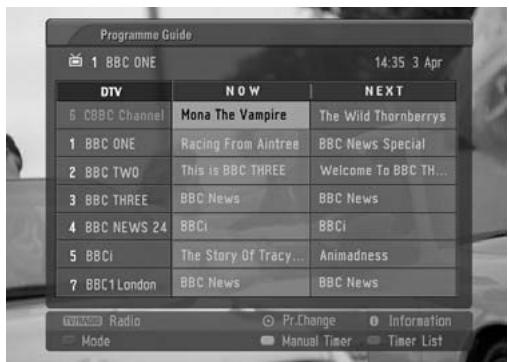

Button function in NOW/NEXT guide mode 65

Button function in 8 days guide mode 65

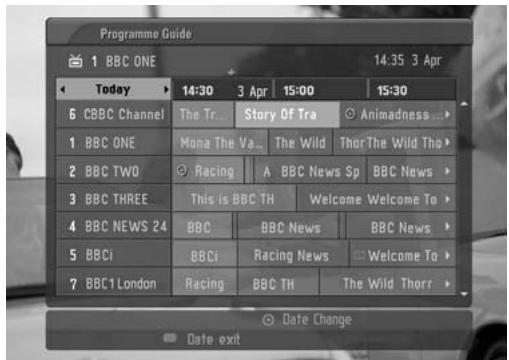

Button function in date change mode 65

Button function in extended description box 66

Button function in record/remark setting mode 66

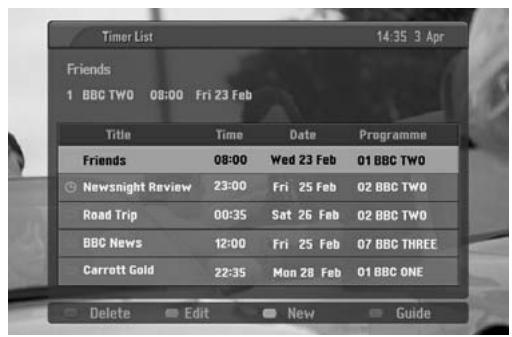

Button function in timer list mode 66

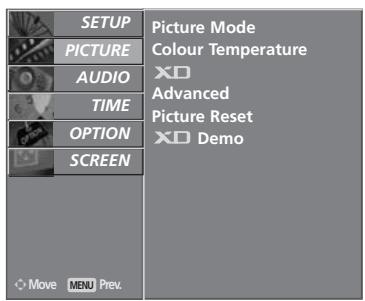

PICTURE CONTROL

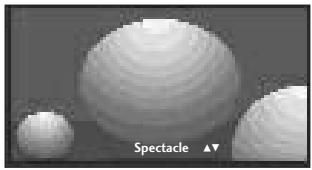

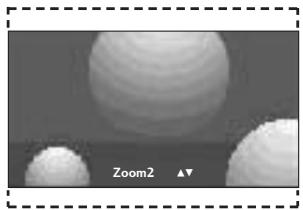

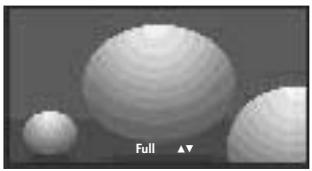

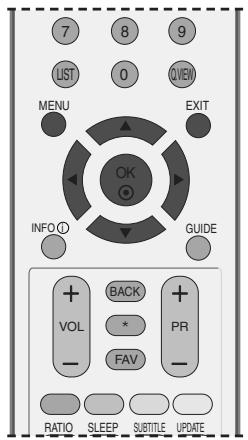

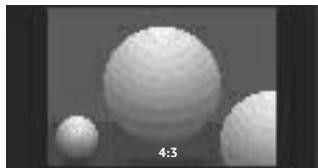

Picture Size (Aspect Ratio) Control 67

Preset Picture Settings

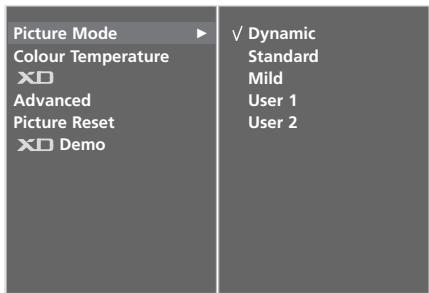

• Picture Mode-Preset 69

• Auto Colour Tone Control (Warm/Medium/Cool) .....70

Manual Picture Adjustment

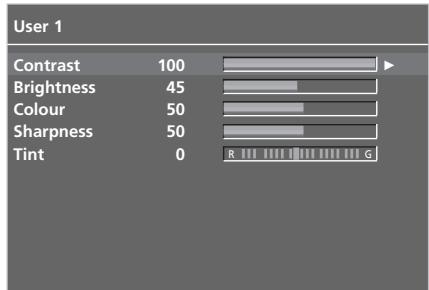

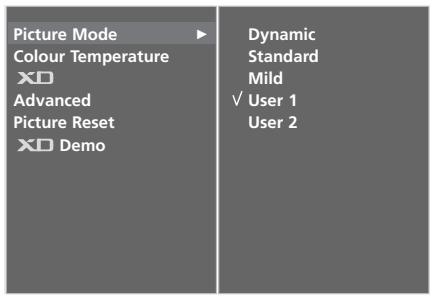

• Picture Mode-User option 71

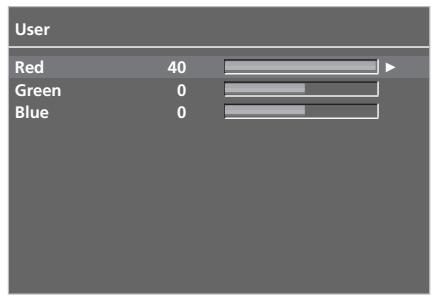

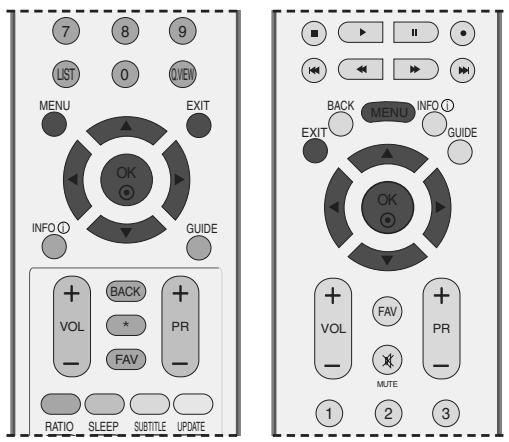

-Colour Tone -User option .72

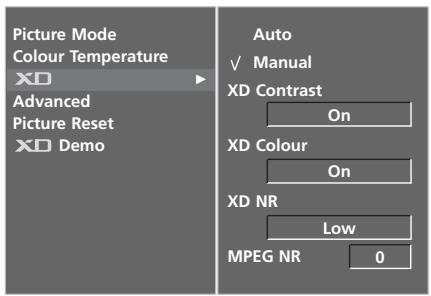

XD-Picture Improvement Technology 73

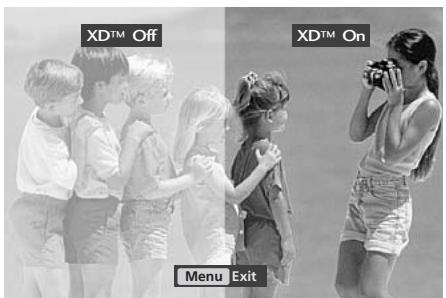

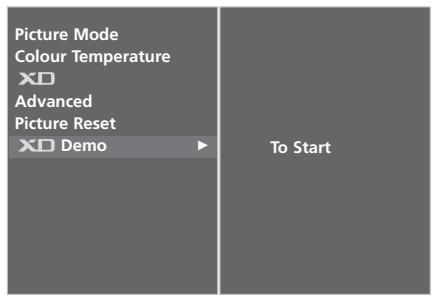

XD Demo 74

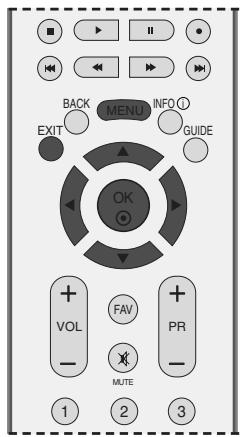

Advanced-Cinema 75

Advanced-Black(Darkness)Level 76

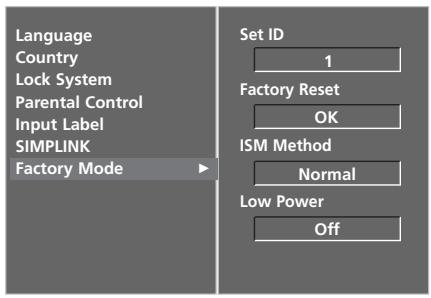

Picture Reset 77

Image Sticking Minimization(ISM) Method 78

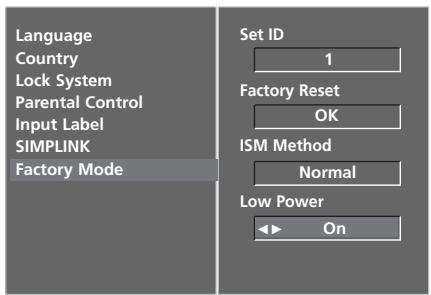

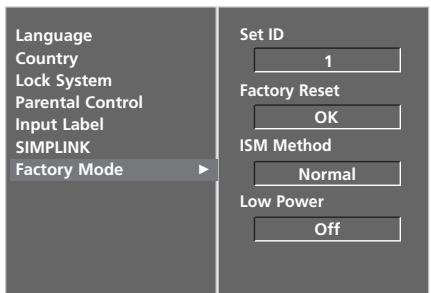

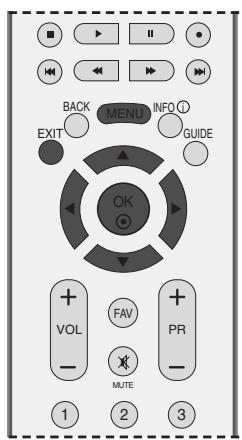

Low-Power Picture Mode 79

SOUND & LANGUAGE CONTROL

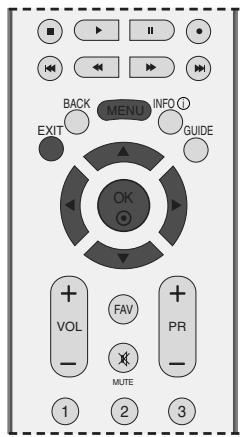

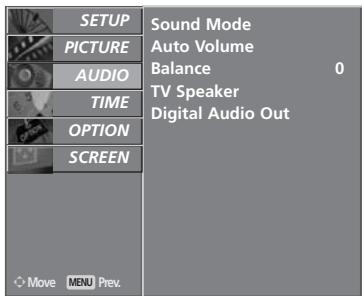

Auto Volume Leveler 80

Preset Sound Settings -Sound Mode 81

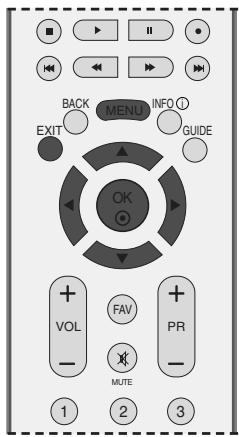

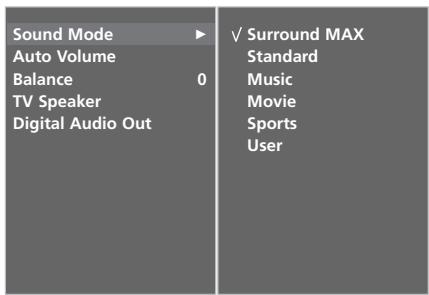

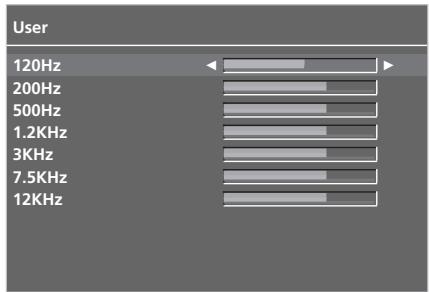

Sound Setting Adjustment - User Mode 82

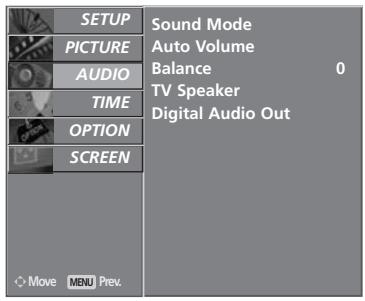

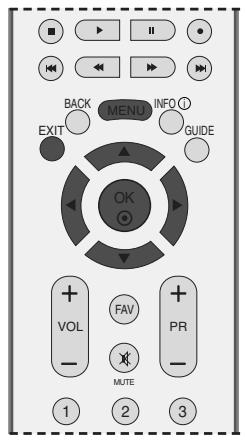

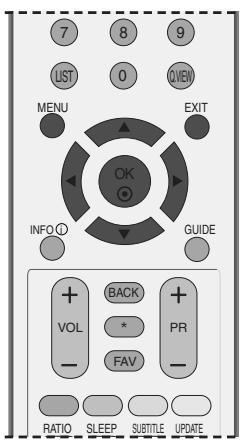

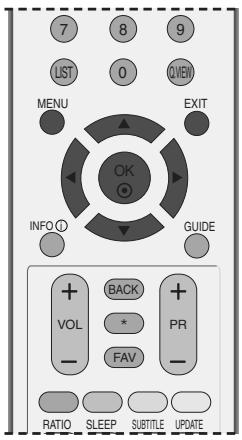

Balance 83

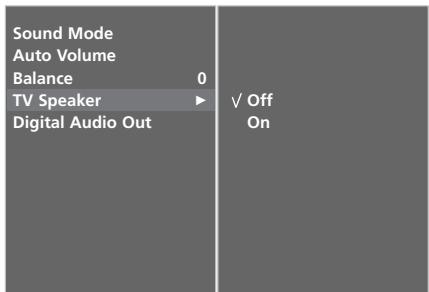

TV Speakers On/ Off Setup 84

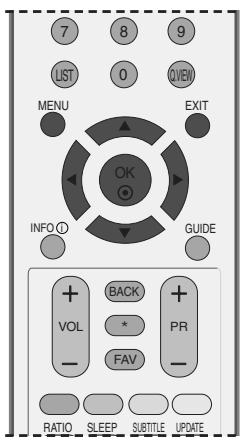

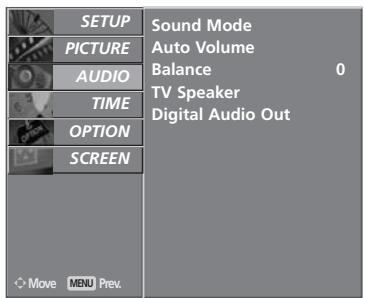

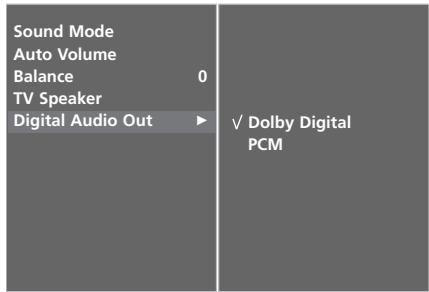

Selecting digital audio out 85

I/II

• Stereo/Dual Reception (In Analogue Mode Only) 86
• NICAM Reception (In Analogue Mode Only) 87
• Speaker Sound Output Selection 87

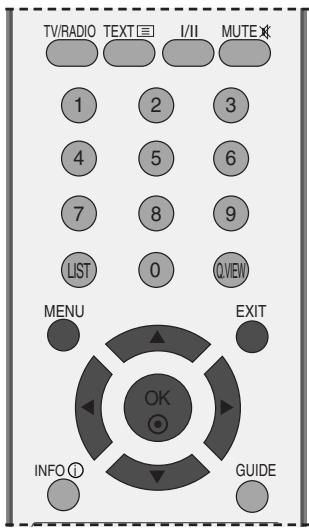

On-Screen Menu Language/Country Selection 88

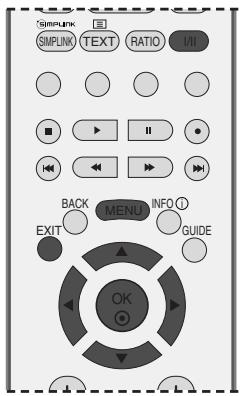

Language selection (In Digital Mode only) 89

TIME SETTING

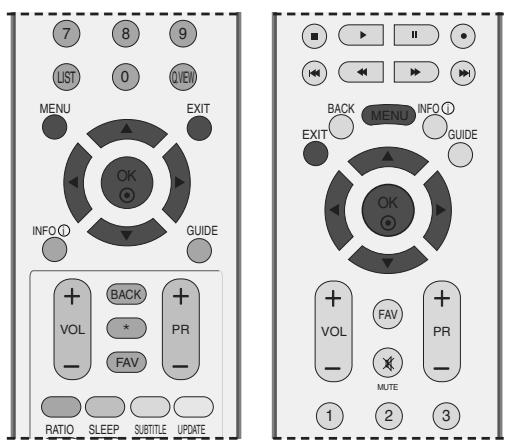

Clock Setup 90

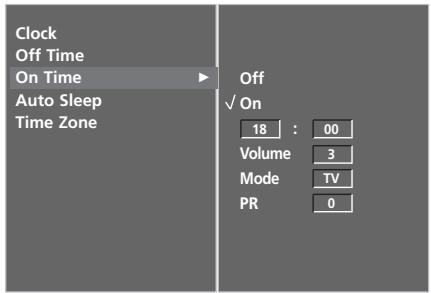

Auto On/ Off Timer Setting 91

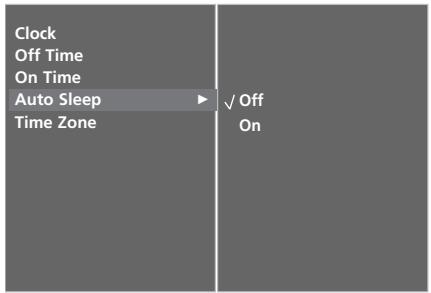

Auto Shut-off Setting 92

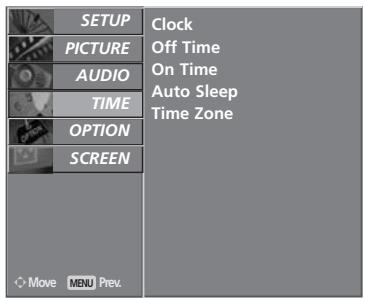

Time zone Setup 93

Sleep Timer Setting 93

PARENTAL CONTROL / RATINGS

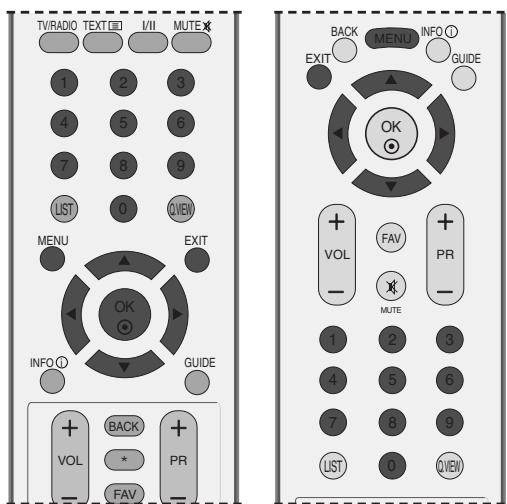

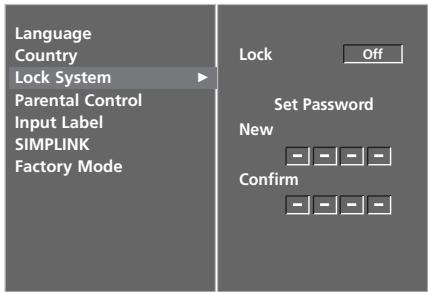

Set Password & Lock System 94

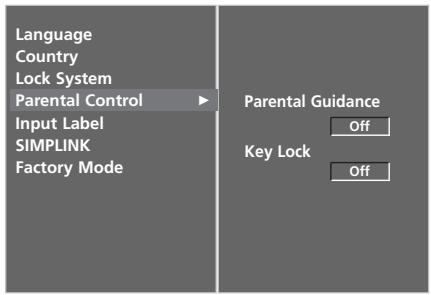

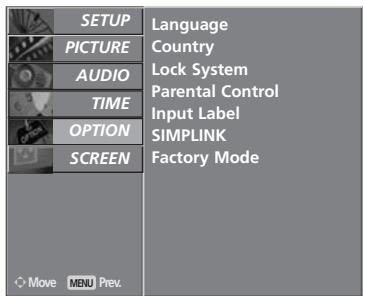

Parental Control 95

TELETEXT

Switch on/off 96

SIMPLE Text 96

TOP Text 96

FASTEXT 97

Special Teletext Functions 97

DIGITAL TELETEXT

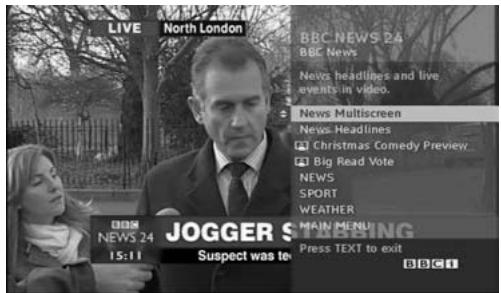

Teletext within Digital Service 98

Teletext in Digital Service 98

APPENDIX

Troubleshooting 99

Maintenance 101

Product Specifications 102

Programming the Remote Control 104

Programming Code 104

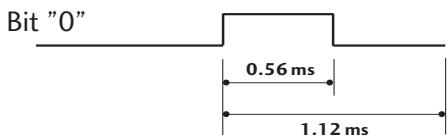

IR Codes 106

External Control Device Setup 108

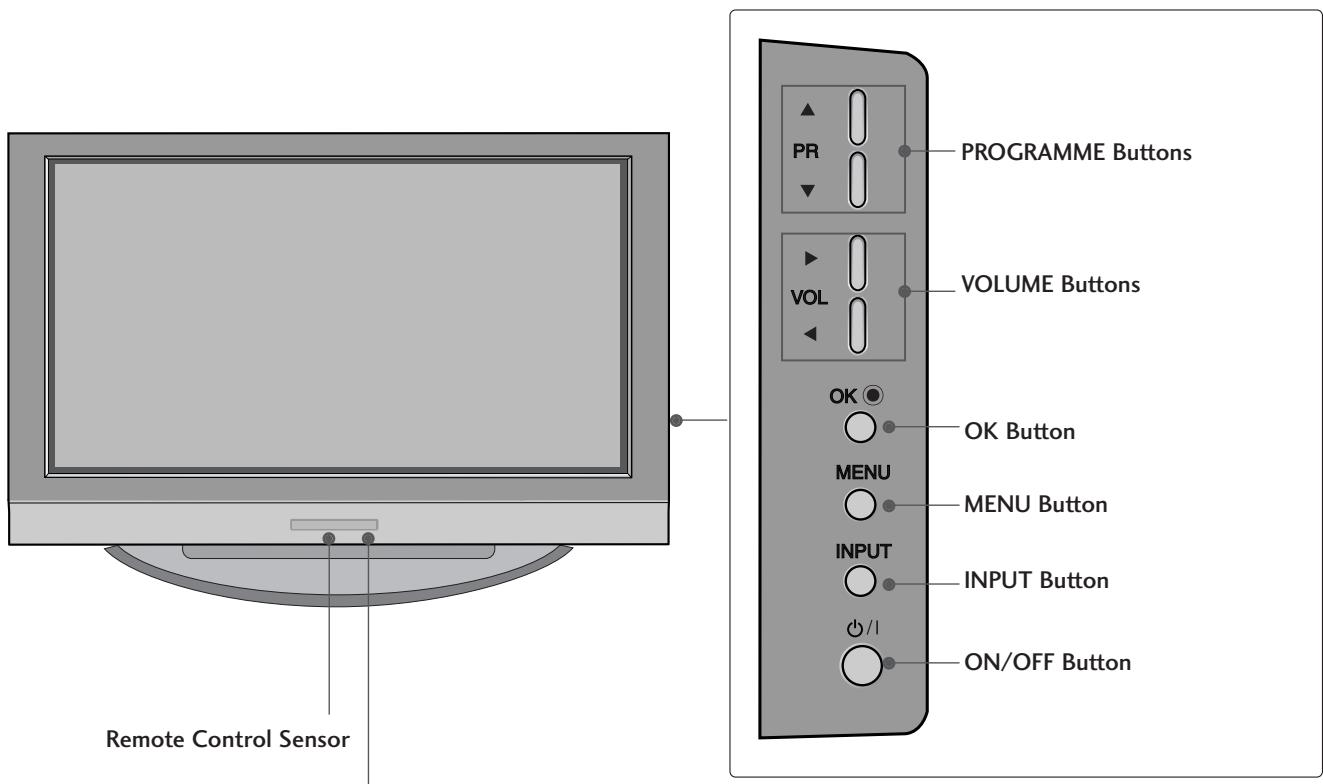

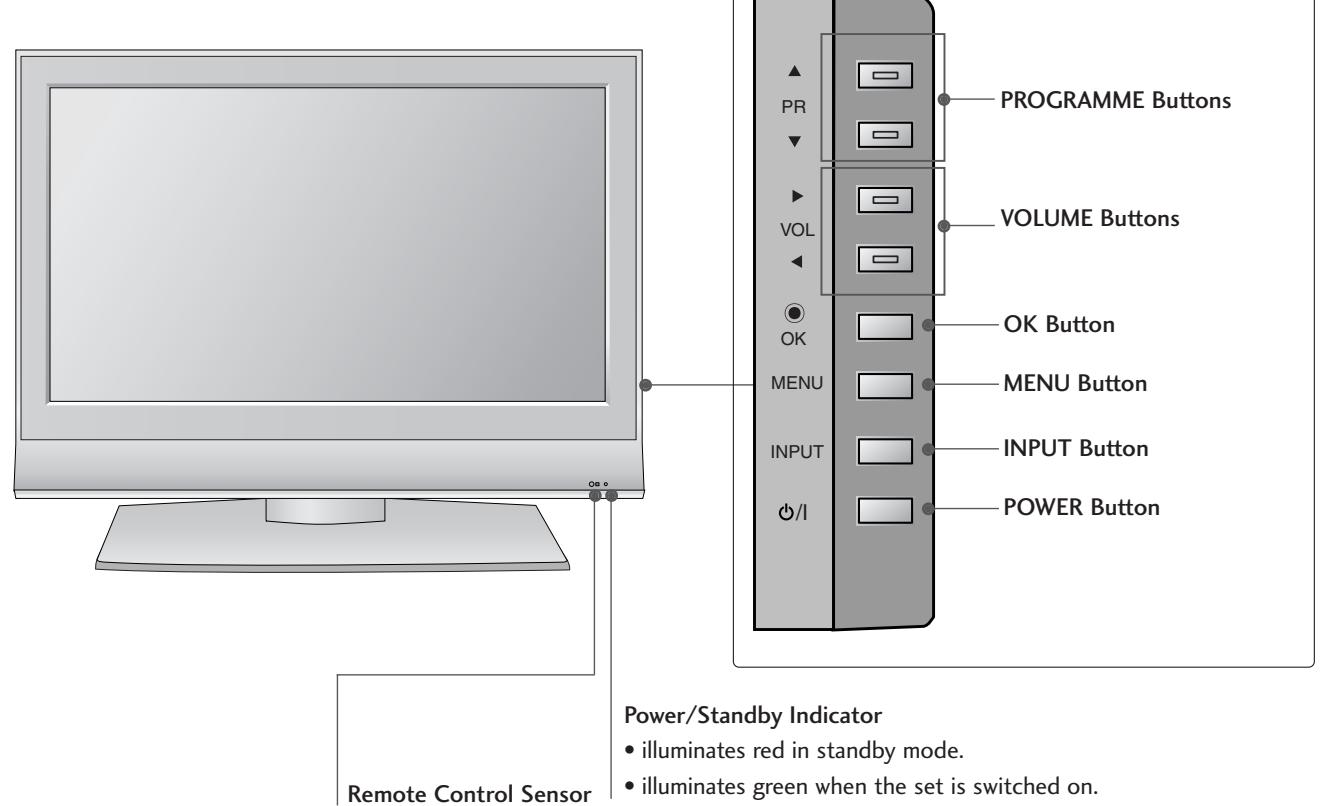

FRONT PANEL CONTROLS

This is a simplified representation of the front panel. Here shown may be somewhat different from your TV.
If your product has a protection film attached, remove the film and then wipe the product with a polishing cloth.

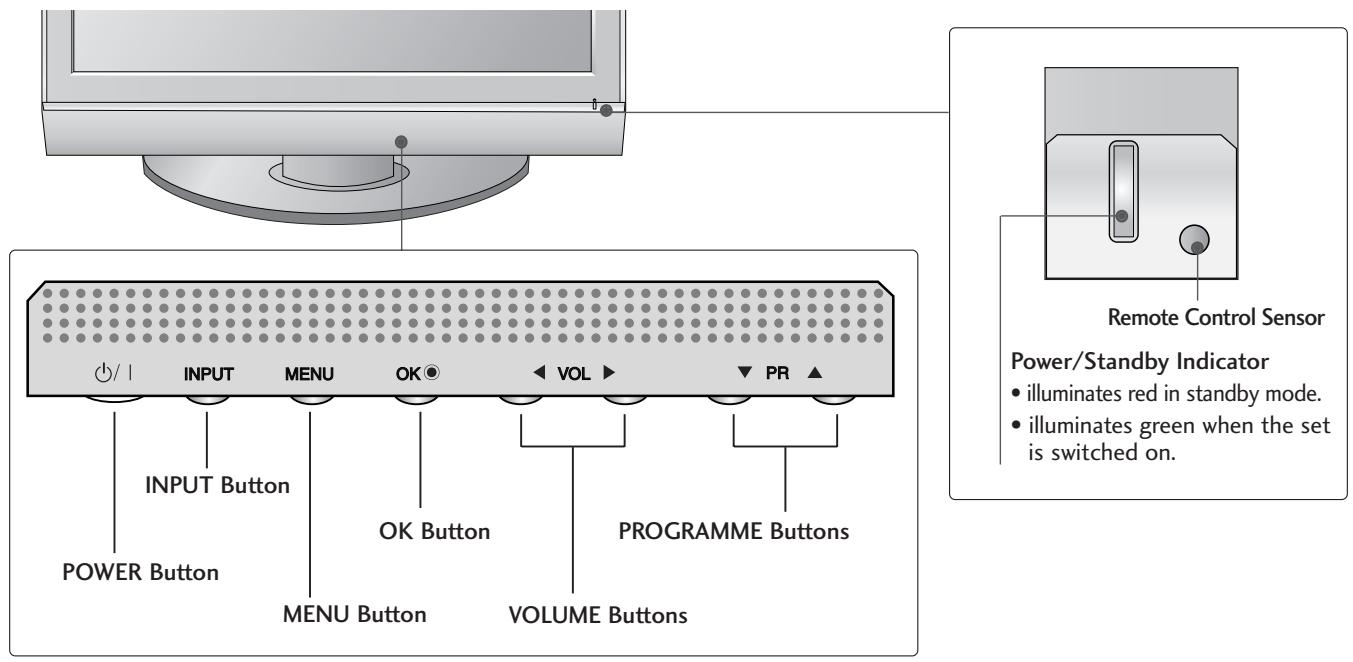

Plasma TV Models

42/50PC5*, 60PC4*

50PB6*

Plasma TV Models

42/50PC3*

Power/Standby Indicator
- illuminates red in standby mode.
- illuminates green when the set is switched on.

LCD TV Models

Except 26/32LB7*

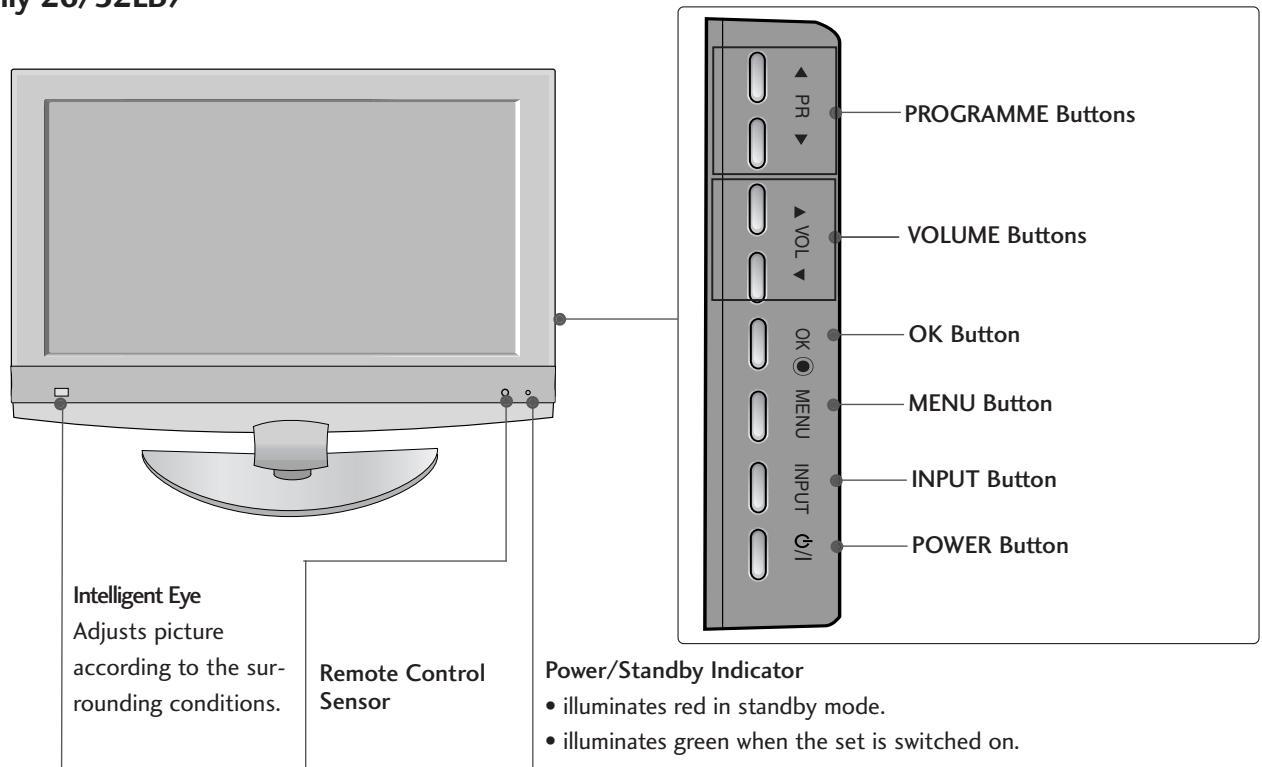

Only 26/32LB7*

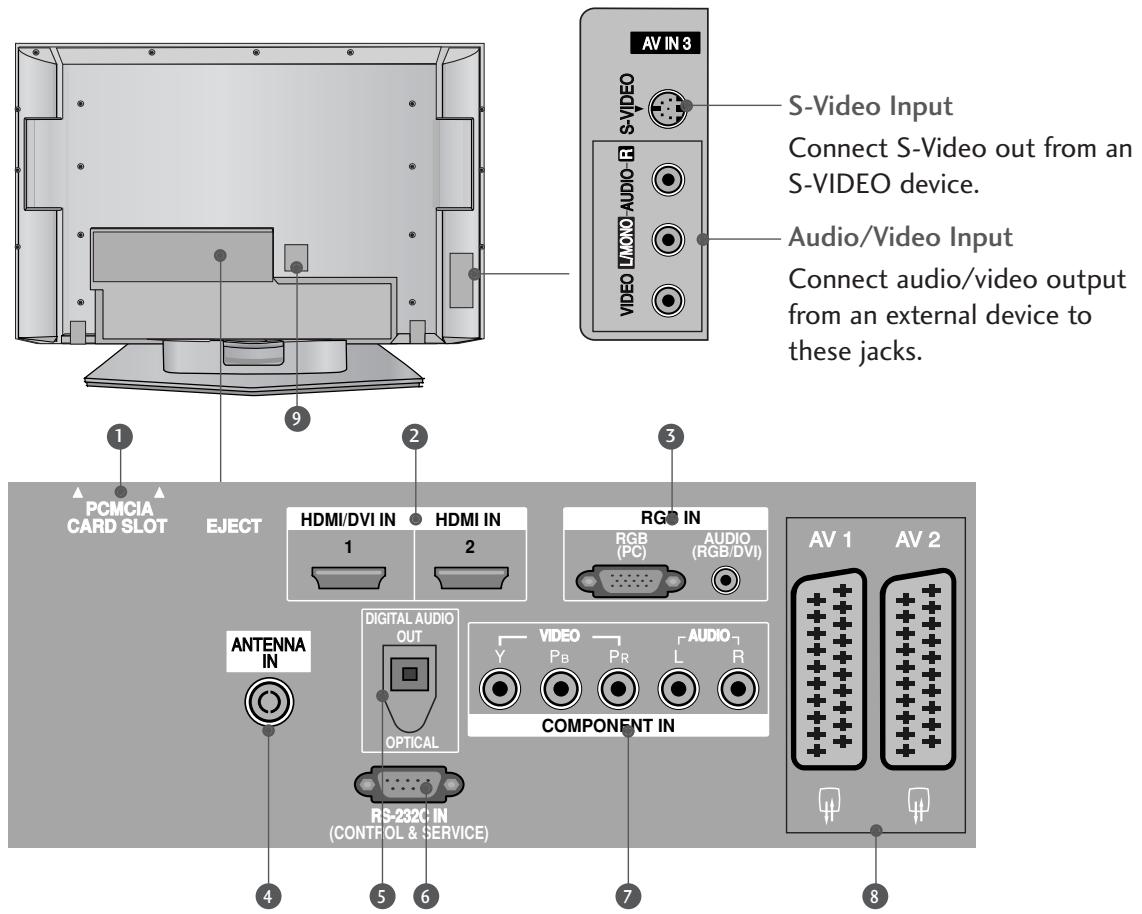

BACK PANEL INFORMATION

This is a simplified representation of the back panel. Here shown may be somewhat different from your TV.

Plasma TV Models

Except 42/50PC3*

PCMCIA (Personal Computer Memory Card International Association) Card Slot (This feature is not available in all countries.)

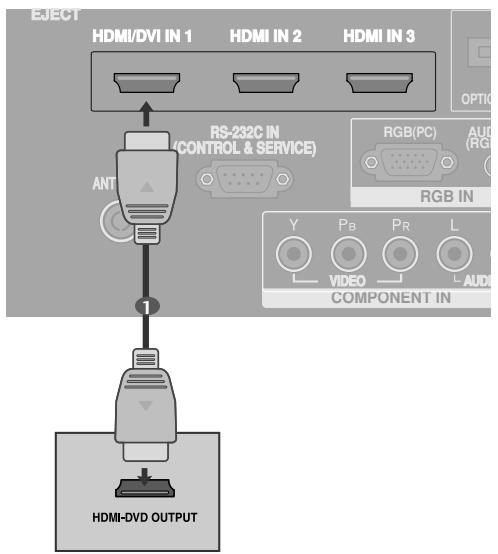

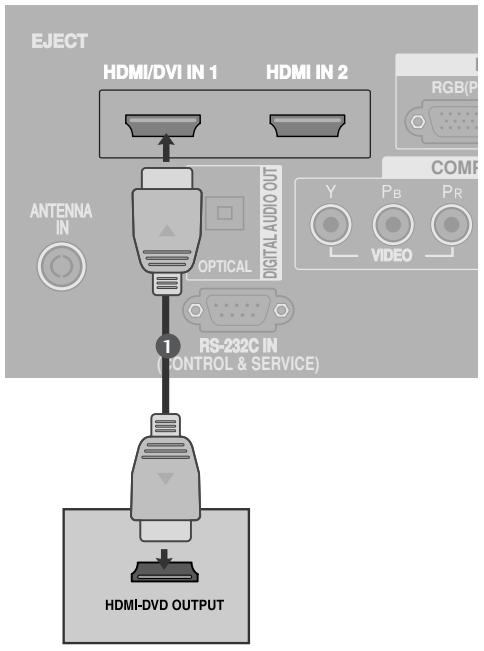

HDMI Input Connect a HDMI signal to HDMI IN. Or DVI(VIDEO)signal to HDMI/DVI port with DVI to HDMI cable.
RGB/DVI Audio Input Connect the monitor output from a PC to the appropriate input port.
Antenna Input Connect over-the-air signals to this jack.
DIGITAL AUDIO OUT OPTICAL Connect digital audio from various types of equipment. Note: In standby mode, these ports do not work.

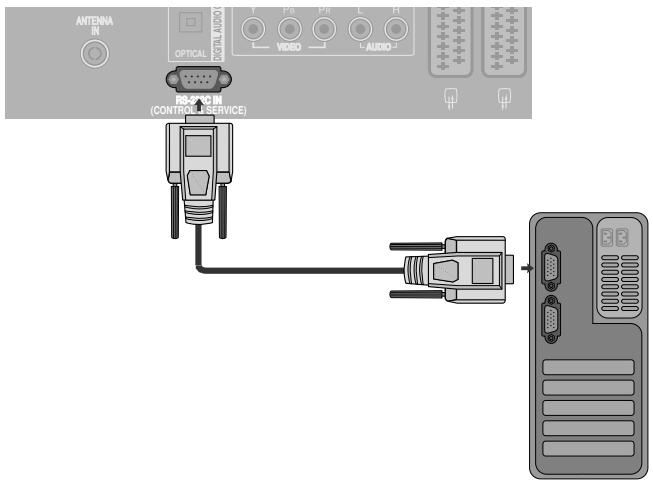

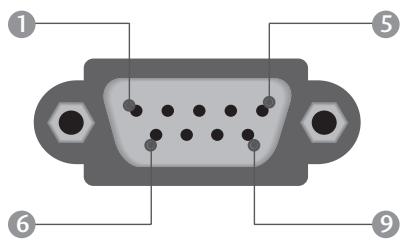

RS-232C IN (CONTROL & SERVICE) PORT Connect to the RS-232C port on a PC.

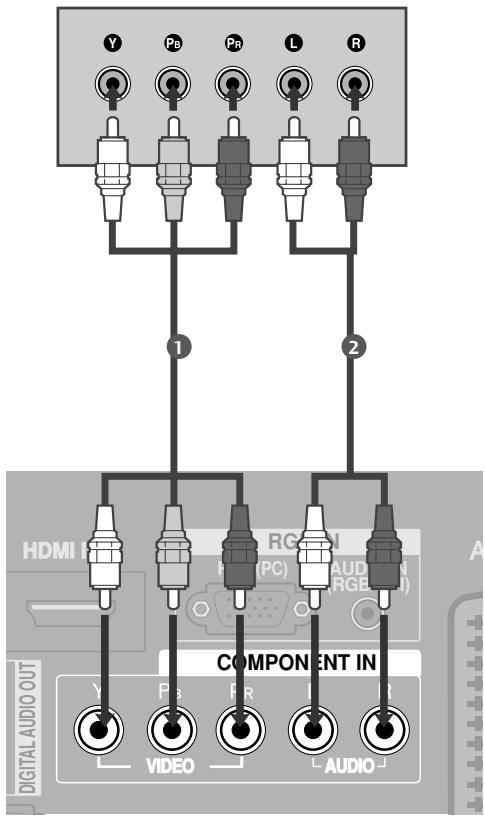

Component Input Connect a component video/ audio device to these jacks.

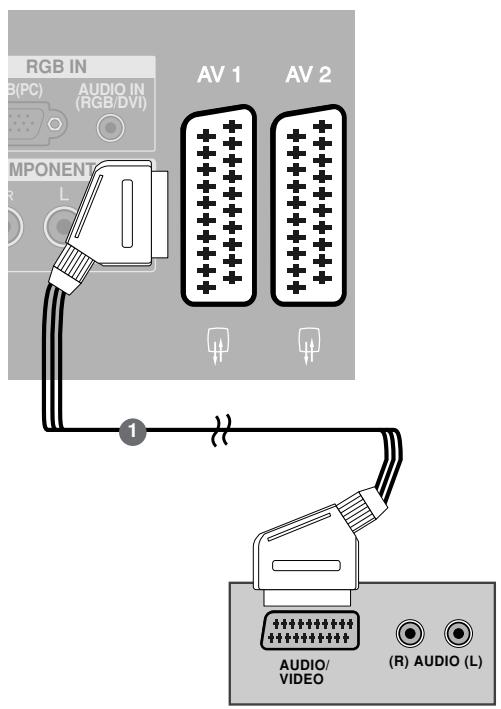

Euro Scart Socket (AV1/AV2) Connect scart socket input or output from an external device to these jacks.
Power Cord Socket This TV operates on an AC power. The voltage is indicated on the Specifications page. Never attempt to operate the TV on DC power.

Only 42/50PC3*

PCMCIA (Personal Computer Memory Card International Association) Card Slot (This feature is not available in all countries.)
HDMI Input Connect a HDMI signal to HDMI IN. Or DVI(VIDEO)signal to HDMI/DVI port with DVI to HDMI cable.
RGB/DVI Audio Input Connect the monitor output from a PC to the appropriate input port.
Antenna Input Connect over-the-air signals to this jack.
DIGITAL AUDIO OUT OPTICAL Connect digital audio from various types of equipment. Note: In standby mode, these ports do not work.

RS-232C IN (CONTROL & SERVICE) PORT Connect to the RS-232C port on a PC.
Component Input Connect a component video/audio device to these jacks.
Euro Scart Socket (AV1/AV2) Connect scart socket input or output from an external device to these jacks.
Power Cord Socket This TV operates on an AC power. The voltage is indicated on the Specifications page. Never attempt to operate the TV on DC power.

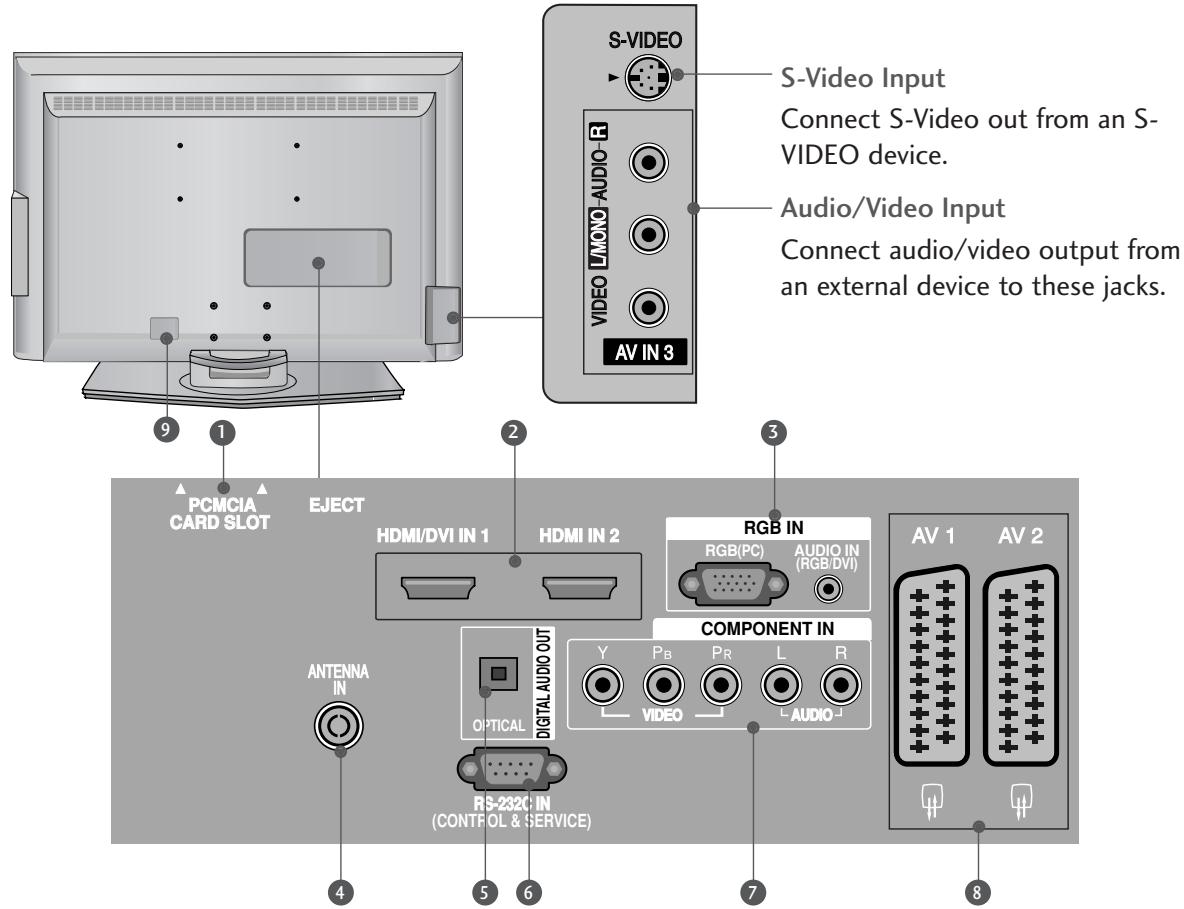

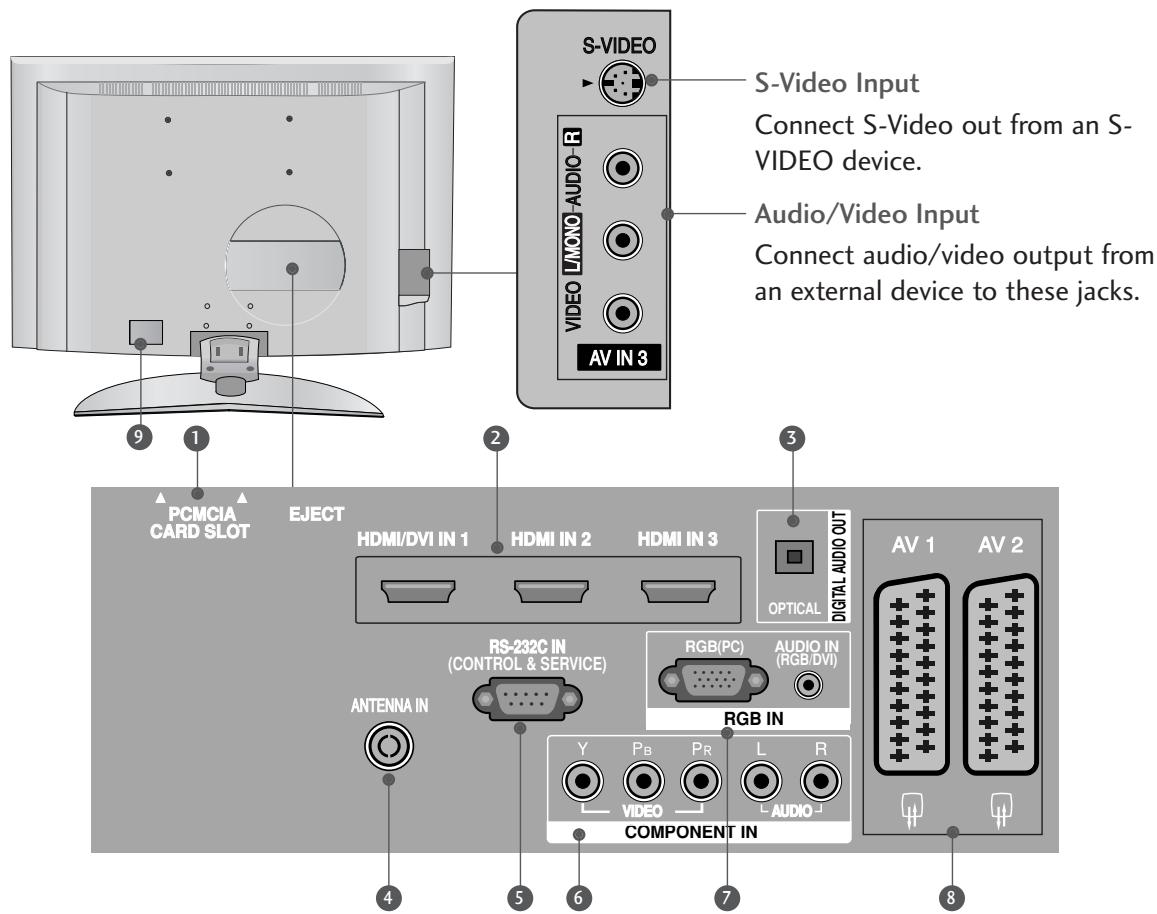

LCD TV Models

Except 26/32LB7*

PCMCIA (Personal Computer Memory Card International Association) Card Slot (This feature is not available in all countries.)
HDMI Input Connect a HDMI signal to HDMI IN. Or DVI(VIDEO)signal to HDMI/DVI port with DVI to HDMI cable.
RGB/DVI Audio Input Connect the monitor output from a PC to the appropriate input port.
4 Antenna Input Connect over-the-air signals to this jack.
DIGITAL AUDIO OUT OPTICAL Connect digital audio from various types of equipment. Note: In standby mode, these ports do not work.

RS-232C IN (CONTROL & SERVICE) PORT Connect to the RS-232C port on a PC.
Component Input Connect a component video/audio device to these jacks.
Euro Scart Socket (AV1/AV2) Connect scart socket input or output from an external device to these jacks.
Power Cord Socket This TV operates on an AC power. The voltage is indicated on the Specifications page. Never attempt to operate the TV on DC power.

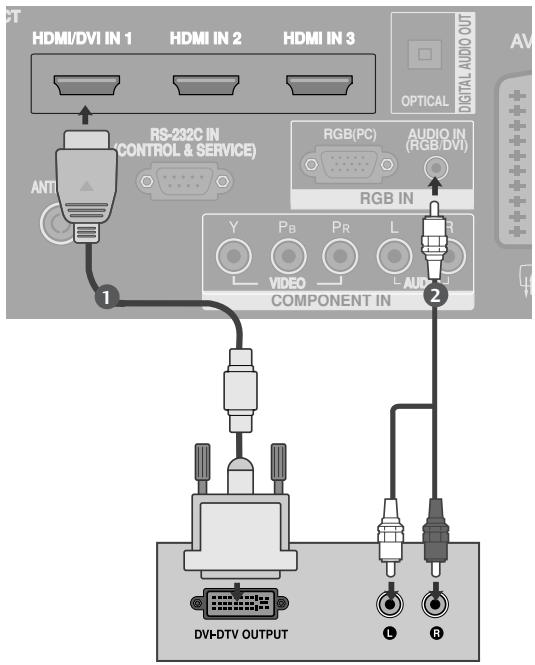

Only 26/32LB7*

PCMCIA (Personal Computer Memory Card International Association) Card Slot (This feature is not available in all countries.)
HDMI Input Connect a HDMI signal to HDMI IN. Or DVI(VIDEO)signal to HDMI/DVI port with DVI to HDMI cable.
3 DIGITAL AUDIO OUT OPTICAL Connect digital audio from various types of equipment. Note: In standby mode, these ports do not work.
Antenna Input Connect over-the-air signals to this jack.
RS-232C IN (CONTROL & SERVICE) PORT Connect to the RS-232C port on a PC.

Component Input Connect a component video/ audio device to these jacks.
RGB/DVI Audio Input Connect the monitor output from a PC to the appropriate input port.
Euro Scart Socket (AV1/AV2) Connect scart socket input or output from an external device to these jacks.
Power Cord Socket This TV operates on an AC power. The voltage is indicated on the Specifications page. Never attempt to operate the TV on DC power.

STAND INSTALLATION (Only 42/50PC3*)

This feature is not available for all models.

1

2

3

4

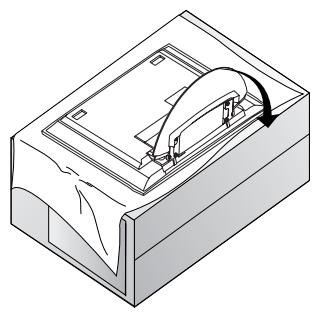

• Place the set with the screen facing down on a cushion or soft cloth as shown in Figures 1.
  Before unfolding the stand, please make sure two locks (A) on the bottom of the stand push outward.
  Pull the stand out as shown above in Figures 2 3
  After unfolding the stand, please insert and tighten the screws in the holes (B) on the bottom of the stand.

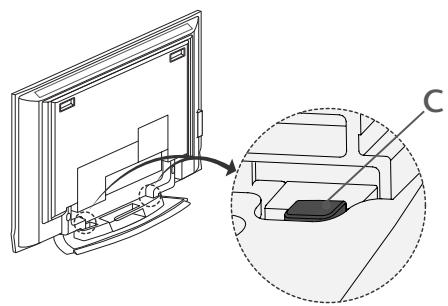

• When connecting cables to the set, Do not disengage the lock (C).
  This may cause the set to fall, causing serious bodily injury and serious damage to the set.

NOTE

Figures shown here may be slightly different from your set.

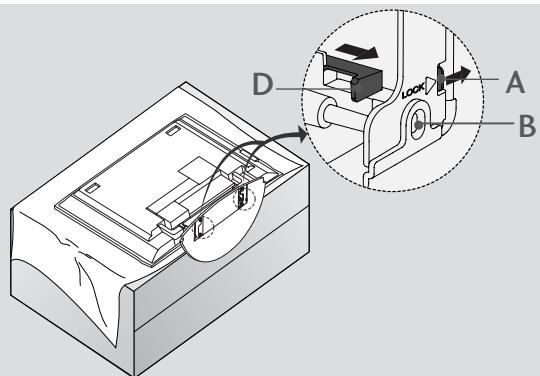

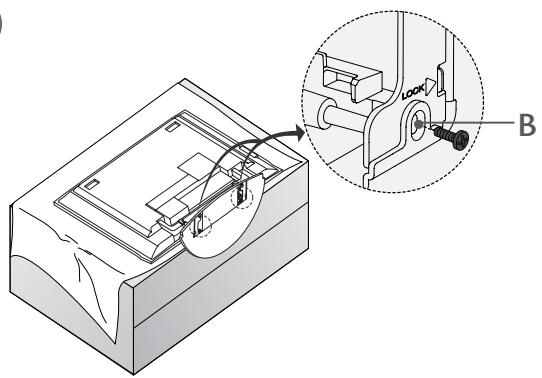

When closing the stand for storage

First remove the screws in the holes (B) on the bottom of the stand. And then pull two Hooks (D) of the stand bottom and fold the stand into the back of the set.

After folding, push two Locks (A) of the stand bottom outward.

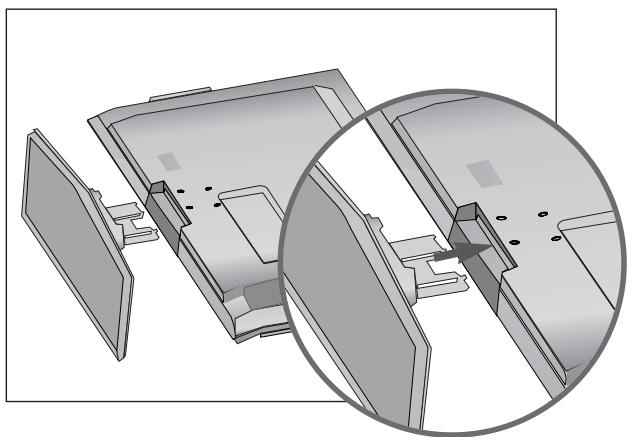

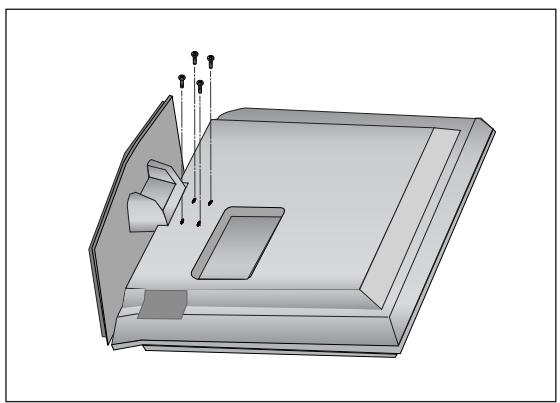

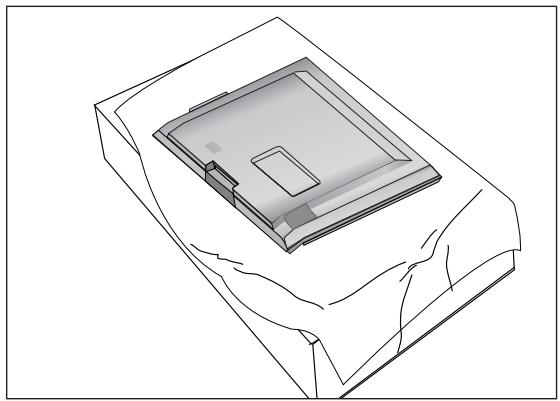

STAND INSTALLATION (Only 26, 32, 37 inch LCD TV Models)

1 Carefully place the product screen side down on a cushioned surface that will protect product and screen from damage.

2 Assemble the product stand with the product as shown.

Install the 4 bolts securely, in the back of the product in the holes provided.

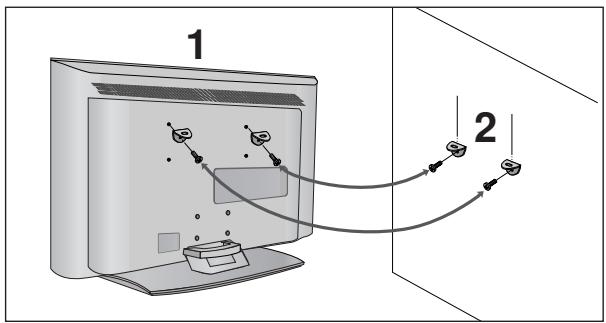

ATTACHING THE TV TO A WALL

This feature is not available for all models.
Set it up close to the wall so the product doesn't fall over when it is pushed backwards.
The instructions shown below is a safer way to set up the product, which is to fix it on the wall so the product doesn't fall over when it is pulled in the forward direction. It will prevent the product from falling forward and hurting people. It will also prevent the product from damage caused by fall. Please make sure that children don't climb on or hang from the product.

Plasma TV models

LCD TV models

Use the eye-bolts or TV brackets/bolts to fix the product to the wall as shown in the picture.
(If your product has the bolts in the eye-bolts position before inserting the eye-bolts, loosen the bolts.)
* Insert the eye-bolts or TV brackets/bolts and tighten them securely in the upper holes.
2 Secure the wall brackets with the bolts (not provided as parts of the product, must purchase separately) on the wall. Mark the height of the board that is present on the wall.

Use a sturdy rope (not provided as parts of the product, must purchase separately) to tie the product. It is safer to tie the rope so it becomes horizontal between the wall and the product.

NOTE

When moving the product to another place undo the ropes first.
▶ Use a product holder or a cabinet that is big and strong enough for the size and weight of the product.
To use the product safely make sure that the height of the bracket that is mounted on the wall is same as that of the product.

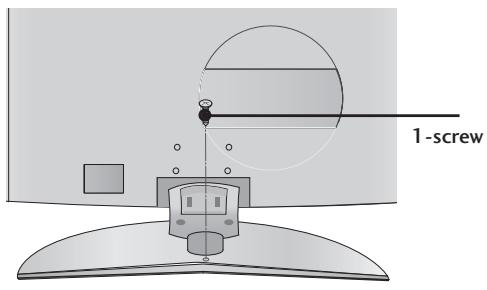

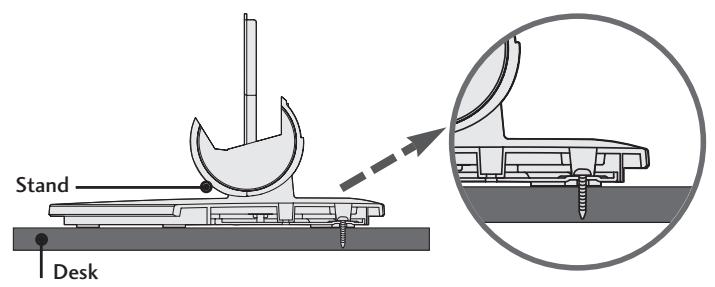

ATTACHING THE TV TO A DESK (Only 26/32LB7* model)

The TV must be attached to desk so it cannot be pulled in a forward/backward direction, potentially causing injury or damaging the product. Use only an attached screw.

WARNING

To prevent TV from falling over, the TV should be securely attached to the floor/wall per installation instructions. Tipping, shaking, or rocking the machine may cause injury.

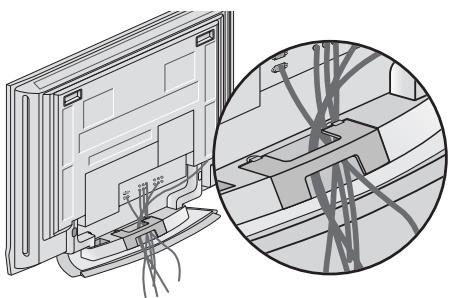

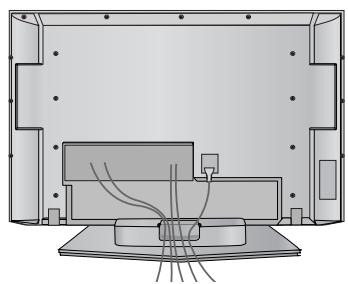

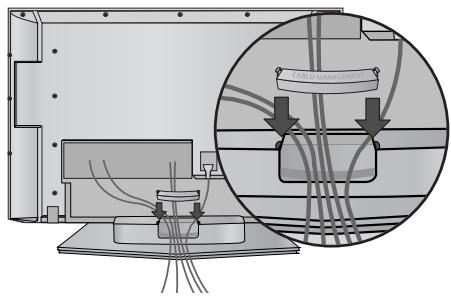

BACK COVER FOR WIRE ARRANGEMENT

Plasma TV models (Except 42/50PC3*)

Hold the CABLE MANAGEMENT with hands and push it as shown.

CABLE MANAGEMENT

2 Connect the cables as necessary.

To connect an additional equipment, see the External equipment Setup section.

3 Reinstall the CABLE MANAGEMENT as shown.

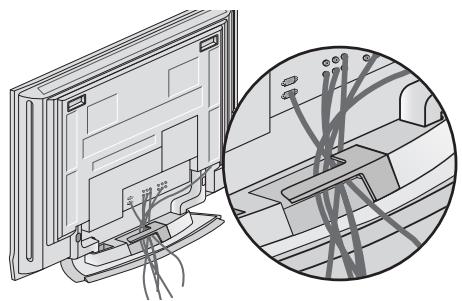

Plasma TV models

Only 42PC3*

Arrange the cables as shown picture.

Only 50PC3*

Hold the CABLE MANAGEMENT with both hands and push it as shown.

Connect the cables as necessary.

To connect an additional equipment, see the External equipment Setup section.

Reinstall the CABLE MANAGEMENT as shown.

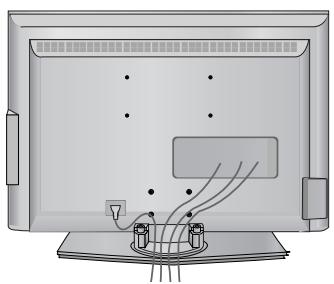

1 Connect the cables as necessary.

To connect an additional equipment, see the External equipment Setup section.

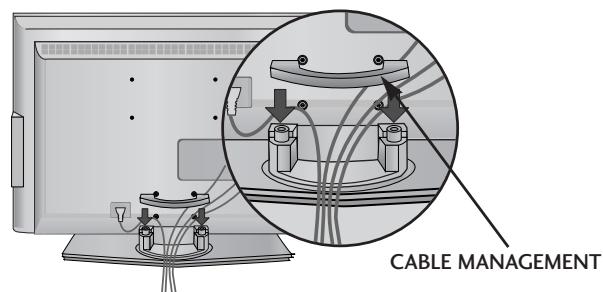

Install the CABLE MANAGEMENT as shown.

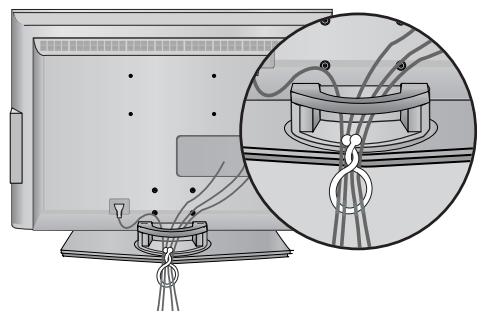

3 Bundle the cables using the supplied twister holder. (This feature is not available for all models.)

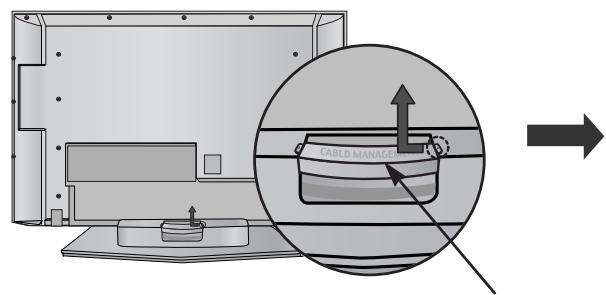

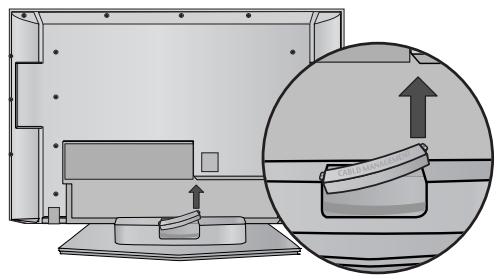

How to remove the cable management

Hold the CABLE MANAGEMENT with both hands and pull it upward.

NOTE

Do not hold the CABLE MANAGEMENT when moving the product.
- If the product is dropped, you may be injured or the product may be broken.

LCD TV model (Only 26/32LB7*)

1 Connect the cables as necessary.

To connect an additional equipment, see the External equipment Setup section.

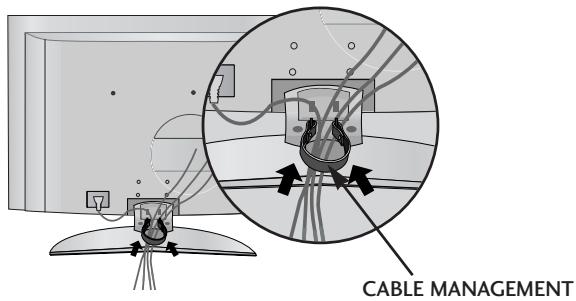

Install the CABLE MANAGEMENT as shown. (Insert it as pushing the loops on the both sides of the cable management.)

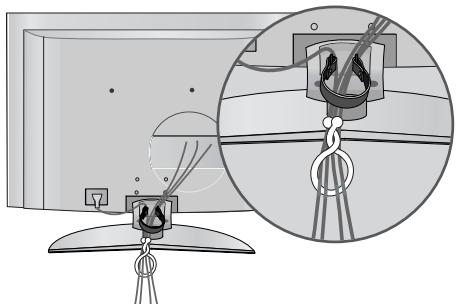

3 Bundle the cables using the supplied twist holder. (This feature is not available for all models.)

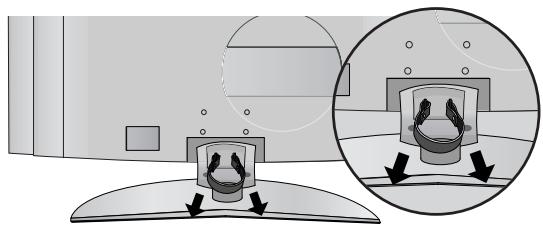

How to remove the cable management

Hold the CABLE MANAGEMENT with both hands and pull it out.

(Pull it out as holding the loops on the both sides of the cable management.)

NOTE

Do not hold the CABLE MANAGEMENT when moving the product.
- If the product is dropped, you may be injured or the product may be broken.

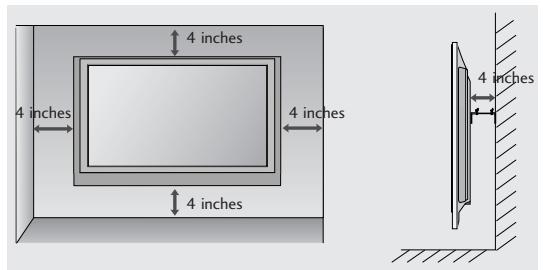

The set can be installed in various ways such as on a wall, or on a desktop etc.
The set is designed to be mounted horizontally.

GROUNDING

Ensure that you connect the earth ground wire to prevent possible electric shock. If grounding methods are not possible, have a qualified electrician install a separate circuit breaker. Do not try to ground the unit by connecting it to telephone wires, lightening rods, or gas pipes.

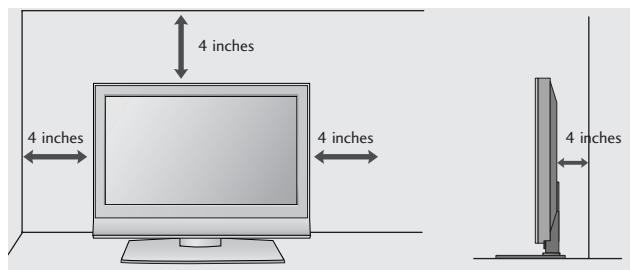

Desktop Pedestal Installation

For proper ventilation, allow a clearance of 4'' on each side and from the wall.

Wall Mount: Horizontal installation

For proper ventilation, allow a clearance of 4'' on each side and from the wall. Detailed installation instructions are available from your dealer, see the optional Tilt Wall Mounting Bracket Installation and Setup Guide.

If you want to install the desk-type stand fixture protection cover (50PB6* only)

To prevent the foreign materials from entering the desk-type stand fixture, fix the desk-type stand fixture protection cover by using the supplied bolts as shown at the figure.

To prevent the equipment damage, never plug in any power cords until you have finished connecting all equipment.

ANTENNA CONNECTION

For optimum picture quality, adjust antenna direction.
An antenna cable and converter are not supplied.

• Be careful not to bend the bronze wire when connecting to an antenna port.
• 5V antenna power works in Digital mode only. (Refer to p. 51)

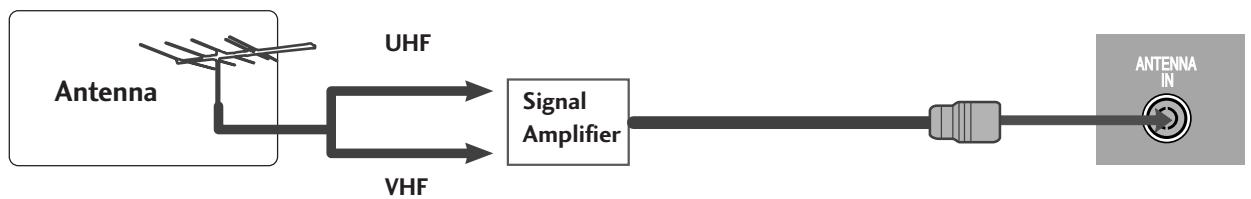

In poor signal areas, to get better picture quality, install a signal amplifier to the antenna as shown to the right.
If signal needs to be split for two TVs, use an antenna signal splitter for connection.

EXTERNAL EQUIPMENT SETUP

To prevent the equipment damage, never plug in any power cords until you have finished connecting all equipment.
This part of EXTERNAL EQUIPMENT SETUP mainly use pictures for the LCD TV models.

HD RECEIVER SETUP

This TV can receive Digital Over-the-air/Cable signals without an external digital set-top box. However, if you do receive Digital signals from a digital set-top box or other digital external device, refer to the figure as shown below.

When connecting with a component cable

Connect the video outputs (Y, PB, PR) of the digital set top box to the COMPONENT IN VIDEO jacks on the set.
Connect the audio output of the digital set-top box to the COMPONENT IN AUDIO jacks on the set.
3 Turn on the digital set-top box. (Refer to the owner's manual for the digital set-top box.)
4 Select COMPONENT input source with using the INPUT button on the remote control.

Signal	Component	HDMI1/2/3 (HDMI3:only 26/32LB7*)
480i/576i	Yes	No
480p/576p	Yes	Yes
720p/1080i	Yes	Yes
1080p	No	Yes

When connecting with a HDMI cable

Except 26/32LB7*

1 Connect the digital set-top box to HDMI/DVI IN 1 or HDMI IN 2 jack on the set.
Turn on the digital set-top box. (Refer to the owner's manual for the digital set-top box.)
3 Select HDMI1 or HDMI2 input source with using the INPUT button on the remote control.

Only 26/32LB7*

1 Connect the digital set-top box to HDMI/DVI IN 1, HDMI IN 2 or HDMI IN 3 jack on the set.
Turn on the digital set-top box. (Refer to the owner's manual for the digital set-top box.)
3 Select HDMI1, HDMI2 or HDMI3 input source with using the INPUT button on the remote control.

When connecting with a HDMI to DVI cable

Except 26/32LB7*

1 Connect the digital set-top box to HDMI/DVI IN 1 jack on the set.
2 Connect the audio output of the digital set-top box to the AUDIO IN (RGB/DVI) jack on the set.
Turn on the digital set-top box. (Refer to the owner's manual for the digital set-top box.)
4 Select HDMI1 input source with using the INPUT button on the remote control.

Only 26/32LB7*

1 Connect the digital set-top box to HDMI/DVI IN 1 jack on the set.
2 Connect the audio output of the digital set-top box to the AUDIO IN (RGB/DVI) jack on the set.
Turn on the digital set-top box. (Refer to the owner's manual for the digital set-top box.)
4 Select HDMI1 input source with using the INPUT button on the remote control.

DVD SETUP

When connecting with a component cable

Connect the video outputs (Y, PB, PR) of the DVD to the COMPONENT IN VIDEO jacks on the set.
Connect the audio outputs of the DVD to the COMPONENT IN AUDIO jacks on the set.
3 Turn on the DVD player, insert a DVD.
4 Select COMPONENT input source with using the INPUT button on the remote control.
Refer to the DVD player's manual for operating instructions.

Component Input ports

To get better picture quality, connect a DVD player to the component input ports as shown below.

Component ports on the TV	Y	PB	PR
Video output ports on DVD player	Y	PB	PR
	Y	B-Y	R-Y
	Y	Cb	Cr
	Y	Pb	Pr

When connecting with a Euro Scart

Connect the Euro scart socket of the DVD to the AV1 Euro scart socket on the set.
2 Turn on the DVD player, insert a DVD.
3 Select AV1 input source with using the INPUT button on the remote control. If connected to AV2 Euro scart socket, select AV2 input source.
Refer to the DVD player's manual for operating instructions.

NOTE

If you want to use the EURO scart cable, you have to use the signal shielded Euro scart cable.

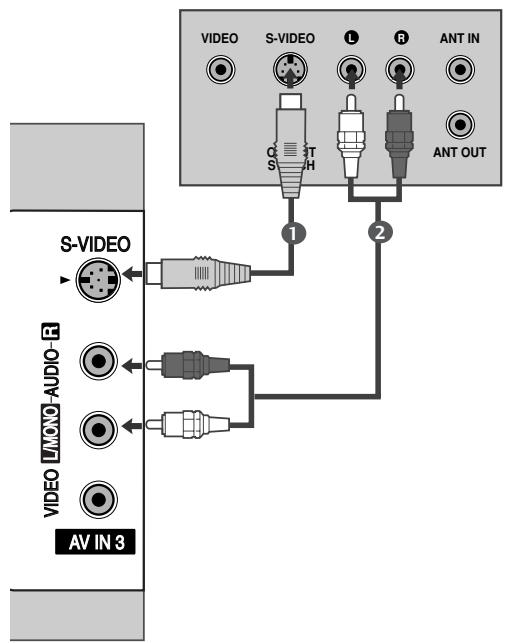

When connecting with an S-Video cable

Connect the S-VIDEO output of the DVD to the S-VIDEO input on the set.
2 Connect the audio outputs of the DVD to the AUDIO input jacks on the set.
3 Turn on the DVD player, insert a DVD.
4 Select AV3 input source with using the INPUT button on the remote control.
Refer to the DVD player's manual for operating instructions.

When connecting HDMI cable

Except 26/32LB7*

1 Connect the HDMI output of the DVD to the HDMI/DVI IN 1 or HDMI IN 2 jack on the set.
2 Select HDMI1 or HDMI2 input source with using the INPUT button on the remote control.
Refer to the DVD player's manual for operating instructions.

Only 26/32LB7*

1 Connect the HDMI output of the DVD to the HDMI/DVI IN 1, HDMI IN 2 or HDMI IN 3 jack on the set.
2 Select HDMI1, HDMI2 or HDMI3 input source with using the INPUT button on the remote control.
Refer to the DVD player's manual for operating instructions.

NOTE

TV can receive the video and audio signal simultaneously with using a HDMI cable.
If the DVD does not support Auto HDMI, you need to set the output resolution appropriately.

INSERTION OF CI MODULE

• To view the scrambled (pay) services in digital TV mode.
• This feature is not available in all countries.

Insert the CI Module to PCMCIA (Personal Computer Memory Card International Association) CARD SLOT of TV as shown.

For further information, see p.54.

VCR SETUP

To avoid picture noise (interference), leave an adequate distance between the VCR and TV.
- Typically a frozen still picture from a VCR. If the 4:3 picture format is used; the fixed images on the sides of the screen may remain visible on the screen.

When connecting with an antenna

1 Connect the ANT OUT socket of the VCR to the ANTENNA IN socket on the set.
2 Connect the antenna cable to the ANT IN socket of the VCR.
Press the PLAY button on the VCR and match the appropriate programme between the TV and VCR for viewing.

When connecting with a Euro Scart

1 Connect the Euro scart socket of the VCR to the AV1 Euro scart socket on the set.
2 Insert a video tape into the VCR and press PLAY on the VCR. (Refer to the VCR owner's manual.)
3 Select AV1 input source with using the INPUT button on the remote control.
4 If connected to AV2 Euro scart socket, select AV2 input source.

NOTE

If you want to use the EURO scart cable, you have to use the signal shielded Euro scart cable.

When connecting with a RCA cable

Connect the AUDIO/VIDEO jacks between TV and VCR. Match the jack colours (Video = yellow, Audio Left = white, and Audio Right = red)
2 Insert a video tape into the VCR and press PLAY on the VCR. (Refer to the VCR owner's manual.)
3 Select AV3 input source using the INPUT button on the remote control.

NOTE

If you have a mono VCR, connect the audio cable from the VCR to the AUDIO L/MONO jack of the set.

When connecting with an S-Video cable

Connect the S-VIDEO output of the VCR to the SVIDEO input on the set. The picture quality is improved; compared to normal composite (RCA cable) input.
2 Connect the audio outputs of the VCR to the AUDIO input jacks on the set.
3 Insert a video tape into the VCR and press PLAY on the VCR. (Refer to the VCR owner's manual.)
4 Select AV3 input source with using the INPUT button on the remote control.

NOTE

If both S-VIDEO and VIDEO sockets have been connected to the S-VHS VCR simultaneously, only the S-VIDEO can be received.

DIGITAL AUDIO OUT SETUP

Send the TV's audio to external audio equipment via the Digital Audio Output (Optical) port.

1 Connect one end of an optical cable to the TV Digital Audio (Optical) Output port.
2 Connect the other end of the optical cable to the digital audio (optical) input on the audio equipment.
3 Set the "TV Speaker option - Off" in the AUDIO menu. (▶p.85). See the external audio equipment instruction manual for operation.

CAUTION

Do not look into the optical output port. Looking at the laser beam may damage your vision.

OTHER A/V SOURCE SETUP

1 Connect the AUDIO/VIDEO jacks between TV and external equipment. Match the jack colors. (Video = yellow, Audio Left = white, and Audio Right = red)
2 Select AV3 input source with using the INPUT button on the remote control.
3 Operate the corresponding external equipment. Refer to external equipment operating guide.

This TV provides Plug and Play capability, meaning that the PC adjusts automatically to the TV's settings.

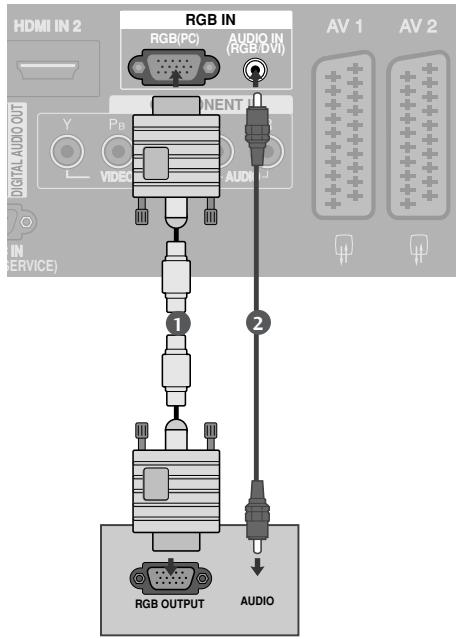

When connecting with a D-sub 15 pin cable

1 Connect the RGB output of the PC to the RGB (PC) jack on the set.
2 Connect the PC audio output to the AUDIO IN (RGB/DVI) jack on the set.
3 Turn on the PC and the set.
4 Select RGB input source with using the INPUT button on the remote control.

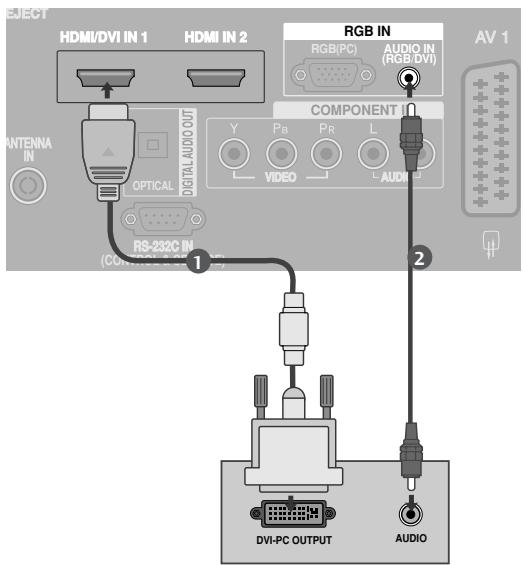

When connecting with a HDMI to DVI cable

1 Connect the DVI output of the PC to the HDMI/DVI IN 1 jack on the set.
Connect the PC audio output to the AUDIO IN (RGB/DVI) jack on the set.
3 Turn on the PC and the set
4 Select HDMI1 input source with using the INPUT button on the remote control.

NOTE

If the PC has a DVI output and no HDMI output, a separated audio connection is necessary.
If the PC does not support Auto DVI, you need to set the output resolution appropriately. To get the best picture quality, adjust the output resolution of PC graphics card's output resolution to 1024 × 768 , 60Hz .

NOTE

To enjoy vivid picture and sound, connect a PC to the set.
Avoid keeping a fixed image on the set's screen for a long period of time. The fixed image may become permanently imprinted on the screen; use a screen saver when possible.
Connect PC to the RGB (PC) or HDMI IN (or HDMI/DVI IN) port of the set; change the resolution output of PC accordingly.
There might be noise according to some resolution, vertical pattern, contrast or brightness in PC mode. Change the PC mode into another resolution or change the refresh rate into another rate or adjust the brightness and contrast on the menu until the picture is clean. If the refresh rate of the PC graphic card can not be changed, change the PC graphic card or consult it to the manufacturer of the PC graphic card.
The synchronization input waveform for Horizontal and Vertical frequencies are separate.
In Plasma TV models, we recommend using 1024 × 768 , 60 ~Hz for the PC mode, they provide the best picture quality.
Connect the signal cable from the monitor output port of the PC to the RGB (PC/DTV) port of the set or the signal cable from the HDMI output port of the PC to the HDMI IN (or HDMI/DVI IN) port on the set.

Connect the audio cable from the PC to the Audio input on the set. (Audio cables are not included with the set).
If using a sound card, adjust PC sound as required.
This set uses a VESA Plug and Play Solution. The set provides EDID data to the PC system with a DDC protocol. The PC adjusts automatically when using this set.
DDC protocol is preset for RGB (Analog RGB), HDMI (Digital RGB) mode.
If required, adjust the settings for Plug and Play functionally.
If graphic card on the PC does not output analog and digital RGB simultaneously, connect only one of either RGB or HDMI IN (or HDMI/DVI IN) to display the PC on the set.
If graphic card on the PC does output analog and digital RGB simultaneously, set the set to either RGB or HDMI; (the other mode is set to Plug and Play automatically by the set.)
DOS mode may not work depending on video card if you use a HDMI to DVI cable.
When you use too long RGB-PC cable, there might be a noise on the screen. We recommend using under 5m of the cable. It provides the best picture quality.

Supported Display Resolution

Except 26/32LB7*

RGB[PC] / HDMI[PC] mode

Resolution	Horizontal Frequency(kHz)	Vertical Frequency(Hz)
720x400	31.468	70.08
640x480	31.469	59.94
	37.684	75.00
800x600	37.879	60.31
	46.875	75.00
832x624	49.725	74.55
1024x768	48.363	60.00
	56.476	70.00
	60.123	75.029
1280x768	47.78	59.87
1360x768	47.72	59.8
1366x768	47.56	59.6
1920x1080	66.647	59.988

HDMI[DTV] mode

Resolution	Horizontal Frequency(kHz)	Vertical Frequency(Hz)
640x480	31.469	59.94
	31.469	60.00
720x480	31.47	59.94
	31.50	60.00
720x576	31.25	50.00
1280x720	37.50	50.00
	44.96	59.94
	45.00	60.00
1920x1080	33.72	59.94
	33.75	60.00
	28.125	50.00
	27.00	24.00
	56.25	50.00
	67.433	59.94
	67.500	60.00

Only 26/32LB7*

RGB[PC] / HDMI[PC] mode

Resolution	Horizontal Frequency(kHz)	Vertical Frequency(Hz)
720x400	31.468	70.08
640x480	31.469	59.94
	37.500	75.00
800x600	37.879	60.31
	46.875	75.00
832x624	49.725	74.55
1024x768	48.363	60.00
	56.476	70.00
	60.023	75.023
1280x768	47.649	59.99
1360x768	47.649	59.94
1366x768	47.649	59.94
1920x1080	66.647	59.988

HDMI[DTV] mode

Resolution	Horizontal Frequency(kHz)	Vertical Frequency(Hz)
640x480	31.469	59.94
	31.469	60.00
720x480	31.47	59.94
	31.50	60.00
720x576	31.25	50.00
1280x720	37.50	50.00
	44.96	59.94
	45.00	60.00
1920x1080	28.125	50.00
	33.72	59.94
	33.75	60.00
	27.000	24.00
	56.250	50.00
	67.433	59.94
	67.500	60.00

Screen Setup for PC mode

Auto Configure (RGB [PC] mode only)

Automatically adjusts picture position and minimizes image shaking. After adjustment, if the image is still not correct, your set is functioning properly but needs further adjustment.

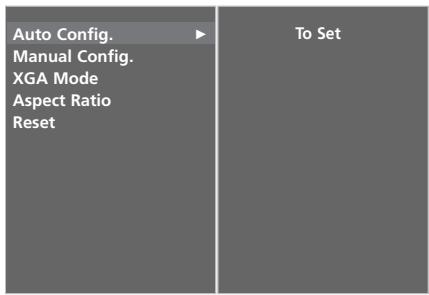

Auto configure

This function is for the automatic adjustment of the screen position, clock, and phase. The displayed image will unstable for a few seconds while the auto configuration is in progress.

Press the MENU button and then use or button to select the SCREEN menu.
Press the button and then use or button to select Auto Config..
3 Press the button to start Auto Config..

• When Auto Config. has finished, OK will be shown on screen.
• If the position of the image is still not correct, try Auto adjustment again.
• If picture needs to be adjusted more after Auto adjustment in RGB (PC), you can adjust the Manual Config..

Press the EXIT button to return to normal TV viewing.

1

2 3

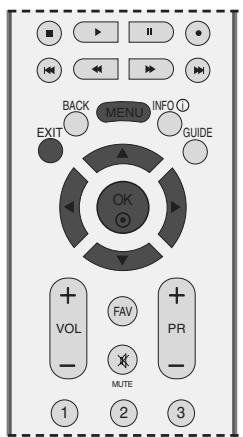

Adjustment for screen Phase, Clock, Position

If the picture isn't clear after auto adjustment and especially if characters are still trembling, adjust the picture phase manually.

To correct the screen size, adjust Clock.

This function works in the following mode: RGB[PC].

Clock This function is to minimize any vertical bars or stripes visible on the screen background. And the horizontal screen size will also change.

Phase This function allows you to remove any horizontal noise and clear or sharpen the image of characters.

1

Press the MENU button and then use or button to select the SCREEN menu.
Press the button and then or button to select Manual Config..
3 Press the button and then or button to select Phase, Clock, H-Position or V-Position.
4 Press the or button to make appropriate adjustments.
Press the EXIT button to return to normal TV viewing.

2 3 4

Selecting Wide XGA mode

To see a normal picture, match the resolution of RGB mode and selection of XGA mode.

This function works in the following mode: RGB[PC] mode

Press the MENU button and then use or button to select the SCREEN menu.
Press the button and then use or button to select XGA Mode.
Press the button and then use or button to select the desired XGA resolution.
Press the EXIT button to return to normal TV viewing.

1

2 3

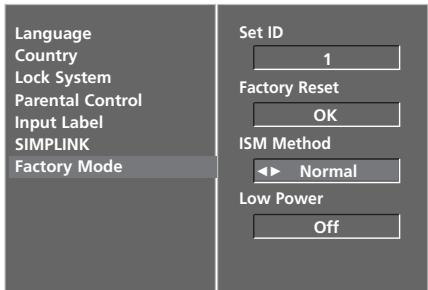

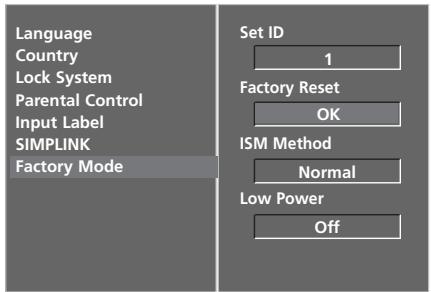

Initializing

(Reset to original factory settings)

This function operates in current mode.

To initialize the adjusted value

It's not available to use ISM Method and Low power in LCD TV models.

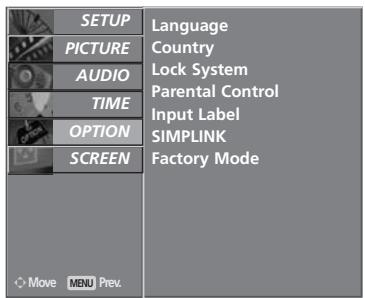

Press the MENU button and then or button to select the OPTION menu.
Press the button and then or button to select Factory Mode.
Press the button and then or button to select Factory Reset.
4 Press the OK button.

The message "If you enter a password, all user setting will be reset" will appear.

Use NUMBER buttons to input a 4-digit password.

1

2

3 4

WATCHING TV /PROGRAMME CONTROL

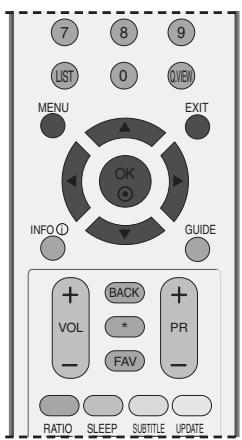

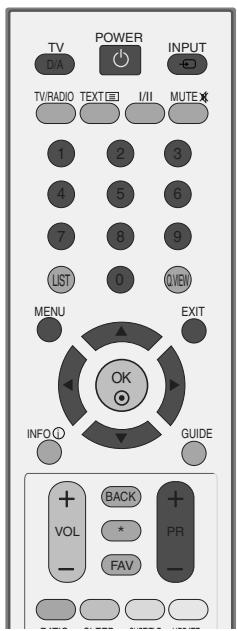

REMOTE CONTROL KEY FUNCTIONS

When using the remote control, aim it at the remote control sensor on the TV.

MODE Selects the remote operating modes.

IMPLINK See a list of AV devices connected to TV. When you toggle this button, the Simplink menu appears at the screen. (▶ p.62)

TELETEXT These buttons are used for teletext. BUTTONS For further details, see the 'Teletext' section.

RATIO Selects your desired picture format.

I/II Selects the sound output.

VCR/DVD Controls some video cassette recorders or DVD players when you have already selected DVD or VCR mode button. control buttons Control connected AV devices by pressing the or or or , OK buttons and buttons for play, stop, pause, fast reverse, fast forward, chapter skip. (The button does not provide such functions.)

THUMBSTICK Allows you to navigate the on-screen menus and adjust (Up/Down/Left Right) the system settings to your preference.

OK Accepts your selection or displays the current mode.

SLEEP Sets the sleep timer.

SUBTITLE Recalls your preferred subtitle in digital mode.

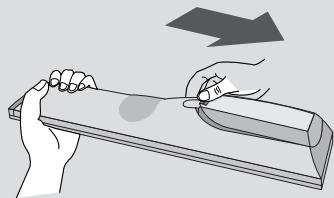

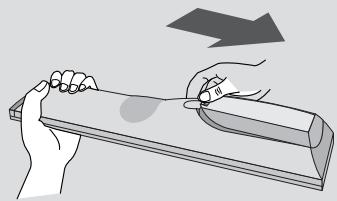

Installing Batteries

• Open the battery compartment cover on the back side and install the batteries matching correct polarity (+with +,-with -).
  Install two 1.5V AA batteries. Don't mix old or used batteries with new ones.
  Close cover.

REMOTE CONTROL KEY FUNCTIONS

When using the remote control, aim it at the remote control sensor on the TV.

1 TELETEXT These buttons are used for teletext. BUTTONS For further details, see the 'Teletext' section.

Coloured These buttons are used for teletext (only TELETEXT buttons models) or Programme edit.

RATIO Selects your desired picture format.

SLEEP Sets the sleep timer.

SUBTITLE Recalls your preferred subtitle in digital mode.

Installing Batteries

• Open the battery compartment cover on the back side and install the batteries matching correct polarity (+with +,-with -).
  Install two 1.5V AAA batteries. Don't mix old or used batteries with new ones.
  Close cover.

TURING ON THE TV

• If your TV will be turned on, you will be able to use its features.

1 First, connect power cord correctly.
At this moment, the TV switches to standby mode.
In standby mode to turn TV on, press the / I , INPUT or PR or button on the TV or press the POWER, INPUT, D/A, PR + or - or NUMBER button on the remote control and then the TV will switch on.

Initializing setup

If the OSD (On Screen Display) is displayed on the screen as figure after turning on the set, you can adjust the Language, Country, Time Zone, Auto programme tuning.

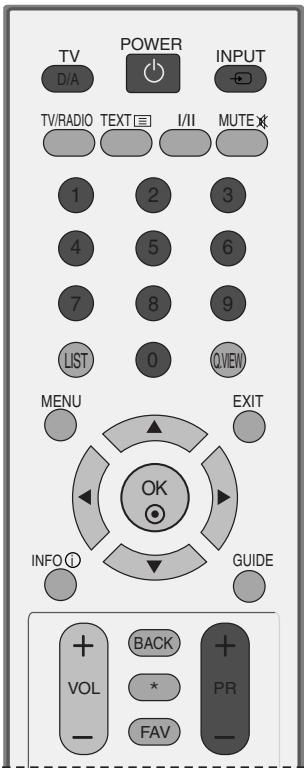

Note:

a. It will automatically disappear after approx. 40 seconds unless a button is pressed.
b. Press the BACK button to change current OSD into previous OSD.

PROGRAMME SELECTION

Press the PR + or - or NUMBER buttons to select a programme number.

VOLUME ADJUSTMENT

Press the VOL + or - button to adjust the volume.

If you want to switch the sound off, press the MUTE button.

You can cancel this function by pressing the MUTE, VOL + or -, or I/II button.

ON SCREEN MENUS SELECTION AND ADJUSTMENT

Your TV's OSD (On Screen Display) may differ slightly from what is shown in this manual.

Press the MENU button and then or button to display each menu.
Press the button and then or button to select a menu item.
3 Change the setting of an item in the sub or pull-down menu with or button. You can move to the higher level menu by pressing the OK or MENU button.

A

V

A

V

NOTE

It's not available to use ISM Method and Low power in LCD TV models.
In Analogue mode, 5V Antenna Power, CI Information, Software Update and Diagnostics will not display.
It's available to use Index in 50PB6*.

AUTO PROGRAMME TUNING (IN DIGITAL MODE)

Use it to automatically find and store all of the programmes.

When you start auto programming in digital mode, all the stored service information will be deleted.

Press the MENU button and then or button to select the SETUP menu.
Press the button and then or button to select Auto Tuning.
3 Press the button to begin auto tuning. Use NUMBER buttons to input a 4-digit password in Lock System 'On'.

The message "All service-information will be updated. Continue?" will appear.

If you want to keep on auto tuning select YES with using the or button. Then, press the OK button. Otherwise select NO.

To stop auto tuning, press the MENU button.

Press the EXIT button to return to normal TV viewing.

1

2

3

MANUAL PROGRAMME TUNING (IN DIGITAL MODE)

Manual Tuning lets you manually add a programme to your programme list.

Press the MENU button and then or button to select the SETUP menu.
Press the button and then or button to select Manual Tuning.
3 Press the button and then or button or NUMBER buttons to select the desired channel number. Use NUMBER buttons to input a 4-digit password in Lock System 'On'.
4 Press the OK button to save.

When the channel number you want to add is already added in programme list, the massage "Setup information for the channel will be updated. Continue?" will appear.

If you want to keep on manual tuning, select YES with using the or button.

Then, press the OK button. Otherwise select NO.

Press the EXIT button to return to normal TV viewing.

1

2

3 4

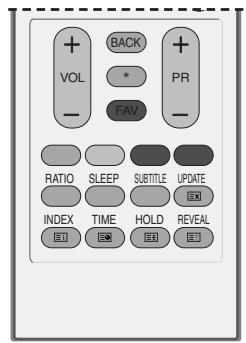

PROGRAMME EDIT (IN DIGITAL MODE)

When a programme number is skipped, it means that you will be unable to select it using PR + or - button during TV viewing.

If you want to select the skipped programme, directly enter the programme number with the NUMBER buttons or select it in the Programme edit menu.

This function enables you to skip the stored programmes.

It's available in some countries only to move a programme number by YELLOW button.

Press the MENU button and then or button to select the SETUP menu.
Press the button and then or button to select Programme Edit menu.
Press the button to enter the Programme Edit menu.

Use NUMBER buttons to input a 4-digit password in Lock System 'On'.

4 Select a programme to be stored or skipped with the or or or button.
Press the BLUE button repeatedly to have the programme skipped or stored.

In case of programmes to be skipped, skipped programme shows in blue colour and these programmes will not be selected by the PR + or - buttons during TV viewing.

Press the EXIT button to return to normal TV viewing.

1

2 3

Mini Glossary

Displayed when the DTV Programme.

Displayed when the Locked Programme.

Displayed when the Radio Programme.

Displayed when the MHEG Programme.

TEXT

Displayed when the Teletext Programme.

Displayed when the Subtitle Programme.

Displayed when the Scramble Programme.

Displayed when the Dolby Programme.

■ Skipping a programme number

1 Select a programme number to be skipped with the or or or button.
Press the BLUE button. The skipped programme number turns to blue.
Press the BLUE button again to release the skipped programme.

When a programme number is skipped it means that you will be unable to select it using the PR + or - button during normal TV viewing.

If you want to select the skipped programme, directly enter the programme number with the NUMBER buttons or select it in the programme edit or EPG.

Press the EXIT button to return to TV viewing.

Locking a programme (In Lock System On mode only)

1 Select a programme to be locked with the or or or button.
Press the GREEN button. The lock mark will appear in front of that programme number.
3 Press the GREEN button again to release this function.

Note :

To watch a locked programme, input a 4-digit password in Lock system. Be sure to remember this number!
If you forgot your password, press '7', '7', '7', '7' on the remote control handset.
If you select other programme after releasing a locked programme and then return to the locked programme within 1 minute, you needn't input a password to select the locked programme.

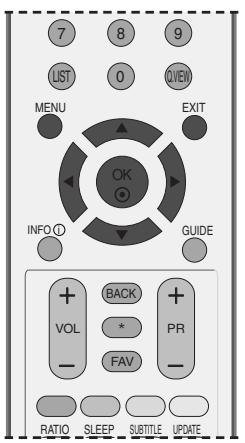

Selecting favourite programme

1 Select your favourite programme number by pressing or or or button and then press the FAV button on your remote control handset.

It will automatically include the selected programme into your favourite programme list.

Even if there isn't a special 5V adapter power in the external antenna, this function can output 5V in the set.

Press the MENU button and then or button to select the SETUP menu.
Press the button and then use or button to
Press the button and then use or button to select On or Off.

In 5V Antenna Power On, if the set is short-circuit, it will automatically return to Off.

The message "Antenna feed overloaded. Automatically switched off." will appear.

Press the EXIT button to return to normal TV viewing.

1

2 3

SOFTWARE UPDATE (IN DIGITAL MODE ONLY)

Software Update means software can be downloaded through the digital terrestrial broadcasting system.

Press the MENU button and then or button to select the SETUP menu.
Press the button and then or button to select Software update.
3 Press the button and then or button to select Off or On.

• If you select On, a user confirm message box will be displayed to notify that new software is found.
  Press the EXIT button to return to normal TV viewing.

1

• When setting "Software Update"

Occasionally, a transmission of updated digital software information will result in the following menu on the TV screen.

Select the YES using the or button and when you see the following picture.

After Software Update is completed, the System takes about one minute to restart.

2 3

• During Progress of Software Update, please note the following:
• The power of the set must not be interrupted.
• The set must not be switched off.
• The antenna must not be disconnected.
• During this time, you should not switch off the power to the set.
• At this time, you should not work power On/Off.
• After Software Update, you can confirm the updated software version in Diagnostics menu.

DIAGNOSTICS (IN DIGITAL MODE ONLY)

This function enables you to watch Manufacturer, Model/Type, Serial Number and Software Version.

It's displayed the information and signal strength of the tuned MUX.

It's displayed the signal information and service name of the selected MUX.

Press the MENU button and then or button to select the SETUP menu.
Press the button and then use or button to select Diagnostics.
Press the button to display Manufacturer, Model/Type, Serial Number and Software Version.
Press the EXIT button to return to normal TV viewing.

Auto Tuning Manual Tuning Programme Edit 5V Antenna Power Software Update Diagnostics CI Information

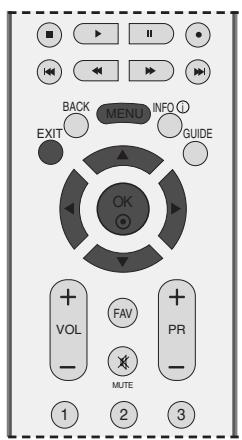

CI [COMMON INTERFACE] INFORMATION (IN DIGITAL MODE ONLY)

This function enables you to watch some scrambled services (pay services). If you remove the CI Module, you can't watch the pay services. When the module is inserted to CI slot, you can access the module menu. To purchase a module and smart card, contact your supplying dealer. Do not often insert or remove a CAM module from the set. It may cause a trouble. When the set turned on after inserting the CI Module, you often can't hear the sound.

There might be unnatural picture according to CI module and smart card.

CI (Common Interface) function may not be applied based on country broadcasting circumstance.

Press the MENU button and then or button to select the SETUP menu.
Press the button and then or button to select CI Information.
Press the button and then OK button.
Press the or button to select the desired item: Module information, smart card information, language, or software download etc.
5 Press the OK button.
Press the EXIT button to return to normal TV viewing.

1

45

2 3

• This OSD is only for illustration and the menu options and screen format will vary according to the Digital pay services provider.
• It's possible for you to change CI (Common Interface) menu screen and service by your dealer.

Viaccess Module

Consultations

Authorizations

Module information

Select the item

AUTO PROGRAMME TUNING (IN ANALOGUE MODE)

All stations that can be received are stored by this method. It is recommended that you use Auto tuning during installation of this set.

Press the MENU button and then or button to select the SETUP menu.
Press the button and then or button to select Auto Tuning.
Press the button to select System. Select a TV system with the or button;

L : SECAM L/L' (France)
BG : PAL B/G, SEÇAM B/G (Europe / East Europe / Asia / New Zealand / M.East / Africa / Australia)
I : PAL I/II (U.K. / Ireland / Hong Kong / South Africa)
DK: PAL D/K, SECAM D/K (East Europe / China / Africa / CIS)

4 Press the button to select Storage From.

Select the beginning programme number with the or button or NUMBER buttons on the Storage From menu.

Press the button to select Start.

The station name is stored for stations which broadcast VPS (Video Programme Service), PDC (Programme Delivery Control) or TELETEXT data.

If no station name can be assigned to a station, the channel number is assigned and stored as C (V/UHF 01-69) or S (Cable 01-47), followed by a number.

To stop auto tuning, press the MENU button.

When auto tuning is completed, the Programme Edit menu appears on the screen.

See the 'Programme Edit' section to edit the stored programme.

1

2 3 4 5

MANUAL PROGRAMME TUNING (IN ANALOGUE MODE)

Manual Tuning lets you manually tune and arrange the stations in whatever order you desire.

Press the MENU button and then or button to select the SETUP menu.
Press the button and then or button to select Manual Tuning.
3 Press the button to select Storage.

Select the desired programme number with the or button or NUMBER buttons on the Storage menu.

Press the button to select System. Select a TV system with the or button;

L : SECAM L/L' (France)
BG : PAL B/G, SEÇAM B/G (Europe / East Europe / Asia / New Zealand / M.East / Africa / Australia)
I : PAL I/II (U.K. / Ireland / Hong Kong / South Africa)
DK: PAL D/K, SECAM D/K (East Europe / China / Africa / CIS)

Press the button to select Band. Press the or button to select V/UHF or Cable as required.
Press the button to select Channel. You can select the desired channel number with the or button or NUMBER buttons.

If possible, select the channel number directly with the NUMBER buttons.

Press the button to select Search. Press the or button to commence searching. If a station is found the search will stop.
Press the OK button to store it.
To store another station, repeat steps 3 to 8.
Press the EXIT button to return to normal TV viewing.

1

2 3 4 5 6 7 8 9

FINE TUNING (IN ANALOGUE MODE)

Normally fine tuning is only necessary if reception is poor.

Press the MENU button and then or button to select the SETUP menu.
Press the button and then or button to select Manual Tuning.
Press the button and then or button to select Fine.
Press the button and then or button to fine tune for the best picture and sound.
Press the OK button to store it.
Press the EXIT button to return to normal TV viewing.

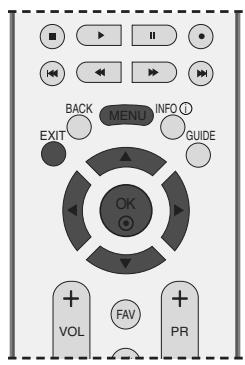

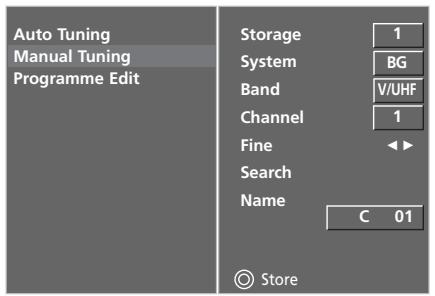

ASSIGNING A STATION NAME (IN ANALOGUE MODE)

You can assign a station name with five characters to each programme number.

Press the MENU button and then or button to select the SETUP menu.
Press the button and then or button to select Manual Tuning.
Press the button and then or button to select Name.
Press the button and then or button. You can use a the alphabet A to Z, the number 0 to 9, +/ -, and blank.
Press the or button to select the position and make your choice of the second character, and so on.
6 Press the OK button to store it.
7 Press the EXIT button to return to normal TV viewing.

1

2 3 4 5

2 3 4 5 6

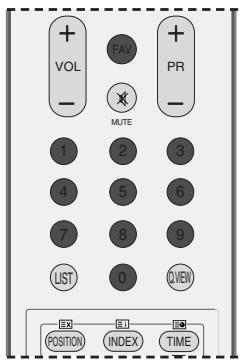

PROGRAMME EDIT (IN ANALOGUE MODE)

This function enables you to delete or skip the stored programmes. Also you can move some stations to other programme numbers or copy a blank station data into the selected programme number.

Press the MENU button and then or button to select the SETUP menu.
Press the button and then or button to select Programme Edit.
Press the button to display the Programme Edit menu.

• Deleting a programme

a Select a programme to be deleted with the or or or button.
b Press the RED button twice. The selected programme is deleted, all the following programmes are shifted up one position.
■ Copying a programme
a Select a programme to be copied with the or or or button.
b Press the GREEN button. All the following programmes are shifted down one position.

1

2

■ Moving a programme

a Select a programme to be moved with or or or button.
Press the YELLOW button.
Move the programme to the desired programme number with the or or or button.
Press the YELLOW button again to release this function.

■ Skipping a programme number

a Select a programme number to be skipped with or or or button.
b Press the BLUE button. The skipped programme number turns to blue.
Press the BLUE button to release the skipped programme.
d When a programme number is skipped it means that you will be unable to select it using the PR + or - button during normal TV viewing.

If you want to select the skipped programme, directly enter the programme number with the NUMBER buttons or select it in the programme edit or table menu.

Selecting Favourite Programme

a Select your favourite programme number with or or or button.
Press the FAV button.

The selected programme will be added to the favourite programme list.

CALLING THE PROGRAMME TABLE

You can check the programmes stored in the memory by displaying the programme table.

Displaying programme LIST

Press the LIST button to display the PROGRAMME LIST menu.

The programme list appears on the screen.

• You may find some blue programmes. They have been set up to be skipped by auto programming or in the programme edit mode.
• Some programmes with the channel number shown in the programme LIST indicate there is no station name assigned.

Selecting a programme in the programme list

1 Select a programme with the or button
Press the OK button. The set switches to the chosen programme number.

Paging through a programme list

There are programme LIST pages which total contain 100 programmes. (Analogue Mode)

Press the PR + or - button repeatedly to turns the pages.
Press the LIST button to return to normal TV viewing.

Displaying favourite programme table

Press the FAV button to display the Favourite Programme table menu.

< In Analogue Mode >

Mini Glossary

Displayed when the Favourite Programme.

Displayed when the Locked Programme.

INPUT SOURCE SELECTION

Sets a label to each input source which is not in use.

Press the MENU button and then use or button to select the OPTION menu.

Press the button and then use or button to select Input Label.

Press the button and then use or button to select the source: AV1, AV2, Comp., RGB, HDMI1 or HDMI2.

Press the or button to select the label.

Press EXIT button to return to normal TV viewing.

INDEX (only 50PB6*)

You can switch FRONT DISPLAY on or off.

Press the MENU button and then use or button to select the OPTION menu.

Press the button and then use or button to select Index.

Press the button and then use or button to select On or Off.

When you select On mode, The FRONT DISPLAY illuminates brightly.

Press the EXIT button to return to normal TV viewing.

SIMPLINK FUNCTION (except 42/50PC3*)

This operates only for the devices with the SIMPLINK logo. Please check the SIMPLINK logo.

This allows you to control and play other AV devices connected to the display through HDMI cable without additional cables and settings.

If you do not want SIMPLINK menu, select "Off".

In 26/32LB7* model, SIMPLINK function is not supported by HDMI IN 3 input.

Press the MENU button and then or button to select the OPTION menu.
Press the button and then or button to select SIMPLINK.
3 Press the button and then or button to select Off or On.
4 Press the EXIT button to return to normal TV viewing.

1

2 3

SIMPLINK Functions

Disc playback

Control connected AV devices by pressing the or or OK, , , , , , , and buttons.

Direct Play

After connecting AV devices to TV, you can directly control the devices and play media without additional settings.

Select AV device

Enables you to select one of AV devices connected to TV and play it.

Power off all devices

When you power off TV, all connected devices are turned off.

Switch audio-out

Offers an easy way to switch audio-out.

• A device, which is connected to TV through HDMI cable but does not support Simplink, does not provide this function.

SIMPLINK Menu

Press the or or button and then OK button to select the desired SIMPLINK source.

TV viewing: Switch to the previous TV programme regardless of the current mode.
DISC playback : Select and play connected discs. When multiple discs are available, the titles of discs are conveniently displayed at the bottom of the screen.
VCR playback : Play and control the connected VCR.
HDD Recordings playback : Play and control recordings stored in HDD.
Audio Out to Home theatre/Audio Out to TV: Select Home theatre or TV speaker for Audio Out.

NOTE

Connect the HDMI/DVI IN or HDMI IN terminal of the TV to the rear terminal (HDMI terminal) of the SIMPLINK device with the HDMI cable.
After connecting the HDMI terminal for the home theater with SIMPLINK function in the above method, connect the DIGITAL AUDIO OUT terminal on the back of the TV to the DIGITAL AUDIO IN terminal on the back of the SIMPLINK device with the OPTICAL cable.
- When operating the external device with SIMPLINK, press the TV button among the MODE button on the remote controller.
- When you switch the Input source with the INPUT button on the remote controller, you can stop the operation of device controlled by SIMPLINK.
When you select or operate the media device with home theater function, the speaker automatically switches to home theater speaker (HT speaker).

EPG (ELECTRONIC PROGRAMME GUIDE) (IN DIGITAL MODE)

This system has an Electronic Programme Guide (EPG) to help your navigation through all the possible viewing options.

The EPG supplies information such as programme listings, start and end times for all available services. In addition, detailed information about the programme is often available in the EPG (the availability and amount of these programme details will vary, depending on the particular broadcaster).

This function can be used only when the EPG information is broadcasted by broadcasting companies.

The EPG displays the programme description for next 8 days.

Switch on/off EPG

Press the GUIDE button to switch on EPG.
Press the GUIDE or EXIT button again to switch off EPG and return to normal TV viewing.

Select a programme

Press the or , or , PR + or - button to select desired programme, then press the OK button to display the selected programme.

Button Function in NOW/NEXT Guide Mode

Remote Control Buttons	Function
RED	Change EPG mode
YELLOW	Enter Timer Record/Remind setting mode
BLUE	Enter Timer Record/Remind list mode
◎	Change to the selected channel
▲ or ▲	Select NOW or NEXT Programme
▲ or▼	Select the Broadcasting Programme
PR + or -	Page Up/Down
GUIDE/EXIT	Switch off EPG
TV/RADIO	Select TV or RADIO Programme
INFO ①	The detail information on or off

Button Function in 8 Days Guide Mode

Remote Control Buttons	Function
RED	Change EPG mode
GREEN	Enter Date setting mode
YELLOW	Enter Timer Record/Remind setting mode
BLUE	Enter Timer Record/Remind list mode
◎	Change to the selected channel
▲ or ▲	Select NOW or NEXT Programme
▲ or ▼	Select the Broadcasting Programme
PR + or -	Page Up/Down
GUIDE/EXIT	Switch off EPG
TV/RADIO	Select TV or RADIO Programme
INFO ①	The detail information on or off

Button Function in Date Change Mode

Remote Control Buttons	Function
GREEN	Switch off Date setting mode
◎	Change to the selected date
< or >	Select a date
▼	Switch off Date setting mode
GUIDE/EXIT	Switch off EPG

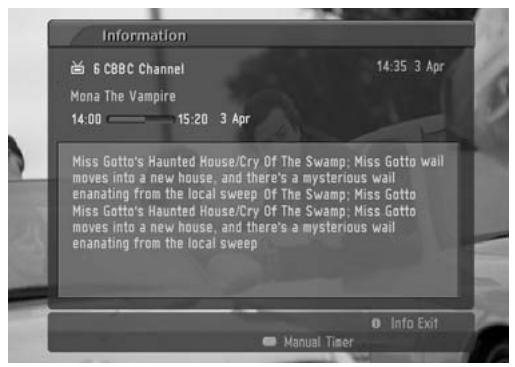

Button Function in Extended Description Box

Remote Control Buttons	Function
▲ or▼	Text Up/Down
YELLOW	Enter Timer Record/Remind setting mode
INFO ①	The detail information on or off
GUIDE/EXIT	Switch off EPG

Button Function in Record/Remind Setting Mode

• This function is available only when recording equipment that use pin8 recording signalling has been connected to the DTV-OUT terminal, using a SCART cable.

Remote Control Buttons	Function
YELLOW	Change to Guide or Timer list mode
◎	Save Timer Record/Remind
▲ or ▲	Select Type, Service, Date or Start/End time
▲ or ▼	Function setting

Button Function in Timer List Mode

Remote Control Buttons	Function
YELLOW	Add new Manual Timer setting mode
GREEN	Enter Timer list editing mode
RED	Delete the selected item
BLUE	Change to Guide mode
▲ or▼	Select Timer list

PICTURE SIZE (ASPECT RATIO) CONTROL

You can watch the screen in various picture formats; Spectacle (except 26/32LB7, 42/50PC3, 60PC4*), Full, Original, 4:3, 16:9, 14:9 and Zoom1/2.

If a fixed image is displayed on the screen for a long time, that fixed image may become imprinted on the screen and remain visible.

There might be uncomfortable in full mode. Then change into other mode.

You can adjust the enlarge proportion using or button.

This function works in the following signal.

Press the RATIO button repeatedly to select the desired picture format. You can also adjust Aspect Ratio in the SCREEN menu.

• Spectacle (except 26/32LB7, 42/50PC3, 60PC4*) When your TV receives the wide screen signal, when selected it will adjust the picture horizontally, in non-linear proportion, to fill the entire screen.

• Full
• When your TV receives the wide screen signal, when selected it will adjust the picture horizontally or vertically, in a linear proportion, to fill the entire screen fully.

- Original

When your TV receives the wide screen signal, it will be automatically changed to the picture format to be sent.

4:3

Following selection will lead you to view a picture with an original 4:3 aspect ratio, with gray bars appearing at both the left and right sides..

16:9

Following selection will lead you to adjust the picture horizontally, in a linear proportion, to fill the entire screen (useful for viewing 4:3 formatted DVDs).

14:9

You can enjoy the picture format of 14:9 or general TV programme through the 14:9 mode. The screen 14:9 is viewed just like that the screen 4:3 is magnified to the left / right.

- Zoom1

Following selection will lead you to view the picture without any alternation, while filling the entire screen. However, the top and bottom portions of the picture will be cropped.

- Zoom2

Choose Zoom2 when you want the picture to be altered, both horizontally extended and vertically cropped. The picture taking a halfway trade off between alteration and screen coverage.

NOTE

▶ You can only select 4:3, 16:9 (Wide), Zoom 1/2 in Component, HDMI mode.
You can only select 4:3, 16:9 (Wide) in RGB mode only.

PRESET PICTURE SETTINGS

Picture Mode-Preset

Dynamic Select this option to display with a sharp image.

Standard The most general and natural screen display status.

Mild Select this option to display with a mild image.

User 1/2 Select this option to use the user-defined setting.

Press the MENU button and then or button to select the PICTURE menu.
Press the button and then or button to select Picture Mode.
Press the button and then or button to select Intelligent Eye (only 26/32LB7*), Dynamic, Standard, Mild, User 1, or User 2.
Press the EXIT button to return to normal TV viewing.

Picture Mode adjusts the set for the best picture appearance. Select the preset value in the Picture Mode menu based on the programme category.

Dynamic, Standard and Mild are programmed for optimum picture reproduction at the factory and cannot be changed.

1

2 3

Auto Colour Tone Control (Warm/Medium/Cool)

To initialize values (reset to default settings), select the Cool option.

Choose one of three automatic colour adjustments. Set to warm to enhance hotter colours such as red, or set to cool to see less intense colours with more blue.

It's available to use this function in User mode.

Press the MENU button and then or button to select the PICTURE menu.

Press the button and then or button to select Colour Temperature.

Press the button and then or button to select either Cool, Medium, Warm, or User.

Press the EXIT button to return to normal TV viewing.

MANUAL PICTURE ADJUSTMENT

Picture Mode-User option

Contrast Adjusts the difference between the light and dark levels in the picture.
Brightness Increases or decreases amount of white in the your picture.
Colour Adjusts intensity of all colours.
Sharpness Adjusts the level of crispness in the edges between the light and dark areas of the picture. The lower the level, the softer the image.
Tint Adjusts the balance between red and green levels.
Press the MENU button and then or button to select the PICTURE menu.
Press the button and then or button to select Picture Mode.
3 Press the button and then or button to select User 1 or User 2.
Press the button and then or button to select the desired picture option (Contrast, Brightness, Colour, Sharpness and Tint).
Press the or button to make appropriate adjustments.
Press the EXIT button to return to normal TV viewing.

NOTE

• You can't adjust colour, sharpness and tint in the RGB-PC mode to the levels you prefer.

1

2 3

45

Colour Tone - User option

To adjust red, green, blue to any colour temperature you prefer.

Press the MENU button and then or button to select the PICTURE menu.
Press the button and then or button to select Colour Temperature.
3 Press the button and then or button to select User.
4 Press the button and then or button to select Red, Green or Blue.
5 Press the or button to make appropriate adjustments.
Press the EXIT button to return to normal TV viewing.

1

2 3

45

XD - PICTURE IMPROVEMENT TECHNOLOGY

XD is LG electronic's unique picture improving technology to display a real HD source through an advanced digital signal processing algorithm.

It's not available to use this function in RGB-PC mode.

Press the MENU button and then or button to select the PICTURE menu.
Press the button and then or button to select XD.
Press the button and then or button to select Auto or Manual.
Press the EXIT button to return to normal TV viewing.

* Selecting the Manual

This menu is activated after selecting the User1 or User2 of Picture Mode.

Press the button and then or button to select XD Contrast, XD Colour, XD NR or MPEG NR.
Press the button and then or button to select On or Off.
Press the EXIT button to return to normal TV viewing.

XD Contrast : Optimizing the contrast automatically according to the brightness of the reflection.
XD Colour : Adjusting the colours of the reflection automatically to reproduce as closely as possible to the natural colors.
XD NR: Removing the noise up to the point where it does not damage the original picture.
■ MPEG NR: To reduce the picture noise which may appear on the screen during watching the TV.

1

2

3

XO DEMO

Use it to see the difference between XD Demo on and XD Demo off.

It's not available to use this function in RGB[PC], HDMI[PC] mode.

Press the MENU button and then or button to select the PICTURE menu.
Press the MENU button and then or button to select XD Demo.
Press the button to begin XD Demo.
4 To stop XD Demo, press the MENU or EXIT button.

1

2 3

- XD Demo

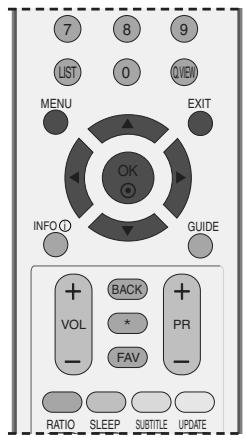

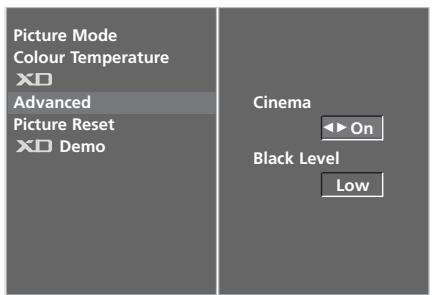

ADVANCED - CINEMA

Set up the TV for the best picture appearance for viewing movies.

This feature operates only in DTV, AV, S-Video and Component 480i/576i mode.

Press the MENU button and then or button to select the PICTURE menu.
Press the button and then or button to select Advanced.
Press the button and then or button to select Cinema.
4 Press the or button to select On or Off.
Press the EXIT button to return to normal TV viewing.

1

2

3

When you watch the movie, this function adjusts the set to the best picture appearance. Adjusting the contrast and the brightness of the screen using the black level of the screen.

This function works in the following mode: AV (NTSC-M), S-Video (NTSC-M) or HDMI.

Press the MENU button and then or button to select the PICTURE menu.
Press the button and then or button to select Advanced.
3 Press the button and then or button to select Black Level.
Press the or button to select Low or High.

Low : The reflection of the screen gets darker.
■ High : The reflection of the screen gets brighter.

5

1

2

3 4

PICTURE RESET

Returns to the default settings Picture Mode, Colour Temperature, XD, Advanced at the factory.

Press the MENU button and then or button to select the PICTURE menu.
Press the button and then or button to select Picture Reset.
Press the button to initialize the adjusted value.

1

2 3

IMAGE STICKING MINIMIZATION (ISM) METHOD

A frozen of still picture from a PC/video game displayed on the screen for prolonged periods will result in a ghost image remaining even when you change the image. Avoid allowing a fixed image to remain on the set's screen for a long period of time.

It's not available to use this function in LCD models.

White wash

White wash removes permanent images from the screen.

Note: An excessive permanent image may be impossible to clear entirely with White Wash.

Orbiter

Orbiter may help prevent ghost images. However, it is best not to allow any fixed image to remain on the screen. To avoid a permanent image on the screen, the screen will move every 2 minutes.

Inversion

This is the function to invert the panel colour of the screen. The panel colour is automatically inverted every 30 minutes.

Press the MENU button and then or button to select the OPTION menu.

Press the button and then or button to select Factory Mode.

Press the button and then or button to select ISM Method.

Press the or button to select either Normal, White wash, Orbiter or Inversion. If you unnecessary to set this function, set Normal.

Press the EXIT button to return to normal TV viewing.

1

2

3 4

LOW-POWER PICTURE MODE

This is the function to reduce the power consumption of the set.

It's not available to use this function in LCD TV models.

Press the MENU button and then or button to select the OPTION menu.
Press the button and then or button to select Factory Mode.
3 Press the button and then or button to select Low power.
4 Press the or button to select Off or On.

Press the EXIT button to return to normal TV viewing.

1

2

3 4

SOUND & LANGUAGE CONTROL

AUTO VOLUME LEVELER

AVL automatically keeps on an equal volume level even if you change programmes.

Press the MENU button and then or button to select the AUDIO menu.
Press the button and then or button to select Auto Volume.
3 Press the button and then or button to select Off or On.
Press the EXIT button to return to normal TV viewing.

1

2 3

You can select your preferred sound setting; Surround MAX, Standard, Music, Movie or Sports and you can also adjust the sound frequency of the equalizer.

Sound Mode lets you enjoy the best sound without any Special adjustment because the TV sets the appropriate sound options based on the programme content.

Surround MAX, Standard, Music, Movie, and Sports are preset for good sound quality at the factory and are not adjustable.

Surround MAX Select this option to sound realistic.
Standard The most commanding and natural audio.
Music Select this option to enjoy the original sound when listening to the music.
Movie Select this option to enjoy sublime sound.
Sports Select this option to watch sports broadcasting.
User Select this option to use the user-defined audio settings.
Press the MENU button and then or button to select the AUDIO menu.
Press the button and then or button to select Sound Mode.
Press the button and then or button to select Surround MAX, Standard, Music, Movie, Sports or User.
Press the EXIT button to return to normal TV viewing.

1

2 3

SOUND SETTING ADJUSTMENT -USER MODE

Adjust the sound equalizer.

Press the MENU button and then or button to select the AUDIO menu.
Press the button and then or button to select Sound Mode.
3 Press the button and then or button to select User.
4 Press the button.
5 Select a sound band by pressing the or button. Make appropriate sound level with the or button.
Press the EXIT button to return to normal TV viewing.

1

2 3

45

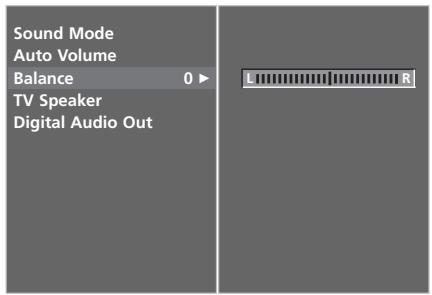

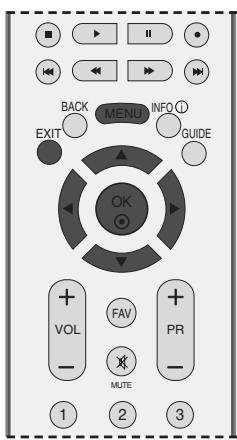

BALANCE

You can adjust the sound balance of speaker to the levels you prefer.

Press the MENU button and then or button to select the AUDIO menu.
Press the button and then or button to select Balance.
Press the button and then or button to make desired adjustment.
Press the EXIT button to return to normal TV viewing.

1

2 3

You can adjust the internal speaker status.

In AV1, AV2, AV3, COMPONENT, RGB and HDMI1 with HDMI to DVI cable, TV speaker and/or variable audio can be outputted even though there is no video signal.

If you want to use your external hi-fi stereo system, turn off the internal speakers of the set.

Press the MENU button and then or button to select the AUDIO menu.
Press the button and then or button to select TV Speaker.
3 Press the button and then or button to select Off or On.
Press the EXIT button to return to normal TV viewing.

1

2 3

SELECTING DIGITAL AUDIO OUT

This function lets you select your preferred Digital Audio Output. The set can output Dolby Digital in a channel only which broadcast Dolby Digital Audio.

When it's applied the Dolby Digital format, if you select Dolby Digital on Digital audio out menu, SPDIF Output will be outputted Dolby Digital.

Even if it's selected Dolby Digital, when it doesn't apply Dolby Digital format, SPDIF Output will be outputted PCM. Even if both Dolby Digital and Audio language have been set in a channel which broadcast Dolby Digital Audio, only Dolby Digital will be played.

Manufactured under license from Dolby Laboratories. "Dolby "and the double-D symbol are trademarks of Dolby Laboratories.

Press the MENU button and then or button to select the AUDIO menu.
Press the button and then or button to select Digital Audio Out.
Press the button and then or button to select Dolby Digital or PCM.
Press the EXIT button to return to normal TV viewing.

1/11

Stereo/Dual Reception (In Analogue Mode Only)

When a programme is selected, the sound information for the station appears after the programme number and station name disappear.

Broadcast	On Screen Display
Mono	MONO
Stereo	STEREO
Dual	DUAL I

Mono sound selection

If the stereo signal is weak in stereo reception, you can switch to mono by pressing the I/II button twice. In mono reception, the depth of sound is improved. To switch back to stereo, press the I/II button twice again.

■ Language selection for dual language broadcast

If a programme received two languages (dual language), you can switch to DUAL I, DUAL II or DUAL I+II by pressing the I/II button repeatedly.

DUAL I Sends the primary broadcast language to the loudspeakers.

DUAL II Sends the secondary broadcast language to the loudspeakers.

DUAL I+II Sends a separate language to each loudspeaker.

NICAM Reception (In Analogue Mode Only)

If the set is equipped with the receiver for NICAM reception, the high quality NICAM (Near Instantaneous Companding Audio Multiplex) digital sound can be received.

Sound output can be selected according to the type of received broadcast as follows by pressing the I/II button repeatedly.

When NICAM mono is received, you can select NICAM MONO or FM MONO.
When NICAM stereo is received, you can select NICAM STEREO or FM MONO. If the stereo signal is weak, switch to FM mono.
3 When NICAM dual is received, you can select NICAM DUAL I, NICAM DUAL II or NICAM DUAL I+II or MONO.

Speaker Sound Output Selection

In AV, S-Video, Component, RGB and HDMI mode, you can select output sound for the left and right loudspeakers.

Repeatedly press the I/II button to select the sound output.

L+R: Audio signal from audio L input is sent to the left loud speaker and audio signal from audio R input is sent to the right loud speaker.
L+L: Audio signal from audio L input is sent to left and right loud speakers.
+ : Audio signal from audio R input is sent to left and right loud speakers.

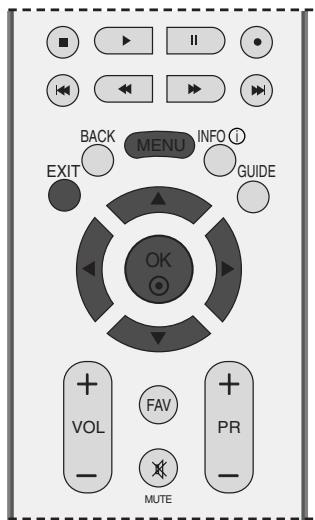

ON-SCREEN MENU LANGUAGE / COUNTRY SELECTION

Installation guide menu appears on TV screen when it is turned on for the first time.

Press the or or or button and then, OK button to select your desired language.

Press the or button and then, OK button to select your country.

• If you want to change Language/ Country selection

Press the MENU button and then use or button to select the OPTION menu.

Press the button and then use or button to select Language. The menus can be shown on the screen in the selected language.

Or, Press the button and then use or button to select Country.

Press the button and then use or button to select your desired language or country.

Press the OK button.

Press the EXIT button to return to normal TV viewing.

NOTE

If you don't finish set up Installation Guide by pressing EXIT button or time out of OSD (On Screen Display) display, it will continuously appear until completing set up whenever the set is turned on.
If you select wrong local country, the teletext may not appear correctly on the screen and some problem may happen during teletext operation.
- CI (Common Interface) function may not be applied based on country broadcasting circumstance.
DTV mode control buttons may not be working based on country broadcasting circumstance.

LANGUAGE SELECTION (IN DIGITAL MODE ONLY)

Audio function lets you select your preferred language for audio. If the audio data in selected language is not broadcasted, default language audio will be played.

Use Subtitle function when two or more subtitle languages are broadcasted. If the subtitle data in selected language is not broadcasted, default language subtitle will be displayed.

Press the MENU button and then use or button to select the OPTION menu.
Press the button and then use or button to select Language.
Press the button and then use or button to select Audio, Subtitle or Subtitle Hard of hearing.
4 Press the button and then use or button to select your desired language.
Press the EXIT button to return to normal TV viewing.

NOTE

< Audio Language Selection >

When two or more audio languages are broadcasted, you can select audio language with the I/II button on the remote control.
Press the or button to select an audio language.
Press the or button to select L+R, L+L or R+R.

When two or more subtitle languages are broadcasted, you can select subtitle language with the SUBTITLE button on the remote control.
Press the or button to select a subtitle language.

Audio Language OSD Information

Display	Status
N.A	Not Available
MPEG	MPEG Audio
Dolby Digital Audio	Dolby Digital Audio
Audio for “Visual Impaired”
ABC	Audio for “Hearing Impaired”

Subtitle Language OSD Information

Display	Status
N.A	Not Available
TEXT	Teletext Subtitle
ABC	Subtitle for “Hard of Hearing”

• The audio/subtitle can be displayed simpler form with 1 to 3 characters which is broadcast by service provider.
• When you select supplementary Audio (Audio for "Visual/Hearing Impaired") it may speak out a part of Main audio.

CLOCK SETUP

The clock is set automatically when receiving the digital signal. (You can set the clock if the TV has no DTV signal.)

You must set to the time correctly before using on/off time function.

Press the MENU button and then or button to select the TIME menu.
Press the button and then or button to select Clock.
3 Press the button and then or button to select either the year, date, or time option.

Once selected, use the or button to set the year, date, and time options.

Press the EXIT button to return to normal TV viewing.

1

2 3

AUTO ON/OFF TIMER SETTING

The Off time automatically switches the set to standby at the preset time.

Two hours after the set is switched on by the on time function it will automatically switch back to standby mode unless a button has been pressed.

Once the on time/off time is set, these functions operate daily at the preset time.

Off time function overrides On timer function if they are set both to the same time.

The set must be in standby mode for the On timer to work.

Press the MENU button and then or button to select the TIME menu.
Press the button and then or button to select Off Time/On Time.
3 Press the button and then or button to select On.

• To cancel On/Off Time function, select Off.

4 Press the button and then or button to set the hour.
Press the button and then or button to set the minutes.
For only On time function

• Programme: Press the button and then or button to select TV, DTV or Radio in the Mode menu. And then, Press the button and then or button to select the programme.
  Volume: Press the button and then or button to adjust volume level at turn-on.

7 Press the EXIT button to return to normal TV viewing.

1

2 3 4 5 6

AUTO SHUT-OFF SETTING

If set to on and there is no input signal, the set turns off automatically after 10 minutes.

Press the MENU button and then or button to select the TIME menu.
Press the button and then or button to select Auto Sleep.
3 Press the button and then or button to select Off or On.
Press the EXIT button to return to normal TV viewing.

1

2 3

TIME ZONE SETUP

When you select a Time Zone city, TV time is set by the time offset information based on Time Zone and GMT (Greenwich Mean Time) information which is received to broadcasting signal when time is set automatically by a digital signal.

Press the MENU button and then or button to select the TIME menu.
Press the button and then or button to select Time Zone.
3 Press the button and then or button to select your viewing area time zone.
Press the EXIT button to return to normal TV viewing.

1

SLEEP TIMER SETTING

You don't have to remember to switch the set off before you go to sleep.

The sleep timer automatically switches the set to standby after the preset time has elapsed.

Press the SLEEP button repeatedly to select the number of minutes.

The display '---Min.' will appear on the screen, followed by 10, 20, 30, 60, 90, 120, 180 and 240.

b When the number of minutes you want is displayed on the screen, the timer begins to count down from the number of minutes selected.
C To view the remaining sleep time, press the SLEEP button once.
d To cancel the sleep time, repeatedly press the SLEEP button until the display · -Min.' appears.
e When you switch the set off, the set releases the preset sleep time.

2 3

SET PASSWORD & LOCK SYSTEM

If you first enter the password, press '0', '0', '0', '0' on the remote control handset.

Press the MENU button and then or button to select the OPTION menu.
Press the button and then or button to select Lock System.
3 Press the button and then or button to select On.

To set the password

Press the button and then use NUMBER buttons to input a 4-digit password.

Be sure to remember this number!

Re-enter new password for confirm.

If you forgot your password, press '7', '7', '7', '7' on the remote control handset.

Press the EXIT button to return to normal TV viewing.

1

2 3

PARENTAL CONTROL

This function operates according to information from the broadcasting station. Therefore if the signal has wrong information, this function does not operate.

Lets you set up blocking schemes to block specific channels, ratings, and external viewing sources.

A password is required to gain access to this menu.

This set is programmed to remember which option it was last set to even if you turn the set off.

Press the MENU button and then or button to select the OPTION menu.
Press the button and then or button to select Parental Control.

Then, press the button to enter the password as requested.

The TV is set up with the initial password "0-0-0-0".

Press the button and then or button to select Parental Guidance or Key Lock.

Parental Guidance (In Digital mode only)

Prevents children from watching certain adult's TV programmes, according to the ratings limit set.

Key Lock

The set can be set so that the remote control is needed to control it. This feature can be used to prevent unauthorized viewing.

Press the or button to make appropriate adjustments.
Press the EXIT button to return to normal TV viewing.

1

2 3 4

In Key Lock 'On', if the set is turned off, press the / I , INPUT, PR ▲ or▼ button on the set or POWER, INPUT, D/A TV, PR + or - or NUMBER buttons on the remote control.

With the Key Lock On, the display 'Key Lock On' appears on the screen if any button on the front panel is pressed while viewing the set.

TELETEXT

This feature is not available in all countries.

Teletext is a free service broadcast by most TV stations which gives up-to-the-minute information on news, weather, television programmes, share prices and many other topics.

The teletext decoder of this TV can support the SIMPLE, TOP and FASTEXT systems. SIMPLE (standard teletext) consists of a number of pages which are selected by directly entering the corresponding page number. TOP and FASTEXT are more modern methods allowing quick and easy selection of teletext information.

SWITCH ON/OFF

Press the TEXT button to switch to teletext. The initial page or last page appears on the screen.

Two page numbers, TV station name, date and time are displayed on the screen headline. The first page number indicates your selection, while the second shows the current page displayed.

Press the TEXT or EXIT button to switch off teletext. The previous mode reappears.

SIMPLE TEXT

Page selection

1 Enter the desired page number as a three digit number with the NUMBER buttons. If during selection you press a wrong number, you must complete the three digit number and then re-enter the correct page number.
The PR+ or - button can be used to select the preceding or following page.

TOP TEXT

The user guide displays four fields-red, green, yellow and blue at the bottom of the screen. The yellow field denotes the next group and the blue field indicates the next block.

■ Block / group / page selection

1 With the blue button you can progress from block to block.
Use the yellow button to proceed to the next group with automatic overflow to the next block.
With the green button you can proceed to the next existing page with automatic overflow to the next group. Alternatively the PR+ button can be used.
The red button permits to return to previous selection. Alternatively the PR- button can be used.

Direct page selection

Corresponding to the SIMPLE teletext mode, you can select a page by entering it as a three digit number using the NUMBER buttons in TOP mode.

FASTEXT

The teletext pages are colour coded along the bottom of the screen and are selected by pressing the corresponding coloured button.

Page selection

1 Press the button to select the index page.
2 You can select the pages which are colour coded along the bottom line with the same coloured buttons.
Corresponding to the SIMPLE teletext mode, you can select a page by entering its three digit page number with the NUMBER buttons in FASTEXT mode.
4 The PR+ or - button can be used to select the preceding or following page.

SPECIAL TELETEXT FUNCTIONS

REVEAL

Press this button to display concealed information, such as solutions of riddles or puzzles.

Press this button again to remove the information from the display.

■ UPDATE

Displays the TV picture on the screen while waiting for the new teletext page. The display will appear at the top left hand corner of the screen. When the updated page is available then display will change to the page number. Press this button to view the updated teletext page.

TIME

When viewing a TV programme, press this button to display the time at the top right hand corner of the screen. Press this button again to remove the display. In the teletext mode, press this button to select a sub page number. The sub page number is displayed at the bottom of the screen. To hold or change the sub page, press the RED/GREEN, PR+ or - or NUMBER buttons.

Press again to exit this function.

HOLD

Stops the automatic page change which will occur if a teletext page consists of 2 or more sub pages. The number of sub pages and the sub page displayed is, usually, shown on the screen below the time. When this button is pressed the stop symbol is displayed at the top left-hand corner of the screen and the automatic page change is inhibited. To continue press this button again.

DIGITAL TELETEXT

*This function works in UK only.

The set gives you access to a digital teletext which is greatly improved in various aspects such as text, graphics and so on.

This digital teletext can be accessed by special digital teletext services and specific services which broadcast digital teletext.

You should select off from the subtitle language to display teletext by pressing SUBTITLE button.

TELETEXT WITHIN DIGITAL SERVICE

Press the numeric or PR + or - button to select a digital service which broadcasts digital teletext.
To know which are digital teletext services, refer to the EPG service list.
2 Follow the indications on digital teletext and move onto the next step by pressing TEXT, OK, or , or , RED, GREEN, YELLOW, BLUE or NUMBER buttons and so on.
3 To change digital teletext service, just select a different service by the numeric or PR + or - button.

If pressing the MENU, GUIDE or INFO ① button, the teletext service disappear temporarily. When pressing these buttons again, the teletext service is appeared.

TELETEXT IN DIGITAL SERVICE

Press the numeric or PR + or - button to select a certain service which broadcasts digital teletext.
Press the TEXT or colour button to switch on teletext.
3 Follow the indications on digital teletext and move onto the next step by pressing OK, ▲ or ▼, ▲ or ▷, RED, GREEN, YELLOW, BLUE or NUMBER buttons and so on.
Press the TEXT or colour button to switch off digital teletext and return to TV viewing.

Some services may allow you to access text services by pressing the RED button.

If pressing the MENU, GUIDE or INFO ① button, the teletext service disappear temporarily. When pressing these buttons again, the teletext service is appeared.

TROUBLESHOOTING

The operation does not work normally.

The remote control doesn’t work	■ Check to see if there is any object between the product and the remote control causing obstruction. Ensure you are pointing the remote control directly at the TV. ■ Ensure that the batteries are installed with correct polarity (+ to +, - to -). ■ Ensure that the correct remote operating mode is set: TV, VCR etc. ■ Install new batteries.
Power is suddenly turned off	■ Is the sleep timer set? ■ Check the power control settings. Power interrupted. ■ No broadcast on station tuned with Auto sleep activated.

The video function does not work.

No picture &No sound	■ Check whether the product is turned on. ■ Try another channel. The problem may be with the broadcast. ■ Is the power cord inserted into wall power outlet? ■ Check your antenna direction and/or location. ■ Test the wall power outlet, plug another product's power cord into the outlet where the product's power cord was plugged in.
Picture appears slowly after switching on	■ This is normal, the image is muted during the product startup process. Please contact your service centre, if the picture has not appeared after five minutes.
No or poor colour or poor picture	■ Adjust Colour in menu option. ■ Keep a sufficient distance between the product and the VCR. ■ Try another channel. The problem may be with the broadcast. ■ Are the video cables installed properly? ■ Activate any function to restore the brightness of the picture.
Horizontal/vertical bars or picture shaking	■ Check for local interference such as an electrical appliance or power tool.
Poor reception on some channels	■ Station or cable product experiencing problems, tune to another station. ■ Station signal is weak, reorient antenna to receive weaker station. ■ Check for sources of possible interference.
Lines or streaks in pictures	■ Check antenna (Change the direction of the antenna).

The audio function does not work.

Picture OK & No sound

Press the VOL + or - button.
Sound muted? Press MUTE button.
Try another channel. The problem may be with the broadcast.
Are the audio cables installed properly?
Adjust Balance in menu option.
A change in ambient humidity or temperature may result in an unusual noise when the product is turned on or off and does not indicate a fault with the product.

No output from one of the speakers

Unusual sound from inside the product

There is a problem in PC mode. (Only PC mode applied)

The signal is out of range (Invalid format)

Adjust resolution, horizontal frequency, or vertical frequency.
Check the input source.

Vertical bar or stripe on background & Horizontal Noise & Incorrect position

■ Work the Auto configure or adjust clock, phase, or H/V position. (Option)

Screen colour is unstable or single colour

Check the signal cable.
Reinstall the PC video card.

MAINTENANCE

Early malfunctions can be prevented. Careful and regular cleaning can extend the amount of time you can enjoy your new TV.

Caution: Be sure to turn the power off and unplug the power cord before you begin any cleaning.

Cleaning the Screen

Here's a great way to keep the dust off your screen for a while. Wet a soft cloth in a mixture of lukewarm water and a little fabric softener or dish washing detergent. Wring the cloth until it's almost dry, and then use it to wipe the screen.
2 Make sure the excess water is off the screen, and then let it air-dry before you turn on your TV.

Cleaning the Cabinet

To remove dirt or dust, wipe the cabinet with a soft, dry, lint-free cloth.
Please be sure not to use a wet cloth.

Extended Absence

CAUTION

If you expect to leave your TV dormant for a long time (such as a vacation), it's a good idea to unplug the power cord to protect against possible damage from lightning or power surges.

PRODUCT SPECIFICATIONS

MODELS		26LC4*	32LC4*	37LC4*	42LC4*
		26LC45-ZA	32LC45-ZA	37LC45-ZA	42LC45-ZA
		26LC46-ZC	32LC46-ZC	37LC46-ZC	42LC46-ZC
Dimensions (Width x Height x Depth)	with stand	676.4 x 529.2x 221.0 mm	806.8 x 605.6 x 249.0 mm	926.6 x 697.6x 280.4mm	1032.7 x 750.0 x 2876 mm
		26.6 x 20.8 x 8.7 inches	31.8 x 23.9 x 9.8 inches	36.5x 27.5 x 11.0 inches	40.7x 29.5 x 11.3 inches
	without stand	676.4 x 474.5 x 85.0 mm	806.8 x 548.6 x 79.0 mm	926.6 x 635.6 x 88.0mm	1032.7 x 685.5 x 88.5 mm
		26.6 x 18.7 x 3.3 inches	31.8 x 21.6x 3.1 inches	36.5x 25.0 x 3.5 inches	40.7 x 270 x 3.5 inches
Weight	with stand	10.04kg / 22.1 lbs	13.8 kg / 30.5 lbs	20.0 kg / 44.1 lbs	24.5 kg / 54.0 lbs
	without stand	9.04kg / 19.9 lbs	10.7 kg / 23.6 lbs	16.3 kg / 35.9 lbs	20 kg / 44.1 lbs
Power requirement		AC100-240V~ 50/60Hz 1.3A	AC100-240V~ 50/60Hz 1.5A	AC100-240V~ 50/60Hz 1.8A	AC100-240V~ 50/60Hz 2.3A
Power Consumption		130W	150W	180W	230W
MODELS		26LC5*	32LC5*	37LC5*	42LC5*
		26LC55-ZA	32LC55-ZA	37LC55-ZA	42LC55-ZA
Dimensions (Width x Height x Depth)	with stand	676.4 x 529.2x 221.0 mm	806.6 x 606.5 x 249.0 mm	927.0 x 692.8x 280.5mm	1033.1 x 749.5 x 2876 mm
		26.7 x 20.9 x 8.7 inches	31.8 x 23.9 x 9.8 inches	36.5x 27.3 x 11.1 inches	40.7x 29.5 x 11.3 inches
	without stand	676.4 x 478.7 x 84.0 mm	806.6 x 552.3 x 79 mm	927.0 x 630.0 x 88.0mm	1033.4 x 686.8 x 88.5mm
		26.7 x 18.9 x 3.3 inches	31.8 x 21.8x 3.1 inches	36.5x 24.8 x 3.5 inches	40.7 x 270x 3.5inches
Weight	with stand	10.04kg / 22.2 lbs	14.1kg / 31.1 lbs	20.0 kg / 44.1 lbs	24.5 kg / 54.1 lbs
	without stand	8.62kg / 19.0 lbs	11.2kg / 24.7 lbs	16.0 kg / 35.3 lbs	20.4 kg / 45.0 lbs
Power requirement		AC100-240V~ 50/60Hz 1.3A	AC100-240V~ 50/60Hz 1.5A	AC100-240V~ 50/60Hz 1.8A	AC100-240V~ 50/60Hz 2.3A A
Power Consumption		130W	150W	180W	230W
Television System		PAL/SECAM B/G/D/K, PAL I/II, SECAM L/L'
Program Coverage		VHF: E2 ~ E12, UHF: E21 ~ E69, CATV: S1 ~ S20, HYPER: S21 ~ S47
External Antenna Impedance		75 Ω
Environment condition	Operating Temperature	0 ~ 40°C / 32 ~ 104°F
	Operating Humidity	Less than 80%
	Storage Temperature	-20 ~ 60°C / -4 ~ 140°F
	Storage Humidity	Less than 85%

The specifications shown above may be changed without prior notice for quality improvement.

MODELS		26LB7*	32LB7*	42PC3*	50PC3*
		26LB75-ZE	32LB75-ZB	42PC35-ZC	50PC35-ZC
Dimensions (Width x Height x Depth)	with stand	671.8x539.8x254.2 mm	805.8x619.7x283.9 mm	1129.0 x 748.5 x 333.6 mm	1302.6 x 872 x 355.8 mm
		26.4x21.2x10 inches	31.7x24.4x11.2 inches	44.4 x 29.5 x 13.1 inches	51.3 x 34.3 x 14 inches
	without stand	671.8x476.1x85 mm	805.8x554.1x79.0 mm	1129.0 x 695.0 x 103.7 mm	1302.6 x 810x 107.7 mm
		26.4x18.7x3.3 inches	31.7x21.8x3.1 inches	44.4 x 27.4 x 4.1 inches	51.3 x 31.9 x 4.2 inches
Weight	with stand	14 kg / 30.9 lbs	14.8 kg / 32.6 lbs	31.5 kg / 69.4 lbs	51.9 kg / 114.4 lbs
	without stand	11 kg / 24.3 lbs	12.6 kg / 27.8 lbs	24.2 kg / 53.3 lbs	43.1 kg / 95 lbs
Power requirement		AC100-240V~ 50/60Hz 1.3A	AC100-240V~ 50/60Hz 1.5A	AC100-240V~ 50/60Hz 3.5A	AC100-240V~ 50/60Hz 4.5A
Power Consumption		130W	150W	330W	450W
MODELS		42PC5*	50PC5*	50PB6*	60PC4*
		42PC55-ZB	50PC55-ZB	50PB65-ZA	60PC45-ZB
		42PC56-ZD	50PC56-ZD
Dimensions (Width x Height x Depth)	with stand	1048.0 x 766.0 x 310.0 mm	1242.0 x 887.6 x 370.0mm	1359.9 x 889.2 x 369.8 mm	1548 x 1061 x 448 mm
		41.3 x 30.2 x 12.2 inches	48.9 x 34.9 x 14.6 inches	53.6 x 35.1 x 14.6 inches	60.9 x 41.8 x 17.6 inches
	without stand	1048.0 x 713.0 x 83.5 mm	1242.0 x 827.2 x 88.0 mm	1359.9 x 822.5 x 89.5 mm	1548 x 988 x 98.5 mm
		41.3 x 28.1 x 3.3 inches	48.9 x 32.6 x 3.5 inches	53.6 x 32.4 x 3.6 inches	60.9 x 38.9 x 3.9 inches
Weight	with stand	28.0 kg / 61.7 lbs	39.3 kg / 86.6 lbs	48.0 kg / 105.9 lbs	72.5 kg / 159.8 lbs
	without stand	24.6kg / 54.2 lbs	34.6kg / 76.2 lbs	39.1 kg / 86.2 lbs	60.0 kg / 132.2 lbs
Power requirement		AC100-240V~ 50/60Hz 3.5A	AC100-240V~ 50/60Hz 5.0A	AC100-240V~ 50/60Hz 5.0A	AC100-240V~ 50/60Hz 5.8A
Power Consumption		310W	450W	450W	580W
Television System		PAL/SECAM B/G/D/K, PAL I/II, SECAM L/L'
Program Coverage		VHF: E2 ~ E12, UHF: E21 ~ E69, CATV: S1 ~ S20, HYPER: S21 ~ S47
External Antenna Impedance		75 Ω
Environment condition	Operating Temperature	0 ~ 40°C / 32 ~ 104°F
	Operating Humidity	Less than 80%
	Storage Temperature	-20 ~ 60°C / -4 ~ 140°F
	Storage Humidity	Less than 85%

The specifications shown above may be changed without prior notice for quality improvement.

PROGRAMMING THE REMOTE CONTROL

The remote is a multi-brand or a universal remote. It can be programmed to operate most remote-controllable devices of other manufacturers.

Note that the remote may not control all models of other brands.

Programming a code into a remote mode

Test your remote control.
To find out whether your remote control can operate the component without programming, turn on the component such as a VCR and press the corresponding mode button (such as a DVD or VCR) on the remote control, while pointing at the component. Test the POWER and PR + / - buttons to see if the component responds properly. If not, the remote requires programming to operate the device.
Turn on the component to be programmed, then press the corresponding mode button (such as a DVD or VCR) on the remote control. The remote control button of desired device is lighted.
Press the MENU and MUTE buttons simultaneously, the remote control is ready to be programmed for the code.
4 Enter a code number using the number buttons on the remote control. Programming code numbers for the corresponding component can be found on the following pages. Again, if the code is correct, the device will turn off.
Press the MENU button to store the code.
Test the remote control functions to see if the component responds properly. If not, repeat from step 2.

PROGRAMMING CODE

DVD

Brand	Codes				Brand	Codes			Brand	Codes
APEX DIGITAL	022				MITSUBISHI	002			RCA	005	006
DENON	020	014			NAD	023			SAMSUNG	011	015
GE	005	006			ONKYO	008	017		SONY	007
HARMAN KARDON		027			PANASONIC	003	009		THOMPSON	005	006
JVC	012				PHILIPS	013			TOSHIBA	019	008
LG	001	010	016	025	PIONEER	004	026		YAMAHA	009	018
MAGNAVOX	013				PROCEED	021			ZENITH	010	016	025
MARANTZ	024				PROSCAN	005	006

VCR

Brand	Codes				Brand	Codes				Brand	Codes
AIWA	034				MAGNAVOX	031	033	034	041	SAMSUNG	032	040	102	104
AKAI	016	043	046	124		067	068				105	107	109	112
	125	146			MARANTZ	012	031	033	067		113	115	120	122
AMPRO	072					069					125
ANAM	031	033	103		MARTA	101				SANSUI	022	043	048	135
AUDIO DYNAMICS	012	023	039	043	MATSUI	027	030			SANYO	003	007	010	014
BROKSONIC	035	037	129		MEI	031	033				102	134
CANON	028	031	033		MEMOREX	003	010	014	031	SCOTT	017	037	112	129
CAPEHART	108					033	034	053	072		131
CRAIG	003	040	135			101	102	134	139	SEARS	003	008	009	010
CURTIS MATHES	031	033	041		MGA	045	046	059			013	014	017	020
DAEWOO	005	007	010	064	MINOLTA	013	020				031	042	073	081
	065	108	110	111	MITSUBISHI	013	020	045	046		101
	112	116	117	119		049	051	059	061	SHARP	031	054	149
DAYTRON	108					151				SHINTOM	024
DBX	012	023	039	043	MTC	034	040			SONY	003	009	031	052
DYNATECH	034	053			MULTITECH	024	034				056	057	058	076
ELECTROHOME	059				NEC	012	023	039	043		077	078	149
EMERSON	006	017	025	027		048				SOUNDESIGN	034
	029	031	034	035	NORDMENDE	043				STS	013
	036	037	046	101	OPTONICA	053	054			SYLVANIA	031	033	034	059
	129	131	138	153	PANASONIC	066	070	074	083		067
FISHER	003	008	009	010		133	140	145		SYMPHONIC	034
FUNAI	034									TANDY	010	034
GE	031	033	063	072	PENTAX	013	020	031	033	TATUNG	039	043
	107	109	144	147		063				TEAC	034	039	043
GO VIDEO	132	136			PHILCO	031	034	067		TECHNICS	031	033	070
HARMAN KARDON	012	045			PHILIPS	031	033	034	054	TEKNIKA	019	031	033	034
HITACHI	004	018	026	034		067	071	101			101
	043	063	137	150	PILOT	101				THOMAS	034
INSTANTREPLAY	031	033			PIONEER	013	021	048		TMK	006
JCL	031	033			PORTLAND	108				TOSHIBA	008	013	042	047
JCPENNY	012	013	015	033	PULSAR	072					059	082	112	131
	040	066	101		QUARTZ	011	014			TOTEVISION	040	101
JENSEN	043				QUASAR	033	066	075	145	UNITECH	040
JVC	012	031	033	043	RCA	013	020	033	034	VECTOR RESEARCH	012
	048	050	055	060		040	041	062	063	VICTOR	048
	130	150	152			107	109	140	144	VIDEO CONCEPTS	012	034	046
KENWOOD	014	034	039	043		145	147			VIDEOSONIC	040
	047	048			REALISTIC	003	008	010	014	WARDs	003	013	017	024
LG (GOLDSTAR)	001	012	013	020		031	033	034	040		031	033	034	040
	101	106	114	123		053	054	101			053	054	131
LLOYD	034				RICO	058				YAMAHA	012	034	039	043
LXI	003	009	013	014	RUNCO	148				ZENITH	034	048	056
	017	034	101	106	SALORA	014					058	072	080	101
MAGIN	040

IR CODES

1. How to Connect

• Connect your wired remote control to the Remote Control port on the TV.

2. Remote Control IR Codes

Output waveform

Single pulse, modulated with 37.917KHz signal at 455KHz

Carrier frequency

$$ F C A R = 1 / T C = f O S C / 1 2 $$

$$ \text {D u t y r a t i o} = \mathrm {T 1 / T C} = 1 / 3 $$

Configuration of frame

1stframe

Repeat frame

Lead code

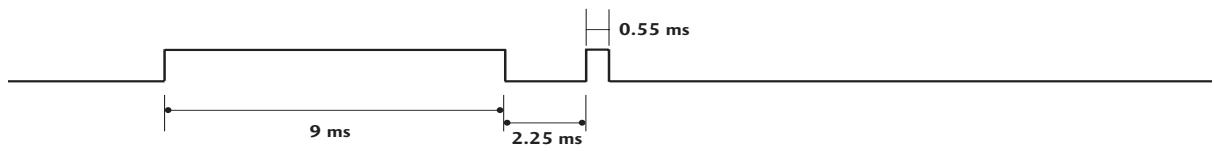

Repeat code

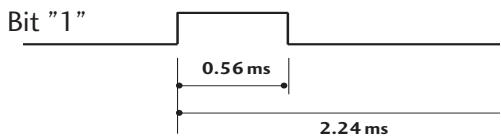

Bit description

Frame interval: Tf

The waveform is transmitted as long as a key is depressed.

Code (Hexa)	Function	Note
00	PR +	R/C BUTTON
01	PR -	R/C BUTTON
02	VOL +	R/C BUTTON
03	VOL -	R/C BUTTON
40	Up (▲)	R/C BUTTON
41	Down (▼)	R/C BUTTON
06	Right (▶)	R/C BUTTON
07	Left (▲)	R/C BUTTON
08	POWER	R/C BUTTON (POWER ON/OFF)
09	MUTE	R/C BUTTON
10	Number Key 0	R/C BUTTON
11	Number Key 1	R/C BUTTON
12	Number Key 2	R/C BUTTON
13	Number Key 3	R/C BUTTON
14	Number Key 4	R/C BUTTON
15	Number Key 5	R/C BUTTON
16	Number Key 6	R/C BUTTON
17	Number Key 7	R/C BUTTON
18	Number Key 8	R/C BUTTON
19	Number Key 9	R/C BUTTON
0B	INPUT	R/C BUTTON
AA	INFO (1)	R/C BUTTON
AB	GUIDE	R/C BUTTON
56	SUBTITLE	R/C BUTTON
5B	EXIT	R/C BUTTON
1E	FAV	R/C BUTTON
1A	Q.VIEW	R/C BUTTON
50	D/A TV	R/C BUTTON
F0	TV/RADIO	R/C BUTTON
7E	SIMPLINK	R/C BUTTON
E0	BRIGHT +	R/C BUTTON
E1	BRIGHT -	R/C BUTTON
0A	I/II	R/C BUTTON
0E	SLEEP	R/C BUTTON
43	MENU	R/C BUTTON
44	OK(◎)	R/C BUTTON
53	LIST	R/C BUTTON
20	TEXT	R/C BUTTON
2A	REVEAL	R/C BUTTON
26	TIME	R/C BUTTON
28	BACK	R/C BUTTON
62	UPDATE	R/C BUTTON
70	INDEX	R/C BUTTON
65	HOLD	R/C BUTTON
61	BLUE Key	R/C BUTTON
63	YELLOW Key	R/C BUTTON
71	GREEN Key	R/C BUTTON
72	RED Key	R/C BUTTON
79	RATIO	R/C BUTTON
B0	▶	R/C BUTTON
BA	II	R/C BUTTON
B2	I▲	R/C BUTTON
B3	▶I	R/C BUTTON
8F	▲	R/C BUTTON
8E	▶	R/C BUTTON
B1	■	R/C BUTTON
BD	●	R/C BUTTON

EXTERNAL CONTROL DEVICE SETUP

RS-232C Setup

Connect the RS-232C (serial port) input jack to an external control device (such as a computer or an A/V control system) to control the product's functions externally.

Connect the serial port of the control device to the RS-232C jack on the product back panel.

Note: RS-232C connection cables are not supplied with the product.

Type of Connector; D-Sub 9-Pin Male

No.	Pin Name
1	No connection
2	RXD (Receive data)
3	TXD (Transmit data)
4	DTR (DTE side ready)
5	GND
6	DSR (DCE side ready)
7	RTS (Ready to send)
8	CTS (Clear to send)
9	No Connection

RS-232C Configurations

7-Wire Configurations (Standard RS-232C cable)

	PC	TV
RXD	2	3	TXD
TXD	3	2	RXD
GND	5	5	GND
DTR	4	6	DSR
DSR	6	4	DTR
RTS	7	8	CTS
CTS	8	7	RTS
	D-Sub 9	D-Sub 9

3-Wire Configurations(Not standard)

	PC	TV
RXD	2●3	3	TXD
TXD	3●2	2	RXD
GND	5●5	5	GND
DTR	46	6	DTR
DSR	64	4	DSR
RTS	77	7	RTS
CTS	88	8	CTS
	D-Sub 9	D-Sub 9

Set ID

Use this function to specify a set ID number.

Baud rate:9600 bps (UART)
Stop bit:1bit
Data length : 8 bits
■ Communication code : ASCII code
Parity : None
Use a crossed (reverse) cable.

Command Reference List

	COMMAND 1	COMMAND 2	DATA (Hexadecimal)
01. Power	k	a	0 ~ 1
02. Input Select	k	b	Refer to p. 111
03. Aspect Ratio	k	c	Refer to p. 111
04. Screen Mute	k	d	0 ~ 1
05. Volume Mute	k	e	0 ~ 1
06. Volume Control	k	f	0 ~ 64
07. Contrast	k	g	0 ~ 64
08. Brightness	k	h	0 ~ 64
09. Colour	k	i	0 ~ 64
10. Tint	k	j	0 ~ 64
11. Sharpness	k	k	0 ~ 64
12. OSD Select	k	l	0 ~ 1
13. Remote control lock mode	k	m	0 ~ 1
14. Balance	k	t	0 ~ 64
15. Colour Temperature	k	u	0 ~ 3
16. Red Adjustment	k	v	0 ~ 50
17. Green Adjustment	k	w	0 ~ 50
18. Blue Adjustment	k	$	0 ~ 50
19. Abnormal Status	k	z	0 ~ 9
20. ISM Method	j	p	Refer to p. 113
21. Low Power	j	q	0 ~ 1
22. Auto Configure	j	u	1
23. Channel Select Command	m	a	Refer to p. 114
24. Send IR Code	m	c	Key Code
25. Input select (Main)	x	b	Refer to p. 114

• When setting the 19 25 , a menu doesn't display on screen.

Transmission / Receiving Protocol

Transmission

[Command1][Command2][ ][Set ID][ ][Data][Cr]

• [Command 1] : First command to control the set. (j, k, m or x)
• [Command 2] : Second command to control the set.

• [Set ID] : You can adjust the set ID to choose desired monitor ID number in option menu. Adjustment range is 1 ~ 99. When selecting Set ID '0', every connected the set is controlled. Set ID is indicated as decimal (1~99) on menu and as Hexa decimal (0x0~0x63) on transmission/receiving protocol.

• [DATA] : To transmit command data. Transmit 'FF' data to read status of command.

• [Cr] : Carriage Return ASCII code '0x0D'
  *[] : ASCII code 'space (0x20)'

OK Acknowledgement

[Command2][ ][Set ID][ ][OK][Data][x]

• The set transmits ACK (acknowledgement) based on this format when receiving normal data. At this time, if the data is data read mode, it indicates present status data. If the data is data write mode, it returns the data of the PC computer.

Error Acknowledgement

[Command2][ ][Set ID][ ][NG][Data][x]

• The set transmits ACK (acknowledgement) based on this format when receiving abnormal data from non-viable functions or communication errors.
  Data 1: Illegal Code
  2: not support function
  3: Wait more time

01. Power (Command 2 : a)

To control Power On/Off of the set.

Transmission

[k][a][ ][Set ID][ ][Data][Cr]

Data 0 : Power Off

1:PowerOn

Ack

[a][ ][Set ID][ ][OK][Data][x]

To show Power On/Off.

Transmission

[k][a][ ][Set ID][ ][FF][Cr]

Ack

[a][ ][Set ID][ ][OK][Data][x]

• In like manner, if other functions transmit '0xFF' data based on this format, Acknowledgement data feed back presents status about each function.

02. Input Select (Command 2 : b)

To select input source for the set.

You can also select an input source using the INPUT button on the set's remote control.

Transmission

[k][b][ ][Set ID][ ][Data][Cr]

Data 0 : DTV

5 : Component

1:Analogue

6:RGB-PC

2:AV1

7:HDMI1

3:AV2

8:HDMI2

4:AV3

9:HDMI3

Ack

[b][ ][Set ID][ ][OK][Data][x]

03. Aspect Ratio (Command 2 : c) (Main Picture Size)

To adjust the screen format. (Main picture format)

You can also adjust the screen format using the ARC

(Aspect Ratio Control) button on remote control or in the SCREEN menu.

Transmission

[k][c][ ][Set ID][ ][Data][Cr]

Data 1: Normal screen (4:3)

5:Zoom2

2:Wide screen (16:9)

6 : Original

04. Screen Mute (Command 2:d)

To select screen mute on/off.

Transmission

[k][d][ ][Set ID][ ][Data][Cr]

Data 0 : Screen mute off (Picture on)

1: Screen mute on (Picture off)

Ack

[d][ ][Set ID][ ][OK][Data][x]

05. Volume Mute (Command 2 : e)

To control volume mute on/off.

You can also adjust mute using the MUTE button on remote control.

Transmission

[k][e][ ][Set ID][ ][Data][Cr]

Data 0 : Volume mute on (Volume off)

1 : Volume mute off (Volume on)

Ack

[e][ ][Set ID][ ][OK][Data][x]

06. Volume Control (Command 2 : f)

To adjust volume.

You can also adjust volume with the VOLUME buttons on remote control.

Transmission

[k][f][ ][Set ID][ ][Data][Cr]

Data Min:0\~Max:64

• Refer to 'Real data mapping 1'. See page 113.

Ack

[f][ ][Set ID][ ][OK][Data][x]

07. Contrast (Command 2 : g)

To adjust screen contrast.

You can also adjust contrast in the PICTURE menu.

Transmission

[k][g][ ][Set ID][ ][Data][Cr]

Data Min:0\~Max:64

• Refer to 'Real data mapping 1'. See page 113.

Ack

[g][ ][Set ID][ ][OK][Data][x]

08. Brightness (Command 2 : h)

To adjust screen brightness.

You can also adjust brightness in the PICTURE menu.

Transmission

[k][h][ ][Set ID][ ][Data][Cr]

Data Min:0\~Max:64

• Refer to 'Real data mapping 1'. See page 113.

Ack

[h][ ][Set ID][ ][OK][Data][x]

09. Colour (Command 2 : i)

To adjust the screen colour. You can also adjust colour in the PICTURE menu.

Transmission

$$ [ k ] [ i ] [ ] [ \text {S e t I D} ] [ ] [ \text {D a t a} ] [ \mathrm {C r} ] $$

Data Min:0\~Max:64

• Refer to 'Real data mapping 1'. See page 113.

Ack

$$ [ i ] [ ] [ S e t I D ] [ ] [ O K ] [ D a t a ] [ x ] $$

10. Tint (Command 2: j)

To adjust the screen tint. You can also adjust tint in the PICTURE menu.

Transmission

$$ [ k ] [ j ] [ ] [ \text {S e t I D} ] [ ] [ \text {D a t a} ] [ \mathrm {C r} ] $$

Data Red:0\~Green:64

• Refer to 'Real data mapping 1'. See page 113.

Ack

$$ [ j ] [ ] [ \text {S e t I D} ] [ ] [ \text {O K} ] [ \text {D a t a} ] [ x ] $$

11. Sharpness (Command 2 : k)

To adjust the screen sharpness. You can also adjust sharpness in the PICTURE menu.

Transmission

$$ [ k ] [ k ] [ ] [ \text {S e t} I D ] [ ] [ \text {D a t a} ] [ C r ] $$

Data Min: 0 Max:64

• Refer to 'Real data mapping 1'. See page 113.

Ack

$$ [ k ] [ ] [ \text {S e t} I D ] [ ] [ O K ] [ \text {D a t a} ] [ x ] $$

12. OSD Select (Command 2:1)

To select OSD (On Screen Display) on/off when controlling remotely.

Transmission

$$ [ k ] [ l ] [ ] [ \text {S e t I D} ] [ ] [ \text {D a t a} ] [ C r ] $$

$$ \text {D a t a 0 : O S D o f f} \quad 1: O S D o n $$

Ack

$$ [ I ] [ ] [ \text {S e t} I D ] [ ] [ O K ] [ \text {D a t a} ] [ x ] $$

13. Remote control lock mode (Command 2 : m)

To lock the front panel controls on the monitor and remote control.

Transmission

$$ [ k ] [ m ] [ ] [ \text {S e t I D} ] [ ] [ \text {D a t a} ] [ \text {C r} ] $$

Data 0: Lock off 1: Lock on

Ack

$$ [ m ] [ ] [ S e t I d ] [ ] [ O K ] [ D a t a ] [ x ] $$

• If you're not using the remote control, use this mode. When main power is on/off, external control lock is released.

14. Balance (Command 2 : t)

To adjust balance. You can also adjust balance in the AUDIO menu.

Transmission

$$ [ k ] [ t ] [ ] [ \text {S e t} I D ] [ ] [ \text {D a t a} ] [ C r ] $$

Data Min:0\~Max:64

• Refer to 'Real data mapping 1'. See page 113.

Ack

$$ [ t ] [ ] [ \text {S e t} I D ] [ ] [ O K ] [ \text {D a t a} ] [ x ] $$

15. Colour Temperature (Command 2 : u)

To adjust colour temperature. You can also adjust Colour Temperature in the PICTURE menu.

Transmission

$$ [ k ] [ u ] [ ] [ \text {S e t I D} ] [ ] [ \text {D a t a} ] [ \mathrm {C r} ] $$

Data 0: Cool 1: Medium 2: Warm 3: User

Ack

$$ [ u ] [ ] [ \text {S e t} I D ] [ ] [ O K ] [ \text {D a t a} ] [ x ] $$

16. Red Adjustment (Command 2 : v)

To adjust red in colour temperature.

Transmission

$$ [ k ] [ v ] [ ] [ \text {S e t} I D ] [ ] [ \text {D a t a} ] [ C r ] $$

Data Min:0\~Max:50

• Refer to 'Real data mapping 2'. See page 113.

Ack

$$ [ v ] [ ] [ \text {S e t} I D ] [ ] [ O K ] [ \text {D a t a} ] [ x ] $$

17. Green Adjustment (Command 2 : w)

To adjust green in colour temperature.

Transmission

$$ [ k ] [ w ] [ ] [ \text {S e t I D} ] [ ] [ \text {D a t a} ] [ \text {C r} ] $$

Data Min: 0 Max:50

• Refer to 'Real data mapping 2'. See page 113.

Ack

$$ [ w ] [ ] [ \text {S e t} I D ] [ ] [ O K ] [ \text {D a t a} ] [ x ] $$

18. Blue Adjustment (Command 2: $)

To adjust blue in colour temperature.

Transmission

$$ [ k ] [ \$ ] [ ] [ \text {S e t I D} ] [ ] [ \text {D a t a} ] [ C r ] $$

Data Min: 0 Max:50

• Refer to 'Real data mapping 2'. See page 113.

Ack

$$ [ \$ ] [ ] [ \text {S e t I D} ] [ ] [ \text {O K} ] [ \text {D a t a} ] [ x ] $$

19. Abnormal State (Command 2: z)

To recognize an abnormal state.

Transmission

[k][z][ ][Set ID][ ][FF][ ][Cr]

Data FF: Read

Ack

[z][ ][Set ID][ ][OK][Data][x]

Data 0: Normal (Power on and signal exist)

1: No signal (Power on)
2: Turn the monitor off by remote control
3: Turn the monitor off by sleep time function
4: Turn the monitor off by RS-232C function
5:5V down
6: AC down
7: Turn the monitor off by Fan Alarm function
8: Turn the monitor off by Off time function
9: Turn the monitor off by Auto sleep function

• This function is "read only".

20.ISM Method

To control the ISM method. You can also adjust

Method in OPTION menu.

It's not available to use this function in LCD TV models.

Transmission

[j][p][ ][Set ID][ ][Data][Cr]

Data 0: Normal

2: Orbiter

1: White wash

3: Inversion

Ack

[p][ ][Set ID][ ][OK/NG][Data][x]

21. Low Power

(Command 1 : j, Command 2 : q)

To reduce the power consumption of the set. You can also adjust Low Power in OPTION menu.

It's not available to use this function in LCD TV models.

Transmission

[j][q][ ][Set ID][ ][Data][ ][Cr]

Data 0 : Off

1:On

Ack

[q][ ][Set ID][ ][OK/NG][Data][x]

* Real data mapping 1

0:Step 0

A:Step 10 (Set ID 10)

E:Step15(SetJD15)

1: Step 13 (Set ID 13)
10: Step 16 (Set ID 16)

64: Step 100

6E: Step 110

73:Step 115

74:Step116

C7: Step 199

FE:Step254

FF:Step255

• Real data mapping 2

0:-40

1:-39

2:-38

中

28:0

4E:+38

4F: +39

50:+40

22. Auto Configure

(Command 1: j, Command 2: u)

To adjust picture position and minimize image shaking automatically. It works only in RGB (PC) mode.

Transmission

$$ [ j ] [ u ] [ ] [ \text {S e t} I D ] [ ] [ \text {D a t a} ] [ C r ] $$

Data 1: To set

Ack

$$ [ u ] [ ] [ \text {S e t} I D ] [ ] [ O K / N G ] [ \text {D a t a} ] [ x ] $$

23. Channel Select Command

Command 1:m,Command 2:a)

Select channel to following physical number.

Transmission

$$ [ m ] [ a ] [ ] [ \text {S e t I D} ] [ ] [ \text {D a t a 0} ] [ ] [ \text {D a t a 1} ] [ ] [ \text {D a t a 2} ] [ \text {C r} ] $$

Data0:High channel data

Data1:Low channel data

ex. No. 47 -> 00 2F (2FH)

No. 394 -> 01 88 (188H),

DTV No. 0 -> Don't care

Data2 0x00:ATV Main

0x10：DTV Main

Channel data range

Analogue - Min: 00 ~ Max: 63 (0~99)

Digital - Min: 00 ~ Max: 3E7 (0~999)

Ack

$$ [ a ] [ ] [ \text {S e t} I D ] [ ] [ O K / N G ] [ \text {D a t a} ] [ x ] $$

Data Min: 00 ~ Max: 7D

24. Send IR Code

Data Key code - Refer to page 107.

Ack

$$ [ c ] [ ] [ \text {S e t} I D ] [ ] [ O K / N G ] [ \text {D a t a} ] [ x ] $$

25. Input select (Command 1 : x, Command 2 : b) (Main Picture Input)

To select input source for main picture.

Transmission

$$ [ x ] [ b ] [ ] [ \text {S e t} I D ] [ ] [ \text {D a t a} ] [ C r ] $$

Data Structure

MSB LSB

External Input Input Number

External Input				Data
0	0	0	0	DTV
0	0	0	1	Analogue
0	0	1	0	AV
0	0	1	1	Component
0	1	0	0	RGB
0	1	0	1	HDMI

Input Number				Data
0	0	0	0	Input1
0	0	0	1	Input2
0	0	1	0	Input3
0	0	1	1	Input4

Ack

[b][ ][Set ID][ ][OK/NG][Data][x]

LG Electronics Inc.
