USER MANUAL True Wireless Earbuds Sport Fresh 'n Rebel

Abstract black claw-like symbol on white background (no text or symbols)

FRESH N REBEL

TRUE WIRELESS EARBUDS SPORT MANUAL

3ATW3001R v1 001

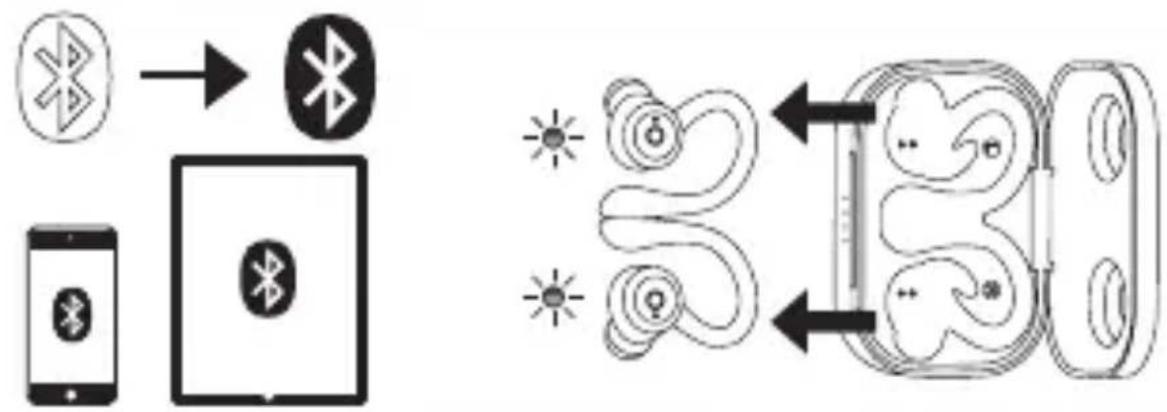

Bluetooth

Diagram showing two earbuds with labeled parts and directional arrows, alongside a device casing with three ports (no text or symbols present)

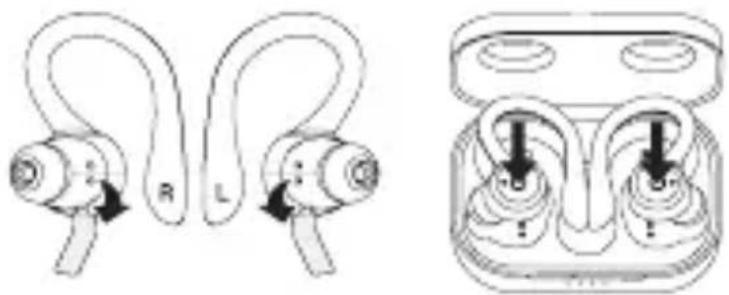

EN - ATTENTION: Before getting started, remove the safety covers from the earbuds and place the earbuds back in the charging case.

100% 100% 100%

2.


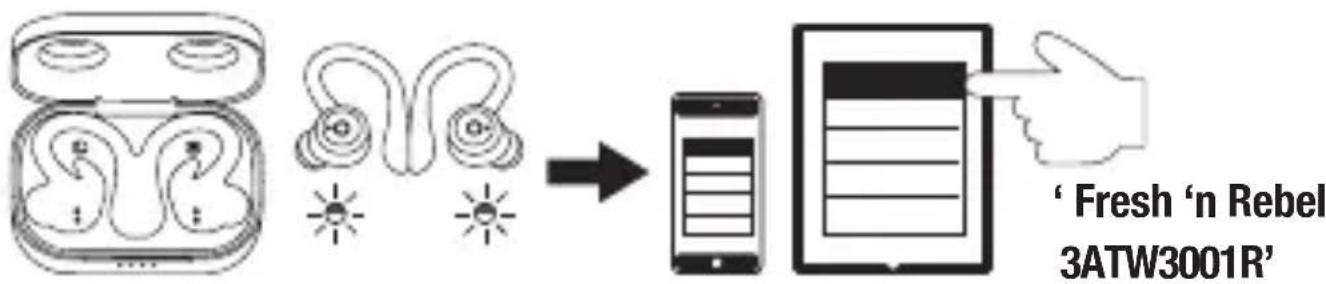

1.
    note right of F: 'Fresh 'n Rebel 3ATW3001R'

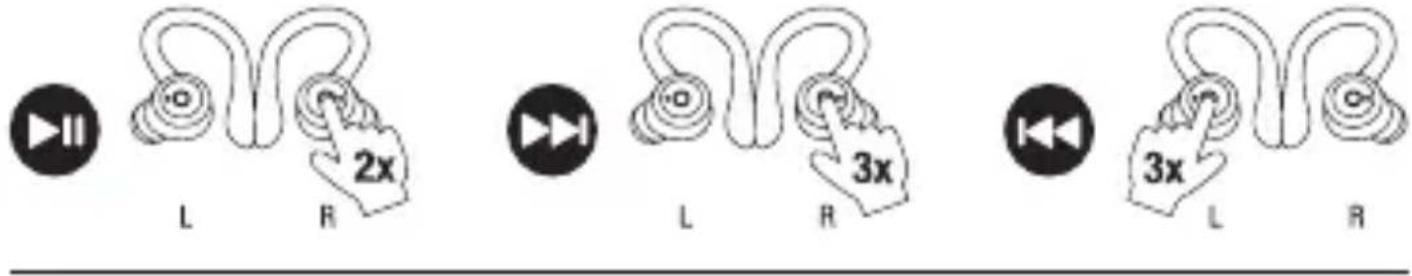

Music

Voice Assistant

2x L R

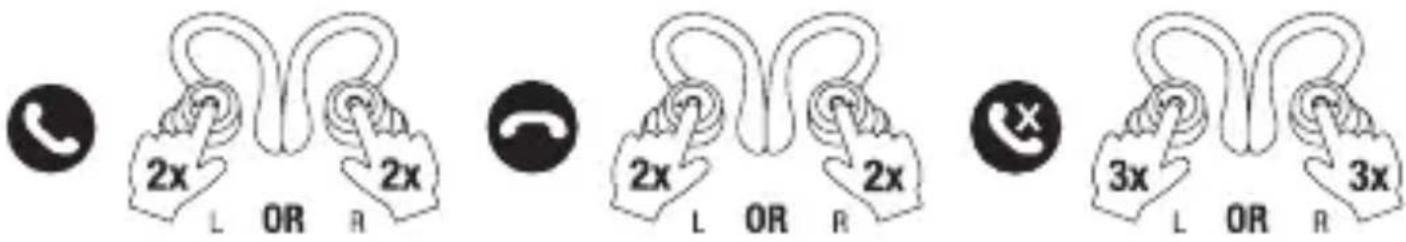

Call

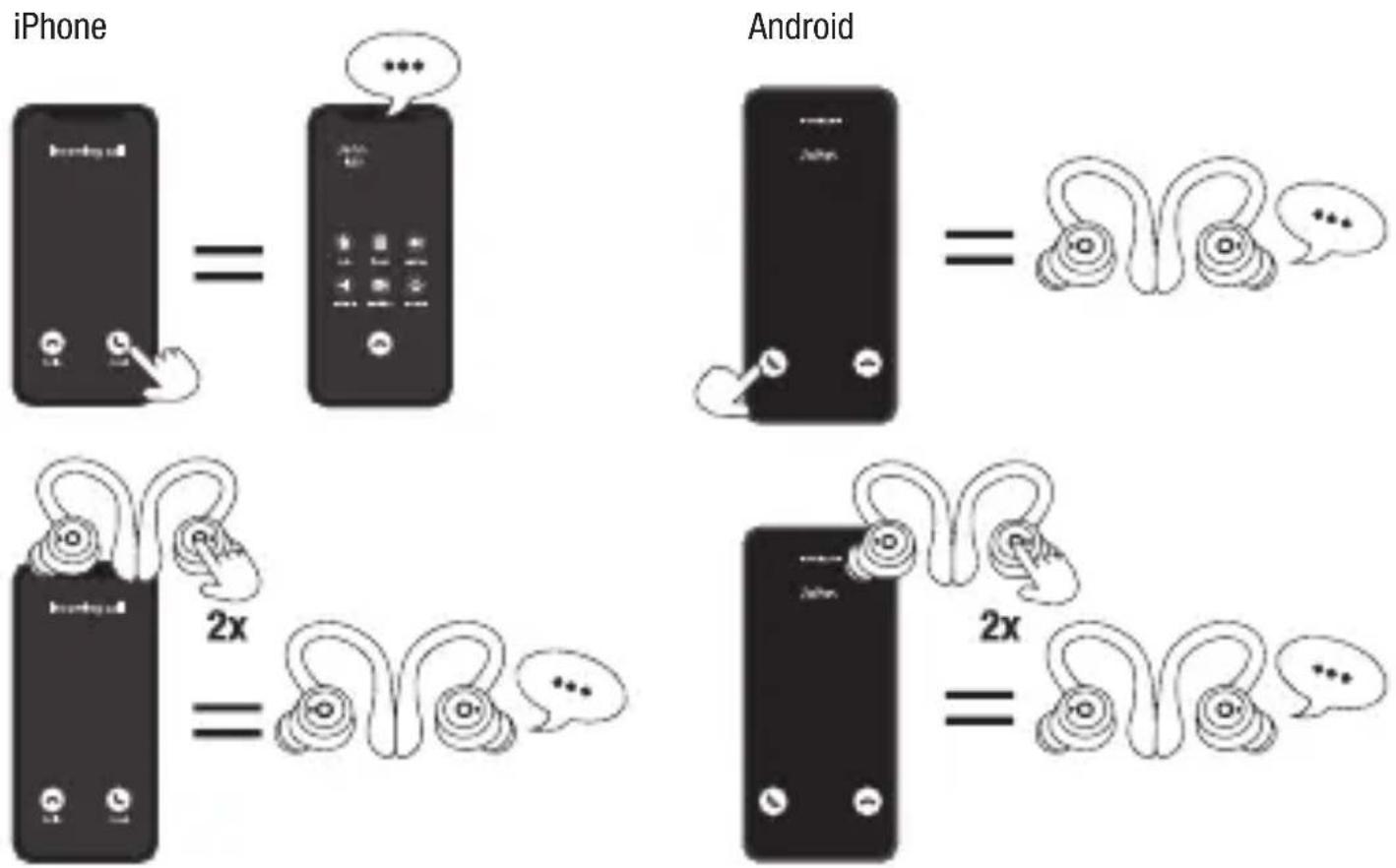

Pick up call on phone or earbuds

EN - Specifications

Fresh 'n Rebel True Wireless Earbuds Sport 3ATW3001R v1 001

• Bluetooth Version: 6.0
  • Working Range: up to 10 m
• Operating Frequency band: 2402 to 2480 MHz
  • Maximum radio-frequency power transmitted: 2.62 dBm / 1.83 mW
• Driver diameter: 8 mm
  • Sensitivity: 105 dB ± 3 dB
  • Frequency Response: 20 Hz – 20 kHz
• Impedance: 32 ± 15%

• Battery Capacity (Earbuds): 30 mAh
- Battery Capacity (Charging Case): 400 mAh
- Battery charging: USB-C 5.0 V
- Play Time earbuds per charge: 6 hours*
- Total Play Time including re-charges: 36 hours*
• Charging Time of Charging Case: 2 hours
• Charging Time of Earbuds: 1.5 hours
- Integrated microphone
• Charging Cable: USB-A to USB-C, 20 cm
- IPX5 splash waterproof
*with volume at 50%

WARNING

Always follow all instructions and warnings closely. Do not disassemble or modify. Do not open or repair the device yourself.IPX5 means splash water resistant for up to 3 minutes from any angle at a minimum distance of 3 meters. Do not submerge in liquids. Do not expose excessively to liquids. Do not use or store in damp, humid or wet environments. Do not expose to excessive heat or open fire. Avoid abrupt changes in temperature. Do not burn or incinerate. CAUTION: This product contains rechargeable 3.7 V 400 mAh and 30 mAh Lithium batteries. Do not open the device and do not try to retrieve or replace the battery. There is a danger of explosion when the battery is not handled properly. Do not dispose of the device together with other waste. To avoid possible environmental pollution, the device must be disposed of at a recycling centre. To reduce the potential risk of injury or death due to distractions, do not use in-ear headphones while driving, operating machinery, cycling, walking, or engaging in other activities that require your undivided attention. Always keep the volume on your in-ear headphones low enough to hear people talking, sounds that might alert you to hazardous conditions, and better protect your hearing. Review and obey the laws and regulations in your country on the use headphones and devices when you drive or cycle.

Frequent or extended exposure to loud noise or sounds when using headphones can cause temporary or permanent hearing loss. Individual susceptibility to noise-induced hearing loss and potential hearing problems varies. Minimize your exposure to loud noises or sounds when using your in-ear headphones. To minimize the potential for hearing damage, keep the volume low enough that you can carry on a conversation with people nearby.

Copyright 2025 Fresh 'n Rebel B.V. All rights reserved.

The Bluetooth® wordmark and logos are registered trademarks owned by Bluetooth SIG, and any use of such marks by Fresh 'n Rebel B.V. is under license.

Simple line drawing of a battery with a diagonal line crossing through it (no text or symbols)

1-2.5 W

Legal & Compliance information

EN - General information

Product: Fresh 'n Rebel True Wireless Earbuds Sport

Model Number: 3ATW3001R v1 001

Manufacturer: Fresh 'n Rebel B.V., Linatebaan 101, 3045 AH Rotterdam, The Netherlands

www.freshnrebel.com

Conformity information

Hereby, Fresh ‘n Rebel B.V. declares that this radio equipment product is in compliance with Directive 2014/53 EU (RED) and all other applicable EU Regulations. The full text of the EU declaration of conformity is available at the following internet address:

https://www.freshnrebel.com/cedoc/3ATW3001R

Operating frequency band: 2402 to 2480 MHz

Maximum radio-frequency power transmitted: 2.62 dBm / 1.83 mW

Disposal of the device

The crossed out wheelie bin symbol means that this product shall not be disposed of with normal household waste. Electronic and Electrical Equipment not included in the selective sorting process are potentially dangerous for the environment and human health due to the presence of hazardous substances. Please dispose of responsibly at an approved waste or recycling facility.

https://www.freshnrebel.com/cedoc/3ATW3001R

https://www.freshnrebel.com/cedoc/3ATW3001R

https://www.freshnrebel.com/cedoc/3ATW3001R

https://www.freshnrebel.com/cedoc/3ATW3001R

https://www.freshnrebel.com/cedoc/3ATW3001R

https://www.freshnrebel.com/cedoc/3ATW3001R

Radni frekvencijski pojas: 2402 do 2480 MHz

Maksimalna emitirana radiofrekvencijska snaga: 2.62 dBm / 1.83 mW

Zbrinjavanje uređaja

Simbol prekrižene kante za smeće znači da se ovaj proizvod ne smije odlagati s uobičajenim kućnim otpadom. Elektronička i električna oprema koja nije uključena u proces selektivnog razvrstavanja potencijalno je opasna za okoliš i zdravlje ljudi zbog prisutnosti opasnih tvari. Molimo vas da ga odgovorno odložite u odobrenom postrojenju za odlaganje otpada ili reciklažu.

https://www.freshnrebel.com/cedoc/3ATW3001R

https://www.freshnrebel.com/cedoc/3ATW3001R

Werkfrequentieband: 2402 tot 2480 MHz

Maximale overgedragen radiofrequente stroom: 2.62 dBm / 1.83 mW

https://www.freshnrebel.com/cedoc/3ATW3001R

https://www.freshnrebel.com/cedoc/3ATW3001R

https://www.freshnrebel.com/cedoc/3ATW3001R

https://www.freshnrebel.com/cedoc/3ATW3001R

Simple line drawing of a cloud with a registered trademark symbol (no text or numbers present)

FSC

MIX

Paper

FSC® C154884

Azul Azul

Amarillo Amarelo

FR

Abstract black claw-like symbol on white background (no text or symbols)

FRESH *REBEL

Keep in touch:

freshnrebel.com [e-mail]

freshnrebel

Global Recycled Standard

Shell is 85% GRS certified recycled ABS

Certified by Control Union CU1462115

Made in China
