USER MANUAL AC Milan 9K Wood's

OPERATING INSTRUCTIONS FOR:

AC Milan Silent 7K WIFI Smart Home WAC704G AC Milan Silent 9K WIFI Smart Home WAC904G AC Como 12K WIFI Smart Home WAC1212G

White portable electronic device labeled 'HearV' with no visible text or symbols on its body

Visit woods.se for more information and updated instruction manuals.

For extended warranty, register your product at warranty-woods.com

GB	Operating Instructions	PL	Instrukcja obsługi
SE	Bruksanvisning	RO	Manual utilizare
NO	Bruksanvisning	FI	Käyttöohjeet
DK	Betjeningsvejledning	LT	Naudojimosi instrukcija
DE	Bedienungsanleitung	LV	Lietošanas instrukcija
FR	Guide d'instructions	IT	Istruzioni per l'uso
ES	Manual de instrucciones	GK	Oðnyieç /æitoupyíac
NL	Gebruiksaanwijzing	IS	Notkunarleiðbeiningar
EE	Kasutusjuhend	IT	Istruzioni per l'uso

Visit our website to:

Get usage advice, updated owners manual, troubleshooting and service information Register your product for additional services: www.warranty-woods.com

CUSTOMER CARE AND SERVICE

Always use original spare parts. When contacting our authorised service centre, ensure that you have the following data available: Model number, receipt and serial number.

The refrigerant used in portable air conditioner is the environmentally friendly hydrocarbon R290. This refrigerant is odorless, and compared to the alternative refrigerant, the R290 is an ozone-free refrigerant.

Warning / Caution-Safety information. General information and tips. Environmental information. Subject to change without notice.

CONTENTS: PAGE NO.

TABLE OF CONTENTS

OPERATING INSTRUCTIONS

English 9.17

Swedish 18-25

Norwegian 27-35

Danish 36-44

German 45-53

French 54-62

Spanish 63-71

Dutch 72-80

Polish 81-89

Romanian 90-98

Finnish 99-107

Lithuanian 108-116

Latvian 117-125

Italian 126-134

Greek 135-143

Icelandic 144-152

Estonian 153-161

A.

Exploded view diagram of a battery assembly with labeled components including tube, lens, cover, and battery pack

B.

White Hood's air purifier device with black wheels and a digital display (no text or symbols on body)

C.

Technical diagram of an air conditioner unit with numbered components and labeled parts

D.

Front view of a white square appliance with control buttons and a central display (no visible text or symbols)

E.

11 3 1 ℃ h °F AUTO 2 10 11 Sleeping/Child Lock 4 Swing 5 Timer 6 Mode 7 Speed 8 Power 9

F

Diagram illustrating three stages of a solar panel installation: unloaded, clean, and completed, with Chinese labels.

G.

(Use only 2xAAA 1,5 V batteries.) 1 6 7 3 4 4 5 2 (Use only 2xAAA 1,5 V batteries.)

H.

1.

Technical diagram showing three stages of air conditioning unit installation: initial setup, internal drying, and final assembly.

J.

Diagram of a container with liquid and arrows indicating flow or movement (no text or symbols)

Window width
min:67.5cm
max:123cm

Diagram of a door with directional arrows and a vertical dimension line, no text or symbols present

Window height
min:67.5cm
max:123cm

K.

Line drawing of an air conditioner unit connected to a wall-mounted monitor (no text or symbols)

Line drawing of a portable air conditioner unit connected to a monitor (no text or symbols)

L.

Technical diagram of a mechanical or electrical component with no visible text, numbers, or symbols.

Diagram of a device with a grid-patterned panel and a tool, no visible text or symbols

Diagram of a device with a grid and cable, no visible text or symbols

WOOD'S FOR CLEAN AND HEALTHY INDOOR AIR

The brand Wood's was born with the Wood's family over 65 years ago in the Canadian city of Guelph, Ontario. This is where Wood's began developing and manufacturing dehumidifiers in 1950. Since then Wood's has helped several hundred thousand households to prevent damages from mould and dampness, and to breathe cleaner air. Our portable air conditioners are suitable for use in most climates, where capacity is good even at different temperatures and humidity levels. They are used with good results in premises that become hot such as living rooms, offices or bedrooms. The amount of hot air that the air conditioner removes depends on the temperature, humidity level, and placement. External weather conditions may also affect the performance of the air conditioner.

Wood's air conditioners are safe in operation and intended for continuous use over many years.

HOW DOES THE AIR CONDITIONING UNIT WORK?

Low pressure gives cold air The main element of the air conditioner is a coolant, which under low pressure is converted to gas. The process “creates cold”, which is transmitted inward, while keeping the warm air out.

A liquid coolant is passed through an expansion valve and into a pipe where the pressure is low.

The coolant evaporates and turns into a gas. The process absorbs heat from the surroundings and the pipe is cooled. A fan blows the cold air into the room.

The gas is passed through a compressor, which increases the pressure and converts the gas into liquid.

In this process, heat is released, which is led to pipes on the opposite side and blown out by a fan.

A thermostat shuts off the unit when the indoor air is cold enough.

1. SECURITY WARNINGS

Warning sign depicting a flame symbol in yellow and black, indicating hazard or electrical hazard.

Flammable material. This appliance contains R290/Propane a flammable refrigerant.

Refer to this manual for safety information.

Read technical manual

Read operators manual.

SAFETY INFORMATION

Before the installation and use of the appliance, carefully read the supplied instructions. The manufacturer is not responsible if an incorrect installation and use causes injuries and damages. Always keep the instructions with the appliance for future reference.

Children and vulnerable people safety

WARNING

Risk of injury or permanent disability.

This appliance can be used by children aged 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning the use of the appliance in a safe way and understand the hazards involved.

Do not let children play with the appliance.

Children of less than 3 years should be kept away unless continuously supervised.

Keep all packaging away from children.

Cleaning and user maintenance shall not be made by children without supervision.

General Safety

This appliance is intended to be used in households and similar applications such as: a family room, living room, staff kitchen areas in shops, offices, and other working environments. The rating plate is located at the side or back of the Air Conditioner.

Keep ventilation openings clear of obstruction.

Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.

The appliance, shall not be stored in a room with operating ignition sources (for example: open flames, an operating gas appliance or an operating electric heater. Do not pierce or burn.

Be aware that refrigerants may not contain an odour. Do not use water spray and steam to clean the appliance. Clean the appliance with a moist soft cloth. Only use neutral detergents. Do not use abrasive products, abrasive cleaning pads, solvents, or metal objects. If the supply cord is damaged, it must be replaced by the

manufacturer, its Authorised Service Centre or similarly qualified persons in order to avoid a hazard.

SAFETY INSTRUCTIONS

Installation WARNING

Only a qualified person must install this appliance.

Remove all the packaging.

Do not install or use a damaged appliance. The appliance shall be installed, operated, and stored in a room with a floor area larger than 4 m^2 to 4.2 m^2(7k) , 7.7 m^2(9K) , 9.6 m^2(12K) . Obey the installation instruction supplied with the appliance.

Always be careful when you move the appliance because it is heavy. Always wear safety gloves. Be aware that refrigerants may not contain an odour.

Make sure the air can circulate around the appliance.

Wait at least 4 hours before connecting the appliance to the power supply. This is to allow the oil to flow back into the compressor.

Do not install the appliance close to radiators or other heat sources. Do not install the appliance where there is direct sunlight.

Electrical connection

WARNING

Risk of fire and electrical shock. The appliance must be connected to a grounded outlet. Make sure that the electrical information on the rating plate

matches with the power supply. If not, contact an electrician.

Always use a correctly installed shockproof socket.

Do not use multi-plug adapters and extension cables.

Make sure not to cause damage to the electrical components (e.g. mains plug, mains cable).

Contact the Authorised Service Centre or an electrician to change the electrical components.

The mains cable must stay below the level of the mains plug.

Connect the mains plug to the mains socket only at the end of the installation.

Make sure that there is access to the mains plug after the installation.

Do not pull the mains cable to disconnect the appliance. Always pull at the mains plug.

Use

WARNING

Risk of injury, burns, electrical shock, or fire.

Do not change the specification of this appliance.

Be careful not to cause damage to the refrigerant circuit. It contains propane (R290), a natural gas with a high level of environmental compatibility. This gas is flammable.

If damage occurs to the refrigerant circuit, make sure that there are no flames and sources of ignition in the room. Ventilate the room.

Do not put flammable products or items that are wet with flammable products near or on the appliance.

Disposal

WARNING

Risk of injury.

Disconnect the appliance from the mains supply.

Cut off the mains cable and discard it.

The refrigerant circuit of this appliance is ozone-friendly.

Contact your municipal authority for information on how to discard the appliance correctly.

Do not cause damage to the part of the cooling unit that is near the heat exchanger.

SET UP AIR CONDITIONER FOR INSTALLATION

2. Installation

BEFORE FIRST USE

Let the machine stand upright for 2 hours before use. This is so that oil that may have leaked into the cooling system can flow back to the compressor. (The same as for a refrigerator)

Important

1. This air conditioner may be conveniently moved around indoors. Keep the unit in an upright position while moving it. The air-conditioner should be placed on a flat surface.

Do not install or operate this air conditioner in a bathroom or other wet environment.

Since a portable air conditioner is on wheels, it is easy to change positions. When it gets hot, you just move your portable air conditioner into the room and can quickly get started cooling the space.

The air conditioner must be operated in an enclosed area to be most effective.

Close all doors, windows, and other openings to the room. Even if you have high ventilation or large windows with direct sunlight can affect the cooling effect.

1. Place the air conditioner in a location that does not restrict airflow through the front of the unit.

2. An air conditioner operating in a room will have little or no effect in drying an adjacent enclosed storage area, such as a closet, unless there is adequate circulation of air in and out of the area. A portable air Conditioner evacuates the heat from the unit with a ventilation hose through a window or exhaust air valve.

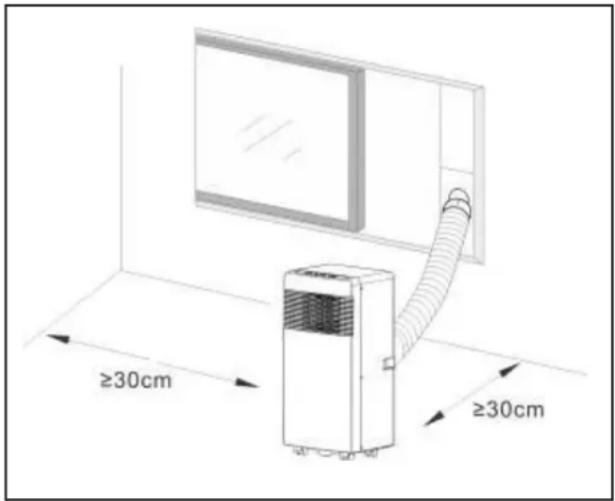

3. There should be a minimum of 30 cm distance between Air Conditioner and closest object. See picture for reference.

≥30cm ≥30cm

PRODUCT DESCRIPTION

3. Product description

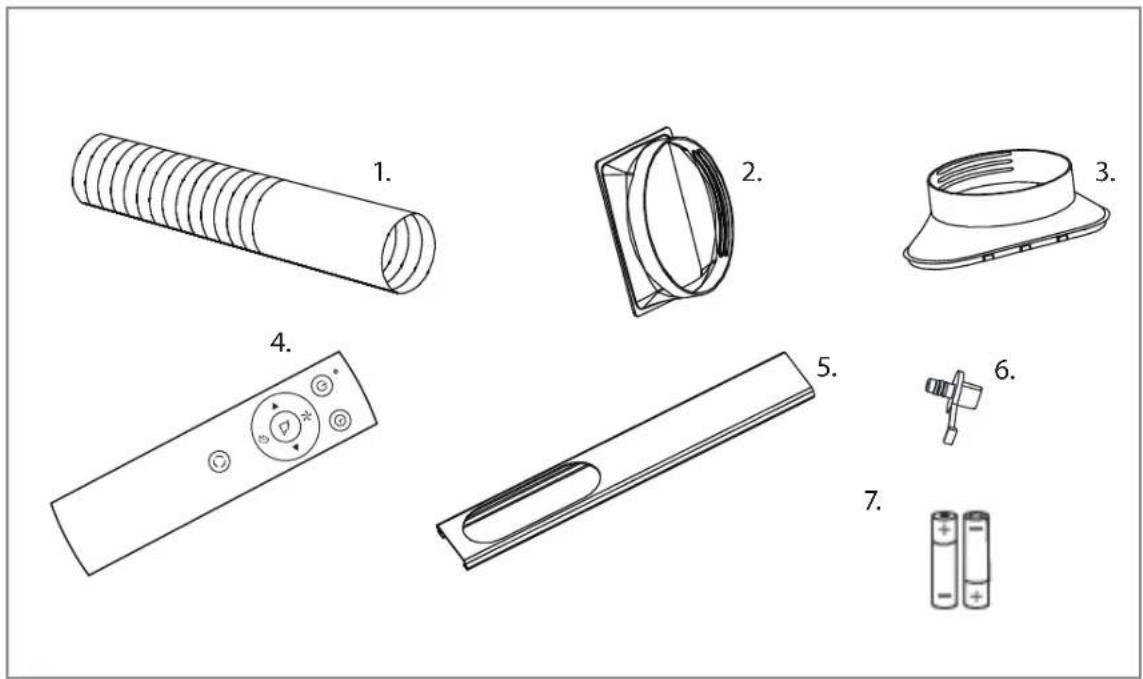

A

1. Exhaust air hose
2. Connector of Air Exhaust Duct
3. Connection for exhaust air hose to the window rail
4. Remote control
5. Window rail
6. Water plug
7. Batteries

B

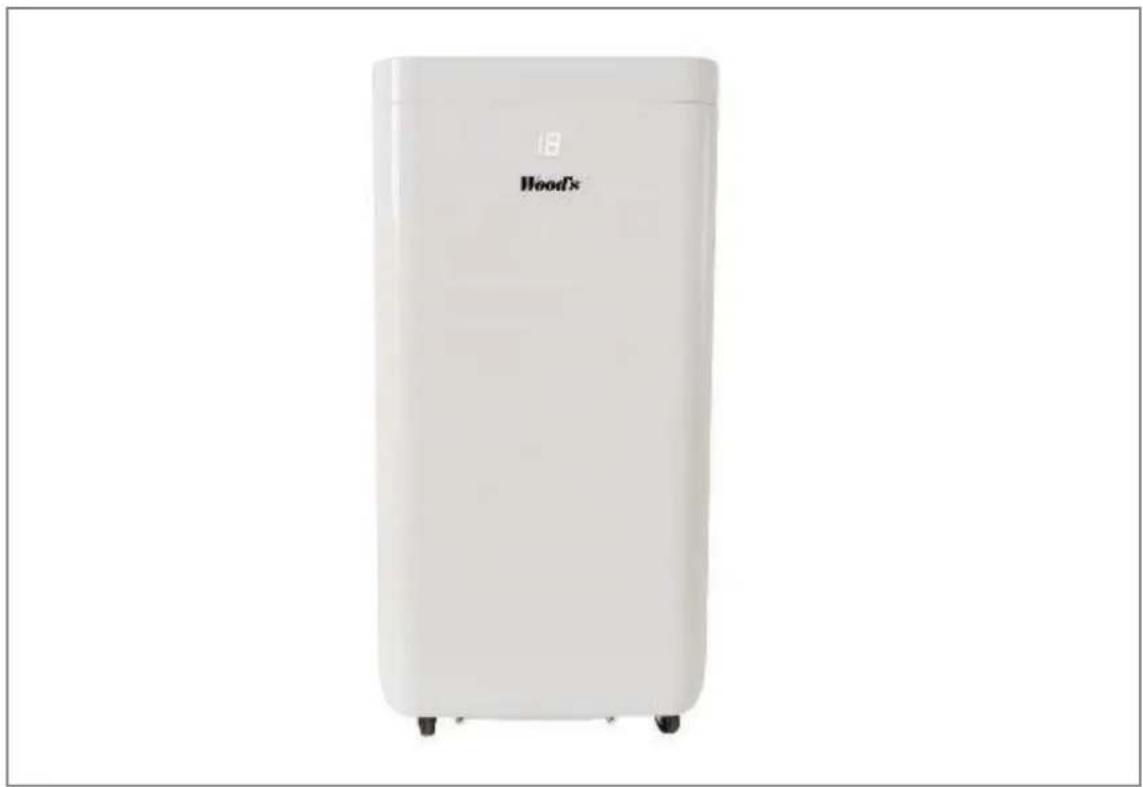

1. Product Front picture

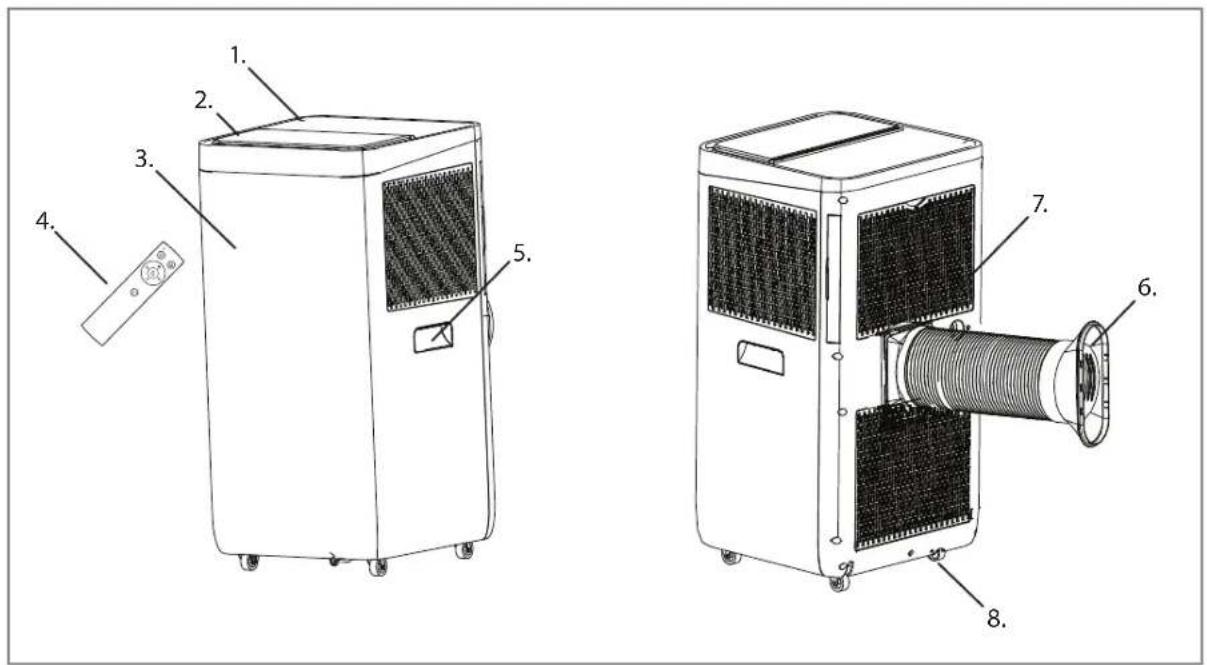

C

1. Control panel
2. Cold Air Outlet
3. Signal Receptor
4. Remote Controller
5. Transport Handle
6. Air Outlet Hose
7. Evaporator Air Intake
8. Drainage outlet

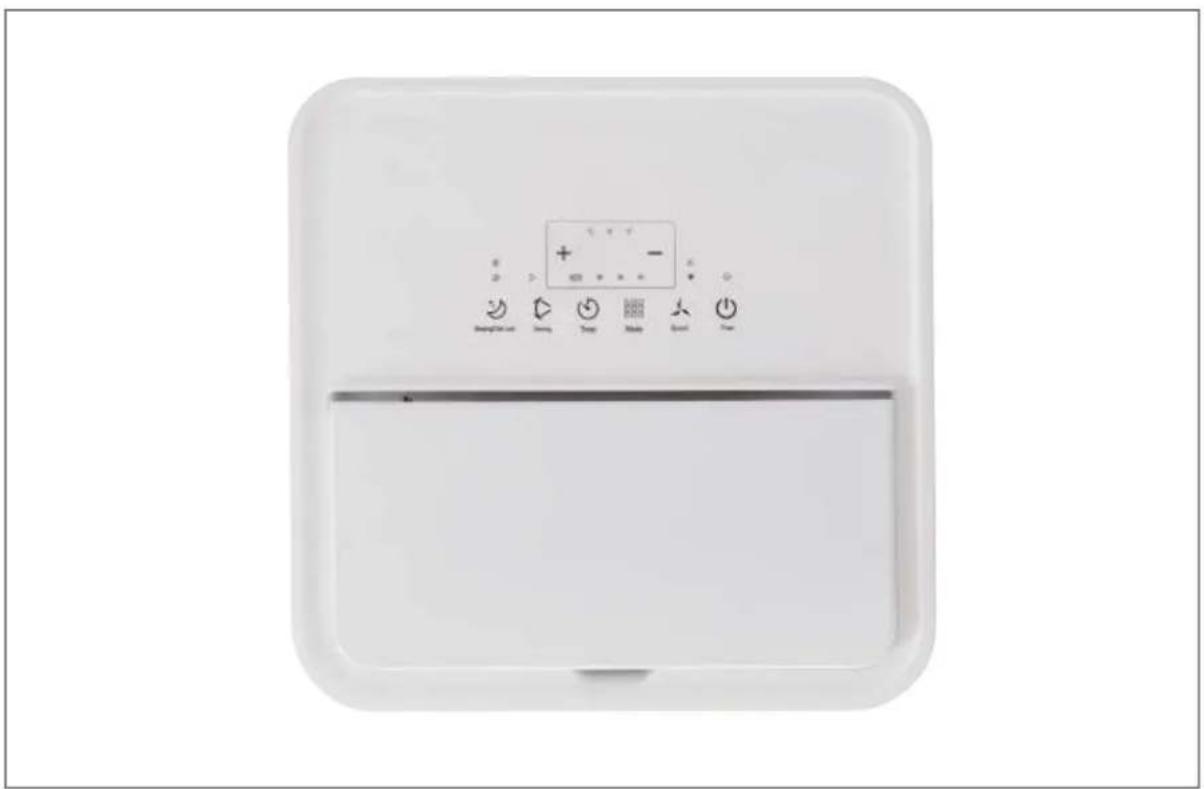

D

1. Product Top Picture

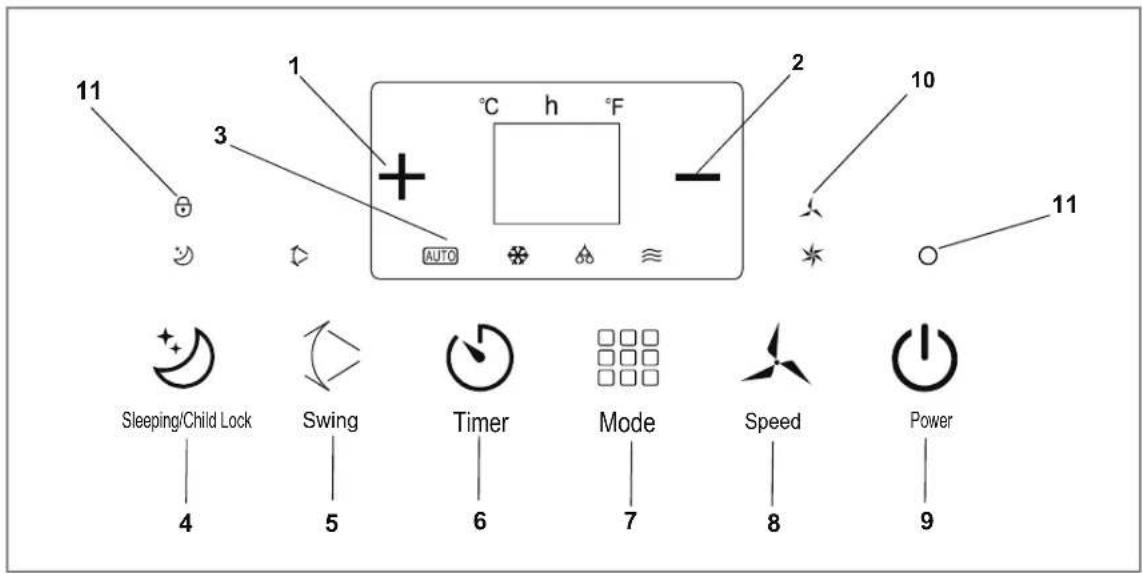

E

1. Hours/ Temperature up
2. Hours/ Temperature down
3. Automatic, Cooling A ≅ Dehumidifying, Fan Mode

4. Sleep Mode and Child Lock

5. Oscillation/Swing

6. Hours

7. Operating Mode

8. Far Speed (low/high)

9. Power Button (on/off)

10. Indicator light for selected fan speed

11. Indicator lamp for child lock and sleep mode.

12. ♂ Indicator lamp for child lock and sleep mode.

WIFI

F

1. Instructions of filter screen cleaning.

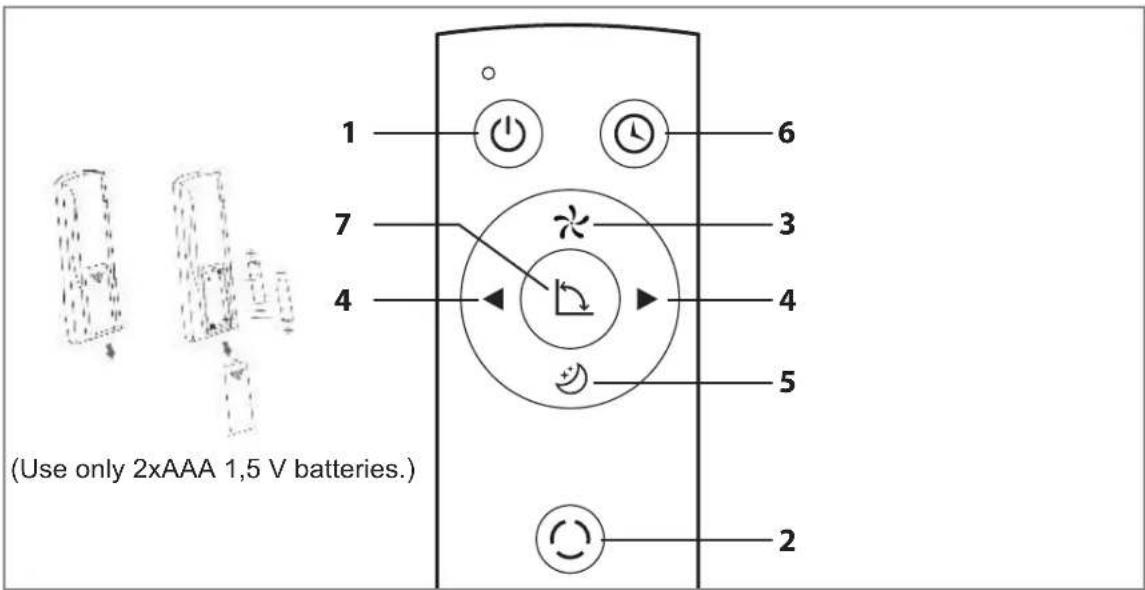

G

1. BUTTON Power on / off

2. BUTTON Press this button to select the operation mode.

3. 📄BUTTON Used to select fan speed in sequence.

4. and SETTING BUTTONS used to adjust the room temperature and the timer.

5. BUTTON Used to set or cancel Mode operation.

6. BUTTON Used to set automatic OFF and automatic ON time.

7. BUTTON Used to set the oscillation / swing function.

H

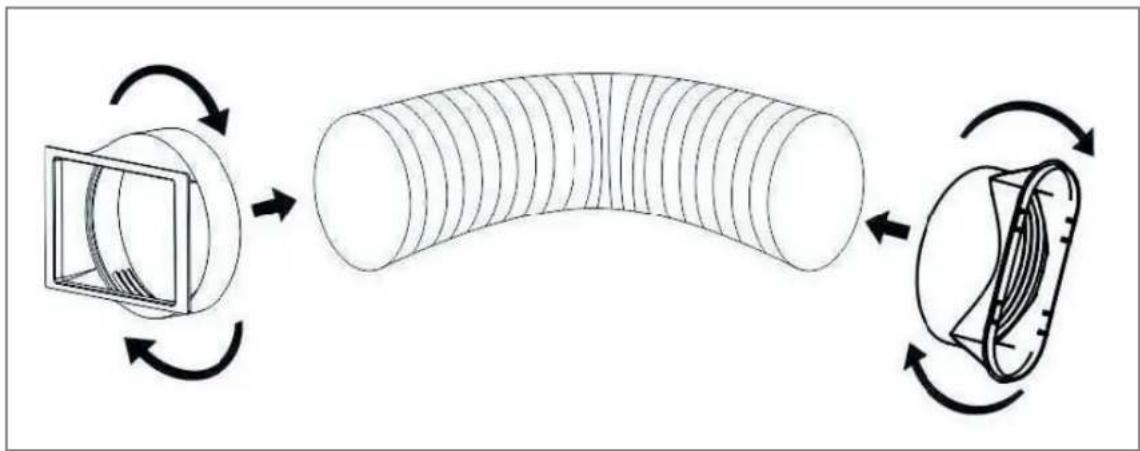

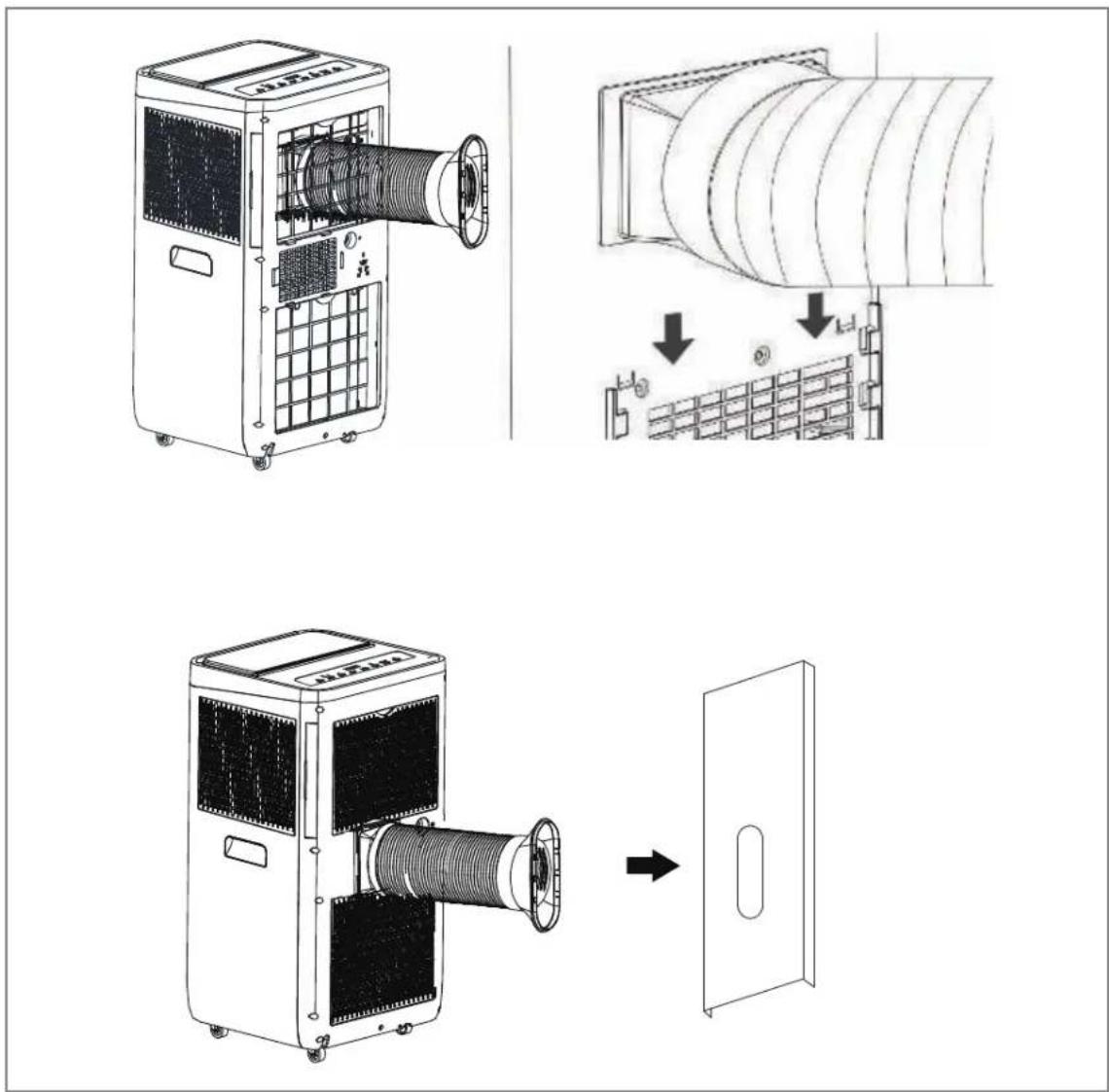

1. Turn the ends of the exhaust hose into the connections as shown.

|

1. Exhaust air hose installation instructions

J

1. Installation instructions for window rail NOTE! This window rail is not suitable for all types of windows. We recommend Wood's Window sealing kit (article number: wac_wk) if this rail does not fit.

K

1. Window rail installation proposal

L

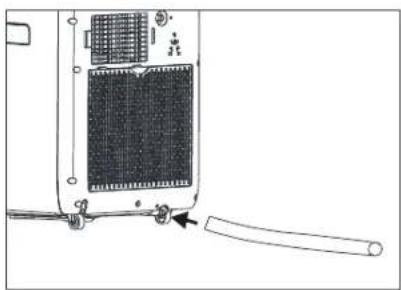

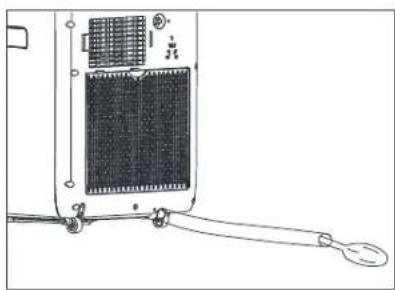

1. Installation instructions for drainage hose (NOTE! Hose is not included. The nozzle is adapted for a 10mm device hose)

FUNCTION OF THE OPERATION MODES AND INSTALLATION DESCRIPTIONS

A. Accessories

After unpacking, please check whether the above-mentioned accessories are included, and check their purposes in the installation introduction in this manual. Accessory No. 6 is already mounted at the bottom of the back of the machine.

B. Portable air conditioning

G. Appearance and Function of Remote Control.

Notes:- Do not drop the remote control.- Do not place the remote control in a location exposed to direct sunlight.

A. Operation Introduction

Before starting operations in this section: 1) Place the air conditioner in a place where you have close access to a grounded electrical outlet.

2) Install the exhaust hose, and adjust the window position well.

3) Insert the power cord into a grounded AC220\~240V/50Hz socket;

4) Press the POWER button to turn on the air-conditioner. 5) Press the POWER button to turn on the air-conditioner.

H, I, and K. Installation of exhaust air hose

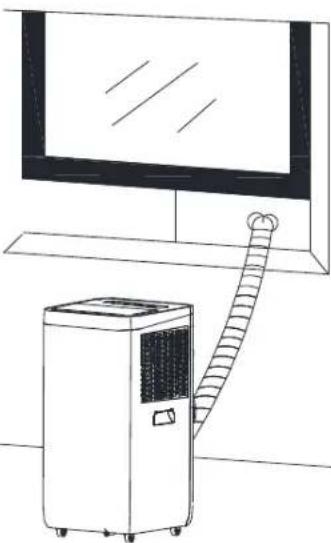

M) Temporary installation

1. Twist both ends of the exhaust hose into the Hose connections.
2. Insert the square fixing clip into the air outlet at back of the machine.

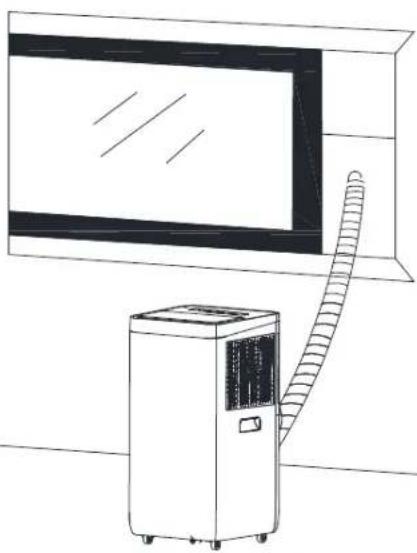

3. Put the other end of the exhaust hose near windowsill.

J&K: Window Slider Kit Installation The installation manner of window slider kit is mostly in "horizontal" and "vertical". As shown Fig. 5 and Fig.5a, check the min. and max. size of the window before the installation.

1. Install the window kit on the window;
2. Adjust the length of the window slider

kit according to the window width or height, and fix it with the dowel;

1. Attach the hose bracket to the hole in the window rail

O. Internal Tank "Water Full" Alarm The water tank inside the machine has a level monitor that detects when the tank is full. When the container is full, the machine switches off automatically and the code E4 is shown on the display. (If the water tank is full, please remove the rubber plug at the bottom of the unit

It is very important that the filter is cleaned regularly; otherwise the air conditioner might lose capacity and even be risk serious damage.

to drain the water.) We recommend that you drain the water over a floor drain, or alternatively an oven tray. when the water is full, please remove the rubber blockage at the bottom of unit, and all water will be drained outside.)

Care Instructions And Maintenance Declaration:

1) Before cleaning, be sure to disconnect the unit from any electric supply outlet;
2) Do not use gasoline or other chemicals to clean the unit;
3) Avoid rinsing water directly on the unit

4) If the machine is damaged, please contact your dealer

1. The air filter
   -If the air filter becomes clogged with dust/dirt, the air filter should be cleaned once every two weeks.
   -Dismounting
   Open the air inlet grille and take off the air filter.
   -Cleaning
   Clean the air filter with a neutral detergent in lukewarm water(40°C) and

let dry in the shade.

-Mounting

Putting the air filter into the inlet grille, replace the components as they were.

2. Clean the surface with a neutral detergent and a wet cloth, followed by drying it with a dry cloth.

E. Before using

Check whether the exhaust hose has been mounted properly.

Cautions for cooling and dehumidifying operations:

-When using functions on cooling and dehumidifying, keep an interval of at least 3 minutes between each POWER.

-Power supply meets the requirements.

-The socket is for AC use.

-Do not share one socket with other appliances.

-Power supply is

AC220-240V, 50Hz

1. Turn on the unit

a) Plug in, then the unit beeps once, "O" The power indicator light is on.

b) Press the "☐" button, then the unit is turned on.

c) The LED displays the room temperature and under Automatic mode.

1. Cooling operation

-Press the "Mode" button till the Snowflake icon is displayed on the panel.

-Press the “+” or “-” button to select the desired room temperature. (15°C -31°C)

-Press the "Fan Speed" button to select wind speed.

1. Dehumidifying operation

Press the "Mode" button till the "Dehumidify" icon appears.

-Automatically set the selected temperature to current room temperature minus 2°C.

-Automatically set the fan motor to LOW wind speed.

1. Fan operation

-Press the "Mode" button till the "Fan" icon appears.

-Press the "Fan Speed" button to

FUNCTION OF THE OPERATION MODES AND INSTALLATION DESCRIPTIONS

select wind speed.

1. Timer operation

a) Press the "Timer" button to set Automatic Off time while the unit is running.

b) Press the timer button for a scheduled start.

c) The time can be adjustable within a range of 1 hour to 24 hours. Press the temperature up (+) or temperature down

(-) button to increase or decrease the time by one hour by pressing once.

1. Operation

a) The operation is effective when the unit is under mode. b) Press the button in mode, for activating sleep mode. In sleep mode, the fan will run on low speed. The set temperature increases by 1 °C after one hour and the temperature increases by 2 °C after two hours. After 6 hours, the unit switches off. Should the temperature rise by more than 2 °C above the set value, the machine will start in full operation.

1. Oscillation / Swing

a) When the Oscillation / Swing button is activated, the swing blade swings up and down automatically. If you want to stop, press the button again.

Service

If the Air Conditioner requires servicing, you must first contact your local retailer. Proof of purchase is required for all warranty claims.

Storage instructions

End of Season Storage

1) We recommend that you drain the water over a floor drain, or alternatively a baking sheet. Screw off the drain cover and pull out the stopper to drain condensate water

completely.

2) Keep unit running in fan mode for half day to dry inside of unit completely to prevent from going moldy.

3) Turn off the unit, pull out the plug then wrap the power cord around the wire-winding pillar, insert the plug into the universal mounting hole at the back panel of the unit, install the water stopper and drain cover.

4) Remove the heat exhaust hose assembly, clean and keep it properly. Note:

Push in the brackets, Hold the exhaust hose assembly with both hands when removal.

Push the fasteners aside on exhaust air outlet using your thumbs, then pull out exhaust hose assembly.

5) Pack the air conditioner carefully with a soft plastic bag, put it on a dry place, and take appropriate action to protect it from dust. Keep the device out of the reach of children.

6) Take out the batteries from the remote control and store it properly. Note:

*Assure the unit is stored in a dry place. All accessories for the device must be stored together and properly protected.

* The power cord holder and the universal socket provides protection to the power cord.

* High location of the exhaust air outlet, offers simple assembly and rapid ventilation.

* The unit's self-evaporative cooling system is intelligent, environmentally friendly and energy-saving.

* Features a 24-hour timer function, with a unique on/off musical sound.

* There is a 3 minute delay on restarting the compressor as a protective function.

WiFi function

1. Download and Install APP

Download Woods Connect app from App Store or Google Play

1. Register/Login/Forgot password

Register

If you don't have an App account, register an account or sign in with a verification code by SMS. This page describes the registration process.

1. Tap to enter the registration page.

2. The system automatically recognises your country / area. You can also select your country code. Enter the mobile number/E-mail and tap "Next".

3. If you enter the mobile number, then enter the verification code in the message and enter the password tap "Confirm" to finish your registration.

4. If you enter the E-mail enter the password and tap "Confirm" to finish your registration.

2. Sign in with username and password or verification code via SMS

Sign in with username and password

1. The system automatically recognises your country / area. You can also select your country code. Enter the mobile number/E-mail and tap "Next

2. Enter your registered mobile number or email, and password to login.

Sign in with verification code

1. Tap "Sign in with SMS verification"

on new page.

1. The system automatically recognises your country / area.

You can also select your country code by yourself.

Forgot password

If you forgot your password, please follow these procedures:

1. Tap "Forgot password".

2. The system automatically recognises your country / area. You can also select your country code by yourself. Enter the mobile number/E-mail and tap "Next".

3. Enter the verification code in the message/E-mail and enter the new password tap "Confirm" to finish.

Woods Connect supports the below functions:

• Power on/Power off

- Cool Mode

- Dehum Mode

- Fan Mode

- Eco Mode

• Temperature settings

• Speed: Low and High

- Timer: 1-24 h

- Sleep: On/Off

• Auto clean: On/Off

3. Follow the procedures in the APP to enjoy the WiFi features.

Smart Home

If you have a Smart Home product please finish steps 1 to 3.

Third-party Access Service: Tap a third-party voice service icon to see how to connect to the service.

Smart Home Woods Connect supports the following functions through voice command:

Power on/Power off Temperature settings Mode settings Fan speed settings

For more information visit: https://woods.se/en/

PROBLEM CAUSE REMEDY
The unit does not start when pressing on/off button	Not plugged in / Plug or socket is damaged. Plug in or replace the power or socket.
	A fuse is blown or broken. Replace the fuse (3.15A/250AC).
	The room temperature is lower than the set temperature. (Cooling mode)	Reset the temperature.
Not cool enough	The doors or windows are not closed. Make sure all the windows and doors are closed.
	There are heat sources inside the room. Remove the heat sources if possible.
	The exhaust air hose is not connected or blocked. Connect or clean the exhaust air hose.
	Temperature setting is too high. Reset the temperature.
	The air inlet is blocked. Clean the air inlet.
High noise level	The ground is not level or not flat enough. Place the unit on flat, level ground if possible
	The sound comes from the flowing of the refrigerant inside the air conditioner	It is normal.
If you are having trouble with your portable air conditioner, please refer to troubleshooting section below. If nothing of the below works, please contact your retailer for servicing of your Air Conditioner.

Error Codes CAUSE REMEDY
E2 Code	Room temperature sensor failed or is damaged. Replace room temperature sensor.
E3 Code	Evaporator temperature sensor failed. Replace evaporator temperature sensor.
E4 Code	Water tank full. Please empty the water tank.

Guarantees

2 years consumer warranty against production faults. Please note that the warranty is only valid upon the production of the receipt. The warranty is only valid if the product is used in accordance with the instructions and security warnings expressed in this manual. The warranty does not cover any damages caused by improper handling of the product.

NOTE: The 2 years warranty only applies for consumers and not to commercial use of the unit.

NOTE!

Register at www.warranty-woods.com and read about how to get an extended warranty. Please visit www.woods.se for more information.

Recommended limits for use

The best operating ambient temperature for cooling is 17-35 °C,

Fuse Parameter: φ5.0x20mm

3.15A, 250Vac.

TECHNICAL DATA	AC Milan 7K WIFI AC Milan 9K WIFI AC	Como 12K WIFI WIFI
Cooling capacity	2000 W	2600 W	3500 W
Power consumption 750 W 950 W 1250W
Airflow: 350 m	^1/h 350 m	^2/h 380 m	^3/h
Energy class AAA
Dehumidification	19 L / 24h	24 L / 24h	28,8 L / 24h
Temperature setting	15-31°C	15-31°C	15-31°C
Working temperature	16-43°C	16-43°C	16-43°C
EER	2,6	2,6	2,6
Length of air exhaust hose	1,5 m	1,5 m	1,5 m
Diameter of the air exhaust hose pipe	155mm	155mm	155mm
Refrigerant gas	R290/100g	R290/160g	R290/220g
Noise level in decibels	61dB	61dB	52dB
Weight	22kg	24kg	25Kg
Dimensions in mm, L x Wx H	355x350x700	355x350x700	355x350x700

*Technical changes and improvements may occur. All values are approximate and may vary due to external circumstances such as temperature, ventilation, and humidity.

*This marking indicates that this product should not be disposed of with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your us device, please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmentally safe recycling.

*Used batteries must not be disposed of through household garbage, since they might contain toxic elements and heavy metals that can be harmful to the environment and human health. Return empty batteries to an appropriate recycling facility.

WOOD'S FÖR REN OCH HÄLSOSAM INOMHUSLUFT

Warning sign depicting a flame symbol with hazard symbol, commonly used in safety or hazard prevention.

FÖRBEREDA LUFTKONDITIONERINGEN FÖR INSTALLATION

2. Installation

≥30cm ≥30cm

Warning sign depicting a flame symbol in yellow and black, indicating hazard or caution

Brennbart materiale.

Denne enheten inneholder R290/propan, et brennbart kuldemedium.

≥30cm ≥30cm

PRODUKTBESKRIVELSE

3. Produktbeskrivelse

A

https://woods.se/en/

PROBLEM ÅRSAK TILTAK
Enheten starter ikke når jeg trykker på av/på-knappen	Ikke koblet til / støpselet eller stikkontakten er skadet. Koble til, eller bytt stikkontakt eller støpsel.
	∅delagt sikring Bytt sikringen (3,15 A / 250 V AC)
	Romtemperaturen er lavere enn den innstilte temperaturen.(kjølemodus)	Återställ temperaturen
Ikke kjølig nok Dørene eller vinduene er ikke lukket. Påse at vinduene og dørene er lukket.
Høyt støynivå Underlaget er ikke flatt nok Plasser enheten på flatt og jevnt underlag
Om du har problem med din klimaanlegg, se felsökningen nedan. Om inget av nedanstående fungerar, kontakla din återförsäljare för att få din luftkonditionering servad.

FEILKODER	ÅRSAK TILTAK
E2-kode	Romtemperatursensoren er skadet eller ødelagt.	Bytt romtemperatursensor
E3-kode	Feil i fordampertemperatursensor.	Bytt fordampertemperatursensor
E4-kode	Vannbeholderen er full	Tøm vannbeholderen.

Garanti

Warning sign depicting a flame symbol in yellow and black, indicating hazard or electrical hazard.

Installation ADVARSEL

≥30cm ≥30cm

PRODUKTBESKRIVELSE

DK

3. Produktbeskrivelse

A

https://woods.se/en/

Warning sign depicting a flame symbol in yellow and black, indicating hazard or electrical hazard.

≥30cm ≥30cm

PRODUKTBESCHREIBUNG

https://woods.se/en/

Warning sign depicting a flame symbol in a yellow triangle with black border

≥30cm ≥30cm

DESCRIPTION DU PRODUIT

Pour de plus amples informations, consultez : https://woods.se/en/

≥30cm ≥30cm

ELIJA WOOD'S SI QUIERE DISFRUTAR DE UN AIRE INTERIOR LIMPIO Y SALUDABLE

Warning sign depicting a flame symbol in yellow and black, indicating hazard or electrical hazard.

1. VEILIGHEIDSWAARSCHU-WINGEN

Warning sign depicting a flame symbol in yellow and black, indicating hazard or electrical hazard.

VEILIGHEIDSINSTRUCTIES Installatie WAARSCHUWING

≥30cm ≥30cm

PRODUCTBESCHRIJVING

NL

-Power supply meets the requirements.

-The socket is for AC use.

-Do not share one socket with other appliances.

-Voeding is AC220-240V, 50Hz

a) when the swing button is activated, the swing blade swings up and down automatically. If you want to stop, press the button again.

bedrijf

Warning sign depicting a flame symbol in yellow and black, indicating hazard or electrical hazard.

≥30cm ≥30cm

OPIS PRODUKTU

3. Opis produktu

A

Warning sign depicting a flame symbol in yellow and black, indicating hazard or electrical hazard.

≥30cm ≥30cm

DESCRIEREA PRODUSULUI

Temporizator: 1-24 h

https://woods.se/en/

Warning sign depicting a flame symbol in yellow and black, indicating hazard or electrical hazard.

≥30cm ≥30cm

TUOTTEEN KUVAUS

3. Tuotteen kuvaus

A

Warning sign depicting a flame symbol in yellow and black, indicating hazard or electrical hazard.

≥30cm ≥30cm

PRODUKTO APRAŠYMAS

Warning sign depicting a flame symbol in yellow and black, indicating hazard or electrical hazard.

≥30cm ≥30cm

PRODUKTA APRAKSTS

ARIA INTERNA PULITA E SANA CON WOODS

Warning sign depicting a flame symbol with hazard symbol inside a yellow triangle

≥30cm ≥30cm

Warning sign depicting a flame symbol in yellow and black, indicating hazard or electrical hazard.

≥30cm ≥30cm

ΠΕΡΙΓΡΑΦΗ ΠΡΟΪΟΝΤΟΣ

https://woods.se/en/

Warning sign depicting a flame symbol in yellow and black, indicating hazard or electrical hazard.

Eldfim efni. Petta tæki inniheldur R290/ própan sem er eldfimt kæliefni.

≥30cm ≥30cm

VÖRULÝSING

3. Vörulýsing

A

1. Útblástursbarki
2. Tengistykki loftútblástursbarka
3. Millistykki gluggaútblástur
4. Fjarstýring
5. Hlífðarplata
6. Vatnstappi

B

1. Tenging afrennsliss- löngu

LÝSING Á AĐGERĐARHÖMUM OG UPPSETNINGU

A. Aukabúnaður

https://woods.se/en/

Warning sign depicting a flame symbol in yellow and black, indicating hazard or electrical hazard.

≥30cm ≥30cm

TOOTE KIRJELDUS

3. Toote kirjeldus

A

Wood's is marketed and distributed by:

Woods Production Sweden AB.

Maskingatan 2-4

441 27, Alingsås

Sweden.

woods.se

[e-mail]

[phone]

Wood's®
