USER MANUAL AC Milan 7K Wood's

OPERATING INSTRUCTIONS FOR:

AC Milan Silent 7K WAC703G

AC Milan Silent 9K WAC903G

AC Como 12K WAC1210G

White outdoor water heater with 'Hood's' branding and wheels (no visible text or symbols beyond branding)

Visit woods.se for more information and updated instruction manuals.

For extended warranty register your product at warranty-woods.com

GB	Operating Instructions	PL	Instrukcja obsługi
SE	Bruksanvisning	RO	Manual utilizare
NO	Bruksanvisning	FI	Käyttöohjeet
DK	Betjeningsvejledning	LT	Naudojimosi instrukcija
DE	Bedienungsanleitung	LV	Lietošanas instrukcija
FR	Guide d'instructions	IT	Istruzioni per l'uso
ES	Manual de instrucciones	GK	Öðnyíeç, Aeroupyíac
NL	Gebruiksaanwijzing	IS	Notkunarleiðbeiningar
EE	Kasutusjuhend	IT	Istruzioni per l'uso

Visit our website to:

Get usage advice, updated owners manual, troubleshoot and service information

Register your product for additional services: www.warranty-woods.com

CUSTOMER CARE AND SERVICE

Always use original spare parts.

When contacting our Authorised Service Centre,

ensure that you have the following data available:

Model number, receipt and serial number.

The refrigerant used in portable air conditioner is the environmentally friendly hydrocarbon R290. This refrigerant is odorless, and compared to the alternative refrigerant, the R290 is an ozone-free refrigerant.

Warning / Caution-Safety information.

General information and tips.

Environmental information.

Subject to change without notice.

CONTENTS: PAGE NO.

TABLE OF CONTENTS

OPERATING INSTRUCTIONS

English 9-16
Swedish 17-23
Norwegian 24-31
Danish 32-39
German 4148
French 49-56
Spanish 57-64
Dutch 65-72
Polish 73-80
Romanian 81-88
Finnish 89.96
Lithuanian 97-10
Lotvian 105-112
Italian 113-120
Greek 121-128
Icelandic 129-136
Estonian 137-144

A.

Exploded view diagram of a mechanical assembly with labeled parts including threaded tube, eye lens, cover plate, remote control, handle, and connector.

B.

White outdoor water heater with 'Wood's' branding and digital display (no text or symbols on body)

C.

Technical diagram of an air conditioner unit with numbered parts and labeled components

D.

Front view of a white square kitchen appliance with control buttons and a central display (no visible text or symbols on the appliance itself)

E.

11 3 1 °C h °F AUTO 2 10 11 Sleeping/Child Lock 4 Swing 5 Timer 6 Mode 7 Speed 8 Power 9

F

Diagram illustrating three stages of a solar panel installation: dust removal, clean air filter, and grid-based installation.

G.

1 7 4 6 3 4 5 2

H.

I.

Technical diagram showing the installation and assembly of an air conditioning unit, with Chinese annotations indicating process steps.

J.

Diagram of a container with liquid and arrows indicating flow or movement (no text or symbols)

Window width
min:67.5cm
max:123cm

Diagram of a door frame with directional arrows and a vertical scale, no text or symbols present

Window height
min:67.5cm
max:123cm

K.

Line drawing of an air conditioner unit next to a large screen (no text or symbols)

Line drawing of a portable air conditioner unit connected to a monitor (no text or symbols)

L.

Technical diagram of a mechanical or electrical component with no visible text, numbers, or symbols.

Diagram of a device with a panel and cable attachment, no visible text or symbols

Diagram of a device with a mesh chamber and cable, no visible text or symbols

WOOD'S FOR CLEAN AND HEALTHY INDOOR AIR

The brand Wood's was born with the Wood's family over 65 years ago in the Canadian city of Guelph, Ontario. This is where Wood's began developing and manufacturing dehumidifiers in 1950. Since then Wood's has helped several hundred thousand households to prevent damages from mould damp, and to breathe cleaner air. Our portable air conditioners are suitable for use in most climates, where capacity is good even at different temperatures and humidity levels. They are used with good results in premises that become hot such as livingrooms, offices or bedrooms. The amount of hot air that the air conditioner removes depends on the temperature, humidity level and placement. External weather conditions may also affect the performance of the air conditioner.

Wood's air conditioners are safe in operation and intended for continuous use over many years.

HOW DOES THE AIR CONDITIONING UNIT WORK?

Low pressure gives cold air The main element of the air conditioner is a coolant, which under low pressure is converted to gas. The process "creates cold", which is transmitted inward, while keeping the warm air out.

A liquid coolant is passed through an expansion valve and into a pipe where the pressure is low.

The coolant evaporates and turns into a gas. The process absorbs heat from the surroundings and the pipe is cooled. A fan blows the cold air into the room. The gas is passed through a compressor, which increases the pressure and converts the gas into liquid.

In this process, heat is released, which is led to pipes on the opposite side and blown out by a fan.

A thermostat shuts off the unit when the indoor air is cold enough.

1. SECURITY WARNINGS

Warning sign depicting a flame symbol in yellow and black, indicating hazard or electrical hazard.

Flammable material. This appliance contains R290/Propane a flammable refrigerant.

Refer to this manual for safety information.

Read technical manual

Read operators manual.

SAFETY INFORMATION

Before the installation and use of the appliance, carefully read the supplied instructions. The manufacturer is not responsible if an incorrect installation and use causes injuries and damages. Always keep the instructions with the appliance for future reference.

Children and vulnerable people safety

WARNING

Risk of injury or permanent disability.

This appliance can be used by children aged 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

Do not let children play with the appliance.

Children of less than 3 years should be kept away unless continuously supervised.

Keep all packaging away from children.

Cleaning and user maintenance shall not be made by children without supervision.

General Safety

This appliance is intended to be used in household and similar applications such as: Family room, living room, staff kitchen areas in shops, offices and other working environments. The rating plate is located at the side or back of the Air Conditioner.

Keep ventilation openings clear of obstruction.

Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.

The appliance shall not be stored in a room with operating ignition sources (for example: open flames, an operating gas appliance or an operation electric heater. Do not pierce or burn.

Be aware that refrigerants may not contain an odour. Do not use water spray and steam to clean the appliance. Clean the appliance with a moist soft cloth. Only use neutral detergents. Do not use abrasive products, abrasive cleaning pads, solvents or metal objects.

If the supply cord is damaged, it must be replaced by the

manufacturer, its Authorised Service Centre or similarly qualified persons in order to avoid a hazard.

SAFETY INSTRUCTIONS

Installation WARNING

Only a qualified person must install this appliance.

Remove all the packaging. Do not install or use a damaged appliance. The appliance shall be installed, operated and stored in a room with a floor area larger than 4.2 m ^2 (7k), 7.7 m ^2 (9K), 9.6 m ^2 (12K).. Obey the installation instruction supplied with the appliance.

Always be careful when you move the appliance because it is heavy. Always wear safety gloves. Be aware that refrigerants may not contain an odour.

Make sure the air can circulate around the appliance. Wait at least 4 hours before connecting the appliance to the power supply. This is to allow the oil to flow back in the compressor. Do not install the appliance close to radiators or other heat sources. Do not install the appliance where there is direct sunlight.

Electrical connection

WARNING

Risk of fire and electrical shock. The appliance must be connected to a grounded outlet. Make sure that the electrical information on the rating plate matches with the power supply. If

not, contact an electrician. Always use a correctly installed shockproof socket. Do not use multi-plug adapters and extension cables. Make sure not to cause damage to the electrical components (e.g. mains plug, mains cable). Contact the Authorised Service Centre or an electrician to change the electrical components. The mains cable must stay below the level of the mains plug. Connect the mains plug to the mains socket only at the end of the installation. Make sure that there is access to the mains plug after the installation. Do not pull the mains cable to disconnect the appliance. Always pull at the mains plug.

Use

WARNING

Risk of injury, burns, electrical shock or fire. Do not change the specification of this appliance.

Be careful not to cause damage to the refrigerant circuit. It contains propane (R290), a natural gas with a high level of environmental compatibility. This gas is flammable.

If damage occurs to the refrigerant circuit, make sure that there are no flames and sources of ignition in the room. Ventilate the room. Do not put flammable products or items that are wet with flammable products near or on the appliance.

Disposal

WARNING

Risk of injury.

Disconnect the appliance from the mains supply.

Cut off the mains cable and discard it.

The refrigerant circuit of this appliance is ozone-friendly.

Contact your municipal authority for information on how to discard the appliance correctly.

Do not cause damage to the part of the cooling unit that is near the heat exchanger.

SET UP AIR CONDITIONER FOR INSTALLATION

2. Installation

BEFORE FIRST USE

Let the machine stand up for 2 hours before use

Selecting a Location

Important

1. This air conditioner may be moved around indoor conveniently; keep the unit in upright position while moving it. The air-conditioner shall be placed at a flat surface.

Do not install or operate this air conditioner in a bathroom or other wet environment.

Since a portable air conditioner is on wheels, it is easy to change positions. When the heat turns on, you just move your portable air conditioner into the room and can quickly get started cooling the space.

Air conditioner must be operated in an enclosed area to be most effective.

Close all doors, windows, and other outside openings to the room. The effectiveness of the air Conditioner depends on the temperature and humidity level.

1. Place the air conditioner in a location that does not restrict airflow through the front of the unit.

2. An air conditioner operating in a room will have little or no effect in drying an adjacent enclosed storage area, such as a closet, unless there is adequate circulation of air in and out of the area. A portable air Conditioner evacuates the heat from the unit with a ventilation hose through a window or exhaust air valve.

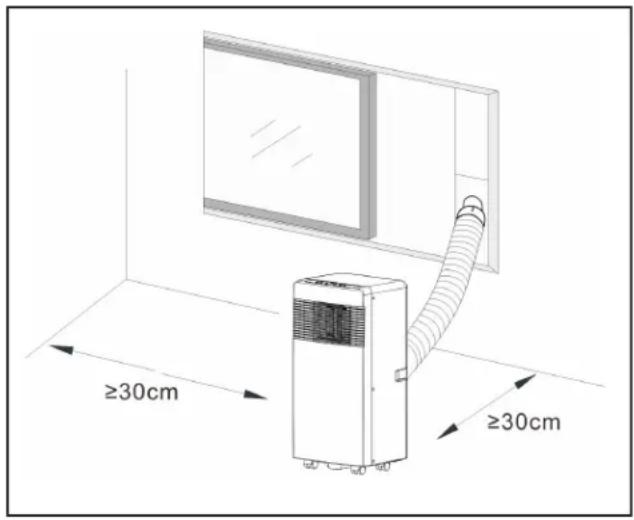

3. There should be a minimum of

30 cm distance between Air Conditioner and closest object. See picture for reference.

≥30cm ≥30cm

PRODUCT DESCRIPTION

3. Product description

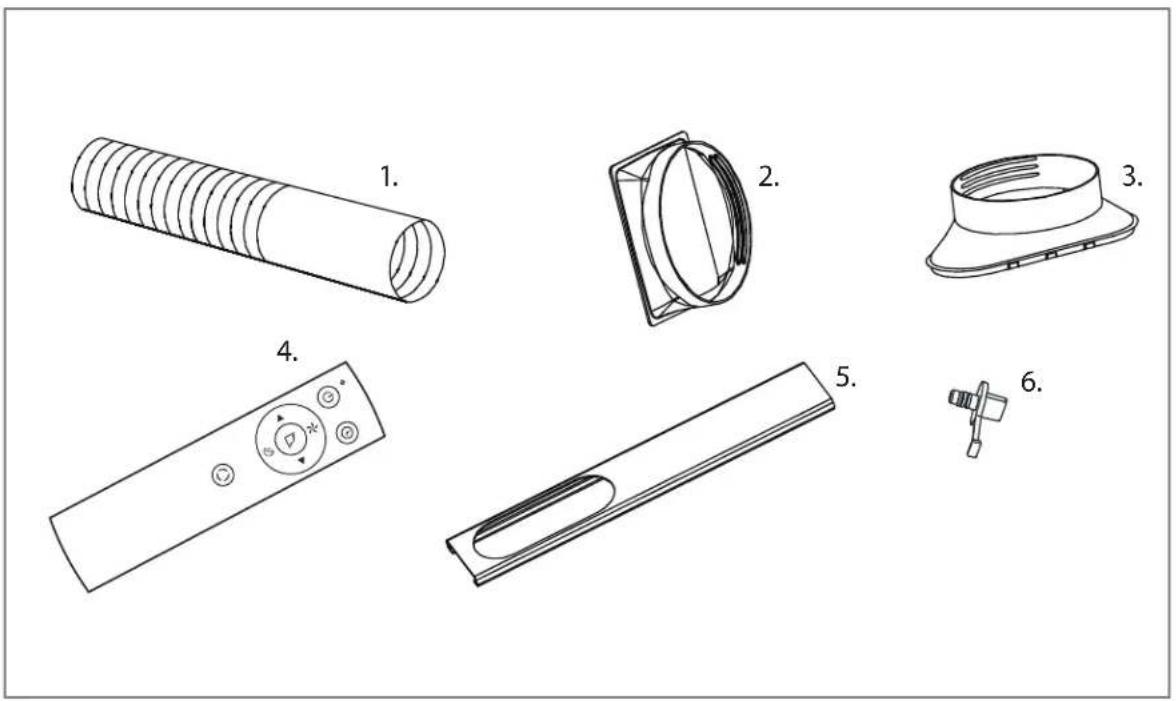

A

1. Air Exhaust Duct
2. Connector of Air Exhaust Duct
3. Window Exhaust Adapter
4. Remote Controller
5. Baffle Plate
6. Water Plug

B

1. Product Front picture

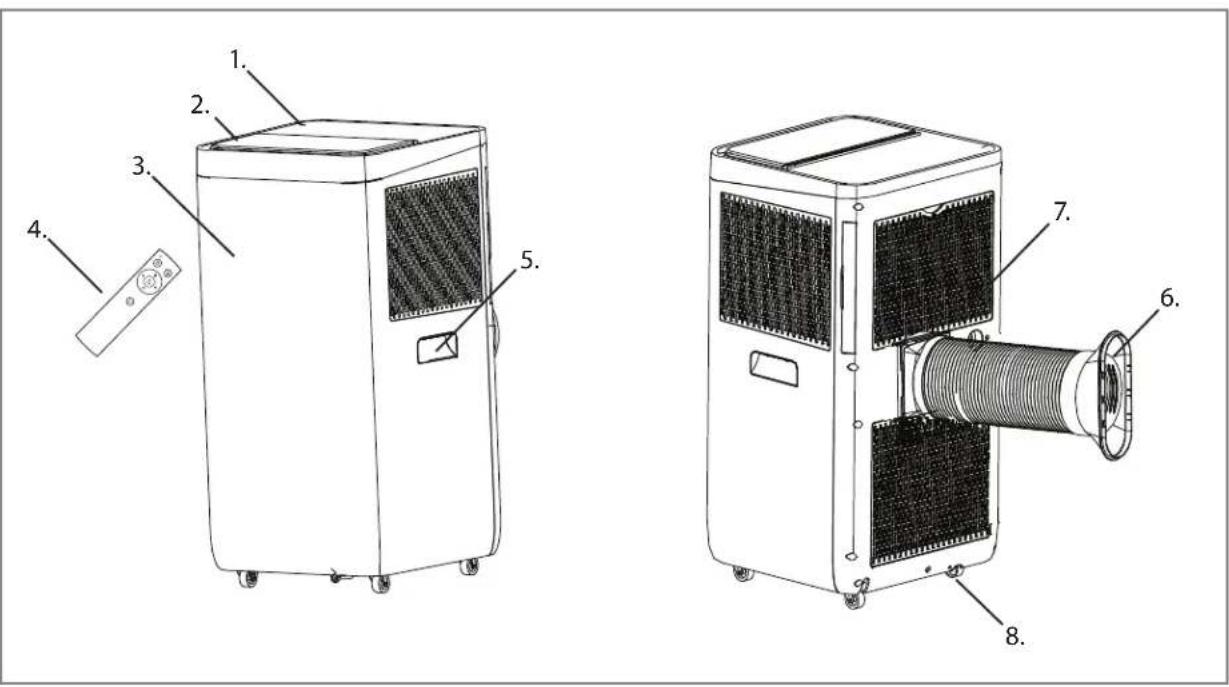

C

1. Control panel
2. Cold Air Outlet
3. Signal Receptor
4. Remote Controller
5. Transport Handle
6. Air Outlet Hose
7. Evaporator Air Intake
8. Primary Drain Port

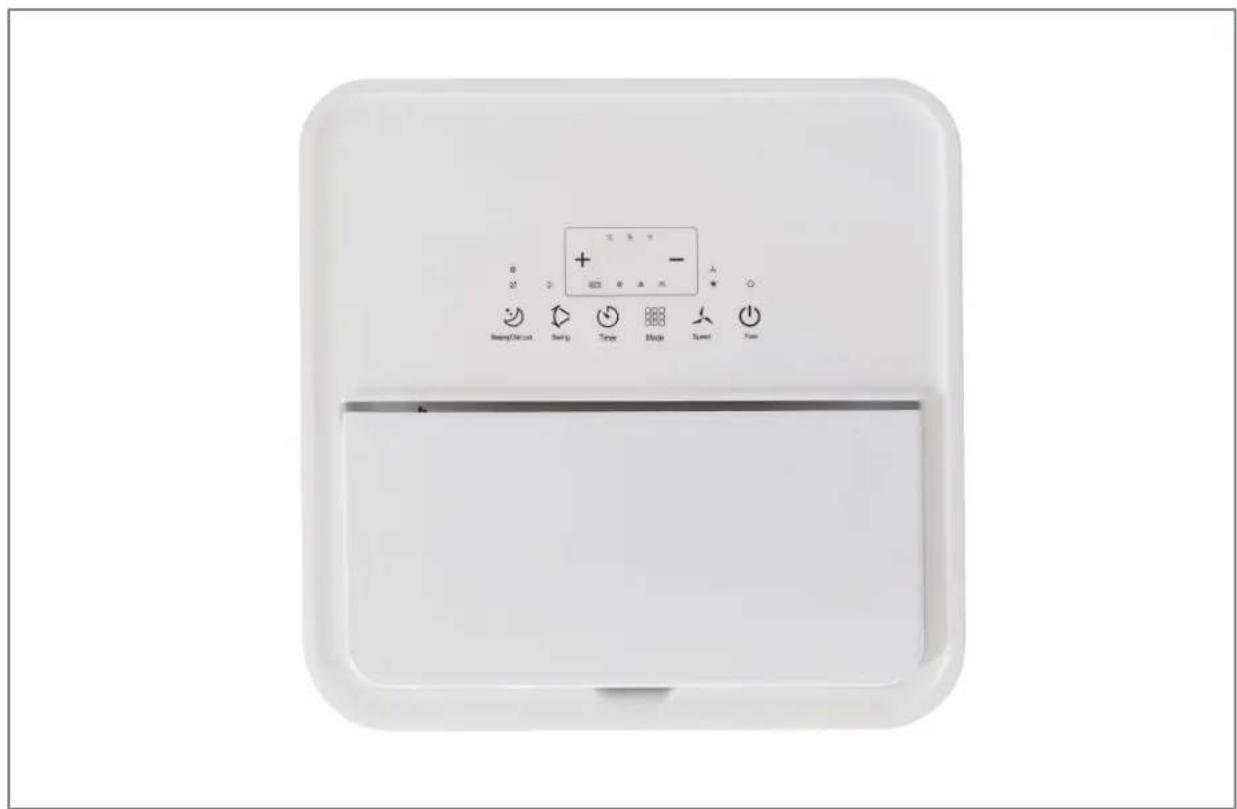

D

1. Product Top Picture

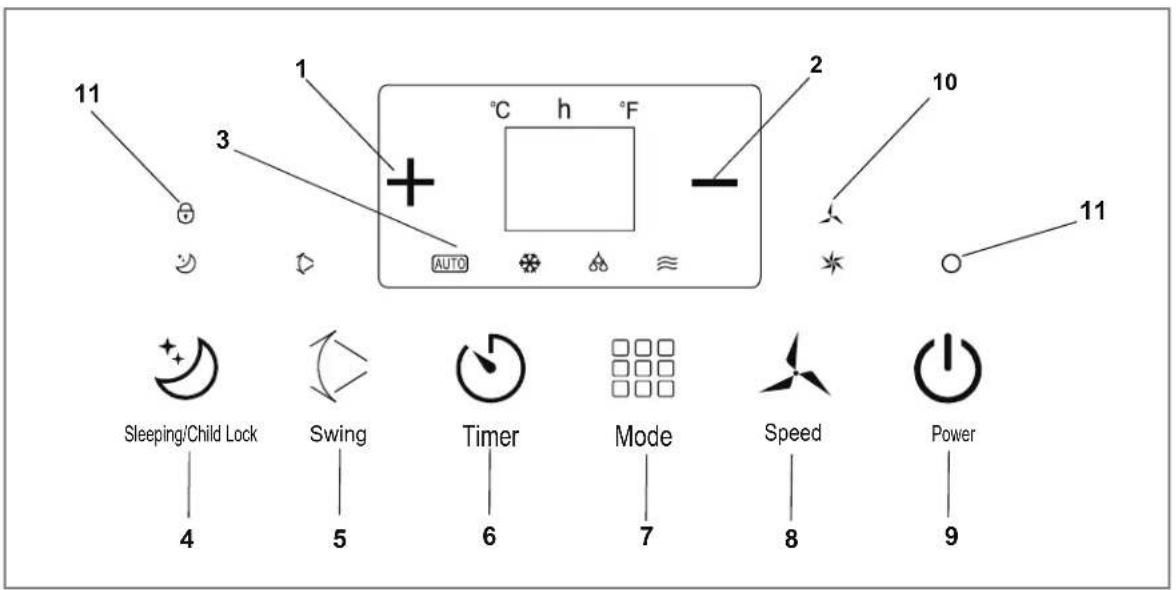

E

1. Timer / Temperature Up Button
2. Timer / Temperature Down Button
3. Automatic Cool
4. Sleep and Child Lock Button
5. Swing Operation
6. Timer Button
7. Mode Button
8. Speed Button
9. Power Button
10. Law High Fan Speed
11. Power Indicator / Child Lock

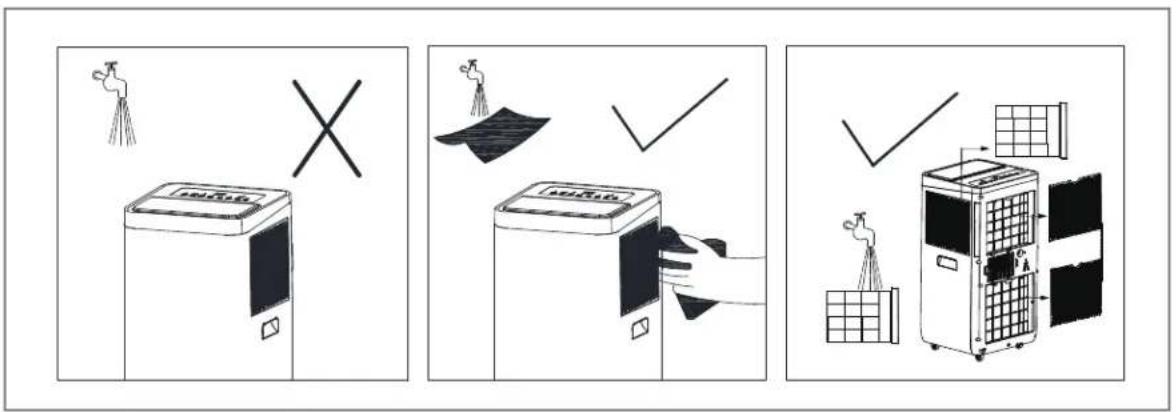

F

1. Instructions of filter screen cleaning.

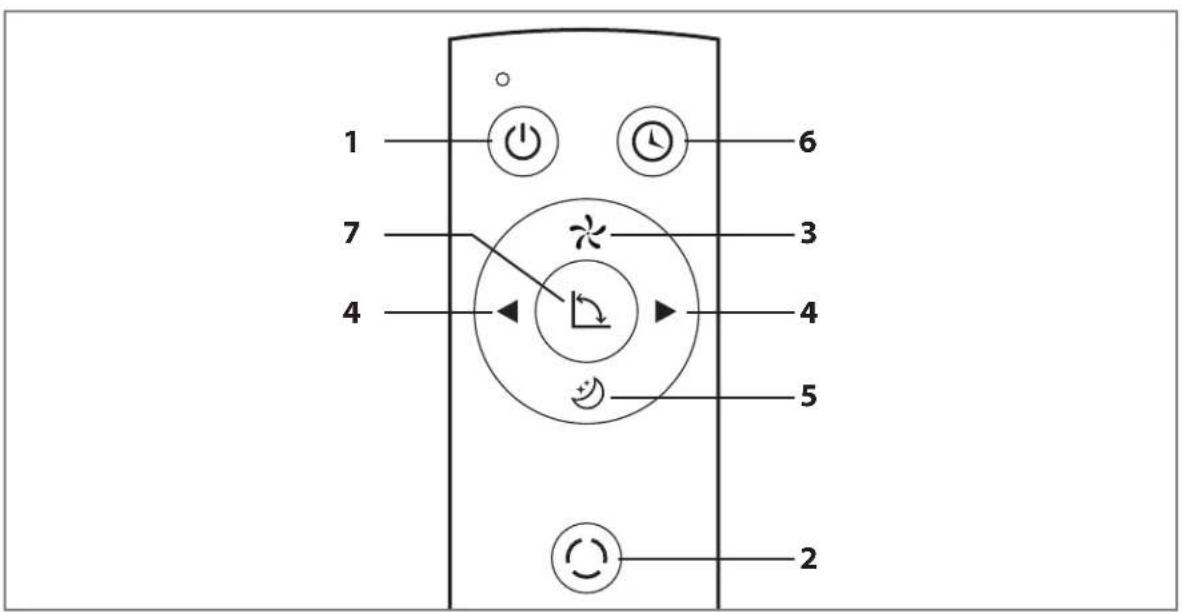

G

1. BUTTON Power on / off

2. BUTTON Press this button to select the operation mode.

3. BUTTON Used to select fan speed in sequence.

4. and ▶ SETTING BUTTONS used to adjust the room temperature and the timer.

5. BUTTON Used to set or cancel Mode operation.

6. BUTTON Used to set automati OFF and automatic ON time.

7. BUTTON Used to set the automatic swing.

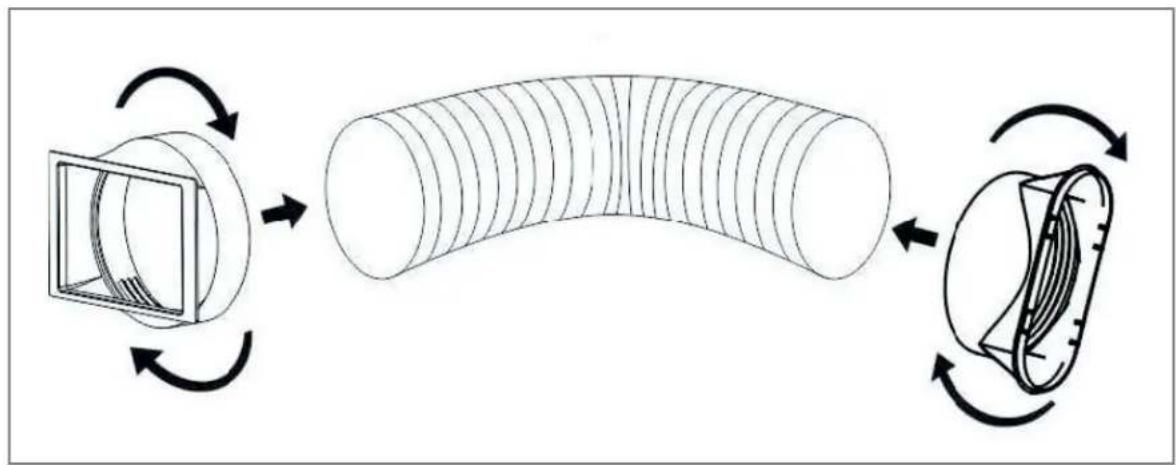

H

1. Twist both ends of the exhaust hose into the Hose Connector.

|

1. Introduction to Exhaust Hose Installation

J

K

L

1. Introduction to Exhaust Hose Installation
2. Window Slider Kit Installation

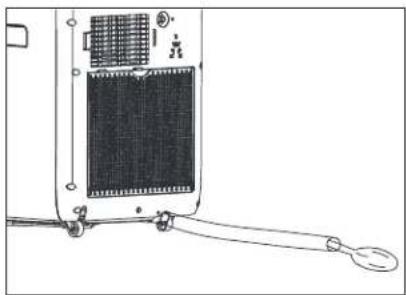

3. Connect drain hose
4. Introduction to Exhaust Hose Installation
5. Connect drain hose
6. Connect drain hose
7. Connect drain hose

FUNCTION OF THE OPERATION MODES AND INSTALLATION DESCRIPTIONS

A. Accessories

After unpacking, please check whether the above-mentioned accessories are included, and check their purposes in the installation introduction in this manual.

B. Mobile air conditioner

J. Appearance and Function of Remote Control.

Notes:- Do not drop the remote control.- Do not place the remote control in a location exposed to direct sunlight.

A. Operation Introduction

Before starting operations in this section:

1) Find a place where there is power supply nearby.

2) Install the exhaust hose, and adjust the window position well.

3) Connect drain hose well (only for using heating model);

4) Insert the power cord into an grounded AC220\~240V/50Hz socket;

5) Press the POWER button to turn on the air-conditioner.

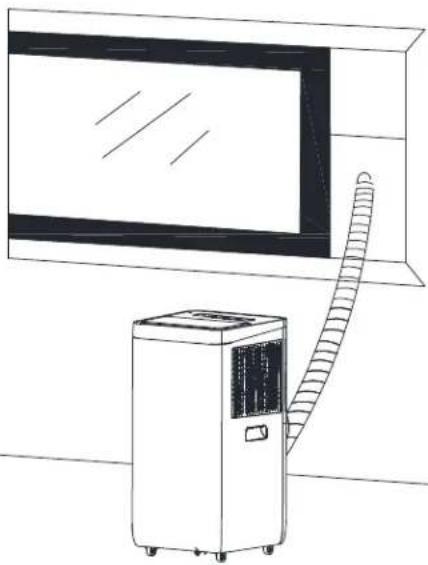

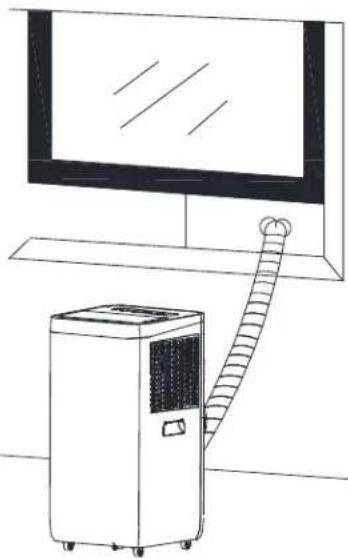

K&L. Introduction to Exhaust Hose Installation

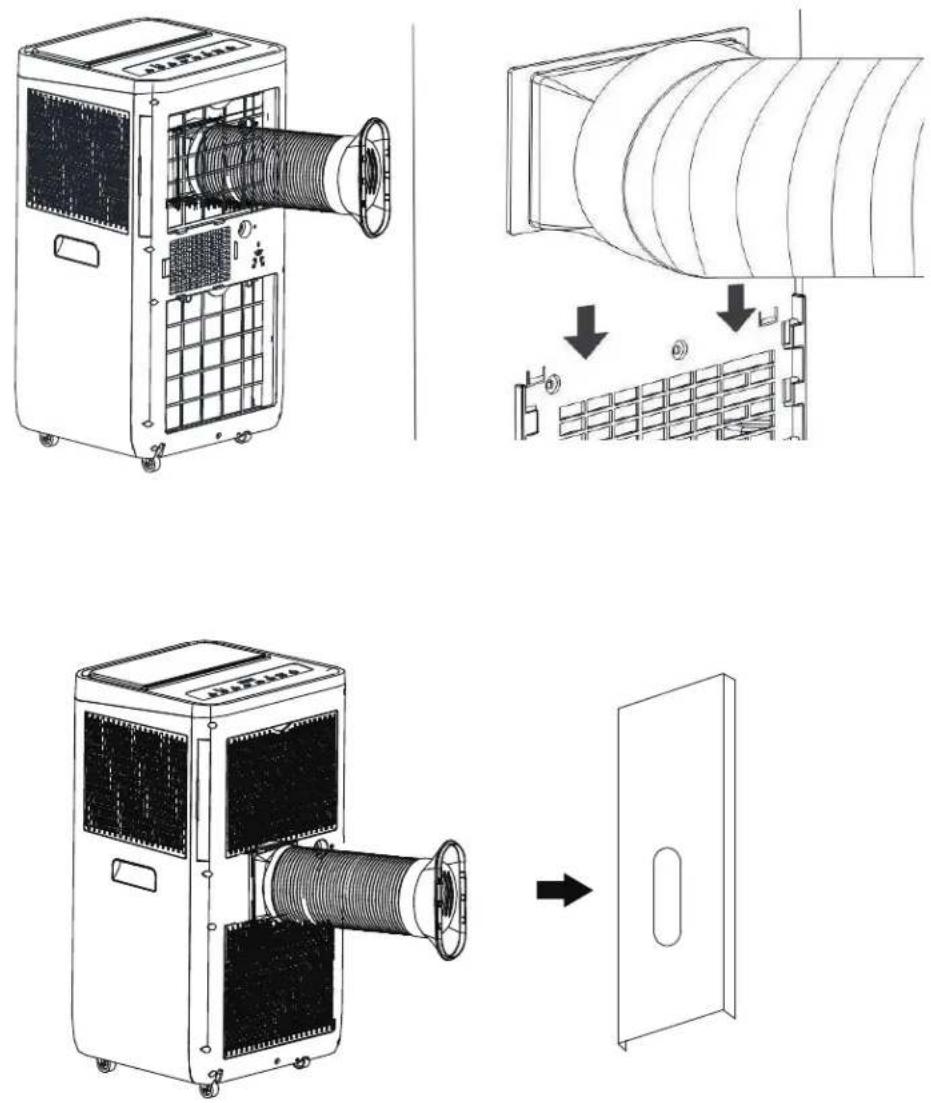

M) Temporary installation

1. Twist both ends of the exhaust hose into the Hose Connector.

2. Insert the square fixing clip into air outlet at back of the air conditioner

3. Put the other end of the exhaust hose to the near windowsill.

N. Window Slider Kit Installation

The installation manner of window slider kit is mostly in "horizontal" and "vertical". As shown Fig.5 and Fig.5a, check the min. and max. size of the window before the installation.

1. Install the window kit on the window;

2. Adjust the length of the window slider kit according to the window width or height, and fix it with the dowel;

3. Insert the Window connector hose to the hole of the Window kit.

O. Internal Tank Water Full Alarm Function

The inner water tank in the airconditioner has one water level safety switches, it controls water level. When water level reaches an anticipated height, the water full indicator lamp lights up. Error code "E4" will show on the display. (If water pump is damaged, when the water is full, please remove the rubber blockage at the bottom of unit, and all water will be drained outside.)

It is very important that the filter is cleaned regularly; otherwise the air conditioner might lose capacity and even be seriously damaged.

H. Maintenance Explanations Declaration:

1) Before cleaning, be sure to disconnect the unit from any electric supply outlet;

2) Do not use gasoline or other chemicals to clean the unit;

3) Do not wash the unit directly;

4) If the conditioner is damaged, please contact the dealer or repair shop.

1. Air Filter

-If the air filter becomes clogged with dust/dirt, the air filter should be cleaned once every two weeks.

-Dismounting

Open the air inlet grille and take off air filter.

-Cleaning

Clean the air filter with a neural detergent in lukewarm (40°C) and let dry in the shade.

-Mounting

Putting the air filter into the inlet grille, replace the components as they were.

1. Clean the Air-conditioner Surface First clean the surface with a neutral detergent and wet cloth, and then

wipe it with a dry cloth.

E. Before using

Check up whether the exhaust hose has been mounted properly.

Cautions for cooling and dehumidifying operations:

-When using functions on cooling and dehumidifying, keep an interval of at least 3 minutes between each POWER.

-Power supply meets the requirements.

-The socket is for AC use.

-Do not share one socket with other appliances.

-Power supply is

AC220-240V, 50Hz

1. Turn on the unit

a) Plug in, then the unit beeps once, "O" The power indicator light is on.

b) Press the "⏻" button, then the unit is turned on.

c) The LED displays the room temperature and under Automatic mode.

1. Cooling operation

-Press the "Mode" button till the

"Cool" icon appears.

-Press the “+” or “-” button to select a desired room temperature.

(15°C -31°C)

-Press the "Fan Speed" button to select wind speed.

1. Dehumidifying operation Press the "Mode" button till the

"Dehumidify" icon appears

-Automatically set the selected temperature to current room temperature minus 2^ C.

-Automatically set the fan motor to LOW wind speed.

1. Fan operation

-Press the "Mode" button till the "Fan" icon appears.

-Press the "Fan Speed" button to select wind speed.

1. Heating operation (this function is not available for a cold-single unit)

-Press the "Mode" button till the

"Heat" icon appears.

a desired room temperature.

FUNCTION OF THE OPERATION MODES AND INSTALLATION DESCRIPTIONS

(15°C - 31°C)

-Press the "Fan Speed" button to select wind speed.

6. अtimer operation

a) Press the "Timer" button to set Automatic Off time while the unit is running.
b) Press "Timer" button to set Automatic off time while the unit is ready.
c) The time can be adjustable within a range of 1 hour to 24 hours. Press the

temp up (+) or temp down (−) button to increase or decrease the time 1 hour by pressing once.

7. Operation

a) The operation is effective when the unit is under mode.
b) Press the button in mode, then the unit will work under sleep mode and the up centrifugal fan will turn to low speed automatically. The set temperature will increase 1°C After one hour and increase 2°C after two hours. After six hours, the unit will stop running.

8. Operation

a) when the swing button is activated, the swing blade swings up and down automatically. If you want to stop, press the button again.

Maintenance

Clean the unit with a soft moist cloth. Do not use solvents or strong cleaners as this might damage the surface of the unit.

Service

If the Air Conditioner requires servicing, you must first contact your local retailer. Proof of purchase is required for all warranty claims.

Storage instructions

End of Season Storage

1) Screw off the drain cover and pull out

the stopper to drain condensate water completely.

2) Keep unit running in fan mode for half day to dry inside of unit completely to prevent from going moldy.
3) Turn off the unit, pull out plug then wrap the power cord around the wire-winding pillar, insert the plug into the universal fixing hole at the back panel of the unit, install the water stopper and drain cover.
4) Remove the heat exhaust hose assembly,

clean and keep it properly.

Notes:

Hold the exhaust hose assembly with both hands when removal.

Push the fasteners aside on exhaust air outlet using your thumbs, then pull out exhaust hose assembly.

5) Pack the air-conditioner properly with soft plastic bag and put it in dry place with appropriate dust-proof measures, and keep the unit away from children.
6) Take out the batteries from the remote control and keep it properly.

Note:

Assure the unit is stored in a dry place.
All accessories of the unit shall be protected together properly
Power cord holder and universal socket can well protect the power cord.
High position of exhaust air outlet, easy assembly and venting quickly.
Intelligent, environmental-friendly and energy saving with self-evaporative cooling system.
24-hour Timer function, unique on/off reminding music.
3-minute delay re-starting protection to compressor and other multiple protection functions.

PROBLEM CAUSE REMEDY
Unit does not start when pressing on/off button	Not plugged in / Plug or socket is damaged. Plug in or replace the power or socket.
	Fuse broken Replace the fuse (3.15A/250AC)
	Room temperature is lower than the setting temperature.(Cooling mode)	Reset the temperature
Not cool enough	The doors or windows are not closed. Make sure all the windows and doors are closed.
	There are heat sources inside the room. Remove the heat sources if possible
	Exhaust air hose is not connected or blocked. Connect or clean the exhaust air hose.
	Temperature setting is too high. Reset the temperature
	Air inlet is blocked. Clean the air inlet.
High noise level	The ground is not level or not flat enough Place the unit on a flat, level ground if possible
	The sound comes from the flowing of the refrigerant inside the air conditioner	It is normal.
If you are having trouble with your portable air conditioner, please refer to below trouble shooting. If nothing of the below works, please contact your retailer for servicing of your Air Conditioner.

Error Codes CAUSE REMEDY
E2 Code	Room temperature sensor failed or is damaged. Replace room temperature sensor
E3 Code	Evaporator temperature sensor failed. Replace evaporator temperature sensor
E4 Code	Water tank full	Please empty the water tank.

Guarantees

2 years consumer warranty against production faults. Please note that the warranty is only valid upon the production of the receipt. The warranty is only valid if the product is used in accordance with the instructions and security warnings expressed in this manual. The warranty does not cover any damages caused by improper handling of the product.

NOTE: The 2 years warranty only applies for consumers and not for commercial use of the unit.

NOTE!

Register at www.warranty-woods.com and read about how to get extended warranty. Please visit www.woods.se for more information.

Recommended limits for use

The best operating ambient temperature for cooling is 17-35 °C, and the optimum ambient temperature for heating is 8-25 °C. The unit runs up to +43°C .Fuse Parameter: φ5.0x20mm 3.15A, 250Vac.

TECHNICAL DATA	AC Milan 7K AC Milan 9K AC Como 12K
Cooling capacity	2000 W	2600 W	3500 W
Power consumption	750 W	950 W	1250W
Air flow: 350 m	^1/h 350 m	^3/h 380 m	^3/h
Energy class A A A
Dehumidification	19 L / 24h	24 L / 24h	28,B L / 24h
Temperature setting	15-31°C	15-31°C	15-31°C
Working temperatur	16-43°C	16-43°C	16-43°C
EER	2,6	2,6	2,6
Air exhaust pipe tensile length	1,5 m	1,5 m	1,5 m
Diameter of the air exhaust hose pipe	155mm	155mm	155mm
Refrigerant gas	R290/100g	R290/160g	R290/220g
Noise level in decibels	61dB	61dB	52dB
Weight	22kg	24kg	25Kg
Dimensions in mm, L x Bx H	355x350x700	355x350x700	355x350x700

*Technical changes and improvements may occur. All values are approximate and may vary due to external circumstances such as temperature, ventilation and humidity.

*This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your us device, please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmental safe recycling.

WOOD'S FÖR REN OCH HÄLSOSAM INOMHUSLUFT

Warning sign depicting a flame symbol in yellow and black, indicating hazard or electrical hazard.

FÖRBEREDA LUFTKONDITIONERINGEN FÖR INSTALLATION

2. Installation

≥30cm ≥30cm

Warning sign depicting a flame symbol in yellow and black, indicating hazard or electrical hazard.

Brennbart materiale.

Denne enheten inneholder R290/propan, et brennbart kuldemedium.

≥30cm ≥30cm

PRODUKTBESKRIVELSE

3. Produktbeskrivelse

A

Warning sign depicting a flame symbol in yellow and black, indicating hazard or electrical hazard.

Installation ADVARSEL

≥30cm ≥30cm

PRODUKTBESKRIVELSE

3. Produktbeskrivelse

A

Warning sign depicting a flame symbol with hazard symbol, commonly used in safety or hazard prevention.

≥30cm ≥30cm

PRODUKTBESCHREIBUNG

Warning sign depicting a flame symbol in yellow and black, indicating hazard or electrical hazard.

≥30cm ≥30cm

DESCRIPTION DU PRODUIT

≥30cm ≥30cm

ELIJA WOOD'S SI QUIERE DISFRUTAR DE UN AIRE INTERIOR LIMPIO Y SALUDABLE

Warning sign depicting a flame symbol in yellow and black, indicating hazard or electrical hazard.

1. VEILIGHEIDSWAARSCHU-WINGEN

Warning sign depicting a flame symbol in yellow and black, indicating hazard or electrical hazard.

Installatie WAARSCHUWING

≥30cm ≥30cm

PRODUCTBESCHRIJVING

-Power supply meets the requirements.

-The socket is for AC use.

-Do not share one socket with other appliances.

-Voeding is AC220-240V, 50Hz

a) when the swing button is activated, the swing blade swings up and down automatically. If you want to stop, press the button again.

bedrijf

Warning sign depicting a flame symbol in yellow and black, indicating hazard or electrical hazard.

≥30cm ≥30cm

OPIS PRODUKTU

3. Opis produktu

A

Warning sign depicting a flame symbol in yellow and black, indicating hazard or electrical hazard.

≥30cm ≥30cm

DESCRIEREA PRODUSULUI

Warning sign depicting a flame symbol in yellow and black, indicating hazard or electrical hazard.

≥30cm ≥30cm

TUOTTEEN KUVAUS

3. Tuotteen kuvaus

A

Warning sign depicting a flame symbol with hazard symbol, commonly used in safety or hazard prevention.

≥30cm ≥30cm

PRODUKTO APRAŠYMAS

Warning sign depicting a flame symbol in yellow and black, indicating hazard or electrical hazard.

≥30cm ≥30cm

PRODUKTA APRAKSTS

ARIA INTERNA PULITA E SANA CON WOODS

Warning sign depicting a flame symbol in yellow and black, indicating hazard or electrical hazard.

≥30cm ≥30cm

Warning sign depicting a flame symbol in yellow and black, indicating hazard or electrical hazard.

≥30cm ≥30cm

ΠΕΡΙΓΡΑΦΗ ΠΡΟΪΟΝΤΟΣ

Warning sign depicting a flame symbol in yellow and black, indicating hazard or electrical hazard.

Eldfim efni. Petta tæki inniheldur R290/ própan sem er eldfimt kæliefni.

≥30cm ≥30cm

VÖRULÝSING

3. Vörulýsing

A

1. Útblástursbarki
2. Tengistykki loftútblástursbarka
3. Millistykki gluggaútblástur
4. Fjarstýring
5. Hlífðarplata
6. Vatnstappi

B

1. Tenging afrennsliss-löngu

LÝSING Á AĐGERĐARHÖMUM OG UPPSETNINGU

A. Aukabúnaður

Warning sign depicting a flame symbol in yellow and black, indicating hazard or electrical hazard.

≥30cm ≥30cm

TOOTE KIRJELDUS

3. Toote kirjeldus

A

Wood's is marketed and distributed by:
