USER MANUAL AC Como12K Wood's

OPERATING INSTRUCTIONS FOR:

AC Milan 7K WIFI Smart Home WAC704G AC Milan 9K WIFI Smart Home WAC904G AC Como 12K WIFI Smart Home WAC1212G

White outdoor water heater with 'Hood's' branding and '18' logo, no visible text or symbols beyond branding

Visit woods.se for more information and updated instruction manuals.

For extended warranty, register your product at warranty-woods.com Visit our website, www.woods.se, for the latest updated owners manual.

GB	Operating Instructions	PL	Instrukcja obsługi
SE	Bruksanvisning	RO	Manual utilizare
NO	Bruksanvisning	FI	Käyttöohjeet
DK	Betjeningsvejledning	LT	Naudojimosi instrukcija
DE	Bedienungsanleitung	LV	Lietošanas instrukcija
FR	Guide d'instructions	IT	Istruzioni per l'uso
ES	Manual de instrucciones	GK	Oðnyíeç Λειτουργίας
NL	Gebruiksaanwijzing	IS	Notkunarleiðbeiningar
EE	Kasutusjuhend

Table of Comments

Visit our website to:

Get usage advice, updated owners manual, troubleshooting and update information.
and service information
Register your product for additional services: www.warranty-woods.com

CUSTOMER CARE AND SERVICE

Always use original spare parts.
When contacting our authorised service centre,
ensure that you have the following data available:

Improber number, receipt and serial number.

The refrigerant used in portable air conditioner is the
environmentally friendly hydrocarbon R290. This refrigerant is
doorless, and compared to t is an ozone-free refrigerant.

Warning / Caution-Safety Information.

General information and tips.
Environmental information. Subject to change without notice.

AC Milan 7K/9K WiFi Smart Home, AC Como 12K WiFi Smart Home are in conformity with the technical requirements of the following standard(s):

LVD:2014/35/EU

(1) 2023年, 2024年, 2025年
EN 60335-2-40:2003/613:2012 EN 60335 1:2012/62:2019
EN 60539-1.2012/A2.2019 EN 62233-2008

图 1. 《证券时报》第2号

EMC:2014/30/EU
EN 301 489 1
EN 301 489-17 EN 55014 1
EN 35014-1 EN JEC 61000-3-2
EN161000.2.2
EN550142

RED: 2014/53/EU

EN 301 489-1 V2.2.3:2019
EN 301 489-17 V3.2.4:2020
EN55014-1:2017/ATT:2020
EN 53014-2:2015 EN 61000-3.2:2014
EN IEC 61000-3-2:2019
EN 61000-3-3:2013
EN 61000-3-3;2013/A1:2019
EN 300328 V22.2:2019 EN 50665:2017
EN 60335-2-40:2003/A13:2012
EN 60335-1:2012/A2:2019
EN 62233:2008

CONTENTS: PAGE NO.

TABLE 6.02.01.04.05

OPERATING PRODUCTION

L10(2)
Shigata 16:25
Richestion 27-31
Cach
Germac (17)
5.4.13 14:07
Special
Curn:
6.015
6.12.2017
Hindc
Lithuanet 109-175
LADON
(1) 2017年1月1日
G. 2016
Estevati 14/152
PROCIA

Operating Instructions Operating Instructions

PRODUCT DESCRIPTION

A.

Technical diagram showing exploded view of seven mechanical components with numbered labels

B.

White industrial water heater with 'HooFix' branding and mounting feet (no visible text or symbols on body)

C.

Technical diagram of an air conditioner unit with numbered parts and labeled components

D.

White rectangular appliance with control panel and indicator lights (no visible text or symbols)

Operating Instructions Operating Instructions PRODUCT DESCRIPTION PRODUCT DESCRIPTION

E

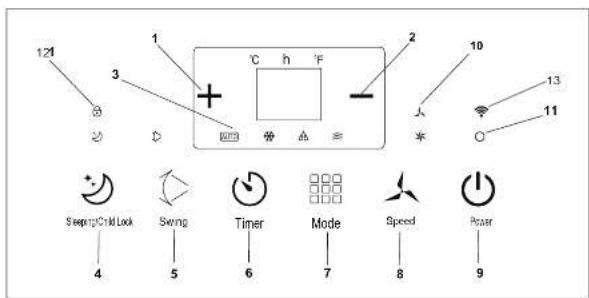

121 3 + - 2 10 13 11 SleepingColdLock 4 5 6 7 Speed 8 9 Swing Timer Mode Speeder

E

Diagram illustrating three scenarios of a device operation: setting cross, check, and setting grid with checkmark indicators.

G

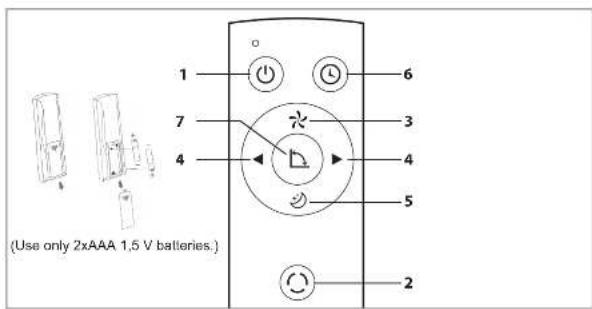

(Use only 2xAAA 1,5 V batteries.) 1 6 7 3 4 4 5 2

H.

I.

Technical diagram showing three stages of air conditioning unit installation: inlet, side panel, and back panel with labeled components.

Operating Instructions Operating Instructions PRODUCT DESCRIPTION

Window width min:67.5cm max:123cm

Window height min:67.5cm max:123cm

Illustration of two devices connected to a monitor, one with a ladder and the other with a rope (no text or symbols)

Three-panel diagram showing a device with labeled components and wiring, no readable text or symbols present.

WOOD'S FOR CLEAN AND HEALTHY INDOOR AIR

The brand Wood's was born with the Wood's family over 65 years ago in the Canadian city of Guelph, Ontario. This is where Wood's began developing and manufacturing dehumidifiers in 1950. Since then Wood's has helped several hundred thousand households to prevent damages from mould and dampness, and to breathe cleaner air. Our portable air conditioners are suitable for use in most climates, where capacity is good even at different temperatures and humidity levels. They are used with good results in premises that become hot such as living rooms, offices or bedrooms. The amount of hot air that the air conditioner removes depends on the temperature, humidity level, and placement. External weather conditions may also effect the performance of the air conditioner.

Wood's air conditioners are safe in operation and intended for continuous use over many years.

HOW DOES THE AIR CONDITIONING UNIT WORK?

Low pressure gives cold air The main element of the air conditioner is a coolant, which under low pressure is converted to gas. The process "creates cold", which is transmitted inward, while keeping the warm air out. A liquid coolant is passed through an expansion valve and into a pipe where the pressure is low. The coolant evaporates and turns into a gas. The process absorbs heat from the surroundings and the pipe is cooled. A fan blows the cold air into the room. The gas is passed through a compressor, which increases the pressure and converts the gas into liquid. In this process, heat is released, which is led to pipes on the opposite side and blown out by a fan. A thermostat shuts off the unit when the indoor air is cold enough.

1. SECURITY WARNINGS

Flammable material. This appliance contains R290/Propane a flammable refrigerant.

Refer to this manual for safety information.

Read technical manual

Read operators manual.

SAFETY INFORMATION

Before the installation and use of the appliance, carefully read the supplied instructions. The manufacturer is not responsible if an incorrect installation and use causes injuries and damages. Always keep the instructions with the appliance for future reference.

Children and vulnerable people safety

WARNING

Risk of injury or permanent disability.

This appliance can be used by children aged 8 years and above and persons with reduced physical sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning the use of the appliance in a safe way and understand the hazards involved,

Do not let children play with the appliance.

Children of less than 3 years should be kept away unless continuously supervised.

Keep all packaging away from children.

Cleaning and user maintenance shall not be made by children without supervision.

General Safety

This appliance is intended to be used in households and similar applications such as: a family room, living room, staff kitchen areas in shops, offices, and other working environments. The rating plate is located at the side or back of the Air Conditioner. Keep ventilation openings clear of obstruction.

Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.

The appliance, shall not be stored in a room with operating ignition sources (for example: open flames, an operating gas appliance or an operating electric heater. Do not pierce or burn.

Be aware that refrigerants may not contain an odour. Do not use water spray and steam to clean the appliance. Clean the appliance with a moist soft cloth. Only use neutral detergents. Do not use abrasive products, abrasive cleaning pads, solvents, or metal objects. If the supply cord is damaged, it must be replaced by the

manufacturer, its Authorised Service Centre or similarly qualified persons in order to avoid a hazard.

SAFETY INSTRUCTIONS

Installation

WARNING

Only a qualified person must install this appliance.

Remove all the packaging. Do not install or use a damaged appliance. The appliance shall be installed, operated, and stored in a room with a floor area larger than 4 m² to 4.2 m²(7k), 7.7 m² (9K), 9.6 m²(12K). Obey the installation instruction supplied with the appliance.

Always be careful when you move the appliance because it is heavy. Always wear safety gloves. Be aware that refrigerants may not contain an odour.

Make sure the air can circulate around the appliance.

Wait at least 4 hours before connecting the appliance to the power supply. This is to allow the oil to flow back into the compressor.

Do not install the appliance close to radiators or other heat sources. Do not install the appliance where there is direct sunlight.

Electrical connection

WARNING

Risk of fire and electrical shock. The appliance must be connected to a grounded outlet. Make sure that the electrical information on the rating plate

matches with the power supply. If not, contact an electrician.

Always use a correctly installed shockproof socket.

Do not use multi-plug adapters and extension cables,

Make sure not to cause damage to the electrical components (e.g. mains plug, mains cable).

Contact the Authorised Service Centre or an electrician to change the electrical components.

The mains cable must stay below the level of the mains plug.

Connect the mains plug to the mains socket only at the end of the installation.

Make sure that there is access to the mains plug after the installation.

Do not pull the mains cable to disconnect the appliance. Always pull at the mains plug.

Use

Risk of injury, burns, electrical shock, or fire.

Do not change the specification of this appliance.

Be careful not to cause damage to the refrigerant circuit. It contains propane (R290), a natural gas with a high level of environmental compatibility. This gas is flammable.

If damage occurs to the refrigerant circuit, make sure that there are no flames and sources of ignition in the room. Ventilate the room.

Do not put flammable products or items that are wet with flammable products near or on the appliance.

Disposal

WARNING

Risk of injury.

Disconnect the appliance from the mains supply.

Cut off the mains cable and discard it.

The refrigerant circuit of this appliance is ozone-friendly. Contact your municipal authority for information on how to discard the appliance correctly.

Do not cause damage to the part of the cooling unit that is near the heat exchanger.

SET UP AIR CONDITIONER FOR INSTALLATION

2. Installation

BEFORE FIRST USE

Let the machine stand upright for 2 hours before use. This is so that oil that may have leaked into the cooling system can flow back to the compressor. (The same as for a refrigerator)

Important

1. This air conditioner may be conveniently moved around indoors. Keep the unit in an upright position while moving it. The air-conditioner should be placed on a flat surface.

Do not install or operate this air conditioner in a bathroom or other wet environment.

Since a portable air conditioner is on wheels, it is easy to change positions. When it gets hot, you just move your portable air conditioner into the room and can quickly get started cooling the space.

The air conditioner must be operated in an enclosed area to be most effective.

Close all doors, windows, and other openings to the room. Even if you have high ventilation or large windows with direct sunlight can affect the cooling effect.

1. Place the air conditioner in a location that does not restrict airflow through the front of the unit.

2. An air conditioner operating in a

room will have little or no effect

in drying an adjacent enclosed storage

area, such as a closet, unless there

out of the area. A portable air Conditioner evacuates the heat from the unit with a ventilation hose through a window or exhaust air valve.

1. There should be a minimum of

30 cm distance between Air Conditioner and closest object. See picture for reference.

≥30cm ≥30cm

PRODUCT DESCRIPTION

3. Product description

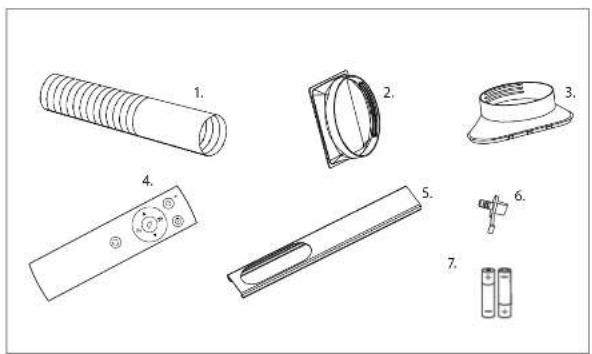

A

1. Exhaust air hose

2. Connection for exhaust air hose to the AC

3. Connection for exhaust air hose to the

window rail

1. Remote control

2. Window rail

3. Water plug

4. Batteries

日

1. Product Front picture

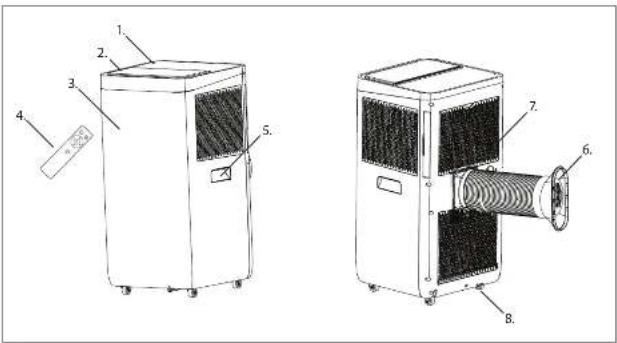

c

1. Control panel

2. Cold Air Outlet

3. Signal Receptor

4. Remote Controller

5. Transport Handle

6. Air Outlet Hose

7. Evaporator Air Intake

8. Drainage outlet

口

1. Product Top Picture

F

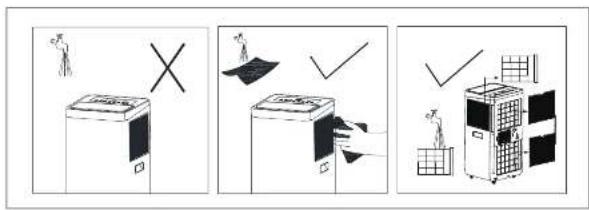

1. Instructions of filter screen cleaning.

。

^1

☐ BUTTON Rooster oil / off

BUTTON

Press this button to select the operation.

mode

3

BUTTON

Used to select fan speed in sequence.

1.

SETT BUTTONS

used to adjust the room temperature and

[Non-Text]

the other.

300 TOK

Used to set of cancer node operation.

BUTTON

Used to set automatic ON and automatic ON time

[Unreadable]

DURATION

Used to set the oscillation's swing

function

H

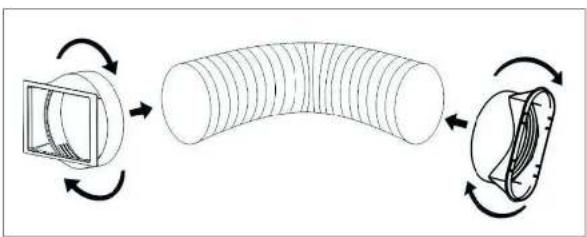

1. Turn the ends of the exhaust hose into the

connections as shown.

i

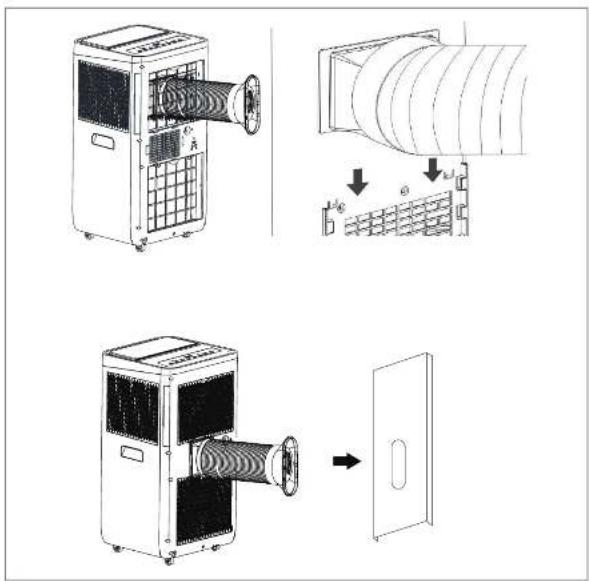

1. Exhaust air hose installation instructions

2. Hours/ Temperature up

3. Hours/ Temperature down

4. 140000000

A. shumidifying Fan Mode

1. Sleep Mode and Child Lock

2. 10Coculation/Swing

3. 2017年

a.

1. Operating Mode

2. Fad Speed (low/high)

3. Power Button (on/off)

4. Indicator light for selected fan speed

5. Operation indicator (illuminates when the machine is in operation)

6. 3 Indicator lamp for child lock and sleep mode

12

•

J

1. Installation instructions for window rail NOTE! This window rail is not suitable for all types of windows. We recommend Wood's Window sealing kit (article number: wac_wk) if this rail does not fit.

K

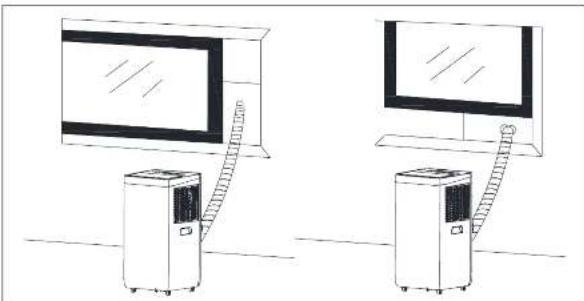

1. Window rail installation proposal

L

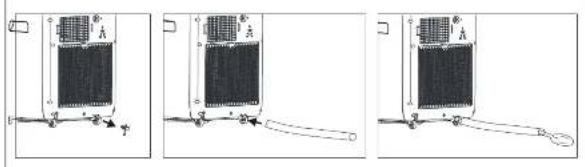

1. Installation instructions for drainage hose (NOTE) Hose is not included. The nozzle is adapted for a 10mm device hose

FUNCTION OF THE OPERATION MODES AND INSTALLATION DESCRIPTIONS

A. Accessories

After unpacking, please check whether the above-mentioned accessories are included, and check their purposes in the installation introduction in this manual. Accessory No. 6 is already mounted at the bottom of the back of the machine.

B. Portable air conditioning G. Appearance and Function of Remote Control. Notes: Do not drop the remote control. Do not place the remote control in a location exposed to direct sunlight.

A. Operation Introduction Before starting operations in this section: 1) Place the air conditioner in a place where you have close access to a grounded electrical outlet.

2) Install the exhaust hose, and adjust the window position well.

3) Insert the power cord into a grounded AC220\~240V/50Hz socket;

4) Press the POWER button to turn on the air-conditioner.

H, I, and K. Installation of exhaust air hose

M) Temporary installation 1. Twist both ends of the exhaust hose into the Hose connections, 2. Insert the square fixing clip into the air outlet at back of the machine. 3. Put the other end of the exhaust hose near windowsill.

J&K: Window Slider Kit Installation The installation manner of window slider kit is mostly in "horizontal" and "vertical". As shown Fig. 5 and Fig.5a, check the min. and max. size of the window before the installation. 1. Install the window kit on the window; 2. Adjust the length of the window slider kit according to the window width or height, and fix it with the dowel;

1. Attach the hose bracket to the hole in the window rail

O. Internal Tank "Water Full" Alarm The water tank inside the machine has a level monitor that detects when the tank is full. When the container is full, the machine switches off automatically and the code E4 is shown on the display.

(If the water tank is full, please remove the rubber plug at the bottom of the unit to drain the water.) We recommend that you drain the water over a 600000 mm drain.

It is very important that the filter is cleaned regularly; otherwise the air conditioner might lose capacity and even be risk serious damage.

alternatively an oven tray. when the water is full, please remove the rubber blockage at the bottom of unit, and all water will be drained outside.

Care Instructions And Maintenance Declaration:

1) Before cleaning, be sure to disconnect the unit from any electric supply outlet;

2) Do not use gasoline or other chemicals to clean the unit; 3) Avoid rinsing water directly on the unit

4) If the machine is damaged, please contact your dealer 1. The air filter

-If the air filter becomes clogged with dust/dirt, the air filter should be cleaned once every two weeks.

Dismounting Open the air inlet grille and take off the air filter.

Cleaning Clean the air filter with a neutral detergent in lukewarm water (40°C) and let dry in the shade.

Mounting

Putting the air filter into the inlet grille, replace the components as they were.

1. Clean the surface with a neutral detergent and a wet cloth, followed by drying it with a dry cloth.

E. Before using Check whether the exhaust hose has been mounted properly. Cautions for cooling and

dehumidifying operations: -When using functions on cooling and dehumidifying, keep an interval of at least 3 minutes between one

least 5 minutes between each

POWER. Power supply meets the

Power Supply requirements

The socket is for AC use.

-Do not share one socket with other

appliances.

Power supply is

AC220-24DV.50Hz

1. Turn on the unit

a) Plug In, then the unit beeps once, "O"

The power indicator light is on.

b) Press the "O" button, then the unit is turned on.

c) The LED displays the room temperature and under Automatic mode.

1. Cooling operation

-Press the "Mode" button till the

Snowflake icon is displayed on the panel.

-Press the "+" or "-" button to select

the desired room temperature (15°C-31°C)

-Press the "Fan Speed" button to

select wind speed

1. Dehumidifying operation

Press the "Mode" button till the

"Denumidity" icon appears.

-Automatically set the selected

temperature to current room

Temperature minus 2 °C

- Automatically set the fan motor to LOW wind speed.

1. Fan sensation

Press the "Mode" button till the "Fan"

Icon appears.

-Press the "Fan Speed" button to

select wind speed.

FUNCTION OF THE OPERATION MODES AND INSTALLATION DESCRIPTIONS

1. Timer operation

a) Press the "Timer" button to set

Automatic Off time while the unit is running.

b) Press the timer button for a scheduled start.

cl The time can be adjustable within a

range of 1 hour to 24 hours. Press the

temperature up (+) or temperature down

(■) button to increase or decrease the time by one hour by pressing once.

1. Operation

a) The operation is effective when the unit is under node.

b) Press the button in mode, for

activating sleep mode. In sleep mode,

the run will run on how speed. The set temperature increases by 1 °C after one

hour and the temperature increases by 2

^°C after two hours. After 6 hours, the unit

switches off. Should the temperature rise

by more than 2 °C above the set value, the machine will start in full operation.

1. Oscillation / Swing

a) When the Oscillation / Swing button is

activated, the swing blade swings up and press the button again

Service

If the Air Conditioner requires servicing, you must first contact your local retailer.

Proof of purchase is required for an warranty claimy.

Storage instructions

End of Season Storage

1) We recommend that you drain the

water over a floor drain, or alternatively a halving sheet frame off the dirin.

cover and pull out the stopper to drain condensate water

completely.

2) Keep unit running in fan mode for half day to dry inside of unit completely to prevent from going moldy.

3) Turn off the unit, pull out the plug then

wrap the power cord around the wire-

winding pillar, insert the plug into the

universal mounting hole at the back panel of the unit, install the water stopper and drain cover.

4) Remove the heat exhaust hose

assembly, clean and keep it properly.

NOTE

Push in the brackets,

Hold the Exhaust hose assembly with both hands when removal.

Push the fasteners aside on

outlet using your thumbs, then pull out

exhaust hose assembly.

5) Pack the air conditioner carefully with a

soft plastic bag, put it on a dry place, and take appropriate action

obst. keep the device of children.

6) Take out the batteries from the remote

control and store it properly

Note:

^a Assure the unit is stored in a dry place.

All accessories for the device must be

stored together and properly protected.

* The power cord holder and the universal

socket provides protection to the power

cord.

* High location of the exhaust air outlet,

offers simple assembly and rapid

ventuation.

* The unit's self-evaporative cooling

system is intelligent, environmentally

friendly and energy saving.

* Features a 24-hour timer function, with a

unique on/off musical sound

* There is a 3 minute delay on restarting the compressor as a protective function.

WiFi function

1. Download and Install APP

Download Woods Connect app from App Store or Google Play

1. Register/Login/Forgot password

[Non-Text]

register

If you don't have an App account,

register an account of sign in with a verification page by SMS

This page describes the registration

process.

1. Tap to enter the registration page.

2. The system automatically reco-

gnises your country / area. You can

also select your country code. Enter the mobile number(f-mail and tap

"Next"

1. If you enter the mobile number,

then enter the verification code in

the message and enter the password

up Confirm to finish your registration.

1. If you enter the E-mail enter the

password and tap "Confirm" to finis

your registration.

2. Sign in with username

and password or verifi-

cation code via SMS

Sign in with username and

password

1. The system automatically recogni-

ses your country / area, You can also

select your country code. Enter the mobile number (E-mail and top "Now")

1. Enter your registered mobile num-

ber or email, and password to login.

Sign in with verification code

1. Tap "Sign in with SMS verification"

on new page.

1. The system automatically recogni

ses your country / area.

You can also select your country code by yourself.

By yourself.

Forgot password

If you forgot your password, please

follow these procedures:

1. Tap "Forgot password".

2. The system automatically recogni

ses your country / area. You can also

select your country code by yourself. Enter the mobile number/E-mail and

tap 'Next',

1. Enter the verification code in the

message/E-mail and enter the new

password tap confirm to finish.

Woods Connect supports the

below functions:

• Power on/Power off

• Cool Mode

- Dehum Mode

• Fan Mode

• Eco Mode

• Temperature settings

- Speed. Low and High Time: 1.74 h

- Single On/Off

• Auto clean On/Off

• Celsius/Eabrenheit

- Swing: On/Off

3. Follow the procedures

in the APP to enjoy the

WiFi features.

Smart Home

If you have a Smart Home product

please finish steps 1 to 3.

Third-party Access Service: Tap

a third-party voice service icon to

see how to connect to the service

Smart Home Woods Connect

supports the following functions

through voice command;

Power on/Power off

Temperature settings

Mode settings

Fan speed settings

For more information visit

https://woods.se/en/

PROBLEM CAUSE REMEDY
The unit does not start when pressing or shift button	Not plugged in / Ping at socket is damaged. Ping in or replace the power or socket.
	A fuse is blown or broken. Replace the fuse (L15A/253AC).
	The room temperature is lower than the sat temperature.(Cooling minder)	Reset the temperature.
Not cool enough	the doors or windows are not closed. Make sure all the windows and doors are closed.
	There are heat sources tested the rooms. Remove the heat sources if possible.
	The exhaust air hose is not connected or blocked. Connect or clean the exhaust air hose.
	Temperature setting is too high. Reset the temperature.
	The air inlet is blocked. Clean the air inlet.
High noise level	The ground is not level or not fat enough. Place the unit on: flat, level ground if possible
	The sound comes from the flowing of the refrigerator inside the air conditioner	It is normal.

Error Codes CAUSE REMEDY
E2 Code	Roater temperature sensor failed or is damaged. Replace room temperature sensor.
E3 Code	Evaporator temperature sensor failed. Replace evaporator temperature sensor.
E4 Code	Water tank full.	Please occupy the water tank.

Guarantees

2 years consumer warranty against production faults. Please note that the warranty is only valid upon the production of the receipt. The warranty is only valid of the product is used in accordance with the instructions and acts by making accurate in this manual. The warranty does not cover any damages caused by improper handling of the product.

NOTE: The 2 years warranty only applies for consumers and not to commercial use of the unit.

TECHNICAL DATA	AC Milan 7X WIFI Smart Home	AC Milan 9X WIFI Smart Home	AC Como 12X WIFI Smart Home
Tollinger specialty	2011 W	2011 W	2011 W
Power source replica	24-W	56-W	129-W
Interface	32.8 m/s	32.8 m/s	32.8 m/s
Balance class	4	4	4
Temperature setting	50-74°C	74/74°C	74/74°C
Working conditions	16-40°C	16-40°C	16-40°C
REF	2.6-2.6-2.6
Length of air intake time	1.5 m/s	1.5 m/s	1.5 m/s
Duration of the air change in space	7.5 min	7.5 min	7.5 min
Balance angles	825°-106°	825°-106°	825°-223°
Contact location	50 dB	50 dB	52 dB
Weight	2.5 g	2.5 g	2.5 g
Dimensions in mm, L (Mol K 85x84x97x85x85x85x85x85x85x85x85x85x85x85x85x85x85x85x85x85x85x85x85x85x85x85x85x85x85x85x85x85x85x85x85x85x85	0.70×100.00×100.00×100.00×100.00×100.00×100.00×100.00×100.00×100.00×100.00×100.00×100.00×100.00×100.00×100.00 ×100.00×100.00×100.00×100.00×100.00×100.00×100.00×100.00×100.00×100.00×100.00×100.00×100.00×100.00×1

*Technical changes and improvements may occur. All values are approximate and may vary due to external circumstances such as temperature, ventilation, and humidity.

This marking indicates that this product should not be disposed of with other household wastes throughout the PL. To present possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your as device, please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmentally safe recycling.
Used batteries must not be disposed of through household garbage, since they might contain toxic elements and heavy metals that can be harmful to the environment and human health. Return empty batteries to an appropriate recycling facility.

NOTE

Register at www.warranty woods.com and read about how to get an extended warranty. Please visit www.woods.se for more information.

Recommended limits for use

The best operating ambient temperature for cooling is 17-35 °C. Fuse Parameter: φ5.0x20mm 3.15A, 250Vac.

Brutoverrengalaksompling

WOOD'S FÖR REN OCH HÄLSOSAM INOMHUSLUFT

FÖRBEREDA LUFTKONDITIONERINGEN FÖR INSTALLATION

2. Installation

≥30cm ≥30cm

PRODUKTBESKRIVNING

8. Oscillering/swing

≥30cm ≥30cm

3. Produktbeskrivelse

A

1. Eksosslange

2. Tilkobling for eksoslangen til klimaanlegget

3. Tilkobling for eksoslangen til vindusskinnen

4. Fjernkontroll

5. Vindusskinne

6. Vannplugg

7. Batteries

B

Skyv inn brakettene,

1. Registrering/Palogging/Glernt password

Registrering

Warning sign depicting a flame symbol in yellow and black, indicating hazard or electrical hazard.

≥30cm ≥30cm

PRODUKTBESKRIVELSE

3. Produktbeskrivelse

A

H, I, and K. Installation of aftreisslange

Ml Midlertidia installation

by Tryk parknappen ☐ for ut tachale for apparate:

snefnugikonet vises pa displayet.

of the disease masighed (LOW).

Beteringesleeding, deslening, refeeding

installation WARNING

≥30cm ≥30cm

NG

S. Oscillation/Swing

Warning sign depicting a flame symbol in yellow and black, indicating hazard or electrical hazard.

≥30cm ≥30cm

DESCRIPTION DU PRODUIT

White peer health care provider.

Pour de plus amples informations, consultez : https://woods.se/en/

guides instructions guide instructions

CARACTERISTIOULS TECHNIOLS	AC Milan 7K WIFI Smart Home	AC Milan 9K WIFI Smart Home	AC Gomo 12K WIFI Smart Home
Squidifizion (V) (V) (V) (V) (V) (V) (V) (V)
Commodiment of communication (V) (V) (V) (V) (V) (V) (V) (V)
Text file: 3.0 gm	18-359 gm	18-393 gm	1 gm
Contact Object AAA
Determination (V) (V) (V) (V) (V) (V) (V) (V) (V) (V) (V) (V) (V) (V) (V) (V) (V) (V) (V) (V) (V) (V) (V) (V) (V) (V) (V) (V) (V) (V) (V) (V) (V) (V)
Anlage de tempolument	15-31 °C	15-31 °C	15-31 °C
Ferrigatoren und finanziellen	16-42 °C	16-42 °C	16-42 °C
EBI	2 Kg	2 Kg	2 Kg
Interpretation (V) (V) (V) (V) (V) (V) (V) (V) (V) (V) (V) (V) (V) (V) (V) (V) (V) (V) (V) (V) (V) (V) (V) (V) (V) (V) (V) (V) (V) (V) (V) (V) (V)	1.5 gm	1.5 gm	1.5 gm
Energetode typographie (V) (V) (V) (V) (V) (V) (V) (V) (V) (V) (V) (V) (V) (V) (V) (V) (V) (V) (V) (V) (V) (V) (V) (V) (V) (V) (V) (V) (V) (V) (V) (V) (V)
Bauftstoff unit	820/101 g	820/101 g	820/101 g
Vorze wasser und mitzeln	5 Kg	5 Kg	5 Kg
Netto	2 Kg	2 Kg	2 Kg
Zinschöne amm, Lutein	320/100/100	320/100/100	320/100/100

≥30cm ≥30cm

1. VEILIGHEIDSWAARSCHUWINGEN

Warning sign depicting a flame symbol in yellow and black, indicating hazard or electrical hazard.

VEILIGHEIDSINSTRUCTIES Installatie WAARSCHUWING

≥30cm ≥30cm

PRODUCTBESCHRIJVING

hydrogenase activity of

1. @NOR

Life view in station www.the-actawasie.com

B. Draagbare airconditioning

-Voeding is AC220-240V, 50Hz

Aks a problem under and not an obstacle normal border, not being in the period after problem following normal order. Aks mark are not under one side with, then don't stand up and do better after boundary from an abnormal border.

KONFIGUROWANIE KLIMATYZATORA DO INSTALACJI OPIS PROD

2. Instalowanie

PRZED PIERWSZYM UŻYCIEM

≥30cm ≥30cm

3. Opis produktu

A

Warning sign depicting a flame symbol in yellow and black, indicating hazard or electrical hazard.

≥30cm ≥30cm

DESCRIEREA PRODUSULUI

https://woods.se/en/

Instructur de schizare inducturari de utilizare

≥30cm ≥30cm

3. Tuotteen kuvaus

A

1. Poistoilmaletica

2. Polstollmaleticun littaminen

painamalla painiketta “+” tal “-” (15–31 °C)

≥30cm ≥30cm

https://woods.se/en/

PROBLEMA Prietastis TIKKIOJ SALINIMAS
Prestanas neprirangia moosekba ilangimio / ryangimo mayraky	Prietastas neprijungias / 60 kats arba ielas padekta.	Prijarsitke arba paskiridite maitinimo seltig arba ielag.
	Sauglidae sanogge arba sulidips. Palaistito sauglik [13-15 A / 200 Km] st.
Nopakankamalayce	Patajotas temporatira yra zemnesi nega nudorysta temporatira. (Aulimino reizins)	Atziatykite temporaturaj.
	Nasidorytos durys ar lanqal, itikinkilato, iad vist lanqal e durys yrs szdaryst.
	Patalojte yra bilumos salinu. Je timanoma, palaistiko bilumos salinus
	Ora Sieredma žerra neprijungia arba užikimios.	Naraytkite ar pripunkite orn illedimio žama.
	Nustalyte per sukita temperatira.	Atziatykite temperatiraj.
	Ora jeidirno anga hukunjana.	Naraytkite orn jeidirno anga.
Dietello games	Sifindys naiylogos arba nepakankamai plodicina.	Prietastig pastotylite and kao begesidij in huarbantali gyriakj.
	Ora konfidesterajte belatt satiteliid girdini games.	Te yra normalu.

Warning sign depicting a flame symbol in yellow and black, indicating hazard or electrical hazard.

≥30cm ≥30cm

IZSTRÄDÄJUMA APRAKSTS

3. Produkta apraksts

A

1. Izplüdes gaisa šiūtene

2. Izplödes galsa 5jötenes savienojums ar galsa kondicionieri

3. Izplödes gaisa šlõtenes savienojums ar loga sliedi

4. Tālvadibas pults

5. Loga sliede

6. Ūrdens aizbāznis

7. Bateriias

B

1. Izstradajuma attöls no priekfpuses

C

≥30cm ≥30cm

Woods Connect supporta le

seguenti funzioni:

Warning sign depicting a flame symbol in yellow and black, indicating hazard or electrical hazard.

≥30cm ≥30cm

ΠΕΡΙΓΡΑΦΗ ΠΡΟΪΟΝΤΟΣ

≥30cm ≥30cm

3. Vörulýsing

A

1. Myndir at topp taakisins

C

1. Kluckustundir/Hitestig upp

2. —Klukkustundir:Hitastia niður

3.

A. Bakaryding, Vittuhamur

Warning sign depicting a flame symbol in yellow and black, indicating hazard or electrical hazard.

OHUTUSALASED JUHISED

Paigaldus

≥30cm ≥30cm

TOOTE KIRJELDUS

3. Toote kirjeldus

A

1. Tavu 2014 di bilanzi

2. Transport of reprice

3. Oni Valjaskevoik

4. Scattered observations

5. Jiravoolava

D

1. Footprint wall

E

1. Valjatômbatoru paigaldusjuhised

J

a) Valutage nuppu "Timer" (Talmer).

Lisaleavel leiale aadressill: https://woods.se/en/

Kosztusjenerkovtusjenerxl

PROBLEM	PÖHJUS	LAMENDUS
Sueleel kaindu, kur vajutate SOKOH Csees/voljan/Trupna	Pois vokulatäris. Ohrendatari / pinta völj pesa an kohjindatari.	Ülterdage vokul vörksa vör saernage toide völ plattkuprest.
	Kaitao an tilo pokenud völ katil.	Vahortago koltao valja (3,15A/250ACL)
	Teatomporatuur on madaionu kal sardistatud temperatuur. (Ohkauvezline)	Lähtestage temperatuur.
Poic pitsavekt jahc.	Ulsed völ aknad poic suletad.	Voencuge, et hälk aknad je olsed en suletad.
	Ruumis an sequeallikad.	Voimalusi osmaldage sequeallikad.
	Valjalkonbeizora poie abendatud völ on blokeentud.	Ülterdage völ puhanlage valjaktimbetoru.
	Temperatuuri sredistus on lings korge.	Lahstestage temperatuur
	Ona viösepukhovaa on unmiskantud.	Puhanlage fihu viösepuhne.
Voll minklavae	Pind et ale halvontavirte völ poie pitavolt tilke.	Aertrage veade völnasluu komit oibetate, hoikarnaatsive planale.
	Heli valki jahal ruimine erastendivati komit viemeral.	Seer om innmades.

Veakoodid	PÖHJUS	LAHENDUS
Kood E2	Toztemperatuurl andur on ifklis till laihjustzuut.	Asendige toztemperatuurl andur.
Kood E3	Aurusti temperatuurlandiar riko.	Asendige aurusti temperatuurlandur.
Kood E4	Veepark tso.	Talijondsge veepark.

Garantiid

1. zustane barbajat andi to omvadga de korsl. Panje tainic, et garamli kehbi slutitikungj peltamid: Garamli korbis inall jutai, but inandet sevatistse koermea jahanite estatalj piutile ja turvalistate koerpsi. Garamli si kata kohjastaj mien on pohjastalud totu vainist kiltikmienst.

Wood's is marketed and distributed by:

Woods Production Sweden AB.

Box 356

441 27, Alingsås

Sweden.

woods.se

[e-mail]

[phone]

Wood's®
