USER MANUAL Airmaster WOZ100 Wood's

OPERATING INSTRUCTIONS FOR:

Exterior view of a power supply unit (no visible text or symbols on body)

Wood's Airmaster WOZ100

Exterior view of a power supply unit labeled 'Wood's 3000' with control panel and buttons (no readable text beyond branding)

Wood's Airmaster WOZ3000 Wood's Airmaster WOZ6000

GB

Operating Instructions

DE

Bedienungsanleitung

SE

Bruksanvisning

FR

A. Wood's Arminaster WOZ100 1.00 2 3 4 Wood's Arminaster WOZ100

A. 1 6 7 Woods® Armaster 3000 2 3 5 4 Wood's Armaster WOZ3000/6000

Line drawing of a rectangular device with perforated panel and handle, labeled B. (no text or symbols on the diagram itself)

Technical line drawing of a rectangular device with perforated panel and labeled component (B), no readable text or symbols beyond labels

C.

Wood's Airmaster WOZ3000/6000

D.

Diagram of three overlapping textured rectangular blocks with a labeled dimension '1' (no text or symbols beyond labels)

Consumable Parts

Technical line drawing of a heating element with coiled cable and two connected components (no text or symbols)

Actual product may vary

Extra Accessories (Not included)
E.

OZONE MONITOR SET 1

Line drawing of a handheld electric drill bit with coiled cable and terminal connector (no text or symbols)

F.

1 2 3 4 5

Wood's Airmaster WOZ100

F

Technical diagram of an electronic device with numbered components and labeled parts in Chinese

Wood's Airmaster WOZ3000/6000

PRODUCT DESCRIPTION

EN

Product description

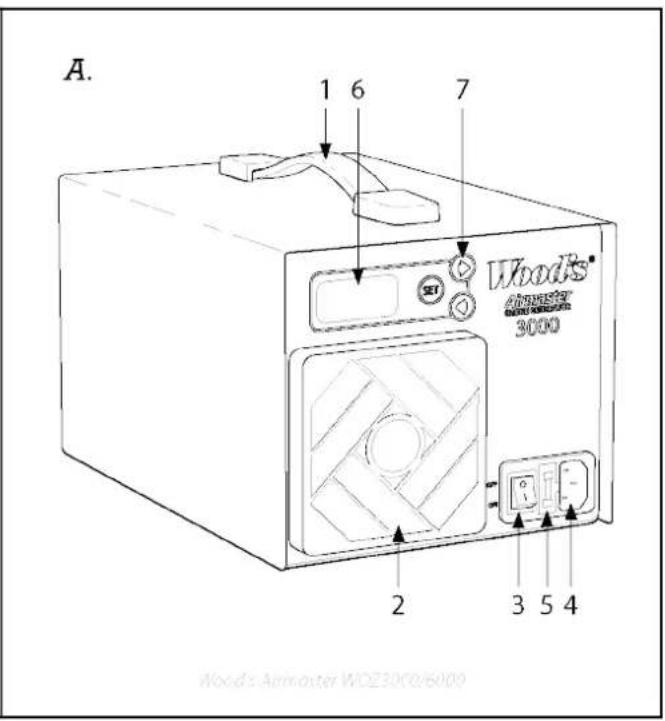

A.

1. Handle
2. Filter holder
3. ON/OFF button
4. Network connection
5. Fuse holder
6. Digital display
7. Adjustment buttons

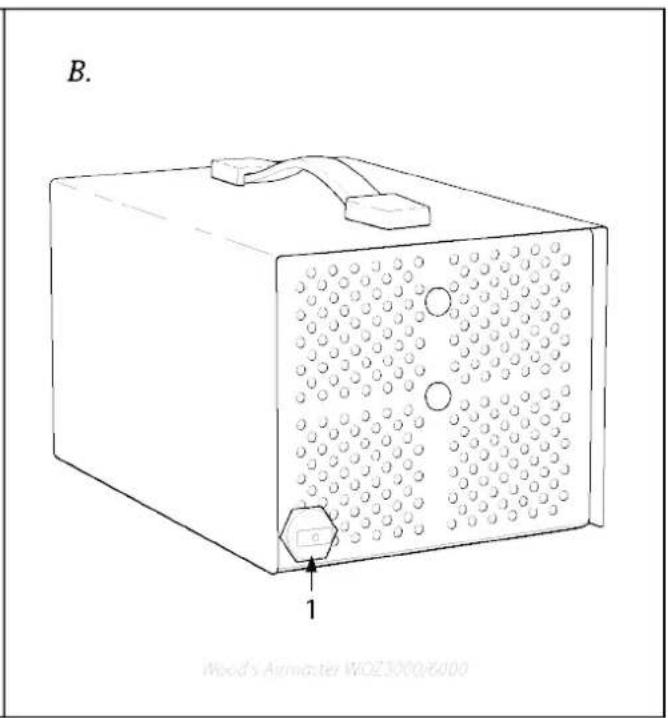

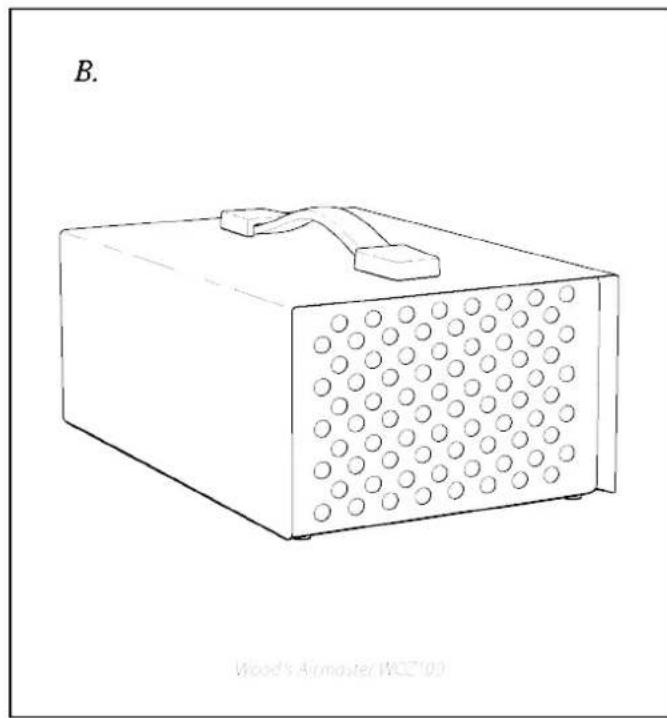

B.

1. USB port

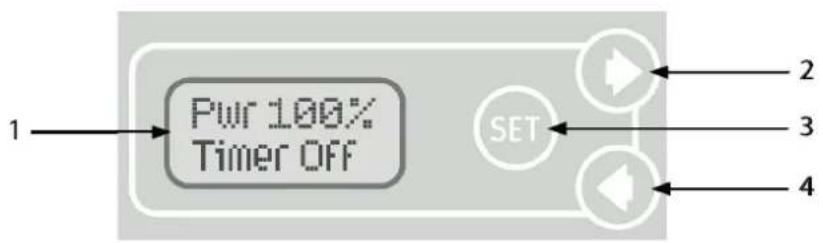

C.

Digital control

1. Digital display
2. Forward (increase)
3. Set (menu)
4. Back (reduce)

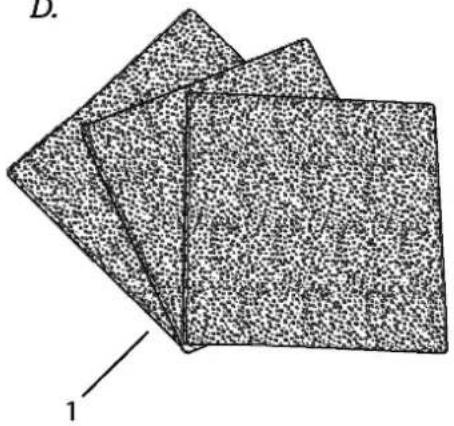

D.

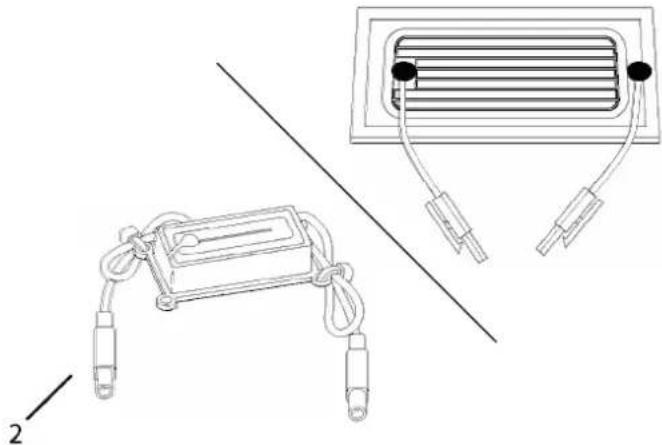

Wear parts

1. Prefilter
2. Ceramic plate

E.

Additional accessories (not included)

1. Ozone meter (not WOZ100)

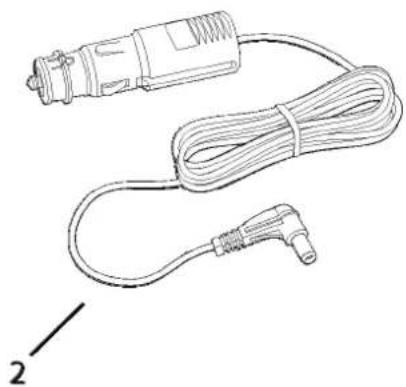

2. Cigarette lighter cable (WOZ100/WOZ400)

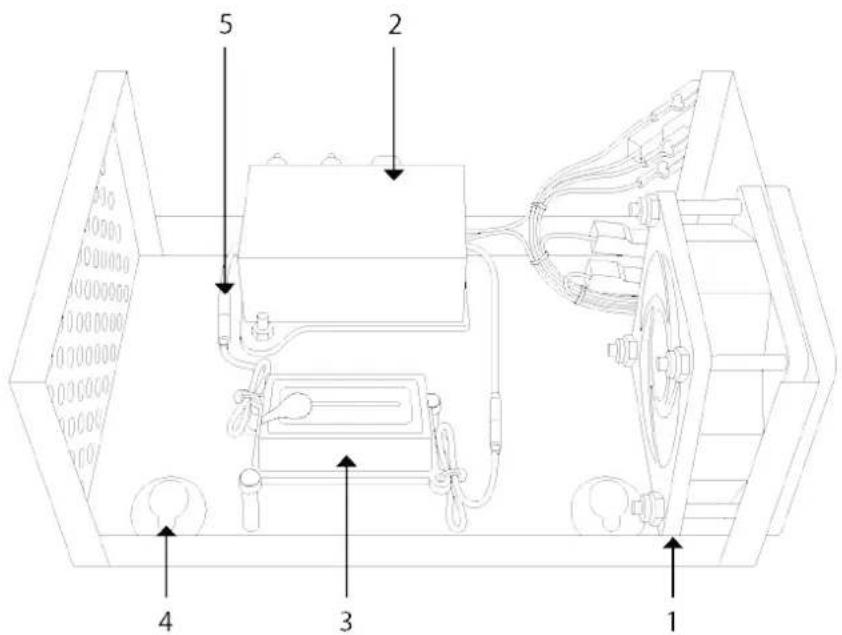

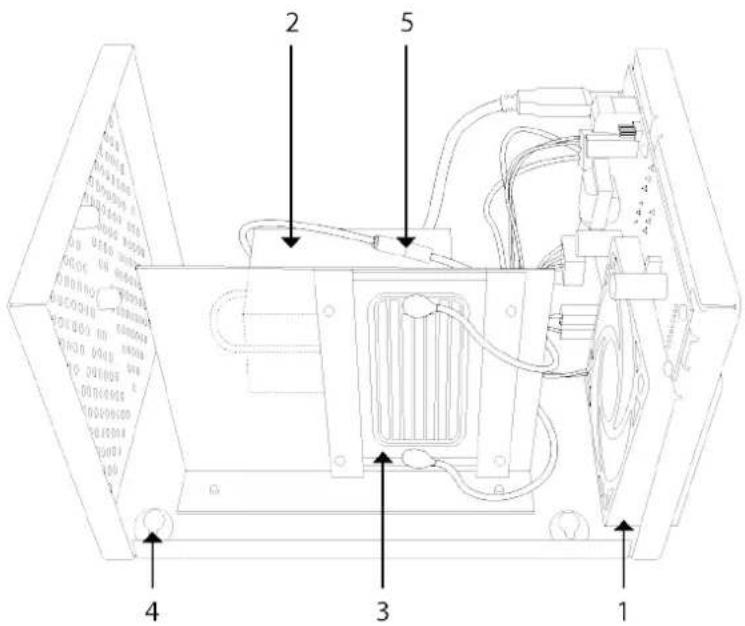

F.

1. Fan
2. High-voltage module
3. Ceramic plate
4. Hole for hanging up (keyhole)
5. Quick coupling

THANK YOU FOR CHOOSING THE WOOD'S AIRMASTER - AN EFFICIENT, SWEDISH QUALITY OZONE GENERATOR

The Wood's Airmaster is an odour control device made in Sweden, with stainless steel parts that are able to withstand harsh operating conditions year after year. This ozone device rapidly and efficiently eliminates bacteria, viruses and odours from damp, mould, refuse, waste, smoke and pets.

The Wood's Airmaster WOZ100 is ideal for eliminating odours in the home, office, car, boat, caravan and hygiene areas. Anywhere you'd like to restore a fresh, clean smell.

The ozone also penetrates into textiles and sits on the surface of fittings and wallpapers.

WOOD'S FOR CLEAN, HEALTHY INDOOR AIR

Wood's has been characterised by top quality, reliability, high capacity and minimal energy consumption for more than 60 years. Today, Wood's is distributed to more than 19 countries from the company's head office in Alingsås.

MEMBER OF THE EUROPEAN OZONE TRADE ASSOCIATION (EUOTA) AND CO-OWNER OF THE EUOTA OZONE DOSSIER FOR ACTIVE BIOCIDAL PRODUCTS.

This futureproofs the Wood's Airmaster, preparing it for future legislation and biocidal products regulations.

HOW DOES AN OZONE GENERATOR WORK?

Ozon is a special kind of oxygen known as active oxygen, and it's formed by passing electrical energy into an ozone generator. The ozone works by oxidising organic substances, thereby effectively eliminating foreign odours, bacteria and viruses. In the majority of cases, the only end products are carbon dioxide and water.

The concentration of ozone in outdoor air varies from 0.001 to 0.040 parts per million (ppm). The National Board of Occupational Safety and Health has set the threshold value to 0.1 ppm of ozone over 8 hours of exposure when working. The gas is perceived as clean, fresh air (like after a thunderstorm) at concentrations of around 0.015-0.020 ppm. The gas starts to take on a pungent odour at 0.050 ppm, and at 0.1 ppm it may cause irritation of the eyes and throat.

IMPORTANT!

Locate and eliminate whatever is causing the odour problem before running the ozone control device, otherwise the odour will return.

Ozone is harmful when inhaled, so ozone devices must be used with care.

Wood's Airmaster

In the event of accidental exposure to ozone, leave the area immediately. Do not enter the space again until it is certain that the ozone level is below the applicable limit values.

Read the instructions carefully before use.

SAFETY WARNINGS

See these instructions for safety information.

Read the technical manual

Read the instructions.

SAFETY INFORMATION Read carefully through the instructions supplied before installing and using the device. The manufacturer accepts no liability for incorrect installation resulting in injury and damage to property. Always keep the instructions together with the device for future reference.

Safety for children and vulnerable people

WARNING

Risk of injury or permanent disability. Do not allow children to play with the device. Keep all packaging out of the reach of children. Children must not clean or maintain the device.

General safety

In the event of accidental exposure to ozone, leave the area immediately. Do not enter the space again until it is certain that the ozone level is below the applicable limit

values.

Do not rinse the equipment with water, and do not position it anywhere where it will come into contact with water.

The power supply to the equipment must be switched off for all servicing and repair work. All use of the equipment must be in accordance with this manual. No liability is accepted for any other use.

SAFETY AND SECURITY REGULATIONS

Installation

WARNING

Remove all packaging and check that the product is not damaged. Do not use/install the product if it is damaged.

Connection to the power supply

WARNING

Risk of fire and electric shocks if used incorrectly. The device must be connected to an earthed socket. (Does not apply to WOZ100). Make sure that the electrical information on the rating plate matches the power supply. If not, contact an electrician. Never use a damaged branch socket or extension cable. Make sure that the electrical components are not damaged (e.g. plug, mains cable). Contact the authorised service centre or an electrician if electrical components need to be replaced.

Only connect the plug to the power socket when installation is complete.

Make sure that accessing the plug is easy after installation. Do not pull on the cable when disconnecting the device. Always hold onto the plug when pulling it out.

Disposal

WARNING

Disconnect the device from the mains. Please use the return and collection systems to recycle your device. Get in touch with your municipality for information on how to dispose of the device correctly.

USING AND MAINTAINING YOUR OZONE DEVICE

IMPORTANT!

Locate and eliminate whatever is causing the odour problem before running the ozone control device, otherwise the odour will return.

Ozone is harmful when inhaled, so the ozone device must be used with care.

In the event of accidental exposure to ozone, leave the area immediately. Do not enter the space again until it is certain that the ozone level is below the applicable limit values.

Reentry Precautions: Wait until ozone levels have decreased to meet accepted legal values before entering the room. If levels exceed these standards, refrain from entering until ozone has dissipated.

Treatment with the Wood's Airmaster

1. Preparation:

Clean the room thoroughly, vacuum and wipe down all surfaces and/or repair/eliminate the problem causing the odour.

2. Make sure that the area is safe to treat:

Remove pets and plants. Remove valuable high-tech equipment such as laptops and valuable oil paintings. Make sure that there are no people in the room.

3. Ozone treatment:

Position the ozone device in the middle of the room (ideally on a slightly raised surface such as a table). Connect the mains cable supplied to the mains socket (A4). The ozone device can now be started by pressing the on-off button (A3), and you set the timer (C) to the preferred time (models with a timer). T(he WOZ100 has no built-in timer). Always use a timer when operating your ozone

unit. If your ozone unit lacks a built-in timer, connect it to an external shutoff timer to prevent ozone exposure before it dissipates.

It can take up to about 5 minutes to achieve the full effect.

4. Duration of treatment:

2 to 72 hours, depending on the intensity of the odour. The average treatment time is 24 hours. Ideally, start off with 4-8 hours and repeat as necessary.

5. After the ozone treatment:

Wait until ozone levels have decreased to meet accepted legal values before entering the room. If levels exceed these standards, refrain from entering until ozone has dissipated.

Permanent installation

The ozone device can be wall-mounted by means of a "keyhole solution" (F4) on the underside of the ozone device.

Connect the mains cable supplied to the mains socket (A4). The ozone device can now be started by pressing the on-off button (A3).

Connecting the ozone meter (El)

The ozone meter accessory (E1) is connected to the USB port (B1) on the back.

USING AND MAINTAINING YOUR OZONE DEVICE

EN

Use

Position the ozone device in a dry place that is ventilated well, ideally high up and approx. 1.5 m above the floor. It is important to ensure that nothing prevents the air entering the fan.

Connect the mains cable supplied to the mains socket (A4).

The ozone device can now be started by pressing the on-off button (A3). The ozone device starts in operating mode, with full power (100%).

It can take up to about 5 minutes to achieve the full effect.

Starting the machine

1. Start the ozone device.

Press the switch (A3) to ON

1. Switch off the ozone device

Press the power switch (A3) to OFF

Digital control with timer

(Applicable to Wood's Airmaster WOZ3000/6000)

The ozone quantity/output can be varied between 0 and 100%.

Timer modes: daily, interval and shut-off timer.

See "Digital control" instructions on the next page for further information.

Maintenance

NOTE!

Always unplug the device before carrying out servicing/maintenance.

Replacing the prefilter

The prefilter has to be replaced every two to four months, depending on the ambient environment.

1. Undo the filter holder (A2) by hand.

2. Replace the filter with a new one.

3. Put back the filter holder (A2).

Cleaning/replacing the ceramic plate

Ozone is formed when a high-voltage power supply is passed into the ozone pipe. The ceramic plate should be cleaned regularly using methylated spirit or similar. Wipe down all surfaces using a dry cloth. Make sure that all components are fully dry before restarting the machine. The ceramic plate must be replaced if the ozone concentration declines or ceases entirely.

A. If your ozone device has visible chassis screws on the long sides

1. Undo all the screws on the long sides of the chassis.
2. Lift the cover off the machine.
3. Go to point C.

B. If your ozone device has no visible chassis screws:

1. Undo the two screws that hold the handle in place.
2. Turn the machine upside down.
3. Undo the four screws that hold the machine's feet in place.
4. Remove the chassis cover by pulling/pushing the cover forwards.
5. Go to point C.

C. Replace the ceramic plate:

1. Undo the quick couplings (F5)
   2a. WOZ100 Undo the two screws holding the ceramic plate in position (F3)
   2b. WOZ3000/6000

Move the ceramic plate (F3) out of its holder.

1. Assemble in reverse order.

NOTE:

The ceramic plate and prefilter are wear parts and are not covered by the warranty.

All servicing other than that described here must be performed by the manufacturer or an authorised partner.

Servicing

You must contact your local dealer if your ozone device requires maintenance. Receipts must be presented for all warranty claims.

Storage instructions

Store your ozone device at room temperature between +1 °C and +35 °C.

It is important to replace the prefilter at regular intervals and to replace the ceramic plate regularly Failing to do this may impair the capacity of the ozone device and possibly harm the device.

Pwr 100%TimerOff	Normal operating modeUse the forward (C2) and back (C4) buttons to set ozone production to the preferred level, 1-100%. The timer is switched off.
Menu	MenuPress set (C3) to access the menu. Then use the forward button (C2) to scroll until you arrive at the function you want to change.(You can always leave the menu by holding down the set button.)

Timer Settings	TimerPress set (C3), the set timer mode is displayed. Press set (C3), again, the text starts to flash. Use the forward button (C2) to scroll until you find the preferred timer function. Press set (C3) to select a function.
Mode Off	Timer off (factory default)
Mode Once	Shut-off timerThe Wood's Airmaster operates for the preferred time and then shuts off.Press forward (C2), "Set Timer" appears in the display. Press set (C3), the text flashes, set the preferred time by pressing forward (C2) / back (C4) (e.g. 15 min 00:15). Press set (C3) to confirm the time (the timer stops flashing). Hold down set (C3) start the timer and leave the menu."TimedOut" is displayed when the timer has reached the end. Hold down forward (C2) and back (C4) at the same time to restart the timer.

Set the time in the following timer modes in the same way as described in Shut-off timer.

Mode Interval

Interval timerThe Wood's Airmaster switches between operating mode and shutdown mode at set times.First, set the operating time: "Step on". Press forward (C4). Then set the shut-down time: "Step off".

Mode Daytimer

Daily timerThe Wood's Airmaster operates according to set times of day. NOTE: Set the clock first! (see Clock)Set the "on" time 1: "Step on 1". Press forward (C2), set "off" time 1: "Step off 1".Set "on" time 2: "Step on 2". Press forward (C2), set "off" time 2: "Step off 2".Set "on" time 3: "Step on 3". Press forward (C2), set "off" time 3: "Step off 3".If a mode (e.g. 3) is left blank, i.e. 00:00, that mode is disabled.

SetClock00:00	ClockThis is where you set the clock used by the daily timer.Pressset(C3): the digits flash. Set the required time usingforward(C2) andback(C4). Presssetto confirm your setting. (24-hour backup in the event of a power outage)
B.lightOn	BacklightThe display backlight can be switched on or off.
ExtInputsettings	Connection for external devices (USB)The input for external devices (e.g. ozone meter) can be enabled or disabled.Operating mode can be selected:Ozone Control– A connected ozone meter can control the ozone generator to maintain a constant ozone concentration.Ozone Alarm– If a connected ozone meter discovers a leak, the machine shuts down and alerts the operator.
Factoryreset	Factory defaultRestores the device to the factory defaults.NOTE: All settings will be deleted.

KEYS LOCKED

Key lockThe buttons are locked by holding down set (C3) and forward (C2) at the same time until "KEYS LOCKED" appears in the display. The buttons are unlocked in the same way.

Troubleshooting

PROBLEM CAUSE REMEDY
The device does not switch on and the power switch does not light up.	Power supply problem.	Connect the device to a functioning power socket and switch it on.
	The fuse is broken (WOZ3000/6000). Replace the fuse.
	The power adapter is broken (WOZ100).	Try a different power adapter (making sure that the adapter is to the correct specification).
The device operates, but its performance is poor	The ceramic plate is dirty. Clean the ceramic plate:
The device is operating but not producing ozone.	The ceramic plate has reached the end of its life or is broken.	Replace the ceramic plate:
Loud fan noise. The prefilter is dirty/clogged. Replace the filter.
The machine is behaving strangely. The software has hanged.		Perform a factory reset..
The machine settings (e.g. timer) are incorrect The machine has been set accidentally.

Contact your local dealer after you have worked through the above troubleshooting list or if your project requires a service.

Warranties

2- year factory warranty covering workmanship. Please note, the warranty is valid only on presentation of a receipt. The warranty is valid only if the product is used in accordance with the instructions and safety warnings in this manual. The warranty does not cover damage caused by incorrect use of the product.

NOTE:

Register your product at www.warranty-woods.com to benefit from the special Wood's offers available for your product. Take a look at www.woods.se for more information.

CUSTOMER SERVICE

Always use original parts.

Make sure you have the following to hand when you contact our customer service team: Model designation, receipt and serial number.

Note that all information, safety instructions and technical data in this manual may be amended.

TECHNICAL DATA	Airmaster WOZ100 Airmaster WOZ3000 Airmaster WOZ6000
Ozon production 100–500 mg/hour 0–500 mg/hour 0–	-500 mg/hour
Fan capacity 40 m	^3 /hour 116 m	^1 /hour 116 m	^3 /hour
Technology Ceramic plate Ceramic plate Ceramic plate
Timer - Yes Yes
USB port - Yes Yes
Energy consumption	8 W/12 V DC(100-240 V mains adapter supplied)	34 W/100-230 V 38 W/100-230 V
Temperature range	+1 °C – +35°C	+1 °C – +35°C	+1 °C – +35°C
Dimensions (LxWxH)	196x113x85 mm	270x180x160 mm	270x180x160 mm
Fuse parameter	-	630mAT 250v	630mAT 250v
Weight	0.79 kg	2.2 kg 2.3 kg
Finish	Stainless steel	Stainless steel	Stainless steel
Extra accessories	Cigarette lighter cable	Ozone meters	Ozone meters
Wear parts	PrefilterCeramic plate	PrefilterCeramic plate	PrefilterCeramic plate

*Technical modifications and improvements may be made. All values are approximate and may vary depending on external circumstances such as temperature and humidity.

*This label means that this product must not be disposed of with household waste anywhere in the EU. Please recycle this product responsibly to promote sustainable reuse of resources and prevent damage to the environment or human health as a consequence of uncontrolled waste disposal. To recycle your device, please use the return and collection systems contact the dealer where you purchased your product. They can submit this product for environmentally safe recycling.

PRODUKTBESKRIVNING

Produktbeskrivning

A.

Wood's Airmaster WOZ100/WOZ3000/6000

Gäller Wood's Airmaster WOZ3000/6000

Wood's Airmaster WOZ100

Wood's Airmaster WOZ3000/6000

Gjelder Wood's Airmaster WOZ3000/6000

Wood's Airmaster WOZ100

Wood's Airmaster WOZ3000/6000

Ved fast installation

Wood's Airmaster WOZ100

Wood's Airmaster WOZ3000/6000

Wood's Airmaster WOZ100

Wood's Airmaster WOZ3000/6000

Wood's Airmaster WOZ100

Wood's Airmaster WOZ3000/6000

Wood's Airmaster WOZ100

Wood's Airmaster WOZ3000/6000
