Please read this manual carefully before installing and using your Wood's product.

Store the manual in a safe place for future reference and product warranty.

CONTENTS: PAGE NO.

TABLE OF CONTENTS

OPERATING INSTRUCTIONS

English 04-09

Swedish 10-15

Norwegian 16-21

Danish 22-27

German 28-33

French 34-39

Spanish 40-45

Dutch 46-51

Polish 52-59

Romanian 58-63

Finnish 64-69

Lithuanian 70-75

Latvian 76-81

Estonian 82-87

Greek 88-93

Icelandic 94-99

R290

Flammable material. This appliance contains R290/Propane a flammable refrigerant. R290 refrigerant gas complies with European environmental directives. This appliance contains approximately 70g/75g of R290 refrigerant gas. Do not pierce or burn. Maintenance and repairs requiring the assistance of other qualified personnel must be carried out under the supervision of specialists in the use of inflammable refrigerants.

Refer to operators manual.

Read technical manual

Read operators manual.

SAFETY INFORMATION

Before installing and using the appliance, carefully read the supplied instructions. The manufacturer is not responsible if an incorrect installation and use cause injuries and damages. Always keep the instructions with the appliance for future reference.

Children and vulnerable people's safety

WARNING

Risk of injury or permanent disability.

This appliance can be used by children aged 8 years and

above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning the use of the appliance safely and understand the hazards involved. Do not let children play with the appliance.

Children of less than 3 years should be kept away unless continuously supervised.

Keep all packaging away from children.

Children shall not do cleaning and user maintenance without supervision.

General Safety

This appliance is intended to be used in household and similar applications such as basements, staff kitchen areas in shops, offices and other working environments. The rating plate is located behind the water tank of the dehumidifier. Keep ventilation openings clear of obstruction.

Other than those recommended by the manufacturer, do not use mechanical devices or other means to accelerate the defrosting process.

The appliance shall not be stored in a room with operating ignition sources (open flames, an operating gas appliance, or an operational electric heater. Do not pierce or burn.

Be aware that refrigerants may not contain an odour. Do not use water spray and steam to clean the appliance. Clean the appliance with a moist, soft cloth. Only use neutral detergents. Do not use abrasive products and cleaning pads, solvents or metal objects. If the supply cord is damaged, it must be replaced by the manufacturer, its Authorised Service Centre or similarly qualified persons to avoid a hazard.

SAFETY INSTRUCTIONS

Installation

WARNING

Only a qualified person must install this appliance.

Remove all the packaging.

Do not install or use a damaged appliance. The appliance shall be installed, operated and stored in a room with a floor area larger than 4m^2 . Obey the installation instruction supplied with the appliance.

Always be careful when you move the appliance because it is heavy. Always wear safety gloves.

Make sure the air can circulate around the appliance.

Wait at least 4 hours before connecting the appliance to the power supply. This is to allow the oil to flow back into the compressor.

Do not install the appliance close to radiators or other heat sources. Do not install the appliance where there is direct sunlight. This device is only for indoor use. Ensure that the unit is placed on a stable and flat surface. If the surface is not stable, there is a risk that the unit's instability may cause excessive vibration, allowing water to be released.

Electrical connection

WARNING

Risk of fire and electrical shock.

The appliance must be connected to a grounded outlet.

Make sure that the electrical information on the rating plate agrees with the power supply. If not, contact an electrician.

Always use a correctly installed shockproof socket.

Do not use multi-plug adapters and extension cables.

Make sure not to cause damage to the electrical components (e.g. mains plug, mains cable).

Contact the Authorised Service Centre or an electrician to change the electrical components.

The mains cable must stay below the level of the mains plug.

Connect the mains plug to the mains socket only at the end of the installation.

Make sure that there is access to the mains plug after the installation.

Do not pull the mains cable to disconnect the appliance. Always pull at the mains plug.

Use

WARNING

Risk of injury, burns, electrical shock or fire.

Do not change the specification of this appliance. Be careful not to cause damage to the refrigerant circuit. It contains propane (R290), a natural gas with a high level of environmental compatibility.

This gas is flammable.

If damage occurs to the refrigerant circuit, make sure that there are no flames and sources of ignition in the room. Ventilate the room.

Do not put flammable products or wet items with flammable products near or on the appliance.

Disposal

WARNING

Risk of injury.

Disconnect the appliance from the mains supply.

Cut off the mains cable and discard it.

The refrigerant circuit of this appliance is ozone-friendly.

Contact your municipal authority for information on how to discard the appliance correctly.

Do not cause damage to the part of the cooling unit that is near the heat exchanger. Always see that the appliance is kept clean.

Do not cover the unit.

TECHNICAL DATA

	MDK21 MDK26
Max. working area 70m	^2	120m ^3
Airflow step 1 132m3/h 134m		^3/h
Airflow step 2 170m3/h 174m		^3/hour
Dehumidifying at 30°C and 80% r.h.	20 l/24h	25l/24h
Power at 30°C and 80% r.h.	275 W	320 W
Tank volume	4 liters	4 litres
Refrigerant	R290 (70g)	R290 (75g)
Voltage	230 V	230 V
Frequency	50 Hz	50 Hz
Currentt	1,25 A	1,4 A
IP Code	IPX1	IPX1
Dimensions in mm, L x B x H	346x242x596	346x242x596

*Technical changes and improvements may occur. All values are approximate and may vary due to external circumstances such as temperature, ventilation and humidity.

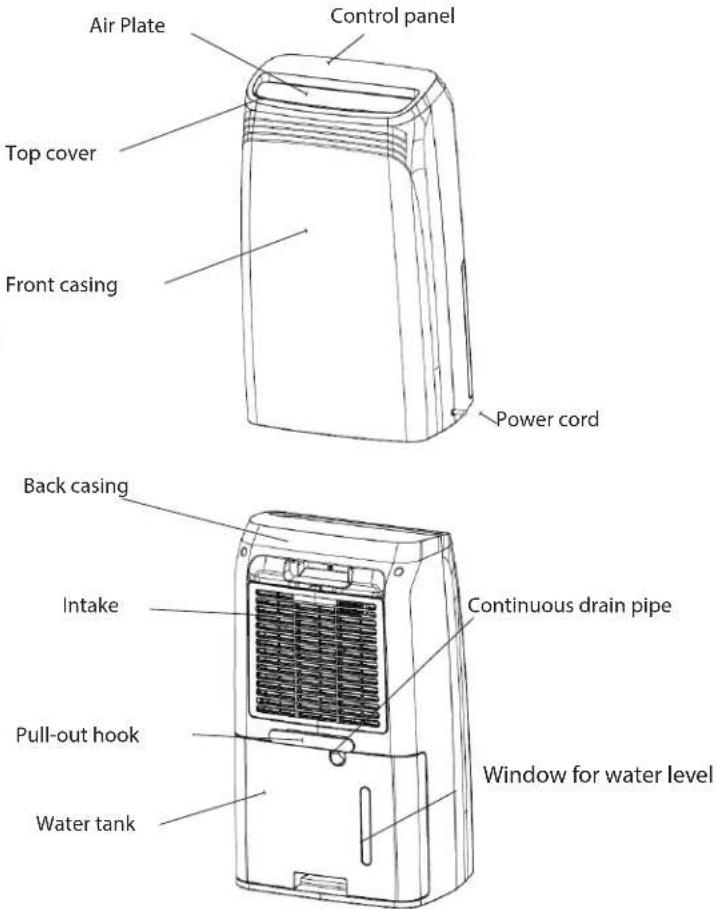

Air Plate Control panel Top cover Front casing Power cord Back casing Intake Continuous drain pipe Pull-out hook Water tank Window for water level

PROBLEM CAUSE SOLUTION
The dehumidifier does not work.	The power is not connected.	- Check that dehumidifier is connected to electricity and that fuse has not gone.- Check that the water reservoir is empty and correctly placed in the dehumidifier.
The unit does not dehumidify.	- The water container is full.- The water container has not been replaced correctly.- The air filter is clogged.The temperature or relative humidity in the room where the device is operating is too low.	- Remove the water from the container.- Place the water container in the correct position.- Clean the air filter.- Check that air can flow freely through the dehumidifier. The front grid and air filter should be clean, and the dehumidifier should stand 20-30 cm from a wall.- Check that a thick coating of ice has not formed on the cooling coils.
The dehumidifier works, but reduces the relative humidity insufficiently.	- The room is too large.- There are too many sources of humidity.- There is too much ventilation.	- We recommend using a dehumidifier with a greater capacity.- We recommend using a dehumidifier with a greater capacity.- Reduce ventilation (e.g. close windows and shut doors.)
HI The humidity is higher	than >80%.	When the humidity level is below < 80%, the display switches to normal display mode.
LO The humidity level is	below < 30%.	When the humidity level is over >30%, the display switches to normal mode.
If none of the above works, you should contact your nearest retailer for inspection and possible service.

WOOD'S, THE WORLD'S LEADING DEHUMIDIFIERS

Wood's dehumidifiers have been known as one of the market leaders for many years. Our dehumidifiers are suitable for use in the most demanding climates, where dehumidifying capacity is optimal even at different temperatures and humidity levels.

Excellent results can be achieved in damp indoor areas, such as basements, garages, pool rooms, attics, and summer houses. Compared to conventional tumble dryers, Wood's dehumidifiers do not wear out clothes as they utilize a blow-drying effect while being energy efficient, making them ideal for drying laundry.

The amount of humidity that the dehumidifier removes depends on the temperature, humidity level, and placement. External weather conditions may also affect the performance of the dehumidifier. Wood's dehumidifiers are safe in operation and intended for use over many years.

EXCESSIVE AIR HUMIDITY – A DANGER

Condensation occurs when water vapour in the air comes into contact with a cold surface such as a cold window or wall. When water vapour is cooled down, condensation occurs, and water drops are formed. In high air humidity, the air may get musty, and mould might form, causing damage to a home and its furnishings. This environment may even cause illness for the residents. Mites and spiders also thrive in damp environments. A dehumidifier with high performance creates a good, healthy humidity level. For optimal efficiency, the doors and windows of rooms being dehumidified should be kept closed. A dehumidifier may be used in cellars, washrooms, garages, crawl spaces, caravans, summer houses, and on boats. If the dehumidifier is kept in colder environments, you should study the Hints at the end of the manual.

PLACEMENT OF DEHUMIDIFIER

Wood's dehumidifiers are easy to move around. All you need to have is a power source for 220/240V, but bear in mind the following:

• The dehumidifier should not be placed near radiators or other heat sources or exposed to direct sunlight, as it will reduce performance.
• It is beneficial to use a radiator or heating fan to keep the temperature above +5 °C.
• The dehumidifier should stand at least 20-30cm from a wall or other obstruction for maximum airflow.
• It is ideal to put the dehumidifer in the centre of a room.

NOTE: The denuminder should be fixed in place when placed a shower or bathing area. It is compulsory to check and respect your total bathroom electrical regulations before use.

USING THE DEHUMIDIFIER

If the dehumidifier is transported horizontally, oil may have run out of the compressor and into the closed piping system. In such a case, let the dehumidifier stand for a few hours before being used. It is very important that the oil runs back into the compressor; otherwise, the dehumidifier may be seriously damaged.

1. Check that the water reservoir is correctly placed.
2. Connect the dehumidifier to a grounded power source.
3. Select fan speed.
4. Set the desired humidity level using of the humidity control. See section on humidity control.

NOTE: When the dehumidifier is turned off, it will take 5 minutes before the dehumidifier is restarted. The built-in automatic functions are deactivated during this period.

TANK FULL

When the float reaches a certain height, the dehumidifier responds to this and shuts down automatically to prevent flooding of the tank.

When you have emptied the water reservoir, return it to the dehumidifier by pushing the water reservoir in until it is in place.

HUMIDITY CONTROL

Wood's dehumidifier is fitted with a built-in humidity control, which is set to the desired level of humidity. The control registers the current level of humidity and ensures that the dehumidifier is turned on and off automatically.

NOTE: The ambient relative humidity is most simply measured with a Wood's hygrometer, and the most suitable range is between 50% and 60%.

SHUTTING OFF AUTOMATICALLY

When the water reservoir is full, the dehumidifier is shut off automatically. The indicator light at the front of the dehumidifier will switch to red to show when the water reservoir should be emptied.

1. Disconnect the dehumidifier from the power source.
2. Empty the water reservoir.
3. Put the empty water reservoir back.
4. Connect the dehumidifier to the power source.

THE AIR FILTER

The air filter at the rear of the dehumidifier ensures that the cooling coils are kept free from dust. It is important that the filter is kept clean so that air can flow freely through the dehumidifier. The filter should thus be cleaned when required.

AUTOMATIC DEFROSTING

Wood's dehumidifiers are fitted with a control unit which ensures that the cooling coils are defrosted automatically when needed. The control shuts down the compressor, which causes the cooling of the coils to stop. The fan continues to draw the air at room temperature through the dehumidifier, thus melting the ice and allowing the water to run down into the reservoir. This defrosting system means that the dehumidifier works at temperatures as low as +5°C.

FAN

The fan ensures that air flows through the dehumidifier. Moist air is sucked in from the rear, via the cooling coil and the vaporizer, while the dry and warm air is returned at the top of the dehumidifier. Wood's dehumidifiers are fitted with two fan speeds:

• Position II – gives a high airflow with maximum dehumidifying of air.
• Position I – gives a lower airflow which causes quieter operation and lower dehumidifying capacity.

CLEANING AND MAINTENANCE

Wood's dehumidifiers require cleaning of filter to maintain their high dehumidifying capacity.

The fan motor is permanently lubricated and requires no maintenance.

NOTE: Always disconnect the cord before cleaning.

HINTS:

• Sometimes, it may be useful to use a frost guard or heater fan to ensure that the temperature does not fall below +5°C.
• For maximum dehumidifying power in a room, it is recommended that the air supply from outside and adjoining rooms are minimized. Close doors and ventilators.
• Place in the centre of the room.
• Increase the temperature for faster dehumidification.
  (Warm air carries more water).
• Use frost guard if the temperature falls below +5°C.
• Higher dehumidification in needed during summer/autumn because the outside air is warm and humid. (Absolute humidity is normally higher).

WHEN THE DEHUMIDIFIER REQUIRES SERVICING

If the dehumidifier requires servicing, you must first contact the retailer. Proof of purchase is required for all guarantee claims.

GUARANTEES

2-year guarantee against faults in manufacturing. Note that the guarantee is only valid with legitimate proof of purchase.

Recommended limits for use

Temp. MDK +5°C to +35°C
Relative humidity: 30% to 90%
Recommended
humidity level: Appr. 50% RH

IMPORTANT! - Wood's dehumidifiers must be connected to a grounded power source. The power source should be 220V-240V 50Hz

NOTE! Get a 3-year warranty! Register at warranty-woods.com. Please visit woods.se for more information.

FULL DEFROST LOW HIGH DRY 88% 1H 2H 4H 8H -0

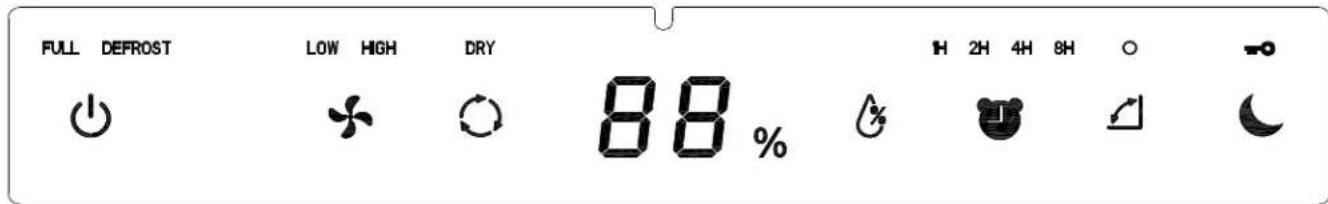

FUNCTIONS & NAME OF KEY PADS

1 On/Off: Switch the power on and off

2 Speed: Press to set up the fan speed.

3 Drying clothes: Press the button to set up dry clothes mode.

4 Humidity setting: Press to select the required humidity level.

ner: Timer Set Turn Off time.

6 Swing: Press to switch the swing on or off.

7 Night mode child lock: Press once to enter the night mode. Press continuously for 3 seconds to switch on or off the child lock function blocking the control panel.

1. The machine is on standby when the device is plugged into a socket.

Press the On/Off button to switch on the machine, allowing the exhaust to open. Press the button again to switch off the unit.

2 Press "SPEED" to select the fan motor speed level.

3 Drying clothes: The machine work at the highest speed to dry clothes faster. The humidity setting is unavailable under this mode. Note: The compressor will stop automatically when the unit detects ≤40% humidity, but the fan will keep running at the highest speed.

When the unit detects ≥45%RH (humidity), the compressor will restart.

4 Humidity setting: The

humidity can be set at 50%-55%-60%-65%-70%-Co-40%-45%. This function is only available under the standard dehumidification mode. Note: once the humidity reaches the target setting, both compressor and fan will stop operating for 1 hour. After 1 hour, the fan will operate for 3 minutes to circulate the air. If the humidity is higher than the selected setting, the unit will start again. If the humidity is lower than the selected setting, the compressor and fan will stop for another hour.

5 Timer: When the appliance is on, press the Timer 1H/2H/4H/8H to operate a countdown. The timer symbol will appear on the LCD screen.

6 Swing: Press the button to switch on and off the exhaust swing.

7 Night mode (child lock): Press the button will enter the night mode. See above for the child lock function.

WATER FULL

The device will automatically shut off when the tank is full, and an alarm will ring ten times. The "water tank full" light will also illuminate. Once the tank is emptied, the unit will automatically operate on the last setting. Note: the compressor will only start operating after 5 minutes. (See compressor protection function).

COMPRESSOR PROTECTION FUNCTION

The unit is equipped with a compressor protection function. The compressor will only start 5 minutes after the unit is turned on.

COMPRESSOR PROTECTION FUNCTION

This device is equipped with a compressor protection function, meaning, the compressor will delay 5 minutes to start. (After shut down and restarted again.)

CONTINUOUS DRAINAGE.

Drainage hose 15mm. Insert the hose to the drain outlet and place the other end into a drainage place (sink, shower, etc.). The water tank will not be in use. The machine will work continuously and will not shut down. When draining continuously, the drainpipe should be placed lower than the exhaust. The hose should be straight and not be folded or bent; otherwise, there is a risk of overflow at the outlet.

AUTOMATIC RESTART AFTER POWER FAILURE

The unit will automatically turn on and operates to its last setting after power returns.

R290

Temp. MDK +5°C to +35°C

KONTINUERLIG AVRINNING.

KONTINUERLIGT AFLEDNING

FULL DEFROST	LOW HIGH DRY					1H 2H 4H 8H
				88%

FULL DEFROST	LOW HIGH	DRY		1H 2H 4H 8H	○	-∞
●	#	○	88%	#	#	#

FONCTIONS & NOM DES BOUTONS

Unit will automatically turn on and operates in last

DESAGÜE CONTINUO.

BESCHERMINGSFUNCTIE COMPRESSOR

FULL DEFROST

LOW HIGH DRY

1H 2H 4H 8H

88%

TOIMINNOT JA PAINIKKEET

FULL DEFROST LOW HIGH DRY 1H 2H 4H 8H 88% 100000000000000000000000000000000000000000000000000000000000000000000000000000000000000000 +/-

PAGRINDINIŲ MYGTUKŲ FUNKCIJOS IR PAVADINIMAI

OHUTUSALASED JUHISED

Paigaldus HOIATUS

FULL DEFROST	LOW HIGH DRY					1H 2H 4H 8H
				88%

FUNKTSIOONID JA KLAHVIDE NIMETUSED

FULL DEFROST	LOW HIGH DRY					1H 2H 4H 8H
				88%

Note: Environmental Protection and Disposal

- Consumers are legally obligated to properly dispose of electronic devices, lamps, and batteries at the end of their lifespan.

• They can be returned free of charge at designated public collection points or through retailers.

• The deletion of personal data is the consumer's responsibility.

• Light bulbs and batteries that can be safely removed and are not permanently installed must be separated for separate disposal.

- The details of legally compliant disposal are governed by regional legislation.

• The symbol of a crossed-out waste bin indicates that electronic devices and batteries must never be disposed of in household waste

after their lifespan.

- Symbols placed below the waste bin indicate the possible presence of certain substances (lead = Pb, mercury = Hg, cadmium = Cd).

• This separation is necessary because batteries and electronic devices contain both valuable resources and substances that are

harmful to humans and the environment.

- By recycling, collecting and reusing batteries and suitable electronic devices, you contribute to the preservation and protection of the

environment and human health.

2) In addition to the natural area has sufficient access to a free site in the next 10 months, as follows are: (a) The site is located at the local office.

- Revalenceally increasing regional North submanding shall and correct. - Reduction in the context for a small area battery are also greater than battery inside the source.

- M. K. B. S. A. 100, 2016.

• zymovonella unker sortyunnan kannestecknag ev. annien som xan inga jry = rD, kivokainer = rG, kaotvum = 50).

- Blettingers superconformations as bifusitans and spines

* agreement that we believe, however, there is no longer time to say when we understand that, there are no greater time than enough an other time setting. It is possible because we believe that we can continue to take place information.

• Bankers lower Regulation (deregular) for firm status of all and marketing.

- Møringen med den overkryssede sappordurken marketer elektriske apparater og batterier som efter levetiden ikke under noen

omstendigheter må kaste s i husholdningsavfalllet.

- Banning at person's interests data or for other things given answer.

- Inular affinierment of the case controler inductance and inductance with the other side of the inductance and current side of the case controler

- 1.000000000000000000000000000000000000000000000000000000000000000000000000000000000

* UNTSIS ASPARISIEN EN TIAN RUTTER, 100 MUNISTE MY BENTESIEN APPEARANT CHAIU ET VERTUSION RESOURER, SUITI VIGAR ITANISTEUR TUR

Wood's is marketed and distributed by:

Woods Production Sweden AB

Box 356

441 27, Alingsås

Sweden.

woods.se

[e-mail]

[phone]

Wood's®
