USER MANUAL MRD10G Wood's

OPERATING INSTRUCTIONS FOR:

MRD10/14

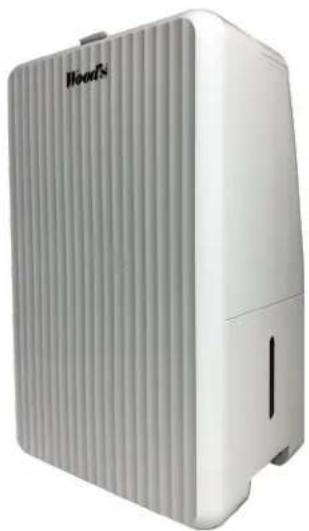

White and gray electronic device with ribbed top and side panel (no visible text or symbols)

Visit woods.se for more information and updated instruction manuals.

For extended warranty register your product at warranty-woods.com

GB Operating Instructions

SE Bruksanvisning

NO Bruksanvisning

Visit our website to:

Get usage advice, updated brochures, trouble shooter and service information.

Register your product for additional services: www.warranty-woods.com

CUSTOMER CARE AND SERVICE

Always use original spare parts. When contacting our Authorised Service Centre, ensure that you have the following data available: Model number, receipt and serial number.

Warning / Caution-Safety information. General information and tips. Environmental information. Subject to change without notice.

TABLE OF CONTENTS

CONTENTS: PAGE NO.

English 4-14

Swedish 15-25

Norwegian 26-36

Danish 37-47

German 48-58

French 59-69

Spanish 70-80

Dutch 81-91

Polish 92-102

Romanian 103-113

Finnish 114-124

Lithuanian 125-135

Latvian 136-146

Estonian 147-157

Greek 158-168

Icelandic 169-179

A.

1. 2. 3. 4. 5.

B.

1. 2. 3. 4. 5.

C.

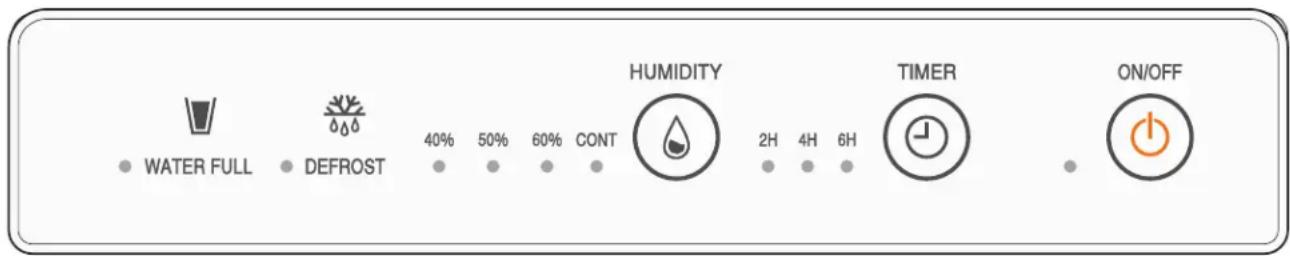

WATER FULL DEFROST 40% 50% 60% CONT HUMIDITY 2H 4H 6H TIMER ON/OFF

D.

5.4.3.2.1.

PRODUCT DESCRIPTION

E.

Line drawing of a portable air conditioner unit with attached plug and ventilation grille (no text or symbols)

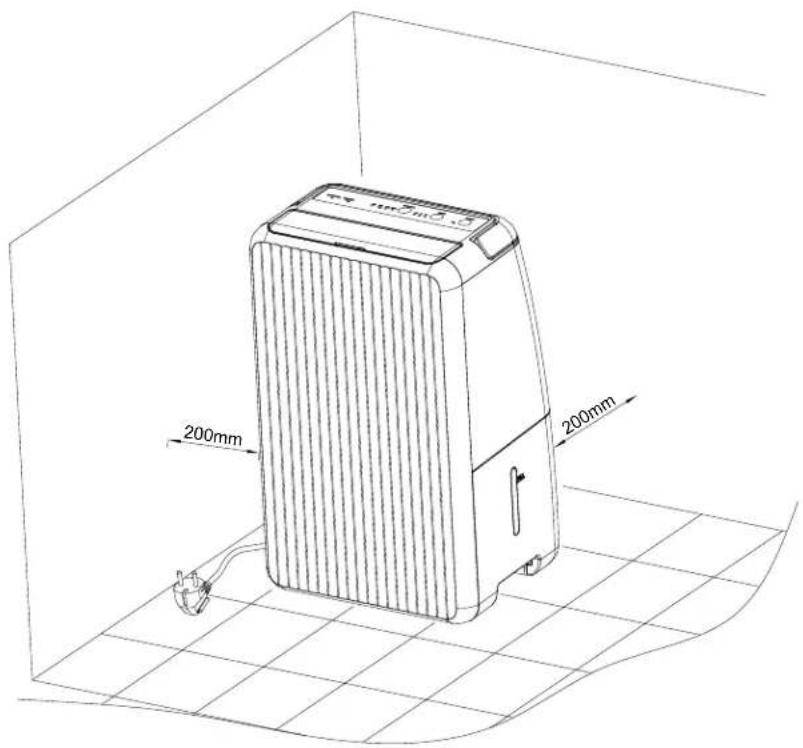

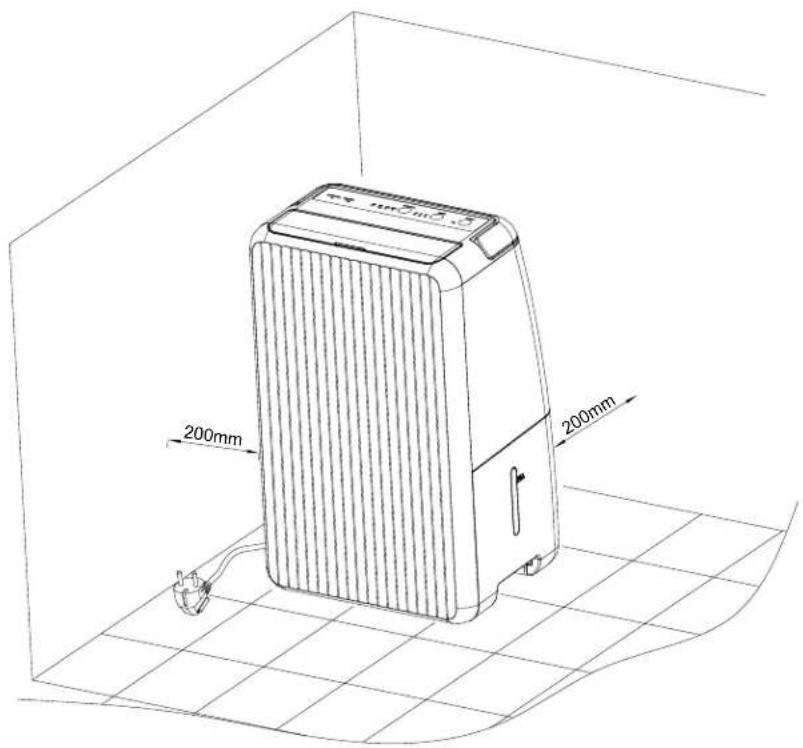

F

200mm 200mm

WOOD'S ONE OF THE WORLD'S LEADING DEHUMIDIFIERS

Wood's dehumidifiers have been known as market leaders for many years. Their dehumidifiers are suitable for use in the most demanding climates, where dehumidifying capacity is optimal even at different temperatures and humidity levels.

Excellent results can be achieved within indoor areas that become damp, such as basements, garages, pool rooms, attics, and summer houses. Compared to conventional tumble dryers, Wood's dehumidifiers do not wear out clothes as they utilize a blow-drying effect while being energy efficient, making them ideal for drying laundry.

The amount of humidity that the dehumidifier removes depends on the temperature, humidity level, and placement. External weather conditions may also affect the performance of the dehumidifier. Wood's dehumidifiers are safe in operation and intended for use over many years.

EXCESSIVE AIR HUMIDITY – A DANGER

Condensation occurs when water vapour in the air comes into contact with a cold surface such as cold window or wall. When water vapour is cooled down, condensation occurs, and water-drops are form. In high air humidity, the air may get musty and mould might get formed, causing damage to a home and its furnishings. This environment may even cause illness for the residents. Mites and spiders also thrive in a damp environment. A dehumidifier with high performance creates a good, healthy humidity level. For optional efficiency the doors and windows of rooms that are being dehumidified should be kept closed.

1. SECURITY WARNINGS

Warning sign depicting a flame symbol in yellow and black, indicating hazard or electrical hazard.

Flammable material. This appliance contains R290/Propane a flammable refrigerant.

Refer to this manual for safety information.

Read technical manual

Read operators manual.

SAFETY INFORMATION

Before the installation and use of the appliance, carefully read the supplied instructions. The manufacturer is not responsible if an incorrect installation and use causes injuries and damages. Always keep the instructions with the appliance for future reference.

Children and vulnerable people safety

WARNING

Risk of injury or permanent disability.

This appliance can be used by children aged 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning the use of the appliance in a safe way and understand the hazards involved.

Do not let children play with the appliance.

Children of less than 3 years should be kept away unless continuously supervised.

Keep all packaging away from children.

Cleaning and user maintenance shall not be made by children without supervision.

General Safety

This appliance is intended to be used in households and similar applications such as: – basements, crawl spaces; staff kitchen areas in shops, offices and other working environments. The rating plate is located at the back or the side of the dehumidifier.

Keep ventilation openings clear of obstruction.

Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.

The appliance shall not be stored in a room with operating ignition sources (for example; open flames, an operating gas appliance or an operating electric heater. Do not pierce or burn.

Be aware that refrigerants may not contain an odour. Do not use water spray and steam to clean the appliance. Clean the appliance with a moist soft cloth. Only use neutral detergents. Do not use abrasive products, abrasive cleaning pads, solvents or metal objects.

If the supply cord is damaged, it must be replaced by the

manufacturer, its authorised service Centre or similarly qualified persons in order to avoid a hazard.

SAFETY INSTRUCTIONS

Installation WARNING

Only a qualified person must install this appliance.

Remove all the packaging. Do not install or use a damaged appliance. The appliance shall be installed, operated and stored in a room with a floor area larger than 2 m². Obey the installation instruction supplied with the appliance.

Always be careful when you move the appliance because it is heavy. Always wear safety gloves.

Make sure the air can circulate around the appliance.

Wait at least 4 hours before connecting the appliance to the power supply. This is to allow the oil to flow back into the compressor.

Do not install the appliance close to radiators or other heat sources. Do not install the appliance where there is direct sunlight.

Electrical connection WARNING

Risk of fire and electrical shock. The appliance must be connected to a grounded outlet.

Make sure that the electrical information on the rating plate matches with the power supply. If not, contact an electrician.

Always use a correctly installed shockproof socket.

Do not use multi-plug adapters and extension cables.

Make sure not to cause damage to the electrical components (e.g. mains plug, mains cable).

Contact the Authorised Service Centre or an electrician to change the electrical components.

The mains cable must stay below the level of the mains plug.

Connect the mains plug to the mains socket only at the end of the installation.

Make sure that there is access to the mains plug after the installation.

Do not pull the mains cable to disconnect the appliance. Always pull at the mains plug.

Use

WARNING

Risk of injury, burns, electrical shock or fire.

Do not change the specification of this appliance.

Be careful not to cause damage to the refrigerant circuit. It contains propane (R290), a natural gas with a high level of environmental compatibility. This gas is flammable.

If damage occurs to the refrigerant circuit, make sure that there are no flames and sources of ignition in the room. Ventilate the room.

Do not put flammable products or items that are wet with flammable products near or on the appliance.

Disposal WARNING

Risk of injury.

Disconnect the appliance from the mains supply.

Cut off the mains cable and discard it. The refrigerant circuit of this appliance is ozone-friendly.

Contact your municipal authority for information on how to discard the appliance correctly.

Do not cause damage to the part of the cooling unit that is near the heat exchanger.

SET UP DEHUMIDIFIER FOR INSTALLATION

IMPORTANT:

2. Installation

BEFORE FIRST USE

Let the machine stand for 4 hours before use Selecting a Location

Important

1. Dehumidifier must be operated in an enclosed area to be most effective. Close all doors, windows, and other outside openings to the room. The effectiveness of the dehumidifier depends on the rate at which new moisture-laden air enters the room.

2. Place dehumidifier in a location that does not restrict airflow through the front of the unit.

3. A dehumidifier operating in a room will have little or no effect in drying an adjacent enclosed storage area, such as a closet, unless there is adequate circulation of air in and out of the area. It may be necessary to install a second dehumidifier in the enclosed area for satisfactory drying.

4. Ensure that the unit is placed on a stable and flat surface. If the surface is not stable there is a risk that the unit may be unstable and cause excessive vibration and that water will be released.

5. The dehumidifier must have at least 20 cm free space around the entire dehumidifier.

PRODUCT DESCRIPTION

3. Product description

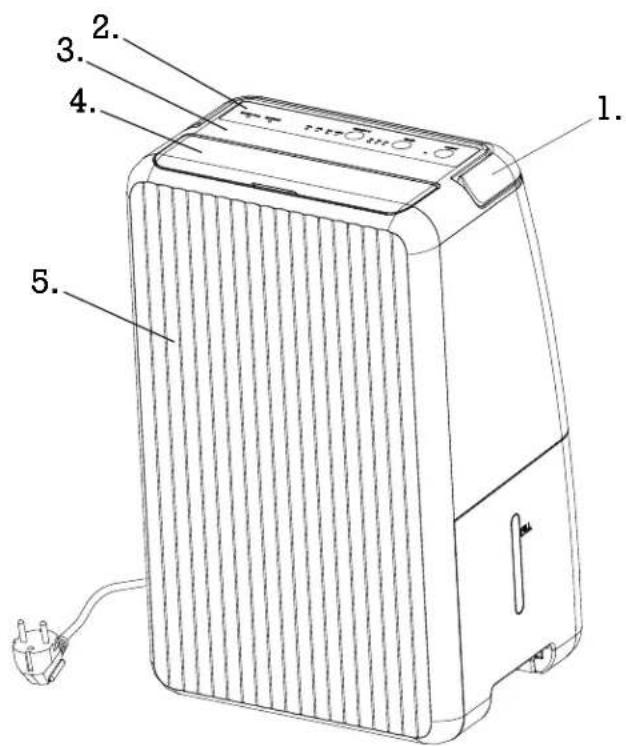

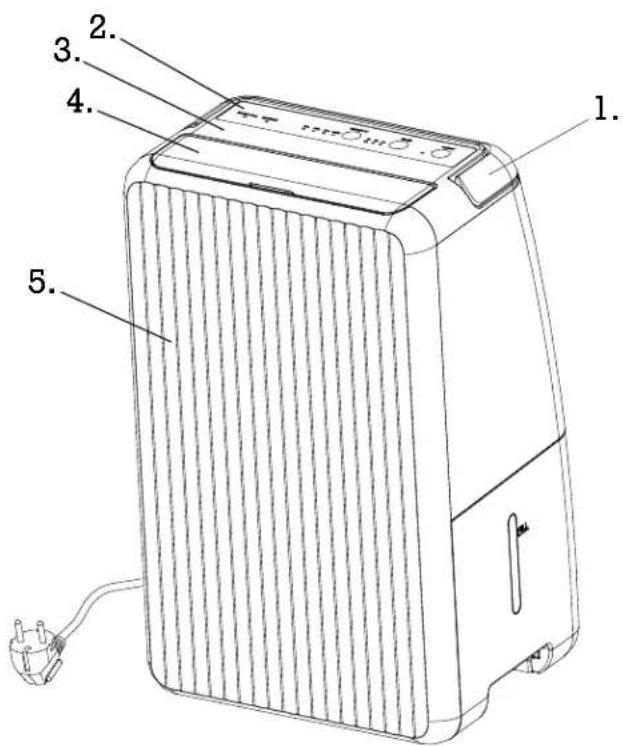

A

1. Handle
2. Control panel
3. Top lid
4. Manual air outlet needs to be open when the product is in use.
5. Front case

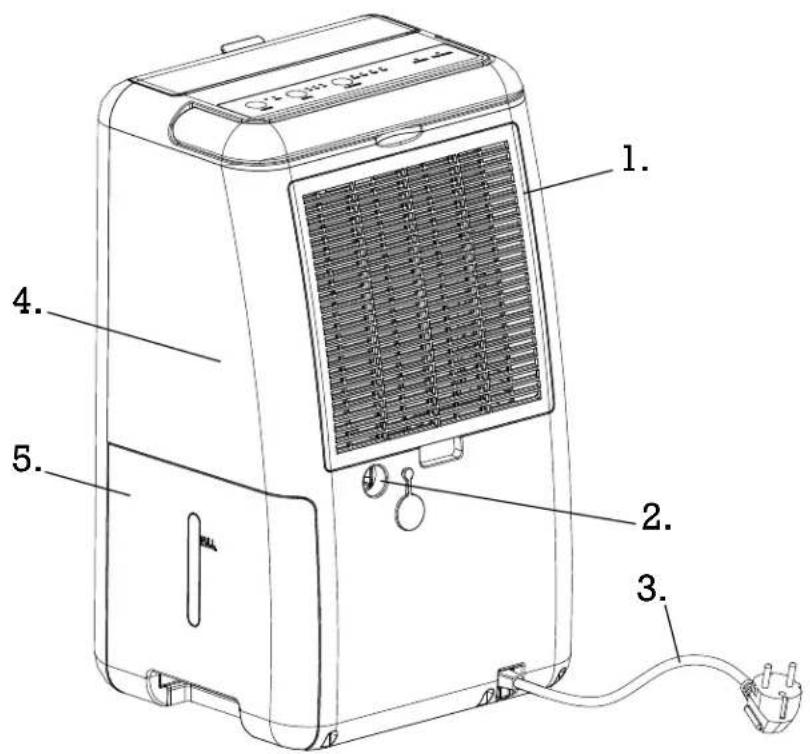

B

1. Filter
2. Continuous drain pipe
3. Power cord
4. Back casing
5. Water tank

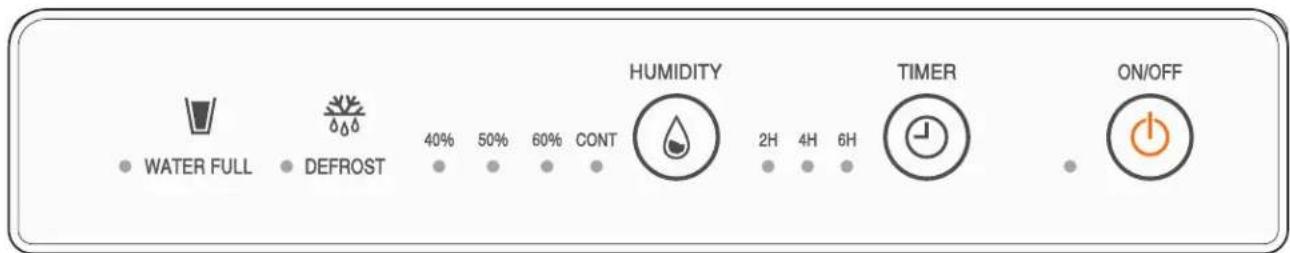

C

1. Control panel

D

1. Turn the unit on/off.
2. Timer: Set timer/turn off time
3. Set humidity level
4. Defrost active
5. Water bucket full

E

Control panel

1. The dehumidifier must have at least 20 cm free space around the entire dehumidifier.

G

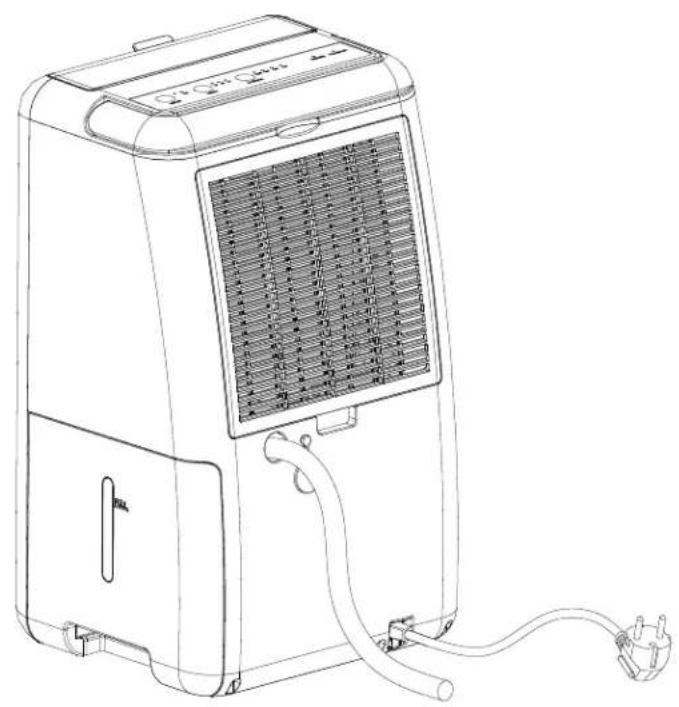

1. If desired, it is possible to connect the drainage tube to the unit for permanent water drainage.

PLACEMENT OF DEHUMIDIFIER

• The dehumidifier should not be placed near radiators or other heat sources or exposed to direct sunlight, as it will reduce performance.
• Ideal is to put it in the centre of the room / area.

NOTE: When placed in a

shower room or bathing area, the dehumidifier should be fixed in place. It is compulsory to check and respect your local bathroom electrical regulations before use.

USING THE DEHUMIDIFIER

If the dehumidifier is transported horizontally, let the dehumidifier stand for 4 hours before being used. It is very important that the oil runs back into the compressor, otherwise, the dehumidifier may be seriously damaged.

1. Check that the water reservoir is correctly placed.
2. Connect the dehumidifier to a grounded power source.
3. Set the desired humidity level using the humidity control. See the section on humidity control.

NOTE: The ambient relative humidity can be simply measured with the dehumidifier.

OPERATION MANUAL

1. Power Button: This button can control the machine on and off.
2. Humidity button: To set the desired humidity

3. Humidity Settings: Open the air outlet set humidity between 40%, 50%, 60% or continuous mode.

4. Timer: When the appliance is on, press the Timer 2H/4H/6H to operate a countdown.

WATER DRAINAGE

When the water reservoir is full, the dehumidifier is shut off automatically. Once the water reservoir is emptied the unit will automatically restart.

1. Disconnect the dehumidifier from the power source.
2. Empty the water reservoir.
3. Put the empty water reservoir back and check that the float moves freely.
4. Connect the dehumidifier to the power source.

Direct water drainage

Connect a water hose to the pipe on the back of the dehumidifier. Lead the other end to a drain. Make sure that the water can be drained downwards.

AIR FILTER

The air filter prevents dust and dirt from entering the machine, prolonging its life expectancy. It is important the filter is cleaned regularly. Filter cleaning:

1. Remove the filter.
2. Wash it with warm water and a mild cleansing agent. Alternatively the filter may be vacuum cleaned.
3. Let the filter dry and put it back.

During the defrosting operation, the dehumidification function may intermit.

Please don't turn off the switch or pull out the power plug of the dehumidifier during the defrosting operation. This dehumidifier can't be applicable to keep an extremely low temperature.

The purpose of this dehumidifier is to remove moisture from the indoor environment, but not at extremely low temperatures.

Operating Instructions

The room temperature increases during the operation.

This dehumidifier doesn't have cooling function. It will produce heat during the operation and increase the room temperature to 1 to 4^ . In addition, the door and windows are closed and other appliances in the room can give out heat as well as the radiation of the sun can raise the room temperature.

MAINTENANCE

• Clean the unit with a soft moist cloth. Do not use solvents or strong cleaners as this might damage the surface of the unit.
• The cooling coils are best cleaned with a rag and warm water.

SERVICE

If the dehumidifier requires servicing, you must first contact your local retailer. Proof of purchase is required for all warranty claims.

STORAGE

Before storage of the unit, please follow these steps:

1. Make sure the water tank is empty. When the unit is switched on, make sure the unit work at Ventilation mode for at least 30 minutes to remove the water inside the unit.
2. Collect and bundle the power cord.
3. Clean the filter.
4. Store in a clean, dry environment.

Proof of purchase is required for all warranty claims.

HINTS

When the dehumidifier is used in extremely damp environments or when the temperature is below +5°C, the dehumidifier may stop working. A large amount of ice builds up on the cooling coil. Turn off the dehumidifier and place it a little above floor level so that the ice will melt away.

Sometimes it may be useful to use a frost guard or heater fan to make sure that the temperature does not fall below +10°C. Even if the MRD10/14 works down to temperatures as low as +5°C, its capacity will increase at higher temperatures as warm air carries more water.

The hydrostat has a margin of error of approx. +/- 5-10%. At lower temperatures, the margin of error might increase further.

For maximum dehumidifying power in a room, it is recommended that the air supply from outside and from adjoining rooms is minimized – close doors and ventilators.

Expect higher dehumidification capacity during Autumn / Summer because the outside air is warmer and more humid.

IMPORTANT! - Wood's dehumidifier must be connected to a grounded power source. The power source should be 220V-240V 50Hz

PROBLEM CAUSE REMEDY
Dehumidifier does not work	The power is not connected Check that dehumidifier is connected to electricity and that fuse has not blown.Check that the water reservoir is empty and correctly placed in the dehumidifier.
Does not dehumidify The water container is full.The water container has not been replaced correctly.The air filter is clogged. The temperature or relative humidity in the room where the device is operating too low.		Remove the water from the container.Place the water container in the correct position.Clean the air filter.Check that air can flow freely through the dehumidifier. The Front grid and air filter should be clean and the dehumidifier should stand 20cm from wall.
The dehumidifier works, but reduces the relative humidity insufficiently.	The room is too large.There are too many sources of humidity.There is too much ventilation	We recommend using a dehumidifier with a larger capacity.Reduce ventilation(e.g close windows and shut doors)
If you are having trouble with your dehumidifier, please refer to the troubleshooting section. If none of these works, please contact your retailer for servicing of your dehumidifier.

Guarantees

2 years consumer warranty against production faults. Please note that the warranty is only valid upon producing of the receipt. The warranty is only valid if the product is used in accordance with the instructions and security warnings expressed in this manual. The warranty does not cover any damages caused by improper handling of the product.

NOTE: The 2 years warranty only applies for consumers and not for commercial use of the unit.

NOTE!

Register at www.warranty-woods.com and read about how to get extended warranty. Please visit www.woods.se for more information.

Recommended limits for use

Temp. +5°C to +35°C

Relative humidity: 30% to 90%

Recommended humidity level: appr. 50% RH

TECHNICAL DATA	MRD10
Max. working area 40m	^2
Air flow 90m	^3/h
Dehumidifying at 30°C and 80% r.h. 10 l/24h
Power at 30°C and 80% r.h. 183 W
Tank volume 2 liters
Refrigerant R290
Charge R290 38 g
Voltage 220-240V
Noise level in decibels 44dB
Weight 11,2 kg
Dimensions in mm, L x Bx H 290x240x476

	MRD14
Max. working area 60m	^2
Air flow 105m	^3/_h
Dehumidifying at 30°C and 80% r.h. 12l/24h
Power at 30°C and 80% r.h. 183 W
Tank volume 2 liters
Refrigerant R290
Charge R290 47 g
Voltage	220-240V
Noise level in decibels 44dB
Weight 11,3 kg
Dimensions in mm, L x Bx H 290x240x476

*Technical changes and improvements may occur. All values are approximate and may vary due to external circumstances such as temperature, ventilation and humidity.

*This marking indicates that the product should not be disposed of with other household waste throughout the EU. To prevent damage to the environment and people from uncontrolled waste management, recycle the product responsibly to support the sustainable reuse of resources. To return the product, please contact your dealer.

A.

1. 2. 3. 4. 5.

B.

1. 2. 3. 4. 5.

C.

WATER FULL DEFROST 40% 50% 60% CONT HUMIDITY 2H 4H 6H TIMER ON/OFF

D.

5.4.3.2.1.

PRODUKTBESKRIVNING

E.

Line drawing of a portable air conditioner unit with attached plug and ventilation grille (no text or symbols)

F

200mm 200mm

WOOD'S ÄR EN AV VÄRLDENS LEDANDE AVFUKTARE

Warning sign depicting a flame symbol in yellow and black, indicating hazard or electrical hazard.

Installation WARNING

FÖRBEREDA AVFUKTAREN FÖR INSTALLATION

VIKTIGT!

2. Installation

Line drawing of a portable air conditioner unit with attached plug and ventilation grille (no text or symbols)

F

200mm 200mm

WOOD'S ER EN VERDENSLEDE AVFUKTER

Warning sign depicting a flame symbol in yellow and black, indicating hazard or electrical hazard.

Brennbart materiale. Denne enheten inneholder det brennbare kuldemediet R290/propan.

Line drawing of a portable air conditioner unit with attached plug and ventilation grille (no text or symbols)

F

200mm 200mm

WOOD'S LAVER EN AF VERDENS F∅RENDE AFFUGTERE.

Warning sign depicting a flame symbol in yellow and black, indicating hazard or electrical hazard.

Line drawing of a portable air conditioner unit with ventilation grilles and plug (no text or symbols)

F

200mm 200mm

Warning sign depicting a flame symbol in yellow and black, indicating hazard or electrical hazard.

Line drawing of a portable air conditioner unit with attached plug and ventilation grille (no text or symbols)

F

200mm 200mm

WOOD'S EST L'UN DES LEADERS MONDIAUX DES DÉSHUMIDIFICATEURS

Warning sign depicting a flame symbol with hazard symbol, commonly used in safety or hazard prevention.

Line drawing of a portable air conditioner unit with ventilation grilles and plug (no text or symbols)

F

200mm 200mm

WOOD'S: UNO LOS DESHUMIDIFICADORES LÍDERES DEL MUNDO

Warning sign depicting a flame symbol with hazard, commonly used in safety or hazard prevention.

Line drawing of a portable air conditioner unit with attached plug and ventilation grille (no text or symbols)

F

200mm 200mm

WOOD'S, EEN VAN DE WERELDLEIDERS OP HET GEBIED VAN LUCHTONTVOCHTIGERS

1. VEILIGHEIDSWAARSCHUWINGEN

Warning sign depicting a flame symbol in yellow and black, indicating hazard or electrical hazard.

60% of continue modus.

Line drawing of a portable air conditioner unit with ventilation grille and plug (no text or symbols)

F

200mm 200mm

FIRMA WOOD'S JEST JEDNYM Z WIODĄCYCH NA ŚWIECIE PRODUCENTÓW OSUSZACZY

Warning sign depicting a flame symbol with hazard symbol, commonly used in safety or hazard prevention.

Line drawing of a portable air conditioner unit with ventilation grilles and power cord (no text or symbols)

F

200mm 200mm

WOOD'S, CELE MAI UTILIZATE DEZUMIDIFICATOARE DIN LUME

Warning sign depicting a flame symbol in yellow and black, indicating hazard or electrical hazard.

Line drawing of a portable air conditioner unit with ventilation grille and plug (no text or symbols)

F.

200mm 200mm

WOOD'S ON YKSI MAAILMAN JOHTAVISTA KOSTEUDENPOISTAJAMERKEISTÄ.

Warning sign depicting a flame symbol with hazard symbol, commonly used in safety or hazard prevention.

Line drawing of a portable air conditioner unit with attached plug and ventilation grille (no text or symbols)

F

200mm 200mm

„WOOD'S“ – VIENI PASAULYJE PIRMAUJANČIŲ ORO SAUSINTUVŲ

Warning sign depicting a flame symbol in yellow and black, indicating hazard or electrical hazard.

Line drawing of a portable air conditioner unit with ventilation grille and plug (no text or symbols)

F

200mm 200mm

WOOD'S IR VIENS NO GAISA SAUSINĀTĀJU LĪDERIEM PASAULĒ

Warning sign depicting a flame symbol in yellow and black, indicating hazard or electrical hazard.

Line drawing of a portable air conditioner unit with ventilation grilles and power cord (no text or symbols)

F

200mm 200mm

WOOD'SI ÖHUKUIVATID ON MAAILMA PARIMATE HULGAS

Warning sign depicting a flame symbol in yellow and black, indicating hazard or electrical hazard.

Line drawing of a portable air conditioner unit with attached plug and ventilation grille (no text or symbols)

区区.

200mm 200mm

Warning sign depicting a flame symbol with hazard symbol inside a yellow triangle

Line drawing of a portable air conditioner unit with attached plug and ventilation grille (no text or symbols)

F

200mm 200mm

WOOD'S RAKEYĐAR ERU MEDAL PEIRRA LEIDANDI İ HEIMINUM

Warning sign depicting a flame symbol in yellow and black, indicating hazard or electrical hazard.

Eldfim efni. Petta tæki inniheldur R290/própan sem er eldfimt kæliefni.

Wood's is marketed and distributed by:

Woods Production Sweden AB.

Maskingatan 2-4

441 27, Alingsås

Sweden.

woods.se

[e-mail]

[phone]

Wood's®
