Product type	Electric convector
Brand	N'oveen
Model	CH3300
Rated power	1000 W
Supply voltage	220-240 V ~ 50-60 Hz
Protection rating	IP20
Usage	Indoor only
Mounting	On feet (included) or wall-mounted (kit included)
Functions	Adjustable thermostat, on/off switch, overheat protection
Safety distance	Keep at least 1 m away from flammable materials
Care and cleaning	Unplug and allow to cool, clean with a damp cloth
Storage	In a clean, dry place away from dust
Safety instructions	Do not cover, do not use near a bathtub or pool, do not insert objects into the grilles
Recommended age	Can be used by children over 8 years old under supervision
First use	Possible temporary odor or smoke during first use

Frequently Asked Questions - CH3300 N'oveen

How to install the feet of the CH3300 heater?

The feet are provided separately in the box. Attach them to the base of the unit with the provided self-tapping screws, placing them correctly in the lower ends of the side moldings.

Can I use this heater in a bathroom?

No, the protection rating is IP20, which does not make it suitable for humid rooms. Do not use it near a bathtub, shower, or pool.

What if the heater emits an odor or smoke during first use?

This is normal during first use or after prolonged non-use. The heating elements may emit a specific odor or even smoke, which disappears after a few moments.

How to clean the CH3300 heater?

Always unplug the unit and allow it to cool before cleaning. Use a damp cloth to wipe the exterior. Never use abrasive products or immerse the unit in water.

Can I mount the heater on the wall?

Yes, the convector can be mounted on the wall. The wall mounting kit is included in the package with appropriate wall plugs.

What is the maximum power of the CH3300 model?

The CH3300 model has a nominal output power of 1000 W. It does not have a power setting; it operates at full power with an adjustable thermostat.

Can the heater be used in a small room without supervision?

No, it is not recommended to use the unit in small rooms where there are persons unable to leave the room on their own without constant supervision.

How to set the desired temperature?

Turn the thermostat knob fully clockwise for maximum setting. Turn on the heating elements. Once the room temperature is reached, slowly turn the thermostat counterclockwise until you hear a click. The heater will then maintain that temperature by turning on and off automatically.

What are the risks of covering the heater?

Covering the unit may cause overheating and a fire risk. Never cover the heater and keep a distance of at least 1 m from textiles, curtains, or other flammable materials.

What if the power cord is damaged?

Do not use the unit. The cord must be replaced by the manufacturer, its service agent, or a similarly qualified person to avoid any hazard.

USER MANUAL CH3300 N'oveen

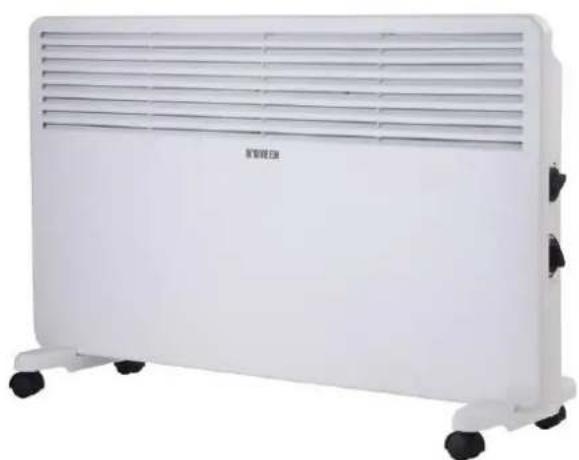

White portable air conditioner unit with ventilation grille and wheels (no visible text or symbols)

CH3300

White outdoor electrical heater with black wheels and ventilation slots (no visible text or symbols)

CH3400
INSTRUKCJA OBSŁUGI USER MANUAL

PL....3

EN....7

FR....11

DE....15

Technical line drawing of a mechanical assembly with a screwdriver and a component (no text or symbols)

MONTAŻ NA ŚCIANIE

Blank white panel with a small U-shaped cutout and corner markers (no text or symbols)

SPOSÓB UŻYTKOWANIA

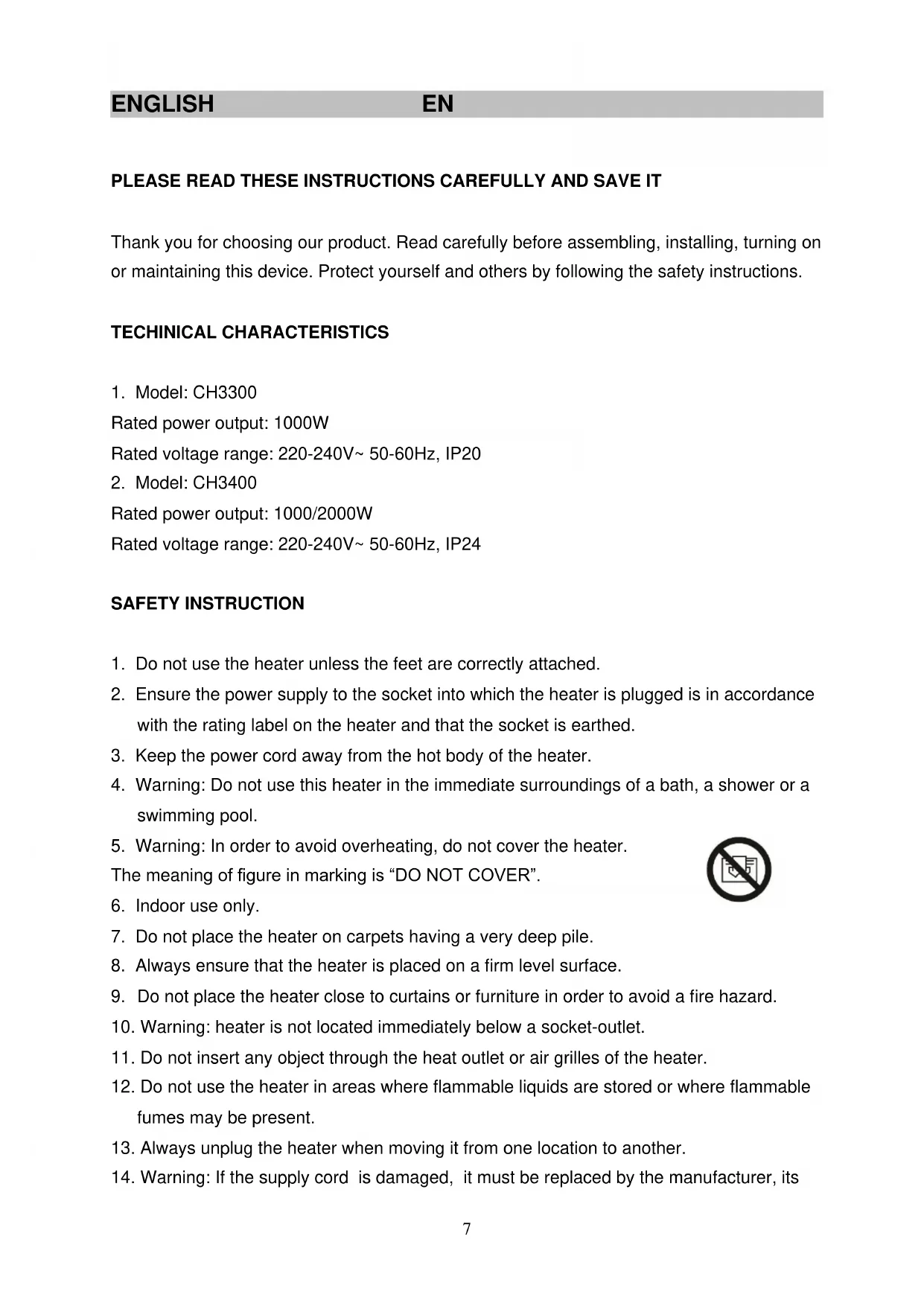

PLEASE READ THESE INSTRUCTIONS CAREFULLY AND SAVE IT

Thank you for choosing our product. Read carefully before assembling, installing, turning on or maintaining this device. Protect yourself and others by following the safety instructions.

TECHINICAL CHARACTERISTICS

1. Model: CH3300

Rated power output: 1000W

Rated voltage range: 220-240V\~50-60Hz, IP20

1. Model: CH3400

Rated power output: 1000/2000W

Rated voltage range: 220-240V\~50-60Hz, IP24

SAFETY INSTRUCTION

1. Do not use the heater unless the feet are correctly attached.
2. Ensure the power supply to the socket into which the heater is plugged is in accordance with the rating label on the heater and that the socket is earthed.
3. Keep the power cord away from the hot body of the heater.

4. Warning: Do not use this heater in the immediate surroundings of a bath, a shower or a swimming pool.

5. Warning: In order to avoid overheating, do not cover the heater.

The meaning of figure in marking is "DO NOT COVER".

1. Indoor use only.

2. Do not place the heater on carpets having a very deep pile.

3. Always ensure that the heater is placed on a firm level surface.

4. Do not place the heater close to curtains or furniture in order to avoid a fire hazard.

5. Warning: heater is not located immediately below a socket-outlet.

6. Do not insert any object through the heat outlet or air grilles of the heater.

7. Do not use the heater in areas where flammable liquids are stored or where flammable fumes may be present.

8. Always unplug the heater when moving it from one location to another.

9. Warning: If the supply cord is damaged, it must be replaced by the manufacturer, its

service agent or a similarly qualified person in order to avoid a hazard.

1. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
2. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
3. Children of less than 3 years should be kept away unless continuously supervised.
4. Children aged from 3 years and less than 8 years shall only switch on/off the appliance provided that it has been placed or installed in its intended normal operating position and they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children aged from 3 years and less than 8 years shall not plug in, regulate and clean the appliance or perform user maintenance.
5. CAUTION - Some parts of this product can become very hot and cause burns. Particular attention has to be given where children and vulnerable people are present.
6. Do not use this heater if it has been dropped; do not use if there are visible signs of damage to the heater; use this heater on a horizontal and stable surface, or fix it to the wall, as applicable.
7. WARNING: Do not use this heater in small rooms when they are occupied by persons not capable of leaving the room on their own, unless constant supervision is provided.
8. WARNING: To reduce the risk of fire, keep textiles, curtains, or any other flammable material a minimum distance of 1 m from the air outlet.
9. This product is only suitable for well insulated spaces or occasional use

INSTALLATION

Before using the heater, the feet (supplied separately in the carton), must be fitted to the unit. These are to be attached to the base of the heater using self-tapping screws provided, taking care to ensure that they are located correctly in the bottom ends of the heater side moldings

Technical line drawing of a mechanical assembly with a screwdriver and a curved component (no text or symbols)

WALL MOUNTING

The convector can be mounted on the wall, the set includes dowels that are intended for this purpose

Blank white rectangular object with a small U-shaped cutout and corner markers (no text or symbols)

NOTE: It is normal when the heaters are turned on for the first time or when they are turned on after having not been used for a long period of time the heaters may emit some smell and fumes. This will disappear when the heater has been on a short while.

NOTE: INDOOR USE ONLY

1. Choose a suitable location for the heater, taking into account the safety instructions above. Insert the plug of the heater into a suitable socket.
2. Turn the thermostat knob fully in a clockwise direction to the maximum setting.

3. Turn on the heating elements by means of the rocker switches on the control panel.

4. When the desired room temperature has been reached, the thermostat knob should be turned slowly anti-clockwise until the thermostat is heard to click off. After this the heater will keep the air temperature in the room at the set temperature by switching on and off automatically.

CLEANING THE HEATER

Always un-plug the heater from the wall socket and allow it to cool down before cleaning. Clean the outside of the heater by wiping with a damp cloth and buff with a dry cloth. Do not use any detergents or abrasives and do not allow any water to enter the heater.

STORING THE HEATER

When the heater is not used for long periods of time it should be protected from dust and stored in a clean dry place.

CORRECT DISPOSAL OF THIS PRODUCT

This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmentally safe recycling.
