CH3400 - Heating N'oveen - Free user manual and instructions

Brand	N'oveen
Model	CH3400
Product type	Wall-mounted or floor-standing electric convector
Heating power	1000 W / 2000 W (2 levels)
Power supply voltage	220-240 V ~ 50/60 Hz
Protection rating	IP24
Dimensions (approx.)	Height 42 cm, Width 65 cm, Depth 10 cm
Weight (approx.)	5 kg
Installation	On feet (provided) or wall mount (kit included)
Settings	Adjustable thermostat + power on/off switches per level
Operation	Automatic temperature maintenance
Safety	Do not cover, do not use near water, overheat protection (automatic shut-off)
Maintenance	Clean with a damp cloth after unplugging and cooling down
Storage	In a clean, dry place, protected from dust
Use	Indoor only, well-insulated rooms or occasional use
Warranty	Standard manufacturer warranty (refer to document)

Frequently Asked Questions - CH3400 N'oveen

What is the maximum power of the N'oveen CH3400 heater?

The CH3400 has two power levels: 1000 W and 2000 W, selectable via the control panel switches.

Can I install this heater in a bathroom?

Yes, the IP24 protection rating makes it suitable for humid rooms like bathrooms, provided safety distances are respected (not in immediate proximity of a bathtub or shower).

How to attach the heater's feet?

The feet are provided in the box. Attach them to the base of the appliance using the provided self-tapping screws, placing them in the lower ends of the side mouldings.

The heater emits an odor or smoke on first use, is this normal?

Yes, this is normal. On first use or after a long period of inactivity, the heating elements may produce an odor or a little smoke. This disappears after a few minutes of operation.

What minimum distance should I maintain around the heater?

Keep textiles, curtains, and other flammable materials at least 1 meter away from the air outlet. Do not place the appliance directly under a power outlet.

The heater turns off by itself, is it a defect?

No, it's normal. The thermostat automatically turns off the heating when the room temperature reaches the set point, then turns it back on if the temperature drops. This is standard operation.

How to clean the heater?

Always unplug the appliance and let it cool down before cleaning. Wipe the exterior with a damp cloth. Do not use abrasive products and do not allow water to enter the interior.

Can I use an extension cord with this heater?

It is not recommended to use an extension cord to avoid overheating risks. Plug directly into a grounded wall outlet.

Is this heater suitable for a child's room?

Yes, with caution. Children under 3 years should be kept away or under constant supervision. For children aged 3 to 8, the appliance must be installed in its normal position and under supervision. Surfaces become hot, so be careful of burns.

How to store the heater in summer?

Store it in a clean, dry place, protected from dust. If possible, repack it in its original packaging or cover it with a cloth.

USER MANUAL CH3400 N'oveen

White portable air conditioner unit with ventilation grille and wheels (no visible text or symbols)

CH3300

White outdoor electrical heater with black wheels and ventilation slots (no visible text or symbols)

CH3400
INSTRUKCJA OBSŁUGI USER MANUAL

PL....3

EN....7

FR....11

DE....15

Technical line drawing of a mechanical assembly with a screwdriver and a component (no text or symbols)

MONTAŻ NA ŚCIANIE

Blank white panel with a small U-shaped cutout and corner markers (no text or symbols)

SPOSÓB UŻYTKOWANIA

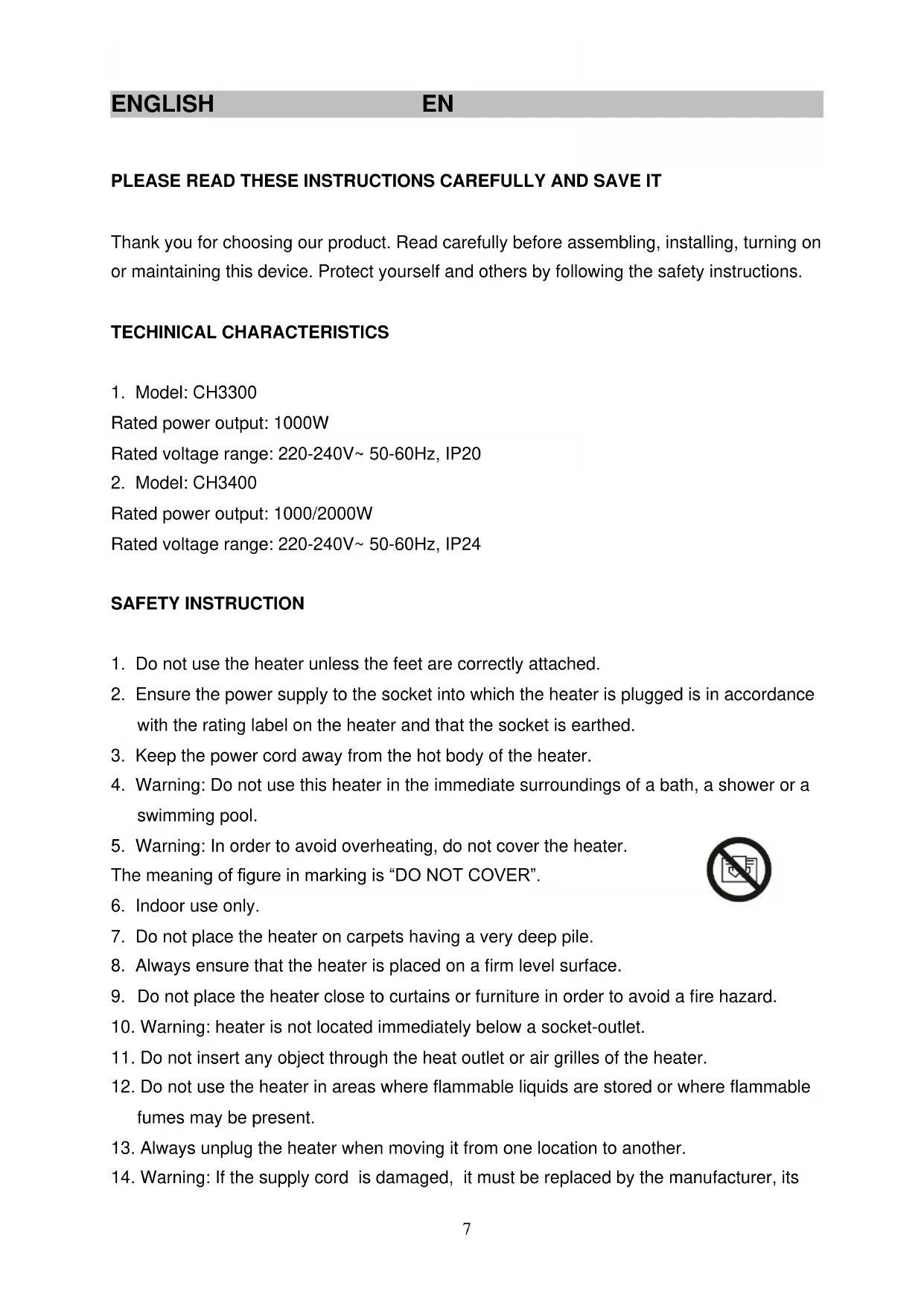

PLEASE READ THESE INSTRUCTIONS CAREFULLY AND SAVE IT

Thank you for choosing our product. Read carefully before assembling, installing, turning on or maintaining this device. Protect yourself and others by following the safety instructions.

TECHINICAL CHARACTERISTICS

1. Model: CH3300

Rated power output: 1000W

Rated voltage range: 220-240V\~50-60Hz, IP20

1. Model: CH3400

Rated power output: 1000/2000W

Rated voltage range: 220-240V\~50-60Hz, IP24

SAFETY INSTRUCTION

1. Do not use the heater unless the feet are correctly attached.
2. Ensure the power supply to the socket into which the heater is plugged is in accordance with the rating label on the heater and that the socket is earthed.
3. Keep the power cord away from the hot body of the heater.

4. Warning: Do not use this heater in the immediate surroundings of a bath, a shower or a swimming pool.

5. Warning: In order to avoid overheating, do not cover the heater.

The meaning of figure in marking is "DO NOT COVER".

1. Indoor use only.

2. Do not place the heater on carpets having a very deep pile.

3. Always ensure that the heater is placed on a firm level surface.

4. Do not place the heater close to curtains or furniture in order to avoid a fire hazard.

5. Warning: heater is not located immediately below a socket-outlet.

6. Do not insert any object through the heat outlet or air grilles of the heater.

7. Do not use the heater in areas where flammable liquids are stored or where flammable fumes may be present.

8. Always unplug the heater when moving it from one location to another.

9. Warning: If the supply cord is damaged, it must be replaced by the manufacturer, its

service agent or a similarly qualified person in order to avoid a hazard.

1. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
2. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
3. Children of less than 3 years should be kept away unless continuously supervised.
4. Children aged from 3 years and less than 8 years shall only switch on/off the appliance provided that it has been placed or installed in its intended normal operating position and they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children aged from 3 years and less than 8 years shall not plug in, regulate and clean the appliance or perform user maintenance.
5. CAUTION - Some parts of this product can become very hot and cause burns. Particular attention has to be given where children and vulnerable people are present.
6. Do not use this heater if it has been dropped; do not use if there are visible signs of damage to the heater; use this heater on a horizontal and stable surface, or fix it to the wall, as applicable.
7. WARNING: Do not use this heater in small rooms when they are occupied by persons not capable of leaving the room on their own, unless constant supervision is provided.
8. WARNING: To reduce the risk of fire, keep textiles, curtains, or any other flammable material a minimum distance of 1 m from the air outlet.
9. This product is only suitable for well insulated spaces or occasional use

INSTALLATION

Before using the heater, the feet (supplied separately in the carton), must be fitted to the unit. These are to be attached to the base of the heater using self-tapping screws provided, taking care to ensure that they are located correctly in the bottom ends of the heater side moldings

Technical line drawing of a mechanical assembly with a screwdriver and a curved component (no text or symbols)

WALL MOUNTING

The convector can be mounted on the wall, the set includes dowels that are intended for this purpose

Blank white rectangular object with a small curved cutout on top (no text or symbols visible)

NOTE: It is normal when the heaters are turned on for the first time or when they are turned on after having not been used for a long period of time the heaters may emit some smell and fumes. This will disappear when the heater has been on a short while.

NOTE: INDOOR USE ONLY

1. Choose a suitable location for the heater, taking into account the safety instructions above. Insert the plug of the heater into a suitable socket.
2. Turn the thermostat knob fully in a clockwise direction to the maximum setting.

3. Turn on the heating elements by means of the rocker switches on the control panel.

4. When the desired room temperature has been reached, the thermostat knob should be turned slowly anti-clockwise until the thermostat is heard to click off. After this the heater will keep the air temperature in the room at the set temperature by switching on and off automatically.

CLEANING THE HEATER

Always un-plug the heater from the wall socket and allow it to cool down before cleaning. Clean the outside of the heater by wiping with a damp cloth and buff with a dry cloth. Do not use any detergents or abrasives and do not allow any water to enter the heater.

STORING THE HEATER

When the heater is not used for long periods of time it should be protected from dust and stored in a clean dry place.

CORRECT DISPOSAL OF THIS PRODUCT

This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmentally safe recycling.
