USER MANUAL KMM-BT203 KENWOOD

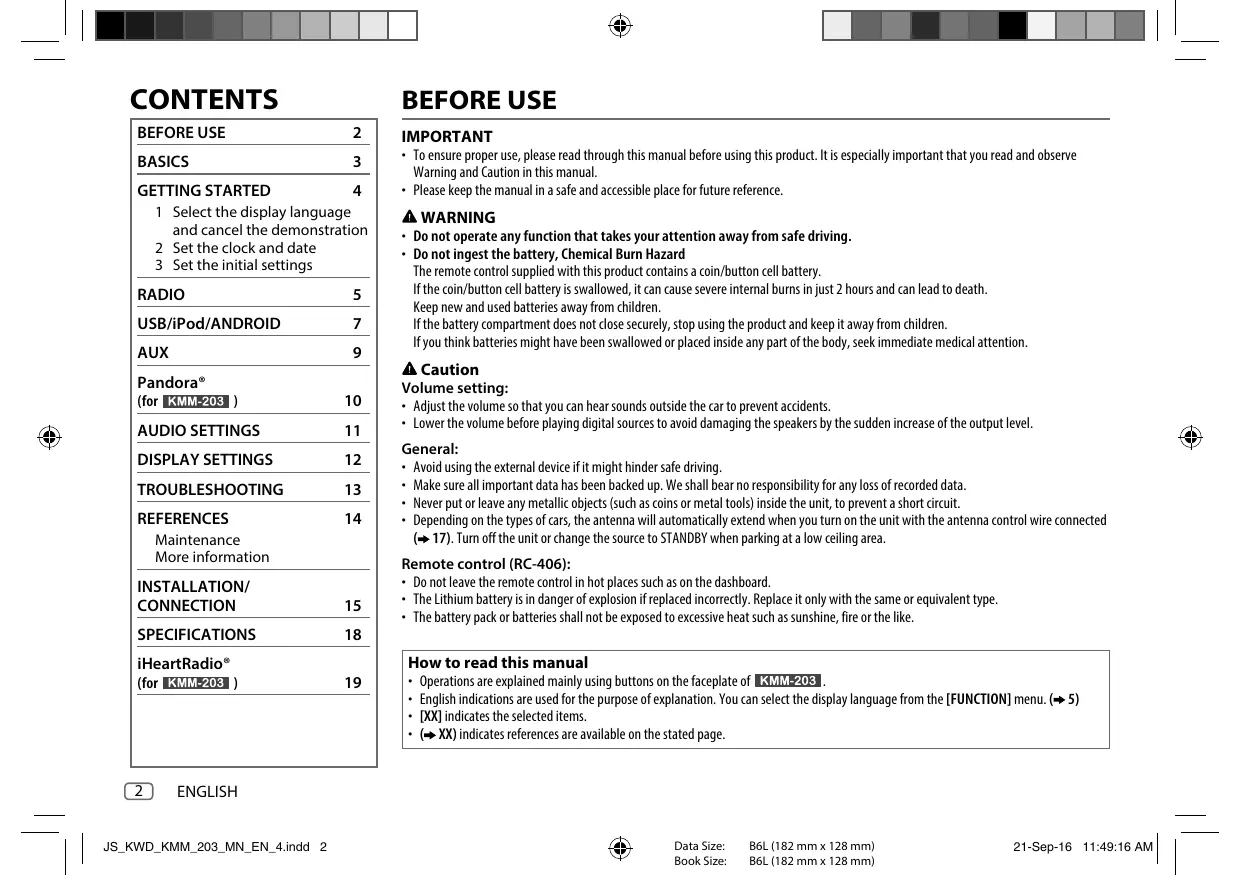

• To ensure proper use, please read through this manual before using this product. It is especially important that you read and observe Warning and Caution in this manual.
• Please keep the manual in a safe and accessible place for future reference. 1 Select the display language and cancel the demonstration 2 Set the clock and date 3 Set the initial settings RADIO

Caution Pandora® (for

• Adjust the volume so that you can hear sounds outside the car to prevent accidents.
• Lower the volume before playing digital sources to avoid damaging the speakers by the sudden increase of the output level. General:
• Avoid using the external device if it might hinder safe driving.
• Make sure all important data has been backed up. We shall bear no responsibility for any loss of recorded data.
• Never put or leave any metallic objects (such as coins or metal tools) inside the unit, to prevent a short circuit.
• Depending on the types of cars, the antenna will automatically extend when you turn on the unit with the antenna control wire connected ( 17). Turn off the unit or change the source to STANDBY when parking at a low ceiling area. Remote control (RC-406):
• Do not leave the remote control in hot places such as on the dashboard.
• The Lithium battery is in danger of explosion if replaced incorrectly. Replace it only with the same or equivalent type.
• The battery pack or batteries shall not be exposed to excessive heat such as sunshine, fire or the like. How to read this manual iHeartRadio® (for WARNING
• Do not operate any function that takes your attention away from safe driving.
• Do not ingest the battery, Chemical Burn Hazard The remote control supplied with this product contains a coin/button cell battery. If the coin/button cell battery is swallowed, it can cause severe internal burns in just 2 hours and can lead to death. Keep new and used batteries away from children. If the battery compartment does not close securely, stop using the product and keep it away from children. If you think batteries might have been swallowed or placed inside any part of the body, seek immediate medical attention.

Operations are explained mainly using buttons on the faceplate of English indications are used for the purpose of explanation. You can select the display language from the [FUNCTION] menu. ( 5) [XX] indicates the selected items. ( XX) indicates references are available on the stated page. ENGLISH JS_KWD_KMM_203_MN_EN_4.indd 2 Data Size: Book Size: B6L (182 mm x 128 mm) B6L (182 mm x 128 mm) 21-Sep-16 11:49:16 AM BASICS Faceplate Remote control (RC-406) Remote sensor (Do not expose to bright sunlight.) Display window Volume knob Pull out the insulation sheet when using for the first time.

• Not used Detach button Attach Detach How to reset How to replace the battery Your preset adjustments will be erased except stored radio stations.

On the faceplate On the remote control Turn on the power

• Press and hold to turn off the power. Press and hold SRC to turn off the power. ( Pressing SRC does not turn on the power. ) Adjust the volume Turn the volume knob. Press

• Press and hold the volume to 15.

to continuously increase Press ATT during playback to attenuate the sound.

• Press again to cancel. Select a source Press Change the display information Press DISP repeatedly. ( 15) Press SRC repeatedly. repeatedly. ( Not available ) ENGLISH JS_KWD_KMM_203_MN_EN_4.indd 3 Data Size: Book Size: B6L (182 mm x 128 mm) B6L (182 mm x 128 mm)

Select the display language and cancel the demonstration When you turn on the power (or after you reset the unit), the display shows: “SEL LANGUAGE” “PRESS” “VOLUME KNOB” 1 Turn the volume knob to select [ENG] (English) or [TUR] (Turkish), then press the knob. [ENG] is selected for the initial setup. Then, the display shows: “CANCEL DEMO” “VOLUME KNOB”. 2 Press the volume knob. [YES] is selected for the initial setup. 3 Press the volume knob again. “DEMO OFF” appears.

Set the initial settings 1 Press repeatedly to enter STANDBY. 2 Press the volume knob to enter [FUNCTION]. “PRESS”

11 Press and hold To return to the previous setting item, press AUDIO CONTROL SWITCH PREOUT REAR/SUB-W: Selects whether rear speakers or a subwoofer are connected to the line out terminals on the rear (through an external amplifier). ( 17) SP SELECT OFF/ 5/4/ 6 × 9/6/ OEM: Selects according to the speaker size (5 inches or 4 inches, 6×9 inches or 6 inches) or OEM speakers for optimum performance. ENGLISH JS_KWD_KMM_203_MN_EN_4.indd 4 Data Size: Book Size: B6L (182 mm x 128 mm) B6L (182 mm x 128 mm) 21-Sep-16 11:49:19 AM GETTING STARTED RADIO TUNER SETTING PRESET TYPE NORMAL: Memorizes one station for each preset button in each band ( RADIO). ; MIX: Memorizes one station for each preset button, regardless of the selected band. SYSTEM KEY BEEP ON: Activates the keypress tone. ; OFF: Deactivates. TDF ALARM ON: Activates the alarm if you forget to detach the faceplate when ACC is set to OFF. ; OFF: Deactivates. Supported band: FM1/FM2/FM3/AM/SW1/SW2 PANDORA SRC (For ON: Enables PANDORA in source selection. ; OFF: Disables. ( 10) 1 Press 2 Press BUILT-IN AUX ON: Enables AUX in source selection. ; OFF: Disables. ( 9) SOURCE SELECT Search for a station

UPDATE SYSTEM F/W UP xxxx YES: Starts upgrading the firmware. ; NO: Cancels (upgrading is not activated). For details on how to update the firmware, visit <www.kenwood.com/cs/ce/>. CLOCK CLOCK DISPLAY ON: The clock time is shown on the display even when the unit is turned off. ; OFF: Cancels. ENGLISH Select the display language for [FUNCTION] menu and music information if applicable. By default, [ENGLISH] is selected. TURKCE repeatedly to select TUNER. repeatedly (or press on the remote control) to select the band. 3 Press S / T (or press S / on the remote control) to search for a station.

• To change the searching method for S / T: Press repeatedly. AUTO1 : Automatically search for a station. AUTO2 : Search for a preset station. MANUAL : Manually search for a station.
• To store a station: Press and hold one of the number buttons (1 to 6).
• To select a stored station: Press one of the number buttons (1 to 6) (or press one of the number buttons (1 to 6) on the remote control). Direct Access Tuning (using the remote control) 1 Press DIRECT to enter Direct Access Tuning. 2 Press the number buttons to enter a frequency. 3 Press to search for a station. or DIRECT.
• If no operation is done for 10 seconds after step 2, Direct Access Tuning is automatically canceled. ENGLISH JS_KWD_KMM_203_MN_EN_4.indd 5 Data Size: Book Size: B6L (182 mm x 128 mm) B6L (182 mm x 128 mm)

21-Sep-16 11:49:21 AM RADIO Other settings PTY SEARCH 1 Press the volume knob to enter [FUNCTION]. 2 Turn the volume knob to select an item (see the following table), then press the knob. 3 Repeat step 2 until the desired item is selected or activated. 4 Press and hold to exit. To return to the previous setting item, press CLOCK TIME SYNC

1 Turn the volume knob to select the available Program Type, then press the knob. 2 Turn the volume knob to select the PTY language (ENGLISH/FRENCH/ GERMAN), then press the knob. 3 Press S / T to start searching. ON: Synchronizes the unit’s time to the Radio Data System station time. ; OFF: Cancels. Default: XX TUNER SETTING LOCAL SEEK ON: Searches only AM/SW1/SW2 stations with good reception. ; OFF: Cancels.

• Settings made are applicable only to the selected source/station. Once you change the source/station, you need to make the settings again. AUTO MEMORY YES: Automatically starts memorizing 6 stations with good reception. ; NO: Cancels.
• Selectable only if [NORMAL] is selected for [PRESET TYPE]. ( 5) MONO SET ON: Improves the FM reception, but the stereo effect may be lost. ; OFF: Cancels. NEWS SET ON: The unit will temporarily switch to News Programme if available. ; OFF: Cancels. REGIONAL ON: Switches to another station only in the specific region using the “AF” control. ; OFF: Cancels. AF SET ON: Automatically searches for another station broadcasting the same program in the same Radio Data System network with better reception when the current reception is poor. ; OFF: Cancels.

ON: Allows the unit to temporarily switch to Traffic Information if available (“TI” lights up). ; OFF: Cancels.

Available Program Type for [PTY SEARCH] SPEECH : NEWS, AFFAIRS, INFO (information), SPORT, EDUCATE, DRAMA, CULTURE, SCIENCE, VARIED, WEATHER, FINANCE, CHILDREN, SOCIAL,

RELIGION, PHONE IN, TRAVEL, LEISURE, DOCUMENT

MUSIC : POP M (music), ROCK M (music), EASY M (music), LIGHT M (music), CLASSICS, OTHER M (music), JAZZ, COUNTRY, NATION M (music), OLDIES, FOLK M (music) The unit will search for the Program Type categorized under [SPEECH] or [MUSIC] if selected.

• [MONO SET]/[NEWS SET]/[REGIONAL]/[AF SET]/[TI]/[PTY SEARCH] is selectable only when the band is FM1/FM2/FM3.
• If the volume is adjusted during reception of traffic information, alarm or news bulletin, the adjusted volume is memorized automatically. It will be applied the next time traffic information, alarm or news bulletin is turned on. ENGLISH JS_KWD_KMM_203_MN_EN_4.indd 6 Data Size: Book Size: B6L (182 mm x 128 mm) B6L (182 mm x 128 mm) 21-Sep-16 11:49:23 AM USB/iPod/ANDROID Start playback The source changes automatically and playback starts. USB input terminal USB CA-U1EX (max.: 500 mA) (optional accessory) iPod/iPhone (for

KCA-iP102/KCA-iP103 (optional accessory)*1 or accessory of the iPod/ iPhone*2

On the faceplate On the remote control Playback/pause Press Press Reverse/Fast-forward*4 Press and hold S / T. Press and hold S / Select a file Press S / T. Press S / Select a folder*5 Press J / K. Press Repeat play*6 Press Micro USB 2.0 cable*2 (commercially available) *1 KCA-iP102 : 30-pin type, KCA-iP103 : Lightning type *2 Do not leave the cable inside the car when not using.

repeatedly. Press repeatedly. FOLDER RANDOM/RANDOM OFF: MP3/WMA/WAV/FLAC file, iPod or ANDROID Press and hold to select ALL RANDOM. *3 When connecting an Android device, “Press [VIEW] to install KENWOOD MUSIC PLAY APP” is shown. Follow the instructions to install the application. You can also install the latest version of KENWOOD MUSIC PLAY application on your Android device before connecting. For more information, visit <www.kenwood.com/cs/ce/>. *4 For ANDROID: Applicable only when [BROWSE MODE] is selected. ( 8) *5 Only for MP3/WMA/WAV/FLAC files. This does not work for iPod/ANDROID. *6 For iPod/ANDROID: Applicable only when [MODE OFF]/[BROWSE MODE] is selected. ( 8) ENGLISH JS_KWD_KMM_203_MN_EN_4.indd 7

21-Sep-16 11:49:23 AM USB/iPod/ANDROID Select control mode While in iPod source, press 5 repeatedly. MODE ON : Control iPod using the iPod itself. However, you can still play/pause, file skip, fast-forward or reverse from this unit. MODE OFF : Control iPod from this unit. Select a file from a folder/list For iPod/ANDROID, applicable only when [MODE OFF]/[BROWSE MODE] is selected. 1 Press 2 Turn the volume knob to select a folder/list, then press the knob. 3 Turn the volume knob to select a file, then press the knob. Quick Search (applicable only for USB and ANDROID source) While in ANDROID source, press 5 repeatedly. BROWSE MODE : Control Android device from this unit via KENWOOD MUSIC PLAY application installed in the Android device. HAND MODE : Control Android device using the Android device itself via other media player applications installed in the Android device. However, you can still play/ pause and file skip from this unit. Select music drive While in USB source, press 5 repeatedly. Stored songs in the following drive will be played back.

• Selected internal or external memory of a smartphone (Mass Storage Class).
• Selected drive of a multiple drives device. Listen to TuneIn Radio/TuneIn Radio Pro/Aupeo (for

While listening to TuneIn Radio, TuneIn Radio Pro or Aupeo, connect the iPod/iPhone to the USB input terminal of the unit.

• The unit will output the sound from these applications. If you have many files, you can search through them quickly. Turn the volume knob quickly to browse through the list quickly. Skip Search (applicable only for iPod and ANDROID source) Press S / T to search at a preset skip search ratio. ( 9, [SKIP SEARCH])
• Pressing and holding S / T searches at a 10% ratio. Alphabet search (applicable only for iPod and ANDROID source) You can search for a file according to the first character. For iPod source 1 Turn the volume knob quickly to enter character search. 2 Turn the volume knob to select the character.
• Select “ ” to search for a character other than A to Z, 0 to 9. 3 Press S / T to move to the entry position.
• You can enter up to 3 characters. 4 Press the volume knob to start searching.

For ANDROID source 1 Press J / K to enter character search. 2 Turn the volume knob to select the character. ^A^: Upper case letters (A to Z) _A_: Lower case letters (a to z) -0-: Numbers (0 to 9) : Character other than A to Z, 0 to 9 3 Press the volume knob to start searching.

ENGLISH JS_KWD_KMM_203_MN_EN_4.indd 8 Data Size: Book Size: B6L (182 mm x 128 mm) B6L (182 mm x 128 mm) 21-Sep-16 11:49:25 AM AUX USB/iPod/ANDROID Preparation: Select [ON] for [BUILT-IN AUX] in [SOURCE SELECT]. ( 5) Direct Music Search (using the remote control) 1 Press DIRECT. 2 Press the number buttons to enter a file number. 3 Press to search for music. Start listening 1 Connect a portable audio player (commercially available). or DIRECT.

• Not available if Random Play is selected.
• Not applicable for iPod and ANDROID source. Auxiliary input jack Portable audio player Other settings 1 Press the volume knob to enter [FUNCTION]. 2 Turn the volume knob to select an item (see the following table), then press the knob. 3 Repeat step 2 until the desired item is selected or activated. 4 Press and hold to exit. To return to the previous setting item, press

3.5 mm stereo mini plug with “L” shaped

connector (commercially available) 2 Press repeatedly to select AUX. 3 Turn on the portable audio player and start playback.

Default: XX Set the AUX name USB MUSIC DRIVE DRIVE CHANGE: The next drive ([DRIVE 1] to [DRIVE 5]) is selected automatically and playback starts. Repeat steps 1 to 3 to select the following drives. SKIP SEARCH 0.5%/1%/5%/10%: While listening to iPod or ANDROID source, selects the skip search ratio over the total files. While listening to a portable audio player connected to the unit... 1 Press the volume knob to enter [FUNCTION]. 2 Turn the volume knob to select [SYSTEM], then press the knob. 3 Turn the volume knob to select [AUX NAME SET], then press the knob. 4 Turn the volume knob to select an item, then press the knob. AUX (default)/DVD/PORTABLE/GAME/VIDEO/TV 5 Press and hold to exit. To return to the previous setting item, press

Preparation: Install the latest version of the Pandora application on your device (iPhone/iPod touch), then create an account and log in to Pandora.

• Select [ON] for [PANDORA SRC] in [SOURCE SELECT]. ( 5) Create and save a new station 1 Press 2 Turn the volume knob to select [NEW STATION], then press the knob. 3 Turn the volume knob to select [FROM ARTIST] or [FROM TRACK], Start listening then press the knob. A new station is created based on the artist or current song. 4 Press and hold one of the number buttons (1 to 5) to store. 1 Open the Pandora application on your device. 2 Connect your device to the USB input terminal. To select a stored station: Press one of the number buttons (1 to 5). USB input terminal Search for a registered station KCA-iP102/KCA-iP103 (optional accessory)*1 or accessory of the iPod/iPhone*2 1 Press 2 Turn the volume knob to select an item, then press the The source changes to PANDORA and broadcast starts.

On the faceplate Playback/pause Press Skip a track Press T. Press Thumbs up or thumbs down*3 Press J / K. Press *1 KCA-iP102 : 30-pin type, KCA-iP103 : Lightning type *2 Do not leave the cable inside the car when not using. *3 If thumbs down is selected, the current track is skipped.

On the remote control Press

knob. [BY DATE]: According to the registered date [A-Z]: By alphabetical order 3 Turn the volume knob (or press J / K on the remote control) to select the desired station. 4 Press the volume knob (or press on the remote control) to confirm. To cancel, press and hold

Bookmark current song information Press and hold the volume knob. “BOOKMARKED” appears and the information is stored to your device.

• The bookmark is available on your Pandora account but not on this unit. ENGLISH JS_KWD_KMM_203_MN_EN_4.indd 10 Data Size: Book Size: B6L (182 mm x 128 mm) B6L (182 mm x 128 mm) 21-Sep-16 11:49:27 AM Pandora® (for AUDIO SETTINGS

While listening to any source... Delete a station While listening to PANDORA... 1 Press 2 Turn the volume knob to select [STATION DEL], then press the knob. 3 Turn the volume knob to select [BY DATE] or [A-Z], then press the knob. 4 Turn the volume knob to select the desired station to delete, then press the knob. 5 Turn the volume knob to select [YES], then press the knob. 6 Press and hold to exit. To return to the previous setting item, press

Press AUD to enter [AUDIO CONTROL] directly. Turn the volume knob to select an item (see the following table), then press the knob. Repeat step 2 until the desired item is selected or activated. Press and hold to exit. To return to the previous setting item, press

Default: XX AUDIO CONTROL SUB-W LEVEL –15 to +15 (0) BASS LEVEL –8 to +8 (+2) MID LEVEL –8 to +8 (+1) TRE LEVEL –8 to +8 (+1) Adjusts the subwoofer output level. Adjusts the level to memorize for each source. (Before making an adjustment, select the source you want to adjust.) EQ PRO (This setting is stored to [USER].) BASS ADJUST

60/80/100/200: Selects the center frequency. BASS LEVEL –8 to +8 (+2): Adjusts the level. BASS Q FACTOR 1.00/1.25/1.50/2.00: Adjusts the quality factor. MID ADJUST TRE ADJUST BASS EXTEND ON: Turns on the extended bass. ; OFF: Cancels.

0.5KHZ/1.0KHZ/1.5KHZ/2.5KHZ: Selects the center frequency. MID LEVEL –8 to +8 (+1): Adjusts the level.

0.75/1.00/1.25: Adjusts the quality factor.

10.0KHZ/12.5KHZ/15.0KHZ/17.5KHZ: Selects the center frequency. TRE LEVEL –8 to +8 (+1): Adjusts the level. ENGLISH JS_KWD_KMM_203_MN_EN_4.indd 11 Data Size: Book Size: B6L (182 mm x 128 mm) B6L (182 mm x 128 mm)

21-Sep-16 11:49:28 AM AUDIO SETTINGS PRESET EQ DRIVE EQ/TOP40/POWERFUL/ROCK/POPS/EASY/JAZZ/NATURAL/ USER: Selects a preset equalizer suitable to the music genre. (Select [USER] to use the settings made in [EQ PRO].) [DRIVE EQ] is a preset equalizer that reduces noise outside the car or running noise of the tyres. BASS BOOST LV1/LV2/LV3: Selects your preferred bass boost level. ; OFF: Cancels. LOUDNESS LV1/LV2: Selects your preferred low and high frequencies boost to produce a well-balanced sound at a low volume level. ; OFF: Cancels. DISPLAY SETTINGS Set the dimmer Press and hold DISP (DIMMER) to turn on or off the dimmer.

• If you have set [DIMMER TIME], it will be canceled once you press and hold this button. Other settings 1 Press the volume knob to enter [FUNCTION]. 2 Turn the volume knob to select an item (see the following SUBWOOFER SET ON: Turns on the subwoofer output. ; OFF: Cancels. LPF SUBWOOFER THROUGH: All signals are sent to the subwoofer. ; 85HZ/120HZ/160HZ: Audio signals with frequencies lower than 85 Hz/120 Hz/160 Hz are sent to the subwoofer. 3 Repeat step 2 until the desired item is selected/activated or REVERSE (180°)/NORMAL (0°): Selects the phase of the subwoofer output to be in line with the speaker output for optimum performance. (Selectable only if a setting other than [THROUGH] is selected for [LPF SUBWOOFER].) To return to the previous setting item, press SUB-W PHASE FADER R15 to F15 (0): Adjusts the rear and front speaker output balance. BALANCE L15 to R15 (0): Adjusts the left and right speaker output balance. VOLUME OFFSET For AUX: –8 to +8 (0) ; For other sources: –8 to 0: Preset the initial volume level of each source. (Before adjustment, select the source you want to adjust.) SOUND RECNSTR ON: Creates realistic sound by compensating the high-frequency (Sound reconstruction) components and restoring the rise-time of the waveform that are lost in audio data compression. ; OFF: Cancels.
• [SUB-W LEVEL]/[SUBWOOFER SET]/[LPF SUBWOOFER]/[SUB-W PHASE] is selectable only if [SWITCH PREOUT] is set to [SUB-W]. ( 4)
• [SUB-W LEVEL]/[LPF SUBWOOFER]/[SUB-W PHASE] is selectable only if [SUBWOOFER SET] is set to [ON].

table), then press the knob. follow the instructions stated on the selected item. to exit. 4 Press and hold

Default: XX DISPLAY DIMMER Dim the display illumination. ON: Dimmer is turned on. ; OFF: Cancels. DIMMER TIME: Set the dimmer on and off time. 1 Turn the volume knob to adjust the [ON] time, then press the knob. 2 Turn the volume knob to adjust the [OFF] time, then press the knob. (Default: [ON]: 6:00PM; [OFF]: 6:00AM) BRIGHTNESS 0 to 31: Select your preferred brightness level for the display illumination. TEXT SCROLL AUTO/ONCE: Select whether to scroll the display information automatically, or scroll only once. ; OFF: Cancels. ENGLISH JS_KWD_KMM_203_MN_EN_4.indd 12 Data Size: Book Size: B6L (182 mm x 128 mm) B6L (182 mm x 128 mm) 21-Sep-16 11:49:28 AM TROUBLESHOOTING Symptom Turn the power off, then check to be sure the terminals of the speaker wires are insulated properly. Turn the power on again.

“PROTECTING SEND SERVICE”

appears. Send the unit to the nearest service center.

• Sound cannot be heard.
• The unit does not turn on.
• Information shown on the display is incorrect. Clean the connectors. ( 14) The unit does not work at all. Reset the unit. ( 3)

• Radio reception is poor.
• Static noise while listening to the radio. Connect the antenna firmly. “READING” keeps flashing. Do not use too many hierarchical levels or folders. Elapsed playing time is not correct. This is caused by how the files are recorded. Correct characters are not displayed (e.g. album name).

• This unit can only display uppercase letters, numbers, and a limited number of symbols.
• Depending on the display language you have selected ( 5), some characters may not be displayed correctly. “NA FILE” Make sure the media contains supported audio files. ( 14) “READ ERROR” Copy the files and folders onto the USB device again. If this does not solve the problem, reset the USB device or use another USB device. USB/iPod

• Adjust the volume to the optimum level.
• Check the cords and connections.

“MISWIRING CHECK WIRING

THEN PWR ON” appears. USB/iPod Radio General Sound cannot be heard. Remedy Remedy “NO DEVICE” Connect a USB device, and change the source to USB again. “COPY PRO” A copy-protected file is played. “NA DEVICE” Connect a supported USB device, and check the connections. “NO MUSIC” Connect a USB device that contains playable audio files. “iPod ERROR”

• Sound cannot be heard during playback.
• Sound output only from the Android device.

• Reconnect the Android device.
• If in [HAND MODE], launch any media player application on the Android device and start playback.
• If in [HAND MODE], relaunch the current media player application or use another media player application.
• Restart the Android device.
• If this does not solve the problem, the connected Android device is unable to route the audio signal to unit. ( 15) Cannot playback at [BROWSE MODE].

• Make sure KENWOOD MUSIC PLAY APP is installed on the Android device. ( 7)
• Reconnect the Android device and select the appropriate control mode.
• If this does not solve the problem, the connected Android device does not support [BROWSE MODE]. ( 15) “NO DEVICE” or “READING” keeps flashing.

• Switch off the developer options on the Android device.
• Reconnect the Android device.
• If this does not solve the problem, the connected Android device does not support [BROWSE MODE]. ( 15) Playback is intermittent or sound skips. Turn off the power saving mode on the Android device. “ANDROID ERROR”/ “NA DEVICE”

• Reconnect the Android device.

21-Sep-16 11:49:29 AM TROUBLESHOOTING Pandora Symptom Remedy “ADD ERROR” New station creation is unsuccessful. “CHECK DEVICE” Check the Pandora application on your device. “NO SKIPS” The skip limit has been reached. “NO STATIONS” No stations are found. “STATION LIMIT” The number of registered stations has reached its limit. Retry after deleting unnecessary stations from your device. “CONNECT ERROR” Communication is unstable. “RATING ERROR” Registration of thumbs up/thumbs down has failed due to insufficient network connectivity.

Registration of thumbs up/thumbs down is not allowed. “LICENSE ERROR” You try to access from a country which Pandora is not deliverable. Muting upon the reception of a phone call Connect the MUTE wire to your telephone using a commercial telephone accessory. ( 17) When a call comes in, “CALL” appears. (The audio system pauses.)

• To continue listening to the audio system during a call, press “CALL” disappears and the audio system resumes. When the call ends, “CALL” disappears. (The audio system resumes.)

ENGLISH JS_KWD_KMM_203_MN_EN_4.indd 14 REFERENCES Maintenance Cleaning the unit Wipe off dirt on the faceplate with a dry silicone or soft cloth. Cleaning the connector Detach the faceplate and clean the connector gently with a cotton swab, being careful not to damage the connector. Connector (on the reverse side of the faceplate) More information For: – Latest firmware updates and latest compatible item list – Any other latest information Visit <www.kenwood.com/cs/ce/>. Playable files

• Playable audio file for USB mass storage class device: MP3 (.mp3), WMA (.wma), WAV (.wav), FLAC (.flac)
• Playable USB device file system: FAT12, FAT16, FAT32 Even when audio files comply with the standards listed above, playback may be impossible depending on the types or conditions of media or device.
• For detailed information and notes about the playable audio files, visit <www.kenwood.com/cs/ce/audiofile/>. About USB devices
• You cannot connect a USB device via a USB hub.
• Connecting a cable whose total length is longer than 5 m may result in abnormal playback.
• This unit cannot recognize a USB device whose rating is other than 5 V and exceeds 1 A. About iPod/iPhone Made for – iPod touch (2nd, 3rd, 4th, 5th, and 6th generation) – iPod classic – iPod nano (3rd, 4th, 5th, 6th, and 7th generation) – iPhone 3G, 3GS, 4, 4S, 5, 5S, 5C, 6, 6 Plus, 6S, 6S Plus, SE
• You cannot operate iPod if “KENWOOD” or “ ” is displayed on iPod.
• Depending on the version of the operating system of the iPod/iPhone, some functions may not operate on this unit. Data Size: Book Size: B6L (182 mm x 128 mm) B6L (182 mm x 128 mm) 21-Sep-16 11:49:30 AM INSTALLATION/CONNECTION REFERENCES About Android device
• This unit supports Android OS 4.1 and above.
• Some Android devices (with OS 4.1 and above) may not fully support Android Open Accessory (AOA) 2.0.
• If the Android device supports both mass storage class device and AOA 2.0, this unit always playback via AOA 2.0 as priority. About Pandora
• Pandora is only available in certain countries. For more information, visit <http://www.pandora.com/legal>.
• Because Pandora is a third-party service, the specifications are subject to change without prior notice. Accordingly, compatibility may be impaired, or some or all of the services may become unavailable.
• Some functions of Pandora cannot be operated from this unit.
• For issues using the application, please contact Pandora at pandora-support@pandora.com. Change the display information Each time you press DISP, the display information changes.
• If the information is unavailable or not recorded, “NO TEXT”, “NO INFO”, or other information (eg. station name, playing time) appears. Source name Display information STANDBY Source name TUNER Frequency Clock Clock (back to the beginning) (back to the beginning) (For FM Radio Data System stations only) Station name Radio text Radio text+ Title/Artist (back to the beginning) USB (For MP3/WMA/WAV/FLAC files) Music title/Artist Album title/Artist Clock (back to the beginning) Frequency Caution
• For safety’s sake, leave wiring and mounting to professionals. Consult the car audio dealer.
• Install this unit in the console of your vehicle. Do not touch the metal parts of this unit during and shortly after use of the unit. Metal parts such as the heat sink and enclosure become hot.
• Do not connect the [ wires of speakers to the car chassis or Ground wire (black), or connect them in parallel.
• Mount the unit at an angle of less than 30º.
• If your vehicle wiring harness does not have the ignition terminal, connect Ignition wire (red) to the terminal on the vehicle’s fuse box which provides 12 V DC power supply and is turned on and off by the ignition key.
• Keep all cables away from heat dissipate metal parts.
• After the unit is installed, check whether the brake lamps, blinkers, wipers, etc. on the car are working properly.
• If the fuse blows, first make sure the wires are not touching car’s chassis, then replace the old fuse with one that has the same rating. Basic procedure Folder name File name iPod or ANDROID When [MODE OFF]/[BROWSE MODE] is selected. ( 8) Music title/Artist Album title/Artist Playing time Clock PANDORA Station name Shared/Radio station Music title Playing time Clock (back to the beginning) AUX Source name Clock Clock Warning
• The unit can only be used with a 12 V DC power supply, negative ground.
• Disconnect the battery’s negative terminal before wiring and mounting.
• Do not connect Battery wire (yellow) and Ignition wire (red) to the car chassis or Ground wire (black) to prevent a short circuit.
• Insulate unconnected wires with vinyl tape to prevent a short circuit.
• Be sure to ground this unit to the car’s chassis again after installation. (back to the beginning) Artist Playing time (back to the beginning) Album title 1 Remove the key from the ignition switch, then disconnect the [ terminal of the car battery. 2 Connect the wires properly. See Wiring connection. ( 17) 3 Install the unit to your car. See Installing the unit (in-dash mounting). ( 16) 4 Connect the [ terminal of the car battery. 5 Reset the unit. ( 3) ENGLISH JS_KWD_KMM_203_MN_EN_4.indd 15 Data Size: Book Size: B6L (182 mm x 128 mm) B6L (182 mm x 128 mm)

21-Sep-16 11:49:30 AM INSTALLATION/CONNECTION Installing the unit (in-dash mounting) When installing without the mounting sleeve 1 Remove the mounting sleeve and trim plate from the unit. 2 Align the holes in the unit (on both sides) with the vehicle mounting bracket and secure the unit with screws (supplied). Do the required wiring. ( 17) Hook on the top side Orientate the trim plate as illustrated before fitting. Dashboard of your car The following screws are supplied: Round head screws (M5 × 8 mm)

Flat head screws (M5 × 8 mm)

Sems screws (M4 × 8 mm)

To secure the mounting bracket To secure the ground wire (black) Use only the specified screws. Using wrong screws might damage the unit. Bend the appropriate tabs to hold the mounting sleeve firmly in place. Part list for installation How to remove the unit 1 Detach the faceplate. 2 Remove the trim plate. 3 Insert the extraction keys deeply into the slots on each side, then follow the arrows as shown on the illustration. (A) Faceplate (B) Trim plate (D) Extraction key

(C) Mounting sleeve (E) Wiring harness ENGLISH JS_KWD_KMM_203_MN_EN_4.indd 16 Data Size: Book Size: B6L (182 mm x 128 mm) B6L (182 mm x 128 mm) 21-Sep-16 11:49:36 AM INSTALLATION/CONNECTION Wiring connection IMPORTANT: We recommend installing the unit with a commercially available custom wiring harness specific for your car and leave this job to professionals for your safety. Consult your car audio dealer. Output terminals Fuse (10 A) When connecting to an external amplifier, connect its ground wire to the car’s chassis to avoid damaging the unit. Antenna terminal White To front speaker (left) White/Black To front speaker (right) Gray/Black To rear speaker (left) Green/Black To rear speaker (right) Purple/Black Gray If no connections are made, do not let the wire come out from the tab. Brown To the terminal that is grounded when the telephone rings or during conversation ( 14) (To connect the Kenwood navigation system, refer your navigation manual.) (Mute control wire) Green Purple Blue/White Red (Ignition wire) (Power control wire/ Antenna control wire) (12 V 350 mA) Yellow (Battery wire) Light blue/yellow Car fuse box Ignition switch Car fuse box Black (Ground wire) Battery To the power control terminal when using the optional power amplifier or to the antenna control terminal in the vehicle (Steering remote control wire) To the steering wheel remote control adapter To the metallic body or chassis of the car ENGLISH JS_KWD_KMM_203_MN_EN_4.indd 17 Data Size: Book Size: B6L (182 mm x 128 mm) B6L (182 mm x 128 mm)

87.5 MHz — 108.0 MHz (50 kHz space)

Channel Separation 90 dB 50 kHz MP3 Decode Compliant with MPEG-1/2 Audio Layer-3 Usable Sensitivity (S/N = 26 dB)

8.2 dBf (0.71 μV/75 Ω)

Quieting Sensitivity (DIN S/N = 46 dB)

Audio 40 dB Band 1 (AM) WMA Decode Compliant with Windows Media Audio WAV Decode Linear-PCM FLAC Decode FLAC file (Up to 48 kHz/16 bit) Maximum Output Power 50 W × 4 Full Bandwidth Power 22 W × 4 (at less than 1 % THD) Speaker Impedance 4Ω—8Ω Tone Action Bass 100 Hz ±8 dB Middle

Auxiliary Tuner Stereo Separation (1 kHz) AM Frequency Range USB Frequency Range Channel Space Selection General

Maximum Current Consumption 10 A Operational Temperature Range –10°C — +60°C Installation Size (W × H × D) 182 mm × 53 mm × 114 mm Net Weight (includes Trimplate, Mounting Sleeve)

Subject to change without notice. ENGLISH JS_KWD_KMM_203_MN_EN_4.indd 18 Data Size: Book Size: B6L (182 mm x 128 mm) B6L (182 mm x 128 mm) 21-Sep-16 11:49:37 AM iHeartRadio® (for

Preparation: Install the latest version of iHeart Link for KENWOOD application on your device (iPhone/iPod touch), then create an account and log in to iHeartRadio.

On the faceplate On the remote control Playback/pause Press Press Skip a track for custom station Press T. Press Thumbs up or thumbs down*3 for custom station Press J / K. ( Not available ) Create a new/custom station Press 1. ( Not available ) 1 Press repeatedly to enter STANDBY. 2 Press the volume knob to enter [FUNCTION]. 3 Turn the volume knob to select an item, then press the knob.

[SYSTEM] [SOURCE SELECT] [IHEART SRC] [ON]

4 Press and hold to exit. Add to favorite stations for live station Press 2. ( Not available ) Scan for live station Press 3. ( Not available )

• To return to the previous setting item, press

• To disable, select [OFF] in step 3. Initially, [ON] is selected.

Enable IHEARTRADIO source Start listening 1 Open the iHeart Link application on your device. 2 Connect your device to the USB input terminal. USB input terminal KCA-iP102/KCA-iP103 (optional accessory)*1 or accessory of the iPod/iPhone*2 3 Press repeatedly to select IHEARTRADIO. Broadcast starts automatically. *1 KCA-iP102 : 30-pin type, KCA-iP103 : Lightning type *2 Do not leave the cable inside the car when not using. *3 If thumbs down is selected, the current track is skipped. JS_KWD_KMM_203_MN_EN_4.indd 19

Search for a station Press Turn the volume knob to select a category, then press the knob. Turn the volume knob (or press J / K on the remote control) to select the desired station. Press the volume knob (or press on the remote control) to confirm. When a city list appears, you can skip cities in alphabetical order. To cancel, press and hold

Skip cities by alphabetical order While a city list appears during search... 1 Turn the volume knob quickly to enter character search. 2 Turn the volume knob or press S / T to select the character to be searched for. 3 Press J / K to move to the previous/next page. 4 Press the volume knob to start searching. To cancel, press and hold

Delete a station While listening to IHEARTRADIO... 1 Press the volume knob to enter [FUNCTION]. 2 Turn the volume knob to select an item, then press the knob.

3 Turn the volume knob to select the desired station to delete, then press the knob. 4 Turn the volume knob to select [YES], then press the knob. 5 Press and hold to exit. To return to the previous setting item, press

• If the information is unavailable or not recorded, “NO TEXT”, “NO INFO”, or other information (eg. station name, playing time) appears. About iHeartRadio TROUBLESHOOTING

• iHeartRadio® is a third-party service, therefore the specifications are subject to change without prior notice. Accordingly, compatibility may be impaired or some or all of the services may become unavailable.
• Some iHeartRadio® functionality cannot be operated from this unit.

Symptom Remedy iHeartRadio station cannot be selected. If “Explicit Content” in [Account Settings] is checked in the web version of iHeartRADIO, custom stations become unavailable. “CANNOT CREATE” Custom station name creation is unsuccessful. “CANNOT SAVE” Addition to the favorite category failed. “DISCONNECTED” Check the connection to the device. “NO SKIPS” The skip limit has been reached. Retry later. “NO STATIONS” No stations are found. “NOT CONNECTED” Link to the application is impossible. “IHEARTLINK UP” Make sure you have installed the latest version of the iHeart Link for KENWOOD application on your device. “PLEASE LOGIN” You haven’t log in. Log in again.

“STATION NOT AVAILABLE”

Broadcast from the station is over.

“STATION NOT SELECTED”

No station is selected. “STREAM ERROR” Broadcast data is interrupted. “THUMB FAILED” Registration of Thumbs Up/Down has failed. “TIMED OUT” The request has resulted in time-out.

• “Made for iPod,” and “Made for iPhone” mean that an electronic accessory has been designed to connect specifically to iPod, or iPhone, respectively, and has been certified by the developer to meet Apple performance standards. Apple is not responsible for the operation of this device or its compliance with safety and regulatory standards. Please note that the use of this accessory with iPod or iPhone may affect wireless performance.
• iPhone, iPod, iPod classic, iPod nano, and iPod touch are trademarks of Apple Inc., registered in the U.S. and other countries.
• Lightning is a trademark of Apple Inc.
• Pandora, the Pandora logo, and the Pandora trade dress are trademarks or registered trademarks of Pandora Media, Inc., used with permission.
• iHeartRadio® and iHeartAuto™ are trademarks owned by iHeartMedia, Inc. All uses are authorized under license.
• Android is trademark of Google Inc. libFLAC Copyright (C) 2000,2001,2002,2003,2004,2005,2006,2007,2008,2009 Josh Coalson Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following conditions are met: - Redistributions of source code must retain the above copyright notice, this list of conditions and the following disclaimer. - Redistributions in binary form must reproduce the above copyright notice, this list of conditions and the following disclaimer in the documentation and/or other materials provided with the distribution. - Neither the name of the Xiph.org Foundation nor the names of its contributors may be used to endorse or promote products derived from this software without specific prior written permission. THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND CONTRIBUTORS “AS IS” AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE FOUNDATION OR CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE. ENGLISH JS_KWD_KMM_203_MN_EN_4.indd 20 Data Size: Book Size: B6L (182 mm x 128 mm) B6L (182 mm x 128 mm) 21-Sep-16 11:49:38 AM

• “Made for iPod,” and “Made for iPhone” mean that an electronic accessory has been designed to connect specifically to iPod, or iPhone, respectively, and has been certified by the developer to meet Apple performance standards. Apple is not responsible for the operation of this device or its compliance with safety and regulatory standards. Please note that the use of this accessory with iPod or iPhone may affect wireless performance.
• iPhone, iPod, iPod classic, iPod nano, and iPod touch are trademarks of Apple Inc., registered in the U.S. and other countries.
• Lightning is a trademark of Apple Inc.
• Pandora, the Pandora logo, and the Pandora trade dress are trademarks or registered trademarks of Pandora Media, Inc., used with permission.
• iHeartRadio® and iHeartAuto™ are trademarks owned by iHeartMedia, Inc. All uses are authorized under license.
• Android is trademark of Google Inc. ﺗﻐﻴﻴﺮ ﻣﻌﻠﻮﻣﺎﺕ ﺍﻟﺸﺎﺷﺔ . ﺗﺘﻐﻴﺮ ﻣﻌﻠﻮﻣﺎﺕ ﺍﻟﺸﺎﺷﺔ،DISP ﻛﻠﻤﺎ ﺿﻐﻄﺖ ﻋﻠﻰ (ﺍﻟﻔﻨﺎﻥ ﺍﻟﺴﺎﻋﺔ )ﻋﻮﺩﺓ ﻟﻠﺒﺪﺍﻳﺔ/ﺍﺳﻢ ﺍﻟﻤﺤﻄﺔ ﻋﻨﻮﺍﻥ ﺍﻟﻤﻮﺳﻴﻘﻰ

“STREAM ERROR” “THUMB FAILED” “TIMED OUT”

JS_KWD_KMM_203_MN_AR.indd 20 Data Size: Book Size: B6L (182 mm x 128 mm) B6L (182 mm x 128 mm) ﺍﻟﺒﺤﺚ ﻋﻦ ﺍﻻﻋﻄﺎﻝ ﻭﺍﻻﺻﻼﺡ libFLAC Copyright (C) 2000,2001,2002,2003,2004,2005,2006,2007,2008,2009 Josh Coalson Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following conditions are met: - Redistributions of source code must retain the above copyright notice, this list of conditions and the following disclaimer. - Redistributions in binary form must reproduce the above copyright notice, this list of conditions and the following disclaimer in the documentation and/or other materials provided with the distribution. - Neither the name of the Xiph.org Foundation nor the names of its contributors may be used to endorse or promote products derived from this software without specific prior written permission. THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND CONTRIBUTORS “AS IS” AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE FOUNDATION OR CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE. )ﻟﻤﻮﺩﻳﻠﻲiHeartRadio®

Data Size: Book Size:

21/9/2016 10:47:54 AM )B6L (182 mm x 128 mm )B6L (182 mm x 128 mm Data Size: Book Size:

• ﻻ ﻳﻤﻜﻦ ﻟﻠﻮﺣﺪﺓ ﺍﻟﺘﻌﺮﻑ ﻋﻠﻰ ﺟﻬﺎﺯ USBﻳﻜﻮﻥ ﻣﻌﺪﻟﻪ 5ﻓﻮﻟﺖ ﻭﻳﺘﺠﺎﻭﺯ 1ﺃﻣﺒﻴﺮ. ﺣﻮﻝ ﺟﻬﺎﺯ iPhone/iPod Made for – 5th ،4th ،3rd ،2nd) iPod touchﻭ (6th generation – iPod classic – 6th ،5th ،4th ،3rd) iPod nanoﻭ (7th generation – SE ،6S Plus ،6S ،6 Plus ،6 ،5C ،5S ،5 ،4S ،4 ،3GS ،iPhone 3G
