USER MANUAL RT641N4AFE1 HISENSE

1. The freezer compartment is provided

with an upper drawer, a lower drawer , two trays and an ice box;

2. Open the freezer door; Pull up the

adjusting block (A) of the slide guides, and pull out the freezer door drawer (A) to the final position.

Before operating this unit, please read this manual thoroughly, and retain for future reference9

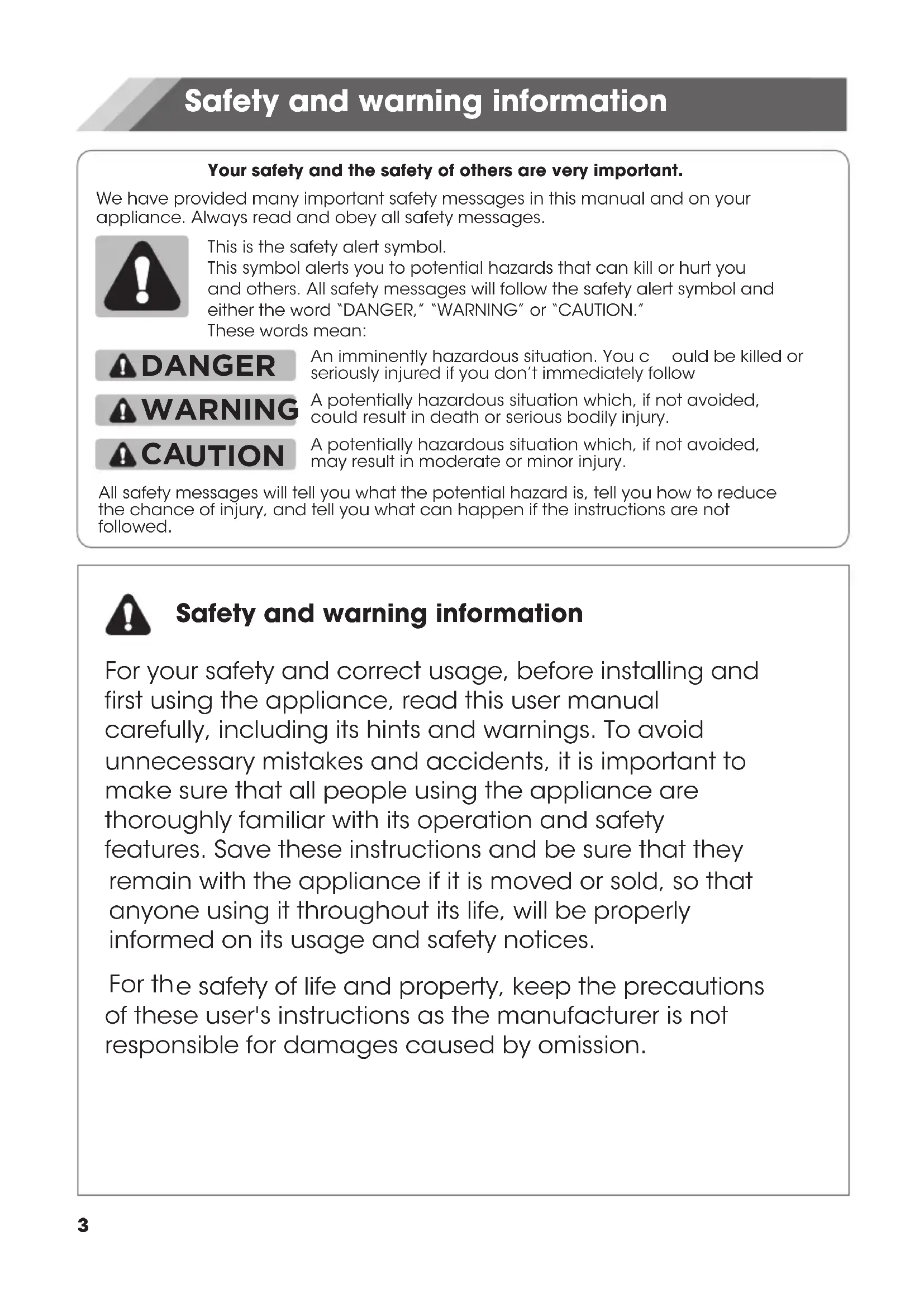

3Brief introduction Your safety and the safety of others are very important. DANGER WARNING

UTION Safety and warning information Safety and warning information For your safety and correct usage, before installing and first using the appliance, read this user manual carefully, including its hints and warnings. To avoid unnecessary mistakes and accidents, it is important to make sure that all people using the appliance are thoroughly familiar with its operation and safety features. Save these instructions and be sure that they remain with the appliance if it is moved or sold, so that anyone using it throughout its life, will be properly informed on its usage and safety notices. For th e safety of life and property, keep the precautions of these user's instructions as the manufacturer is not responsible for damages caused by omission. We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety messages.These words mean:This is the safety alert symbol.This symbol alerts you to potential hazards that can kill or hurt you and others. All safety messages will follow the safety alert symbol and either the word “DANGER,” “WARNING” or “CAUTION.”An imminently hazardous situation. You could be killed or seriously injured if you don’t immediately follow A potentially hazardous situation which, if not avoided, could result in death or serious bodily injury.A potentially hazardous situation which, if not avoided, may result in moderate or minor injury. All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell you what can happen if the instructions are not followed.Safety for children and others who are vulnerable people According to EN standard This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision. Children aged from 3 to 8 years are allowed to load and unload refrigerating appliances. According to IEC standard This appliance is not intended for use by persons (including children) with reduced physical sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance. Keep all packaging away from children as there is risk of suffocation. If you are discarding the appliance, pull the plug out of the socket, cut the connection cable (as close to the appliance as you can) and remove the door to prevent children playing from suffering an electric shock or from closing themselves inside it. If this appliance, featuring a magnetic door seals, is to replace an older appliance having a spring lock (latch) on the door or lid, be sure to make the spring lock unusable before you discard the old appliance. This will prevent it from becoming a death trap for a child. 4General safety WARNING —This appliance is intended to be used in household and similar applications such as -staff kitchen areas in shops, offices and other working environments; -farm houses and by clients in hotels, motels and other residential type environments; -bed and breakfast type environments; -catering and similar non-retail applications. WARNING — Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance. WARNING — If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard. WARNING — Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction. WARNING — Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer. WARNING — Do not damage the refrigerant circuit. WARNING — Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer. WARNING — The refrigerant and insulation blowing gas are flammable. When disposing of the appliance, do so only at an authorized waste disposal centre. Do not expose to flame. WARNING —When positioning the appliance, ensure the supply cord is not trapped or damaged. 5WARNING —Do not locate multiple portable socket- outlets or portable power supplies at the rear of the appliance. WARNING —Food needs to be packed in bags before putting into the refrigerator, and liquids need to be packed in bottles or containers to avoid the problem that the product design structure is not easy to clean. The symbol is a warning and indicates the refrigerant and insulation blowing gas are flammable.

Warning: Risk of fire / flammable materials

Replacing the illuminating lamps WARNING—The illuminating lamps must not be replaced by the user! If the illuminating lamps is damaged, contact the customer helpline for assistance. This warning is only for refrigerators that contain illuminating lamps. Refrigerant The refrigerant isobutene (R600a) is contained within the refrigerant circuit of the appliance, a natural gas with a high level of environmental compatibility, which is nevertheless flammable. During transportation and installation of the appliance, ensure that none of the components of the refrigerant circuit becomes damaged. The refrigerant (R600a) is flammable. WARNING — Refrigerators contain refrigerant and gases in the insulation. Refrigerant and gases must be disposed of professionally as they may cause eye injuries or ignition. Ensure that tubing of the refrigerant circuit is not damage prior to proper disposal. 6WARNING: risk of fire If the refrigerant circuit should be damaged: Avoid opening flames and sources of ignition. Thoroughly ventilate the room in which the appliance is situated. It is dangerous to alter the specifications or modify this product in any way. Any damage to the cord may cause a short circuit, fire, and/or electric shock. Electrical safety The power cord must not be lengthened. Make sure that the power plug is not crushed or damaged. A crushed or damaged power plug may overheat and cause a fire. Make sure that you can access the main plug of the appliance. Do not pull the main cable. If the power plug socket is loose, do not insert the power plug. There is a risk of electric shock or fire. You must not operate the appliance without the interior lighting lamp cover. The fridge is only applied with power supply of single phase alternating current of 220~240V/50Hz. If fluctuation of voltage in the district of user is so large that the voltage exceeds the above scope, for safety sake, be sure to apply A.C. Automatic voltage regulator of more than 350W to the fridge. The fridge must employ a special power socket instead of common one with other electric appliances. Its plug must match the socket with ground wire. 7Daily use Do not store flammable gass or liquids in the appliance,There is a risk of an explosion. Do not operate any electrical appliances in the appliance (e.g.electric ice cream makers,mixers etc.). When unplugging always pull the plug from the mains socket,do not pull on the cable. Do not place hot items near the plastic components of this appliance. Do not place food products directly against the air outlet on the rear wall. Store pre-packed frozen food in accordance with the frozen food manufacture’s instructions. The appliances manufactures storage recommendations should be strictly adhered to.Refer to relevant instructions for storage. Do not place carbonated or fizzy drinks in the freeze compartment as it creates pressure on the container,which may cause it to explode,resulting in damage to the appliance. Frozen food can cause frost burns if consumed straight from the freezer compartment. Do not place the appliance in direct sunlight. Keep buring candles,lamps and other items with naked flames away from the appliance so that do not set the appliance on fire. The appliance is intended for keeping food stuff and/ or beverages in normal household as explained in this instruction booklet The appliance is heavy.Care should be taken when moving it.

Do not remove nor touch items from the freezer compartment if your hands are damp/wet,as this could cause skin abrasions or frost/freezer burns. Never use the base,drawers, doors etc. to stand on or as supports. Frozen food must not be refrozen once it has been thawed out. Do not consume ice popsicles or ice cubes straight from the freezer as this can cause freezer burn to the mouth and lips. To avoid items falling and causing injury or damage to the appliance, do not overload the door racks or put too much food in the crisper drawers. Caution! Care and cleaning Before maintenanc e, switch off the appliance and disconnect the mains plug from the mains socket. Do not clean the appliance with metal objects, steam cleaner, ethereal oils, organic solvents or abrasive cleansers. Do not use sharp objects to remove frost from the appliance. Use a plastic scraper. Installation Important! For electrical connection carefully, follow the instructions given in this manual. Unpack the appliance and check if there are damages on it. Do not connect the appliance if it is damaged. Report possible damages immediately to the place you bough t it. In this case retain packing. This refrigerating appliance is not intended to be used as a built-in appliance .10 in the compressor. Adequate air circulation should be around the appliance, lacking this leads to overheating.To achieve sufficient ventilation, follow the instructions relevant to installation. Wherever possible the back of the product should not be too close to a wall to avoid touching or catching warm parts (compressor,condenser) to prevent the risk of a fire, follow the instructions relevant to installation. The appliance must not be locate close to radiators or cookers. Make sure that the mains plug is accessible after the installation o f the appliance Service Any electrical work required to do the servicing of the appliance should be carried out by qualified electrician or competent person. This product must be serviced by an authorized Service Center, and only genuine spare parts must be used.

1. If the appliance is Frost Free.

2. If the appliance contains freezer compartment.

It is advisable to wait at least four hours before connecting the appliance to allow the oil to flow back11 To avoid contamination of food, please respect the following instructions Opening the door for long periods can cause a significant increase of the temperature in the compartments of the appliance. Clean regularly surfaces that can come in contact with food and accessible drainage systems. Store raw meat and fish in suitable containers in the refrigerator, so that it is not in contact with or drip onto other food. Two-star frozen-food compartments are suitable for storing pre-frozen food, storing or making icecream and making ice cubes. One-, two- and three-star compartments are not suitable for the freezing of fresh food.1 0 0 mm1 0 0 mm1 0 0 mm 5 0 - 7 0 m m Brief introduction Installing your new appliance Ventilation of appliance In order to i mprove efficiency of the cooling system and save energy, it is necessary to maintain good ventilation around the appliance for the dissipation of heat. For this reason, sufficient clear space should be available around the refrigerator. Suggest: It is advisable for there to be 50-70mm of space from the back to the wall, at least 100mm from its top, at least 100mm from its side to the wall and a clear space in front to allow the doors to open 130°.As shown in follow diagrams. Before using the appliance for the first time, you should be informed of the following tips. Warning! For proper installation, this refrigerator must be placed on a level surface of hard material that is the same height as the rest of the flooring.This surface should be strong enough to support a fully loaded refrigerator. The rollers, which are not castors, should be only used for forward or backward movement. Moving the refrigerator sideways may damage your floor and the rollers. Note:

Stand your appliance in a dry place to avoid high moisture. Keep the appliance out of direct sunlight rain or frost. Stand the appliance away from heat sources such as stoves, fires or heaters.

Adjustable bottom feet 10-15mm

Adjustable bottom feet Front rollerRear roller

Leveling of appliance For sufficient leveling and air circulating in the lower rear section of the appliance, the bottom feet may need to be adjusted.You can adjust them manually by hand or by using a suitable spanner. To allow the doors to self-close, tilt the top backwards by 10-15mm.

1. The freezer compartment is provided

with an upper drawer, a lower drawer , two trays and an ice box;

2. Open the freezer door; Pull up the

adjusting block (A) of the slide guides, and pull out the freezer door drawer (A) to the final position.

1. The freezer compartment is provided

with an upper drawer, a lower drawer , two trays and an ice box;

2. Open the freezer door; Pull up the

adjusting block (A) of the slide guides, and pull out the freezer door drawer (A) to the final position. Disassembling the freezer drawer Disassembling the freezer drawer

3. Take out the tray (B) by lifting it up in the

direction of the arrow.

4. Remove the lower freezer drawer (C) by

lifting it up. Note: If required you may lay the refrigerator on its back in order to gain access to the base, you should rest it on soft foam packaging or similar material to avoid damaging the backboard of the refrigerator.14 Installing the lower drawer

1. Push down the lower drawer to the

final position in the direction of the arrow.

2. Put the tray on the drawer and

push it award and ensure the tray’s rollers on the freezer liner (D)’s fillets.

Re-assembling the freezer drawer To reattach the drawer after you moved the appliance to its final location, assemble the parts in reverse order.

3. Push the freezer door along the arrow

and close it. Reversing the door The side at which the door opens can be changed, from the right side (as supplied) to the left side if required. Warning! When reversing the door, the appliance must not be connected to the mains, Ensure that the plug is removed from the mains socket. Tools you will need Additional parts (in the plastic bag) Not provided 8mm socket wrench 8mm wrenchMonkey wrench Cross-shaped screwdriver Putty knife Thin-blade screwdriver upper hinge-leftstop block-left*hinge cover-left screw hole cover-rightmiddle hinge-leftDoor stopper-left*Allen Wrench(4mm)

1Note: If required, you may lay the refrigerator on its back in order to gain access to the base, you should rest it on soft foam packaging or similar material to avoid damaging the backboard of the refrigerator. To reverse the door, the following steps generally recommended.

1. Stand the refrigerator upright. Open the

door to take out all door racks (to avoid damage) and then close the door. Caution! Please slightly squeeze the door rack from one side toward center, and then move it upward when taking out the door racks. press in wardly

Remove screw①, then take down cover② from the top right side. Be careful of the electrical connector③ below, because it’s still connected. Then unconnect it and remove cover②. 3.Press the door switch④ ,then remove it upward. Install switch④ into cover⑤ (provided in the plastic bag). Put the other cover② into the plastic bag. 4.Unscrew screws① by a 8mm socket driver or a spanner, and remove hinge②. Then put the conector③ into the hole. Please hold the door by hand when installing.

⑤ Upper hinge cover-left

Self-tapping screw Upper hinge cover Special flange screw Upper hinge Electrical connector

5.Remove the upper door from the middle hinge by carefully lifting the door straight up. Then Place the upper door on a smooth surface with its upper cover upwards. 6.Install cover① (provide in the plastic bag) on the top right side.Then remove cover② from top left side of the appliance, and put it into the plastic bag. ① Screw hole cover-right ② Screw hole cover-left

Loose screw③ and take down part② and part ①, Install replacement door stopper-left④ and stop block-left⑤ (provided in the plastic bag) to the left side with screw③. Keep part ① and part② with the appliance for future reference.

① Door stopper② Stop block③ Self-tapping screw

. Use the Allen wrench(provided in the plastic bag) and cross-shaped screwdriver to loosen the screws and remove the middle hinge-right.

9. Change screw hole covers and screw

on middle cover plate from left to right (as shown in figure below).

Transfer the upper door to the appropriate position. Secure the door level, make the middle hinge axis into the lower hole of the upper door. Install the hinge② (provided in the plastic bag)by screws①. Please hold the upper door by hand when installing. 11.Take out the connector from the hole on the top left side.Then connect it with the door switch on the upper hinge cover-left. Special flange screw Upper hinge-left

Door switch Electrical connector 12.Install the upper hinge cover② on the left corner by screw①. 13.Open the upper door and install the door racks and then close it. Note: If your appliance has handle, you have to reverse handle by follow instructions below. Lever part① and part④ , then loose screws②. Change handle③ to the right side, then install screws②, part① and part④ in turn.

Self-tapping screw Upper hinge cover-left

Handle cover Special screws

Note: To get the best energy efficiency of this product, please place all shelves, drawers on their original position as the illustration above. ote: Your model may look different from this and other images in this manual, depending on your model’s features.

Ice Box Freezer Lower Drawer F2-room Door Freezer Upper Dawer Tray F1-room Door Fridge door

Cabinet LED light Glass shelf Flexible wine rack(optional) Wind channel Cool Fresh Box cover Cool Fresh Box Crisper cover Fruit & Vegetable Crisper

F1-room Door Freezer Upper Dawer F2-room Door Freezer Lower Drawer Ice Box Water storage box part Middle rack Bottles block stripe

Note: To get the best energy efficiency of this product, please place all shelves, drawers on their original position as the illustration above. ote: Your model may look different from this and other images in this manual, depending on your model’s features. Egg Tray

LED light Glass shelf Flexible wine rack(optional) Wind channel Cool Fresh Box cover

Cool Fresh Box Crisper cover Fruit & Vegetable Crisper

Use your appliance according to the following control regulations, your appliance has the corresponding functions and modes as the control panels showed in the pictures below. 5FNQFSBUVSF4FUUJOH

SPPNXJMM CF EJGGFSFOU

/05&4FUUJOHUIFSFGSJHFSBUPSSVOOJOHBUIJHIUFNQFSBUVSFXJMMBDDFMFSBUFGPPEEFDPNQPTJUJPO'PS PQUJNVNGPPEQSFTFSWBUJPOXFSFDPNNFOEUIBUXIFO TUBSUJOHUIFSFGSJHFSBUPSGPSUIFGJSTUUJNFUIF UFNQFSBUVSFPGGSJEHFJTTFUUP℃ BOEUIBUPGUIF GSFF[FSUP℃. %PPS"MBSN Opening the fridge door for over 2 minutes will trigger door alarm. The " " icon starts to blink and the buzzer rings 3 times per minute. Closing all the doors, the " " icon will go off and buzzing will stop. In addition, door alarm will stop automatically after 10 minutes.

'SJEHF5FNQFSBUVSF4FUUJOH

Touch the "Fridge" key to activate the temperature setting function of fridge. After that, touch the key continuously, the temperature will be set according to the following sequence:20 8°C7°C6°C5°C 4°C2°C 3°C

'SFF[FS5FNQFSBUVSF4FUUJOH

Touch the "Freezer" key to activate the temperature setting function of freezer. After that, touch the key continuously, the temperature will be set according to the following sequence: -24°C-23°C -14°C-15°C

.PEF4FUUJOH Each time you press the "Mode" button, the refrigerator mode will switch from the current mode (if not, start from Fuzzy), and switch between Fuzzy - Super Freeze - Super Cool - Energy S aving - Fuzzy 4 modes in turn, the corresponding icon lights up, and the temperature display area displays the corresponding set temperature. Exit the relevant mode when setting the refrigerating and freezing temperature. 'V[[Z The refrigerator works in the way that is most conducive to the preservation and storage of food. NOTE: In Fuzzy mode, the set temperatures of the refrigerator compartment and freezer compartment are 4℃a nd -18℃ respectively. 4VQFS'SFF[F 4VQFS$PPM This mode can be used when you want to quickly cool down the food you put in the refrigerator. NOTE: In the Super Cool mode, the set temperature of the refrigerator compartment is 2℃

freezer compartment still operates at the set temperature before entering the Super Cool mode, and

automatically exits after 6 hours of operation. &OFSHZ4BWJOH NOTE: In the Energy Saving mode, the set temperatures of the refrigerator compartment and the freezer compartment are 6℃ and -17℃ respectively.

Use this mode when you want to quickly freeze food that has just been placed in the freezer. NOTE: If the freezing capacity according to the rating plate is to be used, switch on Super Freezer at least 24 hours before the fresh products are placed in the freezer conpartment. In the Super Freeze mode, the set temperature of the freezer compartment is -24℃, the refrigerator compartment still operates at the set temperature before entering the Super Freeze mode, and automatically exits after 52 hours of operation.4UBOECZ *OTUBMMJOHUIF$POOFDU-JGFBQQ (PUPUIF"QQ4UPSFPO"QQMFEFWJDFT "QQ(BMMFSZPO)VBXFJEFWJDFTPS(PPHMF1MBZTUPSF PO"OESPJEEFWJDFTPOZPVSQIPOFUBCMFUDPNQVUFS 4FBSDIGPS$POOFDU-JGF

CFGPSFBUUFNQUJOHUPTFUVQUIFDPOOFDUJPOXJUIZPVS BQQMJBODF Press the "Power" button for 3 seconds to enter/exit the standby function. NOTE: When the refrigerator enters the standby function, the refrigerator will stop cooling and the temperature setting area will display "--" . 8J'JGVODUJPO 5IJTBQQMJBODFNBZCFDPOUSPMMFESFNPUFMZXJUIBTNBSU phone or a tablet computer. If the appliance is not DPOOFDUFEUPUIFIPNFOFUXPSLJUXJMMGVODUJPOMJLFBSFHVMBSBQQMJBODF 8IBUEPZPVOFFEUPDPOOFDUUIFBQQMJBODF t 4JHOBMGSPNUIFMPDBMXJSFMFTTOFUXPSL8J'JTIPVME be sufficiently strong in the spot where the appliance is installed. t )PNFOFUXPSLSPVUFSIBTUPCFDPOOFDUFEUPUIFinternet, and the Wi-Fi function on the appliance should be activated.

OFUXPSLTUBUFUIF8J'JJDPOGMBTIFTBOE UIFEJTUSJCVUJPOOFUXPSLUJNFJTVQUP NJOVUFT 22Brief introduction Using your appliance Your appliance has the accessories as the“Description of the appliance” showed in general, with this part instruction you can have the right way to use them.. We recommend that you read through them carefully before using the appliance. Door rack It is suitable for the storage of eggs, canned liquid, bottled drinks and packed food, etc. Do not place too many heavy things in the racks. The door racks can be placed at different heights according to your requirements. Please take food out of the shelf before lifting vertically to reposition. Shelf in Refrigerator chamber The shelves in refrigerator chamber can be taken out to be cleaned. All the door racks are completely removable for cleaning. Flexible wine rack(optional) It is for storing bottled wine or drinks, and it In certain mode, there will be an extra fresh box(drawer). In this drawer you can get a lower temperature to store fish, meat and other erodible food. Normally it will be about 1°C lower than the other part of the fresh compartment. There are some commendations in the below table which you can consult. can be taken out to clean. Cool fresh box Fruit & Vegetable crisper Crisper and Humidity control The crisper is suitable for storage of vegetables and fruit, etc. You can rotate the knob on the crisper cover to keep different humidity in the crisper. Push the knob to the left, you will keep a higher humidity which can storage vegetable and fruit long and fresh, to the right will be lower humidity. It is for controlling the temperature of the crisper and avoiding the vegetable losing moisture. Freezer drawer It is used to store food which need to be frozen, including meat, fish and ice cream, etc. Note:The actual temperature of Cool fresh box may lower than zero, so it is normal that liquid in this drawer was frozen. Note:Do not place the bottled wine or drinks directly in front of the air outlet on the wind channel, which may cause it to freeze. temp . setting of fridge compartment type of food suggested storage period 5 or 6°C 7 or 8°C 2 or 3 or 4°C fish or meat ≤2days

2weeks <5days fruit vegetables compartment. 23, Water Dispenser(only for appliance with dispenser) The water dispenser, located in the fridge door, is for storing drinking water. With this appliance you can obtain chilled water easily without opening the refrigerator. You should review of following tips. Before using this appliance for the first time, Before assembling, please drain the water inside the tank, and check whether the washer reversed or not.

1. Insert the head into the hole.

2. Fit the tank along the guides on the door.

3.Press down two side of the tank.

4. When you hear a click sound, that

means the installation is completed. you should use it based on following instructions:

1. Hold the two sides of the water tank

tightly, then pull up the water tank by shaking up and down.

2. Unscrew the head, then clean it and the

inside of water tank. dispenser Pad water storage box head water storage box cover Before using Assembling head Slot Guide

Warning! Filling water Caution! Receiving water

1. Be careful not to press on the head;

2. when fitting the water tank, ensure the

head inserted into the hole first. 1.Open the cover by rotating it upwards. 2.Fill the water. Do not Fill the water above the level suggested. Otherwise, it may overflow even when the cover is close. You should use the correct cups to receive water underneath the water dispenser. Warning! Don’t push the dispenser lever forward without cup, it may cause the water leak from the dispenser. cover dispenser pad suggested position Middle rack 24Note: please store different foods according to the compartments or target storage temperature of your purchased products. If the refrigerating appliance is left empty for long periods,switch off,defrost, clean,dry, and leave the door open to prevent mould developing within the appliance. Target storage temp.[°C] Order Compartments Type Appropriate food

≤ 12- **-Freezer Eggs, cooked food, packaged food, fruits and vegetables, dairy products, cakes, drinks and other foods which are not suitable for freezing. Seafood (fish,shrimp,shellfish),freshwater aquatic products and meat products (recommended for 3 months ,the longer the storage time,the worse the taste and nutrition),suitable for frozen fresh food. Seafood (fish, shrimp, shellfish),freshwater aquatic products and meat products (recommended for 3 months,the longer the storage time,the worse the taste and nutrition),are not suitable for frozen fresh. Seafood (fish, shrimp, shellfish), freshwater aquatic products and meat products (recommended for 2 months,the longer the storage time,the worse the taste and nutrition), are not suitable for frozen fresh. food. Seafood (fish, shrimp, shellfish), freshwater aquatic products and meat products (recommended for 1 month,the longer the storage time, the worse the taste and nutrition). Fresh pork, beef, fish, chicken, some packaged processed foods, etc. (Recommended to eat within the same day, preferably no later than 3 days) . Partially encapsulated processed foods (non- freezable foods) Fresh/frozen pork, beef, chicken, freshwater aquatic products, etc.(7 days below 0°C and above 0°C is recommended for consumption within that day, preferably no more than 2 days). Seafood (less than 0°C for 15 days, it is not recommended to store above 0°C) Fresh pork,beef,fish,chicken,cooked food,etc. (Recommended to eat within the same day,preferably no more than 3 days) red wine,white wine,sparkling wine etc. 25Helpful hints and tips Energy saving tips We recommend that you follow the tips below to save energy. Try to avoid keeping the door open for long periods in order to conserve energy. Ensure the appliance is away from any sources of heat (Direct sunlight, electric oven or cooker etc) Don’t set the temperature colder than necessary. Don’t store warm food or evaporating liquid in the appliance. Place the appliance in a well ventilated, humidity free, room. Please refer to Installing your new appliance chapter. If the diagram shows the correct combination for the dr awers, crisper and shelves, do not adjust the combination as this is designed to be the most energy efficient configuration. Hints for fresh food refrigeration Do not place hot food directly into the refrigerator or freezer,the internal temperature will increase resulting in the compressor having to work harder and will consume more energy. Do cover or wrap the food,particularly if it has a strong flavor. Place food properly so that air can circulate freely around it. Hints for refrigeration Meat (All Types) Wrap in polythene food: wrap and place on the glass shelf above the vegetable drawer. Always follow food storage times and use by dates suggested by manufacturers. Cooked food, cold dishes, etc.: They should be covered and may be placed on any shelf. Fruit and vegetables: They should be stored in the special drawer provided. Butter and cheese: Should be wrapped in airtight foil or plastic film wrap. Milk bottles: Should have a lid and be stored in the door racks. Hints for freezing When first starting up or after a period out of use, let the appliance run at least 2 hours on the higher settings before putting fo od in the compartment. Prepare food in small portions to enable it to be rapidly and completely frozen and to make it possible to subsequently thaw only the quantity required. Wrap up the food in aluminum foil or polyethylene food wraps which are airtight. Don’t allow fresh,unfrozen food to touch the food which is already frozen to avoid temperature rise of the latter. Iced products,if consumed immediately after removal from the freezer compartment,will probably cause frost burns to the skin. It is recommended to label and date each frozen package in order to keep track of the storage time. Hints for the storage of frozen food Ensure that frozen food has been stored correctly by the food retailer. Once defrosted, food will deteriorate rapidly and should not be re-frozen. Do not exceed the storage period indicated by the food manufacturer. Switching off your appliance If the appliance needs to be switched off for an extended period, the following steps should be taken prevent mould on the appliance. 1.Remove all food. 2.Remove the power plug from the mains socket. 3.Clean and dry the interior thoroughly. 4.Ensure that all the doors are wedged open slightly to allow air to circulate. 26For hygienic reasons the appliance (including exterior and interior accessories) should be cleaned regularly (at least every two months). Warning! The appliance must not be connected to the mains during cleaning as there is a danger of electrical shock! Before cleaning switch the appliance off and remove the plug from the mains socket. Exterior cleaning To maintain good appearance of your appliance, you should clean it regularly. Wipe the control panel with a clean, soft cloth. Spray water onto the cleaning cloth instead of spraying directly on the surface of the appliance. This helps ensure an even distribution of moisture to the surface. Clean the doors, handles and cabinet surfaces with a mild detergent and then wiped dry with a soft cloth. Caution! Don’t use sharp objects as they are likely to scratch the surface. Don’t use Thinner, Car detergent, Clorox, ethereal oil,abrasive cleansers or Cleaning and care organic solvent such as Benzene for cleaning. They may damage the surface of the appliance and may cause fire. Interior cleaning You should clean the appliance interior regularly. It will be easier to clean when food stocks are low. Wipe the inside of the fridge freezer with a weak solution of bicarbonate of soda, and then rinse with warm water using a wrung-out sponge or cloth.Wipe completely dry before replacing the shelves and baskets. Thoroughly dry all surfaces and removable parts before putting them back into place. Although this appliance automatically defrosts, a layer of frost may occur on the freezer compartment’s interior walls if the freezer door is opened frequently or kept open too long.If the frost is too thick, choose a time when the freezer is nearly empty and proceed as follow: 1.Remove existing food and accessories baskets,unplug the appliance from the mains power and leave the doors open. Ventilate the room thoroughly to accelerate the process.

2. When defrosting is completed,clean

your freezer as described above. 27Caution! Don’t use sharp objects to remove frost from the freezer compartment. Only after the interior is completely dry should the appliance be switched back on and plugged back into the mains socket. Door seals cleaning Take care to keep door seals clean. Sticky food and drinks can cause seals to stick to the cabinet and tear when you open the door.Wash seal with a mild detergent and warm water. Rinse and dry it thoroughly after cleaning. Caution! Only after the door seals are completely dry should the appliance be powered on . Replacing the LED light:

The LE D light should be replaced by a competent person. If the LED light is damaged, contact the customer helpline for assistance. To replace the LED light, the below steps can be followed:

1. Unplug your appliance.

2. Remove light cover by pushing up

3. Hold the LED cover with one hand and

pull it with the other hand while pressing the connector latch.

4. Replace LED light and snap it correctly

in place. Water dispenser cleaning (special for water dispenser products): Clean water tanks if they have not been used for 48h; flush the water sy stem connected to a water supply if water has not been drawn for 5 days. 28Problem: Possible cause & Solution Check whether the power cord is plugged into the power outlet properly. Check the fuse or circuit of your power supply, replace if necessary. The ambient temperature is too low. Try setting the chamber temperature to a colder level to solve this problem. It is normal that the freezer is not operating during the automatic defrost cycle, or for a short time after the appliance is switched on to protect the compressor. Appliance is not working correctly Odours from the compartments The interior may need to be cleaned. Some food, co ntainers or wrapping cause odours. Noise from the appliance The sounds below are quite normal: Compressor running noises. Air movement noise from the small fan motor in the freezer compartment or other compartments. Gurgling sound similar to water boiling. Popping noise during automatic defrosting. Clicking noise before the compressor starts. Other unusual noises are due to the reasons below and may need you to check and take action: The cabinet is not level. The back of appliance touches the wall. Bottles or containers knocking against each other. The mo tor runs continuously It is normal to frequently hear the sound of the motor, it will need to run more during following circumstances: Temperature setting is set colder than necessary. Large quantity of warm food has recently been stored within the appliance. The temperature outside the appliance is too high. Doors are kept open too long or too often. After your installing the appliance or it has been switched off for a long time. If you experience a problem with your appliance or are concerned that the appliance is not functioning correctly,you can carry out some easy chec ks before calling for service, please see below. Warning! Don't try to repair the appliance yourself. If the problem persists after you have made the checks mentioned below,contact a qualified electrician,authorized service engineer or the shop where you purchased the product. Troubleshooting 29A layer of frost occurs in the compartment Check that the air outlets are not blocked by food and ensure food is placed within the appliance to allow sufficient ventilation. Ensure the door can be fully closed. To remove the frost, please refer to the cleaning and care chapter. Temperature inside is too warm You may have left the doors open too long or too frequently; or the doors are kept open by some obstacle; or the appliance is located with insufficient clearance at the sides, back and top. Temperature inside is too cold Increase the temperature by following the” Control Panel” chapter. Doors can’t be closed easily Check whether the top of the refrigerator is tilted back by 10-15mm to allow the doors to self close, or if something inside is preventing the doors from closing. Problem: Possible cause & Solution Disposal of the appliance It is prohibited to dispose of this appliance as household waste. Packaging materials Packaging materials with the recycle symbol are recyclable. Dispose of the packaging into a suitable waste collection container to recycle it. Before disposal of the appliance

1. Pull out the mains plug from the mains socket.

2. Cut off the power cord and discard with the mains plug.

Warning! Refrigerators contain refrigerant and gases in the insulation. Refrigerant and gases must be disposed of professionally as they may cause eye injuries or ign ition. Ensure that tubing of the refrigerant circuit is not damage prior to proper disposal. Correct Disposal of this product This symbol on the product or in its packing indicates that this product may not be treated as household waste. Instead, it should be taken to the appropriate waste collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by the inappropriate waste handling of this product. For more detailed information about the recycling of this p roduct, please contact your local council your household waste disposal service, or the shop where you purchased the product. 30Español
