USER MANUAL RFNE312K31WN BEKO

Simple black line drawing of a snowflake with a hexagonal base (no text or symbols)

RFNE 312K31WN - RFNE312K31XBN - RFNE312K 43WN

Please read this user manual first!

Dear Customer,

We hope that your product, which has been produced in modern plants and checked under the most meticulous quality control procedures, will provide you an effective service.

Therefore, read this entire user manual carefully before using the product and keep it as a reference. If you handover the product to someone else, give the user manual as well.

The user manual will help you use the product in a fast and safe way.

• Read the manual before installing and operating the product.
  • Make sure you read the safety instructions.
• Keep the manual in an easily accessible place as you may need it later.
• Read the other documents given with the product.

Remember that this user manual is also applicable for several other models. Differences between models will be identified in the manual.

Explanation of symbols

Throughout this user manual the following symbols are used:

i Important information or useful tips.

⚠ Warning against dangerous conditions for life and property.

⚠ Warning against electric voltage.

i INFORMATION

ENERG SUPPLIER'S NAME MODEL IDENTIFIER (*) A A

The model information as stored in the product data base can be reached by entering following website and searching for your model identifier (*) found on energy label.

https://eprel.ec.europa.eu/

1 Your freezer 6

2 Safety and Environment Instructions 7

General Safety 7

Intended Use 9

Child Safety 10

Compliance with WEEE Directive and

Disposing of the Waste Product .....10

Compliance with RoHS Directive.....10

Package Information 10

3 Installation 11

Points to be paid attention to when the relocation of the refrigerator ..... 11

Electrical connection 11

Disposing of the packaging .....12

Disposing of your old refrigerator ....12

Placing and Installation....12

Adjusting the legs 13

4 Preparation 14

5 Using your refrigerator 16

Setting the operating temperature .16

Freezing 17

How to Freeze Fresh Foods .....18

Recommendations for ....19

Preservation of ....19

Defrosting 19

Deep Freezer Information .....19

Defrosting the frozen foods ...... 20

6 Maintenance and cleaning 23

Protection of plastic surfaces ..... 23

7 Troubleshooting 24

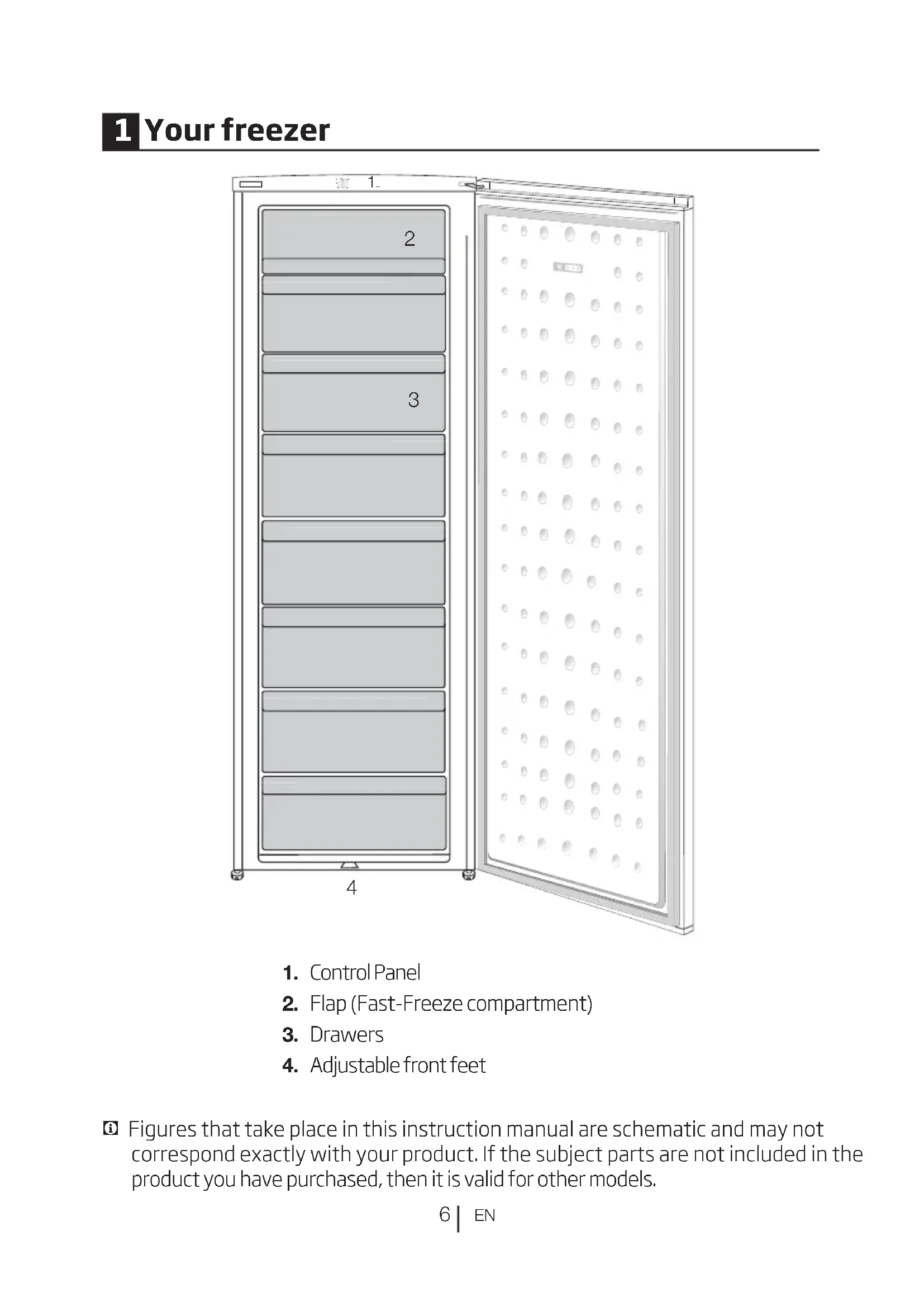

1 Your freezer

1. 2 3 4

1. Control Panel
2. Flap (Fast-Freeze compartment)
3. Drawers
4. Adjustable front feet

i Figures that take place in this instruction manual are schematic and may not correspond exactly with your product. If the subject parts are not included in the product you have purchased, then it is valid for other models.

2 Safety and Environment Instructions

This section provides the safety instructions necessary to prevent the risk of injury and material damage. Failure to observe these instructions will invalidate all types of product warranty.

Intended use

	WARNING:Keep ventilation openings, in the appliance enclosure or in the built-instructure, clear of obstruction.
	WARNING:Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.
	WARNING:Do not damage the refrigerant circuit.
	WARNING:Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer.
	WARNING:Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.

This appliance is intended to be used in household and similar applications such as

- staff kitchen areas in shops, offices and other working environments;

• farm houses and by clients in hotels, motels and other residential type environments;
• bed and breakfast type environments;
• catering and similar non-retail applications.

General Safety

• This product should not be used by persons with physical, sensory and mental disabilities, without sufficient knowledge and experience or by children. The device can only be used by such persons under supervision and instruction of a person responsible for their safety. Children should not be allowed to play with this device.
• In case of malfunction, unplug the device.
  • After unplugging, wait at least 5 minutes before plugging in again.
  • Unplug the product when not in use.
• Do not touch the plug with wet hands! Do not pull the cable to plug off, always hold the plug.
• Do not plug in the refrigerator if the socket is loose.
• Unplug the product during installation, maintenance, cleaning and repair.
• If the product will not be used for a while, unplug the product and remove any food inside.
• Do not use the product when the compartment with circuit cards located on the upper back part of the product (electrical card box cover) (1) is open.

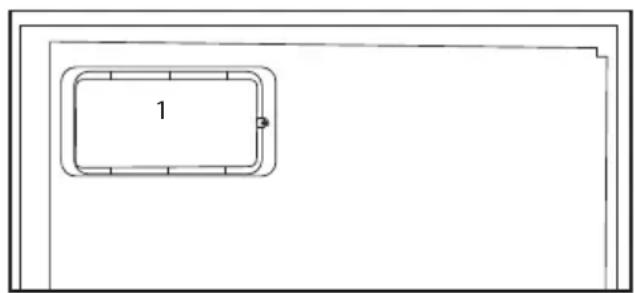

Simple line drawing of a rectangular frame with a numbered label '1' and a small symbol inside, no text or symbols present.

Simple line drawing of a mechanical component with a base and top view, no text or symbols present

• Do not use steam or steamed cleaning materials for cleaning the refrigerator and melting the ice inside. Steam may contact the electrified areas and cause short circuit or electric shock!
• Do not wash the product by spraying or pouring water on it! Danger of electric shock!
• In case of malfunction, do not use the product, as it may cause electric shock. Contact the authorized service before doing anything.
• Plug the product into an earthed socket. Earthing must be done by a qualified electrician.
• If the product has LED type lighting, contact the authorized service for replacing or in case of any problem.
• Do not touch frozen food with wet hands! It may adhere to your hands!
• Do not place liquids in bottles and cans into the freezer compartment. They may burst out!
• Place liquids in upright position after tightly closing the lid.
• Do not spray flammable substances near the product, as it may burn or explode.

- Do not keep flammable materials and products with flammable gas (sprays, etc.) in the refrigerator.

- Do not place containers holding liquids on top of the product. Splashing water on an electrified part may cause electric shock and risk of fire.

- Exposing the product to rain, snow, sunlight and wind will cause electrical danger. When relocating the product, do not pull by holding the door handle. The handle may come off.

• Take care to avoid trapping any part of your hands or body in any of the moving parts inside the product.

- Do not step or lean on the door, drawers and similar parts of the refrigerator. This will cause the product to fall down and cause damage to the parts.

• Take care not to trap the power cable.

Diagram showing a lightning bolt striking a wall-mounted device with a plug, no text or symbols present

• When positioning the appliance, ensure the supply cord is not trapped or damaged.
• Do not locate multiple portable socket-outlets or portable power supplies at the rear of the appliance.
  • Children aged from 3 to 8 years

are allowed to load and unload refrigerating appliances.

• To avoid contamination of food, please respect the following instructions:
• Opening the door for long periods can cause a significant increase of the temperature in the compartments of the appliance.
• Clean regularly surfaces that can come in contact with food and accessible drainage systems.
• Clean water tanks if they have not been used for 48 h; flush the water system connected to a water supply if water has not been drawn for 5 days.
• Store raw meat and fish in suitable containers in the refrigerator, so that it is not in contact with or drip onto other food.
• Two-star frozen-food compartments are suitable for storing pre-frozen food, storing or making icecream and making ice cubes.
• One-, two- and three-star compartments are not suitable for the freezing of fresh food.
• If the refrigerating appliance is left empty for long periods, switch off, defrost, clean, dry, and leave the door open to prevent mould developing within the appliance.

1.1.1 HC Warning

If the product comprises a cooling system using R600a gas, take care to avoid damaging the cooling system and its pipe while using and moving the product. This gas is flammable. If the cooling system is damaged, keep the product away from sources of fire and ventilate the room immediately.

i

The label on the inner left side indicates the type of gas used in the product.

1.1.2 For Models with Water Dispenser

• Pressure for cold water inlet shall be maximum 90 psi (6.2 bar). If your water pressure exceeds 80 psi (5.5 bar), use a pressure limiting valve in your mains system. If you do not know how to check your water pressure, ask for the help of a professional plumber.
• If there is risk of water hammer effect in your installation, always use a water hammer prevention equipment in your installation. Consult Professional plumbers if you are not sure that there is no water hammer effect in your installation.
• Do not install on the hot water inlet. Take precautions against of the risk of freezing of the hoses. Water temperature operating interval shall be 33°F (0.6°C) minimum and 100°F (38°C) maximum.
• Use drinking water only.

Intended Use

• This product is designed for home use. It is not intended for commercial use.
• The product should be used to store food and beverages only.

• Do not keep sensitive products requiring controlled temperatures (vaccines, heat sensitive medication, medical supplies, etc.) in the refrigerator.

• The manufacturer assumes no responsibility for any damage due to misuse or mishandling.

• Original spare parts will be provided for 10 years, following the product purchasing date.

Child Safety

• Keep packaging materials out of children's reach.
• Do not allow the children to play with the product.
• If the product's door comprises a lock, keep the key out of children's reach.

Compliance with WEEE Directive and Disposing of the Waste Product

This product complies with EU WEEE Directive (2012/19/EU). This product bears a classification symbol for waste electrical and electronic equipment (WEEE).

Pure electrical circuit lines without any symbols

This product has been manufactured with high quality parts and materials which can be reused and are suitable for recycling. Do not dispose of the waste product with normal domestic and other wastes at the end of its service life. Take it to the collection center for the recycling of electrical and electronic equipment. Please consult your local authorities to learn about these collection centers.

Compliance with RoHS Directive

- This product complies with EU WEEE Directive (2011/65/EU). It does not contain harmful and prohibited materials specified in the Directive.

Package Information

Packaging materials of the product are manufactured from recyclable materials in accordance with our National Environment Regulations. Do not dispose of the packaging materials together with the domestic or other wastes. Take them to the packaging material collection points designated by the local authorities.

3 Installation

In case the information which are given in the user manual are not taken into account, manufacturer will not assume any liability for this.

Points to be paid attention to when the relocation of the refrigerator

1. Your refrigerator should be unplugged. Before transportation of your refrigerator, it should be emptied and cleaned.
2. Before it is re-packaged, shelves, accessories, crisper, etc. inside your refrigerator should be fixed with adhesive tape and secured against impacts. Package should be bound with a thick tape or sound ropes and the transportation rules on the package should be strictly observed.
3. Original packaging and foam materials should be kept for future transportations or moving.

Before you start the refrigerator, Check the following before you start to use your refrigerator:

1. Attach 2 plastic wedges as illustrated below. Plastic wedges are intended to keep the distance which will ensure the air circulation between your refrigerator and the wall. (The picture is drawn up as a representation and it is not identical with your product.)
2. Clean the interior of the refrigerator as recommended in the "Maintenance and cleaning" section.
3. Connect the plug of the refrigerator to the wall socket. When the fridge door is opened, fridge internal lamp will turn on.

Diagram showing fluid flow through a container with labeled components and directional arrows indicating flow direction.

1. When the compressor starts to operate, a sound will be heard. The liquid and gases sealed within the refrigeration system may also give rise to noise, even if the compressor is not running and this is quite normal.
2. Front edges of the refrigerator may feel warm. This is normal. These areas are designed to be warm to avoid condensation.

Electrical connection

Connect your product to a grounded socket which is being protected by a fuse with the appropriate capacity.

Important:

The connection must be in compliance with national regulations.

• The power plug must be easily accessible after installation.
• Electrical safety of your refrigerator shall be guaranteed only if the earth system in your house complies with standards.

• The voltage stated on the label located at left inner side of your product should be equal to your network voltage.

• Extension cables and multi plugs must not be used for connection.
  A damaged power cable must be replaced by a qualified electrician.
  ⚠️ Product must not be operated before it is repaired! There is the risk of electric shock!

Disposing of the packaging

The packing materials may be dangerous for children. Keep the packing materials out of the reach of children or dispose of them by classifying them in accordance with the waste instructions stated by your local authorities. Do not throw away with regular house waste, throw away on packaging pick up spots designated by the local authorities.

The packing of your refrigerator is produced from recyclable materials.

Disposing of your old refrigerator

Dispose of your old refrigerator without giving any harm to the environment.

- You may consult your authorized dealer or waste collection center of your municipality about the disposal of your refrigerator.

Before disposing of your refrigerator, cut out the electric plug and, if there are any locks on the door, make them inoperable in order to protect children against any danger.

Placing and Installation

⚠️ If the entrance door of the room where the refrigerator will be installed is not wide enough for the refrigerator to pass through, then call the authorized service to have them remove the doors of your refrigerator and pass it sideways through the door.

1. Install your refrigerator to a place that allows ease of use.
2. Keep your refrigerator away from heat sources, humid places and direct sunlight.
3. There must be appropriate air ventilation around your refrigerator in order to achieve an efficient operation. If the refrigerator is to be placed in a recess in the wall, there must be at least 5 cm distance with the ceiling and at least 5 cm with the wall. Do not place your product on the materials such as rug or carpet.
4. Place your refrigerator on an even floor surface to prevent jolts.

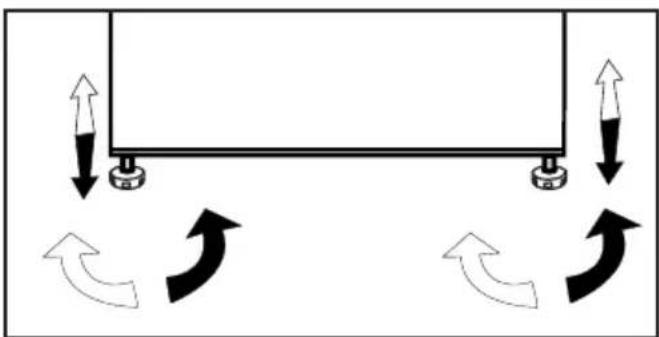

Adjusting the legs

If your refrigerator is unbalanced; You can balance your refrigerator by turning its front legs as illustrated in the figure. The corner where the leg exists is lowered when you turn in the direction of black arrow and raised when you turn in the opposite direction. Taking help from someone to slightly lift the refrigerator will facilitate this process.

Diagram showing a rectangular structure with upward and downward arrows indicating motion or force directions, no text or symbols present.

4 Preparation

• For a freestanding appliance; 'this refrigerating appliance is not intended to be used as a built-in appliance.
• Your cooler/freezer should be installed at least 30 cm away from heat sources such as hobs, ovens, central heater and stoves and at least 5 cm away from electrical ovens and should not be located under direct sunlight.
• Please make sure that the interior of your cooler/freezer is cleaned thoroughly.
• If two coolers are to be installed side by side, there should be at least 2 cm distance between them.
• When you operate your cooler/ freezer for the first time, please observe the following instructions during the initial six hours.
• Its door should not be opened frequently.
• It must be operated empty without placing any food in it.
• Do not unplug your cooler/freezer. If a power failure occurs out of your control, please see the warnings in the “Recommended solutions for the problems” section.
• The baskets/drawers that are provided with the chill compartment must always be in use for low energy consumption and for better storage conditions.
• Food contact with the temperature sensor in the freezer compartment may increase energy consumption of the appliance. Thus any contact with the sensor(s) must be avoided.

- This product has been designed to function at ambient temperatures up to 43 °C (90 SDgrF). Even if the ambient temperature falls to -15 °C, frozen food in the freezer does not thaw thanks to its Advanced Electronic Temperature Control System. For the first installation, the product should NOT be placed under low ambient temperatures. This is because the freezer cannot go down to standard operation temperature. When reaching continuous operation, the product can be moved to another place. Thus, later you can place your product in the garage or an unheated room without the concern of causing frozen food to get rotten. However, it is likely that above mentioned low temperatures may cause the freezing of the food in the fridge compartment; thus, please consume the food items in the fridge in a controlled way as needed. When ambient temperature goes back to normal, you may change button setting according to your need.

• If the ambient temperature is below 0^ C, the food in fridge compartment will freeze. Therefore, we recommend not using the fridge compartment in such low ambient temperatures. You may continue to use the freezer compartment as usual.
• In some models, the instrument panel automatically turns off 5 minutes after the door has closed. It will be reactivated when the door has opened or pressed on any key.

- Due to temperature change as a result of opening/closing the product door during operation, condensation on the door/body shelves and the glass containers is normal.

- Since hot and humid air will not directly penetrate into your product when the doors are not opened, your product will optimize itself in conditions sufficient to protect your food. Functions and components such as compressor, fan, heater, defrost, lighting, display and so on will operate according to the needs to consume minimum energy under these circumstances.

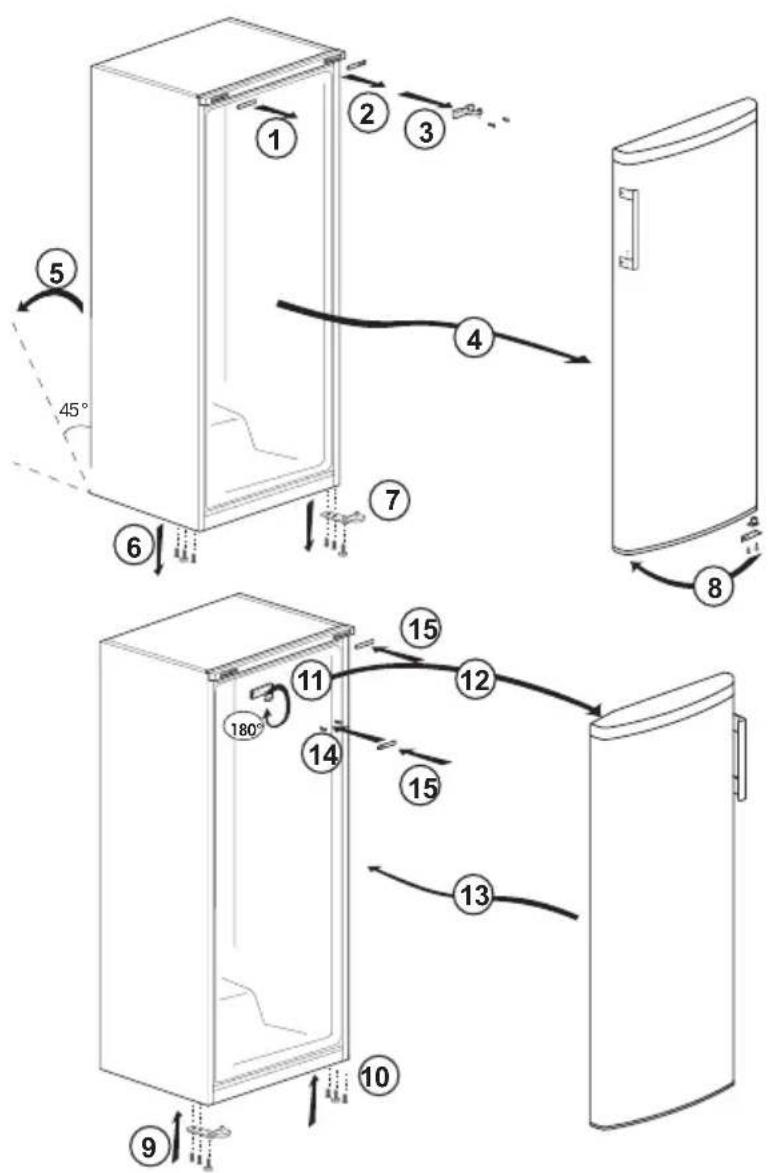

Reversing the doors

Proceed in numerical order.

Technical diagram showing the internal structure and airflow path of a refrigerator with numbered components and angular annotations.

5 Using your refrigerator

Setting the operating temperature

Warm ←● 1 ● 2 ● 3 ● 4 ● → Cold MAX.

The operating temperature is regulated by the temperature control.

1 = Lowest cooling setting (Warmest setting)

4 = Highest cooling setting (Coldest setting)

* Additionally activities quick fridge function.

Please choose the setting according to the desired temperature.

The interior temperature also depends on ambient temperature, the frequency with which the door is opened and the amount of foods kept inside.

Frequently opening the door causes the interior temperature to rise.

For this reason, it is recommended to close the door again as soon as possible after use.

The normal storage temperature of your appliance should be -18 °C (0 °F). Lower temperatures can be obtained by adjusting the thermostat knob towards Position4.

We recommend checking the temperature with a thermometer to ensure that the storage compartments are kept to the desired temperature. Remember to take the reading immediately since the thermometer temperature will rise very rapidly after you remove it from the freezer.

Thermostat knob

The thermostat knob is located on the top trim.

Important:

When you press the fast-freeze switch or adjust the set temperature, there may be a short delay before the compressor starts to operate. This is normal and not a compressor fault.

MAX. 4 3 1 2

Freezing

Freezing food

You can use the appliance for freezing fresh food as well as for storing pre-frozen food.

Please refer to the recommendations given on the packaging of your food.

- Attention

Do not freeze fizzy drinks, as the bottle may burst when the liquid in it is frozen.

Be careful with frozen products such as coloured ice-cubes.

Do not exceed the freezing capacity of your appliance in 24 hours. See the rating label.

In order to maintain the quality of the food, the freezing must be effected as rapidly as possible.

Thus, the freezing capacity will not be exceeded, and the temperature inside the freezer will not rise.

- Attention

Keep the already deep-frozen food always separated with freshly placed food.

When deep-freezing hot food, the cooling compressor will work until the food is completely frozen. This can temporarily cause excessive cooling of the refrigeration compartment.

If you find the freezer door difficult to open just after you have closed it, don't worry. This is due to the pressure difference which will equalize and allow the door to open normally after a few minutes.

You will hear a vacuum sound just after closing the door. This is quite normal.

Fast freeze

If large amounts of fresh food are going to be frozen, adjust the control knob to max. 24 hours before putting the fresh food in the fast freeze compartment.

It is strongly recommended to keep the knob at MAX, position at least 24 hours to freeze maximum amount of fresh food declared as freezing capacity. Take special care not to mix frozen food and fresh food.

Remember to turn the thermostat knob back to its previous position once food has frozen.

How to Freeze Fresh Foods

• Foods to be frozen must be divided into portions according to a size to be consumed, and frozen in separate packages. In this way, all the food should be prevented from being re-frozen by thawing.
• In order to protect the nutritional value, the aroma and the color of the foods as much as possible, vegetables should be boiled for a short period of time before freezing. (Boiling is not necessary for foods such as cucumber, parsley.) Cooking time of the vegetables frozen in this way is shortened by 1/3 than that of the fresh vegetables.
• To extend the storage times of frozen foods, boiled vegetables must first be filtered and then hermetically packaged as in the all types of foods.
• Foods should not be placed in the freezer compartment without package.
• The packaging material of the food to be stored should be air-tight, thick and durable and should not deform with cold and humidity. Otherwise, the food that is hardened by freezing might pierce the package. Sealing the package well is also important in terms of securely storing the food.

The following packaging types are suitable for use to freeze the food:

Polyethylene bag, aluminum foil, plastic foil, vacuum bags and cold-resistant storage containers with caps.

The use of the following types of packaging is not recommended to freeze the food;

Packaging paper, parchment paper, cellophane (gelatin paper), garbage bag, used bags and shopping bags.

• Hot foods should not be placed in the freezer compartment without cooling.
• When placing unfrozen fresh foods in the freezer compartment, please note that it does not contact with frozen foods. Cool-pack (PCM) can be placed to the rack immediately below the quick freezer rack for preventing them from being getting warm.
• During the freezing time (24 hours) do not place other food to the freezer.
• Place your foods to the freezing shelves or racks by spreading them so that they will not be cramped (it is recommended that the packaging does not come into contact with each other).
• Frozen foods must be immediately consumed in a short period of time after defrosting and must never be frozen again.
• Do not block the ventilation holes by putting your frozen foods in front of the ventilation holes located on the back surface.

• We recommend you to attach a label onto the package and write the name of the foods in the package and the freezing time.

Foods suitable for freezing:

- Fish and seafood, red and white meat, poultry, vegetables, fruit, herbaceous spices, dairy products (such as cheese, butter and strained yoghurt), pastries, ready or cooked meals, potato dishes, souffle and desserts.

Foods not suitable for freezing:

• Yoghurt, sour milk, cream, mayonnaise, leaved salad, red radish, grapes, all fruits (such as apple, pears and peaches).
• For foods to be frozen quickly and thoroughly, the following specified amounts per package should not be exceeded.

-Fruits and vegetables, 0.5-1 kg

-Meat, 1-1.5 kg

- A small amount of foods (maximum 2 kg) can also be frozen without the use of the quick freezing function.

To obtain the best result, apply the following instructions:

1. Activate the quick freezing function 24 hours before placing your fresh foods.
2. 24 hours after pressing the button, firstly place your food that you want to freeze to the third drawer from the bottom with higher freezing capacity. If you have food remained, place them in front of the second drawer from the bottom.

3. The quick freezing function will be automatically inactivated after 50 hours.

4. Do not try to freeze a large quantity of food at a time. Within 24 hours, this product can freeze the maximum food quantity specified as «Freezing Capacity ... kg/24 hours» on its type label. It is not convenient to put more unfrozen/fresh foods to the freezer compartment than the quantity specified on the label.

- You can review the Meat and Fish, Vegetables and Fruits, Dairy Products tables for placing and storing your foods in the deep-freezer.

Recommendations for

Preservation of

Frozen Foods

• While purchasing your frozen foods, make sure that they are frozen at appropriate temperatures and their packages are not broken.
• Put the packages on the freezer compartment as soon as possible after purchasing them.
• Make sure that the expiration date indicated on the packaging is not expired before consuming the packaged ready meals that you remove from the freezer compartment.

Defrosting

The ice in the freezer compartments is automatically thawed.

Deep Freezer Information

The EN 62552 standard requires (according to specific measurement conditions) that at least 4.5 kg of food for each 100 liter of freezer compartment volume can be frozen at a room temperature of 25^ C in 24 hours.

Defrosting the frozen foods

Depending on the food diversity and the purpose of use, a selection can be made between the following options for defrosting:

• At room temperature (it is not very suitable to defrost the food by leaving it at room temperature for a long time in terms of maintaining the food quality)
• In the refrigerator
• In the electrical oven (in models with or without fan)

• In the microwave oven

CAUTION:

• Never put acidic beverages in glass bottles and cans into your freezer due to the risk of explosion.
• If there is moisture and abnormal swelling in the packaging of frozen foods, it is likely that they were previously stored in an improper storage condition and their contents deteriorated. Do not consume these foods without checking.
• Since some spices in cooked meals may change their taste when exposed to long-term storage conditions, your frozen foods should be less seasoned or the desired spices should be added to the foods after the thawing process.

Recommended Temperature Settings

Freezer compartment setting	Remarks
-20 °C This is the default recommended temperature setting.
-21,-22,-23 or -24 oC These settings are recommended when the ambient temperature is higher than 30°C or when you think the refrigerator is not cool enough due to frequent opening and closing of the door.
Quick Freezing Use when you want to freeze your food in a short time.It is recommended to be applied to preserve the quality of your fresh food. You do not need to use the quick freezing function when putting your frozen food.You do not need to use the quick freezing function to freeze a small amount of fresh food, up to 2 kg per day.

Meat and Fish Preparation				Longest storage time (month)
Meat products	Veal	Steak By cutting them 2 cm thick and placing foil between them or wrapping tightly with stretch	6-8
		Roast By packing the pieces of meat in a refrigerator bag or wrapping them tightly with stretch	6-8
		Cubes In small pieces 6-8
		Schnitzel, chops	By placing foil between cut slices or wrapping individually with stretch	6-8
	Mutton	Chops	By placing foil between meat pieces or wrapping individually with stretch	4-8
		Roast By packing the pieces of meat in a refrigerator bag or wrapping them tightly with stretch	4-8
		Cubes	By packing the shredded meats in a refrigerator bag or wrapping them tightly with stretch	4-8
	Beef	Roast By packing the pieces of meat in a refrigerator bag or wrapping them tightly with stretch	8-12
		Steak By cutting them 2 cm thick and placing foil between them or wrapping tightly with stretch	8-12
		Cubes In small pieces 8-12
		Boiled meat	By packaging in small pieces in a refrigerator bag 8-12
	Mince Without seasoning, in flat bags 1-3
	Offal (piece) In pieces 1-3
	Fermented sausage - Salami		It should be packaged even if it has casing.	1-2
	Jambon By placing foil between cut slices 2-3
Poultry and hunting animals	Chicken and Turkey		By wrapping in foil	4-6
	Goose		By wrapping in foil (portions should not exceed 2.5 kg)	4-6
	Duck		By wrapping in foil (portions should not exceed 2.5 kg)	4-6
	Deer, Rabbit, Roe Deer		By wrapping in foil (portions should not exceed 2.5 kg, and their bones should be separated)	6-8
Fish and seafood	Freshwater fish (Trout, Carp, Crane, Catfish)		After thoroughly cleaning the inside and scales, it should be washed and dried, and the tail and head parts should be cut when necessary.	2
	Lean fish (Sea bass, Turbot, Sole)			4-6
	Fatty fish (Bonito, Mackerel, Bluefish, Red Mullet, Anchovy)			2-4
	Shellfish		Cleaned and in bags	4-6
	Caviar		In its packaging, in an aluminum or plastic container	2-3

Fruits and Vegetables	Preparation	Longest storage time (month)
String bean and Pole bean	By shock boiling for 3 minutes after washing and cutting into small pieces 10 - 13
Green pea By shock boiling for 2 minutes after shelling and washing 10-12
Cabbage By shock boiling for 1-2 minute(s) after cleaning 6 - 8
Carrot By shock boiling for 3-4 minutes after cleaning and cutting into slices 12
Pepper By boiling for 2-3 minutes after cutting the stem, dividing into two and separating the seeds	8 - 10
Spinach By shock boiling for 2 minutes after washing and cleaning 6 - 9
Leek By shock boiling for 5 minutes after chopping 6-8
Cauliflower	By shock boiling in a little lemon water for 3-5 minutes after separating the leaves, cutting the core into pieces	10 - 12
Eggplant	By shock boiling for 4 minutes after washing and cutting into 2cm pieces	10 - 12
Squash	By shock boiling for 2-3 minutes after washing and cutting into 2cm pieces	8-10
Mushroom	By lightly sauteing in oil and squeezing lemon on it	2-3
Corn	By cleaning and packing in cob or granular	12
Apple and Pear	By shock boiling for 2-3 minutes after peeling and slicing	8 - 10
Apricot and Peach	Divide in half and extract the seeds	4 - 6
Strawberry and Raspberry	By washing and shelling	8 - 12
Baked fruit	By adding 10% sugar in the container	12
Plum, Cherry, Sour Cherry	By washing and shelling the stalks	8 - 12

Dairy Products	Preparation	Longest Storage Time ((Month	Storage Conditions
Cheese (except feta cheese)	By placing foil therebetween, in slices	6 - 8	It can be left in its original packaging for short term storage. For long-term storage it should also be wrapped in aluminum or plastic foil.
Butter, margarine	In its own packaging	6	In its own packaging or in plastic containers

6 Maintenance and cleaning

⚠️ Never use gasoline, benzene or similar substances for cleaning purposes.
⚠️ We recommend that you unplug the appliance before cleaning.
⚠️ Never use any sharp abrasive instrument, soap, household cleaner, detergent and wax polish for cleaning.
Use lukewarm water to clean the cabinet of your cooler/freezer and wipe it dry.
Use a damp cloth wrung out in a solution of one teaspoon of bicarbonate of soda to one pint of water to clean the interior and wipe it dry.
⚠️ Make sure that no water enters the lamp housing and other electrical items.
If your cooler/freezer is not going to be used for a long period of time, unplug the power cable, remove all food, clean it and leave the door ajar.
Check door seals regularly to ensure they are clean and free from food particles.

⚠️ To remove door racks, remove all the contents and then simply push the door rack upwards from the base.
⚠️Never use cleaning agents or water that contain chlorine to clean the outer surfaces and chromium coated parts of the product. Chlorine causes corrosion on such metal surfaces.
⚠ Do not use sharp, abrasive tools, soap, household cleaning agents, detergents, kerosene, fuel oil, varnish etc. to prevent removal and deformation of the prints on the plastic part. Use lukewarm water and a soft cloth for cleaning and then wipe it dry.

Protection of plastic surfaces

Do not put the liquid oils or oil-cooked meals in your cooler/freezer in unsealed containers as they damage the plastic surfaces of your cooler/freezer. In case of spilling or smearing oil on the plastic surfaces, clean and rinse the relevant part of the surface at once with warm water.

7 Troubleshooting

Please review this list before calling the service. It will save your time and money. This list includes frequent complaints that are not arising from defective workmanship or material usage. Some of the features described here may not exist in your product.

The refrigerator does not operate.

• The plug is not inserted into the socket correctly. >>>Insert the plug into the socket securely.
• The fuse of the socket which your refrigerator is connected to or the main fuse have blown out. >>>Check the fuse.
• Door has been opened frequently. >>>Do not open and close the door of refrigerator frequently.
• Ambient is very humid. >>>Do not install your refrigerator into highly humid places.
• Food containing liquid is stored in open containers. >>>Do not store food with liquid content in open containers.
• Door of the refrigerator is left ajar. >>> Close the door of the refrigerator.
• Thermostat is set to a very cold level. >>>Set the thermostat to a suitable level.
• Compressor is not running
• Protective thermic of the compressor will blow out during sudden power failures or plug-out plug-ins as the refrigerant pressure in the cooling system of the refrigerator has not been balanced yet. The refrigerator will start running approximately after 6 minutes. Please call the service if the refrigerator does not start up at the end of this period.
• The fridge is in defrost cycle. >>> This is normal for a full-automatically defrosting refrigerator. Defrosting cycle occurs periodically.
• The refrigerator is not plugged into the socket. >>>Make sure that the plug is fit into the socket.
• Temperature settings are not made correctly. >>>Select the suitable temperature value.
• There is a power outage. >>>Refrigerator returns to normal operation when the power restores.

Condensation on the side wall of the fridge compartment (MULTIZONE, COOL CONTROL and FLEXI ZONE).

The operation noise increases when the refrigerator is running.

· The operating performance of the refrigerator may change due to the changes in the ambient temperature. It is normal and not a fault.

The refrigerator is running frequently or for a long time.

· New product may be wider than the previous one. Larger refrigerators operate for longer period of time.· The room temperature may be high. >>It is normal that the product operates for longer periods in hot ambient.· The refrigerator might be plugged in recently or might be loaded with food. >>When the refrigerator is plugged in or loaded with food recently, it will take longer for it to attain the set temperature. This is normal.· Large amounts of hot food might be put in the refrigerator recently. >>Do not put hot food into the refrigerator.· Doors might be opened frequently or left ajar for a long time. >>The warm air that has entered into the refrigerator causes the refrigerator to run for longer periods. Do not open the doors frequently.· Freezer or fridge compartment door might be left ajar. >>Check if the doors are closed completely.· The refrigerator is adjusted to a very low temperature. >>Adjust the refrigerator temperature to a warmer degree and wait until the temperature is achieved.· Door seal of the fridge or freezer may be soiled, worn out, broken or not properly seated. >>Clean or replace the seal. Damaged/broken seal causes the refrigerator to run for a longer period of time in order to maintain the current temperature.

Freezer temperature is very low while the fridge temperature is sufficient.

· The freezer temperature is adjusted to a very low value. >>Adjust the freezer temperature to a warmer degree and check.

Fridge temperature is very low while the freezer temperature is sufficient.

· The fridge temperature is adjusted to a very low value. >>Adjust the fridge temperature to a warmer degree and check.

Food kept in the fridge compartment drawers is frozen.

· The fridge temperature is adjusted to a very high value. >>Adjust the fridge temperature to a lower value and check.

Temperature in the fridge or freezer is very high.

The fridge temperature is adjusted to a very high value. >>>Fridge compartment temperature setting has an effect on the temperature of the freezer. Change the temperatures of the fridge or freezer and wait until the relevant compartments attain a sufficient temperature.Doors are opened frequently or left ajar for a long time. >>>Do not open the doors frequently.Door is ajar. >>>Close the door completely.The refrigerator is plugged in or loaded with food recently. >>>This is normal. When the refrigerator is plugged in or loaded with food recently, it will take longer for it to attain the set temperature.Large amounts of hot food might be put in the refrigerator recently. >>>Do not put hot food into the refrigerator.

Vibrations or noise.

The floor is not level or stable. >>>If the refrigerator rocks when moved slowly, balance it by adjusting its feet. Also make sure that the floor is strong enough to carry the refrigerator, and level.The items put onto the refrigerator may cause noise. >>>Remove the items on top of the refrigerator.

There are noises coming from the refrigerator like liquid flowing, spraying, etc.

Liquid and gas flows occur in accordance with the operating principles of your refrigerator. It is normal and not a fault.

Whistle comes from the refrigerator.

Fans are used in order to cool the refrigerator. It is normal and not a fault.

Condensation on the inner walls of refrigerator.

Hot and humid weather increases icing and condensation. It is normal and not a fault.Doors are opened frequently or left ajar for a long time. >>>Do not open the doors frequently. Close them if they are open.Door is ajar. >>>Close the door completely.

Humidity occurs on the outside of the refrigerator or between the doors.

There might be humidity in the air; this is quite normal in humid weather. When the humidity is less, condensation will disappear.

Bad odour inside the refrigerator.

• No regular cleaning is performed. >>>Clean the inside of the refrigerator regularly with a sponge, lukewarm water or carbonate dissolved in water.
• Some containers or package materials may cause the smell. >>>Use a different container or different brand packaging material.
• Food is put into the refrigerator in uncovered containers. >>>Keep the food in closed containers. Microorganisms spreading out from uncovered containers can cause unpleasant odours.
• Remove the foods that have expired best before dates and spoiled from the refrigerator.

The door is not closing.

• Food packages are preventing the door from closing. >>>Replace the packages that are obstructing the door.
• The refrigerator is not completely even on the floor. >>>Adjust the feet to balance the refrigerator.
• The floor is not level or strong. >>>Make sure that the floor is level and capable to carry the refrigerator.

Crispers are stuck.

- The food is touching the ceiling of the drawer. >>>Rearrange food in the drawer.

DISCLAIMER / WARNING

Some (simple) failures can be adequately handled by the end-user without any safety issue or unsafe use arising, provided that they are carried out within the limits and in accordance with the following instructions (see the “Self-Repair” section).

Therefore, unless otherwise authorized in the “Self-Repair” section below, repairs shall be addressed to registered professional repairers in order to avoid safety issues. A registered professional repairer is a professional repairer that has been granted access to the instructions and spare parts list of this product by the manufacturer according to the methods described in legislative acts pursuant to Directive 2009/125/EC.

However, only the service agent (i.e. authorized professional repairers) that you can reach through the phone number given in the user manual/warranty card or through your authorized dealer may provide service under the guarantee terms. Therefore, please be advised that repairs by professional repairers (who are not authorized by Beko) shall void the guarantee.

Self-Repair

Self-repair can be done by the end-user with regard to the following spare parts: door handles,door hinges, trays, baskets and door gaskets (an updated list is also available in support.beko.com as of 1st March 2021).

Moreover, to ensure product safety and to prevent risk of serious injury, the mentioned self-repair shall be done following the instructions in the user manual for self-repair or which are available in support.beko.com. For your safety, unplug the product before attempting any self-repair.

Repair and repair attempts by end-users for parts not included in such list and/or not following the instructions in the user manuals for self-repair or which are available in support.beko.com, might give raise to safety issues not attributable to Beko, and will void the warranty of the product.

Therefore, it is highly recommended that end-users refrain from the attempt to carry out repairs falling outside the mentioned list of spare parts, contacting in such cases authorized professional repairers or registered professional repairers. On the contrary, such attempts by end-users may cause safety issues and damage the product and subsequently cause fire, flood, electrocution and serious personal injury to occur.

By way of example, but not limited to, the following repairs must be addressed to authorized professional repairers or registered professional repairers: compressor, cooling circuit, main board, inverter board, display board, etc.

The manufacturer/seller cannot be held liable in any case where end-users do not comply with the above.

The spare part availability of the refrigerator that you purchased is 10 years.

During this period, original spare parts will be available to operate the refrigerator properly

The minimum duration of guarantee of the refrigerator that you purchased is 24 months.

Diagram showing a device with wires and a plug, no text or symbols present

Diagram showing airflow or heat transfer between two labeled components, with arrows indicating direction and numbered annotations.

Diagram showing the internal structure and rotation of a refrigerator with numbered parts and angular annotations.

4 Préparation

Warm ←● 1 ● 2 ● 3 ● 4 ● → Cold MAX.

Diagram showing a device with a lightning bolt and cable, no text or symbols present

Technical line drawing of a mechanical component with a base plate and housing (no text or symbols)

Simple line drawing of a rectangular frame with a numbered label '1' inside (no text or symbols beyond the label)

Pure electrical circuit lines without any symbols

Diagram showing airflow or heat transfer between two labeled components (1 and 2), with arrows indicating direction of movement.

Diagram showing a beam supported at both ends with curved arrows indicating rotational motion (no text or symbols)

4 Preparación

Diagram showing the internal structure and rotation of a refrigerator with numbered parts and angular measurements.

Warm ←● 1 ● 2 ● 3 ● 4 ● → Cold MAX.

https://eprel.ec.europa.eu/

1 0 seu frigorífico 3

2 Avisos importantes de segurança 4

Inverter as portas ....14

4 Preparação 15

5 Utilizar o seu frigorífico 17

Ajuste da temperatura de funcionamento....17

Diagram showing a device with a lightning bolt and cable, no text or symbols present

Simple line drawing of a rectangular object with a triangular base and a small inset, no text or symbols present.

Simple line drawing of a rectangular frame with a small labeled box inside (no text or symbols)

Diagram showing fluid flow through a container with labeled components and directional arrows indicating flow direction.

Diagram showing a rectangular structure with upward and downward arrows indicating rotational or directional motion (no text or symbols)

Inverter as portas

Diagram showing the assembly of a refrigerator with numbered steps and angular measurements, including 45° angle and 180° angle.

4 Preparação

Warm ←● 1 ● 2 ● 3 ● 4 ● → Cold MAX.

Simple black-and-white line drawing of a snowflake and a hexagonal shape (no text or symbols)

RFNE 312K31WN - RFNE312K31XBN - RFNE312K 43WN

Diagram showing a device with a lightning bolt and cable, no text or symbols present

Technical line drawing of a mechanical component with a labeled section (1), no text or symbols present.

Simple line drawing of a rectangular frame with a small labeled box (no text or symbols beyond the number 1)

Siguranța copiilor

Pure electrical circuit lines without any symbols

Pure diagram of a mechanical or structural system with arrows indicating direction, no text or symbols present

Warm ←● 1 ● 2 ● 3 ● 4 ● → Cold MAX.

Diagram showing a mechanical or electrical component with a lightning bolt and wiring, no text or symbols present

Technical line drawing of a mechanical component with a labeled section (1), no text or symbols present.

Simple line drawing of a rectangular frame with a small labeled box (no text or symbols)

Diagram showing airflow or heat transfer between two labeled components (1 and 2), with arrows indicating direction of movement.

Diagram showing two vertical supports with upward and downward arrows indicating rotational motion (no text or symbols)

Technical diagram showing the internal components and angles of a refrigerator with numbered parts and directional arrows indicating motion.

Warm ←● 1 ● 2 ● 3 ● 4 ● → Cold MAX.

Temperatura rada regulira se tipkom za kontrolu temperature.

1 = Najniža postavka hlađenja (najtoplija postavka)

MAX. = Najviša postavka hlađenja (najhladnija postavka)

Simple line drawing of a rectangular object with a labeled section '1' (no text or symbols beyond the label)

1

Diagram showing a lightning bolt striking a wall-mounted device with wires and cables (no text or symbols)

1.1.1 HC opozorilo

Diagram showing fluid flow through a container with labeled components and directional arrows indicating flow direction.

Diagram showing a beam supported at both ends with curved arrows indicating rotational motion (no text or symbols)

4 Priprava

Diagram showing refrigerator door and refrigerator interior with numbered steps and angular measurements

5Poraba hladilnika

Warm ←● 1 ● 2 ● 3 ● 4 ● → Cold MAX.

Delovno temperaturo uravnavate z nadzorom za temperaturo.

https://eprel.ec.europa.eu/

Simple line drawing of a rectangular frame with a numbered label '1' on the top left corner (no other text or symbols)

Simple line drawing of a mechanical component with a base and top view, no text or symbols present

Diagram showing a lightning bolt striking a wall-mounted device with a cable and plug (no text or symbols)

Diagram showing heat transfer or cooling process with labeled components and directional arrows

Diagram showing a rectangular structure with upward and downward arrows indicating rotational or directional motion (no text or symbols)

Diagram showing the internal structure and airflow direction of a refrigerator with numbered components and angular measurements.

Warm ←● 1 ● 2 ● 3 ● 4 ● → Cold MAX.

Simple black-and-white line drawing of a snowflake and a hexagonal shape (no text or symbols)

RFNE 312K31WN - RFNE312K31XBN - RFNE312K 43WN

Molimo da prvo pročitate ovo uputstvo za upotrebu!

Poštovani kupci,

Nadamo se da će vam ovaj proizvod, koji je proizveden u savremenim fabrikama i koji je prošao najstrože kontrole kvaliteta, dugo i efikasno služiti.

Zato pažljivo pročitajte kompletno uputstvo za upotrebu pre nego što počnete da koristite proizvod i sačuvajte ga za buduće potrebe. Ako proizvod predajte nekome, dajte mu i uputstvo za upotrebu.

Uputstvo za upotrebu će vam pomoći da proizvod koristite efikasno i na sigurna način.

• Pročitajte uputstvo za upotrebu pre instaliranja i rada sa proizvodom.
• Obavezno pročitajte bezbednosna uputstva.
• Uputstvo za upotrebu čuvajte na pristupačnom mestu jer vam kasnije može zatrebati.
• Pročitajte i drugu dokumentaciju koju ste dobili uz proizvod.

Imajte na umu da se ovo uputstvo za upotrebu odnosi i na nekoliko drugih modela. Razlike između modela će biti naznačene u uputstvu.

Objašnjenje simbola

Diagram showing a mechanical or electrical component with a lightning bolt and wiring, no text or symbols present

• Prilikom postavljanja uređaja, pazite da kabl za napajanje nije zarobljen ili oštećen.
• Ne postavljajte više portabl utičnica ili prijenosnih napajanja na stražnjoj strani uređaja.
• Deci uzrasta od 3 do 8 godina dozvoljeno je da pune i prazne uređaje za hlađenje.

• Da biste izbegli kontaminaciju hrane, pridržavajte se sledećih uputstava:

• Otvaranje vrata na duže vreme može izazvati značajno povećanje temperature u odeljci frižidera.

• Redovno čistite površine koje mogu doći u kontakt sa hranom i pristupačnim sistemima za odvodnjavanje.
• Očistite rezervoare za vodu ako nisu korišćeni 48 sati; isperite vodeni sistem povezan sa dovodom vode ako voda nije vučena 5 dana.
• Sirovo meso i ribu čuvajte u odgovarajućim kontejnerima u frižideru, tako da nije u kontaktu sa ili kapaju na drugu hranu.
• Odeljci sa zamrznutom hranom sa dve zvezdice su pogodni za skladištenje prethodno zamrznute hrane, skladištenje ili pripremanje sladoleda i pravljenje kockica leda.
• Odeljci sa jednim, dva i tri zvezdice nisu pogodni za zamrzavanje sveže hrane.

• Ako je rashladni uređaj ostavljen prazan duže vrijeme, isključite ga, odmrznite, očistite, osušite i ostavite vrata otvorena kako bi se sprečilo stvaranje plijesni unutar uređaja.

• Ne priključujte frižider na zidnu utičnicu ako je labava.

• Voda se ne sme prskati direktno na unutrašnje ili spoljašnje delove proizvoda radi bezbednosti.
• Ne prskajte supstance koje sadrže zapaljive gasove, kao što je propan, blizu frižidera da bi se izbegla opasnost od požara i eksplozije.

• Ne stavljajte posude napunjene vodom na vrh frižidera je to može prouzrokovati električni udar ili požar.

• Ne prepunjavajte frižider preteranim količinama hrane. Ako se prepuni, hrana može pasti i povrediti vas i oštetiti frižider kada otvorite vrata. Ne stavljajte predmete na vrh frižidera jer mogu pasti prilikom otvaranja ili zatvaranja vrata frižidera.

• Materijali koji zahtevaju preciznu temperaturu, kao što su vakcine, lekovi osetljivi na temperaturu, materijali za naučne svrhe itd. ne smeju se čuvati u frižideru.
• Ako frižider nećete da koristite duže vreme, isključite ga iz struje. Mogući problem u kablu za napajanje može prouzrokovati požar.
• Frižider se može pomerati ako se podesive nožice ne stoje stabilno na podu. Pravilno učvršćivanje podesivih nožica na podu može sprečiti pomeranje frižidera.
• Kada prenosite frižider, ne držite ga za ručicu na vratima. Inače mogu da se odvali.
• Ako proizvod morate da postavite pored drugog frižidera ili zamrzivača, rastojanje između uređaja treba da bude najmanje 8 cm. U suprotnom se susedni zidovi mogu ovlažiti.
• Nikada nemojte koristiti proizvod ako je otvoren odeljak koji se nalazi na vrhu ili poleđini vašeg proizvoda i koji sadrži elektronske štampane ploče (poklopac elektronskih štampanih ploča) (1).

Technical line drawing of a mechanical component with a labeled part (1), no text or symbols present.

Simple line drawing of a rectangular frame with a numbered label '1' inside (no text or symbols beyond the number)

Pure electrical circuit lines without any symbols

Ovaj proizvod je usaglašen sa WEEE direktivom Evropske Unije (2012/19/EU). Ovaj proizvod nosi znak klasifikacije za električni i elektronski otpad (WEEE).

Ovaj proizvod je proizveden od visoko kvalitetnih delova i materijala koji se mogu ponovo koristiti i pogodni su za reciklažu. Nemojte odlagati proizvod u otpad sa običnim kućnim otpadom i drugim otpadima na kraju veka trajanja. Odložite ga u centar za sakupljanje i reciklažu električnog i elektronskog otpada. Konsultujte se sa svojim lokalnim vlastima da biste saznali o ovim centrima za sakupljanje otpada.

Usaglašenost sa RoHS direktivom:

Proizvod koji ste kupili u saglasnosti je sa RoHS direktivom Evropske Unije (2011/65/EU). On ne sadrži štetne i zabranjene materijale navedene u direktivi.

Informacije o pakovanju

Materijali za pakovanje ovog proizvoda proizvedeni su od materijala koji se mogu reciklirati u skladu sa nacionalnim propisima o zaštiti životne sredine. Materijale za pakovanje ne odlagati zajedno sa kućnim ili drugim otpadom. Odnesite ih na mesta za prikupljanje ambalažnog materijala određena od strane lokalne vlasti.

HC upozorenje Ako rashladni sistem proizvoda sadrži R600a:

Ovaj gas je zapaljiv. Zato vodite računa da prilikom upotrebe i transporta ne oštetite sistem hlađenja i cevi. U slučaju oštećenja, ovaj proizvod čuvajte dalje od potencijalnih izvora vatre, jer se može desiti da se proizvod zapali, i proveravajte prostoriju u kojoj se nalazi.

Ignorišite ovo upozorenje ako rashladni sistem proizvoda sadrži R134a.

Diagram showing fluid flow through a container with labeled components and directional arrows indicating flow direction.

Diagram showing a beam supported at both ends with curved arrows indicating rotational motion (no text or symbols)

Upozorenje za otvorena vrata

\*opcija

Diagram showing the step-by-step installation of a refrigerator with numbered components and angular measurements.

Warm ←● 1 ● 2 ● 3 ● 4 ● → Cold MAX.

Radna temperatura se reguliše regulacijom temperature.

1 = Podešavanje hlađenja na najniži nivo (hlađenje u najtoplijem okruženju)

Diagram showing a device with a lightning bolt and cable, no text or symbols present

Simple line drawing of a rectangular object with a labeled section (1), no text or symbols present.

Simple line drawing of a rectangular frame with a numbered label '1' inside (no text or symbols beyond the label)

Për produktet me dispenser uji;

Pure electrical circuit lines without any symbols

Diagram showing a mechanical or fluid system with labeled component '2' and directional arrows indicating flow or movement.

Diagram showing directional arrows and curved arrows around a rectangular structure (no text or symbols)

Diagram showing the internal components and angles of a refrigerator with numbered parts and directional arrows indicating motion.

Warm ←● 1 ● 2 ● 3 ● 4 ● → Cold MAX.

Simple line drawing of a rectangular frame with a numbered label '1' and a small symbol inside, no text or symbols present.

Simple line drawing of a mechanical component with a base and top view (no text or symbols)

Diagram showing a lightning bolt striking down on a wall-mounted device, with a cable and plug inserted (no text or symbols)

1.1.1 HC upozorenje

Ako proizvod sadrži sistem za hlađenje koji koristi plin R600a, vodite računa da izbjegnete oštećenje sistema za hlađenje i njegovih cijevi dok koristite i premještate proizvod. Ovaj plin je zapaljiv. Ako je sistem za hlađenje oštećen, držite proizvod podalje od izvora vatre i odmah provjetrite prostoriju.

Pure electrical circuit lines without any symbols

Ovaj proizvod je proizveden od visokokvalitetnih dijelova i materijala koji se mogu ponovo koristi i pogodni su za reciklažu. Na kraju radnog vijeka, ne bacajte otpadni proizvod sa običnim domaćim i ostalim otpadom.

Odnesite ga u sabirni centar za recikliranje električne i elektronske opreme. Obratite vašim lokalnim vlastima kako biste saznali više o ovim sabirnim centrima.

1.5. Usklađenost sa RoHS direktivom

Diagram showing airflow or heat transfer between two chambers with labeled components 1 and 2, indicating fluid or material movement.

3.3. Podešavanje postolja

Ako proizvod nije u uravnoteženom položaju, podesite prednja podesiva postolja okretanjem na desno ili lijevo.

Diagram showing a rectangular structure with upward and downward arrows indicating rotational or directional motion, no text or symbols present.

3.4. Priključak za napajanje

	UPOZORENJE: Ne koristite produžni kabel ili kabel sa više utičnica na priključku za napajanje.
	UPOZORENJE: Oštećeni kabel za napajanje mora da zamijeni ovlašteni servis.
	Prilikom postavljanja dva hladnjaka jedan pored drugog, ostavite najmanje 4 cm prostora između dvije jedinice.

• Naša firma ne preuzima odgovornost za bilo kakvu štetu zbog korištenja bez uzemljenja i bez priključka za napajanje u skladu sa nacionalnim propisima.
• Napojni kabel mora biti lako dostupan nakon instalacije.
• Povežite hladnjak na uzemljenu utičnicu sa naponom od 220-240 V/50 Hz. Utikač mora sadržati osigurač od 10-16A.
• Ne koristite utikač sa više grupa sa ili bez produžnog kabela između zidne utičnice i hladnjaka.

Upozorenje na vruću površinu!Na bočnim zidovima vašeg proizvoda ce nalaze cijevi rashladnog sredstva koje poboljšavaju rashladni sistem. Kroz ove oblasti može da teče rashladno sredstvo na visokim temperaturama, što rezultira vrućim površinama na bočnim zidovima. Ovo je normalno i nije potrebno servisiranje. Vodite računa kada dodirujete ove oblasti.

Technical diagram showing the assembly of a refrigerator with numbered components and angular measurements.

5 Upotreba vašeg hladnjaka

Postavka radne temperature

Warm ←● 1 ● 2 ● 3 ● 4 ● → Cold MAX.

Radna temperatura regulira se kontrolom temperature.

1 = Postavka hlađenja na najnižoj razini (hlađenje u najtoplijem okruženju)
4 = Postavka hlađenja na najvišoj razini (hlađenje u najhladnijem okruženju)
*Dodatne aktivnosti funkcije brzog hlađenja.

Odaberite postavku prema željenoj temperaturi.

Unutarnja temperatura također ovisi o temperaturi okoline, učestalosti otvaranja vrata i količini hrane koja se

nalazi unutra.

Često otvaranje vrata dovodi do porasta unutrašnje temperature.
