USER MANUAL Prima Iron FV3056 TEFAL

• This appliance is only for domestic and personal use.

• This appliance complies with the technical rules and standards for safety currently in force (Electromagnetic Compatibility, Low Voltage, Environnement).

• This appliance is not designed to be used by children or other persons unassisted or unsupervised if their physical, sensory or mental capacities prevent them from using the appliance in complete safety. Children should be supervised to ensure that they do not play with the appliance.

• Warning ! The voltage of your electrical outlet must correspond to that of the iron (120V). Connecting to the wrong voltage may cause irreversible damage to the iron and will invalidate the guarantee

• If the electrical cord becomes damaged, it must be immediately replaced by an Approved Service Center to avoid any danger.

• The appliance should not be used if it has fallen, if it has obvious damage, if it leaks or has functional anomalies. Never dismantle your appliance: have it inspected by an Approved Service Center to avoid any danger.

• Always unplug your appliance: before filling or rinsing the reservoir, before cleaning it and after each use.

• Never leave the appliance unattended when it is connected to a power source; if it has not cooled down for approximately 1 hour.

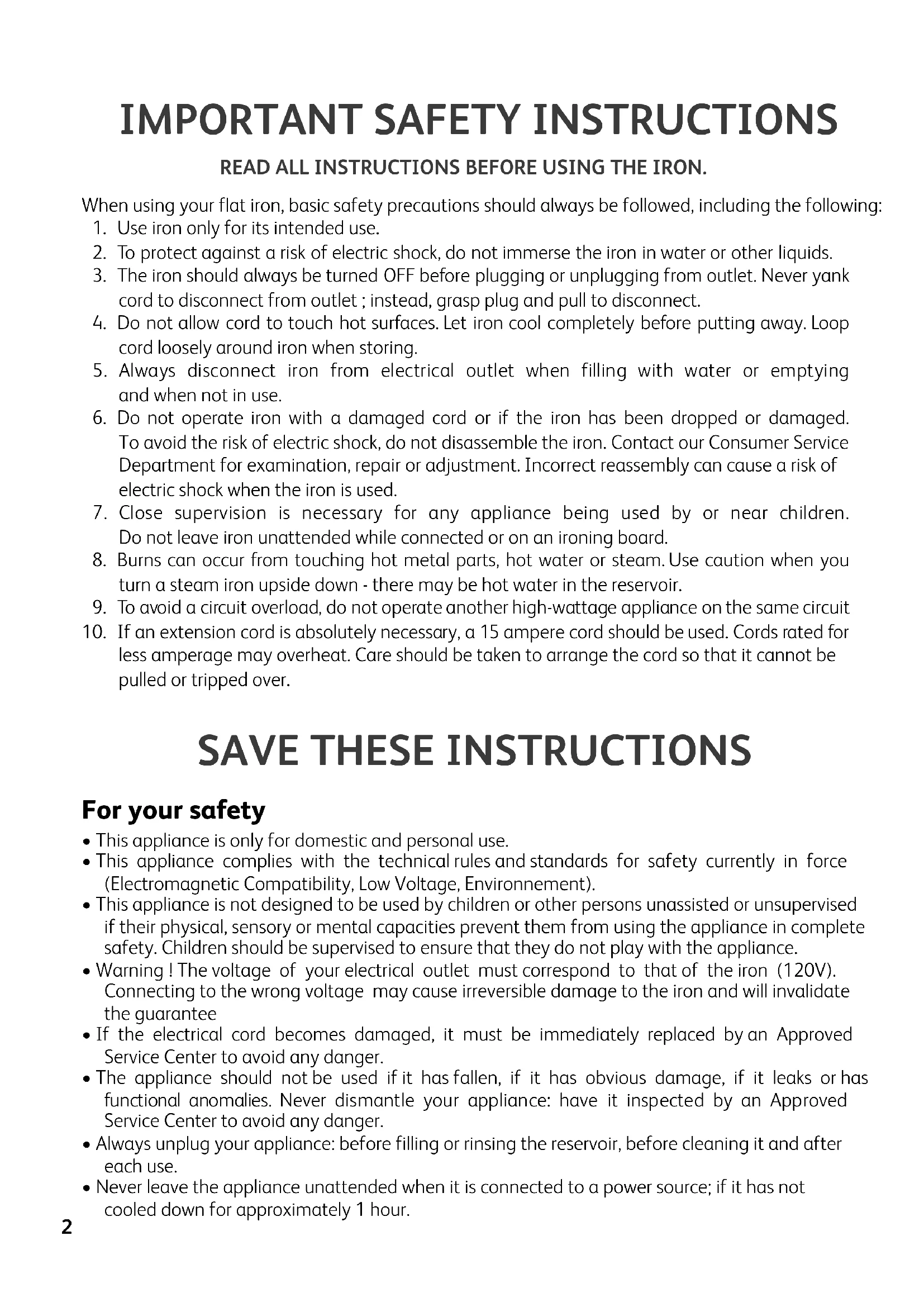

READ ALL INSTRUCTIONS BEFORE USING THE IRON. When using your flat iron, basic safety precautions should always be followed, including the following: 11.1Use iron only for its intended use. 12.1To protect against a risk of electric shock, do not immerse the iron in water or other liquids. 13.1The iron should always be turned OFF before plugging or unplugging from outlet. Never yank cord to disconnect from outlet ; instead, grasp plug and pull to disconnect. 14.1Do not allow cord to touch hot surfaces. Let iron cool completely before putting away. Loop cord loosely around iron when storing. 15.1Always disconnect iron from electrical outlet when filling with water or emptying and when not in use. 16.1Do not operate iron with a damaged cord or if the iron has been dropped or damaged. To avoid the risk of electric shock, do not disassemble the iron. Contact our Consumer Service Department for examination, repair or adjustment. Incorrect reassembly can cause a risk of electric shock when the iron is used. 17.1Close supervision is necessary for any appliance being used by or near children. Do not leave iron unattended while connected or on an ironing board. 18.1Burns can occur from touching hot metal parts, hot water or steam. Use caution when you turn a steam iron upside down - there may be hot water in the reservoir. 19.1To avoid a circuit overload, do not operate another high-wattage appliance on the same circuit 10.1If an extension cord is absolutely necessary, a 15 ampere cord should be used. Cords rated for less amperage may overheat. Care should be taken to arrange the cord so that it cannot be pulled or tripped over.

SAVE THESE INSTRUCTIONS

1800121345 FV30XXU0_1800121345 FV30XXU0 28/10/10 15:42 Page2Use

• Unplug your iron before filling it and set the steam control lever to

• Open the water tank filling inlet lid ( fig.2), place the iron in a horizontal position and fill it with water ( fig.3).

• Close the water tank filling inlet lid. Filling the water tank Do not exceed the “MAX” fill level as indicated on the water tank of the iron.

5. Self-Clean button

7. Burst of steam button

• Before using your iron with steam for the first time, we recommend that you place and keep the iron in a horizontal position for a few moments and press the burst of steam button several times away from your fabric.

• During the first few uses, a harmless odor and smoke may be emitted from the iron. This has no effect on the iron and will disappear quickly.

• Your appliance gives off steam, which may cause burns, especially when you are ironing on a corner of your ironing board. Never direct the steam towards people or animals.

• Your iron should be used and placed on a stable surface. When you put your iron onto its heel or the iron rest, make sure that the surface on which you put it is stable.

• Any inappropriate use or use contrary to these instructions releases the brand from all responsibility and renders the guarantee invalid.

• Your iron has been designed to function with untreated tap water. However, due to the natural minerals found in tap water, it is recommended that you clean the iron once a month using the self cleaning method on page 5.

• Never use any of the following water types as this may cause spitting, brown staining or premature aging of your iron: 100% purified water (bottled water), water from tumble dryers, scented water, softened water, water from refrigerators, water from batteries, water from air conditioners, distilled water, rain water, boiled or filtered water, etc.

• The integrated anti-scale system (depending on model) prolongs the life of the iron and provides a better ironing quality by ensuring a constant flow of steam. What type of water should be used? If you have very hard water, it is recommended that you mix tap water with purified (bottled) water in the following ratio: - 50% tap water, - 50% purified (bottled) water. This will reduce the amount of lime scale build-up in your iron and reduce the amount of times you will need to clean your iron. Please read these instructions carefully and keep them for future reference. Remove any labels, stickers or hangtags from the body or soleplate of the iron before plugging it in. 1800121345 FV30XXU0_1800121345 FV30XXU0 28/10/10 15:42 Page3Vertical steam function (depending on model) This is ideal for removing wrinkles in delicate garments, jackets, skirts, curtains, etc.:

• Hang the garment on a hanger and hold the fabric slightly taut with one hand.

• Set the temperature control dial to MAX ( fig.4).

• Repeatedly press the Burst of Steam button ( fig.8) and continuously move the iron over the fabric ( fig.10).

• Hold the iron a few inches from the fabric to avoid burning delicate fabrics. Every fifth time you press the button, return the iron to the horizontal position. The steam is very hot. When using the ve rtical steam function, always iron with the garment on a hanger, never while wearing it.

• Adjust the temperature (see table below) by turning the temperature control dial to the temperature select position (fig. 4).

• When the iron is plugged in, the temperature control light will remain “on” until the temperature is reached ( fig.5 & 6). Once the temperature is reached, it will go “off”.

• Adjust the amount of continuous steam output by moving the steam control lever ( fig.7). See below table for recommended steam output levels. Adjusting the temperature and the steam - It is normal for the temperature indicator light to turn on and off during ironing. - In order to avoid water leaking from the soleplate onto your garment:
• Set the steam lever to when ironing silk or synthetic fabrics and set it to for wool.
• Should you need to turn down the temperature, wait until the temperature light comes back on before beginning to iron again. - When ironing fabrics with mixed fabrics, set the iron temperature for the most delicate fabric. - For delicate fabrics, we recommend testing the fabric first on an inconspicious place for example, inside the hem. - If you want to iron without steam, set the steam control lever to .

• Your iron heats up quickly, therefore, begin ironing with fabrics that are ironed at lower temperatures first, then go on to those requiring a higher temperature.

NTHETIC (Polyester, Acetate, Acrylic, Polyamid) Obtaining more steam

• Press the Burst of Steam button periodically to remove stubborn wrinkles (fig.8). In order to achieve the maximum amount of steam, it is recommended that you wait a few seconds after you push the burst of steam button again. Spray Function

• The Spray button (fig.9) will release a mist of water onto your fabrics. Use this to remove stubborn wrinkles. = STEAM ZONE 1800121345 FV30XXU0_1800121345 FV30XXU0 28/10/10 15:42 Page45 3-Way automatic shut-off (depending on model) The iron is equipped with an electronic system that will automatically cut the power source to your iron if it is left vertically on its heel for more than 8 minutes, on its soleplate for more than 30 seconds or on its side for more than 30 seconds. The auto-off warning light ( fig.11) will flash when the iron is in the shut off mode.

• To restart the iron, gently shake the iron until the warning light stops flashing. Storing your iron

• Set the steam control lever to and unplug the iron.

• Let the soleplate cool completely and empty the water tank. A small amount of water may remain in the water tank.

• Wrap the cord around the heel of the iron and store the iron on its heel

fig.12). When the auto-off light is warning, it is normal for the temperature light to remain off. Cleaning the anti-scale valve Maintenance and cleaning It is recommended that you clean the anti-scale valve once a month to remove scale build up on the valve. Clean the anti-scale valve as noted below:

• Unplug your iron and empty the water tank.

• Turn the Anti-Scale valve ( fig.13) to remove it.

• Soak the valve in white vinegar or plain lemon juice for 4 hours.

• Rinse the valve under running water and put the anti-scale valve back. Unplug your iron and let it cool completely before cleaning it. The iron will not function with- out the anti-scale valve. Never touch the end of the valve !

Cleaning the iron It is recommended that you clean the iron once a month to slow down scale build up and prolong the life of the iron. Clean your iron as noted below:

• Unplug the iron, set the steam control lever to and fill the water tank to MAX.

• Place the iron on its heel, set the temperature dial to MAX, plug in the iron and wait for the indicator light to go out.

• Unplug the iron and place it horizontally over a sink.

• Remove the anti-scale valve ( fig.13).

• Gently shake the iron over the sink until all of the water (along with impurities) runs out through the soleplate.

• At the end of the operation, put the anti-scale valve back into the iron and allow it to heat for 2 minutes on its heel to dry the soleplate. 1800121345 FV30XXU0_1800121345 FV30XXU0 28/10/10 15:42 Page56 Cleaning the soleplate

• Unplug the iron. When the soleplate is slightly warm, wipe it with a soft cloth. Never use abrasive or aggressive products. If there is a problem For all other problems or questions, please contact our Consumer Service Department at 1-800-395-8325 or visit us at www.t-falusa.com. Or in Canada at 1-800-418-3325 or visit our website at www.t-fal.ca. You may also contact an approved Service Center, please visit our website for their contact information.

PROBLEM POSSIBLE CAUSE SOLUTION

Water drips from the holes of the soleplate. The chosen temperature is too low and does not allow for the formation of steam. You are using steam while the iron is not hot enough. You are using the Burst of Steam button too often. There is too much steam. You have stored the iron horizontally, without emptying it and without setting it to . Position the temperature control dial in the steam range (from •• to MAX). Wait until the temperature light goes out. Wait a few seconds before pressing the button again. Move the steam control lever to a lower setting. See the section "Storing your iron". Brown streaks come through the holes of the soleplate and stain the fabric. You are using chemical descaling agents. You are not using the right type of water. Fabric fibers have accumulated in the holes of the soleplate and are burning. Your fabric has not been rinsed sufficiently or you have ironed a new garment before washing it. Do not add any descaling agents into the water tank. Perform a self-cleaning operation and consult the chapter "What type of water should be used?". Perform the self-cleaning operation and clean the soleplate with a damp sponge. Vacuum the holes of the soleplate from time to time. Make sure that your fabric is rinsed sufficiently so as to remove any deposits of soap or chemical products on new clothes. The soleplate is dirty or brown and is staining the fabric. The temperature is set too high. You are using starch. Clean the soleplate with a damp sponge and lower the temperature. Clean the soleplate with a damp sponge. Always spray starch onto the reverse side of the fabric to be ironed. There is little or no steam. The water tank is empty. The anti-scale valve is dirty. Your iron has a build-up of scale. Your iron has been used dry for too long. Fill it. Clean the anti-scale valve. Clean the anti-scale valve and perform the self- cleaning iron operation. Perform the self-cleaning iron operation. The soleplate is scratched or damaged. You have used your iron on an abrasive surface or it has been misused. The T-fal iron has a Lifetime warranty on the soleplate (valid in USA and CANADA only) . Plea- se contact our consumer service department at 1-800-395-8325. Steam or water comes from the iron as you finish filling the tank. The steam control lever is not set to the position. The water tank is overfilled. Set the steam control lever to . Never exceed the Max level . The spray button does not spray water. The water tank is not filled enough. Fill the water tank. 1800121345 FV30XXU0_1800121345 FV30XXU0 28/10/10 15:42 Page67 Pour votre sécurité

• Cet appareil n’est conçu que pour un usage domestique ou personnel.• Cet appareil est conforme à la réglementation et aux normes techniques en vigueur en matière de sécurité(Compatibilité électromagnétique, Basse tension, Environnement).• Cet appareil n’a pas été conçu pour être utilisé par des enfants ou autres personnes sans aide ou sanssupervision si leur capacités physiques, sensorielles ou mentales peuvent nuire à l’utilisation de l’appareil en toute sécurité. Il est important de surveiller les enfants pour s’assurer qu’ils ne jouent pas avec l’appareil.• Attention! la tension de votre installation électrique doit correspondre à celle du fer (120V). Toute erreurde branchement peut causer un dommage irréversible au fer et annule la garantie.• Si le câble d’alimentation est endommagé, il doit être immédiatement remplacé par un Centre ServiceAgréé, afin d’éviter un danger.• Le fer ne doit pas être utilisé en cas de chute, s’il y a un signe visible de détérioration ou s’il fuit.En cas de chute du fer, faites-le vérifier par un professionnel avant de le remettre en marche : des dégâts invisibles peuvent être dangereux pour votre sécurité. Ne démontez jamais votre fer, adressez-vous toujours à un Centre Service Agréé afin d’éviter tout danger. Débranchez toujours l’appareil avant deremplir ou de rincer le réservoir, avant de le nettoyer et après chaque utilisation.

PROBLÈME CAUSE POSSIBLE SOLUTION
