USER MANUAL REF30FCIPIXL BERTAZZONI

Built-in Columns Freezer

User manual

Congélateur

Mode d'emploi

Congelador

Manual del usuario

REF18FCIPIXL/23

REF18FCIPIXR/23

REF18FCIPRL/23

REF18FCIPRR/23

REF24FCIPIXL/23

REF24FCIPIXR/23

REF24FCIPRL/23

REF24FCIPRR/23

REF30FCIPIXL/23

REF30FCIPIXR/23

REF30FCIPRL/23

REF30FCIPRR/23

1 IMPORTANT SAFETY AND ENVIRONMENTAL HANDLING DIRECTIONS 4

1.1 For your safety 4
1.2 Important information when using the appliance. 4
1.3 Caring for the environment 5
1.4 Cleaning, sanitization and maintenance of the ice and/or water dispenser (if present) 5
1.5 Warning and danger 6

2 INSTALLATION 8

2.1 Installation 8
2.2 Connection to Connection to the water system 8
2.3 Connection to the electrical power supply 8

3 BEFORE STARTING 9

3.1 Know your appliance 9
3.2 Main components. 10
3.3 Electric Control 11
3.4 Main control panel 11

4 BASIC OPERATIONAL OF THE APPLIANCE 12

4.1 Turning the appliance on and off. 12
4.2 How to adjust the temperature for different requirements 13
4.3 Information signals of warning messages on the display 14

5 CUSTOMIZE FUNCTIONS AND SETTINGS 15

5.1 Functions 15
5.2 Settings. 20

6 INTERNAL LAYOUT 26

6.1 Internal layout (positioning, adjustment, removal). 26

7 ACTIVATION AND USE OF THE ICE MAKER 27

7.1 Activation and use of the Ice Maker 27
7.2 Water filter for freezer column Ice Maker 27
7.3 Filter Cartridge Replacement 28

8 LIGHTING 29

8.1 Lighting 29

9 FOOD STORAGE 29

9.1 General directions 29
9.2 How to best preserve food quality 30

0 CARE AND CLEANING 30

10.1 Care and Cleaning 30
10.2 Internal Cleaning 31
10.3 Cleaning of the toe kick cover and condenser 31

11TROUBLESHOOTINGGUIDE 32

11.1 Troubleshooting guide 32
11.2 Error messages appearing on the display 34

12 LIMITED WARRANTY STATEMENT 35

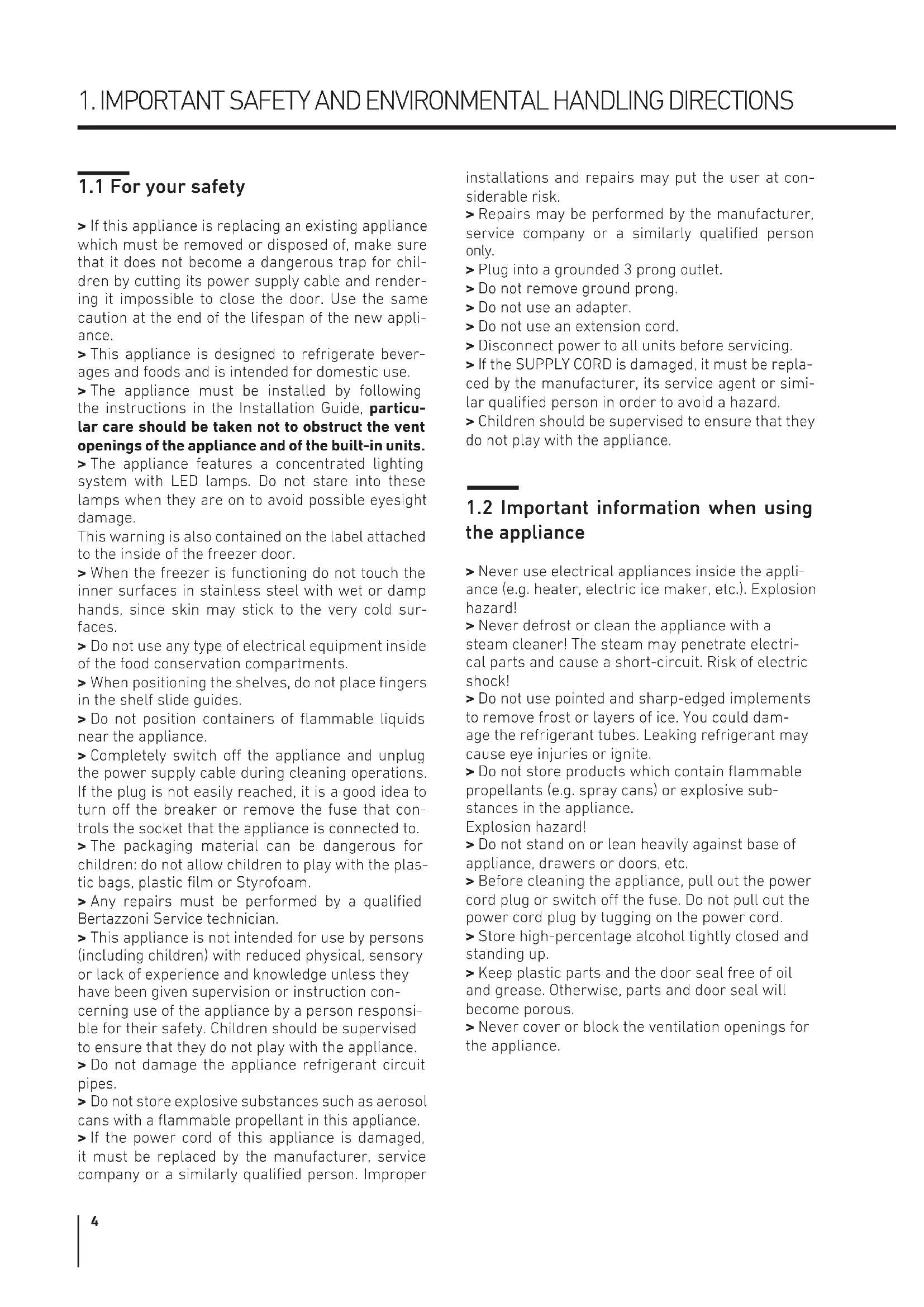

1.1 For your safety

If this appliance is replacing an existing appliance which must be removed or disposed of, make sure that it does not become a dangerous trap for children by cutting its power supply cable and rendering it impossible to close the door. Use the same caution at the end of the lifespan of the new appliance.

This appliance is designed to refrigerate beverages and foods and is intended for domestic use.
The appliance must be installed by following the instructions in the Installation Guide, particular care should be taken not to obstruct the vent openings of the appliance and of the built-in units.
The appliance features a concentrated lighting system with LED lamps. Do not stare into these lamps when they are on to avoid possible eyesight damage.

This warning is also contained on the label attached to the inside of the freezer door.

When the freezer is functioning do not touch the inner surfaces in stainless steel with wet or damp hands, since skin may stick to the very cold surfaces.
Do not use any type of electrical equipment inside of the food conservation compartments.
When positioning the shelves, do not place fingers in the shelf slide guides.
Do not position containers of flammable liquids near the appliance.
Completely switch off the appliance and unplug the power supply cable during cleaning operations. If the plug is not easily reached, it is a good idea to turn off the breaker or remove the fuse that controls the socket that the appliance is connected to.
The packaging material can be dangerous for children: do not allow children to play with the plastic bags, plastic film or Styrofoam.
Any repairs must be performed by a qualified Bertazzoni Service technician.
This appliance is not intended for use by persons (including children) with reduced physical, sensory or lack of experience and knowledge unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.
Do not damage the appliance refrigerant circuit pipes.
Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.
If the power cord of this appliance is damaged, it must be replaced by the manufacturer, service company or a similarly qualified person. Improper

installations and repairs may put the user at considerable risk.

Repairs may be performed by the manufacturer, service company or a similarly qualified person only.
Plug into a grounded 3 prong outlet.
Do not remove ground prong.
Do not use an adapter.
Do not use an extension cord.
Disconnect power to all units before servicing.
If the SUPPLY CORD is damaged, it must be replaced by the manufacturer, its service agent or similar qualified person in order to avoid a hazard.
Children should be supervised to ensure that they do not play with the appliance.

1.2 Important information when using the appliance

Never use electrical appliances inside the appliance (e.g. heater, electric ice maker, etc.). Explosion hazard!
Never defrost or clean the appliance with a steam cleaner! The steam may penetrate electrical parts and cause a short-circuit. Risk of electric shock!
Do not use pointed and sharp-edged implements to remove frost or layers of ice. You could damage the refrigerant tubes. Leaking refrigerant may cause eye injuries or ignite.
Do not store products which contain flammable propellants (e.g. spray cans) or explosive substances in the appliance.

Explosion hazard!

Do not stand on or lean heavily against base of appliance, drawers or doors, etc.
Before cleaning the appliance, pull out the power cord plug or switch off the fuse. Do not pull out the power cord plug by tugging on the power cord.
Store high-percentage alcohol tightly closed and standing up.
Keep plastic parts and the door seal free of oil and grease. Otherwise, parts and door seal will become porous.
Never cover or block the ventilation openings for the appliance.

Symbols used in the Guide:

Note

Recommendations for correct use of the appliance

Important

Directions for avoiding appliance damage

Warning

Indications for avoiding injury to people

1.3 Caring for the environment

Pay special attention to correct disposal procedure for all the packaging materials.
The appliance must not be disposed of with urban waste. Contact local waste disposal centers for on how to dispose of recyclable waste.
Prior to disposal, cut the power supply cord and make it impossible to close the door.
During disposal, avoid damage to the refrigeration circuit.
The appliance does not contain hazardous substances for the atmospheric ozone layer, neither in the refrigeration circuit nor in the insulation.

1.4 Cleaning, sanitization and maintenance of the ice and/or water dispenser (if present)

Failure to follow the instructions regarding sanitizing can compromise the hygienic safety of the water dispensed.

When using the appliance for the first time and every time the filter is changed, it is recommended to let the water flow in the circuit using the "Manual Cleaning" and discard the ice produced in the first 24 hours.
If the water dispenser has not been used for more than 4/5 days, it is advisable to clean the circuit and run off the first litre of water.

Reposition the removable water dispenser (if present), ensuring your hands are hygienically clean.

Clean the ice bucket or drawer regularly but using only drinking water.
The filter must be changed when indicated on the control panel or when the ice/water dispenser has not been used for more than 30 days.
With each filter replacement, sanitise the ice and/or water distribution system using a food grade disinfectant (with sodium hypochlorite), which does not alter the characteristics of the materials. Rinse with at least 1/2 gallon of water before use.
Only original spare parts supplied by the manufacturer should be used when replacing components in the ice and water dispenser.
Any work on the appliance must be carried out by a qualified technician or the After-sales Service.

Warning

To avoid contamination of food, please respect the following instructions:

Opening the door for long periods can cause a significant increase of the temperature in the compartments of the appliance.
Clean regularly surfaces that can come in contact with food and accessible drainage systems.
Clean water tanks if they have not been used for 48 h; flush the water system connected to a water supply if water has not been drawn for 5 days.
Store raw meat and fish in suitable containers in the appliance, so that it is not in contact with or drip onto other food.
If the refrigerating appliance is left empty for long periods, switch off, defrost, clean, dry, and leave the door open to prevent mould developing within the appliance.

Caution

Risk of Fire or Explosion:

This product uses flammable refrigerant.
Do not use mechanical devices to defrost the refrigerator.
Do not use chemicals for cleaning.
Do not pierce the refrigerant tubing.

1.5 Warning and danger

This is the safety alert symbol. This symbol alerts you to potential hazards that can kill or hurt you and others. All safety messages will follow the safety alert symbol and either the word "DANGER" or "WARNING." These words mean:

You can be killed or seriously injured if you don't follow instructions.

You can be killed or seriously injured if you don't immediately follow instructions.

All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell you what can happen if the instructions are not followed.

SAVE THESE INSTRUCTIONS!

WARNING

IMPORTANT SAFETY INSTRUCTIONS

This manual contains operational instructions for the users of the appliance. Keep this manual in an easily accessible place for future reference. Improper installation, adjustment, alteration, service or maintenance can cause property damage, injury, or death. Read the installation, operating, and maintenance instructions thoroughly before installing or servicing this equipment.

To reduce risk of fire, electric shock, or injury to persons when using your appliance, follow basic precautions, including the following:

Children should be supervised to ensure that they do not play with the appliance.

This appliance is not intended for use by persons (including children) with reduced physical, sensory or lack of experience and knowledge unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
This appliance i s designed to refrigerate beverages and foods and is intended for domestic use.

This appliance is intended to be used in household and similar applications such as: staff kitchen areas in shops, offices, and other working environments; farm houses and by clients in hotels, motels, and other residential-type environments; bed and breakfast-type environments; and catering and similar non-retail applications.
Do NOT use an extension cord or adapter.
Plug into a grounded 3 prong outlet.
Do not remove ground prong.
If available, ice make kit can be added to some models. See serial tag inside the food compartment of appliance for ice maker kit model information.
A qualified service technician must connect i ce maker (if available) and the appliance to the water supply system (if the appliance has water load included).
If present, clean the ice bucket or drawer regularly but using only drinking water.
The appliance should be supplied only with drinkable water (if is --- a water connection).

WARNING

In the event of a power failure, do not attempt to operate this appliance.

WARNING

Keep the appliance area free and clear from combustibles or flammable materials and vapors.

WARNING

Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction. Do not obstruct the air intake or exhaust openings of the appliance.

WARNING

Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.

WARNING

Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer.

IMPORTANT SAFETY INSTRUCTIONS FOR PROPER DISPOSAL OF YOUR OLD REFRIGERATOR

WARNING

Suffocation Hazard

Remove doors or lid from your old appliance.

Failure to do so can result in death or brain damage.

WARNING

Risk of child entrapment.

Before you throw away your old refrigerator or freezer:

Take off the doors.

Leave the shelves in place so that children may not easily climb inside.
IMPORTANT: Child entrapment and suffocation are not problems of the past. Junked or abandoned refrigerators are still dangerous, even if they will sit for "just a few days." If you are getting rid of your old refrigerator, please follow these instructions to help prevent accidents.

Important information to know about disposal of refrigerants:

Dispose of refrigerator in accordance with federal and local regulations. Refrigerants must be evacuated by a licensed. EPA-certified refrigerant technician in accordance with established procedures.

IMPORTANT SAFETY INSTRUCTIONS FOR MAINTENANCE AND CARE

DANGER

Risk of fire or explosion due to puncture of refrigerant tubing; follow handling instructions carefully. Flammable refrigerant used.

WARNING

To be repaired only by trained service personnel.

Use only manufacturer-authorized service parts, Do not use replacement parts that have not been recommended by the manufacturer (e.g, parts made at home using a 3D printer). If power supply cord is damaged, it must be replaced by the manufacturer, its service agent, or a similarly qualified person in order to avoid a hazard.

Any repair equipment used must be designed for flammable refrigerants. Follow all manufacturer repair instructions. Use nonflammable cleaner.

WARNING

Do not puncture refrigerant tubing, do not damage the refrigerant circuit.

WARNING

Do not use mechanical devices or other means to accelerate

the defrosting process, other than those recommended by the manufacturer.

TIP OVER HAZARD

WARNING

Refrigerator is top heavy and tips easily when not completely installed; to avoid a hazard due to instability of the appliance, it must be fixed in accordance with the instructions (see instruction manual provided).

Keep doors taped closed until refrigerator is completely installed.

Use two or more people to move and install refrigerator.

Failure to do can result in death or serius injury.

2.1 Installation

Make sure that installation is performed correctly, adhering to all directions in the specific installation manual provided with the appliance.

Warning

Always connect the water before the power.

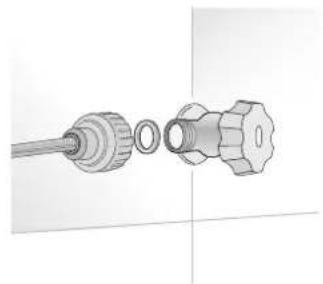

2.2 Connection to the water system

The models provided with Ice Maker require a connection to the domestic water supply system. This can be executed through the 1/4 water line (copper or polyethylene) to the house water supply.

The system pressure must be between from 8 psi to 75 psi (between 0.5 bar and 5 bar).

Different pressures can cause malfunctions or leaks in the water system.

The appliance should be supplied only with drinkable water.

Warning

The appliance should be supplied only with drinkable water.

Warning

Make sure that installation is performed correctly, according to all of the directions in the specific installation manual provided with the appliance.

Warning

Do not attempt to use a locally sourced garden hose threaded adapter or braided supply line. It will strip the threads on the appliance water connection solenoid.

2.3 Connection to the electrical power supply

The appliance operates at 115V AC, 60Hz and is equipped with a power supply cord with a 3-prong grounded plug, which must be connected to a corresponding 3-prong (15 Amp) grounding-type wall receptacle.

Important

Do not use extension cords and/or multiple adapters for the power supply connection.

3.1 Know your appliance

Congratulations for having purchased your new appliance: from now on you can use our innovative conservation system, which will allow you to keep any kind of beverage in the best way possible.

This manual will answer most of your questions about the product's features. Should you require further information, please check our website

our website

in the US http://us.bertazzoni.com/care-service in Canada https://ca.bertazzoni.com/more/support

or write us an e-mail at

[e-mail]

Important

Before calling, write down the model type and serial number which are available on the warranty certificate and on the rating plate, and any messages which may have appeared on the display. Built In freezers come with 2 years parts & labor warranty, and 5 year parts & labor for sealed system only.

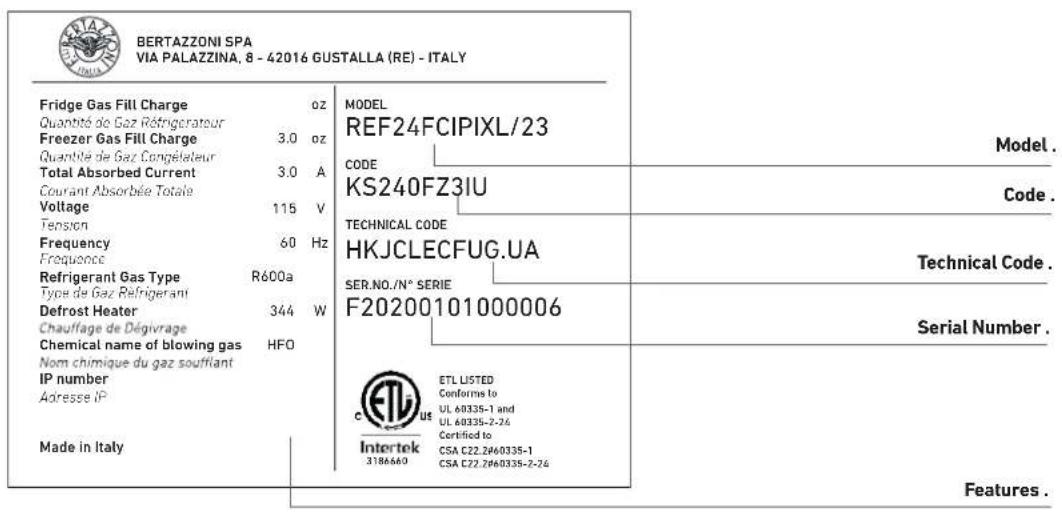

The rating plate is located into the appliance, on side cabinet, close to the shelves.

Before calling, please make sure to have the following information ready:

• Date of Purchase;
• Name of dealer where product was purchased.

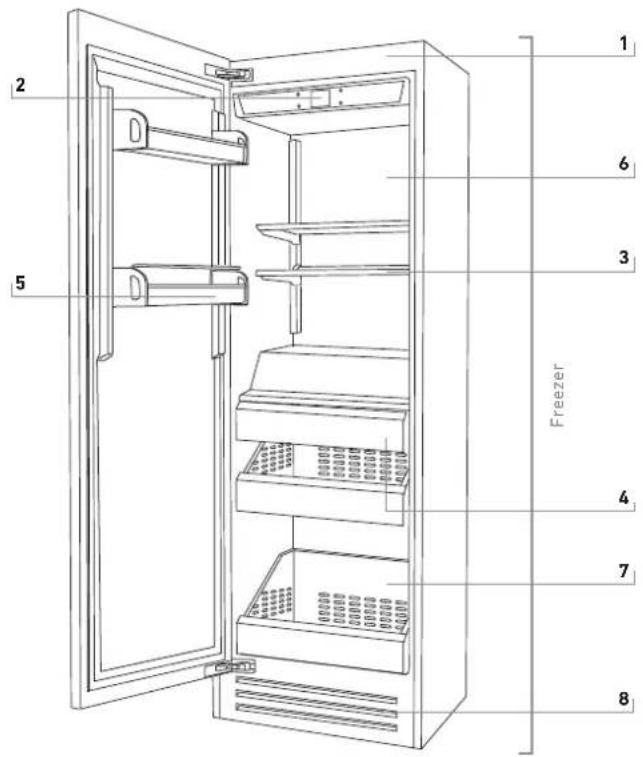

3.2 Main components

Freezer

1) Stainless steel body.
2) Interactive control panel.
3) Adjustable height shelf.

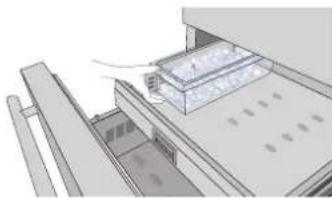

4) Ice maker container.
5) Door bins.

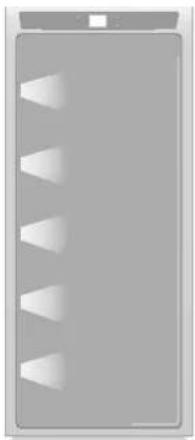

6) LED illuminations.
7) Stainless drawers.
8) Removable toe kick.

3.3 Electronic Control

The innovative electronic control system designed by Bertazzoni maintains constant temperature in the entire compartment and visualizes it on the control panel display. It also allows user interaction making it possible to personalize settings of the various functions and to receive sound and/or visual messages should any malfunction occur in the appliance.

3.4 Main control panel

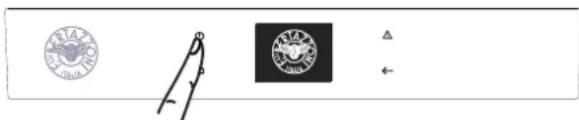

On/Off:

Touch the icon to turn the unit on or off.

Home

Touch the Home icon for going back to the main display screen.

Alarm

Touch the icon to view the alarm tone functions and to deactivate them.

Back

Touch the arrow icon for going back to the previous display screen.

4.1 Turning the appliance on and off

First time starting the unit

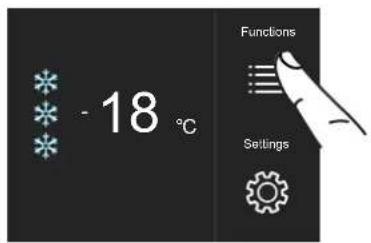

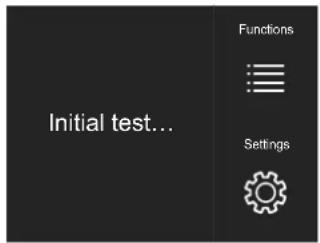

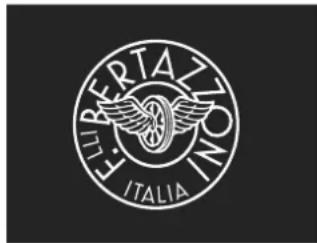

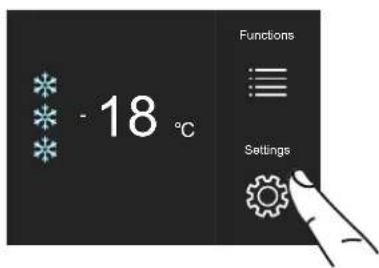

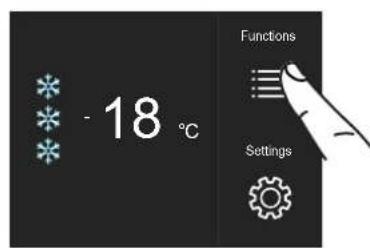

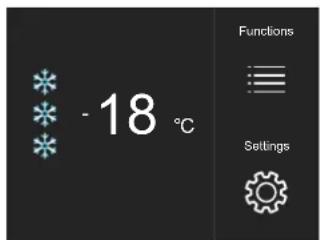

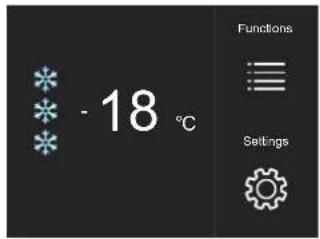

Touch the button . The display shows the following launch screens:

1) Bertazzoni Logo.

2) Initial test (lasts 3 minutes).

3) The display shows the main screen with the environment temperature measured from the fridge inside the compartments. Automatically the unit starts to cool down until reaching the set temperatures.

4) Home screen.
- Freezer compartment
- 18^ (0^)

When the appliance is first switched on it is recommended to wait at least 12 hours without opening the doors and before placing any food inside the unit. During such period deactivate any error message by pressing the Alarm button.

Shutdown.

1) touch the bottom off.

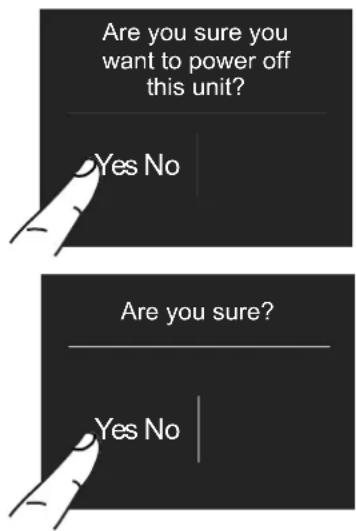

2) Touch the icon Yes to switch off.

3) Confirm shutdown by touching the Yes icon.

When the freezer is off there are no warning signs that prove that the freezer is plugged to a socket.

Switching off for longer periods

During long absence periods it is recommended to switch off the freezer by pressing the Unit button for three seconds and disconnecting the electrical plug or the breaker controlling the socket.

Completely empty the freezer, clean and dry it and leave the doors and drawers partially open to prevent unpleasant odors.

If at the first startup the Standby message does not appear, but another message appears, it means that the appliance has already started the cooling process.

During the first startup, it will not be possible to use the Menu to modify the factory settings until the preset temperature has been reached.

Each time the appliance is switched on it goes through a self-diagnosis procedure lasting three minutes before completely starting up.

4.2 How to adjust the temperature for different requirements.

Each model has been carefully tested before leaving the factory and is adjusted in such a way to ensure high performance and low power consumption. Usually, it is not necessary to modify the settings.

How it looks to the home screen:

Modify the temperatures compartment

How to modify the freezer compartment temperature.

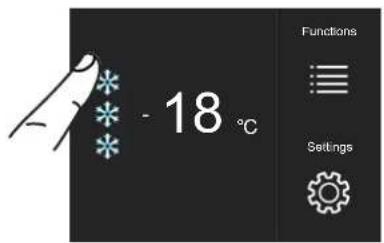

1) Home screen. Touch the icon of freezer compartment.

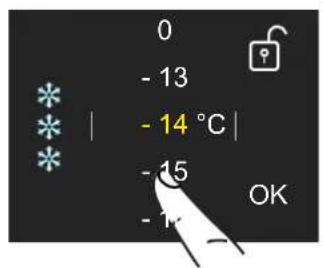

2) Scoll up/down to select the desided temperature

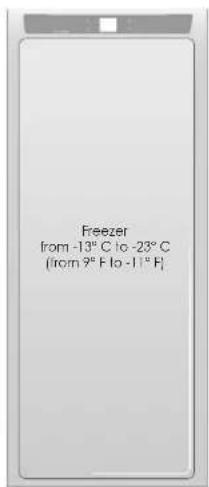

freezer from -13^ to -23^ (from 9^ to -11^

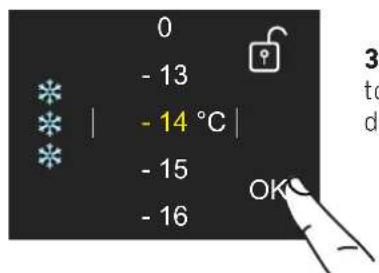

3) Touch the Ok icon to confirm the desider temperature.

The temperature shown can vary slightly in respect to the set temperature following frequent openings of the doors or insertion of room temperature foods or large quantities of foods.

6 to 12 hours are necessary to reach the selected temperature.

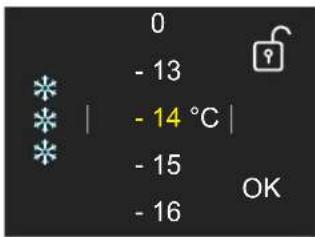

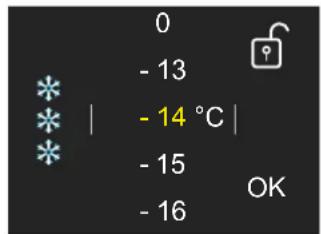

Padlock icon.

The padlock icon shows up when the temperatures are set up.

The padlock open/close shows that the compartment's temperatures can or can not be modified by the user.

Usually a yellow padlock will show open, in that case you can scroll up or down with a finger on the display, select the desired temperature and press OK to confirm.

Whereas a closed padlock will be seen if the user has activated a function that modifies the settings of the refrigerator and prevents the user from changing the temperature of the compartment.

If the icon function is touched and a specific function is set (for example holiday, ect...), the yellow padlock will be seen closed and it won't be possible to change the temperature of the compartments as long as the function won't be completed or if it is manually deactivated as long as the function is active.

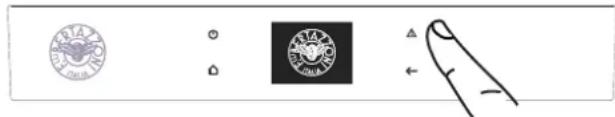

4.3 Information signals of warning messages on the display.

An integrated control system will give information through messages you will see on the display.

There is an alarm tone that occurs with some error messages which can be turned off by touching the alarm button on the main control panel.

You can find the list of the error messages at the end of this manual.

EN

INFORMATION FOR THE USE OF THE DISPLAY.

It is possible to personalize the operation of your Bertazzoni unit in order to adapt it to the different ways you might want to use it.

5.1 Functions.

After touching the icon Function on the home screen, the icons for the following functions will be shown.

1) Shopping Mode Freezer

The function works at the maximum power level, without any break, from a minimum of 1 to a maximum of 12 hours, depending on time set, permitting more rapid freezing of food that has just been placed in the freezer. Once the time set is expired, the function deactivates automatically, returning to the previously set temperature. It is possible to program a timed activation of the function.

After a prolonged interruption of power supply, it is necessary to reactivate the function.

1) Shopping Mode Freezer.

2) Vacation Mode.

3) Rapid Bottle Cooler.

4) Ice Maker.

5) Water filter.

6) Circuit cleaning.

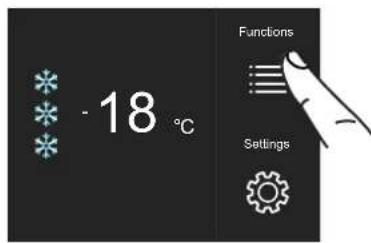

A) Home screen. Touch the Functions icon.

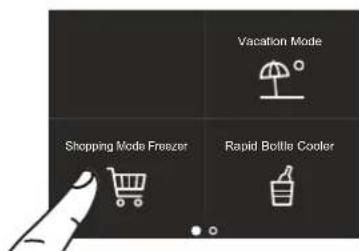

B) Touch the icon Shopping Mode freezer.

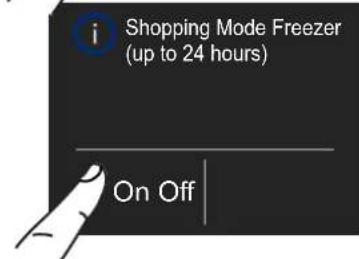

c) Touch the On icon to activate the function.

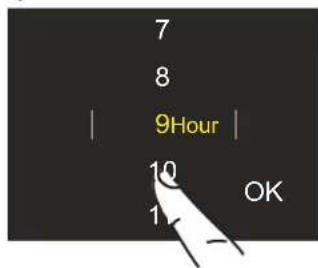

D) Scroll up / down to setting the desired time and then press Ok.

It is possible to program this function 1 to 24 hours in advance.

2) Vacation Mode

This function (recommended in case of prolonged absences since it allows considerable energy savings) brings the freezer compartment temperature to -18^ (-0.4^)

It is possible to program the duration, or it can be manually deactivated upon return after a period of absence. This function remains active even if during the period of absence there is a prolonged interruption of electrical power.

It is possible to program a period from 1 to 90 days.

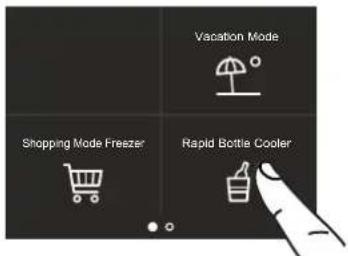

3) Rapid Bottle Cooler

This function can be activated when it is necessary to cool off beverages quickly, by placing them inside the freezer compartment.

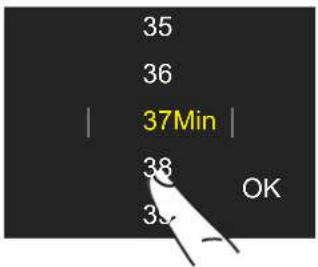

It is possible to select a duration of 1 to 45 minutes. A sound signal will indicated when the optimal temperature has been reached.

After removing the beverages, deactivate the sound signal by pressing the Alarm button.

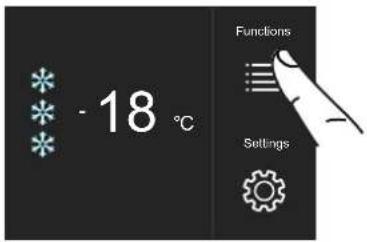

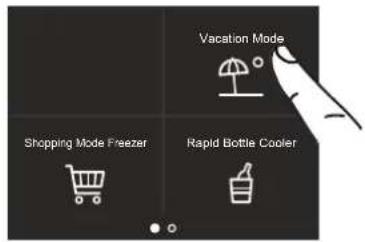

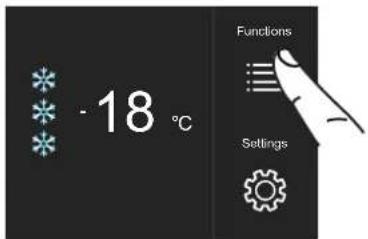

A) Home screen. Touch the Functions icon.

A) Home screen. Touch the Functions icon.

B) Touch the Vacation Mode icon.

B) Touch the Rapid Bottle Cooler icon.

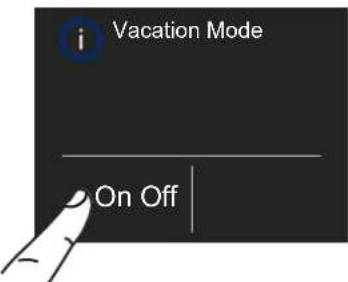

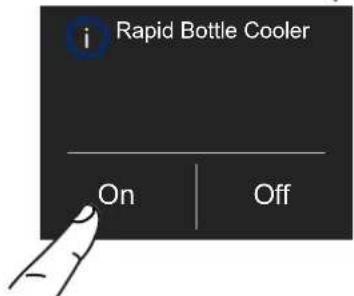

C) Touch the button On to activate the function.

C) Touch the button On to activate the function.

D) Scroll up / down to set the desired time (in days) and then press Ok.

It is possible to program a period from 1 to 90 days.

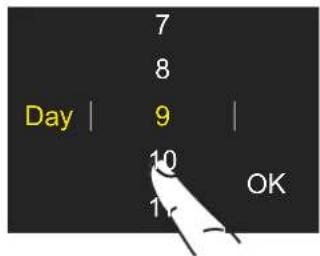

D) Scroll up / down to set the desired time (in minutes) and then press Ok.

4) Ice Maker activation

A pre-rinse of the water circuit should be performed before activating the Ice Maker for the first time.

After a few minutes the Ice Maker can be activated.

Important

Do not activate the Ice Maker unless the appliance is connected to the water line.

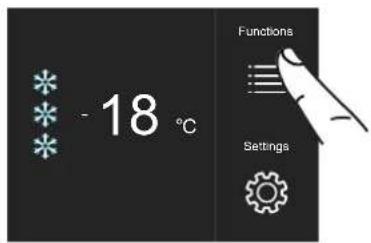

A) Home screen. Touch the Functions icon.

B) Scroll twice right and then touch the Ice Maker icon.

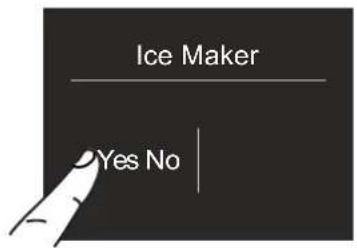

C) Touch the button Yes to activate the ice maker.

4a) Set Ice cube Size - SuperIce

The IceMaker function permits selecting the size of the ice cubes, by choosing between Large (base setting) or Medium, and activation of the SuperIce function, which increases the quantity of produced ice.

The Superlce function deactivates automatically after 24 hours.

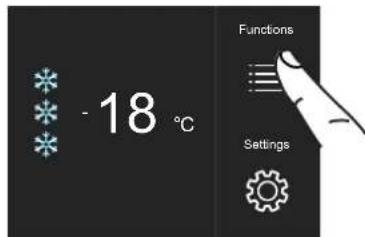

A) Home screen. Touch the Functions icon.

B) Scroll twice right and then touch the icon ice maker.

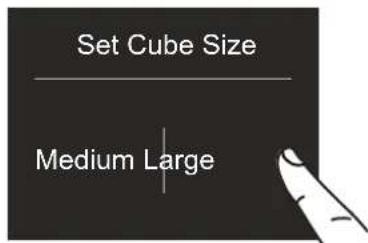

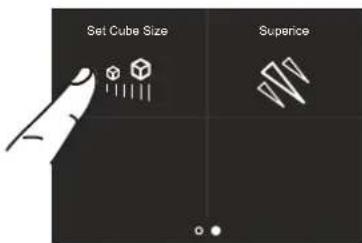

C) Touch the Set Cube Size icon. The default cube size is "medium".

D) Touch the Medium/Large icon to choose the desired Set Cube Size.

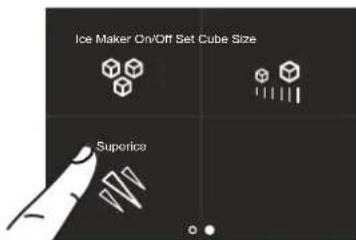

E) If you would like to increase the production of ice, touch the Superice icon, this will enable the freezer to produce more ice, up to 1,5kg a day.

F) Confirm the function or not by touching the On or Off button.

5) Water Filter Activation

The water filter is essential for the purification of the water used for making ice, for cleaning the circuit or for supplying water for the freezer compartment. The display permits visualizing the time left before the filter needs to be replaced. The water filter Reminder has to be activated by the user.

5a) Water Filter Deactivation

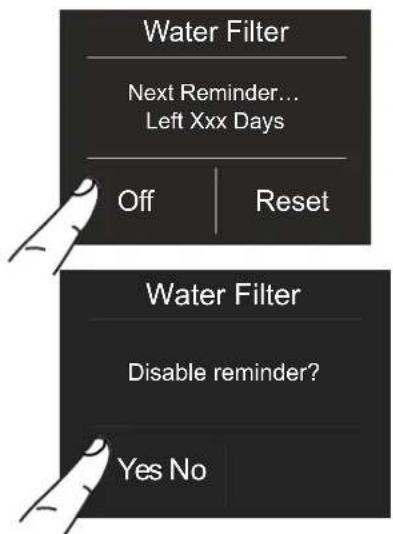

To deactivate an active filter reminder follow these steps:

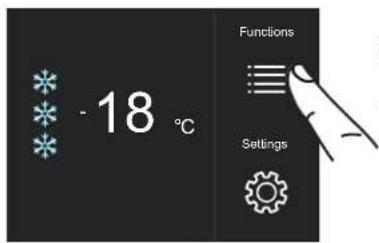

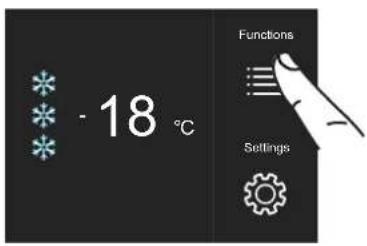

A) Home screen. Touch the Functions icon.

A) Home screen. Touch the Functions icon.

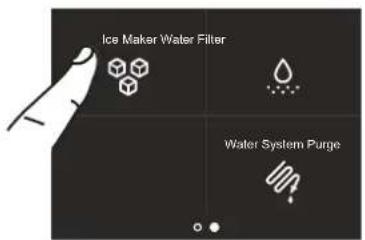

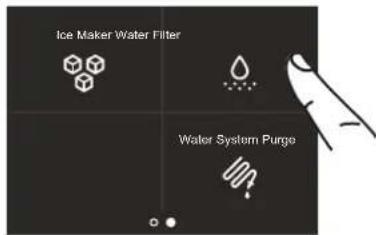

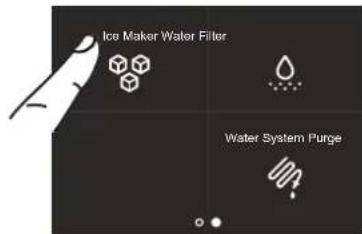

B) Scroll once right and then touch the Water filter icon.

B) Scroll once right and then touch the Water filter icon.

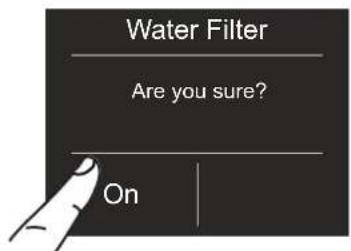

C) Confirm the function by touching the On button.

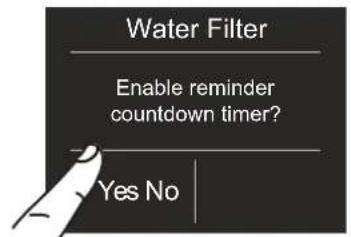

c) Push Off to activate Water Filter Reminder.

D) Confirm the function by touching the Yes button.

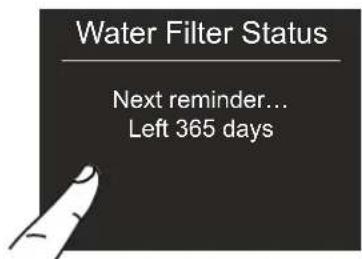

E) Indicates the remaining days before the replacement due date of the filter.

Touch the home button

D) Confirm the function by touching the Yes button.

5b) Reset Filter

The Reset Filter function sets to zero the time left before the filter needs to be replaced. It is necessary to set the reminder function to zero each time the cartridge is replaced.

6) Manual Clean, Water Filter

If ice production has been disabled or unused for a long period it is recommended to perform a Manual Clean function.

Before proceeding it is important to turn off the ice maker.

A) Home screen. Touch the Functions icon.

B) Scroll once right and then touch the Water Filter icon.

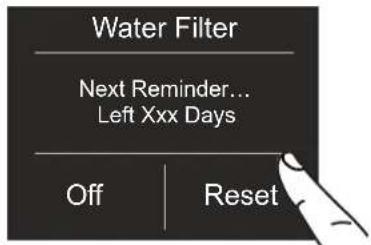

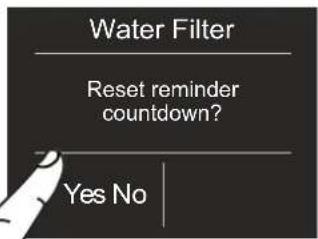

C) Touch the Reset button.

D) Touch the Yes button to proceed.

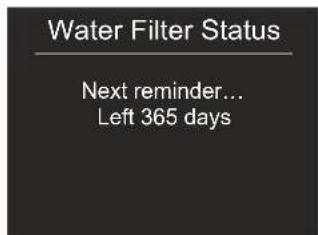

E) The countdown to the next water filter cartridge replacement will be indicated.

Push Home button to go back to the main screen or push "Yes" to deactivate filter reminder.

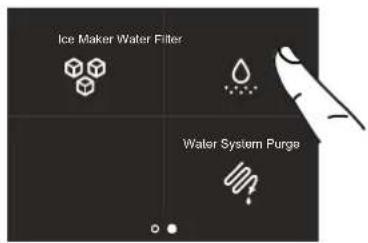

A) Home screen. Touch the Functions icon.

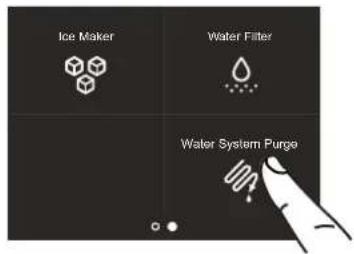

B) Touch the Water System Purge icon.

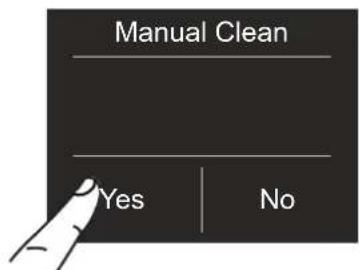

C) Touch the Yes icon to activate the manual cleaning.

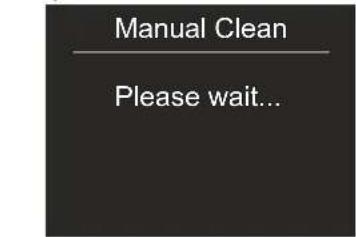

D) Please wait...

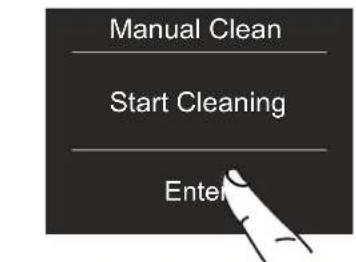

E) Touch the Enter icon to start the cleaning.

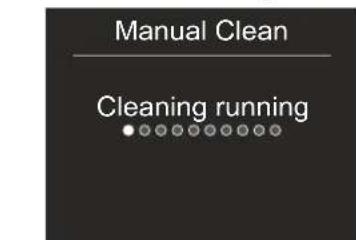

F) Cleaning running...

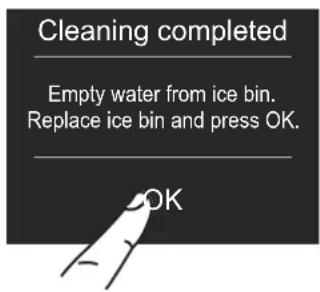

G) At the end of the cleaning, press Ok and empty water from ice bin.

H) Wait a few seconds for the main menu screen to appear.

Repeat the cleaning steps until the water in the freezer tray is clean.

Place a water container or vessel under the ice tray to capture any water then close the drawer.

Bypass filter

The included filtration system can be bypassed when excellent water quality is available from the home water system. You can simply remove the water filter from the adapter and the system will automatically bypass the cartridge.

5.2 Settings.

It is possible to personalize the settings of your Bertazzoni freezer for adapting it to the different ways you might want to use it.

1) Date.

2) Time.

3) Celsius or Fahrenheit.

4) Language.

5) Sabbath.

6) Reset.

7) Demo Mode.

8) Maintenance.

9) Service.

10) Info System.

1) Date

The display will show the date in the format (day:month:year).

By touching the display you can modify the settings.

2) Time

The display shows the hours and minutes in the format hh:mm.

This function selects the display at 12 or 24h

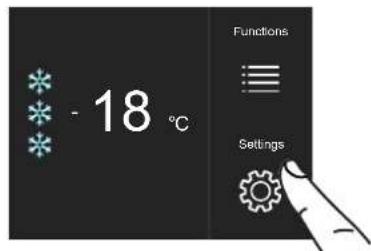

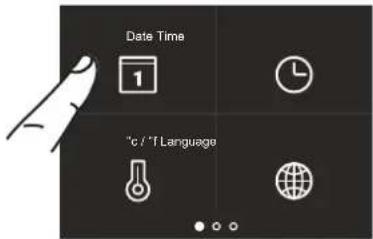

A) Home screen. Touch the Settings icon.

A) Home screen. Touch the Settings icon.

C) Scroll up or down until the desired year appears and press Ok.

C) Touch the desired method which you want the time to display: 12 hour or 24 hours.

D) Scroll up or down until the desired month appears and press Ok.

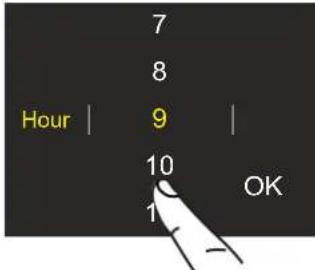

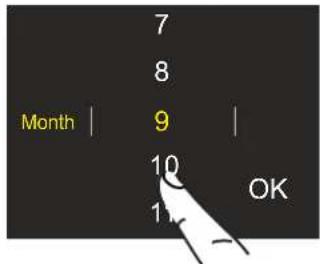

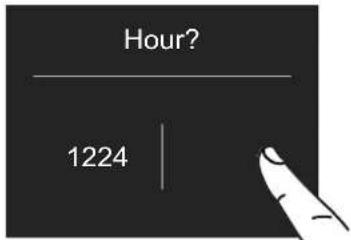

D) Scroll up / down to set the hour and then press Ok.

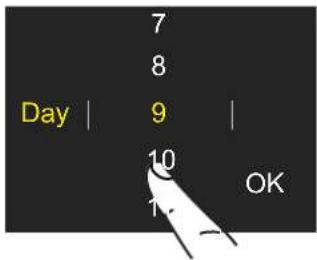

E) Scroll up or down until the desires date appears and press Ok.

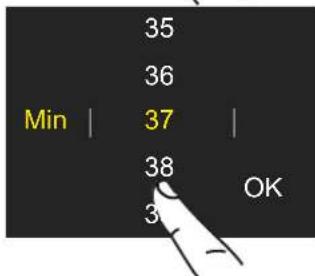

E) Scroll up / down to set the minutes and then press Ok.

3) SET°C/°F

This function allows the temperature to be displayed in Centigrade or Fahrenheit. The factory setting in Centigrade.

4) Language

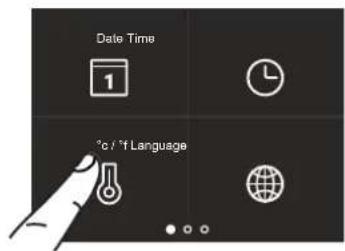

To set the language of the freezer, simply touch the settings button on the display.

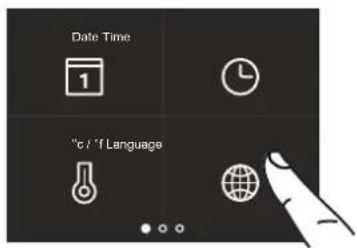

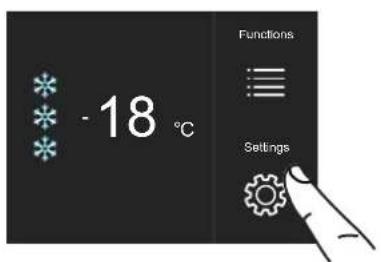

A) Home screen. Touch the Settings icon.

A) Home screen. Touch the Settings icon.

B) Touch the icon ^ C / F

B) Touch the Language icon.

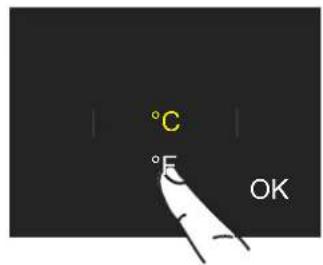

c) Scroll up / down to select either centigrade or Fahrenheit degrees and press Ok.

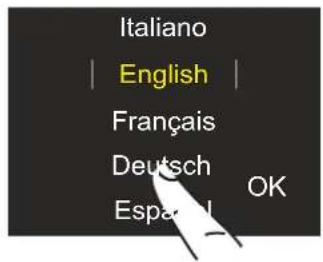

c) Scroll up / down to select the desired language and press Ok.

EN

5) Sabbath Mode

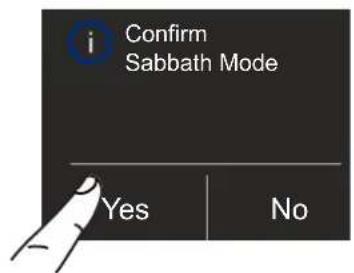

The function makes it possible to comply to certain religious observances requiring the operation of the appliance to not be affected by the opening or closing of the doors. The thermostatic control, inner lighting and ice maker are deactivated.

6) Reset

It gives the possibility to restore the base settings that were set in the factory, cancelling all the changes that has been made from there onward.

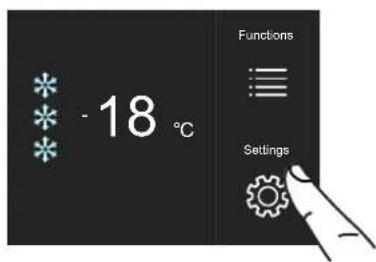

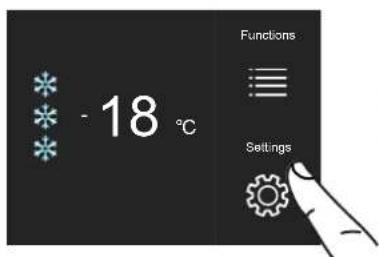

A) Home screen. Touch the Settings icon.

A) Home screen. Touch the Settings icon.

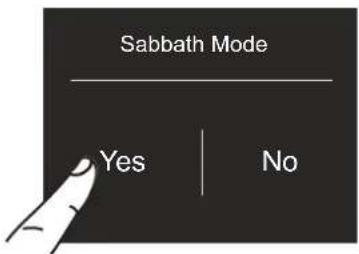

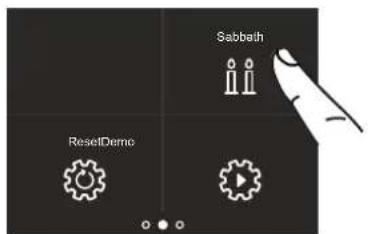

B) Scroll right twice and touch the Sabbath icon.

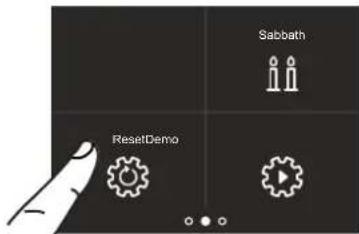

B) Scroll right twice and touch Reset icon.

C) Touch the Yes button to activate the function.

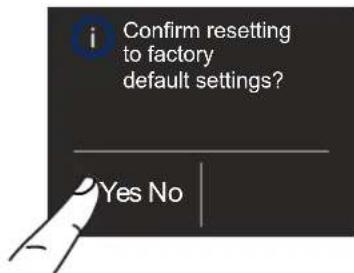

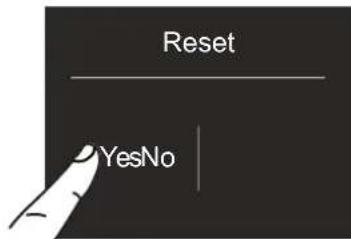

c) Touch the Yes button to confirm the selection of the resetting of factory default settings.

D) Touch the Yes button to activate the function.

E) The fridge will work accordingly to this configuration.

E) The reset has been performed. The freezer's factory settings have been restored.

7) Demo Mode

It is possible to simulate the functioning of the fridge, for showroom display or for trade shows.

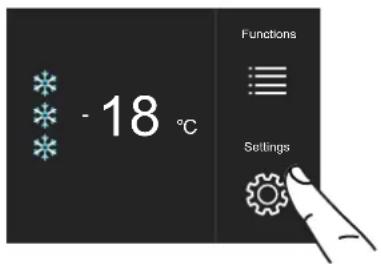

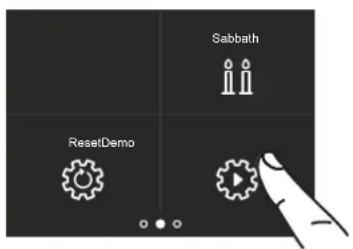

A) Home screen. Touch the Settings icon.

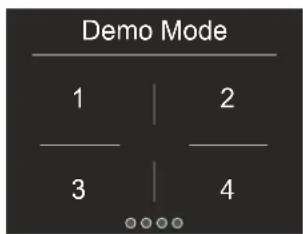

B) Scroll right twice and touch Demo icon.

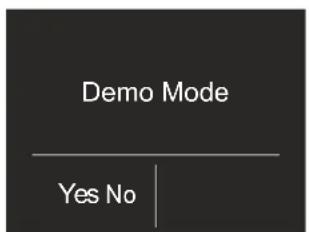

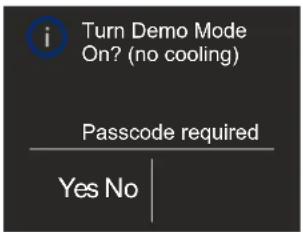

C) Touch Yes.

D) Insert the password for the activation.

Default password 1-2-3-4

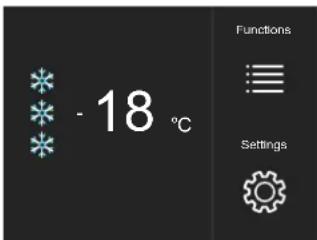

8) Maintenance (through alarm sign).

For the entire unit to function as designed, it is important to periodically clean the access toe-kick cover and the condenser.

The default setting of the unit is"Warning disabled".

The required cleaning every 6 months is denoted by an audible and visual message on the display.

For details see following pages.

A) Home screen. Touch the Settings icon.

B) Scroll to the right three times and touch the Maintenance icon.

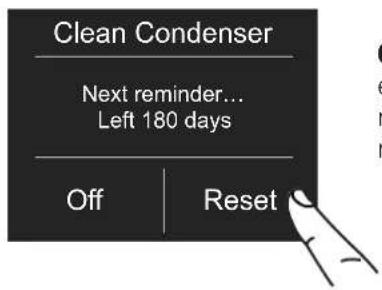

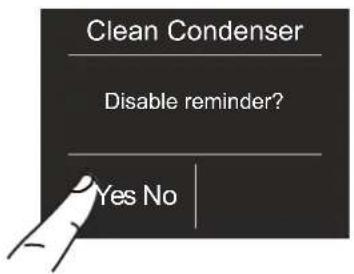

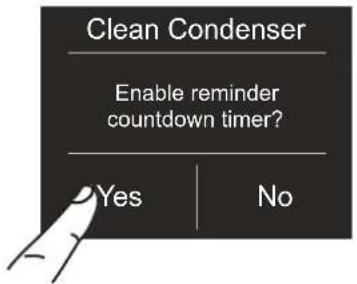

C) If you want to enable the warning touch the icon reset.

D) To enable it, touch the Yes icon.

If you want to disable the reminder, at step C touch Off, then touch Yes as below

E) To disable the warning, touch the yes button.

10) Info System

The Info System function shows the product data, for example the software code, serial number and the factory code of the freezer.

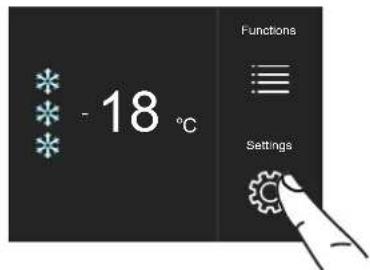

A) Home screen. Touch the Settings icon.

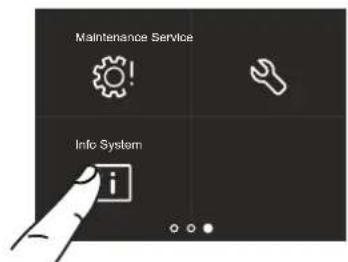

B) Touch the Info System icon.

Sk Power	HW: 0504 SW: 0518
Sk User	HW: 1002 SW: 1069 - G1011

C) The display will show the data specific to the appliance.

9) Service

The service function is reserved for the authorized Bertazzoni after sales service technician.

6.1 Internal Layout (positioning, adjustment, removal).

Ice Tray

Located in the upper drawer of the freezer compartment.

after removal, make sure to reposition it correctly.

Warning

Do not place hands or fingers near the Ice-maker when in function.

Shelves

The shelves are sliding and can be easily re-positioned by the user as follows:

release the locking knob by turning it anti-clockwise.
lift or lower the shelf to the desired position.

re-tighten the locking knob. To remove a shelf it is necessary to slide it upwards.

Door bins

The door bins can be easily removed for cleaning

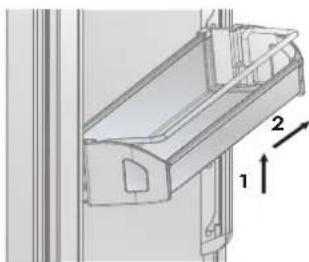

Hold the door bin at the sides and push it upwards to detach from the side rails, then pull it outwards.
Reverse the procedure to reinstall.

7.1 Activation and use of the Ice Maker

Note

If the ice is not used frequently is advisable to empty the ice bin once every 8-10 days.

It is normal that some ice cubes stick to one another. If the ice is not frequently used, the older cubes can become opaque, and will have a strange flavour and become smaller.

The Icemaker automatically deactivates if the Vacation function is activated.

When the Icemaker is started for the first time, it is recommended to dispose of the first full bin of ice.

If the equipment has been switched off for a month or more, it is recommended to perform a water and filter cleaning cycle.

Warning

The ice maker will continue to operate even when the ice bin is not in position

To activate the Ice Maker after installation of the appliance touch the function icon and then and then the ice maker icon from the functions.

Please note that 12 to 24 hours are necessary before ice production may begin.

The production is of 10 cubes per cycle in approximately 10 cycles in 24 hours.

The yield depends on the temperature set in the freezer, the room temperature and the frequency of door opening.

If the appliance is operating without being connected to the water system, make sure that the icemaker is deactivated by toch the icon

The Ice Maker produces ice until the ice tray is full and will automatically stop once the maximum level is reached.

With the SuperIce function, it is possible to increase the quantity of ice produced within 24 hours, while the Set Cube Size function permits selection of the size of the produced ice cubes.

Do the ice cubes have an unusual odour?

Ice is a porous material which can absorb odours from the environment. Ice cubes which have been in the ice cube container for a long time may absorb odours, stick together and slowly become smaller.

We recommend that old ice cubes not be used. Other means of preventing odors:

The ice cube container should be cleaned occasionally with warm water. Make sure that you switch off the ice maker before clearing the container. Rinse out and wipe dry.

Check the contents of the freezer for spoiled or out-of-date food. All odorous foods should be wrapped thoroughly or stored in airtight containers to prevent the build-up of odors.
The water filter may have to be replaced in some models.
In some cases the quality of the water connection in the house should be checked.

Operating noises

Quite normal noises

Grumbling: refrigerating unit is running. Fan in the recirculating air system is running.
Bubbling, humming or gurgling noises: refrigerant is flowing through the tubes.
Clicking: motor is switching on or off. Solenoid valve on the water connection is opening/closing.
Rumbling: ice cubes are falling into the ice cube container.

Warning

Do not place any bottles or food for rapid cooling in the ice cube container. The ice maker may become blocked and be damaged.

7.2 Water filter for freezer column Ice Maker

Freezer columns equipped with automatic ice-makers include an externally mounted water filter kit.

The water filter manifold and waterline connections must be installed in conjunction with the freezer as the waterline connecting the back of the appliance to the filter kit must be in place before installing the unit.

The filter kit should be installed in an accessible location (such as an adjacent cabinet) to allow for the water filter cartridge to be changed annually.

If you choose not to use the water filter (such as connecting the appliance to an already filtered water source) then it is suggested to also set the function Water Filter through the icon ,touch the icon reset and disable the warning to avoid receiving reminders to change the filter (that you are not using).

7.3 Filter Cartridge Replacement

AP2 FILTER CARTRIDGE REPLACEMENT

!WARNING !

To reduce the risk associated with choking:

Do not allow children under 3 years of age to have access to small parts during the installation of this product.
To reduce the risk associated with the ingestion of contaminants:
Do not use with water that is microbiologically unsafe or of unknown quality without adequate disinfection before or after the system. Systems certified for cyst reduction maybe used on disinfected water that may contain filter able cysts. EPA Establishment #070595-Mex-001

CAUTION:

To reduce the risk associated with property damage due to water leakage:

Read and follow replacement instructions before replacement of the filter cartridge.
Protect from freezing, remove filter cartridge when temperatures are expected to drop below 33^ F (1^ C).

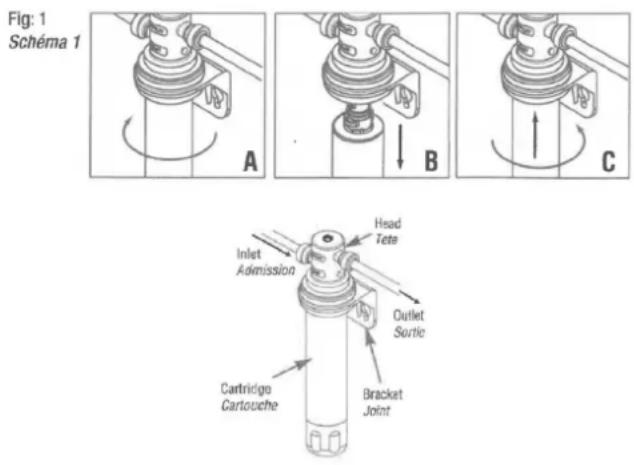

HOW TO REPLACE THE FILTER CARTRIDGE (Fig.1) IMPORTANT: The disposable filter cartridge MUST be replaced every 6 months, at the rated capacity or sooner if a noticeable reduction in flow rate occurs.

Note: The system is equipped with an internal bypass valve.

A. Turn cartridge slowly to the left, about 1/4 turn, until it stops. At this position both inlet and outlet ports are closed and water pressure has been relieved. B. Pull used cartridge straight down and discard. Note: There maybe a small amount of residual water drainage after pressure is relieved and during cartridge removal. C. Make sure the o-rings are positioned correctly in grooves. Moisten the o-rings with water. Push new cartridge into filter head. Turn cartridge 1/4 turn to the right until it stops. Top surface of cartridge will become flush with bottom of the head when fully engaged. D. Open faucet or down stream valve (if installed) and flush new filter cartridge for two minutes, expelling any trapped air and carbon fines. Water may run cloudy with air but will quickly clear.

EN

8.1 Lighting

To provide optimum interior lighting, LED strips illuminate the freezer compartment from the side and sets of LED lights directly illuminate different areas of the compartment.

In case of malfunction and/or wearing out of the lighting system, the repair should be carried out by a qualified Bertazzoni Service technician.

9.1 General directions

Your appliance is designed to ensure precise, constant temperatures and appropriate humidity levels in all compartments.

Nevertheless, to properly preserve all of your foods, it is not enough to have an excellent appliance. It is also necessary to know the rules for correct food preservation.

Do bear in mind that all foods will inevitably change their characteristics over the passage of time. This change begins long before the food is consumed, since foods contain micro organisms which multiply and can cause deterioration. This process occurs more rapidly due to improper handling, preservation temperatures and humidity levels.

It is therefore recommended to follow the directions presented below which will permit using your freezer in the most effective and safe manner to keep your foods in the best way for as long as possible.

Periodically check that all foods are in a perfect state of preservation. If you believe that a food item was kept for an excessive period of time and may be deteriorated, do not consume this item or even taste it, even if it seems to still be healthy, since the bacteria that cause deterioration of food can also cause poisoning and illness.

When in doubt, throw the food away.

9.2 How to best preserve food quality

When buying groceries

Always take the following precautions:

Place any packages of raw meat, fish or poultry in plastic bags so that they do not drip on other foods.
Purchase meat, poultry and fish last. Do not leave your groceries in a warm car after shopping. Keep a freezer bag in your car and use it in case of very high temperatures or long trips.
Check the production dates and "best before" times on foods to be sure that they are fresh.
Be very careful when buying fresh foods, and only buy a quantity that can be consumed during your planned preservation period.

When placing foods in

To keep food in the freezer is a good idea to use freezer containers.

Label and date the packages.
Be careful to correctly position the food items on the shelves in a way that does not obstruct the air circulation vents inside the compartment.

Warning

After a prolonged interruption of electrical power, once the electrical power is reactivated, an audible signal will indicate if the temperature has raised above normal levels. In addition to this the display will show for one minute the highest temperature detected inside the compartments, to allow the user to decide how to better use the food items.

After one minute the display will resume normal operation, while the Alarm button will continue to blink.

Press the Alarm button to display the highest recorded temperatures.

10.1 Care and Cleaning

To clean the parts made of steel use a microfiber cloth and the sponge provided in the kit with the appliance. Always use the cloth and sponge in the direction of the steel's satin finish.

Every now and then, to polish the steel, wipe with a slightly damp microfiber cloth.

Do not use the sponge on aluminium parts, such as the handles and the profiles of the glass shelves.

You should use special care to keep the ventilation openings in the appliance or in the cabinet that houses it free of obstructions.

Carefully follow the detailed directions that can be found in the provided kit and never use abrasive or metallic products which could scratch and damage the satin finishing on the appliance permanently.

Before performing any sort of cleaning, disconnect the appliance from the electrical power supply.

Make sure you do not damage the refrigerant circuit in any way.

Warning

Do not use chlorine-based detergents or cleaning agents.

10.2 Internal cleaning

Clean the internal and removable parts by washing them with a solution of lukewarm water, a small amount of dishwashing detergent.

Rinse and dry right away.

Do not use mechanical devices or other methods to speed up defrosting.

Warning

Do not use water on the electrical parts, lights and control panel.

Warning

The use of chlorine-based detergents or similar that contains it should be avoided (bleach, hypochlorite, etc).

Do not bring cold glass parts into contact with boiling water.

Do not wash any parts of the appliance in a dishwashing machine since this could damage or irreparably deform the parts.

10.3 Cleaning of the toe kick cover, filter and condenser.

It is recommended to perform the following cleaning steps very 6 months. An audio and visual message on the display will serve as a reminder.

It is possible to disable the warning signal and see the time left before the next cleaning has to be done.

Behind the frontal toe kick cover there is the condenser.

To clean it use a vacuum cleaner with a soft brush attachment at maximum power, sweeping it along the vent slits. In case of a significant dust build up, the toe kick cover can be removed to allow a more accurate cleaning of the filter.

On the maintenance settings, after the installation of the unit and after it has been turned on, you can set the condenser cleaning warning.

In the case the warning sign is enabled, there will be an audible signal every 6 months, alerting that it is time to clean the condenser.

After cleaning it, touch the reset icon in order to reactivate the warning signal in 6 months.

If you do not want the cleaning signal alert for the condenser, touch the Off icon.

Lower condenser.

For cleaning the condenser follow the instructions:

Switch off the appliance by pressing the Unit button on the main control panel for approx 3 seconds.
Wait approx 30 minutes, until the finned condenser cools down to room temperature.

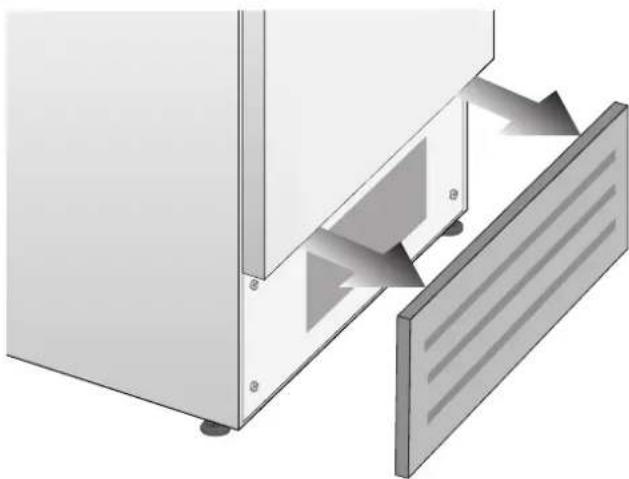

Remove the removable grille under the door.

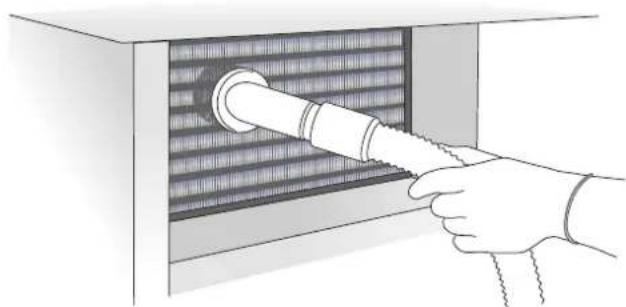

Clean it thoroughly from any dust build up as shown in the picture, taking care not to damage it.

Restart the unit again, pressing on the unit button for three second.

Warning

The edges of the condenser are sharp, therefore use adequate protection for hands and arms when cleaning the condenser.

11.1 Troubleshooting Guide

If you notice malfunctions in your appliance, use this guide before calling for service: this guide can help you personally resolve the problem or could provide important information to be conveyed to the service technician to ensure rapid and effective repair.

Display message and audible alarms.

A malfunction is usually indicated by the display. Problems that cannot be solved by the user are reported through a fault code. Keep in mind, however, that in messages or alarms they may appear for particular conditions of use or during start-up. In these cases, deactivate the audible alarm by pressing the Alarm button and leave the appliance running and limit the opening of the doors to the maximum for about 10-12 hours.

The freezer does not work.

Is the appliance connected to the electrical power supply?

Is electrical power available at the electricity socket?

Is the Unit button activated?

Is the unit in 'Demo' Mode?

The freezer is warmer than usual.

Does the display show a malfunction code?

Is the temperature adjusted correctly?

Were the doors or drawers open for a long period of time?

Were large quantities of food recently inserted?

Is the unit in 'Demo' Mode?

The appliance remains in function for a long time period.

Bear in mind that during very hot weather and with very high temperatures in the room it is normal that the compressor remains on for prolonged periods of time.

Were the doors or drawers open for a long period of time?

Were large quantities of food recently inserted?

Check that the doors are closed and that the food or containers do not obstruct the perfect closure of the door.

Is one or more compartments in Shopping Mode?

If you hear unusual noises.

It is normal to hear noises from the ventilators or compressors during operation or during the defrost phase.

Noise could be more noticed depending on the position of the appliance and the surrounding environment.

Condensation inside and outside of the freezer.

If the climate is very humid, the formation of condensation is normal. Opening the door or drawers for prolonged periods of time can contribute to the formation of condensation.

In any case, make sure that the doors are always completely closed.

Ice or frost build up inside the freezer.

Did you leave the doors open for a long period of time?

Do the doors close completely?

If the doors do not close completely, contact your installer.

The doors are difficult to open.

The appliance is designed to ensure a fully hermetic closure. When the door is closed, a vacuum condition can occur: in this case it is necessary to wait a few seconds until the pressure balances before opening the door.

Appliance is cooling but lights and display are not working.

Check to see if the appliance was accidentally placed into Sabbath Mode

The Ice Maker does not work.

Make sure that the Ice Maker is on (icon).

To switch on the Ice Maker press the button.

Make sure that the appliance is connected to the water supply.

The Ice Maker does not produce sufficient amounts of ice.

On average, the Ice Maker produces approximately 10 cubes of ice every two and half hours.

The ice cubes freeze into one block.

If the ice is not used frequently, it is possible that blocks of ice may form. It is recommended to remove the block of ice cubes and then let the Ice Maker fill the ice tray again.

The ice has an unusual flavour or colour.

When the Ice Maker is started for the first time, it is recommended to empty the first full tray of ice cubes.

If the freezer was switched off for more than one month or if the cartridge was not changed for more than six months, it could be necessary to replace the filter cartridge.

Contact a plumber or a water treatment expert to make sure that the problem is not due to the water supply.

If the unit you purchased was used as a showroom model it may be in a special energy-saving mode called Demo Mode where the appliance appears to be operating (lights work and false temperatures are displayed) but no cooling actually takes place. If you suspect your appliance is in Demo Mode please contact your point of purchase for assistance with disabling this feature.

11.2 Error messages appearing on the display

Display message Malfunction description

Power Failure!!	Prolonged interruption of electrical power the appliance resumes work automatically, the display shows the warmest temperatures achieved
Door Unit OPEN	Unit door open the message appears after few minutes from the door opening
Replace filter	Replace filter cartridge message appears when only 30% of filter capacity is left
Error Code...	Functional problems call Customer Care who may help you to solve the problem or put you in contact with the nearest Service Agent may help you solve the problem
Check condenser	Check Condenser Every 6 months the display shows the message "Check Cond", clean the condenser and follow the instructions above about how to clean the condenser.

In case of errors, touch the button Alarm and the display will show the error message with its error number code.
The message will be shown for 3 seconds, then it will go back to the home screen.
For blocking the message on the screen, press on the display, the button info (i). The message will be on the screen for 30 seconds, then it will go back to the home screen.
In the case there is more than one error message, the dispay will show in time sequence the different error messages.

Limited two-year warranty

The Warranty coverage provided by Bertazzoni SpA ("Bertazzoni") in this statement applies exclusively to the original Bertazzoni appliance ("Product") sold to the consumer ("Purchaser") by an authorized Bertazzoni dealer/distributor/retailer, purchased and installed in the United States, District of Columbia, or Canada which has always remained within the country of original purchase (United States, District of Columbia, or Canada).

Warranty coverage is activated on the date of original retail purchase of the Product and has a duration of two(2) years.

Limited five year parts and labor warranty on sealed system

After year two(2) through year five(5) from original purchase date, Bertazzoni warranty covers all parts and labor to repair or replace any components that prove to be defective in materials or workmanship in the sealed system. The "Sealed System" means only the compressor, condenser, evaporator, drier and all connecting tubing.

Warranty coverage is non-transferrable.

In the event of parts replacement or entire product replacement, the replacement Product (or parts) shall assume the remaining original Warranty activated with original retail purchase document. This Warranty shall not be extended with respect to such replacement.

Bertazzoni SpA will repair or replace any component/part which fails or proves defective due to materials and/or workmanship within 2 years from the date of original retail purchase and under conditions of normal residential, non-commercial use.

Repair or replacement will be free of charge, including labor at standard rates and shipping expenses. Purchaser is responsible for making the Product reasonably accessible for service. Repair service must be performed by a Bertazzoni Authorized Service company during normal working hours. Labor performed at overtime or premium rates shall not be covered by Warranty. IMPORTANT: retain proof of original purchase to establish warranty period.

Bertazzoni's liability on any claim of any kind, with respect to the goods and/or services provided, shall in no event exceed the value of the goods or service or part thereof which gives origin to the claim.

30 Day Cosmetic warranty

Inspection of the product must be made by Purchaser at time of delivery.

Bertazzoni warrants that the Product is free from manufacturing defects in materials and workmanship for a period of thirty (30) days from date of original retail purchase of the Product.

This coverage includes:

Paint blemishes
Chips
Macroscopic finish defects

Cosmetic warranty does NOT cover:

issues resulting from incorrect transport, handling and/or installation (i.e: dents, broken, bowed or deformed structures or components, shattered glass components)
slight color variations in painted/enamed components
differences caused by natural or artificial lighting, location or other analogous factors.
Stains/corrosion/discoloration caused by external substances and/or environmental factors
labor costs, display, floor, B-stock, out-of-box, "as is" appliances and demo units.

How to obtain service

To receive warranty service, the Purchaser must contact Bertazzoni Service for problem determination and correct service procedures. Model number, serial number and date of original retail purchase will be requested.

IMPORTANT: retain proof of original purchase to establish warranty period.

If located in the USA

866 905 0010

https://us.bertazzoni.com/more/support

If located in CANADA

8005617265

https://ca.bertazzoni.com/more/support

EN

PURCHASER AND PURCHASER'S PROPERTY AND TO OTHERS AND THEIR PROPERTY ARISING OUT OF THE USE, MISUSE OR INABILITY TO USE THIS PRODUCT SOLD BY BERTAZZONI NOT CAUSED DIRECTLY BY THE NEGLIGENCE OF BERTAZZONI. THIS LIMITED WARRANTY SHALL NOT EXTEND TO ANYONE OTHER THAN THE ORIGINAL PURCHASER OF THIS PRODUCT, IS NON-TRANSFERABLE AND STATES YOUR EXCLUSIVE REMEDY.

Bertazzoni does not assume any responsibility for incidental or consequential damages. Some states do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation or exclusion may not apply to you. This warranty gives you specific legal rights and you may also have other rights which may vary from state to state or province to province.

Any questions about this Limited Warranty may be directed to Bertazzoni Customer Care

If located in the USA:

866 905 0010

https://us.bertazzoni.com/more/support

If located in CANADA:

8005617265

https://ca.bertazzoni.com/more/support

1 INDICATIONS IMPORTANTES CONCERNANT LA SECURITE 2

in USA http://us.bertazzoni.com/care-service in Canada https://ca.bertazzoni.com/more/support

écrire nous un mail

[e-mail]

Important

Compartment Congélateur -

REEMPLACEMENT DE L A CARTOUCHE AP2

! AVERTISSEMENT !

Est le compartment en mode shopping?

https://us.bertazzoni.com/more/support

Si situé au CANADA

8005617265

https://ca.bertazzoni.com/more/support

https://us.bertazzoni.com/more/support

https://ca.bertazzoni.com/more/support

La instalación, ajuste, modificación, reparación o mantenimiento IncorrectosSEO,SEO,SEO,SEO,SEO,SEO,SEO,SEO,SEO,SEO,SEO,SEO,SEO,SEO,SEO,SEO,SEO,SEO,SEO,SEO,SEO,SEO,SEO,SEO,SEO,SEO,SEO,SEO,SEO,SEO,SEO,SEO,SEO,SEO,SEO,SEO,SEO,SEO,SEO,SEO,SEO,SEO,SEO,SEO,SEO,SEO,SEO,SEO,SEO,SEO,SEO

https://ca.bertazzoni.com/more/support

https://us.bertazzoni.com/more/support

Si seswana en CANADA

8005617265

https://ca.bertazzoni.com/more/support

https://us.bertazzoni.com/more/support

https://ca.bertazzoni.com/more/support
