USER MANUAL REF24RCPRL BERTAZZONI

APPLIANCE SWITCHING ON AND OFF

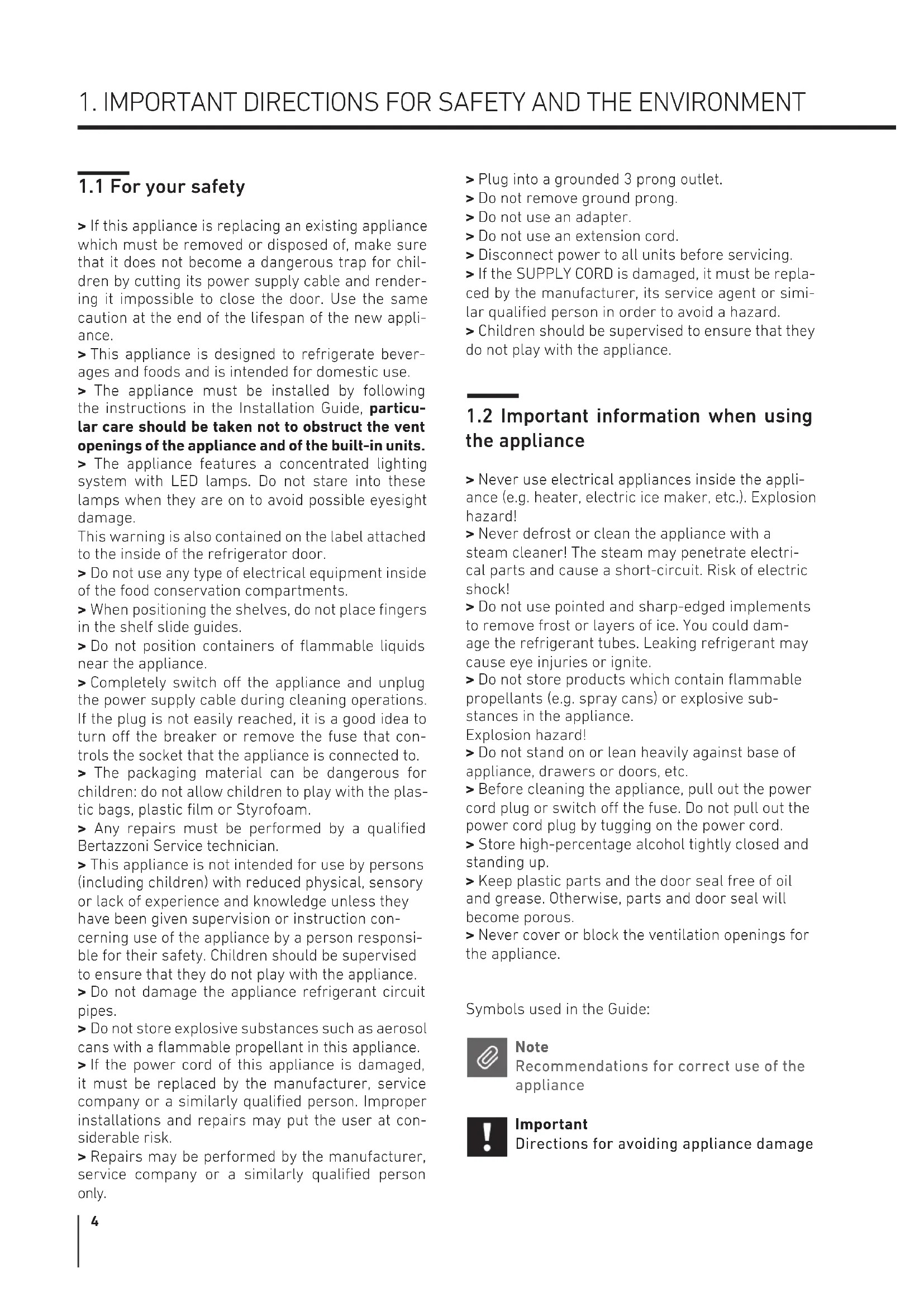

> If this appliance is replacing an existing appliance which must be removed or disposed of, make sure that it does not become a dangerous trap for chil- dren by cutting its power supply cable and render- ing it impossible to close the door. Use the same caution at the end of the lifespan of the new appli- ance. > This appliance is designed to refrigerate bever- ages and foods and is intended for domestic use. > The appliance must be installed by following the instructions in the Installation Guide, particu- lar care should be taken not to obstruct the vent openings of the appliance and of the built-in units. > The appliance features a concentrated lighting system with LED lamps. Do not stare into these lamps when they are on to avoid possible eyesight damage. This warning is also contained on the label attached to the inside of the refrigerator door. > Do not use any type of electrical equipment inside of the food conservation compartments. > When positioning the shelves, do not place fingers in the shelf slide guides. > Do not position containers of flammable liquids near the appliance. > Completely switch o the appliance and unplug the power supply cable during cleaning operations. If the plug is not easily reached, it is a good idea to turn o the breaker or remove the fuse that con- trols the socket that the appliance is connected to. > The packaging material can be dangerous for children: do not allow children to play with the plas- tic bags, plastic film or Styrofoam. > Any repairs must be performed by a qualified Bertazzoni Service technician. > This appliance is not intended for use by persons (including children) with reduced physical, sensory or lack of experience and knowledge unless they have been given supervision or instruction con- cerning use of the appliance by a person responsi- ble for their safety. Children should be supervised to ensure that they do not play with the appliance. > Do not damage the appliance refrigerant circuit pipes. > Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance. > If the power cord of this appliance is damaged, it must be replaced by the manufacturer, service company or a similarly qualified person. Improper installations and repairs may put the user at con- siderable risk. > Repairs may be performed by the manufacturer, service company or a similarly qualified person only. > Plug into a grounded 3 prong outlet. > Do not remove ground prong. > Do not use an adapter. > Do not use an extension cord. > Disconnect power to all units before servicing. > If the SUPPLY CORD is damaged, it must be repla- ced by the manufacturer, its service agent or simi- lar qualified person in order to avoid a hazard. > Children should be supervised to ensure that they do not play with the appliance.

1.2 Important information when using

the appliance > Never use electrical appliances inside the appli- ance (e.g. heater, electric ice maker, etc.). Explosion hazard! > Never defrost or clean the appliance with a steam cleaner! The steam may penetrate electri- cal parts and cause a short-circuit. Risk of electric shock! > Do not use pointed and sharp-edged implements to remove frost or layers of ice. You could dam- age the refrigerant tubes. Leaking refrigerant may cause eye injuries or ignite. > Do not store products which contain flammable propellants (e.g. spray cans) or explosive sub- stances in the appliance. Explosion hazard! > Do not stand on or lean heavily against base of appliance, drawers or doors, etc. > Before cleaning the appliance, pull out the power cord plug or switch o the fuse. Do not pull out the power cord plug by tugging on the power cord. > Store high-percentage alcohol tightly closed and standing up. > Keep plastic parts and the door seal free of oil and grease. Otherwise, parts and door seal will become porous. > Never cover or block the ventilation openings for the appliance. Symbols used in the Guide: Note Recommendations for correct use of the appliance Important Directions for avoiding appliance damage

Warning Indications for avoiding injury to people

1.3 Caring for the environment

> Pay special attention to correct disposal proce- dure for all the packaging materials. > The appliance must not be disposed of with urban waste. Contact local waste disposal centers for on how to dispose of recyclable waste. > Prior to disposal, cut the power supply cord and make it impossible to close the door. > During disposal, avoid damage to the refrigera- tion circuit. > The appliance does not contain hazardous sub- stances for the atmospheric ozone layer, neither in the refrigeration circuit nor in the insulation.

Make sure that installation is performed correctly, adhering to all directions in the specific installation manual provided with the appliance.

2.2 Connection to the electrical power

supply The appliance operates at 115 V AC, 60 Hz and is equipped with a power supply cord with a 3-prong grounded plug, which must be connected to a cor- responding 3-prong (15 Amp) grounding-type wall receptacle. Important Do not use extension cords and/or mul- tiple adapters for the power supply con- nection.

HFO R134a Made in Italy REF24RCPIXL KS5990FZ3IU

HFO R134aMade in Italy

Congratulations for having purchased your new re- frigerator column: from now on you can use our in- novative conservation system, which will allow you to keep all of your food in the best way possible. This manual will answer most of your questions about the product’s features. Should you require fur- ther information, please check our website > our website > or write us an e-mail at [e-mail] Position of the serial number inside the compartment. Model . Code . Features . Serial Number . in the US http://us.bertazzoni.com/care-service in Canada https://ca.bertazzoni.com/more/support Important Before calling, write down the model type and serial number which are available on the warranty certificate and on the rating plate, and any messages which may have appeared on the display. Built In refrigera- tors come with 2 years parts & labor war- ranty, and 5 year parts & labor for sealed system only. The rating plate is located into the appliance, on side cabinet, close to the shelves. Before calling, please make sure to have the fol- lowing information ready: - Date of Purchase; - Name of dealer where product was purchased. Technical Code .7

1) Stainless steel body.

6) Removable toe kick.

3.4 Main control panel

3.3 Eletronic Control

The innovative electronic control system designed by Bertazzoni maintains constant temperature on the entire compartment and visualizes it on the control panel display. It also allows user interaction making it possible to personalize settings of the various functions and to receive sound and/or visual messages should any malfunction occur in the appliance. On/Off: Touch the icon to turn the unit on or off. Home Touch the home icon for going back to the main display screen. Alarm Touch the icon to view the alarm tone functions and to deactivate them. Back Touch the arrow icon for going back to the previous display screen.

FunctionsSettingsInitial test… Are you sure you want to power off this unit? Yes No Are you sure? Yes No

4.1 Turning the appliance on and o

First time starting the unit Touch the button . The display shows the following launch screens:

4. APPLIANCE SWITCHING ON AND OFF

When the appliance is first switched on is recco- mended to wait at least 12 hours without open- ing the doors and before placing any food inside the unit.During such period deactivate any error message by pressing the Alarm button.

- fridge compartment +4°C (39°F)

When the fridge is o there are no warning signs that prove that the fridge is plugged to a socket.

shutdown by touching the Yes icon.

3) The display shows the main screen with the

envirorment temperature measured from the fridge inside the compartments. Automatically the unit starts to cool down until reaching the set temperatures. Shutdown.

1) touch the button off.

Switching off for long periods During long absence periods it is recommended to switch off the refrigerator by pressing the Unit button for three seconds and disconnect- ing the electrical plug or the breaker controlling the socket. Completely empty the refrigerator, clean and dry it and leave the doors and drawers partially open to prevent unpleasant odors. If at the first startup the Standby message does not appear, but another message ap- pears, it means that the appliance has al- ready started the cooling process. During the first startup, it will not be possi- ble to use the Menu to modify the factory set- tings until the preset temperature has been reached. During the first startup, it will not be possible to use the Menu to modify the fac- tory settings until the preset temperature has been reached.10

OFF Each time the appliance is switched on it goes through a self-diagnosis procedure lasting three minutes before completely starting up. Preset temperature Fridge Compartment

3) Touch the icon ok

to confirm the desi- der temperature. Modify the temperatures compartment How to modify the Fridge compartment temperature.

Touch the icon of fridge compartement.

select the desired temperature fridge from +1°C to +8°C (from 34°F to 46°F)

4. APPLIANCE SWITCHING ON

4.2 How to adjust the temperature for

dierent requirements. Each model has been carefully tested before leaving the factory and is adjusted in such a way to ensure high performance and low power consumption. Usually, it is not necessary on modify the settings. How it looks on the home screen: The temperature shown can vary slightly in respect to the set temperature following frequent openings of the doors or insertion of room temperature foods or large quantities of foods. 6 to 12 hours are necessary to reach the selected temperature. Padlock icon. The padlock icon shows up when the temperatu- res are set up. The padlock open/close shows that the com- partment's temperatures can or can not be modified by the user. Usually a yellow padlock will show open, in that case you can scroll up or down with a finger on the display, select the desired temperature and press OK to confirm.

Whereas a closed padlock will be seen if the user has activated a function that modifies the settings of the refrigerator and prevents the user from changing the temperature of the compartment.11 + 2 °C + 4 + 3

If the icon function is touched and a specific function is set (for example holiday, shopping trimode, ect...), the yellow padlock will be seen closed and it won't be possible to change the temperature of the compartments as long as the function won't be completed or if it is manually deactivated as long as the function is active.

4.3 Information signals of anomaly on

the display. An integrated control system will give infor- mation through messages you will see on the display. There is an alarm tone that occurs with some error messages which can be turned off by tou- ching the alarm button on the main control panel. You can find the list of the error messages at the end of this manual.

The function lowers the refrigerator temperature to +2°C (36°F) a factory default of 12 hours, permitting more rapid cooling of food that has just been placed in. Once the 12 hours have expired, the function deactivates automatically, returning to the previously set temperature. It is possible to program a timed activation of the function. After a prolonged interruption of power supply, it is necessary to reactivate the function. INFORMATION FOR THE USE OF THE DISPLAY.

It is possible to personalize the operation of your Bertazzoni unit in order to adapt it to the different ways you might want to use it. After touching the icon Function on the home screen, the user will be shown the icons of the following available functions.

Activate Shopping Mode:Fridge? (up to 24 hours) Yes No FunctionsSettings

It is possible to program in advance between 1 and 24 hours. C) Touch the icon Yes to activate the function. B) Touch the icon Shopping Mode Fridge. D) Scroll up / down to setting the desired time and then pres ok. A) Home screen. Touch the icon functions.

This function (recommended in case of prolonged absences since it allows considerable energy savings) brings the refrigerator compartment temperature to +14°C (57°F) It is possible to program the duration, or it can be manually deactivated upon re-entry after a period of absence. This function remains active even if during the period of absence there is a prolonged interruption of electrical power. It is possible to program a period from 1 to 90 days. C) Touch the button Yes to activate the function. B) Touch the icon Vacation Mode. D) Scroll up / down to set the desired time (in days) and then pres ok. It is possible to pro- gram a period from 1 to 90 days. A) Home screen. Touch the icon functions.

5. CUSTOMIZE FUNCTIONS AND SETTINGS

It is possible to personalize the settings of your Bertazzoni fridge for adapting it to the different ways you might want to use it.

The display will show the date in the format (day:month:year). By touching the display you can modify the settings. C) Scroll up or down until the de- sired year appears and press Ok. D) Scroll up or down until the desired month appears and press Ok. B) Touch the Date icon. A) Home screen. Touch the Set- tings icon. E) Scroll up or down until the de- sires date appears and press Ok. C) Touch the desi- red method which you want the time to display: 12 hour or 24 hours. B) Touch the Time icon.

This function allows the temperature to be dis- played in Centigrade or Fahrenheit. The factory setting in Centigrade. A) Home screen. Touch the Set- tings icon.

To set the language of the fridge, simply touch the settings button on the display. A) Home screen. Touch the Set- tings icon.15 FunctionsSettings

The function makes it possible to comply to certain religious observances requiring the operation of the appliance to not be aected by the opening or closing of the doors. The thermostatic control, in- ner lighting and ice maker are deactivated. A) Home screen. Touch the Settings icon. B) Scroll right once and touch the Sabbath icon. C) Touch the Yes button to confirm the Sabbath Mode. D) Touch the Yes button to activate the function. E) The fridge will work accordingly to this configuration.

This option allows you to restore the appliance to the original factory settings, cancelling all the changes that have been made previuosly. C) Touch the yes button to confirm the selection of the resetting of factory default settings. D) Touch the Yes button. E) The reset has been performed. The fridge's factory settings have been restored. A) Home screen. Touch the Settings icon. B) Scroll right once and touch Reset icon.16 FunctionsSettings

Enable remindercountdown timer? Yes No Clean Condenser Are you sure?

It is possbile to simulate the functioning of the fridge, for showroom display or for trade shows.

8) Maintenance (through alarm sign).

For proper operation, the unit requires cleaning of the toe kick cover, of the filter and the condenser. The default setting of the unit is"Warning disa- bled". The required cleaning every 6 months is denoted by an audible and visual message on the display. It is possible to disable the warning signal and see the time left before the next cleaning that has to be done. For details see following pages. D) Insert the password for the activation. Default password 1-2-3-4 C) Touch Yes. E) Push Yes or No button. B) Scroll to the right twice and touch the Mainte- nance icon. C) To enable it, touch the On icon. D) To enable it, touch the Yes icon. A) Home screen. Touch the Settings icon. A) Home screen. Touch the Settings icon. B) Scroll right once and touch Demo icon.

The Info System function shows the product data, for example the software code, serial number and the factory code of the refrigerator. B) Touch the Info System icon. C) The display will show the data specific to the appliance. A) Home screen. Touch the Settings icon. E)If you want to enable the warning, touch the Reset icon.

The service function is reserved for the Bertazzoni service technicians. If you want to disable the reminder, at step C touch O, then touch Yes as below. Maintenance Service Info System18

6.1 Internal Layout (positioning, adjust-

ment, removal). Crisper Fixed to the slide guides with two thumbscrews. > to remove the drawer, unscrew the thumbscrews and remove the drawer. Warning Do not place hands or fingers near the Ice- maker when in function. Shelves The shelves are moveable and can be easily re-posi- tioned by the user as follows: > release the locking knob by turning counter-clock- wise > lift or lower the shelf to the desired position

> re-tighten the locking knob. To remove a shelf it is necessary to slide it up to the top

Door Bins The door bins can be easily removed for cleaning > Hold the door shelf at the sides and push it upwards to release it from its seat, then pull it outwards. > Reverse the procedure to reinstall.19 Refrigeratorfrom +1° to +8 °C(from 34°F to 46°F)

To provide optimum interior lighting, LED strips il- luminate the refrigerator compartment from the top and sets of LED lights directly illuminate dierent ar- eas of the refrigerator compartment. In case of malfunction and/or wearing out of the lighting system, the repair should be carried out by a qualified Bertazzoni Service technician.

8.1 General directions

Your appliance is designed to ensure precise, con- stant temperatures and appropriate humidity levels in all compartments. Nevertheless, to properly preserve all of your foods, it is not enough to have an excellent refrigerator. It is also necessary to know the rules for correct food preservation. Do bear in mind that all foods will inevitably change their characteristics over the passage of time. This change begins long before the food is consumed, since foods contain micro organisms which multi- ply and can cause deterioration. This process occurs more rapidly due to improper handling, preservation temperatures and humidity levels. It is therefore recommended to follow the directions presented below which will permit using your refrig- erator in the most eective and safe manner to keep your foods in the best way for as long as possible. Periodically check that all foods are in a perfect state of preservation. It is usually quite clear when a food item is deteriorated, due to mold, unpleasant odor and unpleasant aspect. Nevertheless, there are cases in which these conditions are not so evident. If you believe that a food item was kept for an exces- sive period of time and may be deteriorated, do not consume this item or even taste it, even if it seems to still be healthy, since the bacteria that cause deterio- ration of food can also cause poisoning and illness. When in doubt, throw the food away.

7. LIGHTING 8. FOOD STORAGE20

8.2 How to maintain good food quality

When buying groceries Always take the following precautions: > Place any packages of raw meat, fish or poultry in plastic bags so that they do not drip on other foods. > Purchase meat, poultry and fish last. Do not leave your groceries in a warm car after shopping. Keep a freezer bag in your car and use it in case of very high temperatures or long trips. > Check the production dates and “best before” times on foods to be sure that they are fresh. > Be very careful when buying fresh foods, and only buy a quantity that can be consumed during your planned preservation period. > When possible, let warm foods adjust to room tem- perature for at least two hours before placing them in the refrigerator, unless you have activated the Shopping function before. When placing foods in Check the refrigeration temperature of the various compartments on the control panel: > The refrigerator temperature must be 8°C (45°F) or lower and the freezer temperature must be -18°C (0°F) > Follow the recommendations regarding the pres- ervation times and temperatures indicated in the ta- bles to follow. > Keep raw meat, fish and poultry separate from oth- er foods and avoid any possible drippings. When placing foods in > When placing your meat, fish or poultry in the refrigerator, leave them in the original packaging, unless the packaging is ripped or punctured. Re- peated handling could introduce bacteria into these foods. > To keep food in the freezer is a good idea to use freezer containers. > Label and date the packages > Be careful to correctly position the food items on the shelves in a way that does not obstruct the air circulation vents inside the compartment. Warning After a prolonged interruption of electri- cal power, once the electrical power is reactivated, an audible signal will indi- cate if the temperature has been raised above normal levels. In addition to this the display will show for one minute the highest temperature detected inside the compartments, to allow the user to de- cide how to better use the food items. After one minute the display will resume normal operation, while the Alarm button will continue to blink. Press the Alarm button to display the highest recorded temperatures.

9.1 Care and Cleaning

To clean the parts made of steel use a microfiber cloth and the sponge provided in the kit with the appliance. Always use the cloth and sponge in the direction of the steel’s satin finish. Every now and then, to polish the steel, wipe with a slightly damp microfiber cloth. Do not use the sponge on aluminium parts, such as the handles and the profiles of the glass shelves. You should use special care to keep the ventila- tion openings in the appliance or in the cabinet that houses it free of obstructions. Scrupulously follow the detailed directions that can be found in the provided kit and never use abrasive or metallic products which could scratch and damage the satin finishing on the appliance permanently. Before performing any sort of cleaning, disconnect the appliance from the electrical power supply. Make sure you do not damage the refrigerant circuit in any way. Warning The use of chlorine-based detergents or similar that contains it should be avoided (bleach, hypochlorite, etc).

9.2 Internal cleaning

Clean the internal and removable parts by washing them with a solution of lukewarm water, a small amount of dishwashing detergent. Rinse and dry right away. Do not use mechanical devices or other methods to speed up defrosting. Warning Do not use water on the electrical parts, lights and control panel. Warning Do not use chlorine-based detergents or cleaning agents. Do not bring cold glass parts into contact with boiling water. Do not wash any parts of the refrigerator in a dishwashing machine since this could dam- age or irreparably deform the parts.

9. CARE AND CLEANING22

9.3 Cleaning of the toe kick cover, filter

and condenser. The unit requires, for a correct operation, the cleaning of the toe kick cover, filter and condenser. It is recommended to perform the following cleaning steps very 6 months. An audio and visual message on the display will serve as a reminder. Behind the frontal toe kick cover is the condenser. To clean it use a vacuum cleaner with a soft brush attachment at maximum power, sweeping it along the vent slits. In case of a significant dust build up, the toe kick cover can be removed to allow a more accurate cleaning of the filter. On the mantenience settings, after the in- stallation of the unit and after it has been turned on, you can set the condenser cleaning warning. In the case the warning sign is enabled, there will be an audible signal every 6 months, alerting that it is time to clean the condenser. After cleaning it, touch the reset icon in order to reactivate the warning signal in 6 months. If you do not want the cleaning signal alert for the condenser, touch the O icon. Maintenance Service Info System Lower condenser. For cleaning the condenser follow the instruc- tions: > Switch o the appliance by pressing the Unit button on the main control panel for approx 3 seconds. > Wait approx 30 minutes, until the finned condens- er cools down to room temperature. > Remove the removable grille under the door. > Clean it thoroughly of any dust build up as shown in the picture, taking care not to damage the con- denser. > Restart the unit again, pressing on the unit button for three second. Warning The edges of the condenser are sharp, therefore use adequate protection for hands and arms when cleaning the condenser.

9. CARE AND CLEANING23

If you notice malfunctions in your appliance, use this guide before calling for service: this guide can help you personally resolve the problem or could provide important information to be conveyed to the service technician to ensure rapid and eective repair. Display message and audible alarms. A malfunction is usually indicated by the display. Problems that cannot be solved by the user are reported through a fault code. Keep in mind, however, that in messages or alarms they may appear for particular conditions of use or during start-up. In these cases, deactivate the audible alarm by pressing the Alarm button and leave the appliance running and limit the opening of the doors to the maximum for about 10-12 hours. The refrigerator does not work. Is the appliance connected to the electrical power supply? Is electrical power available at the electricity socket? Is the Unit button activated? Is the unit in ‘Demo’ Mode? The refrigerator is warmer than usual. Does the display show a malfunction code? Is the temperature adjusted correctly? Were the doors or drawers open for a long period of time? Were large quantities of food recently inserted? Is the unit in ‘Demo’ Mode? The appliance remains in function for a long time period. Bear in mind that during very hot weather and with very high temperatures in the room it is normal that the compressor remains on for prolonged periods of time. Were the doors or drawers open for a long period of time? Were large quantities of food recently inserted? Check that the doors are closed and that the food or containers do not obstruct the perfect closure of the door. Is one or more compartments in Shopping Mode? If you hear unusual noises. It is normal to hear noises from the ventilators or compressors during operation or during the defrost phase. Noise could be more marked depending on the position of the appliance and the surrounding environment.

10. TROUBLESHOOTING GUIDE

Condensation inside and outside of the refrigerator. If the climate is very humid, the formation of condensation is normal. Opening the door or draw- ers for prolonged periods of time can contribute to the formation of condensation. In any case, make sure that the doors are always completely closed. Ice or frost build up inside the refrigerator. Did you leave the doors open for a long period of time? Do the doors close completely? If the doors do not close completely, contact your installer. Unpleasant odors inside the refrigerator. Clean the appliance completely according to the instructions. Hermetically cover all the food. Do not conserve food for prolonged periods of time. The doors are dicult to open. The appliance is designed to ensure a fully hermetic closure. When the door is closed, a vacuum condition can occur: in this case it is necessary to wait a few seconds until the pressure balances before opening the door. Appliance is cooling but lights and display are not working. Check to see if the appliance was accidently placed into Sabbath Mode. If the unit you purchased was used as a showroom model it may be in a special en- ergy-saving mode called Demo Mode where the appliance appears to be operating (lights work and false temperatures are displayed) but no cooling actually takes place. If you suspect your appliance is in Demo Mode please contact your dealer or distributor for assistance with disabling this feature.24 > In case of errors, touch the button Alarm and the display will show the error message with its error number code. > The message will be shown for 3 seconds, then it will go back to the home screen. > For blocking the message on the screen, press on the display, the button info ( ). The message will be on the screen for 30 seconds, then it will go back to the home screen. > In the case there is more than one error message, the dispay will show in time sequence the dierent error messages.

10.2 Malfunction messages appearing on the display

Display message Malfunction description Power Failure!! Prolonged interruption of electrical power the appliance resumes work automatically, the display shows the warmest temperatures achieved. Door Fridge OPEN Fridge door open the message appears after few minutes from the door opening. Fridge too warm Fridge too warm see Troubleshooting Guide. Fridge too cold Fridge too cold wait for 12 hours: if malfunction persists call Customer Care for advice. Error Code... Functional problems call Customer Care who may help you to salve the problem or put you in contact with the nearest Service Agent may help you solve the problem. Check condenser Check Condenser Every 6 months the display shows the message “Check Cond”, clean the condenser and follow the instructions above about how to clean the condenser. Vuoi attivarela modalità COOLER BOTTIGLIE? Sì No

Please kindly register on our web site www.bertaz- zoni.com to validate your new product warranty and help us to assist you better in case of any in- convenience.

TWO YEAR LIMITED WARRANTY

The warranties provided by Bertazzoni Spa in this statement apply exclusively to Bertazzoni appli- ances and accessories sold as new products to the original owner by a Bertazzoni authorized distribu- tor, retailer, dealer or service center and installed in the United States and Canada. The warranties provided in this statement are not transferable and have validity from the date of installation. COVERAGE INFORMATION Bertazzoni SpA will repair or replace any compo- nent part which fails or proves defective due to materials and/or workmanship within 2 years from the date of installation and under conditions of normal residential use. Repair or replacement will be free of charge, including labor at standard rates and shipping expenses. Repair service must be per- formed by a Bertazzoni Authorized Service Center during normal working hours. FIVE YEAR PARTS AND LABOR WARRANTY FOR SEALED SYSTEM After year 2 through year 5, Bertazzoni provides parts & labor coverage for sealed system interven- tions only. COSMETIC WARRANTY Bertazzoni will cover parts showing cosmetic de- fects in material and workmanship for a period of thirty (30) days from date of installation of the unit. This coverage will include scratches, stains, surface imperfections on stainless steel, paint and porce- lain, with the exclusion of slight dierences in color due to materials and painting/enamelling technolo- gies. Exclusions are labor costs, B stock items, out-of-box appliances and display units.

HOW TO OBTAIN SERVICE

To obtain warranty service please contact Bertaz- zoni Customer Service at the contact information below and make sure to provide model number, se- rial number and date of purchase. Failure to provide complete product data and homeowner contact information may result in delayed service.

in the US http://us.bertazzoni.com/care-service in Canada https://ca.bertazzoni.com/more/support Phone: United States 866 905 0010 – Canada 800 361 0799 Save proof of original purchase or of original instal- lation to establish warranty period. Copy of the product serial tag is axed to the back cover of the instruction manual.

1. The product used in any commercial/business

2. Repair service provided by other than a Bertaz-

zoni authorized service agent.

3. Damage or repair service to correct service

provided by an unauthorized agency or the use of unauthorized parts.

4. Installation not in accordance with local electrical

codes or plumbing codes.

5. Defects or damage due to improper storage of

6. Defects or damage or missing parts on products

sold out of the original factory packaging or from displays.

7. Service calls or repairs to correct the installation

of the product and/or related accessories.

8. Service calls to connect, convert or otherwise

repair the electrical wiring / gas line / water line to properly use the product.

9. Service calls to provide instructions on the use of

a Bertazzoni product.

10. Repair service due to product usage in manner

other than what is normal and customary for home use. 11.Replacement of wear and tear parts

12. Replacement of glasses and light bulbs if they

are claimed to have failed later than 30 days after installation and in no case later than 4 months after date of purchase.

13. Defects and damages arising from accident,

alteration, misuse, abuse, improper installation.

14. Defects and damages arising from transporta-

tion of the product to the home of the owner.

15. Defects and damage arising from external

forces beyond the control of Bertazzoni SpA such as fire, flood, earthquakes and other acts of God. In case the product will be installed in a remote area, where certified trained technicians are not reasonably available, the customer will be re- sponsible for the transportation costs for the delivery of the product to the nearest authorized26

service center or for the displacement costs of a certified trained technician. Bertazzoni does not assume any responsibility for incidental or consequential damages. Some states do not allow the exclusion or limita- tion of incidental or consequential damages, so the above limitation or exclusion may not apply to you. This warranty gives you specific legal rights and you may also have other rights which may vary from state to state or province to province.1
