Gebruiksaanwijzing Register your product on My Siemens and discover exclusive services and offers. siemens-home.bsh-group.com/welcome The future moving in. Siemens Home AppliancesA

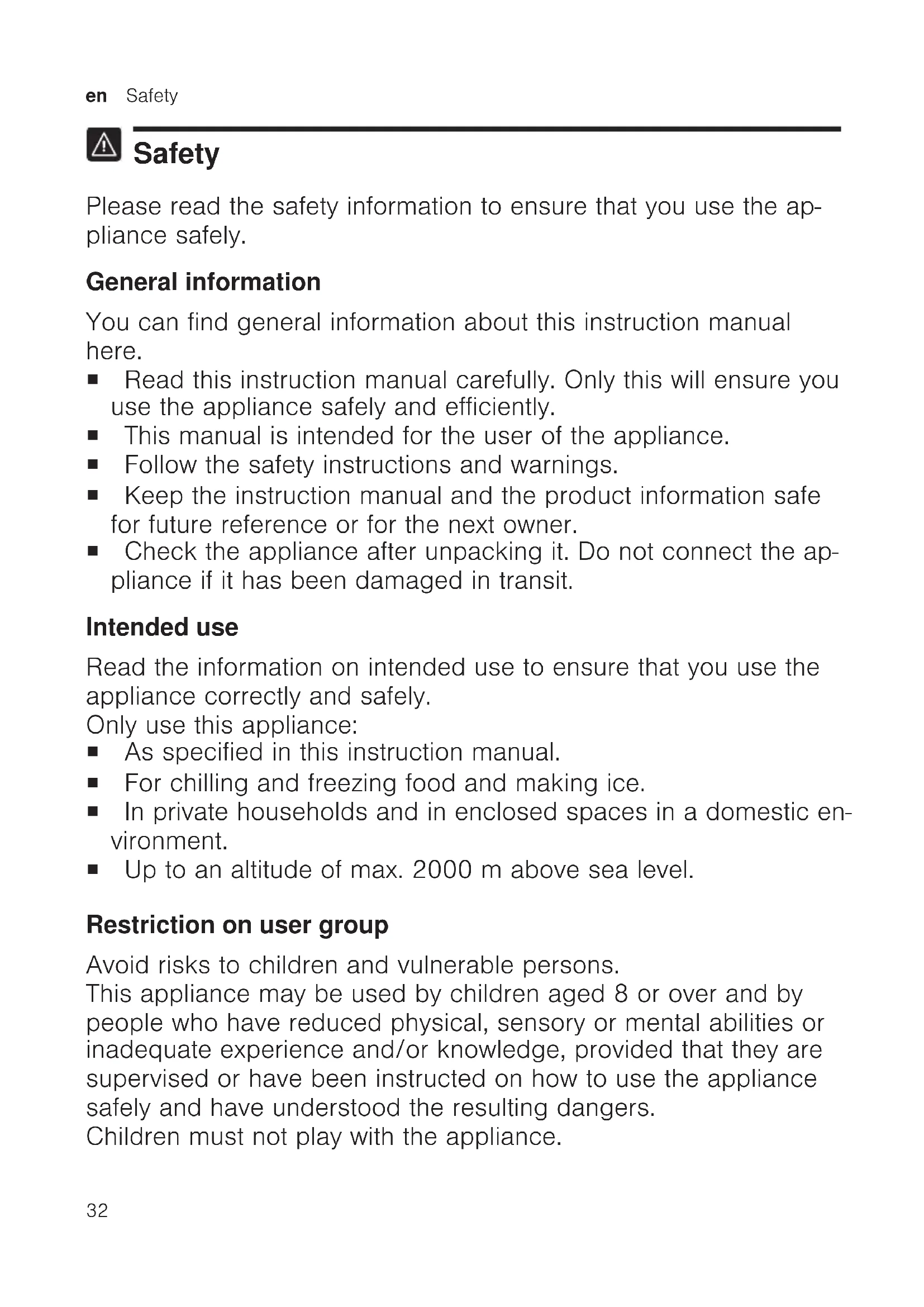

Safety Please read the safety information to ensure that you use the ap- pliance safely. General information You can find general information about this instruction manual here. ¡ Read this instruction manual carefully. Only this will ensure you use the appliance safely and efficiently. ¡ This manual is intended for the user of the appliance. ¡ Follow the safety instructions and warnings. ¡ Keep the instruction manual and the product information safe for future reference or for the next owner. ¡ Check the appliance after unpacking it. Do not connect the ap- pliance if it has been damaged in transit. Intended use Read the information on intended use to ensure that you use the appliance correctly and safely. Only use this appliance: ¡ As specified in this instruction manual. ¡ For chilling and freezing food and making ice. ¡ In private households and in enclosed spaces in a domestic en- vironment. ¡ Up to an altitude of max. 2000m above sea level. Restriction on user group Avoid risks to children and vulnerable persons. This appliance may be used by children aged 8 or over and by people who have reduced physical, sensory or mental abilities or inadequate experience and/or knowledge, provided that they are supervised or have been instructed on how to use the appliance safely and have understood the resulting dangers. Children must not play with the appliance.Safety en

Cleaning and user maintenance must not be performed by chil- dren unless they are being supervised. Keep children under the age of 8 years away from the appliance and power cable. Children above the age of three years old and younger than eight years old may load and unload the the fridge-freezer. Safe transport Follow these safety instructions when transporting the appliance. WARNING‒Risk of injury! The high weight of the appliance may result in injury when lif- ted.

Do not lift the appliance on your own. Safe installation Follow these safety instructions when installing the appliance. WARNING‒Risk of electric shock! ¡ Improper installation is dangerous.

Connect and operate the appliance only in accordance with the specifications on the rating plate.

Connect the appliance to a power supply with alternating current only via a properly installed socket with earthing.

The protective conductor system of the domestic electrical installation must be properly installed.

When the appliance is installed, the mains plug of the power cord must be freely accessible. If free access is not possible, an all-pole isolating switch must be installed in the permanent electrical installation according to the installation regulations.

When installing the appliance, check that the power cable is not trapped or damaged.en Safety

¡ If the insulation of the power cord is damaged, this is danger- ous.

Never let the power cord come into contact with heat sources.

Never let the power cord come into contact with sharp points or edges.

Never kink, crush or modify the power cord. WARNING‒Risk of fire! ¡ It is dangerous to use an extended power cord and non-ap- proved adapters.

Do not use extension cables or multiple socket strips.

If the power cord is too short, contact Customer Service.

Only use adapters approved by the manufacturer. ¡ Portable multiple socket strips or portable power supply units may overheat and cause a fire.

Do not place portable multiple socket strips or power sup- ply units on the back of the appliance. Safe use Follow these safety instructions when using the appliance. WARNING‒Risk of electric shock! An ingress of moisture can cause an electric shock.

Only use the appliance in enclosed spaces.

Never expose the appliance to intense heat or humidity.

Do not use steam- or high-pressure cleaners to clean the appliance. WARNING‒Risk of suffocation! ¡ Children may put packaging material over their heads or wrap themselves up in it and suffocate.

Keep packaging material away from children.

Do not let children play with packaging material. ¡ Children may breathe in or swallow small parts, causing them to suffocate.

Keep small parts away from children.Safety en

Do not let children play with small parts. WARNING‒Risk of explosion! ¡ Mechanical devices or other devices may damage the refri- geration circuit; flammable refrigerant may escape and ex- plode.

To accelerate the defrosting process, do not use any other mechanical devices or devices other than those recommen- ded by the manufacturer. ¡ Products which contain flammable propellants and explosive substances may explode, e.g. spray cans.

Do not store products which contain flammable propellants (e.g. spray cans) or explosive substances in the appliance. WARNING‒Risk of fire! ¡ Electrical devices within the appliance may cause a fire, e.g. heaters or electric ice makers.

Do not operate electrical devices within the appliance. ¡ The vapours from flammable liquids may catch fire (explo- sion).

Store high-percentage alcohol tightly closed and standing up. WARNING‒Risk of injury! ¡ Containers that contain carbonated drinks may burst.

Do not store containers that contain carbonated drinks in the freezer compartment. ¡ Injury to the eyes caused by escaping flammable refrigerant and hazardous gases.

Do not damage the tubes of the refrigerant circuit or the in- sulation. WARNING‒Risk of cold burns! Contact with frozen food and cold surfaces may cause burns by refrigeration.

Never put frozen food straight from the freezer compartment into your mouth.en Safety

Avoid prolonged contact of skin with frozen food, ice and the tubes in the freezer compartment. CAUTION‒Risk of harm to health! To prevent food from being contaminated, you must observe the following instructions.

If the door is open for an extended period of time, this may lead to a considerable temperature increase in the compart- ments of the appliance.

Regularly clean the surfaces that may come into contact with food and accessible drain systems.

Store raw meat and fish in suitable containers in the refri- gerator so that they do not touch or drip on other food.

If the fridge/freezer is empty for an extended period of time, switch off the appliance, defrost it, clean it and leave the door open to prevent the formation of mould. Damaged appliance Follow the safety instructions if your appliance is damaged. WARNING‒Risk of electric shock! ¡ If the appliance or the power cord is damaged, this is danger- ous.

Never operate a damaged appliance.

Never operate an appliance with a cracked or fractured sur- face.

Repairs to the appliance should only be carried out by trained specialist staff. ¡ Improper repairs are dangerous.

Repairs to the appliance should only be carried out by trained specialist staff.

Only use genuine spare parts when repairing the appliance.

If the power cord of this appliance is damaged, it must be replaced by the manufacturer, the manufacturer's Customer Service or a similarly qualified person in order to prevent any risk.Safety en

WARNING‒Risk of fire! If the tubes are damaged, flammable refrigerant and harmful gases may escape and ignite.

Keep naked flames and ignition sources away from the ap- pliance.

Unplug the appliance from the mains or switch off the cir- cuit breaker in the fuse box.

Preventing material damage Preventing material dam- age Preventing material damage Follow these instructions to prevent material damage to your appliance, accessories or other objects in your kitchen. ATTENTION! ¡ Contamination with oil or fat may cause plastic parts and door seals to become porous.

Keep plastic parts and door seals free of oil and grease. ¡ Using the base, runners or appli- ance doors as a seat surface or climbing surface may damage the appliance.

Do not stand or support yourself on the base, runners or doors. Environmental protection and saving energy Environmental protection and saving energy Environmental protection and saving energy Help protect the environment by us- ing your appliance in a way that con- serves resources and by disposing of reusable materials properly. Disposing of packaging The packaging materials are environ- mentally compatible and can be re- cycled.

Sort the individual components by type and dispose of them separ- ately. Information about current disposal methods are available from your specialist dealer or local authority. Saving energy If you follow these instructions, your appliance will use less power. Selecting the installation location Follow these instructions when in- stalling your appliance. ¡ Keep the appliance out of direct sunlight. ¡ Install the appliance as far away as possible from heating ele- ments, cookers and other heat sources: – Maintain a 30mm clearance to electric or gas cookers. – Maintain a 30cm clearance to oil or solid-fuel cookers. The appliance needs to cool less frequently at low ambient temper- atures. ¡ Do not cover or block ventilation openings. ¡ Ventilate the room daily. The air on the back wall of the ap- pliance can escape more easily and the appliance does not warm up so intensely. The appliance must cool less fre- quently. Saving energy during use Follow these instructions when using your appliance. Note:The arrangement of the fittings does not affect the energy consump- tion of the appliance. ¡ Do not cover or block ventilation openings. The air on the back wall of the ap- pliance can escape more easily and the appliance does not warm up so intensely.Installation and connection en

¡ Open the appliance door only briefly. ¡ Transport purchased food in a cool bag and place in the appli- ance quickly. ¡ Allow warm food and drinks to cool down before placing them in the appliance. ¡ Thaw frozen food in the refriger- ator compartment to utilise the low temperature of the food. The air in the appliance does not warm up so intensely. The appliance must cool less fre- quently. ¡ Always leave some space between the food and to the back panel. ¡ Pack the food airtight. The air can circulate and the air humidity remains constant. ¡ Defrost the freezer compartment regularly. A frost-free freezer compartment is power-saving and cools the frozen food optimally. ¡ Only open the freezer compart- ment door briefly and then care- fully close it. A closed freezer compartment door protects the freezer compart- ment against severe icing. Installation and connection Installation and connec- tion Installation and connection Scope of delivery After unpacking all parts, check for any transport damage and check the completeness of the delivery. If you have any complaints, contact your dealer or our "after-sales ser- vice" →Page52. The delivery consists of the following: ¡ Built-under appliance ¡ Equipment and accessories

¡ Energy label ¡ Product data sheet ¡ Information on the energy con- sumption and noises Installing and connecting the appliance Requirement:"The scope of delivery of the appliance is checked."

1. "Observe the criteria for the appli-

ance's installation location."

2. Install the appliance according to

the enclosed installation instruc- tions.

3. "Prepare the appliance for first

4. "Electrically connect the appli-

Depending on the appliance specifications

Not in all countriesen Familiarising yourself with your appliance

Criteria for the installation location Follow these instructions when in- stalling your appliance. WARNING Risk of explosion! If the appliance is in a space that is too small, a leak in the refrigeration circuit may result in a flammable mix- ture of gas and air.

Only install the appliance in a space with a volume of at least

per 8g refrigerant. The volume of refrigerant is indicated on the rating plate. →Fig.

The weight of the appliance ex works may be up to 35kg depending on the model. The subfloor must be of sufficient sta- bility to bear the weight of the appli- ance. Permitted room temperature The permitted room temperature de- pends on the appliance's climate class. The climate class can be found on the rating plate. →Fig.

Climate class Permitted room temperat- ure SN 10°C to 32°C N 16°C to 32°C ST 16°C to 38°C T 16°C to 43°C The appliance is fully functional within the permitted room temperature. If an appliance with climate class SN is operated at colder room temperat- ures, the appliance will not be dam- aged up to a room temperature of 5°C. Built-under Attachment under certain worktops, e.g. stone, glass or stainless steel, is frequently not possible. You can or- der accessories from customer ser- vice for installation on the side walls.

• "Customer Service", Page52 Preparing the appliance for the first time

1. Remove the informative material.2. Remove the protective foil and

transit bolts, e.g. remove the ad- hesive strips and carton.

3. "Clean the appliance for the first

time." →Page47 Connecting the appliance to the electricity supply

1. Insert the mains plug of the appli-

ance's power cable in a socket nearby. The connection data of the appli- ance can be found on the rating plate. →Fig.

2. Check the mains plug is inserted

properly. a The appliance is now ready for use. Familiarising yourself with your appliance Familiarising yourself with your appliance Familiarising yourself with your appliance Familiarise yourself with the parts of your appliance. Appliance You can find an overview of the parts of your appliance here.

Freezer compartmentFeatures en

Refrigerator compartment

Fruit and vegetable container

Door storage compartment for large bottles Note:Deviations between your appli- ance and the diagrams may differ with regard to their features and size. Controls The controls are used to configure all functions of your appliance and to obtain information about the operat- ing status.

The main switch turns the appliance on or off.

switches Super freezing on or off.

Displays the set temperature for the refrigerator compartment in°C.

sets the temperature of the refri- gerator compartment. Features Features Features Here you can see an overview of the features of your appliance and their use. The features of your appliance de- pend on the model. Shelf To vary the shelves as required, re- move the shelf and re-insert it else- where.

• "Removing the shelf", Page48 Pull-out container Do not store animal-based food in the pull-out container. "You can take out the pull-out container for loading and unloading." →Page48 Fruit and vegetable container with cover Store fresh fruit and vegetables in the fruit and vegetable container. "Remove the fruit and vegetable con- tainer loading and unloading."

• Page48 Condensation may form in the fruit and vegetable container depending on the food and quantity stored. Remove the condensation with a dry cloth. To ensure that the quality and aroma are retained, store fruit and veget- ables that are sensitive to cold out- side of the appliance at temperatures of approx. 8°C to 12°C. Fruit that is sensitive to cold ¡ Pineapples ¡ Bananas ¡ Mangoes ¡ Papayas ¡ Citrus fruits Vegetables that are sensitive to cold ¡ Aubergines ¡ Gherkins ¡ Courgettes ¡ Peppers ¡ Tomatoes ¡ Potatoesen Basic operation

Door racks To adjust the door racks as required, remove the door rack and re-insert elsewhere.

• "Removing door racks", Page48 Accessories Only use original accessories. These have been made especially for your appliance. Here you can find an over- view of your appliance's accessories and how to use them. The accessories for your appliance depend on the model. Egg tray Store eggs safely on the egg tray. Bottle holder The bottle holder prevents bottles from falling over when the appliance door is opened and closed.

Ice cube tray Use the ice cube tray to make ice cubes. Making ice cubes

1. Fill the ice cube tray with water up

to ¾ and place in the freezer com- partment. If the ice cube tray is stuck to the freezer compartment, loosen with a blunt implement only (e.g. spoon handle).

2. To loosen the ice cubes, twist the

ice cube tray slightly or hold briefly under flowing water. Basic operation Basic operation Basic operation You can find out everything you need to know about operating your appli- ance here. Switching on the appliance

1. Switch on the appliance at the

a The appliance begins to cool. a The temperature display flashes until the appliance has reached the set temperature.

2. "Set the required temperature."

• Page42 Operating tips ¡ Once you have switched on the appliance, the set temperature is only reached after several hours. Do not put in any food in the appli- ance until the temperature is reached. Switching off the appliance

Switch off the appliance at the main switch. →Fig.

a The appliance stops cooling. Setting the temperature After you have switched on the appli- ance, you can set the temperature. Setting the refrigerator compartment temperature

Press repeatedly until the tem- perature display shows the re- quired temperature. The recommended temperature in the refrigerator compartment is 4°C.

• ""OK" sticker", Page44Additional functions en

Setting the freezer compartment temperature

In order to set the freezer compart- ment temperature, "change the re- frigerator compartment temperat- ure" →Page42. The refrigerator compartment tem- perature influences freezer com- partment temperature. Refrigerator compartment temperatures that are set to warm generate warmer freezer compartment temperatures. Additional functions Additional functions Additional functions Find out which additional functions which can be used for your appli- ance. Super freezing Super freezing cools the freezer com- partment as cold as possible. This freezes food quickly right through to the centre. Switch on Super freezing four to sixhours before placing food weigh- ing 2kg or more into the freezer compartment. In order to utilise the freezer capacity, use Super freezing.

• "Prerequisites for freezing capa- city", Page45 Note:When Super freezing is switched on, increased noise may occur. Switching on Super freezing

Press . a lights up. Note:After approx. 48hours, the ap- pliance switches to normal operation. Switching off Super freezing

Press . Refrigerator compartment Refrigerator compartment Refrigerator compartment You can keep meat, sausage, fish, dairy products, eggs, ready meals and pastries in the refrigerator com- partment. You can set the temperature in the refrigerator compartment from 2°C to 8°C. The recommended temperature in the refrigerator compartment is 4°C.

• ""OK" sticker", Page44 The refrigerator compartment can also be used to store highly perish- able foods in the short to medium term. The lower the selected temper- ature, the longer the food remains fresh. Tips for storing food in the re- frigerator compartment Follow the tips if you store food in your refrigerator compartment. ¡ To ensure that the freshness and quality of the food is retained for longer, only store fresh and un- spoiled food. ¡ In the case of ready-made products and bottled goods, do not exceed the best-before date or use-by date specified by the manu- facturer. ¡ To retain aroma, colour and fresh- ness or to prevent taste transfer and discolouration of the plastic parts, store food well wrapped or covered. ¡ Leave warm food and beverages to cool down before placing them in the refrigerator compartment.en Freezer compartment

Chill zones in the refrigerator compartment The air circulation in the refrigerator compartment creates different chill zones. Coldest zone The coldest zone is in the pull-out container. Warmest zone The warmest zone is at the very top of the door. Tip:Store food that does not spoil easily in the warmest zone, e.g. hard cheese and butter. Cheese can then continue to release its aroma and the butter will still be easy to spread. "OK" sticker The "OK" sticker lets you check whether the refrigerator compartment reaches the safe temperature ranges of +4°C or colder recommended for food. The "OK" sticker is not included with all models. If the sticker does not indicate "OK", gradually reduce the temperature.

• "Setting the refrigerator compart- ment temperature", Page42 Once the appliance is switched on, it may take up to 12hours until the set temperature is reached. Correct setting Freezer compartment Freezer compartment Freezer compartment You can store frozen food, freeze food and make ice cubes in the freezer compartment. The temperature in the freezer com- partment depends on the temperat- ure in the refrigerator compartment. Long-term storage of food should be at –18°C or lower. The freezer compartment can be used to store perishable food long- term. The low temperatures slow down or stop the spoilage. The time between putting fresh food in the freezer compartment and it freezing solid depends on various factors: ¡ Set temperature ¡ Food (size and type) ¡ Quantity and type of storage ¡ Quantity and type of food already stored Freezer compartment door To ensure that the frozen food that is stored does not thaw and the freezer compartment is not covered in too much ice, always close the freezer compartment door. Note:When you close the freezer compartment door, you can hear it engaging. Freezing capacity The maximum freezing capacity indic- ates the quantity of food that can be frozen right through to the centre within a specific period of time. Information on the maximum freezing capacity can be found on the rating plate. →Fig.

5Freezer compartment en

Prerequisites for freezing capacity

When placing fresh food in the ap- pliance, switch on Super freezing.

• "Switching on Super freezing", Page43 Tips for buying frozen food Follow the tips when you are buying frozen food. ¡ Check the packaging is not dam- aged. ¡ Check the best-before date. ¡ The temperature in the supermar- ket freezer must be –18°C or lower. ¡ Do not interrupt the deep-freeze chain. If possible, transport frozen food in a cool bag and quickly place it in the freezer compart- ment. Tips for storing food in the freezer compartment Follow the tips if you are storing food in the freezer compartment. ¡ Spread out the food over a wide area in the freezer compartment. ¡ Do not bring food which is to be frozen into contact with frozen food. If necessary, redistribute frozen food in the freezer compartment. Tips for freezing fresh food Follow the tips when you freeze fresh food. ¡ Freeze fresh and undamaged food only. ¡ Cooked, roasted or baked food is more suitable for consumption than food that can be eaten raw. ¡ In order to retain the nutritional value, flavour and colour, you should prepare certain food for freezing. – Vegetables: Wash, chop up, blanch. – Fruit: Wash, pit and perhaps peel, possibly add sugar or ascorbic acid solution. Additional information on how to do this can be found in the relevant liter- ature. Food suitable for freezing ¡ Baked goods ¡ Fish and seafood ¡ Meat ¡ Poultry and game ¡ Vegetables, fruit and herbs ¡ Eggs without shells ¡ Dairy products, e.g. cheese, butter and quark ¡ Ready meals and leftovers, e.g. soups, stews, cooked meat and fish, potato dishes, bakes and desserts Food that is unsuitable for freezing ¡ Types of vegetables that are usu- ally eaten raw, e.g. lettuce or radishes ¡ Unpeeled or hard-boiled eggs ¡ Grapes ¡ Whole apples, pears and peaches ¡ Yoghurt, soured milk, sour cream, crème fraîche and mayonnaise Packing frozen food If you select suitable packaging ma- terial and the correct type of pack- aging, you can determine the product quality and prevent freezer burn.

1. Place the food in the packaging.

Suitable packaging: – Plastic film made of polyethyl- ene – Tubular film made of polyethyl- ene – Freezer bags made from poly- ethylene – Freezer containersen Defrosting

Unsuitable packaging: – Wrapping paper – Greaseproof paper – Cellophane – Aluminium foil – Rubbish bags and used shop- ping bags

2. Squeeze out the air.3. Pack food airtight to prevent it

from losing flavour and drying out. Suitable seals: – Rubber bands – Plastic clips – Cold-resistant adhesive tape

4. Label the packaging with the con-

tents and the date of freezing. Shelf life of frozen food at −18°C Observe the storage times when you freeze food. Food Storage time Fish, sausages, ready meals and baked goods Up to 6months Poultry, meat Up to 8months Vegetables, fruit Up to 12months Defrosting methods for frozen food To retain the best-possible product quality, the defrosting method must be adjusted to the food and applica- tion. CAUTION Risk of harm to health! During the thawing process, bacteria may develop and spoil the frozen food.

Do not refreeze food after it has been defrosted or started to de- frost.

Refreeze food only after cooking.

The frozen items should no longer be stored for the maximum stor- age period. Defrosting method Food Refrigerator com- partment Animal-based food such as fish, meat, cheese, quark Room temperature Bread Microwave Food for immediate con- sumption or immediate preparation Oven or cooker Food for immediate con- sumption or immediate preparation Defrosting Defrosting Defrosting Observe the information when you want to defrost your appliance. Defrosting in the refrigerator compartment When the appliance is operating, condensation droplets or frost form on the rear panel of the refrigerator compartment due to functional reas- ons. The back panel in the refriger- ator compartment defrosts automatic- ally. Condensation or frost run through the condensation channel into the drain- age hole to the evaporation pan and do not have to be wiped away. To ensure that the condensation can drain and odours do not form, ob- serve the following information:

• "Cleaning the condensation chan- nel and drainage hole", Page48.Cleaning and servicing en

Defrosting in the freezer com- partment As the frozen food must not start thawing, the freezer compartment does not defrost automatically. A layer of hoarfrost in the freezer com- partment impairs refrigeration of the frozen food and increases power consumption. Defrosting the freezer compartment Regularly defrost the freezer com- partment.

1. Switch on Super freezing approx.

fourhours before defrosting.

• "Switching on Super freezing", Page43 This means that the food reaches very low temperatures and it can be stored for longer at room tem- perature.

2. Remove the frozen food and tem-

porarily place it in a cool location. Place ice packs (if available) on the frozen food.

3. "Switch off the appliance."

4. Disconnect the appliance from the

power supply. Unplug the appliance from the mains or switch off the circuit breaker in the fuse box.

5. To accelerate the defrosting pro-

cess, place a pan of hot water on a trivet in the freezer compartment.

6. Wipe up the condensation water

with a soft cloth or sponge.

7. Rub the freezer compartment dry

with a soft, dry cloth.

8. Electrically connect the appliance.

9. "Switch on the appliance."

• Page42 10."Put the frozen food in the appli- ance." →Page45 Cleaning and servicing Cleaning and servicing Cleaning and servicing To keep your appliance working effi- ciently for a long time, it is important to clean and maintain it carefully. Customer Service must clean inac- cessible points. Cleaning by cus- tomer service can give rise to costs. Preparing the appliance for cleaning Find out how to prepare your appli- ance for cleaning.

1. "Switch off the appliance."

2. Disconnect the appliance from the

power supply. Unplug the appliance from the mains or switch off the circuit breaker in the fuse box.

3. Take out all of the food and store it

in a cool location. Place ice packs (if available) onto the food.

4. If there is a layer of hoarfrost, allow

5. "Remove all fittings from the appli-

ance." →Page48 Cleaning the appliance Clean the appliance as specified to ensure that it is not damaged by in- correct cleaning or unsuitable clean- ing products. WARNING Risk of electric shock! ¡ An ingress of moisture can cause an electric shock.

Do not use steam- or high-pres- sure cleaners to clean the appli- ance.en Cleaning and servicing

¡ Liquid in the lighting can be dan- gerous.

The rinsing water must not run into the light. ATTENTION! ¡ Unsuitable cleaning products may damage the surfaces of the appli- ance.

Do not use hard scouring pads or cleaning sponges.

Do not use harsh or abrasive detergents.

Do not use cleaning products with a high alcohol content. ¡ If you clean fittings and accessor- ies in the dishwasher, this may cause them to become deformed or discolour.

Never clean shelves or contain- ers in the dishwasher.

2. Clean the appliance, the fittings

and the door seals clean with a dish cloth, lukewarm water and a little pH-neutral washing-up liquid.

3. Dry thoroughly with a soft, dry

4. Insert the fittings.

5. Electrically connect the appliance.

6. "Switch on the appliance."

7. Putting the food into the appliance.

Cleaning the condensation channel and drainage hole Regularly clean the condensation channel and drainage hole to ensure that the condensation can drain.

1. Remove the pull-out container.

• "Removing pull-out containers", Page48

2. Carefully clean the condensation

cleaning. ‒ To do this, depress the clips in the ventilation openings and simultaneously remove the vent- ilation grille forwards.

2. Clean the ventilation grille with

lukewarm soapy water and a dish cloth.

3. Let the ventilation grille dry com-

pletely and insert it. Removing the fittings If you want to clean the fittings thor- oughly, remove these from your ap- pliance. Removing the shelf

Lift the shelf, pull it out, lower it and swing it out to the side.

Lift the door rack upwards and re- move it.

Removing pull-out containers

Lift the container and pull it out.

Remove the fruit and vegetable container with the lid

1. Lift the container with the lid.

2. Remove the container to the front.

• Fig. 9Troubleshooting en

Troubleshooting Troubleshooting Troubleshooting You can rectify minor faults on your appliance yourself. Read the troubleshoot- ing information before contacting after-sales service. This will avoid unneces- sary costs. WARNING Risk of electric shock! Improper repairs are dangerous.

Repairs to the appliance should only be carried out by trained specialist staff.

Only use genuine spare parts when repairing the appliance.

If the power cord of this appliance is damaged, it must be replaced by the manufacturer, the manufacturer's Customer Service or a similarly qualified person in order to prevent any risk. Malfunctions Fault Cause troubleshooting The appliance is not work- ing. No displays light up. The mains plug has not been inserted properly.

Connect the mains plug. Fuse has been tripped.

Check the fuses. The power has failed. 1. Check whether the power is on.

2. Place ice packs (if available) on the

frozen food. The LED lighting does not work. The illuminant is defective. 1. "Switch off the appliance."

2. Disconnect the appliance from the

mains. Unplug the appliance from the mains or switch off the circuit breaker in the fuse box.

3. Slide the cover grille forwards and

Replacement illuminant: 220–240 V AC, E14 bulb holder, see the de- fective illuminant'ss wattage.

The light switch is jammed.

Fault Cause troubleshooting The refrigeration unit is switching on more fre- quently and for longer. The appliance door was opened frequently.

Do not open appliance door unne- cessarily. The ventilation openings are covered up.

Remove any obstructions from in front of the ventilation openings. The base of the refrigerator compartment is wet. The condensation channel or drainage hole are blocked.

"Clean the condensation channel and the drainage hole." →Page48 Temperature problem Fault Cause troubleshooting The temperature differs greatly from the setting. Different causes are pos- sible.

1. "Switch off the appliance."

2. "Switch the appliance back on after

fiveminutes." →Page42 ‒ If the temperature is too warm, check the temperature again after a couple of hours. ‒ If the temperature is too cold, check the temperature again on the following day. Noise Fault Cause troubleshooting Appliance has a humming sound. Not a fault. A motor is run- ning, e.g. refrigerating unit, fan. No action required. The appliance bubbles, buzzes or gargles. Not a fault. Refrigerant flows through the pipes. No action required. The appliance clicks. Not a fault. Motor, switches or solenoid valves are switching on or off. No action required. The appliance makes noises. The appliance is not level.

Align the appliance using a spirit level. If required, place something underneath it. Fittings wobble or stick.

Check the removable fittings and, if required, replace these. Bottles or containers are touching.

Move the bottles or containers away from each other. Super freezing is switched on. No action required.Troubleshooting en

Odours Fault Cause troubleshooting The appliance has an un- pleasant smell. Different causes are pos- sible.

3. Clean all food packaging.

4. To prevent odours from forming,

store strong smelling food in air- tight containers.

5. After 24hours, check whether

odours are still forming.en Storage and disposal

Storage and disposal Storage and disposal Storage and disposal You can find out here how to prepare your appliance for storage. You will also find out how to dispose of old appliances. Switching off the appliance

1. "Switch off the appliance."

2. Disconnect the appliance from the

power supply. Unplug the appliance from the mains or switch off the circuit breaker in the fuse box.

5. Leave the appliance door open.

Disposing of old appliance Valuable raw materials can be re- used by recycling. WARNING Risk of harm to health! Children can lock themselves in the appliance, thereby putting their lives at risk.

Leave shelves and containers in- side the appliance to prevent chil- dren from climbing in.

Keep children away from the re- dundant appliance. WARNING Risk of fire! If the tubes are damaged, flammable refrigerant and harmful gases may escape and ignite.

Do not damage the tubes of the re- frigerant circuit or the insulation.

Dispose of the appliance in an en- vironmentally friendly manner. This appliance is labelled in ac- cordance with European Direct- ive 2012/19/EU concerning used electrical and electronic appliances (waste electrical and electronic equipment - WEEE). The guideline determines the framework for the return and re- cycling of used appliances as applicable throughout the EU. Customer Service Customer Service Customer Service If you have any queries, are unable to rectify faults on the appliance your- self or if your appliance needs to be repaired, contact Customer Service. You can solve many problems your- self by consulting the information on troubleshooting in these instructions or on our website. If this is not the case, contact our after-sales service. We will always find an appropriate solution and try to avoid unnecessary visits being made by a Customer Ser- vice technician. With any warranty claims, we will make sure that your appliance is re- paired by trained after-sales techni- cians using genuine spare parts, in- cluding after the manufacturer's war- ranty has expired. For safety reasons repairs to the ap- pliance should only be carried out by trained specialist staff. The warranty claim becomes void if repairs or in- terventions have been carried out by persons not authorised by us for that purpose or if our appliances have been fitted with spare, supplementary or accessory parts that were not genuine parts and then resulted in a defect. Function-relevant genuine spare parts according to the corresponding Eco- design Order can be obtained from Customer Service for a period of atTechnical data en

least 10 years from the date on which your appliance was placed on the market within the European Eco- nomic Area. Note:Under the terms of the manu- facturer's warranty applicable to the location, the use of Customer Service is free of charge. The minimum dura- tion of the warranty (manufacturer's warranty for private consumers) in the European Economic Area is 2 years according to the terms of war- ranty applicable to the location. The terms of warranty do not affect other rights or claims held by yourself un- der local legislation. Detailed information on the warranty period and terms of warranty in your country is available from our after- sales service, your retailer or on our website. If you contact Customer Service, you will require the product number (E- Nr.) and the production number (FD) of your appliance. The contact details for Customer Ser- vice can be found in the enclosed Customer Service directory or on our website. Product number (E-Nr.) and production number (FD) You can find the product number (E- Nr.) and the production number (FD) on the appliance's rating plate.

Make a note of your appliance's de- tails and the Customer Service tele- phone number to find them again quickly. Technical data Technical data Technical data Refrigerant, cubic capacity and fur- ther technical specifications can be found on the rating plate.

More information about your model can be found online at https://en- ergylabel.bsh-group.com

. This web address is linked to the official EU EPREL product database. At the time of printing its web address had not yet been published. Please then fol- low the instructions on searching for models. The model identifier is made up of the characters before the slash in the product number (E-Nr.) on the rating plate. Alternatively you can also find the model identifier in the first line of the EU energy label.

Only applies to countries in the European Economic Areafr

Compartiment congélation
