USER MANUAL XR50X94S SONY

EU.book Page 1 Monday, October 31, 2022 7:35 PMD:\LIFA\@ Jobs\SAFETY\SY22_SAFETY_CEP_121\01GB_manual\5037611121_01GB.fm master page: Left Safety and Other Information 5-037-611-12(1)

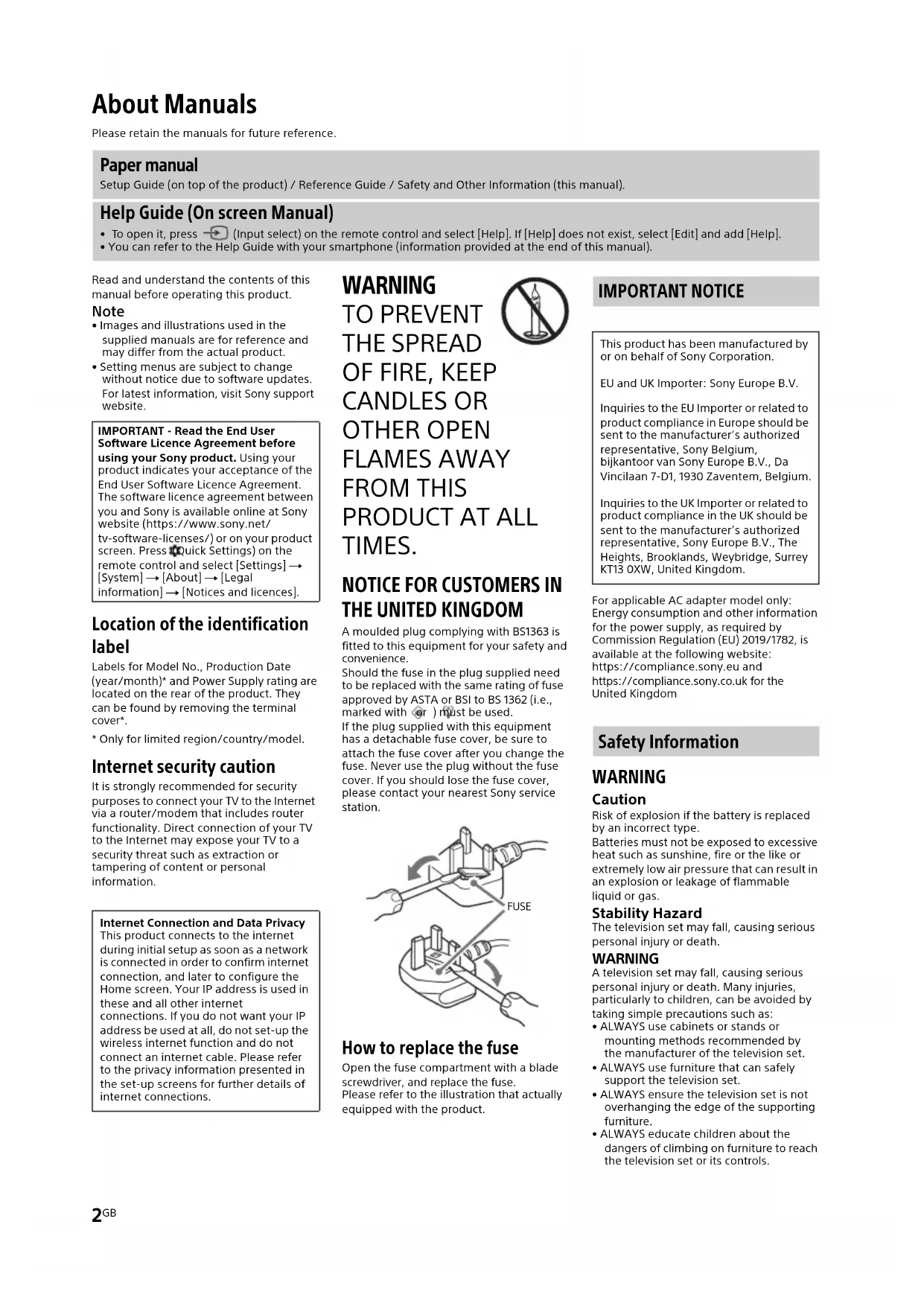

Read and understand the contents of this manual before operating this product. Note

• Images and illustrations used in the supplied manuals are for reference and may differ from the actual product.• Setting menus are subject to change without notice due to software updates.For latest information, visit Sony support website. Location of the identification label Labels for Model No., Production Date (year/month)* and Power Supply rating are located on the rear of the product. They can be found by removing the terminal cover*.* Only for limited region/country/model. Internet security caution It is strongly recommended for security purposes to connect your TV to the Internet via a router/modem that includes router functionality. Direct connection of your TV to the Internet may expose your TV to a security threat such as extraction or tampering of content or personal information. WARNING TO PREVENT THE SPREAD

A moulded plug complying with BS1363 is fitted to this equipment for your safety and convenience.Should the fuse in the plug supplied need to be replaced with the same rating of fuse approved by ASTA or BSI to BS 1362 (i.e., marked with or ) must be used.If the plug supplied with this equipment has a detachable fuse cover, be sure to attach the fuse cover after you change the fuse. Never use the plug without the fuse cover. If you should lose the fuse cover, please contact your nearest Sony service station. How to replace the fuse Open the fuse compartment with a blade screwdriver, and replace the fuse.Please refer to the illustration that actually equipped with the product. IMPORTANT NOTICE For applicable AC adapter model only:Energy consumption and other information for the power supply, as required by Commission Regulation (EU) 2019/1782, is available at the following website: https://compliance.sony.eu andhttps://compliance.sony.co.uk for the United Kingdom Safety Information WARNING CautionRisk of explosion if the battery is replaced by an incorrect type.Batteries must not be exposed to excessive heat such as sunshine, fire or the like or extremely low air pressure that can result in an explosion or leakage of flammable liquid or gas.Stability HazardThe television set may fall, causing serious personal injury or death.WARNINGA television set may fall, causing serious personal injury or death. Many injuries, particularly to children, can be avoided by taking simple precautions such as:• ALWAYS use cabinets or stands or mounting methods recommended by the manufacturer of the television set.• ALWAYS use furniture that can safely support the television set.• ALWAYS ensure the television set is not overhanging the edge of the supporting furniture.• ALWAYS educate children about the dangers of climbing on furniture to reach the television set or its controls. About Manuals Please retain the manuals for future reference. Paper manual Setup Guide (on top of the product) / Reference Guide / Safety and Other Information (this manual). Help Guide (On screen Manual)

• To open it, press (Input select) on the remote control and select [Help]. If [Help] does not exist, select [Edit] and add [Help].
• You can refer to the Help Guide with your smartphone (information provided at the end of this manual).IMPORTANT - Read the End User Software Licence Agreement before using your Sony product. Using your product indicates your acceptance of the End User Software Licence Agreement. The software licence agreement between you and Sony is available online at Sony website (https://www.sony.net/tv-software-licenses/) or on your product screen. Press (Quick Settings) on the remote control and select [Settings] t [System] t [About] t [Legal information] t [Notices and licences].Internet Connection and Data PrivacyThis product connects to the internet during initial setup as soon as a network is connected in order to confirm internet connection, and later to configure the Home screen. Your IP address is used in these and all other internet connections. If you do not want your IP address be used at all, do not set-up the wireless internet function and do not connect an internet cable. Please refer to the privacy information presented in the set-up screens for further details of internet connections. FUSE This product has been manufactured by or on behalf of Sony Corporation.EU and UK Importer: Sony Europe B.V.Inquiries to the EU Importer or related to product compliance in Europe should be sent to the manufacturer’s authorized representative, Sony Belgium, bijkantoor van Sony Europe B.V., Da Vincilaan 7-D1, 1930 Zaventem, Belgium.Inquiries to the UK Importer or related to product compliance in the UK should be sent to the manufacturer’s authorized representative, Sony Europe B.V., The Heights, Brooklands, Weybridge, Surrey KT13 0XW, United Kingdom. EU.book Page 2 Monday, October 31, 2022 7:35 PMD:\LIFA\@ Jobs\SAFETY\SY22_SAFETY_CEP_121\01GB_manual\5037611121_01GB.fm master page: Right

• ALWAYS route cords and cables connected to your television so they cannot be tripped over, pulled or grabbed.

• A LWAYS keep small accessories out of the reach of children, so that they are not mistakenly swallowed.

• NEVER place a television set in an unstable location.

• NEVER place the television set on tall furniture (for example, cupboards or bookcases) without anchoring both the furniture and the television set to a suitable support.

• NEVER place the television set on cloth or other materials that may be located between the television set and supporting furniture.

• NEVER place items that might tempt children to climb, such as toys and remote controls, on the top of the television or furniture on which the television is placed. If your existing television set is being retained and relocated, the same considerations as above should be applied. Installation/Set-up* Install and use the TV set in accordance with the instructions below in order to avoid any risk of fire, electric shock or damage and/or injuries. Apparatus connected to the protective earthing of the building installation through the mains connection or through other apparatus with a connection to protective earthing – and to a television distribution system using coaxial cable, may in some circumstances create a fire hazard. Connection to a television distribution system therefore has to be provided through a device providing electrical isolation below a certain frequency range (galvanic isolator, see EN 60728-11). Installation

• The TV set should be installed near an easily accessible mains socket.

• Place the TV set on a stable, level surface to prevent it from falling over and causing personal injury or property damage.

• Install the TV where it cannot be pulled, pushed, or knocked over.

• Install the TV so that the TV’s Table-Top Stand does not protrude out from the TV stand (not supplied). If the Table-Top Stand protrudes out from the TV stand, it may cause TV set to topple over, fall down, and cause personal injury or damage to the TV. Refer to Setup Guide on stand installation caution. Ventilation

• Never cover the ventilation holes or insert anything into the cabinet.

• Leave space around the TV set as shown below.

• It is strongly recommended that you use a Sony Wall-Mount Bracket in order to provide adequate air circulation. Installed on the wall Installed with stand *2 1 cm for SU-WL8xx only. Refer Reference Guide to know whether your TV is compatible with this Wall-Mount Bracket.

• To ensure proper ventilation and prevent the collection of dirt or dust: Do not lay the TV set flat, install upside down, backwards, or sideways. Do not place the TV set on a shelf, rug, bed or in a closet. Do not cover the TV set with a cloth, such as curtains, or items such as newspapers, etc. Do not install the TV set as shown below.

• The ventilation condition is depending on your TV model. If this ventilation information is described in both Reference Guide and Safety Information, please refer to the Reference Guide. Mains lead Handle the mains lead and socket as follows in order to avoid any risk of fire, electric shock or damage and/or injuries:

• Use only mains leads supplied by Sony, not other suppliers.

• Insert the plug fully into the mains socket.

• Operate the TV set on a 220 V – 240 V AC supply only.

• When wiring cables, be sure to unplug the mains lead for your safety and take care not to catch your feet on the cables.

• Disconnect the mains lead from the mains socket before working on or moving the TV set.

• Keep the mains lead away from heat sources.

• Unplug the mains plug and clean it regularly. If the plug is covered with dust and it picks up moisture, its insulation may deteriorate, which could result in a fire. Note

• Do not use the supplied mains lead on any other equipment.

• Do not pinch, bend, or twist the mains lead excessively. The core conductors may be exposed or broken.

• Do not modify the mains lead.

• Do not put anything heavy on the mains lead.

• Do not pull on the mains lead itself when disconnecting the mains lead.

• Do not connect too many appliances to the same mains socket.

• Do not use a poor fitting mains socket.

NOTE ON MAINS ADAPTOR

(models with supplied mains adaptor only) Warning To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture. To prevent fire or shock hazard, do not place objects filled with liquids, such as vases, on the apparatus. Do not install this equipment in a confined space, such as a bookshelf or similar unit.

• Please ensure that the mains socket is installed near the equipment and shall be easily accessible.

• Be sure to use the supplied mains adaptor and mains lead.

• Do not use any other mains adaptor. It may cause a malfunction.

• Connect the mains adaptor to an easily accessible mains socket.

• Do not coil the mains lead around the mains adaptor. The core wire may be cut and/or it may cause a malfunction of the media receiver.

• Do not touch the mains adaptor with wet hands.

• If you notice an abnormality in the mains adaptor, disconnect it from the mains socket immediately.

• The set is not disconnected from the mains source as long as it is connected to the mains socket, even if the set itself has been turned off.

• As the mains adaptor will become warm when it is used for a long time, you may feel hot when touching it by hand. 30 cm 10 cm 2 cm

10 cm 10 cm Leave at least this space around the set. 30 cm 10 cm 10 cm 6 cm Leave at least this space around the set. Air circulation is blocked. Wall Wall Air circulation Do not block the air circulation area. EU.book Page 3 Monday, October 31, 2022 7:35 PMD:\LIFA\@ Jobs\SAFETY\SY22_SAFETY_CEP_121\01GB_manual\5037611121_01GB.fm master page: Left Safety and Other Information 5-037-611-12(1)

Prohibited Usage Do not install/use the TV set in locations, environments or situations such as those listed below, or the TV set may malfunction and cause a fire, electric shock, damage and/or injuries. Locations:

• Outdoors (in direct sunlight), at the seashore, on a ship or other vessel, inside a vehicle, in medical institutions, unstable locations, near water, rain, moisture or smoke. Environments:

• Places that are hot, humid, or excessively dusty; where insects may enter; where it might be exposed to mechanical vibration, near the source of naked flame, such as lighted candle, which is placed on a TV. The TV set shall not be exposed to dripping or splashing and no objects filled with liquids, such as vases, shall be placed on the TV. Situations:

• Use when your hands are wet, with the cabinet removed, or with attachments not recommended by the manufacturer. Disconnect the TV set from mains socket and aerial during lightning storms.

• Install the TV so that it sticks out into an open space. Injury or damage from a person or object bumping into the TV may result.

• Place the TV in a humid or dusty space, or in a room with oily smoke or steam (near cooking tables or humidifiers). Fire, electric shock, or warping may result.

• Install the TV in places subject to extreme temperature such as in direct sunlight, near a radiator or a heating vent. The TV may overheat in such condition which can cause deformation of the enclosure and/or TV malfunction.

• If the TV is placed in the changing room of a public bath or hot spring, the TV may be damaged by airborne sulfur, etc.

• For best picture quality, do not expose the screen to direct illumination or sunlight.

• Avoid moving the TV from a cold area to a warm area. Sudden room temperature changes may cause moisture condensation. This may cause the TV to show poor picture and/or poor colour. Should this occur, allow moisture to evaporate completely before powering the TV on. Broken pieces:

• Do not throw anything at the TV set. The screen glass may break by the impact and cause serious injury.

• If the surface of the TV set cracks, do not touch it until you have unplugged the mains lead. Otherwise this may cause an electric shock. When not in use

• If you will not be using the TV set for several days, the TV set should be disconnected from the mains for environmental and safety reasons.

• As the TV set is not disconnected from the mains when the TV set is just turned off, pull the plug from the mains socket to disconnect the TV set completely.

• Some TV sets may have features that require the TV set to be left in standby/ networked standby to work correctly. If the following problems occur... Turn off the TV set and unplug the mains lead immediately if any of the following problems occur. Ask your dealer or Sony service centre to have it checked by qualified service personnel. When:

• Mains lead is damaged.

• Poor fitting of mains socket.

• TV set is damaged by being dropped, hit or having something thrown at it.

• Any liquid or solid object falls through openings in the cabinet. About TV Temperature When the TV is used for an extended period, the panel surrounds become warm. You may feel hot when touching there by the hand. Do not place this product close to medical devices This product (including accessories) has magnet(s) which may interfere with pacemakers, programmable shunt valves for hydrocephalus treatment, or other medical devices. Do not place this product close to persons who use such medical devices. Consult your doctor before using this product if you use any such medical device. Keep out of the reach of children or the supervised individuals This product (including accessories) has magnet(s). Swallowing magnet(s) could cause serious harm, such as choking hazard or intestinal injuries. If magnets (or a magnet) were swallowed, consult a doctor immediately. Magnetic influence This product (including accessories such as covers) uses magnets. Do not place magnetically sensitive objects (cash cards, credit cards with magnetic coding, etc.) near this product. Precautions Viewing the TV

• View the TV in moderate light, as viewing the TV in poor light or during long period of time, strains your eyes.

• When using headphones, adjust the volume so as to avoid excessive levels, as hearing damage may result. Screen (For LCD TV only):

• Although the screen is made with high-precision technology and 99.99 % or more of the pixels are effective, black dots may appear or bright points of light (red, blue, or green) may appear constantly on the screen. This is a structural property of the screen and is not a malfunction.

• Do not push or scratch the front filter, or place objects on top of this TV set. The image may be uneven or the screen may be damaged.

• If this TV set is used in a cold place, a smear may occur in the picture or the picture may become dark. This does not indicate a failure. These phenomena disappear as the temperature rises.

• Ghosting may occur when still pictures are displayed continuously. It may disappear after a few moments.

• The screen and cabinet get warm when this TV set is in use. This is not a malfunction.

• The screen contains a small amount of liquid crystal. Follow your local ordinances and regulations for disposal. OLED Screen (For OLED TV only):

• Although the OLED screen is made with high-precision technology and 99.99 % or more of the pixels are effective, black dots may appear or bright points of light (white, red, blue, or green) may appear constantly on the OLED screen. This is a structural property of the OLED screen and is not a malfunction.

• Do not push or scratch the front filter, or place objects on top of this TV set. The image may be uneven or the OLED screen may be damaged.

• The screen and cabinet get warm when this TV set is in use. This is not a malfunction.

• When disposing of your TV, be sure to follow your local laws and regulations. Handling and cleaning the screen surface/cabinet of the TV set EU.book Page 4 Monday, October 31, 2022 7:35 PMD:\LIFA\@ Jobs\SAFETY\SY22_SAFETY_CEP_121\01GB_manual\5037611121_01GB.fm master page: Right

• To remove dust from the screen surface/ cabinet, wipe gently with a soft cloth. If dust is persistent, wipe with a soft cloth slightly moistened with a diluted mild detergent solution.

• Never spray water or detergent directly on the TV set. It may drip to the bottom of the screen or exterior parts and enter the TV set, and may cause damage to the TV set. Optional Equipment

• Keep optional components or any equipment emitting electromagnetic radiation away from the TV set. Otherwise picture distortion and/or noisy sound may occur.

• This equipment has been tested and found to comply with the limits set out in the EMC Standards using a connection signal cable shorter than 3 meters.

• This equipment has been tested and found to comply with the limits set out in the EMC Standards using a RF cable shorter than 30 meters for terrestrial/ satellite/CATV terminal. Recommendation of F type plug* Projection of the inner wire from the connection part must be less than 1.5 mm. (Reference drawing of the F type plug)

• Only for limited region/country/model. Wireless Function of the unit

• Do not operate this unit near medical equipment (pacemaker, etc.), as this may result in the malfunction of the medical equipment.

• Although this unit transmits/receives scrambled signals, be careful of unauthorised interception. We cannot be responsible for any trouble as a result.

• This equipment should be installed and operated keeping a separation distance of 20 cm or more between the antenna of this device and a person’s body. Caution about handling the remote control Do not use different types of batteries together or mix old and new batteries.

• Dispose of batteries in an environmentally friendly way. Certain regions may regulate the disposal of batteries. Please consult your local authority. The remote control of this product contains silver phosphate glass*, a biocidal product with active substance which controls the growth of micro-organisms on the product surface. This additive is listed in Article 95 of the Biocidal Products Regulation (BPR). The remote control of this product does not contain nano-materials. This technology is not a substitute for good hygiene and/or cleaning practices. Do not spray disinfectant directly on the remote control.

• Only for limited region/country/model. CAM (Conditional Access Module)

• Do not remove the dummy card or cover (availability depends on TV model) from TV CAM (Conditional Access Module) slot other than to insert a smart card fitted in CAM. Disposal of the TV set Disposal of old electrical & electronic equipment (applicable in the European Union and other countries with separate collection systems) This symbol on the product or on its packaging indicates that this product shall not be treated as household waste. Instead it shall be handed over to the appropriate collection point for the recycling of electrical and electronic equipment. By ensuring that this product is disposed of correctly, you will help to prevent potential negative consequences for the environment and human health, which could be caused by inappropriate waste handling of this product. The recycling of materials will help to conserve natural resources. For more detailed information about recycling of this product, please contact your local Civic Office, your household waste disposal service or the shop where you purchased the product. Disposal of waste batteries (applicable in the European Union and other countries with separate collection systems) This symbol on the battery or on the packaging indicates that the battery provided with this product shall not be treated as household waste. On certain batteries this symbol might be used in combination with a chemical symbol. The chemical symbol for lead (Pb) is added if the battery contains more than 0.004 % lead. By ensuring that these batteries are disposed of correctly, you will help to prevent potentially negative consequences for the environment and human health which could be caused by inappropriate waste handling of the battery. The recycling of the materials will help to conserve natural resources. In case of products that for safety, performance or data integrity reasons require a permanent connection with an incorporated battery, this battery should be replaced by qualified service staff only. To ensure that the battery will be treated properly, hand over the product at end-of-life to the appropriate collection point for the recycling of electrical and electronic equipment. For all other batteries, please view the section on how to remove the battery from the product safely. Hand the battery over to the appropriate collection point for the recycling of waste batteries. For more detailed information about recycling of this battery, please contact your local Civic Office, your household waste disposal service or the shop where you purchased the product or battery. Notes on Digital TV function

• Digital TV (DVB terrestrial, satellite and cable), interactive services and network functions may not be available in all countries or areas. Some functions might not be enabled or might not operate correctly with some providers and network environments. Some TV service providers may charge a fee for their services.

• This TV supports digital broadcasting using MPEG-2, H.264/MPEG-4 AVC and H.265/HEVC codecs, but compatibility with all operator/service signals, which may change over time, cannot be guaranteed. Trademark Information

• The terms HDMI, HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.

• Dolby, Dolby Vision, Dolby Atmos, Dolby Audio, and the double-D symbol are trademarks of Dolby Laboratories Licensing Corporation. Manufactured under license from Dolby Laboratories. Confidential unpublished works. Copyright © 1992-2021 Dolby Laboratories. All rights reserved.

• Gracenote, the Gracenote logo and logotype, “Powered by Gracenote” logo are either registered trademarks or trademarks of Gracenote, Inc. in the United States and/or other countries.

• Google, Google TV and related logos are trademarks of Google LLC.

• For DTS patents, see http:// patents.dts.com. Manufactured under license from DTS, Inc. DTS, Digital Surround, and the DTS logo are registered trademarks or trademarks of DTS, Inc. in the United States and other countries. © 2020 DTS, Inc. ALL RIGHTS RESERVED.

• Netflix is a registered trademark of Netflix, Inc.

• DiSEqC™ is a trademark of EUTELSAT. This TV supports DiSEqC 1.0. This TV is not intended for controlling motorized antennas.

• TUXERA is a registered trademark of Tuxera Inc. in the US and other countries.

• All other trademarks are the property of their respective owners. 7 mm max.

EU.book Page 5 Monday, October 31, 2022 7:35 PMD:\LIFA\@ Jobs\SAFETY\SY22_SAFETY_CEP_121\01GB_manual\5037611121_01GB.fm master page: Left Safety and Other Information 5-037-611-12(1)

(not supplied) To Customers: For product protection and safety reasons, Sony strongly recommends that installation of your TV be performed by Sony dealers or licensed contractors. Do not attempt to install it yourself. To Sony Dealers and Contractors: Provide full attention to safety during the installation, periodic maintenance and examination of this product. Wall-Mount Bracket Installation Information For instructions on Wall-Mount Bracket installation, see the Installation Information (Wall-Mount Bracket) on the product page for your TV model.https://www.sony.eu/support• Follow the instruction guide provided with the Wall-Mount Bracket for your model. Sufficient expertise is required in installing this TV, especially to determine the strength of the wall for withstanding the TV’s weight.• Sony is not liable for any damage or injury caused by mishandling or improper installation.• Only qualified service personnel should carry out wall-mount installations.• For safety reasons, it is strongly recommended that you use Sony accessories*

• Be sure to use the screws supplied with the Wall-Mount Bracket or the TV (depending on the model) when attaching the Wall-Mount Bracket to the TV set. The supplied screws are designed as indicated by illustration* when measured from the attaching surface of the Wall-Mount Bracket. The diameter and length of the screws differ depending on the Wall-Mount Bracket model. Use of screws other than those supplied may result in internal damage to the TV set or cause it to fall, etc.• Be sure to store the unused screws and Table-Top Stand in a safe place until you are ready to attach the Table-Top Stand. Keep the screws away from small children.*1 Only for limited region/country/model.*2 Refer to Reference Guide for details. Troubleshooting The TV does not respond.
• Restart your TV by pressing the power button on the remote control for about five seconds, or unplug the mains lead then press the power button on the TV and release it. Wait for two minutes and plug in the mains lead. The parental lock password has been forgotten.
• Enter 9999 for the PIN and enter the new PIN. Visit Sony support website (information provided at the end of this manual). EU.book Page 6 Monday, October 31, 2022 7:35 PMEU.book Page 7 Monday, October 31, 2022 7:35 PMD:\LIFA\@ Jobs\SAFETY\SY22_SAFETY_CEP_121\02FR\5037611121_02FR.fm master page: Left Safety and Other Information 5-037-611-12(1)
