USER MANUAL DMP-BD77 PANASONIC

Model No. DMP-BD77 Basic Operating Instructions Blu-ray DiscTM Player Thank you for purchasing this product. For optimum performance and safety, please read these instructions carefully. Please keep this manual for future reference. Getting started More detailed instructions on the operation of this unit are contained in “Operating Instructions (PDF format)” in the supplied CD-ROM. Install it on your PC to read it. Reading the Operating Instructions (PDF format) ∫ For Windows

Turn the PC on and insert the CD-ROM containing the Operating Instructions (supplied). Select the desired language and then click [Operating Instructions] to install. Double click the “BD77EG Operating Instructions” shortcut icon on the desktop. When the Operating Instructions (PDF format) will not open You will need Adobe Acrobat Reader 5.0 or later or Adobe Reader 7.0 or later to browse or print the Operating Instructions (PDF format). Insert the CD-ROM containing the Operating Instructions (supplied), click [Adobe(R) Reader(R)] and then follow the messages on the screen to install. (Compatible OS: Windows XP SP3/Windows Vista SP2/ Windows 7) ≥ You can download and install a version of Adobe Reader that you can use with your OS from the following website. http://get.adobe.com/reader/otherversions To uninstall the Operating Instructions (PDF format) Delete the PDF file from the “Program Files\Panasonic\DMP\” folder. ≥ When the contents in the Program Files folder cannot be displayed, click the [Show the contents of this folder] to display them. Turn the PC on and insert the CD-ROM containing the Operating Instructions (supplied). Open the “Manual” folder in “VFF0881” and then copy the PDF file with the desired language inside the folder. Double click the PDF file to open it. Operating Instructions (PDF format) cannot be played back on the player itself.

Restriction on use of unauthorized copied content This unit adopts the following technology for copyright protection. Cinavia Notice This product uses Cinavia technology to limit the use of unauthorized copies of some commercially-produced film and videos and their soundtracks. When a prohibited use of an unauthorized copy is detected, a message will be displayed and playback or copying will be interrupted. More information about Cinavia technology is provided at the Cinavia Online Consumer Information Center at http://www.cinavia.com. To request additional information about Cinavia by mail, send a postcard with your mailing address to: Cinavia Consumer Information Center, P.O. Box 86851, San Diego, CA, 92138, USA. 3 ページ ２０１２年１月１８日 Safety precautions WARNING Unit To reduce the risk of fire, electric shock or product damage, ≥ Do not expose this unit to rain, moisture, dripping or splashing. ≥ Do not place objects filled with liquids, such as vases, on this unit. ≥ Use only the recommended accessories. ≥ Do not remove covers. ≥ Do not repair this unit by yourself. Refer servicing to qualified service personnel. ≥ Do not let metal objects fall inside this unit. ≥ Do not place heavy items on this unit. AC mains lead To reduce the risk of fire, electric shock or product damage, ≥ Ensure that the power supply voltage corresponds to the voltage printed on this unit. ≥ Insert the mains plug fully into the socket outlet. ≥ Do not pull, bend, or place heavy items on the lead. ≥ Do not handle the plug with wet hands. ≥ Hold onto the mains plug body when disconnecting the plug. ≥ Do not use a damaged mains plug or socket outlet. Install this unit so that the AC mains lead can be unplugged from the socket outlet immediately if any problem occurs. CAUTION Unit ≥ This unit utilizes a laser. Use of controls or adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure. ≥ Do not place sources of naked flames, such as lighted candles, on this unit. ≥ This unit may receive radio interference caused by mobile telephones during use. If such interference occurs, please increase separation between this unit and the mobile telephone. ≥ This unit is intended for use in moderate climates. Placement Place this unit on an even surface. To reduce the risk of fire, electric shock or product damage, ≥ Do not install or place this unit in a bookcase, built-in cabinet or in another confined space. Ensure this unit is well ventilated. ≥ Do not obstruct this unit’s ventilation openings with newspapers, tablecloths, curtains, and similar items. ≥ Do not place the unit on amplifiers/receivers or equipment that may become hot. The heat can damage the unit. ≥ Do not expose this unit to direct sunlight, high temperatures, high humidity, and excessive vibration. Batteries Mishandling of batteries can cause electrolyte leakage and may cause a fire. ≥ Danger of explosion if battery is incorrectly replaced. Replace only with the type recommended by the manufacturer. ≥ When disposing the batteries, please contact your local authorities or dealer and ask for the correct method of disposal. ≥ Do not mix old and new batteries or different types at the same time. ≥ Do not heat or expose to flame. ≥ Do not leave the battery(ies) in a car exposed to direct sunlight for a long period of time with doors and windows closed. ≥ Do not take apart or short circuit. ≥ Do not recharge alkaline or manganese batteries. ≥ Do not use batteries if the covering has been peeled off. Remove batteries if you do not intend to use the remote control for a long period of time. Store in a cool, dark place.

Accessories Getting started Check the supplied accessories before using this unit. 1 Remote control (N2QAYB000738) 2 Batteries for remote control 1 CD-ROM ≥ Product numbers provided in these operating instructions correct as of January 2012. These may be subject to change. ∫ Using the remote control Insert so the poles (i and j) match those in the remote control.

R6/LR6, AA (Alkaline or manganese batteries) Point it at the remote control signal sensor on this unit. VQT3V27 (3)

English Playable media Device Disc markings Device types BD-Video

BD-RE BD-R DVD-Video DVD-R Video, AVCHD, DivX®, MKV, JPEG, FLAC, MP3, WAV DVD DVD-R DL DVD-RW Video, AVCHD

+R/+RW/+R DL Music CD

(4) VQT3V27 Music [CD-DA]

CD-R CD-RW DivX®, MKV, JPEG, FLAC, MP3, Music [CD-DA], WAV

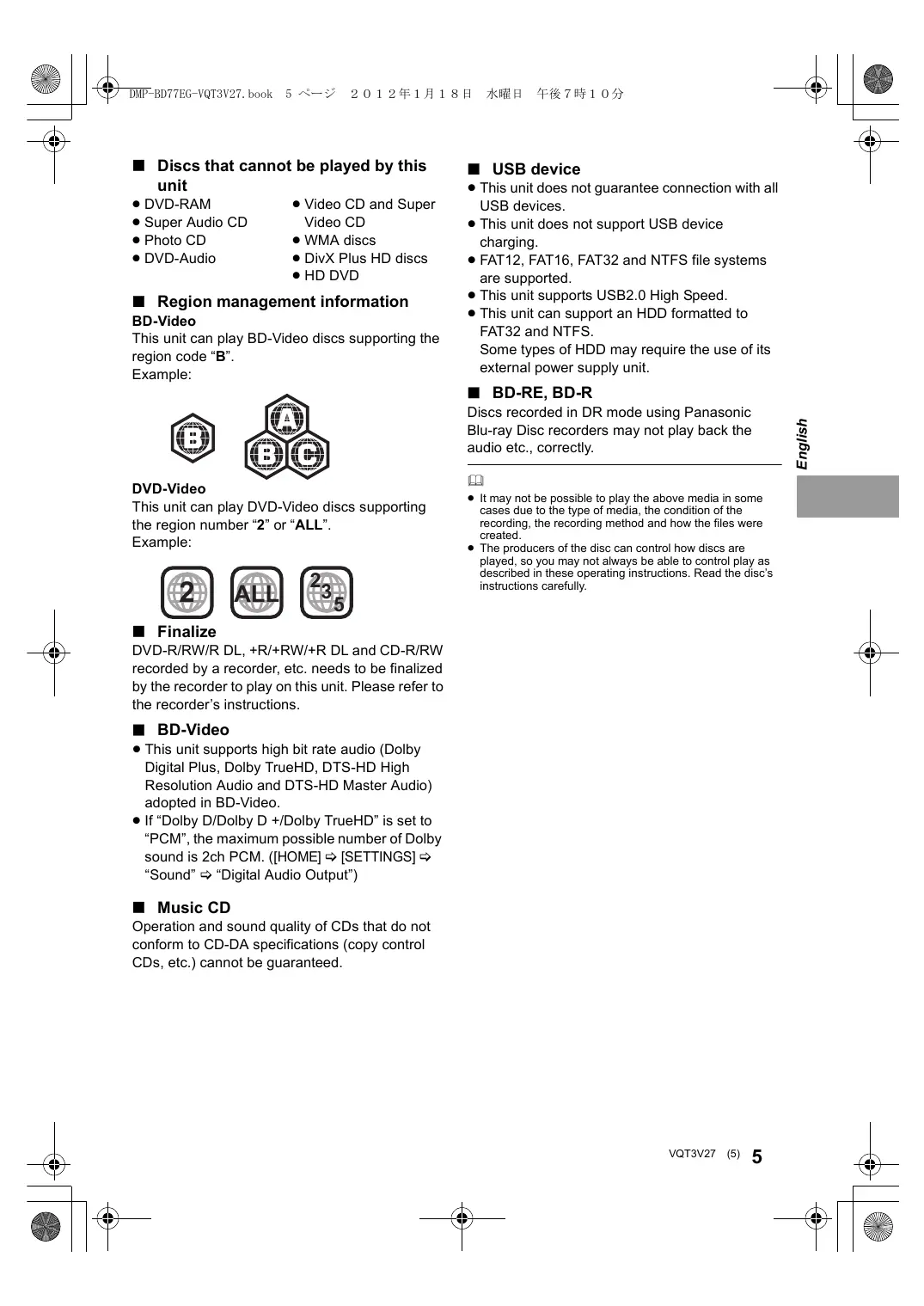

USB devices (up to 2 TB) DivX®, MKV, MP4, MPEG, JPEG, FLAC, MP3, WAV ∫ Discs that cannot be played by this unit ≥ DVD-RAM ≥ Super Audio CD ≥ Photo CD ≥ DVD-Audio ∫ Region management information BD-Video This unit can play BD-Video discs supporting the region code “B”. Example:

∫ USB device ≥ This unit does not guarantee connection with all USB devices. ≥ This unit does not support USB device charging. ≥ FAT12, FAT16, FAT32 and NTFS file systems are supported. ≥ This unit supports USB2.0 High Speed. ≥ This unit can support an HDD formatted to FAT32 and NTFS. Some types of HDD may require the use of its external power supply unit. Discs recorded in DR mode using Panasonic Blu-ray Disc recorders may not play back the audio etc., correctly. DVD-Video This unit can play DVD-Video discs supporting the region number “2” or “ALL”. Example:

≥ It may not be possible to play the above media in some cases due to the type of media, the condition of the recording, the recording method and how the files were created. ≥ The producers of the disc can control how discs are played, so you may not always be able to control play as described in these operating instructions. Read the disc’s instructions carefully.

∫ Finalize DVD-R/RW/R DL, +R/+RW/+R DL and CD-R/RW recorded by a recorder, etc. needs to be finalized by the recorder to play on this unit. Please refer to the recorder’s instructions. ∫ BD-Video ≥ This unit supports high bit rate audio (Dolby Digital Plus, Dolby TrueHD, DTS-HD High Resolution Audio and DTS-HD Master Audio) adopted in BD-Video. ≥ If “Dolby D/Dolby D +/Dolby TrueHD” is set to “PCM”, the maximum possible number of Dolby sound is 2ch PCM. ([HOME] > [SETTINGS] > “Sound” > “Digital Audio Output”) ∫ Music CD Operation and sound quality of CDs that do not conform to CD-DA specifications (copy control CDs, etc.) cannot be guaranteed. VQT3V27 (5)

English ∫ BD-RE, BD-R STEP 1 : Connecting to a

STEP 3 : Connecting to the network ≥ Before making any connections, we recommend that you temporarily disconnect all the units from AC power. ≥ Do not connect video signals through a video recorder. Due to copy guard protection the picture may not be displayed properly. ≥ Use the High Speed HDMI cables. Non-HDMI-compliant cables cannot be utilized. The following services can be used when this unit is connected to broadband. ≥ Firmware can be updated Connections and settings It is recommended that you use Panasonic’s HDMI cable. When outputting 1080p signal, please use HDMI cables 5.0 meters or less. Recommended part number (High Speed HDMI Cable): RP-CDHS15 (1.5 m), RP-CDHS30 (3.0 m), RP-CDHS50 (5.0 m), etc. ≥ You can enjoy BD-Live ≥ You can enjoy Network Service ≥ You can access other devices (Home Network) For details about connection method, refer to the instructions supplied with the connected equipment. Wireless LAN connection Connect the Wireless LAN Adaptor DY-WL5 (optional). Only DY-WL5 can be used. Read the operating instructions for DY-WL5 thoroughly when using it. Wireless router, etc. HDMI IN Internet HDMI Cable STEP 2 : Connecting to an amplifier/receiver ≥ For up-to-date compatibility information on your wireless router, refer to http://panasonic.jp/support/global/cs/ (This site is in English only.) ≥ The unit is not compatible with public wireless LAN services provided in airports, stations, cafes, etc. HDMI IN HDMI Cable HDMI OUT (ARC) Amplifier/ receiver HDMI IN (ARC) HDMI Cable LAN cable connection ≥ Set “Digital Audio Output”. ([HOME] > [SETTINGS] > “Sound”) ≥ When using the TV or amplifier/receiver that does not have the indication of “(ARC)” (non-ARC-compatible) on the HDMI terminal, in order to enjoy TV’s sound by amplifier/receiver it is also required to connect the amplifier/receiver and TV using an optical digital cable. Broadband router, etc. LAN Cable Internet ≥ Use category 5 or above straight LAN cables (STP) when connecting to peripheral devices. ≥ Inserting any cable other than a LAN cable in the LAN terminal can damage the unit.

(6) VQT3V27 Inserting or removing media Playback Easy Setting Preparation Turn on the television and select the appropriate video input on the television.

Press [Í]. Setup screen appears. Standby/on switch (Í/I) Press to switch the unit from on to standby mode or vice versa. In standby mode, the unit is still consuming a small amount of power.

Follow the on-screen instructions and apply the settings. Notes ≥ When inserting a media item, ensure that it is facing the right way up. ≥ If you connect a Panasonic product with a USB connection cable, the setup screen may be displayed on the connected equipment. For details, refer to the instructions for the connected equipment. ≥ Use the front USB port when you connect a USB memory or a USB HDD. The USB port on the rear panel is only for the Wireless LAN Adaptor DY-WL5 (optional). CAUTION ≥ You can perform this setup anytime by selecting “Easy Setting” in the Setup menu. ([HOME] > [SETTINGS] > “System”) Easy Network Setting After completing “Easy Setting”, you can perform “Easy Network Setting”. Select “Wired” or “Wireless” and press [OK]. ∫ “Wired” connection Follow the on-screen instructions to apply your connection settings. ∫ “Wireless” connection ≥ If “Wireless LAN Adaptor is not connected.” is displayed, check that the Wireless LAN Adaptor is fully inserted. Alternatively, disconnect and reconnect it. If there is still no change in the display, consult your dealer for advice. Select “Search for wireless network” or “WPS (PUSH button)” and press [OK], then follow the on-screen instructions and apply the settings. Do not place objects in front of the unit. The disc tray may collide with objects when it is opened, and this may cause malfunction. HOME menu Major functions of this unit can be operated from the HOME menu. Preparation Turn on the television and select the appropriate video input on the television.

Press [Í] to turn on the unit. Press [OK] or [3, 4, 2, 1] to select the item. ≥ If there are any other items, repeat this step. HOME Network Blu-ray Disc Player Photos Setup Music Videos Register 1st user ≥ Items to be displayed may vary with the media. ≥ Where necessary, set “Mixed Data Disc Option” when using a disc with both data files (MP3, JPEG, DivX, etc.) and Video (BDAV and AVCHD). ([HOME] > [SETTINGS] > “System” > “Unit Settings”) VQT3V27 (7)

English After connecting your new player for the first time and pressing [Í], a screen for the basic settings will appear. Insert the media. Playback starts depending on the media.

Select the item to play and press [OK]. Repeat this procedure if necessary. ≥ To save on electricity, the unit is turned off automatically if there is no button operation for about 30 minutes when not playing back (such as when paused, displaying the menu, displaying still pictures, etc.). Operations during playback [∫STOP] : Stop [;PAUSE] : Pause [SEARCH6][SEARCH5] : Search/ Slow-motion [:][9] : Skip [1] (;1) : Frame-by-frame [AUDIO] : Changing audio Specifications Signal system PAL/NTSC Operating temperature range i5 oC to i35 oC Operating humidity range 10 % to 80 % RH (no condensation) Video output Output level: 1.0 Vp-p (75 ≠) Output connector: Pin jack (1 system) Audio output Output level: 2 Vrms (1 kHz, 0 dB) Output connector: Pin jack Number of connectors: 2 channel 1 system HDMI AV output Output connector: Type A (19 pin) 1 system USB slot USB2.0 2 system Ethernet 10BASE-T/100BASE-TX 1 system LASER Specification Class 1 LASER Product Wave length: 790 nm (CDs)/ 658 nm (DVDs)/405 nm (BDs) Laser power: No hazardous radiation is emitted with the safety protection Power supply AC 230V, 50 Hz Power consumption Approx. 15 W Power consumption in standby mode Approx. 0.5 W Power consumption in quick start standby mode Approx. 5 W Dimensions (WkHkD) 430 mmk36 mmk199 mm Mass Approx. 1.5 kg ≥ Specifications are subject to change without notice. ≥ This unit supports “HDMI CEC” function.

Information for Users on Collection and Disposal of Old Equipment and used Batteries These symbols on the products, packaging, and/or accompanying documents mean that used electrical and electronic products and batteries should not be mixed with general household waste. For proper treatment, recovery and recycling of old products and used batteries, please take them to applicable collection points, in accordance with your national legislation and the Directives 2002/ 96/EC and 2006/66/EC. By disposing of these products and batteries correctly, you will help to save valuable resources and prevent any potential negative effects on human health and the environment which could otherwise arise from inappropriate waste handling. For more information about collection and recycling of old products and batteries, please contact your local municipality, your waste disposal service or the point of sale where you purchased the items. Penalties may be applicable for incorrect disposal of this waste, in accordance with national legislation. For business users in the European Union If you wish to discard electrical and electronic equipment, please contact your dealer or supplier for further information. [Information on Disposal in other Countries outside the European Union] These symbols are only valid in the European Union. If you wish to discard these items, please contact your local authorities or dealer and ask for the correct method of disposal.

Note for the battery symbol (bottom two symbol examples): This symbol might be used in combination with a chemical symbol. In this case it complies with the requirement set by the Directive for the chemical involved. “AVCHD” is a trademark of Panasonic Corporation and Sony Corporation. Java is a registered trademark of Oracle and/or its affiliates. Manufactured under license under U.S. Patent Nos: 5,956,674; 5,974,380; 6,226,616; 6,487,535; 7,392,195; 7,272,567; 7,333,929; 7,212,872 & other U.S. and worldwide patents issued & pending. DTS-HD, the Symbol, & DTS-HD and the Symbol together are registered trademarks & DTS-HD Master Audio | Essential is a trademark of DTS, Inc. Product includes software. © DTS, Inc. All Rights Reserved. This item incorporates copy protection technology that is protected by U.S. patents and other intellectual property rights of Rovi Corporation. Reverse engineering and disassembly are prohibited. HDMI, the HDMI Logo, and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries. This product is licensed under the AVC patent portfolio license and VC-1 patent portfolio license for the personal and non-commercial use of a consumer to (i) encode video in compliance with the AVC Standard and VC-1 Standard (“AVC/VC-1 Video”) and/or (ii) decode AVC/VC-1 Video that was encoded by a consumer engaged in a personal and non-commercial activity and/or was obtained from a video provider licensed to provide AVC/VC-1 Video. No license is granted or shall be implied for any other use. Additional information may be obtained from MPEG LA, LLC. See http://www.mpegla.com. MPEG Layer-3 audio coding technology licensed from Fraunhofer IIS and Thomson. “DVD Logo” is a trademark of DVD Format/Logo Licensing Corporation. “Wi-Fi”, “Wi-Fi Protected Setup”, “WPA” and “WPA2” are marks or registered marks of the Wi-Fi Alliance. DivX®, DivX Certified® and associated logos are trademarks of Rovi Corporation or its subsidiaries and are used under license. ABOUT DIVX VIDEO: DivX® is a digital video format created by DivX, LLC, a subsidiary of Rovi Corporation. This is an official DivX Certified® device that plays DivX video. Visit divx.com for more information and software tools to convert your files into DivX videos. ABOUT DIVX VIDEO-ON-DEMAND: This DivX Certified® device must be registered in order to play purchased DivX Video-on-Demand (VOD) movies. To obtain your registration code, locate the DivX VOD section in your device setup menu. Go to vod.divx.com for more information on how to complete your registration. DLNA, the DLNA Logo and DLNA CERTIFIED are trademarks, service marks, or certification marks of the Digital Living Network Alliance. Windows is a trademark or a registered trademark of Microsoft Corporation in the United States and other countries. VQT3V27 (9)

English Manufactured under license from Dolby Laboratories. Dolby and the double-D symbol are trademarks of Dolby Laboratories. This product incorporates the following software: (1) the software developed independently by or for Panasonic Corporation, (2) the software owned by third party and licensed to Panasonic Corporation, (3) the software licensed under the GNU General Public License, Version 2 (GPL v2), (4) the software licensed under the GNU LESSER General Public License, Version 2.1 (LGPL v2.1) and/or, (5) open sourced software licensed under its applicable license terms including but not limited to ICU License, c-arse license, (6) Adobe Flash Lite for Digital Home Software licensed by Adobe Systems Incorporated or its affiliates, For the software categorized as (3) and (4), please refer to the terms and conditions of GPL v2 and LGPL v2.1, as the case may be at http://www.gnu.org/licenses/old-licenses/gpl-2.0.html and http://www.gnu.org/licenses/old-licenses/lgpl-2.1.html. In addition, the software categorized as (3) and (4) are copyrighted by several individuals. Please refer to the copyright notice of those individuals at http://panasonic.net/avc/oss/bdplayer/AWBPM12.html The GPL/LGPL software is distributed in the hope that it will be useful, but WITHOUT ANY WARRANTY, without even the implied warranty of MERCHANTABILITY or FITNESS FOR A PARTICULAR PURPOSE. At least three (3) years from delivery of products, Panasonic will give to any third party who contacts us at the contact information provided below, for a charge no more than our cost of physically performing source code distribution, a complete machine-readable copy of the corresponding source code covered under GPL v2/LGPL v2.1. Contact Information cdrequest.bdplayer@gg.jp.panasonic.com Source code is also freely available to you and any other member of the public via our website below. http://panasonic.net/avc/oss/bdplayer/AWBPM12.html For the software categorized as (5) includes as follows.

1. This product includes software developed by the OpenSSL Project for use in the OpenSSL Toolkit.

(http://www.openssl.org/)

2. This product includes software developed by the University of California, Berkeley and its contributors.

3. FreeType code.

4. The Independent JPEG Group's JPEG software.

Further, For Adobe Flash Lite for Digital Home Software (“Flash Software”), please be aware of the following. (i) You are not permitted to distribute and copy this Flash Software to any third party, (ii) You are not permitted to modify the Flash Software and create derivative works of the Flash Software, (iii) You are not permitted to decompile, reverse engineer, disassemble and otherwise reduce the Flash Software to a human-perceivable form, (iv) You are not permitted to claim any damages, including direct, indirect, special, incidental, punitive, and consequential damages arising out of or in connection with the Flash Software, (v) You fully agree that the ownership of the Flash Software is that of Panasonic Corporation and/or its suppliers or licensors, (vi) You agree and acknowledge that it is possible that you cannot access the contents unless you do not obtain and install the latest version of the Flash Software ICU License - ICU 1.8.1 and later

COPYRIGHT AND PERMISSION NOTICE

Copyright (c) 1995-2010 International Business Machines Corporation and others All rights reserved. Permission is hereby granted, free of charge, to any person obtaining a copy of this software and associated documentation files (the “Software”), to deal in the Software without restriction, including without limitation the rights to use, copy, modify, merge, publish, distribute, and/or sell copies of the Software, and to permit persons to whom the Software is furnished to do so, provided that the above copyright notice(s) and this permission notice appear in all copies of the Software and that both the above copyright notice(s) and this permission notice appear in supporting documentation. THE SOFTWARE IS PROVIDED “AS IS”, WITHOUT WARRANTY OF ANY KIND, EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE WARRANTIES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE AND NONINFRINGEMENT OF THIRD PARTY RIGHTS. IN NO EVENT SHALL THE COPYRIGHT HOLDER OR HOLDERS INCLUDED IN THIS NOTICE BE LIABLE FOR ANY CLAIM, OR ANY SPECIAL INDIRECT OR CONSEQUENTIAL DAMAGES, OR ANY DAMAGES WHATSOEVER RESULTING FROM LOSS OF USE, DATA OR PROFITS, WHETHER IN AN ACTION OF CONTRACT, NEGLIGENCE OR OTHER TORTIOUS ACTION, ARISING OUT OF OR IN CONNECTION WITH THE USE OR PERFORMANCE OF THIS SOFTWARE. Except as contained in this notice, the name of a copyright holder shall not be used in advertising or otherwise to promote the sale, use or other dealings in this Software without prior written authorization of the copyright holder. All trademarks and registered trademarks mentioned herein are the property of their respective owners. c-arse license Copyright 1998 by the Massachusetts Institute of Technology. Permission to use, copy, modify, and distribute this software and its documentation for any purpose and without fee is hereby granted, provided that the above copyright notice appear in all copies and that both that copyright notice and this permission notice appear in supporting documentation, and that the name of M.I.T. not be used in advertising or publicity pertaining to distribution of the software without specific, written prior permission. M.I.T. makes no representations about the suitability of this software for any purpose. It is provided “as is” without express or implied warranty.

(10) VQT3V27 “UNICODE, INC. LICENSE AGREEMENT - DATA FILES AND SOFTWARE Unicode Data Files include all data files under the directories http://www.unicode.org/Public/, http://www.unicode.org/reports/, and http://www.unicode.org/cldr/data/. Unicode Software includes any source code published in the Unicode Standard or under the directories http://www.unicode.org/Public/, http://www.unicode.org/reports/, and http://www.unicode.org/cldr/data/. NOTICE TO USER: Carefully read the following legal agreement. BY DOWNLOADING, INSTALLING, COPYING OR OTHERWISE USING UNICODE INC.’S DATA FILES (““DATA FILES””), AND/OR SOFTWARE (““SOFTWARE””), YOU UNEQUIVOCALLY ACCEPT, AND AGREE TO BE BOUND BY, ALL OF THE TERMS AND CONDITIONS OF THIS AGREEMENT. IF YOU DO NOT AGREE, DO NOT DOWNLOAD, INSTALL, COPY, DISTRIBUTE OR USE THE DATA FILES OR SOFTWARE.

COPYRIGHT AND PERMISSION NOTICE

Copyright (c) 1991-2009 Unicode, Inc. All rights reserved. Distributed under the Terms of Use in http://www.unicode.org/copyright.html. Permission is hereby granted, free of charge, to any person obtaining a copy of the Unicode data files and any associated documentation (the ““Data Files””) or Unicode software and any associated documentation (the ““Software””) to deal in the Data Files or Software without restriction, including without limitation the rights to use, copy, modify, merge, publish, distribute, and/or sell copies of the Data Files or Software, and to permit persons to whom the Data Files or Software are furnished to do so, provided that (a) the above copyright notice(s) and this permission notice appear with all copies of the Data Files or Software, (b) both the above copyright notice(s) and this permission notice appear in associated documentation, and (c) there is clear notice in each modified Data File or in the Software as well as in the documentation associated with the Data File(s) or Software that the data or software has been modified. THE DATA FILES AND SOFTWARE ARE PROVIDED ““AS IS””, WITHOUT WARRANTY OF ANY KIND, EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE WARRANTIES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE AND NONINFRINGEMENT OF THIRD PARTY RIGHTS. IN NO EVENT SHALL THE COPYRIGHT HOLDER OR HOLDERS INCLUDED IN THIS NOTICE BE LIABLE FOR ANY CLAIM, OR ANY SPECIAL INDIRECT OR CONSEQUENTIAL DAMAGES, OR ANY DAMAGES WHATSOEVER RESULTING FROM LOSS OF USE, DATA OR PROFITS, WHETHER IN AN ACTION OF CONTRACT, NEGLIGENCE OR OTHER TORTIOUS ACTION, ARISING OUT OF OR IN CONNECTION WITH THE USE OR PERFORMANCE OF THE DATA FILES OR SOFTWARE. Except as contained in this notice, the name of a copyright holder shall not be used in advertising or otherwise to promote the sale, use or other dealings in these Data Files or Software without prior written authorization of the copyright holder.” (1) MS/WMA This product is protected by certain intellectual property rights of Microsoft Corporation and third parties. Use or distribution of such technology outside of this product is prohibited without a license from Microsoft or an authorized Microsoft subsidiary. (2) MS/PlayReady/Final Product Labeling This product contains technology subject to certain intellectual property rights of Microsoft. Use or distribution of this technology outside of this product is prohibited without the appropriate license(s) from Microsoft. (3) MS/PlayReady/End User Notices Content owners use Microsoft PlayReady™ content access technology to protect their intellectual property, including copyrighted content. This device uses PlayReady technology to access PlayReady-protected content and/or WMDRM-protected content. If the device fails to properly enforce restrictions on content usage, content owners may require Microsoft to revoke the device’s ability to consume PlayReady-protected content. Revocation should not affect unprotected content or content protected by other content access technologies. Content owners may require you to upgrade PlayReady to access their content. If you decline an upgrade, you will not be able to access content that requires the upgrade. (4) FLAC, WPA Supplicant The software licenses are displayed when “Software Licence” in the Setup menu is selected.*

• [HOME] > [SETTINGS] > “System” > “System Information” Copyright 2004-2010 Verance Corporation. CinaviaTM is a Verance Corporation trademark. Protected by U.S. Patent 7,369,677 and worldwide patents issued and pending under license from Verance Corporation. All rights reserved. To dispose or transfer this unit The unit may keep the user settings information in the unit. If you discard this unit either by disposal or transfer, then follow the procedure to return all the settings to the factory presets to delete the user settings. ≥ The operation history may be recorded in the memory of this unit. VQT3V27 (11)

English David M. Gay’s dtoa and strtod license The author of this software is David M. Gay. Copyright (c) 1991, 2000, 2001 by Lucent Technologies. Permission to use, copy, modify, and distribute this software for any purpose without fee is hereby granted, provided that this entire notice is included in all copies of any software which is or includes a copy or modification of this software and in all copies of the supporting documentation for such software. THIS SOFTWARE IS BEING PROVIDED “AS IS”, WITHOUT ANY EXPRESS OR IMPLIED WARRANTY. IN PARTICULAR, NEITHER THE AUTHOR NOR LUCENT MAKES ANY REPRESENTATION OR WARRANTY OF ANY KIND CONCERNING THE MERCHANTABILITY OF THIS SOFTWARE OR ITS FITNESS FOR ANY PARTICULAR PURPOSE. Support lisible Appareil DivX®, MKV, JPEG, FLAC, MP3, [CD-DA] musicaux, WAV

DivX®, MKV, MP4, MPEG,

JPEG, FLAC, MP3, WAV

Connections and settings DVD-R Video, AVCHD, DivX®, MKV, JPEG, FLAC, MP3, WAV DVD DVD-R DL DVD-RW Video, AVCHD

+R/+RW/+R DL CD musicale

(24) VQT3V27 Musica [CD-DA]

CD-R CD-RW DivX®, MKV, JPEG, FLAC, MP3, Musica [CD-DA], WAV

DivX®, MKV, MP4, MPEG,

JPEG, FLAC, MP3, WAV

Connections and settings Router Wireless, ecc Cavo HDMI DVD-R Vídeo, AVCHD, DivX®, MKV, JPEG, FLAC, MP3, WAV DVD DVD-R DL DivX®, MKV, MP4, MPEG,

JPEG, FLAC, MP3, WAV

Connections and settings DVD-R Video, AVCHD, DivX®, MKV, JPEG, FLAC, MP3, WAV DVD DVD-R DL DVD-RW Video, AVCHD

+R/+RW/+R DL Muziek-CD

(44) VQT3V27 Muziek [CD-DA]

CD-R CD-RW DivX®, MKV, MP4, MPEG,

JPEG, FLAC, MP3, WAV

Connections and settings Output-connector: Type A (19 pens) 1 systeem USB-slot USB2.0 2 systeem Ethernet 10BASE-T/100BASE-TX 1 systeem DVD-R Video, AVCHD, DivX®, MKV, JPEG, FLAC, MP3, WAV DVD DVD-R DL DVD-RW Video, AVCHD

+R/+RW/+R DL Musik-CD

(54) VQT3V27 Musik [CD-DA]

CD-R CD-RW DivX®, MKV, JPEG, FLAC, MP3, Musik [CD-DA], WAV

DivX®, MKV, MP4, MPEG,

JPEG, FLAC, MP3, WAV

Connections and settings 10BASE-T/100BASE-TX 1 system LASER-specifikation DVD-R Video, AVCHD, DivX®, MKV, JPEG, FLAC, MP3, WAV DVD DVD-R DL DVD-RW Video, AVCHD

+R/+RW/+R DL Musik-CD

(64) VQT3V27 Musik [CD-DA]

CD-R CD-RW DivX®, MKV, JPEG, FLAC, MP3, Musik [CD-DA], WAV

DivX®, MKV, MP4, MPEG,

JPEG, FLAC, MP3, WAV

Connections and settings Blu-ray Disc Player Photos Setup Music Videos Register 1st user 10BASE-T/100BASE-TX 1 system LASER-specifikation DVD-R Video, AVCHD, DivX®, MKV, JPEG, FLAC, MP3, WAV DVD DVD-R DL DVD-RW Video, AVCHD

+R/+RW/+R DL Hudba na CD

(74) VQT3V27 DivX®, MKV, MP4, MPEG,

JPEG, FLAC, MP3, WAV

DVD-RAM Super Audio CD Photo CD DVD-Audio Blu-ray Disc Player Photos Setup Music Videos Register 1st user DivX®, MKV, JPEG, FLAC, MP3, Zenei [CD-DA], WAV

DivX®, MKV, MP4, MPEG,

JPEG, FLAC, MP3, WAV

DVD-RAM Super Audio CD Photo CD DVD-Audio Connections and settings Wireless router stb. HDMI IN HDMI kábel Internet Blu-ray Disc Player Photos Setup Magyar Videos Register 1st user DVD-R Video, AVCHD, DivX®, MKV, JPEG, FLAC, MP3, WAV DVD DVD-R DL DVD-RW Video, AVCHD

+R/+RW/+R DL DivX®, MKV, MP4, MPEG,

JPEG, FLAC, MP3, WAV

DVD-RAM Super Audio CD Photo CD DVD-Audio Connections and settings 10BASE-T/100BASE-TX 1 system DLNA, the DLNA Logo and DLNA CERTIFIED are trademarks, service marks, or certification marks of the Digital Living Network Alliance. DVD-R Video, AVCHD, DivX®, MKV, JPEG, FLAC, MP3, WAV DVD DVD-R DL DVD-RW Video, AVCHD

+R/+RW/+R DL Musiikki-CD

USB 4 (104) VQT3V27 DivX®, MKV, MP4, MPEG,

JPEG, FLAC, MP3, WAV

DVD-RAM Super Audio-CD Photo-CD DVD-Audio Connections and settings Blu-ray Disc Player Photos Setup Music Videos Register 1st user

Pursuant to at the directive 2004/108/EC, article 9(2) Panasonic Testing Centre Panasonic Marketing Europe GmbH Winsbergring 15, 22525 Hamburg, Germany pvurws VQT3V27 F0112CY0
