USER MANUAL NITP060SUC BOSCH

Register your appliance and join the Bosch family of perks: bosch-home.com/us/ mybosch Cooktop

2.1 Overview of the most common types of damage....... 8

3 Environmental protection and energy-saving ........ 8

4.1 Size and characteristics of the cookware .................. 9

5 Familiarizing yourself with your appliance ........... 10

8.4 Changing settings via the HomeConnect® app ....... 23

15.1 What this warranty covers & Who it applies to........ 33

15.2 How long the warranty lasts ................................... 33

15.3 Repair/replace as your exclusive remedy ............... 33

Read all of the instructions carefully before using the appliance. In order to reduce the risk of fire, electric shocks and personal injuries when using the appliance, follow the basic safety precautions, including the following safety instructions. 1.1 Safety definitions Here you can find explanations of the safety signal words used in this manual. WARNING This indicates that death or serious injuries may occur as a result of non-observance of this warning. CAUTION This indicates that minor or moderate injuries may occur as a result of non-observance of this warning. NOTICE: This indicates that damage to the appliance or property may occur as a result of non-compliance with this advisory. Note:This alerts you to important information and/or tips. 1.2 General information ¡ Read this manual carefully. ¡ Keep the instructions, the appliance pass and the product information safe for future reference or for the next owner. ¡ Do not connect the appliance if it has been damaged in transit. 1.3 Intended use Only a qualified electrician may connect appliances without plugs. The manufacturer is not responsible for damage caused by incorrect connections. Please see the Statement of Limited Product Warranty → Page33

The appliance can only be used safely if it is correctly installed according to the installation instructions. The installer is responsible for ensuring that the appliance works perfectly at its installation location. Only use this appliance: ¡ To prepare meals and drinks. ¡ Under supervision. Never leave the appliance unattended when cooking for short periods. ¡ for normal household use and in enclosed spaces in a residential environment. ¡ up to an altitude of 13,100ft (4000m) above sea level. Do not use the appliance: ¡ This appliance is not intended for operation with an external clock timer or a remote control. 1.4 Restriction on user group This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. When children become old enough to use the appliance, it is the responsibility of the parents or legal guardians to ensure that they are instructed in safe practices by qualified persons. Children should be supervised to ensure that they do not play with the appliance. Do not let children play with the appliance. 1.5 Safe use WARNING When properly cared for, your new appliance has been designed to be safe and reliable. ▶ Read all instructions carefully before use. These precautions will reduce the risk of burns, electric shock, fire, and injury to persons. ▶ When using kitchen appliances, basic safety precautions must be followed, including those in the following pages. WARNING While cooking food items, small amounts of certain by- products, such as particulate matter / soot, can be released. To minimize exposure to these substances: ▶ Always ensure proper ventilation by using an appropriate ventilation fan or hood vented to the outside and/or an open window. ▶ Always operate the unit according to the instructions in this manual. WARNING Overheated materials can cause fire or burns and may produce potentially harmful smoke or fumes. ▶ To prevent overheating, turn ventilation hood ON when heating grease, fats or frying using medium to high heat settings. ▶ Avoid heating empty pots and pans.

▶ Do not allow pans to boil dry. ▶ Do not allow aluminum foil, plastic, paper, or cloth to come in contact with a hot surface element, burner, or grate. WARNING To avoid risk of fire, do not leave the cooktop unattended while in use. Unattended cooking can lead to fire hazards, property damage, and injury. Always supervise cooking, especially when using high heat with oils and fats. Boilovers may cause smoking and greasy spillovers may ignite. WARNING A fire could occur during cooking. ▶ Always have a working smoke detector near the kitchen. ▶ Have an appropriate fire extinguisher available, nearby, highly visible and easily accessible near the appliance. If the cooktop is near a window, forced air vent or fan, be certain that flammable materials such as window coverings do not blow over or near the burners or heating elements. They could catch on fire. Cooking fires can spread if extinguished incorrectly. ▶ Never use water on cooking fires. WARNING TO REDUCE THE RISK OF A GREASE FIRE ▶ Never Leave Surface Units Unattended at High Settings - Boilovers cause smoking and greasy spillovers that may ignite. Heat oils slowly on low or medium settings. ▶ Always turn hood ON when cooking at high heat or when flambeing food (i.e. Crepes Suzette, Cherries Jubilee, Peppercorn Beef Flambe’). ▶ Clean ventilating fans frequently. Grease should not be allowed to accumulate on fan or filter. ▶ Use proper pan size. Always use cookware appropriate for the size of the surface element. ▶ Do not flambé under the extractor hood or work with a naked flame. When switched on, the extractor hood draws flames into the filter. There is a risk of fire due to deposits on the grease filter! Flames can be drawn into the ventilation system. ▶ Whenever possible, do not operate the ventilation system during a cooktop fire. However, do not reach through fire to turn it off. Cookware Handles Should be Turned Inward and Not Extend Over Adjacent Surface Units. ▶ To reduce the risk of burns, ignition of flammable materials, and spillage due to unintentional contact with the cookware, the handle of a cookware should be positioned so that it is turned inward, and does not extend over adjacent surface units. Wear Proper Apparel. Loose-fitting or hanging garments, such as ties, scarves, jewelry, or dangling sleeves, should never be worn while using the appliance. ▶ Tie long hair so that it does not hang loose. ▶ Secure all loose garments, etc. before beginning. Use Proper Pan Size - This appliance is equipped with one or more surface units of different sizes. ▶ Select cookware having flat bottoms large enough to cover the surface unit cooking zone. ▶ The use of undersized cookware will expose a portion of the cooking zone to direct contact and may result in ignition of clothing. Proper relationship of cookware to cooking zone will also improve efficiency. Controls may be operated unintentionally by spills covering the control panel. ▶ Never use the appliance if liquids or foods have spilled around the control panel. ▶ Always turn off the cooktop and dry the control panel. Boilovers can cause smoke and some foods and oils may catch fire if left on high temperature settings. ▶ When using a timer, always supervise the cooktop. ▶ Do not allow anything to boil over or burn. WARNING If the frying sensor is not working properly, overheating may result causing smoke and damage to the pan or fire.

WHEN COOKING WITH THE FRYING SENSOR

FUNCTION OBSERVE THE FOLLOWING

▶ Always use a sensor frying pan. ▶ Always put the pan in the center of the cooking zone. ▶ Do not place a lid on the pan. ▶ Never leave hot fat or oil unattended. If the cooktop turns off automatically and can no longer be operated, it may turn itself on unintentionally at a later point. ▶ Switch off the circuit breaker or fuse in the electrical panel. ▶ Contact Customer Service for support. CAUTION The cooking process has to be supervised. A short term cooking process has to be supervised continuously.

WARNING If the display does not work when a cooking area is heating up disconnect the circuit breaker or fuse in the electrical panel. ▶ Contact an authorized service provider. To avoid risk of fire do not store items on the cooking surfaces. In the event that personal clothing or hair catches fire, drop and roll immediately to extinguish flames. Do Not Use Water on Grease Fires. ▶ Smother fire or flame or use dry chemical or foam-type extinguisher. WARNING Use Only Dry Potholders - Moist or damp potholders on hot surfaces may result in burns from steam. ▶ Do not let potholders touch hot heating elements. ▶ Do not use a towel or other bulky cloth. Hot oil is capable of causing extreme burns and injury. ▶ Use high heat settings on the cooktop only when necessary. ▶ To avoid bubbling and splattering, heat oil slowly on no more than a low-medium setting. ▶ Never move a pan of hot oil, especially a deep fat fryer. Wait until it is cool. Spills of hot food may cause burns. ▶ Hold the handle of the pan when stirring or turning food. This helps prevent spills and movement of the pan. DO NOT TOUCH SURFACE UNITS OR AREAS NEAR UNITS. Surface units may be hot even though they are dark in color. Areas near surface units may become hot enough to cause burns. ▶ During and after use, do not touch, or let clothing, potholders, or other flammable materials contact surface units or areas near units until they have had sufficient time to cool. Among these areas are the cooktop and areas facing the cooktop. WARNING Do not place metallic objects such as knives, forks, spoons, and lids on the cooktop surface since they can get hot. Clean Cooktop With Caution. ▶ If a wet sponge or cloth is used to wipe spills on a hot cooking area, be careful to avoid steam burn. ▶ Some cleaners can produce noxious fumes if applied to a hot surface. ▶ Do not clean the appliance while it is still hot. WARNING The pan detection shut-off feature may not turn off the cooking zone due to spilled food or objects placed on the cooktop. ▶ Keep the cooktop clean and do not store objects on the cooking zones. WARNING Storage in or on Appliance - The use of corrosive chemicals in heating or cleaning will damage the appliance and could result in injury. ▶ Flammable materials, corrosive chemicals, vapors or non-food products should not be stored or used in an oven or on or near surface units. ▶ The appliance is specifically designed for use when heating or cooking food. This appliance is intended for normal family household use only. It is not approved for outdoor use. See the Statement of Limited Product Warranty. If you have any questions, contact the manufacturer. WARNING Using this appliance other than for its intended use can cause fire or injury to persons. ▶ Use this appliance only for its intended use as described in this manual. ▶ NEVER use your appliances as a space heater for warming or heating the room. Doing so may result in overheating the appliance. ▶ Never use the appliance for storage. WARNING TO REDUCE THE RISK OF INJURY TO PERSONS IN THE EVENT OF A GREASE FIRE, OBSERVE THE FOLLOWING. ▶ SMOTHER FLAMES with a close-fitting lid, cookie sheet, or metal tray, then turn off the burner. BE CAREFUL TO PREVENT BURNS. If the flames do not go out immediately, EVACUATE AND CALL THE FIRE DEPARTMENT. ▶ NEVER PICK UP A FLAMING PAN – You may be burned. ▶ DO NOT USE WATER, including wet dishcloths or towels – a violent steam explosion will result. ▶ Use an extinguisher ONLY if: - You know you have a Class ABC extinguisher, and you already know how to operate it. - The fire is small and contained in the area where it

started. - The fire department is being called. - You can fight the fire with your back to an exit. Do not heat or warm unopened food containers. Build-up of pressure may cause the container to burst and cause injury. Liquid between the pot base and the cooktop may build up steam pressure. This may cause the pot to jump suddenly causing injury. ▶ Always keep the cooktop and bases of pots dry. When cooking with a double-boiler, the cooktop and cooking vessel may crack due to overheating. ▶ The cooking vessel in the double-boiler must not come in direct contact with the bottom of the pot filled with water. ▶ Use only heat-resistant cookware. Injury and damage to the appliance may occur if control elements are not used properly. WARNING Moisture intrusion may cause an electric shock. ▶ Do not use any steam cleaners or high-pressure cleaners to clean the appliance. If the appliance or the power cord is damaged, this is dangerous. ▶ Do not turn the power on if the appliance or the power cord is damaged. Doing so may cause injury. ▶ Never operate a damaged appliance. ▶ If the surface is cracked, you must switch off the appliance in order to prevent a possible electrical shock. To do this, switch off the appliance via the circuit breaker in the circuit breaker panel rather than at the main switch. ▶ If the appliance or the power cord is damaged, immediately switch off the breaker in the circuit breaker box. ▶ Call Customer Service. → Page32 ▶ Repairs to the appliance should only be performed by an authorized service provider. WARNING If the surface is cracked, switch off the appliance to avoid the possibility of electric shock. Do Not Cook on a Broken Cooktop - If the cooktop should break, cleaning solutions and spillovers may penetrate the broken cooktop and create a risk of electric shock. ▶ Contact an authorized service provider immediately. 1.6 Child safety This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. When children become old enough to use the appliance, it is the responsibility of the parents or legal guardians to ensure that they are instructed in safe practices by qualified persons. WARNING Do not allow children to use this appliance unless closely supervised by an adult. ▶ Children and pets should not be left alone or unattended in the area where the appliance is in use. They should never be allowed to play in its vicinity, whether or not the appliance is in use. Do not allow anyone to climb, stand, lean, sit, or hang on any part of an appliance, especially a door, warming drawer, or storage drawer. ▶ This can damage the appliance, and the unit may tip over, potentially causing severe injury. Do not let children play with the appliance. CAUTION Do not store items of interest to children in cabinets above an appliance or on the backguard of an appliance. Children climbing on the appliance to reach items could be seriously injured. Do Not Leave Children Alone. ▶ Children should not be left alone or unattended in the area where the appliance is in use. ▶ They should never be allowed to sit or stand on any part of the appliance. WARNING To avoid the risk of suffocation: ▶ Do not allow children to play with packaging material. 1.7 Electromagnetic interference WARNING This induction cooktop generates and uses ISM frequency energy that heats cookware by using an electromagnetic field. It has been tested and complies with Part 18 of the FCC Rules for ISM equipment. This induction cooktop meets the FCC requirements to minimize interference with

other devices in residential installation. Induction cooktops may cause interference with television or radio reception. If interference occurs, the user should try to correct the interference by ▶ Relocating the receiving antenna of the radio or television. ▶ Increasing the distance between the cooktop and the receiver. ▶ Connecting the receiver into an outlet different than the cooktop. ▶ It is the user's responsibility to correct any interference. CAUTION Persons with a pacemaker or similar medical device should exercise caution when standing near an induction cooktop while it is in use. ▶ Consult your doctor or the manufacturer of the pacemaker or similar medical device for additional information about its effects with electromagnetic fields from an induction cooktop. 1.8 Proper installation and maintenance WARNING In the event of a malfunction, it might become necessary to turn off the power supply. ▶ Have the installer show you the circuit breaker or fuse. Mark it for easy reference. To avoid electrical shock hazard, before servicing the appliance, turn power off at the service panel and lock the panel to prevent the power from being switched on accidentally. Proper Installation - Improper installation or grounding can cause electric shock. ▶ This appliance must be properly installed and grounded by a qualified technician. ▶ Connect only to properly grounded outlet. ▶ Refer to installation instructions for details. User Servicing - Do not repair or replace any part of the appliance unless specifically recommended in this manual. ▶ All other servicing should be referred to an authorized service provider. If the supply cord is damaged, it must be replaced by the manufacturer, its authorized service provider or similar qualified persons in order to avoid hazard. CAUTION The cooktop is equipped with a cooling fan on its underside. Materials may be sucked into the fan and compromise the cooling of the appliance or damage the fan. ▶ If the cooktop is installed above a drawer, the drawer must not contain any objects or paper. ▶ There must be a minimum distance of ¾" (20mm) between the content of the drawer and the fan input. WARNING Malfunctions can cause injuries. ▶ Do not operate this appliance if it is not working properly, or if it has been damaged. Contact an authorized service provider. 1.9 State of California Proposition 65 Warnings This product may contain a chemical known to the State of California, which can cause cancer or reproductive harm. Therefore, the packaging of your product may bear the following label as required by California:

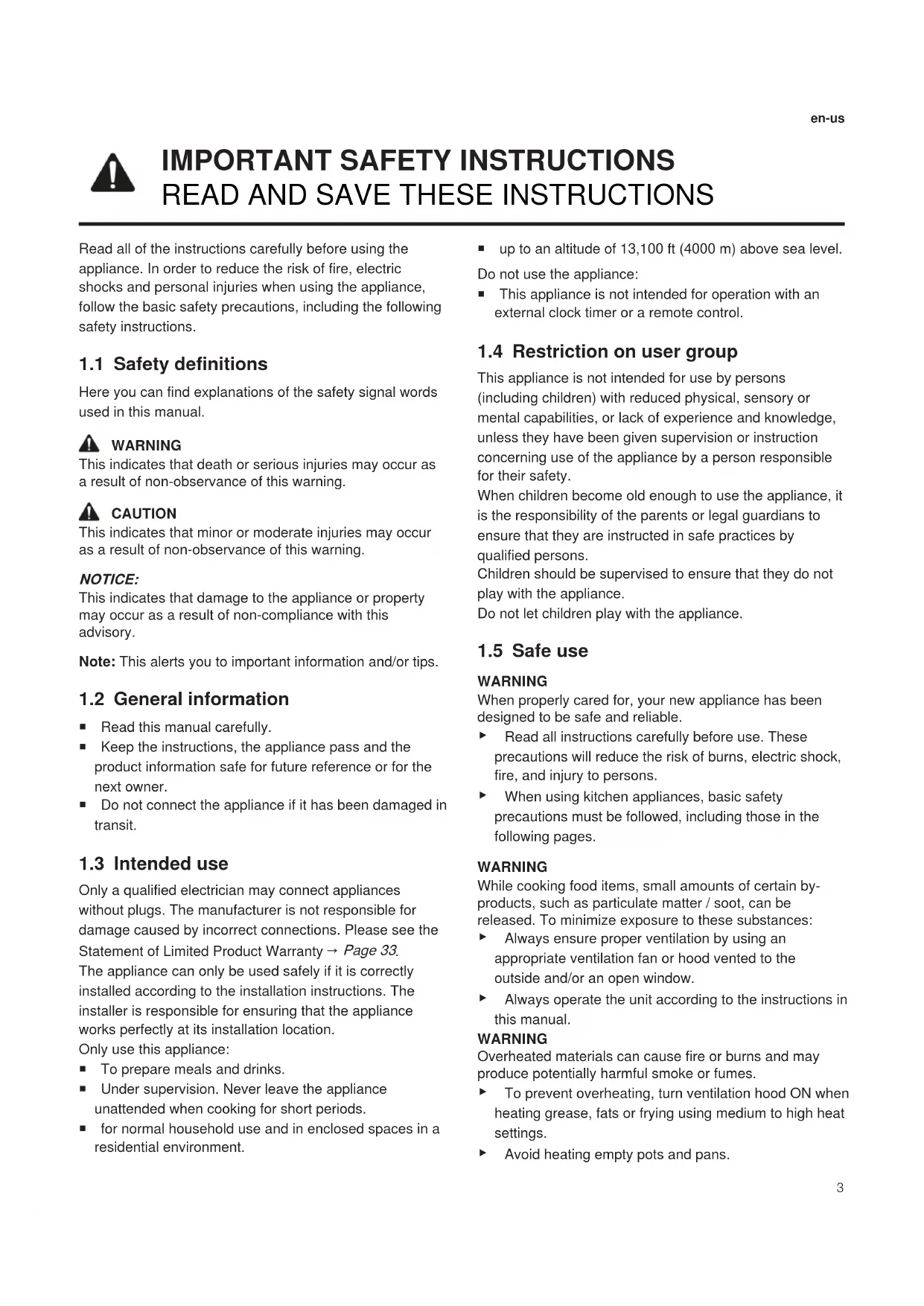

IMPORTANT SAFETY INSTRUCTIONS

READ AND SAVE THESE INSTRUCTIONSen-us Preventing material damage Preventing material damage 2 Preventing material damage Preventing material damage NOTICE: Cookware with rough bottoms scratch the glass ceramic surface. ▶ Check the bottom of the cookware before setting it down. Salt, sugar or grains of sand scratch the glass ceramic surface. ▶ Never use the cooktop as a working surface or for setting things down. Overheating can damage the cookware. ▶ Do not heat empty pots or pans. Hot cookware can cause the electronics to overheat. ▶ Never set down hot pans and pots on the control panel or the cooktop frame. When hard or sharp objects fall on the cooktop, they can cause damage. ▶ Do not let hard or pointed objects fall on the cooktop. Aluminum foil and plastic melt on hot cooking zones. ▶ Do not let aluminum foil or plastic come into contact with hot cooking zones. ▶ Do not use cooktop protective film. Unsuitable cleaning agents can cause shimmering metallic discolorations on the glass ceramic surface. ▶ Refer to the cleaning recommendations in this manual.

"Cleaning and maintenance", Page25 2.1 Overview of the most common types of damage Here you can find an overview of the most common types of damage and suggestions how to avoid them. Stains Cause How to avoid Boiled-over food Remove boiled-over food immediately with a glass scraper. Unsuitable cleaning agents Use cleaning agents that are suitable for glass ceramic cooktops. Scratches Cause How to avoid Salt, sugar and sand Do not use the cooktop as a work surface or storage space. Cookware with rough bases Check the cookware. Discolorations Cause How to avoid Unsuitable cleaning agents Use cleaning agents that are suitable for glass ceramic cooktops. Pot abrasion (e.g. aluminum) Lift pots and pans when moving them. Blisters Cause How to avoid Sugar, food with a high sugar content Remove boiled-over food immediately with a glass scraper. Environmental protection and energy-saving 3 Environmental protection and energy-saving Environmental protection and energy-saving 3.1 Disposal of packaging The packaging materials are environmentally compatible and can be recycled. ▶ Sort the individual components by type and dispose of them separately. 3.2 Saving energy If you follow these tips, your appliance consumes less energy. Select cookware with a base diameter that matches the cooking zone. Center the cookware on the cooking zone. Tip:For frying pans, cookware manufacturers usually state the top diameter of the cookware. The diameter of the pan base is usually smaller.

The energy is targeted at the cookware. If you use cookware that is too small, energy is wasted. If the cookware is too large, much energy is used to heat up the cookware. Close cookware with a fitting lid.

If you lift the lid, a lot of energy can escape. Use a glass lid.

If you use a glass lid, you can look inside the cookware without lifting the lid. Use cookware with a solid flat bottom.

Curved cookware bases increase energy consumption. Use a cookware size that matches the amount of food you want to cook.

Large cookware with little content consumes a lot of energy. Cook with a small amount of water.

More water requires more energy to heat it up. Select a lower power level as soon as possible. Select a suitable power level to continue cooking.

For ongoing cooking a lower power level is sufficient.Suitable cookware en-us

Suitable cookware 4 Suitable cookware Suitable cookware Cookware that is suitable for induction cooking must have a ferromagnetic base, i.e. it must be attracted by a magnet. The base must also match the size of the cooking zone. If cookware is not detected on a cooking zone, place it on the cooking zone with the next smallest diameter. 4.1 Size and characteristics of the cookware To be able correctly detect the cookware, you must take the size and the material of the cookware into consideration. All cookware bases must be perfectly flat and smooth. Use Cookware test to check whether the cookware is suitable. Cookware Materials Properties Recommended cookware Stainless steel cookware in a sandwich design that distributes the heat well. This cookware distributes the heat evenly, heats up quickly, and ensures that it can be detected easily. Ferromagnetic cookware made of enameled steel, cast iron, or special induction cookware made of stainless steel. This cookware distributes the heat evenly, heats up quickly, and ensures that it can be detected. Suitable The base is not fully ferromagnetic. If the ferromagnetic area is smaller than the base of the cookware, only the area that is ferromagnetic heats up. As a result, the heat is not distributed evenly. Cookware bases with aluminum content. These cookware bases reduce the ferromagnetic area, which means that less power is emitted to the cookware. This cookware may not be sufficiently detected or may not be detected at all, and therefore does not heat sufficiently. Not suitable Cookware made from normal thin steel, glass, clay, copper or aluminum. Notes ¡ Do not use adapter plates between the cooktop and the cookware. ¡ Do not heat up empty cookware and do not use cookware with a thin base, as this may become very hot.en-us Familiarizing yourself with your appliance

Familiarizing yourself with your appliance 5 Familiarizing yourself with your appliance Familiarizing yourself with your appliance This Use and Care Manual covers several models. Your model may have some but not all of the features listed. 5.1 Control panel You can use the control panel to configure all functions of your appliance and to obtain information about the operating status. The control panel image is representative. Your appliance may vary slightly. Touch keys Touch keys are touch sensitive areas. Touch a symbol to activate the corresponding function. ¡ The indicators above the touch keys that currently can be selected light up. ¡ The touch keys for functions that currently cannot be selected do not light up. ¡ The indicators for selected functions or cooking zones light up brighter. Touch key Function Main switch ... Settings area / Select cooking zone panel lock Wipe protection / Panel lock speed boost SpeedBoost® and ShortBoost function power move PowerMove® function auto chef AutoChef® function flex join/split FlexInduction™ flexible cooking zone kitchen timer Kitchen timer count up timer Count-up timer keep warm Keep warm function confirm HomeConnect® confirmation key hood control Hood control function hood light Hood light control Notes ¡ Keep the controls clean and dry. Moisture can impair the function of the controls. ¡ Do not place cookware close to the displays and sensors. The electronics may overheat. Displays The displays show active settings and functions. When you select a cooking zone, the settings for this cooking zone light up brighter. Display Name . Cooktop ready - Power levels / Residual heat indicator . SpeedBoost® function active . ShortBoost function active AutoChef® active Timer value Keep warm function active Wipe protection active Panel lock active Wi-Fi Automatic hood control activeBefore using for the first time en-us

5.2 Distribution of the cooking zones ( ) = cm Note:The graphics are representative. Your appliance may have different graphic or design appearances. 5.3 Cooking zones Here you can find an overview of the cooking zones available on your cooktop. Place the cookware on the cooking zone that best matches its size. When a cooking zone is active, the corresponding displays light up. Only use cookware that is suitable for induction cooking. Symbol Cooking zone Function / Single cooking zone Use cookware that matches the size of the cooking zone. Flexible cooking zone

"FlexInduction™ cooking zone", Page13 5.4 Residual heat indicator The cooktop has a residual heat indicator for each cooking zone. Do not touch the cooking zone if the residual heat indicator is lit. Display Meaning The cooking zone is hot. The cooking zone is warm. Before using for the first time 6 Before using for the first time Before using for the first time Observe the following recommendations. 6.1 Initial cleaning Remove any leftover packaging from the cooktop surface and wipe the surface with a damp cloth. You can find a list of recommended detergents on the official website www.bosch-home.com. Further information on care and cleaning. → Page25 6.2 Induction cooking In comparison to conventional cooktops, cooking on an induction cooktop brings with it a series of changes and has a number of benefits such as time savings when cooking and frying, energy savings, as well as greater ease of cleaning and care. It also offers improved heat control as the heat is generated directly in the cookware. 6.3 Cookware You can find a list of recommended cookware on the official website www.bosch-home.com. Further information on suitable cookware. → Page9 6.4 Configuring Home Connect When you first switch on the appliance, you will be prompted to set up your home network. The symbol lights up for a few seconds on the display panel. To begin setting up the connection, touch the sensor and proceed in accordance with the information given in the section entitled

"HomeConnect® ", Page22 . To exit initial set-up, touch any sensor. Operation 7 Operation Operation Here you will find everything you need to know about operating your appliance. 7.1 Turning the cooktop on ▶ Press .en-us Operation

a The indicator above turns on. a The symbols for the cooking zones and functions available at this time light up. a . lights up in the cooking zone displays. 7.2 Turning the cooktop off ▶ Press and hold until all indicators go out. a All cooking zones are turned off. a The residual heat indicators remain lit until the cooking zones have cooled off sufficiently. Note:The cooktop turns off automatically when all the cooking zones have been turned off for more than 20seconds. 7.3 Cooking zone settings In order to make settings on a cooking zone, the cooking zone has to be selected. Set the desired power level for each cooking zone in the settings area. Setting Power level lowest power level highest power level Intermediate setting for all power levels Note:The cooktop may temporarily reduce the power automatically to protect the fragile parts of your appliance and to prevent the appliance from producing excess noise. Setting the power level Requirement:The cooktop is turned on.

1. Place the cookware on the cooking zone.2. Press or to select a cooking zone .

a . lights up brighter on the cooking zone display.

3. Set the power level in the settings area . Press to

set an intermediate level, for example 1.5 or 3.5. Notes ¡ If there is no cookware on the cooking zone, the cooking zone display blinks. This means that the cooking zone tries to detect the cookware. Place cookware on the cooking zone within 30seconds, or the cooking zone will switch itself off. ¡ If the indicators blink while cookware is present on the cooking zone, check whether the cookware is suitable for induction cooking.

"Cookware test", Page29 ¡ If there is cookware on the cooking zone before switching the cooktop on, it is detected within 20seconds after touching the main switch and the cooking zone is selected automatically. Set the power level within 10seconds. Otherwise, the cooking zone switches off after 20seconds. ¡ If there are several pieces of cookware on the cooktop when it is switched on, only one piece of cookware is detected. ¡ Place cookware on the flexible cooking zone in the correct position according to size.

"FlexInduction™ cooking zone", Page13 Changing the power level

1. Press or to select a cooking zone.2. Set the power level in the settings area.

Turning the cooking zone off

1. Press or to select a cooking zone.2. Select in the settings area.

a The residual heat indicator lights up after approximately 10seconds. Note:You can also switch off the cooking zone directly by touching the cooking zone symbol for longer than 3seconds. 7.4 Recommended cooking settings Here you can find recommendations on cooking and an overview of various dishes with suitable heat levels. ¡ Select power level 8 or 9 for bringing water to a boil or heating up the pan. ¡ Stir thick liquids occasionally. ¡ Food that needs to be seared quickly, or food which loses a lot of liquid during initial frying, is best seared in several small portions. ¡ When you cook with a lid on, turn the heat setting down as soon as steam escapes between lid and cookware. ¡ Keep the lid on the cookware after cooking until you serve the food. ¡ When you cook with a pressure cooker, observe the manufacturer's instructions. ¡ Do not cook food for too long or in too much water. Otherwise the nutrients will be lost. You can use the kitchen timer to set the optimum cooking time.

"Kitchen timer", Page15 ¡ Do not heat oil or grease until it smokes. You will achieve healthier cooking results.Operation en-us

¡ When you brown food, fry small portions one after the other. ¡ Cookware may become very hot during cooking. We recommend the use of pot holders. ¡ You can find recommendations for energy-efficient cooking under

"Saving energy", Page8 Cooking charts The cooking chart shows which power level is suitable for each type of food. The cooking time may vary depending on the type, weight, thickness and quality of the food. CAUTION Stews or liquids can heat up very quickly during cooking and may overflow or spatter, e.g. soups, sauces or drinks. ▶ Stir continuously.▶ Heat the food at a suitable power level. Melting Type of food Power level Chocolate 1.5 Butter 1.0-2.0 Heating Frozen vegetables, e.g. spinach 2.5-3.5 Broth 7.0-8.0 Thick soup 1.5-2.5 Milk

Ongoing cooking without lid Cooking Rice, with double amount of water 2.0-3.0 Potatoes boiled in their skins, with 1-2cups of water 4.0-5.0 Boiled potatoes, with 1-2cups of water 4.0-5.0 Fresh vegetables, with 1-2cups of water 2.0-3.5 Frozen vegetables, with 1-2cups of water 3.5-4.5 Pasta, with 2-4qt. water

Ongoing cooking without lid

Turn the food several times. Deep-fat frying Fry in 1-2qt. oil without a lid. Deep-frozen foods, e.g. chicken nuggets (0.5lb per serving) 8.0-9.0 Other, e.g. donuts (0.5lb per serving) 4.5-5.5 Keep warm Tomato sauce 1.5 7.5 FlexInduction™ cooking zone You can use the flexible cooking zone as one large cooking zone, or as two separate cooking zones. The flexible cooking zone has 4induction elements, which are controlled independently from each other. When you use the FlexInduction™ function, only the area that is covered by cookware is activated. Cookware recommendations for the flexible cooking zone Place the cookware in the middle of the cooking zone. This assures optimal pot detection and heat distribution. Flexible cooking zone as one large cooking zone Possible cookware positions Explanation The cookware diameter is smaller than or equal to 5⅛" (13 cm). Place the cookware on one of the four positions shown in the illustration. The cookware diameter is larger than 5⅛" (13 cm). Place the cookware on one of the three positions shown in the illustration. The cookware takes up more than one of the positions shown above. Position the cookware starting on the upper or lower edge of the flexible cooking zone.en-us Operation

Flexible cooking zone as two separate cooking zones Possible cookware positions Explanation The front and rear cooking zones each have two induction elements. They can be used independently of each other. Use only one item of cookware on each cooking zone. Select the required heat setting for each of the cooking zones. Using the flexible zone as two separate cooking zones ▶ Make the settings for each cooking zone independently.

"Cooking zone settings", Page12 Note:The flexible cooking zone operates as two separate cooking zones as a default. If you want the FlexInduction™ function to be activated automatically you can adjust the basic settings.

"Basic settings", Page20 Activating the FlexInduction™ function

1. Place the cookware on the flexible cooking zone.2. Select one of the two cooking zones that belong to the

flexible cooking zone.

3. Press flex join/split.

4. Set the power level.

a The power level is displayed on both cooking zone displays. Note:If both cooking zones are set to different power levels before being linked, both cooking zones switch to 0. Changing the power level for the flexible cooking zone

1. Select one of the two cooking zones of the flexible

2. Change the power level in the settings area.

Adding cookware to the flexible cooking zone You can add a piece of cookware while you are cooking on the flexible cooking zone.

1. Place the additional piece of cookware on the flexible

2. Select one of the two cooking zones of the flexible

3. Press flex join/split twice.

a The additional cookware is detected. a The power level stays the same. Note:If you remove the cookware from the cooking zone, or lift it up, the cooking zone begins to search for the cookware. The power level stays the same. Deactivating the FlexInduction™ function

1. Select one of the two cooking zones of the flexible

2. Press flex join/split.

a The flexible cooking zone is split into two separate cooking zones. Note:If the cooking zone is switched off, and then switched back on again later, the flexible cooking zone is reset to function as two independent cooking zones. 7.6 PowerMove® function This function activates the entire flexible cooking zone, and divides it into three cooking areas with different preset power levels. You can move an item of cookware during the cooking process to another cooking area with a different power level without making any settings. Preset power levels ¡ Front area = power level ¡ Middle area = power level ¡ Back area = power level . General information for using this function: ¡ You can preset different power levels for each cooking zone in the basic settings.

"Basic settings", Page20 ¡ Only use one item of cookware. ¡ If more than one item of cookware is detected on the flexible cooking zone, the function is deactivated. ¡ When you move or lift up the cookware, the cooktop automatically starts searching and the power level of the area in which the cookware was detected is set. Cooking areas for PowerMove® function The size of the cooking area depends on the cookware used and whether it is positioned correctly. Cooking areas for small pansOperation en-us

Cooking areas for large pans Activating PowerMove®

1. Select one of the two cooking zones in the flexible

2. Press power move.

a The indicator above power move lights up. a The flexible cooking zone is activated as a joined cooking zone. a The power level in the area in which the cookware is located lights up in the cooking zone display. Changing the power level for PowerMove® You can change the power levels for the individual cooking areas during the cooking process.

1. Set the cookware down on the cooking area.2. Change the power level in the settings area.

a Only the power level for the cooking area on which the cookware is located is changed. Deactivating PowerMove® ▶ Press power move. a The indicator above power move goes out. Notes ¡ If you set one of the cooking areas to , the function is deactivated after a few seconds. ¡ When the function is deactivated, the power levels for the three cooking areas are reset to the preset values. 7.7 Kitchen timer You can use the Kitchen timer to set a time of up to 99minutes. The Kitchen timer is independent from other settings and does not switch off a cooking zone. You can also use the Kitchen timer when the cooktop is turned off or the panel lock is activated. Setting the Kitchen timer WARNING Boilovers can cause smoke and some foods and oils may catch fire if left on high temperature settings. ▶ When using a timer, always supervise the cooktop. ▶ Do not allow anything to boil over or burn.

1. Press kitchen timer.

a lights up in the timer display. a The indicator above kitchen timer lights up.

2. Set the desired time in the settings area.3. Press kitchen timer to confirm.

a The time starts to count down after a few seconds. a When the time has elapsed, a beep sounds. blinks in the timer display. a The indicator above kitchen timer blinks.

4. Press any key to turn off the signals. After 10seconds

the signals stop automatically. Changing or canceling the kitchen timer

1. Press kitchen timer.2. Set the desired time in the settings area.

To cancel the kitchen timer, set the time to .

3. Press kitchen timer to confirm.

7.8 Count-up timer The Count-up timer displays the time that has elapsed since activating the function. The Count-up timer works independently from the cooking zones and from other settings. This function does not automatically switch off a cooking zone. Starting the Count-up timer WARNING Boilovers can cause smoke and some foods and oils may catch fire if left on high temperature settings. ▶ When using a timer, always supervise the cooktop. ▶ Do not allow anything to boil over or burn. ▶ Press count up timer. a lights up on the timer display. a The indicator above count up timer lights up. a The timer starts to count up. Canceling the Count-up timer

1. Press count up timer.

a The timer stops running.

2. Press count up timer again.

a The timer is cleared and turns off. 7.9 SpeedBoost® With this function you can heat larger quantities of water faster than with power level 9. This function temporarily increases the top output of the selected cooking zone. You can also use this function on the flexible cooking zone if it is used as a joined cooking zone. Restrictions for using the SpeedBoost® function ¡ This function can only be used on one cooking zone of the same cooktop segment at a time. The illustration shows these segments of your cooktop. ¡ If the function is not available, and blink on the display of the selected cooking zone. The power level is set automatically.en-us Operation

Activating SpeedBoost®

1. Press or to select a cooking zone.2. Touch speed boost.

a lights up in the cooking zone display. Deactivating SpeedBoost® The function may be deactivated automatically to avoid overheating. This serves to protect the internal electronic components of the cooktop.

1. Press or to select a cooking zone.2. Press speed boost.

a goes out. a The cooking zone switches to power level . Notes ¡ In certain circumstances, this function may switch off automatically in order to protect the electronic elements inside the cooktop. ¡ If you have set a power level before activating the function, this power level is used automatically after the function has been deactivated. 7.10 ShortBoost With this function you can heat cookware faster than with power level . You can also use this function on the flexible cooking zone if it is used as a joined cooking zone. Recommendations for using this function: ¡ Always use cookware that has not been pre-heated. ¡ Use cookware with a flat base. ¡ Do not use cookware with a thin base. ¡ Never leave empty cookware, oil, butter or lard to heat up unattended. ¡ Do not place a lid on the cookware. ¡ Place the cookware on the center of the cooking zone. ¡ Ensure that the diameter of the base of the cookware matches the size of the cooking zone. ¡ Refer to the information on cooking with induction for information on the type, size and positioning of the cookware. Restrictions for using the ShortBoost function ¡ This function can only be used on one cooking zone of the same cooktop segment at a time. The illustration shows these segments of your cooktop. ¡ If the function is not available, and blink on the display of the selected cooking zone. The power level is set automatically. Activating ShortBoost WARNING Oil and fat heat up quickly with the ShortBoost function. Overheated oil and fat may ignite. ▶ Never leave the cooktop unattended during cooking.

1. Press or to select a cooking zone.2. Press speed boost twice.

a . lights up on the cooking zone display. Deactivating ShortBoost The function is turned off automatically after 30seconds. You can turn it off manually before that.

1. Press or to select a cooking zone.2. Press speed boost.

a . goes out. a The cooking zone switches to power level . 7.11 Keep warm This function is suitable for melting chocolate or butter and for keeping food warm. Activating the keep warm function

1. Select the cooking zone.2. Press keep warm.

a lights up on the cooking zone display. Deactivating the keep warm function

1. Select the cooking zone.2. Press keep warm.

a goes out. a The cooking zone turns off and the residual heat indicator lights up. 7.12 AutoChef® With the AutoChef® function, a sensor controls the temperature of the pan. You can fry while the pan maintains the selected temperature. Advantages when using the AutoChef® function: ¡ The cooking zone only continues heating for as long as this is necessary to maintain the temperature. This saves energy and prevents the oil or fat from overheating. ¡ The frying function reports when the empty frying pan has reached the optimum temperature for adding oil and then for adding the food.Operation en-us

General notes for using the AutoChef® function: ¡ Do not place a lid on the frying pan. This will prevent the function from activating correctly. Use a splatter guard to prevent fat from spitting out. ¡ Use suitable oil or fat. If you are using butter, margarine, cold-pressed olive oil or lard, use temperature setting 1 or 2. ¡ Never leave fat or oil unattended while you are heating it. ¡ If the cooking zone is a higher temperature than the cookware or vice versa, the cooking sensor is not activated correctly. Frying pans CAUTION When using a conventional frying pan observe the following notes. ▶ Some frying pans may overheat. They may reach a temperature above or below the selected frying level. Try the lowest frying level first and then change it according to your requirements. ▶ Make sure that the diameter of the base of the frying pan corresponds to the size of the cooking zone. Place the pan in the center of the cooking zone. Frying levels The AutoChef® function offers 5frying levels. Frying level Temperature Suitable for 1 Very low Preparing and reducing sauces, sweating vegetables and frying food in extra virgin olive oil, butter or margarine. 2 Low Frying food using extra virgin olive oil, butter or margarine, e.g. omelettes, French toast, hash browns. 3 Medium-low Frying fish, pancakes and thick food such as Hamburgers or pork chops. 4 Medium-high Frying ground meat, vegetables or thin slices of meat, e.g. veal cutlet. 5 High Frying food at high temperatures, e.g. steaks medium rare or fried cooked potatoes. Setting AutoChef® CAUTION Hot oil or fat may ignite. ▶ Never leave hot fat or oil unattended. ▶ Do not place a lid on the frying pan. This will prevent the AutoChef® function from activating correctly. Use a mesh splatter guard to prevent fat from spitting out. ▶ Only use fat or oil that is suitable for frying. ▶ When you are using butter, margarine, olive oil or lard, select frying level 1 or 2. ▶ Do not use AutoChef® for boiling. Notes ¡ The outer ring of the triple cooking zone is not available with AutoChef®. The triple cooking zone will automatically be operated as a dual cooking zone. ¡ If the size of the pan is unsuitable or the pan is poorly positioned on the flexible cooking zones the AutoChef® may not be activated.

"FlexInduction™ cooking zone", Page13 Requirements ¡ The cooktop is turned on. ¡ You have selected a suitable frying level from the chart.

1. Place the frying sensor pan in the center of the cooking

zone with the AutoChef® feature.

2. Select the cooking zone.3. Press auto chef.

a and light up in the cooking zone display. a The frying levels 1 - 5 light up in the settings area.

4. Select the desired frying level with the number keys in

the settings area. a blinks. a When the set frying temperature is reached a beep sounds and stops blinking.

5. Add the frying oil to the pan.6. Add the ingredients.

Turn the food over as usual to avoid burning. Turning AutoChef® off

1. Select the cooking zone.2. Touch auto chef.

Frying recommendations Here you can find recommendations which frying level is best used for particular foods. The frying time depends on the type, weight, thickness and quality of the food. Cooking tips First heat the empty pan. Add the fat and the food to the pan when the signal sounds.en-us Operation

Meat Food Frying sensor level Total cooking time from sound signal in min. Frying with a little oil Escalope, plain 4 6-10 Escalope, breaded 4 6-10 Fillet 4 6-10 Chops 3 10-15 Cordon bleu 4 10-15 Viennese schnitzel 4 10-15 Steak, rare, 1¼" (3cm) thick 5 6-8 Steak, medium, 1¼" (3cm) thick 5 8-12 Steak, well done, 1¼" (3cm) thick 4 8-12 Poultry breast, ¾" (2cm) thick 3 10-20 Meat cut into strips 4 7-12 Gyros 4 7-12 Bacon 4 5-8 Ground meat 4 6-10 Hamburgers, ½" (1.5cm) thick 3 6-15 Rissoles, ¾" (2cm) thick 3 10-20 Filled rissoles 3 10-20 Boiled sausages 3 8-20 Raw sausages 3 8-20 Fish Food Frying sensor level Total cooking time from sound signal in min. Frying with little oil Fish fillet, plain 4 10-20 Fish fillet, breaded 3 10-20 Scampi 4 4-8 Shrimp 4 4-8 Fried whole fish 3 10-20 Egg dishes Food Frying sensor level Total cooking time from sound signal in min. Frying with little oil Fried eggs in butter 2 2-6 Fried eggs 4 2-6 Scrambled eggs 2 4-9 Omelettes 2 3-6 Crêpes 5 1,5-2,5 Frech toast 3 4-8 Shredded raisin pancake 3 10-15Operation en-us

Vegetables and legumes Food Frying sensor level Total cooking time from sound signal in min. Frying with a little oil Garlic 2 2-10 Onions, sautéed 2 2-10 Onion rings 3 5-10 Zucchini 3 4-12 Eggplant 3 4-12 Peppers 3 4-15 Frying green asparagus 3 4-15 Mushrooms 4 10-15 Sautéing vegetables in oil 1 10-20 Glazed vegetables 3 6-10 Potatoes Food Frying sensor level Total cooking time from sound signal in min. Frying with a little oil Fried potatoes, made from unpeeled boiled potatoes 5 6-12 French fries, made from raw potatoes 4 15-25 Potato pancakes 5 2,5-3,5 Swiss rösti 2 50-55 Glazed potatoes 3 10-15 Sauces Food Frying sensor level Total cooking time from sound signal in min. Frying with a little oil Tomato sauce with vegetables 1 25-35 Béchamel sauce 1 10-20 Cheese sauce 1 10-20 Reducing sauces 1 25-35 Sweet sauces 1 15-25 Frozen products Food Frying sensor level Total cooking time from sound signal in min. Frying with a little oil Escalope 4 15-20 Cordon bleu 4 10-30 Poultry breast 4 10-30 Chicken nuggets 4 10-15 Gyros 4 10-15 Kebab 4 10-15 Fish fillet, plain 3 10-20 Fish fillet, breaded 3 10-20en-us Operation

Food Frying sensor level Total cooking time from sound signal in min. Fish sticks 4 8-12 Frying French fries 5 4-6 Stir-fries 3 6-10 Spring rolls 4 10-30 Camembert 3 10-15 Miscellaneous Food Frying sensor level Total cooking time from sound signal in min. Frying with a little oil Camembert 3 6-10 Croutons 3 6-10 Dried ready meals 1 5-10 Toasting almonds 4 3-15 Toasting nuts 4 3-15 Toasting pine nuts 4 3-15 7.13 Panel lock You can use the panel lock to prevent the cooktop from being turned on accidentally. CAUTION The panel lock may be turned on and off accidentally due to: ▶ water spilled during cleaning▶ food that has overflowed▶ objects being placed on the panel lock touch key. Activating the panel lock Requirement:The cooktop is turned off. ▶ Touch panel lock for 4seconds. a lights up for 10seconds. a The control panel is locked. Deactivating the panel lock ▶ Touch panel lock for 4seconds. a The control panel is unlocked. Automatic panel lock This function automatically activates the panel lock when you switch off the cooktop. The automatic panel lock can be activated in the basic settings → Page20

7.14 Wipe protection With this function you can avoid changing the settings while cleaning the control panel during cooking. This function does not lock the main switch. You can turn the cooktop off at any time. Activating wipe protection ▶ Touch panel lock. a lights up. a The control panel is locked for 35seconds. a After 30seconds a beep indicates that the wipe protection is about to turn off. Deactivating wipe protection You can turn off the wipe protection manually. ▶ Touch panel lock. a goes out. 7.15 Basic settings You can configure the basic settings for your appliance to meet your needs. Basic settings overview Here you can find an overview of the basic settings and the preset factory settings. Display Function Panel lock – Manual

– Automatic – Function deactivated Signal tones – Confirmation signal and error signal are off. The main switch signal remains on. – Only error signal is on. – Only confirmation signal is on.

Factory setting (may vary according to model)

Display Function – Confirmation signal and error signal are

Display energy consumption – Deactivated

– Activated Duration of timer end signal – 10seconds

– 30seconds – 1minute Power management function. Limiting the total power of the cooktop. The available settings depend on the maximum power of the cooktop. – Deactivated

– 3.000W recommended for 13A . – 3.500W recommended for 16A – 4.000W . – 4.500W recommended for 20A

or . – Maximum power of the cooktop

Changing the preset power levels for PowerMove® - Preset power level for the front cooking zone. - Preset power level for the middle cooking zone. - Preset power level for the rear cooking zone. Results for suitability test for cookware – Not suitable. – Not ideal. –Suitable. Configuring status of FlexInduction™ cooking zone when the cooktop is turned on – As two independent cooking zones

– As a joined cooking zone. Restore factory settings – Off

– Restore appliance to factory settings

Factory setting (may vary according to model)

The cooktop's maximum power output is shown on the rating plate Changing the basic settings Requirement:The cooktop is turned off.

1. Turn on the cooktop.2. Within the next 10seconds, press kitchen timer for

about 4seconds. The first four displays provide the product information. To call up the individual displays, touch the control panel. Product information Display Customer Support index (CI) Production number Production number1 Production number2 .

3. Press kitchen timer to access the basic settings.

a In the left display and flash alternately. a In the timer display lights up.

4. Press kitchen timer repeatedly until the desired setting

lights up in the left display.

5. Set the desired option in the settings area.6. Press kitchen timer for about 4seconds.

a The setting is saved. Tip:Press On/Off to leave the basic settings and turn off the cooktop. 7.16 Energy consumption display This function indicates the total amount of energy consumed between turning the cooktop on and turning it off again. Once cooktop is turned off, the energy consumption is displayed in kWh for 10seconds, e.g. 1.08kWh. The accuracy of the display depends on various factors such as the voltage quality of the power supply. You can activate or deactivate this function in the basic settings menu. → Page20 7.17 Power limitation You can use the PowerManager function to set the total power of the cooktop. The cooktop is set at the factory; the cooktop's maximum power is shown on the rating label. You can use this function to adjust the configuration to the requirements of each electrical installation. In order to not exceed this set value, the cooktop automatically distributes the available power as needed between the cooking zones that are switched on. While this function is activated, the output of each cooking zone may temporarily fall below the nominal value. In order to not exceed this set value, the cooktop automatically distributes the available power as needed between the cooking zones that are switched on . The appliance regulates and selects the highest power level automatically. For more information, go to

HomeConnect® 8 HomeConnect® HomeConnect® This appliance is network-capable. Connecting your appliance to a mobile device lets you control its functions via the HomeConnect® app, adjust its basic settings and monitor its operating status. The HomeConnect® services are not available in every country. The availability of the HomeConnect® function depends on the availability of HomeConnect® services in your country. You can find information on this at: www.home-connect.com. The HomeConnect® app guides you through the entire registration process. Follow the instructions in the HomeConnect® app to implement the settings. Tip:Follow the instructions in the HomeConnect® app as well. Notes ¡ Also note the safety information in this instruction manual and ensure that it is also observed when operating the appliance using the HomeConnect® app. ¡ Operating the appliance on the appliance itself always takes priority. It is not possible to operate the appliance using the HomeConnect® app during this time. ¡ In networked standby mode, the appliance requires a maximum of 2watts. ¡ Cooktops are not designed to be left unattended. Always monitor the cooking process. 8.1 Setting up the HomeConnect® app

1. Install the HomeConnect® app on your mobile device.

2. Start the HomeConnect® app and set up access for

HomeConnect®. The HomeConnect® app guides you through the entire registration process. 8.2 Setting upHomeConnect® Requirements ¡ The appliance is connected to the power supply and is switched on. ¡ You have a mobile device with a current version of the iOS or Android operating system, e.g. a smartphone. ¡ The HomeConnect®app is installed on your mobile device. ¡ The appliance receives signals from the WLAN home network (Wi-Fi) at its installation location. ¡ The mobile device and the appliance are within range of your home network's Wi-Fi signal.

1. Open the HomeConnect® app and scan the following

2. Follow the instructions in the HomeConnect® app.

8.3 Overview of the HomeConnect® settings You can adjust the settings and network settings for HomeConnect® by going to your cooktop's basic settings. Setting Selection or display Additional information Network connection – Not connected/disconnect network – Connect automatically – Connect manually – Connected Log the cooktop on in the WLAN home network (Wi-Fi) or disconnect from the network Connecting to the app – Not connected – Connect is only displayed if the cooktop is connected to the home network. Connecting to the Wi-Fi – Wireless module switched off – Wireless module switched on If Wi-Fi has been activated, you can use the HomeConnect® function. is only displayed if the cooktop has been previously connected to a network. Setting via the app – Switched off – Switched on

If is switched off, only the cooktop's operating statuses are displayed in the HomeConnect® app. Software update – Update available and ready to install – Start installation is only displayed if a software update is available.

Setting Selection or display Additional information Control remote access by customer service – Not authorized – Authorized is only displayed if customer service is attempting to connect to the cooktop. Once you grant access, you can end this at any time. Display Wi-Fi signal strength – Not connected to the WLAN home network (Wi-Fi) – Signal strength 1 (poor) – Signal strength 2 (moderate) – Signal strength 3 (good) is only displayed if there is a connection to the WLAN home network (Wi-Fi). Connection to the HomeConnect® server – Not connected – Connected is only displayed if there is a connection to the WLAN home network (Wi-Fi).

Factory setting 8.4 Changing settings via the HomeConnect® app You can use the HomeConnect® app to change the settings for the cooking zones and send them to the cooktop. Requirements ¡ The cooktop is connected to the home network and to the HomeConnect® app. ¡ In order to set the cooktop via the app, the basic setting must be switched on. ¡ The cooktop is switched on.

1. Select the setting in the HomeConnect® app and send

it to the cooktop. Follow the instructions in the HomeConnect® app. a If cooking settings are transmitted to a cooking zone, the display flashes via confirm.

2. If the setting was previously , confirm the setting with

confirm. a The cooking zone display alternately shows the old and new setting.

3. To confirm a new setting, touch on the cooking zone.

4. To discard the setting, touch any other button on the

cooktop. 8.5 Software update Your appliance's software can be updated using the software update function, e.g. for the purposes of optimization, troubleshooting or security updates. To do this, you must be a registered HomeConnect®user, have installed the app on your mobile device and be connected to the HomeConnect®server. As soon as a software update is available, you will be informed via the HomeConnect®app and will be able to start the software update via the app. Once the update has been successfully downloaded, you can start installing it via the HomeConnect®app if you are in your home network (Wi-Fi). The HomeConnect®app informs you once the installation is successful. Notes

The software update consists of two steps. – The first step is the download. – The second step is the installation on your appliance. ¡ You can continue to use your appliance as normal while updates are downloading. Depending on your personal settings in the app, software updates can also be set to download automatically. ¡ Installation takes a few minutes. You cannot use your appliance during installation. ¡ We recommend that you install security updates as soon as possible. 8.6 Remote diagnostics Customer Service can access your appliance via Remote Diagnostics if you ask them to do so, if your appliance is connected to the HomeConnect® server and if Remote Diagnostics is available in the country where you are using the appliance. Tip:Further information and details about the availability of Remote Diagnostics in your country can be found in the Service/Support section of your local website: www.home- connect.com. 8.7 Data Protection Please read this information on data protection. The first time your appliance is registered on a home network connected to the Internet, your appliance transmits the following types of data to the HomeConnect® server (initial registration): ¡ Unique appliance identification (consisting of appliance codes as well as the MAC address of the installed Wi-Fi communication module). ¡ Security certificate of the Wi-Fi communication module (to ensure a secure data connection). ¡ The current software and hardware version of your home appliance.en-us Cooktop-based hood control

¡ Status of any previous reset to factory settings. This initial registration prepares the HomeConnect® functions for use and is only required when you want to use the HomeConnect® functions for the first time. Note:Please note that the HomeConnect® functions can only be used in conjunction with the HomeConnect® app. Information on data protection can be retrieved in the HomeConnect® app. Cooktop-based hood control 9 Cooktop-based hood control Cooktop-based hood control If both appliances are HomeConnect® compatible, the easiest way to connect the appliances is in the HomeConnect® app. To do this, connect the two appliances to HomeConnect® and follow the instructions in the app. Notes ¡ If the appliance is being operated by means of the controls on the cooker hood, this mode of operation always has priority. It is not possible to use the hood controls on the cooktop during this time. ¡ You can only connect to the cooker hood via the HomeConnect® app. Other connection routes are no longer supported. 9.1 Resetting the connection If you have problems connecting your appliance to your home network (Wi-Fi) or if you want to log your appliance onto a different home network (Wi-Fi) , you can reset the HomeConnect® settings. Note:If you reset the HomeConnect® settings, the connection to any hood will also be terminated.

1. Turn on the cooktop.2. Press and hold kitchen timer for 4seconds.

a The product information is displayed.

3. Press kitchen timer repeatedly until and are

displayed alternately.

4. Set the settings value to in the settings area.

9.2 Controlling the hood via the cooktop In the basic settings menu, you can configure what the hood should do when the cooktop or individual cooking zones are switched on or off. You can select other settings using the control panel. Setting the fan

1. Touch hood control.2. Select the fan level.

You can choose between the levels 1, 2 and 3. To select the levels Boost and PowerBoost, press 4 or 5 in the settings area, or press speed boost repeatedly until the required intensive level is set. Turning off the fan

1. Touch kitchen timer.2. Select fan setting .

Setting automatic mode ▶ Touch hood control repeatedly until lights up. a Depending on the configuration of the hood sensor, the fan will start automatically when steam is produced. Refer to the operating instructions of your hood. Deactivating automatic mode ▶ Touch hood control repeatedly until goes out or Select a different fan setting. Setting the hood lighting You can switch the hood light on and off via the control panel of the cooktop. ▶ Press hood light. Note:Depending on the basic settings you have selected, the light will automatically be switched on or off when the cooktop is switched on or off. 9.3 Overview of the hood control settings You can adjust the cooktop based hood controls to suit your requirements at any time. Note:The settings will only be displayed if the appliance is connected to a hood. Some of these settings may not be available. Setting Values Description ¡ - Not connected

/disconnect ¡ - Start connection process ¡ - Connected to home network (Wi-Fi) ¡ - Connected to hood Connection between cooktop and hood

Factory setting (may vary according to model)Cleaning and maintenance en-us

In automatic mode, the hood switches itself on when one of the cooking zones is switched on. ¡ - Switched on in manual mode. The hood switches itself on at the default level when one of the cooking zones is switched on. Automatic fan switch-on The display shows this setting only when the appliance has been connected to the hood. ¡ - Deactivated The fan switches off when the cooktop is turned off. ¡ - Switched on in automatic mode

¡ - Switched on with standard delayd shut-off ¡ - No change to the settings Delay shut-off Setting for whether/how the fan is to run on after the cooktop is turned off. The display shows this setting only when the appliance has been connected to the hood. ¡ - Turned off ¡ - Turned on

The light turns on automatically when you turn on the cooktop. Turn light on automatically The display shows this setting only when the appliance has been connected to the hood. ¡ - Turned off

Factory setting (may vary according to model) Cleaning and maintenance 10 Cleaning and maintenance Cleaning and maintenance To keep your appliance working efficiently for a long time, it is important to clean and maintain it carefully. 10.1 Cleaning agents You can purchase suitable cleaners and glass scrapers from Customer Support or in our online shop www.bosch- home.com/us/shop. Tip:Bosch cleaners have been tested and approved for use on Bosch appliances. Other recommended cleaners do not constitute an endorsement of a specific brand. Recommended cleaning agents ¡ Glass ceramic cooktop cleaner ¡ BonAmi®

(without bleach) ¡ White vinegar Unsuitable cleaning agents ¡ Glass cleaners which contain ammonia or chlorine bleach. These cleaners may damage or permanently stain the cooktop. ¡ Caustic cleaners such as Easy Off®

. These cleaners may stain the cooktop surface. ¡ Abrasive cleaners. ¡ Metal scouring pads and scrub sponges such as Scotch Brite®

. These cleaners may scratch the cooktop surface and/or leave metal marks. ¡ Soap-filled scouring pads such as SOS®

. These cleaners may scratch the cooktop surface. ¡ Powdery cleaners containing chlorine bleach. These cleaners may permanently stain the cooktop surface. ¡ Flammable cleaners such as lighter fluid or WD-40. 10.2 Cleaning the glass ceramic cooktop WARNING Clean Cooktop With Caution. ▶ If a wet sponge or cloth is used to wipe spills on a hot cooking area, be careful to avoid steam burn.

These marks are registered trademarks of their respective owners. All other trademarks are trademarks of BSH Home Appliances Corporation or its affiliated companies.en-us Cleaning and maintenance

▶ Some cleaners can produce noxious fumes if applied to a hot surface. ▶ Do not clean the appliance while it is still hot. CAUTION Do not use any kind of cleaner on the glass while the surface is hot; use only the glass scraper. The resulting fumes can be hazardous to your health. Heating the cleaner can chemically attack and damage the surface. Requirements ¡ The cooktop has cooled off. ¡ Exception: Remove dry sugar, sugar syrup, milk and tomato products immediately.

"Cleaning recommendations", Page26

1. Wipe off splatters with a clean, damp sponge or a paper

4. Rinse and dry again.

5. Apply a small amount of cooktop cleaner with a clean

paper towel or cloth and let it dry.

6. Buff the surface with a clean paper towel or cloth.

1. Wipe using a damp sponge or cloth.

10.4 Cleaning recommendations Follow these cleaning instructions for removing common soiling. WARNING The blade of the glass scraper is extremely sharp. You can cut yourself. ▶ Replace the blade immediately, when you see any imperfections. ▶ Follow the manufacturer's instructions. NOTICE: Diamond rings may scratch the ceramic cooktop surface. ▶ Take off any rings before you clean the ceramic cooktop surface. Type of soil Recommendation ¡ Dry sugar ¡ Sugar syrup ¡ Milk ¡ Tomato spills ¡ Melted plastic film or foil REMOVE IMMEDIATELY. Failure to remove these substances immediately can permanently damage the ceramic cooktop surface. Remove the soil with the glass scraper while the cooktop surface is still hot. Use a new, sharp razor in the glass scraper. ¡ Remove the cookware and turn off the cooking zone. ¡ Put on an oven mitt. ¡ Hold the glass scraper at 30° angle and scrape off the soil. Be careful not to gouge or scratch the glass ceramic surface. ¡ Push the soil off the heated area. ¡ Let the surface cool. ¡ Remove the residue and apply glass ceramic cooktop cleaner. ¡ Burned-on food soil ¡ Dark streaks ¡ Dark specks ¡ Lay a damp paper towel or sponge on top of the soil for 30minutes to soften the soil. ¡ Remove the soil with a plastic scrubber and glass ceramic cooktop cleaner or with the glass scraper. ¡ Rinse the cooktop surface and dry it. Greasy spatters ¡ Remove grease with a soapy sponge or cloth. ¡ Rinse the cooktop surface thoroughly and dry it. ¡ Apply glass ceramic cooktop cleaner. Metal marks: iridescent stain Pans with aluminum, copper or stainless steel bases may leave marks. Treat metal marks immediately after the cooktop surface has cooled off. Failure to do so makes removal very difficult. ¡ Clean the cooktop surface with glass ceramic cooktop cleaner. ¡ If this does not remove the marks, clean the cooktop surface with a damp paper

These marks are registered trademarks of their respective owners. All other trademarks are trademarks of BSH Home Appliances Corporation or its affiliated companies.

These marks are registered trademarks of their respective owners. All other trademarks are trademarks of BSH Home Appliances Corporation or its affiliated companies.Cleaning and maintenance en-us

Type of soil Recommendation towel and a mild abrasive (Bon Ami®

without bleach). ¡ Rinse the cooktop surface and apply glass ceramic cooktop cleaner. Hard water spots Hot cooking liquids may drip or spill on the cooktop surface. The minerals in some water can be transferred onto the surface and cause stains. Remove boilovers and stains before using the cooktop again. ¡ Clean the cooktop surface with undiluted white vinegar. ¡ Rinse the cooktop surface and dry it. ¡ Apply glass ceramic cooktop cleaner. Surface scratches Small scratches are common and do not affect cooking. They become smoother and less noticeable with daily use of the glass ceramic cooktop cleaner. ¡ Apply glass ceramic cooktop cleaner before cooking to remove sand-like grains and grit such as salt and seasoning. ¡ Scratches can be reduced by using pans with bases that are smooth, clean, and dry before use. Use recommended glass ceramic cooktop cleaner daily.

These marks are registered trademarks of their respective owners. All other trademarks are trademarks of BSH Home Appliances Corporation or its affiliated companies. 10.5 Maintenance This appliance requires no maintenance other than daily cleaning. For best results, apply cooktop cleaning cream daily.en-us Troubleshooting

Troubleshooting 11 Troubleshooting Troubleshooting You can eliminate minor issues on your appliance yourself. Please read the information on eliminating issues before contacting Customer Service. This may avoid unnecessary repair visits. WARNING To avoid risk of injury from improper repairs, observe the following. ▶ Only qualified technicians or authorized service providers should perform repairs. ▶ If the power cord of this appliance becomes damaged, it must be replaced by the manufacturer, the manufacturer's Customer Service, or an authorized service provider in order to prevent injury. ▶ Only original spare parts may be used to repair the appliance. ▶ If the appliance has an issue, call Customer Service. Issue Cause and troubleshooting None The power supply has been disconnected. ▶ Check whether the lighting in your kitchen or other appliances in the room are working. The appliance has not been connected as shown in the circuit diagram.

1. Disconnect the appliance from the power supply.

2. Make sure the appliance has been connected as shown in the circuit diagram.

There is an electronics fault ▶ If the fault cannot be eliminated, call Customer Service. All displays flash The control panel is wet or objects are lying on it. ▶ Dry the control panel or remove the object. is flashing in the cooking zone displays. There is an electronics fault ▶ Briefly cover the control panel with your hand to acknowledge the fault. / The electronics have overheated. The corresponding cooking zone has switched off.

1. Wait until the electronics have cooled down sufficiently.

2. Touch any control element.

a When error message disappears, the electronics have cooled down sufficiently. You can continue to cook. / The electronics have overheated. All cooking zones have switched off.

1. Wait until the electronics have cooled down sufficiently.

2. Touch any control element.

a When error message disappears, the electronics have cooled down sufficiently. You can continue to cook. and the power level flash alternately. A signal tone sounds. There is hot cookware near the control panel. The electronics are at risk of overheating. ▶ Remove the cookware from the control panel. a You can continue to cook. and audible signal There is hot cookware near the control panel. The cooking zone has switched off to protect the electronics.

1. Remove the cookware from the control panel.

2. Wait a few seconds.

3. Touch any control element.

a When error message disappears, the electronics have cooled down sufficiently. You can continue to cook. / The cooking zone has overheated. It has switched off to protect the work surface.

1. Wait until the electronics have cooled down sufficiently.

2. Switch the cooking zone back on.

a You can continue to cook.Troubleshooting en-us

Issue Cause and troubleshooting + / and cooking zones not heating The cooking zone has been operating continuously for an extended period of time without interaction. The automatic time limitation has been triggered. ▶ Touch any control element. a You can set the cooking zone and continue to cook. The supply voltage is incorrect. It is outside the normal operating range. ▶ Contact your electrical utility provider. is displayed. The cooktop is unable to connect to your home network or to the hood.

1. Switch the appliance off and on again.

a If the fault was a one-off occurrence, the message disappears.

2. If the message appears again, call Customer Service. Please specify the exact

"Customer Service", Page32 / The supply voltage is incorrect. It is outside the normal operating range. ▶ Contact your electrical utility provider. and cooking zones do not heat

Demo mode is activated.

1. Disconnect the appliance from the power supply for 30 seconds by switching off

the circuit breaker or fuse in the electrical panel.

2. Touch any touch field within the next 3minutes.

11.1 Additional information Notes ¡ If lights up on the display, press and hold the touch key for the cooking zone in question, in order to read the fault code. ¡ If the fault code is not listed in the table, disconnect the cooktop from the power supply, wait 30seconds, and then reconnect it again. If the display appears again, contact Customer Support and tell them the precise fault code. ¡ If a fault occurs, the appliance will not switch to standby mode. 11.2 Cookware test With this function you can check the speed and quality of the cooking process for individual pieces of cookware. Requirements ¡ The cookware is cold. ¡ You have read the recommendations for induction cooking.

1. Fill the cookware with approximately 8oz. (200ml) of

2. Place the cookware on the cooking zone that best

matches the base of the cookware. Center the cookware on the cooking zone. If the diameter of the cooking zone is much smaller than the diameter of the cookware, only the middle of the cookware will heat up. This may have a negative effect on the cooking results.

3. Select in the basic settings.

"Changing the basic settings", Page21

a flashes in the cooking zone display. a The result of the test appears in the cooking zone display after 10seconds.

"Possible Results for Cookware Suitability Test", Page29 Note:The flexible cooking zone only counts as a single cooking zone; place no more than one item of cookware on it. Possible Results for Cookware Suitability Test There are three possible outcomes for the cookware suitability test. Display Meaning The cookware is not suitable for the cooking zone. It will not heat up. Display Meaning If possible, test the cookware again on a smaller cooking zone. The cookware takes longer than expected to heat up. The cooking process is not ideal.en-us Troubleshooting

Display Meaning If possible, test the cookware again on a smaller cooking zone. The cookware heats up correctly. The cooking process is good.FAQs en-us

FAQs 12 FAQs FAQs 12.1 Using the appliance Question Answer Why can't I switch on the cooktop and why is the panel lock symbol lit? ¡ The panel lock is activated. You can find further information about this function under

"Panel lock", Page20 Why are the illuminated displays flashing and why is a signal sounding? ¡ Clean any the surface of the control panel of any liquids or food residue. Remove any objects that may cover the control panel. You can find further information about deactivating the signal tone under

Why can I not activate the frying sensor? ¡ The appliance has reached its maximum power consumption or the power manager function has been activated. Switch off or reduce the power levels of the active cooking zones. You can find further information about this function under

12.2 Noises Question Answer Why I can hear noises while I'm cooking? ¡ Noises may be generated while using the cooktop depending on the properties of the base of the cookware. These noises are normal for induction technology. They do not indicate that there is a fault. Possible noises ¡ A deep humming noise similar to a transformer: Occurs when cooking at a high power level. This noise disappears or becomes quieter when you reduce the power level. ¡ A quiet whistling noise: This can be heard when the cookware is empty. This noise disappears when you add water or food to the cookware. ¡ Crackling: This noise occurs when the cookware is made from different multilayer materials, or if you use cookware of different sizes and different materials. The volume of the noise can vary depending on the quantity of food being cooked or the cooking method. ¡ Loud whistling noises: These may arise if you are operating two cooking zones at the same time and at the maximum power level. These whistling noises disappear or become quieter when you reduce the power level. ¡ Fan noises: The cooktop is equipped with a fan that switches on automatically at high temperatures. The fan may also continue to run after you have switched the cooktop off if the temperature measured is still too high. 12.3 Items of cookware Question Answer Which cookware is suitable for the induction cooktop? ¡ You can find additional information on which items of cookware are suitable for the induction cooking under

"Suitable cookware", Page9

Why is the cooking zone not heating up and why is the power level flashing? ¡ The cookware is on a different cooking zone to the one that has been switched on. Ensure that you have switched on the correct cooking zone for the cookware. ¡ The cookware is too small for the cooking zone that is switched on or it is not suitable for induction cooking. Ensure that the cookware is suitable for induction cooking and that it is placed on the cooking zone which best corresponds to its size. You can find more information about this under

"FlexInduction™ cooking zone", Page13

Question Answer Why is it taking so long for the cookware to heat up or why is it not heating up sufficiently despite being on a high power setting? ¡ The cookware is too small for the cooking zone that is switched on or it is not suitable for induction cooking. Ensure that the cookware is suitable for induction cooking and that it is placed on the cooking zone which best corresponds to its size. You can find more information about this under

"FlexInduction™ cooking zone", Page13

"PowerMove® function", Page14 12.4 Cleaning Question Answer How can I clean the cooktop? ¡ You can achieve the best results by using special glass-ceramic cleaning products. Do not use harsh or abrasive cleaning products, dishwater detergent (concentrated) or scouring pads. You can find more information about this under

"Cleaning and maintenance", Page25

Disposal 13 Disposal Disposal 13.1 Disposal of your old appliance Environmentally compatible disposal allows valuable raw materials to be recycled. ▶ Dispose of the appliance in an environmentally responsible manner. Information about current disposal methods can be obtained from your specialist dealer or local authority. Customer Service 14 Customer Service Customer Service With any warranty repair, we will make sure your appliance is repaired by an authorized service provider using genuine replacement parts. We use only genuine replacement parts for all repairs. Detailed information on the warranty period and terms of warranty can be found in the Statement of Limited Product Warranty, from your retailer, or on our website. If you contact Customer Service, you will need the model number (E-Nr.) and the production number (FD) of your appliance. USA: 1-800-944-2904 www.bosch-home.com/us/owner-support/get-support www.bosch-home.com/us/shop CA: 1-800-944-2904 www.bosch-home.ca/en/service/get-support www.bosch-home.ca/en/service/cleaners-and-accessories For assistance with connecting to HomeConnect®, you can also view instructions here: www.home-connect.com/us/en/help-support/set-up 14.1 Model number (E-Nr.) and production number (FD) You can find the model number (E-Nr.) and the production number (FD) on the appliance's rating plate. The model number (E-Nr.) can also be found on the glass ceramic. You can also display the customer service index (KI) and the production number (FD) in the Basic settings

Making a note of your appliance's details and the Customer Service telephone number will enable you to find them again quickly. 14.2 Rating plate location You can find the rating plate of your appliance: ¡ On the underside of the appliance. ¡ in the appliance pass ¡ You can also check the Customer Service Index (CSI) and the FD number in the basic settings.

15.1 What this warranty covers & Who it applies to The limited warranty provided by BSH Home Appliances (“Bosch“) in this Statement of Limited Product Warranty applies only to the Bosch appliance sold to you (“Product“), provided that the Product was purchased: ¡ For your normal, household (non-commercial) use, and has in fact at all times only been used for normal household purposes. ¡ New at retail from a BSH authorized dealer or directly from BSH (not a display, "as is", or previously returned model), and not for resale, or commercial use. ¡ Within the United States or Canada, and has at all times remained within the country of original purchase. The warranties stated herein apply to the original purchaser of the product warranted herein and to each succeeding owner of the product purchased for ordinary home use during the term of the warranty. Please make sure to register your Product; while not necessary to effectuate warranty coverage, it is the best way for Bosch to notify you in the unlikely event of a safety notice or product recall. 15.2 How long the warranty lasts Bosch warrants that the Product is free from defects in materials and workmanship for a period of three hundred and sixty-five (365) days from the date of the original delivery. The foregoing timeline begins to run upon the date of the original delivery, and shall not be stalled, tolled, extended, or suspended, for any reason whatsoever. This Product is also warranted to be free from cosmetic defects in material and workmanship (such as scratches of stainless steel, paint/porcelain blemishes, chips, dents, or other damage to the finish) of the Product, for a period of thirty (30) days from the date of delivery or closing date for new construction. This cosmetic warranty excludes slight color variations due to inherent differences in painted and porcelain parts, as well as differences caused by kitchen lighting, product location, or other similar factors. This cosmetic warranty specifically excludes any display, floor, “As Is”, or “B” stock appliances. 15.3 Repair/replace as your exclusive remedy During this warranty period, Bosch or one of its authorized service providers will repair your Product without charge to you (subject to certain limitations stated herein) if your Product proves to have been manufactured with a defect in materials or workmanship. If reasonable attempts to repair the Product have been made without success, then Bosch will replace your Product (upgraded models may be available to you, in Bosch’s sole discretion, for an additional charge). Nothing in this warranty requires damaged or defective parts to be replaced with parts of a different type or design than the original part. All removed parts and components shall become the property of Bosch at its sole option. All replaced and/or repaired parts shall assume the identity of the original part for purposes of this warranty and this warranty shall not be extended with respect to such parts. Bosch's sole liability and responsibility hereunder is to repair manufacturer- defective Product only, using a Bosch authorized service provider during normal business hours. For safety and property damage concerns, Bosch highly recommends that you do not attempt to repair the Product yourself, or use a non-authorized service provider; Bosch will have no responsibility or liability for damage resulting from repairs or work performed by a non-authorized service provider. Authorized service providers are those persons or companies that have been specially trained on Bosch products, and who possess, in Bosch's opinion, a superior reputation for customer service and technical ability (note that they are independent entities and are not agents, partners, affiliates or representatives of Bosch). Nevertheless, taking your product to be serviced by a repair shop that is not affiliated with or an authorized dealer of Bosch will not void this warranty. Also, using third-party parts will not void this warranty. Notwithstanding the foregoing, Bosch will not incur any liability, or have responsibility, for the Product if it is located in a remote area (more than 100 miles from an authorized service provider) or is reasonably inaccessible, hazardous, threatening, or treacherous locale, surroundings, or environment; in any such event, if you request, Bosch would still pay for labor and parts and ship the parts to the nearest authorized service provider, but you would still be fully liable and responsible for any travel time or other special charges by the service company, assuming they agree to make the service call. Further, to the extent you have installed the Product in a difficult-to- access location or have otherwise installed temporary or permanent fixtures that create barriers to accessing or removing the Product, Bosch will not incur any liability for, or have responsibility, for work or costs associated withen-us STATEMENT OF LIMITED PRODUCT WARRANTY

moving the Product or otherwise creating access to the Product in order to repair or replace it. All such costs shall be your sole responsibility. 15.4 Out of warranty product Bosch is under no obligation, at law or otherwise, to provide you with any concessions, including repairs, prorates, or Product replacement, once this warranty has expired. 15.5 Warranty exclusions The warranty coverage described herein excludes all defects or damage that are not the direct fault of Bosch, including without limitation, one or more of the following: ¡ Use of the Product in anything other than its normal, customary and intended manner (including without limitation, any form of commercial use, use or storage of an indoor product outdoors, use of the Product in conjunction with air or water-going vessels). ¡ Any party's willful misconduct, negligence, misuse, abuse, accidents, neglect, improper operation, failure to maintain, improper or negligent installation, tampering, failure to follow operating instructions, mishandling, unauthorized service (including selfperformed "fixing" or exploration of the appliance's internal workings). ¡ Adjustment, alteration or modification of any kind. ¡ A failure to comply with any applicable state, local, city, or county electrical, plumbing and/or building codes, regulations, or laws, including failure to install the product in strict conformity with local fire and building codes and regulations. ¡ Ordinary wear and tear, spills of food, liquid, grease accumulations, or other substances that accumulate on, in, or around the Product. ¡ Any external, elemental and/or environmental forces and factors, including without limitation, rain, wind, sand, floods, fires, mud slides, freezing temperatures, excessive moisture or extended exposure to humidity, lightning, power surges, structural failures surrounding the appliance, and acts of God. ¡ Service calls to correct the installation of your Product, to instruct you how to use your Product, to replace house fuses or correct house wiring or plumbing. ¡ Removal and replacement of trim or decorative panels that interfere with servicing the Product. ¡ Damage or defects caused by labor or parts installed by any non-authorized service provider, unless approved by Bosch before service is performed. In no event shall Bosch have any liability or responsibility whatsoever for damage to surrounding property, including cabinetry, floors, ceilings, and other structures or objects around the Product. Also excluded from this warranty are Products, on which the serial numbers have been altered, defaced, or removed; service visits to teach you how to use the Product, or visits where there is nothing wrong with the Product; correction of installation problems (you are solely responsible for any structure and setting for the Product, including all electrical, plumbing or other connecting facilities, for proper foundation/flooring, and for any alterations including without limitation cabinetry, walls, floors, shelving, etc.); and resetting of breakers or fuses. TO THE EXTENT ALLOWED BY LAW, THIS WARRANTY

ARISES IN CONTRACT OR TORT (INCLUDING STRICT

LIMITATIONS MAY NOT APPLY TO YOU. THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, AND YOU MAY ALSO HAVE OTHER RIGHTS WHICH VARY FROM STATE TO STATE. No attempt to alter, modify or amend this warranty shall be effective unless authorized in writing by an officer of BSH. 15.6 Obtaining warranty service To obtain warranty service for your product, you should contact Bosch Customer Support at 1-800-944-2904 to schedule a repair. 15.7 Product information For handy reference, copy the information below from the rating plate. Keep your invoice and/or delivery documents for warranty validation. Model number (E-Nr.) Production number (FD) Date of deliveryfr-ca

• Discounts for filters, cleaners, accessories & parts

• Easy access to manuals & appliance specifications

• Easy access to part lists

• Customized offer for the Bosch Appliance Service Plan (sent by mail after appliance registration) Register here: www.bosch-home.com/us/owner-support/mybosch Looking for help? You'll find it here. No matter what, no matter when: Bosch is here to support you. We’re here to assist with usage instructions, cleaning tips, accessories & parts, troubleshooting, and repairs. Find online resources such as FAQs, how-to-videos, manuals, warranties and authorized Bosch servicers at: www.bosch-home.com/us/owner-support/get-support Contact us: Please have your Model Number (E-Nr) ready when contacting us. 1-800-944-2904 www.bosch-home.com/us/owner-support/contact-us BSH Home Appliances Corporation1901 Main Street, Suite 600Irvine, CA 92614 USA www.bosch-home.com1-800-944-2904© 2024 BSH Home Appliances Corporation *9001444939* 9001444939 (050121)en-us, fr-ca
