USER MANUAL DO99505S DOMO

Space Requirement Keep enough space of door open. Keep at least 50mm gap at two sides and back.

1. Pour fresh drinking water into each ice-making box.

2. Put the box into the freezing compartment.

3. After water becomes ice, take off the ice maker out of the appliance

and rotate the knob by hand. Then, ice blocks will fall into the small drawer automatically. Pull out the drawer and fetch the ice cubes. Notice: Do not bring water between the knob, otherwise the knob maybe frozen and the ice cubes cannot drop into the storage box

Temperature setting recommendation: 4°C is recommended. Under recommended setting, the best storage time of freezer is no more than 3 days. The best storage time may reduce under other settings.

Temperature setting recommendation: 4°C is recommended. Under recommended setting, the best storage time of freezer is no more than 3 days. The best storage time may reduce under other settings.

Space Requirement Keep enough space of door open. Keep at least 50mm gap at two sides and back.

1. Pour fresh drinking water into each ice-making box.

2. Put the box into the freezing compartment.

3. After water becomes ice, take off the ice maker out of the appliance

and rotate the knob by hand. Then, ice blocks will fall into the small drawer automatically. Pull out the drawer and fetch the ice cubes. Notice: Do not bring water between the knob, otherwise the knob maybe frozen and the ice cubes cannot drop into the storage box

Temperature setting recommendation: 4°C is recommended. Under recommended setting, the best storage time of freezer is no more than 3 days. The best storage time may reduce under other settings.

Temperature setting recommendation: 4°C is recommended. Under recommended setting, the best storage time of freezer is no more than 3 days. The best storage time may reduce under other settings.

Space Requirement Keep enough space of door open. Keep at least 50mm gap at two sides and back.

1. Pour fresh drinking water into each ice-making box.

2. Put the box into the freezing compartment.

3. After water becomes ice, take off the ice maker out of the appliance

and rotate the knob by hand. Then, ice blocks will fall into the small drawer automatically. Pull out the drawer and fetch the ice cubes. Notice: Do not bring water between the knob, otherwise the knob maybe frozen and the ice cubes cannot drop into the storage box

Temperature setting recommendation: 4°C is recommended. Under recommended setting, the best storage time of freezer is no more than 3 days. The best storage time may reduce under other settings.

Temperature setting recommendation: 4°C is recommended. Under recommended setting, the best storage time of freezer is no more than 3 days. The best storage time may reduce under other settings.

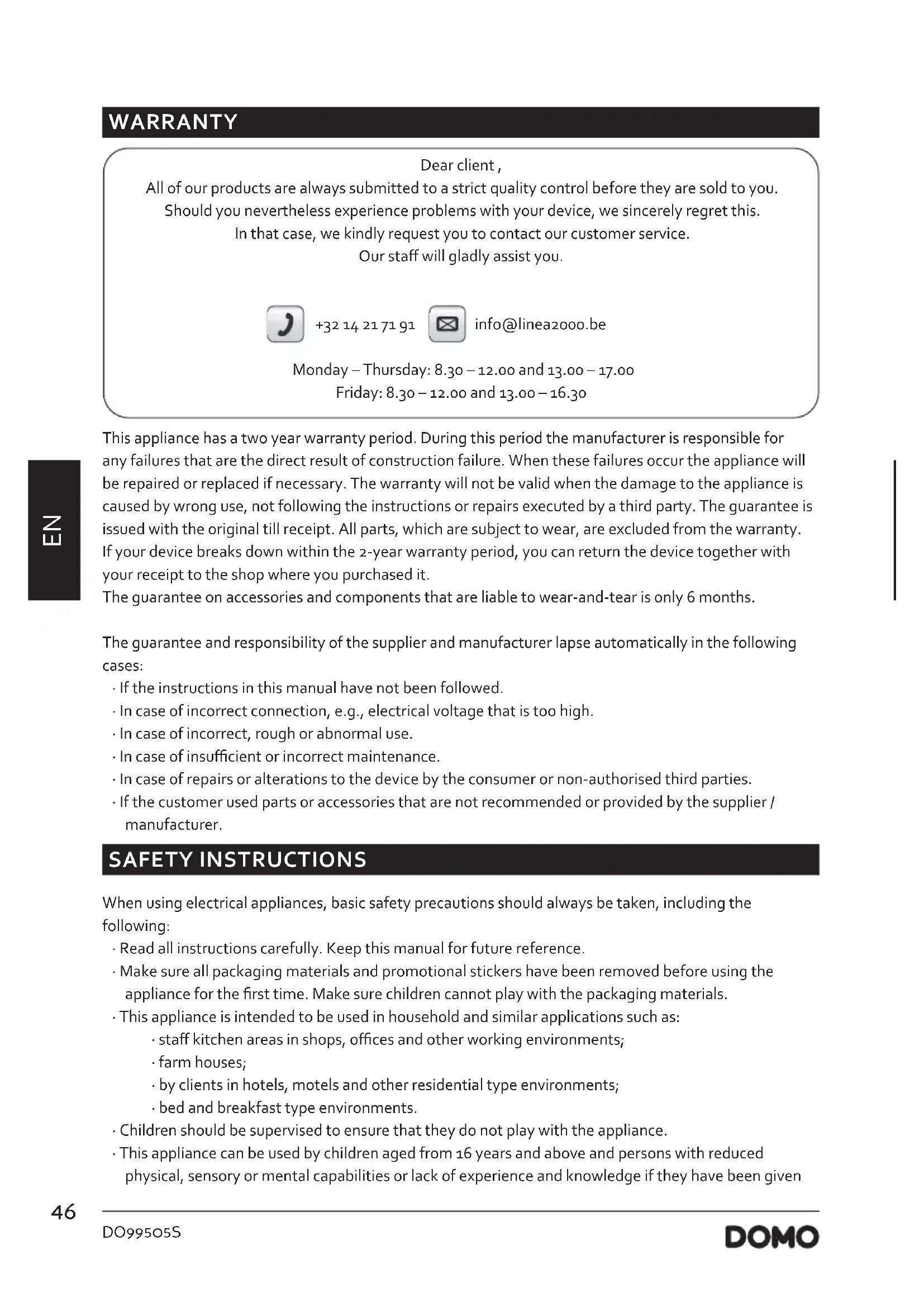

WARRANTY Dear client , All of our products are always submitted to a strict quality control before they are sold to you. Should you nevertheless experience problems with your device, we sincerely regret this. In that case, we kindly request you to contact our customer service. Our sta will gladly assist you. +32 14 21 71 91 info@linea2000.be Monday – Thursday: 8.30 – 12.00 and 13.00 – 17.00 Friday: 8.30 – 12.00 and 13.00 – 16.30 This appliance has a two year warranty period. During this period the manufacturer is responsible for any failures that are the direct result of construction failure. When these failures occur the appliance will be repaired or replaced if necessary. The warranty will not be valid when the damage to the appliance is caused by wrong use, not following the instructions or repairs executed by a third party. The guarantee is issued with the original till receipt. All parts, which are subject to wear, are excluded from the warranty. If your device breaks down within the 2-year warranty period, you can return the device together with your receipt to the shop where you purchased it. The guarantee on accessories and components that are liable to wear-and-tear is only 6 months. The guarantee and responsibility of the supplier and manufacturer lapse automatically in the following cases:

• If the instructions in this manual have not been followed.

• In case of incorrect connection, e.g., electrical voltage that is too high.

• In case of incorrect, rough or abnormal use.

• In case of insucient or incorrect maintenance.

• In case of repairs or alterations to the device by the consumer or non-authorised third parties.

• If the customer used parts or accessories that are not recommended or provided by the supplier / manufacturer. SAFETY INSTRUCTIONS When using electrical appliances, basic safety precautions should always be taken, including the following:

• Read all instructions carefully. Keep this manual for future reference.

• Make sure all packaging materials and promotional stickers have been removed before using the appliance for the rst time. Make sure children cannot play with the packaging materials.

• This appliance is intended to be used in household and similar applications such as:

• sta kitchen areas in shops, oces and other working environments;

• by clients in hotels, motels and other residential type environments;

• bed and breakfast type environments.

• Children should be supervised to ensure that they do not play with the appliance.

• This appliance can be used by children aged from 16 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given47 DO99505S www.domo-elektro.be

supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children unless they are older than 16 and supervised.

• Keep the appliance and its cord out of reach of children younger than 16 years.

• Close supervision is necessary when the appliance is used near or by children.

• All repairs should be carried out by the manufacturer or its aftersales service.

• Make sure that children do not touch the cord or appliance.

• Your appliance uses isobutane (R600a) as a refrigerant. Despite the fact that R600a is an environmentally friendly and natural gas, it is highly ammable. Therefore you should be careful during shipment and installation to prevent your appliance’s cooler elements from being damaged. In the event of a leak caused by damage to the cooler elements, move your fridge from open ame or heat sources and ventilate the room where the appliance is located for a few minutes.

I ELECTRICAL WARNINGS

• Attention: This appliance cannot be used with an external timer or a separate remote control.

• Before use, check if the voltage stated on the appliance corresponds with the voltage of the power net at your home.

• The plug must be plugged into an appropriate outlet that is installed and grounded in accordance with all local standards and requirements.

• Do not let the cord hang on a hot surface or on the edge of a table or counter top.

• Never use the appliance when the cord or plug is damaged, after malfunction or when the appliance itself is damaged. In that case, take the appliance to the nearest qualied service center for check-up and repair.

• If the socket is loose, do not plug in the appliance. (risk of electric shock or re)

• It is dangerous to alter or modify the device and its specications.

• When disposing of the appliance, remove the plug from the power socket, cut the power cord (as closely as possible to the appliance), and remove the door to prevent playing children getting an electrical shock or shutting themselves in the appliance.

• The lamp in the appliance is intended for use in this cooling device only. Do not use the lamp as a household light.

• Unplug the appliance when it is not in use, before assembling or disassembling any parts and before cleaning the appliance. Put all buttons and knobs into the ‘o’ position and unplug the appliance by grasping the plug. Never unplug by pulling the cord. I INSTALLATION

• Never place this appliance near a gas stove or electrical stove or in a place where it may come into contact with a warm appliance.

• Always use the appliance on a steady, dry and level surface.

• Keep the cord away from sharp edges and hot parts or other heat sources.

• Keep the ventilation openings free of obstructions.

• The appliance may not be used with an extension lead or a multiple socket.

• Avoid long exposure to direct sunlight.

• Make sure that you have access to the plug of the appliance.

• Make sure that the plug does not get squashed or damaged by the back of the appliance. A squashed or damaged power plug may overheat and cause re.

• This is a heavy appliance. Be careful when moving it.

• This cooling unit is not intended for use as a built-in appliance.

• Do not place a power strip or other portable power supply behind the appliance.48 DO99505S

• Do not use the appliance outdoors.

• Only use the appliance for its intended use.

• Only use the appliance for domestic use. The manufacturer can not be held responsible for accidents that result from improper use of the appliance or not following the instructions described in this manual.

• Do not use any other electrical appliance inside the fridge, unless they are approved for this purpose by the manufacturer.

• Do not keep any explosive substances inside the appliance, like for instance aerosol cans with a ammable propellant.

• Do not use the appliance without a lamp.

• The use of accessories that are not recommended or sold by the manufacturer can cause re, electrical shock or injuries.

• Ensure the food in the appliance does not touch the back wall.

• Do not touch anything that comes out of the freezer with damp or wet hands. This could cause skin burns.

• Follow the instructions below to prevent contamination of food:

• Keeping the door open for long periods may cause the temperature in the compartments of the appliance to rise considerably.

• Clean the surfaces that could come into contact with food regularly. Keep the condensation channel and drainage hole at the back of the appliance clean.

• Store raw meat and sh in suitable containers in the refrigerator so that they do not come into contact with or drip onto other food.

• If the appliance is left empty for longer periods, it should be turned o, defrosted and cleaned. Allow it dry and leave the door ajar to prevent mould from growing in the appliance.

I CLEANING AND MAINTENANCE

• Never immerse the appliance, the cord or the plug in water or any other liquid.

• Do not place warm or hot objects on top of the appliance.

• Do not clean the appliance with anything made of metal.

• Make sure that the refrigerant circuit does not get damaged, for instance during transportation or installation.

• Do not use mechanical appliances or other means to speed up the defrosting process, unless approved by the manufacturer. WARNING! Never place this appliance on or in the neighbourhood of a gas or electric re or in a place where it could come into contact with a heat source. There are ammable materials located on the back of the appliance. Pay attention to the symbol ‘Fire risk – ammable materials’ located on the back of the appliance.

5. Vegetable drawers

7. Door shelves freezer

8. Door shelves fridge

• Remove the exterior and interior packing, wipe the outside thoroughly with a soft dry cloth and the inside with a wet, lukewarm cloth. Dry the appliance o well.

Space Requirement Keep enough space of door open. Keep at least 50mm gap at two sides and back.

• This cooling unit is not intended for use as a built-in appliance.

• Select a place with a strong, level oor.

• Avoid direct sunlight and heat. Direct sunlight may aect the acrylic coating. Heat sources nearby will cause higher electricity consumption.

• Avoid very moist places. Too much moisture in the air will cause frost to from very quickly on the evaporator, and your refrigerator.

• Before connecting your refrigerator to the power supply, check that the voltage stated on the rating label of your appliance corresponds to the voltage in your home. A dierent voltage could damage the appliance.

• After installation, leave the freezer for 24 hours before turning it on. This way the refrigerant can settle.

• Allow the appliance to run empty for 12 hours so the compartment can cool to the appropriate temperature.

• One can level the appliance using adjustable legs. The adjustable legs can be adjusting by screwing them in or out of the appliance. Lift Lower

• The climate class indicates the minimum and maximum ambient temperature for the proper operation of an appliance. You can nd the climate class on the type plate on the back of the appliance.

• SN: Subnormal: ambient temperature between 10°C and 32°C

• N: Normal: ambient temperature between 16°C and 32°C

• ST: Subtropical: ambient temperature between 16°C and 38°C

• T: Tropical: ambient temperature between 16°C and 43°C

If the appliance cannot pass through the doorways for installation, the doors can be removed and replaced afterwards. Follow the procedure below:

1. Loosen the screws of the hinge cover plate and remove the plate.

2. Disconnect the connector from the cables.

4. Lift the door of the appliance. Place the door on a soft surface to avoid scratches. Remove the other

5. Loosen the screws of both lower hinges.

6. When the appliance is in position, reattach the doors.52

USE CONTROL PANEL Touch screen buttons A. Temperature of fridge B. Temperature of freezer C. Functions D. Child safety lock Display

1. Temperature of fridge

2. Temperature of freezer

7. Child safety lock

The childproof lock switches on automatically if no button is pressed for 25 seconds. The control panel goes into sleep mode automatically. The display lights up when a button is touched and when the doors are opened. TEMPERATURE CONTROLS

• The temperature of the fridge can be set between 2 and 8°C. Under normal conditions, it is best to select 4°C. Press “FRIDGE” button (temperature fridge) and continue to press until the desired temperature is displayed.

• The freezer can be set between -14 and -22°C. Under normal conditions, it is best to select -18°C. Press the “FREEZER” button (temperature freezer) and continue to press until the desired temperature is displayed.

• The operating time and temperature is inuenced by the location of the fridge, the number of times the door is opened and the temperature of the room the fridge is in.

SETTING THE FUNCTIONS

Press the ‘MODE’ button (functions) to toggle between the smart mode, ECO mode, supercooling, or super-freezing functions. B A

Mode Display Freezer temperature Refrigerator temperature Smart The temperature is automatically adjusted according to the ambient temperature. ECO The temperature is automatically adjusted according to the ambient temperature and energy consumption. Supercooling - +2°C Super-freezing -25°C - Smart mode

• The temperature of both the refrigerator and freezer sections is automatically adjusted according to the ambient temperature.

• The ‘FRIDGE’ key and ‘FREEZER’ key are locked. You can turn this function on and o with the ‘MODE’ button (functions). The symbol appears on the display. ECO Mode

• The refrigerator operates at the lowest energy consumption setting. The temperature of both the refrigerator and freezer sections is automatically adjusted according to the ambient temperature and energy consumption.

• The ‘FRIDGE’ key and ‘FREEZER’ key are locked. You can turn this function on and o with the ‘MODE’ button (functions). The symbol appears on the display. Supercooling

• Select this function if the standard temperature does not cool suciently. For example: with extremely hot weather, if the doors are opened often, with a high environmental temperature, etc. Or if you want to cool food quickly.

• By selecting this function, the temperature of the refrigerator is reduced to 2°C for 2.5 hours.

• This function is switched o automatically after the time has elapsed. The previously set temperature will once again be maintained.

• This function can be turned on and o with the “MODE” button (functions). The symbol will be displayed. CL Super-freezing

• Select this function if the standard temperature does not cool suciently. For example: with extremely hot weather, if the doors are opened often, with a high environmental temperature, if a large quantity of uncooled/unfrozen food is placed in the appliance, etc.

• By selecting this function, the freezer temperature is lowered to -25°C for a maximum of 50 hours. It is recommended that this function be selected 24 hours prior to the freezing.

• This function is switched o automatically after the time has elapsed. The previously set temperature will once again be maintained.The ‘FREEZER’ key is locked.

• This function can be turned on and o with the “MODE” button (functions). The symbol will be displayed. CL54 DO99505S

The child safety lock automatically blocks the buttons for safety.

• Hold down the ‘LOCK’ button for 3 seconds to lock the panel. The display will show a closed lock.

• Press the “UNLOCK” button (child safety lock) for 3 seconds to unblock the panel. You can see an open lock on the display. ICE TWISTER

1. Pour potable water into each slot of the ice maker. Make sure you do not spill any

water on the knob; otherwise, it will freeze and you will not be able to turn the knob when the ice cubes are ready.

2. Put the ice maker in the freezer.

3. If the water is frozen, take the ice maker out of the freezer. Turn the knob. The ice

cubes will fall out of the mould. Remove the tray from the ice maker to use an ice cube. STORAGE GUIDE For the best storage, set up your refrigerating appliance as follows: Refrigerator compartment Type of food Door rack · Food with natural preservatives such as jams, juices, drinks, spices, etc.

• Do not store food with a limited shelf life here Crisper drawer · Fruits, herbs, and vegetables

• Do not refrigerate bananas, onions, potatoes, or garlic Middle shelf Dairy and eggs Top shelf Food that does not need to be cooked, such as ready-made meals, leftovers, spreads, etc. Freezer compartment Type of food Top Ice cream, frozen fruit, frozen baked goods Middle Frozen vegetables and fries Bottom Raw meat, poultry, sh

MOVING THE SHELVES AND DOOR RACK

• Empty the fridge before moving the shelves or the door racks.

• To move a shelf, raise it and pull it towards you.

• To move a door rack, grip it rmly with 2 hands. Raise the door rack and pull it towards you. LIGHTING The lighting in the freezer and the fridge are LED lights. These are more ecological and manufactured for a long life. For this reason, these may not be replaced. If there is a problem with the lighting, contact a qualied service centre in your area. Using Ice Maker

1. Pour fresh drinking water into each ice-making box.

2. Put the box into the freezing compartment.

3. After water becomes ice, take off the ice maker out of the appliance

and rotate the knob by hand. Then, ice blocks will fall into the small drawer automatically. Pull out the drawer and fetch the ice cubes. Notice: Do not bring water between the knob, otherwise the knob maybe frozen and the ice cubes cannot drop into the storage box

Temperature setting recommendation: 4°C is recommended. Under recommended setting, the best storage time of freezer is no more than 3 days. The best storage time may reduce under other settings.

Temperature setting recommendation: 4°C is recommended. Under recommended setting, the best storage time of freezer is no more than 3 days. The best storage time may reduce under other settings.

If one of the doors remains open for 60 seconds, you will hear a signal. This alarm is a warning so that you do not accidentally leave the door open and spoil your food. The alarm stops as soon as the door is closed again. If you do not close the door, the alarm will sound every 35 seconds. If the door is still open after 10 minutes, the light switches o.

MOVING YOUR APPLIANCE

If the appliance is turned o for any reason, wait for 10 minutes before turning it back on. This will allow the refrigeration system pressures to equalise before restarting.

• Turn o the appliance and unplug it from the mains socket. Remove all food. Also remove all mobile parts (shelves, accessories, etc.) or x them into the fridge to avoid any shock.

• Relocate and install. If the appliance has been left on its side for any length of time, leave it standing upright for at least 10 minutes before turning on.

STORING FOOD IN THE FRIDGE

The fridge helps to extend the storage times of fresh perishable foods. Fresh food care for best results:

• Store foods that are very fresh and of good quality.

• Ensure that food is well wrapped or covered before it is stored. This will prevent food from dehydrating, deteriorating in colour or losing taste and will help maintain freshness. It will also prevent odour transfer.

• Make sure that strong smelling foods are wrapped or covered and stored away from foods such as butter, milk and cream which can be tainted by strong odours.

• Cool hot foods down before placing them in the fridge. FREEZING AND STORING FOOD IN THE FREEZER Use the freezer

• To store deep-frozen food.

• To freeze food. Note: Ensure that the freezer door has been closed properly. Avoid opening the freezer drawers unnecessarily. Purchasing frozen food

• Packaging must not be damaged.

• Use by the ‘use by /best before/best by/’ date.

• If possible, transport deep-frozen food in an insulated bag and place quickly in the freezer. Freezing fresh food Freeze fresh and undamaged food only. To retain the best possible nutritional value, avour and colour, vegetables should be blanched before freezing. Aubergines, peppers, zucchini and asparagus do not require blanching. Note: Keep food to be frozen away from food which is already frozen.

• The following foods are suitable for freezing: Cakes and pastries, sh and seafood, meat, game, poultry, vegetables, fruit, herbs, eggs without shells, dairy products such as cheese and butter, ready meals and leftovers such as soups, stews, cooked meat and sh, potato dishes, soués and desserts.56 DO99505S

• The following foods are not suitable for freezing:Types of vegetables, which are usually consumed raw, such as lettuce or radishes, eggs in shells, grapes, whole apples, pears and peaches, hard-boiled eggs, yoghurt, soured milk, sour cream, and mayonnaise. Packing frozen food To prevent food from losing its avour or drying out, place food in airtight packaging.

1. Place food in packaging.

4. Label packaging with contents and dates of freezing.

Suitable packaging: Plastic lm, tubular lm made of polyethylene, aluminium foil, freezer containers. Recommended storage times of frozen food in the freezer These times vary depending on the type of food. The food that you freeze can be preserved from 1 to 12 months (minimum at -18°C). Food Storage time Bacon, casseroles, milk 1 month Bread, ice cream, sausages, pies, prepared shellsh, oily sh 2 months Non-oily sh, shellsh, pizza, scones and muns 3 months Ham, cakes, biscuits, beef and lamb chops, poultry pieces 4 months Butter, vegetables (blanched), eggs whole and yolks, cooked craysh, minced meat (raw), pork (raw) 6 months Fruit (dry or in syrup), egg whites, beef (raw), whole chicken, lamb (raw), fruit cakes 12 months Never forget:

• When you freeze fresh foods whit a ‘use by /best before/best by/’ date, you must freeze them before the expiry of this date.

• Check that the food was not already frozen. Indeed, frozen food that has thawed completely must not be refrozen.

• Once defrosted, food should be consumed quickly. VACATION TIME For short vacation periods, leave the control knobs at their usual settings. During longer absences:

• Disconnect from electrical outlet.

• Clean the refrigerator thoroughly, including defrost pan.

• Leave door open to avoid possible formations of condensate, mold or odors. POWER FAILURE

• Most power failures are corrected within an hour or two and will not aect your refrigerator temperatures. However, you should minimize the number of door openings while the power is o.

• During power failures of longer duration, take steps to protect your food by blacking dry ice on top of packages.57 DO99505S www.domo-elektro.be

• Frozen food should not be aected if the power failure lasts for less than 15 hours. Do not refreeze frozen foods that have thawed completely. The food may be dangerous to eat. SOME IMPORTANT RULES FOR THE CORRECT USE OF THE REFRIGERATOR

• Never place hot foods in the refrigerator.

• Beverages should be stored in sealed containers.

• Foods to be stored for a long time should be wrapped in cellophance or polyethylence, or kept in glass containers.

• Never place spoiled foods in the cabinet.

• Caution: please keep the products away from the re or similar glowing substance before you dispose the refrigerator.

• Caution : Not for outer camping use (ex. Tent)

• Caution: For indoor use only.

• Caution: The appliance can not be used in public transportation.

• Keep all accessories, such as shelves, door racks, and drawers, in the appliance to minimise energy consumption.

• Please read the storage instructions on the food packaging. Always check the storage date.

• Do not place carbonated drinks in the freezer. The bottle/can is pressurised and may explode.

• Be careful when consuming ice creams that come from the freezer. These can cause frostbite.

CLEANING AND MAINTENANCE

• Do not use abrasive cleaning agents or solvents.

• Turn the appliance o. Disconnect the mains plug from the mains socket.

• Take out the food and store in a cool location.

• Clean the appliance with a soft cloth, warm water and detergent.

• Wipe the door seal with clear water only and then wipe dry thoroughly.

• After cleaning, put the plug in the socket and set the desired temperature.

• Put the food back into the appliance.

DEFROSTING THE REFRIGERATOR

The refrigerator defrosts fully automatically. While the cooling is running, beads of condensation or hoarfrost form at the back of the refrigerator. This is normal. It is not necessary to wipe o the condensation or frost. The rear panel defrosts automatically. The condensation runs into the condensation channel and is conveyed to the cooling from where it evaporates. Note: Keep the condensation channel and drainage hole clean, so that the condensation can run out.

DEFROSTING THE FREEZER

The freezer is frost-free – NoFrost. If used correctly, there will be no ice formation. If an ice layer does form, defrost the freezer compartment if it reaches a thickness of 3 mm. Do not scrape o frost or ice with a knife or pointed object. Doing this may damage the refrigerant tubes.58 DO99505S

1. Remove the frozen food and place temporarily in a cool location.

2. Disconnect the appliance from the mains socket.

3. To accelerate the defrosting process, place a pan of hot water on a stand in the freezer.

4. Wipe up condensation with a cloth or sponge.

5. Wipe dry the freezer compartment.

6. Plug in the appliance and adjust the temperature control knob as desired.

7. Put the frozen food back in the freezer.

TROUBLE SHOOTING Frequently, a problem is minor and a service call may not be necessary, use this trouble shooting guide for a possible solution. Does not work

• Check connection of power cord to power source.

• Use proper voltage. Cools too frequently

• The temperature setting is too cool.

• Close door securely.

• Be sure that food is cool before inserting.

• Do not keep door open for too long and minimize door openings.

• Do not place unit close to heat sources or direct sunlight. Internal temperature not cold enough

• Check connection of power cord to power source.

• Check setting and adjust as needed.

• Close door securely.

• Be sure that food is cool before inserting.

• Do not keep door open for too long and minimize door openings.

• Allow room for air to circulate around unit.

• Do not place unit close to heat sources or direct sunlight. Unusual sounds.

• The appliance is not level. Readjust the adjusting feet and level the unit.

• The unit it touching a wall or another object. Gently move the appliance.

• The NoFrost system makes occasional buzzing or bubbling noises of short duration. This is normal.59 DO99505S www.domo-elektro.be

ENVIRONMENTAL GUIDELINES This symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it must be brought to the applicable collection point for recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city oce, your household waste disposal service or the shop where you purchased the product. The packaging is recyclable. Please treat the packaging ecologically.60 DO99505S

Space Requirement Keep enough space of door open. Keep at least 50mm gap at two sides and back.

1. Pour fresh drinking water into each ice-making box.

2. Put the box into the freezing compartment.

3. After water becomes ice, take off the ice maker out of the appliance

and rotate the knob by hand. Then, ice blocks will fall into the small drawer automatically. Pull out the drawer and fetch the ice cubes. Notice: Do not bring water between the knob, otherwise the knob maybe frozen and the ice cubes cannot drop into the storage box

Temperature setting recommendation: 4°C is recommended. Under recommended setting, the best storage time of freezer is no more than 3 days. The best storage time may reduce under other settings.

Temperature setting recommendation: 4°C is recommended. Under recommended setting, the best storage time of freezer is no more than 3 days. The best storage time may reduce under other settings.

Space Requirement Keep enough space of door open. Keep at least 50mm gap at two sides and back.

1. Pour fresh drinking water into each ice-making box.

2. Put the box into the freezing compartment.

3. After water becomes ice, take off the ice maker out of the appliance

and rotate the knob by hand. Then, ice blocks will fall into the small drawer automatically. Pull out the drawer and fetch the ice cubes. Notice: Do not bring water between the knob, otherwise the knob maybe frozen and the ice cubes cannot drop into the storage box

Temperature setting recommendation: 4°C is recommended. Under recommended setting, the best storage time of freezer is no more than 3 days. The best storage time may reduce under other settings.

Temperature setting recommendation: 4°C is recommended. Under recommended setting, the best storage time of freezer is no more than 3 days. The best storage time may reduce under other settings.
