GBTS 400 - Grinder Güde - Free user manual and instructions

Product type	Belt and disc sander
Brand	Güde
Model	GBTS 400
Order number	55135
Power supply	230 V ~ 50 Hz
Motor power	350 W S2 - 30 min
No-load speed	1450 min⁻¹
No-load belt speed	292 m/min
Belt size	100 x 910 mm
Max. sanding surface (belt)	100 x 340 mm
Max. sanding surface (disc)	ø 150 mm
Min. workpiece dimensions	50 x 20 mm
Weight	13 kg
Sound pressure level L_pA	77 dB (A)
Sound power level L_WA	90 dB (A)
Protection class	II (double insulation)
Intended use	Working and deburring of wood, similar materials, ferrous and non-ferrous metals
Safety devices	Belt guard, safety switch, emergency stop
Maintenance	Cleaning of ventilation openings, lubrication of moving parts, visual inspection before each use
Warranty	24 months for the end consumer (12 months for industrial use)
Spare parts	Available at www.guede.com

Frequently Asked Questions - GBTS 400 Güde

What type of materials can I sand with the GBTS 400?

This device is designed for sanding wood, wood-like materials as well as ferrous and non-ferrous metals. Observe the maximum surfaces indicated in the technical specifications.

How to change the abrasive belt?

First unplug the device. Release the belt tension by operating the unlocking lever. Remove the old belt and place the new one respecting the direction of rotation indicated. Retighten the belt and check its alignment.

What is the motor power and its operating speed?

The motor delivers 350 W in S2 duty cycle (30 minutes on, 30 minutes off). The no-load speed is 1450 min⁻¹ and the belt speed reaches 292 m/min.

Can I use a vacuum cleaner with this sander?

Yes, the device is compatible with a dust extraction system. It is recommended to connect a suitable vacuum cleaner to reduce dust emissions. Ensure you use a vacuum cleaner compliant with current standards.

What are the essential safety precautions?

Always wear safety glasses, hearing protection and a dust mask. Keep children and unauthorized persons away. Before any intervention, unplug the device. Do not wear loose clothing and tie back long hair.

How to maintain the moving parts?

Regularly treat moving parts with an eco-friendly oil. Clean the ventilation openings with a damp cloth. Do not use solvents or flammable liquids. Regular maintenance ensures the longevity of the device.

Can the machine be fixed to the floor?

Yes, it is recommended to firmly fix the machine to the floor using appropriate screws to prevent any risk of tipping over during use.

What to do in case of belt jamming?

Immediately stop the machine by turning off the switch. Unplug the power cord, then carefully remove the jammed piece. Check that the belt is not damaged before restarting.

Where can I find spare parts and after-sales service?

Spare parts are available on the website www.guede.com. For any technical questions or complaints, contact customer service by email at [e-mail] or by phone at +49 (0) 79 04 / 700-360.

What is the warranty period?

The warranty is 24 months for the end consumer and 12 months for industrial use. The period starts from the date of purchase. Keep the original proof of purchase for any claims.

USER MANUAL GBTS 400 Güde

3D rendering of a blue and black industrial machine with visible gears and control panel (no text or symbols)

GBTS 400

55135

GÜDE GmbH & Co. KG

Birkichstrasse 6

74549 Wolpertshausen

Deutschland

ENGLISH Please read the instructions carefully before starting the machine.

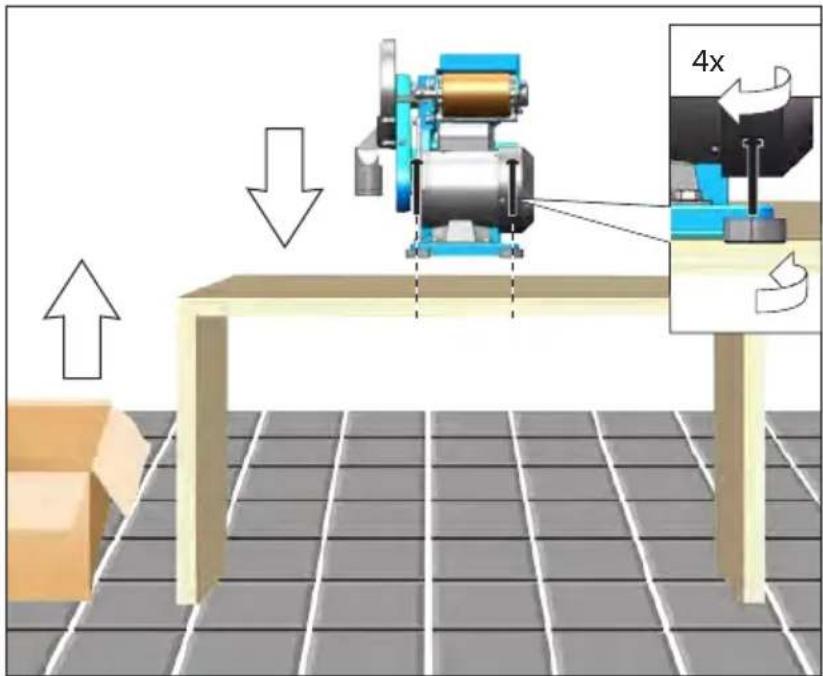

3D mechanical assembly diagram showing a bracket with bolts and mounting holes (no text or symbols)

Mechanical component with circular holes and a central hub, shown alongside three separate circular symbols (no text or labels)

3D rendering of a blue and orange industrial machine with mechanical components and a control panel (no visible text or symbols)

Circular orange object with a small metallic cylindrical component beside it (no text or symbols visible)

Illustration of a black cylindrical object next to four metallic screws and rings, no text or symbols present

Mechanical assembly diagram showing a metal frame with attached tubing and a red valve (no text or symbols)

Two metallic L-shaped pipes with a black square marker on the left (no text or symbols)

Black plastic mechanical component with a black square marker on the left (no text or symbols visible)

D	Montage	SLO	Montaža
GB	Assembly	HR	Montaža
F	Assemblage	BG	Монтаж
I	Montaggio	RO	Montaj
NL	Montage
CZ	Montáž
SK	Montáž
H	Szerelés

1

2-5

D	Inbetriebnahme	SLO	Uvedba v pogon
GB	Starting-up the machine	HR	Puštanje u rad
F	mise en service	BG	Пускане в действие
I	Messa in funzione	RO	Punerea în funcțiune
NL	Inbedrijfstelling
CZ	Uvedení do provozu
SK	Uvedenie do prevádzky
H	Üzembe helyezés

2

6-10

D	Betrieb	SLO	Delovanje
GB	Operation	HR	Rad
F	Fonctionnement	BG	Pábota
I	Esercizio	RO	Functionare
NL	Gebruik
CZ	Provoz
SK	Prevádzka
H	Üzemeltetés

3

11-12

D	Wartung	SLO	Vzdrževanje
GB	Maintenance	HR	Održavanje
F	Entretien	BG	Поддръжка
I	Manutenzione	RO	Întreținere
NL	Onderhoud
CZ	Údržba
SK	Údrzba
H	Karbantartás

4

13-16

1	D	Montage	SLO	Montaža
	GB	Assembly	HR	Montaža
	F	Assemblage	BG	Монтаж
	I	Montaggio	RO	Montaj
	NL	Montage
	CZ	Montáž
	SK	Montáž
	H	Szerelés

Not included in standard equipment.

3D mechanical assembly diagram showing a blue conveyor belt system with a purple wheel and a black gear mechanism (no text or symbols)

1	D	Montage	SLO	Montaža
	GB	Assembly	HR	Montaža
	F	Assemblage	BG	Монтаж
	I	Montaggio	RO	Montaj
	NL	Montage
	CZ	Montáž
	SK	Montáž
	H	Szerelés

3D mechanical assembly diagram showing a rotating component with a white arrow pointing to a circular feature, labeled with numbers 5 and 4 (no text or symbols on the diagram itself)

D Montage

SLO Montaža

GB Assembly

HR Montaža

F Assemblage

BG Монтаж

Montaggio

RO Montaj

NL Montage

CZ Montáž

SK Montáž

H Szerelés

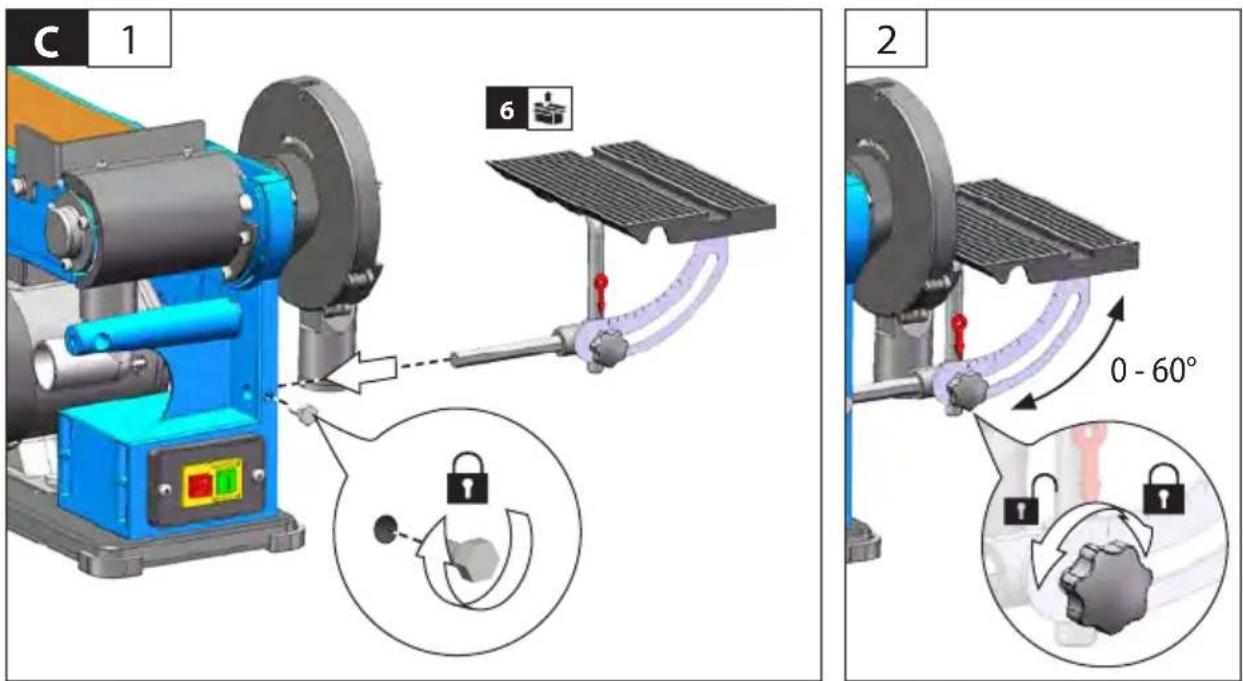

3D mechanical assembly diagram showing a rotating machine with a circular component and labeled parts (no readable text or symbols)

3D mechanical assembly diagram showing a gear-like component with multiple lock icons and directional arrows (no text or symbols)

2

DE AbsaugungGB dust collectionFR La fonction aspirateurIT AspirapolvereNL StofafzuigingCZ Odsávání prachuSK Odsávanie prachuHU Porelszívást

SI Odsesovanja prahuHR Usisavanje prašineBG изсмукванетоRO Dispozitivul de aspirare a prafuluiBA Usisavanje prašine

3D rendering of a blue industrial machine with attached pipe and screw, showing internal components and motion direction (no text or symbols)

DE Inbetriebnahme

GB Starting-up the machine

FR mise en service

3D rendering of a blue industrial machine with a green checkmark indicating inspection or status (no text or symbols on the machine itself)

2

DE InbetriebnahmeGB Starting-up the machineFR mise en serviceIT Messa in funzioneNL InbedrijfstellingCZ Uvedení do provozuSK Uvedenie do prevádzkyHU Üzembe helyezés

SI Uvedba v pogonHR Puštanje u radBG Пускане в действиеRO Punerea în funcțiune

DE Inbetriebnahme

GB Starting-up the machine

FR mise en service

Mechanical assembly diagram showing a robotic arm with a lock and valve mechanism (no text or symbols)

5

3D rendering of a blue industrial machine with orange belt and green checkmark indicating inspection (no text or symbols on the machine itself)

2

DE InbetriebnahmeGB Starting-up the machineFR mise en serviceIT Messa in funzioneNL InbedrijfstellingCZ Uvedení do provozuSK Uvedenie do prevádzkyHU Üzembe helyezés

SI Uvedba v pogonHR Puštanje u radBG Пускане в действиеRO Punerea în funcțiune

3D rendering of a robotic conveyor system with a box on the conveyor belt, no visible text or symbols

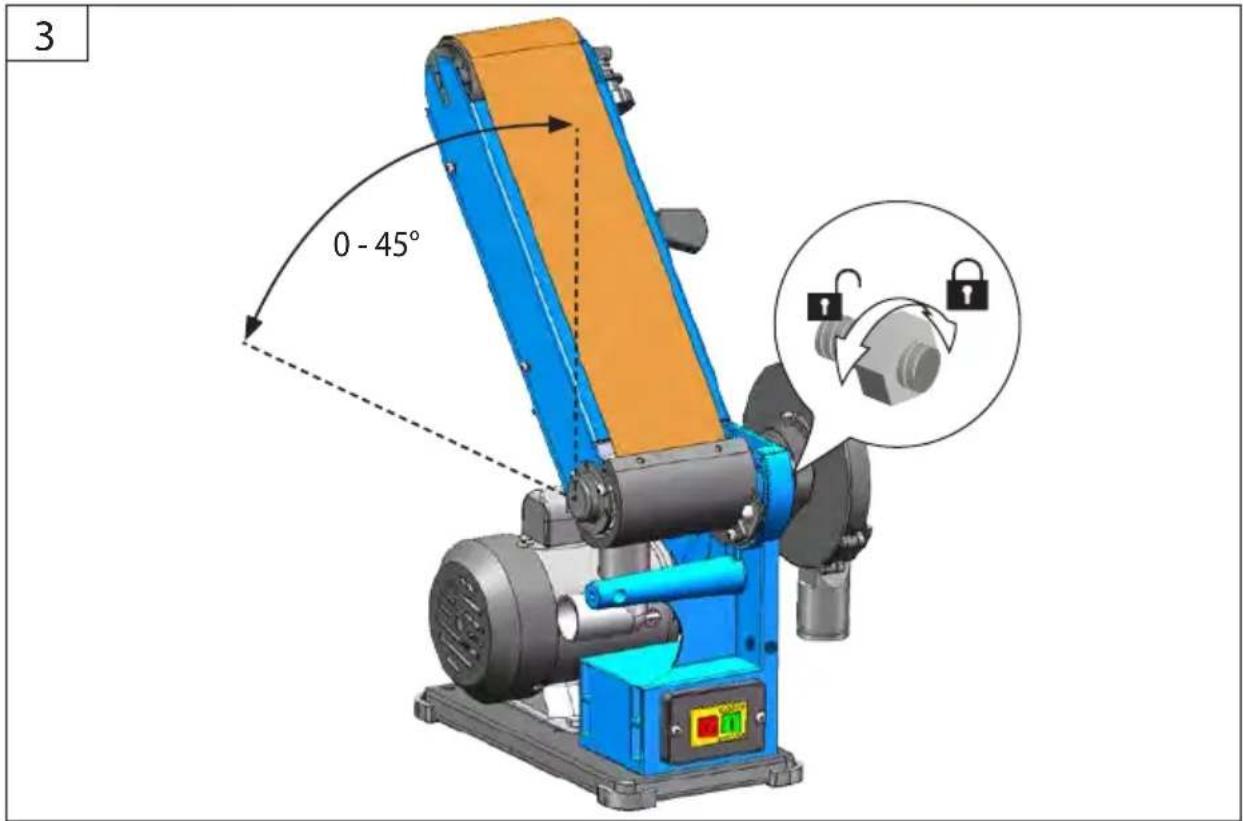

D Betrieb

GB Operation

F Fonctionnement

I Esercizio

NL Gebruik

CZ Provoz

SK Prevádzka

H Üzemeltetés

SLO Delovanje

HR Rad

BG Работа

RO Functionare

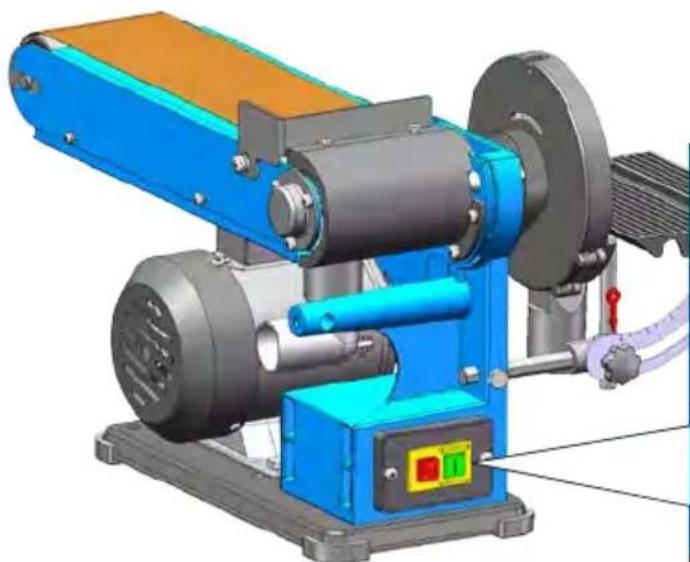

START

3D rendering of a blue industrial machine with mechanical components and a pressure gauge (no text or symbols visible)

Close-up of a blue industrial control panel with yellow and green buttons, featuring a red circular button and white arrow pointing to one (no text or symbols visible)

STOP

3D rendering of a blue industrial machine with black components and orange casing (no visible text or symbols)

Illustration of a blue industrial machine with a yellow control panel and red arrow pointing to a green button (no text or symbols)

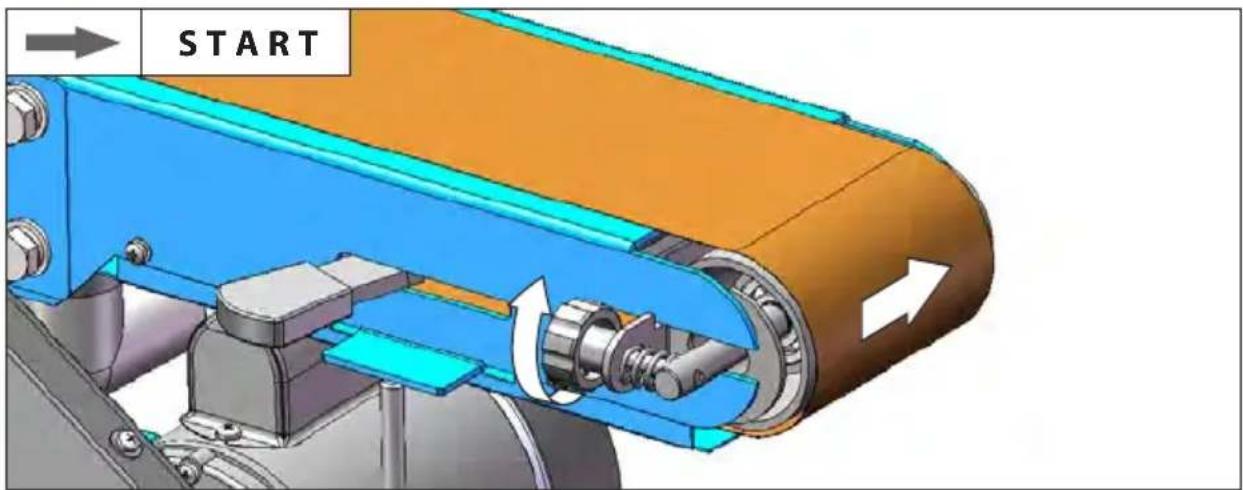

	D	Schleifband ausrichten	SLO	Naravnavanje brusnega traku
	GB	Aligning the sanding belt	HR	Ispraviti brusnu traku
	F	Aligner la bande abrasive	BG	Центрирайте шлифовъчната лента
	I	Allineare il nastro abrasivo	RO	Centrarea benzii de šlefuit
	NL	Schuurband uitlijnen
	CZ	Vyrovnání brusného pásu
	SK	Vyrovanie brusného pásu
	H	Csiszolószalag beállítása

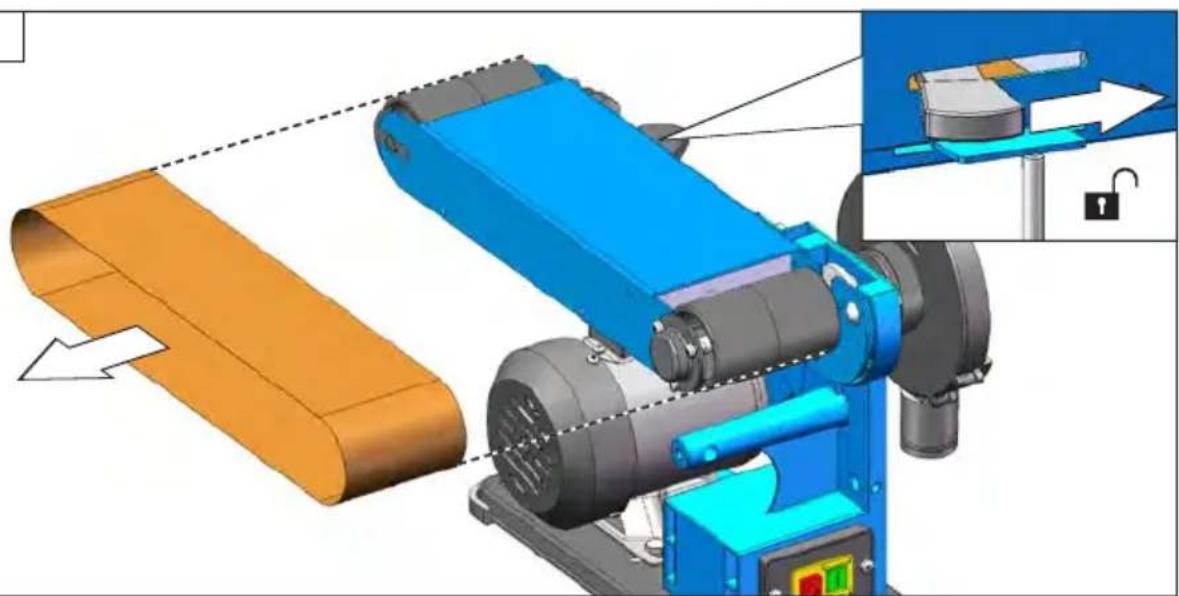

GB Changing the sanding belt

F Changer la bande abrasive

3D mechanical assembly diagram showing a blue conveyor belt system with a close-up inset illustrating the mechanism (no text or symbols present)

3D mechanical assembly diagram showing blue conveyor belt with orange top and black shaft, no visible text or symbols

GB Changing the sanding belt

F Changer la bande abrasive

3D mechanical assembly diagram showing a blue conveyor belt and orange belt system with a dashed line indicating motion (no text or symbols)

4

3D mechanical assembly diagram showing a blue and orange conveyor system with a lock mechanism (no text or symbols)

GB Changing the sanding belt

F Changer la bande abrasive

3D mechanical assembly diagram showing a blue conveyor belt system with orange rollers and directional arrows, alongside an inset view of a blue conveyor device with a lock and warning symbol (no text or labels present)

6

3D mechanical assembly diagram showing a blue conveyor belt system with orange blade and gray cylinder, connected by dashed lines to a cylindrical component (no text or symbols visible)

4	D	Schleifband wechseln	SLO	Zamenjava brusnega traku
	GB	Changing the sanding belt	HR	Zamijeniti brusnu traku
	F	Changer la bande abrasive	BG	Сменете шлифовъчната лента
	I	Sostituire il nastro abrasivo	RO	Înlocuirea benzii de șlefuit
	NL	Schuurband vervangen
	CZ	Výměna brusného pásu
	SK	Výmena brusného pásu
	H	Csiszolószalag cseréje

3D mechanical assembly diagram showing a conveyor belt with lock icons and directional arrows (no text or symbols)

3D mechanical assembly diagram showing a blue conveyor belt system with a close-up inset illustrating the mechanism (no text or symbols present)

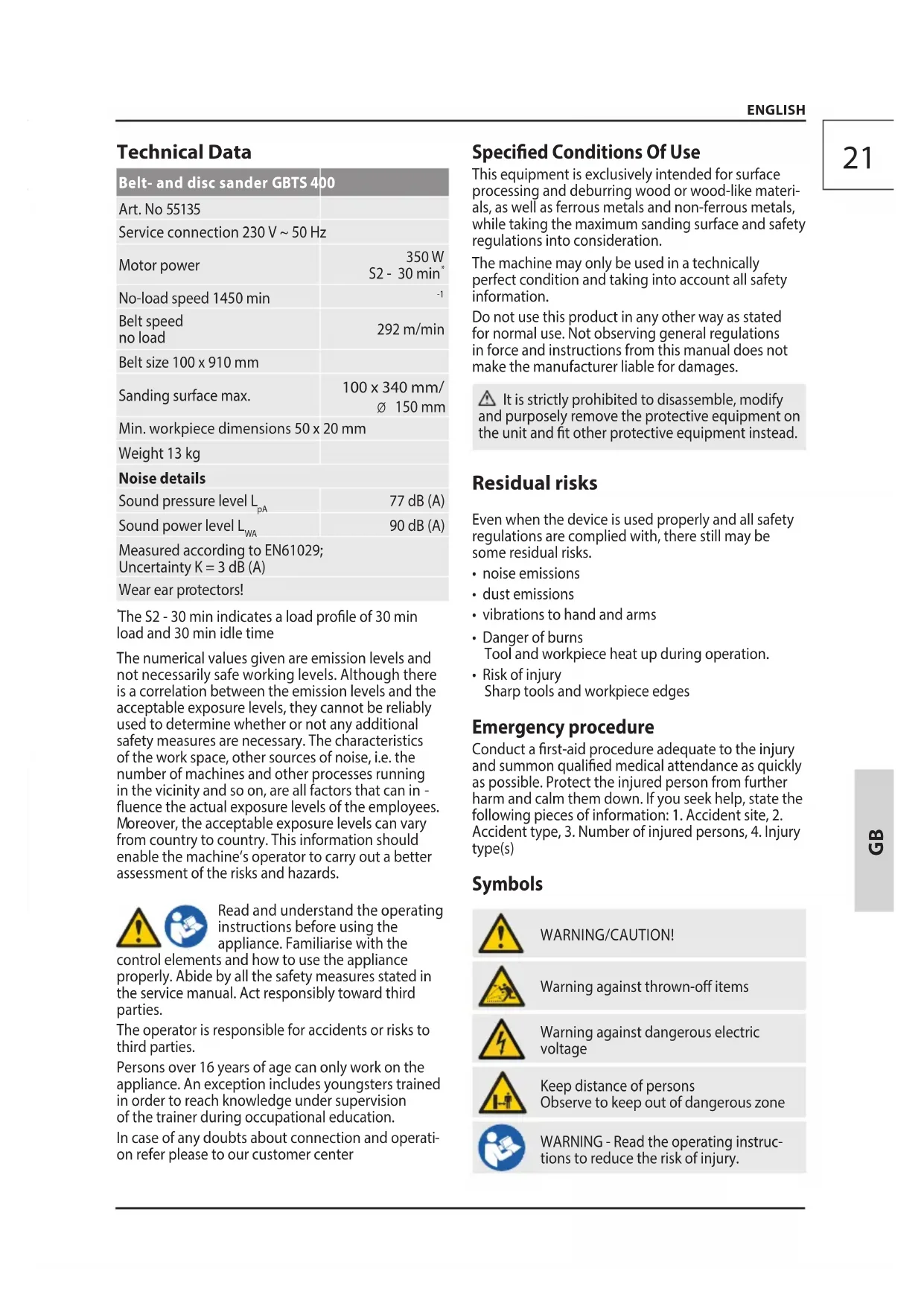

Technische Daten

Belt- and disc sander GBTS 400
Art. No 55135
Service connection 230 V ~ 50 Hz
Motor power	350 W S2 - 30 min*
No-load speed 1450 min	-1
Belt speed no load	292 m/min
Belt size 100 x 910 mm
Sanding surface max.	100 x 340 mm/ø 150 mm
Min. workpiece dimensions 50 x 20 mm
Weight 13 kg
Noise details
Sound pressure level L_pA	77 dB (A)
Sound power level L_WA	90 dB (A)
Measured according to EN61029; Uncertainty K = 3 dB (A)
Wear ear protectors!

The S2 - 30 min indicates a load profile of 30 min load and 30 min idle time

The numerical values given are emission levels and not necessarily safe working levels. Although there is a correlation between the emission levels and the acceptable exposure levels, they cannot be reliably used to determine whether or not any additional safety measures are necessary. The characteristics of the work space, other sources of noise, i.e. the number of machines and other processes running in the vicinity and so on, are all factors that can influence the actual exposure levels of the employees. Moreover, the acceptable exposure levels can vary from country to country. This information should enable the machine's operator to carry out a better assessment of the risks and hazards.

Read and understand the operating instructions before using the appliance. Familiarise with the

control elements and how to use the appliance properly. Abide by all the safety measures stated in the service manual. Act responsibly toward third parties.

The operator is responsible for accidents or risks to third parties.

Persons over 16 years of age can only work on the appliance. An exception includes youngsters trained in order to reach knowledge under supervision of the trainer during occupational education.

In case of any doubts about connection and operation refer please to our customer center

Specified Conditions Of Use

This equipment is exclusively intended for surface processing and deburring wood or wood-like materials, as well as ferrous metals and non-ferrous metals, while taking the maximum sanding surface and safety regulations into consideration.

The machine may only be used in a technically perfect condition and taking into account all safety information.

Do not use this product in any other way as stated for normal use. Not observing general regulations in force and instructions from this manual does not make the manufacturer liable for damages.

It is strictly prohibited to disassemble, modify purposely remove the protective equipment on unit and fit other protective equipment instead.

Residual risks

Even when the device is used properly and all safety regulations are complied with, there still may be some residual risks.

• noise emissions
• dust emissions
  • vibrations to hand and arms
• Danger of burns
  Tool and workpiece heat up during operation.
• Risk of injury
  Sharp tools and workpiece edges

Emergency procedure

Conduct a first-aid procedure adequate to the injury and summon qualified medical attendance as quickly as possible. Protect the injured person from further harm and calm them down. If you seek help, state the following pieces of information: 1. Accident site, 2. Accident type, 3. Number of injured persons, 4. Injury type(s)

Symbols

WARNING/CAUTION!

Warning against thrown-off items

Warning against dangerous electric voltage

Keep distance of persons Observe to keep out of dangerous zone

WARNING - Read the operating instructions to reduce the risk of injury.

Unplug the machine before any work on it.

Wear eye protective goggles! Wear ear protectors!

Wear a suitable dust protection mask.

Safety shoes to be used

Do not touch the sanding belt while the machine is running!

Keep dry at all times. Never expose tool to rain.

Always keep children and unauthorised persons out of reach of the appliance.

Any damaged or disposed electric or electronic devices must be delivered to appropriate collection centres.

Class II tool.

CE marking

General safety information

WARNING!

When using electric tools the following general safety instructions must be obeyed to protect yourself from electric shocks, injury and fire risks.

Read all these instructions before using this electric tool and keep the safety instruction in a safe place.

Keep your work area clean and tidy. Untidy work places and workbenches increase the risk of accidents and injuries.

Do not expose the appliance to rain and do not use it in wet or moisture conditions.

Provide adequate lighting or good lighting conditions when working with the machine.

Do not work with electric tools in conditions with flammable liquids, gases or dust. Electric tools produce sparks able to ignite dust or fumes.

Protect yourself from electric shock.

Avoid body contact with earthed objects (for example pipes, radiators, electric stoves and cooling units). There is an increased risk of electric shock if your body is earthed.

Keep children and bystanders away while operating a power tool. Do not touch the electric tool or the cable. When not concentrated, you may lose control over the machine.

Ensure that you store electric tools in a safe place. Tools which are not in used must be stored in a dry place as high as possible out of the reach of children or in an inaccessible place.

Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed.

Do not use low-power machines for heavy work.

Do not use the electric tool for purposes for which it is not designed. For example, do not use a manual circular saw for cutting branches or logs.

Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts. We recommend that you wear non-slip shoes when working outdoors. Wear a hairnet if you have long hair.

Use protective equipment which fit you. Wear safety goggles and ear protection at all times. A dust mask or respirator is also required. Wear tight-fitting gloves at all times when handling sharp blades and saw blades,

If dust exhausters and catchers are to be installed, make sure they are fitted and used properly. Using a dust exhauster may reduce the exposure to dust.

Do not use the cable in conflict with its designation, to carry or hang electric tools or to pull the plug out of socket. Protect the cable against high temperatures, oil, sharp edges or moving parts of the machine. Damaged or entangled cables increase the risk of electric shock.

Avoid any abnormal body posture. Provide good stability and keep balance at all times. By this, electric tools are better controlled in unexpected situations.

Treat electric tools carefully. Check whether the moving parts work perfectly and do not drag, whether not broken or damaged to such an extent that functioning of electric tools could be affected. Have any damaged parts repaired before using the machine. Poor maintenance of electric tools is a cause of many injuries.

Keep the cutting tools sharp and clean. Carefully treated cutting tools with sharp edges get stuck less often and are easier to guide.

Follow the instructions for lubricating and changing tools.

Check the connection cable on the electric tool at regular intervals and have it replaced by an expert if it is damaged.

Check the extension cables at regular intervals and replace them if they are damaged.

Keep the handles dry, clean and free of oil and grease.

Pull the plug out of the socket and/or remove the battery when the tool is not in use before you make machine settings or change accessories, such as the saw blade, drill bit or cutter. This safety measure prevents unintentional starting of the electric tool.

Before starting any electric tool, remove any adjusting wrenches and screwdrivers. A tool or a wrench present in the rotating part of the machine may lead to injuries.

Prevent the machine from unintentional starting. Before plugging and/or connecting the machine to battery, handling or carrying, make sure the electric tools are switched off. Having a finger on the switch when carrying the electric tool or when the machine is on when plugging it may lead to injuries.

If you wish to work outdoors with an electric tool, only use extension cables which are approved for outdoor use and are marked accordingly. Using an extension cable suitable for outdoor use reduces the risk of electric shock.

Be careful, pay attention to what you are doing and use common sense when working with electric tools. Do not use electric tools when you are tired or under the influence of drugs, alcohol or pharmaceuticals. A moment if inattention when using electric tools may lead to serious injuries.

Check the machine for any damage. Before using the equipment again, the protective equipment must carefully be checked if safe and working as designated.

Check the moving parts for perfect functioning, if working smoothly and if no parts are damaged. To provide safe operation of the equipment, all parts must be installed properly and meet all conditions.

Damaged protective equipment and parts must be professionally repaired or replaced by a recognised professional workshop, unless otherwise specified in the Operating Instructions.

Do not use electric tools with a defective switch. An electric tool that cannot be switched on or off is dangerous and must be repaired. Damaged switches must be replaced in a customer service workshop. WARNING The use of other tools and other accessories may pose an injury risk for you.

Have your electric tool repaired by an electrician. This electric tools complies with the relevant safety regulations. Repairs may only be carried out by an electrician using genuine spare parts; otherwise the user may suffer accidents.

Risk of injury!

Keep body parts and clothes away from rotating parts of the device.

The machine must be secured to the floor using suitable screws since otherwise there is a risk that it will tip over. In the event of a blockage, switch off the machine immediately. Pull out the mains plug and remove the jammed workpiece.

Chips and splinters must not be removed while the machine is running.

Mains Connection

Operation is only allowed with a safety switch against stray current (RCD max. stray current of 30mA).

Connect only to a single-phase AC current supply and only to the mains voltage specified on the rating plate. Must only be used from sockets with earth wire.

Only plug-in when machine is switched off.

Maintenance

Unplug the machine before any work on it.

Carry out a visual inspection before switching the appliance on.

The appliance must not be used if damaged or safety equipment is defective. Replace any worn-out and damaged parts.

Caution! If the power cord of the appliance gets damaged, it must be replaced by the manufacturer or its customer service or a similarly qualified person to avoid danger.

Repairs and works specified in these Instructions may only be performed by qualified authorised staff.

Use only original accessories and original spare parts.

Keep the device, in particular the air vents, clean at all times. Never spray water on the device body!

Do not clean the plastics with solvents, flammable or toxic fluids. For cleaning, use a damp cloth only.

Apply environment-friendly oil to all moving parts.

Only a regularly maintained and treated appliance can serve as a satisfactory aid. Insufficient maintenance and care can lead to unforeseen accidents and injuries.

If necessary, a list of spare parts can be found at www.guede.com.

Guarantee

Warranty period of 12 months applies to commercial use and 24 months applies to private use and commences on the day of purchase of the device.

The guarantee solely covers inadequacies caused by material defect or manufacturing defect. Original payment voucher with the sales date needs to be submitted for any claim in the guarantee period.

The guarantee does not cover any unauthorised use such as appliance overloading, use of violence, damage as a result of any unauthorised interference or caused by foreign items. Failing to follow the operating and assembly instructions and common wear are also not included in the guarantee.

Important information for the customer

Please be sure to know that returning the product in or after the warranty period must be made in the original packaging.

Service

Do you have any technical questions? Any claim? Do you need any spare parts or operating instructions? We will quickly help you and without needles bureaucracy at our web pages at www.guede.com in the Servicing part. Please help us be able to help you. In order to identify your device in case of claim we need the serial No., product No. and year of production. All this data can be found on the type label.

Tel.: [phone] / 700-360

Fax: [phone]

E-Mail: [e-mail]

WAARSCHUWING/OPGELET!

Translation of the EC-Declaration of Conformity

We, hereby declare the conception and construction of the below mentioned appliances correspond - at the type of construction being launched - to appropriate basic safety and hygienic requirements of EC Directives.

In case of any change to the appliance not discussed with us the Declaration expires.

2006/95/EC 2004/108/EC

2009/105/EC 1907/2006 EC

2011/65/EC ROHS 2009/142/EC

☐ 89/686/EEC (PPE) 1935/2004/EC

2006/42/EC

Annex IX

Notified Body:

Type Ex. Cert.-No.:

□ 97/68/EC_

Emission No.:

2000/14/EC_2005/88/EC
