USER MANUAL PRF0173443A ELICA

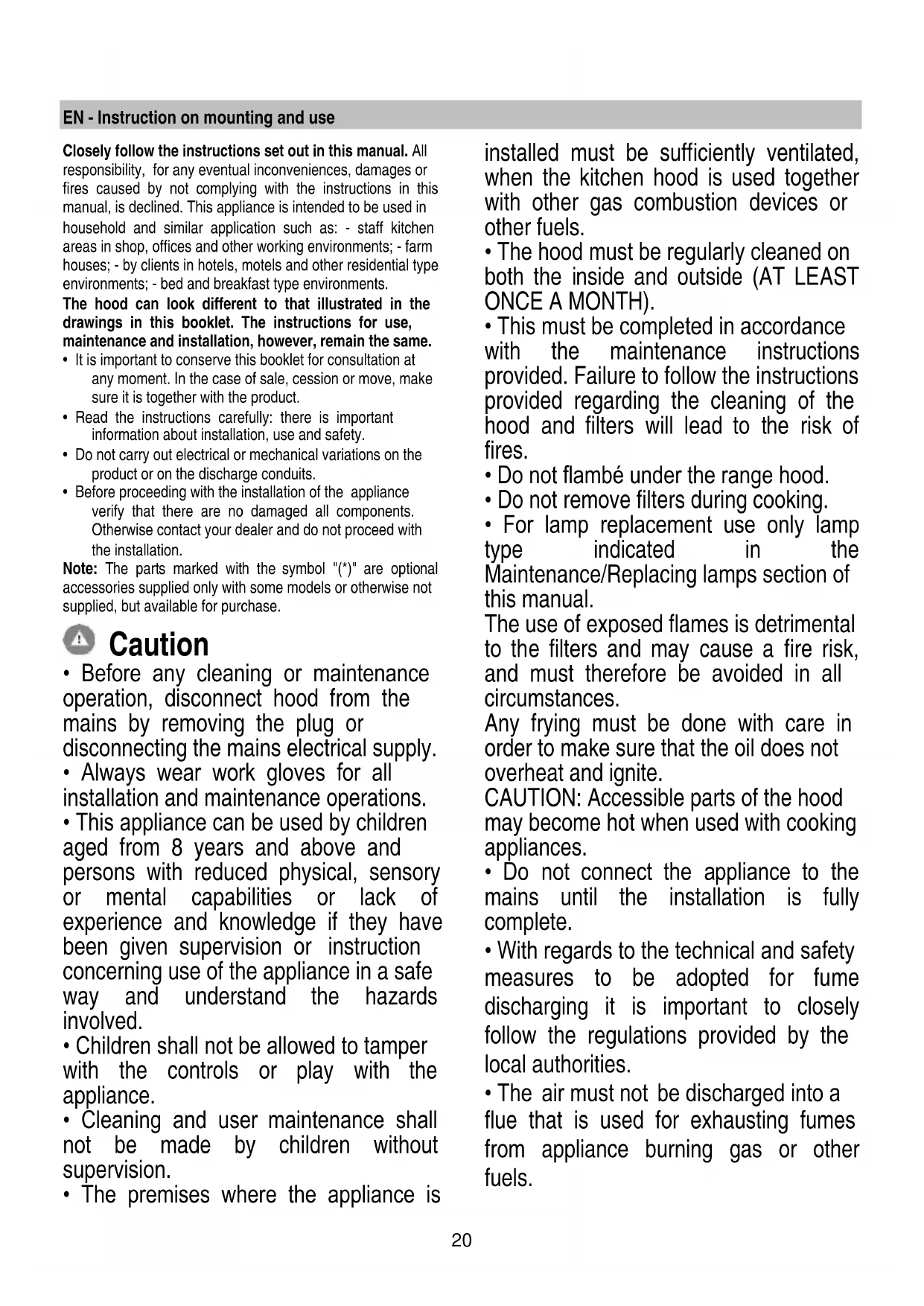

• It is important to conserve this booklet for consultation at any moment. In the case of sale, cession or move, make sure it is together with the product.

• Read the instructions carefully: there is important information about installation, use and safety.

• Do not carry out electrical or mechanical variations on the product or on the discharge conduits.

• Before proceeding with the installation of the appliance verify that there are no damaged all components. Otherwise contact your dealer and do not proceed with the installation. Note: The parts marked with the symbol "(*)" are optional accessories supplied only with some models or otherwise not supplied, but available for purchase. Caution

• Before any cleaning or maintenance operation, disconnect hood from the mains by removing the plug or disconnecting the mains electrical supply.

• Always wear work gloves for all installation and maintenance operations.

• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

• Children shall not be allowed to tamper with the controls or play with the appliance.

• Cleaning and user maintenance shall not be made by children without supervision.

• The premises where the appliance is installed must be sufficiently ventilated, when the kitchen hood is used together with other gas combustion devices or other fuels.

• The hood must be regularly cleaned on both the inside and outside (AT LEAST ONCE A MONTH).

• This must be completed in accordance with the maintenance instructions provided. Failure to follow the instructions provided regarding the cleaning of the hood and filters will lead to the risk of fires.

• Do not flambé under the range hood.

• Do not remove filters during cooking.

• For lamp replacement use only lamp type indicated in the Maintenance/Replacing lamps section of this manual. The use of exposed flames is detrimental to the filters and may cause a fire risk, and must therefore be avoided in all circumstances. Any frying must be done with care in order to make sure that the oil does not overheat and ignite. CAUTION: Accessible parts of the hood may become hot when used with cooking appliances.

• Do not connect the appliance to the mains until the installation is fully complete.

• With regards to the technical and safety measures to be adopted for fume discharging it is important to closely follow the regulations provided by the local authorities.

• The air must not be discharged into a flue that is used for exhausting fumes from appliance burning gas or other fuels.21 WARNING! Failure to install the screws or fixing device in accordance with these instructions may result in electrical hazards.

• Do not use or leave the hood without the lamp correctly mounted due to the possible risk of electric shocks.

• Never use the hood without effectively mounted grids.

• The hood must NEVER be used as a support surface unless specifically indicated.

• Use only the fixing screws supplied with the product for installation or, if not supplied, purchase the correct screws type.

• Use the correct length for the screws which are identified in the Installation Guide.

• In case of doubt, consult an authorized service assistance center or similar qualified person. WARNING! Do not use with a programmer, timer, separate remote control system or any other device that switches on automatically. Electrical connection The mains power supply must correspond to the rating indicated on the plate situated inside the hood. If provided with a plug connect the hood to a socket in compliance with current regulations and positioned in an accessible area, after installation. If it not fitted with a plug (direct mains connection) or if the plug is not located in an accessible area, after installation, apply a double pole switch in accordance with standards which assures the complete disconnection of the mains under conditions relating to over-current category III, in accordance with installation instructions. WARNING! Before re-connecting the hood circuit to the mains supply and checking the efficient function, always check that the mains cable is correctly assembled. Installation

• The minimum distance between the supporting surface for the cooking equipment on the hob and the lowest part of the range hood must be not less than 60cm from electric cookers and 70cm from gas or mixed cookers. If the instructions for installation for the gas hob specify a greater distance, this must be adhered to. Check of the ceiling The ceiling must be flat, horizontal, sturdy enough, and resistant Warnings The hood is designed to be installed in a dropped ceiling The dropped ceiling must be sturdy and have a load-bearing capacity suitable for a product with max. weight of 20 Kg (model with steel panel) or 24 Kg (model with glass panel). Do not install the hood directly in the dropped ceiling panels, but use a suitable frame or support.

• This appliance is marked according to the European directive 2012/19/EC - UK SI 2013 No.3113 on Waste Electrical and Electronic Equipment (WEEE).

• By ensuring this product is disposed of correctly, you will22 help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product.

• The symbol on the product, or on the documents accompanying the product, indicates that this appliance may not be treated as household waste. Instead it should be taken to the appropriate collection point for the recycling of electrical and electronic equipment. Disposal must be carried out in accordance with local environmental regulations for waste disposal.

• For further detailed information regarding the process, collection and recycling of this product, please contact the appropriate department of your local authorities or the local department for household waste or the shop where you purchased this product. Appliance designed, tested and manufactured according to:

• EMC: EN 55014-1; CISPR 14-1; EN 55014-2; CISPR 14-2; EN/IEC 61000-3-2; EN/IEC 61000-3-3. Suggestions for a correct use in order to reduce the environmental impact: Switch ON the hood at minimum speed when you start cooking and kept it running for few minutes after cooking is finished. Increase the speed only in case of large amount of smoke and vapor and use boost speed(s) only in extreme situations. Replace the charcoal filter(s) when necessary to maintain a good odor reduction efficiency. Clean the grease filter(s) when necessary to maintain a good grease filter efficiency. Use the maximum diameter of the ducting system indicated in this manual to optimize efficiency and minimize noise. Use The hood is designed to be used for exhausting version. Vapours are evacuated toward the outside by way of an exhaust pipe fixed to the connector flange and connected to a peripheral extraction unit (not supplied). Connection instructions are supplied with the peripheral extraction unit. Caution! The evacuation pipe is not supplied and must be purchased. In the horizontal section, the pipe must be tilted slightly upwards (approx. 10°) in order to more easily convey the air toward the outside. Connect the hood and discharge holes on the walls with a diameter equivalent to the air outlet (connection flange). Using the tubes and discharge holes on walls with smaller dimensions will cause a diminution of the suction performance and a drastic increase in noise. Any responsibility in the matter is therefore declined. ! Use a duct of the minimum indispensable length. ! Use a duct with as few elbows as possible (maximum elbow angle: 90°). ! Avoid drastic changes in the duct cross-section. Operation

This product is designed to work with an Elica remote control, either supplied with the product or purchased separately as an optional. To control the hood via remote control, the affiliation procedure must be carried out. CAUTION! To begin, the hood must be disconnected and then reconnected to the power supply and the affiliation procedure must be carried out within the first minute of connection to the power. Read the instructions supplied with the remote control, which provide detailed instructions on affiliation and correct use. Note: the Speed 4 (and the Speed 5, where applicable) if selected, will activate for a limited period of time after which Speed 2 is automatically enabled. Remote control connection (if applicable) Once the remote control has been connected, this will be displayed on the hood: both LEDs flash. Note: Using the remote control, delayed shut-down can be programmed based on the aspiration speed (power) enabled at that moment: Speed 1 (low aspiration): 20 minutes Speed 2 (medium aspiration): 15 minutes Speed 3 (high aspiration): 10 minutes Filter Saturation indicator lights At regular intervals, the LEDs on the hood indicate the need to carry out filter maintenance. Note: The filter saturation signal is visible for a few seconds when the hood is switched on; within this time, the saturation indicator lights must be reset. Flashing Green LED: carry out maintenance on the grease filter. Red flashing LED: carry out maintenance on the charcoal filter (only for hoods operating in "Filtration Version"). Note: Run the "RESET FILTRES" command via the remote control. Activating/deactivating the filter saturation indicator light Note: Run the procedure with the hood switched off. The charcoal filter saturation indicator light is usually deactivated.23 If no control is given within maximum 10 sec, the hood automatically exits this function, at any time, and returns to the previous state. Press and hold the B+C keys (Simultaneously) to enter the setup menu: Briefly press button C to select the filter to be set up: Grease filter:Green Charcoal filter: Red Briefly press button B to activate (the 2nd LED flashing) or deactivate (2nd LED off). Note: the LEDs light up for a limited number of seconds after which they turn off to indicate that the indicator light has been activated (or deactivated). The device can also be used in combination with a Window sensor KIT (not supplied by the manufacturer). If the Window sensor KIT is installed (only in the case of use in EXTRACTOR mode), air extraction will halt every time the window in the room, on which the KIT is applied, is closed.

• The KIT must be electrically connected to the device by qualified and specialised technical personnel.

• The KIT must be certified separately in accordance with the safety standards for the component and its use with the device. Installation must be carried out in accordance with current regulations for domestic systems. PLEASE NOTE:

• the wiring of the KIT to be connected to the device must be part of a certified safety extra-low voltage (SELV) circuit.
