USER MANUAL WF 0165 Orbegozo

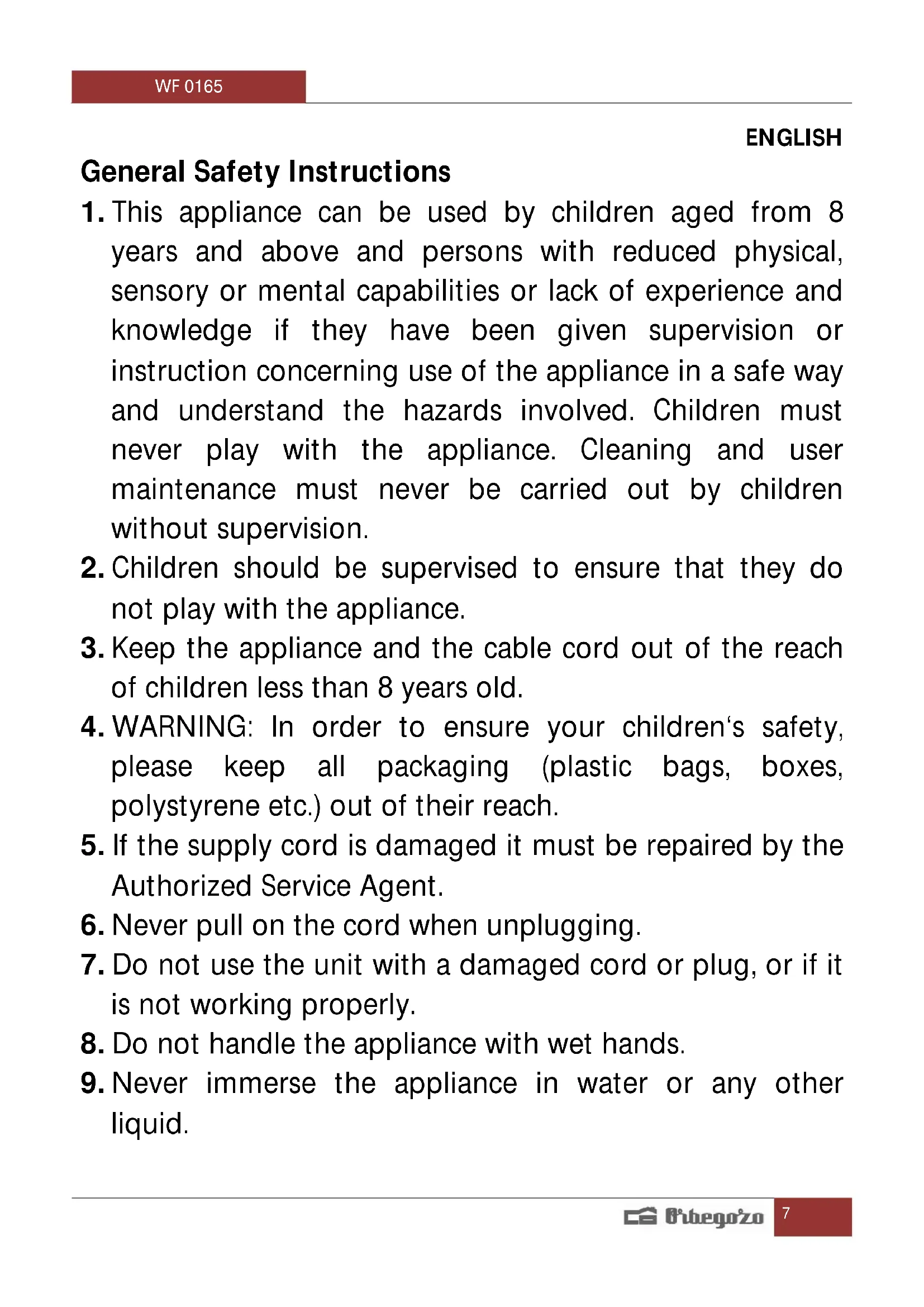

ENGLISH General Safety Instructions

1. This appliance can be used by children aged from 8

years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children must never play with the appliance. Cleaning and user maintenance must never be carried out by children without supervision.

2. Children should be supervised to ensure that they do

not play with the appliance.

3. Keep the appliance and the cable cord out of the reach

of children less than 8 years old.

4. WARNING: In order to ensure your children‘s safety,

please keep all packaging (plastic bags, boxes, polystyrene etc.) out of their reach.

5. If the supply cord is damaged it must be repaired by the

Authorized Service Agent.

6. Never pull on the cord when unplugging.

7. Do not use the unit with a damaged cord or plug, or if it

is not working properly.

8. Do not handle the appliance with wet hands.

9. Never immerse the appliance in water or any other

10. Make sure the appliance has been unplugged before

11. This appliance must be installed following the national

regulations for electrical installations.

12. This appliance is for household use only.

13. In case that you need a copy of the instruction manual,

you can ask for it writing an email to sonifer@sonifer.es

14. WARNING: In case of misuse, there is a risk of possible

• Do not operate any appliance with a damaged cord or plug, or after the appliance malfunctions, or in dropped or damaged in any manner. Follow warranty instructions.

• Do not operate the fan without the front grille attached.

• Never insert fingers, pencils or any other object through the grille when fan is running.

• Disconnect the plug when moving from one location to another.

• Disconnect plug when removing guards for cleaning.

• DO NOT use fan in window. Rain may create an electrical hazard. Do not leave the fan operating adjacent to an area where water has been collected to avoid the potential of electrical hazard.

• This product is only designed for use in living areas (and is not suitable for places constantly exposed to humidity).

• Do not place the fan near flames, cookers or heaters.

• Do not obstruct the air flow.WF 0165

6. Male motor support.

7. Motor fixing screw.

8. Female motor support.

9. Wall support (can be oriented up or down).

1. As it is a heavy fan, you should place it on a resistant wall. Once located the desired place, put the

wall support on the wall and mark its holes with pencil or marker.

2. Drill to holes, place inside the holes the clamping tubes, put wall support on the wall onto the holes

3. Insert the tube in wall support (orient it upward or downward as you desire) and fix the position

4. Place motor in female support and fix it with the screw (7). With this screw you can set the tilt of

5. Mount rear grille on front of motor and screw it to place it. After that insert the blade in the motor

shaft and adjust it with its screw.

6. By last, put the front grille in front of rear one and adjust it with top hook and fix the grilles with

frame flanges. OPERATING INSTRUCTIONS

• Step 1: Please make sure the Speed knob is in the 0 position. Plug cord into any standard AC outlet.

• Step 2: The speed is adjusted by moving the knob left or right to the desired setting (0-Off; 1-Low; 2- Medium; 3-High)

• Step 3: To connect swing function, unscrew the screw on bottom of motor and change of position as below pictures show.WF 0165

• If you want to amend the tilt of fan head, loosen up a bit the screw on joint of motor head and mast, move motor head to desired tilt and tight again the screw. FAN STORAGE The fan can be stored in the off-season completely assembled or partially disassembled. It is important that store place is dry and safe.

• If you store it disassembled, we recommend using original box, or at least a box with appropriated dimensions.

• If you store it assembled or partially disassembled, cover the fan head to protect from dust.

• You always must empty water tank if you aren’t going to use the fan for more than a week.

CLEANING AND MAINTENANCE

• Always unplug the fan before cleaning or disassembling.

• Use a damp cloth to clean the dust from the fan.

• Do not allow water to drip on or into the fan motor housing.

• Do not use any of the following as a cleaner: gasoline, thinner, or benzine.

Disposal of old electrical appliances. The European directive 2002/96/EC on Waste Electrical and Electronic Equipment (WEEE), requires that old household electrical appliances must not be disposed of in the normal unsorted municipal waste stream. Old appliances must be collected separately in order to optimize the recovery and recycling of the materials they contain, and reduce the impact on human health and the environment. The crossed out “wheeled bin” symbol on the product reminds you of your obligation, that when you dispose of the appliance, it must be separately collected. Consumers should contact their local authority or retailer for information concerning the correct disposal of their old appliance. DECLARATION OF CONFORMITY: This device complies with the requirements of the Low Voltage Directive 2014/35/EU and the requirements of the EMC directive 2014/30/EU.WF 0165
