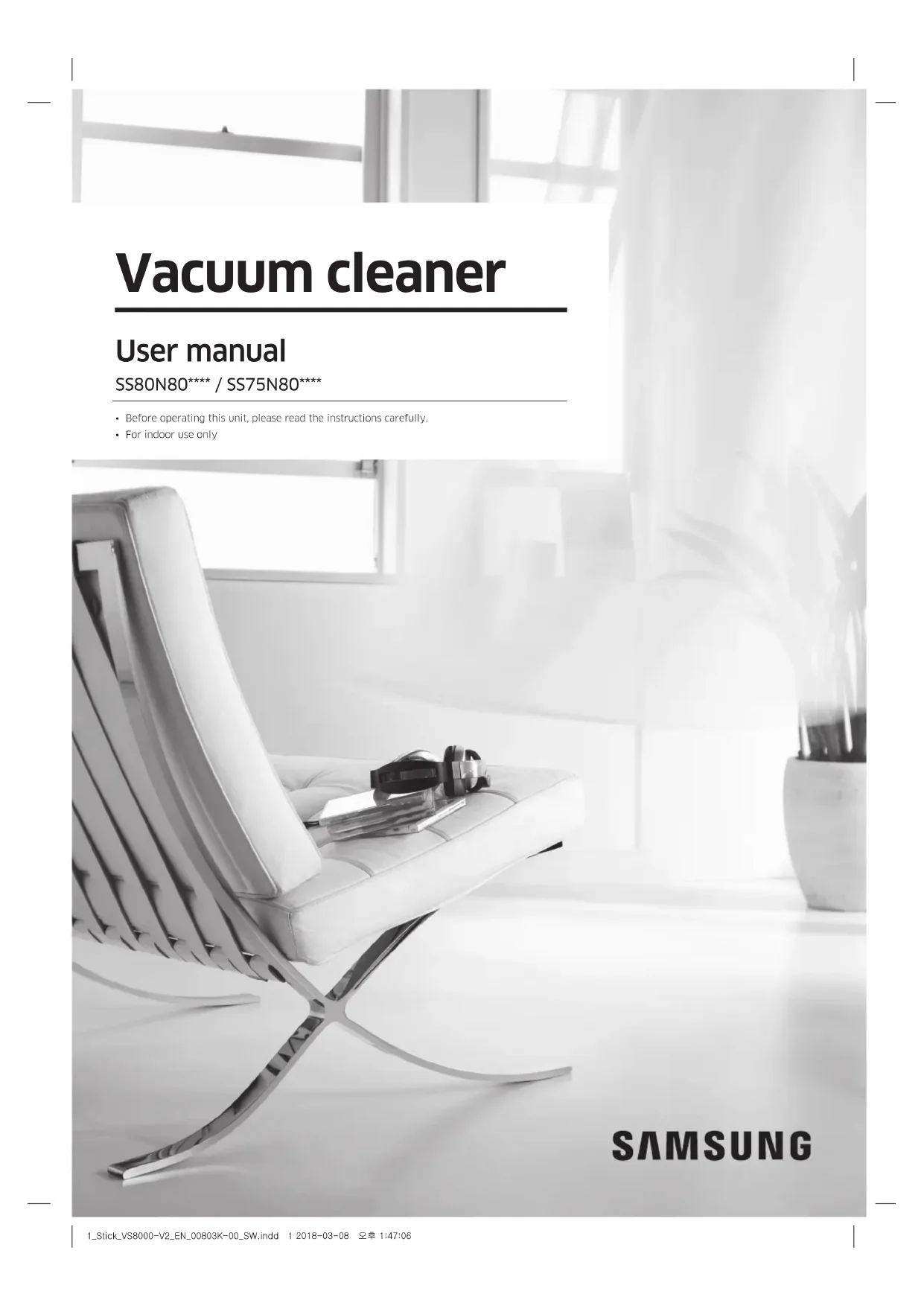

USER MANUAL SS80N8074K2 SAMSUNG

• Before operating this unit, please read the instructions carefully.

• For indoor use only 1_Stick_VS8000-V2_EN_00803K-00_SW.indd 1 2018-03-08 오후 1:47:062 English Contents PREPARATION Safety information 3 INSTALLATION Name of the parts 13 Accessories 14 Installing the wall mount 15 Installing the wall mount 15 Disassembling the wall mount 15 OPERATION Using the vacuum cleaner 16 Charging the vacuum cleaner 16 Using the handle 17 Storing the vacuum cleaner 18 Using the accessories 19 MAINTENANCE Maintaining the vacuum cleaner 20 When to empty the dustbin 20 Emptying the dustbin without causing dust clouds 20 Emptying and Cleaning the dustbin 20 Cleaning the sponge lter 21 Cleaning the outlet lter 22 Cleaning the accessories 22 APPENDIX Notes and cautions 24 Battery usage 24 Operation 25 Maintenance 26 Troubleshooting 27 Product Specication Model SS80N80**** SS75N80**** Power 100-240 V

50-60Hz Rated power consumption 450W 400W Battery specication Li-ion 32.4 V, 1,600 mAh, 9 cell Charging time 4.5 hours Cleaning time Handy: Approximately 40 minutes (Normal mode) / Approximately 7 minutes (Turbo mode) Brush assembled: Approximately 30 minutes (Normal mode) / Approximately 7 minutes (Turbo mode) Charging and cleaning time may differ depending on the brushes and the conditions of use. 1_Stick_VS8000-V2_EN_00803K-00_SW.indd 2 2018-03-08 오후 1:47:063 English PREPARATION

• Before operating the appliance, please read this manual thoroughly and retain it for your reference.

• Because the following operating instructions cover various models, the characteristics of your vacuum cleaner may differ slightly from those described in this manual. Caution/Warning symbols used WARNING Indicates that a danger of death or serious injury exists. CAUTION Indicates that a risk of personal injury or material damage exists. Other symbols used NOTE Indicates that the following text contains additional important information. Failure to meet these requirements could cause damage to the internal parts of the vacuum and void your warranty. Safety information PREPARATION 1_Stick_VS8000-V2_EN_00803K-00_SW.indd 3 2018-03-08 오후 1:47:064 English PREPARATION General

• Read all instructions carefully. Before switching the vacuum on, make sure that the voltage of your electricity supply is the same as that indicated on the rating plate on the bottom of the battery charger.

• WARNING : Do not use the vacuum cleaner on a wet rug or oor.

• Close supervision is necessary when any appliance is used by or near children. Do not allow the vacuum cleaner to be used as a toy. Do not allow the vacuum cleaner to run unattended at any time. Use the vacuum cleaner only for its intended purpose as described in these instructions.

• Do not use the vacuum cleaner without a dustbin.

• Empty the dustbin before it is full to maintain the highest efciency.

• Do not use the vacuum cleaner to pick up matches, live ashes or cigarette butts. Keep the vacuum cleaner away from stoves and other heat sources. Heat can deform and discolor the plastic parts of the unit.

• Avoid picking up hard, sharp objects with the vacuum cleaner as they may damage the vacuum's parts.

• Do not block the suction or the exhaust port.

• To avoid damage, remove the plug by grasping the plug, not by pulling the cord.

• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children should not play with the appliance. Children should not clean or perform maintenance on the vacuum without adult supervision.

• Children should be supervised to ensure that they do not play with the appliance. 1_Stick_VS8000-V2_EN_00803K-00_SW.indd 4 2018-03-08 오후 1:47:065 English PREPARATION

• The battery must be removed from the main unit before cleaning or performing maintenance on the vacuum.

• The use of an extension cord is not recommended.

• If your vacuum cleaner is not operating correctly, switch off the power supply and consult an authorized Samsung service agent.

• If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a similarly qualied person to avoid any electrical hazards.

• Do not use to suction up water.

• Do not immerse in water for cleaning.

• Please contact Samsung or a Samsung service center for a replacement if one is needed.

• For information on Samsung’s environmental commitments and product specic regulatory obligations e.g. REACH visit: samsung.com/uk/ aboutsamsung/samsungelectronics/corporatecitizenship/data_corner.html Battery charger

• Do not modify the polarized plug to t a non-polarized outlet or extension cord.

• Do not use outdoors or on wet surfaces.

• Unplug the battery charger from the outlet when not in use and before servicing.

• Use only the battery charger supplied by the manufacturer to recharge.

• Do not use with a damaged cord or plug.

• Do not pull or carry by the cord, use the cord as a handle, close a door on the cord, or pull the cord around sharp edges or corners. Keep the cord away from heated surfaces.

• Do not use extension cords or outlets with inadequately rated current. 1_Stick_VS8000-V2_EN_00803K-00_SW.indd 5 2018-03-08 오후 1:47:066 English PREPARATION

• Do not charge a non-rechargeable battery.

• Do not unplug by pulling on the cord. To unplug, grasp the plug, not the cord.

• Do not mutilate or incinerate batteries as they will explode at high temperatures.

• Do not attempt to open the battery charger. Repairs should be only carried out by a qualied Samsung service center.

• Do not expose the battery charger to high temperatures or allow moisture or humidity of any kind to come into contact with the battery charger.

• The label on the wall mount shows the label for the battery charger which goes inside the wall mount. Vacuum cleaner

• Do not pick up hard or sharp objects such as glass, nails, screws, coins, etc.

• Do not use without a lter in place. When servicing the unit, never put ngers or other objects into the fan chamber in case the unit accidentally turns on.

• Do not put any objects into openings. Do not use with any openings blocked. Keep openings free of dust, lint, hair, and anything that may reduce air ow.

• Do not pick up toxic materials (chlorine bleach, ammonia, drain cleaner, etc.).

• Do not pick up anything that is burning or smoking, such as cigarettes, matches, or hot ashes.

• Do not use the vacuum cleaner in an enclosed space lled with vapours given off by oil based paint, paint thinner, moth proong substances, ammable dust, or other explosive or toxic vapours. 1_Stick_VS8000-V2_EN_00803K-00_SW.indd 6 2018-03-08 오후 1:47:077 English PREPARATION Installation

• If you have a problem with installing the wall mount (battery charger), contact a Samsung service center.

• Do not install the wall mount (battery charger) near water, in an area with excessive moisture, or near window, etc.

• Do not install the wall mount (battery charger) on a wall behind which pipes (gas or water) or electrical cables are installed. ❇ Injury or product malfunction from not installing the wall mount (battery charger) may not be compensated.

• The wall mount (battery charger) should be installed on the wall where it can be rmly xed. – To install the wall mount (battery charger) on a soft wall such as plaster board, make sure that the mounting location is backed by a stud and that you screw the supporting screws into the stud. Otherwise, the wall mount can fall and cause an injury or severe product damage. Power related WARNING

• When installing the wall mount (battery charger), do not bend the power cord with excessive force or put heavy objects on the power cord. – Otherwise, electric shock or re may occur.

• If there is dust, water, etc. on a pin or contact point of the power plug, wipe them carefully. – Otherwise, abnormal operation or electric shock may occur.

• Do not pull the cord and do not touch the plug with wet hands.

• Do not plug the battery charger into a power source with the incorrect voltage. Do not plug the battery charger into a multi-plug outlet or power strip. Do not leave the power cord lying on the oor. Attach the cord close to a wall. – Otherwise, electric shock or re may occur. 1_Stick_VS8000-V2_EN_00803K-00_SW.indd 7 2018-03-08 오후 1:47:078 English PREPARATION

• Do not use a damaged power plug, power cord, or loose power outlet. – Otherwise, electric shock or re may occur.

• If the power cord is damaged, have a Samsung authorized service center replace the power cord with a new power cord. – Otherwise, electric shock or re may occur. Operation WARNING

• Do not touch the terminal of a battery charger with chop sticks, metal screw drivers, forks, knives, etc. – Otherwise, product malfunction or electric shock may occur.

• Make sure that the battery terminals of the charger do not come into contact with a conductor such as a bracelet, watch, metal rod, nail, etc.

• Make sure that any liquid such as water or juice is not allowed to enter the vacuum cleaner or the wall mount (battery charger). – Otherwise, electric shock or re may occur.

• Do not use the battery charger for other purposes. – Otherwise, severe damage to the battery charger or re may occur.

• Do not vacuum liquid, blades, pins, embers, etc. during cleaning. – Otherwise, abnormal operation or product damage may occur.

• Do not step on the product body or strike the product. – Otherwise, an injury or product damage may occur.

• The brush and air outlet should not be blocked during cleaning. – Otherwise, product malfunction or re may occur due to overheating of the product. 1_Stick_VS8000-V2_EN_00803K-00_SW.indd 8 2018-03-08 오후 1:47:079 English PREPARATION

• This product is intended for household use only. Do not use this product for heavy duty cleaning, commercial cleaning, industrial cleaning, or cleaning outdoors, especially on stone or cement. Do not use to pick up chalk powder in and around billiard tables or in hospital aseptic rooms. – Otherwise, abnormal operation or product damage may occur.

• Do not use the product near heating appliances such as heaters, or in areas containing combustible sprays, or ammable materials. – Otherwise, re or product deformation may occur.

• Before using the product, make sure that the sponge lter is correctly inserted. – Otherwise, dust can enter the motor inside the main body and cause product damage. Suction force can decrease.

• If there is a gas leak or combustible spray is used, do not touch the power outlet and open the window for ventilation. – Otherwise, an explosion or re may occur.

• If the vacuum makes a strange sound or emits a smell or smoke, turn off the vacuum immediately, and then contact a Samsung service center. – Otherwise, electric shock or re may occur. CAUTION

• Do not use the product near combustible material. Also do not use: – In a place where a burning candle or desk lamp is placed on the oor. – In an area where an unattended place heater is turned on or an area in which there are unextinguished embers in a replace, in an ashtray, etc. – In a place where there are combustible materials such as gasoline, alcohol, thinner, ashtrays with unextinguished cigarettes, etc.

• Do not allow children to cling to or push the wall mount (battery charger). – Personal injury, product and oor damage may occur. 1_Stick_VS8000-V2_EN_00803K-00_SW.indd 9 2018-03-08 오후 1:47:0710 English PREPARATION

• When you need to store the vacuum cleaner for a short time during cleaning, lay the vacuum on the oor. – Otherwise, the vacuum cleaner may fall and could cause an injury or severe product damage.

• When you charge the vacuum cleaner by directly connecting it to the battery charger (without using the wall mount), the vacuum cleaner must lie in a stable place (that is at, has no moisture, is out of reach of children, and that is congured so that the vacuum will not fall). In addition, do not charge the product near a window, heater, toilet, bathroom, etc.

• After using the vacuum cleaner, you should store it in the wall mount (battery charger). – Otherwise, the product may fall and could cause an injury or severe product damage.

• Do not store the vacuum cleaner by leaning it against a wall or table.

• Do not use the vacuum cleaner for other than its intended purpose. (Do not allow children to ride on or play with the product.) – An injury or product damage may occur.

• Before plugging in or unplugging the battery charger, turn off the vacuum and make sure that the pins of the power plug do not come into contact with your hands. – Otherwise, re or electric shock may occur.

• When using the vacuum cleaner, be careful hurt yourself on the moving parts. – Be careful not to suction body parts into a brush of the vacuum cleaner (Hair, etc.) – When using the Flex Handle, be careful not to catch your ngers or hands in the movement fold of the handle.

• When cleaning the wall or ceiling, use both hands. 1_Stick_VS8000-V2_EN_00803K-00_SW.indd 10 2018-03-08 오후 1:47:0711 English PREPARATION

• Use both hands to clean with the vacuum. If you clean with one hand, you can damage your wrist or drop the vacuum and cause an injury or damage the vacuum.

• When assembling the vacuum, be careful not to catch your ngers or hands in the movement fold of the handle.

• Do not use the vacuum cleaner on objects that can be easily scratched (monitors, stainless steel appliances, etc.).

• Do not store the vacuum cleaner inside a car.

• Do not use water to clean the vacuum cleaner when in use.

• Use the vacuum cleaner in dry places only.

• Do not use the vacuum cleaner to pick up spilled beverages or pet waste.

• Do not use the vacuum cleaner in direct sunlight or high heat.

• Do not use the vacuum cleaner in wet places or on water. Maintenance WARNING

• Before removing foreign matter inside the vacuum, turn off the vacuum cleaner rst. – If the vacuum is on while you are removing the foreign matter, you can hurt yourself or damage the vacuum.

• When cleaning the exterior of the product, turn off the product rst and then wipe it with dry towel. Do not spray water directly onto the product or wipe it with volatile materials such as benzene, thinner, or alcohol. – If water gets into the product and an error occurs, turn off the product and contact a Samsung service center.

• After unplugging the product, clean the battery charger. 1_Stick_VS8000-V2_EN_00803K-00_SW.indd 11 2018-03-08 오후 1:47:0712 English PREPARATION

• When cleaning the washable parts, do not use alkaline detergent, acid, industrial detergent, air freshener, acetic acid, etc. – Otherwise, product damage such as plastic breakage, deformation, discoloration, printing deterioration, etc. may occur. Washable Parts Dustbin, sponge Acceptable detergent Neutral Dish washing detergent Prohibited detergent Alkaline Lox, mold cleaner, etc. Acid Parafn oil, an emulsier, etc. Industrial cleaners NV-I, PB-I, Opti, alcohol, acetone, benzene, thinner, etc. Air freshener Jet spray air fresheners (coffee avor, herb, etc.) Oils Animal oils, vegetable oils Etc. Edible acetic acid, vinegar, glacial acetic acid, etc. CAUTION

• Do not push the vacuum cleaner while it is stored in the wall mount (battery charger). – Personal injury, oor and product damage may occur. 1_Stick_VS8000-V2_EN_00803K-00_SW.indd 12 2018-03-08 오후 1:47:0813 English INSTALLATION Name of the parts INSTALLATION 01 Pipe 02 Dustbin 03 Power indicator 04 Power( ) button 05 Outlet lter 06 Handle 07 Turbo mode button 08 Battery level indicator 09 Battery release button 10 Flex Handle button 11 Battery release lock button 12 Dustbin release button

• The wall mount's mounting screws must be afxed to a hard wall or underlying wall stud. – If you install the wall mount on a plaster board wall, you must screw the supporting screws into an underlying stud. Installing the wall mount Groove for xing the wall mount Screws Screw Anchors 118cm 01 Remove the rubber cap from the groove for xing the wall mount. 02 Set the height of the wall mount installation so that top of the wall mount will be 118cm from the oor. 03 Using the wall mount as a template, mark where the top and bottom screw holes will be placed. 04 Drill the holes using a 6mm drill bit. Fix the wall mount to the wall with the provided screws. Re-Insert the rubber cap into the groove for xing the wall mount. 05 Plug in the wall mount, place the vacuum into the wall mount, and then conrm that the battery level indicator is on. Disassembling the wall mount

When re-assembling the wall mount, make sure the cables are placed as shown in the illustration. 1_Stick_VS8000-V2_EN_00803K-00_SW.indd 15 2018-03-08 오후 1:47:1716 English OPERATION Using the vacuum cleaner CAUTION

• Before ejecting the battery, the product must be turned off. (If the battery is forcibly ejected while the vacuum is operating, the vacuum can malfunction.)

• Be careful not to drop the battery. If you do, you can injure yourself or damage the battery. Charging the vacuum cleaner When the battery level indicator is at its lowest level and blinks( ), charge the battery. When charging the vacuum, make sure the vacuum cleaner is correctly mounted on the wall mount. The vacuum cleaner cannot be used while it is charging. Charging with the wall mount

• Check if the battery level indicator is turned on.

• The battery level indicator blinks while charging. When charging is complete, the blinking stops and the light level dims. Charging without the wall mount

• You can separate the battery charger from the wall mount. To separate the battery charger from the mount, refer to “Disassembling the wall mount” on page

• When you charge the vacuum without the wall mount, lay the vacuum on a stable oor. OPERATION 1_Stick_VS8000-V2_EN_00803K-00_SW.indd 16 2018-03-08 오후 1:47:1817 English OPERATION

Ejecting the battery Grip the handle, and then press the battery release button

. While pressing the battery release lock button

Click Re-inserting the battery Push the battery in as shown in the illustration until you hear a click. Using the handle Power indicator Power( ) on/off

• The vacuum cleaner starts operation in normal mode.

• When the power is turned on, the power indicator displays. Using the turbo mode

• Press and hold the turbo mode button to turn on the turbo mode.

• Release the turbo mode button to return to the normal mode. 1_Stick_VS8000-V2_EN_00803K-00_SW.indd 17 2018-03-08 오후 1:47:1918 English OPERATION Using the Flex Handle

• Press the Flex Handle button to release the Flex Handle. The Flex Handle will now move up and down as you clean.

• The movement of the Flex Handle will protect your wrist or arm as it helps you to maneuver the vacuum and clean more comfortably.

• To lock the handle in place again, move it back to its original position. When you hear it click, it will be locked in place. CAUTION

• When using the Flex Handle, be careful not to catch your ngers or hands in the movement fold of the handle. Storing the vacuum cleaner NOTE

• Store the exible tool in a separate place.

• After cleaning, operate the turbo mode for 5 seconds or more to suction up the small dust particles remaining between the pipe and the main body.

• When disassembling the accessories, dust can fall from the suction part of the vacuum cleaner. Before storing the vacuum cleaner, vacuum up the fallen dust. 1_Stick_VS8000-V2_EN_00803K-00_SW.indd 18 2018-03-08 오후 1:47:2019 English OPERATION Using the accessories Soft Action Brush Use the Soft Action Brush to clean small dust particles off a oor (wood and linoleum). Turbo Action Brush Use the Turbo Action Brush to clean various oor conditions at home, it is also suitable to clean carpet. Mini Motorized Tool Use to clean bedding. Combination Tool

Use to remove dust from curtains, furniture, sofas, etc. Extension Crevice Tool

Use to remove dust in grooves of window frames, chinks, corners, etc. Flexible Tool Use to clean ceilings and upper or rear parts of furniture. NOTE

• The Flexible Tool can be connected to the Combination Tool and Extension Crevice Tool. 1_Stick_VS8000-V2_EN_00803K-00_SW.indd 19 2018-03-08 오후 1:47:2120 English MAINTENANCE CAUTION

• Before cleaning the vacuum cleaner, turn it off.

• When the dustbin or sponge lter is lled with dust, the vacuum cleaner may stop. You should empty and clean the dustbin before it becomes completely full. When to empty the dustbin Emptying the dustbin without causing dust clouds Emptying and Cleaning the dustbin

While pressing the dustbin release button, remove the dustbin by pulling it in the direction of the arrow.

Grip the groove on the dustbin cover, and then pull the cover off.

Empty the dustbin. Pull the lever on the dustbin to remove any tangled dust, and then push the lever back in all the way until you hear it click. MAINTENANCE Maintaining the vacuum cleaner 1_Stick_VS8000-V2_EN_00803K-00_SW.indd 20 2018-03-08 오후 1:47:2621 English MAINTENANCE

After cleaning the dustbin, dry it in the shade. NOTE

• If the lever is not pushed in all the way, suction force may decrease. If dust is extremely tangled, pull the lever repeatedly.

Make sure the marks "" printed on the dustbin cover and dustbin are aligned, and then put the cover back on the dustbin.

Re-attach the dustbin by pushing it as shown in the illustration until you hear it click. Cleaning the sponge lter

Open the lter holder.

Shake the lter over garbage can.

Wash the lter and dry in the shade. 1_Stick_VS8000-V2_EN_00803K-00_SW.indd 21 2018-03-08 오후 1:47:2822 English MAINTENANCE

Place in the lter holder. Make sure the lter is dry.

Close the lter holder. Cleaning the outlet lter To maintain the best performance of the outlet lter, replace it once a year.

Cleaning the accessories Soft Action Brush

• When foreign matter remains on the brush, remove it with a wet tissue or dry cloth.

• For the Soft Action Brush, if the overheating prevention device for the brush motor operates, it may take about 10minutes of time to cool the motor. CAUTION

• Do not clean the rotating brush and suction part with water.

• When the rotating brush is disassembled, the Turbo Action Brush's EzClean function automatically removes tangled foreign matter or hair.

• If the foreign matter is not removed, use a scissors to remove it. NOTE

• If a cloth or other foreign matter is vacuumed up and tangled with the rotating brush (drum), the rotating brush will stop working to protect the brush motor. After cleaning the brush, turn the power off and then on again.

• If a brush does not work after cleaning, turn the power off and then on again.

• When cleaning the brush, be careful not to catch your ngers in the fold of the brush. Mini Motorized Tool Extension Crevice Tool / Pipe 1_Stick_VS8000-V2_EN_00803K-00_SW.indd 23 2018-03-08 오후 1:47:3124 English APPENDIX Battery usage NOTE

• If your vacuum cleaner does not work after you charge the battery, change the battery. If it still does not work with the new battery, contact a Samsung service center.

• When you purchase a battery in a Samsung service center, check for the genuine Samsung logo on the battery ( ) and the battery name (VCA-SBT80).

• The battery warranty period is 6 months from the date of purchase. CAUTION

• Do not disassemble the battery or the battery charger.

• Do not apply heat to the battery and do not put the battery in a re.

• As the battery is manufactured only for this product, do not use the battery for other electronic appliances or other purposes.

• Removing the battery during operation may cause product malfunction.

• If the battery is removed while the vacuum cleaner motor is operating, the battery may not work for 30seconds after being re-attached for safety reasons.

• Battery charging time and usage time may shorten with increased battery use. When the battery no longer charges or runs down quickly, replace the exhausted battery with a new one.

• Use only the battery charger and batteries provided by the manufacturer. (Battery charger : SLPS-200FGOT, Battery : VCA- SBT80)

• Before inserting the battery, conrm that the battery is being inserted in the correct direction and orientation.

• When discarding a dead battery, put it into a battery collection box for recycling.

• If you are not going to use your vacuum cleaner for a long time, detach the battery from the vacuum. Notes and cautions APPENDIX 1_Stick_VS8000-V2_EN_00803K-00_SW.indd 24 2018-03-08 오후 1:47:3225 English APPENDIX

• When attaching the battery to the vacuum, insert it until you hear a click. This assures that the battery is rmly attached. – Otherwise, the battery may fall and could cause product damage or injury.

• Do not drop or strike the battery or subject it to a sudden shock.

• Do not disassemble the battery and make sure that you do not create a short circuit across the plus (+) and minus (-) terminals.

• Leaks from battery cells can occur under extreme usage or temperature conditions. If the liquid gets on your skin, wash the affected area quickly with water. If the liquid gets into your eyes, ush them immediately with clean water for a minimum of 10minutes. Seek medical attention.

• To protect the motor and battery, the vacuum cleaner may not operate when the temperature is lower than 5°C or higher than 45°C. Operation NOTE

• If excessive force is applied to a brush or foreign matter is caught in the rotating brush (drum), the brush may stop working to protect the motor or vacuum. Turn the vacuum off, remove the foreign matter, and then turn the vacuum on. If the vacuum does not start, turn it off and then on again.

• Static electricity may occur depending on the humidity, temperature, or oor material, etc. in your home. If it happens repeatedly, contact a Samsung service center.

• Please charge the battery fully: – Before using a newly purchased battery for the rst time or if you haven't used the battery for a long time. – When the battery level indicator is on the lowest indication and blinks. 1_Stick_VS8000-V2_EN_00803K-00_SW.indd 25 2018-03-08 오후 1:47:3226 English APPENDIX

• If you are not going to use the vacuum for a long period of time or you're going to be away from home for a long period of time, unplug the battery charger, and then detach the battery charger from the battery. When the battery is not being charged and not being used, it will slowly discharge.

• When the battery level is low, recharge it. If the level of the battery remains low for a long period of time, it can cause the performance of the battery to degrade. CAUTION

• When the rotating brush (drum) inside a brush is working, do not touch the brush. – Otherwise, your hand can be caught and it may cause an injury.

• When assembling the handle, be careful not to catch your ngers or hands in the movement fold of the handle.

• Do not use the vacuum cleaner on items that can be scratched (TV and monitor screens, etc.) Maintenance NOTE

• Sometimes the wheel of a brush can scratch the oor. Before using the vacuum cleaner, check the status of the wheels of the brush. – If there is foreign matter on the wheel of the brush which cannot be removed easily, contact a Samsung service center. CAUTION

• Storing the vacuum cleaner in sunlight for long hours may cause parts of the vacuum to deform or discolor. Therefore, after cleaning the parts of the vacuum cleaner, dry them in the shade.

• Do not clean the brush of the vacuum cleaner with water. Cleaning it with water can cause the brush to deform or discolor.

• Before cleaning the wall mount (battery charger), you must unplug the battery charger.

• If you notice a continuous reduction in suction or the vacuum cleaner overheats abnormally, replace the outlet lter. 1_Stick_VS8000-V2_EN_00803K-00_SW.indd 26 2018-03-08 오후 1:47:3227 English APPENDIX Troubleshooting Before calling for service, review the problems and solutions below. If none of the suggested solutions resolve your problem, please visit our website at www.samsung.com or call Samsung Customer Care. Note that you will be charged for any service calls in which no defects were found. Problems Solutions The vacuum cleaner does not work.

• Check the battery level and charge the battery.

• Check whether the product is turned off, and then press the power button to turn it on.

• Check whether the dustbin or brush is blocked.

• If the vacuum has not been used for a long time, charge the battery. Suction force decreases suddenly and the vacuum makes a vibrating sound.

• Check whether a brush, dustbin or pipe is clogged with foreign matter and remove it.

• Check whether the dustbin is fully lled with dust. If it is, empty the bin.

• Check whether the lter is dirty. If it is, clean the lter.

• Check the battery level and charge the battery if necessary. The vacuum cleaner cannot be charged.

• Conrm that the voltage provided to the battery charger matches the requirements of the charger. (See page 2.)

• Check if the vacuum cleaner is turned on, and then check if the LED of the battery level indicator is turned on.

• Check if foreign matter (dust) is on the charging terminal. Remove any foreign matter with a cotton swab or soft cloth. The rotating brush (drum) inside a brush does not work.

• After turning off the vacuum, check whether the brush is clogged with foreign matter. If so, remove the foreign matter. After cleaning the brush, turn on the vacuum again.

• Check if the vacuum cleaner is turned on and then turn it off and on again. – For the Soft Action Brush, if the overheating prevention device for the brush motor operates, it may take about 10minutes of time to cool the motor. An odor is coming from the air outlet of the vacuum cleaner.

• Empty the dustbin and clean the lters frequently. – As your vacuum cleaner is a new product, it may have a slight odor for the rst 3 months after purchase. – If you use the vacuum cleaner frequently, accumulated dirt in the dustbin or dust on the lter may generate an odor.

• Replacement lters are available at your local Samsung service agent. After nishing cleaning, foreign matter comes out of the brush.

• After nishing cleaning, press and hold the turbo mode button for about 10 seconds to suction up the remaining small dust particles.

• This Vacuum cleaner is approved the following. – The Low Voltage Directive 2014/35/EU – The EMC Directive 2014/30/EU 1_Stick_VS8000-V2_EN_00803K-00_SW.indd 27 2018-03-08 오후 1:47:32If you have any questions or comments relating to Samsung products, please contact the SAMSUNG customer care center. Country Customer Care Center Web Site Switzerland 0800 726 78 64 (0800-SAMSUNG) www.samsung.com/ch/support (German) www.samsung.com/ch_fr/support (French) Austria 0800-SAMSUNG (0800-7267864) [Only for KNOX customers] 0800
