USER MANUAL FCT686N WIFI CANDY

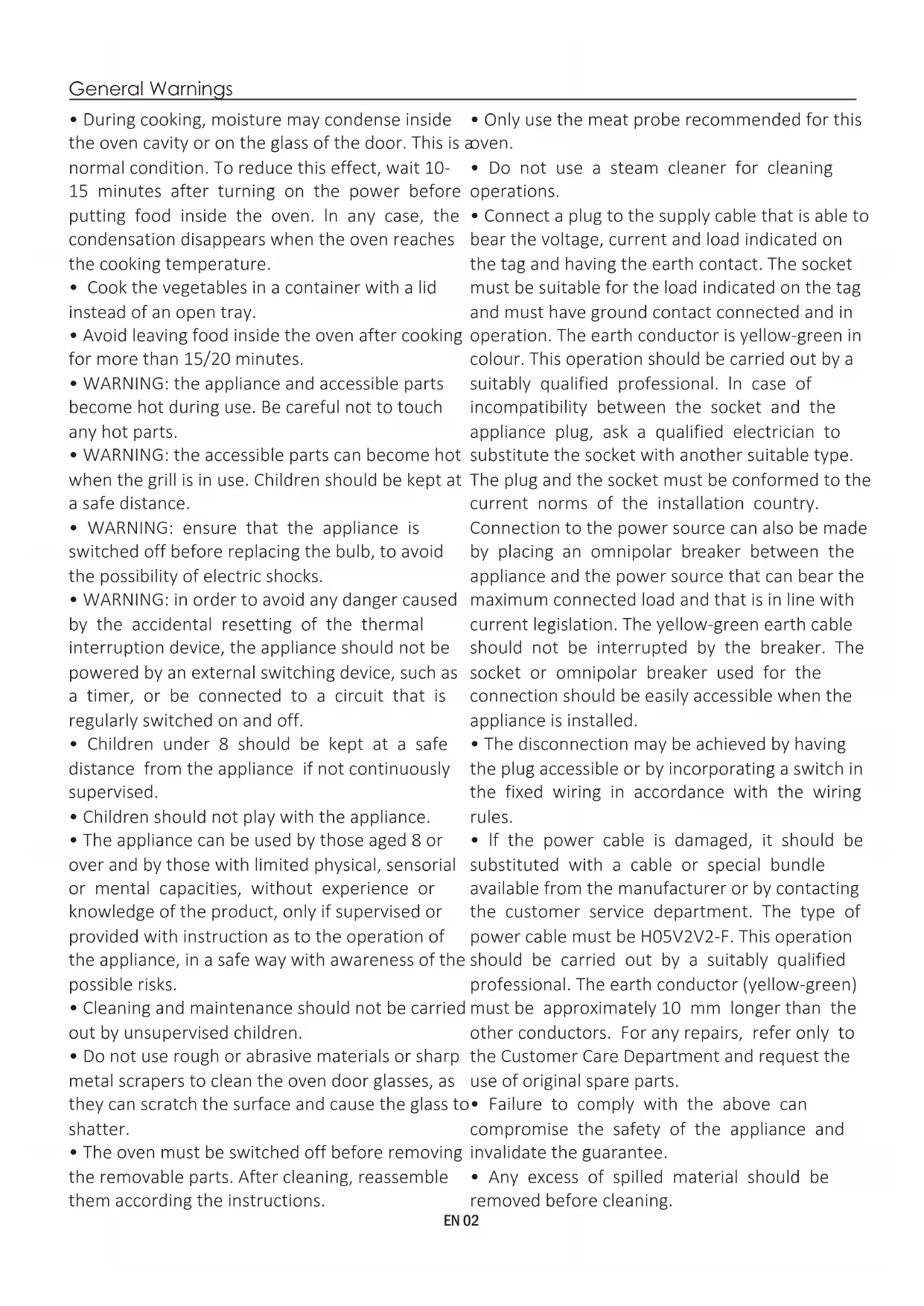

• During cooking, moisture may condense inside the oven cavity or on the glass of the door. This is a normal condition. To reduce this effect, wait 10- 15 minutes after turning on the power before putting food inside the oven. ln any case, the condensation disappears when the oven reaches the cooking temperature.

• Cook the vegetables in a container with a lid instead of an open tray.

• Avoid leaving food inside the oven after cooking for more than 15/20 minutes.

• WARNING: the appliance and accessible parts become hot during use. Be careful not to touch any hot parts.

• WARNING: the accessible parts can become hot when the grill is in use. Children should be kept at a safe distance.

• WARNING: ensure that the appliance is switched off before replacing the bulb, to avoid the possibility of electric shocks.

• WARNING: in order to avoid any danger caused by the accidental resetting of the thermal interruption device, the appliance should not be powered by an external switching device, such as a timer, or be connected to a circuit that is regularly switched on and off.

• Children under 8 should be kept at a safe distance from the appliance if not continuously supervised.

• Children should not play with the appliance.

• The appliance can be used by those aged 8 or over and by those with limited physical, sensorial or mental capacities, without experience or knowledge of the product, only if supervised or provided with instruction as to the operation of the appliance, in a safe way with awareness of the possible risks.

• Cleaning and maintenance should not be carried out by unsupervised children.

• Do not use rough or abrasive materials or sharp metal scrapers to clean the oven door glasses, as they can scratch the surface and cause the glass to shatter.

• The oven must be switched off before removing the removable parts. After cleaning, reassemble them according the instructions.

• Only use the meat probe recommended for this oven.

• Do not use a steam cleaner for cleaning operations.

• Connect a plug to the supply cable that is able to bear the voltage, current and load indicated on the tag and having the earth contact. The socket must be suitable for the load indicated on the tag and must have ground contact connected and in operation. The earth conductor is yellow-green in colour. This operation should be carried out by a suitably qualified professional. ln case of incompatibility between the socket and the appliance plug, ask a qualified electrician to substitute the socket with another suitable type. The plug and the socket must be conformed to the current norms of the installation country. Connection to the power source can also be made by placing an omnipolar breaker between the appliance and the power source that can bear the maximum connected load and that is in line with current legislation. The yellow-green earth cable should not be interrupted by the breaker. The socket or omnipolar breaker used for the connection should be easily accessible when the appliance is installed.

• The disconnection may be achieved by having the plug accessible or by incorporating a switch in the fixed wiring in accordance with the wiring rules.

• lf the power cable is damaged, it should be substituted with a cable or special bundle available from the manufacturer or by contacting the customer service department. The type of power cable must be H05V2V2-F. This operation should be carried out by a suitably qualified professional. The earth conductor (yellow-green) must be approximately 10 mm longer than the other conductors. For any repairs, refer only to the Customer Care Department and request the use of original spare parts.

• Failure to comply with the above can compromise the safety of the appliance and invalidate the guarantee.

• Any excess of spilled material should be removed before cleaning. EN 02• A long power supply failure during an occurring cooking phase may cause a malfunction of the monitor. ln this case contact customer service.

• The appliance must not be installed behind a decorative door in order to avoid overheating.

• When you place the shelf inside, make sure that the stop is directed upwards and in the back of the cavity. The shelf must be inserted completely into the cavity.

• WARNING: Do not line the oven walls with aluminium foil or single-use protection available from stores. Aluminium foil or any other protection, in direct contact with the hot enamel, risk melting and deteriorating the enamel of the insides.

• WARNING: Never remove the oven door seal.

• CAUTION: Do not refill the cavity bottom with water during cooking or when the oven is hot.

• No additional operation/setting is required in order to operate the appliance at the rated frequencies.

• .WARNING: before initiating the automatic cleaning cycle: - Clean the oven door; - Remove large or coarse food residues from the inside of the oven using a damp sponge. Do not use detergents; - Remove all accessories and the sliding rack kit (where present);- Do not place tea towels.

• ln ovens with meat probe it is necessary, before making the cleaning cycle, close the hole with the nut provided. Always close the hole with the nut when the meat probe is not used.

• During the pyrolytic cleaning process, surfaces can heat up more than usual, children must therefore be kept at a safe distance. EN 03General Instructions

1.1 Safety indications

1.2 Electrical safety

1.6 Declaration of compliance

4.1 General notes on cleaning

• Instructıon for removal and cleanıng of the sıde racks

• Removal of the oven window

• Removal and cleaning of the glass door

• Changing the bulb Oven Cleaning and Maintenance

Summary EN 041. General Instructions We thank you for choosing one of our products. For the best results with your oven, you should read this manual carefully and retain it for future reference. Before installing the oven, take note of the serial number so that you can give it to customer service staff if any repairs are required. Having removed the oven from its packaging, check that it has not been damaged during transportation. If you have doubts, do not use the oven and refer to a qualified technician for advice. Keep all of the packaging material (plastic bags, polystyrene, nails) out of the reach of children. When the oven is switched on for the first time, strong smelling smoke can develop, which is caused by the glue on the insulation panels surrounding the oven heating for the first time. This is absolutely normal and, if it occurs, you should wait for the smoke to dissipate before putting food in the oven. The manufacturer accepts no responsibility in cases where the instructions contained in this document are not observed. NOTE: the oven functions, properties and accessories cited in this manual will vary, depending on the model you have purchased.

1.1 Safety Indications

Only use the oven for its intended purpose, that is only for the cooking of foods; any other use, for example as a heat source, is considered improper and therefore dangerous. The manufacturer cannot be held responsible for any damage resulting from improper, incorrect or unreasonable usage. The use of any electrical appliance implies the observance of some fundamental rules: - do not pull on the power cable to disconnect the plug from the socket; - do not touch the appliance with wet or damp hands or feet; - in general the use of adaptors, multiple sockets and extension cables is not recommended; - in case of malfunction and/or poor operation, switch off the appliance and do not tamper with it.

1.2 Electrical Safety

ENSURE THAT AN ELECTRICIAN OR QUALIFIED TECHNICIAN MAKES THE ELECTRICAL CONNECTIONS. The power supply to which the oven is connected must conform with the laws in force in the country of installation. The manufacturer accepts no responsibility for any damage caused by the failure to observe these instructions. The oven must be connected to an electrical supply with an earthed wall outlet or a disconnector with multiple poles, depending on the laws in force in the country of installation. The electrical supply should be protected with suitable fuses and the cables used must have a transverse section that can ensure correct supply to the oven. CONNECTION The oven is supplied with a power cable that should only be connected to an electrical supply with 220-240 Vac 50 Hz power between the phases or between the phase and neutral. Before the oven is connected to the electrical supply, it is important to check: - power voltage indicated on the gauge; - the setting of the disconnector. The grounding wire connected to the oven's earth terminal must be connected to the earth terminal of the power supply. WARNING Before connecting the oven to the power supply, ask a qualified electrician to check the continuity of the power supply's earth terminal. The manufacturer accepts no responsibility for any accidents or other problems caused by failure to connect the oven to the earth terminal or by an earth connection that has defective continuity. NOTE: as the oven could require maintenance work, it is advisable to keep another wall socket available so that the oven can be connected to this if it is removed from the space in which it is installed. The power cable must only be substituted by technical service staff or by technicians with equivalent qualifications.

After each use of the oven, a minimum of cleaning will help keep the oven perfectly clean. Do not line the oven walls with aluminium foil or single-use protection available from stores. Aluminium foil or any other protection, in direct contact with the hot enamel, risks melting and deteriorating the enamel of the insides. In order to prevent excessive dirtying of your oven and the resulting strong smokey smells, we recommend not using the oven at very high temperature. It is better to extend the cooking time and lower the temperature a little. In addition to the accessories supplied with the oven, we advise you only use dishes and baking moulds resistant to very high temperatures.

The manufacturers have no obligation to carry this out. If the assistance of the manufacturer is required to rectify faults arising from incorrect installation, this assistance is not covered by the guarantee. The installation instructions for professionally qualified personnel must be followed. Incorrect installation may cause harm or injury to people, animals or belongings. The manufacturer cannot be held responsible for such harm or injury. The oven can be located high in a column or under a worktop. Before fixing, you must ensure good ventilation in the oven space to allow proper circulation of the fresh air required for cooling and protecting the internal parts. Make the openings specified on last page according to the type of fitting.

1.5 Waste management and environmental protection

This appliance is labelled in accordance with European Directive 2012/19/EU regarding electric and electronic appliances (WEEE). The WEEE contain both polluting substances (that can have a negative effect on the environment) and base elements (that can be reused). It is important that the WEEE undergo specific treatments to correctly remove and dispose of the pollutants and recover all the materials. Individuals can play an important role in ensuring that the WEEE do not become an environmental problem; it is essential to follow a few basic rules: - the WEEE should not be treated as domestic waste; - the WEEE should be taken to dedicated collection areas managed by the town council or a registered company. In many countries, domestic collections may be available for large WEEEs. When you buy a new appliance, the old one can be returned to the vendor who must accept it free of charge as a one-off, as long as the appliance is of an equivalent type and has the same functions as the purchased appliance.

SAVING AND RESPECTING THE ENVIRONMENT

Where possible, avoid pre-heating the oven and always try to fill it. Open the oven door as infrequently as possible, because heat from the cavity disperses every time it is opened. For a significant energy saving, switch off the oven between 5 and 10 minutes before the planned end of the cooking time, and use the residual heat that the oven continues to generate. Keep the seals clean and in order, to avoid any heat dispersal outside of the cavity. If you have an electric contract with an hourly tariff, the "delayed cooking" programme makes energy saving more simple, moving the cooking process to start at the reduced tariff time slot. EN 051.6 Declaration of compliance

• By placing the mark on the appliance, we are confirming compliance to all relevant European safety, health and environmental requirements which are applicable in legislation for this product.

2. Product Description

(lateral wire grid if included)

2.2 Accessories (According to model)

Collects the residues that drip during the cooking of foods on the grills. Lateral wire grids

It located at both sides of the oven cavity. It holds metal grills and drip pans.

PRELIMINARY CLEANING Clean the oven before using for the first time. Wipe over external surfaces with a damp soft cloth. Wash all accessories and wipe inside the oven with a solution of hot water and washing up liquid. Set the empty oven to the maximum temperature and leave on for about 1 hour, this will remove any lingering smells of newness. EN 06 Metal grill

Holds baking trays and plates.• Hereby, Candy Hoover Group Srl declares that the radio equipment is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: www.candy-group.com.

13. Use of the Oven (According to model)

WARNING : the first operation to carry out after the oven has been installed or following the interruption

of power supply (this is recognizable the display pulsating and showing ) is setting the correct time. 12:00 The bottom right LED flashes at the same time ( ). This is achieved as follows.

• Set time with buttons."-" "+"

• Push the Menu button or wait 5 seconds than the clock is setted. ATTENTION: The oven will only operate setting the clock
• It enables to turn off the sound of the minute minder.• Rotate the function selector to the position OFF.• To turn off the sound of the minute minder.• It enables to set the time which appears on the display.• Rotate the function selector to the position OFF.• Turn the right function selector to a cooking function.• Rotate the left function selector to the position "End of cooking".• Set the end time of cooking by using buttons " + " and " - ".• Upper left LED is blinking during this operation.• It allows to preset the end of cooking time you want.• When the cooking time is set, turn the function selector to OFF to go back to actual time.• To view the cooking time selected, turn the left function selector to End of cooking.• When the cooking time has elapsed, the oven switch off automatically.• To stop the cooking functions early, turn the function control to OFF.
• Turn the left function selector to the position Minute Minder.• Set the Cooking Time by using buttons “+”and “-”.• Upper right LED is blinking during this operation.• To use the oven as alarm even if the oven is switched off.• It disables the use of the oven.• To set the timeNB : Set the time when you first install your oven or just after a black out (the clock is showing a pulsating 12.00).• Turn the right function selector to a cooking function.• Rotate the left function selector to the position "Cooking Time Duration”. • Set the time of cooking by using buttons " + " and " - ".• Upper left LED is blinking during this operation.•When the cooking time has elapsed, the oven switch off automatically and the alarm rings for few seconds to stop the cooking functions early, turn the function control to OFF or set the time on 00.00; by rotating the function selector to Cooking Time and by using the buttons " + " and " -

• It allows to preset the cooking time required for the recipe chosen.• When the cooking time is set, turn the function selector to OFF to go back to actual time.• To view the cooking time selected, turn the left function selector to Cooking Time.• This function is normally used with the Cooking Time function.• For example, the desired food needs to cook for 45 minutes and I want it to be ready for 12.30; in this case: at the end of the set time, the oven automatically switches off and an alarm sounds. Select the desired cooking function. Set the cooking duration to 45 minutes (“-” “+”). Set the end of cooking to 12:30 (“-” “+”). Cooking will automatically begin at 11:45 (12:30 minus 45 minutes), at the end of the set cooking time, the oven will automatically switch off.WARNING: by setting only the end of cooking time, and not the cooking duration, the oven will immediately switch on and switch off at the end of the set cooking time.• Set the time on 00.00 by turning the left function selector to the position Minute Minder, and using the button " - “.• Turn the left function selector to the position Child lock.• Press the button " + " during 5 seconds.• Child lock is available when " STOP " appears on display.• Turn back the left function selector to Child lock and press button " + " during 5 seconds.• Indication STOP disappears.• Rotate the left function selector to the position “Set the time”.• Use the buttons " + " or " - " to set the time.• Lower right LED is blinking during this operation.• It emits an audible signal at the end of a set time.• During operation, the display shows the remaining time.• For safety, when there are children in the house.FUNCTIONHOW TO ACTIVATE HOW TO DEACTIVATE WHAT IT DOES WHY IT IS NEEDED SILENCE MODE MINUTEMINDER CHILDSAFETYLOCK COOKING TIME CLOCK SETTINGEND OFCOOKING • To cook the desired recipes.• Rotate the left function selector to the position “Silence mode“.1. Program selection / 2. Program duration / 3. Cooking start setting / 4- Dedicated recipes selection / 5. Offline and vocal assistant /

6. Tips, suggestions and online user manual

WIFI FUNCTION For all the details related to the link between app and product, refer to the Quick Guide. The Quick Guide is available on: go.candy-group.com/candy-ov Wi Fi has two different positions on the cooking selector:

• Wi Fi on: Wi Fi is switched on only if the oven is already enrolled to your device. In this position the oven will be only controlled by remote.

• Wi Fi reset: After leaving the selector on Wi Fi reset for 30”, Bluetooth will switch on and you will be able to enroll the oven to your device within 5’. If the enrollment is successful, the oven will be controlled by remote and the Wi Fi icon will switch on. If the enrollment is unsuccessful, Wi Fi will switch off and the oven will be reset. To proceed with a new enrollment the cooking program selector has to be turned out from Wi Fi reset position and moved again on it. Note: Install the App on your device before starting enrolling Note: The device where the App is installed must have Bluetooth activated Note: For both Wi Fi positions, the touch buttons do not work. Note: It is important to establish a good Wi-Fi signal strength between the home router and the appliance. When the oven is trying to connect to router the icon will blink 3” on and 1” off, when it is already connected the icon will switch on. EN 08 CANDY SIMPLY-FI: For detailed information about HOW TO CONNECT your simply-Fi appliance and HOW TO USE it at its best, go to http://www.candysimplyfi.com WIRELESS PARAMETERS Bluetooth v4.22,412 GHz. – 2,484 GHzBasic data rate:RF Transmit Power (Typ):+4 dBmEnhanced data rate:RF Transmit Power (Typ):+2 dBm BLE: RF Transmit Power (Typ):+7.5 dBm802.11 b/g/n2,412 GHz. – 2,484 GHz802.11b. DSSS 1 Mbps= +19.5 dBm802.11b. CCK 11 Mbps= +18.5 dBm802.11g. OFDM 54 Mbps= +18.5 dBm802.11n. MCS7= +14 dBm802.11b =1024 bytes,-80 dBm802.11g =1024 bytes,-70 dBm802.11n =1024 bytes,-65 dBm802.11n HT40 =1024 bytes,-65 dBmWireless StandartFrequency RangeMax Transmit PowerMinimum ReceivingSensivity Parameter Specifications (Wi-Fi) Specifications (Bluetooth) Basic data rate:Sensivity@ 0.1% BER:-98 dBmEnhanced data rate:Sensivity@ 001% BER:-98 dBm BLE: Sensivity@ 0.1% BER:-98 dBm Product information for networked equipment power consumption of the product in networked standby if all wired network ports are connected and all wireless network ports are activated: 2,0 WHow to activate wireless network port:Starting from an oven that is not enrolled, putting the right knob on the Reset position. Wifi module is switched on after 30". If oven is enrolled with WiFi off, putting the right knob on WiFi position the WiFi module is switched on.How to deactivate wireless network port:If oven is enrolled, putting the right knob on Reset position the WiFi module is switched off. Quick Guide Candy OVEN - Enrollment on App Procedure for devices with Bluetooth 4.0 (or higher) IMPORTANT This quick guide illustrates the steps to follow to enroll your appliance on the App Candy simply-Fi, using a device with Bluetooth 4.0 (or higher) technology. In this case, the procedure is simplified and faster (Easy Enrollment). If you are using a device without Bluetooth technology (or less than 4.0), please follow the instructions described on the other side of this guide. STEP 1

• Mark down the appliance Serial Number.

• Mark down the Wi-Fi Name and Password (WPA/WEP Key) which are normally placed on the back of your Wi-Fi router.NOTES

• The frequency of the home Wi-Fi network has to be set on the 2.4 GHz band. You cannot configure the appliance if your home network is set to the 5 GHz band.

• If you are having trouble locating the WPA/WEP Password, please contact your Internet Provider.

• Please make sure your smartphone is connected to the same Wi-Fi network and has the Bluetooth enabled within the “Settings”. Refer to the manual for more details. STEP 2

• Download the Candy simply-Fi App from the Store.

• Open the Candy simply-Fi App and create your user profile by taping on “Register”. Accept the privacy policy and fill in the required fields. NOTES

• The App is available for Android (version 4.4 or higher) and iOS (version

8.0 or higher) devices.

• If you already have a Candy simply-Fi user profile, you can login using your credentials. STEP 3

• In the homepage, tap on the icon with the three bars on the top left to enter your profile, then tap on “REGISTER NEW APPLIANCE” and select the name of the product that you want to enroll. STEP 4

• Insert the purchase date of your appliance (DD/MM/YYYY), then tap on “Proceed”. STEP 5

• Insert the 16 digits of the serial number or scan the QR code on the appliance. Tap on “Next”. Check data correctness of the data and tap on “Confirm”. Once the system has recognized the product, tap on “Next”. STEP 6 On the appliance:

1) Turn the knob to the WI-FI RESET program and wait 30 seconds.

2) When the Wi-Fi indicator starts blinking quickly, Bluetooth will come on

for 5' and you can proceed with enrollment within 5 minutes.In App:

• Tap on “Confirm”. Wait for APP to connect to the appliance. NOTES

• In case of any issue, tap “Retry”, making sure you have enabled Bluetooth on your device (smartphone / tablet). If the process has not been completed correctly yet, tap on “Proceed with Standard Enrollment”.

• To ensure correct data transfer, we recommend you to stay with the device close to the appliance. STEP 7

• Insert the password of your home Wi-Fi network.

• Select the type of password (WEP or WPA), then tap on “Confirm”.

• The enrollment process is now finished. NOTES

• If this is not automatically synchronised by the App, please insert the name of your home Wi-Fi network in the first box; pay attention to the difference between lowercase and uppercase. IF THE SET UP IS NOT SUCCESSFUL It's important to establish a good Wi-Fi signal strength between the home router and the appliance: low Wi-Fi signal strength would cause the failure of the final stage of the set up. To assess if this is the case, start the connection process again from Step 1; when you get to Step 6, when you get to Step 6, place your device (smartphone or tablet) next to the router and search for “WIFIOVEN-xyzk” net generated by the appliance. If this does not come up as an option, it means that the router cannot see the appliance. In this case, we highly recommend you to bring the router near the appliance (if possible) or contact your internet provider to purchase a compatible “Wi-Fi Range Extender” to increase the signal strenght. Remote control mode

• Turn the program selection knob to the WI-FI position: the wifi light will turn on and you can now control the oven remotely. NOTES

• Warning, if the enrolled oven is left on the WI-FI RESET position for more than 5 minutes, the oven will be reset and you will have to proceed with a new enrollment. Quick Guide Candy OVEN - Enrollment on App Procedure for devices without Bluetooth 4.0 (or less than 4.0) IMPORTANT This quick guide outlines the steps you should follow to enroll your appliance using the App Candy simply-Fi, utilizing a device without Bluetooth technology. We recommend you to proceed with a smartphone/tablet equipped with this technology to make the procedure simpler. If you are using a device with Bluetooth technology (or higher than 4.0), please follow the instructions described on the other side of this guide. STEP 1

• Make a note of the appliance Serial Number and Wi-Fi Name and Password (WPA/WEP Key), which are normally found on the back of your Wi-Fi router.

• Please make sure that your smartphone/ tablet is connected to the same Wi-Fi network. NOTES

• The frequency of the home Wi-Fi network has to be set on the 2.4 GHz band. You can not configure the appliance if your home network is set to the 5 GHz band.

• If you are having trouble locating the WPA/WEP Password, please contact your Internet Provider. STEP 2

• Download the Candy simply-Fi App from the Store.

• Open the Candy simply-Fi App and create your user profile by taping on “Register”. Accept the privacy policy and fill in the required fields. NOTES

• The App is available for Android (version 4.4 or higher) and iOS (version

8.0 or higher) devices.

• If you already have a Candy simply-Fi user profile, you can login using your credentials. STEP 3

• In the homepage, tap on the icon with the three bars on the top left to enter your profile, then tap on “REGISTER NEW APPLIANCE” and select the name of the product that you want to enroll. STEP 4

• Insert the purchase date of your appliance (DD/MM/YYYY), then tap on “Proceed”. STEP 5

• Insert the 16 digits of the serial number or scan the QR code on the appliance. Tap on “Next”. Check data correctness and tap on “Confirm”. Once the system has recognized the product, tap on “Next”. STEP 6

• On the appliance - Turn the knob to the WI-FI RESET program and wait 5 minutes. The countdown will appear on the App, after which you can complete enrollment.

• In App- Tap on “Confirm”. NOTES

• To ensure correct data transfer, we recommend that you stay with the device close to the appliance. STEP 7

• Exit the Candy simply-Fi App.

• Go to your device Wi-Fi settings. STEP 8

• In the list of available Wi-Fi networks, select “WIFIOVEN-xyzk”. NOTES

• If you do not find it, wait few more seconds or proceed with a new scan. STEP 9

• Exit from the settings of your device.

• Return to the Candy simply-Fi App and wait for the App to detect the appliance.

• Once the “Wi-Fi Network is active” screen appears, tap on “Next”. STEP 10

• Insert the password of your home Wi-Fi network.

• Select the type of password (WEP or WPA), then tap on “Confirm”. NOTES

• If this is not automatically synchronised by the App, please insert the name of your home Wi-Fi network in the first box; pay attention to the difference between lowercase and uppercase. STEP 11

• Wait until the end of the data transfer process between the App and the product, then tap on “Confirm”. “CONNECTED” appears on the appliance display and then “REMOTE CONTROL ON”.

• The enrollment process is now finished. IF THE SET UP IS NOT SUCCESSFUL It's important to establish a good Wi-Fi signal strength between the home router and the appliance: low Wi-Fi signal strength would cause the failure of the final stage of the set up. To assess if this is the case, start the connection process again from Step 1; when you get to Step 6, place your device (smartphone or tablet) next to the router and search for “WIFIOVEN-xyzk” net generated by the appliance. If this does not come up as an option, it means that the router cannot see the appliance. In this case, we highly recommend you to bring the router near the appliance (if possible) or contact your internet provider to purchase a compatible “Wi-Fi Range Extender” to increase the signal strenght. Remote control mode

• Turn the program selection knob to the WI-FI position: the wifi light will turn on and you can now control the oven remotely. NOTES

• Warning, if the enrolled oven is left on the WI-FI RESET position for more than 5 minutes, the oven will be reset and you will have to proceed with a new enrollment. EN 09KEEP WARM: This is recommended to reheat precooked foodstuff, positioning the shelf on the second level from top, or to defrost bread pizza or pastry by positioning the shelf on the lower level. The temperature is preset in 60°C constant, no regulation is possible.

SUPER GRILL: the oven has five grill levels from L1 to L5. Grill Super is more powerful from grill that you can make barbecue. Grill Super: 3000 W GRILL + TURNSPIT: use the turnspit with the door closed.The top heating element is used with the turnspit rotating the food to be cooked. The heating level can be adjusted as required. The turnspit is best used for medium-sized items. Ideal for rediscovering the taste of traditional roast. No preheating is required for turnspit cooking.

60 ÷ 60 MULTI-LEVEL: We recommend you use this method for poultry, pastries, fish and vegetables. Heat penetrates into the food better and both the cooking and preheating times are reduced. You can cook different foods at the same time with or without the same preparation in one or more positions. This cooking method gives even heat distribution and the smells are not mixed.Allow about ten minutes extra when cooking foods at the same time. 50 ÷ 240 GRILL: use the grill with the door closed.The top heating element is used alone and you can adjust the temperature. Five minutes preheating is required to get the elements red-hot. Success is guaranteed for grills, kebabs and gratin dishes. White meats should be put at a distance from the grill; the cooking time is longer, but the meat will be tastier. You can put red meats and fish fillets on the shelf with the drip tray underneath. The oven has two grill positions: Grill: 2140 W Barbecue: 3340 W CONVENTIONAL: Both top and bottom heating elements are used. Preheat the oven for about ten minutes. This method is ideal for all traditional roasting and baking. For seizing red meats, roast beef, leg of lamb, game, bread, foil wrapped food (papillotes), flaky pastry. Place the food and its dish on a shelf in mid position. BOTTOM HEATING + FAN: The bottom heating element is used with the fan circulating the air inside the oven. This method is ideal for juicy fruit flans, tarts, quiches and pâté.It prevents food from drying and encourages rising in cakes, bread dough and other bottom-cooked food.Place the shelf in the bottom position. L1 ÷ L5 L1 ÷ L5 ECO÷SUPER L1 ÷ L5 50 ÷ 280 50 ÷ 230 DEFROST: When the dial is set to this position. The fan circulates air at room temperature around the frozen food so that it defrosts in a few minutes without the protein content of the food being changed or altered.

COOK LIGHT: This function allows to cook in a healthier way, by reducing the amount of fat or oil required. The combination of heating elements with a pulsating cycle of air ensures a perfect baking result. 150 ÷ 2204. Oven cleaning and maintenance

4.1 General notes on cleaning

The lifecycle of the appliance can be extended through regular cleaning. Wait for the oven to cool before carrying out manual cleaning operations. Never use abrasive detergents, steel wool or sharp objects for cleaning, so as to not irreparably damage the enamelled parts. Use only water, soap or bleach-based detergents (ammonia). GLASS PARTS It is advisable to clean the glass window with absorbent kitchen towel after every use of the oven. To remove more obstinate stains, you can use a detergent-soaked sponge, well wrung out, and then rinse with water.

If dirty, the seal can be cleaned with a slightly damp sponge. ACCESSORIES Clean accessories with a wet, soapy sponge before rinsing and drying them: avoid using abrasive detergents. DRIP PAN After using the grill, remove the pan from the oven. Pour the hot fat into a container and wash the pan in hot water, using a sponge and washing-up liquid. If greasy residues remain, immerse the pan in water and detergent. Alternatively, you can wash the pan in the dishwasher or use a commercial oven detergent. Never put a dirty pan back into the oven. EN 11

The oven is equipped with a pyrolyser cleaning system, which destroys food residues at high temperature. The operation is carried out automatically by means of the programmer. The resulting fumes are rendered “clean” by passing over a Pyrolyser wich starts as soon as cooking begins. As very high temperatures are required by the Pyrolyser, the oven door is fitted with a safety lock. The pyrolyser can be stopped at any time. The door cannot be opened until the safety lock is displayed. NOTE : If a hob has been fitted above the oven, never use the gas burners or the electric hot-plates while the Pyrolyser is working, this will prevent the hob from overheating. TWO PYROLYTIC CYCLE are pre-set: ECO PYROCLEAN : Cleans a moderately stained oven. Operates for a period of 90 minutes. SUPER PYROCLEAN : Cleans a heavily stained oven. Operates for a period of 120 minutes. Never use commercially available cleaning products on a Pyrolytic oven! Tip : Carrying out Pyrolytic cleaning immediately after cooking allows you to take advantage of residual heat, thus saving energy. Before executing a pyrolytic cycle:

• Remove all the accessories from the oven because they are not able to tolerate the high temperatures used during the pyrolytic cleaning cycle ; in particular removing grids, side racks and the telescopic guides (refer to the chapter REMOVING GRIDS AND SIDE RACKS) . In ovens with meat probe it is necessary, before making the cleaning cycle , close the hole with the nut provided.

• Remove any large spillages or stains as it would take too long to destroy them. Also excessively large amounts of grease could ignite when subject to the very high temperatures of the Pyrolytic cycle.

• Close the oven door.

• Excess spillage must be removed before cleaning.

• Clean the oven door;

• Remove large or coarse food residues from the inside of the oven using a damp sponge. Do not use detergents;

• Remove all accessories and the sliding rack kit (where present);

• Do not place tea towels. Using the pyrolitic cycle:

1- Rotate the function selector to the position " ". On the display,

appears the indication " ECO " or " SUP ". The preset time is 90 min, this can be varied from 90 min (Eco mode) to 120 min (Sup mode) via the programmer (setting button " + " or " - "). If the oven is very dirty, it is recommend o increase the time to 120 min, if the oven is moderately dirty reduce the cleaning cycle time to 90 min.

2- It is possible to defer the start time of the pyroclean cycle by changing the

END time via the programmer.

3- After few minutes, when the oven reaches a high temperature, the door

locks automatically. The pyroclean cycle can be stopped at any time by turning the function selector back to '0' (the word OFF will be displayed for 3 seconds).

4- Once the pyroclean cycle is finished, the pyrolysis will switch off

automatically. On the display appears the indication "END" until the door is locked then "0--n".

5- You can turn the function selector back to " 0 " but if the temperaure is

still high, the "0--n " indication appears to inform that the door is locked. Use of the pyrolytic cycle in Touch Control ovens:

2- The pre-set time is 90 minutes but it can be varied from 90 min. (Eco

mode) to 120 min. (Sup mode) using the programmer (" +" or "-" key). If the oven is very dirty, the time should be increased to 120 min., while if the oven is only a slightly dirty, reduce the cleaning cycle to 90 min.4.3 Aquactiva Function The Aquactiva procedure uses steam to help remove remaining fat and food particles from the oven.

1. Pour 300 ml of water into the Aquactiva container at the bottom of the oven.

2. Set the oven function to Static ( )or Bottom ( )heater

3. Set the temperature to the Aquactiva icon

4. Allow the program to operate for 30 minutes.

5. After 30 minutes switch off the program and allow the oven to cool down.

6. When the appliance is cool, clean the inner surfaces of the oven with a cloth.

Warning: Make sure that the appliance is cool before you touch it.

Care must be taken with all hot surfaces as there is a risk of burns. Use distilled or drinkable water. INSTRUCTION FOR REMOVAL AND CLEANING OF THE SIDE RACKS

1. Remove the wire racks by pulling them in the direction of the arrows (see below)

2. To clean the wire racks either put them in the dishwasher or use a wet sponge, ensuring that they are dried afterwards.

3. After the cleaning process install the wire racks in reverse order.

1. Open the front window.

2. Open the clamps of the hinge housing on the right and left side of the front window by pushing them downwards.

3. Replace the window by carrying out the procedure in reverse.

REMOVAL AND CLEANING OF THE GLASS DOOR

1. Open the oven door.

2.3.4. Lock the hinges, remove the screws and remove the upper metal cover by pulling it upwards.

5.6. Remove the glass, carefully extracting it from the oven door (NB: in pyrolytic ovens, also remove the second and third glass (if present)).

7. At the end of cleaning or substitution, reassemble the parts in reverse order.

On all glass, the indication "Low-E" must be legible and positioned on the left side of the door, close to the left-hand lateral hinge. In this way, the printed label of the first glass will be inside the door.

EN 13CHANGING THE BULB

1. Disconnect the oven from the mains supply.

2. Undo the glass cover, unscrew the bulb and replace it with a new bulb of the same type.

3. Once the defective bulb is replaced, replace the glass cover.

PROBLEM POSSIBLE CAUSE SOLUTION

PROBLEMA POSSIBLE CAUSE SOLUTION

*Tested in accordance with the CENELEC EN 60350-1 used for definition of energy class. PL 62

DEMONTÁŽ OKNA TROUBY

(lateral wire grid if included)

1.6 Declaration of compliance
