USER MANUAL CJE23DM5WS5 Café

Owner’s Manual49-1000712 Rev. 4 03-24 Write the model and serial numbers here: Model # _______________________________ Serial # _______________________________ Find these numbers on a label on the left side, near the middle of the refrigerator compartment. Owner's Manual and Installation Instructions

• Bottom Freezer Refrigerators Models CGE, CJE, CAE and CHE Contents Safety Information p. 3
• Using the Refrigerator Features p. 6
• Controls p. 8
• Sabbath Mode p. 8
• AutoFill p. 10
• WiFi p. 11
• Demand Response p. 12
• Water Filter p. 13
• Refrigerator Storage p. 14
• Automatic Icemaker p. 19
• Care And Cleaning p. 20
• Replacing the Lights p. 21
• Installation Instructions Preparing to Install the Refrigerator p. 22
• Installing the Refrigerator p. 26
• Installing the Water Line p. 35
• Troubleshooting p. 38
• Normal Operating Conditions p. 38
• Troubleshooting Tips p. 39
• Truth or Myth p. 41
• Limited Warranty p. 43
• Consumer Support XWFE Water Filter Cartridge Limited Warranty p. 44
• Performance Data Sheet p. 45

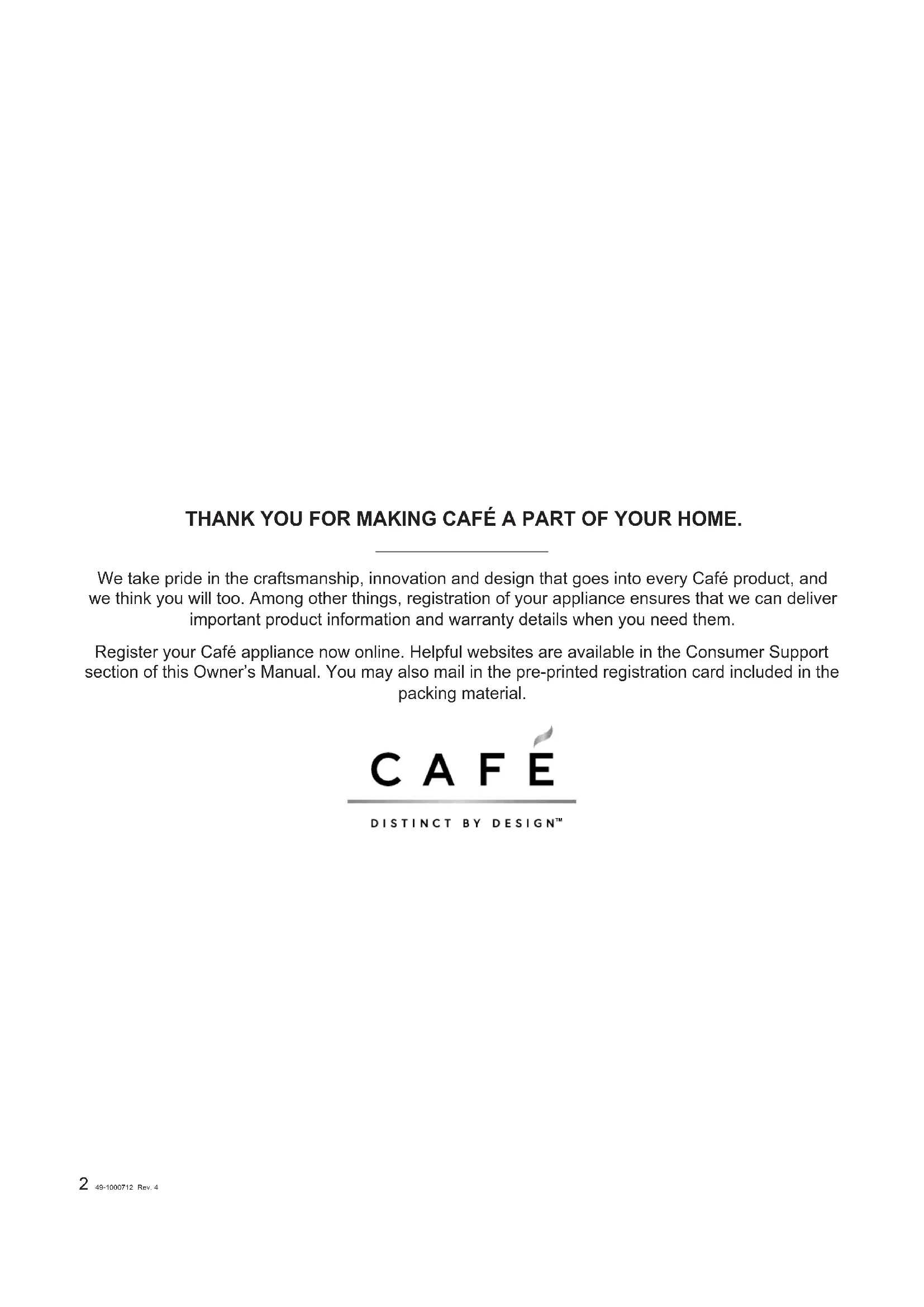

• Consumer Support 49-1000712 Rev. 4 THANK YOU FOR MAKING CAFÉ A PART OF YOUR HOME. We take pride in the craftsmanship, innovation and design that goes into every Café product, and we think you will too. Among other things, registration of your appliance ensures that we can deliver important product information and warranty details when you need them. Register your Café appliance now online. Helpful websites are available in the Consumer Support section of this Owner’s Manual. You may also mail in the pre-printed registration card included in the packing material. TM49-1000712 Rev. 4 3 SAFETY INFORMATION p. 482

READ AND SAVE THESE INSTRUCTIONS

IMPORTANT SAFETY INFORMATION

READ ALL INSTRUCTIONS BEFORE USING THE APPLIANCE CAUTION To reduce the risk of injury when using your refrigerator, follow these basic safety precautions:Ŷ Do not clean glass shelves or covers with warm water when they are cold. Glass shelves and covers may break if exposed to sudden temperature changes or impact, such as bumping or dropping. Tempered glass is designed to shatter into many small pieces if it breaks.Ŷ Keep fingers out of the “pinch point” areas; clearances between the doors and between the doors and cabinet are necessarily small. Be careful closing doors when children are in the area.Ŷ Do not refreeze frozen foods which have thawed completely.Ŷ Do not touch the cold surfaces in the freezer compartment when hands are damp or wet, skin may stick to these extremely cold surfaces.Ŷ In refrigerators with automatic icemakers, avoid contact with the moving parts of the ejector mechanism, or with the heating element that releases the cubes. Do not place fingers or hands on the automatic ice making mechanism while the refrigerator is plugged in.Ŷ Use a sturdy glass when dispensing ice (on models with ice dispenser).Ŷ Install the AutoFill Pitcher fully in its base to prevent it from falling out when the refrigerator door is opened. The pitcher is heavy when full of water and could cause injury if it falls out or is dropped. WARNING To reduce the risk of fire, explosion, electric shock, or injury when using your refrigerator, follow these basic safety precautions:Ŷ 7KLVUHIULJHUDWRUPXVWEHSURSHUO\LQVWDOOHGDQGORFDWHGin accordance with the Installation Instructions before it is used.Ŷ 8QSOXJWKHUHIULJHUDWRUEHIRUHPDNLQJUHSDLUVRUcleaning. NOTE: Power to the refrigerator cannot be disconnected by any setting on the control panel. NOTE: Repairs must be performed by a qualified Service Professional.Ŷ 5HSODFHDOOSDUWVDQGSDQHOVEHIRUHRSHUDWLQJŶ 'RQRWXVHDQH[WHQVLRQFRUGŶ 'RQRWVWRUHRUXVHJDVROLQHRURWKHUIODPPDEOHYDSRUVand liquids in the vicinity of this or any other appliance.Ŷ 'RQRWVWRUHH[SORVLYHVXEVWDQFHVVXFKDVDHURVROcans with a flammable propellant in this appliance.Ŷ 7RSUHYHQWVXIIRFDWLRQDQGHQWUDSPHQWKD]DUGVto children, remove the fresh food and freezer doors from any refrigerator before disposing of it or discontinuing its use.Ŷ 7RDYRLGVHULRXVLQMXU\RUGHDWKFKLOGUHQVKRXOGQRWstand on, or play in or with the appliance.Ŷ &KLOGUHQDQGSHUVRQVZLWKUHGXFHGSK\VLFDOVHQVRU\or mental capabilities or lack of experience and knowledge can use this appliance only if they are supervised or have been given instructions on safe use and understand the hazards involved.Ŷ 7KLVDSSOLDQFHLVLQWHQGHGWREHXVHGLQKRXVHKROGand similar applications such as: staff kitchen areas in shops, offices and other working environments; farm houses; by clients in hotels, motels, bed & breakfast and other residential environments; catering and similar non-retail applications.Ŷ &RQQHFWWRSRWDEOHZDWHUVXSSO\RQO\$FROGZDWHUsupply is required for automatic icemaker operation. The water pressure must be between 40 and 120 psi (275-827 kilopascals).Ŷ 'RQRWDSSO\KDUVKFOHDQHUVWRWKHUHIULJHUDWRUCertain cleaners will damage plastic which may cause parts such as the door or door handles to detach unexpectedly. See the Care and Cleaning section in your Owner’s Manual for detailed instructions. WARNING

FIRE OR EXPLOSION HAZARD

Keep flammable materials and vapors away from refrigerator. Failure to do so can result in fire, explosion, or death.4 49-1000712 Rev. 4 SAFETY INFORMATION

READ AND SAVE THESE INSTRUCTIONS

WARNING FIRE OR EXPLOSION HAZARD Flammable RefrigerantThis appliance contains isobutane refrigerant, also known as R600a, a natural gas with high environmental compatibility. However, it is also combustible. Adhere to the warnings below to reduce the risk of injury or property damage. Ŷ When handling, installing and operating the appliance, care should be taken to avoid damage to the refrigerant tubing. Ŷ Service shall only be performed by authorized service personnel. Use only manufacturer-authorized service parts. Ŷ Dispose of refrigerator in accordance with Federal and Local Regulations. The flammable refrigerant and insulation material used in this product require special disposal procedures. Contact your local authorities for the environmentally safe disposal of your refrigerator. Ŷ Keep ventilation openings in the appliance enclosures or in the built-in structure clear of obstruction. Ŷ To remove frost, scrape with a plastic or wood spatula or scraper. Do not use an ice pick or a metal, or sharp-edged instrument as it may puncture the freezer liner and then the flammable refrigerant tubing behind it. Ŷ Do not use electrical appliances inside the food storage compartment of the appliance. Ŷ Do not use any electrical device to defrost your freezer. WARNING To reduce the risk associated with choking, do not allow children under 3 years of age to have access to small parts during the installation of this product. WARNING

If an anti-tip floor bracket was included with your refrigerator, install it to prevent the refrigerator from tipping forward, which could result in death or serious injury. Read and follow the entire installation instructions for installing the anti-tip floor bracket packed with your refrigerator.49-1000712 Rev. 4 5

READ ALL INSTRUCTIONS BEFORE USING THE APPLIANCE SAFETY INFORMATION

READ AND SAVE THESE INSTRUCTIONS

Do not, under any circumstances, cut or remove the third (ground) prong from the power cord. For personal safety, this appliance must be properly grounded.ŶThe power cord of this appliance is equipped with a 3-prong (grounding) plug which mates with a standard 3-prong (grounding) wall outlet to minimize the possibility of electric shock hazard from this appliance.ŶHave the wall outlet and circuit checked by a qualified electrician to make sure the outlet is properly grounded.ŶWhere a standard 2-prong wall outlet is encountered, it is your personal responsibility and obligation to have it replaced with a properly grounded 3-prong wall outlet. Do not use an adapter.ŶThe refrigerator should always be plugged into its own individual electrical outlet which has a voltage rating that matches the rating plate.ŶA 115 Volt AC, 60 Hz, 15- or 20-amp fused, grounded electrical supply is required. This provides the best performance and also prevents overloading house wiring circuits which could cause a fire hazard from overheated wires.ŶNever unplug your refrigerator by pulling on the power cord. Always grip plug firmly and pull straight out from the outlet.ŶImmediately discontinue use of a damaged supply cord. If the supply cord is damaged, it must be replaced by a qualified service professional with an authorized service part from the manufacturer.ŶWhen moving the refrigerator away from the wall, be careful not to roll over or damage the power cord. CONNECTING ELECTRICITY WARNING ELECTRICAL SHOCK HAZARDPlug into a grounded 3-prong outletDo not remove the ground prongDo not use an adapterDo not use an extension cordFailure to follow these instructions can result in death, fire, or electrical shock

PROPER DISPOSAL OF YOUR OLD REFRIGERATOR

Failure to follow these disposal instructions can result in death or serious injuryIMPORTANT: Child entrapment and suffocation are not problems of the past. Junked or abandoned refrigerators are still dangerous even if they will sit for “just a few days.” If you are getting rid of your old refrigerator, please follow the instructions below to help prevent accidents.Before You Throw Away Your Old ApplianceŶ7DNHRIIWKHIUHVKIRRGDQGIUHH]HUGRRUVŶ Leave the shelves in place so that children may not easily climb inside. REFRIGERANT AND FOAM DISPOSAL: Dispose of or recycle your appliance in accordance with Federal and Local Regulations. Flammable refrigerant and insulation material used requires special disposal procedures. Contact your local authorities for the environmentally safe disposal or recyling of your refrigerator.6 49-1000712 Rev. 4 Features USING THE REFRIGERATOR: Features Model CGE and CJE Autofill Pitcher Designed for hands-free refilling to provide constantly available chilled filtered water. Showcase LED lighting LED lighting is positioned throughout the interior to spotlight areas in the refrigerator. LEDs are located under the fresh food door to light the convertible drawer, and LEDs are under the convertible drawer to light the freezer drawer. QuickSpace™ shelf Functions as a normal full-sized shelf when needed and easily slides back to store tall items below. Spillproof shelves Designed to capture your spills for easier clean up. Removable door bin Can be removed for those with a wall limiting the door opening. HCS (Humidity Control System) Sealed HCS bin prolongs produce preservation by maintaining humidity in the bin. Vented Bin Vented bin for storing fruits and vegetables. Water filter Filters water and ice. Certified to reduce chlorine- resistant cysts, lead, select pharmaceuticals, and more. For easy filter replacement instructions, see page 13. Convertible drawer Select the best temperature to store your food. Icemaker Ice storage in the upper left Freezer compartment drawer.49-1000712 Rev. 4 7 USING THE REFRIGERATOR: Features Model CAE and CHE Autofill Pitcher Designed for hands-free refilling to provide constantly available chilled filtered water. Showcase LED lighting LED lighting is positioned throughout the interior to spotlight areas in the refrigerator. QuickSpace™ shelf Functions as a normal full-sized shelf when needed and easily slides back to store tall items below. Spillproof shelves Designed to capture your spills for easier clean up. Removable door bin Can be removed for those with a wall limiting the door opening. HCS (Humidity Control System) Sealed HCS bin prolongs produce preservation by maintaining humidity in the bin. Vented Bin Vented bin for storing fruits and vegetables. Water filter Filters water and ice. Certified to reduce chlorine- resistant cysts, lead, select pharmaceuticals, and more. For easy filter replacement instructions, see page 13. Freezer Compartment for storing your frozen food. The middle and bottom door bins tilt-out for easy access. Convertible Zone Compartment that can store frozen food, fresh food, or wine. Icemaker Ice storage in the upper left Freezer compartment drawer. Features8 49-1000712 Rev. 4 Controls The temperature controls are preset in the factory at 37°F (3°C) for the refrigerator compartment and 0°F (-18°C) for the freezer compartment. Allow 24 hours for the temperature to stabilize to the preset recommended settings. To Change the Refrigerator Temperature: Press Fridge button to scroll through available temperature settings 34°F (1°C) to 42°F (6°C). Note the set temp will loop back to the lowest setting upon indexing the Fridge button at the highest setting. Press Freezer button to scroll through available temperature settings -6°F (-21°C) to 5°F (-15°C). Note the set temp will loop back to the lowest setting upon indexing the Freezer button at the highest setting. The cooling system can be turned off without shutting off electrical power to the refrigerator. Press Fridge, Freezer and Ice Maker buttons for 3 seconds to toggle cooling system on/off. CS followed by OFF or ON will be displayed. Control Settings

Ɣ3UHVV)ULGJHDQG,FH0DNHUEXWWRQVIRUVHFRQGVWR

toggle between Door Alarm On/Off.

• Press AutoFill Pitcher button to toggle AutoFill Pitcher on/off. Fahrenheit / Celsius: Press Fridge or Freezer button to display temp then press and hold Freezer and Ice Maker buttons for 3 seconds to toggle between Celsius and Fahrenheit. Volume Control: Press and hold Freezer and AutoFill Pitcher buttons for 3 seconds to toggle sound level between “Hi”, “Lo” and “Off”. Sabbath Mode: Press and hold Freezer, Ice Maker and AutoFill Pitcher buttons for 3 seconds to toggle Sabbath Mode on/off. All Models We are continuously updating our software. Please reference the full owner's manual online for the latest functionality at cafeappliances.com. In Canada, visit cafeappliances.ca. The recommended temperature settings, preset from the factory, are 37°F (3°C) for the refrigerator and 0°F (-18°C) for the freezer. Sabbath Mode OU (Orthodox Union) and CRC (Central Rabbinical Congress) This refrigerator offers an OU and CRC Sabbath mode that complies with standards set forth by Orthodox Union, the Central Rabbinical Congress, and Halacha Tech, and is 100% certified to the highest halacha standards. In order to enable the OU and CRC Sabbath mode, a separate Shabbos Keeper for Refrigerators must be connected to the refrigerator. The Shabbos Keeper can be purchased from zmantechnologies.com or geappliances.com. The only way to enable the OU and CRC Sabbath mode is with the purchase of the Shabbos Keeper for Refrigerators. The Shabbos Keeper connects to your refrigerator to automatically enable Shabbos compatible modes each week and before every holiday. The appropriate mode will automatically activate based on the Jewish calendar date for your location. When the Shabbos Keeper is properly connected to the refrigerator, the display will show “SA”. USING THE REFRIGERATOR: Controls ZMAN TECH NOLOGIES¯¶·¯¬Ã²¹·º°¶¹¯Ã°´49-1000712 Rev. 4 9 Controls USING THE REFRIGERATOR: Controls Model CGE and CJE Convertible Drawer Temperature in the Convertible Drawer is selected by pressing the food item to be kept in the drawer. Soft Freeze 23°F (-5°C) Meat 29°F (-2°C) Beverages 33°F (1°C) Snacks 37°F (3°C) Wine 42°F (6°C) The temperature setting is locked by default. Button must be pressed for 3 seconds to unlock. XWFE Filter Cartidge Top Controls Display will illuminate as follows:

• Replace Filter when 10% life remains

• Leak Detected when water is detected at filter indicating a leak is present.

• Expired Filter when the filter has been in use for 6 months

• Err when no filter is present or the wrong filter is installed For all conditions, the display will automatically reset when fault condition is corrected. Model CAE and CHE Convertible Zone The Convertible Zone control panel is in the top of the lower right-hand door and is used to adjust the temperature of the convertible zone. Select your desired temperature for this convertible compartment. Freezer 0°F (-18°C) Refrigerator 37°F (3°C) Chiller 42°F (6°C) The temperature setting is locked by default. Button must be pressed for 3 seconds to unlock. The Warmer (+) and Cooler (-) buttons can be used to adjust the temperature of each setting. Convertible Zone Temp Select10 49-1000712 Rev. 4 Dispenser AutoFill Pitcher Place the lid onto the pitcher so that it fits securely. Align the raised portion of the lid with the slot on the door and slide the pitcher into the door until it fully drops down into the pitcher tray. The pitcher will automatically fill with water approximately 5 seconds after the door is closed. The pitcher will not fill with water while the left hand FF door is open. The pitcher will turn off automatically after filling to approximately 60 ounces. The pitcher is designed to minimize sloshing, but be careful not to open or close door with excessive force to avoid some water sloshing out of the pitcher spout. The easiest method to remove the lid is to push up on the back overhanging edge of the lid near the handle. To Clean the AutoFill Pitcher The AutoFill pitcher and lid are dishwasher safe. The lid should be placed in the top rack only and the pitcher in the bottom rack of the dishwasher. Run on normal wash. To maximize performance of your AutoFill pitcher, it is recommended that you rinse it thoroughly after washing to remove all soap residue. If your AutoFill pitcher has been in contact with food that is likely to cause discoloration (e.g. tomato ketchup, mustard), clean your pitcher promptly. This is to avoid possible discoloration of your pitcher. If you would like to order a secondary AutoFill pitcher go to www.geapplianceparts.com USING THE REFRIGERATOR: Dispenser49-1000712 Rev. 4 11 USING THE REFRIGERATOR: WiFi WiFi (for customers in the United States, its territories, and Canada) REGULATORY INFORMATION FCC/IC Compliance Statement: This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

1. This device may not cause harmful interference, and

2. This device must accept any interference received, including interference that may cause undesired operation.

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

• Consult the dealer or an experienced radio/television technician for help. Labelling: Changes or modifications to this unit not expressly approved by the manufacturer could void the user’s authority to operate the equipment. SOFTWARE UPDATES One of the features of the SmartHQ

is the ability to accept refrigerator software updates. When the user accepts the updates, refrigerator lights will appear to turn off, and all features are not be available during the update. This is normal behavior during software updates. Users are encouraged to check the refrigerator settings after an software update. If your refrigerator has a Connected Appliance Information label, then it can be connected to your WiFi network, allowing it to communicate with your mobile device for remote monitoring, control and notifications. Please visit GEAppliances.com/connect to learn more about connected appliance features and learn what connected appliance apps work with your mobile device.12 49-1000712 Rev. 4 USING THE REFRIGERATOR: XWFE Water Filter Demand Response (some models) This Product has WiFi capability and requires Internet connectivity and a wireless router to enable interconnection with an Energy Management System, and/or with other external devices, systems or applications. What is Demand Response? Some utilities vary their electricity rates based on the time of day. Some utilities offer Demand Response programs to reduce energy usage during certain times of the day. Some utilities may do both things. This refrigerator has a Demand Response feature to help control energy usage. Using Demand Response without a Utility Program The Demand Response feature allows the user to shift high energy features, like defrost, for a 4-hour window. This window corresponds to the average peak energy usage. This feature is enabled or disabled with the SmartHQ and requires the SmartHQ to operate. It does not depend on the local utility, or whether it varies the electricity rates. Demand Response with your Utility If your utility has a compatible Demand Response program, and you are signed up with the utility, this refrigerator can modify its energy usage based on commands received from the utility. The SmartHQ can be used to override the Demand Response program, if desired. Please note that there are many different Demand Response programs, and many are not compatible with kitchen appliances. Please check with your local utility.The demand response level is displayed in the mobile app. Delay appliance load mode (DAL) reduces power consumption by delaying defrost and ice production for 4 hours. Temporary appliance load reduction (TALR) reduces the power consumption by delaying defrost, ice production, and stopping cooling for 10 minutes.Estimated energy consumption in Watt-hour(Wh) is reported in the mobile app. Installing Demand Response Install the SmartHQ per the instructions on the previous page. Select the Demand Response page, and choose from the available Demand Response options. The app provides more information on the operation of each Demand Response option. Demand Response Communication Protocols This refrigerator uses the following IETF open standard protocols for the WiFi communication. Consult the online user manual for the latest protocol updates:Ŷhttps://mqtt.org/mqtt-specification/Ŷhttp://docs.oasis-open.org/mqtt/mqtt/v3.1.1/os/mqtt-v3.1.1-os.htmlGE Appliances API for demand response:Ŷ:ULWHGHPDQGUHVSRQGVWDWXV,QDFWLYH'$/DQGTALR)Ŷ*HWGHPDQGUHVSRQVHVWDWXV,QDFWLYH'$/7$/5RUDelay Defrost)Ŷ*HWHVWLPDWHGHQHUJ\FRQVXPSWLRQLQ:DWWKRXUŶ*HWHYHQWIRU'RRU2SHQŶ*HWHYHQWIRU+LJKWHPSHUDWXUHDOHUWŶ:ULWHGHPDQGUHVSRQVH'$/RU7$/5VWDUWWLPHDQGduration time period.Ŷ*HWGHPDQGUHVSRQVH'$/RU7$/5VWDUWWLPHDQGduration time period.Ŷ'HOHWHGHPDQGUHVSRQVH'$/RU7$/5VFKHGXOH49-1000712 Rev. 4 13 XWFE Water Filter Water Filter Cartridge The water filter cartridge is located in the left-hand refrigerator door behind the rectangular access panel. When to Replace the Filter Cartridge The Replace Filter message on the control panel will illuminate when the water filter cartridge needs to be replaced soon. The Filter Expired message will illuminate when the water filter cartridge needs to be replaced. The water filter can be replaced earlier if the flow of water to the dispenser or icemaker decreases.

If you are replacing the filter, first remove the previous one by gently grasping the filter and slowly turning it to the left, about a ¼ turn. The filter should automatically release itself when you have rotated it far enough to the left. A small amount of water may drip down. CAUTION If air has been trapped in the system, the filter cartridge may be ejected as it is removed. Use caution when removing.

To reduce the risk of property damage due to water leakage, you MUST use the filter bypass plug when a replacement filter cartridge is not available. Some models do not come equipped with the filter bypass plug. To obtain a free bypass plug, call 800.692.6630 and request WR17X33825 filter bypass plug. In Canada, call 800.561.3344. The dispenser and icemaker will not operate without either the filter or bypass plug installed. The bypass plug is installed in the same way as a filter cartridge.

INSTALLING THE FILTER IN A BOTTOM

FREEZER REFRIGERATOR 1. Open the filter cartridge housing by pulling the door open. 2. Line up the ports on the filter with the ports on the filter cartridge holder, and gently insert the filter.3. Slowly turn the filter to the right until it stops. DO NOT OVERTIGHTEN. As you turn the filter, it will automatically adjust itself into position. The filter will move about a ¼ turn or 90 degrees, until the filter cannot be turned, and the label faces outward.4. Slowly push the filter up into the clips.5. Close the filter cartridge housing by gently pushing the door closed until the tabs lock into place. 6. Confirm that filter fault condition is no longer present on the controls display.7. Immediately after filter change, allow the pitcher to autofill and empty pitcher into sink four times. This will purge the new filter of normal black carbon dust that is discharged during the initial use. Application Guidelines/Water Supply WARNING To reduce the risk associated with choking, do not allow children under 3 years of age to have access to small parts during the installation of this product. The disposable filter cartridge should be replaced every 6 months at the rated capacity, or sooner if a noticeable reduction in flow rate occurs.For the maximum benefit of your filtration system, Café Appliances recommends the use of GE Appliances-branded filters only. Using GE Appliances-branded filters in Café refrigerators provides optimal performance and reliability. GE Appliances filters meet rigorous industry NSF standards for safety and quality that are important for products that are filtering your water. Café Appliances has not qualified non-GE Appliances-branded filters for use in Café refrigerators and there is no assurance that non-GE Appliances-branded filters meet Café standards for quality, performance and reliability.If you have questions, or to order additional filter cartridges, visit our website at gewaterfilters.com. Customers in Canada should consult the yellow pages for the nearest Camco Service Center.Service Flow 0.5 gpm (1.89 lpm)Water Supply Potable WaterWater Pressure 25-120 psi (172-827 kPa)Water Temperature 33°F-100°F (0.6°C-38°C)Capacity 170 gallons (643.5 liters)Sign-up for TEXT REMINDERS by texting REPLACE to 70543. USING THE REFRIGERATOR: Demand Response14 49-1000712 Rev. 4 USING THE REFRIGERATOR: Refrigerator Storage Options Refrigerator Storage Options Rearranging the Shelves Shelves in the refrigerator compartment are adjustable. To remove: Remove all items from the shelf. Tilt the shelf up at the front. Lift the shelf up at the back and bring the shelf out. To replace: While tilting the shelf up, insert the top hook at the back of the shelf in a slot on the track. Lower the front of the shelf until the bottom of the shelf locks into place. Spillproof Shelves Spillproof shelves have special edges to help prevent spills from dripping to lower shelves. Quick Space Shelf This shelf splits in half and slides under itself for storage of tall items on the shelf below. This shelf can be removed and replaced or relocated (just like spillproof shelves). NOTE: The back half of the Quick Space Shelf is not adjustable.49-1000712 Rev. 4 15 Refrigerator Storage Options Door Bins Fixed bins can easily be carried from refrigerator to work area. To remove: Lift bin straight up, then pull out. The door bins are not interchangeable, note the location upon removal and replace the bin in its proper location. Sealed and Vented Pans Keep fruits and vegetables organized in separate compartments for easy access. Excess water that may accumulate in the bottom of the drawers or under the drawers should be wiped dry. Sealed pan with Humidity Control System prolongs leafy green vegetable preservation by maintaining humidity in the pan. Vented pan for storing fruits and vegetables. USING THE REFRIGERATOR: Refrigerator Storage Options16 49-1000712 Rev. 4 USING THE REFRIGERATOR: Refrigerator Storage Options How To Adjust Drawer Dividers Grasp divider at the top and slide to the left or right. How to Remove and Replace Drawer To remove:

1. Pull the drawer out to the stop position.

2. Remove the convertible drawer basket by lifting while

rotating the basket upward To replace:

1. Place drawer back in first and rotate drawer front down to

2. Push the drawer in to closed position.

Convertible drawer basket will be loose if re-installed backwards. Look for “FRONT” emboss to help with re-installation. Refrigerator Storage Options CONVERTIBLE DRAWER - Model CGE and CJE49-1000712 Rev. 4 17 Freezer Basket and Drawer Basket. Pizza tray Drawer Ice Bucket Tilt-Out Bin in the Freezer To remove: Press the tab on the right side bracket to remove the freezer drawer bin. To replace: Slide bin into location until it locks into place. Basket Removal To remove:

1. Pull the top freezer drawer basket forward until it is

out of the track in the freezer compartment. Lift while rotating the basket upward to remove.

2. Pull the pizza tray all the way out and lift up until the

pizza tray is free to remove.

4. Lift the bottom freezer drawer basket slightly back,

then up and out of the drawer. To replace:

1. Place drawer back in first and rotate drawer front down to

seat on slide. Bottom freezer drawer basket must be in place before installing the pizza drawer. Refrigerator Storage Options BASKETS, DRAWERS, AND BINS - Model CGE and CJE USING THE REFRIGERATOR: Refrigerator Storage Options18 49-1000712 Rev. 4

• Middle and bottom bins on the freezer door can be tilted out for easy access. USING THE REFRIGERATOR: Refrigerator Storage Options Freezer Door Bin Select Zone Baskets, Shelf, and Wine Rack Basket or Shelf Removal To remove:

1. Pull basket or shelf out all the way.

2. Slightly lift front of basket or shelf and pull out.

1. Reverse the removal steps.

Refrigerator Storage Options BASKETS, SHELF, AND BINS - Model CAE and CHE Only49-1000712 Rev. 4 19 USING THE FREEZER: Automatic Icemaker Automatic Icemaker A newly installed refrigerator may take 12 to 24 hours to begin making ice. Automatic Icemaker The icemaker will produce seven cubes per cycle approximately 100–130 cubes in a 24-hour period, depending on freezer compartment temperature, room temperature, number of door openings and other use conditions.The icemaker will fill with water when it cools to 15°F (-10°C). A newly installed refrigerator may take 12 to 24 hours to begin making ice cubes.If the refrigerator is operated before the water line connection is made to the unit or if the water supply to an operating refrigerator is turned off, make sure that the icemaker is turned off. Once the water has been connected to the refrigerator, the icemaker may be turned on using the controls.You may hear a buzzing sound each time the icemaker fills with water.Allow 1-2 days for the bucket to completly fill with ice.Throw away the first few batches of ice to allow the water line to clear.Be sure nothing interferes with the sweep of the feeler arm. When the bin fills to the level of the feeler arm, the icemaker will stop producing ice. It is normal for several cubes to be joined together.If ice is not used frequently, old ice cubes will become cloudy, taste stale and shrink. NOTE: In homes with lower-than-average water pressure, you may hear the icemaker cycle multiple times when making one batch of ice. CAUTION To minimize the risk of personal injury, avoid contact with the moving parts of the ejector mechanism, or with the heating element that releases the cubes. Do not place fingers or hands on the automatic ice making mechanism while the refrigerator is plugged in. To turn the icemaker ON/OFF, press the Ice Maker button on the top control panel. WARNING Connect to potable water supply only.A cold water supply is required for automatic icemaker operation. The water pressure must be between 40 and 120 psi (275-827 kilopascals).20 49-1000712 Rev. 4 Care and Cleaning Cleaning the Inside To help prevent odors, leave an open box of baking soda in the refrigerator and freezer compartments.Unplug the refrigerator before cleaning.If this is not practical, wring excess moisture out of sponge or cloth when cleaning around switches, lights or controls.Use an appliance wax polish on the inside surface between the doors.Use warm water and baking soda solution—about a tablespoon (15 ml) of baking soda to a quart (1 liter) of water. This both cleans and neutralizes odors. Rinse and wipe dry. CAUTION Do not clean glass shelves or covers with warm water when they are cold. Glass shelves and covers may break if exposed to sudden temperature changes or impact such as bumping or dropping. Tempered glass is designed to shatter into many small pieces if it breaks. Do not wash any plastic refrigerator parts in the dishwasher.To Clean the AutoFill PitcherThe AutoFill pitcher and lid are dishwasher safe. The lid should be placed in the top rack only and the pitcher in the bottom rack of the dishwasher. Run on normal wash.To maximize performance of your AutoFill pitcher, it is recommended that you rinse it thoroughly after washing to remove all soap residue.If your AutoFill pitcher has been in contact with food that is likely to cause discoloration (e.g. tomato ketchup, mustard), clean your pitcher promptly. This is to avoid possible discoloration of your pitcher.If you would like to order a secondary AutoFill pitcher go to www.geapplianceparts.comDO USE DO NOT USESoft, clean cloth or spongeMicrofiber clothAbrasive cloths, paper towels, scrubbing sponges (with or without soap), scouring or steel wool padsMild detergent mixed with warm waterAbrasive powders, liquids, or spraysWindow sprays, ammonia, or bleachCitrus or plant oil-based cleanersAcidic or vinegar-based cleanersOven cleanersAlkaline cleanersStainless steel cleanersDO NOT use Stainless Steel cleaners on the door surfaces. IMPORTANT: The use of incorrect products may damage the outer finish of Fingerprint Resistant Stainless and Black Stainless models. Please follow these instructions and use only the appropriate items below to clean your appliance surfaces. Ɣ&OHDQLQWHULRUH[WHULRUVXUIDFHVZLWKZDUPZDWHUPLOGVRDSRUGHWHUJHQWDQGDVRIWRUPLFURILEHUFORWKWRDYRLG damage.Ɣ:LSHWKHDSSOLDQFHVXUIDFHGU\ZLWKDVRIWFOHDQFORWKRUPLFURILEHUWRZHOWRDYRLGVWUHDNLQJRUZDWHUVSRWWLQJ FINGERPRINT RESISTANT STAINLESS STEEL*, BLACK STAINLESS, SLATE, DARK SLATE, PAINTED, GLASS - Outside surfaces, door handles, and trim Cleaning the Outside *Easily wipe away smudges and fingerprints. CARE AND CLEANING49-1000712 Rev. 4 21

Behind the Refrigerator Be careful when moving the refrigerator away from the wall. All types of floor coverings can be damaged, particularly cushioned coverings and those with embossed surfaces. Raise the leveling legs located at the bottom front of the refrigerator.Pull the refrigerator straight out and return it to position by pushing it straight in. Moving the refrigerator in a side direction may result in damage to the floor covering or refrigerator.Lower the leveling legs until they touch the floor. WARNING

ELECTRICAL SHOCK HAZARD

When pushing the refrigerator back, make sure you don’t roll over the power cord or water supply line. Shutting Down and Restarting your Refrigerator for Prolonged Periods For long vacations or absences, remove food and unplug the refrigerator. Clean the interior with a baking soda solution of one tablespoon (15 ml) of baking soda to one quart (1 liter) of water. Leave the doors open.If the temperature can drop below freezing, have a qualified service technician drain the water supply system to prevent serious property damage due to flooding.1. Turn refrigerator off (see CONTROLS, page 8) or unplug the refrigerator.2. Empty ice bucket3. Turn water supply offIf you cut the water supply off, turn off the icemaker.Upon returning from vacation:1. Replace the water filter.2. Throw away the first few batches of ice to allow the water line to clear. Preparing to Move Secure all loose items such as shelves and drawers by taping them securely in place to prevent damage.When using a hand truck to move the refrigerator, do not rest the front or back of the refrigerator against the hand truck. This could damage the refrigerator. Handle only from the sides of the refrigerator.Be sure the refrigerator stays in an upright position during moving. Care and Cleaning Replacing the Lights Refrigerator Lights (LEDs) Appearance may vary by model.There is LED lighting in the refrigerator compartment, the bottom of the left-hand refrigerator door, and the bottom of the convertible drawer.An authorized technician will need to replace the LED light.If this assembly needs to be replaced, visit cafeappliances.com/service to place a service call. In Canada, visit cafeappliances.ca/service.22 49-1000712 Rev. 4

Read these instructions completely and carefully.

IMPORTANT — Observe all governing codes and ordinances. Save these instructions for local inspector’s use.• Note to Installer – Be sure to leave these instructions with the Consumer.• Note to Consumer – Keep these instructions for future reference.• Skill level – Installation of this appliance requires basic mechanical skills.• Completion time – Refrigerator Installation can vary Water Line Installation 30 minutes• Proper installation is the responsibility of the installer. • Product failure due to improper installation is not covered under the Warranty. PREPARATION MOVING THE REFRIGERATOR INDOORSIf the refrigerator will not fit through a doorway, the refrigerator doors and freezer drawer can be removed.• To remove the refrigerator doors, see the Installing the Refrigerator section.• To remove the freezer drawer, see the Removing the Freezer Drawer section.WATER SUPPLY TO THE ICEMAKER AND DISPENSERIf the refrigerator has an icemaker, it will have to be connected to a cold water line. A GE Appliances water supply line kit (containing tubing, fittings and instructions) is available at extra cost from your dealer, by visiting our website at cafeappliances.com/parts (in Canada at cafeappliances.ca/parts).Adjustable Wrench1/4” Outer Diameter Compression Nut and Ferrule (sleeve) Phillips-Head Screwdriver3/8”, 5/16” Socket Ratchet/Driver1/8”, 3/32”, 3/16”, 1/4” & 5/32” Allen WrenchesPencil1/8” Drill Bit and Electric or Hand DrillTape Measure1/4” Nut DriverPliersLevelFlat-Head ScrewdriverTorx T20, T25 Installation Instructions Refrigerator Questions? Visit our Website at: cafeappliances.com In Canada, visit cafeappliances.ca INSTALLATION INSTRUCTIONS49-1000712 Rev. 4 23 Installation Instructions INSTALLATION INSTRUCTIONS

• Using the chart below to determine if passageways can accommodate the width of the refrigerator.

• Use a padded hand truck or moving straps to move this refrigerator. Place the hand truck to the side of the refrigerator.

• We strongly recommend the refrigerator be moved by two people.

• Leave tape, film, and other packaging on the refrigerator until in it’s final location.

• Refer to sections 2 through 5 for handle, door, and drawer removal if needed. Otherwise, skip to

• Consider recycling options for your appliance packaging material. NOTE: It is recommended that the floor be protected with a plastic covering throughout the installation process. NOTE: Not recommended for installation on carpeted flooring.

LevelAdjustable Wrench1/4” Outer Diameter Compression Nut and Ferrule (sleeve) Phillips-Head Screwdriver5/16” or 8mmSocket Wrench1/8” (included), 3/16”, and 1/4” Allen WrenchesPencilTape MeasurePliers

CLEARANCES Allow the following clearances for ease of installation, proper air circulation and plumbing and electrical connections. Sides 1/8” (3 mm) Top 1” (25 mm) Back 2” (50 mm) Full Depth unit dimensions Full Depth Glass door unit dimensions A = 70” (1775mm) A = 70” (1775mm)B = 69-13/16” (1773mm) B = 69-13/16” (1772mm)C = 68-5/8” (1743mm) C = 68-5/8” (1743mm)D = 29-1/2” (749 mm) D = 29-1/2” (749 mm)E = 34-1/4” (870m) E = 34.0” (864mm)F = 36-1/2” (927mm) F = 34.0” (864mm)G = 48-3/8” (1229mm) G = 48-3/8” (1229mm)H = 35-5/8” (905mm) H = 35-5/8” (905mm)I = 44-3/8” (1127mm) I = 39-1/2” (1003mm)J = 60-3/8” (1534mm) J = 59-1/4” (1505mm)X = 53-17/32” (1360mm) X = 53-9/32” (1353mm)Y = 55-3/4” (1416mm) Y = 53-9/32” (1353mm) CGE and CJE Counter Depth unit dimensions Counter Depth Glass door unit dimensions A = 70” (1775mm) A = 70” (1775mm)B = 69-13/16” (1773mm) B = 69-13/16” (1773mm)C = 68-5/8” (1743mm) C = 68-5/8” (1743mm)D = 24-7/16” (621mm) D = 24-7/16” (621mm)E = 29-1/4” (743mm) E = 29.0” (737mm)F = 31-1/2” (800mm) F = 29.0” (737mm)G = 43-3/8” (1102mm) G = 43-3/8” (1102mm)H = 35-5/8” (905mm) H = 35-5/8” (905mm)I = 44-3/8” (1127mm) I = 39-1/2” (1003mm)J = 60-3/8” (1534mm) J = 59-1/4” (1505mm) X = 46.0” (1168mm) X = 46-9/64” (1172mm) Y = 48-5/32” (1223mm) Y = 46-9/64” (1172mm)24 49-1000712 Rev. 4 Installation Instructions INSTALLATION INSTRUCTIONS DIMENSIONS - CAE and CHE Models NOTE: It is recommended that the floor be protected with a plastic covering throughout the installation process. NOTE: Not recommended for installation on carpeted flooring. Description Full Depth Counter Depth Overall Height to Top of the Door (A) 70” (1775 mm) 70” (1775 mm) Height to Top of Hinge Cover (B) 69-13/16” (1772 mm) 69-13/16” (1772 mm) Height to Top of Case (C) 68-5/8” (1742 mm) 68-5/8” (1742 mm) Case Depth without Door (D) 29-3/4” (755 mm) 24-3/4” (628 mm) Case Depth with Door (E) 34-3/8” (872 mm) 29-3/8” (745 mm) Depth with Refrigerator Door Open 90° (F) 48-11/16” (1236 mm) 43-11/16” (1109 mm) Width (G) 35-3/4” (908 mm) 35-3/4” (908 mm) Width with Door Open 90° (H) 39-9/16” (1005 mm) 39-9/16” (1005 mm) Width with Doors Fully Open (I) 60-1/8” (1527 mm) 60-1/8” (1527 mm) Min. Distance Between Case and Wall to Allow Doors to Fully Open (J) 13” (330 mm) 13” (330 mm)

F49-1000712 Rev. 4 25 Installation Instructions

MOVING THE REFRIGERATOR

• Using the chart below determine if the width of your passageway can accommodate the depth of the refrigerator. Ensure you have clearance to prevent damage to the refrigerator before safely moving it to the final location.

• If passageways are large enough to accommodate the refrigerator without removing the handles skip to Step 6. Leave tape, film and all packaging on doors until the refrigerator is in the final location.

• NOTE: Use a padded hand truck or moving straps to move this refrigerator. Place the refrigerator on the hand truck with a side against the truck. We strongly recommend that two people move and complete this installation. INSTALLATION INSTRUCTIONS If your opening is less than the following dimensions, remove door parts in order until dimension is less than the opening.

REFRIGERATOR LOCATION Ŷ Do not install the refrigerator where the temperature will go below 60°F (16°C) because it will not run often enough to maintain proper temperatures. Ŷ Do not install the refrigerator where the temperature will go above 100°F (37°C) because it will not perform properly. Ŷ Do not install the refrigerator in a location exposed to water (rain, etc.) or direct sunlight. Ŷ Install it on a floor strong enough to support it fully loaded. CLEARANCES Allow the following clearances for ease of installation, proper air circulation and plumbing and electrical connections. Sides 1/8” (3 mm) Top 1” (25 mm) Cabinet/Hinge Cover Back 2” (50 mm)

REMOVING THE REFRIGERATOR

DOORS Ŷ IMPORTANT NOTE: This refrigerator is 37-1/8” (943 mm) deep (refer to chart on previous page). Doors and passageways leading to the installation location must be at least 37-1/8” (943 mm) wide in order to leave the doors and handles attached to the refrigerator while transporting it into the installation location. If passageways are less than 37-1/8” (943 mm), the refrigerator doors and handles can easily be scratched and damaged. The top cap and doors can be removed to allow the refrigerator to be safely moved indoors. If passageways are less than 34-9/16” (878 mm), start with Step 1. Ŷ If it is not necessary to remove doors, skip to Step

11. Leave tape and all packaging on doors until the

refrigerator is in the final location. Ŷ NOTE: Use a padded hand truck to move this refrigerator. Place the refrigerator on the hand truck with a side against the truck. We strongly recommend that TWO PEOPLE move and complete this installation.

HANDLE INSTALLATION (on some models) Before You Start…. Ŷ To avoid injury, wear closed-toe shoes when installing the handles. Ŷ While installing the handle, grasp the handle firmly to ensure it does not fall or scratch the appliance’s finish. Ŷ IMPORTANT: To make sure the handles are accurately installed, please review the instructions and graphics before you begin installation. Ŷ IMPORTANT: Do not use power tools to tighten set screws. Tools Provided: Ŷ 1/8” hex key Handle appearance may vary based on model; however, the installation process is the same.

1. Remove any protective film from the door

or drawer fronts before installing handles (if applicable).

2. Remove handle from packaging and locate the

provided 1/8” hex key.

3. Place the handle over the mounting fasteners

until it is flush against the surface of the door.

4. Tighten both set screws in the handle end

caps by turning the 1/8” hex key clockwise until the handle will not hang loose or fall from its mounting. Do not fully tighten yet.

5. IMPORTANT: Hold the handle firmly against the

door, make sure there are no gaps between the handle end caps and the door, and fully tighten the set screws. To remove the handles, reverse the installation process. INSTALLATION INSTRUCTIONS49-1000712 Rev. 4 27 INSTALLATION INSTRUCTIONS Installation Instructions INSTALLING THE REFRIGERATOR (Cont.)

WARNING Follow all steps for removing and reinstalling the door. Failure to follow these instructions, leaving off parts, or overtightening screws, can lead to the door falling off and result in injury and property damage.1. Remove the two water tubes from the connectors on the back of the case.Ɣ/RRVHQDQGUHPRYHWKHWXELQJFODPSVZKLFKholds the water supply tube to the back of the refrigerator. Ɣ5HPRYHWKHEODFNFROODUIURPZDWHUVXSSO\WXEHconnector at the top right back of the refrigerator.Ɣ3UHVVWKHZKLWHIODQJHGRZQDQGVHSDUDWHWKHwater supply line from the connector.2. Remove the left hinge cover by removing 2 hinge cover screws with a Phillips head screwdriver and lifting from the left side. Disconnect electrical connectors and pull the water supply tube through the case.3. Securely tape the door shut with masking tape or have a second person support the door.4. Remove screws holding hinge with a 5/16” socket. Lift hinge from refrigerator and door.CollarConnectorWater Supply TubesTubing ClampElectrical ConnectionsHinge ScrewsGround Screws

(cont.) For proper installation later, please follow these next steps carefully: Ŷ Remove the tape keeping the door as straight as possible, then lift up to remove. CAUTION Lifting Hazard. A single person lift could cause injury. Gain assistance when handling, moving, or lifting refrigerator doors.

Ŷ Remove right hinge cover.Ŷ Securely tape the door shut with masking tape or have a second person support the door.Ŷ Remove screws holding hinge with a 5/16” socket. Lift hinge from refrigerator and door.For proper installation later, please follow these next steps carefully: Ŷ Remove the tape keeping the door as straight as possible, then lift up to remove. CAUTION Lifting Hazard. A single person lift could cause injury. Gain assistance when handling, moving, or lifting refrigerator doors.To reassemble doors, reverse removal steps.

(if necessary) Remove screws that secure hinge to the cabinet. Inner screws need a 5/16” socket. Outer screw needs a Phillips #2.Remove center screwLoosen outer screws28 49-1000712 Rev. 4 Installation Instructions INSTALLING THE REFRIGERATOR (Cont.)

REMOVING CONVERTIBLE DRAWER (on some models)

1. Remove the convertible drawer basket by lifting

while rotating the basket upward.

2. Disconnect the wiring control connection for the

convertible drawer. Ɣ8VLQJDIODWKHDGVFUHZGULYHUUHPRYHFRYHU over electric connectors on inside right of the drawer frame. The cover hooks through the drawer frame toward the inside of the refrigerator. Ɣ3UHVVWKHWDELQWKHFHQWHURIWKHFRQQHFWRUWR separate.

3. Remove 2 screws from each side of the frame

with a 5/16” socket.

4. Remove door by lifting off hooks.

inside the freezer compartment.

2. Pull the pizza tray all the way out and lift up until

the pizza tray is free to remove.

3. Press the tab on the right side bracket to remove

the freezer drawer bin.

4. Lift the bottom freezer drawer basket slightly back,

then up and out of the drawer.

5. Pull the lower basket and slide mechanism to full

extension using both hands.

6. Remove the basket resting on the slides.

Control Connection CoverRemove these screws

DRAWER (on some models)

1. Pull the freezer drawer open to full extension.

from each side of the frame with a 5/16” socket. CAUTION Lifting Hazard Freezer door is heavy Use both hands to secure the door before lifting. INSTALLATION INSTRUCTIONS49-1000712 Rev. 4 29 INSTALLATION INSTRUCTIONS

DRAWER (on some models) (Cont.)

3. Remove the door by lifting off hooks.4. Push the bottom basket slides back until the slide mechanism self retracts.

Installation Instructions INSTALLING THE REFRIGERATOR (Cont.)

REMOVE LOWER LEFT-HAND

DOOR (on some models) WARNING Follow all steps for removing and reinstalling the door. Failure to follow these instructions, leaving off parts, or overtightening screws, can lead to the door falling off and result in injury and property damage.1. Securely tape the door shut with masking tape or have a second person support the door.2. Remove the center hinge with a 5/16” socket and Phillips head screwdriver.3. Remove the tape keeping the door as straight as possible, then lift up to remove. CAUTION Lifting Hazard. A single person lift could cause injury. Gain assistance when handling, moving, or lifting refrigerator doors.

DOOR (on some models) 1. Open lower right-hand door 90°.2. Remove lower hinge cover by removing Phillips head screw and unsnapping cover from hinge.3. Disconnect 2 harnesses.4. Securely tape the door shut with masking tape or have a second person support the door.5. Remove the center hinge with a 5/16” socket and Phillips head screwdriver.6. Remove the tape keeping the door as straight as possible, then lift up to remove. CAUTION Lifting HazardFreezer door is heavy Use both hands to secure the door before lifting.1. Pull the lower basket slide mechanism to full extension with both hands.2. Lift the freezer door and align the hooks with the notches on the slide mechanisms. NOTE: Place one side in first, then align the other side.3. Replace the attachment screws and torque the screws to 65 in-lb (7.34 N-m).To reassemble doors, reverse removal steps. Be careful wires pass through bottom hight-hand hinge. 930 49-1000712 Rev. 4 Installation Instructions INSTALLING THE REFRIGERATOR (Cont.)

(if necessary) (on some models) Remove screws that secure hinge to the cabinet. Inner screws need a 5/16” socket. Outer screw needs a Phillips #2.”

RE-INSTALL CONVERTIBLE DRAWER (on some models) To reassemble doors, reverse removal steps. Convertible drawer basket will be loose if re-installed backwards. Look for “FRONT” emboss to help with re-installation.

LOWER FREEZER BASKET (on some models) 1. Re-install lower freezer basket first, then re-install pizza drawer.2. Check for smooth operation of baskets.3. Re-install freezer drawer by placing the drawer wheels onto the top of the track mounted to the side of the freezer walls. The wheels on the freezer drawer should be on top of the bottom basket sides.

(on some models) CAUTION Lifting HazardFreezer door is heavy Use both hands to secure the door before lifting.1. Pull the lower basket slide mechanism to full extension with both hands.2. Lift the freezer door and align the hooks with the notches on the slide mechanisms. NOTE: Place one side in first, then align the other side.3. Replace the attachment screws and torque the screws to 65 in-lb (7.34 N-m).

RIGHT-HAND DOORS (on some models) WARNING Follow all steps for removing and reinstalling the door. Failure to follow these instructions, leaving off parts, or overtightening screws, can lead to the door falling off and result in injury and property damage. CAUTION Lifting HazardA single person lift could cause injury. Gain assistance when handling, moving, or lifting refrigerator doors.1. Reinstall lower hinges first (if necessary) and torque the 5/16” screws to 65 in-lb (7.35 N-m) and small screw to 25 in-lbs (2.82 N-m). Rotating the screw by 1/3 turn after it is flush with mating surface will achieve these torques.2. With the door at 90° to the front of the case, lower the refrigerator door onto the lower hinge, carefully pulling the harness through the right-hand hinge. Close the door and tape closed.3. Reinstall the center hinge per step #1 above.4. Remove the tape.5. Open the lower right-hand door 90°.6. Connect the two harnesses.7. Replace both lower hinge covers (if necessary).Freezer door hook and slide mechanism notch INSTALLATION INSTRUCTIONS49-1000712 Rev. 4 31 INSTALLATION INSTRUCTIONS

REINSTALLING THE UPPER LEFT AND RIGHT-HAND DOORS WARNING Follow all steps for removing and reinstalling the door. Failure to follow these instructions, leaving off parts, or overtightening screws, can lead to the door falling off and result in injury and property damage. CAUTION Lifting HazardA single person lift could cause injury. Gain assistance when handling, moving, or lifting refrigerator doors.1. Reinstall center hinge first and torque the ¼” screw to 65 in-lbs (7.34 N-m) and small screw to 25 in-lbs (2.82 N-m). Rotating the screw by 1/3 turn after it is flush with mating surface will achieve these torques.2. Lower the refrigerator door onto the center hinge.3. Securely tape the door shut with masking tape or have a second person support the door.4. Reinstallation is the reverse of the removal instructions.

5. Be sure to reinstall the ground wire and strain relief

6. Reinstall hinge cover. NOTE: Ensure wires are not

pinched or under screw bosses before tightening screws. Installation Instructions INSTALLING THE REFRIGERATOR (Cont.)

CONNECTING REFRIGERATOR TO THE HOUSE WATER LINE A cold water supply is required for automatic icemaker operation. If there is not a cold water supply, you will need to provide one. See Installing the Water Line section.NOTES:• Before making the connection to the refrigerator, be sure the refrigerator power cord is not plugged into the wall outlet.• If your refrigerator does not have a water filter, we recommend installing one if your water supply has sand or particles that could clog the screen of the refrigerator’s water valve. Install it in the water line near the refrigerator. If using SmartConnect

Refrigerator Tubing Kit, you will need an additional tube (WX08X10002) to connect the filter. Do not cut plastic tube to install filter.• Before connecting the water line to the house, purge the house line for at least 2 minutes.1. If you are using copper tubing, place a compression nut and ferrule (sleeve) onto the end of the tubing coming from the house cold water supply. If you are using the SmartConnect tubing, the nuts are already assembled to the tubing.2. If you are using copper tubing, insert the end of the tubing into the refrigerator connection, at the back of the refrigerator, as far as possible. While holding the tubing, tighten the fitting.If you are using SmartConnect tubing, insert the molded end of the tubing into the refrigerator connection, at the back of the refrigerator, and tighten the compression nut until it is hand tight. Then tighten one additional turn with a wrench. Over tightening may cause leaks.3. Fasten the tubing into the clamp provided to hold it in position. You may need to pry open the clamp. WARNING Electrical Shock Hazard.Attach tubing clamp using existing hole only. DO NOT drill into the refrigerator. WARNING Connect to potable water supply only. A cold water supply is required for automatic icemaker operation. The water pressure must be between 40 and 120 psi (275-827 kilopascals)SmartConnect

TURN ON THE WATER SUPPLY

Turn the water on at the shutoff valve (house water supply) and check for any leaks.

See the grounding information attached to the power cord.

The leveling legs have 2 purposes:

1. Leveling legs adjust so the refrigerator is firmly

positioned on the floor and does not wobble.

2. Leveling legs serve as a stabilizing brake to

hold the refrigerator securely in position during operation and cleaning. The leveling legs also prevent the refrigerator from tipping. Ŷ Turn the leveling legs clockwise to raise the refrigerator, counterclockwise to lower it. NOTICE: To avoid possible property damage, the leveling legs must be firmly touching the floor.

DOORS Remember a level refrigerator is necessary for getting the doors perfectly even. If you need help, review the previous section on leveling the refrigerator. For 2 drawer models:

screws by opening the convertible drawer.

2. Insert 1/4” Allen wrench

into the shaft of the center hinge.

3. Adjust the height by

turning clockwise or counterclockwise. When you turn counterclockwise, the door will move up. For 4 door models: Using a ¼” open end wrench or flat-head screwdriver, turn the slotted wheel to adjust doors up or down. To adjust the height of the lower doors: Ŷ5HPRYHWKHOHIWKDQGDQG right-hand hinge covers with a Phillips head screwdriver, then use a 14mm open end wrench to adjust the doors up or down. Raise Flat-Head Screwdriver Adjustment points Adjustment points When the left door is lower than the right door. When the left door is higher than the right door. INSTALLATION INSTRUCTIONS49-1000712 Rev. 4 33 INSTALLATION INSTRUCTIONS Installation Instructions INSTALLING THE REFRIGERATOR (Cont.) To place bins into doors: Match your bin with the letter shown. Position the bins over the bin locator and push forward until inserted fully. Push bin down until locked into position. CGE and CJE34 49-1000712 Rev. 4 Installation Instructions INSTALLING THE REFRIGERATOR (Cont.) CAE and CHE Models To place bins into doors: Match your bin with the letter shown. Position the bins over the bin locator and push forward until inserted fully. Push bin down until locked into position. INSTALLATION INSTRUCTIONS49-1000712 Rev. 4 35 INSTALLATION INSTRUCTIONS Installation Instructions

Refrigerator Tubing kit, 1/4” outer diameter to connect the refrigerator to the water supply. If using copper, be sure both ends of the tubing are cut square. To determine how much tubing you need: measure the distance from the water valve on the back of the refrigerator to the water supply pipe. Be sure there is sufficient extra tubing to allow the refrigerator to move out from the wall after installation. SmartConnect

Refrigerator Tubing Kits are available in the following lengths: 8’ (2.4 m) – WX08X10006 15’ (4.6 m) – WX08X10015 25’ (7.6 m) – WX08X10025

Recommended copper water supply kits are WX8X2, WX8X3 or WX8X4, depending on the amount of tubing you need. Approved plastic water supply lines are SmartConnect

Refrigerator Tubing (WX08X10006, WX08X10015 and WX08X10025). When connecting your refrigerator to a GE Appliances Reverse Osmosis Water System, the only approved installation is with a GE Appliances RVKit. For other reverse osmosis water systems, follow the manufacturer’s recommendations. If the water supply to the refrigerator is from a Reverse Osmosis (RO) Water Filtration System AND the refrigerator also has a water filter, use the refrigerator’s filter bypass plug. Using the refrigerator’s water filtration cartridge in conjunction with the RO water filter can result in hollow ice cubes. Some models do not come equipped with the filter bypass plug. To obtain a free bypass plug, call 800.692.6630 and request WR17X33825 filter bypass plug. In Canada, call 800.561.3344. This water line installation is not warranted by the refrigerator or icemaker manufacturer. Follow these instructions carefully to minimize the risk of expensive water damage. Water hammer (water banging in the pipes) in house plumbing can cause damage to refrigerator parts and lead to water leakage or flooding. Call a qualified plumber to correct water hammer before installing the water supply line to the refrigerator. To prevent burns and product damage, do not hook up the water line to the hot water line. If the refrigerator is operated before the water connection is made to the icemaker, see Controls section on page 8 to turn icemaker off. Do not install the icemaker tubing in areas where temperatures fall below freezing. When using any electrical device (such as a power drill) during installation, be sure the device is double insulated or grounded in a manner to prevent the hazard of electric shock, or is battery powered. All installations must be in accordance with local plumbing code requirements.

INSTALLING THE WATER LINE

WARNING Connect to potable water supply only. A cold water supply is required for automatic icemaker operation. The water pressure must be between 40 and 120 psi (275-827 kilopascals)36 49-1000712 Rev. 4 WHAT YOU WILL NEED (Cont.) NOTE: The only Café approved plastic tubing is that supplied in SmartConnect

Refrigerator Tubing kits. Do not use any other plastic water supply line because the line is under pressure at all times. Certain types of plastic will crack or rupture with age and cause water damage to your home.

• A GE Appliances water supply kit (containing tubing, shutoff valve and fittings listed below) is available at extra cost from your dealer or by visiting cafeappliances.com (in Canada, cafeappliances.ca).

• A cold water supply. The water pressure must be between 20 and 120 p.s.i. (1.4–8.1 bar).

• 1/2” or adjustable wrench.

• Straight and Phillips blade screwdriver.

• Two 1/4” outer diameter compression nuts and 2 ferrules (sleeves)—to connect the copper tubing to the shutoff valve and the refrigerator water valve.

• If you are using a SmartConnect

Refrigerator Tubing kit, the necessary fittings are preassembled to the tubing.

• If your existing copper water line has a flared fitting at the end, you will need an adapter (available at plumbing supply stores) to connect the water line to the refrigerator OR you can cut off the flared fitting with a tube cutter and then use a compression fitting. Do not cut formed end from SmartConnect

• Shutoff valve to connect to the cold water line. The shutoff valve should have a water inlet with a minimum inside diameter of 5/32” at the point of connection to the COLD WATER LINE. Saddle-type shutoff valves are included in many water supply kits. Before purchasing, make sure a saddle-type valve complies with your local plumbing codes.

SHUT OFF THE MAIN WATER

SUPPLY Turn on the nearest faucet long enough to clear the line of water.

LOCATION Choose a location for the valve that is easily accessible. It is best to connect into the side of a vertical water pipe. When it is necessary to connect into a horizontal water pipe, make the connection to the top or side, rather than at the bottom, to avoid drawing off any sediment from the water pipe.

VALVE Drill a 1/4” hole in the water pipe (even if using a self-piercing valve), using a sharp bit. Remove any burrs resulting from drilling the hole in the pipe. Take care not to allow water to drain into the drill. Failure to drill a 1/4” hole may result in reduced ice production or smaller cubes. Installation Instructions Install the shutoff valve on the nearest frequently used drinking water line. INSTALLING THE WATER LINE (Cont.) INSTALLATION INSTRUCTIONS49-1000712 Rev. 4 37 INSTALLATION INSTRUCTIONS Installation Instructions Washer Inlet End Pipe Clamp Clamp Screw INSTALLING THE WATER LINE (Cont.)

1. Fasten the shutoff valve to the cold water pipe

with the pipe clamp. NOTE: Commonwealth of Massachusetts Plumbing Codes 248CMR shall be adhered to. Saddle valves are illegal and use is not permitted in Massachusetts. Consult with your licensed plumber.

THE VALVE Place the compression nut and ferrule (sleeve) for copper tubing onto the end of the tubing and connect it to the shutoff valve. Make sure the tubing is fully inserted into the valve. Tighten the compression nut securely. For plastic tubing from a SmartConnect™ Refrigerator Tubing kit, insert the molded end of the tubing into the shutoff valve and tighten compression nut until it is hand tight, then tighten one additional turn with a wrench. Over tightening may cause leaks. NOTE: Commonwealth of Massachusetts Plumbing Codes 248CMR shall be adhered to. Saddle valves are illegal and use is not permitted in Massachusetts. Consult with your licensed plumber.

Tighten the clamp screws until the sealing washer begins to swell. NOTE: Do not over tighten or you may crush the tubing.

Route the tubing between the cold water line and the refrigerator. Route the tubing through a hole drilled in the wall or floor (behind the refrigerator or adjacent base cabinet) as close to the wall as possible.

Turn the main water supply on and flush out the tubing until the water is clear. Shut the water off at the water valve after about one quart (1 liter), or 2 minutes, of water has been flushed through the tubing. To complete the installation of the refrigerator, go back to Step 12 in Installing the Refrigerator. Pipe Clamp Vertical Cold Water Pipe Saddle-Type Shutoff Valve Saddle-Type Shutoff Valve Compression Nut Packing Nut Outlet Valve Ferrule (sleeve) SmartConnect

Tubing38 49-1000712 Rev. 4 TROUBLESHOOTING: Normal Operating Conditions Newer refrigerators sound different from older refrigerators. Modern refrigerators have more features and use newer technology. HUMMM... WHOOSH... Ŷ The new high efficiency compressor may run faster and longer than your old refrigerator and you may hear a high-pitched hum or pulsating sound while it is operating.Ŷ <RXPD\KHDUDZKRRVKLQJVRXQGZKHQWKHGRRUVclose. This is due to pressure equalizing within the refrigerator.Ŷ $IWHUGLVSHQVLQJLFHDPRWRUZLOOFORVHWKHLFHFKXWHto keep warn room air from entering the ice bucket, maintaining ice at a freezing temperature. The hum of the motor closing the ice chute is normal, shortly after dispensing ice.

You may hear the fans spinning at high speeds. This happens when the refrigerator is first plugged in, when the doors are opened frequently or when a large amount of food is added to the refrigerator or freezer compartments. The fans are helping to maintain the correct temperatures.

The fans change speeds in order to provide optimal cooling and energy savings. CLICKS, POPS, CRACKS and SNAPS Ŷ You may hear cracking or popping sounds when the refrigerator is first plugged in. This happens as the refrigerator cools to the correct temperature.Ŷ The compressor may cause a clicking or chirping sound when attempting to restart (this could take up to 5 minutes).Ŷ Expansion and contraction of cooling coils during and after defrost can cause a cracking or popping sound.Ŷ On models with an icemaker, after an ice making cycle, you may hear the ice cubes dropping into the ice bucket.Ŷ After dispensing ice, a motor will close the ice chute to keep warm room air from entering the ice bucket, maintaining ice at a freezing temperature. WATER SOUNDS Ŷ The flow of refrigerant through the cooling coils may make a gurgling noise like boiling water.Ŷ Water dropping on the defrost heater can cause a sizzling, popping or buzzing sound during the defrost cycle.Ŷ A water dripping noise may occur during the defrost cycle as ice melts from the evaporator and flows into the drain pan.Ŷ Closing the door may cause a gurgling sound due to pressure equalization.Ŷ If the AutoFill pitcher is not full it fills automatically approximately 5 seconds after the door is closed. It is normal to hear water rushing for up to several minutes while the pitcher is filling. Do you hear what I hear? These conditions are normal.

It can take up to 24 hours for the refrigerator temperatures to reach the set temperatures. During that time refrigerator and freezer door openings should be minimized. Normal Operating Conditions.49-1000712 Rev. 4 39 Problem Possible Causes What to Do Not filtering Filter bypass installed. Install correct water filter. Leak Detected at Filter Water filter leaking or needs replacing. Replace water filter or install filter bypass plug. Water filter indicator light remains lit after replacing filter Water filter or bypass plug installed backward or wrong filter installed. Remove filter or bypass plug, rotate it 180 degrees and reinstall. Handle is loose/handle has a gap. Handle needs adjusting See Installing the Refrigerator section for detailed instructions. Refrigerator beeping The door alarm is beeping from a door being ajar or open. Close the door to turn off the alarm, or to disable the door alarm simultaneously hold the Fridge and Ice Maker buttons for three seconds. The refrigerator has detected conditions that could indicate a water leak has occurred. Check the AutoFill pitcher for water leaks. Removing and reinstalling the pitcher will reset the alarm. Refrigerator lights off and “SA” shown in display Unit is in Sabbath mode Simultaneously hold the Freezer, Ice Maker and AutoFill buttons for three seconds to exit Sabbath mode. Not cooling The cooling system is off See Controls. Freezer or Refrigerator temperature not changing User interface on convertible door is for convertible zone only. Use user interface on top of refrigerator to select desired freezer or refrigerator temperatures No water or ice cube production Supply line or shutoff valve is clogged Call a plumber Water filter is clogged Replace filter cartridge or remove filter and install bypass plug* Filter cartridge not properly installed Remove and reinstall filter cartridge, being certain that it locks in place. Icemaker is turned off Check that the icemaker is turned on. See Controls *Some models do not come equipped with the filter bypass plug. To obtain a free bypass plug, call 800.692.6630 and request WR17X33825 filter bypass plug. In Canada, call 800.561.3344. Troubleshooting Tips... Before you call for service Save time and money! Review the charts on the following pages first and you may not need to schedule service. TROUBLESHOOTING40 49-1000712 Rev. 4 TROUBLESHOOTING Problem Possible Causes What to Do Freezer cooling, refrigerator not cooling Normal, when refrigerator first plugged in or after extended power outage Wait 24 hours for temperature in both compartments to reach selected temperatures. My refrigerator door squeaks Diminished lubricant because of accidental cleaning of the lubricant on the hinge It is best to order GE Appliances lubricant service part number WR97X166 and apply on the hinge at specified location. It is possible to spray some non-toxic lubricant such as silicone based non- stick cooking spray, petroleum jelly or NSF approved food grade lubricants. IMPORTANT: Do not use WD-40 as it will remove any remaining grease in or around the hinge Improper leveling Make sure the unit is leveled If doors were removed and re- assembled during installation process, waterline and/harness under Top Hinge cover may get out of position and rub against door while door swivels. Remove the Top Hinge cover and make sure the waterline and harness that passes through the hinge pin has been properly seated and does not touch the any of the door parts during rotation. Applying some food grade lubricant around door thimble area will also help. Troubleshooting Tips... Before you call for service49-1000712 Rev. 4 41Truth or Myth? Answer ExplanationThe refrigerator water filter may require replacement, even though the filter indicator has not turned red, or reads “Filter Expired.”TRUE The water filter indicator will indicate the need to replace the water filter every six months. Water quality varies from city to city; if water flow from the dispenser slows, or ice production decreases, the water filter should be replaced, even though the filter indicator may not indicate the need for replacement.The automatic ice maker in my refrigerator will produce ice when the refrigerator is plugged in to a power receptacle.MYTH The refrigerator must be connected to water, and the ice maker must be turned on. Make sure the ice maker is turned on, only after the water line is connected and water is turned on. The ice maker can be turned on/off from the controls and ensure the ice maker is on, as indicated on the refrigerator control panel. See Automatic Ice Maker section in the full owner’s manual available online.I will never see frost inside the freezer compartment.MYTH Frost inside the freezer typically indicates that the door is not properly sealed, or has been left open. If frost is found, clear the frost using a plastic spatula and towel, then check to ensure that no food packages or containers are preventing the freezer door from closing. Check the refrigerator control panel to ensure the door alarm is on.I can use the water filter bypass plug to determine if the filter requires replacement.TRUE Decrease in flow from the water dispenser, or decreased ice production, may indicate the need to replace the water filter. Install the water filter bypass plug (provided with the refrigerator on some models*), and check flow from the dispenser. If water flow returns to normal with the bypass plug in place, replace the water filter.The top of the refrigerator doors will always be aligned.MYTH Several things can affect the refrigerator door alignment, including the floor the refrigerator is installed on and loading of doors. If the top of the refrigerator doors are not aligned, use a 1/4” allen wrench to adjust the right/left hand door. The adjustment screw is located on the bottom right or left hand side of the door. Refrigerator doors should be open during height adjustment. Open the freezer door to access the screw. See Step 15.Refrigerator door handles can be easily tightened.TRUE If door handles are loose or have a gap, the handle can be adjusted using a 1/8” allen wrench, on set screws located on the ends of the handles.There may be odor and taste problems with your ice.TRUE After starting the ice maker throw away 24 hours of ice production to avoid odor and taste problems.I can make fine adjustments to the refrigerator doors to align them. TRUE If the refrigerator doors are not aligned, use a 1/4” Allen wrench to adjust the right hand door. The adjustment screw is located on the bottom of the right door. Open the freezer door to access. See step 15. Truth or Myth Truth or Myth SERVICE Save time and money! Review the charts on the following pages first and you may not need to schedule service. TROUBLESHOOTING/TRUTH OR MYTH42 49-1000712 Rev. 4

TROUBLESHOOTING/TRUTH OR MYTH

Truth or Myth SERVICE Save time and money! Review the charts on the following pages first and you may not need to schedule service. Truth or Myth? Answer ExplanationDoor handles should always be removed for installation.MYTH Check chart on reverse side of this instruction. If the doors must be removed do not remove the handles, or if the refrigerator will fit easily through the passage way opening. Adjust handles that are loose or have a gap, by adjusting 1/8” set screws on either end of handles.Door removal is always required for installation.MYTH Check chart on reverse side of this instruction. Doors should only be removed when necessary to prevent damage from passage way or access to final location. Refrigerator doors will self-close if left open.MYTH Refrigerator doors need to be closed by consumer. A gentle bounce back is a designed feature on some models that gives a positive feedback to the user so that they can initiate and complete the door closing action.There is an adjustment to rear wheels. MYTH Front leveling legs are adjustable and should be used to balance the refrigerator. Leveling legs are used to make initial refrigerator door adjustment.Check for leaks after all water connections are made.TRUE While purging the air from the water system, check all water line connections for leaks. Check the connection to the household water supply at back of refrigerator, and door water line connect.Any packaging residue can be cleaned off the refrigerator using any cleaner.MYTH Do not use wax, polish, bleach, or other products containing chlorine on Stainless Steel panels, door handles and trim. Check this instruction under “Cleaning the Outside” for full details. *Some models do not come equipped with the filter bypass plug. To obtain a free bypass plug, call 800.692.6630 and request WR17X33825 filter bypass plug. In Canada, call 800.561.3344. Truth or Myth49-1000712 Rev. 4 43

Ŷ6HUYLFHWULSVWR\RXUKRPHWRWHDFK\RXKRZWRXVH

the product. Ŷ,PSURSHULQVWDOODWLRQGHOLYHU\RUPDLQWHQDQFH Ŷ)DLOXUHRIWKHSURGXFWLILWLVDEXVHGPLVXVHGRU used for other than the intended purpose or used commercially. Ŷ/RVVRIIRRGGXHWRVSRLODJH Ŷ5HSODFHPHQWRIKRXVHIXVHVRUUHVHWWLQJRIFLUFXLW breakers. Ŷ'DPDJHWRILQLVKVXFKDVVXUIDFHUXVWWDUQLVKRU small blemishes not reported within 48 hours of delivery. Ŷ5HSODFHPHQWRIWKHZDWHUILOWHUFDUWULGJHLI included, due to water pressure that is outside the specified operating range or due to excessive sediment in the water supply. Ŷ5HSODFHPHQWRIWKHOLJKWEXOEVLILQFOXGHGRU water filter cartridge, if included, other than as noted above. Ŷ'DPDJHWRWKHSURGXFWFDXVHGE\DFFLGHQWILUH floods or acts of God. Ŷ,QFLGHQWDORUFRQVHTXHQWLDOGDPDJHFDXVHGE\ possible defects with this appliance. Ŷ3URGXFWQRWDFFHVVLEOHWRSURYLGHUHTXLUHGVHUYLFH

Ŷ'DPDJHFDXVHGE\DQRQ*($SSOLDQFHV%UDQG

water filter. What Café Will Not Cover: For the Period of: Café Will Replace One Year From the date of the original purchase Any part of the refrigerator which fails due to a defect in materials or workmanship. During the limited one-year warranty, Café will also provide, free of charge, all labor and related service to replace the defective part. Thirty Days (Water filter, if included) From the original purchase date of the refrigerator Any part of the water filter cartridge which fails due to a defect in materials or workmanship. During this limited thirty-day warranty, Café will also provide, free of charge, a replacement water filter cartridge. Five Years From the date of the purchase Any part of the sealed refrigerating system (the compressor, condenser, evaporator and all connecting tubing) which fails due to a defect in materials or workmanship. During this limited five-year sealed refrigerating system warranty, Café will also provide, free of charge, all labor and related service to replace the defective part in the sealed refrigerating system. cafeappliances.com All warranty service is provided by our Factory Service Centers, or an authorized service technician. To schedule service online, visit us at cafeappliances.com/service. Please have your serial number and your model number available when scheduling service. In Canada, visit cafeappliances.ca/service. Café Appliances Refrigerator Limited Warranty

EXCLUSION OF IMPLIED WARRANTIES

Your sole and exclusive remedy is product repair as provided in this Limited Warranty. Any implied warranties, including the implied warranties of merchantability or fitness for a particular purpose, are limited to one year or the shortest period allowed by law. For US Customers: This limited warranty is extended to the original purchaser and any succeeding owner for products purchased for home use within the USA. If the product is located in an area where service by a Café Authorized Servicer is not available, you may be responsible for a trip charge or you may be required to bring the product to an Authorized Café Service location for service. In Alaska, the limited warranty excludes the cost of shipping or service calls to your home. Some states do not allow the exclusion or limitation of incidental or consequential damages. This limited warranty gives you specific legal rights, and you may also have other rights which vary from state to state. To know what your legal rights are, consult your local or state consumer affairs office or your state’s Attorney General. Warrantor: GE Appliances, a Haier company Louisville, KY 40225 For Customers in Canada: This limited warranty is extended to the original purchaser and any succeeding owner for products purchased in Canada for home use within Canada. In-home warrant service will be provided in areas where it is available and deemed reasonable by Mabe to provide. Warrantor Canada: MC Commercial, Inc., Burlington, Ontario, L7R 5B6 Servicing your refrigerator may require the use of the onboard data port for diagnostics. This gives a Café Factory Service technician the ability to quickly diagnose any issues with your appliance and helps Café improve its products by providing Café with information on your appliance. If you do not want your appliance data to be sent to Café, please advise your technician NOT to submit the data to Café at the time of service. Staple your receipt here. Proof of the original purchase date is needed to obtain service under the warranty. LIMITED WARRANTY44 49-1000712 Rev. 4 Staple your receipt here. Proof of the original purchase date is needed to obtain service under the warranty.

• If your GE Appliances part fails because of a manufacturing defect within thirty days from the date of original purchase for use, we will give you a new or, at our option, a rebuilt part without charge. Return the defective part to the parts supplier from whom it was purchased together with a copy of the “proof of purchase” for the part. If the part is defective and shows no signs of abuse, it will be exchanged. The warranty does not cover the failure of parts which are damaged while in your possession, are abused, or have been installed improperly. It does not cover the cost of returning the part to the supplier from whom it was purchased nor does it cover the cost of labor to remove or install it to diagnose the fault. It does not cover parts used in products in commercial use except in the case of air conditioning equipment. In no event shall GE Appliances be liable for consequential damages. Warrantor: GE Appliances, a Haier company Seller: Name AddressCity State ZipSignature Date Buyer: Name AddressCity State ZipSignature Date What GE Appliances will not cover: Ŷ Service trips to your home to teach you how to use the product. Ŷ Improper installation. Ŷ Failure of the product if it is abused, misused, used for other than the intended purpose or used commercially. Ŷ Replacement of house fuses or resetting of circuit breakers. Ŷ Damage to the product caused by accident, fire, floods, or acts of God. Ŷ Incidental or consequential damage caused by possible defects with this appliance. XWFE Water Filter Cartridge Limited Warranty This warranty is extended to the original purchaser and any succeeding owner for products purchased for home use within the USA. In Alaska, the warranty excludes the cost of shipping or service calls to your home. Some states do not allow the exclusion or limitation of incidental or consequential damages. This warranty gives you specific legal rights, and you may also have other rights which vary from state to state. To know what your legal rights are, consult your local or state consumer affairs office or your state’s Attorney General. For Purchases Made In Iowa: This form must be signed and dated by the buyer and seller prior to the consummation of this sale. This form should be retained on file by the seller for a minimum of two years. For the period of GE Appliances will replace Thirty Days From the date of the original purchase Any part of the water filter cartridge which fails due to a defect in materials or workmanship during this limited thirty-day warranty.* Contact us at geapplianceparts.com.

EXCLUSION OF IMPLIED WARRANTIES

Your sole and exclusive remedy is part exchange as provided in this Limited Warranty. Any implied warranties, including the implied warranties of merchantability or fitness for a particular purpose, are limited to six months or the shortest period allowed by law.49-1000712 Rev. 4 45 Performance Data Sheet Model: GE Appliances XWFE

Ŷ6\VWHPFHUWLILHGE\,$30257DJDLQVW16)$16,6WDQGDUGVDQG3IRUWKHUHGXFWLRQRIFODLPVVSHFLILHGRQWKH

performance data sheet and at iapmort.org.

• Do not use with water that is microbiologically unsafe or of unknown quality without adequate disinfection before and after the system. Systems certified for cyst reduction may be used on disinfected water that may contain filterable cysts. NOTICE To reduce the risk of water leakage or flooding, and to ensure optimal filter performance:

• Read and follow use instructions before installation and use of this system.

• Installation and use MUST comply with all state and local plumbing codes.

• Do not install if water pressure exceeds 120 psi (827 kPa). If your water pressure exceeds 80 psi (552 kPa), you must install a pressure-limiting valve. Contact a plumbing professional if you are uncertain how to check your water pressure.

• Do not install where water hammer conditions may occur. If water hammer conditions exist you must install a water hammer arrester. Contact a plumbing professional if you are uncertain how to check for this condition.

• Do not install on hot water supply lines. The maximum operating water temperature of this filter system is 100º F (38º C).

• Protect filter from freezing. Drain filter when temperatures drop below 33ºF (0.6ºC).

• Change the disposable filter cartridge every six months or sooner if you observe a noticeable reduction in water flow rate.

• Failure to replace the disposable filter cartridge at recommended intervals may lead to reduced filter performance and cracks in the filter housing, causing water leakage or flooding.

• This System has been tested according to NSF/ANSI 42, 53, 401, and P473 for the reduction of the substances listed below. The concentration of the indicated substances in water entering the system was reduced to a concentration less than or equal to the permissible limit for water leaving the system, as specified in NSF/ANSI 42, 53, 401, and P473. XWFE System is certified by IAPMO R&T against NSF/ANSI Standards 42, 53, 401, and P473 for the reduction of claims specified on the performance data sheet and at iapmort.org.46 49-1000712 Rev. 4 Notes NOTES49-1000712 Rev. 4 47 Notes NOTES48 49-1000712 Rev. 4 Printed in United States CONSUMER SUPPORT Consumer Support Café Website Have a question or need assistance with your appliance? Try the Café website 24 hours a day, any day of the year! You can also shop for more great Café products and take advantage of all our on-line support services designed for your convenience. In the US: cafeappliances.com In Canada: cafeappliances.ca Register Your Appliance Register your new appliance on-line at your convenience! Timely product registration will allow for enhanced communication and prompt service under the terms of your warranty, should the need arise. You may also mail in the pre-printed registration card included in the packing material. In the US: cafeappliances.com/register In Canada: cafeappliances.ca/registration Schedule Service Expert Café repair service is only one step away from your door. Get on-line and schedule your service at your convenience any day of the year. In the US: cafeappliances.com/service In Canada: cafeappliances.ca/service Extended Warranties Purchase a Café extended warranty and learn about special discounts that are available while your warranty is still in effect. You can purchase it on-line anytime. Café Service will still be there after your warranty expires. In the US: cafeappliances.com/extended-warranty In Canada: cafeappliances.ca/extended-warranty Parts and Accessories Individuals qualified to service their own appliances can have parts or accessories sent directly to their homes (VISA, MasterCard and Discover cards are accepted). Order on-line today 24 hours every day. In the US: cafeappliances.com/parts Instructions contained in this manual cover procedures to be performed by any user. Other servicing generally should be referred to qualified service personnel. Caution must be exercised, since improper servicing may cause unsafe operation. Customers in Canada should consult the yellow pages for the nearest Mabe service center, visit our website at cafeappliances. com/parts Contact Us If you are not satisfied with the service you receive from Café, contact us on our website with all the details including your phone number, or write to: In the US: General Manager, Customer Relations | Café Appliances, Appliance Park | Louisville, KY 40225 cafeappliances.com/contact In Canada: Director, Consumer Relations, Mabe Canada Inc. | Suite 310, 1 Factory Lane | Moncton, N.B. E1C 9M3 cafeappliances.ca/contact49-1000712 Rev. 4 03-24

REFRIGERATOR LOCATION Ŷ Do not install the refrigerator where the temperature will go below 60°F (16°C) because it will not run often enough to maintain proper temperatures. Ŷ Do not install the refrigerator where the temperature will go above 100°F (37°C) because it will not perform properly. Ŷ Do not install the refrigerator in a location exposed to water (rain, etc.) or direct sunlight. Ŷ Install it on a floor strong enough to support it fully loaded.

Ŷ 5HHPSOD]RGHOFDUWXFKRGHOILOWURGHDJXDVLVHLQFOX\H
