MACHINE À GLAÇONS ENCASTRÉE SOUS LE COMPTOIRINTRODUCTION INTRODUCTION INTRODUCTION | 3 SAFETY All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell you what can happen if the instructions are not followed. Your safety and the safety of others are very important. We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety messages. This is the safety alert symbol.This symbol alerts you to potential hazards that can kill or hurt you and others.All safety messages will follow the safety alert symbol and either the word “DANGER” or “WARNING.”These words mean: DANGER WARNING You can be killed or seriously injured if you don't immediately follow instructions.You can be killed or seriously injured if you don't follow instructions.

To reduce the risk of re, electric shock, or injury when using your refrigerator, follow these basic precautions:

SAVE THESE INSTRUCTIONS

Plug into a grounded 3 prong outlet. ■ Do not remove ground prong. ■ Do not use an adapter. ■ Do not use an extension cord. ■ Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance. ■ Disconnect power before cleaning. ■ Disconnect power before servicing. ■ Replace all parts and panels before operating. ■ Connect to potable water supply only.■ If the supply cord is damaged, it must be replaced by the manufacturer, its service agent, or similarly qualified person in order to avoid a hazard.■ This appliance is not intended for use by persons (including children) with reduced physical, sensory, or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.■ Use two or more people to move and install ice maker. Children should be supervised to ensure that they do not play with the appliance.■ This appliance is intended to be used in household and similar applications such as:– staff kitchen areas in shops, offices, and other working environments;– farmhouses and by clients in hotels, motels, and other residential-type environments;– bed and breakfast-type environments;– catering and similar non-retail applications.INTRODUCTION 4 | INTRODUCTION REGISTERING YOUR APPLIANCE Gain access to our concierge-level customer support by registering your appliance. We make product registration simple and straightforward so that you can start using your exclusive JennAir benefits today. Registering your appliance allows you to: ■ Streamline your warranty service If we have your product information, we can help you faster. ■ Protect your purchase In case of an insurance loss such as fire, flood, or theft your product registration could serve as a proof of purchase. ■ Keep your family safe We’ll notify you in the rare case of a safety notification. Start taking advantage of these benefits today by going online to register your product at jennair.com/customer-care.

GETTING STARTED GETTING STARTED BEFORE INSTALLATION Gather the required tools and parts before starting installation. Read and follow the instructions provided with any tools listed. IMPORTANT: These instructions are intended as a general guide only and do not supersede any national or local codes in any way. Compliance with all local, state, or national codes pertaining to this type of installation should be determined prior to installation. Installer: Please be sure to leave Installation Instructions with the homeowner. Homeowner: Keep the Installation Instructions for future reference. TOOLS REQUIRED Gather the required tools before starting installation. TOOLS REQUIRED Drill and drill bits Phillips screwdriver Pencil Masking tape Two adjustable wrenches Level Wood screws 2" Hole saw or 2" Forstner bit 3/16" hex driver 1/4" nut driver Pliers Right angle drivers

screwdriver Tape measure PARTS PROVIDED Cabinet brackets Drain hose and clamp (in hose bag) - on some models only #8 x 1/2" pan head wood screws (14) Double sided adhesive tape (for custom door panel) Auxiliary grill kit

Torx, T20 and T25 are trademarks of Acument Intellectual Properties, LLC.GETTING STARTED 6 | GETTING STARTED

Uncrate the ice maker. Remove tape and glue from your ice maker before using. To remove any remaining tape or glue from the exterior of the ice maker, rub the area briskly with your thumb. Tape or glue residue can also be easily removed by rubbing a small amount of liquid dish soap over the adhesive with your fingers. Wipe with warm water and dry. Do not use sharp instruments, rubbing alcohol, flammable fluids, or abrasive cleaners to remove tape or glue. Do not use chlorine bleach on the stainless steel surfaces of the ice maker. These products can damage the surface of your ice maker.

After you remove all of the packaging materials, clean the inside of your ice maker before using it. For instructions on how to clean the ice maker, refer to the cleaning instructions in the “Ice Maker Care” section of Use and Care Guide. WARNING Excessive Weight Hazard Use two or more people to move and install ice maker. Failure to do so can result in back or other injury.

When you will not be using the ice maker for an extended period of time, turn off the water and power supply to the ice maker. Check that the water supply lines are insulated against freezing conditions. Ice formations in the supply lines can increase water pressure and cause damage to your ice maker or home. Damage from freezing is not covered by the warranty. OPTIONAL PERSONALIZATIONS

For instructions on how to reverse the door, refer to the “Door Reversal” section.

CUSTOM PANEL INSTALLATION

For instructions on how to install a custom door panel, refer to the “Custom Wood Door Panel” section. If you plan to install a custom overlay panel, you will need to make the panel yourself or consult a qualified cabinetmaker or carpenter. IMPORTANT: The thickness of the overlay panel must be 3/4" (1.91 cm). Overlay panel must not weigh more than 8 lbs (3.62 kg). Overlay panels weighing more than recommended may cause damage to your ice maker. Countersink all the handle mounting hardware. Match wood grain direction with that of adjacent cabinets. Sand panel edges to provide a smooth finish. Use moisture sealer on both sides and all edges of the panel to avoid damage from moisture. PARTS NEEDED: Instructions, #8 x 1/2" pan head wood screws (14) Handle Kit (optional)

STAINLESS STEEL PANEL INSTALLATION

For instructions on how to install the Stainless Steel Panel, refer to the instructions received with the Stainless Steel Panel kit.SITE PREPARATION | 7 SITE PREPARATION SITE PREPARATION PRODUCT AND OPENING DIMENSIONS Product Dimensions Product width A 14

" (85.7 cm) Product depth (no door) C 22

" (56.1 cm) Opening Dimensions Opening width D 15" (38.1 cm) Opening height E 34" min (86.4 cm)

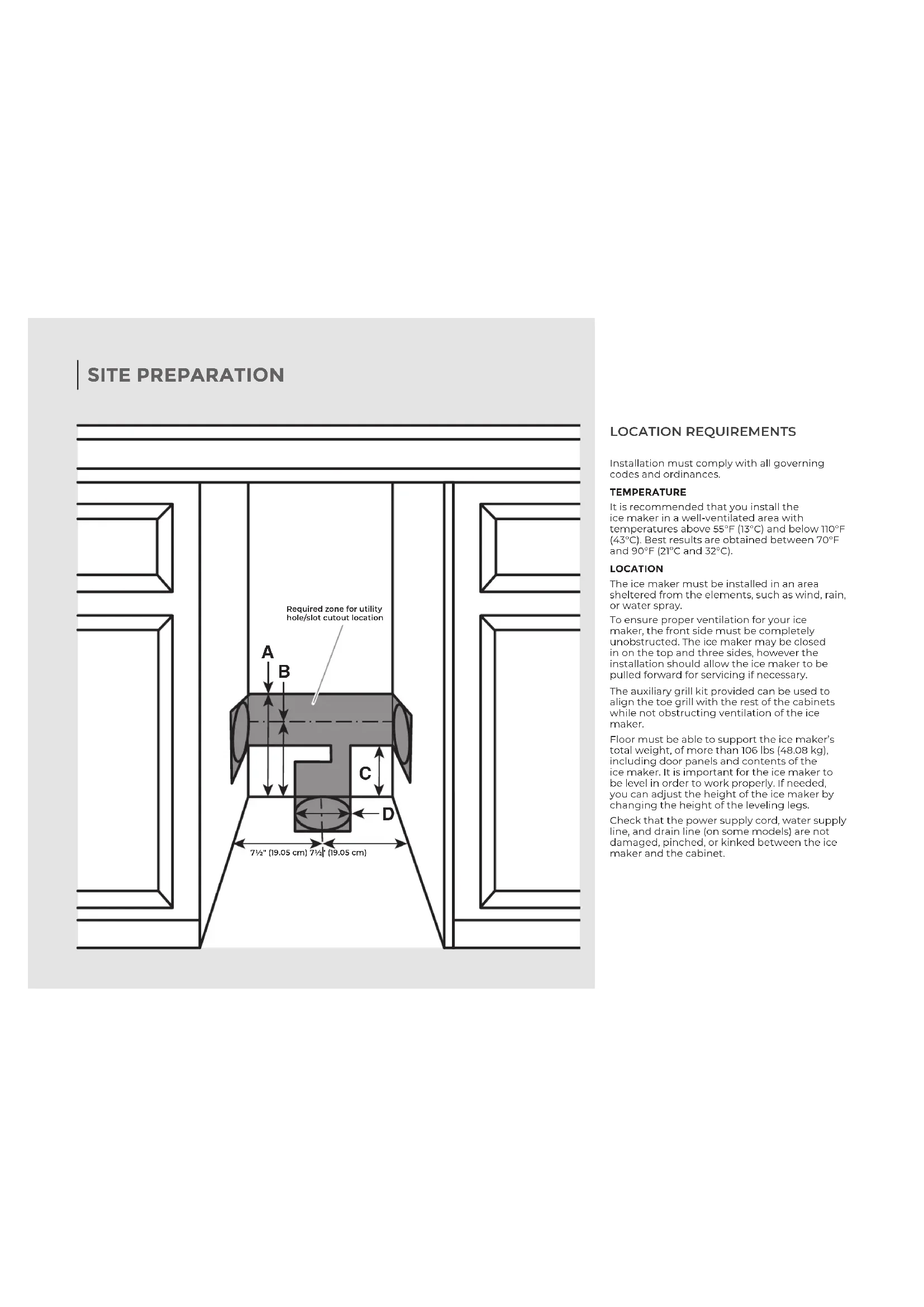

SITE PREPARATION LOCATION REQUIREMENTS Installation must comply with all governing codes and ordinances. TEMPERATURE It is recommended that you install the ice maker in a well-ventilated area with temperatures above 55°F (13°C) and below 110°F (43°C). Best results are obtained between 70°F and 90°F (21ºC and 32°C). LOCATION The ice maker must be installed in an area sheltered from the elements, such as wind, rain, or water spray. To ensure proper ventilation for your ice maker, the front side must be completely unobstructed. The ice maker may be closed in on the top and three sides, however the installation should allow the ice maker to be pulled forward for servicing if necessary. The auxiliary grill kit provided can be used to align the toe grill with the rest of the cabinets while not obstructing ventilation of the ice maker. Floor must be able to support the ice maker’s total weight, of more than 106 lbs (48.08 kg), including door panels and contents of the ice maker. It is important for the ice maker to be level in order to work properly. If needed, you can adjust the height of the ice maker by changing the height of the leveling legs. Check that the power supply cord, water supply line, and drain line (on some models) are not damaged, pinched, or kinked between the ice maker and the cabinet. Required zone for utility hole/slot cutout location7⁄" (19.05 cm) 7⁄" (19.05 cm)SITE PREPARATION | 9 SITE PREPARATION SITE PREPARATION IMPORTANT: ■ This ice maker has been designed for flush install in instances where the power supply, water supply, and drain are located in a cabinetry. ■ For installation of product with utilities behind the ice maker, flush install may not be achieved. ■ Refer “Location Requirement” illustration and table below for utility slot/hole cutout location. Utility Slot/Cutout Location Zone Dimension A 9" (22.9 cm) B 8" (20.3 cm) C 7" (17.8 cm) Diameter of the hole D 2" (5 cm) ELECTRICAL REQUIREMENTS Electrical Requirements Power Supply 115 V, 60Hz, AC only Circuit Breaker 15 to 20 A, fused Receptacle 3 prong grounding-type Outlet Non-GFCI Electrical Shock Hazard Plug into a grounded 3 prong outlet. Do not remove ground prong. Do not use an adapter. Do not use an extension cord. Failure to follow these instructions can result in death, fire, or electrical shock. WARNING IMPORTANT: ■ Use an outlet that cannot be turned off by a switch. Do not use an extension cord. ■ It is recommended that this product not be connected to a GFCI (Ground Fault Circuit Interrupter) protected outlet, as nuisance tripping of the power supply may occur. ■ The ice maker must be grounded. The ice maker is equipped with a power supply cord having a grounded 3 prong plug. The cord must be plugged into a mating, grounded, 3 prong wall receptacle, grounded in accordance with the National Electrical Code and local codes and ordinances. If a mating wall receptacle is not available, it is the personal responsibility of the customer to have a properly grounded 3 prong wall receptacle installed by a qualified electrician.10 | SITE PREPARATION SITE PREPARATION IMPORTANT: ■ Connect to potable water supply only. ■ A reverse osmosis water filtration system is not recommended for ice makers that have a drain pump installed. Reverse osmosis water filtration systems should be used for gravity drain systems only. ■ Connect the ice maker drain to your drain in accordance with the International Plumbing Code and any local codes and ordinance. ■ To achieve a flush installation, the water shutoff valve should not be installed in the wall behind the refrigerator, but in another easily accessible location. ■ The drain pump discharge line must terminate at an open-site drain. ■ Maximum rise 10 ft (3.1 m) ■ Maximum run 100 ft (30.5 m) NOTE: If the drain hose becomes twisted and water cannot drain, your ice maker will not work.

WATER SUPPLY REQUIREMENTS

Before connecting the ice maker, ensure that the water supply lines are insulated against freezing conditions. Ice formations in the supply lines can increase water pressure and damage the ice maker or home. Damage from frozen supply lines is not covered by the warranty. Use new hoses supplied with the product. Do not reuse old hoses. Water Supply Requirements Water Pressure 30-120 psi (207-827 kPa) Excess Water Line for Connection 30" (76.2 cm) Water Inlet Supply 1/4” (6.35 mm) OD soft copper tubing Drain Pump With shut-off valve

REVERSE OSMOSIS WATER SUPPLY

A reverse osmosis system may be used if the water pressure from the filtration system meets the required water pressure requirements. If a reverse osmosis system is desired, only a whole-house capacity reverse osmosis system, capable of maintaining the steady water supply required by the ice maker, is recommended. Faucet capacity reverse osmosis systems are not able to maintain the steady water supply required by the ice maker.SITE PREPARATION | 11 SITE PREPARATION SITE PREPARATION

DRAIN SUPPLY REQUIREMENTS

Connect the ice maker drain to your drain in accordance with all state and local codes and ordinances. Follow these guidelines when installing drain lines. This will help avoid water from flowing back into the ice maker storage bin. Water flowing back into the ice maker can potentially flow onto the floor and cause water damage. Drain Requirements Inside Diame- ter minimum 5/8" (15.88 mm) Drain Lines Drain lines must have a 1" drop per 48" of run (2.54 cm drop per 122 cm of run) or 1/4" drop per 12" of run (6.35 mm drop per 30.48 cm of run) Do not connect the outlet end of the drain tube to a closed pipe system to avoid drain water from backing up into the ice maker.

GRAVITY DRAIN SYSTEM

The ideal installation has a standpipe with a 1½" (3.81 cm) to 2" (5.08 cm) PVC drain reducer installed directly below the outlet of the drain tube as shown. You must maintain a 1" (2.54 cm) air gap between the drain hose and the standpipe.

Drain pump maximum capability: For every 1 ft (0.31 m) of rise, subtract 10 ft (3.1 m) of maximum allowable run. IMPORTANT: A drain pump is necessary when a floor drain is not available. A Drain Pump kit, Part Number 1901A, is available for purchase at jennair.com/accessories/details/1901A. NOTE: It may be desirable to insulate the drain line thoroughly up to the drain inlet. An Insulation Sleeve kit, Part Number W10365792, is available for purchase at jennair.com/accessories/details/W10365792. Drain pump modelGravity drain model Gravity Drain System Dimensions Drain Hose A Air Gap B 1" (2.54 cm) PVC Drain Reducer C 2" to 1

(5 cm - 3.8 cm) Center of Drain D 23" (58.4 cm) from front of door, with or without 3/4" (1.9 cm) panel on the door, centered left to right (7

[18.56 cm]) from either side of the ice maker. Bottom of Ice Maker to top of PVC Drain Reducer E 1

" (4.8 cm) Depth to center of PVC Drain Reducer F 23" (58.4 cm)

If door reversal is not needed, skip “Door Reversal” section.

WARNING Electrical Shock HazardDisconnect power before servicing.Replace all parts and panels before operating.Failure to do so can result in death or electrical shock.

Remove the screws attaching top and bottom hinge covers using an 3/16" hex driver. Crush Hazard Articulated hinges are self closing and many pinch points exist prior to cabinet installation. Do not remove hinge covers until product is ready to be installed. Failure to follow these instructions can result in crush, cut, or pinch injuries. WARNING Hinge cover

Using pliers, remove the hinge covers from the top and bottom hinges. NOTE: Save the hinge covers for future use. Reinstall the hinge covers if product is removed from cabinet installation.DOOR REVERSAL 14 | DOOR REVERSAL

Lay down the ice maker as shown in the illustration. Be sure to cover the floor with cardboard or hardboard to avoid damaging it. WARNING Excessive Weight Hazard Use two or more people to move and install ice maker. Failure to do so can result in back or other injury.DOOR REVERSAL DOOR REVERSAL DOOR REVERSAL | 15

Remove the screws and the top metal bracket using the Phillips screwdriver. Place them aside.

Remove the screw from the top and bottom end caps using the Phillips screwdriver. Remove and place them aside.

Using Torx T25 screwdriver unscrew the door hinge screws completely from the top and bottom hinges and place them aside.DOOR REVERSAL 16 | DOOR REVERSAL REMOVING THE HINGES (CONT.)

Remove the plastic screw cover from the inside of the hinges and place them aside.

Swap the magnetic door catch to other side.

Remove the screw cap cover and replace on the other side.

Remove the screws and hinges from the cabinet with the Torx T25 screwdriver and place them aside. Crush Hazard Articulated hinges are self closing and many pinch points exist prior to cabinet installation. Do not operate, or close, the hinges while they are removed from the ice maker. Failure to follow these instructions can result in crush, cut, or pinch injuries. WARNINGDOOR REVERSAL 18 | DOOR REVERSAL

Unscrew and remove the grill cover using a TORX T20 screwdriver. Place them aside.

Remove the screw cover and place it on the other side as shown in the illustration.DOOR REVERSAL DOOR REVERSAL DOOR REVERSAL | 19

Take the original bottom hinge, flip it and place it in the top hinge position on the opposite side. Slide onto the cabinet hinge screws. Take the original top hinge, flip it and place it in the bottom hinge position on the opposite side. Slide onto the cabinet hinge screws. The hinge tabs on the hinges should always face towards each other. Install the hinge screws (placed aside in step 7 of “Preparing the Bottom Hinges”) half way on the desired side of the cabinet. Fully tighten the top and bottom hinge screws. Hinge tabDOOR REVERSALDOOR REVERSALDOOR REVERSAL | 21 Reinstall the plastic screw cover to original locations on the hinges. Reinstall the top and bottom end caps on the door (the top right end cap is now the bottom left end cap and vice versa). NOTE: For custom wood install skip this step. Slide the door onto the hinges. Using Torx T25 screwdriver install the screws (removed in the step 6 of “Removing the Hinges” section) onto the door. Reinstall the top metal bracket on the door.NOTE: For stainless steel panel install skip this step. Return the ice maker back to upright position.Plastic screw coverWARNINGExcessive Weight HazardUse two or more people to move and install ice maker.Failure to do so can result in back or other injury.INSTALLATION 22 | INSTALLATION

INSTALLING THE DRAIN PUMP -

SITE PREPARATION NOTES: ■ Connect drain pump to your drain in accordance with all state and local codes and ordinances. ■ It may be desirable to insulate drain tube thoroughly up to drain inlet to minimize condensation on the drain tube. Insulated tube kit Part Number W10365792 is available for purchase. ■ Drain pump is designed to pump water to a maximum height of 10 ft (3 m). Use only Whirlpool approved drain pump kit Part Number 1901A. ■ Do not connect the outlet end of the drain tube to a closed pipe system to avoid drain water from backing up into the ice maker. Kit Contains: ■ Drain pump kit Part Number 1901A ■ 5/8" I.D. x 51/8" drain tube (ice maker bin to drain pump reservoir inlet) ■ 1/2" I.D. x 10 ft (3 m) drain tube hose (drain pump discharge to household drain) ■ 5/16" I.D. x 32" (81 cm) vent tube (drain pump reservoir vent to ice maker cabinet back) ■ Cable tie (secures vent tube to suction tube) (1) ■ #8-32 x 3/8" pump mounting screws (secures drain pump to baseplate and clamps to back of ice maker) (5) ■ 5/8" small adjustable hose clamp (secures vent to drain pump) ■ 7/8" large adjustable hose clamp, (secures drain tube to ice maker bin and drain pump reservoir inlet) (3) ■ Instruction sheet If Ice Maker is Currently Installed If ice maker is not connected to the water supply, skip this section and go to “Installing the Drain Pump and Drain Hose” section.

WARNING Electrical Shock Hazard Disconnect power before servicing. Replace all parts and panels before operating. Failure to do so can result in death or electrical shock.

Press the OFF button to Stop ice production. Then unplug the ice maker or disconnect power.INSTALLATION INSTALLATION INSTALLATION | 23 Turn off water supply. Wait 5 to 10 minutes for the ice to fall into the storage bin. Remove all ice from bin. Unscrew the drain cap from the bottom of the water pan located inside the storage bin. Allow water to drain completely. Disconnect water supply line.Drain cap If ice maker is built into cabinets, pull ice maker out of the opening.INSTALLATION 24 | INSTALLATION Remove the old drain tube and clamp attached to the ice maker bin. NOTE: Discard old drain tube and clamp. Unscrew the screws attaching rear panel to ice maker. Remove the screws and rear panel, place them aside. For pump models, skip to step 12.INSTALLING THE DRAIN PUMP AND DRAIN HOSEScrewsClampOld drain tube

Install the drain pump on the right side of the ice maker base. Tip the drain pump slightly to slide the mounting tab into the mounting tab slot.Mounting tab slot Align the two screw holes at the rear of the pump. Use the two #8-32 x 3/8" screws supplied to attach the pump to the ice maker base.#8-32 x 3/8" pump mounting screwsNOTE: Do not kink, smash or damage tubes or wires during installation.INSTALLATION INSTALLATION INSTALLATION | 25

Unscrew the screws attaching wiring cover to the ice maker and remove the wiring cover. Place the screws and wiring cover aside.ScrewsWiring cover

Route the vent tube through the plastic retainer as shown in the illustration. Using a cable tie, tie the vent tube to the suction tube and wires located behind the wiring cover. Reinstall the wiring cover and screws. NOTE: ■ Do not overtighten the vent tube, it may block the airflow through tube.Vent tubeCable tie Plastic retainer Install vent tube [5/16" I.D. x 32" (81 cm)] to drain pump reservoir vent. Use one of the supplied 5/8" small adjustable clamp.NOTE: ■ Do not block air flow through the vent tube by over tightening the cable tie.Drain pump Vent tube5/8" hose clamp Unscrew and remove the power cord clamp mounted to the ice maker side wall from the ice maker power cord.Ice maker power cord, clamp and screwINSTALLATION 26 | INSTALLATIONINSTALLING THE DRAIN PUMP AND DRAIN HOSE CONT. Attach the drain tube to pump discharge tube using a clamp provided. Coil the ice maker power cord into a 4" (10.2 cm) diameter coil. Restrain the coil with electrical tape or cable ties. Place the coiled power cord as shown in the illustration and plug it into the receptacle on the drain pump.Receptacle of the drain pump

Attach the drain pump power cord to the ice maker side wall with the clamp and screw (removed in step 7).Drain pump power cord, clamp and screwDrain tubeClamp

New drain tube is provided in the drain pump kit. Install new drain tube to both the ice bin outlet and the drain pump reservoir inlet using new adjustable clamps.NOTES: ■ Do not kink. ■ Trim tube length if required.7/8" adjustable hose clampIce bin outlet7/8" adjustable hose clampDrain pump reservoir inletDrain tube (ice bin to drain pump)INSTALLATION INSTALLATION INSTALLATION | 27

Route the drain pump discharge tube, power cord, and water inlet through the slot in the ice maker back panel. Replace the rear panel and screws.

Install the cable tie on the rear panel using two holes provided on the rear panel.

Using a cable tie, fix the drain tube to rear panel as shown in the illustration. Cable tieFor floor applications, drain tube can be routed this wayHoles to fix the cable tieINSTALLATION 28 | INSTALLATION

CONNECTING THE WATER SUPPLY

IMPORTANT: ■ Plumbing shall be installed in accordance with the International Plumbing Code and any local codes and ordinances. ■ Use copper tubing or JennAir supply line, Part Number 8212547RP, and check for leaks. ■ Install tubing only in areas where temperatures will remain above freezing. Turn off main water supply. Turn on nearest faucet line long enough to clear line of water. Use 1/4" (6.35 mm) O.D. soft copper tubing or Whirlpool approved refrigerator water hose with square cut ends for the cold water supply. Slip the compression sleeve and nut onto the copper tubing. Be sure that you have the proper length needed for the job. Route the water line through the cabinetry to the ice maker utility cutout. Be sure there water line extends 30" beyond the cabinet for future servicing purpose. Using a minimum 1/2" copper tubing with a quarter turn shut-off valve or the equivalent supply line, connect the ice maker as shown.INSTALLATION INSTALLATION INSTALLATION | 29 Insert end of tubing squarely into outlet end as far as it will go. Screw compression nut onto outlet end with adjustable wrench. Tighten the nut by hand. Then tighten it with a wrench two more turns. Do not overtighten. Turn shutoff valve on. Check for leaks. Tighten any connections (including connections at the valve) or nuts that leak. Remove and discard the short, plastic tube from the end of the water line inlet. Flush out tubing by placing the free end of the tubing into a container or sink, and turning on the main water supply until water is clear. Turn off shut-off valve on the water pipe. IMPORTANT: Always drain the water line before making the final connection to the inlet of the water valve to avoid possible water valve malfunction.INSTALLATION 30 | INSTALLATION

Move the ice maker in front of its final location. Be sure to cover the floor with cardboard or hardboard to avoid damaging it. WARNING Excessive Weight Hazard Use two or more people to move and install ice maker. Failure to do so can result in back or other injury.INSTALLATION INSTALLATION INSTALLATION | 31 Crush Hazard Articulated hinges are self closing and many pinch points exist prior to cabinet installation. Do not remove hinge covers until product is ready to be installed. Failure to follow these instructions can result in crush, cut, or pinch injuries. WARNING

Remove the screws attaching top and bottom hinge covers using an 3/16" hex driver. Hinge cover

Using pliers, remove the hinge covers from the top and bottom hinges. NOTE: Save the hinge covers for future use. Reinstall the hinge covers if product is removed from cabinet installation.INSTALLATION 32 | INSTALLATION LEVELING AND SECURING (CONT.)

Use ice maker leveling legs to align ice maker door to the adjacent cabinet opening. WARNING Excessive Weight Hazard Use two or more people to move and install ice maker. Failure to do so can result in back or other injury.

Install the door panel according to the instructions in the “Custom Wood Door Panel” section or instructions received with the stainless steel panel received with kit.INSTALLATION INSTALLATION INSTALLATION | 33

Be sure that the ice maker is at desired depth. Secure the top and bottom hinges to the side of the cabinet using wood screws.

Attach the cabinet brackets (provided with ice maker) to the holes in the front of ice maker as shown in the illustration. Attach the cabinet brackets to the side of the cabinet with wood screws. NOTE: For the custom wood panel installation, continue installation at step 6 of “Custom wood panel installation.” Cabinet bracket

Slide ice maker into the cabinet while managing the utility connection positions behind the ice maker. Be sure to cover the floor with cardboard or hardboard to avoid damaging it. IMPORTANT: For the flush install, the ice maker utility connections must be routed out through the slot in the ice maker rear panel.INSTALLATION 34 | INSTALLATIONCUSTOM WOOD DOOR PANELIf stainless steel panel is installed, skip “Custom Wood Door Panel” section.! Lightly press the custom panel onto the door using double sided adhesive tape. Adjust height of the panel to align with the adjacent cabinetry. Press the panel firmly against door. Remove the top and bottom end caps using the Phillips screwdriver and place them aside. Remove screws and the top metal bracket using the Phillips screwdriver. Remove and place them aside. Skip this step and go to the step 4 if the door reversal has been completed. Reinstall top metal bracket using screws removed in the step 1.INSTALLATION INSTALLATION INSTALLATION | 35

From inside the door, install the wood screws through the slotted holes in the metal brackets. Continue to “Leveling and Securing” section at step 5.

Adjust the panel side to side to achieve a desired gap on both sides. Install the remaining screws through the door bracket into the panel. NOTE: Be sure that the panel is aligned with adjacent cabinet before installing the remaining screws to secure the door panel.

Style 1—For a gravity drain system, be sure that the ice maker drain tube is positioned over the PVC drain reducer. See the “Gravity Drain System” section. Style 2—For a drain pump system, connect the drain pump outlet hose to the drain. Refer the “Drain Supply Requirements” section. NOTE: Do not connect outlet end of drain tube to a closed pipe system to avoid drain water from backing up into the ice maker. Electrical Shock Hazard Plug into a grounded 3 prong outlet. Do not remove ground prong. Do not use an adapter. Do not use an extension cord. Failure to follow these instructions can result in death, fire, or electrical shock. WARNINGINSTALLATION INSTALLATION INSTALLATION | 37

Turn on ice maker. Wait for rinsing cycle, approximately 5 minutes, to be sure the ice maker is operating properly.
