USER MANUAL WM2550HWCA LG

WASHING MACHINE WM2550H*CA Please read this manual carefully before operating your washing machine and retain it for future reference.

Key Dimensions and Specifications ..................... 34 Optional Accessories ........................................... 34 Product Registration Information Model:Serial Number:Date of Purchase:The model and serial number can be located on the rating plate on the front of the washer.Staple your receipt here for your convenience in the event you need it for warranty coverage. Congratulations on your purchase and welcome to the LG family. Your new LG Steam Washer™ combines the most advanced washing technology with simple operation and high efficiency. Follow the operating and care instructions in this manual and your washer will provide many years of reliable service. THANK YOU!

wWARNING For your safety, the information in this manual must be followed to minimize the risk of fire or explosion, electric shock, or to prevent property damage, injury to persons, or death. Your Safety and the safety of others is very important. We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety messages.This is the safety alert symbol.This symbol alerts you to potential hazards that can kill or hurt you and others.All safety messages will follow the safety alert symbol and either the word DANGER or WARNING.These words mean: wDANGER: You can be killed or seriously injured if you don’t immediately follow instructions. wWARNING: You can be killed or seriously injured if you don’t follow instructions. All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell you what can happen if the instructions are not followed.

MFL62526880_en_110329.indd 3 3/29/11 2:00:49 PMwWARNING For your safety, the information in this manual must be followed to minimize the risk of fire or explosion, electric shock, or to prevent property damage, injury to persons, or death.

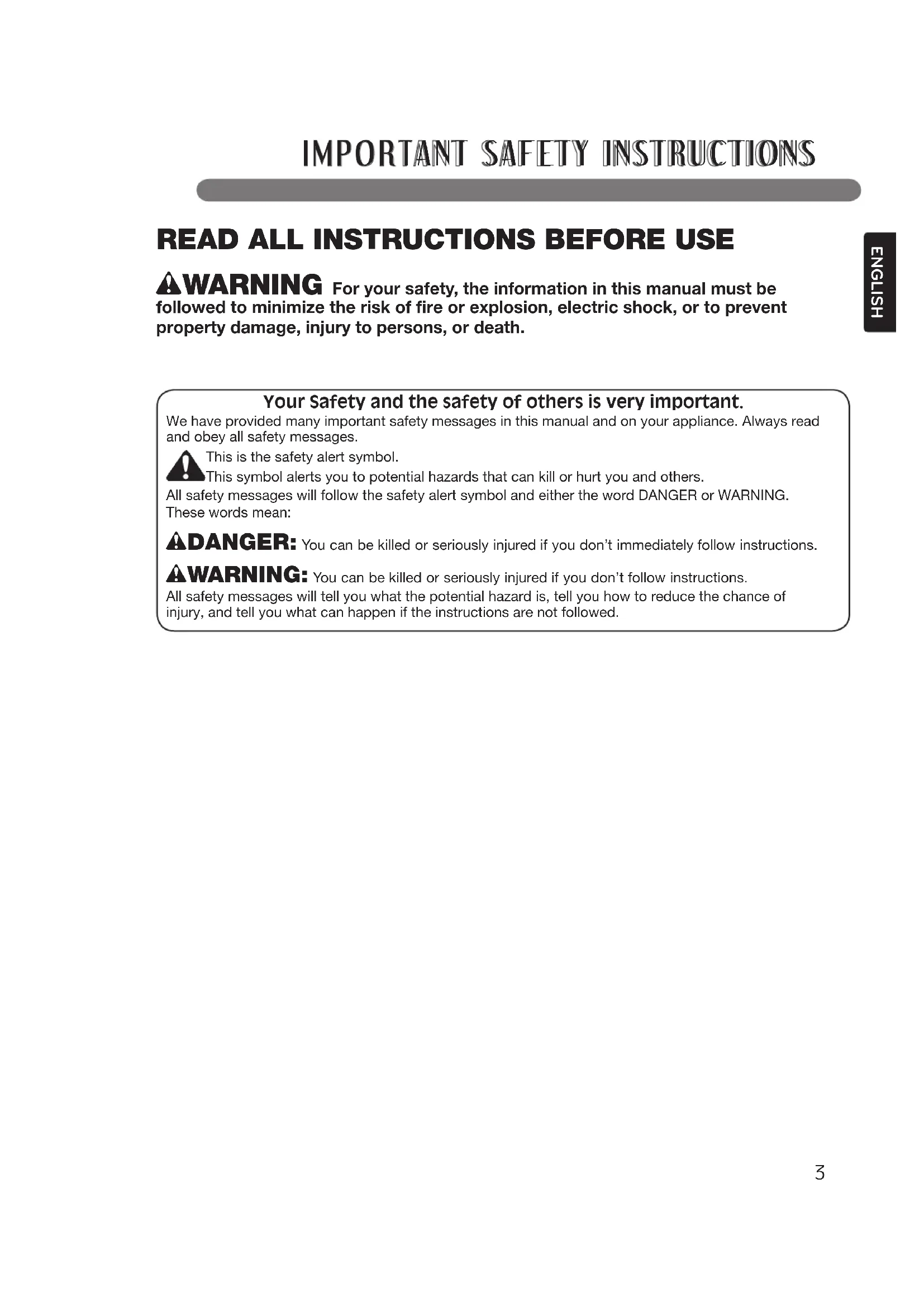

IMPORTANT SAFETY INSTRUCTIONS

• Before use, the washer must be properly installed as described in this manual.• Do not wash articles that have been previously cleaned in, washed in, soaked in, or spotted with gasoline, dry cleaning solvents, or other flammable or explosive substances, as they give off vapors that could ignite or explode.• Do not add gasoline, dry cleaning solvents, or other flammable or explosive substances to the wash water. These substances give off vapors that could ignite or explode.• Under certain conditions, hydrogen gas may be produced in a hot water system that has not been used for 2 weeks or more. HYDROGEN GAS IS EXPLOSIVE. If the hot water system has not been used for such a period, before using the washer, turn on all hot water faucets and let the water flow from each for several minutes. This will release any accumulated hydrogen gas. As the gas is flammable, do not smoke or use an open flame during this time.• Do not allow children to play on or in the washer. Close supervision of children is necessary when the washer is used near children.• Before the washer is removed from service or discarded, remove the door to prevent children from climbing inside.• Do not install or store the washer where it will be exposed to the weather or freezing temperatures.• Do not tamper with controls.• Do not repair or replace any part of the washer or attempt any servicing other than as described in this manual. We strongly recommend that any service be performed by a qualified individual.• See Installation Instructions for grounding requirements.• ALWAYS follow the fabric care instructions supplied by the garment manufacturer.• Do not place items exposed to cooking oil in your washer. Items contaminated with cooking oils may contribute to a chemical reaction that could cause a load to catch fire.• Use fabric softeners or products to eliminate static only as recommended by the manufacturer.• This washer is not designed for maritime use or for mobile installations such as in RVs, aircraft, etc.• Turn off the water taps and unplug the washer if the machine is to be left for an extended period of time, such as during vacations.• Do not use to dry articles containing foam rubber or similarly textured rubber-like materials.• Packaging material can be dangerous for children. There is a risk of suffocation! Keep all packaging from children.• Always check the inside of the washer for foreign objects before loading laundry. Keep the door closed when not in use.
• Do not reach into the appliance if the tub or agitator is moving. wWARNING: To reduce the risk of fire, electric shock, or injury to person when using this appliance, follow basic precautions, including the following.

BASIC SAFETY PRECAUTIONS

This appliance must be grounded. In the event of malfunction or breakdown, grounding will reduce the risk of electric shock by providing a path of least resistance for electric current. This appliance is equipped with a cord having an equipment-grounding conductor and grounding plug. The plug must be plugged into an appropriate outlet that is properly installed and grounded in accordance with all local codes and ordinances. GROUNDING INSTRUCTIONS wWARNING: Improper connection of the equipment-grounding conductor can result in risk of electric shock. Check with a qualified electrician or servicer if you are in doubt as to whether the appli- ance is properly grounded. Do not modify the plug provided with the appliance. If it does not fit the outlet, have a proper outlet installed by a qualified electrician. Failure to follow these warnings can cause serious injury, fire, electric shock, or death.

MFL62526880_en_110329.indd 4 3/29/11 2:00:49 PMENGLISH

• Refer to INSTALLATION INSTRUCTIONS for detailed grounding procedures. Installation instructions are packed with the washer for installer’s reference. If the washer is moved to a new location, have it checked and reinstalled by a qualified service person. Failure to follow this warning can cause serious injury, fire, electric shock, or death.

• Do not, under any circumstances cut or remove the third (ground) prong from the power cord. Failure to follow this warning can cause serious injury, fire, electric shock, or death.

• For personal safety, this appliance must be properly grounded. Failure to follow this warning can cause serious injury, fire, electric shock, or death.

• The power cord of this appliance is equipped with a 3-prong (grounding) plug which mates with a standard 3-prong (grounding) wall outlet to minimize the possibility of electric shock from this appliance.

• This washer must be plugged into a 120 VAC, 60 Hz grounded outlet. Failure to follow this warning can cause serious injury, fire, electric shock, or death.

• Have the wall outlet and circuit checked by a qualified electrician to make sure the outlet is properly grounded. Failure to follow this warning can cause serious injury, fire, electric shock, or death.

• Where a standard 2-prong wall outlet is encountered, it is your personal responsibility and obligation to have it replaced with a properly grounded 3-prong wall outlet. Failure to follow this warning can cause serious injury, fire, electric shock, or death.

• Do not install on carpet. Install washer on a solid floor. Failure to follow this warning can cause serious leak damage.

• Do not remove ground prong. Do not use an adapter or extension cord. Plug into a grounded 3-prong outlet. Failure to follow these warnings can cause serious injury, fire, electric shock, or death.

• The washer should always be plugged into its own individual electrical outlet which has a voltage rating that matches the rating plate. This provides the best performance and also prevents overloading house wiring circuits which could cause a fire hazard from overheated wires.

• Never unplug your washer by pulling on the power cord. Always grip plug firmly and pull straight out from the outlet. Failure to follow this warning can cause serious injury, fire, electric shock, or death.

• Repair or replace immediately all power cords that have become frayed or otherwise damaged. Do not use a cord that shows cracks or abrasion damage along its length or at either end. Failure to follow this warning can cause serious injury, fire, electric shock, or death.

• When installing or moving the washer, be careful not to pinch, crush, or damage the power cord. Failure to follow this warning can cause serious injury, fire, electric shock, or death.

• The washer must be installed and electrically grounded by a qualified service person in accordance with local codes to prevent shock hazard and assure stability during operation.

• The washer is heavy. Two or more people may be needed to install and move the appliance. Failure to do so can result in back or other injury.

• Store and install the washer where it will not be exposed to temperatures below freezing or exposed to outdoor weather conditions. Failure to follow this warning can cause serious leak damage.

• Do not install the washer in humid spaces to reduce the risk of electric shock. Failure to follow this warning can cause serious injury, fire, electric shock, or death.

• To reduce the risk of injury to persons, adhere to all industry recommended safety procedures including the use of long sleeved gloves and safety glasses. Failure to follow all of the safety warnings in this manual could result in property damage, injury to persons or death. wWARNING: To reduce the risk of fire, electric shock, or injury to persons when using this appliance, follow basic precautions, including the following.

SAFETY INSTRUCTIONS FOR INSTALLATION

wWARNING For your safety, the information in this manual must be followed to minimize the risk of fire or explosion, electric shock, or to prevent property damage, injury to persons, or death.

Unplug the washer before cleaning to avoid the risk of electric shock.

Never use harsh chemicals, abrasive cleaners, or solvents to clean the washer. They will damage the finish.

Do not put oily or greasy rags or clothing on top of the washer. These substances give off vapors that could ignite the materials.

Do not wash items that are soiled with vegetable or cooking oil. These items may contain some oil after laundering. Due to the remaining oil, the fabric may smoke or catch fire by itself.

Disconnect this appliance from the power supply before attempting any user maintenance. Turning the controls to the OFF position does not disconnect this appliance from the power supply. Failure to follow this warning can cause serious injury, fire, electric shock, or death.

Do not combine laundry products for use in one load unless specified on the label.

Do not mix chlorine bleach with ammonia or acids such as vinegar. Follow package directions when using laundry products. Incorrect usage can produce poisonous gas, resulting in serious injury or death.

Do not reach into the washer while parts are moving. Before loading, unloading, or adding items, press the START/PAUSE button and allow the drum to coast to a complete stop before reaching inside. Failure to follow this warning can cause serious injury, fire, electric shock, or death.

Do not allow children to play on or in the washer. Close supervision of children is necessary when the washer is used near children. As children grow, teach them the proper, safe use of all appliances. Failure to comply with these warnings could result in serious injury to persons.

Destroy the carton, plastic bag, and other packing materials after the washer is unpacked. Children might use them for play. Cartons covered with rugs, bedspreads, or plastic sheets can become airtight chambers. Failure to comply with these warnings could result in serious injury to persons.

Keep laundry products out of children’s reach. To prevent injury to persons, observe all warnings on product labels. Failure to comply with these warnings could result in serious injury to persons.

Remove the door to the washing compartment to avoid the danger of children or small animals getting trapped inside before your washer is removed from service or discarded. Failure to do so can result in serious injury to persons or death. wWARNING: To reduce the risk of fire, electric shock, or injury to persons when using this appliance, follow basic precautions, including the following.

SAVE THESE INSTRUCTIONS

READ ALL INSTRUCTIONS BEFORE USE

wWARNING For your safety, the information in this manual must be followed to minimize the risk of fire or explosion, electric shock, or to prevent property damage, injury to persona, or death. MFL62526880_en_110329.indd 6 3/29/11 2:00:50 PMENGLISH

This four-compartment drawer provides separate dispensers for pre-wash and main wash detergent, liquid bleach, and liquid fabric softener. EASY-ACCESS LOCkING DOOR The extra-large door locks during operation and features a delay to prevent the door from being opened until the washer interior has cooled and the water level has lowered.

HIGH-EFFICIENCY STEAM CYCLES

During LG’s unique high-efficiency STEAM cycles, the steam nozzle injects fabrics with hot steam to gently remove tough stains.

INVERTER DIRECT-DRIVE MOTOR

The inverter direct-drive motor eliminates the belt and pulleys found on most washers to provide improved performance and reliability while increasing energy efficiency.

MAGNETIC DOOR PLUNGER

Safely and conveniently secure the door slightly ajar with a magnetic door plunger. This will promote air circulation and allow the interior of the machine to dry. To use this feature, after the load has been removed, do not close the door completely. When the magnetic door plunger comes into contact with the metal washer cabinet, it will secure the door slightly open allowing the interior of the washer to dry. SMARTDIAGNOSIS™ Should you experience any technical difficulty with your washing machine, it has the capability of transmitting data by phone to the Customer Information Center. The call center agent records the data transmitted from your machine and uses it to analyze the issue, providing a fast and effective diagnosis (refer to page 34). Protocol P172 Sanitization Performance of Residential and Commercial, Family Sized Clothes Washers

MFL62526880_en_110329.indd 7 3/29/11 2:00:51 PMPARTS AND FEATURES Hot and Cold Water Inlets Drain Hose Rear of Washer kEY PARTS AND COMPONENTS In addition to the special features and components outlined in the Special Features section, there are several other important components that are referenced in this manual.

The ultra-large stainless steel drum offers extreme durability and is tilted to improve efficiency and allow easier access for large items.

DISPLAY WITH LOAD SIZE INDICATOR

The load size is set automatically based on the weight and size of each load for optimal washing and fabric care.

LEVELING FEET Four leveling feet (two in the front and two in the back) adjust to improve washer stability on uneven floors.

Provides access to the drain line and drain pump filter.

The water circulation nozzles spray the water/ detergent solution directly onto garments for super cleaning performance. During LG’s unique high- efficiency STEAM cycles, the steam nozzle injects fabrics with hot steam to gently remove tough stains. Included Accessories Hot and Cold Water HosesNon-skid padsWrench (for removing shipping bolts and adjusting and locking leveling feet)Tie Strap (for securing drain hose)Elbow Bracket (for securing drain hose)Caps (4) (for covering shipping bolt holes)

CHOOSE THE PROPER LOCATION CLEARANCES

To ensure sufficient clearance for water lines and airflow, allow minimum clearances of at least 1 inch (2.5 cm) at the sides and 4 inches (10 cm) behind the unit. Be sure to allow for wall, door, or floor moldings that may increase the required clearances. wWARNING

• Washer is heavy! Two or more people are required when moving and unpacking the washer. Failure to do so can result in back or other injury.• Store and install the washer where it will not be exposed to temperatures below freezing or exposed to outdoor weather conditions. Failure to follow this warning can cause serious injury, fire, electric shock, or death.• Properly ground washer to conform with all governing codes and ordinances. Failure to follow this warning can cause serious injury, fire, electric shock, or death.• To reduce the risk of electric shock, do not install the washer in humid spaces. Failure to follow this warning can cause serious injury, fire, electric shock, or death.• The base opening must not be obstructed by carpeting when the washer is installed on a carpeted floor.• Do not remove ground prong. Do not use an adapter or extension cord. Plug into a grounded 3-prong outlet. Failure to follow this warning can cause serious injury, fire, electric shock, or death. Power Outlet
• The power outlet must be within 60 inches (1.5 m) of either side of the washer. • The appliance and outlet must be positioned so that the plug is easily accessible. • Do not overload the outlet with more than one appliance.• The outlet must be grounded in accordance with current wiring codes and regulations.• Time-delay fuse or circuit breaker is recommended.NOTE: It is the personal responsibility and obligation of the product owner to have a proper outlet installed by a qualified electrician.Allow at least 24 inches (61.2 cm) in front of the washer to open the door.

/4" (75.6 cm)51" (129.7 cm)

FLOORING INSTALLATIONS WITH

• To minimize noise and vibration, the washer MUST be installed on a solidly constructed floor. See the NOTE below.

• Allowable slope under the entire washer is 1° maximum.

• Carpeting and soft tile surfaces are not recommended.

• Never install the washer on a platform or weakly supported structure. Use only an approved accessory pedestal as described below. NOTE: Please note that the floor must be strong and rigid enough to support the weight of the washer when fully loaded, without flexing or bouncing. If your floor has too much flex in it, you may need to reinforce it to make it more rigid. A floor that is adequate for a top-loading washer may not be rigid enough for a front- loading washer, due to the difference in the spin speed and direction. If the floor is not solid, your washer may vibrate and you may hear and feel the vibration throughout your house. Required Dimensions for Installation With Stacking Kit IMPORTANT: If you are installing your washer using an optional pedestal base or stacking kit, please refer to Optional Accessories in this manual or to the instructions for your pedestal or stacking kit before proceeding with the installation. Required Dimensions for Installation With Pedestal NOTE: Before installing the washer, make sure the floor is clean, dry and free of dust, dirt, water and oils so the washer feet can not slide easily. Leveling feet that can move or slide on the floor can contribute to excess vibration and noise due to poor contact with the floor. NOTE: If a drip pan must be used, take extra care to follow the instructions provided with the drip pan and make sure the leveling feet are adjusted for firm and even contact with the pan. Use of drip pans and failure to properly level the machine may result in increased vibration and noise during operation.

MFL62526880_en_110329.indd 10 3/29/11 2:00:59 PMENGLISH INSTALLATION INSTRUCTIONS When removing the washer from the carton base, be sure to remove the foam tub support in the middle of the carton base. If you must lay the washer down to remove the base packaging materials, always lay it carefully on its side. Do NOT lay the washer on its front or back. IMPORTANT: To prevent internal damage during transport, the washer is equipped with 4 shipping bolts and plastic retainers. These bolts and retainers MUST be removed before operating the washer.

Failure to remove shipping bolts and retainers may cause severe vibration and noise, which can lead to permanent damage to the washer. The cord is secured to the back of the washer with a shipping bolt to help prevent operation with shipping bolts in place. Starting with the bottom 2 shipping bolts, use the included wrench to remove the 4 shipping bolts by turning them counterclockwise.

Shipping Bolts Remove the retainers by turning them slightly while pulling. Rotate and press the hole caps into the shipping bolt holes.

NOTE: Save the bolts and retainers for future use. To prevent damage to internal components, the shipping bolts and retainers must be installed when transporting the washer. Retainer Hole Cap UNPACkING AND REMOVING SHIPPING BOLTS Carton Base Foam Tub Support

Check the rubber seals on both sides of the hose. - Insert a rubber seal into the threaded fittings on each hose to prevent leaking.

Water hose (To water inlet on the washing machine) Rubber Seal Water hose (Faucet) Rubber Seal

Turn on the water faucet to remove foreign substance such as dirt, sand, or sawdust in the water line, and then check the water temperature.

Connect the hoses to the water inlets. - Connect the blue hose to the cold water inlet and the red hose to the hot water inlet. Connect the water hoses to the faucets. - Connect the blue hose to a cold water faucet and the red hose to a hot water faucet. - If there is only one faucet, connect it to the cold water faucet. In this case, the water supply may be delayed for the first 3 minutes of the supply in order to differentiate hot from cold water.

• Check for leaks by turning on the faucets. - If water leaks, check steps 1 to 3 again. NOTE

• For your safety, and for extended product life, use only authorized components. The manufacturer is not responsible for product malfunction or accidents caused by the use of separately purchased unauthorized parts.

• Use new hoses when you install the washing machine. Do not reuse old hoses.

• Periodically check the hoses for cracks, leaks and wear, and replace the hoses every 5 years.

• Do not stretch the water hoses intentionally, and make sure that they are not crushed by other objects.

• Water line pressure must be between 14.5 PSI and 116 PSI (100 - 800 kPa). If the water line pressure is higher than 116 PSI, a pressure reducing valve must be installed.

• To provide optimum washing performance the hot water temperature should be set at 120- 135°F (48-57°C) and the cold at 60°F(15 °C)

Insert the end of the drain hose into the floor drain. Secure the hose in place to prevent it from moving. Drain Hose Floor Drain Option 3: Floor Drain Clip the end of the hose into the elbow bracket. Hang the end of the drain hose over the side of the laundry tub. Use tie strap to secure the drain hose in place. NOTE: Total height of the hose end should not exceed 96 inches (244.8 cm) from the bottom of the washer. Option 2: Laundry Tub

• The drain hose should always be properly secured. Failure to properly secure the drain hose can result in flooding and property damage.

• Do not install the end of the drain hose higher than 96 inches (244.8 cm) above the bottom of the washer.

• The drain must be installed in accordance with any applicable local codes and regulations.

• Make sure that the water lines are not stretched, pinched, crushed, or kinked. NOTE: If the drain hose is extended more than 4 inches beyond the end of the elbow bracket, mold, or microorganisms could spread to the inside of the washer. Clip the end of the hose into the elbow bracket. Insert the end of the drain hose into a standpipe. Use tie strap to secure the drain hose in place. NOTE: Total height of the hose end should not exceed 96 inches (244.8 cm) from the bottom of the washer. Option 1: Standpipe No more than 4 inches Elbow Bracket Drain Hose Elbow Bracket Stand PipeTie Strap Elbow Bracket Drain Hose Laundry Tub Tie Strap

INSTALLATION OF NON-SkID PADS (OPTIONAL) Position the washer in the final location, taking special care to not pinch, strain, or crush the water and drain lines. Place a level across the top of the washer.

Level Leveling Feet Leveling Feet The drum of your new washer spins at very high speeds, up to 1,200 RPM. To minimize vibration, noise, and unwanted movement, the floor must be a perfectly level, solid surface. NOTE: Adjust the leveling feet only as far as necessary to level the washer. Extending the leveling feet more than necessary can cause the washer to vibrate. Some floor surfaces are too slippery to prevent the washer from moving on the floor during heavily unbalanced loads. While it is normal for an occasional load to be out of balance, excess noise and vibration can result from the washer moving out of position. If these conditions are encountered, follow the instructions below for installation of the non-skid pads. These pads will help prevent the washer from moving during heavy out of balance conditions thereby reducing noise and vibration. Loosen the locknuts on all 4 leveling feet until you can turn the feet with the included wrench. Turn clockwise to raise the washer or counterclockwise to lower it.

Raise Lower NOTE: To make sure that the washer is properly level, run the washer with a test load: place approximately 6 pounds of laundry in the machine. Then press POWER, select RINSE+SPIN cycle, and then press the START/ PAUSE button. See the following sections for additional information on cycle selection and operation. Verify that the washer does not rock or vibrate excessively during the spin cycle. If the washer vibrates or shakes, adjust the leveling feet until the washer is stable and retest.

Once the washer is level from side to side and front to back, tighten all locknuts securely. Make sure that all 4 leveling feet are in firm contact with the floor. Tighten all 4 lock nuts securely using the wrench.

• All four leveling feet must rest solidly on the floor. Rock the washer gently from corner to corner to make sure that the washer does not rock. If you are installing the washer on the optional pedestal, you must use the leveling feet on the pedestal to level the washer. The washer’s leveling feet should be fully retracted and locked into position with the locknuts.

• Non-skid pads Place the pads under both front feet. This side up Stick adhesive side to floor Remove backing

Press to turn the washer ON. Press again to turn the washer OFF. NOTE: Pressing the ON/OFF button during a cycle will cancel that cycle and any load settings will be lost. CYCLE SELECTOR kNOB Turn this knob to select the desired cycle. Once the desired cycle has been selected, the standard presets will be shown in the display. These settings can be adjusted using the cycle settings buttons anytime before starting the cycle.

Press this button to START the selected cycle. If the washer is running, use this button to PAUSE the cycle without losing the current settings. NOTE: If you do not press the START/PAUSE button within 4 minutes of selecting a cycle, the washer automatically turns off. STEAM BUTTON Press the STEAM button to add steam to the selected cycle for added cleaning power. NOTE: Steam can be added to only the following cycles: STEAM FRESH™, ALLERGIENE™, SANITARY, BULKY/LARGE, PERM. PRESS, COTTON/NORMAL.

Use these buttons to adjust the desired cycle options for the selected cycle. COLDWASH™ BUTTON Use this function to save energy by using cold water while ensuring proper washing. For high wash efficiency, it is recommended to use less than 8 pounds.

The display shows the settings, estimated time remaining, options, and status messages for your washer. OPTION BUTTONS The option buttons allow you to select additional cycle options and will light when selected. Certain buttons also allow you to activate special functions by pressing and holding the button for 3 seconds. For detailed information about the individual options, please see the following pages.

Open the dispenser drawer and add detergent to the main wash compartment in the dispenser drawer. Add bleach and fabric softener as desired.

Different fabrics have different care requirements. See the Cycle Guide on page 17 for details. For best washing, sort clothes into loads that can be washed with the same wash cycle.

Press the ON/OFF button to turn on the washer. The lights around the cycle selector knob will illuminate.

Turn the cycle selector knob to the desired cycle. The display will show the preset wash/temp., spin speed, soil level, and option settings for that cycle.

If you would like to change the settings for that cycle, press the option button(s) to display additional settings for that option. Press the button again to cycle through the settings until the desired setting is shown. NOTE: To protect your garments, not every wash/rinse temperature, spin speed, soil level, or option is available with every cycle. The water temperature of all rinsing cycles are set as cold.

Select any additional cycle options, such as STEAM, or COLDWASH™ by pressing the button for that option, or by pressing the OPTION button for additional options. NOTE: To protect your garments, not every wash/temp., spin speed, soil level, or option is available with every cycle. The water temperature of all rinsing cycles are set as cold.

BEGIN CYCLE Press the START/PAUSE button to begin the cycle. To pause the cycle at any time, press START/PAUSE. NOTE: If the temperature in the washer is too high, the door cannot be unlocked until the washer has cooled. If the water level is too high, select the Rinse & spin cycle (see the page 25 for details) to drain excess water. Do not try to force the door open.

The door will latch, the display will change, and the washer will calculate the estimated time remaining. Once the washer has calculated the estimated total cycle time, the washer will start. NOTE: Washing time can be reduced significantly for small or lightly soiled loads by selecting the Speed Wash cycle and setting the Soil Level button to Light. NOTE: The cycle time displayed may appear much longer than that of a top loading washer. The displayed time is for the complete cycle, rather than just the agitation portion of the cycle, as is typically shown on a top-loading washer.

wWARNING: To reduce the risk of fire, electric shock, or injury to persons, read the IMPORTANT SAFETY INSTRUCTIONS before operating this appliance

CYCLE GUIDE The cycle guide below shows the options and recommended fabric types for each cycle. = Available option NOTE: To protect your garments, not every wash/temperature, spin speed, soil level, or option is available with every cycle. The water temperature of all rinsing cycles are set as cold. Extra HotSANITARY Cold WarmTap ColdDELICATES Hot Tap Cold Cold Warm SPEED WASH Warm Hot Tap Cold Cold COTTON/NORMAL Warm Tap Cold Cold HAND WASH/ WOOL Warm Hot Tap Cold Cold PERM.PRESSALLERGIENE

Cotton, underwear, pillow covers, bed sheets, baby wear STEAMFRESH

Fabric Care Labels Most articles of clothing feature fabric care labels that include instructions for proper care. Fabric Care Labels Grouping Similar Items For best results, sort clothes into loads that can be washed with the same wash cycle. Different fabrics have different care requirements. Always wash dark colors separately from light colors and whites to prevent discoloration. If possible, do not wash heavily soiled items with lightly soiled ones. The chart below shows recommended groupings. Sort Laundry... by Colors by Soil by Fabric by Lint Whites Heavy Delicates Lint ProducerLights Normal Easy Care Lint CollectorDarks Light Sturdy Loading the Washer

• Check all pockets to make sure that they are empty. Items such as clips, matches, pens, coins, and keys can damage both your washer and your clothes.

• Close zippers, hooks, and drawstrings to prevent these items from snagging or tangling on other clothes.

• Pre-treat heavily stained areas for best results.

• Combine large and small items in a load. Load large items first.

• Large items should not be more than half of the total wash load.

• The washer can be fully loaded, but the drum should not be tightly packed with items. The door of the washer should close easily.

• To prevent an out-of-balance load, do not wash single items. Add one or two similar items to the load. Large, bulky items, such as a blanket, comforter, or bedspread should be washed individually.

• Do not wash or spin waterproof clothes.

• When unloading the washer, check under the door seal for small items. NOTE: The front loading washer rotates the wet laundry to wash it with less water. If you do not see the water during washing, it is not a problem because the laundry is sufficiently wet.

The automatic dispenser consists of four compartments which hold:

• Liquid chlorine bleach.

• Liquid fabric softener.

• Liquid or powdered detergent for pre-wash.

• Liquid or powdered detergent and color-safe bleach for main wash. All laundry products can be added at once in their respective dispenser compartments. They will be dispensed at the appropriate time for the most effective cleaning. After adding the laundry products to the dispenser, close the dispenser drawer. To add detergent, bleach, and fabric softener to the automatic dispenser: Open the dispenser drawer. Load the laundry products into the appropriate compartments. Slowly close the dispenser drawer to avoid early dispensing of the laundry products. NOTE: It is normal for a small amount of water to remain in the dispenser compartments at the end of the cycle.

Designed specially to use only HE (High-Effi ciency) detergent Insert Liquid Chlorine Bleach Compartment Liquid Fabric Softener Compartment Pre-wash Detergent Compartment Main Wash Detergent Compartment Liquid Detergent Cup IMPORTANT: our washing machine is designed for use with only High-Efficiency (HE) detergents. HE detergents are formulated specifically for front-load washers and contain suds-reducing agents. Always look for the HE symbol when purchasing detergent. HE detergents produce fewer suds, dissolve more efficiently to improve washing and rinsing performance, and help to keep the interior of your washer clean. Using a regular detergent may cause oversudsing and unsatisfactory performance. IMPORTANT: Do not place or store laundry products, such as detergent, bleach, or liquid fabric softener, on top of your washer or dryer. Wipe up any spills immediately. These products can damage the finish and controls.

Pre-wash Detergent Compartment Add liquid or powdered detergent to this compartment when using the pre-wash option. Always use HE (High-Efficiency) detergent with your washing machine.

• The amount of detergent added for the pre-wash option is

⁄2 the amount recommended for the main wash cycle. For example, if the main wash cycle requires one measure of detergent, add

⁄2 measure for the pre-wash option. NOTE: If liquid detergent is to be used for the main wash when using the pre-wash option, the liquid detergent cup accessory must be used in main wash dispenser to prevent the main wash liquid detergent from being dispensed immediately. Main Wash Detergent Compartment This compartment holds laundry detergent for the main wash cycle, which is added to the load at the beginning of the cycle. Always use HE (High-Efficiency) detergent with your washing machine. Never exceed the manufacturer’s recommendations when adding detergent. Using too much detergent can result in detergent buildup in clothing and the washer. Either powdered or liquid detergent may be used.

• When using liquid detergent, make sure the liquid detergent cup and insert are in place. Do not exceed the maximum fill line.

• When using powdered detergent, remove the insert and liquid detergent cup from the compartment. Powdered detergent will not dispense with the liquid detergent cup and insert in place. NOTE: Liquid or powdered color-safe bleach may be added to the main wash compartment with detergent of the same type. Liquid Bleach Compartment This compartment holds liquid chlorine bleach, which will be dispensed automatically at the proper time during the wash cycle.

• Do not add powdered or liquid color-safe bleach to this compartment.

• Always follow the manufacturer’s recommendations when adding bleach. Do not exceed the maximum fill line. Using too much bleach can damage fabrics.

• Never pour undiluted liquid chlorine bleach directly onto the load or into the drum. Fabric damage can occur. Fabric Softener Compartment This compartment holds liquid fabric softener, which will be automatically dispensed during the final rinse cycle.

• Always follow the manufacturer’s recommendations when adding fabric softener. Do not exceed the maximum fill line. Using too much fabric softener may result in stained clothes.

• Dilute concentrated fabric softeners with warm water. Do not exceed the maximum fill line.

• Never pour fabric softener directly onto the load or into the drum. Designed specially to use only HE (High-Efficiency) detergent Liquid Chlorine Bleach Compartment Liquid Fabric Softener Compartment Pre-wash Detergent Compartment Main Wash Detergent Compartment

When the START/PAUSE button is pressed, the washer automatically detects the wash load (weight) and optimizes the washing time, based on the selected cycle and options. The display will then indicate the estimated time remaining for the selected wash cycle. NOTE: The cycle time displayed may appear much longer than that of a top-loading washer. The displayed time is for the complete cycle, rather than just the agitation portion of the cycle, as is typically shown on a top-loading washer.

CYCLE COMPLETION INDICATOR

This portion of the display shows which stage of the wash cycle is currently underway (LOAD SENSING, WASH, RINSE or SPIN).

AUTOMATIC LOAD SIZE SENSING

At the beginning of the cycle, the washer tumbles the load and detects the weight of the clothes. The display will indicate the approximate load size in the LOAD SIZE display. This allows you to adjust the amount of detergent and other additives for best results and improved efficiency.

DOOR LOCk INDICATOR Indicates that the door is locked. The washer door will lock while the washer is operating. The door can be unlocked by pressing the START/PAUSE button to stop the washer. NOTE: If the temperature in the washer is too high, the door cannot be unlocked until the washer has cooled. If the water level is too high, select the RINSE & SPIN cycle to drain excess water. Do not try to force open the door.

DELAY WASH INDICATOR

This indicator shows that the washer has been set for DELAY WASH. The washer will start automatically after the set delay time has passed. The time and status display shows the cycle progress and estimated time remaining, cycle options, and other status messages for your washer.

uses the power of steam alone to quickly reduce wrinkles and odor in fabrics. It brings new life to wrinkled clothes that have been stored for an extended time and makes heavily wrinkled clothes easier to iron. Steam Fresh

can also be used to help reduce odors in fabrics. Use the Speed Wash cycle to quickly wash lightly soiled clothing and small load. For high wash and rinse efficiency, it is recommended to wash small loads of 2-3 lightly soiled garments. NOTE: Use a little detergent in this cycle. If you want more rinsing, you can add extra rinse by using the option button. To Use the Steam Fresh

Cycle: Turn on the washer and turn the cycle selector knob to select the Steam Fresh

cycle. Load up to 5 items and close the door. NOTE: If there is any moisture inside the drum, such as from a previous wash cycle, wipe the drum dry with a towel before adding clothes. Press the STEAM button until the correct number of items is shown in the display. No other options need to be set. Press the START/PAUSE button to start the cycle. After the Steam Fresh

cycle is complete, the washer will tumble the clothes for up to 30 minutes to prevent rewrinkling. After removing clothes from the Steam Fresh

cycle, they may feel slightly damp. Place clothes on a hanger for at least 10 minutes to allow them to dry.

cycle is not recommended for use with 100% cotton clothing.

• Remove stains from clothing before using the Steam Fresh

cycle; the high heat could cause stains to set permanently.

• Do not use Steam Fresh

with the following items : wool, blankets, leather jackets, silk, wet clothes, lingerie, foam products, or electric blankets.

• Best results are achieved when articles are of similar size and fabric type. Do not overload.

STEAM cycles include the STEAM FRESH™, ALLERGIENE™, SANITARY,

BULKY/LARGE, PERM.PRESS, COTTON/

NORMAL and cycles. Adding the Steam option to these cycles provides superior cleaning performance while reducing energy and water consumption. By using a hot steam spray from above and cooler water below, fabrics get the cleaning benefits of a super hot wash, without the energy usage or potential damage to fabrics. To Add STEAM to a Standard Cycle: Turn on the washer and turn the cycle selector knob to select a cycle with the STEAM option. Press the STEAM button. The washer will automatically adjust the cycle settings. Set any other desired options. Press the START/PAUSE button to start the cycle. The washer will start automatically. CAUTION: Do not touch the door during steam cycles. The door surface can become very hot. Allow the door lock to release before opening the door. Do not attempt to override the door lock mechanism or reach into the washer during a steam cycle. Steam can cause severe burns. IMPORTANT NOTES ABOUT STEAM CYCLES:

• Steam may not be clearly visible during the steam cycles. This is normal. Too much steam could damage clothing.

• Do not use steam with delicate fabrics such as wool, silk, or easily discolored fabrics.

• Do not touch the door.

Each cycle has preset settings that are selected automatically. You may also customize the settings using the cycle setting buttons. Press the button for that setting until the indicator light for the desired value is lit. The washer automatically adjusts the water level for the type and size of wash load for best results and maximum efficiency. It may seem there is no water inside the drum in some cycles, but this is normal. NOTE: To protect your garments, not every wash/ temp., spin speed, soil level, or option is available with every cycle. See the Cycle Guide for details. WASH/TEMP. Selects the wash and rinse temperature combination for the selected cycle. Press the WASH/TEMP. button until the indicator light for the desired setting is lit.

• Your washer features a heating element to boost the hot water temperature for Extra Hot settings. This provides improved wash performance at normal water heater settings.

• Select the water temperature suitable for the type of load you are washing. Follow the fabric care label for best results.

• Cold rinses use less energy, and the rinse temperature depends on the cold water at the faucet.

The water temperature of all rinsing cycles are set as cold. SOIL LEVEL Adjusts the selected cycle to allow more time for heavily soiled clothes or less time for lightly soiled clothes. Press the SOIL LEVEL button until the indicator light for the desired setting is lit. SPIN SPEED The washer drum spins at up to 1,200 RPM. This extracts more water from clothes, reducing drying time and saving energy. Press the SPIN SPEED button until the indicator light for the desired setting is lit. Some fabrics, such as delicates, require a slower spin speed. COLDWASH™ CYCLES COLDWASH

cycles include the BULKY/LARGE, DELICATES, PERM.PRESS, COTTON/NORMAL, HANDWASH/WOOL , and SPEED WASH cycles. Adding the COLDWASH

option to these cycles provides reduce energy usage and same washing performance as warm wash. By using 6 different washing motion (Tumbling, Rolling, Stepping, Scrubbing, Swing, Filtration), fabrics get the cleaning benefits, without the energy usage. To Add COLDWASH™ to a Standard Cycle: Turn on the washer and turn the cycle selector knob to select a cycle with the COLDWASH™ option. Press the COLDWASH™ button. The washer will automatically adjust the cycle settings. Set any other desired options. Press the START/PAUSE button to start the cycle. The washer will start automatically. IMPORTANT NOTES ABOUT COLDWASH™ CYCLES:

• When you select the COLDWASH™ option, wash time will be increased up to 10 minutes.

• For high wash efficiency, it is recommended to use less than 8 pounds.

At the beginning of the cycle, the washer tumbles the load and detects the weight of the clothes. The display will indicate the approximate load size in the LOAD SIZE display. This allows you to adjust the amount of detergent and other additives for best results and improved efficiency.

LOAD SIZE SENSING SYSTEM

To use Automatic Load Size Sensing: Load the washer, select the desired cycle and options, and then start the cycle by pressing the START/PAUSE button. The washer will tumble for a short time to detect the size of the load. After the washer detects the load size, the washer will show the detected size in the LOAD SIZE display for 10 seconds before it continues with the cycle. During the 10 second delay in step three, press the START/PAUSE button to pause the cycle. Fill the detergent and additive compartments of the detergent drawer with detergent/ dditive amounts based on the load size the machine has detected. Following these guidelines can save detergent. Press the START/PAUSE button again to resume the cycle. To check the load size during the wash portion of the cycle, press and hold the RINSE+SPIN button for 3 seconds. The LOAD SIZE display will be activated for 10 seconds. NOTE: The load detection routine only works with dry clothes. Since the detection system is detecting the WEIGHT of the load, it will be affected by unusually heavy articles in the load. For example, a garment that is already wet that is loaded with other items will cause the LOAD SIZE reading to be inaccurate. If you do not desire to take advantage of the load size detection feature, simply load the desired amount of detergent and additives in the dispenser and start the washer in the usual manner.

The LOAD SIZE display: Example 1 : If the washer has detected a small load size, the display may only show one lighted bar. Only a small amount of detergent should be used, because the amount of clothing and the quantity of water that will be used is small. NOTE: Because the washer uses a very small amount of water, care should be taken when deciding how much detergent to use. Normal loads only need about half the detergent manufacturer’s recommended amount. This saves detergent by using it in a more concentrated manner. However, for heavily soiled loads, additional detergent should be added. Never exceed manufacturer Example 2 : If the washer has detected a large load size, the display may show all four bars lighted. More detergent should be used, because the amount of clothing and the quantity of water that will be used is greater. Recommended amount for this load Detergent manufacturer’s recommended amount for a full load Detergent manufacturer’s recommended amount for a full load Recommended amount for this load MFL62526880_en_110329.indd 24 3/29/11 2:01:24 PMENGLISH

Your washing machine features several additional cycle options to customize cycles to meet your individual needs. Certain option buttons also feature a special function (see the following page for details) that can be activated by pressing and holding that option button for 3 seconds. To Add Cycle Options to a Cycle: Turn on the washer and turn the cycle selector knob to select the desired cycle. Use the cycle settings buttons to adjust the settings for that cycle. Press the cycle option button(s) for the option you would like to add. The cycle option buttons, except DELAY, will light when selected. Press the START/PAUSE button to start the cycle. The washer will start automatically. NOTE: To protect your garments, not every wash/ temp., spin speed, soil level or option is available

Use this function to save energy by using cold water while ensuring proper washing. For high wash efficiency, it is recommended to use less than 8 pounds. RINSE+SPIN Select this option to rinse and spin a load separately from a regular cycle. This can be helpful in preventing fresh stains from setting in fabrics. To activate the Rinse+Spin cycle: Press the ON/OFF button to turn on the washer. Press the RINSE+SPIN button. Press the START/PAUSE button. PREWASH Select this option to add a 16-minute prewash and spin cycle to the chosen cycle. This is especially useful for heavily soiled items. EXTRA RINSE This option will add an extra rinse cycle to the selected cycle. Use this option to help ensure the removal of detergent or bleach residue from fabrics. WATER PLUS Select this option to add extra water to the wash and rinse cycles for superior results, especially with large or bulky items.

MFL62526880_en_110329.indd 25 3/29/11 2:01:25 PMHOW TO USE SPECIAL FUNCTIONS The option buttons also activate special functions, including LOAD SIZE, SIGNAL ON/OFF, CHILD LOCK, TUB CLEAN. Press and hold the option button marked with the special function for 3 seconds to activate. TUB CLEAN A buildup of detergent residue can occur in the wash tub over time and can lead to a mildewy or musty smell. The TUB CLEAN cycle is specially designed to remove this buildup. Press and hold the EXTRA RINSE button for 3 seconds to activate this cycle. After the cycle has ended, open the door and allow the drum interior to dry completely. NOTE: Do NOT use this cycle with clothes, and do NOT add detergent or fabric softener. NOTE: If you use the TUB CLEAN cycle on a monthly basis, the wash drum will be kept clean. CHILD LOCk Use this option to prevent unwanted use of the washer or to keep cycle settings from being changed while the washer is operating. Press and hold the PREWASH button for 3 seconds to activate or deactivate the child lock function. The child lock indicator will be shown in the display, and all buttons are disabled except the ON/OFF button. NOTE: CHILD LOCK lasts after the end of cycle. If you want to deactivate this function, Press and hold the PREWASH button for 3 seconds. LOAD SIZE At the beginning of the cycle, the washer tumbles the load and detects the weight of the clothes. The display will indicate the approximate load size in the LOAD SIZE display. This allows you to adjust the amount of detergent and other additives for best results and improved efficiency. See page 24 for details.

You may turn the end-of-cycle SIGNAL on or off with the WATER PLUS button Press and hold the WATER PLUS button for 3 seconds to turn the SIGNAL OFF. Press and hold the WATER PLUS button again for 3 seconds to turn the SIGNAL back on.

• Only woolen items that are designated as Machine-Washable should be washed in this washing machine

• Wash only small loads for optimum fabric care (less than 8 pounds)

• Only neutral (wool safe) detergents should be used (Only a small quantity of detergent is needed due to the small load size and low volume of water in the cycle.)

• The HANDWASH/WOOL cycle uses a gentle tumble action and low speed spin for ultimate fabric care

Certified by NSF Certificado por NSF NSF International (formerly the National Sanitation Foundation), certifies that SANITARY cycle reduces 99.9% of bacteria on laundry, and none of bacteria will carry over onto the next laundry load. The wool wash cycle of this machine has been approved by Woolmark for the washing of machine washable Woolmark products provided that the products are washed according to the instructions on the garment label and those issued by the manufacturer of this washing machine, M0807

ALLERGIENE™ The ALLERGIENE™ cycle is a powerful, high temperature cycle designed specifically to reduce certain allergens.

• Selecting the ALLERGIENE™ cycle automatically incorporates steam into the wash cycle.

• The ALLERGIENE™ cycle can significantly reduce allergens in bedding and clothing.

• The ALLERGIENE™ cycle helps reduce dust mite populations and helps reduce allergens.

• Due to the higher energy and temperatures used, the ALLERGIENE™ cycle is not recommended for wool, silk, leather, or any other delicate or temperature sensitive items.

• Unplug the washer before cleaning to avoid the risk of electric shock. Failure to follow this warning can cause serious injury, fire, electric shock, or death.• Never use harsh chemicals, abrasive cleaners, or solvents to clean the washer. They will damage the finish.Read these instructions carefully beforebeginning the TUB CLEAN cycle. Open the door and remove any clothing in the wash drum.Open the dispenser drawer.Add liquid chlorine bleach or tub cleaner. Some powder or tablet tub cleaners which are manufactured for this purpose can be used.(NOTE : Do not add any laundry detergentor fabric softener to the drawer when usingTUB CLEAN.)- If using liquid chlorine bleach Add liquid chlorine bleach to the bleach compartment of the drawer. (NOTE : Do not exceed the maximum fill line and do not pour undiluted liquid bleach directly into the wash drum.)- If using powder cleaner Remove the liquid detergent cup and add powder cleaner to the main wash compartment of the drawer.- If using tablet cleaner Add tablet cleaner to the wash drum directly. (NOTE : Do not add tablet cleaner to the drawer.)Close the drawer and washer door.Select TUB CLEAN and press START.

Cleaning the Exterior Proper care of your washer can extend its life. The outside of the machine can be cleaned with warm water and a mild, nonabrasive household detergent.Immediately wipe off any spills with a soft, damp cloth. IMPORTANT: Do not use methylated spirits, solvents, or similar products. Never use steel wool or abrasive cleansers; they can damage the surface. Removing stains on the Door Seal NOTE: Wear rubber gloves and eye protection while performing the following procedure: Dilute cup (177 ml) liquid chlorine bleach with 1 gallon (3.8 L) of warm/hot water.

Use this solution to wipe down all surfaces of the gasket to remove the deposits that are causing any odor. (Be sure to fold back the lip of the gasket to get under the edge where residue can build up.)Wipe the gasket with a dry cloth.Leave the door open to allow the gasket to dry completely.Do not use undiluted bleach as this will damage the gasket. Follow the manufacturer’s instructions for proper use of bleach. If the gasket cannot be cleaned properly, it should be replaced. Care and Cleaning of the Interior Use a towel or soft cloth to wipe around the washer door opening, door seal, and door glass. These areas should be kept clean to ensure a watertight seal. Be sure to wipe under the inside rubber seal to remove any moisture or soil. Always remove items from the washer as soon as the cycle is completed. Leaving damp items in the washer can cause wrinkling, color transfer, and odor. Run the TUB CLEAN cycle regularly to remove detergent buildup and other residue. NOTE: If you use the TUB CLEAN cycle on a monthly basis, the wash drum will be kept clean.NOTE : It is recommended that TUB CLEANshould be repeated monthly.If mildew or musty smell already exists, run TUBCLEAN for 3 consecutive weeks.After TUB CLEAN is complete or when the washer is not used, leave the washer door open for better ventilation and drying inside of the washer. MFL62526880_en_110329.indd 27 3/29/11 2:01:27 PMCARE AND CLEANING

REGULAR CLEANING (CONT.) CLEANING THE WASHER

Storing the Washer If the washer will not be used for an extended period of time and is in an area that could be exposed to freezing temperatures: Turn off water supply tap. Disconnect hoses from water supply and drain water from hoses. Plug the power cord into a properly grounded electrical outlet. Add 1 gallon of nontoxic recreational vehicle (RV) antifreeze to the empty wash drum. Close door. Select the spin cycle and let washer spin for 1 minute to drain out all the water. NOTE: Not all of the RV antifreeze will be expelled. Unplug the power cord, dry the drum interior with a soft cloth, and close the door. Remove the inserts from the dispenser. Drain any water in compartments and dry the compartments. Cleaning the Dispenser The dispenser should be cleaned periodically to remove buildup from detergent and other laundry products. Pull out the dispenser drawer until it stops. Press the button in the center of the drawer and pull to remove the drawer.

Remove the inserts from the drawer, and clean them with warm water and a soft cloth or brush to remove any residue or buildup. Wipe out the inside of the drawer opening with a damp cloth. Reassemble the drawer and reinstall in the drawer opening. NOTE: Do not use anything other than water to clean the drawer, inserts, and drawer opening. If any sort of household cleaner drains into the interior of the washer, run a RINSE

SPIN cycle before washing clothes.

NOTE: Weekly cleaning of the detergent dispenser will ensure problem free operation.

Store the washer in an upright position. To remove the antifreeze from the washer after storage, run washer through a complete cycle using detergent. Do not add laundry! Removing lime buildup If you live in an area with hard water, lime scale can form on internal components of the washer. Use of a water softener is recommended in areas with hard water. If a descaler is used, make sure that it is suitable for use in a washer, and run the TUB CLEAN cycle before washing clothing. Lime scale and other spots may be removed from the stainless steel drum using a stainless steel cleaner. Do NOT use steel wool or abrasive cleansers; they can damage the surface. Notice of tub clean activation To clean up the tub, please select the tub clean course. Please empty the tub and insert bleach into the detergent dispenser and push the tub clean button. keep door open It is recommended to leave the door open after finishing the laundry to keep the tub clean.

MFL62526880_en_110329.indd 28 3/29/11 2:01:28 PMENGLISH Cleaning the water inlet filters If the washer detects that water is not entering the dispenser, an error message will show on the display. If you live in an area with hard water, this may be caused by clogged inlet filters. Turn off both water taps completely. Unscrew the hot and cold water lines from the back of the washer.

Carefully remove the filters from the water inlets, and soak them in white vinegar or a lime scale remover, following the manufacturer’s instructions. Rinse thoroughly before reinstalling. Press the filters back into place and reattach the water lines. Do NOT operate the washer without the inlet filters.

IMPORTANT: Use extreme care when removing and cleaning the filters. If the filters cannot be cleaned or are damaged, do NOT operate the washer without the inlet filters. Contact LG Customer Service or a qualified LG servicer. Inlet Filter MAINTENANCE

IMPORTANT: Use ONLY the inlet hoses provided by LG with this laundry product. Aftermarket hoses are not guaranteed to fit or function correctly. Other hoses may not tighten correctly and could cause leaks. Subsequent damage to product or property will not be covered under the terms of LG's warranty.

MFL62526880_en_110329.indd 29 3/29/11 2:01:28 PMCleaning the Drain Pump Filter Lint and other objects may accumulate and clog the drain pump filter. If the washer fails to drain properly, unplug the washer and allow the water to cool, if necessary, before proceeding. Open the drain pump filter access panel.

MAINTENANCE (cont.) Unclip the drain hose and pull it out. Place the end of the drain hose in a pan, bucket, or floor drain to catch water.

Drain Hose Remove the plug from the drain hose, and allow the water to drain completely. Twist the pump filter counterclockwise to remove. Remove any lint and foreign objects from the pump filter. Reverse the above steps to reinstall the drain pump filter and drain hose. Be sure to close the cover panel when finished.

Plug Pump Filter Twist the pump filter counterclockwise to remove. Remove any lint and foreign objects from the pump filter. Reverse the procedures described in the steps above to reinstall the filter and drain plug. Be sure to close the cover.

The following sounds may be heard while the washer is operating. They are normal. Clicking: Door lock relay when the door locks and unlocks. Spraying or hissing: Water spraying or circulating during the cycle. Humming or gurgling: Drain pump pumping water from the washer at the end of a cycle. Splashing: Clothes tumbling in the drum during the wash and rinse cycles.

BEFORE CALLING FOR SERVICE

Your Steam Washer™ is equipped with an automatic error-monitoring system to detect and diagnose problems at an early stage. If your washer does not function properly or does not function at all, check the following before you call for service. Problem Possible Causes Solutions Rattling and clanking noiseThumping soundWater leaking around washer• Foreign objects, such as keys, coins, or safety pins, may be in drum or pump.• Heavy wash loads may produce a thumping sound.• Washer load may be out of balance.• Shipping bolts and/or packaging materials not removed.• Wash load may be unevenly distributed in the drum.• Not all leveling feet are resting firmly on the floor.• Floor not rigid enough.• Fill hose connection is loose at tap or washer.• House drain pipes are clogged.• Stop washer and check drum and drain lter for foreign objects. If noise continues after washer is restarted, call for service.• This is normal. If sound continues, washer is probably out of balance. • Stop and redistribute wash load.• See Installation Instructions for removing shipping bolts and packaging.• Stop washer and rearrange wash load.• Adjust the leveling feet. Make sure all four feet are in firm contact with the floor while the washer is in the spin cycle with a load.• Make sure that the oor is solid and does not ex. Refer to “Flooring” in the Installation section.• Check hoses. Check and tighten hose connections.• Unclog drain pipe. Contact a plumber if necessary.Vibrating noiseExcessive sudsing• Too much detergent or incorrect detergent.• Reduce detergent amount or use low-sudsing detergent. Only use detergent with the HE (High-Efficiency) logo.Staining• Laundry products added directly to the washer drum.• Washer not unloaded promptly.• Clothes not sorted properly.• Load the laundry products into the dispenser.• Always remove items from the washer as soon as the cycle is completed.• Always wash dark colors separately from light colors and whites to prevent discoloration. If possible, do not wash heavily soiled items with lightly soiled ones. MFL62526880_en_110329.indd 31 3/29/11 2:01:30 PMBEFORE CALLING FOR SERVICE (cont.) Problem Possible Causes Solutions Washer fills with water slowly or not at all, or the display shows: Washer will not turn on Musty or mildewy odor in washer

• Water supply taps are not open fully.

• Water line hoses are kinked, pinched, or bent.

• Water inlet lters are clogged.

• Water pressure to tap or house is too low.

• Power cord is not properly plugged in.

• House fuse is blown, circuit breaker has tripped, or power outage has occurred.

• The door is not closed properly.

• Incorrect or too much detergent has been used.

• Inside of tub not cleaned properly.

• Make sure that the water taps are open fully.

• Make sure the hoses are not kinked or pinched. Be careful when moving the washer.

• Clean the inlet lters. See the Care and Cleaning section.

• Check another faucet in the house to make sure that household water pressure is adequate.

• Make sure that the plug is plugged securely into a grounded, 3-prong, 120-VAC, 60-Hz. outlet.

• Reset circuit breaker or replace fuse. Do not increase fuse capacity. If the problem is a circuit overload, have it corrected by a qualified electrician.

• Make sure that the door is closed properly and press the START/PAUSE button. After starting a cycle, it may take a few moments before the drum begins to turn or spin. The washer will not spin unless the door is locked (DOOR LOCK will appear in the display).

• If the door is closed and locked and the open door error message is displayed, call for service.

• Use only HE (High-Efciency) detergent in accordance with the manufacturer’s instructions.

• Run the TUB CLEAN cycle regularly. Be sure to wipe around and under the door seal frequently.

Clean around door seal/glass to prevent odor or mildew:

1. wipe dry the door seal/glass and the door opening area.

2. wipe around the inner drum/door seal and the lower

door seal. Washer won’t spin, or the display shows:

• The washer automatically adjusts the wash time for the amount of laundry, water pressure, water temperature, and other operating conditions.

• This is normal. The washer adjusts cycle time automatically to provide optimal results for the selected cycle. Wash cycle time is longer than usual Door will not unlock when cycle is stopped or paused

• Interior temperature of washer is too high.

• Water level in washer is too high.

• The washer door has a safety lock to prevent burns. Allow the washer to cool until the DOOR LOCK indicator turns off in the display.

• Allow the washer to complete the programmed cycle, or run the RINSE & SPIN cycle to drain the water. Water in the washer drains slowly or not at all, or the display shows:

• Drain hose is bent, pinched, or clogged.

• The drain lter is clogged.

• Make sure the drain hose is free of clogs, kinks, etc., and is not pinched behind or under the washer.

• Clean the drain lter. See the Care and Cleaning section. TROUBLESHOOTING

MFL62526880_en_110329.indd 32 3/29/11 2:01:30 PMENGLISH BEFORE CALLING FOR SERVICE (cont.) TROUBLESHOOTING Problem Possible Causes Solutions The display shows:Wrinkling• Water level is too high due to a faulty water valve.• The water level sensor is not working correctly.• Washer not unloaded promptly.• Washer overloaded.• Hot and cold water inlet hoses are reversed.The display shows: • Control error. • Unplug the washer and call for service.• Close the water taps, unplug the washer, and call for service.• Close the water taps, unplug the washer, and call for service.Staining• Add laundry products to the washer drum.• Washer not unloaded promptly.• Does not properly sort the clothes.• Load the laundry products into the dispenser. • Always remove items from the washer as soon as the cycle is completed.• Always wash dark colors separately from light colors and whites to prevent discoloration. If possible, do not wash heavily soiled items with lightly soiled ones.• Always remove items from the washer as soon as the cycle is completed.• The washer can be fully loaded, but the drum should not be tightly packed with items. The door of the washer should close easily.• Hot water rinse can set wrinkles in garments. Check the inlet hose connections.The display shows:• A power failure has occurred. • Restart the cycle.The display shows:The display shows:• Thermal overload protection circuit in the motor has been tripped.• Allow the washer to stand for 30 minutes to allow the motor to cool; then restart the cycle. If the LE error code still appears, unplug the washer and call for service.The display shows:• Load is too small.• Load is out of balance.• The washer has an imbalance detection and correction system. If individual heavy articles are loaded (bath mat, bath robe, etc.) and the imbalance is too great, the washer will make several attempts to restart the spin cycle. If an imbalance is still detected, the washer will stop and the error code will be displayed.• Add 1 or 2 similar items to help balance the load.• Rearrange items to help balance the load. MFL62526880_en_110329.indd 33 3/29/11 2:01:31 PMTROUBLESHOOTING/SPECIFICATIONS/OPTIONAL ACCESSORIES Steam Washer™ Model WM2550H*CA Description Front-Loading Washer Electrical Requirements 120 VAC @ 60 Hz. Max. Water Pressure 14.5~116 PSI (100~800 kPa) Net Weight 192 lbs. (87 kg) Max. Spin Speed 1,200 RPM Dimensions 27”(W) X 29

/16”(H), 51”(D with door open)

68.6 cm (W) X 75.6 cm (D) X 98.3 cm (H), 129.7 cm (D with door open)

OPTIONAL ACCESSORIES For these and other LG products, contact your local LG dealer, or visit our Web site at www.lg.com. Pedestal Give your LG washer and dryer a boost with matching 14-inch high pedestals. They feature a storage drawer for added convenience. 14” Pedestal Color WDP4C Chardonnay Steel WDP4R Wild Cherry Red WDP4V Graphite Steel WDP4W White Stacking Kit If space is at a premium, use this kit to securely stack your LG front-load washer and dryer. Bracket Kit Color CSTK1 Chardonnay RSTK1 Wild Cherry Red SSTK1 Titanium WSTK1 Whtie

KEY DIMENSIONS AND SPECIFICATIONS

The appearance and specifications listed in this manual may vary due to constant product improvements. USING SMARTDIAGNOSIS™ - Only use this feature when instructed to do so by the call center. The transmission sounds similar to a fax machine, and so has no meaning except to the call center. - SmartDiagnosis™ cannot be activated if the washer does not power up. If this happens, then troubleshooting must be done without SmartDiagnosis

If you experience problems with your washer, call 1-800-243-0000 (1-888-542-2623 in Canada). Follow the call center agent’s instructions, and do the following steps when requested: Press the POWER button to turn on the washer. Do not press any other buttons or turn the cycle selector knob.

When instructed to do so by the call center, place the mouthpiece of your phone very close to the POWER button.

Press and hold the WASH/TEMP. button for three seconds, while holding the phone mouthpiece to the icon or POWER button.

Keep the phone in place until the tone transmission has finished. This takes about 15 seconds, and the display will count down the time.

• For best results, do not move the phone while the tones are being transmitted.

• If the call center agent is not able to get an accurate recording of the data, you may be asked to try again.

• Pressing the POWER button during the transmission will shut off the SmartDiagnosis™.

Once the countdown is over and the tones have stopped, resume your conversation with the call center agent, who will then be able to assist you using the information transmitted for analysis at the call center.

MFL62526880_en_110329.indd 34 3/29/11 2:01:32 PMENGLISH Your LG Washing Machine will be repaired or replaced, at LG’s option, if it proves to be defective in material or workman- ship under normal use, during the warranty period (“Warranty Period”) set forth below, effective from the date (“Date of Pur- chase”) of original consumer purchase of the product. This warranty is good only to the original purchaser of the product and effective only when used in the United States, including Alaska, Hawaii, and U.S. Territories. THIS WARRANTY IS IN LIEU OF ANY OTHER WARRANTY, EXPRESS OR IMPLIED, INCLUDING WITHOUT LIMITATION, ANY WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. TO THE EXTENT ANY IMPLIED WARRANTY IS REQUIRED BY LAW, IT IS LIMITED IN DURATION TO THE EXPRESS WARRANTY PERIOD ABOVE. NEITHER THE MANUFACTURER NOR ITS U.S. DISTRIBUTOR SHALL BE LIABLE FOR ANY INCIDENTAL, CONSEQUENTIAL, INDIRECT, SPECIAL, OR PUNITIVE DAMAGES OF ANY NATURE, INCLUDING WITHOUT LIMITATION, LOST REVENUES OR PROFITS, OR ANY OTHER DAMAGE WHETHER BASED IN CONTRACT, TORT, OR OTHERWISE. Some states do not allow the exclusion or limitation of incidental or consequential damages or limitations on how long an implied warranty lasts, so the above exclusion or limitation may not apply to you. This warranty gives you specific legal rights and you may also have other rights that vary from state to state. THIS LIMITED WARRANTY DOES NOT APPLY TO:

• Service trips to your home to deliver, pick up, and/or install the product, instruct, or replace house fuses or correct wiring, or correction of unauthorized repairs.

• Damages or operating problems that result from misuse, abuse, operation outside environmental specications or contrary to the requirements of precautions in the Operating Guide, accident, vermin, fire, flood, improper installation, acts of God, unauthorized modification or alteration, incorrect electrical current or voltage, or commercial use, or use for other than intended purpose. The cost of repair or replacement under these excluded circumstances shall be borne by the consumer.

BY MAIL: LG Customer Information Center P. O. Box 240007 201 James Record Road Huntsville, Alabama 35824 ATTN: CIC WARRANTY PERIOD: LABOR: One Year from the Date of Purchase. PARTS (except as listed below): One Year from the Date of Purchase. Drum Motor(Stator, Rotor, Hall Sensor) : Ten Years from the Date of Purchase. Stainless Steel Drum: Lifetime Replacement Units and Repair Parts may be new or remanufactured. Replacement Units and Repair Parts are warranted for the remaining portion of the original unit’s warranty period. LG ELECTRONICS, INC. LG WASHING MACHINE LIMITED WARRANTY - USA HOW SERVICE IS HANDLED: In-Home Service: Please retain dealer’s dated bill of sale or delivery ticket as evidence of the Date of Purchase for proof of warranty, and submit a copy of the bill of sale to the service person at the time warranty service is provided. Please call 1-800-243-0000 and choose the appropriate option to locate your nearest LG Authorized Service Center. Or visit our Web site at: http://www.lg.com. Call 1-800-243-0000 (24 hours a day, 365 days a year), and select the appropriate option from the menu. Or visit our Web site at: http://www.lg.com. To obtain Customer Assistance, Product Information, or Dealer or Authorized Service Center location:

MFL62526880_sp_110329.indd 5 3/29/11 2:02:01 PM~ I N S T RU C C I O N E S I M P O RTA N T E S D E S E G U R I DA D

MFL62526880_fr_110329.indd 4 3/29/11 2:03:11 PMFRANÇAIS I N S T RU C T I O N S I M P O RTA N T E S D E S É C U R I T É

MFL62526880_fr_110329.indd 5 3/29/11 2:03:11 PMI N S T RU C T I O N S I M P O RTA N T E S D E S É C U R I T É

MFL62526880_fr_110329.indd 35 3/29/11 2:03:52 PMThis product qualifies for ENERGY STAR in the “factory default (Home Use)” setting. Changing the factory default settings or enabling other features may increase power consumption that could exceed the limits necessary to quality for ENERGY STAR. 1-800-243-0000 1-888-542-2623 USA CANADA LG Customer Information Center Register your product Online! www.lg.com MFL62526880_fr_110329.indd 36 3/29/11 2:03:52 PM
