USER MANUAL CVBNM 6182XNB CANDY

Installing and operating your fridge.......................................... 10 Before Using your Fridge

Information about New Generation Cooling Technology

SCRAPPING OLD APPLIANCES

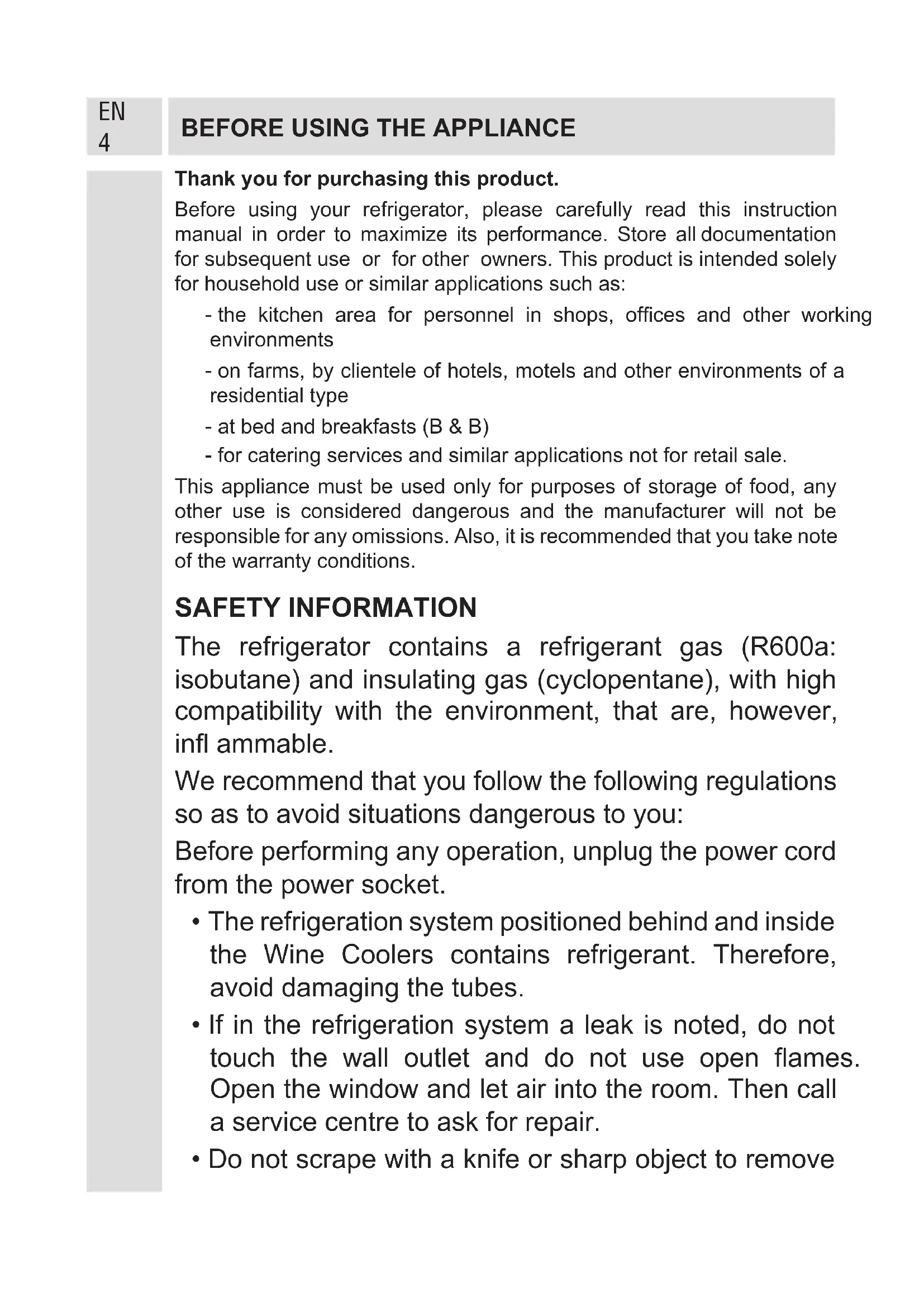

Thank you for purchasing this product. Before using your refrigerator, please carefully read this instruction manual in order to maximize its performance. Store all documentation for subsequent use or for other owners. This product is intended solely for household use or similar applications such as: - the kitchen area for personnel in shops, ofces and other working environments - on farms, by clientele of hotels, motels and other environments of a residential type - at bed and breakfasts (B & B) - for catering services and similar applications not for retail sale. This appliance must be used only for purposes of storage of food, any other use is considered dangerous and the manufacturer will not be responsible for any omissions. Also, it is recommended that you take note of the warranty conditions. SAFETY INFORMATION The refrigerator contains a refrigerant gas (R600a: isobutane) and insulating gas (cyclopentane), with high compatibility with the environment, that are, however, in ammable. We recommend that you follow the following regulations so as to avoid situations dangerous to you: Before performing any operation, unplug the power cord from the power socket.

• The refrigeration system positioned behind and inside the Wine Coolers contains refrigerant. Therefore, avoid damaging the tubes.

• If in the refrigeration system a leak is noted, do not touch the wall outlet and do not use open ames. Open the window and let air into the room. Then call a service centre to ask for repair.

• Do not scrape with a knife or sharp object to removeEN

frost or ice that occurs. With these, the refrigerant circuit can be damaged, the spill from which can cause a re or damage your eyes.

• Do not install the appliance in humid, oily or dusty places, nor expose it to direct sunlight and to water.

• Do not install the appliance near heaters or inammable materials.

• Do not use extension cords or adapters.

• Do not excessively pull or fold the power cord or touch the plug with wet hands.

• Do not damage the plug and/or the power cord; this could cause electrical shocks or res.

• It is recommended to keep the plug clean, any excessive dust residues on the plug can be the cause re.

• WARNING:Do not use mechanical devices or other equipment to hasten the defrosting process.

• Absolutely avoid the use of open ame or electrical equipment, such as heaters, steam cleaners, candles, oil lamps and the like in order to speed up the defrosting phase.

• Do not use or store inammable sprays, such as spray paint, near the Wine Coolers. It could cause an explosion or re.

• WARNING:Do not use electrical appliances inside the food storage compartments, unless they are of the type recommended by the manufacturer.

• Do not place or store inammable and highly volatile materials such as ether, petrol, LPG, propane gas, aerosol spray cans, adhesives, pure alcohol, etc.EN

These materials may cause an explosion.

• Do not store medicine or research materials in the Wine Coolers. When the material that requires a strict control of storage temperatures is to be stored, it is possible that it will deteriorate or an uncontrolled reaction may occur that can cause risks.

• Maintain the ventilation openings in the appliance enclosure or in the built-in structure, free of obstruction.

• Do not place objects and/or containers lled with water on the top of the appliance.

• Do not perform repairs on this Wine Coolers. All interventions must be performed solely by qualied personnel.

• This appliance can be used by children aged from 8 years and above and by persons with reduced physical, sensory or mental capabilities or with a lack of experience and knowledge; provided that they have been given adequate supervision or instruction concerning how to use the appliance in a safe way and understand the hazards involved.

• Children should not play with the appliance. Cleaning and user maintenance should not be made by children without supervision

WARNING: Keep vantilation openings, in the appliance

enclosure or in the built-in structure, clear of obstruction.

WARNING: Do not damage the refrigerant circuit.

• If the socket does not match the refrigerator plug, it must be replaced by the manufacturer, a service agent or similarly qualied persons in order to avoid

• A specially grounded plug has been connected to the power cable of your refrigerator. This plug should be used with a specially grounded socket of 16 amperes. If there is no such socket in your house, please have one installed by an authorised electrician.

• If the supply cord is damaged, it must be replaced by the manufacturer, an authorised service agent or similar qualied persons, in order to avoid a hazard.

• This appliance is not intended for use at altitudes exceeding 2000 m.

• Please read the instruction manual carefully before installing and using your appliance. We are not responsible for the damage occurred due to misuse.

• Follow all instructions on your appliance and instruction manual, and keep this manual in a safe place to resolve the problems that may occur in the future.

• This appliance is produced to be used in homes and it can only be used in domestic environments and for the specied purposes. It is not suitable for commercial or common use. Such use will cause the guarantee of the appliance to be cancelled and our company will not be responsible for losses incurred.

• This appliance is produced to be used in houses and it is only suitable for cooling / storing food. It is not suitable for commercial or common use and/or for storing substances except for food. Our company is not responsible for losses to be incurred in the contrary case.EN

• Do not connect your Fridge Freezer to the mains electricity supply using an extension lead.

• Do not plug in damaged, torn or old plugs.

• Do not pull, bend or damage the cord.

• This appliance is designed for use by adults, do not allow children to play with the appliance or let them hang off the door.

• Never touch the power cord/plug with wet hands as this could cause a short circuit or electric shock.

• Do not place glass bottles or beverage cans in the ice- making compartment as they can burst as the contents freeze.

• Do not place explosive or ammable material in your fridge. Place drinks with high alcohol content vertically in the fridge compartment and make sure that their tops are tightly closed.

• When removing ice from the ice-making compartment, do not touch it. Ice may cause frost burns and/or cuts.

• Do not touch frozen goods with wet hands. Do not eat ice- cream or ice cubes immediately after you have taken them out of the ice-making compartment.

• Do not re-freeze frozen goods after they have melted. This may cause health issues such as food poisoning.

• Do not cover the body or top of fridge with lace. This affects the performance of your fridge.

• Secure any accessories in the fridge during transportation to prevent damage to the accessories.EN

Installing and operating your fridge Before using your fridge, you should pay attention to the following points:

• The operating voltage for your fridge is 220-240 V at 50Hz.

• We do not accept responsibility for any damages that occur due to ungrounded usage.

• Place your fridge where it will not be exposed to direct sunlight.

• Your appliance should be at least 50 cm away from stoves, gas ovens and heater cores, and at least 5 cm away from electrical ovens.

• Your fridge should never be used outdoors or exposed to rain.

• When your fridge is placed next to a deep freezer, there should be at least 2 cm between them to prevent humidity forming on the outer surface.

• Do not place anything on your fridge, and install your fridge in a suitable place so that at least 15 cm of free space is available above it.

• Use the adjustable front legs to make sure your appliance is level and stable. You can adjust the legs by turning them in either direction. This should be done before placing food in the fridge.

• Before using your fridge, wipe all parts with a solution of warm water and a teaspoon of sodium bicarbonate, then rinse with clean water and dry. Place all parts in the fridge after cleaning.

• Install the plastic distance guide (the part with black vanes at the rear) by turning it 90° (as shown in the gure) to prevent the condenser from touching the wall.

• The refrigerator should be placed against a wall with a free space not exceeding 75 mm.EN

Information about New Generation Cooling Technology Fridges with new generation cooling technology have a different working system than static fridges. In normal fridges, humid air that enters into fridge and the water vapor that comes out from the foods, accumulates frost formation in freezer compartment. In order to melt this frost, in other words defrost, the fridge has to be stopped. During the stopping period, to keep the foods cold, user has to extract the food to outside of fridge and user has to clear the ice during this period. In the fridges with new generation cooling technology, situation in the freezer compartment is completely different. With the aid of fan, cold and dry air is blown out through many points into the freezer compartment. As a result of the homogenously blown cold air, even in the spaces between shelves, foods are frozen equally and correctly. On the other hand there will be no frost formation. In the refrigerator compartment, there will be nearly same conguration with freezer compartment. Air, that is emitted with the fan, located at the top of refrigerator compartment, is cooled while passing through the gap behind the air duct. At the same time, air is blown out through the holes on the air duct so that cooling process is successfully completed in the refrigerator compartment. Holes on the air duct are designed such that the air distribution becomes homogenous in this compartment. As there is no air passage between freezer and refrigerator compartment, there will be no odor mixing. As a result of these, your fridge with new generation cooling technology, gives you, ease of use beside the huge volume and esthetic appearance. Before Using your Fridge

• When using your fridge for the rst time, or after transportation, keep it in an upright position for at least 3 hours before plugging into the mains. This allows efcient operation and prevents damage to the compressor.

• Your fridge may have a smell when it is operated for the rst time. This is normal and the smell will fade away when your fridge starts to cool.EN

This presentation is only for information about the parts of the appliance. Parts may vary according to the appliance model. THE PARTS OF THE APPLIANCE AND THE COMPARTMENTS

10) Freezer glass shelves

• In some models THE PARTS OF THE APPLIANCE AND THE COMPARTMENTS This presentation is only for information about the parts of the appliance. Parts may vary according to the appliance model.EN

Display and control panel Sr Alarm Indicator Cooler Set Button Cooler Set Button The temperature of the cooler compartment can be changed using this button. Super Cool and Economy mode can also be activated using this button. Sr Alarm Sr Alarm will change to red and an alarm will sound if any problems occur.EN

Operating your fridge Super cool mode How would it be used?

• Push the Cooler Set Button until the Super Cool Symbol illuminates. The buzzer will sound twice and the mode will be set. During this mode:

• Super cool mode can be cancelled in the same way that it was selected. Note: Super Cool mode will be automatically cancelled after 6 hours, depending on the environmental temperature or when the refrigerator sensor reaches a sufciently low temperature. Economy mode How would it be used?

• Press the Cooler Set Button until the Economy Symbol illumintes.

• If no button is pressed for 1 second the mode will be set. The buzzer will sound twice.

• To cancel, press the Cooler Set Button. Cooler temperature settings

• The initial temperature value for the Cooler Setting Indicator is +4 °C.

• Press the Cooler Set Button once

• When you rst press the button, the previous value appears on the setting indicator of the cooler.

• Whenever you press this button, lower temperatures will be set (+8°C, +6°C, Economy, +4°C, +2°C, supercool).

• If you press the cooler set button until the supercool symbol appears on the Cooler Setting Indicator and do not press any buttons within 1 second, Super Cool will ash.

• If you continue to press, it will restart from +8°C. Warnings about temperature adjustments

• It is not recommended that you operate your fridge in environments colder than 10°C in terms of its efciency.

• Temperature adjustments should be made according to the frequency of door openings and the quantity of food kept inside the fridge.

• Do not move to another adjustment before completing the currentEN

• Your fridge should be operated up to 24 hours according to the ambient temperature without interruption after being plugged in to be completely cooled. Do not open the doors of your fridge frequently and do not place much food inside it in this period.

• A 5 minute delay function is applied to prevent damage to the compressor of your fridge when unplugging or plugging in, or when an energy breakdown occurs. Your fridge will start to operate normally after 5 minutes.

• Your fridge is designed to operate in the ambient temperature intervals stated in the standards, according to the climate class displayed on the information label. We do not recommend operating your fridge out of the stated temperature limits in terms of cooling effectiveness.

• This appliance is designed for use at an ambient temperature within the 10°C - 43°C range. Climate Class Ambient Temperature

• Pull the box out as far as possible

• Pull the front of box up and out. ! Make the inverse of the same operation for the resetting the sliding compartment. Note: Always Keep the handle of box while removing the box. Freezer boxesEN

Chiller Shelf Keeping food in the Chiller compartment instead of the freezer or refrigerator compartment allows food retain freshness and avour longer, while preserving its fresh appearance. When chiller tray becomes dirty, remove it and wash it with water. (Water freezes at 0°C, but foods containing salt or sugar freeze at temperature lower than that) Normally people use the chiller compartment for raw sh, lightly pickled, rice, etc... Do not put foods you want to freeze or ice trays in order to make ice. Removing the Chiller shelf

• Pull the chiller shelf out toward you by sliding on rails.

• Pull the chiller shelf up from rail to remove. Humidity Controler When the humidity controler in the closed position, it allows fresh fruit and vegetables to be stored longer. In case of the crisper is totally full, the fresh dial is located in front of crisper, should be opened. By means of this the air in the crisper and humidity rate will be controlled and endurance life will be increased. If you see any condensation on glass shelf, humidity control should be taken into the open positions.

THE VARIOUS FUNCTION AND POSSIBILITIES

(In some models) (In some models)EN

Adjustable Door Shelf Six different height adjustments can be made to provide storage areas that you need by adjustable door shelf. To change the position of adjustable door shelf ; Hold the bottom of the shelf and pull the buttons on the side of the door shelf direction of arrow (Fig.1). Position door shelf the height you need by moving up and down. After you get the position that you want the door shelf, release the buttons on the side of the door shelf (Fig.2) Before releasing the door shelf, move up down and make sure the door shelf is xed. Note: Before moving door shelf is loaded, you must hold the shelf by supporting the bottom. Otherwise, door shelf could fall off the rails due to the weight. So damage may occur on the door shelf or rails. Adjustable Glass Shelf Adjustable glass shelf mechanism provides higher storage spaces with a simple movement. To cover the glass shelf, push it. You can load your food as you want in the resulting extra space. To bring the shelf in its original position, pull it toward you. Figure -1 Figure -2

THE VARIOUS FUNCTION AND POSSIBILITIES

Figure -1 Figure -2 (In some models) (In some models) Visual and text descriptions on the accessories section may vary according to the model of your appliance.EN

CLEANING AND MAINTENANCE

• Disconnect the unit from the power supply before cleaning.

• Do not clean the appliance by pouring water.

• Make sure that no water enters the lamp housing and other electrical components.

• The refrigerator should be cleaned periodically using a solution of bicarbonate of soda and lukewarm water.

• Clean the accessories separately with soap and water Do not clean them in the dishwasher.

• Do not use abrasive products, detergents or soaps. After washing, rinse with clean water and dry carefully. When you have nished cleaning, reconnect the plugto the mains supply with dry hands.

• Clean the condenser with a broom at least twice a year. This will help you to save on energy costs and increase productivity. THE POWER SUPPLY MUST BE DISCONNECTED.EN

CLEANING AND MAINTENANCE

Defrosting Your refrigerator performs automatic defrosting. The water formed as a result of defrosting passes through the water collection spout, ows into the vaporisation container behind your refrigerator and evaporates there.

• Make sure you have disconnected the plug of your refrigerator before cleaning the vaporisation container.

• Remove the vaporisation container from its position by removing the screws as indicated. Clean it with soapy water at specic time intervals. This will prevent odours from forming. Replacing LED Lighting If your refrigerator has LED lighting contact the help desk as this should be changed by authorized personnel only. Evaporating trayEN

ARRANGING FOOD IN THE APPLIANCE

Refrigerator compartment

• For normal operating conditions, adjusting the temperature value of the cooler partition of the fridge to 4°C will be enough.

• To reduce humidity and consequent increase of frost never place liquids in unsealed containers in the refrigerator. Frost tends to concentrate in the coldest parts of the evaporator and in time will require more frequent defrosting.

• Never place warm food in the refrigerator. Warm food should be allowed to cool at room temperature and should be arranged to ensure adequate air circulation in the refrigerator compartment.

• Nothing should touch on the back wall as it will cause frost and the packages can stick on the back wall. Do not open the refrigerator door too frequently.

• Arrange the meat and cleaned sh(wrapped in packages or sheets of plastic) which you will use in 1-2 days,in the bottom section of the refrigerator compartment(that is above the crisper) as this is the coldest section and will ensure the best storing conditions.

• You can put the fruits and vegetables into crisper without packing. Some recommendations have been specied below for the placement and storage of your food in the cooling compartment. NOTE: Potatoes, onions and garlic should not be stored in the refrigerator. Food Maximum Storing time Where to place in the fridge department Vegetables and fruits 1 week Vegetable bin Meat and sh 2 - 3 Days Wrapped in plastic foil or bags or in a meat container (on the glass shelf) Fresh cheese 3 - 4 Days In special door shelf Butter and margarine 1 week In special door shelf Bottled products milk and yoghurt Until the expiry date recommended by the producer In special door shelf Eggs 1 month In the egg shelf Cooked food All shelvesEN

ARRANGING FOOD IN THE APPLIANCE

• Please use the deep freeze compartment of your refrigerator for storing the frozen food for a long time and for producing ice.

• To get maximum capacity for freezer compartment, please just use glass shelves for upper and middle section. For bottom section, please use lower basket.

• Please do not place the food you shall newly freeze nearby the already frozen food.

• You should freeze the food to be frozen (meat, minced meat, sh, etc.) by dividing them into portions in such a way that they can be consumed once.

• Please do not refreeze the frozen food once they are thawed. It may pose a danger for your health since it might cause problems such as food poisoning.

• Do not place the hot meals in your deep freeze before they become cold. You would cause the other food frozen beforehand in the deep freeze to become putreed.

• When you buy frozen food, makes sure that they were frozen under appropriate conditions and the package is not torn.

• While storing the frozen food, the storage conditions on the package should certainly be observed. If there is not any explanation, the food must be consumed within the shortest time possible.

• If there had been humidication in the frozen food package and it has a foul smell, the food might have been stored under unsuitable conditions previously and gone rotten. Do not purchase this type of foods!

• The storage durations of frozen food change depending on the ambient temperature, the frequent opening and closing of the doors, thermostat settings, food type and the time elapsed from the purchase time of the food to the time it is placed into the freezer. Always abide by the instructions on the package and never exceed the indicated storage duration.

• During long lasting power failures, please do not open the door of the deep freeze compartment. Your refrigerator shall preserve your frozen food for about 18 hours in ambient temperatures of 25°C and for about 13 hours in ambient temperatures of 32°C. This value will decrease under higher ambient temperatures. During longer power failures, do not refreeze your food and consume them as soon as possible.EN

ARRANGING FOOD IN THE APPLIANCE

Not that; if you want to open again immediately after closing the freezer door, it will not be opened easily. It’s quite normal! After reaching equilibrium condition, the door will be opened easily. Important note:

• Frozen foods, when thawed, should be cooked just like fresh foods. If they are not cooked after being thawed they must NEVER be re- frozen.

• The taste of some spices found in cooked dishes (anise, basilica, watercress, vinegar, assorted spices, ginger, garlic, onion, mustard, thyme, marjoram, black pepper, etc.) changes and they assume a strong taste when they are stored for a long period. Therefore, the frozen food should be added little amount of spices or the desired spice should be added after the food has been thawed.

• The storage period of food is dependent on the oil used. The suitable oils are margarine, calf fat, olive oil and butter and the unsuitable oils are peanut oil and pig fat.

• The food in liquid form should be frozen in plastic cups and the other food should be frozen in plastic folios or bags. Some recommendations have been specied on pages 23, 24 and 25 for the placement and storage of your food in the deep freeze compartment.EN

ARRANGING FOOD IN THE APPLIANCE

Meat and sh Preparation Maximum Storing time (month) Steak Wrapping in a foil 6 - 8 Lamb meat Wrapping in a foil 6 - 8 Veal roast Wrapping in a foil 6 - 8 Veal cubes In small pieces 6 - 8 Lamb cubes In pieces 4 - 8 Minced meat In packages without using spices

Giblets (pieces) In pieces 1 - 3 Bologna sausage/ salami Should be packaged even if it has membrane Chicken and turkey Wrapping in a foil 4 - 6 Goose and Duck Wrapping in a foil 4 - 6 Deer, Rabbit, Wild Boar In 2.5 kg portions and as llets

Fresshwater shes (Salmon, Carp, Crane, Siluroidea) After cleaning the bowels and scales of the sh, wash and dry it; and if necessary, cut the tail and head.

Lean sh; bass, turbot, ounder

Fatty shes (Tunny, Mackarel, bluesh, anchovy)

Shellsh Cleaned and in bags 4 - 6 Caviar In its package, aluminium or plastic container

Snail In salty water, aluminum or plastic container

Note: Frozen meat should be cooked as fresh meat after being thawed. If the meat is not cooked after being thawed, it should never be frozen again.EN

ARRANGING FOOD IN THE APPLIANCE

Vegetables and Fruits Preparation Maximum Storing time (months) String beans and beans Wash and cut to small pieces and boil in water

Beans Hull and wash and boil in water 12 Cabbage Cleaned and boil in water 6 - 8 Carrot Clean and cut to slices and boil in water

Pepper Cut the stem, cut into two pieces and remove the core and boil in water

Spinach Washed and boil in water 6 - 9 Cauliower Take the leaves apart, cut the heart into pieces, and leave it in water with a little lemon juice for a while

Eggplant Cut to pieces of 2cm after washing 10 - 12 Corn Clean and pack with its stem or as sweet corn

Apple and pear Peel and slice 8 - 10 Apricot and Peach Cut into two pieces and remove the stone

Strawberry and Blackberry Wash and hull 8 - 12 Cooked fruits Adding 10 % of sugar in the container

Plum, cherry, sourberry Wash and hull the stems 8 - 12EN

Dairy Products Preparation Maximum Storing time (months) Storing Conditions Packet (Homogenize) Milk In its own packet

Pure Milk – In its own packet Cheese- excluding white cheese In slices 6 - 8 Original package may be used for short storing period. It should be wrapped in foil for longer periods. Butter, margarine In its package 6 Maximum Storing time (months) Thawing time in room temperature (hours) Thawing time in oven (minutes) Bread 4 - 6 2 - 3 4-5 (220-225 °C) Biscuits 3 - 6 1 - 1,5 5-8 (190-200 °C) Pastry 1 - 3 2 - 3 5-10 (200-225 °C) Pie 1 - 1,5 3 - 4 5-8 (190-200 °C) Phyllo dough

TRANSPORTATION AND CHANGING OF

INSTALLATION POSITION Transportation and Changing of Installation Position

• The original packages and foamed polystyrene (PS) can be retained if required.

• During transportation, the appliance should be secured with a wide string or a strong rope. The instructions written on the corrugated box must be followed while transporting.

• Before transporting or changing the installation position, all the moving objects (ie,shelves,crisper…) should be taken out or xed with bands in order to prevent them from getting damaged. Repositioning the door

• It is not possible to change the opening direction of your refrigerator door, if the door handle on your refrigerator is installed from the front surface of the door.

• It is possible to change the opening direction of the door on models without any handles.

• If the door opening direction of your refrigerator may be changed, you should contact the nearest Authorised Service Agent to have the opening direction changed.EN

If your fridge is not operating;

• Is there a power failure?

• Is the plug connected to the socket correctly?

• Is the fuse of the socket to which the plug is connected or the main fuse blown?

• Is there any failure at the socket? To check this, plug your refrigerator to a socket this is surely operating. If your fridge is not cooling enough;

• Is the temperature adjustment right?

• Is the door of your fridge opened frequently and left open for a long while?

• Is the door of fridge closed properly?

• Did you put a dish or food on your fridge so that it contacts the rear wall of your fridge so as to prevent the air circulation?

• Is your fridge lled excessively?

• Is there adequate distance between your fridge and the rear and side walls?

• Is the ambient temperature within the range of values specied in the operating manual? If the food in your refrigerator compartment is over cooled

• Is the temperature adjustment right?

• Are there many food recently put inside the freezer compartment? If so, your fridge may over cool the food inside the refrigerator compartment as it will operate longer to cool these food. Check Warnings; Your fridge warns you if the temperatures for cooler and the freezer are at improper levels or if a problem occurs with the appliance. ERROR TYPE ERROR TYPE WHY WHAT TO DO

"Failure Warning" There is/are some part(s) out of order or there is a failure in the cooling process Call an authorised service engineer for assistance as soon as possible.EN

If your fridge is operating too loudly; To maintain the set cooling level, compressor may be activated from time to time. Noises from your fridge at this time are normal and due to its function. When the required cooling level is reached, noises will be decreased automatically. If the noises persist;

• Is your appliance stable? Are the legs adjusted?

• Is there anything behind your fridge?

• Are the shelves or dishes on the shelves vibrating? Re-place the shelves and/or dishes if this is the case.

• Are the items placed on your fridge vibrating? Normal Noises; Cracking (Ice cracking) Noise:

• During automatic defrosting.

• When the appliance is cooled or warmed (due to expansion of appliance material). Short cracking: Heard when the thermostat switches the compressor on/off. Compressor noise (Normal motor noise): This noise means that the compressor operates normally Compressor may cause more noise for a short time when it is activated. Bubbling noise and splash: This noise is caused by the ow of the refrigerant in the tubes of the system. Water ow noise: Normal ow noise of water owing to the evaporation container during defrosting. This noise can be heard during defrosting. Air Blowing Noise (Normal fan noise): This noise can be heard in No- Frost fridge during normal operation of the system due to the circulation of air. If humidity builds up inside the fridge;

• Are all food packed properly? Are the containers dried before placing them in the fridge?

• Are the fridge doors opened frequently? Humidity of the room gets in the fridge when the doors are opened. Humidity build up will be faster when you open the doors more frequently, especially if the humidity of the room is high.EN

If the doors are not opened and closed properly;

• Do the food packages prevent closing of the door?

• Are the door compartments, shelves and drawers placed properly?

• Are door gaskets broken or torn?

• Is your fridge on a level surface? If the edges of fridge cabinet that the door joint contact are warm; Especially in summer (hot weather), the surfaces that the joint contact may get warmer during the operation of the compressor, this is normal. IMPORTANT NOTES:

• Compressor protection function will be activated after sudden power breakdowns or after unplugging the appliance, because the gas in the cooling system is not stabilized yet. Your fridge will start after 5 minutes, there is nothing to worry about.

• If you will not use your fridge for a long time (e.g. in summer holidays) unplug it. Clean your fridge according to Part 4 and leave the door open to prevent humidity and smell.

• If the problem persists after you have followed all the instructions above, please consult to the nearest authorized service.

• The appliance you bought is designed for home type use and can be used only at home and for the stated purposes. It is not suitable for commercial or common use. If the consumer use the appliance in a way that does not comply with these features, we emphasize that the producer and the dealer shall not be responsible for any repair and failure within the guarantee period.EN

1. For better energy saving we suggest :

2. Installing tge appliance away from heat sources and not exposed to

direct sunlight and in a well ventilated roo.

3. Avoid putting hot food into the refrigerator to avoid increasing the

internal temperature and therefore causing continuos functionaliting of the compressor.

4. Do not excessively stuff foods so as to ensure proper air circulation.

5. Defrost the appliance in case there is ice to facilitate the transfer of cold.

6. In case of absence of electrical energy, it is advisable to keep the

refrigerator door closed.

7. Open or keep the doors of the appliance open as little as possible

8. Avoid adjusting the setting to temperatures too cold.

9. Remeve dust present on the rear of the applianceEN

SCRAPPING OLD APPLIANCES

This appliance is marked according to the European directive 2012/19/ EU on Waste Electrical and Electronic Equipment (WEEE). WEEE contains both polluting substances (which can cause negative consequences for the environment) and basic components (which can be re-used). It is important to have WEEE subjected to specic treatments, in order to remove and dispose properly all pollutants, and recover and recycle all materials. Individuals can play an important role in ensuring that WEEE does not become an environmental issue; it is essential to follow some basic rules: - WEEE should not be treated as household waste; - WEEE should be handed over to the relevant collection points managed by the municipality or by registered companies. In many countries, for large WEEE, home collection could be present. In many countries, when you buy a new appliance, the old one may be returned to the retailer who has to collect it free of charge on a one-to- one basis, as long as the equipment is of equivalent type and has the same functions as the supplied equipment. Conformity By placing the mark on this product, we are conrming compliance to all relevant European safety, health and environmental requirements which are applicable in legislation for this product.IT

SCRAPPING OLD APPLIANCES

NELL’ELETTRODOMESTICOIT

NELL’ELETTRODOMESTICOIT

SCRAPPING OLD APPLIANCES
