USER MANUAL ACF48WSSHV Accucold

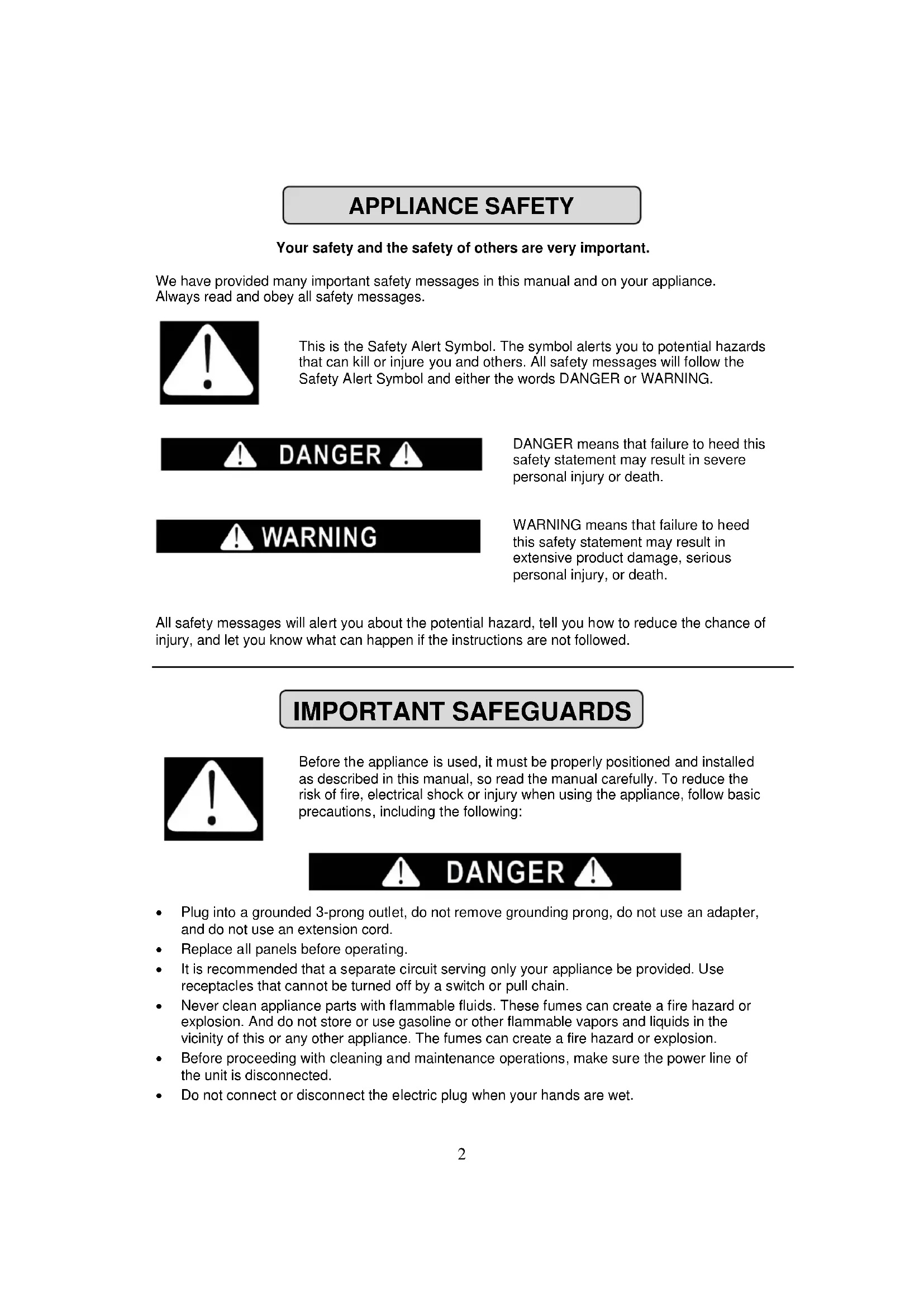

This is the Safety Alert Symbol. The symbol alerts you to potential hazards that can kill or injure you and others. All safety messages will follow the Safety Alert Symbol and either the words DANGER or WARNING.

DANGER means that failure to heed this safety statement may result in severe personal injury or death.

WARNING means that failure to heed this safety statement may result in extensive product damage, serious personal injury, or death.

All safety messages will alert you about the potential hazard, tell you how to reduce the chance of injury, and let you know what can happen if the instructions are not followed.

IMPORTANT SAFEGUARDS Before the appliance is used, it must be properly positioned and installed as described in this manual, so read the manual carefully. To reduce the risk of fire, electrical shock or injury when using the appliance, follow basic precautions, including the following:

• Plug into a grounded 3-prong outlet, do not remove grounding prong, do not use an adapter, and do not use an extension cord.

• Replace all panels before operating.

• It is recommended that a separate circuit serving only your appliance be provided. Use receptacles that cannot be turned off by a switch or pull chain.

• Never clean appliance parts with flammable fluids. These fumes can create a fire hazard or explosion. And do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any other appliance. The fumes can create a fire hazard or explosion.

• Before proceeding with cleaning and maintenance operations, make sure the power line of the unit is disconnected.

• Do not connect or disconnect the electric plug when your hands are wet.3

• Unplug the appliance or disconnect power before cleaning or servicing. Failure to do so can result in electrical shock or death.

• Do not attempt to repair or replace any part of your appliance unless it is specifically recommended in this manual. All other servicing should be referred to a qualified technician.

• Use two or more people to move and install the appliance. Failure to do so can result in back or other injury.

• To ensure proper ventilation for your appliance, the front of the unit must be completely unobstructed. Choose a well-ventilated area with temperatures above 60°F (16°C) and below 90°F (32°C). This unit must be installed in an area protected from the elements, such as wind, rain, water spray or drips.

• The appliance should not be located next to ovens, grills or other sources of high heat.

• The appliance must be installed with all electrical, water and drain connections in accordance with state and local codes. A standard electrical supply (115 V AC only, 60 Hz), properly grounded in accordance with the National Electrical Code and local codes and ordinances, is required.

• Do not kink or pinch the power supply cord of the appliance.

• The size of the fuse (or circuit breaker) should be 15 amperes.

• It is important that the appliance be level in order to work properly. You may need to make several adjustments to level it.

• All installations must be in accordance with local plumbing code requirements.

• Make certain that the pipes are not pinched, kinked or damaged during installation.

• Check for leaks after connection.

• To avoid deformation, never place hot or heavy items on top of the freezer.

• Never allow children to operate, play with or crawl inside the appliance.

• Do not use solvent-based cleaning agents or abrasives on the interior. These cleaners may damage or discolor the interior.

• Use this appliance only for its intended purpose as described in this Instruction Manual.

• Keep fingers out of the “pinch point” areas. Clearances between the door and cabinet are necessarily small. Be careful closing door when children are in the area.

Risk of child entrapment! Child entrapment and suffocation are not problems of the past. Junked or abandoned appliances are still dangerous, even if they will “just sit for a few days”. Before discarding your old refrigerator:

• Leave the shelves in place so that children may not easily climb inside.

TECHNICAL INFORMATION ACCUCOLD Model Numbers: ACF48W series (white) ACF49B series (black) SUMMIT COMMERCIAL Model Numbers: SCUF48W series (white) SCUF49B series (black) Description: Commercial freezer Electrical Rating: 120V AC 60Hz Power Input: 1.5 amps Capacity: 3.1 ft

Temperature Range: -5°F to +10°F (-20.6°C to -12.2°C) Refrigerant: R134a Shelves: 2, white, coated steel Installation: Built-in or free-standing Unit Dimensions: 23¼”W x 23¼”D x 33”H* NOTE: Models with “ADA” included in their suffix are 32” high

Before Using the Freezer

• Remove the exterior and interior packing.

• Locate the appliance away from direct sunlight and sources of heat (stove, heater, radiator, etc.). Direct sunlight may affect the acrylic coating and heat sources may increase electrical consumption. Extremely cold ambient temperatures may also cause the freezer not to perform properly.

• Avoid locating the appliance in moist areas.

• Before connecting the freezer to the power source, let it stand upright for approximately 2 hours. This will reduce the possibility of a malfunction in the cooling system from handling during transportation.

• Clean the interior surface with lukewarm water using a soft cloth. Installing the Freezer

• The appliance is designed for built-in or recessed or free-standing installation for indoor use. If built-in, the unit can be installed under the counter in a 24-inch-wide opening.

• Place your appliance on a floor that is strong enough to support it when it is fully loaded. To level the unit, adjust the leveling legs.

• For free standing installation, 4 inches (102mm) of space at the top, back and sides of the unit are suggested, which allows the proper air circulation to cool the compressor and condenser. Even for built-in installation, you should provide the following clearances to ensure the best operation and proper ventilation: at least 3/16” on both sides, 2” at the rear and 1/16” at the top. Take care that the air vent at the front of the appliance is never covered or blocked in any way.

• NOTE: Do not install this appliance in a location where the temperature will fall below 44°F (7°C). For best performance, do not install the appliance behind a cabinet door or block the base grille.

• Plug the appliance into an exclusive, properly grounded wall outlet. Do not under any circumstances cut or remove the third (ground) prong from the power cord. Any questions concerning power and/or grounding should be directed toward a certified electrician or an authorized service center.

• After plugging the appliance into a wall outlet, allow the unit to cool down for 2 to 3 hours before placing items inside the cabinet. Electrical Connection

• This appliance should be properly grounded for your safety. The power cord is equipped with a three-pin plug which mates with standard three

Improper use of the grounded plug can result in the risk of electrical shock. If the power cord is damaged, have it replaced by an authorized service center.6 prong wall outlets to minimize the possibility of electrical shock.

• Do not under any circumstances cut or remove the third ground prong from the power cord supplied.

• This freezer requires a standard 115Volts AC ~ 60Hz electrical outlet with three-prong grounded receptacle.

• To prevent accidental injury, the cord should be secured behind the appliance and not left exposed or dangling.

• Never unplug the freezer by pulling the power cord. Always grip the plug firmly and pull straight out from the receptacle.

• Do not use an extension cord with this appliance. If the power cord is too short, have a qualified electrician or service technician install an outlet near the appliance. Reversing the Door Swing This freezer has the capability of the door opening from either the left or right side. The unit is delivered to you with the door opening from the left side. Should you desire to reverse the opening direction, follow the directions below. If you have a problem, call SUMMIT Customer Service at 1-800-932-4267.

1. Take off the upper hinge cover from the door and remove the screws that

2. Lift the hinge straight up to free the hinge pin from the socket in the top of

3. Lift the door up and away to free its bottom socket from the hinge pin.

4. Remove the screws to the bottom hinge.

5. Remove the decorative caps from the opposite side and plug the holes

from the original side with the decorative caps.

6. Remove the two screws from the front of the kick plate.

7. Move the bottom hinge to the left side and tighten it with two screws. Use

any lock washers or nuts if they were included in the original installation.

8. Replace door onto the hinge pin on the bottom hinge. Place top hinge pin

into door. Insert screws into top hinge and tighten.

9. Reinstall the kick plate and tighten the two screws.

If you notice the door is not hanging straight, loosen the top hinge, adjust the door until it is level and tighten the screws.7 Reversing the Door Handle Once the door opening has been reversed, it will be necessary to move the door handle to the opposite side. To do this, follow these instructions:

1. Use a Phillips head screwdriver to remove the two screws holding the

handle to the left side of the door.

2. Remove the decorative caps from the opposite side of the door and plug

the holes from the original side with the decorative caps.

3. Align the handle with the screws removed in step # 1. Tighten the screws

until the handle is firmly secured against the side of the door.

Turning the Freezer On and Off The freezer turns on automatically when the power cord is plugged into a 120V AC, 60Hz electrical outlet. Similarly, it is turned off by disconnecting the power cord. Setting the Temperature Control The internal temperature of this freezer is controlled by an EVK 201 digital thermostat located below the door, on the right side of the grille panel. If you find it necessary to change the temperature setting for your digital thermostat-controlled appliance, please refer to the following instructions. The front panel of the thermostat is illustrated here: During normal operation, the display shows the internal cabinet temperature, which is measured by a probe set onto the interior wall of the cabinet. To see the SET POINT: The temperature at which the freezer is set to operate is called the set point. To see what this temperature is, push and immediately release the set key. The snowflake-shaped LED will flash and the display will show the set point value. Wait 15 seconds and the inside temperature will display again. To change the SET POINT: Push set and within 15 seconds, press the or key until the desired set point is shown on the display. The new setting will be memorized after 15 seconds provided no other keys are pushed, or you can press the set key immediately.

1. The minimum and maximum limits of the temperature range of your

thermostat are preset and locked by us. That range is -5°F to 10°F. To reset this range, either call us or find information on our website under Troubleshooting.

2. If the freezer is unplugged, has lost power, or is turned off, you must wait

3 to 5 minutes before restarting the unit. If you attempt to restart before this time delay, the freezer will not start.

• Turn off the power by unplugging the appliance, and remove all items, including shelves.

• Wash the inside surfaces with a solution of warm water and baking soda (about 2 tablespoons of baking soda to a quart of water).

• Wash the shelves with a mild detergent solution.

• Wring excess water out of the sponge or cloth when cleaning the area where the controls are located, or any electrical parts.

• Wash the outside cabinet with warm water and mild liquid detergent. Rinse well and wipe dry with a clean soft cloth.

• If appropriate, use an approved stainless steel cleaner to clean the door and handle. Do not use steel wool or a steel brush on stainless steel. CAUTION: Failure to unplug the appliance during cleaning could result in electrical shock or other personal injury

Power Failure Most power failures are corrected within a few hours and should not affect the temperature of your appliance if you minimize the number of times the door is opened. If the power is going to be off for a longer period of time, you need to take the proper steps to protect the contents.9 Vacation Time

• Short vacations: Leave the appliance operating during vacations of less than three weeks.

• Long vacations: If the appliance will not be used for several months, remove all items and turn off the appliance. Clean and dry the interior thoroughly. To prevent odor and mold growth, leave the door open slightly, blocking it open if necessary. Moving Your Appliance

1. Remove all items.

2. Securely tape down all loose items (shelves) inside your appliance.

3. Turn the adjustable legs up to the base to avoid damage.

4. Tape the door shut.

5. Be sure the appliance stays secure in the upright position during

transportation. Also, protect the outside of the appliance with a blanket or similar item. Energy Saving Tips

• The appliance should be located in the coolest area of the room or outdoor location, away from heat producing appliances and out of direct sunlight.

• Ensure that the unit is adequately ventilated. Never cover air vents.

• Do not keep the door open any longer than necessary.

• Let hot items cool to room temperature before placing in the unit. Overloading the unit forces the compressor to run longer.

• Be sure to wrap items to be stored properly, and wipe containers dry before placing them in the unit. This cuts down on frost build-up inside the unit.

• Unit shelves and storage bins should not be lined with aluminum foil, wax paper, or paper toweling. Liners interfere with cold air circulation, making the unit less efficient.

• Organize and label stored items to reduce door openings and extended searches. Remove as many items as needed at one time, and close the door as soon as possible.10 TROUBLESHOOTING You can solve many common problems easily, saving you the cost of a possible service call. Try the suggestions below to see if you can solve the problem before calling a service technician. Troubleshooting Guide PROBLEM POSSIBLE CAUSE The unit does not operate. Not plugged in. Tripped circuit breaker or blown fuse. The unit is not cold enough. Check the temperature set point. External environment may require a lower setting. The door is opened too often. The door is not closed completely. The door gasket does not seal properly. Compressor turns on and off frequently. The ambient temperature is warmer than normal. A large amount of contents has been added. The door is opened too often. The door is not closed completely. The temperature control is not set correctly. The door gasket does not seal properly. Vibrations Check to assure that the appliance is level. The unit seems to make too much noise. A rattling noise may come from the flow of the refrigerant, which is normal. As each cycle ends, you may hear gurgling sounds caused by the flow of refrigerant in your unit. Contraction and expansion of the inside walls may cause popping and crackling noises. The appliance is not level. The door will not close properly. The appliance is not level. The door was reversed and not properly re- installed. The gasket is dirty. The shelves are out of position.

If you've checked the table above and find that you still need help with your appliance, call our Customer Service facility at 800-932-4267 between 9:00AM and 5:00PM ET. We will do our best to answer your questions.11 LIMITED WARRANTY

ONE-YEAR LIMITED WARRANTY

Within the 48 contiguous United States, for one year from the date of purchase, when this appliance is operated and maintained according to instructions attached to or furnished with the product, warrantor will pay for factory-specified parts and repair labor to correct defects in materials or workmanship. Service must be provided by a designated service company. Outside the 48 states, all parts are warranted for one year from manufacturing defects. Plastic parts, shelves and cabinets are warranted to be manufactured to commercially acceptable standards, and are not covered from damage during handling or breakage.

5-YEAR COMPRESSOR WARRANTY

1. The compressor is covered for 5 years.

2. Replacement does not include labor.

ITEMS WARRANTOR WILL NOT PAY FOR:

1. Service calls to correct the installation of your appliance, to instruct you how to use your

appliance, to replace or repair fuses or to correct wiring or plumbing.

2. Service calls to repair or replace appliance light bulbs or broken shelves. Consumable parts

(such as filters) are excluded from warranty coverage.

3. Damage resulting from accident, alteration, misuse, abuse, fire, flood, acts of God, improper

installation, installation not in accordance with electrical or plumbing codes, or use of products not approved by warrantor.

4. Replacement parts or repair labor costs for units operated outside the United States.

5. Repairs to parts or systems resulting from unauthorized modifications made to the appliance.

6. Expenses for travel and transportation for product service in remote locations.

7. The removal and reinstallation of your appliance if it is installed in an inaccessible location or

is not installed in accordance with published installation instructions. DISCLAIMER OF IMPLIED WARRANTIES;

FELIX STORCH, INC. 770 Garrison Avenue Bronx, NY 10474 Phone: [phone] Fax: [phone] www.summitappliance.com For parts and accessory ordering, troubleshooting and helpful hints, visit: www.summitapplianceparts.com12
