USER MANUAL RFNE350L24S BEKO

EN FR AR Freezer User manualPlease read this manual before using the product! Dear Customer, We'd like you to make the best use of our product, which has been manufactured in modern facilities with care and meticulous quality controls. Thus, we advice you to read the entire user manual before you use the product. In case the product changes hands, do not forget to hand the guide to its new owner along with the product. This guide will help you use the product quickly and safely.

• Please read the user guide carefully before installing and operating the product.

• Always observe the applicable safety instructions.

• Keep the user guide within easy reach for future use.

• Please read any other documents provided with the product. Keep in mind that this user guide may apply to several product models. The guide clearly indicates any variations of different models.

Rsk of lfe and property.

Rsk of electrc shock. The product’s packagng s made of recyclable materals, n accordance wth the Natonal Envronment Legslaton.3 / 23 EN Refrigerator/User Manual 1 Safety and environment instructions 4 General safety ........................................................4

1.1.1 HC warning .................................................... 6

1.1.2 For models with water fountain ...........7

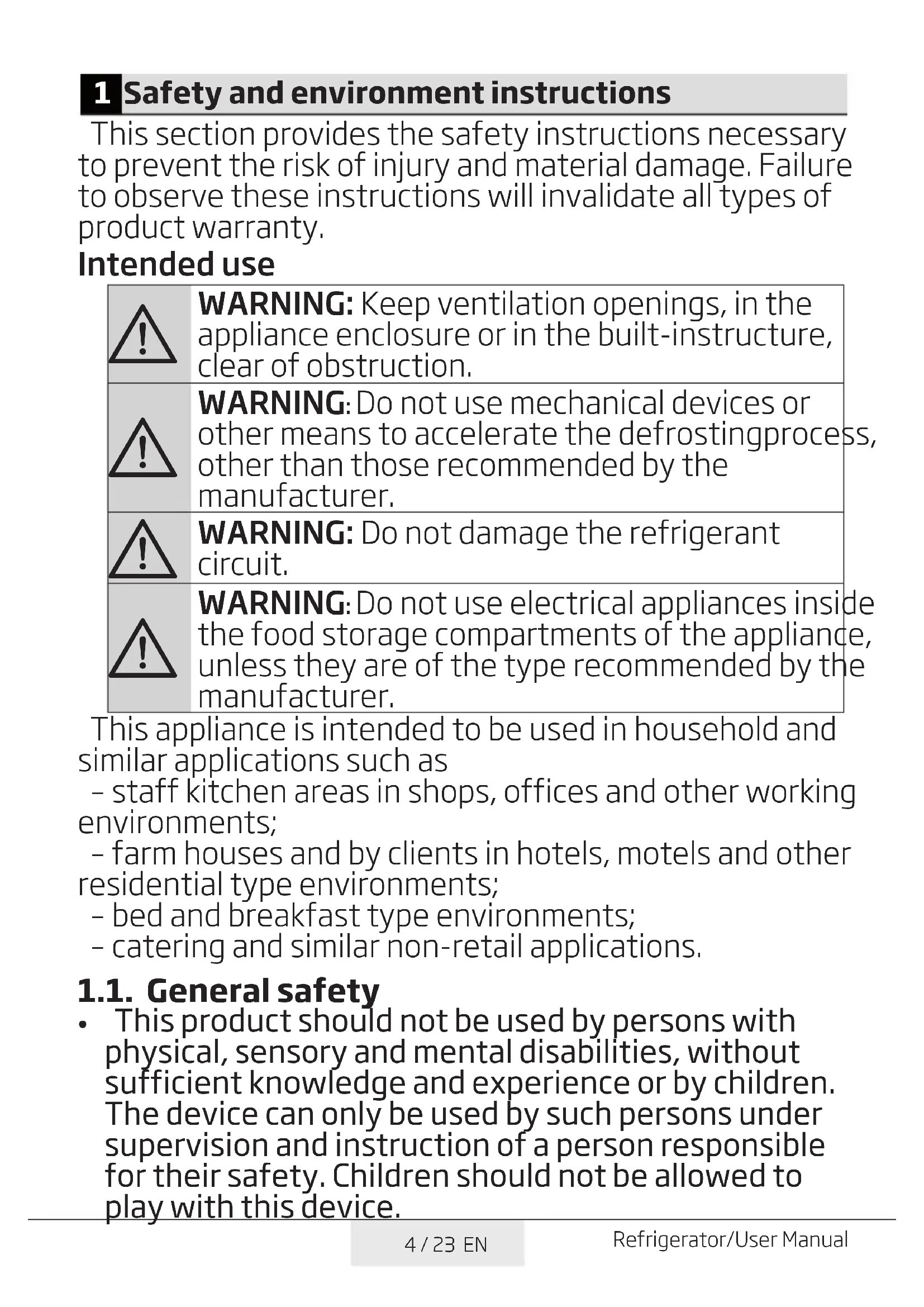

WARNING: Keep ventilation openings, in the

appliance enclosure or in the built-instructure, clear of obstruction.

WARNING: Do not use mechanical devices or

other means to accelerate the defrostingprocess, other than those recommended by the manufacturer.

WARNING: Do not damage the refrigerant

WARNING: Do not use electrical appliances inside

the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer. This appliance is intended to be used in household and similar applications such as – staff kitchen areas in shops, offices and other working environments; – farm houses and by clients in hotels, motels and other residential type environments; – bed and breakfast type environments; – catering and similar non-retail applications. 1.1. General safety

• This product should not be used by persons with physical, sensory and mental disabilities, without sufficient knowledge and experience or by children. The device can only be used by such persons under supervision and instruction of a person responsible for their safety. Children should not be allowed to play with this device.5 / 23 EN Refrigerator/User Manual Safety and environment instructions

• In case of malfunction, unplug the device.

• After unplugging, wait at least 5 minutes before plugging in again.

• Unplug the product when not in use.

• Do not touch the plug with wet hands! Do not pull the cable to plug off, always hold the plug.

• Do not plug in the refrigerator if the socket is loose.

• Unplug the product during installation, maintenance, cleaning and repair.

• If the product will not be used for a while, unplug the product and remove any food inside.

• Do not use the product when the compartment with circuit cards located on the upper back part of the product (electrical card box cover) (1) is open.

• Do not use steam or steamed cleaning materials for cleaning the refrigerator and melting the ice inside. Steam may contact the electrified areas and cause short circuit or electric shock!

• Do not wash the product by spraying or pouring water on it! Danger of electric shock!6 / 23 EN Refrigerator/User Manual Safety and environment instructions

• In case of malfunction, do not use the product, as it may cause electric shock. Contact the authorized service before doing anything.

• Plug the product into an earthed socket. Earthing must be done by a qualified electrician.

• If the product has LED type lighting, contact the authorized service for replacing or in case of any problem.

• Do not touch frozen food with wet hands! It may adhere to your hands!

• Do not place liquids in bottles and cans into the freezer compartment. They may burst out!

• Place liquids in upright position after tightly closing the lid.

• Do not spray flammable substances near the product, as it may burn or explode.

• Do not keep flammable materials and products with flammable gas (sprays, etc.) in the refrigerator.

• Do not place containers holding liquids on top of the product. Splashing water on an electrified part may cause electric shock and risk of fire.

• Exposing the product to rain, snow, sunlight and wind will cause electrical danger. When relocating the product, do not pull by holding the door handle. The handle may come off.

• Take care to avoid trapping any part of your hands or body in any of the moving parts inside the product.

• Do not step or lean on the door, drawers and similar parts of the refrigerator. This will cause the product to fall down and cause damage to the parts.

• Take care not to trap the power cable.7 / 23 EN Refrigerator/User Manual Safety and environment instructions

If the product comprses a coolng system usng R600a gas, take care to avod damagng the coolng system and ts ppe whle usng and movng the product. Ths gas s flammable. If the coolng system s damaged, keep the product away from sources of fre and ventlate the room mmedately.

The label on the inner left side indicates the type of gas used in the product.

1.1.2 For models with water dispenser

• Pressure for cold water inlet shall be maximum 90 psi (6.2 bar). If your water pressure exceeds 80 psi (5.5 bar), use a pressure limiting valve in your mains system. If you do not know how to check your water pressure, ask for the help of a professional plumber.

• If there is risk of water hammer effect in your installation, always use a water hammer prevention equipment in your installation. Consult Professional plumbers if you are not sure that there is no water hammer effect in your installation.

• Do not install on the hot water inlet. Take precautions against of the risk of freezing of the hoses. Water temperature operating interval shall be 33°F (0.6°C) minimum and 100°F (38°C) maximum.

• Use drinking water only.8 / 23 EN Refrigerator/User Manual Safety and environment instructions 1.2. Intended use

• This product is designed for home use. It is not intended for commercial use.

• The product should be used to store food and beverages only.

• Do not keep sensitive products requiring controlled temperatures (vaccines, heat sensitive medication, medical supplies, etc.) in the refrigerator.

• The manufacturer assumes no responsibility for any damage due to misuse or mishandling.

• Original spare parts will be provided for 10 years, following the product purchasing date. 1.3. Child safety

• Keep packaging materials out of children’s reach.

• Do not allow the children to play with the product.

• If the product’s door comprises a lock, keep the key out of children’s reach. 1.4. Compliance with WEEE Directive and Disposing of the Waste Product This product complies with EU WEEE Directive (2012/19/EU). This product bears a classification symbol for waste electrical and electronic equipment (WEEE). This product has been manufactured with high quality parts and materials which can be reused and are suitable for recycling. Do not dispose of the waste product with normal domestic and other wastes at the end of its service life. Take it to the collection center for the recycling of electrical and electronic equipment. Please consult your local authorities to learn about these collection centers. 1.5. Compliance with RoHS Directive

• Ths product comples wth EU WEEE Drectve (2011/65/EU). It does not contan harmful and prohbted materals specfed n the Drectve. 1.6. Package information

• Packagng materals of the product are manufactured from recyclable materals n accordance wth our Natonal Envronment Regulatons. Do not dspose of the packagng materals together wth the domestc or other wastes. Take them to the packagng materal collecton ponts desgnated by the local authortes.9 / 23 EN Refrigerator/User Manual 2 Your Freezer

4. Adjustable front feet

Figures that take place in this instruction manual are schematic and may not correspond exactly with your product. If the subject parts are not included in the product you have purchased, then it is valid for other models.

410 / 23 EN Refrigerator/User Manual 3 Installation 3.1. Appropriate installation location Contact an Authorized Service for the installation of the product. In order to prepare the product for use, refer the information in the user manual and ensure that electrical installation and water installation are appropriate. If not, call a qualified electrician and technician to have any necessary arrangements carried out.

WARNING:Manufacturer shall

not be held lable for damages that may arse from procedures carred out by unauthorzed persons.

WARNING:Product must

not be plugged n durng nstallaton. Otherwse, there s the rsk of death or serous njury!

If the door clearance of the room where the product shall be place s so tght to prevent passng of the product, remove the door of the room and pass the product through the door by turnng t to ts sde; f ths does not work, contact the authorzed servce.

• Placetheproductonanevenfloor surface to prevent jolts.

• Installtheproductatleast30cm away from heat sources such as hobs, heater cores and stoves and at least 5 cm away from electrical ovens.

• Productmustnotbesubjectedto direct sun light and kept in humid places.

• Appropriateairventilationmustbe provided around your product in order to achieve an efficient operation. If the product is to be placed in a recess in the wall, pay attention to leave at least 5 cm distance with the ceiling and side walls.

3.2. Installing the plastic wedges Plastc wedges suppled wth the product are used to create the dstance for the ar crculaton between the product and the rear wall.

1. To install the wedges, remove the

screws on the product and use the screws supplied together with the wedges.

2. Insert the 2 plastic wedges onto the

rear ventilation cover as illustrated in the figure.11 / 23 EN Refrigerator/User Manual Installaton 3.3. Adjusting the feet If the product stands unbalanced after nstallaton, adjust the feet on the front by rotatng them to the rght or left. 3.4. Electrical connection

WARNING: Do not make

power cable must be replaced by the Authorzed Servce Agent.

If two coolers are to be nstalled sde by sde, there should be at least 4 cm dstance between them.

• Our company shall not be lable for any damages that wll arse when the product s used wthout groundng and electrcal connecton n accordance wth the natonal regulatons.

• Power cable plug must be wthn easy reach after nstallaton.

• Connect your refrgerator to a grounded outlet rated for a voltage value of 220-240V /50 Hz. Outlet shall have 10 to 16A fuse.

• Do not extenson cords or cordless multple outlets between your product and the wall outlet.12 / 23 EN Refrigerator/User Manual Installation Reversing the doors Proceed in numerical order .

• Your cooler/freezer should be installed at least 30 cm away from heat sources such as hobs, ovens, central heater and stoves and at least 5 cm away from electrical ovens and should not be located under direct sunlight.

• Please make sure that the interior of your cooler/freezer is cleaned thoroughly.

• If two coolers are to be installed side by side, there should be at least 2 cm distance between them.

• When you operate your cooler/freezer for the first time, please observe the following instructions during the initial six hours.

• Its door should not be opened frequently.

• It must be operated empty without placing any food in it.

• Do not unplug your cooler/freezer. If a power failure occurs out of your control, please see the warnings in the “Recommended solutions for the problems” section.

• The baskets/drawers that are provided with the chill compartment must always be in use for low energy consumption and for better storage conditions.

• Food contact with the temperature sensor in the freezer compartment may increase energy consumption of the appliance. Thus any contact with the sensor(s) must be avoided.

• This product has been designed to function at ambient temperatures up to 43 °C (90 SDgrF). Even if the ambient temperature falls to -15 °C, frozen food in the freezer does not thaw thanks to its Advanced Electronic Temperature Control System. For the first installation, the product should NOT be placed under low ambient temperatures. This is because the freezer cannot go down to standard operation temperature. When reaching continuous operation, the product can be moved to another place. Thus, later you can place your product in the garage or an unheated room without the concern of causing frozen food to get rotten. However, it is likely that above mentioned low temperatures may cause the freezing of the food in the fridge compartment; thus, please consume the food items in the fridge in a controlled way as needed. When ambient temperature goes back to normal, you may change button setting according to your need.

• If the ambient temperature is below 0°C, the food in fridge compartment will freeze. Therefore, we recommend not using the fridge compartment in such low ambient temperatures. You may continue to use the freezer compartment as usual.

• In some models, the instrument panel automatically turns off 5 minutes after the door has closed. It will be reactivated when the door has opened or pressed on any key.

• Due to temperature change as a result of opening/closing the product door during operation, condensation on the door/body shelves and the glass containers is normal.14 / 23 EN Refrigerator/User Manual

Fgures n ths user manual are schematc and may not match the product exactly. If the subject parts are not ncluded n the product you have purchased, then those parts are vald for other models. 5 Using your cooler/freezer 5.1. Setting the operating temperature MAX.

Warm Cold The operating temperature is regulated by the temperature control. 1 = Lowest cooling setting (Warmest setting) MAX. = Highest cooling setting (Coldest setting) Please choose the setting according to the desired temperature. The interior temperature also depends on ambient temperature, the frequency with which the door is opened and the amount of foods kept inside. Frequently opening the door causes the interior temperature to rise. For this reason, it is recommended to close the door again as soon as possible after use. The normal storage temperature of your appliance should be -18 °C (0 °F). Lower temperatures can be obtained by adjusting the thermostat knob towards Position MAX. We recommend checking the temperature with a thermometer to ensure that the storage compartments are kept to the desired temperature. Remember to take the reading immediately since the thermometer temperature will rise very rapidly after you remove it from the freezer.15 / 23 EN Refrigerator/User Manual Operatng the product 5.2. Indicator lights There are three coloured indicator lights located inside the appliance which show the operating mode of the freezer. Amber Indicator Illuminates when the thermostat knob is turned to MAX. position and stays on until the fast freeze operation is deactivated manually. Fast-freeze operation is for freezing fresh food. Green Indicator Illuminates when the appliance is connected to the mains and will glow as long as there is electricity present. The green indicator does not give any indication of the temperature inside the freezer. Red Indicator High Temperature Alarm After the appliance is turned on for the first time the alarm is not active for 12 hours (The red LED indicator is switched off). After this period of time the red LED indicator is switched on in the following situations: -If the appliance is overloaded with fresh food -If the door is left open by mistake.In these situations the red LED indicator will continue to be switched on until the appliance reaches the preset temperature. If the red LED indicator is still switched on then wait for 24 hours before calling service. 5.3. Thermostat knob The thermostat knob is located on the indicator light frame. Important: When you press the fast-freeze switch or adjust the set temperature, there may be a short delay before the compressor starts to operate. This is normal and not a compressor fault. 5.4. Freezing Freezingfood You can use the appliance for freezing fresh food as well as for storing pre- frozen food. Please refer to the recommendations given on the packaging of your food.

• Attention Do not freeze fizzy drinks, as the bottle may burst when the liquid in it is frozen. Be careful with frozen products such as coloured ice-cubes. Do not exceed the freezing capacity of your appliance in 24 hours. See the rating label. In order to maintain the quality of the food, the freezing must be effected as rapidly as possible. Thus, the freezing capacity will not be exceeded, and the temperature inside the freezer will not rise.

• Attention Keep the already deep-frozen food always separated with freshly placed food.16 / 23 EN Refrigerator/User Manual Operating the product When deep-freezing hot food, the cooling compressor will work until the food is completely frozen. This can temporarily cause excessive cooling of the refrigeration compartment. If you find the freezer door difficult to open just after you have closed it, don’t worry. This is due to the pressure difference which will equalize and allow the door to open normally after a few minutes. You will hear a vacuum sound just after closing the door. This is quite normal. 5.5. Fast freeze If large amounts of fresh food are going to be frozen, adjust the control knob to max. 24 hours before putting the fresh food in the fast freeze compartment. It is strongly recommended to keep the knob at MAX. position at least 24 hours to freeze maximum amount of fresh food declared as freezing capacity. Take special care not to mix frozen food and fresh food. Remember to turn the thermostat knob back to its previous position once food has frozen. Defrosting The freezer compartment defrosts automatically.17 / 23 EN Refrigerator/User Manual Operating the product Freezingfreshfood

• It must be preferred to wrap or cover the food before placing them in the refrigerator.

• Hot food must cool down to the room temperature before putting them in the refrigerator.

• The foodstuff that you want to freeze must be fresh and in good quality.

• Foodstuff must be divided into portions according to the family’s daily or meal based consumption needs.

• The foodstuff must be packaged in an airtight manner to prevent them from drying even if they are going to be kept for a short time.

• Materials to be used for packaging must be tear-proof and resistant to cold, humidity, odor, oils and acids and they must also be airtight. Moreover, they must be well closed and they must be made from easy-to-use materials that are suitable for deep freeze usage.

• Frozen food must be used immediately after they are thawed and they should never be re-frozen.

• Please observe the following instructions to obtain the best results.

1. Do not freeze too large quantities

of food at one time. The quality of the food is best preserved when it is frozen right through to the core as quickly as possible.

2. Placing warm food into the freezer

compartment causes the cooling system to operate continuously until the food is frozen solid.

3. Take special care not to mix

already frozen food and fresh food. Recommendationsfor preservationoffrozenfood

• Prepacked commercially frozen food should be stored in accordance with the frozen food manufacturer's instructions for a ( 4 star) frozen food storage compartment.

• To ensure that the high quality achieved by the frozen food manufacturer and the food retailer is maintained, the following should be remembered:

1. Put packages in the freezer as

quickly as possible after purchase.

2. Ensure that contents are labeled

Before" dates on the packaging. Defrosting The freezer compartment defrosts automatically. Placingthefood Freezer compartment shelves Various frozen food such as meat, fish, ice cream, vegetables and etc. Egg tray Egg Fridge compartment shelves Food in pans, covered plates and closed containers Fridge compartment door shelves Small and packaged food or drinks (such as milk, fruit juice and beer) Crisper Vegetables and fruits18 / 23 EN Refrigerator/User Manual Operating the product Freshzone compartment Delicatessen products (cheese, butter, salami and etc.) Deep-freezeinformation Food must be frozen as rapidly as possible when they are put in a refrigerator in order to keep them in good quality. It is possible to keep the food for a long time only at -18°C or lower temperatures. You can keep the freshness of food for many months (at -18°C or lower temperatures in the deep freeze). WARNING! A

• Foodstuff must be divided into portions according to the family’s daily or meal based consumption needs.

• Foodstuff must be packaged in an airtight manner to prevent them from drying even if they are going to be kept for a short time.

• Materials necessary for packaging:

• Pen Materials to be used for packaging the foodstuff must be tear-proof and resistant to cold, humidity, odor, oils and acids. Foodstuff to be frozen should not be allowed to come in contact with the previously frozen items to prevent their partial thawing. Frozen food must be used immediately after they are thawed and they should never be re-frozen. - Active”quıck freeze function” at least 24 hour before loading fresh food. - Put 2 pcs ice packs ( if available ) inside the bottom drawer. - Place fresh food on the shelves of 2 nd&3rd from the bottom.(maximum capacıty can be achieved by removing the drawers19 / 23 EN Refrigerator/User Manual 6 Maintenance and cleaning Cleanng your frdge at regular ntervals wll extend the servce lfe of the product.

product before cleanng t.

• Never use gasolne, benzene or smlar substances for cleanng purposes.

• Never use any sharp and abrasve tools, soap, household cleaners, detergent and wax polsh for cleanng.

• Dssolve one teaspoon of b- carbonate n half ltre of water. Soak a cloth wth the soluton and wrung t thoroughly. Wpe the nteror of the refrgerator wth ths cloth and the dry thoroughly.

• Make sure that no water enters the lamp housng and other electrcal tems.

• If you wll not use the refrgerator for a long perod of tme, unplug t, remove all food nsde, clean t and leave the door ajar.

• Check regularly that the door gaskets are clean. If not, clean them.

• To remove door and body shelves, remove all of ts contents.

• Remove the door shelves by pullng them up. After cleanng, slde them from top to bottom to nstall.

• Never use cleanng agents or water that contan chlorne to clean the outer surfaces and chromum coated parts of the product. Chlorne causes corroson on such metal surfaces. 6.1. Avoiding bad odours Materials that may cause odour are not used in the production of our refrigerators. However, due to inappropriate food preserving conditions and not cleaning the inner surface of the refrigerator as required can bring forth the problem of odour. Pay attention to following to avoid this problem:

• Keepng the refrgerator clean s mportant. Food resduals, stans, etc. can cause odour. Therefore, clean the refrgerator wth b-carbonate dssolved n water every few months. Never use detergents or soap.

• Keep the food n closed contaners. Mcroorgansms spreadng out from uncovered contaners can cause unpleasant odours.

• Never keep the food that have passed best before dates and spoled n the refrgerator. 6.2. Protecting the plastic surfaces Do not put liquid oils or oil-cooked meals in your refrigerator in unsealed containers as they damage the plastic surfaces of the refrigerator. If oil is spilled or smeared onto the plastic surfaces, clean and rinse the relevant part of the surface at once with warm water.20 / 23 EN Refrigerator/User Manual 7 Troubleshooting Check this list before contacting the service. Doing so will save you time and money. This list includes frequent complaints that are not related to faulty workmanship or materials. Certain features mentioned herein may not apply to your product. The refrigerator is not working.

• The power plug s not fully settled. >>> Plug t n to settle completely nto the socket.

• The fuse connected to the socket powerng the product or the man fuse s blown. >>> Check the fuses. Condensation on the side wall of the cooler compartment (MULTI ZONE, COOL, CONTROL and FLEXI ZONE).

• The envronment s too cold. >> Do not nstall the product n envronments wth temperatures below -5°C.

• The door s opened too frequently >>> Take care not to open the product’s door too frequently.

• The envronment s too humd. >>> Do not nstall the product n humd envronments.

• Foods contanng lquds are kept n unsealed holders. >>> Keep the foods contanng lquds n sealed holders.

• The product’s door s left open. >>> Do not keep the product’s door open for long perods.

• The thermostat s set to too low temperature. >>> Set the thermostat to approprate temperature. Compressor is not working.

• In case of sudden power falure or pullng the power plug off and puttng back on, the gas pressure n the product’s coolng system s not balanced, whch trggers the compressor thermc safeguard. The product wll restart after approxmately 6 mnutes. If the product does not restart after ths perod, contact the servce.

• The temperature settng s ncorrect. >>> Select the approprate temperature settng.

• The power s out. >>> The product wll contnue to operate normally once the power s restored. The refrigerator's operating noise is increasing while in use.

• The product’s operatng performance may vary dependng on the ambent temperature varatons. Ths s normal and not a malfuncton.21 / 23 EN Refrigerator/User Manual Troubleshootng The refrigerator runs too often or for too long.

• The new product may be larger than the prevous one. Larger products wll run for longer perods.

• The room temperature may be hgh. >>> The product wll normally run for long perods n hgher room temperature.

• The product may have been recently plugged n or a new food tem s placed nsde. >>> The product wll take longer to reach the set temperature when recently plugged n or a new food tem s placed nsde. Ths s normal

• Large quanttes of hot food may have been recently placed nto the product. >>> Do not place hot food nto the product.

• The doors were opened frequently or kept open for long perods. >>> The warm ar movng nsde wll cause the product to run longer. Do not open the doors too frequently.

• The freezer or cooler door may be ajar. >>> Check that the doors are fully closed.

• The product may be set to temperature too low. >>> Set the temperature to a hgher degree and wat for the product to reach the adjusted temperature.

• The cooler or freezer door washer may be drty, worn out, broken or not properly settled. >>> Clean or replace the washer. Damaged / torn door washer wll cause the product to run for longer perods to preserve the current temperature. The freezer temperature is very low, but the cooler temperature is adequate.

• The freezer compartment temperature s set to a very low degree. >>> Set the freezer compartment temperature to a hgher degree and check agan. The cooler temperature is very low, but the freezer temperature is adequate.

• The cooler compartment temperature s set to a very low degree. >>> Set the freezer compartment temperature to a hgher degree and check agan. The food items kept in cooler compartment drawers are frozen.

• The cooler compartment temperature s set to a very low degree. >>> Set the freezer compartment temperature to a hgher degree and check agan.22 / 23 EN Refrigerator/User Manual Troubleshootng The temperature in the cooler or the freezer is too high.

• The cooler compartment temperature s set to a very hgh degree. >>> Cooler compartment temperature settng has an effect on the freezer compartment temperature. Change the temperature of the cooler or freezer compartment and wat untl the temperature of the related compartments come to the adequate level.

• The doors were opened frequently or kept open for long perods. >>> Do not open the doors too frequently.

• The door may be ajar. >>> Fully close the door.

• The product may have been recently plugged n or a new food tem s placed nsde. >>> Ths s normal. The product wll take longer to reach the set temperature when recently plugged n or a new food tem s placed nsde.

• Large quanttes of hot food may have been recently placed nto the product. >>> Do not place hot food nto the product. Shaking or noise.

• The ground s not level or durable. >>> If the product s shakng when moved slowly, adjust the stands to balance the product. Also make sure the ground s suffcently durable to bear the product.

• Any tems placed on the product may cause nose. >>> Remove any tems placed on the product. The product is making noise of liquid flowing, spraying etc.

• The product’s operatng prncples nvolve lqud and gas flows. >>> Ths s normal and not a malfuncton. There is sound of wind blowing coming from the product.

• The product uses a fan for the coolng process. Ths s normal and not a malfuncton. There is condensation on the product's internal walls.

• Hot or humd weather wll ncrease cng and condensaton. Ths s normal and not a malfuncton.

• The doors were opened frequently or kept open for long perods. >>> Do not open the doors too frequently; f open, close the door.

• The door may be ajar. >>> Fully close the door. There is condensation on the product's exterior or between the doors.

• The ambent weather may be humd, ths s qute normal n humd weather. >>> The condensaton wll dsspate when the humdty s reduced.23 / 23 EN Refrigerator/User Manual Troubleshootng The interior smells bad.

• The product s not cleaned regularly. >>> Clean the nteror regularly usng sponge, warm water and carbonated water.

• Certan holders and packagng materals may cause odour. >>> Use holders and packagng materals wthout free of odour.

• The foods were placed n unsealed holders. >>> Keep the foods n sealed holders. Mcroorgansms may spread out of unsealed food tems and cause malodour.

• Remove any expred or spolt foods from the product. The door is not closing.

• Food packages may be blockng the door. >>> Relocate any tems blockng the doors.

• The product s not standng n full uprght poston on the ground. >>> Adjust the stands to balance the product.

• The ground s not level or durable. >>> Make sure the ground s level and suffcently durable to bear the product. The vegetable bin is jammed.

• The food tems may be n contact wth the upper secton of the drawer. >>> Reorganze the food tems n the drawer.

WARNING:If the problem perssts after followng the nstructons n ths
