USER MANUAL SJBA21IEXW1 SHARP

Your fridge freezer conforms to current safety requirements. Inappropriate use can lead to personal injury and damage to property. To avoid the risk of damage read this manual carefully before using your fridge freezer for the rst time. It contains important safety information on the installation, safety, use and maintenance of your Fridge Freezer. Retain this manual for future use.EN -2-

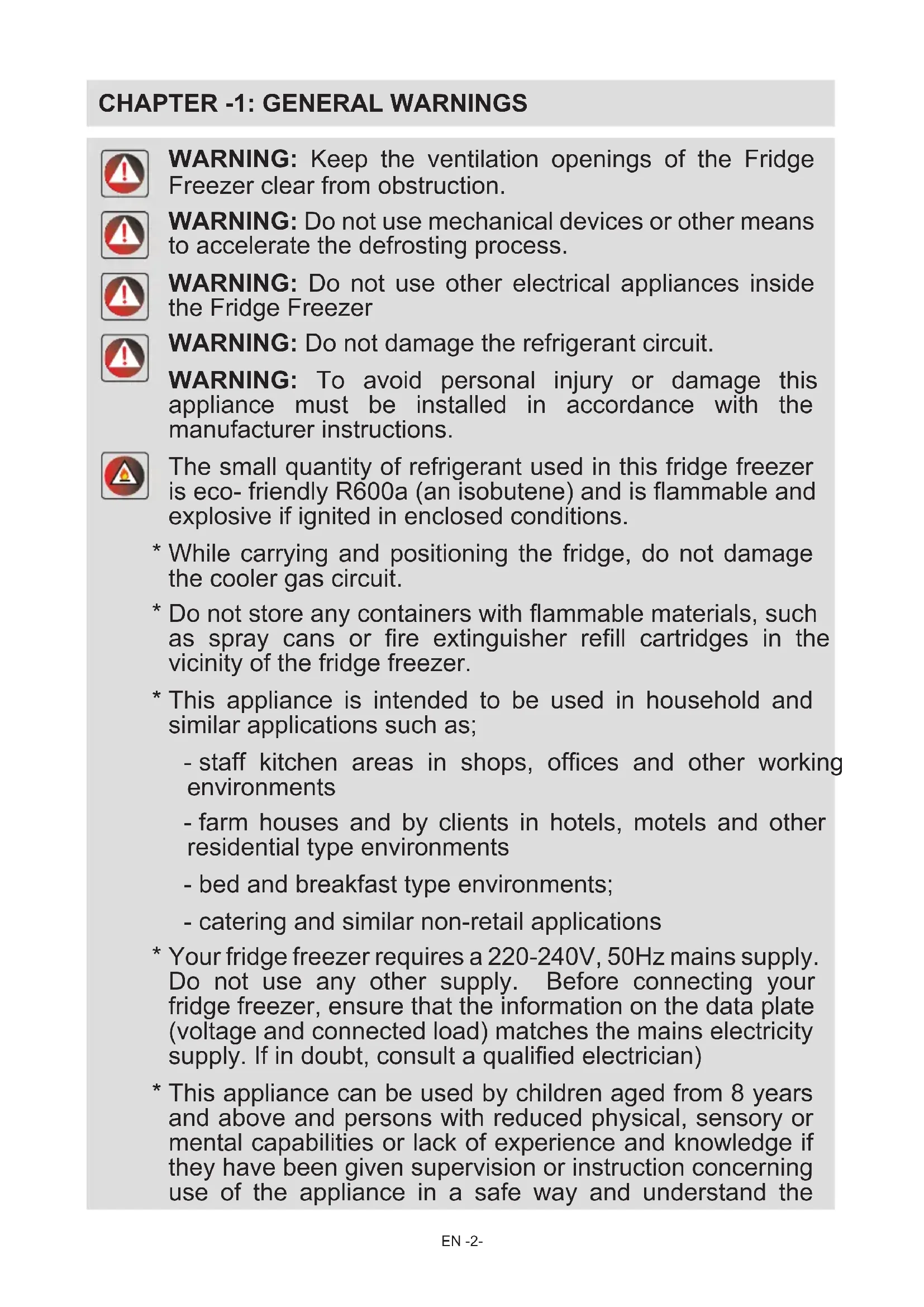

CHAPTER -1: GENERAL WARNINGS

WARNING: Keep the ventilation openings of the Fridge

Freezer clear from obstruction.

WARNING: Do not use mechanical devices or other means

to accelerate the defrosting process.

WARNING: Do not use other electrical appliances inside

WARNING: Do not damage the refrigerant circuit.

WARNING: To avoid personal injury or damage this

appliance must be installed in accordance with the manufacturer instructions. The small quantity of refrigerant used in this fridge freezer is eco- friendly R600a (an isobutene) and is ammable and explosive if ignited in enclosed conditions.

• While carrying and positioning the fridge, do not damage the cooler gas circuit.

• Do not store any containers with ammable materials, such as spray cans or re extinguisher rell cartridges in the vicinity of the fridge freezer.

• This appliance is intended to be used in household and similar applications such as; - staff kitchen areas in shops, ofces and other working environments - farm houses and by clients in hotels, motels and other residential type environments - bed and breakfast type environments; - catering and similar non-retail applications

• Your fridge freezer requires a 220-240V, 50Hz mains supply. Do not use any other supply. Before connecting your fridge freezer, ensure that the information on the data plate (voltage and connected load) matches the mains electricity supply. If in doubt, consult a qualied electrician)

• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand theEN -3-

CHAPTER -1: GENERAL WARNINGS

hazard involved. Children shall not play with the appliance. Cleaning and user maintenance, shall not be made by children without supervision.

• A damaged power cord /plug can cause re or give you an electric shock. When damaged it must be replaced, this should only be done by qualied personnel.

• This appliance is not intended for use at altitudes exceeding 2000 m.EN -4-

• All packaging and materials used are environmentally friendly and recyclable. Please dispose of any packaging in an environmentally friendly manner. Consult your local council for further details.

• When the appliance is to be scrapped, cut off the electrical supply cable and destroy the plug and cable. Disable the door catch in order to prevent children becoming trapped inside.

• A cut off plug inserted into a 16 amp socket is a serious safety (shock) hazard. Please ensure the cut off plug is disposed of safely. Notes:

• Please read the instruction manual carefully before installing and using your appliance. We are not responsible for the damage occurred due to misuse.

• Follow all instructions on your appliance and instruction manual, and keep this manual in a safe place to resolve the problems that may occur in the future.

• This appliance is produced to be used in homes and it can only be used in domestic environments and for the specied purposes. It is not suitable for commercial or common use. Such use will cause the guarantee of the appliance to be cancelled and our company will not be responsible for the losses to be occurred.

• This appliance is produced to be used in houses and it is only suitable for cooling / storing foods. It is not suitable for commercial or common use and/or for storing substances except for food. Our company is not responsible for the losses to be occurred in the contrary case. Safety warnings

• Do not connect your Fridge Freezer to the mains electricity supply using an extension lead.

• A damaged power cord / plug can cause re or give you and electric shock. When damaged it must be replaced, this should only be dine by qualied personnel.

• Never bend the power cord excessively.

• Never touch the power cord / plug with wet hands as this could cause a short circuit electric shock.

• Do not place glass bottles or beverage cans in the freezer department. Bottles or cans may explode.

• When taking ice made in the freezer department, do not touch it, ice may cause ice burns and/or cuts.

• Do not remove items from the freezer if your hands are damp or wet. Tis could cause skin abrasions or frost / freezer burns.

• Do not refreeze food once it has thawed out. Disposal of your old appliance This symbol on the product or package implies that the product should not be treated as domestic waste. Instead, it should be delivered to applicable waste collection places recycling electrical and electronic equipment. Recycling materials will help natural resources be preserved. For more detailed information regarding recycling of this product, please contact local authority, domestic waste disposal service or the shop you have purchased the product from. Please ask your local authority about the disposal of the WEEE for the reuse, recycle and recovery purposes. Installation Information Before unpacking and manoeuvering your fridge freezer please take some time to familiarise yourself with the following points.

• Position away from direct sunlight and away from any heat source such as a radiator.

• Your appliance should be at least 50 cm away from stoves, Gas ovens and heater cores, and should be at least 5 cm away from electrical ovens.

• Do not expose your fridge freezer to moisture or rain.

• Your fridge freezer should be positioned at least 20mm away from another freezer.

• Clearance of at least 150 mm is required at the top and back of your fridge freezer. Do not place anything on top of your fridge freezer.

• For safe operation it is important that your fridge freezer is safe and balanced. The adjustable feet are used to level your fridge freezer. Make sure that your appliance is level before placing any foodstuffs inside it.

• We recommend that you wipe all shelving and trays with a cloth soaked in warm water mixed with a teaspoon of bicarbonate of soda before use. After cleaning rinse with warm water and dry.

• Install using the plastic distance guides, which can be found at the rear of the appliance. Turn 90 degrees (as shown in the diagram). This will keep the condenser from touching the wall.

• Refrigerator should be placed against a wall with a free distance not exceeding 75 mm. Before Using your Fridge

• Before setting up your fridge freezer, check for any visible damage. Do not install or use your fridge freezer if it is damaged

• When using your fridge freezer for the rst time, keep it in an upright position for at least 3 hours before plugging into the mains. This will allow efcient operation and prevents damage to the compressor.

• You may notice a light odour when using your fridge freezer for the rst time. This is perfectly normal and will fade away as the fridge starts to cool.EN -5-

CHAPTER -1: GENERAL WARNINGS

Information about new-generation cooling technology Fridge freezers with new-generation cooling technology have a different working system than static fridge freezers. In normal fridge freezers, humid air entering the freezer and the water vapour emanating from the foods, turns into frost in the freezer compartment. In order to melt this frost, in other words defrost, the fridge has to be unplugged. In order to keep foods cold during the defrosting period, the user must store the food elsewhere and the user must clear the remaining ice and accumulated frost. The situation is completely different in freezer compartments equipped with new-generation cooling technology. With the aid of fan, cold and dry air is blown throughout the freezer compartment. As a result of the cold air that is blown easily throughout the compartment – even in the spaces between shelves – foods are frozen equally and properly. And there will be no frost. The conguration in the refrigerator compartmentwill be nearly same as the freezer compartment. Air emitted by the fan located at the top of refrigerator compartment is cooled while passing through the gap behind the air duct. At the same time, air is blown out through the holes on the air duct so that cooling process is successfully completed in the refrigerator compartment. Holes on the air duct are designed for even air distribution throughout the compartment. Since no air passes between the freezer and refrigerator compartment, odours will not mix. As a result, your fridge with new-generation cooling technology is easy to use and it offers you an access to a huge volume and aesthetic appearance.

CHAPTER -2: YOUR FRIDGE FREEZER

Fridge compartment Freezer compartment Wine rack * Fridge shelves Door shelf / Adjustable door shelf Chiller compartment * Crisper cover Crisper Freezer - top basket Freezer - middle basket Freezer - bottom basket Levelling feet Egg holder Ice tray This gure has been drawn for informational purposes to show the various parts and accessories in the appliance. Parts may vary according to the appliance model. Bottle shelf Door upper shelf

Display and control panel Operating your fridge Super freeze mode How would it be used? Press the freezer set button until the Super freeze symbol is seen on the screen. The buzzer will beep twice . The mode will be set. In this mode:

• Cooler and super cool mode temperatures may be adjusted. In this case super freeze mode will continue.

• Economy and Holiday mode cannot be selected.

• Super freeze mode can be cancelled using the same selection operation. Super cool mode How would it be used? Press the cooler set button until the Super cool symbol is seen on the screen. The buzzer will beep twice . The mode will be set. In this mode:

• The freeze and Super freeze temperature mode may be adjusted. Super cool mode will continue in this case.

• Economy and Holiday mode cannot be selected.

• Super cool mode can be cancelled using the same selection operation.

1. This is cooler set value screen.

2. This is super cooling indicator.

3. This is freezer set value screen.

4. This is super freeze indicator.

5. This is alarm symbol.

6. This is economy mode symbol.

7. This is holiday mode symbol.

8. This is child-lock symbol.

9. This enables the cooler value settings to be modied and super cool

mode to be activated, if desired. The cooler maybe set to 8, 6, 5, 4, 2 °C super cool.

10. This enables the freezer setting values to be modied and super freeze

mode to be activated, if desired. The freezer may be set to -16, -18, -20, -22, -24°C super freeze.

Economy mode How would it be used?

• Push "mode button" until the eco symbol appears.

• If no button is pressed for 1 second. The mode will be set. The eco symbol will blink 3 times. When the mode is set, the buzzer will beep twice.

• The freezer and refrigerator temperature segments will display "E".

• The economy symbol and E will light till mode nishes. In this mode:

• The freezer may be adjusted. When economy mode is cancelled, the selected setting values will commence.

• Cooler may be adjusted. When economy mode is cancelled, the selected setting values will commence.

• Super cool and super freeze modes can be selected. Economy mode is automatically cancelled and the selected mode is activated.

• Holiday mode can be selected after cancelling the economy mode. Then the selected mode is activated.

• To cancel, you will just need to press the mode button. Holiday mode How would it be used?

• Push the "mode button" until the holiday symbol appears

• If no button is pressed for 1 second. Mode will be set. The holiday symbol will blink 3 times. When the mode is set, the buzzer will beep twice.

• Cooler temperature segment will display "--".

• Holiday symbol and "--" will light till mode nishes. In this mode:

• The freezer may be adjusted. When holiday mode is cancelled, the selected setting values will commence.

• Cooler may be adjusted. When holiday mode is cancelled, the selected setting values will commence.

• Super cool and super freeze modes can be selected. Holiday mode is automatically cancelled and the selected mode is activated.

• Economy mode can be selected after cancelling the holiday mode. Then the selected mode is activated.

• To cancel, you will just need to press the mode button. Drink cool mode When would it be used? This mode is used to cool the drinks within an adjustable time. How would it be used?

• Press the freezer button for 3 seconds.

• Special animation will begin on the set freezer value screen and 05 will blink on set cooler value screen.

• Press cooler button to adjust the time (05 - 10 - 15 - 20 - 25 - 30 minutes).

• When you select the time, the numbers will blink 3 times on screen and beep twice.

• If no button is pressed within 2 seconds, the time will be set.

• The countdown begins from the adjusted time minute by minute.

• The remaining time will blink on the screen.

• To cancel this mode press the freezer set button for 3 seconds.EN -8- Light cancelling mode When would it be used?

• If you wish to cancel lights of cooler, you can select this mode.

• While pushing the freezer and mode buttons, open and close cooler door 3 times. The mode will be selected in this way. From now on, the lights will not come on until the function is not cancelled in the same way.

• If you want to cancel this mode, repeat the same process or the mode will automatically cancel itself after 24 hours.

CHAPTER -3: USING YOUR FRIDGE FREEZER

Child lock function When would it be used? To prevent children from playing with the buttons and changing the settings you have made, child lock is available in this appliance. Activating Child Lock Press the Freezer and Cooler buttons simultaneously for 5 seconds. Deactivating Child Lock Press the Freezer and Cooler buttons simultaneously for 5 seconds. Note: Child lock will also be deactivated if the electricity is interrupted or the fridge is unplugged. Screen saver mode Instructions for use

• This mode will be activated when you press the mode button for 5 seconds.

• If no button is pressed within 5 seconds when the mode is active, the lights of the control panel will go off.

• If you press any button when the control panel lights are off, the current settings will appear on the screen, and then you can make the adjustment as needed. If you do not cancel the screen saver mode or do not press any button within 5 seconds, the control panel will go off again.

• To cancel screen saver mode press the on mode button for 5 seconds again.

• When screen saver mode is active you can also activate the child lock.

• If no button is pressed within 5 seconds after child lock is activated, the lights of the control panel will switch off. You can see latest settings or modes status after you press any button. You can cancel child lock as described in the instruction of this mode while the control panel light is on .EN -9-

• Initial temperature value for the Cooler Setting Indicator is +4 °C.

• Press the cooler button once.

• When you rst push this button, the last value will appear on the cooler setting indicator.

• Whenever you press this button, a lower temperature will be set. (+8°C, +6°C, +5°C, +4°C, +2°C, Super cool)

• When you push the cooler set button until the Super cool symbol appears, and if you do not push any button within 1 second, Super Cool will ash.

• If you continue to press the button, it will restart from +8°C.

• The temperature value selected before Holiday Mode, Super Freeze Mode, Super Cool Mode or Economy Mode is activated and will remain the same when the mode is over or cancelled. The appliance continues to operate with this temperature value. Freezer temperature settings

• The initial temperature value for the Freezer Setting Indicator is -18°C.

• Press the set freezer button once.

• When you rst push this button, the last set value will blink on the screen.

• Whenever you press this button, a lower temperature will be set (-16°C, -18°C, -20°C, -22°C, -24°C Super freeze).

• When you push the set freezer button until the Super freeze symbol appears, and if you do not push any other button within 1 second, Super Freeze will ash.

• If you continue to press it, it will restart from -16°C.

• The temperature value selected before Holiday Mode, Super Freeze Mode, Super Cool Mode or Economy Mode is activated and will remain the same when the mode is over or cancelled. The appliance continues to operate with this temperature value. Warnings About Temperature Adjustments

• Your temperature adjustments will not be deleted when an energy breakdown occurs.

• It is not recommended that you operate your fridge in environments colder than 10°C.

• Temperature adjustments should be made according to the frequency of door openings, the quantity of food kept inside the fridge and ambient temperature of the placement of your fridge.

• Your fridge should be operated up to 24 hours according to the ambient temperature without interruption after being plugged in, this is so it is completely cooled. Do not open the doors of your fridge and do not place food inside it during this period.

• A 5 minute delay function is applied to prevent damage to the compressor of your fridge, when you take the plug out and then plug it back in again after an energy breakdown has occurred. Your fridge will start to operate normally after 5 minutes.

• Your fridge is designed to operate in the ambient temperature intervals stated in the standards, according to the climate class stated in the information label. We do not recommend operating your fridge out of the stated temperatures value limits in terms of cooling effectiveness.

• This appliance is designed for use at an ambient tem- perature within the 10°C - 43°C range. Climate Class Ambient Temperature

T Between 16 and 43 (°C) ST Between 16 and 38 (°C) N Between 16 and 32 (°C) SN Between 10 and 32 (°C) Temperature indicator In order to help you better set your refrigerator, we have equipped it with a temperature indicator located in the coldest area. To better store the food in your refrigerator, especially in the coldest area, make sure the message “OK” appears on the temperature indicator. If « OK » does not appear, this means temperature has not been set properly It may be difcult to see the indicator, make sure it is properly lit.Each time the temperature setting device is changed, wait for the stabilisation of the temperature inside the appliance before proceeding, if necessary, with a new temperature setting. Please change the position of the temperature setting device progressively and wait at least 12 hours before starting a new check and potential change. NOTE: Following repeated openings (or prolonged opening) of the door or after putting fresh food into the appliance, it is normal for the indication “OK” not to appear in the temperature setting indicator. If there is an abnormal build up of ice crystals of ice crystals (bottom wall of the appliance) on the refrigerator compartment, evaporator (overloaded appliance, high room temperature, frequent door openings), put the temperature setting device on a lower position until compressor off periods are obtained again. OKEN -10-

CHAPTER -3: USING YOUR FRIDGE FREEZER

Store food in the coldest area of the refrigerator. Your foods will be better stored if you put them in the most appropriate cooling area. The coldest area is just above the crisper. The following symbol indicates the coldest area of your refrigerator. To be sure to have a low temperature in this area, make sure the shelf is located at the level of this symbol, as shown in the illustration. The upper limit of the coldest area is indicated by the lower side of the sticker (head of the arrow). The coldest area upper shelf must be at the same level with the arrow head. The coldest area is below this level. As these shelves are removable, make sure they are always at the same level with these zone limits described on the stickers, in order to guarantee temperatures in this area. Accessories Freezer box

• The freezer box is for foods that need to be accessed more easily.

• Removing The freezer box;

• Pull the box out as far as possible

• Pull the front of box up and out. ! Make the inverse of the same operation for the resetting the sliding compartment. Note: Always hold the handle of box while moving in or out. Freezer boxes Chiller shelf Keeping food in the chiller compartment instead of the freezer or refrigerator compartment allows food retain freshness and avour longer while preserving its fresh appearance. If the chiller tray becomes dirty, remove it and wash with water. (Water freezes at 0 °C, but foods containing salt or sugar require lowered temperatures to freeze) Normally people use the chiller compartment for raw sh, rice, etc... Do not put foods you want to freeze or ice trays in order to make ice. Removing the chiller shelf

• Pull the chiller shelf out toward you by sliding it on rails.

• Pull the chiller shelf up from the rail to remove. After the chiller shelf has been removed, it can support a maximum 20 kg load. Humidity Controller When the humidity controller is in the closed position, it allows fresh fruit and vegetables to be stored for a longer time. In the event the crisper is full, the fresh dial that is located in front of the crisper, should be opened. By means of this, the air in the crisper and humidity rate will be controlled and the shelf life will be extended. If you see any condensation on the glass shelf, the humidity control should be placed into the open positions. Adapti-Lift Door Shelf Six different height adjustments can be made to provide storage areas that you need by Adapti-Lift. To change the position of Adapti-Lift ; Hold the bottom of the shelf and pull the buttons on the side of the door shelf direction of arrow (Fig.1) Position door shelf the height you need by moving up and down. After you get the position that you want the door shelf, release the buttons on the side of the door shelf (Fig.2) Before releasing the door shelf, move up down and make sure the door shelf is xed Note: Before moving door shelf is loaded, you must hold the shelf by supporting the bottom. Otherwise, door shelf could fall off the rails due to the weight. So damage may occur on the door shelf or rails. Fig.1 Fig.2EN -11-

CHAPTER -3: USING YOUR FRIDGE FREEZER

Visual and text descriptions on the accessories section may vary according which model you have.. ADAPTI-SHELF ADAPTI-Shelf mechanism provides higher storage spaces with a simple movement.

• To cover the glass shelf, push it. (Fig. 1)

• You can place your food as you want in the resulting extra space. (Fig. 2)

• To bring the shelf to its original position, pull it toward you. (Fig. 1) Fig. 1 Fig. 2

• Make sure to unplug the fridge before starting to clean it.

• Do not wash your fridge by pouring water.

• You can wipe the inner and outer sides with a soft cloth or a sponge using warm and soapy water.

• Remove the parts individually and clean with soapy water. Do not wash in washing machine.

• Never use ammable, explosive or corrosive material like thinner, gas, acid for cleaning.

• You should clean the condenser with broom at least once a year in order to provide energy saving and increase the productivity. Make sure that your fridge is unplugged while cleaning. Defrosting Your refrigerator automatically defrosts. The water formed as a result of defrosting passes through the water collection spout, ows into the vaporization container behind your refrigerator and evaporates by itself in there. Evaporating tray Replacing LED Lighting If your fridge freezer has LED lighting contact the Sharp help desk as this should be changed by authorized personnel only.

CHAPTER -4: FOOD STORAGE GUIDANCE

Refrigerator compartment

• For normal operating conditions, adjusting the temperature value of the cooler partition of the fridge to 4°C is enough.

• To reduce the humidity and consequently increase frost, never place liquids in unsealed containers in the refrigerator. Frost tends to concentrate in the coldest parts of the evaporator and, in time, will require more frequent defrosting.

• Never place warm food in the refrigerator. Warm food should be allowed to cool at room temperature and should be arranged to ensure adequate air circulation in the refrigerator compartment.

• Nothing should touch the back wall as this will cause frost and the packages may stick to the back wall. Do not open the refrigerator door too frequently.

• Arrange the meat and cleaned sh(wrapped in packages or sheets of plastic) which you will use in 1-2 days, in the bottom section of the refrigerator compartment (that is above the crisper) as this is the coldest section and will ensure the best storing conditions.

• You can put fruits and vegetables into the crisper without packing. Freezer compartment

• Please use the deep freeze compartment of your refrigerator for storing frozen food for a long time and for producing ice.

• To get maximum capacity for the freezer compartment, please just use glass shelves for upper and middle section. For the bottom section, please use lower basket.

• Please do not place the food you that needs to be frozen next to the already frozen food.

• You should freeze the food to be frozen (meat, minced meat, sh, etc.) by dividing it into portions in such a way that they can be consumed once.

• Please do not refreeze the frozen food once it has already thawed. It may pose a danger to your health as it may cause food poisoning.

• Do not place the hot meals in your deep freeze before they become cold. You would cause the other food frozen beforehand in the deep freeze to become putreed.EN -12-

• It depends on which fridge freezer you have as to whether it is possible the reverse the doors.

• It is not possible where handles are attached at the front of the appliance.

• If your model does not have handles it is possible to reverse the doors, but this needs to be completed by authorised personnel. Please call Sharp service.

• When you buy frozen food, makes sure that they were frozen under appropriate conditions and that the package is not torn.

• While storing frozen food, the storage conditions on the package should certainly be observed. If there is no additional information, the food must be consumed within the shortest time possible.

• If the frozen food package was subject to humidity and has a foul smell, it might have been previously stored under unsuitable conditions and gone rotten. Do not purchase this type of food!

• The storage durations of frozen food change depending on the ambient temperature, the frequency of the opening and closing of the doors, thermostat settings, food type and the time elapsed from the purchase time of the food to the time it is placed into the freezer. Always follow the instructions on the package and never exceed the indicated storage duration.

• During long lasting power failures, do not open the door of the deep freeze compartment. Your refrigerator will preserve your frozen food for about 18 hours in ambient temperatures of 25°C and for about 13 hours in ambient temperatures of 32°C. This value will decrease under higher ambient temperatures. During longer power failures, do not refreeze your food and consume it as soon as possible.

• Please note: if you want to open the freezer door immediately after closing it, it will not open easily. This is a normal occurrence. After reaching equilibrium condition, the door will open easily. Important note:

• Frozen foods, when thawed, should be cooked just as fresh foods. If they are not cooked after being thawed they must NEVER be re-frozen.

• The taste of some spices found in cooked dishes (anise, basil, watercress, vinegar, assorted spices, ginger, garlic, onion, mustard, thyme, marjoram, black pepper, etc.) changes and they assume a stronger taste when they are stored for a long period. Therefore, just a small amount of the spice should be added or the desired spice should be added after the food has been thawed.

• The food storage period is dependent on the oil used. Suitable oils include: margarine, half fat, olive oil and butter and the unsuitable oils include: peanut oil and lard.

• The food in liquid form should be frozen in plastic cups and other food should be frozen in plastic folios or bags.

CHAPTER -6: TROUBLESHOOTING

Check Warnings; Your fridge warns you if the temperatures for cooler and freezer are in improper levels or when a problem occurs in the appliance. Warning codes are displayed in the Freezer and Cooler Indicators. ERROR TYPE MEANING WHY WHAT TO DO

"Failure Warning" Some parts have stopped working or there is a failure in the cooling process Contact the Sharp help desk as soon as possible. Sr – Set value blink on the freezer set value screen Freezer comp. Not Cold enough This warning will be seen especially after a long term power failure

1. Do not freeze the foods that have

thawed and use it in a short time period.

2. Set the freezer temperature to colder

values or set the super freeze, until the compartment achieves a normal temperature.

3. Do not put in fresh food until this

warning is off. Sr – Set value Blink on the cooler set value screen "Refrigerator comp. Not Cold enough" Ideal temperature for Ref. Compartment is +4

C. If you see this warning your foods is at risk of spoiling.

1. Set the refrigerator temperature to

colder values or set the super cooling mode until the compartment achieves a normal temperature.

2. Do not open the door frequently until

this warning is removed.EN -13-

CHAPTER -6: TROUBLESHOOTING

If your fridge is not operating;

• Is there a power failure?

• Is the plug connected to the socket correctly?

• Is the fuse of the socket to which the plug is connected or the main fuse blown?

• Is there any failure at the socket? To check this, plug your refrigerator into a known working socket. If your fridge is not cooling enough;

• Is the temperature adjustment right?

• Is the door of your fridge opened frequently and left open for a long while?

• Is the door of fridge closed properly?

• Did you put a dish or food on your fridge so that it contacts the rear wall of your fridge so as to prevent the air circulation?

• Is your fridge lled excessively?

• Is there adequate distance between your fridge and the rear and side walls?

• Is the ambient temperature within the range of values specied in the operating manual? If the food in your refrigerator compartment is over cooled

• Is the temperature adjustment right?

• Are there many food recently put inside the freezer compartment? If so, your fridge may over cool the food inside the refrigerator compartment as it will operate longer to cool these food. If your fridge is operating too loudly; To maintain the set cooling level, compressor may be activated from time to time. Noises from your fridge at this time are normal and due to its function. When the required cooling level is reached, noises will be decreased automatically. If the noises persist;

• Is your appliance stable? Are the legs adjusted?

• Is there anything behind your fridge?

• Are the shelves or dishes on the shelves vibrating? Re-place the shelves and/or dishes if this is the case.

• Are the items placed on your fridge vibrating? Normal Noises; Cracking (Ice cracking) Noise:

• During automatic defrosting.

• When the appliance is cooled or warmed (due to expansion of appliance material). Short cracking: Heard when the thermostat switches the compressor on/off. Compressor noise (Normal motor noise): This noise means that the compressor operates normally Compressor may cause more noise for a short time when it is activated. Bubbling noise and splash: This noise is caused by the ow of the refrigerant in the tubes of the system. Water ow noise: Normal ow noise of water owing to the evaporation container during defrosting. This noise can be heard during defrosting. Air Blowing Noise (Normal fan noise): This noise can be heard in No-Frost fridge during normal operation of the system due to the circulation of air. If humidity builds up inside the fridge;

• Has the food been properly packaged? Have the containers been well dried before they were put into the refrigerator? ERROR TYPE MEANING WHY WHAT TO DO Sr – Set value blink on the freezer and cooler set value screen "not cold enough Warning" This is a combination of "not cool enough" error for both of the compartments. You will see this failure when rst starting the appliance. It will switch off after the compartments achieves a normal temperature Sr – Set value blink on the cooler set value screen Refrigerator comp. too Cold The foods starts to freeze because the temperature is too low.

2. Decrease the refrigerator temperature

"Low voltage Warning" When the power supply goes lower than 170 V, the appliance goes into a steady position. This not a failure. This prevents any damage to the compressor. This warning will go off after the voltage achieves the required levelEN -14-

CHAPTER -6: TROUBLESHOOTING

• Are the doors of the refrigerator opened very frequently? When the door is opened, the humidity found in the air in the room enters the refrigerator. Especially if the humidity rate in the room is too high, the more frequently the door is opened the faster will be the humidication. If the doors are not opened and closed properly;

• Do the food packages prevent closing of the door?

• Are the door compartments, shelves and drawers placed properly?

• Are door gaskets broken or torn?

• Is your fridge on a level surface? If the edges of fridge cabinet that the door joint contact are warm; Especially in summer (hot weather), the surfaces that the joint contact may get warmer during the operation of the compressor, this is normal. IMPORTANT NOTES:

• The compressor protection thermal fuse will cutout after sudden power breakdowns or after unplugging the appliance, because the gas in the cooling system is not stabilised. This is quite normal, and the fridge will restart after 4 or 5 minutes.

• The cooling unit of your refrigerator is hidden in the rear wall. Therefore, water droplets or ice may occur on the rear surface of your fridge due to the operation of the compressor in specied intervals. This is normal. There is no need to perform a defrosting operation unless the ice is excessive.

• If you will not use your fridge for a long time (e.g. in summer holidays) unplug it. Clean your fridge according to

Part 4 and leave the door open to prevent humidity and smell.

• The appliance you have purchased is designed for home type use and can be used only at home and for the stated purposes. It is not suitable for commercial or common use. If the consumer use the appliance in a way that does not comply with these features, we emphasise that the producer and the dealer shall not be responsible for any repair and failure within the guarantee period.

• If the problem persists after you have followed all the instructions above, please consult an authorised service provider.

CHAPTER -7: TIPS FOR SAVING ENERGY

1. Always allow foodstuffs to cool before storing in the appliance.

2. Thaw food in the fridge compartment, this helps save energy.DE -15-

T Entre 16 e 43 (°C) ST Entre 16 e 38 (°C) N Entre 16 e 32 (°C) SN Entre 10 e 32 (°C) Temperature indicator In order to help you better set your refrigerator, we have equipped it with a temperature indicator located in the coldest area. To better store the food in your refrigerator, especially in the coldest area, make sure the message “OK” appears on the temperature indicator. If « OK » does not appear, this means temperature has not been set properly It may be difcult to see the indicator, make sure it is properly lit.Each time the temperature setting device is changed, wait for the stabilisation of the temperature inside the appliance before proceeding, if necessary, with a new temperature setting. Please change the position of the temperature setting device progressively and wait at least 12 hours before starting a new check and potential change. NOTE: Following repeated openings (or prolonged opening) of the door or after putting fresh food into the appliance, it is normal for the indication “OK” not to appear in the temperature setting indicator. If there is an abnormal build up OKPT -84- CAPÍTULO -3: UTILIZAÇÃO DO FRIGIRÍFICO of ice crystals of ice crystals (bottom wall of the appliance) on the refrigerator compartment, evaporator (overloaded appliance, high room temperature, frequent door openings), put the temperature setting device on a lower position until compressor off periods are obtained again. Store food in the coldest area of the refrigerator. Your foods will be better stored if you put them in the most appropriate cooling area. The coldest area is just above the crisper. The following symbol indicates the coldest area of your refrigerator. To be sure to have a low temperature in this area, make sure the shelf is located at the level of this symbol, as shown in the illustration. The upper limit of the coldest area is indicated by the lower side of the sticker (head of the arrow). The coldest area upper shelf must be at the same level with the arrow head. The coldest area is below this level. As these shelves are removable, make sure they are always at the same level with these zone limits described on the stickers, in order to guarantee temperatures in this area. Acessórios Arca congeladora A arca congeladora permite que os alimentos sejam mantidos com maior regularidade. Remover a arca congeladora.

& Support Visit our website: www.sharphomeappliances.com Or contact us:
